Baja Marine Performance 342 User Manual

Download

Baja Marine

Owner’s Manual

Speed changes you.

TM.

342 Performance

Owner’s Manual Part Number: MRP 1813659

Speed changes you.

TM.

Baja marine corPoration, 2600 Sea ray Blvd., Knoxville, tn 37914

for information call 1-865-971-6270 or fax 1-865-971-6716

internet addreSS: httP://www.Bajamarine.com

welcome

Congratulations on becoming the new owner of the world’s #1 performance boat. Baja® Marine Corporation welcomes you into our worldwide and ever-expanding family of boating enthusiasts.

The Owner’s Manual Packet, to be kept on board your Baja, gives you important information on the features of your Baja. Take the time to carefully review the information in your Owner’s Manual Packet and really get to know your boat.

Everyone that operates the boat should read this manual.

The Ow ner ’s Man ual Packet co nta ins the following:

• Owner’s Manual: The Owner’s Manual gives you important operating and safety information, as well as reminders about your responsibilities as a boat owner/operator.

• Original Equipment Manufacturer (OEM)

Information: This section of your Owner’s

Manual Packet contains information from the manufacturers of equipment installed on your boat. Examples include the engine, engine control and steering system. Throughout the Owner’s Manual you will be referred to information provided by manufacturers of

specic systems.

Because your purchase represents a substantial investment, we know you will want to take the necessary measures to protect its value. We have outlined a program for proper operation, periodic maintenance and safety inspections. We urge you to follow these recommendations. If you have questions which are not fully covered by the Owner’s Manual Packet, please consult your authorized dealer for assistance.

Thank You For Selecting A Baja®!

342 Performance

Speed changes you.

TM.

THIS PAGE INTENTIONALLY LEFT BLANK

342 Performance

introduction

1. This Manual

The material within this manual and your Owner’s Manual Packet:

• Gives you basic safety information

• Describes the features of your boat

• Describes the equipment on your boat

• Describes the fundamentals of boat use

• Contains service and maintenance information

You must learn to operate this boat as well as read, understand and use this manual.

What this manual does not give you is a course in boating safety, or how to navigate, anchor, or dock your boat. Operating a power boat safely requires more skills, knowledge, and awareness than is necessary for a car or truck.

• Red Cross

• State Boating Ofces

• Yacht Club

Contact your dealer or the Boat/U.S. Foundation at 1-800-336-2628

Outside of North America, contact your boat dealer and/or your governmental boating agency for assistance.

A book that provides a comprehensive background in boating is Chapman Piloting, Seamanship and Small Boat Handling, by Elbert S. Maloney, published by Hearst Marine.

4. Dealer responsibiliTies

In addition to a pre-delivery check and service of the boat, your dealer is to give you:

2. Your responsibiliTies

For your safety, the safety of your passengers, other boaters, and people in the water, you must:

• Take a boating safety course

• Get instruction in the safe and proper handling of your boat

• Understand and follow the “Rules of the Road”

• Learn how to navigate

• Register your boat: In addition to the registration requirements for your boat in the state where it is used most frequently, many states require additional registration when an out-of-state boat is used within their boundaries. Contact state boating authorities or any marine dealer for registration requirements.

3. sources of inforMaTion

In North America, contact one of the following for boating courses:

• U.S. Coast Guard Auxiliary

• U.S. Power Squadron

• A description and demonstration of the safety systems, features, instruments, and controls on your boat

• An orientation in the general operation of your boat

• An “In Service Form” completed by you and the dealer after inspection of the boat

• A review of all warranty information and how to obtain warranty service

• The complete Owner’s Manual Packet

If you do not receive all of these materials, or have any questions, contact your dealer or call: 1-865-971-6270.

5. WarranTies

Each component and/or system on your boat has its own warranty that will be found with the specic information and manual for that component. These are included with your Owner’s Manual Packet. Locate and read the individual warranties; then put them together for easy future reference. The Baja® warranty is on the warranty information card in your packet and is repeated in this section.

• Canadian Power and Sail Squadrons

342 Performance

iii

introduction

6. hull iDenTificaTion nuMber (hin)

The “Hull Identication Number” located on the

starboard side of the transom, is the most important identifying factor and must be included in all correspondence and orders. Failure to include it creates delays. Also of vital importance are the engine serial numbers and part numbers when writing about or ordering parts for your engine or major components and appliances. Refer to the Engine Operator’s Manual for locations of engine serial numbers and record them for future reference.

hull identification numBer location (fig. iv.1)

hin numBer

of the ABYC, American Boat and Yacht Council.

Baja Marine Corporation participates extensively in the American Boat and Yacht Council which is a

nonprot organization that develops and publishes

voluntary standards and recommended practices for boat and equipment design, construction, service, and repair. We utilize all applicable ABYC standards in the construction of our boats.

Finally, Baja sells their products world wide and as such must conform to the various rules and regulations required by other countries. Most notably, are the ISO standards in Europe which require the application of the CE (Common European) mark. This mark, much like the NMMA

certication in the U.S., gives you, the boat owner, specic information concerning your craft.

8. service, parTs anD repair for Your boaT

7. ManufacTurer’s cerTificaTion

As a boat manufacturer, Baja builds its products to guidelines established under the Federal Boat Safety Act of 1971. The Act is promulgated by the United States Coast Guard who has authority to enforce these laws on boat manufacturers that sell products in the United States. Baja ensures that all of its products comply with these laws.

The National Marine Manufacturers Association

(NMMA) provides Baja with a third party certication.

The NMMA is an organization that represents the marine industry and assists manufacturers, boat dealers, marinas, repair yards, and component suppliers in areas of legislation, environmental concerns, marine business growth, and state and federal government agency interaction. The third

party certication that Baja participates in uses the

well known Standards and Recommended Practices

When your boat needs service, parts or repair, take it to an authorized Baja® Marine dealer. To

nd a dealer in your area visit our website at www.

bajamarine.com or call:

Domestic/International 1-865-971-6270 Fax: 1-865-971-6716

To nd repair and parts facilities for the equipment

installed on your boat, refer to the manual for that component.

If an issue is not handled to your satisfaction:

1. Discuss any warranty-related issues directly with the service manager of the dealership or your sales person. Give the dealer an opportunity to help the service department resolve the matter for you.

2. If an issue arises that has not been resolved to your satisfaction by your dealer, contact Baja® Marine at 1-865-971-6270 and ask to speak with a customer service representative.

342 Performance

Speed changes you.

TM.

abouT Your express liMiTeD WarranTY

Baja Marine offers an Express Limited Warranty on each new Baja purchased through an authorized Baja dealer. A copy of the Limited Warranty was included in your owner’s packet. If for any reason you did not receive a copy of the Limited Warranty, please contact your local dealer or call 1-865-9716270 for a replacement copy.

♦

This is a summary of several provisions of the Limited Warranty. Please read the Limited Warranty, which is the controlling document.

Under the Limited Warranty, Baja Marine covers

structural berglass deck or hull defects which occur within ve (5) years of the date of delivery

and parts found to be defective in factory material or workmanship within one (1) year of the date of delivery. In addition, laminate blisters resulting from defects in factory material or workmanship are covered for three (3) years from the original date of purchase, or for four (4) years from date of manufacture.

Baja’s obligation under the Limited Warranty is limited to repair or replacement of parts that are judged defective by Baja Marine and does not include transportation, haul out, or other expenses. The foregoing is the sole and exclusive remedy provided by Baja Marine.

The Limited Warranty does not cover engines, stern drives, controls, propellers, batteries, trailers, or

other equipment or accessories carrying their own individual warranties, nor does the Limited Warranty cover engines, parts or accessories not installed by Baja Marine. The Limited Warranty does not cover

cosmetic gel coat nish. Boats used for commercial

purpose are excluded from coverage. See the Baja Marine Express Limited Transferable Warranty for other exclusions.

BAJA MARINE EXPRESSLY DISCLAIMS THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS. NEITHER BAJA MARINE NOR THE SELLING DEALER SHALL HAVE ANY RESPONSIBILITY FOR LOSS OF USE OF THE BOAT, LOSS OF T IME, INCONVENI ENCE, COMMERCIAL LOSS OR CONSEQUENTIAL DAMAGES.

The unexpired term of the Limited Warranty may be transferred to a new owner upon the new owner’s written request to Baja Marine Corporation, 2600 Sea Ray Blvd., Knoxville, TN 37914 and accompanied

by the payment to Baja Marine Corporation of fty

dollars ($50.00).

Thank you for your decision to buy a Baja.

♦

The Baja Marine Express Limited Transferable Warranty is subject to change at any time at Baja’s discretion. The information contained herein is general information about the Limited Warranty for the owner’s general knowledge, but does not alter or amend the terms of the Limited Warranty.

342 Performance

342 Performance owner’S manual • taBle of contentS

inTroDucTion

1. This Manual ............................................................iii

2. Your Responsibilities ..............................................iii

3. Sources of Information ...........................................iii

4. Dealer Responsibilities ...........................................iii

5. Warranties ..............................................................iii

6. Hull Identication Number (HIN) ............................ iv

7. Manufacturer’s Certication ................................... iv

8. Service, Parts and Repair for Your Boat ................ iv

About Your Express Limited Warranty ......................... v

secTion 1 • safeTY

1. Safety Labels ....................................................... 1.1

2. Legally Mandated Minimum Required

Equipment ......................................................... 1.2

3. Fire Extinguishing System ...................................1.2

4. Carbon Monoxide ................................................ 1.2

5. Lifesaving Equipment .......................................... 1.4

6. Additional Recommended Equipment for Safe

Operation ..........................................................1.5

7. Impaired Operation .............................................. 1.5

8. Load Capacity......................................................1.6

A. United States ................................................ 1.6

B. International ..................................................1.6

9. Power Capacity ...................................................1.6

10. Propellers ..........................................................1.6

11. Stability .............................................................. 1.7

12. Maintain Control ................................................1.7

13. Weather .............................................................1.8

14. Chart Your Course ............................................. 1.8

15. Water Sports ......................................................1.9

A. Swimming ..................................................... 1.9

B. Skiing ............................................................1.9

C. Diving .........................................................1.10

16. Emergency Situations......................................1.10

A. Medical Emergency .................................... 1.11

B. Water Rescue ............................................. 1.11

C. Fire ............................................................. 1.11

D. Flooding, Swamping and Capsizing ........... 1.11

E. Collisions and Leaking ................................ 1.12

F. Grounding ................................................... 1.12

G. Propulsion, Control or Steering Failure ...... 1.12

17. Safety Hotlines ................................................1.12

18. International Requirements .............................1.13

19. Environmental Considerations.........................1.13

A. Fuel and Oil Spillage ..................................1.13

B. Waste Disposal ........................................... 1.14

C. Excessive Noise ......................................... 1.14

D. Wake/Wash ................................................1.14

20. Nautical Terms .................................................1.15

21. Key to Symbols on Controls & Prints .............. 1.16

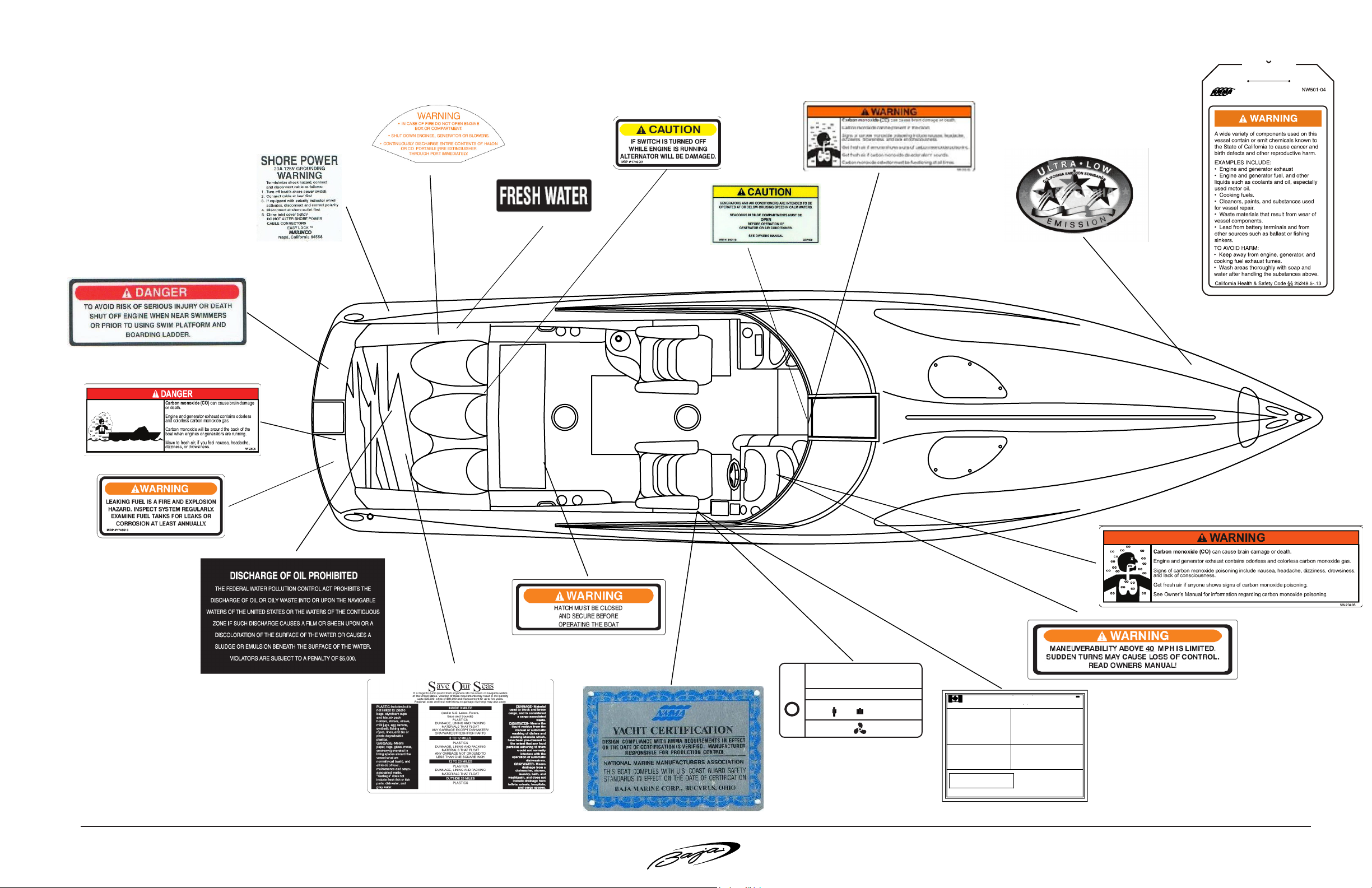

22. Warning Label Locations .................................1.18

secTion 2 • General boaT arranGeMenT

1. Docking/Lifting/Trailering .....................................2.1

2. Passenger Locations ...........................................2.1

3. Basic Boat Dimensions and Clearances (United

States Standard S.A.E.) .................................... 2.2

4. Propulsion System...............................................2.3

5. Propellers ............................................................2.3

6. General Deck Layout ........................................... 2.4

7. Description of Major Controls .............................. 2.5

A. Gear Shift and Throttle Control ..................... 2.5

B. Power Trim Unit and Gauge ......................... 2.5

C. Trailer Switch ................................................ 2.6

D. Trim Tabs ......................................................2.6

E. Ignition Shutdown Switch .............................2.7

F. Engine Alarm System ....................................2.7

8. Important Gauges ................................................ 2.7

A. Tachometer and Hour Meter ......................... 2.7

B. Oil Pressure, Water Temperature, Voltmeter

and Fuel Gauges ...........................................2.8

9. Navigation and Anchor Lights .............................. 2.8

secTion 3 • usinG Your boaT

1. Pre-Launch, Launch and Post-Launch Checklist 3.1

2. Trailer Launching and Loading ............................3.2

3. Fueling the Boat ..................................................3.2

4. Boarding .............................................................. 3.3

5. Personal Flotation Devices (PFD’s) .....................3.3

6. Passenger Instruction and Location .................... 3.4

7. Starting the Engine ..............................................3.4

8. Shifting to Drive the Boat ..................................... 3.5

9. Stopping the Engine ............................................ 3.5

10. Steering Systems ..............................................3.6

A. Hydraulic Steering ........................................ 3.6

B. Power Steering ............................................. 3.7

secTion 4 • bilGe & unDerWaTer Gear

1. Bilge.....................................................................4.1

A. Fuel & Oil Spillage ........................................ 4.1

B. Drain Plug .....................................................4.1

C. Bilge Pumps ................................................. 4.1

D. Bilge Blower(s) ............................................. 4.2

342 Performance

342 Performance owner’S manual • taBle of contentS

2. Engines and Stern Drive......................................4.2

A. Maintenance and Service ............................. 4.2

B. Vibration and Causes ................................... 4.2

C. Impact to Stern Drive .................................... 4.3

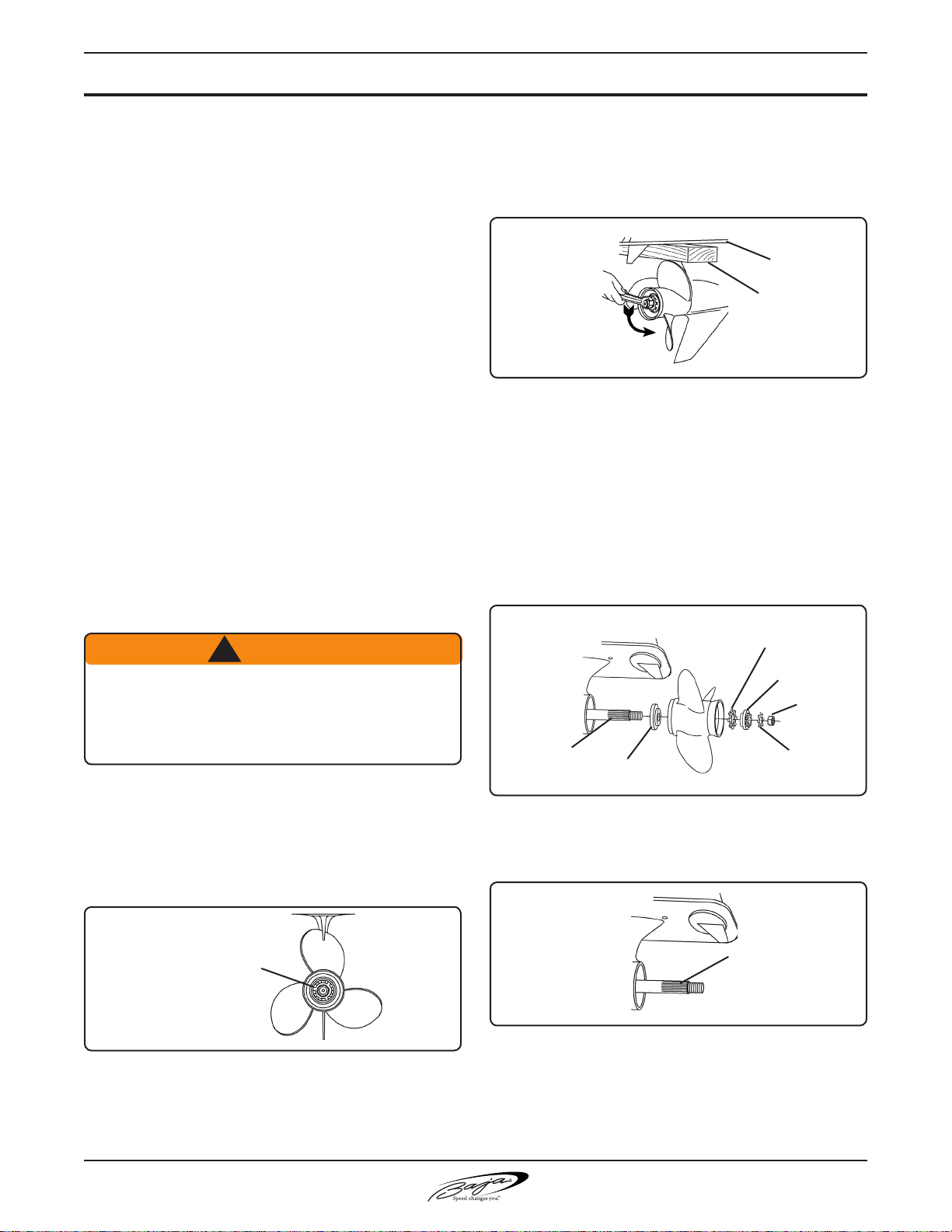

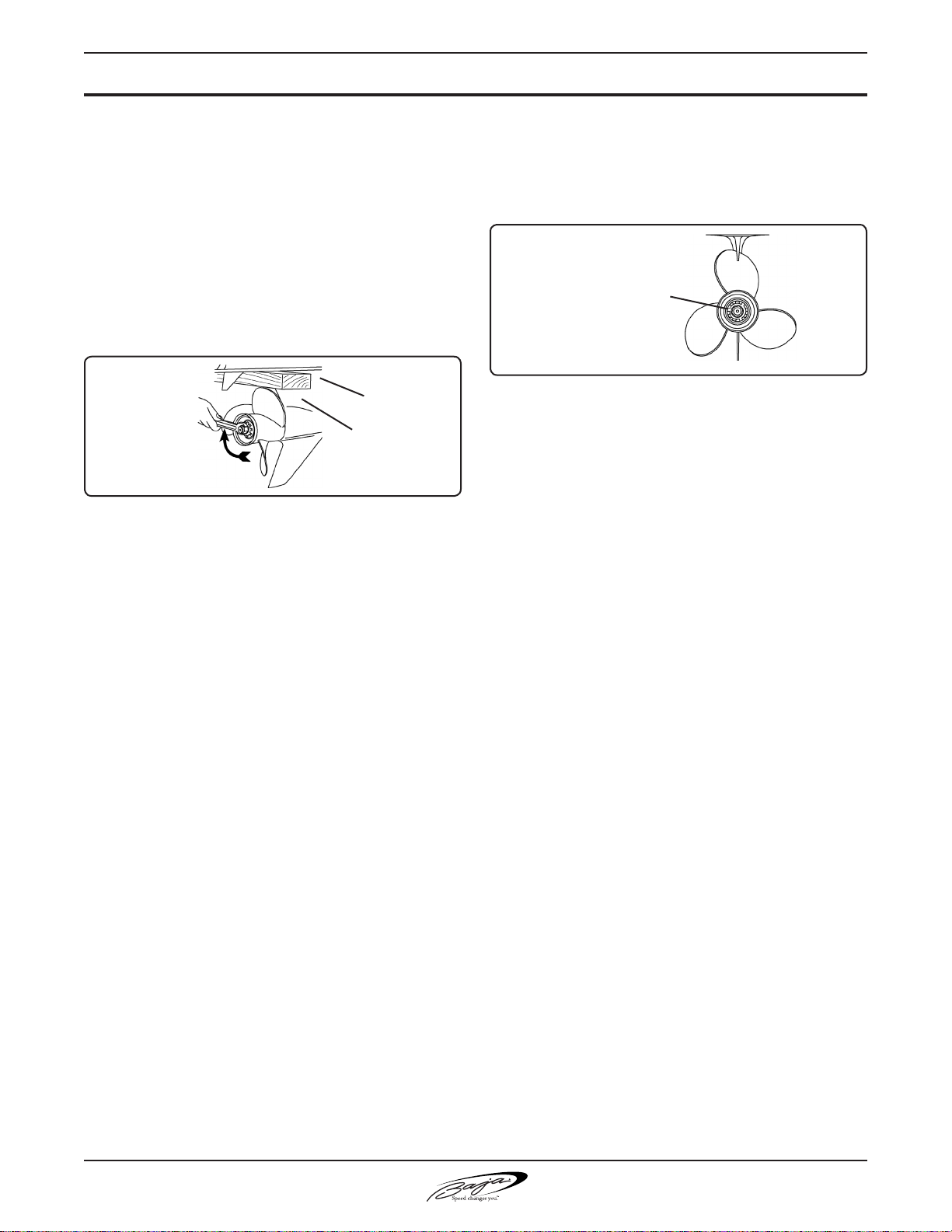

D. Propeller Removal and Installation ............... 4.3

secTion 5 • fuel sYsTeM

1. Fuel System.........................................................5.1

2. Fueling Precautions ............................................. 5.2

A. Static Electricity and the Fuel System .......... 5.2

B. General .........................................................5.2

C. Before and During Fueling – Checklist ........5.2

D. After Fueling – Checklist ............................... 5.3

secTion 6 • elecTrical sYsTeMs

1. Electrical Systems .............................................. 6.1

A. Batteries .......................................................6.1

B. Ignition Protection .........................................6.1

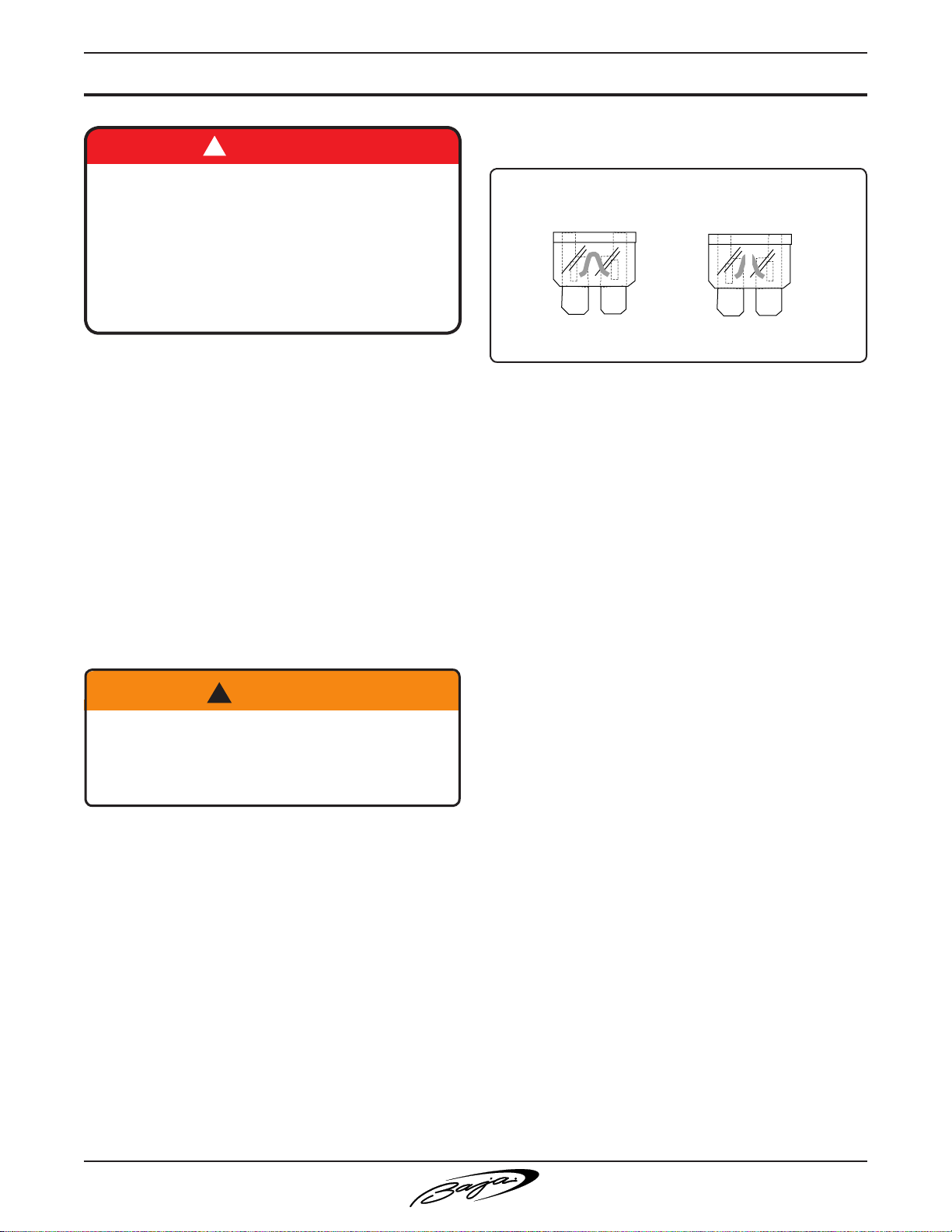

C. Breakers and/or Fuses ................................. 6.2

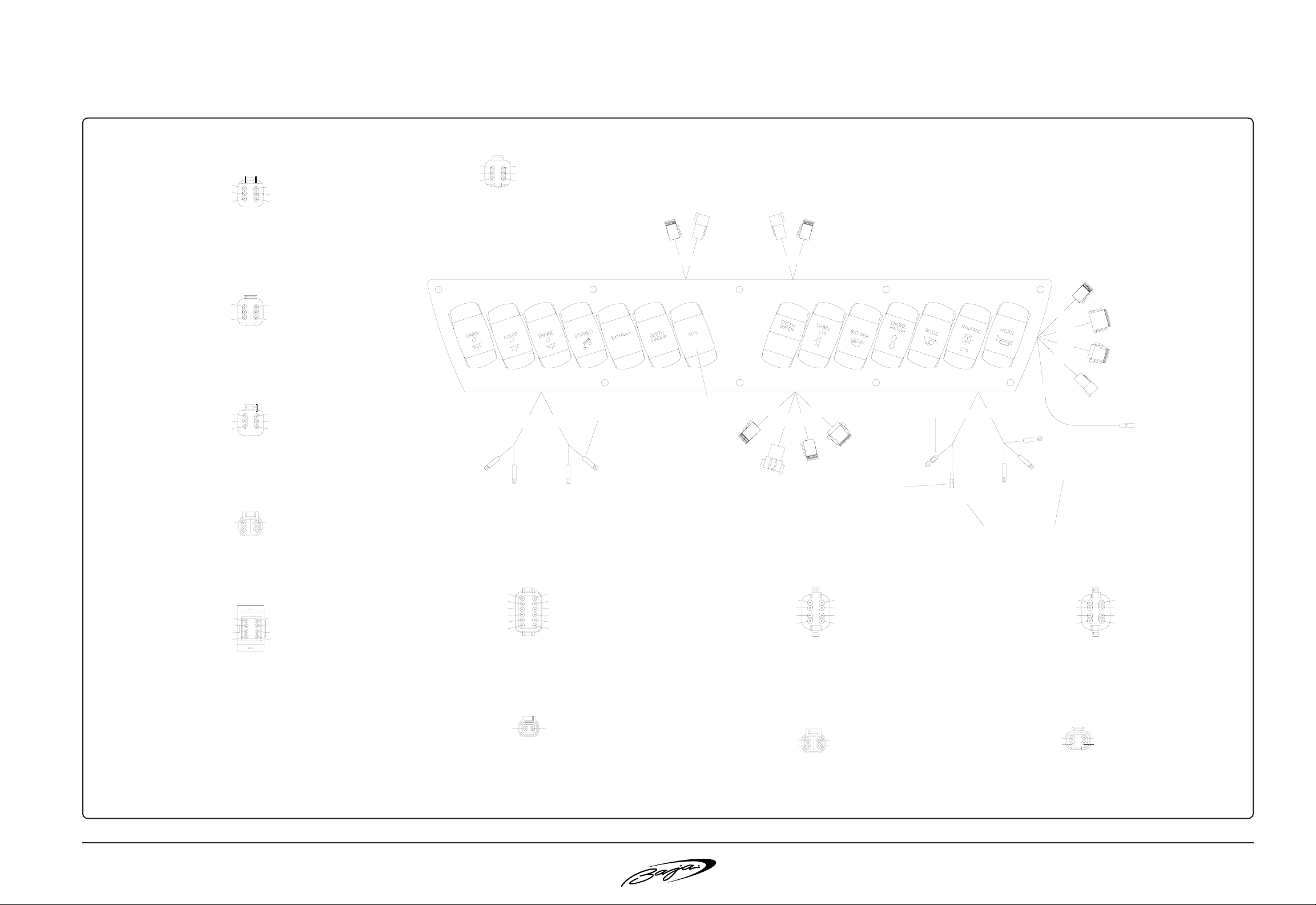

D. Fuse Panel ................................................... 6.2

2. Electrolytic Corrosion & Zinc Anodes .................. 6.2

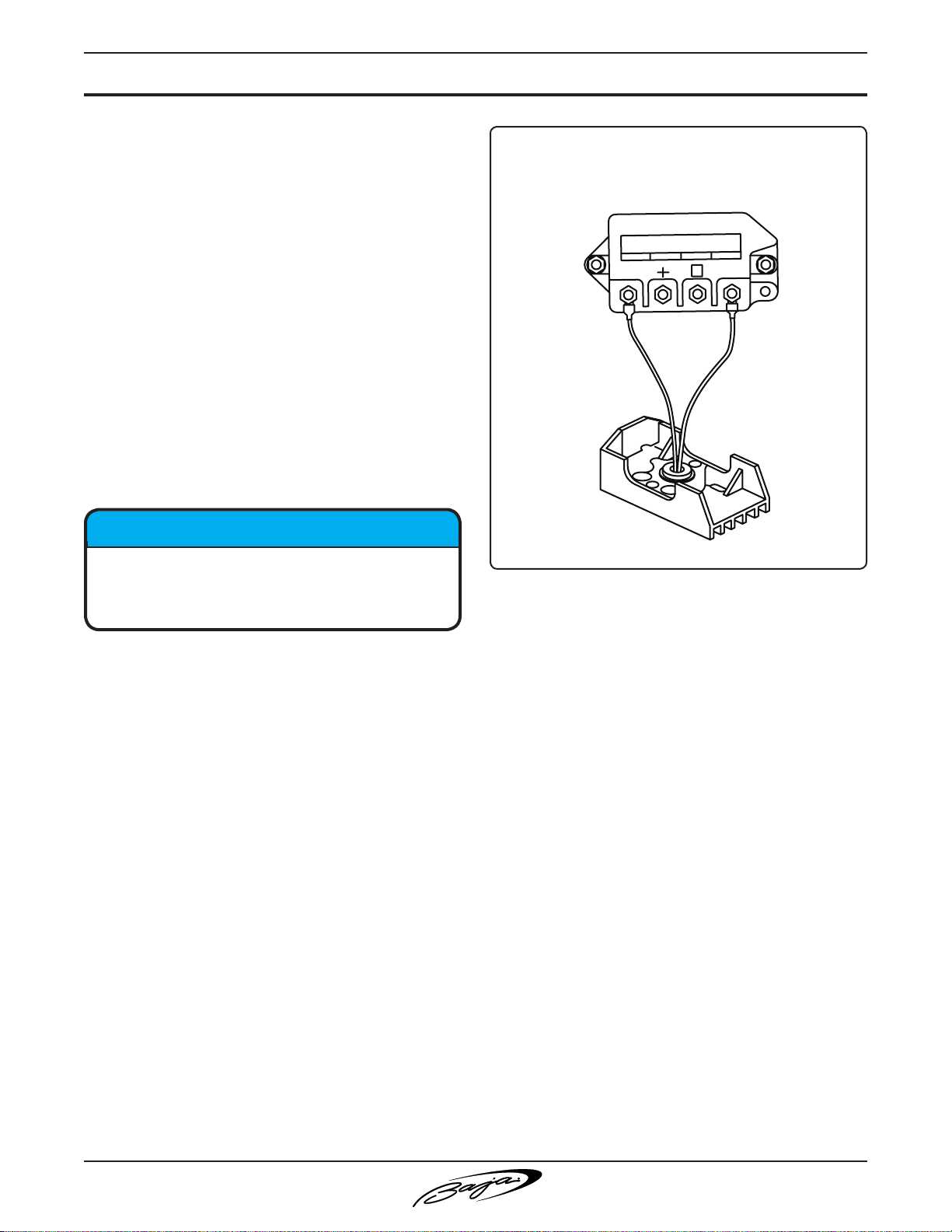

3. Marine Electronic Cathodic Anti-corrosion System

(Mercathode®) ................................................... 6.3

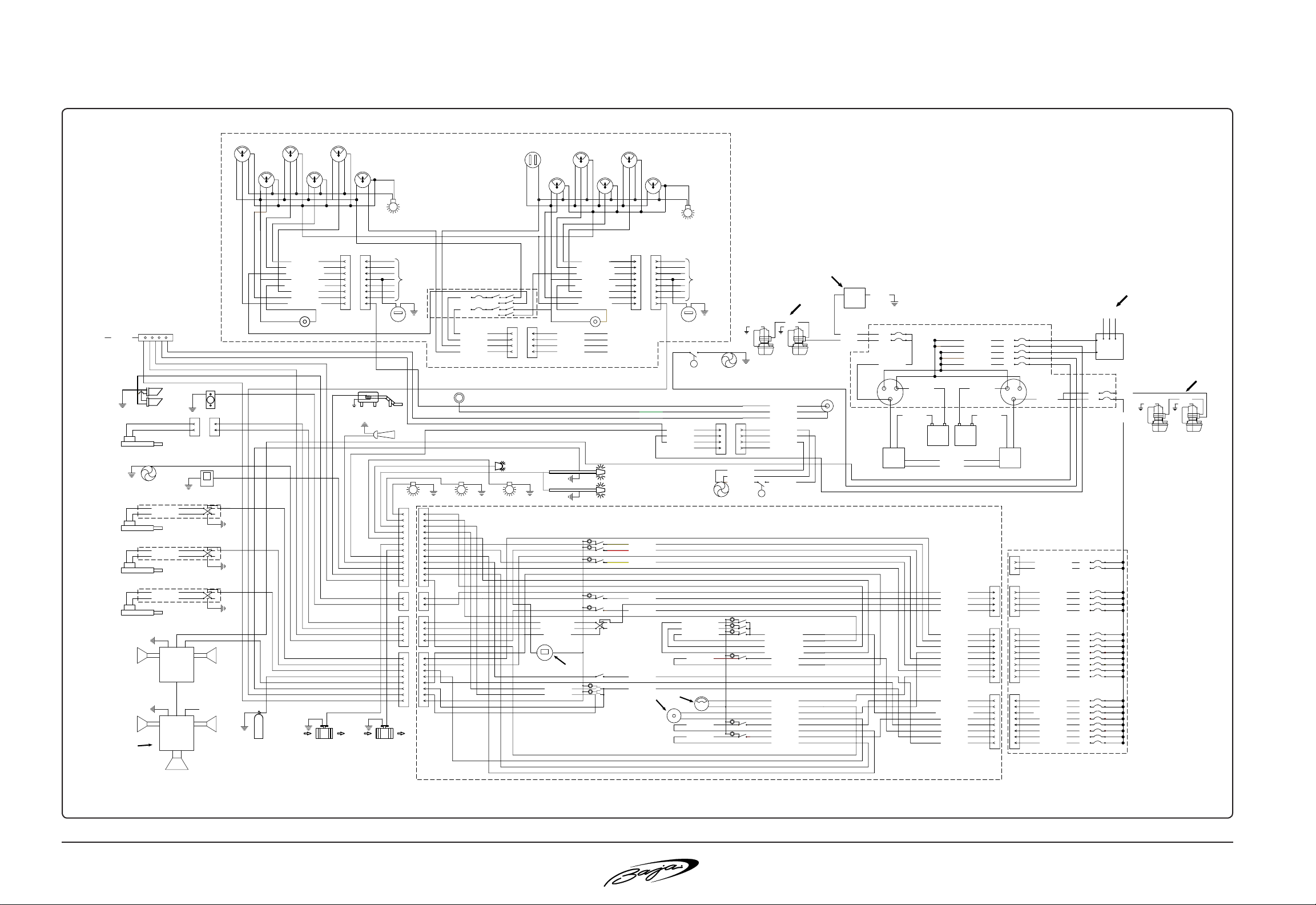

4. Electrical Systems ............................................... 6.3

secTion 7 • opTions & accessories

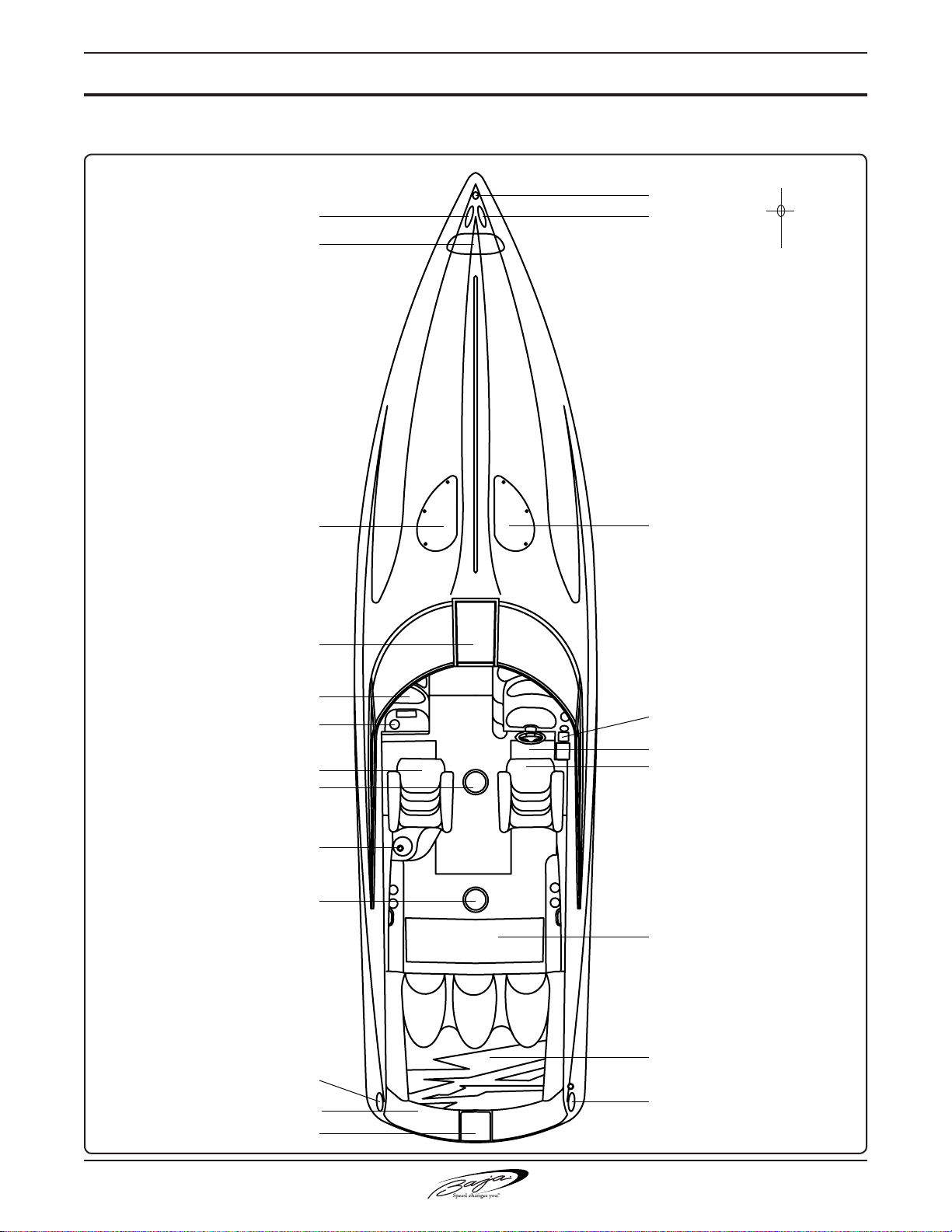

1. Options & Accessories Locations ........................7.1

2. Automatic Fire Extinguisher System (Option) ......7.2

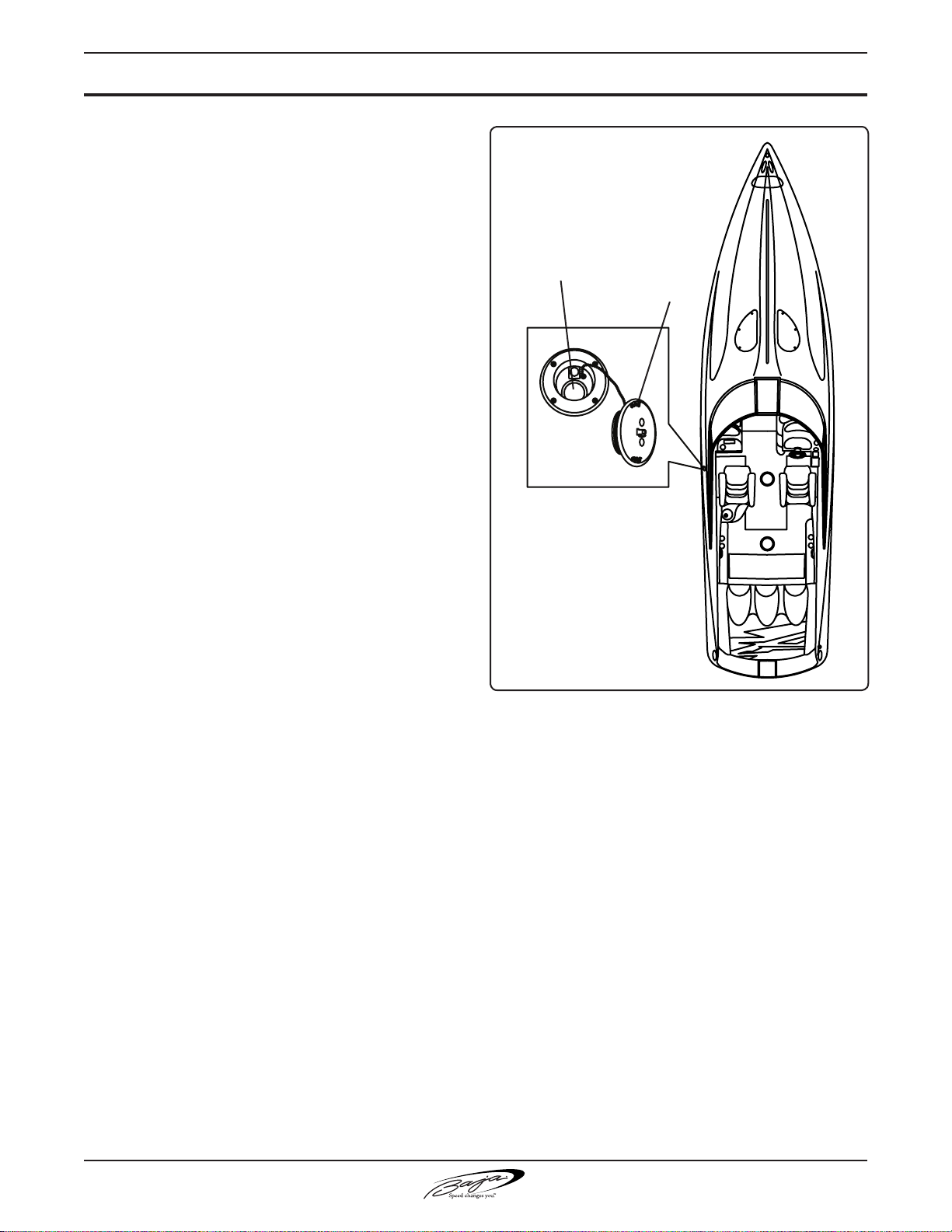

3. Fire Extinguisher Port ..........................................7.2

A. Canvas Care and Maintenance .................... 7.3

B. Trailering With Canvas ................................. 7.3

5. Horn ..................................................................... 7.3

6. Swim Platform w/ Ladder (Optional) .................... 7.3

7. Depth Finder (Optional) .......................................7.3

8. Stereo System .....................................................7.4

9. Head Systems ..................................................... 7.4

A. Requirements for Operators ......................... 7.4

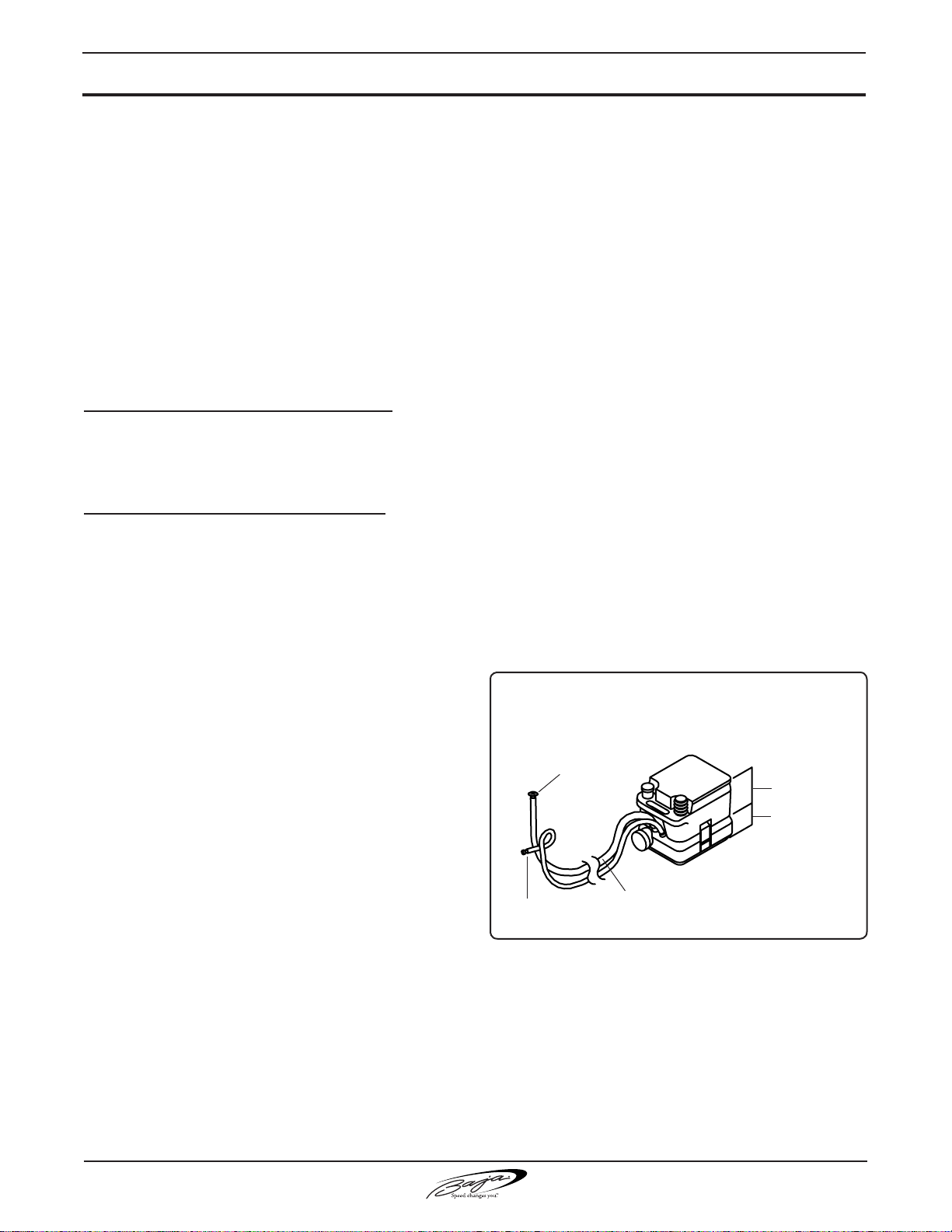

B. Portable Head with Pump-Out ......................7.4

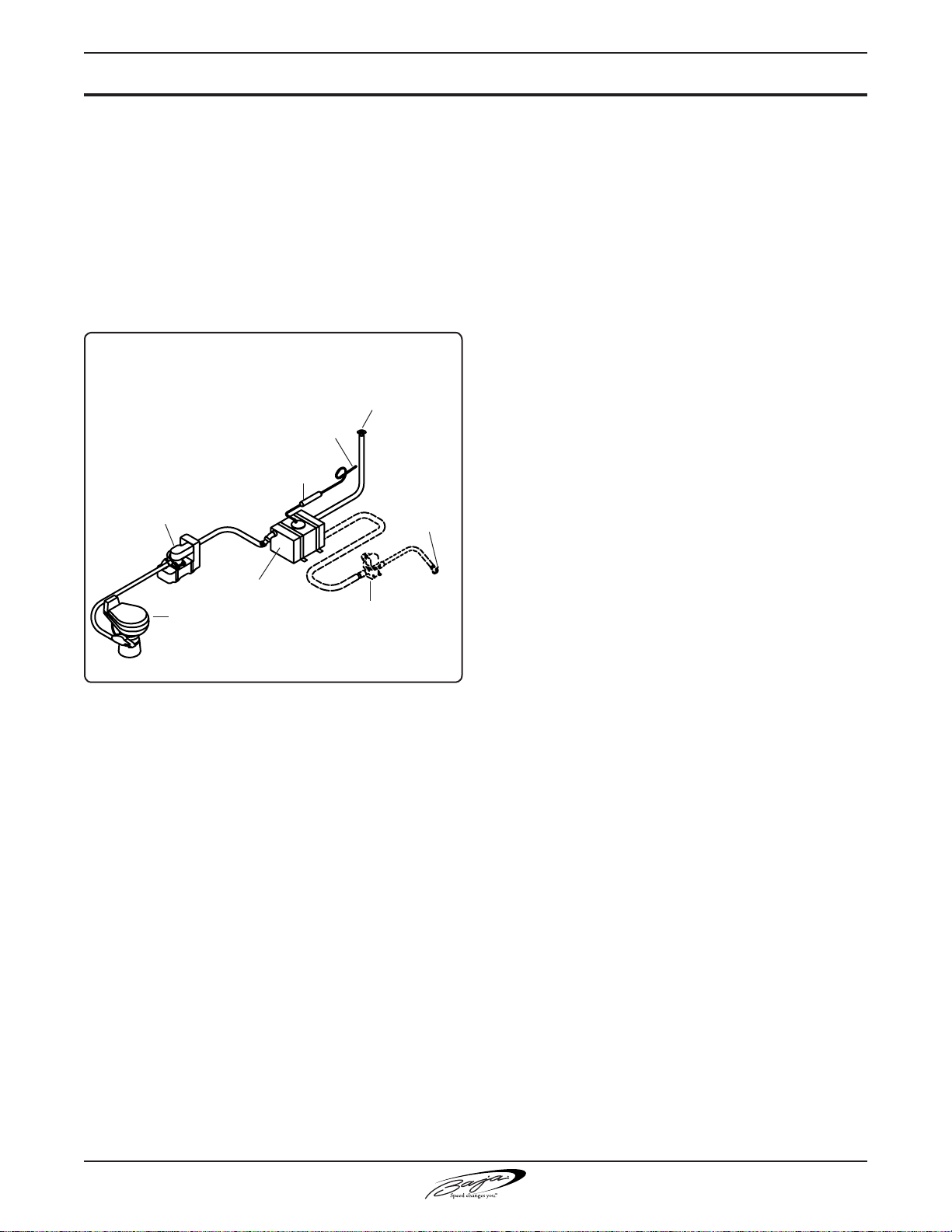

C. VacuFlush® Head (Option) ............................7.5

D. Holding Tank Operation ................................ 7.5

E. Vent Filter ..................................................... 7.5

10. Exhaust Systems ............................................... 7.5

secTion 8 • requireD inspecTion, service, &

MainTenance

1. Summary Guide for Inspection, Service and

Maintenance ...................................................... 8.1

2. Useful Service Information ..................................8.3

3. Inspection, Service and Maintenance Protocol ...8.4

A. Bilge Area ..................................................... 8.4

B. Topside and Supplies.................................... 8.5

4. Winterization Checklist for Boats Stored on Land 8.5

A. Boat Storage ................................................. 8.5

B. Engine ..........................................................8.5

C. Battery(ies) ................................................... 8.5

D. Fuel Systems ................................................ 8.6

5. Fitting Out After Storage ...................................... 8.6

A. Fuel System .................................................. 8.6

B. Battery(ies) ................................................... 8.6

C. Miscellaneous ............................................... 8.6

6. Security Considerations.......................................8.7

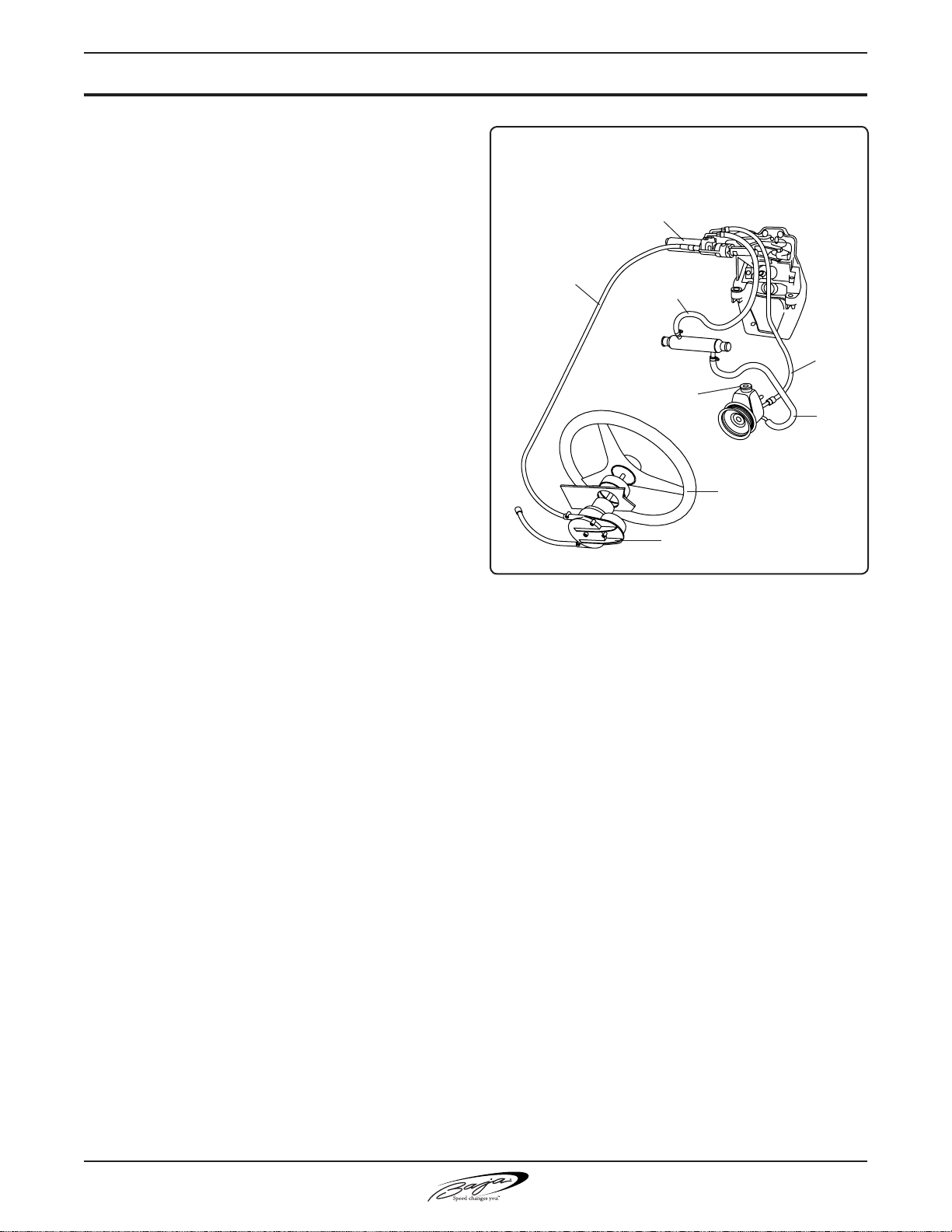

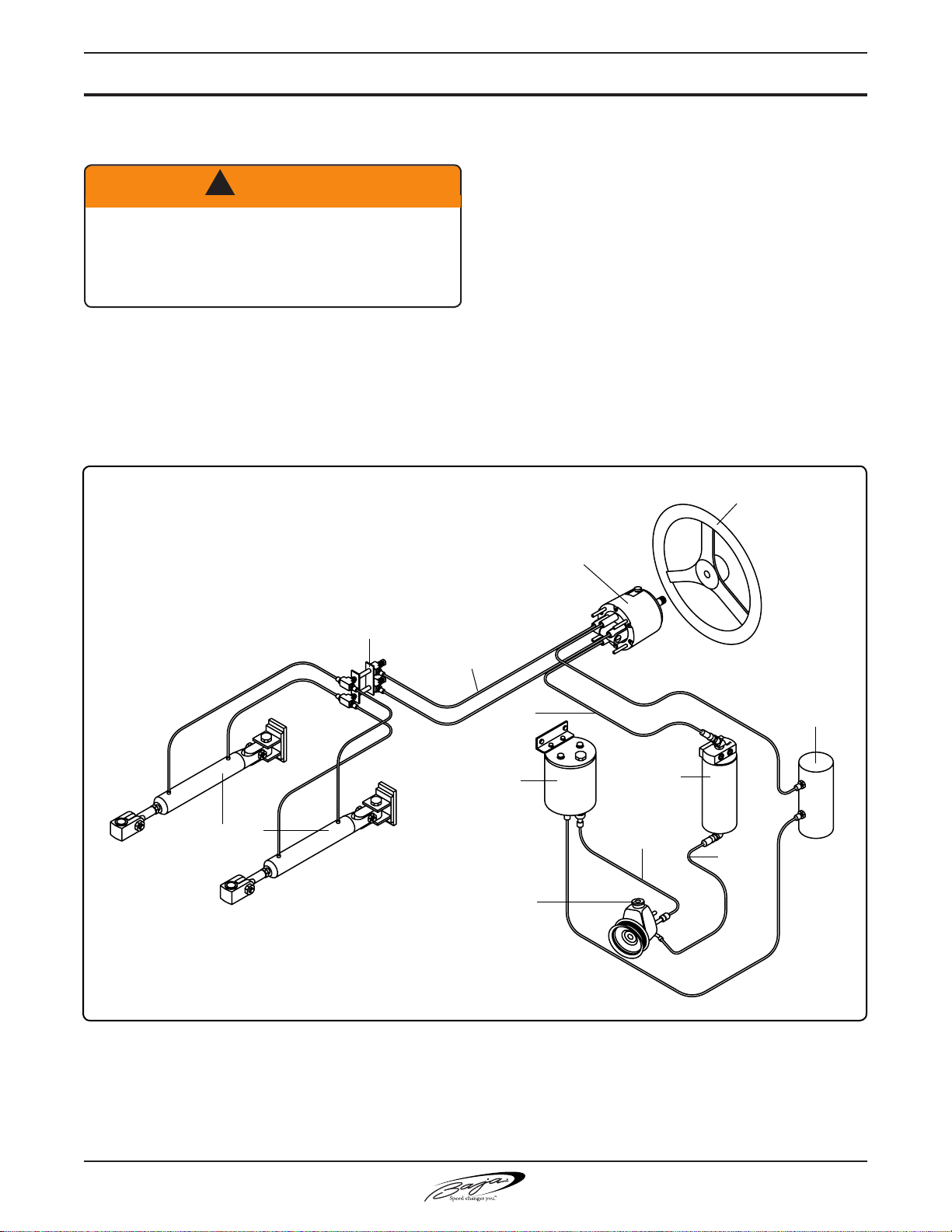

7. Power Steering System Maintenance .................8.7

8. Quick Reference Checklist .................................. 8.8

A. Boarding the Boat .........................................8.8

B. Preparing to Depart and After Launching ..... 8.9

C. Departing ....................................................8.10

D. Returning to Port ........................................ 8.10

E. Securing the Boat ....................................... 8.11

F. If the Engine Does Not Start ....................... 8.11

9. After Market Equipment Checklist ..................... 8.12

10. Maintenance Log .............................................8.13

secTion 9 • care & refinishinG

1. Paint Cleaning Agents & Other Substances ........ 9.1

2. Fiberglass & Gelcoat ........................................... 9.1

3. Stains & Scratches .............................................. 9.1

4. Permanently Moored or Docked Boats................9.2

5. Topside Areas ......................................................9.2

A. Stainless Steel and Alloy Fittings .................. 9.2

B. Salt Crystals .................................................9.2

6. Acrylic Plastic Sheeting (Plastic Glass) ...............9.2

7. Canvas and Clear Vinyl .......................................9.2

8. Exterior Upholstery Fabric ...................................9.3

9. Interior Upholstery Fabric .................................... 9.3

342 Performance

inDex

vii

Information in this publication is based upon the latest product specications available at printing. Baja®

Marine Corporation reserves the right to make changes at any time, without notice, in the colors, equipment,

specications, materials and prices of all models, or to discontinue models. Should changes in production models

be made, Baja® Marine is not obligated to make similar changes or modications to models sold prior to the date

of such changes.

Owner’s Manual

342 Performance

Printed in the U.S.A. June 2006

MRP# 1813659

Baja Marine Corporation 2600 Sea Ray Blvd., Knoxville, TN 37914

For information call 1-865-971-6270 or fax 1-865-971-6716

Internet Address: http://www.bajamarine.com

Baja

Speed changes you.

TM.

Speed changes you.

, and

are registered trademarks of the Brunswick Corporation.

Speed changes you.

TM.

viii

342 Performance

Section 1 • Safety

SAFE boating means:

• Knowing the limitations of your boat

• Following the "Rules of the Road"

• Keeping a sharp lookout for people and objects in the water

• Not boating in water or weather conditions that are beyond the boat's and the operator's capability

• Never boating when the operator is under the

inuence of drugs or alcohol

• Being aware of your passenger's safety at all times

• Reducing speed when there is limited visibility, rough water, and nearby people in the water, boats, or structures

Boating in beautiful weather and calm water condition s can be a wonder ful experience . Pleasurable boating, however, requires considerably greater skills than operating a land vehicle. To obtain these skills, you must:

• Take a Coast Guard, U.S. Power Squadron, or equivalent boating safety course. Call the Boat/U.S. Foundation at 1-800-336-2628 for information on available courses.

• Get hands-on training on how to operate your boat properly.

until you can properly operate your Baja® with

condence.

1. safeTY labels

Safety precautions are given throughout this manual and labels are mounted at key locations throughout the boat. This safety information advises the owner/operator and passengers of safety precautions to follow when operating and/or servicing equipment.

• Do not remove or obstruct any safety label.

• Replace any label which becomes illegible. Replacement safety labels can be obtained by calling your dealer or Baja Marine at 1-865-971-

6270.

The meanings associated with each of the four basic types of labels are:

! DANGER

DANGER - Immediate hazards which WILL result in severe personal injury or death if the warning is ignored.

! WARNING

WARNING - Hazards or unsafe practices which MAY result in severe personal injury or death if the warning is ignored.

In addition:

• Maintain your boat and its safety and other systems as recommended in this manual.

• Have the boat inspected by a qualied mechanic

or dealer at least annually.

• Ensure that the Coast Guard required safety equipment is on board and functions properly. (See page 1.2)

• Operating a high performance boat such as a Baja requires different skills than operating other boats. Make sure you have the necessary skills, and if you are unsure, ask your dealer for a demonstration, or seek further instruction

342 Performance

! CAUTION

CAUTION - Hazards or unsafe practices which COULD result in minor injury or product or property damage if the warning is ignored.

NOTICE

Information which is important to proper operation or maintenance, but is not hazardrelated.

1.1

Section 1 • Safety

2. leGallY ManDaTeD MiniMuM requireD equipMenT

The following equipment is the minimum required by the U.S. Coast Guard for a boat 26' to less than 40' [7.9

meters to less than 12 meters] in length.

Personal Flotation Devices (PFDs): One Coast Guard approved Type I, II or III device is mandatory for each person aboard. One throwable Type IV device is also required to be on board. A Type V device is acceptable if worn for approved use. See Page 1.4 for a description

of these PFD classications. Always wear a PFD when boating.

NOTICE

PFD REQUIREMENTS DIFFER

Depending on the state or country of operation

the operator of a vessel may be ned for failure

to comply with local or national rules regarding PFD usage.

Fire Extinguisher - Portable: If no xed re extinguishing

system is installed in the engine and generator spaces, the U.S. Coast Guard requires two (2) Type B1 or one

(1) Type B2 re extinguishers be on board. If your boat is equipped with a xed re extinguishing system

in the engine and generator spaces, the U.S. Coast Guard requires one (1) Type B1 re extinguisher be on board. The American Boat and Yacht Council (ABYC) recommends that you have three (3) Type B1 ABC re extinguishers on board located in the following areas: outside the engine compartment, at the helm station, and in the galley.

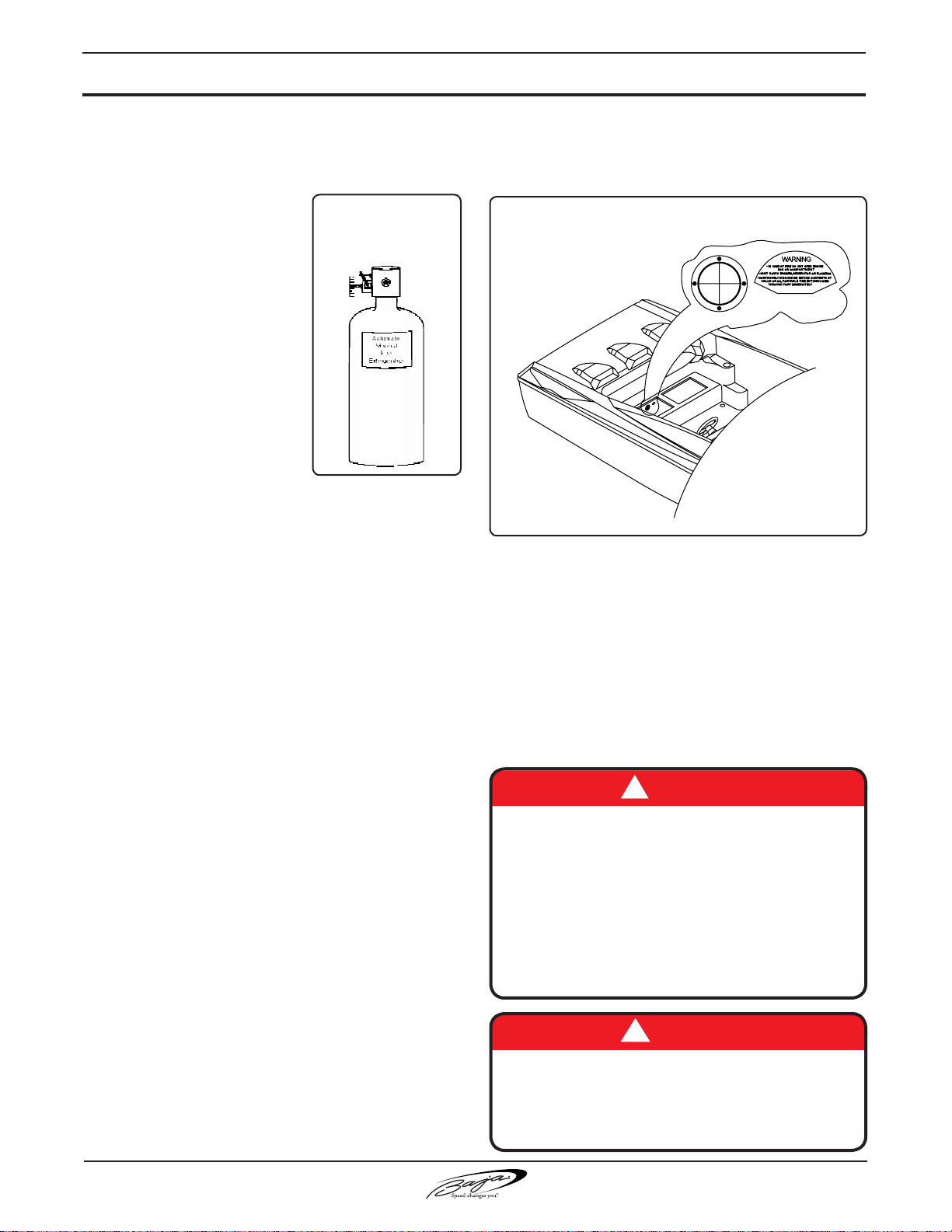

3. fire exTinGuishinG sYsTeM

Your boat may be equipped with the optional automatic re

extinguisher system, located in the engine compartment.

In the event of a re, the heat sensitive automatic head in the engine compartment will release a re-extinguishing

vapor, totally ooding the area.

The dashboard contains an indicator light for the

automatic re extinguishing system. The light will be ON

when the ignition is on and indicates that the system is ready. If the light goes out while the ignition is on, the

system has discharged.

When discharge occurs, immediately shut down all engines, powered ventilation, electrical systems, and extinguish all smoking materials. Do not immediately open the engine compartment! This feeds oxygen

to the re and the re could restart.

Wait at least fteen (15) minutes before opening the engine compartment. This permits the re-extinguishing

vapor to "soak" the compartment long enough for hot metals and fuels to cool. Have portable extinguishers

at hand and ready to use in case the re re-ignites. Do not breathe fumes or vapors caused by the re.

4. carbon MonoxiDe

DANGER

Fumes from engines, generators, and other equipment and appliances using burning fuel contain odorless, colorless carbon monoxide gas.

Carbon monoxide can cause brain damage or death.

Whistle, Horn: You must have on board some means

of making a loud sound signal, for example, whistle or horn.

Visual Distress Signals: If you operate your boat in coastal waters or on the Great Lakes, you must have visual distress signals for day and night use on board. At least three (3) U.S. Coast Guard approved pyrotechnic devices, marked with date showing service life, must be carried, be readily accessible, in serviceable condition, and not expired. Store pyrotechnic signals in a wellmarked waterproof container in a dry location.

Other: Your Baja boat is equipped with the required navigation lights, engine exhaust and ventilation systems.

1.2

Open all doors, curtains, windows, and hatches to let fresh air circulate, when running engine, generator or burning any fuel when boat is anchored, moored or docked.

! DANGER

In rainy and/or cold weather, fresh air must circulate through boat to avoid carbon monoxide poisoning.

! DANGER

Sleeping on boat requires an operating Carbon Monoxide detection system in each sleeping location.

342 Performance

Section 1 • Safety

Symptoms of carbon monoxide poisoning are dizziness, ears ringing, headaches, nausea, and unconsciousness. Get fresh air if anyone shows signs of carbon monoxide poisoning, and/or if carbon monoxide detector alarm sounds.

A poisoning victim's skin often turns cherry red. Because carbon monoxide gas (CO) is odorless, colorless and tasteless, it is unlikely to be noticed until a person is overcome.

Dangerous concentrations of carbon monoxide will be present if:

• there is an exhaust leak

• a nearby vessel's engine is running

• insufcient fresh air is circulating where people are

present

• fumes move from the rear of the boat into the cockpit and cabin area

Figure 1.3.1 gives examples of boat operating conditions that can lead to high concentrations of carbon monoxide gas.

To minimize the danger of CO accumulation when the engine is running or using fuel burning appliances:

• If a convertible or camper top is installed, operate with the forward hatch open and leave cabin door open.

• Operate all fuel burning appliances, such as charcoal, propane, LPG, CNG, or alcohol cooking devices in areas where fresh air can circulate. Do not use such devices where there is no noticeable air movement, especially in the cabin, when anchored, moored, or docked.

• Do not idle engine without moving boat for more than 15 minutes at a time.

• Inspect exhaust system regularly. (See Section 8, Required Inspection, Service and Maintenance.)

If CO poisoning is suspected, have the victim breathe fresh air deeply. If breathing stops, resuscitate. A victim often revives, then relapses because organs are damaged by lack of oxygen. Seek immediate medical attention.

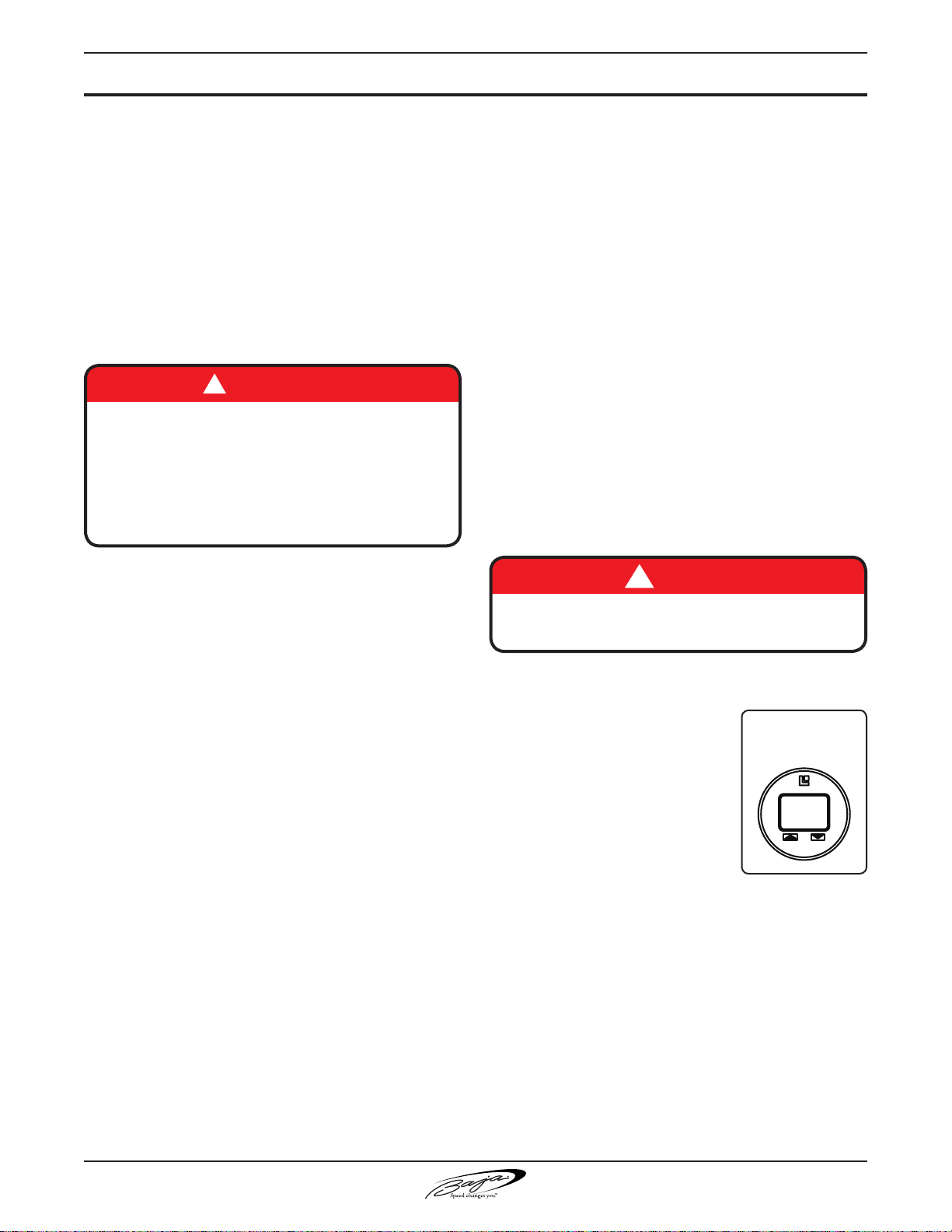

carbon MonoxiDe MoniTor

Your boat may have a carbon monoxide (CO) monitor mounted in the cabin. The CO monitor is an electronic instrument that detects CO. When there is a build-up of CO in the cabin, the monitor will alert the occupants by

a ashing DANGER light and alarm.

• Be sure to have sufcient ventilation when using

canvas or window-type side curtains when underway, anchored, moored, or docked.

examPleS of how high levelS of carBon monoxide

may accumulate

(fig 1.3.1)

Blocking Hull Exhausts. Operating at slow speed or dead in the water.

Using canvas curtains.

Winds blowing exhaust toward boat occupants.

Illustration #A

Illustration #B

Illustration #C

Read and understand the CO monitor information and operating instructions. It is extremely important that you become totally familiar with your CO monitor and its

functions.

Illustration #D

Operating engine and/or generator

in conned spaces.

Illustration #E

Operating with the bow high.

Illustration #F

Good ventilation.

342 Performance

1.3

Section 1 • Safety

5. lifesavinG equipMenT

! WARNING

Have all passengers and the operator wear a Personal Flotation Device (PFD) at all times when boating.

When someone is overboard, it can be too late to have them put on a PFD.

Even strong swimmers can tire quickly in the water and drown due to exhaustion, hypothermia, or both. The buoyancy provided by a personal otation device (PFD) will allow the person who has fallen

overboard to remain aoat with far less effort and heat loss, extending survival time necessary to nd

and retrieve them.

Boat operators are required to carry one wearable

personal otation device (Type I, II, III or V) for every

person on board. Boats must also have at least one throwable device (Type IV).

(FIG. 1.4.3)

(FIG. 1.4.4)

(FIG. 1.4.5)

Flotation Aid (Type III) – vest is designed so conscious wearers can turn face up; often designed for comfort while engaged in sports such as skiing.

Throwable Devices (Type IV) – horseshoe buoys, ring buoys and buoyant cushions are designed to be grasped, not worn.

Special-Use Devices (Type V) – sailboat harnesses, white-water

vests, oat coats, and hybrid vests

which have mi nimum in heren t b uoyancy a n d a n i n f l a t a ble chamber.

The law requires that PFDs must be readily accessible, if not worn. "Readily accessible" means removed from storage bags and unbuckled. But, children and non-swimmers must wear PFDs at all times when aboard. It is common sense to have everyone on board wearing PFDs. A throwable device must also be right at hand and ready to toss.

PFD Classications:

(FIG. 1.4.1)

(FIG. 1.4.2)

Off-Shore Life Jacket (Type I) – most

buoyant, it is designed to turn an unconscious person face up; used in all types of waters where rescue may be slow, particularly in cold or rough conditions.

Near-Shore Life Vest (Type II) – "keyhole" vest with flotation-filled he ad a nd n ec k support is also designed to turn a person face up, but the turning action is not as pronounced; used in calm, inland waters or where quick rescue is likely.

Before purchasing PFDs, ensure that there is an attached tag indicating they are approved by the U.S. Coast Guard or by your national boating law enforcement agency.

Children and non-swimmers must wear PFDs at all times when aboard.

• All passengers and crew should wear them.

• A loose P FD i s o f t e n u s e l e ss i n a n emergency.

• The operator is responsible for instructing everyone aboard on the location and use of PFDs.

• Size PFDs for the wearer. Children require special attention in the use of PFDs.

• Test PFD buoyancy at least once a year.

1.4

342 Performance

Section 1 • Safety

6. aDDiTional recoMMenDeD equipMenT for safe operaTion

In addition to legally mandated equipment, the following items are necessary for safe boating especially if your boat is out of sight of land.

• First aid kit

• Visual distress signals for day and night use (required in some areas; consult local regulations)

• Charts of your intended cruising area

• Compass

• GPS or Loran position locating devices

• Marine VHF radio with weather channels

• Emergency position-indicating radio beacon (EPIRB)

• Manual bilge pump

• Moisture repellent

Pliers (regular, vise-grip, and tongue & groove)

Wrenches (box, open-end, allen, adjustable)

Socket set (metric or U.S. standard as appropriate)

Electrical tape and duct tape

Hammer

Utility Knife

• Spare parts kit (spark plugs, fuses, hose clamps and ask your dealer to recommend other parts)

• Extra propeller(s)

7. iMpaireD operaTion

Drugs and/or alcohol will prevent you from operating your boat safely. This single factor is involved in more marine accidents and deaths than any other. The detrimental effects of alcohol and drugs are increased by the wind, waves and sun, quickly impairing your ability to react properly and promptly in an emergency.

• Anchor, chain and line (The anchor must be properly sized for your boat. Ask your dealer or marine supply store for recommendations.)

• Mooring lines

• Fenders

• Boat hook

• Waterproof ashlight(s)

• Extra batteries for flashlights and portable electronic devices

• High power spotlight, if you intend to boat at night

• Spare keys

• Inst r u c t i o n m a n u a l s f o r e n g i n e a n d accessories

• Lubricating oil

• Tool kit:

! WARNING

Drugs and/or alcohol impair the operator's ability to control the boat safely.

Death or serious injury can result from improper boat operation.

Assorted screwdrivers (Phillips and at blade)

342 Performance

1.5

Section 1 • Safety

8. loaD capaciTY

a. uniTeD sTaTes

Use common sense and sound judgement when placing equipment and/or passengers in your boat. The number of people on board must be reduced if you go out in poor weather and rough water.

• The number of seats does not indicate how many people a boat can carry in poor weather and rough water

• Above idle speed, all passengers must be seated on the seats provided.

The United States Coast Guard does not provide

specic numbers for passenger capacity or

cargo weight for recreational vessels larger than 20 feet (6.09 meters). For safety sake, use the following information provided for the international loading standards for maximum number of passengers plus cargo weight.

b. inTernaTional

The certication plate (Fig. 1.6.1) located near

the helm indicates maximum weight and number of persons your boat can handle under calm sea conditions. Do not exceed the load capacities stated. The number of people on board must be reduced if you go out in poor weather and rough water. Above idle speed, all passengers must be seated on the seats provided.

9. poWer capaciTY

! WARNING

When engine is running, keep passengers away from areas not designed for riding, such as seat backs, bow, gunwales, transom platform, front and rear decks and on sun pads.

Passengers can fall overboard if not seated properly on the seats provided.

! DANGER

Never ca rry more weight or pass engers than

indicated on the certication plate, regardless of

weather or water conditions.

The boat can capsize, swamp or sink.

Your boat's engine and accessories were selected to provide optimum performance and service. Installing a different engine or other accessories may cause unwanted handling characteristics. Should you choose to install a different engine, or to add accessories that will affect the boat's running trim, have an experienced marine technician perform a safety inspection and handling test before

operating your boat again. Certain modications to

your boat will result in cancellation of your warranty protection. Always check with your dealer before

making any modications to your boat.

342 Performance CE OPTION CERTIFICATION PLATE (INTERNATIONAL) (EXAMPLE) (FIG. 1.6.1)

BAJA MARINE CORP.

342 PERFORMANCE

0609

1.6

MAXIMUM

+ =

680 kg

365 kw

10. propellers

Your Baja© has been equipped with propellers which our tests have shown to be the best suited for general use with our engine under normal conditions and load. Do not change the pitch of your propellers

without getting your dealer's recommendations rst.

If you change to a different propeller pitch, under no circumstances use propellers which allow the engine to operate at higher than recommended RPM. (Your engine manual species the maximum

recommended RPM).

342 Performance

Section 1 • Safety

To maintain rated power, propellers should be free of nicks, excessive pitting, and any distortions that alter them from their original design. Badly damaged propellers should be replaced, but those that are chipped, bent, or merely out of shape can be reconditioned by your marine dealer. It is advisable

to carry an extra propeller aboard in case you damage the one in use.

11. sTabiliTY

Your boat was manufactured to specic stability and otation standards for the capacity shown on the certication plate. Any increase from the

recommended load capacities will put your boat in jeopardy of capsizing, swamping and/or sinking.

In addition:

• Stability may be substantially reduced if equipment is added above the deck.

• Stability is substantially reduced by loose uids

or weight within the hull. Keep bilge area as dry as possible.

! WARNING

Distribute passengers and gear as uniformly as possible from front to rear and left to right.

other navigational hazards such as rocks, sand bars, and dangerous currents, to name a few.

Your passengers are relying on you to operate and maneuver the boat safely so that they are not in danger of going overboard. If you turn too quickly, increase or decrease speed abruptly, your passengers are at risk of

being thrown overboard or thrown about the boat.

! WARNING

Death or serious injury can result if you fail to observe these safety rules:

• Anyone who controls the boat must have taken a boating safety course and have been trained in the proper operation of the boat.

• Always operate the boat at speeds that will not put people or property in danger.

• Be constantly aware of conditions in all directions when underway and before turning.

• Reduce speed, use a lookout to identify possible

hazards or difculties, and turn on navigation

lights when:

- visibility is impaired;

- in rough water; and

- in congested waterways.

• Watch your wake. It can capsize a small boat or damage moored boats or other property. You are

responsible for damage caused by your wake.

The manufacturer's load rating is the maximum allowed under calm conditions.

Reduce boat loading if weather, water or other conditions are adverse.

12. MainTain conTrol

On the water there are no marked trafc lanes, no trafc signs or lights, and boats have no turn signals

or brakes. The boat operator must keep her or his attention focused not only on what's ahead but what's on the left, right and behind the boat.

Observe the safety rules listed below:

The operator must always be alert to approaching boats (from the rear, right and left sides, as well as those ahead). In addition, the operator must be on the lookout for people in the water, partially submerged debris, and

342 Performance

When visibility becomes impaired because of weather, time of day or high bow angle you must slow down so

that you have sufcient time to react if an emergency

occurs. Nearby boats face similar risks in avoiding a collision with you.

! DANGER

DO NOT ATTEMPT TO BOAT IN

SEVERE WEATHER CONDITIONS

DEATH OR SERIOUS INJURY CAN OCCUR

GET TO SHORE BEFORE

THE WEATHER TURNS BAD

1.7

Section 1 • Safety

The wind speed and wave height specied as the upper

limit for your category of boat does not mean that you or your passengers can survive if your boat is exposed to these conditions. It is only the most experienced operators and crew that may be able to operate a boat safely under these conditions. You must always be aware of weather conditions and head for port or protected

waters in sufcient time to avoid being caught in high

winds and rough water. Do not take chances!

Getting caught in severe weather is hazardous. Bad weather and/or rough sea or water conditions can cause an unsafe situation. Consult local weather information, or listen to the NOAA weather reports for the latest weather conditions or any impending deterioration of the weather before setting out and while underway. The following are a few basic weather-related rules:

• Check the weather forecast and the water conditions before leaving and while underway.

• A sudden change in wind direction or speed or an increase in wave height indicates deteriorating weather.

• Have everyone wear a personal otation device.

• If a storm approaches, immediately seek a safe harbor.

• If a storm hits, have everyone sit in the cabin or on the cockpit deck in the boat. Head the bow into the wind with enough power to maintain slow headway.

• If you encounter fog, determine your position, set a safe course, slow down and alert other boats of your presence with a sound signal.

• If a lightning storm approaches, the safest action is to dock and disembark. If you cannot return to shore, have passengers go inside the cabin and remain there until the storm passes.

General consiDeraTions

• Know how your boat handles under different conditions. Recognize your limitations and the boat's limitations. Modify speed in keeping with weather,

sea, and trafc conditions.

• Instruct passengers on the fundamentals of operating your boat in case you are unable to do so.

• You are responsible for passengers' actions. If they place themselves or the boat in danger, immediately correct them.

13. WeaTher

There are four design categories of boats based upon their ability to withstand wind and sea or water conditions:

A. Ocean

Wind speed: above 40 knots (46 mph) Wave height: above 4 meters (13 feet) Boat may be used for extended ocean voyages.

B. Offshore

Maximum wind speed: 40 knots (46 mph) Maximum wave height: 4 meters (13 feet) Boat can be used offshore, but not for extended ocean voyages.

C. Inshore

Maximum wind speed: 27 knots (31 mph) Maximum wave height: 2 meters (6.5 feet) Boat use is limited to coastal waters, large bays, estuaries, lakes and rivers.

D. Sheltered waters

Maximum speed: 15 knots (18 mph) Maximum wave height: 0.5 meters (1.5 feet) Boat use is limited to small lakes, rivers and canals.

• Lightning seeks ground when it strikes. The best protection is a properly grounded lightning rod placed high enough over the deck to provide a protective umbrella over the hull. Depending upon the likelihood of your being in a lightning storm, consult your dealer for installation of a lightning rod. If caught in a storm, stay clear of the lightning rod, all attached wiring, and all metal parts of the boat.

• Stay out of the water during a lightning storm. If caught swimming during a storm, get back into the boat and remain there until the storm passes.

1.8

Your 342 Performance boat is Design Category C.

14. charT Your course

To avoid boating in unsafe areas where there are underwater obstructions, shallow water, unnavigable conditions such as dangerous currents, and others, you must chart a course. This means having and using the National Oceanic and Atmospheric Administration (NOAA) charts for coastal waters, observing and understanding all navigational aids, using the knowledge and guidance of experienced boaters, and being aware of the tide times where appropriate.

342 Performance

Section 1 • Safety

If you are in an unfamiliar area without knowledge of the hazards, proceed very slowly and have someone watch for hazards.

! WARNING

Hitting an object in or under the water or boating in dangerous currents can cause serious injury or death to boat occupants.

You must know where the hazards are and avoid them.

In uncharted waters, boat very slowly and post a lookout.

! WARNING

Shut engine off if an object is struck or if you run aground.

Check for hull leaks and propulsion system damage, before restarting engine.

Use hand pump if bilge pumps don't remove water.

a. sWiMMinG

• Do not permit anyone to swim from a moving boat, or a boat with an engine running.

• Many localities prohibit swimming from boats except in designated areas.

• Make sure boat's engine is turned off and the stern drive, if equipped, is fully down before allowing people to swim anywhere near your boat. Shut the engine OFF and remove the key from the ignition switch so that nobody will accidentally start the engine while swimmers are nearby.

• Turn off engine when taking swimmers or skiers aboard or when they are entering the water. Never permit use of the transom swim platform while engine is running.

• Slow down and look for swimmers or skiers when cruising in an area where there might be persons in the water.

b. skiinG

Boat very slowly, if you must proceed with a damaged propulsion system.

Let others know where you're going. A oat plan

describes your intended cruising course and itinerary, boat description, and your expected time and date of

return. Give the oat plan to a friend or relative, so they

can give the information to a national boat agency, like the U.S. Coast Guard, in the event you fail to return.

15. WaTer sporTs

DANGER

Your boat's propeller can kill or injure persons in the water.

Always stay away fro m are as designated for swimming or diving. Unless you are towing a skier, stay away from water ski areas. Recognize markers used for such areas.

When engine is running, close and lock transom door and do not permit anyone to use boarding ladder and swim platform.

! WARNING

Skiers must wear an approved PFD.

• Anyone who water skis must know how to swim.

• Never drive the boat directly behind a water skier. At 22 knots (25 m.p.h.), it takes only 5 seconds to overtake a fallen skier who was 60 meters (200 feet) in front.

• Keep a downed skier in sight and on the operator's side of the boat when approaching the skier. Never back up to anyone in the water.

• Learn the signals to communicate with a skier. The skier is to control the boat through hand signals. (See Figure 1.10.1)

! WARNING

If the skier suddenly releases the tow rope, it can backlash into the cockpit. Spotters who are watching the skier must be made aware of this fact and be

prepared to deect the rope by hand to avoid injury.

342 Performance

1.9

Section 1 • Safety

SKIING SIGNALS (FIG. 1.10.1)

Turn - Arm raised, circle with index nger extended.

Skier in Water - Extend one ski vertically out of water.

Back to Dock - Pat top of head.

Cut Motor - Draw nger across throat.

C. Diving

Recognize and respect diving ags. (See Figure

1.10.2) Keep at least 30 meters (100 feet) away.

Sport Divers Flag – Red ag with diagonal white

stripe marks a diver in the water.

Code Alpha Flag – Blue and white pennant

designates boat being used in dive operations

DIVERS FLAGS (FIG. 1.10.2)

RED

SPORT DIVER'S

FLAG

WHITE

BLUE

CODE ALPHA

FLAG

in General

When engaged in water sports, be safe and courteous to others sharing the water:

• Be considerate to shermen.

• Do not water ski in congested areas.

Slow Down - Thumb pointed down or palm down, move hand up and down.

Faster - Thumb pointed up or palm up, move hand up and down.

Speed OK - Raise arm and form a circle with thumb and

index nger.

St op - Raise arm with palm vertical and facing forward.

Turn Right - Extend right arm out from body to the right.

Turn Left - Extend left arm out from body to the left.

OK After a Fall - Clasp hands together overhead.

• Keep the boat and skier away from navigation markers.

• Stay well clear of other boats and skiers.

16. eMerGencY siTuaTions

Prevention is the safest approach. We hope that you are never involved in an emergency situation.

If you are involved in an emergency situation, it is imperative that you know how to react, in order to protect the lives in your care.

NOTICE

ASSISTING OTHER BOATERS: All boaters have an obligation to help other boaters who are in distress, as long as rendering assistance does not endager you, your passengers, or your boat.

1.10

342 Performance

Section 1 • Safety

a. MeDical eMerGencY

You may be far from professional medical help when you are boating. At least two people on board your

boat should be CPR certied, and should have taken a rst aid course. Equip your boat with a rst aid kit.

b. WaTer rescue

A person who has fallen overboard will die from hypothermia in water temperatures below 70°F if not rescued quickly. Water rescue consist of three steps: returning to the victim, making contact with the victim, and getting the victim back on board.

Returning to the Victim

• Immediately make everyone aware of the incident and keep the victim in sight.

• Slow the boat and keep pointing toward the person overboard. At night, direct the best available light source at the person.

• Throw a life preserver, even if the person is wearing a PFD. It will serve as another marker.

c. fire

Fire is a serious boating hazard. Boats can burn

quickly. Do not remain on board and ght a re for more than a few minutes. If the re cannot be

extinguished within a few minutes, abandon the boat.

Have re extinguishers handy. A small re can be

extinguished quickly with the right size and type of

re extinguisher.

• Extinguish smoking materials, shut off blowers, stoves, engines and generators.

• Throw burning materials overboard, if possible.

• If the re is accessible, empty the contents of re extinguishers at the base of the ames.

• If the re is in the engine compartmentand you have

an automatic extinguisher that activates, wait 15 minutes before opening the compartment. Have a

portable extinguisher ready in case the re ares

up.

• Signal for help.

Making Contact

• Slow the boat and circle toward the victim.

• Try to approach heading into the wind or into the waves.

• Keep the victim on the right (starboard) side so the boat operator has the victim constantly in sight.

• When almost alongside, turn off the engine in gear to prevent propeller "windmilling."

Getting Back Aboard

• Try to reach the victim with a pole, or by throwing a life preserver. Do not swim to rescue the victim, except as a last resort.

• Assist the person in boarding the boat. The person should normally be brought in over the stern.

• If the person is injured or cannot get into the boat, a rescuer should put on a PFD with a safety line attached to the boat and enter the water to assist the victim.

• Grab distress signals and survival gear. Put on PFDs. Prepare to abandon ship.

D. flooDinG, sWaMpinG anD capsizinG

In the event of ooding, swamping or capsizing:

• Try to shut off engines, generators and blowers before leaving the boat.

• Have everyone put on Personal Flotation Devices (PFDs).

• Account for all who were on board.

• If the boat is oating stay with the boat. Hang on, or

climb on the boat and signal for help.

• Only as a last resort should you attempt to swim to shore - it is further away than it looks and you can tire and drown.

• Handle the victim with care. Spinal injuries may have occurred.

342 Performance

1.11

Section 1 • Safety

e. collisions anD leakinG

In the event of collisions and leaking:

• Slow down or stop to reduce water intake, unless maintaining speed will keep the hole above water.

• Switch on bilge pump.

• Operate manual bilge pump, if the powered bilge

pump can't handle the water ow.

• Account for everyone on board and check for injuries.

• Have everyone put on PFDs.

• Stay with the boat.

• Signal for help.

• In the event of a collision, you are required to le an

accident report. Contact a state enforcement agency

or the nearest Coast Guard ofce. If you are boating

outside of U.S. waters, consult the nation you are visiting for accident reporting requirements.

f. GrounDinG

In the event of running aground:

G. propulsion, conTrol or sTeerinG

failure

If the drive train fails, or the controls or steering do not respond properly or at all:

• Shut off engine.

• Put out the anchor to prevent drifting.

• Determine whether or not you can repair the problem yourself. See the proper manuals for assistance in troubleshooting the engine, steering and engine controls.

• If you are not sure you can x the problem, or if

conditions are adverse, signal for help.

17. safeTY hoTlines

The safety information in the preceding pages gives only the general areas of concern for boating safety. It is not intended to be, nor can it be, exhaustive. You must take a boating safety course, and get hands-on instruction in the proper and safe operation of your boat from experienced persons before cruising.

• Check for leaks. If water is coming in, stop the intake of water before attempting to get the boat free.

• Inspect for damage to the hull, propulsion and steering systems.

• Determine if the tide, wind and current will drive the boat harder aground or will help to free it.

• Determine the water depth all around the boat, and the type of bottom (sand, mud, rocks, etc.). If it can be done without exposing persons to a risk of injury, the boat should be moved away from hard obstructions, and toward open water with soft ground.

• Do not attempt to have your boat towed by other than a trained and competent service, such as the Coast Guard or a salvage company. Recreational craft are not designed to tow other recreational craft.

The U.S. Coast Guard offers many pamphlets on safety and other information not covered in this manual. Contact your local Coast Guard unit or call the toll-free safety hotlines below for information.

• U.S. Coast Guard 1-800-368-5647

• Canadian Coast Guard 1-800-267-6687

It is recommended that these and other important numbers be stored in your cell phone for quick reference.

In other countries, ask your marine dealer for information on how to contact the national boating law enforcement agency.

1.12

342 Performance

Section 1 • Safety

18. inTernaTional requireMenTs

This vessel and its systems have been constructed

in accordance with standards and specications in

effect at the time of manufacture as published by the various regulatory authorities listed below.

1. Ministere De La Mer – France

2. Registro Italiano Navale – Italy

3. Det Norske Veritas – Norway

4. Securite des Nauires – Canada

5. J.C.I. (Japan Craft Inspection) – Japan

6. N.K.K. (Nippon Kaiji Kyokai) – Japan

7. B.S.I. (British Standards Institute) – England

8. Ministerio Obras Publicas Y Transporters – Spain

9. EC Recreational Craft Directive – European Community

Further information concerning these requirements may be obtained from Baja® Marine Customer Service: 1-865-971-6270.

19. environMenTal consiDeraTions

The following warning is offered for boats sold in the State of California in accordance with California Heath & Safety Code §§ 25249.5-.13:

! WARNING

A wide variety of components used on this vessel contain or emit chemicals known to the State of California to cause cancer and birth defects and other reproductive harm.

EXAMPLES INCLUDE:

• Engine and generator exhaust

• Engine and generator fuel, and other liquids such as coolants and oil, especially used motor oil

• Cooking fuels

• Cleaners, paints, and substances used for vessel repair

• Waste materials that result from wear of vessel components

• Lead from battery terminals and from other

sources such as ballast or shing sinkers

342 Performance

TO AVOID HARM:

• Keep away from engine, generator, and cooking fuel exhaust fumes.

• Wash areas thoroughly with soap and water after handling the substances above.

a. fuel anD oil spillaGe

Regulations prohibit discharging fuel or oily waste

in navigable waters. Discharge is dened as any action which causes a lm, sheen or discoloration on

the water surface, or causes a sludge or emulsion beneath the water surface. A common violation is bilge discharge. Use rags or sponges to soak up fuel or oily waste, then dispose of it properly ashore. If there is much fuel or oil in the bilge, contact a knowledgeable marine service to remove it. Never pump contaminated bilge overboard. Help protect your waters.

Fill tank(s) less than rated capacity. Allow for fuel expansion.

1.13

Section 1 • Safety

b. WasTe Disposal

• Many areas prohibit overboard sewer discharge.

Close and disable ow-through waste systems

to prevent discharge in such areas.

• Bag all refuse until it can be disposed of ashore. Regulations prohibit disposal of plastic anywhere in the marine environment and

restrict other garbage disposal within specied

distances form shore.

NOTICE

It is illegal for any vessel to dump plastic trash anywhere in the ocean or navigable waters of the United States.

c. excessive noise

Many areas regulate noise limits. Even if there are no laws, courtesy demands that boats operate quietly.

D. Wake/Wash

! WARNING

SPEED HAZARD- Watch your wake. It might capsize a small craft. You are responsible for damage caused by your wake.

Power boat wakes can endanger people and vessels. Each power boat operator is responsible for injury or damage caused by the boat's wake. Be

especially careful in conned areas such as channels

or marinas. Observe "no wake" warnings.

! CAUTION

Reduce speed in congested waterway.

Be alert for No Wake Markers.

1.14

342 Performance

Section 1 • Safety

20. nauTical TerMs

Abeam – object 90 degrees ( of boat.

Abaft – a point on a boat that is aft of another.

Aft - toward the rear or stern of the boat.

Beam - the maximum width of a boat.

Bilge - the lowest part of the hull on the inside where uids

collect.

Bow - the forward part of a boat.

Bow Eye - bolt with looped head mounted on extreme forward

part of bow, used for towing or tying up boat.

Bulkhead - vertical partition in a boat

Chine - meeting juncture of side and bottom of boat.

Chock - deck tting, used as a guide for mooring or anchor

lines. Also, a wedge to stop wheels from rolling.

Cleat - deck tting with arms or horns to which lines are tied

or made fast.

Cockpit - the open space from which a boat is operated.

Deck - upper structure which covers the hull between

gunwales.

Downwind - in the direction the wind is blowing toward

Draft – depth of water required to oat boat and its propulsion

system.

Fathom - six feet.

Fenders - rope or plastic pieces hung over the side to protect

the hull from chang against a dock or another boat.

Freeboard - height of exposed hull from water line to deck.

Ground tackle - general term referring to anchors, anchor

lines, etc.

Gunwale (pronounced gun'l) - where the hull and deck come together; the "sides" of the boat in the cockpit area.

90°

) to center line on either side

Headroom - vertical distance between the deck and cabin or canopy top.

Helm - steering and controls console.

Hull - the lower part of a boat beneath the deck and cockpit

that provides buoyancy to oat the weight of the craft and its

load.

Keel - the major longitudinal member of a hull; the lowest external portion of a boat.

Knot - unit of speed in nautical miles per hour.

Lee - the side that is sheltered from the wind.

PFD - Personal Flotation Device; life jacket or preserver.

Port - term designating left side of the boat when facing

forward.

Rudder - Movable xture at the stern used for steering.

Scupper - hole permitting water to drain overboard from deck

or cockpit.

Sheer - curve or sweep of the deck as viewed from the side.

Snub - to check or tighten a line suddenly.

Starboard - term designating right side of the boat.

Stern - the rear (aft) end of a boat.

Stern drive - outboard unit of an inboard/outboard (I/O) engine

installation.

Stringer - longitudinal members fastened inside the hull for additional structural strength.

Transom - the rear part of the boat across the back, to which the drive unit and swim platform are attached.

Upwind - in the direction the wind is blowing from.

Wake - disturbed water that a boat leaves behind as a result

of forward motion.

Windward - toward the direction from which the wind is blowing.

Hatch - an opening in the deck to provide access below.

Head - toilet or toilet area in a boat.

342 Performance

1.15

Section 1 • Safety

21. keY To sYMbols on conTrols & prinTs

These symbols may be found on your controls and gauges and/or used in this owner's manual. This page is to help you understand what the symbols mean.

PROPULSION

SYSTEM

TRIM

LIFT POINT

OR PROPER

LOCATION OF

SLING

ENGINE

COOLANT

ROTARY CONTROL

(QUANTITY INCREASES

WITH WIDTH OF

SYMBOL)

PROPULSION

SYSTEM TRIM

BOW UP

ENGINE

START

ENGINE

(COOLANT) WATER JACKET TEMPERATURE

FRESH WATER

BASED COOLANT

PROPULSION

SYSTEM TRIM

BOW DOWN

ENGINE

STOP

ENGINE OIL PRESSURE

LEADED

FUEL

TRIM TAB

TRIMMING

OPERATION

FUEL

LEVEL

WARNING

ELECTRICAL

HAZARD

UNLEADED

FUEL

SINGLE

LEVER CONTROL

(THROTTLE & SHIFT)

FUEL

FILTER

FIRE RISK

OIL

CONTROL

LEVER OPERAT-

ING DIRECTION

ENGINE

NO OPEN FLAME

NO SMOKING

WASTE

WATER/SEWAGE

1.16

FUEL,

GENERAL

BILGE

BLOWER

WINDSHIELD

WASHER

DIESEL

FUEL

PROPELLER

WINDSHIELD

WIPER AND

WASHER

LIFT

POINT

INTERIOR

LIGHT

COMPASS

ELAPSED

TIME

RUNNING LIGHTS

UNDER POWER

ANCHOR

ENGINE

ROTATIONAL

SPEED

ANCHOR

LIGHT

HORN

BILGE PUMP

WINDSHIELD

WIPER

BATTERY

342 Performance

22. WarninG label locaTions

warning laBel locationS (fig 1.17.1)

only w/ re port

optional with water tank

optional

Located in Owner’s Packet

The above warning is attached to the steering wheel prior to delivery of any

boats sold in the state of California in accordance with California Health and

California Residents Only

Safety Code §§ 25249.5-.13

342 Performance

Baja Marine Corp.

C E

0609

IMCI

optional

342 Performance

MAXIMUM

8 + = 680 kg

= 365 kw

s and

ish

ada

BUILDER-CONSTRUCTEUR MODEL- MODELE

BAJA MARINE CORPORATION AGC

THE MANUFACTURER CERTIFIES THAT THIS PRODUCT COMPLIES WITH THE CONSTRUCTION STANDARDS FOR SMALL VESSELS.

POXV 1454

NO. -no

ean

ech

es et

anada

oti

342 Performance

LE FABRICANT CERTIFIE QUE CE PRODUIT EST CONFORME AUX NORMES DE CONSTRUCTION DES PETITS BATEAUX.

optional

Speed changes you.

TM.

1.17

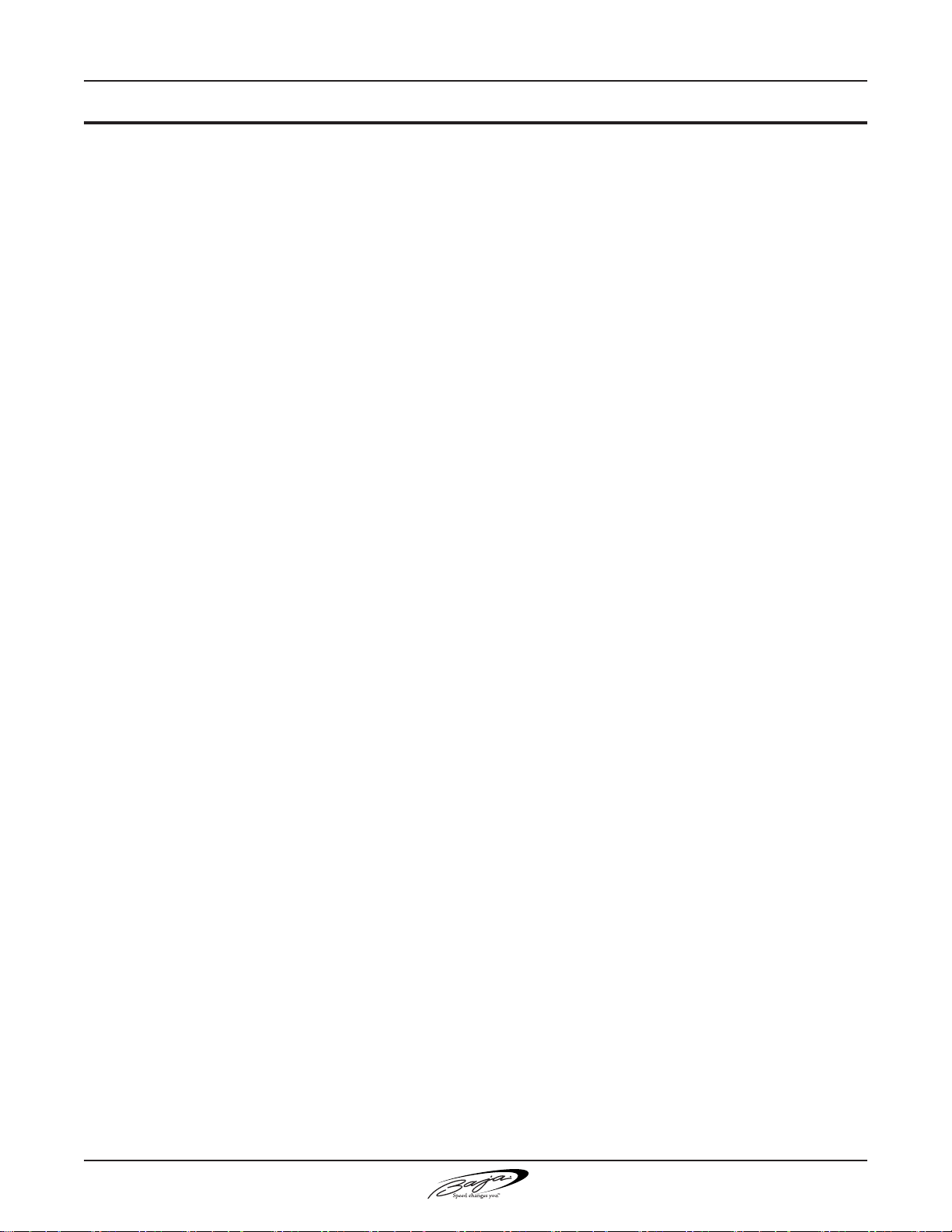

THIS PAGE INTENTIONALLY LEFT BLANK

1.18

Speed changes you.

TM.

342 Performance

Section 2 • general Boat arrangement

1. DockinG/lifTinG/TrailerinG

! CAUTION

Do Not use cleats for lifting.

CLEATS: Cleats must not be used for lifting the boat; they are intended for docking or mooring

use only.

BOW AND STERN EYES: The bow eye must be used to haul the boat onto a trailer. The stern eyes must be used as tie down points for trailering the boat. The bow and stern eyes may be used for short term lifting of the boat such as for service. Long term lifting with the bow and stern eyes may cause

stress on the berglass and gel coat.

For long term storage, use at, wide belt-type slings and spreaders long enough to keep pressure from gunwales. Do not place slings where they may lift

on underwater ttings.

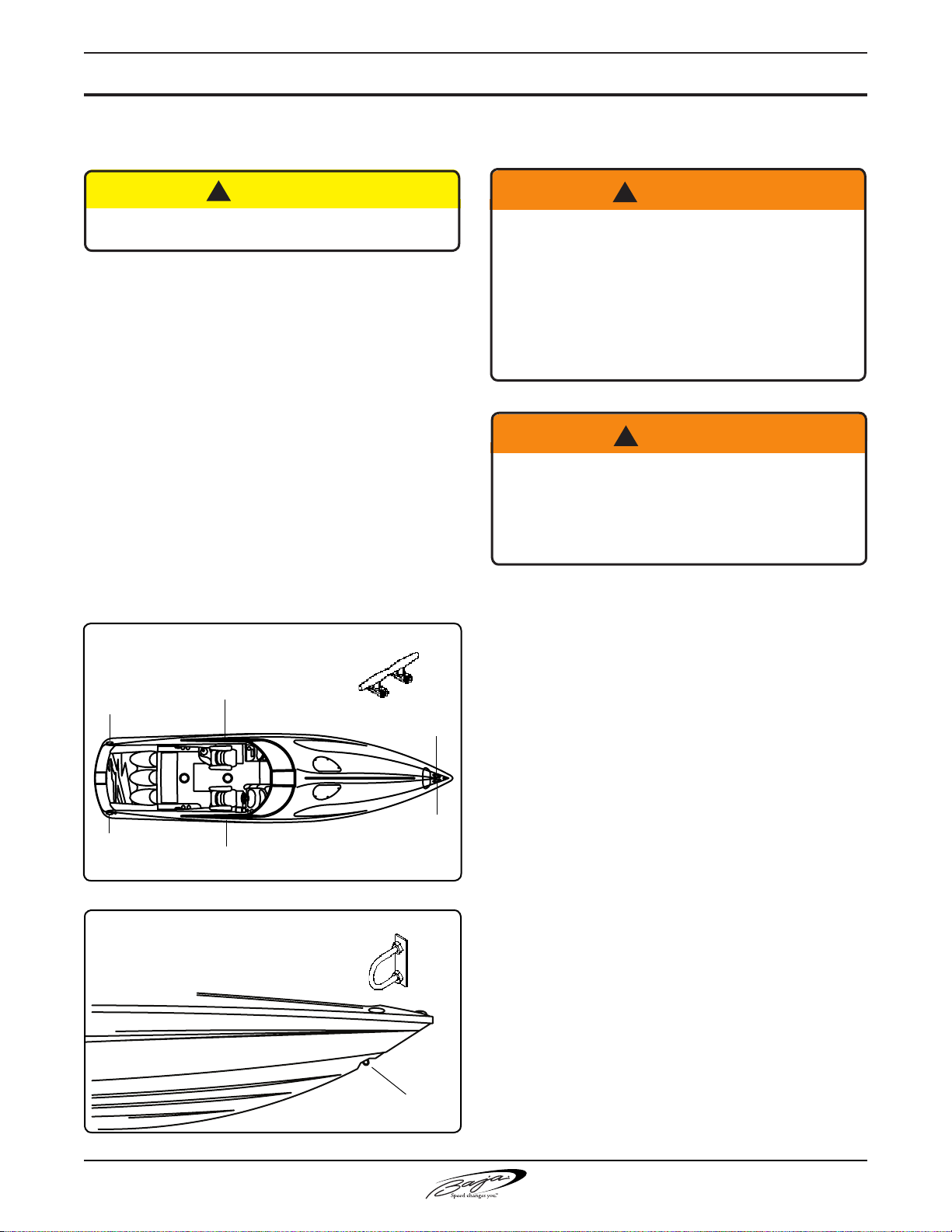

cleat locationS (fig 2.1.1)

Cleat

Bow eye locationS (fig 2.1.2)

CLEAT

Cleat

BOW & STERN EYES

2. passenGer locaTions

! WARNING

Boat motion can be erratic.

You can fall overboard or be injured by hitting something in or on the boat.

All persons must be in cockpit area or cabin and be prepared for sudden boat movement.

Use front or bow deck area only during anchoring, mooring or emergencies.

! WARNING

Wet decks are slippery.

You can be seriously injured if you slip and fall.

Wear slip resistant footwear secured to your feet and hold on to rails or boat structure.

1. When the boat is moving, all passengers must be on the seating provided or, if standing,

holding on rmly.

While the person at the wheel must alert

passengers before any sudden or erratic boat movement, such as crossing wakes, rapid turns, sudden acceleration or deceleration, etc., an emergency action may be necessary before passengers can be warned. All passengers must be prepared for rapid boat movement and be able to hold on to prevent loss of balance.

2. When persons are on the working deck area, for anchoring, mooring, or in emergencies, they must be holding on and be positioned so as to prevent falling. In bad weather and/or rough water, if it is essential to be on deck, persons should be closely tied to cleats, railing stanchions, or other securely fastened boat hardware.

342 Performance

3. Engines must be turned off and the stern drive fully down if the boat is near swimmers or persons are on the swim platform or the swim

Bow Eye

ladder.

2.1

Section 2 • general Boat arrangement

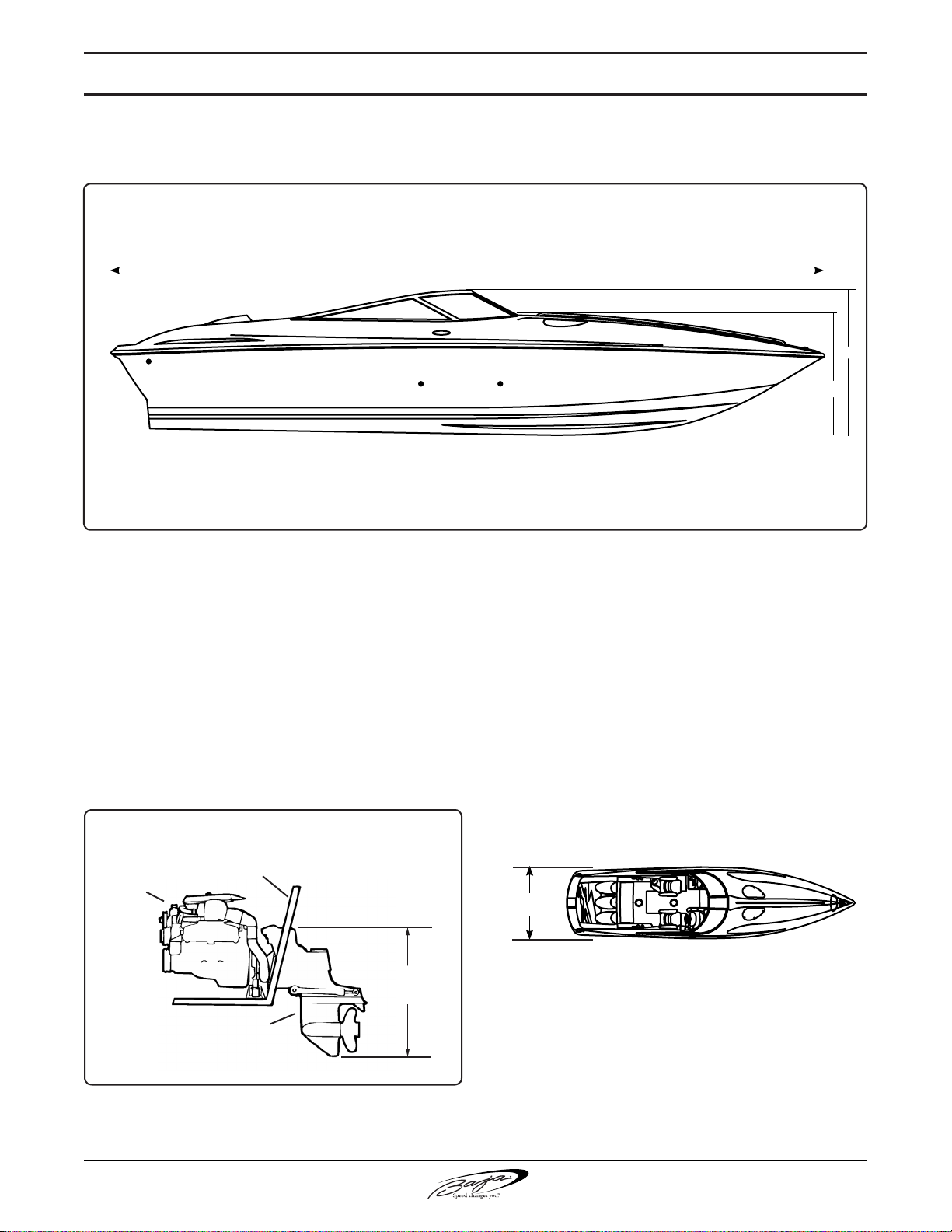

3. basic boaT DiMensions anD clearances (uniTeD sTaTes sTanDarD s.a.e.)

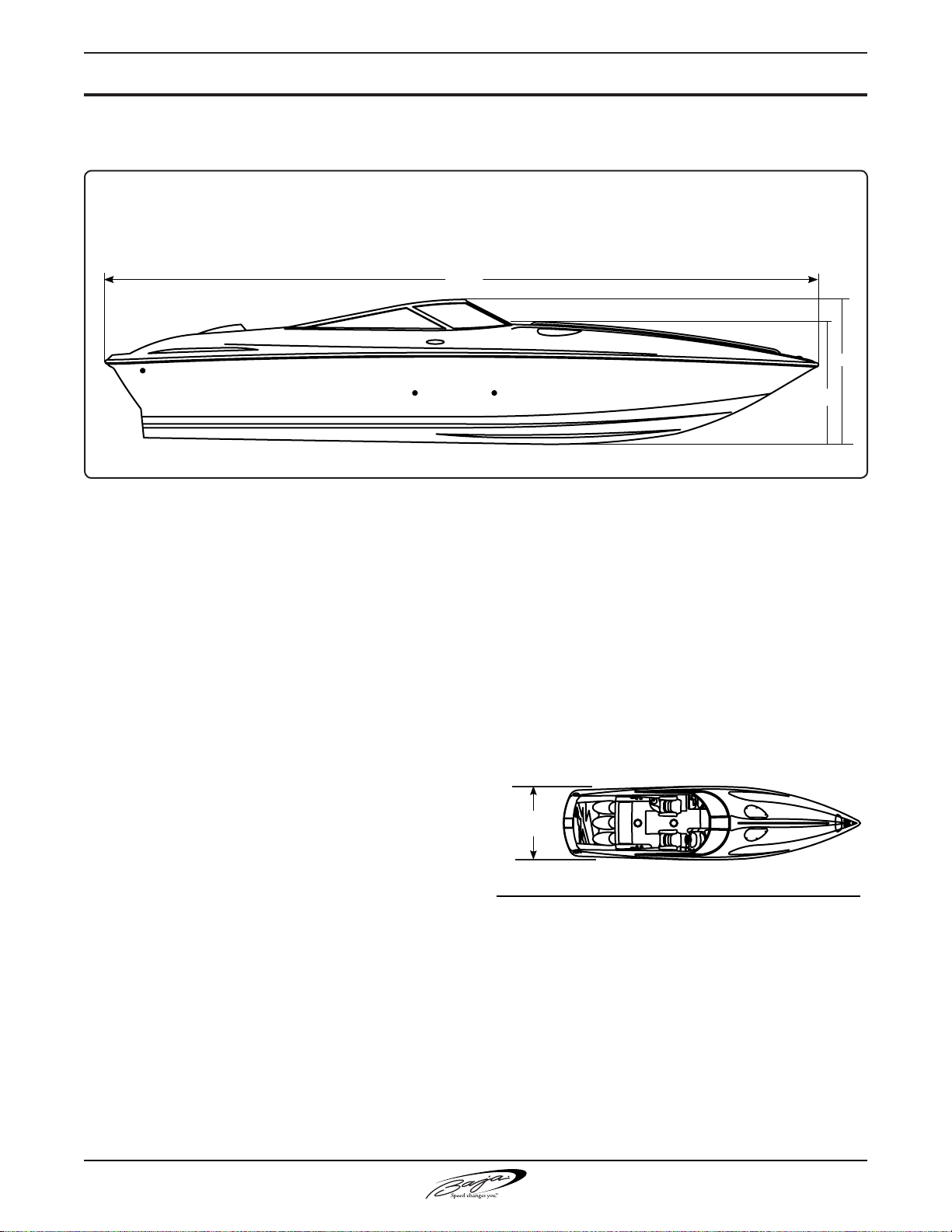

Boat dimenSionS and clearanceS (fig. 2.2.1)

34'2"

89"

79"

342 Performance specificaTions

Overall Length .................................................................34'2"

Beam (width) .....................................................................8'6"

Draft (stern drive down) ..................................................... 40"

Draft (stern drive up in trailering position)...........................35"

Dry Weight .........................................................8,200 pounds

Fuel Capacity........................................................ 185 gallons

Fuel Capacity (w/ generator) ................................ 145 gallons

Stern drive (inBoard-outBoard) engine (fig 2.2.2)

ENGINE

STERN DRIVE UNIT

HULL

(TRANSOM)

(LOWER UNIT)

WATER LINE

(Stern Drive Down)

35"/89cm

DRAFT

heiGhT DiMensions

From Keel

without Windshield............................................................79"

Keel To Top

Of Windshield.....................................................................89"

From Waterline

without Windshield............................................................59"

From Waterline to

Top of Windshield................................................................69"

8’6”

Beam

(FIG. 2.2.3)

Specication measurements are approximate

and subject to variance.

2.2

342 Performance

Section 2 • general Boat arrangement

basic boaT DiMensions anD clearances (MeTric)

Boat dimenSionS and clearanceS (fig. 2.3.1)

10.41m

2.26m

2.01m

342 Performance SPecificationS

Overall Length..............................................................10.41 m

Beam (width).................................................................2.59 m

Draft (stern drive down)..................................................1.02 cm

Draft (stern drive up in trailering position).....................88.9 cm

Dry Weight..............................................................3,719.5 kg

Fuel Capacity.........................................................700.3 liters

Fuel Capacity (w/ generator).........................................548.9 liters

4. propulsion sYsTeM

Your boat is equipped with a stern drive type propulsion system also known as an inboardoutboard engine. (See Figure 2.2.2) This type of propulsion system has the engine inside the boat secured to the hull's stringers at the rear end of the hull. The stern drive unit, also called the lower unit because it hangs below the hull, is part of the propulsion system that attaches to the outside of the hull or transom. The stern drive unit pivots to steer the boat.

height dimenSionS

From Keel

without Windshield.......................................................2.01 m

Keel To Top

Of Windshield...............................................................2.26 m

From Waterline

without Windshield......................................................1.50 m

Waterline to Top

of Windshield...............................................................1.75 m

2.59 m Beam

(FIG. 2.3.2)

5. propellers

Your Baja® has been equipped with a propeller which our tests have shown to be the best suited for general use under normal conditions and load.

For engine operating instructions, see page 3.4.

342 Performance

Under no circumstances use a propeller which allows the engine to operate at higher than the maximum RPM for your engine. (See the Engine Operator's Manual.)

2.3

Section 2 • general Boat arrangement

6. General Deck laYouT

GENERAL DECK LAYOUT (FIG. 2.4.1)

Anchor Storage

Deck Hatch

Cleat

Nav. Light

Cleat

Deck Hatch

LEFT

(PORT)

FWD

REAR

(AFT)

RIGHT

(STBD)

Walk-thru Windshield

Glove Box

Cup Holder

Passenger Seat

Inspection Plate

Sink

Inspection Plate

Cleat

Swim Platform

Ladder Hatch

Shift/Throttle Controls

Steering Wheel Helm Seat

Aft Seating

Engine Hatch

Cleat

2.4

342 Performance

Section 2 • general Boat arrangement

7. DescripTion of Major conTrols

a. Gear shifT anD ThroTTle conTrol

The shift/throttle control unit for the engine is activated by individual handles. (See Figure 2.5.1) The shift handle must be in neutral position to start your engine. Moving the shift handle forward engages the forward gear. Then move the throttle arm or handle forward to increase engine speed and propeller RPM, moving the boat faster. To shift to reverse, bring the shift handle lever back to the neutral position after bringing back the

throttle handle rst, then move it further back to engage

the reverse gear. Move the throttle handle to increase engine speed and propeller RPM, moving the boat faster in reverse.

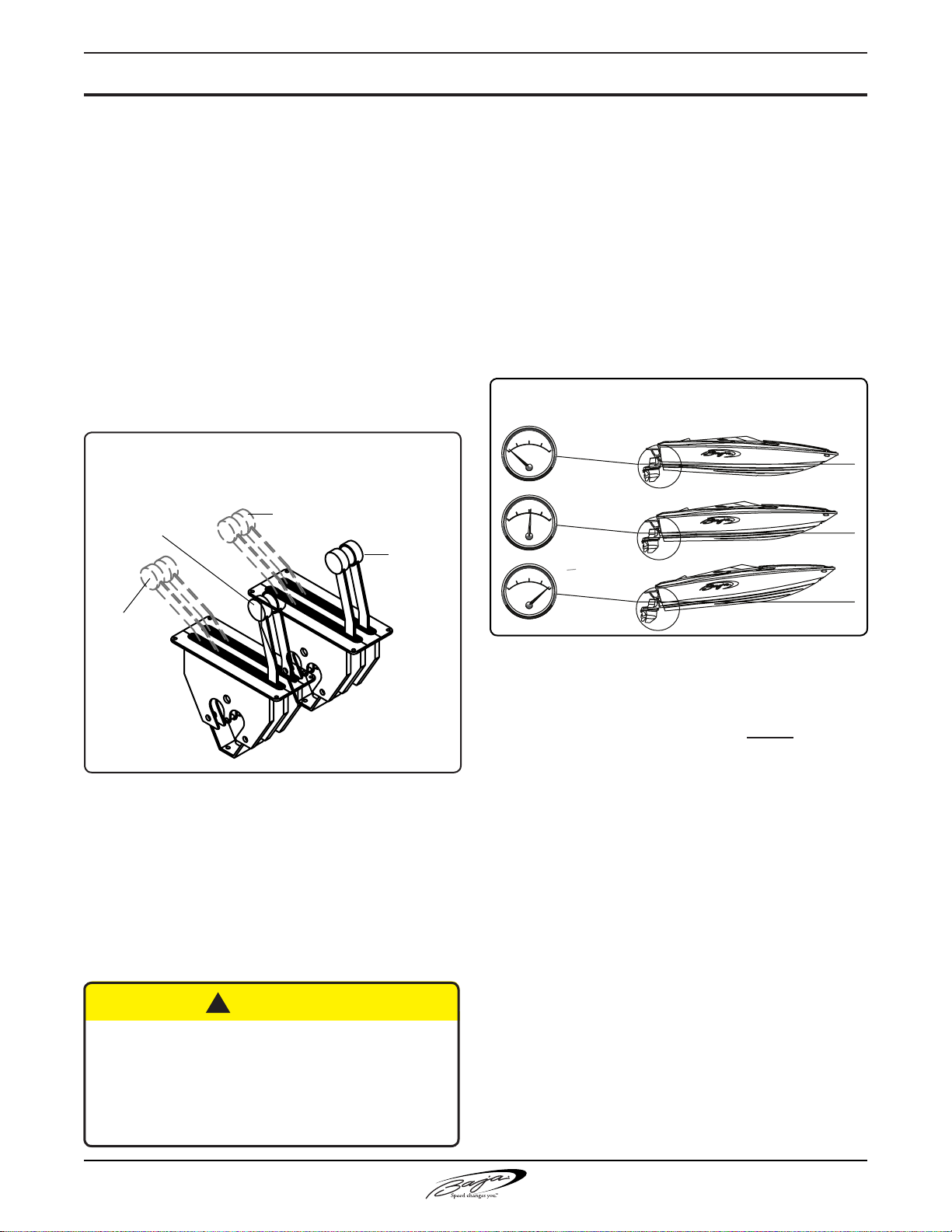

GEAR SHIFT AND THROTTLE CONTROL (FIG. 2.5.1)

Throttle levers Shift levers in reverse position

Shift levers in forward positon

in full throttle

position

Throttle levers in idle position

Do not shift to reverse too soon. Wait for the following wake to dissipate.

b. poWer TriM uniT anD GauGe

The Power Trim allows the operator to raise and lower the stern drive unit while underway to provide the ideal boat angle (in relation to water surface) for a given load and water condition. (See Figure 2.5.2)

Trimming UP rotates the stern drive and propeller away from the transom. Trimming DOWN rotates the stern drive and propeller closer to the transom.

effectS of Power trim (fig. 2.5.2)

DOWN UP

The throttle control adjusts the RPM of the engine and thus, the rotational speed of the propeller. Regulating the RPM of the engine controls the speed of the boat.

Forward motion creates forward moving water called a "following" wake. If the boat is moving forward and the shift/throttle is moved quickly from forward to reverse, the boat will stop rapidly and then move backward. The following wake continues to move forward and can rise

above the transom and ood the boat.

! CAUTION

Cockpit can ll with water if boat is moving forward

fast enough to create a wake, and then quickly put into reverse.

Before shifting into reverse, shift to neutral, wait for the boat to stop rapidly moving forward, then shift into reverse.

When the stern drive is trimmed DOWN, the bow of your boat is being forced down. If the trim is in the full DOWN position when accelerating from idle to plane, the boat will plane faster with less bow rise. Once on plane, the stern drive unit can be trimmed UP slightly. This will raise the bow of the boat slightly and increase speed. You will need to try small differences in the stern drive position to determine the trim position you prefer under various conditions.

If you raise the stern drive up too far while on plane, you could cause a loss of speed and power due to a condition called propeller "ventilation." If this happens, there will be a sudden increase in engine RPM and loss of speed. Do not let this condition exist. Immediately reduce your engine RPM and trim the outdrive DOWN slightly until engine slows down and you regain forward speed.

The trim gauge indicates the position of the stern drive relative to the transom.

REFER TO YOUR ENGINE OPERATOR'S MANUAL FOR PROPER TRIM GAUGE SETTING.

342 Performance

2.5

Section 2 • general Boat arrangement

c. Trailer sWiTch

The trailer switch (Power Tilt) is not to be confused with the Power Trim function. The trailer switch is to be used only when the engine is off.

The trailer switch allows the drive unit to be raised for trailering, beaching and launching. To operate, press and hold the trailer switch until the drive unit reaches the end of upward travel. The mechanism that raises the lower unit will stop operating at the end of the upward travel. To bring the drive unit down into boating position, push the power trim switch down.

D. TriM Tabs

The trim tabs (see Figure 2.6.1) are different from the stern drive unit trim control. The trim tabs are

two at plates, hinged below the water line on the

transom at the rear and are raised and lowered hydraulically by using the rocker switches located at the helm station.

To correct the listing, adjust the trim tabs to level the boat. When the boat is level, right to left, the steering effort will be the same for right and left turns.

Lower the trim tab on the listing (lower) side by pushing the top half of the rocker switch in one-half second bursts until the boat is righted.

Using both switches to lower both tabs on a sideto-side balanced boat will lower the bow, when on plane, if the rear of the boat is highly loaded. Again, use only short bursts of the rocker switches to adjust the trim.

When running at cruising speed, the trim tabs should be fully up, unless the rear is heavily loaded.

In heavy following seas or when running in an inlet, best maneuverability is obtained with a bow high attitude. To be sure the tabs are full up, push the bottom halves of the rockers for several seconds.

The trim tabs are used to adjust the sideways listing of the boat due to uneven loading, a strong cross wind or propeller torque. The twisting effect of propeller torque is especially pronounced when running the engine at high horsepower output.

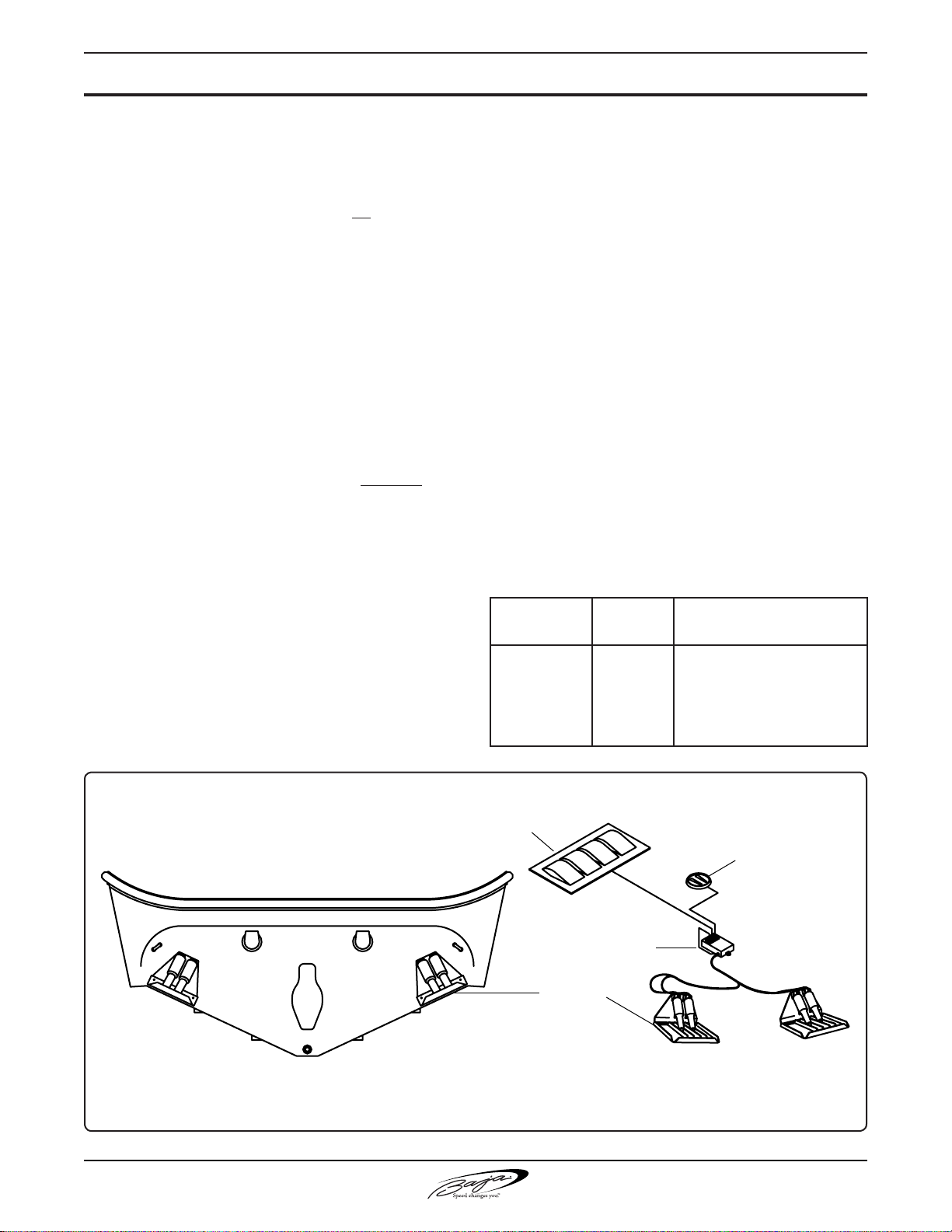

trim taBS (fig 2.6.1)

ROCKER SWITCH

running

attitude

BOW UP BOW UP

BOW UP BOW DOWN BOW DOWN

CONTROL MODULE

TRIM TAB

liSt Push

-----Port

Starboard

Port

Starboard

Top of Both Switches

Top of Starboard Switch

Top of Port Switch

Bottom of Starboard Switch

Bottom of Port Switch

TRIM INDICATOR

2.6

The optional installed trim tabs may vary from above picture.

342 Performance

Section 2 • general Boat arrangement

c. iGniTion shuTDoWn sWiTch

Figure 2.7.1 shows the ignition shutdown switch. The purpose of the switch is to shut down the engine if the operator unintentionally leaves the helm station. Situations in which this could occur are rough water, bad weather and other adverse boating conditions. In these situations, the safety of the boat and its passengers is enhanced by using the ignition shutdown switch, since the boat will stop when the operator can no longer control the boat.

However, unexpected engine shutdown may result in unintentional harm. For example, a passenger may lose balance and fall, or control could be lost

during docking. No specic guidelines can be given

for switch use. The ultimate decision of when to use an ignition shutdown switch rests with the operator or owner.

When the switch is used, the operator must securely clip the lanyard to their belt or clothing so that if the operator falls overboard or into the boat, the switch is activated and the engine shuts down.

To reset ignition shutdown switch after it has been activated, simply reinstall the switch clip above

the shut-off switch and ip the switch to the "UP"

position.

D. enGine alarM sYsTeM

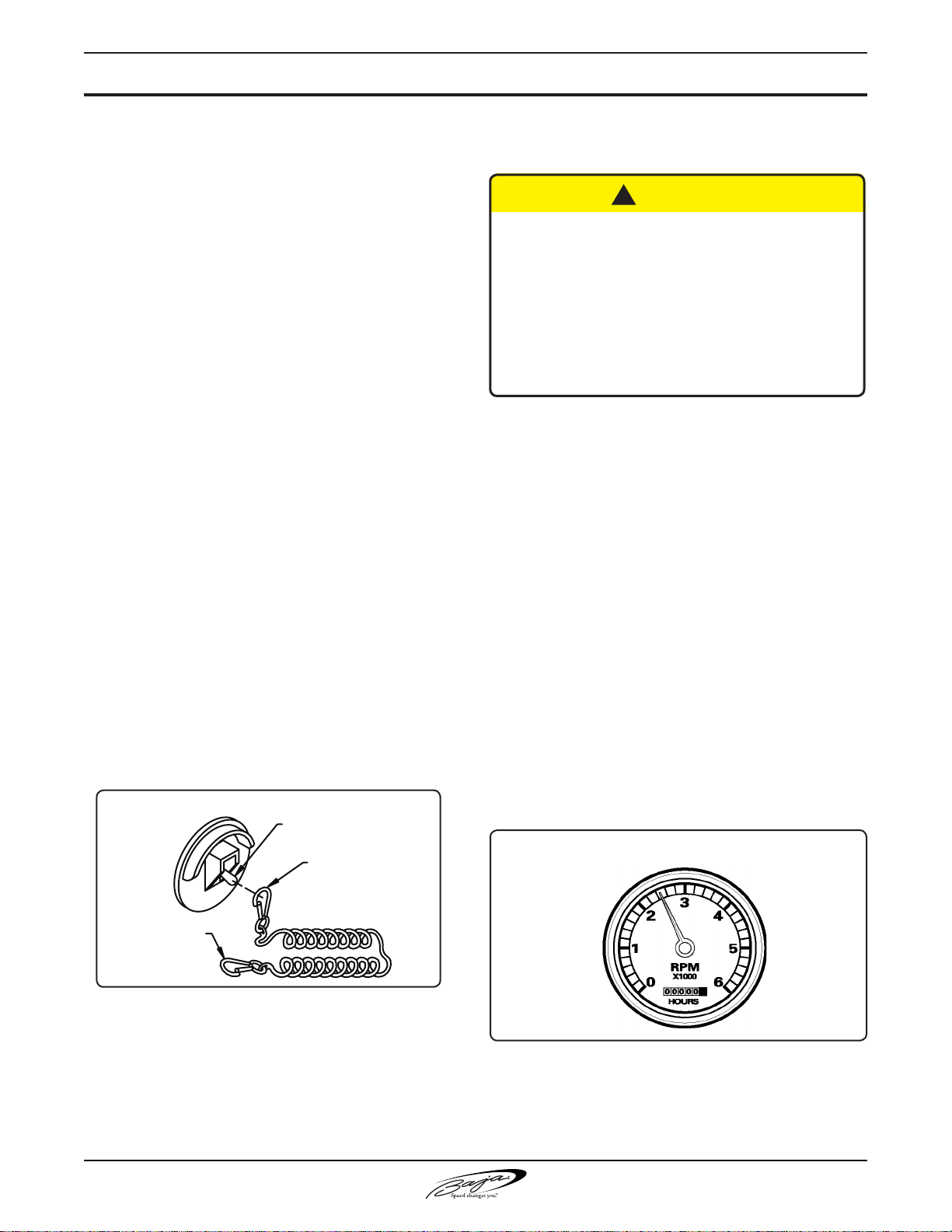

ignition Shutdown Switch (fig 2.7.1)

Ignition Shutdown Switch

Clips to Switch

8. iMporTanT GauGes

! CAUTION

Always check oil pressure and water gauges before leaving dock and while underway, even if your engine has an alarm.

Shut down engine immediately if gauges are not in normal ranges, or alarm sounds.

Do not restart engine until problems are corrected.

a. TachoMeTer anD hour MeTer

The tachometer (see Figure 2.7.2) indicates the revolutions per minute (RPM) of the engine (it does not indicate the speed of the boat). Your Engine Operator's Manual indicates the maximum full throttle RPM at which your engine should operate. This must not be exceeded or serious engine damage will occur. The tachometer should also be used to determine the most comfortable and economical cruising RPM.

The hour meter measures cumulative hours of operating time on the engine. Use the hour meter to keep a careful log of when to maintain the engine as well as to estimate fuel consumption. Do not leave ignition key in the "ON" position with engine off, because the hour meter will continue to run, even though the engine is not operating.

tyPical tachometer with hour meter (fig 2.7.2)

Clips to You

The Engine Operator's Manual will tell you if your engine is equipped with an audible alarm and how to use it.

The alarm indicates a problem with engine water temperature, oil pressure and/or stern drive oil level.

342 Performance

2.7

Section 2 • general Boat arrangement

b. oil pressure, WaTer TeMperaTure,

volTMeTer anD fuel GauGes

These gauges function on your boat the same way they do on your car or truck. You must continually check these gauges visually to make certain there are no engine system problems even if your boat engine has an alarm system.

9. naviGaTion anD anchor liGhTs

Navigation lights must be on while underway from sunset to sunrise or in conditions of reduced visibility. "Underway" means the boat is not docked or at anchor. Trolling or drifting with engine off is considered "underway" and navigation lights must be used. (See Figures 2.8.1 and 2.8.2)

If you are anchored in open water, i.e. where other boats can approach yours, you must display your anchor light: a white light that can be seen from all possible directions, i.e. 360 degrees.

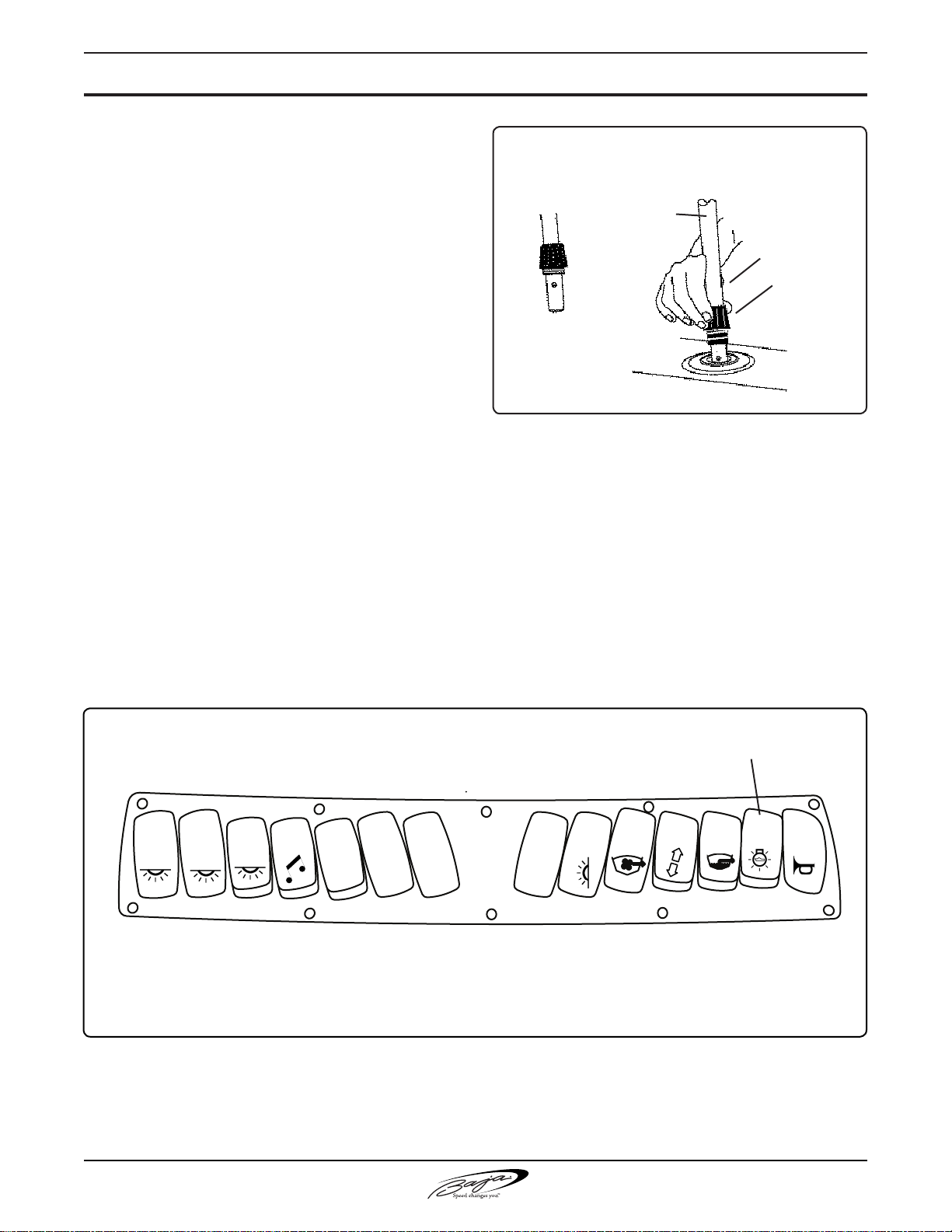

inSerting the aft removaBle navigation/ anchor light (located at the Stern of the Boat) (fig 2.8.2)

ANCHOR LIGHT

MAST

COMPRESSION

TYPE CONNECTOR

SCREW IN TYPE

CONNECTOR

DECK ANCHOR

LIGHT FITTING

Read the "Federal Requirements and Safety Tips for Recreational Boats" provided in your Owner's Manual Packet..

navigation and anchor lightS SwitcheS (fig 2.8.1)

Cabin

Navigation Lights (forward) - Bow & Stern Lights are on.

Anchor Light (back) - Only Stern Light is on.

Court

Engine

Stereo

Exhaust

Depth

Finder

ACC

Fresh Water

Docking

Lts

Blower

Nav./Anchor Lights

Engine

Hatch

Bilge

Nav/Anc

Lts

Horn

2.8

342 Performance

Section 3 • uSing your Boat

1. pre-launch, launch anD posTlaunch checklisT

Listed below are the critical items you must check and do each time you use your boat. It does not list all of the necessary maintenance and service items required to keep your boat running properly. These other items are found in Section 8.

before launch

 Drain plug installed  Enough fuel for trip  Float plan given to friend or relative  Navigation charts for trip  Weather forecast - safe

in The WaTer, before boarDinG passenGers or

sTarTinG enGine

 Stern drive down  Equipment stored and balanced  No gas smell in engine compartment

 Engine oil and steering uid levels - OK  Battery switch on

 No uid in bilge  Bilge pump working  Bilge blower on  Radio and navigation equipment functioning

passenGers

 Wearing PFDs  Seated properly  Given safety instructions

 Bilge blower on for at least four (4) minutes. Feel

to conrm airow at hull vent on hull side. Inspect bilge area for visual and odor conrmation that

there are no fuel leaks.

 Throttle-only position, handle pumped before

starting, if necessary.

 Oil pressure, engine temperature, voltage - OK

after starting and warm up.

unDerWaY

 Gradual acceleration and deceleration and

turning.

 Aware of surroundings at all times.  Operate so as to prevent buildup of Carbon

Monoxide (CO) (See section 1.3)

 Monitor weather  Use navigational aids in water and on shore  Keep passengers safe  Do not operate impaired  Check fuel consumption regularly  Check all gauges frequently

enD of Trip

 Equipment dry and stored.  Electronic equipment and switches off.  Battery switch off.  Stern drive in trailering position.

 Notify person who had oat plan.  Boat covered properly for trailering, docking or

mooring.

 Drain plug removed (if boat is not kept in

water).

 Hull and propeller inspected for damage.

sTarTinG enGine

 Make sure you have read and understand the

dangers of Carbon Monoxide (CO) information in this manual.

3.1342 Performance

Section 3 • uSing your Boat

2. Trailer launchinG anD loaDinG

! WARNING

An improper trailer can cause structural damage to the hull.

A damaged hull can be unsafe; it could cause the boat to sink.

Use a trailer that can properly support the boat’s weight and shape. Get professional help in picking the right trailer for your boat.

Your trailer must be capable of carrying the boat’s weight as well as supporting the boat near the keel, front (bow), and rear (stern) areas. Using a trailer not designed to support the boat properly, can cause structural damage to the hull. A damaged hull can be unsafe.

PR OP ER TOWING OF A BOAT AND TRAILER REQUIRES SPECIAL SKILLS. MAKE CERTAIN YOU PRACTICE HOW TO MANEUVER A BOAT AND TRAILER AND GET TRAINING BEFORE TOWING, LAUNCHING, AND LOADING YOUR BOAT.

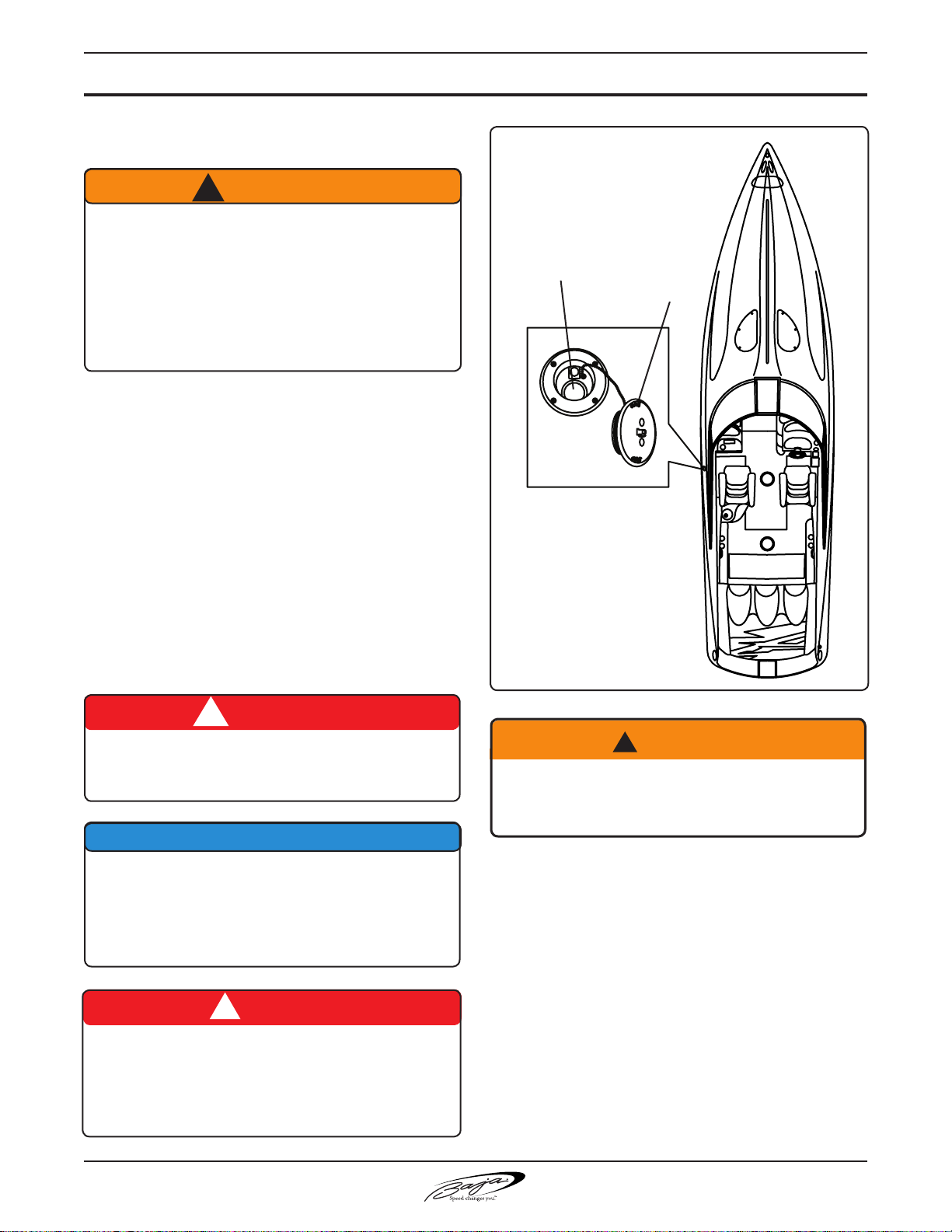

fuel fill location (fig. 3.2.1)

Fuel Tank Opening

Fuel Fill Cap

3. fuelinG The boaT

! DANGER

NO SMOKING

GASOLINE VAPORS ARE EXPLOSIVE

NOTICE

GASOLINE RECOMMENDATIONS

Minimum octane rating of 87 AKI.

Refer to the engine owner’s manual

for additional information

! DANGER

Gasoline vapors can explode from static electricity if fueling is not done properly.

Read and understand this section and section 5 • Fuel System

3.2

! WARNING

Leaking fuel is a re and explosion hazard. Inspect

system regularly. Examine fuel tanks for leaks or corrosion at least annually.

The fuel ll cap is located on the port side of the

boat (Figure 3.2.1). Do not mistake the water tank

ll and waste pump out caps for the gasoline ll cap.

Refer to your engine manual for the proper grade of gasoline.

before fuelinG

• Fuel during daylight hours.

• Tie boat to the dock.

• Shut off engine, bilge blower and all other electrical equipment.

342 Performance

Section 3 • uSing your Boat

• Shut off gas burning appliances (gas stove, etc.).

• Close all hatches, doors, and keep engine compartment closed to prevent gasoline fumes from entering the cabin or cockpit area.

• All passengers must leave the boat until it is refueled and engine is safely started.

• There must be no smoking or any ames within

20 feet of the boat, before, during, and for at least 5 minutes after fueling is completed.

• Open fuel ll cap and insert hose nozzle into the fuel ll opening. Fuel ll hose nozzle must contact the fuel ll opening BEFORE adding

fuel to prevent discharge of static electricity.

fillinG The Tanks

• Check the ll plate label to ensure that fuel is placed ONLY in the fuel tank. The fuel ll plates

are located on the port side of your boat (Figure

3.2.1).

• Keep nozzle in contact with fuel ll opening at

all times during fueling.

• Assist passengers back into the boat.

4. boarDinG

! WARNING

Wet decks are slippery.

You can be seriously injured if you slip and fall.

Wear slip-resistant footwear secured to your feet and hold onto rails or boat structure.

• DO NOT overload the boat.

• Board one person at a time and give assistance as needed.

• Transfer gear and equipment by handing it from a person on the dock to a person on board. You can lose your balance and be injured if you attempt to board while carrying equipment or gear.

• Distribute the weight of equi pment and passengers as evenly as possible to keep the boat balanced.

• Listen as tank lls and stop adding fuel before

it spills from the vent. Fuel must have room for expansion.

• Look for leaking fuel near fuel ll and near

tank.

afTer fillinG

• DO NOT wash spilled fuel overboard. Wipe up any spill with rags or paper towels and dispose of them properly on shore.

• Open engine compartment and look for fuel leaks or smell for fumes. This is especially important if your boat is equipped with gasoline engines. Leave compartment open until no odor is apparent. Close compartment.

• If fumes in the engine compartment do not disappear, do not turn on blower or start engine. Get help from trained and experienced persons before using the boat.

• Turn on blower for four minutes, then restart engine.

• Stow gear and equipment so that it is accessible, but everything is to be stored in places so as to

prevent it from ying about if the boat encounters

rough water or weather.

5. personal floTaTion Devices (pfD’s)

• Operator must instruct all passengers on location and use of PFD’s (See Section 1- Safety, page 4 for type and usage).

• Children and all non-swimmers, adults as well as children, must wear properly-sized PFDs at all times when aboard. Check applicable state regulations for PFD wear requirements.

• ALL passengers should wear PFDs. By the time someone falls overboard, it can be to late for them to put on a PFD and fasten it properly. This is especially true in colder waters, below 70o F, where survival time, before hypothermia sets in, is measured in minutes.

3.3342 Performance

Section 3 • uSing your Boat

• If there are passengers not wearing PFDs, the PFDs must be readily accessible. “Readily accessible” means out of the storage bag and unbuckled.

• All throwable otation devices (cushions, rings,

etc.) must be right at hand.

6. passenGer insTrucTion anD locaTion

• Everyone on board must be told about the boat’s behavior from starting to getting up on plane.

• Before the operator does any high-speed maneuvers or rapidly accelerates or decelerates the boat, passengers must be warned to sit and hold on and must heed the warning.

• The operator may have to make rapid changes in speed and/or direction to avoid a problem, with little or no time for alerting passengers. It is critical that all passengers be seated in the designated seating areas and holding on to prevent falling overboard or getting knocked about in the boat at all times when the boat is underway.

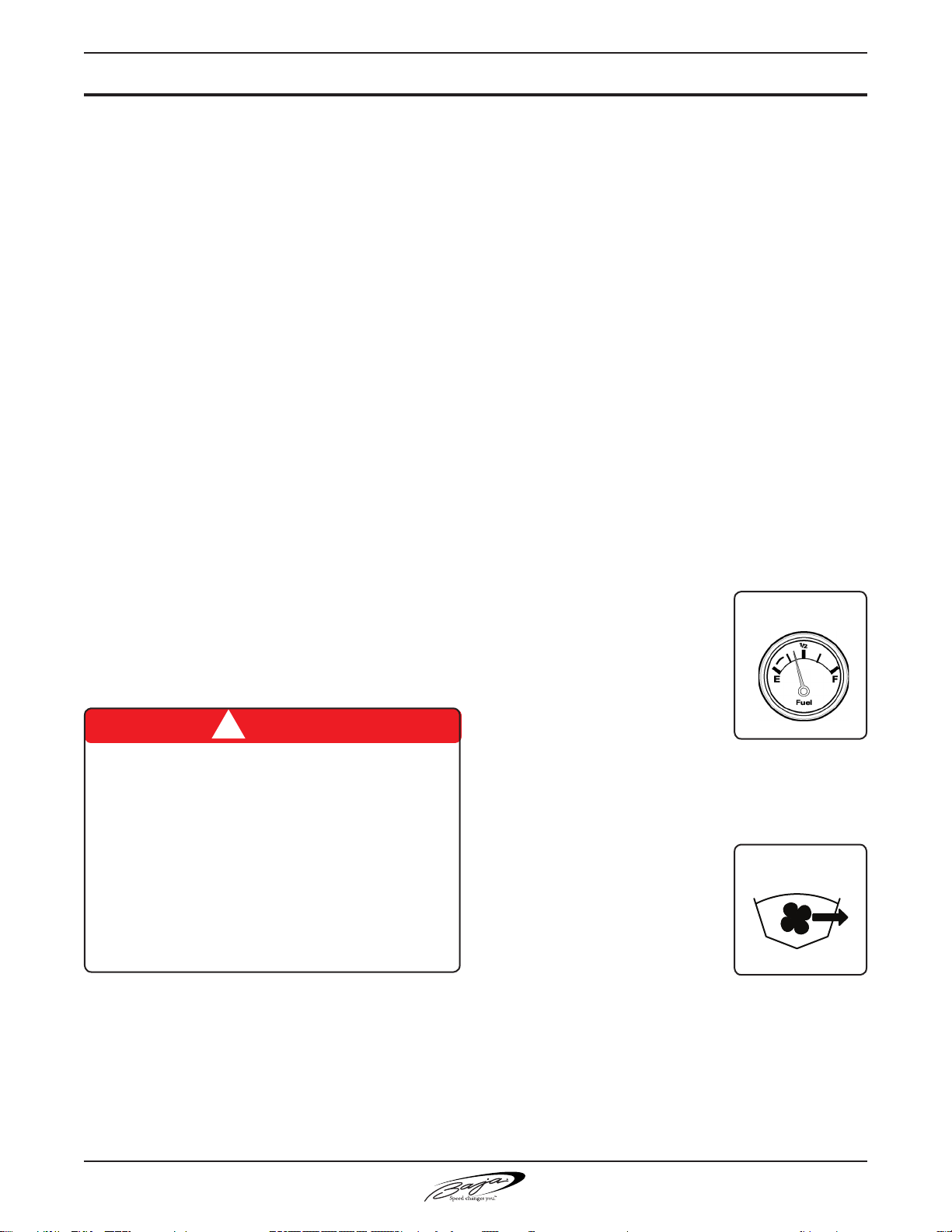

7. sTarTinG The enGine

! DANGER

Gasoline vapors can explode

Open the engine compartment and check for the smell of gasoline.

• IF YOU SMELL GASOLINE, get everyone off the boat, do not operate any electrical switches or light any matches, lighters, etc. Get trained

help to nd and x the problem, before starting

the engine or operating any switches on the boat.

• If you DO NOT smell gasoline:

1. Check all uid levels and any other necessary checks as specied in Section 8 and in the

engine manual.

2. Check that water level in bilge is minimal. Verify that the bilge pump is operating by turning the bilge pump switch to MANUAL and listening for the pump running and check to see that bilge water is being pumped overboard.

3. Close engine compartment.

4. Check fuel level. Be sure you have enough fuel for your trip. Remember the “1/3 Rule”: Use no more than 1/3 of your fuel for outbound trip; use 1/3 of the fuel for return trip; keep 1/3 for reserve in case of emergency (FIG 3.4.1).

(fig. 3.4.1)

Before starting the engines, open engine compartment and check for gasoline smell.

• If you smell gasoline, do not start engine; get

everyone off the boat and get trained help to nd and x the problem.

• If there is no gasoline smell, perform checks

specied by manual, then and only then, close

engine compartment and run blower for at least 4 minutes before starting.

The engine operation and maintenance manual furnished with your boat describes pre-start and starting procedures. We urge you to thoroughly read and understand your engine manual.

Listed below are basic pre-start and starting reminders. These are not a substitute for the engine

manufacturer’s specic recommendations.

3.4

5. Run bilge blowers for at least 4 minutes before attempting to start engine (FIG 3.4.2).

Unlike your automobile engine which is naturally ventilated even when it is not moving, your boat engine compartment (the

bilge) does not have sufcient

natural ventilation when the boat is not moving or moving slowly. That is why the engine compartment must have forced ventilation, using the bilge blower, to remove potentially explosive gasoline vapors before the engine is started and when the boat is moving slowly.

Because it may be difcult to remember to turn on

the bilge blower every time you slow down the boat,

(fig. 3.4.2)

342 Performance

Section 3 • uSing your Boat

it is recommended that the bilge blower run all the time the engine is running.

6. Place drive unit in full DOWN/IN position.

7. Put shift control lever into neutral; then for a:

COLD ENGINE - Move throttle lever forward

to full open throttle, then return to about 1/4 throttle. In cold weather, it may be necessary to pump lever several times before engine will start.

WARM ENGINE - Move throttle lever about 1/4

open throttle position. Do not pump lever.

FLOODED ENGINE - Move throttle lever to full

open position. DO NOT pump lever. When the engine starts, move throttle lever back rapidly to decrease engine speed to between 1000 and 1500 RPM.

8. TO START ENGINE:

8. shifTinG To Drive The boaT

Bring throttle lever all the way back. Once done, the drive is ready to shift.

Move shift lever either forward or reverse. Then move throttle lever forward, the drive unit will engage and boat will start to move slowly in either forward or reverse. Once clear of the dock, mooring, people and/or the no-wake zone and the boat has been shifted into forward gear, move throttle lever forward to desired engine speed.

CAUTION

Cockpit can fill with water if boat is moving forward, when it is put into reverse.

Before shifting into reverse, shift to neutral, wait for the boat to stop moving forward, then shift into reverse.

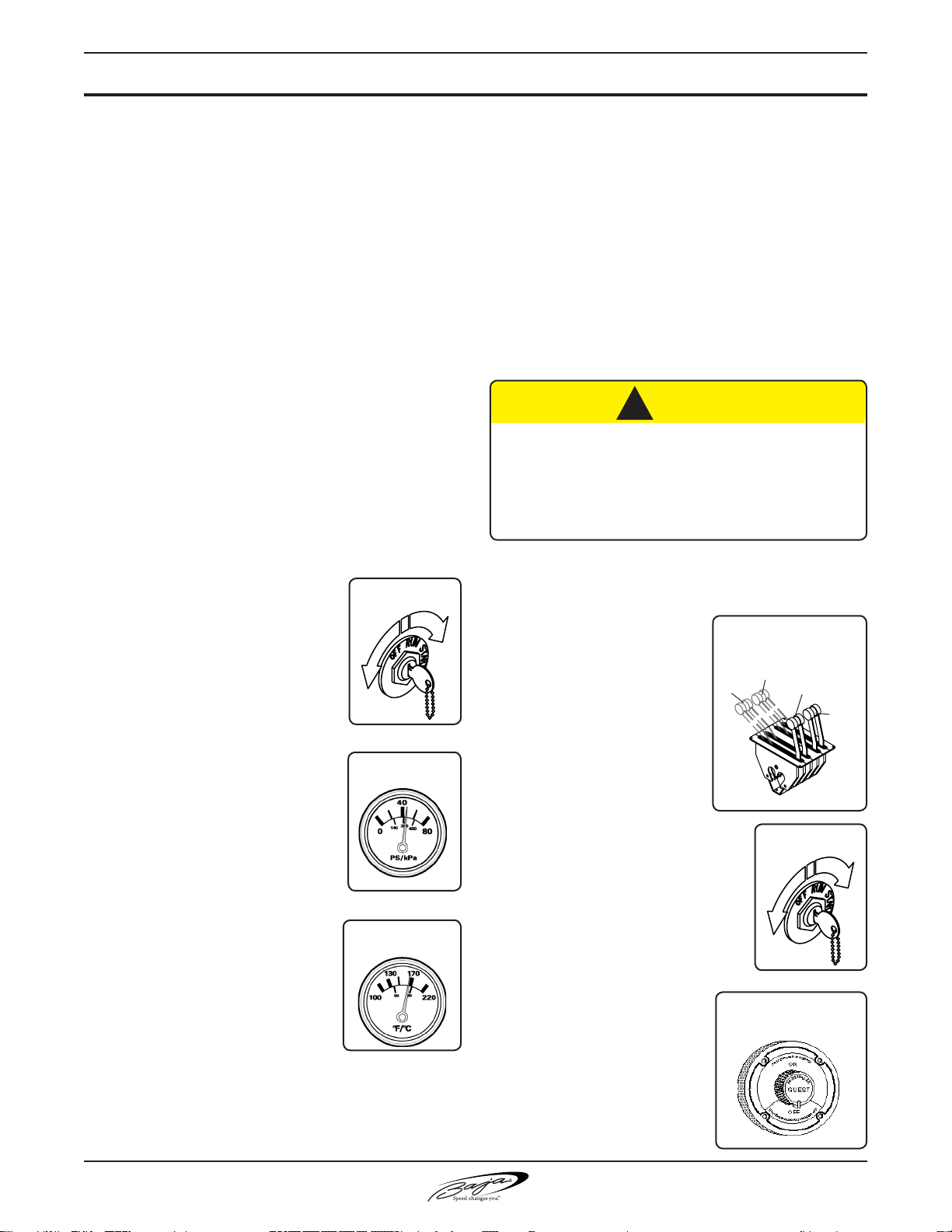

Turn ignition keys clockwise,

(fig. 3.5.1)

as you would an automobile (Fig. 3.5.1).

9. After engine starts, reduce speed to between 1000 and 1500 R PM and check oil pressure.

10. If oil pressure is correct, let

(fig. 3.5.2)

engine warm up to normal

temperature range as specied

in the engine manual, before shifting into forward or reverse gear (Fig. 3.5.2).

IF ENGINE TEMPERATURE

GOE S ABOVE NORMAL

(fig. 3.5.3)

RANGE. SHUT DOWN THE ENGINE IMMEDIATELY. GET TRAINED HELP TO FIND AND FIX THE PROBLEM (Fig. 3.5.3).

IF OIL PRESSURE GOES ABOVE OR BELOW

OPERATING RANGE, SHUT ENGINE DOWN IMMEDIATELY. GET TRAINED HELP TO FIND AND FIX THE PROBLEM.

9. sToppinG The enGine

1. Move throttle levers all the way back. Once done, move shift lever to neutral position, which is located in the center. (Fig. 3.5.4).

2. Turn ignition keys counter clockwise to turn off engine (Fig. 3.5.5).

3. If you are leaving the boat for more than two hours, turn battery switches OFF (Fig. 3.5.6)

(fig. 3.5.4)

Shift levers in forward positon

(fig. 3.5.6)

Throttle levers in full throttle position

Shift levers in reverse position

(fig. 3.5.5)

Throttle levers in idle position

3.5342 Performance

Section 3 • uSing your Boat

10. sTeerinG sYsTeMs

! WARNING

Failure of the steering system will cause loss of control of your boat. Any change in steering such as looseness, tightness, binding, etc., must be checked immediately by your Baja dealer.

Your Baja® may be will be equipped with one of two types of steering. Please refer to the Owner’s Packet for information on the steering system installed on your boat.

hydraulic Steering SyStem (fig 3.6.1)

a. hYDraulic sTeerinG

Some Baja® boats may use a hydraulic steering system (Fig. 3.6.1). Periodically remove the plug in the helm unit and check the oil level visually. The

oil level should be within ½” of the ller hole. See

section 8 of this manual for inspection, service and maintenance recommendations.

The system must be lled with hydraulic oil meeting

Mil Spec H-5606 A.

R E F E R TO O W N E R ’ S PA C K ET F O R I N S T R U C T I O N S A N D W A R R A N T Y INFORMATION.

STEERING

WHEEL

HELM

HYDRAULIC RAMS*

*The illustration shown is specic to boats with two engines.

The number of hydraulic rams is determined by the number of engines a boat is equipped with.

HYDRAULIC FITTING

HYDRAULIC LINES

RETURN

RESERVOIR

CHECK AND ADD

FLUID HERE

FLUID

LINE

OIL FILTER

FLUID PRESSURE

LINE

FLUID

RETURN

LINE

OIL COOLER

3.6

342 Performance

Section 3 • uSing your Boat

b. poWer sTeerinG

The power steering system is an enclosed push-pull cable that is hydraulically assisted (power steering) at the stern drive end (Fig. 3.7.1).

The cable and its connections to the steering wheel and to the out drive MUST be inspected at least twice a year by your Baja® dealer.

The power steering pump uid level MUST be

checked every time prior to using the boat. Refer to the steering system information in your Owner’s Packet.

See section 8 of this manual for inspection, service and maintenance recommendations.

Power Steering SyStem (fig 3.7.1)

POWER STEERING

CYLINDER

STEERING CABLE

FLUID

RETURN LINE

CHECK & ADD

FLUID HERE

STEERING ROTOR

HELM

STEERING WHEEL

FLUID

PRESSURE

LINE

FLUID

RETURN

LINE

3.7342 Performance

Section 4 • Bilge & underwater gear

1. bilGe

a. fuel & oil spillaGe

Regulations prohibit discharging fuel or oily waste

in navigable waters. Discharge is dened as any action which causes a lm, sheen or discoloration on

Fill fuel tank less than rated capacity. Allow for fuel expansion.

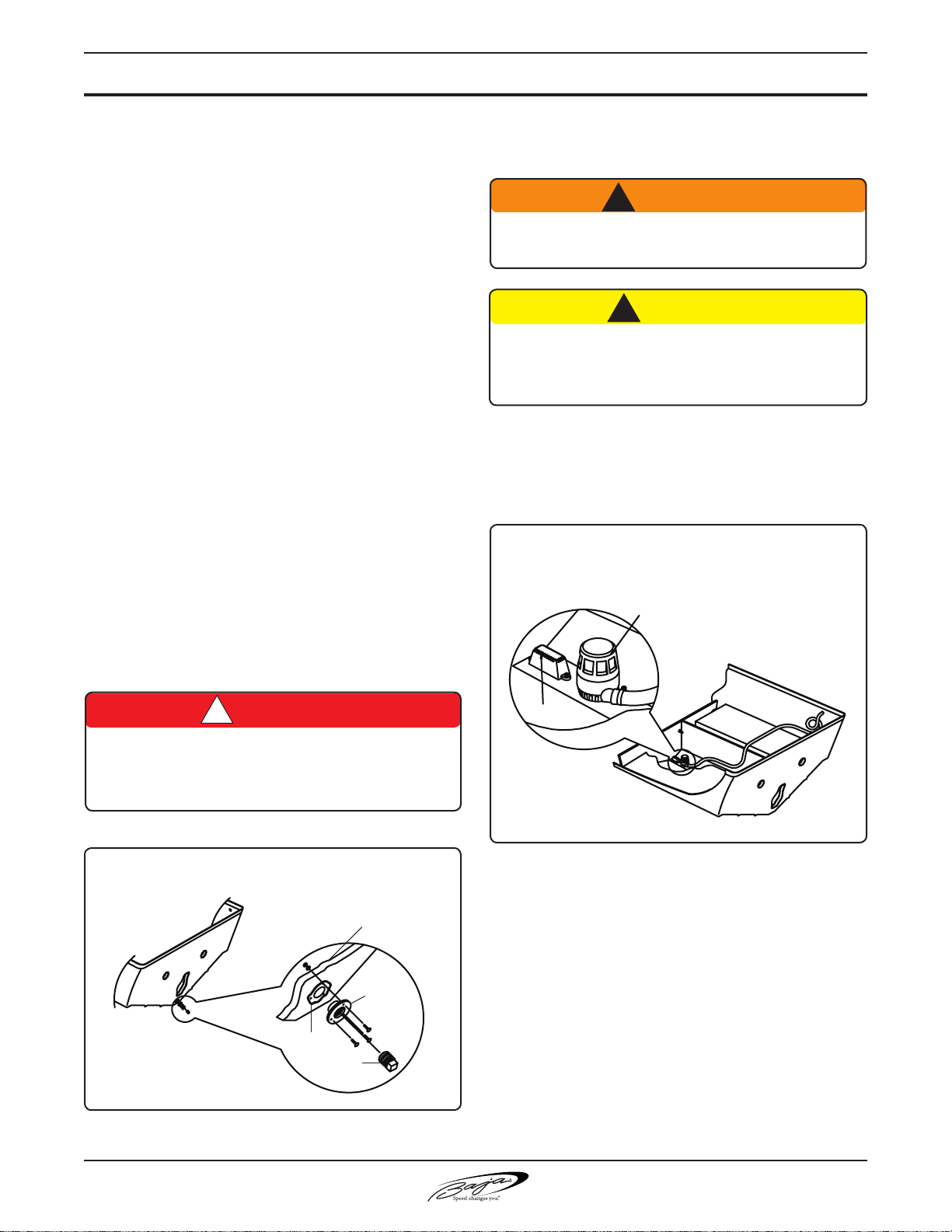

b. Drain pluG

The bottom of the engine compartment is called the “bilge”. It is the lowest and inner part of the hull. Water and other liquids will collect here.

c. bilGe puMps

! WARNING

Sinking Hazard – Ensure the bilge pumps are operating properly.

! CAUTION

Run bilge pumps in the manual position only as long as necessary to remove water. Running bilge pumps dry can damage the pump motor.

A bilge pump and oat switch are located in the

bottom of the bilge (Figure 4.1.2). The bilge pump is manually activated from the switch panel located on the helm.

Bilge PumP and float Switch (fig 4.1.2)

Bilge Pump

After removing your boat from the water, unthread the drain plug to drain the bilge (Figure 4.1.1).

! DANGER

Install and tighten drain plug before launching boat.

Boat will sink if drain plug is not in place and tight.

drain Plug (fig 4.1.1)

Transom/hull cutaway view

Garboard Drain

Urethane Caulk

Garboard Drain Plug

Float Switch

Before starting the engine, press the bilge pump switch so that the switch light comes ON. Make sure the pump is working by opening the engine compartment, listening to hear the pump running and check to see that liquid is being pumped out from the hull discharge. If the bilge has more liquid than normal, see Maintenance Section for locating and correcting the problem.

342 Performance

4.1

Section 4 • Bilge & underwater gear

Except for checking the operation of the bilge pump using the ON position, leave the switch in the OFF (AUTO) position. In the OFF (AUTO) position, when

the bilge liquid is deep enough to activate the oat

switch, the bilge pump turns on and pumps out the

bilge liquid until the oat switch drops and shuts

off the pump.

If the liquid level in the bilge is higher than normal and the bilge pump empties the bilge

when you use the ON switch, the oat switch

is not operating properly. Have it checked immediately. If the ON switch does not operate the pump, DO NOT use the boat until the problem is corrected.

The emergency high water bilge pump and oat

switch are wired to the high water bilge alarm. Should the pump be activated by water in the sump, the alarm will sound. If alarm sounds, immediate attention to the engine room is required.

To prevent buildup of gasoline fumes to the explosive level in the engine compartment, the bilge blowers must be run for at least four (4) minutes before starting the engine and kept running at all times when the engine is running to insure that there will be adequate ventilation when you are moving slowly. The blowers may also remove deadly carbon monoxide (CO) which may be in the bilge. Run blowers when using the generator

or engine.

2. enGines anD sTern Drive

a. MainTenance anD service

Engine failure away from shore can be dangerous. You must follow the recommended maintenance schedule to best ensure trouble-free operation of your engine and stern drive.

b. vibraTion anD causes

Maintenance

Frequently inspect the area under the oat switches

to ensure they are free from debris and gummy bilge oil. To clean, soak in heavy duty bilge cleaner for 10 minutes, agitating several times. Check

for unrestricted operation of the oat. Repeat the

cleaning procedure if necessary.

Inspect the bilge pump intakes and keep them free of dirt or material which may impede the

ow of water through the pump.

D. bilGe bloWer(s)

! WARNING

EXPLOSION/FIRE HAZARD – Run blower at least four (4) minutes before starting engine or generator. Check bilge and engine compartment for fumes.

! WARNING

Do not allow obstructions to interfere with bilge blower or ventilation intake operation. Engine performance may be adversely affected.

Some vibration is to be expected in your boat because of the action of the engines and the propeller. But excessive vibration indicates conditions which must be promptly corrected to avoid damage. The following are some conditions which may cause vibrations.

• Weeds, ropes, shing lines, nets or your own trailing

lines can become wrapped around the propeller and/or shaft, causing vibration and loss of speed. Always stop the boat, make sure it is clear to the rear, and then reverse the propeller after going through a weedy area to unwrap and clear away any weeds which may have accumulated. If this doesn’t clear the entanglement, and you can’t anchor or moor the boat in shallow water to get to the stern drive in the water, the boat will have to be taken out of the water.

• A badly damaged or distorted propeller or shaft is an obvious cause of vibration. Run at slow speed to shore. REPLACE IMMEDIATELY.

• If the engine mounts fail and the engine can contact the hull while it is running, vibration will be felt. Run at slow speed to shore. REPLACE IMMEDIATELY.

4.2

342 Performance

Section 4 • Bilge & underwater gear

c. iMpacT To sTern Drive

The stern drive can be damaged by impact, either while trailering or boating. To minimize the possibility of impact damage while trailering, keep the stern drive raised to the trailering position.

The hydraulic system used to raise and lower the stern drive can cushion impact and lessen damage from head-on impacts to the stern drive from underwater objects BUT ONLY when the boat is moving forward. There is no protection if the stern drive is struck during reverse operation or from an angle when moving forward.

If you strike a submerged object, STOP THE ENGINE as soon as possible and examine the stern drive unit for damage. Even if no damage is

visible, there could be internal problems or difculty

maneuvering. If you must use the boat after impact, run at the lowest speed possible.

c. Place a block of wood between the gear case

and propeller to stop propeller from rotating and remove propeller nut (Figure 4.3.2).

ProPeller (fig. 4.3.2)

d. Remove the propeller nut retainer, the thrust hub

and the continuity washer (Figure 4.3.3) and put them in a secure place. Pull the propeller straight off the shaft. Remove the thrust washer that is behind the propeller. If the propeller is seized to the shaft and cannot be removed by hand, special tools are needed. Have the propeller removed by an authorized dealer or trained mechanic.

GEAR CASE

WOOD BLOCK

D. propeller reMoval anD insTallaTion

! WARNING

If engine is started during propeller maintenance, serious personal injury can occur.

Shut off engine, remove key, shift into neutral, and put tape over ignition switch key slot.

a. Shut off engine, remove key, shift into neutral

and put tape over ignition switch key slot.

b. Straighten the bent tabs on the propeller nut

retainer (Figure 4.3.1).

ProPeller (fig. 4.3.1)

SECURING TABS

ProPeller (fig. 4.3.3)

PROPELLER

SHAFT

THRUST

WASHER

PROPELLER

CONTINUITY

WASHER

THRUST HUB

PROPELLER

NUT RETAINER

PROPELLER

NUT

e. Coat the propeller shaft with an anti-seize

lubricant (Figure 4.3.4).

ProPeller (fig. 4.3.4)

COAT WITH ANTI-SEIZE

LUBRICANT

342 Performance

4.3

Section 4 • Bilge & underwater gear

f. Install the thrust washer, propeller, continuity

washer, thrust hub, propeller nut retainer and the propeller nut onto the shaft (Figure 4.3.3).

g. Place a block of wood between the gear case

and the propeller (Figure 4.4.1) and torque the propeller nut to recommended manufacturer’s

specications. The correct propeller nut torque

is given in your Engine Operator’s Manual in the Owner’s Manual Packet.

ProPeller (fig. 4.4.1)

GEAR CASE

WOOD BLOCK

h. Secure the propeller nut by bending three (3)

of the tabs of the propeller nut retainer into the thrust hub grooves (Figure 4.4.2).

ProPeller (fig. 4.4.2)

SECURING TABS

4.4

342 Performance

Section 5 • fuel SyStem

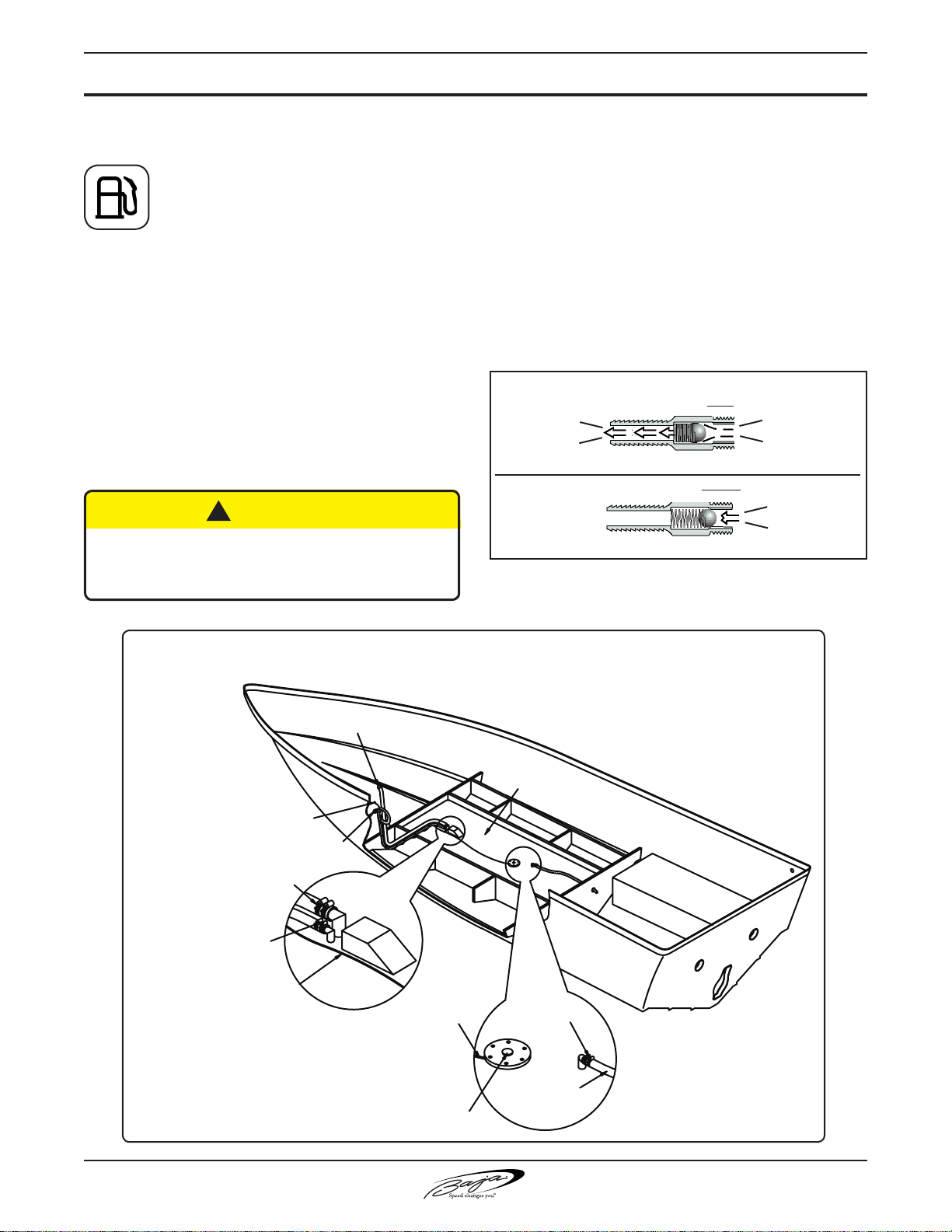

1. fuel sYsTeM

Section 3 • Using Your Boat contains important fueling information. Take time to read all the fuel related information in the owner’s manual.

The 342 Performance standard gasoline fuel system consists of a 185 gallon fuel tank, fuel tank vent, an anti-siphon valve, engine fuel supply line and fuel

ll (See Figure 5.1.1).

The fuel tank vent serves as a pressure/vacuum

release and safety overow. The fuel vent is located

inside the fuel cap on the port side of the hull. Periodically check the vent to assure that it is not clogged.

! CAUTION

Never start an engine until you are certain that fuel fumes are not present in engine compartment or elsewhere in the boat.

anTi-siphon valve (inboarD/ouTboarD

enGine onlY)

The fuel pick-up at the fuel tank has an anti-siphon valve to prevent fuel from siphoning out in the event of line failure (See Figure 5.1.1 and 5.1.2). In an emergency situation, remove the anti-siphon valve if the engine is not getting fuel. NOTE: Replace with new anti-siphon valve or fuel shut off valve as soon as possible as anti-siphon protection is required by federal law.

anti-SiPhon valve

(fig. 5.1.2)

TO ENGINE

FUEL PUMP SUCTION PULLS OPEN THE SEALING BALL

NO FUEL

PUMP SUCTION

SPRING PRESSURE PUSHES THE SEALING BALL CLOSED

ANTI-SIPHON VALVE OPEN

ANTI-SIPHON VALVE CLOSED

FUEL FLOW

FROM FUEL

TANK

FUEL FLOW FROM FUEL

TANK BLOCKED

Single engine gaS fuel SyStem (fig 5.1.1)

STATIC GROUND WIRE

#28 CLAMPS

#10 CLAMPS

STATIC GROUND WIRE

FUEL VENT

FUEL FILL

STATIC GROUND WIRE

FUEL SENDING UNIT

FUEL TANK

#10 CLAMPS

FUEL PICK-UP TO ENGINE

342 Performance

5.1

Section 5 • fuel SyStem

2. fuelinG precauTions

Certain precautions must be carefully and completely observed every time a boat is fueled, even with diesel fuel. Diesel fuel is nonexplosive but it will burn.

a. sTaTic elecTriciTY anD The fuel

sYsTeM

There is a danger that static electricity can ignite gasoline vapors that have not been ventilated outside an enclosed area. Use extreme caution when fueling your boat from a source outside the regular venues.

Your boat has safety features that can be circumvented by not adhering to standard fueling practices.

Your boat's bonding system is designed to dissipate the build-up of static electricity.

• Always keep the fuel nozzle in contact with the

fuel ll plate or the edge of the fuel tank opening throughout the lling process.

• Allow areas where gasoline vapors could collect to be ventilated before starting the engine.

• Wipe any spillage completely and dispose of rags or waste on shore.

• Secure the ll cap tightly.

• Fuel tank should never be lled to capacity.

Allow for fuel expansion.

• Portable tanks should only be lled while on the

ground; never onboard the boat.

b. General:

• Check ll plate label to ensure fuel is placed only in fuel tank. Fuel ll plate is located on the port

side of the boat.

• Avoid spills.

Your boat must be in contact with the water or a land based grounding system. Here are some helpful suggestions to keep you safe from static electricity while refueling your boat.

• NEVER fuel your boat in unsafe conditions such as: suspended on a sling or in a situation that increases the likelihood of static discharge.

• NEVER use homemade containers to ll your fuel tank.

• Fuel carried onboard, outside of a xed fuel

system should be stored in an approved container or in a portable tank, such as provided for outboard engines, and be stowed safely outside of the engine or living compartments.

• Shutdown the engine, motors, and fans prior to taking on fuel. Any ignition sources should be

extinguished before lling the fuel tank.

• Close all ports, window, doors, and hatches to prevent gas fumes from accumulating in the cabin.

• Fueling should never be done at night except in well-lighted areas.

• Know your fuel capacity and consumption. Record the amount of fuel used since your last

ll up, and compute the engine’s hourly fuel

usage. As a fuel gauge backup check, deduct the average hourly fuel usage from fuel tank capacity.

• Observe the “Rule of Thirds”: one-third fuel for trip out, one-third for return and one-third for reserve.

• Allow an additional 15 percent fuel reserve when operating in rough seas.

c. before anD DurinG fuelinG –

checklisT:

• Fire extinguisher – close at hand.

• Mooring – boat tied securely to fueling pier.

• Crew – at least one knowledgeable person present.

• Passengers – unnecessary people off the boat.

• Engines – stopped.

5.2

342 Performance

Section 5 • fuel SyStem

• Electrical equipment, including blowers – power off.

• Doors, hatches – closed.

• Smoking material – extinguished.

• Inboard tanks – grounded.

• Filler pipe – marked GAS or DIESEL.

• Fuel nozzle – in contact with ller pipe to prevent

static sparks.

• Fill level – ll less than rated capacity of tank;

allow for fuel expansion.

• Trim – fuel weight distributed equally.

D. afTer fuelinG – checklisT:

• Doors, hatches – open.

• Sniff test – if fuel fumes remain, operate blowers until fumes are gone.

fuel fill location (fig. 5.3.1)

Fuel Tank Opening

Fuel Fill Cap

• Fuel tank – secure ller cap.

• Spills – wipe; dispose of rags ashore.

342 Performance

5.3

Section 5 • fuel SyStem

THIS PAGE INTENTIONALLY LEFT BLANK

5.4

342 Performance

Section 6 • electrical SyStemS

1. elecTrical sYsTeMs

DirecT currenT (Dc)

The 12 volt direct current (DC) electrical system (similar to that in your car or truck) derives its power from the battery. An engine-driven alternator keeps the battery in a charged condition. The battery voltage is indicated by the voltmeter on the helm panel. The negative terminal of the battery is attached to the grounding studs of the engine.

Ask your dealer for a careful analysis of DC power needs on your boat. It may be necessary to add batteries or auxiliary charging methods to supply adequate power for any additional accessories you wish to add.

a. baTTeries

DANGER

DO NOT USE JUMPER CABLES IN THE ENGINE COMPARTMENT.

They can cause an explosion from sparks.

To remove the battery cables:

1. Turn off all items drawing power from the battery.

2. Remove the negative cable first, then the positive cable. To replace the cables, first replace the positive cable, then the negative.

Battery Maintenance

• Check the uid level in the cells approximately

every 4 weeks, and weekly in summer and hot zones.

• The uid level must be between the lower and

upper markings.

• Replenish only with distilled water. Do not use metal funnels.

• Coat battery terminal clamps with silicone grease. Keep batteries clean and dry.

Battery life is shortened if it is drained to zero charge before recharging. It is recommended that a battery not be discharged more than 50 percent. If the battery does become run down, recharge it as soon as possible.

! DANGER

A battery will explode if a ame or spark ignites the

free hydrogen given off during charging.

Never use an open ame or strike sparks in the

battery area.

The battery installed in your boat has been selected for its ability to furnish starting power based on engine starting requirements, as well as its ability to power the DC accessories attached to the electrical system. Your Engine Operator's Manual indicates the recommended battery for the engine installed in your boat.

! CAUTION

To prevent arcing or damage to the alternator, always disconnect battery cables before doing any work on the engine's electrical system.

Running the engine to recharge the battery may not be effective. The alternator only creates charging power at higher engine speeds, so simply idling or trolling will not generate enough power to recharge the battery.

If you need to charge a battery, only use a battery charger designed to charge automotive/marine batteries. Use charger only when batteries are disconnected from the boat's electrical circuit. Follow the charger instructions.

If your boat will not be used for several weeks or more, remove the batteries from the boat and connect them to a charger.

b. iGniTion proTecTion

All electrical components in the engine compartment must be ignition-protected to avoid the possibility of creating sparks in a gasoline environment.

342 Performance

Speed changes you.

TM.

6.1

Section 6 • electrical SyStemS

DANGER

GASOLINE VAPORS CAN EXPLODE

Use ONLY Marine-rated parts to replace such items as starters, distributors, alternators, generators, etc.

Do not use automotive parts for these components or any jumper cables because they are not ignition-

protected and could cause a re or explosion.

Protective terminal covers, such as rubber boots on electrical connections, must be in place when engine is operating or when working in the engine compartment.

Jumper cables are not ignition-protected. DO NOT USE jumper cables in the engine compartment. The engine compartment may accumulate dangerous explosive gasoline fumes/vapors and hydrogen gas from batteries being charged. A spark produced when connecting a jumper cable can cause an explosion.

amperage and the rating is also marked on each fuse.

FUSE CONDITION (ATO TYPE FUSE)

(FIG. 6.2.1)

GOOD FUSE

BLOWN FUSE

D. fuse panel

Your boat has an illuminated waterproof electronic switch pad to control lights, bilge pump and other accessories. The switch pad is connected to the fuse panel located under the dash. The fuse panel uses automotive type fuses to protect these accessories.

REPLACE ONLY WITH A FUSE OF THE SAME AMPERAGE AND TYPE. The amperage is marked on the side of the fuse.

c. breakers anD/or fuses

! WARNING

Use of higher amperage fuses or breakers is a re

hazard.

Use fuses and breakers having the same amperage

rating as the original or as specied.

If you need to replace a fuse or breaker, use only the same amperage and type as the original, and one that is rated for marine use. It is

recommended that you carry spare fuses.

If a fuse or breaker is replaced with one of lower

amperage, it will be insufcient to carry the electrical

load of the equipment it is connected to and will cause nuisance fuse failure or breaker tripping.

If a breaker or fuse is replaced with a breaker or fuse of higher amperage, it will not provide adequate protection against an electrical malfunction and will

create a re hazard.

The fuses are color coded according to the

6.2

Speed changes you.

2. elecTrolYTic corrosion & zinc anoDes

Electrolytic corrosion of metals on power boats can result in rapid and serious deterioration of metal parts. You must set a regular schedule and look for the possibility of electrolytic corrosion (the deterioration of metals due to dissimilar characteristics when placed in salt water). It is your responsibility to check for and replace parts damaged due to electrolytic corrosion.

To minimize electrolytic corrosion of the metals on your boat, zinc anode plates are provided on your boat to protect underwater hardware. Zinc, being much less "noble" than the copper-based alloys and aluminum used in underwater fittings, will

deteriorate rst and protect the other metals.

Stern drives are tted with zinc anodes on their

lower units (refer to your Engine Owner's Manual for their locations). If your boat is equipped a with Mercathode® system with the stern drive will not have zincs.

TM.

342 Performance

Section 6 • electrical SyStemS

Zinc anodes require replacement about every six months, if the boat is operated in salt water. In fresh water, the zinc anodes can be replaced about once a year.

If the anodes deteriorate more rapidly than this, there is probably a stray current problem within the boat or at the slip or mooring.

If the anodes do not deteriorate, they are not protecting the other metallic parts of your boat. This can be caused by loose anodes or by low grade zinc or by not having a solid electrical contact between the anode and the metal it contacts, or by paint on the anodes.

If the anodes are deteriorating rapidly, or not at all, contact your dealer.

NOTICE

mercathode illuStration (examPle) (fig 6.3.1)

DO NOT PAINT BETWEEN THE ZINC AND THE METAL IT CONTACTS, AND DO NOT PAINT OVER THE ZINC.

3. Marine elecTronic caThoDic anTi-corrosion sYsTeM (MercaThoDe®)

The automatically controlled Cathodic AntiCorrosion System for marine installation protects underwater metals from the effects of corrosion and electrolysis on stern drives. The system components are designed for marine service. DO NOT PAINT THE MERCATHODE® SYSTEM.

The anode and reference electrode are attached to the electrode assembly under each stern drive unit. The solid state controller is mounted within a plastic housing on the transom in the bilge.

Maintenance

The Mercathode® system must be tested to ensure adequate output. The test should be performed every 100 hours or annually. Contact your authorized Baja® dealer to arrange for this test. Refer to the engine operator's manual for more detailed information.

4. elecTrical sYsTeMs

This owner’s manual contains electrical schematics and wiring harness illustrations for your boat. These electrical schematics were generated by electrical CAD designers at the engineering division for technical reference and service technicians. Baja® does not recommend that you attempt to work on the boat’s electrical system yourself. Instead, we recommend that you take your boat to your authorized Baja® dealer for service. Baja® reserves the right to change or update the electrical system on any model at any time without notice to the consumer and is NOT obligated to make any updates to units built prior to changes.

342 Performance

Speed changes you.

TM.

6.3

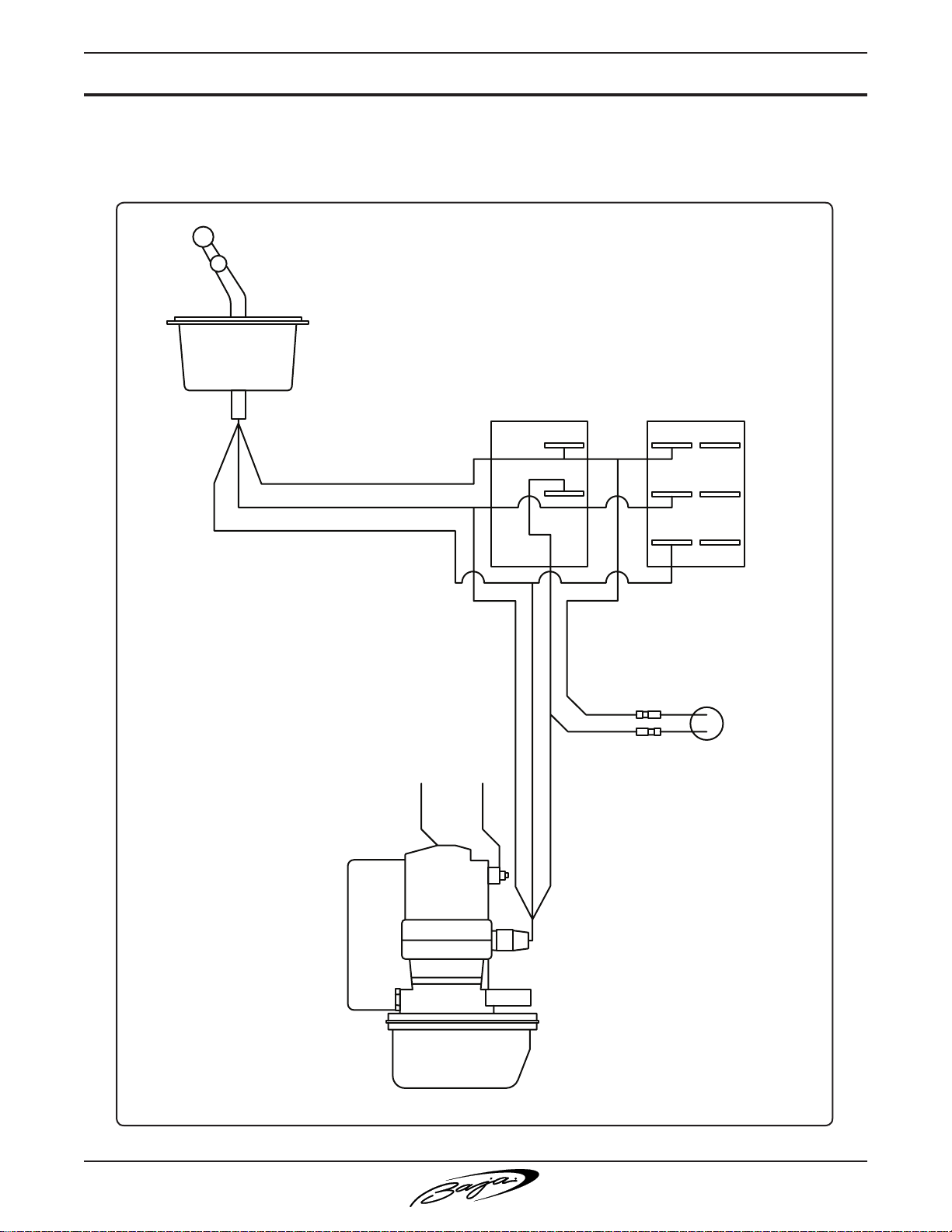

drive PumP (fig. 6.4.1)

Section 6 • electrical SyStemS

TRAILER TRIM

BLUE/WHITE

RED

GREEN/WHITE

TO GROUND

BLOCK

8 AWG BLACK

TO ENGINE

STARTER

8 AWG

RED

100

AMP

14 AWG RED

14 AWG GREEN

14 AWG BLUE

14 AWG PURPLE

TRAILER LIMIT

SWITCH

Note: This drawing contains information proprietary to Baja Marine Corp. Any unauthorized disclosure, use, or reproduction is expressly prohibited, unless written permission of Baja

6.4

Speed changes you.

TM.

342 Performance

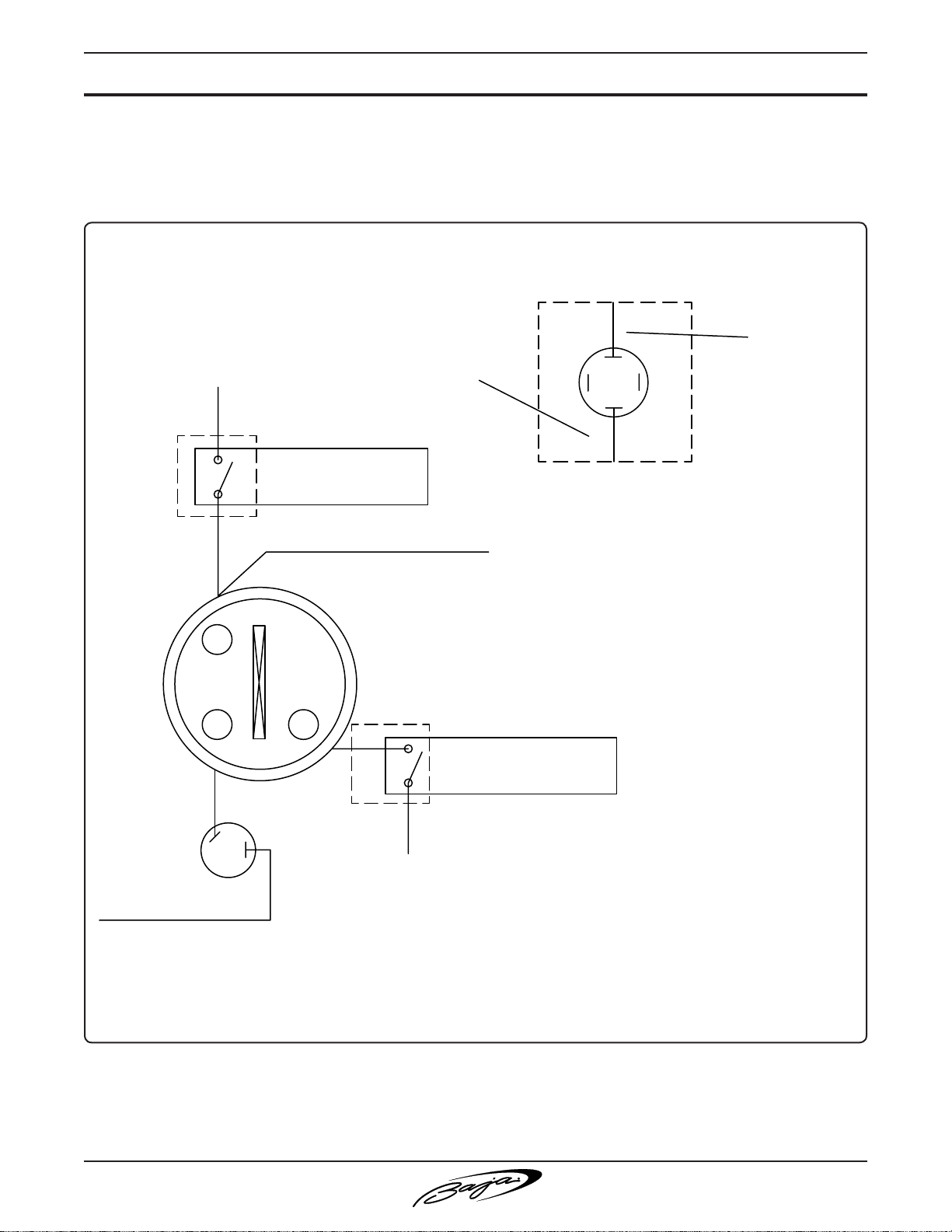

ignition Switch (fig. 6.6.1)

Section 6 • electrical SyStemS

TO ENGINE

RUN CIRCUIT

RUN

OFF

16 AWG

PURPLE/BLACK

LANYARD

STOP SWITCH

B S

16 AWG

PURPLE/BLACK

EXHAUST

12 AWG RED

START

TO ENGINE

FROM IGNITION

SWITCH ( I)

TO EXHAUST

BREAKER

SHIFTER'S NEUTRAL SAFETY SWITCH

16 AWG

PURPLE/BLACK

16 AWG

20A

YEL/RED

12 VOLT DC FROM ENGINE

12 AWG RED/BLACK

Note: This drawing contains information proprietary to Baja Marine Corp. Any unauthorized disclosure, use, or reproduction is expressly prohibited, unless written permission of Baja

342 Performance

TO STARTER SOLENOID

Speed changes you.

TM.

6.5

Section 6 • electrical SyStemS

THIS PAGE INTENTIONALLY LEFT BLANK

6.6

Speed changes you.

TM.

342 Performance

Switch Panel wire information (fig 6.7.1)

PLUG 7

BREAKER PANEL

2 - Way Deutsch DTP Series Plug

Plug DTP06-2S

Secondary Lock WS-2S

4 - Way Deutsch DTP Series Plug

Plug DTP06-4S

PLUG 6

BREAKER PANEL

8 - Way Deutsch DT Series Receptacle

Receptacle DT04 - 08 PA

Secondary Lock W6-P

PLUG 8

BREAKER PANEL

# 1

# 2 # 3

# 4

8 - Way Deutsch DT Series Plug

Plug DT06 - 08 SA

Secondary Lock W8-S

# 1 # 2 # 3 # 4

6 - Way Deutsch DT Series Receptacle

Receptacle DTP04-6P Secondary Lock W6P

PLUG 3

PLUG INTERCONNECTION

6 - Way Deutsch DT Series Plug

Receptacle DT06-6S Secondary Lock W6S

6 - Way Deutsch DT Series Receptacle

Receptacle DT04-6P

Secondary Lock W6P

6 - Way Deutsch DT Series Plug

Plug DT06-6S

Secondary Lock W6S

PLUG 2

PANEL INTERCONNECTION

PLUG 1

PANEL INTERCONNECTION

PLUG 4

PANEL INTERCONNECTION

PLUG 5

BREAKER PANEL

# 6

# 5

# 4

# 3 # 2 # 1

# 7

# 8 # 9

# 10 # 11 # 12

12 - Way Deutsch DT Series Plug

Plug DT06-12SA

Secondary Lock W12S

PLUG 10

MAIN HARNESS

# 1

# 2

# 3

# 4

4 - Way Deutsch DTP Series Plug

Plug DTP06-4S

PLUG 9

MAIN HARNESS

PLUG 11

MAIN HARNESS

8 - Way Deutsch DT Series Plug

Plug DT06 - 08 SA

Secondary Lock W8-S

12 AWG ORANGE

12 AWG BROWN WITH A GREEN STRIPE

12 AWG ORANGE WITH A RED STRIPE

10 AWG ORANGE WITH A BLUE STRIPE

4 - Way Deutsch DTP Series Receptacle

Plug DTP04-4P

# 1 # 2

PLUG12

MAIN HARNESS

PLUG 7

LABEL WITH LETTER "P"

PLUG 8

LABEL WITH LETTER "O"

PLUG 4 LABEL WITH LETTER "O"

PLUG 6 LABEL WITH LETTER "P"

PLUG 12 LABEL WITH LETTER "E"

PLUG 11 LABEL WITH LETTER "F"

PLUG 10 LABEL WITH LETTER "G"

PLUG 9 LABEL WITH LETTER "H"

TABS/ACC 14 AWG ORANGE WITH A PURPLE STRIPE

35"

DEPTH FINDER 16 AWG BLACK

DEPTH FINDER 16 AWG RED WITH A PURPLE STRIPE

DEPTH FINDER 16 AWG DARK BLUE

10"

STEREO REMOTE 16 AWG DARK BLUE

POWER OFF OF

NAV/ANC SWITCH ON

ANCHOR CONNECTOR

STEREO REMOTE 16 AWG BLACK

16-14 AWG#10 HEAT SEALED RING TERMINAL

16-14 AWG (.250) HEAT SEALED QUICK SLIDES

PLUG 8 LABEL WITH LETTER "A"

PLUG 7 LABEL WITH LETTER "B"

PLUG 6

LABEL WITH LETTER "C"

PLUG 5

LABEL WITH LETTER "D"

POWER OFF OF 12 VOLT

10"

14-18 (.156) SPLASH PROOF SNAP RECEPTACLE

FIRE EXT. LIGHT 16 AWG RED WITH AN ORANGE STRIPE

FUME DETECTOR 16 AWG RED WITH A PINK STRIPE

FUME DETECTOR 16 AWG BLACK

#1 #2

#4 #3

12 VOLT DOCKING LIGHTS

#3#4REFRIGERATOR

AMP/ACC

12 AWG BROWN WITH A GRAY STRIPE

12 AWG BLACK

#4 #3

10 AWG LT BLUE WITH A RED STRIPE 10 AWG LT GREEN WITH A RED STRIPE

#1 #2

# 1 # 2

HATCH (UP) HATCH (DOWN)

#3#4HATCH SWITCH GROUND

FRESH WATER

10 AWG ORANGE WITH A BROWN AND GREEN STRIPE

12 AWG ORANGE WITH A BLUE STRIPE

# 1

ACC/AMP

REFRIGERATOR

14 AWG ORANGE WITH WHITE STRIPE

16 AWG DARK BLUE WITH RED STRIPE

14 AWG GRAY WITH PINK STRIPE

14 AWG GRAY 16 AWG DARK BLUE WITH BLACK STRIPE 16 AWG DARK BLUE WITH BLACK STRIPE

14 AWG ORANGE WITH GREEN STRIPE

14 AWG RED WITH A YELLOW STRIPE 14 AWG ORANGE WITH A YELLOW STRIPE

16 AWG RED WITH A BROWN STRIPE 14 AWG RED WITH A GRAY STRIPE 16 AWG DARK BLUE

HORN � �

CO MONITOR

POWER STERN

PANEL LIGHT

COURT LIGHTS

ENGINE LIGHTS

BOW LIGHT

STERN LIGHT

CABIN LIGHTS

PORT SEAT�

STBD SEAT

STEREO

# 5

# 6

# 7

# 8

# 9

# 10

# 11

# 12

STBD SEAT STBD BLOWER CO MONITOR FUME DETECTOR

PORT SEAT PORT BLOWER DEPTH FINDER FIRE BOUY

# 5 # 6 # 7 # 8

16 AWG RED WITH A PINK STRIPE

16 AWG RED WITH A BROWN STRIPE

14 AWG YELLOW WITH A GREEN STRIPE

14 AWG ORANGE WITH A GREEN STRIPE

14 AWG ORANGE WITH A WHITE STRIPE

14 AWG YELLOW WITH A BROWN STRIPE 16 AWG RED WITH A PURPLE STRIPE

14 AWG RED WITH AN ORANGE STRIPE

# 1 # 2 # 3 # 4

BILGE FIRE BUOY GROUND GROUND

PORT BLOWER STBD BLOWER MID BILGE EXHAUST

# 5 # 6 # 7 # 8

14 AWG BLACK

14 AWG RED WITH AN ORANGE STRIPE

14 AWG BROWN

# 1

# 2

# 3

# 4

14 AWG YELLOW WITH A WHITE STRIPE

14 AWG YELLOW WITH A GREEN STRIPE 14 AWG BROWN WITH AN ORANGE STRIPE

14 AWG RED

Secondary Lock WP-4P

# 1

# 2

# 3

# 4

BILGE

ACC/ANCHOR

LIGHTING POWER

EXHAUST

TABS/ACC

STEREO

NAV/ANC LIGHTS

HORN

# 5

# 6

# 7

# 8

16 AWG BROWN

16 AWG WHITE WITH A RED STRIPE

16 AWG DARK BLUE WITH A PURPLE STRIPE

14 AWG RED

# 1

# 2 # 3

# 4

16 AWG ORANGE WITH A YELLOW STRIPE

16 AWG RED WITH A GRAY STRIPE 16 AWG RED WITH A YELLOW STRIPE

14 AWG ORANGE WITH AN PURPLE STRIPE

# 1 # 2

12 VOLT DOCKING LIGHTS

#3#4HATCH POWER

FRESH WATER

10 AWG RED WITH A BLUE STRIPE

12 AWG BROWN WITH A BLUE STRIPE

#4 #3

12 AWG ORANGE 12 AWG RED

#1 #2

# 1

# 2

# 3

16 AWG DARK BLUE WITH A PURPLE STRIPE

14 AWG DARK BLUE WITH A BLACK STRIPE

16 AWG DARK BLUE WITH AN RED STRIPE

16 AWG RED WITH A YELLOW STRIPE

16 AWG DARK BLUE WITH A WHITE STRIPE

# 1

# 2

# 3

LIGHTING (POWER)

ENGINE LIGHTS

CABIN LIGHTS

COURT LIGHTS

STEREO (POWER)

STEREO

# 4

# 5

# 6

# 1

# 2

# 3

EXHAUST (POWER)

EXHAUST

DEPTH FINDER (POWER)

DEPTH FINDER

SWITCH LIGHT GROUND

ACC

# 4

# 5

# 6

14 AWG RED

16 AWG RED WITH A PURPLE STRIPE

# 6

# 5

# 4

14 AWG ORANGE

14 AWG BLACK

16 AWG RED WITH AN PURPLE STRIPE

14 AWG ORANGE

14 AWG BLACK

16 AWG RED WITH A PURPLE STRIPE

# 1

# 2

# 3

14 AWG RED

16 AWG RED WITH AN PURPLE STRIPE

# 1

# 2

# 3

EXHAUST (POWER)

EXHAUST

DEPTH FINDER (POWER)

DEPTH FINDER

SWITCH LIGHT GROUND

ACC

# 4

# 5

# 6

# 1

# 2

# 3

LIGHTING (POWER)

ENGINE LIGHTS

CABIN LIGHTS

COURT LIGHTS

STEREO (POWER)

STEREO

# 4

# 5

# 6

16 AWG DARK BLUE WITH A PURPLE STRIPE

16 AWG DARK BLUE WITH A BLACK STRIPE

16 AWG DARK BLUE WITH A RED STRIPE

# 1

# 2

# 3

14 AWG RED WITH A YELLOW STRIPE

16 AWG DARK BLUE WITH A WHITE STRIPE

342 Performance

Speed changes you.

TM.

6.7

STEREO

AMP

16 BRN/GRN

16 DARK BLUE

16 PUR/GRN

16 TAN/BLU-GRN

16 YEL/RED-GRN

16 TAN/GRN

16 LT BLU/GRN

16 GRY/GRN

FUEL GAUGE

PORT VOLT

GAUGE

PORT OIL TEMP

GAUGE

PORT TACH

GAUGE

STBD OIL TEMP

GAUGE

STBD TACH

GAUGE

STBD VOLT

GAUGE

STBD WATER TEMP

GAUGE

STBD OIL PRESSURE

GAUGE

PORT OIL PRESSURE

GAUGE

PORT WATER TEMP

GAUGE

DEPTH

SOUNDER

FIRE EXTINGUISHER

INDICATOR LIGHT

FUME

DETECTOR

TAB

INDICATOR

MECHCANICAL TAB

INDICATOR LIGHT

COMPASS

LIGHT

TWIN IGNITION SEE REFERENCE

DRAWING 4900357

OIL PRESSURE ALARM

INSTRUMENT PANEL TO STBD ENGINE

HARNESS CONNECTION

5665

14 ORN/YEL

14 ORN/BLK

14 GRY/RED

14 RED/YEL

14 BROWN

14 DRK BLU/PUR

14 RED

16 WHI/RED

25a

10a

15a

10a

16 RED/ORN

16 RED/PUR

14 YEL/GRN

16 RED/BRN

14 ORN/GRN

16 RED/PNK

10a

14 YEL/WHI

14 ORN/WHI

10a

12 ORANGE

12 ORN/RED

10 RED/BLU

12 BRN/GRY

25a

10a

15a

10 ORN/GRN/BRN

15a

14 RED/YEL

14 ORN/YEL

14 GRY/RED

EMPTY

14 DRK BLU/PUR

14 RED

14 ORN/BLK

14 BROWN

16 RED/PNK

16 RED/BRN

14 YEL/GRN

14 ORN/GRN

16 RED/ORN

16 RED/PUR

14 YEL/WHI

14 ORN/WHI

12 BRN/GRY

10 RED/BLU

14 ORN/RED

12 ORANGE

14 GRAY

14 GRY/PNK

14 BROWN

14 RED

10 LT BLU/RED

10 LT GRN/RED

14 RED

14 BROWN

16 RED/ORN

14 BLACK

16 RED/PNK

16 DRK BLU/BLK

16 DRK BLU/RED

16 DRK BLU/WHI

14 RED/YEL

14 DRK BLU/PUR

16 DRK BLU/WHI

16 DRK BLU/RED

16 DRK BLU/BLK

14 RED/YEL

DASH BREAKER PANEL

14 GRY/RED

14 ORN/YEL

14 YEL/WHI

14 YEL/GRN

14 ORN/RED

16 RED/PUR

12 BRN/GRY

10 BLACK

14 ORN/BRN

SWITCH LOCATED IN DRIVER

SEAT

86 73 4 52

19 1 12 7 83 54 6

242

SWITCH PANEL

DASH MOUNTED

ITEMS

DASH MOUNTED ITEM

NEG

2/0 RED

STBD

BATTERY

PORT ENGINE

SEE REFERENCE DRAWING

4900439

CUDDY

MDP

PORT

BATTERY

2/0 BLACK

CONVERTER

NEG

2/0 BLACK

2/0 RED

POS POS

STBD ENGINE

2/0 BLACK

SEE REFERENCE DRAWING

4900393

FROM A.C.

MDP

EXHAUST SOLENOIDS

PORT HOUR METER

(GAFFRIG ONLY)

CABIN LIGHTS (6) COURT LIGHTS (2) ENGINE LIGHTS (2)

BOW LIGHT

POWER STERN LIGHT (OPT)

PORT BLOWER

STBD BLOWER

POWER STERN LIGHT

BILGE FLOATBILGE PUMP

16 BROWN 14 BRN/YEL

HORN

CO MONITOR

FIRE EXTINGUISHER

POWER FOOTREST

STBD POWER SEAT

SWITCH LOCATED IN DRIVER

SEAT

14 BLACK

14 RED

PORT POWER SEAT

SWITCH LOCATED IN

PASSENGER SEAT

14 RED

14 BLACK

FRESH WATER PUMP

MOTOR LID LIFT

14 BLACK

14 ORANGE

12V RECEPTACLE

DOCKING LIGHTS

OIL PRESSURE ALARM

8 BLACK

8 RED

8 BLACK 8 BLACK

8 BLACK

2 RED

75a

14 YELLOW

14 BRO/ORN

14 RED

14 BRN/YEL

14 RED

15a

8 RED

75a

6 RED

6 BLACK

INSTRUMENT PANEL TO PORT ENGINE

HARNESS CONNECTION

16 PINK

OIL PRESSURE ALARM

16 LT BLU/WHI

16 YEL/RED-WHI

16 TAN/BLU-WHI

16 GRY/WHI

16 PUR/WHI

16 TAN/WHI

16 BRN/WHI

FROM PORT

ENGINE

10 BLACK

10 RED/GRN

10 RED/WHI

15a

FROM PORT ENGINE

FROM STBD ENGINE

FROM PORT ENGINE

FROM STBD ENGINE

STBD HOUR METER

(GAFFRIG ONLY)

FROM

STBD

ENGINE

8 RED

MAIN DC NEGATIVE

2 BLACK

16 PINK

14 GREEN

16 BLACK

14 BROWN

14 BRN/YEL

14 BLACK

SEALING PIN

14 BLACK

14 BRN/YEL

14 BROWN

14 BLACK

FUEL SENSOR

MID BILGE

PUMP

TO ENGINE

BLOCK

BILGE FLOAT

SWITCH

10 BLACK

10 RED/GRN

10 BLACK

10 RED/WHI

LOCATED ON INNER

STBD TRANSOM WALL

SECURED ON REAR SIDE

STBD REAR BENCH WALL

2 RED

8 RED

2 RED

BATTERY SWITCH

PANEL

IGNITION

PANEL

TWIN INSTRUMENT PANEL SEE

REFERENCE DRAWING 4900437 OR

4900438

TWIN INSTRUMENT PANEL SEE REFERENCE

DRAWING 4900431 OR 4900440

TWIN INSTRUMENT PANEL SEE

REFERENCE DRAWING 4900428

SEE REFERENCE DRAWING

4900430

INSTRUMENT PANEL

SEE REFERENCE DRAWINGS

4900339, 4900338 OR 4900405

SEE REFERENCE DRAWING

4900291

SEE REFERENCE DRAWING

4900291

FUEL FILL

Switch Panel wire information (fig 6.8.1)

6.8

Speed changes you.

TM.

342 Performance

THIS PAGE INTENTIONALLY LEFT BLANK

342 Performance

Speed changes you.

TM.

6.9

Section 7 • oPtionS & acceSSorieS

1. opTions & accessories locaTions

Figure 7.1.1 shows the location of some of the components. Take time to walk through your boat, locate the features, and become familiar with their operation and maintenance.

STANDARD & OPTIONAL EQUIPMENT LOCATIONS (FIG. 7.1.1)

Item Location

6 - Disc CD Changer Cuddy – Port Side in Lower Cabinet 12V Receptacle Dash – Port Side Anchor Holder w/ Strap In Bow of Deck Auto Bilge Pump Engine Compartment – Under Engine Battery Tray Port and Strb Side on Floor Blower Port and Strb Side on Transom Wall Courtesy Lights Cockpit – Side Panels Depth Finder (Opt.) Dash – Driver Side (Strb) above Shifter/Throttle Freshwater Flush (Opt.) Port and Strb Side – Under Starter Fuel Fill & Vent Combo Midship – Port Side Fuel Tank Cockpit – Under Center Floor Fume Detector (Opt.) Gauge – Driver Side (Strb) Dash; Detector – Beside Remote Fuse Panel Under Dash – Strb. Side Garboard Drain Plug Transom – Under Drive Unit Horn Bow – Port and Strb Side Hour Meter Dash – Integrated into Tachometer or in Engine Compartment Port-A-Pot (Opt.) Cuddy – in Head (Stbd) Safety Switch w/ Lanyard Dash – Below Shifter Stereo Dash – Port Side Stereo Amp. Cuddy – Under Port Couch Stereo Remote Dash – Driver Side (Strb) Swimplatform (Opt.) Transom – Above Drive Unit Switch Panel Dash – Above Shifter Transom Shower (Opt.) Port Side – above Swimplatform Trim Tab Indicator Dash – Driver Side (Strb)

342 Performance

7.1

Section 7 • oPtionS & acceSSorieS

2. auToMaTic fire exTinGuisher sYsTeM (opTion)

The 342 Performance may be equipped with an automatic fire e xtinguis her system located aft of the engine on the transom. In the event

of a re, the heat sensitive

automatic head will release the extinguishant as a vapor, totally flooding the area in fire-killing concentrations. The system indicator light is wired to the battery and is constantly on to safeguard your boat.

The indicator light, located on the dash, indicates to the helmsman when the unit has discharged. Under normal circumstances, the charge indicator light is lit. If the unit discharges, the light will go out.

WHEN DISCHARGE OCCURS, IMMEDIATELY SHUT DOWN ENGINE, POWERED VENTILATION, ELECTRICAL SYSTEMS AND EXTINGUISH ALL SMOKING MATERIALS. DO NOT IMMEDIATELY OPEN THE ENGINE COMPARTMENT!! THIS FEEDS OXYGEN TO THE FIRE AND FLASHBACK COULD OCCUR.

automatic fire extinguiSher ( fig. 7.2.1)

engine box. Do not open the engine compartment

immediately! This feeds oxygen to the re and ashback could occur.

firePort location (fig. 7.2.2)

IF A FIRE OCCURS, IMMEDIATELY SHUT DOWN ALL ENGINE S, POWERED VENT ILATIO N, ELECTRICAL SYSTEMS AND EXTINGUISH ALL SMOKING MATERIALS. DO NOT IMMEDIATELY OPEN THE ENGINE COMPARTMENT!! THIS FEEDS OXYGEN TO THE FIRE AND FLASHBACK COULD OCCUR.

4. canvas

Allow the exinguishant to "soak" the compartment

for at least fteen (15) minutes and for hot metals

or fuels to cool before cautiously inspecting for cause of damage. Have portable extinguishers at hand and ready. Do not breathe fumes or vapors

caused by the re.

REFER TO OWNER'S MANUAL PACKET FOR INSTRUCTIONS AND WARRANTY INFORMATION ON FIRE EXTINGUISHER SYSTEM.

3. fire exTinGuisher porT

Boats not equipped with the automatic fire extinguisher option are equipped with a fire extinguisher discharge port (See Figure 7.2.2).

In the event of a re, a re extinguisher can be

inserted through the port and discharged into the engine compartment without having to open the

7.2

! DANGER

Exhaust fumes from engines contain deadly carbon monoxide gas (CO). Boats with canvas or with poor ventilation are most likely to collect fumes.

CO sickness symptoms include headache, nausea and dizziness. Do not mistake these symptoms for sea sickness.

Ventilate boat. See Section 1.3, Carbon Monoxide, for more details.

! DANGER

In rainy and/or cold weather, fresh air must circulate through boat to avoid carbon monoxide poisoning.

Se e Sec tion 1.3, Carbon Monoxide, for more details.

342 Performance

Section 7 • oPtionS & acceSSorieS

Bimini Top or sunshade must not be used when the vessel speed exceeds 45 MPH. Damage to boat or bimini may occur.

Removing or installing canvas on the water can

be difcult since rough water or wakes can cause

you or your passengers to lose their balance while attempting canvas removal or installation.

For safety and ease of installation and removal of canvas, use at least two people.

DANGER

If the cockpit is totally enclosed with canvas covers and curtains while engine is running or boat is moving, carbon monoxide will build up and cause death or permanent injury.

Do not use the rear (aft) curtain or camper top while engine is running or boat is moving.

The following canvas options are available for the 342 Performance:

• Cockpit Cover

• Mooring Cover

• Trailering Cover

a. canvas care anD MainTenance

See Section 9, page 9.2, for instructions on the care and maintenance of your canvas.

b. TrailerinG WiTh canvas

To trailer your boat with the cockpit cover installed, you must install a mooring cover over the cockpit cover with tie down straps tightened.

5. horn

elecTric horn

The horn is operated by a switch on the dash and is protected by a fuse under the dash. There is no maintenance required on the horn itself, although it is advisable to avoid spraying water directly into the horn. Check periodically to ensure that horn is still operational.

6. sWiM plaTforM W/ laDDer (opTional)

Your 342 Performance may have a swim platform installed with a ladder.

With this option, entering the boat from the water is more convenient, but there are safety rules that must be followed.

1. Never sit on the swim platform when boat is moving.

2. Before using or extending the ladder, make sure engine is off and prop is stopped.

3. It may be difcult to extend the ladder while in

the water so it important to leave the ladder down if swimmers are in the water.

4. Always make sure ladder is secure before starting engine.

! DANGER

MAKE SURE ENGINE IS OFF AND PROPELLER IS STOPPED BEFORE USING BOARDING LADDER

7. DepTh finDer (opTional)

The depth nder that may be

installed in your boat is a highperformance digital sonar (See Figure 7.3.1). It works only off the bottom signal and operation is completely automatic. There are no sensitivity or noise controls. All this is made possible by the computer built inside.

Since the depth nder is an automatic sonar, all

you have to do is turn the power on. It will give you a water depth reading within seconds. Once

it nds the bottom, the depth nder locks on to it

and automatically adjusts the sensitivity and noise suppression circuits. It will track the bottom at speeds over 70 MPH.

Do not rely on the depth der to determine a safe depth for swimming. The depth nder reads from

the middle of the boat, not the back or front.

dePth finder (fig 7.3.1)

DEPTH

0.00

342 Performance

7.3

Section 7 • oPtionS & acceSSorieS

REFER TO OWNER'S MANUAL PACKET FOR INSTRUCTIONS AND WARRANTY INFORMATION ON DEPTH FINDER.

8. sTereo sYsTeM

Your 342 Performance comes with a Clarion CMD4 AM/FM stereo package from Marine Audio. Clarion's CM design eliminates the need for aftermarket housing kits or splash covers, while the silicon oil-dampened suspension ensures smooth tracking and dependable marine performance.

STANDARD PERFORMANCE SYSTEM

• CMD4 AM/FM CD Stereo

• 6 Marine Speakers

• Amplier–2 Channel

OPTIONAL PERFORMANCE SYSTEM

• CMD4 AM/FM CD Stereo

• 6 Marine Speakers

• Amplier–2 Channel

• Marine Subwoofer

• Remote Control

9. heaD sYsTeMs

Your Baja® is available with 3 different head system options. Below is a description of each option. You should be aware of which option(s) your boat is equipped with and read the sections pertaining to it. The Owner’s Manual Packet in your boat contains information pertaining to your head system that should be carefully read.

the carriage of Coast Guard-certied ow-through

treatment devices which have been secured so as to prevent such discharges. They also state

that waters where a Coast Guard certied marine

sanitation device permitting discharge is allowed include coastal waters and estuaries, the Great Lakes and interconnecting waterways, freshwater lakes and impoundments accessible through

locks, and other owing waters that are navigable

interstate by vessels subject to this regulation (40 CFR 140.3).

b. porTable heaD WiTh puMp-ouT

The portable head unit has two individual holding

tanks. The top tank is tted with a hand pump and

holds fresh water and chemicals. The bottom tank is for holding waste material (See Figure 7.4.1). There is an option for a dockside pump-out hose attached to the waste material (bottom) tank. The pump-out hose leads to the waste pump-out opening on the starboard side of the transom. To empty the holding tank, the services of a dockside pump-out station are needed. Follow instructions at the station and make sure the pump-out station hose is inserted into the deck plate marked “Waste.”

tyPical PortaBle Self-contained head with docKSide PumP-out (fig. 7.4.1)

HOLDING TANK

PUMP-OUT

DECKPLATE

FRESHWATER

AND CHEMICAL

TANK

WASTE MATERIAL

TANK

a. requireMenTs for operaTors

The Environmental Protection Agency (EPA) standards state that in freshwater lakes, freshwater reservoirs or other freshwater impoundments whose inlets or outlets are such as to prevent the

ingress or egress by vessel trafc subject to this

regulation, or in rivers not capable of navigation by

interstate vessel trafc subject to this regulation, marine sanitation devices certied by the U.S. Coast

Guard installed on all vessels shall be designed and operated to prevent the overboard discharge of sewage, treated or untreated, or of any waste derived from sewage. The EPA standards further state that this shall not be construed to prohibit

7.4

HOSE TO

THRU-HULL

VENT

PUMP-OUT

DECK FITTING

NOTE: Before leaving the dock make sure caps on top and bottom tanks are tight. Make sure top

tank is lled with chemicals and the bottom tank is

empty.

DETAILED OPERATING INSTRUCTIONS AND WARRANTY INFORMATION ARE PROVIDED BY THE EQUIPMENT MANUFACTURER AND CAN BE FOUND IN THE OWNER’S PACKET.

342 Performance

Section 7 • oPtionS & acceSSorieS

c. vacuflush® heaD (opTion)

The VacuFlush® head utilizes a HEAD SYSTEM breaker on the main distribution panel. The foot pedal at the base of the toilet opens a mechanical seal and vacuum forces waste through the opening in the bowl to an accumulator tank, through the vacuum pump and then to the holding tank or treatment tank (See Figure 7.5.1).

tyPical vacufluSh docKSide PumP-out & macerator (fig. 7.5.1)

VACU-GENERATOR

HEAD

with holding tanK,

THRU-HULL

VENT

VENT FILTER

HOLDING TANK

DOCKSIDE

PUMP-OUT

MACERATOR

(OPTIONAL)

HEAD

DISCHARGE

SEACOCK)

e. venT filTer

The vent lter is designed to control odors associated with the head system operations. The vent lter

is located on the holding tank. The lter must

be changed at the beginning of each boating season to be effective. The vent lter is installed

in-line on the holding tank ventilation hose.

Note: Do not over ll the holding tank as this will ood the vent lter and render it useless. Filter

replacement will then be required. See Parts

Manual for correct replacement lter.

10. exhausT sYsTeMs

Your boat comes with a choice of different exhaust systems. Below is a description of the standard and optional systems on your 342 Performance.

Thru-Hub Exhaust (standard): Thru-hub exhaust propellers consist of a round barrel to which the blades are attached. The exhaust passes through the barrel and out the back, without making contact with the blades. This provides a good clean

water ow to the blades, usually resulting in good

acceleration and hole shot.

To Operate:

1. Turn ON the WATER PUMP breaker.

2. Turn ON the HEAD SYSTEM breaker.

REFER TO OWNER’S MANUAL PACKET FOR INSTRUCTIONS AND WARRANTY INFORMATION.

D. holDinG Tank operaTion

Waste from the head is directed into the holding tank

located in the engine room. The holding tank uid

level indicator is located on the main distribution panel or in the head which indicates 3/4 FULL, FULL and DO NOT FLUSH, or on some models may read FULL, 1/2, or EMPTY. When the FULL light is on, the DO NOT FLUSH light will also be on. When these lights are ON, the holding tank must be emptied before the head can be reused.

CorsaTM Performance Quick & Quiet II (option): A full time, non-switchable, thru-hull exhaust system that uses patented Silencer Tips with a pair of upper exhaust splitters connected to the lower wishbone and the exhaust riser.

CorsaTM Performance Quick & Quiet Plus (option): An electronically operated exhaust

diverter used in conjunction with the same Silencer Tips of the Quick & Quiet II system, but with the

added exibility to switch the exhaust ow to fully

silenced, thru-prop operation. The switch is used to change the exhaust exits, either thru-prop or thruhull, which will provide maximum performance or minimum exhaust sound.

Many areas regulate noise limits. Even if there are no laws, courtesy demands that boats operate quietly.

342 Performance

7.5

Section 8 • required inSPection, Service, &

maintenance

Routine inspection, service and maintenance of your boat’s systems are vital to assure your safety, as well as for prolonging the life of your boat. You should develop regular routines for inspecting your boat. The chart below summarizes inspection, service and maintenance activities. This section also contains descriptions of some convenient methods for evaluating the condition of some of your boat’s systems.

The interval between necessary service or maintenance is highly variable, depending on the environment your boat is in, and on the severity of operating conditions. For example, corrosion of parts on boats operated in salt water proceeds much faster than the corrosion of parts on a boat operated in fresh water. The intervals listed below are recommended maximums, and you must reduce the time between inspections if your observations indicate the need.

1. suMMarY GuiDe for inspecTion, service anD MainTenance

INTERVAL

ITEM

Battery Check water level Owner’s Manual p. 6.1 • • •

Bilge Area Clean and check Owner’s Manual p 8.4 •

Bilge Blowers Hose connections tight Owner’s Manual p. 4.2 •

Bilge Pump Float switch operates freely Owner’s Manual p. 4.1 •

Canvas Clean Owner’s Manual p. 9.3 As Needed

CO Monitor Check for proper operation Owener’s Manual p. 1.3 Check before each use

Controls

Steering Check for proper operation

Throttle Lubricate - include all shift Engine Manual • • •

Electrical

Connections Check for looseness To be done by Baja dealer annually

Engine

Alarm Check Engine Manual

Cooling System Check for leaks Engine Manual •

Connections with engine running

Crank Case

ventilating system

Drive Belts Check Engine Manual •

Exhaust System Check for leaks Engine Manual • • •

Flame Arrestor Clean Engine Manual • •

Fuel Filter Replace Engine Manual •

Mounts (Fasteners) Tighten Engine Manual • •

Oil and Filter Replace Engine Manual • •

Oil Level Check Engine Manual •

Fuel System

Connections & lines Check for leaks Engine Manual • • •

Tanks Check for leaks Owner’s Manual, Sec. 5 • • •

REQUIRED

MAINTENANCE/SERVICE

Oil level Engine Manual •

Linkage and pivot points

Clean Engine Manual

REFERENCE

SOURCE

BEFORE

EVERY

USE

AFTER

FIRST

20 HOURS

To be done by Baja dealer every six months

•

• •

EVERY

25* OR 50

HOURS

EVERY 50*

OR 100

HOURS

EVERY 6 MOS. OR ANNUALLY

*Use in salt water or other severe operating conditions requires shorter maintenance/service intervals **May not be on your boat

8.1342 Performance

Section 8 • required inSPection, Service, &

maintenance

suMMarY GuiDe for inspecTion, service anD MainTenance

INTERVAL

ITEM

Propeller Inspect for damage Always after striking object

Seaworthiness

Bilge drain plug Installed and tight Owner’s Manual p. 4.1 •

Hull damage Stern drive

Stern Drive

Fluid level Check level Engine Manual •

Fluid Replace Engine Manual •

Topside & Supplies

Trim Tabs

Fluid Check and add as needed Trim Tab Manual •

Zincs (Also see Mercathode System**)

Stern drive Check and replace as needed Owner’s Manual p. 6.3 Every 25 hours of operation

Trim Tabs Check uid level Trim Tab Manual Every 25 Hours of operation

Check for loose, damaged or missing parts

REQUIRED

MAINTENANCE/SERVICE

REFERENCE

SOURCE

Owner’s Manual p. 8.5 •

BEFORE

EVERY USE

AFTER

FIRST 20

HOURS

Always after striking object

EVERY

25* OR 50

HOURS

EVERY 50*

OR 100

HOURS

EVERY 6 MOS. OR

ANNUALLY

*Use in salt water or other severe operating conditions requires shorter maintenance/service intervals **May not be on your boat

8.2 342 Performance

Section 8 • required inSPection, Service, &

maintenance

2. useful service inforMaTion

OWNER

HOME PORT

BOAT NAME

REGISTRATION NUMBER STATE

HULL SERIAL NUMBER

WARRANTY REGISTRATION DATE

ENGINE MAKE & MODEL

SERIAL NUMBER

GEAR MAKE & REDUCTION RATIO

SERIAL NUMBER

PROPELLER SIZE

PART NUMBER

SHAFT SIZE (DIAMETER X LENGTH) MATERIAL

FUEL CAPACITY

WATER CAPACITY

KEY NUMBER, IGNITION DOOR

SELLING DEALER

CITY & STATE

LENGTH BEAM DRAFT

VERTICAL CLEARANCE

ESTIMATED WEIGHT

8.3342 Performance

Section 8 • required inSPection, Service, &

maintenance

3. inspecTion, service anD MainTenance proTocol

a. bilGe area

Many of your boat’s systems have critical features located in the bilge area. A thorough and organized inspection of the bilge area will address many of these critical features. For example, engine oil leaks and fuel system leaks will show themselves as contamination on the surface of the liquid that remains in the bilge. When you see such contamination, you should look for its source.

Once or twice a year, pump the bilge areas dry and remove all loose dirt. Be sure that all the limber holes are open. Limber holes are the openings in the

stringers that allow water to ow from the outboard

areas of the bilge to the bilge sump.

Check the bilge pump oat switch by moving it

manually. (Figure 4.1.2) The bilge pump should start

when the oat switch is raised and should stop when

lowered. If it does not, have it replaced before using

your boat. The oat switch should also move freely

without sticking, if it does not, have it serviced or replaced before boating.

! WARNING

DO NOT USE FLAMMABLE SOLVENTS to clean any part of the bilge.

Fumes can accumulate and can be the source of an explosion.

2. enGine

Engine failure or malfunction, when away from shore, can be dangerous. Make certain you do the following each time you use the boat:

• Wipe off the engine to remove accumulated dust, grease and oil.

• Check all exposed nuts, bolts and screws for tightness.

• Inspect the belts for wear. If they do not require replacement, check and adjust the belt tension according to the engine manufacturer’s recommendation.

• Inspect engine wiring, and clean and tighten the terminals on the engine electrical system.

• Clean and lubricate the battery cables.

• Add distilled water to the battery cells as needed.

• Refer to your Engine Operator’s Manual for additional engine maintenance requirements.

3. fuel sYsTeM

• Inspect the entire fuel system for evidence of

leakage, including the fuel tank ll lines and

vents. Any stain around a joint could be an indication of a leak.

• Test all ttings with a wrench to be sure they are

not loose, but do not forcefully overtighten the

ttings.

• Clean fuel lters and vent screens.

1. oil

If there is oil contamination, look for leaks in engine oil lines and engine gaskets. If parts of the bilge have been stained by oil, the stain can be removed using a bilge cleaner available from your dealer or a marine store.

8.4 342 Performance

Work on electrical wiring can create shock hazards or sparks.

Always shut off battery switch, breakers and/or pull fuses before checking electrical wiring or connectors.

! WARNING

Section 8 • required inSPection, Service, &

maintenance

4. WirinG sYsTeM

• Check all wiring for proper support.

• Check all wiring insulation for signs of fraying

or chang.

• Check all terminals for corrosion - corroded terminals and connectors should be replaced or thoroughly cleaned.

• Tighten all terminals securely and spray them with light marine preservative oil.

5. fiTTinGs, hoses anD claMps

• Inspect the entire bilge area for evidence of damage or deterioration. Evidence of

deterioration will rst appear around hull ttings,

hoses and clamps.

• Straighten kinked hoses.

• Replace any hose that does not feel pliable.

• Check all hose clamps for tightness and corrosion. Corroded clamps must be replaced.

• Check the nuts, bolts and screws that retain equipment, hoses, etc. in the bilge for tightness and corrosion. Corroded fasteners must be replaced.

b. TopsiDe anD supplies

Once a year, you should undertake a thorough review of the topside equipment, as well as of the critical safety supplies on your boat.

• Check your rst aid kit, making certain it is

complete and that the items in it have not passed an expiration date.

• Check the signaling equipment and emergency flares. Make sure all items are within their expiration dates.

• Inspect the anchor, mooring, and towing lines. Repair or replace as required.

• Check re extinguishers for full charge.

4. WinTerizaTion checklisT for boaTs sToreD on lanD

a. boaT sToraGe

• Store boat in a bow high attitude.

• Remove hull drain plug.

• Pour one (1) pint (half-liter) of 50% water/ antifreeze mixture in each bilge pump sump.

b. enGine

• Flush engine with fresh water.

• Remove engine drain plugs.

REF ER TO YO UR ENGINE OPE RATO R’S MANUAL FOR DETAILED INFORMATION ON PREPARING THE ENGINES FOR STORAGE AND WINTERIZATION.

c. baTTerY(ies)

• Check cleats, rings, rails, etc. for loose or corroded fasteners, breaks, sharp edges, or other conditions that could lead to malfunction or unsafe use. Repair or replace as necessary.

• Inspect PFDs (life jackets) for tears and deterioration.

• Make certain you have enough PFDs on board for the maximum number of persons you can carry.

• Remove from boat. Remove the negative (-)

cable rst, then the positive (+) cable.

• Remove grease and dirt from top surface.

• Grease terminal bolts.

• Store on wooden pallet or thick plastic in a cool dry place. Do not store on concrete.

8.5342 Performance

Section 8 • required inSPection, Service, &

maintenance

• Keep under a trickle charge.

• When placing battery back into service, remove excess grease from terminals, recharge as necessary and reinstall in boat.

D. fuel sYsTeMs

Gasoline:

• Fill fuel tank with gasoline and the recommended amount of stabilizer and conditioner such as “Stabil®”.

• Run engine(s) for ten minutes to ensure that all gasoline in the carburetor and fuel lines are treated.

Diesel:

• Fill fuel tank with diesel and recommended amount of biocide, “Biobor®”, which prevents bacteria and fungi from contaminating diesel fuel that contains some water.

5. fiTTinG ouT afTer sToraGe

a. fuel sYsTeM

Check the entire fuel system for loose connections, worn hoses, leaks, etc. and repair. This is a primary safety precaution.

Check fuel lines for damage and make sure that they do not come in contact with any moving parts.

b. baTTerY(ies)

Before installing the batteries, clean the terminal posts with a wire brush or steel wool and then attach the cables. After the cable clamps are tightened, smear the post and clamps with vaseline or grease to exclude air and acid. Do not apply grease before attaching and tightening the terminal clamps. Examine all wiring.

c. Miscellaneous

• Diesel fuel should also get a petroleum distillate additive, such as “Stabil®” or Racor® RX100”. This will absorb water in the fuel and prevent freezing problems.

• Run engine(s) for ten minutes to ensure that all diesel fuel in injectors and fuel lines is treated.

DETA I L E D W I N T E R I Z I N G , O P E R ATING INSTRUCTIONS AND WARRANTY INFORMATION AR E P R OVI D E D BY T HE E Q U I PME N T MANUFACTURER AND CAN BE FOUND IN THE OWNER’S PACKET.

! CAUTION

Do not overll. Filling a tank until the fuel ows from

vents is dangerous. Allow room for expansion.

• Check all thru-hull ttings for unobstructed water

passage. Be alert for any deteriorated hoses

and/or ttings below the water line which might

fail in service and allow water.

• Test the navigation lights.

• Check all wiring for loose connections.

• Check all switches and equipment for proper operation.

• Check bilge blowers for proper operation. Turn on blowers and place hand over hull blower vent to make sure air is coming from vent.

• Anchor lines and gear should be inspected and replaced if necessary.

• Make sure the hull drain plug is in place and tight.

• Clean bilge thoroughly if it was not done at lay-up.

• Check all engine uid levels.

8.6 342 Performance

Section 8 • required inSPection, Service, &

maintenance

• Check fuel lines for damage and/or leaks. Make sure that they do not come into contact with moving parts.

• Check Carbon Monoxide detector to see if operational

6. securiTY consiDeraTions

Be conscious of the security of your boat. Always remove the keys from the ignition, lock hatches, lock the cabin door, remove and stow any removable electronic gear (fishfinders, LORAN, etc.) and

personal gear (shing poles, etc.) normally left

aboard your boat.

7. poWer sTeerinG sYsTeM MainTenance

• Lubricate the control valve on the power

steering cylinder through the grease tting with

multipurpose lubricant until grease appears around the rubber boot.

with hot engine parts.

• Check all ttings, clamps, and bolts for tightness

every month.

• Check power steering pump drive belt for wear and proper tension every month. Do not overtighten belt. This can cause bearing failure.

REFER T O T HE E N GINE OPERATOR’ S MANUAL FOR PROPER FLUID LEVELS AND LUBRICANTS.

Baja® Marine recommends that all repairs and/or replacements to steering systems be made by

qualied dealers authorized by manufacturer of the

steering system of your boat.

DETAILED OPERATING INSTRUCTIONS AND WARRANTY INFORMATION ARE PROVIDED BY THE EQUIPMENT MANUFACTURER AND CAN BE FOUND IN THE OWNER’S PACKET.

• Coat power assist steering output shaft and exposed steering cable end with appropriate lubricant.

• Lubricate cable end guide pivot point with SAE 30W engine oil.

• Check power steering uid level in the power

steering pump reservoir.

• Inspect all hydraulic hoses for leaks. Keep hoses from rubbing on moving parts and from contact

8.7342 Performance

Section 8 • required inSPection, Service, &

maintenance

8. quick reference checklisT

As the owner/operator of a Baja® Boat, you are responsible for the safe operation of your boat and the safety of your passengers. Always be sure that required documents, navigational equipment and Coast Guard required safety equipment is aboard and in proper working order.

a. boarDinG The boaT*

General

1. Weather Conditions ................................................ Is it going to be safe to go out?

2. Transom Drain Plug ................................................ Installed

3. PFDs and all other Coast Guard

required safety equipment ...................................... Available for all children and adults

4. Ignition keys ............................................................ Available

5. Tool Box .................................................................. Stocked with a variety of appropriate tools

4. Fire Exgtinguisher ................................................... Available

5. Cell Phone...............................................................Fully charged

boaT sYsTeMs

1. Bilge Pumps ........................................................... Working. Discharge any appreciable amounts of water

overboard

2. Blowers ................................................................... Working. “Sniff” the bilge/engine compartment for fuel

odor

3. Navigation Lights .................................................... Working. Have spare bulbs (and if applicable fuses)

aboard

4. Radio/Electronics .................................................... Working

5. Horn ........................................................................ Working

6. Trim Tabs ................................................................ Full range of motion. No excessive play or binding

7. Fresh Water Tank .................................................. Filled and sanitized

8. Carbon Monoxide Detector ..................................... Working

enGine

1. Batteries ................................................................. Fully charged (Check water cell levels)

2. Fuel Tank ................................................................ Filled with recommended fuel; not leaking

3. Fuel System ............................................................ Check for leaks

4. Fuel Filters .............................................................. Check that lters are clean and tight

5. Diesel Racor Fuel Filters ........................................ Check that lters are clean, tight and free of water

6. Engine Coolant Drain Plugs ................................... Secured

7. Steering Fluid ......................................................... Full

8. Throttle & Gearshift Controls .................................. Full range of motion

*Note: If trailering boat, many of these items should be checked before leaving the house.

8.8 342 Performance

Section 8 • required inSPection, Service, &

maintenance

quick reference checklisT (conT’D)

b. preparinG To DeparT anD afTer launchinG

General

1. Bilge/Engine Compartment ..................................... “Sniff” the bilge/engine compartment for fuel odor.

Run the bilge blowers for at least four (4) minutes.

2. Shore Power Cable ................................................ Disconnected from dockside power inlet

3. Lines, Fenders and Anchor ..................................... Ready for use

4. Passengers/Crew ................................................... Instructed in duties for getting underway and tted for a

correct size PFD

enGine

1. Battery Switches ..................................................... In the ON position

2. Fuel Valves (Diesel Only) ....................................... Open

3. Engine Alarm .......................................................... Test. Should sound after a few seconds

4. Gear Shift & Throttle Controls ................................ In NEUTRAL and IDLE positions

sTarTinG The enGine*

1. Gearshift & Throttle Controls .................................. Shift in NEUTRAL (Refer to your Engine Owner’s

Manual for startup procedures for your specic

engine)

2. Ignition .................................................................... Turn ignition keys on the helm clockwise until engine

starts, then release.

IMPORTANT: Do not continue to operate starter for more than 10 seconds without pausing to allow starter motor to cool off for 2 minutes. This also will allow the battery to recover between starting attempts.*

! WARNING

Do not run the engine or generator in an enclosed area, such as a closed boat house, as there is the possibility of buildup and inhaling of carbon monoxide.

*If engine fails to start, refer to the Engine Owner’s Manual for further troubleshooting procedures

8.9342 Performance

Section 8 • required inSPection, Service, &

maintenance

quick reference checklisT (conT’D)

c. DeparTinG

General

1. Passengers/Crew ................................................... Safely seated with PFDs on or immediately accessible

2. Lines, Fenders and Anchor ..................................... Stowed

boaT sYsTeMs

1. Trim Tabs ................................................................ Bring boat to “on plane” – Adjust as necessary

2. Navigation Lights .................................................... On at night or in reduced visibility

enGine

1. Tachometers ........................................................... Engines operating in safe RPM range

2. Engine Gauges ....................................................... Continually monitor

3. Engine Operation .................................................... Check idle and shift. Listen for abnormal noises and

visually check the engine compartment.

D. reTurninG To porT

General

1. Passengers/Crew ................................................... Instructed in duties for line handling

2. Lines and Fenders .................................................. Ready for use

boaT sYsTeMs

1. Navigation Lights .................................................... Turned OFF when secured

2. Anchor Light ........................................................... ON if necessary

3. Bilge/Engine Compartment ..................................... “Sniff” the bilge/engine compartment for fuel odor.

Run the bilge blowers if necessary. Check for water in bilge. Run bilge pumps if necessary

enGine

1. Gearshift & Throttle Controls .................................. Bring to NEUTRAL and IDLE positions

2. Tachometers ........................................................... Idle the engines for ve (5) minutes to cool down

8.10 342 Performance

Section 8 • required inSPection, Service, &

maintenance

quick reference checklisT (conT’D)

3. Ignition .................................................................... Once the motor is cooled down, turn the ignition keys

counter clockwise to stop the engine.

4. Engine Operation .................................................... Check idle and shift. Listen for abnormal noises

e. securinG The boaT

General

Lines and Fenders ........................................................ Fenders in place, lines tied securely to dock

boaT sYsTeMs

1. Helm Switch Panel ................................................. All switches in the OFF position

2. Gearshift & Throttle Controls .................................. In the NEUTRAL and IDLE positions

enGine

1. Ignition .................................................................... Switch is in the OFF position and ignition keys are

removed

2. Battery Switches ..................................................... In the OFF position

3. Fuel Valves (Diesel Only) ....................................... Closed (handle perpendicular to hose)

f. if The enGine Does noT sTarT

no sTarTer MoTor response

1. Check battery switch is in the ON position.

2. Check the main circuit breaker.

3. Check gearshift/throttle control levers in the NEUTRAL positions.

4. Check battery condition for sufcient charge.

5. Check battery cable connections tight and free from corrosion.

6. Check starter motor and solenoid connections.

7. Check ignition switch connections.

8. Consult the engine manual that is located in the owners packet.

sTarTer MoTor responDs, buT no iGniTion

1. Check that fuel tank is not empty.

2. Check that ignition shutdown switch lanyard is installed.

3. Check electrical connections on engine wiring harness and ignition wiring.

4. Check fuel lters and lter/water separators clean

5. Consult the engine maual that is located in the owners packet.

8.11342 Performance

Section 8 • required inSPection, Service, &

maintenance

9. afTer MarkeT equipMenT checklisT

Any safety or operational equipment added to your boat after delivery should be checked for seaworthiness and proper working condition. Use the area below to list any equipment and the proper operating condition of that equipment before getting underway.

Equipment Proper Operating Condition

8.12 342 Performance

Section 8 • required inSPection, Service, &

maintenance

10. MainTenance loG

Follow the recommended maintenance listed on pages 1 & 2 of this section and keep a record of this and ALL maintenance performed on your boat.

Date Maintenance Description Engine Hours

8.13342 Performance

Section 8 • required inSPection, Service, &

maintenance

MainTenance loG (conT’D)

Date Maintenance Description Engine Hours

8.14 342 Performance

Section 9 • care & refiniShing

Your new boat has been designed to provide you with years of enjoyment and satisfaction. In order to maintain the factory new appearance of your boat, we recommend the use of Yacht Bright™

products designed specically for pleasure boats. Following proper berglass maintenance guidelines

will help maintain your boat’s performance, value, and enjoyment.

1. painT cleaninG aGenTs & oTher subsTances

! WARNING

EXPLOSION/FIRE HAZARD

Care and renishing materials may contain ingredients that are ammable or explosive. Do not

use such materials in the bilge

Shut off electrical power and ventilate when using such materials anywhere on the boat or in the cabin.

Wash the gelcoat and berglass regularly with clean,

fresh water. Wax gelcoated surfaces to maintain the luster. In northern climates, a waxing at the start and

end of the boating season may sufce. In southern

climates, an application of wax every three months will be required for adequate protection.

REFER TO THE YACHT BRIGHT™ PAMPHLET IN YOUR OWNER’S MANUAL PACKET FOR INSTRUCTIONS AND WARRANTY INFORMATION.

3. sTains & scraTches

! WARNING

Gelcoat surfaces are slippery when wet.

Always wear non-slip footwear securely fastened to your feet and hold on to rails or the boat structure.

! WARNING

Do not create sparks or use lighted materials.

Do not use products containing chlorine, phosphates, perfumes and non-degradable ingredients. Consult your marine dealer regarding environmental regulations before painting the hull. Fumes can last for hours, and chemical ingredients can harm people, property and the environment. Common household cleaning agents may cause hazardous reactions. Read and understand directions on all paint, cleaning and polishing materials before using.

2. fiberGlass & GelcoaT

The berglass hull, deck and some interior parts

consist of a molded shell and exterior gelcoat. The gelcoat is the outer surface, often colored, that presents the shiny smooth appearance associated with fiberglass products. This gelcoat surface is painted or taped in some areas for styling purposes.

Waxed surfaces are slippery.

Do not wax areas that are usually walked on.

Although gelcoat and painted surfaces are resistant to deep stains, a need for cleaning will occasionally arise. But, the use of some common cleaning agents will permanently discolor or otherwise damage the

nish on your boat.

• Do not use abrasive porcelain-cleaning powders. These are too abrasive and contain chlorine and ammonia, either of which will permanently discolor gelcoat and paint.

• Never use nail polish remover (acetone) or any ketone solvents.

• Use diluted household detergents to remove surface soil and stains. Before using a given brand, check to make sure it contains no chlorine or ammonia.

• Isopropyl alcohol can be used to remove difcult

stains. But it must be promptly washed off with mild detergent and water.

342 Performance

9.1

Section 9 • care & refiniShing

• Minor scratches and deeper stains that do not penetrate the gelcoat may be removed by light

sanding and bufng.

4. perManenTlY MooreD or DockeD boaTs

If permanently moored in salt water or fresh water, your boat will collect marine growth on its bottom. This will detract from the boat’s beauty and greatly affect its performance. There are two methods of preventing this:

• Periodically haul the boat out of the water and scrub the bottom with a bristle brush and a solution of soap and water.

• Paint the hull below the waterline with a good grade of antifouling paint. DO NOT paint the

engine drive surfaces.

NOTE: There are EPA regulations regarding bottom

paint application. Consult your Baja® dealer for proper application methods.

6. acrYlic plasTic sheeTinG (plasTic Glass)

Never use a dry cloth or duster or glass cleaning solutions on acrylic.

To clean acrylic, rst ood it with water to wash off

as much dirt as possible. Next, use your bare hand, with plenty of water, to feel and dislodge any caked dirt or mud. A soft, grit-free cloth may then be used with a nonabrasive soap or detergent. A soft sponge, kept clean for this purpose, is excellent. Blot dry with a clean damp chamois.

Grease and oil may be removed from acrylic with kerosene, hexane, white (not aviation or ethyl) gasoline or aliphatic naphtha (no aromatic content).

Do not use solvents such as acetone, silicone spray, benzine, carbon tetrachloride, fire

extinguisher uid, dry cleaning uid or lacquer

thinner on acrylic, since they attack th e surface.

5. TopsiDe areas

a. sTainless sTeel anD alloY fiTTinGs

Stainless steel and alloy ttings should be cleaned

with soap and water or household glass cleaner. Remove rust spots as soon as possible with a brass, silver or chrome cleaner. Irreversible pitting will develop under rust that remains for any period of time. Never use an abrasive like sandpaper or steel wool on stainless. These may actually cause rust. To help protect the stainless, we recommend the use of a good car wax.

b. salT crYsTals

When instruments are exposed to a saltwater environment, salt crystals may form on the bezel and the plastic covers. These salt crystals should be removed with a soft, damp cloth; never use abrasives or rough, dirty cloths to wipe plastic parts. Mild household detergents or plastic cleaners can be used to keep the instruments bright and clean.

Refer to the Owner’s Manual Packet for instructions and warranty information.

Remove ne scratches with ne automotive acrylic

rubbing and polishing compounds.

7. canvas anD clear vinYl

Do not fold or store any of the canvas pieces while wet. All canvas should be rolled or folded

when dry and stored in a clean, dry place. For clear vinyl pieces, the recommended methods for storage

are rolling or laying down at. The clear vinyl should

never be folded or creased as cracking will result. To protect the clear vinyl from rubbing against itself

while rolled or stored at, place a piece of very

soft, nonabrasive cloth between the pieces. If the surface of the clear vinyl becomes scratched, the canvas manufacturer has provided a canvas care sheet located in your Owner’s Manual Packet. When storing the rear (aft) curtain, fold the canvas over the clear vinyl window (do not fold clear vinyl), then roll or store at. REFER TO THE CANVAS CARE INSTRUCTIONS IN THE OWNER’S MANUAL PACKET.

9.2

342 Performance

Section 9 • care & refiniShing

The fabric should be cleaned regularly before substances such as dirt, pollen, etc. are allowed to accumulate on and become embedded in the fabric. The fabric can be cleaned without being removed from the installation. Simply brush off any loose dirt, particles, etc.; hose down and clean with a mild solution of a natural soap in lukewarm water (no more than 100°F, 38°C); rinse thoroughly to remove soap. DO NOT USE DETERGENTS. Allow to completely dry.

Wash and clean vinyl windows with a warm soap solution. Use a soft cloth or sponge and do not scratch the surface.

If you have stubborn cleaning cases, call your dealer for proper procedures. Do not try your own cleaning procedures as they may permanently damage the canvas.

After each use, especially in salt water areas, rinse the canvas completely with fresh cold water. Then let the canvas dry completely before stowing.

DO NOT, at anytime, dry any canvas part in a conventional dryer, because shrinking may occur.

All metal components of the canvas should be rinsed with fresh cold water and exposed components wiped dry to maintain appearance and working order.

8. exTerior upholsTerY fabric

Exterior fabrics should be cleaned with a sponge or very soft scrub brush and a mild soap and warm water solution. After scrubbing, rinse with plenty of cold, clean water and allow the fabric to air dry in a well ventilated place, preferably away from direct sunlight.

Mildew can occur if your boat does not have adequate ventilation. Heat alone will not prevent mildew; you must also provide for fresh air circulation.

REFER TO THE OWNER’S MANUAL PACKET FOR INSTRUCTIONS AND WARRANTY INFORMATION.

9. inTerior upholsTerY fabric

Cleaning and maintenance information, provided by the material manufacturer, is in your Owner’s Manual Packet.

REFER TO THE OW NER’S MANU AL PAC KET FOR INSTRUCTIONS AN D OTHER CLEANING INFORMATION.

NOTICE

Always clean spots, stains, etc., immediately.

Test an unseen area of fabric before cleaning stain, to insure that cleaning material will not cause damage.

342 Performance

9.3

Section 9 • care & refiniShing

This Page inTenTionally lefT Blank

9.4

342 Performance

index

Accessories. See Options & Accessories Locations

Bilge 4.1

Blower 4.2 Maintenance 4.2, 8.4

Pump 4.1 Boarding 3.3 Breakers. See Electrical Systems

Canvas 7.2, 9.2 Carbon Monoxide 1.2

Certications

CE (Common European) Mark iv Clearances 2.2

Diving 1.10 Docking 2.1

Maintenance 8.4

Fuses. See Electrical Systems

Gear Shift and Throttle Control 2.5 Gelcoat, Care & Cleaning 9.1

Head System 7.4 Holding Tank 7.5 Horn 7.3 Hull

Indentication Number (HIN) iv

Ignition Shutdown Switch 2.7

Layout

Deck 2.4 Lifting 2.1 Lights

Navigation & Anchor 2.8 Load Capacity 1.6

Required Equipment 1.2

Safe boating 1.1 Safety Labels 1.1 Security Considerations 8.7 Service, Summary Guide 8.1 Service Information 8.3 Skiing 1.9 Stability 1.7 Stains 9.1 Steering System 3.6 Stern Drive 4.2 Storage 2.1 Swimming 1.9 Swim Platform 7.3 Symbols 1.16

Tachometer 2.7 Trailering 2.1

Trailer Launching and Loading 3.2 Trailer Switch 2.6 Trim 2.5 Trim Tabs 2.6

Electrical Systems

Batteries 6.1 Breakers and/or Fuses 6.2 Direct Current (DC) 6.1

Electrolytic Corrosion 6.2 Emergency Situations 1.10 Engine

Maintenance 8.4

Maintenance & Service 4.2

Starting 3.4

Stopping 3.5 Engine Alarm System 2.7 Exhaust System 7.5

Failure: Propulsion, Control or Steering 1.12 Fiberglass, Care & Cleaning 9.1 Fire Extinguisher 1.2 Fire Extinguisher Port 7.2 Fire Extinguishing System 1.2, 7.2 Flooding 1.11 Fuel System

Anti-Siphon Valve 5.1

Fuel Gauge 2.8

Fueling 3.2

Nautical Terms 1.15

OEM i Options & Accessories Locations 7.1 Owner’s Manual Packet i

Passengers

Instruction 3.4 Locations 2.1

Personal Flotation Devices (PFDs)

1.2, 1.4, 3.3 Power Capacity 1.6 Power Trim 2.5 Propellers 1.6, 2.3

Removal & Installation 4.3

Propulsion System 2.3

Recommended Equipment 1.5 Requirements

International Requirements 1.13

U.S. Coast Guard 1.12

VacuFlush® Head 7.5 Visual Distress Signals 1.2

Warranty iii, v Water Sports 1.9 Water Temperature 2.8 Weather 1.8 Winterization 8.5

Zinc Anodes 6.2

index342 Performance

This Page inTenTionally lefT Blank

index 342 Performance
