Page 1
© 2012 Baileigh Industrial, Inc.
REPRODUCTION OF THIS MANUAL IN ANY FORM WITHOUT WRITTEN APPROVAL OF BAILEIGH INDUSTRIAL, INC.
IS PROHIBITED. Baileigh Industrial, Inc. does not assume and hereby disclaims any liability for any damage or loss
caused by an omission or error in this Operator’s Manual, resulting from accident, negligence, or other occurence.
Rev. 10/2012
Baileigh Industrial, Inc.

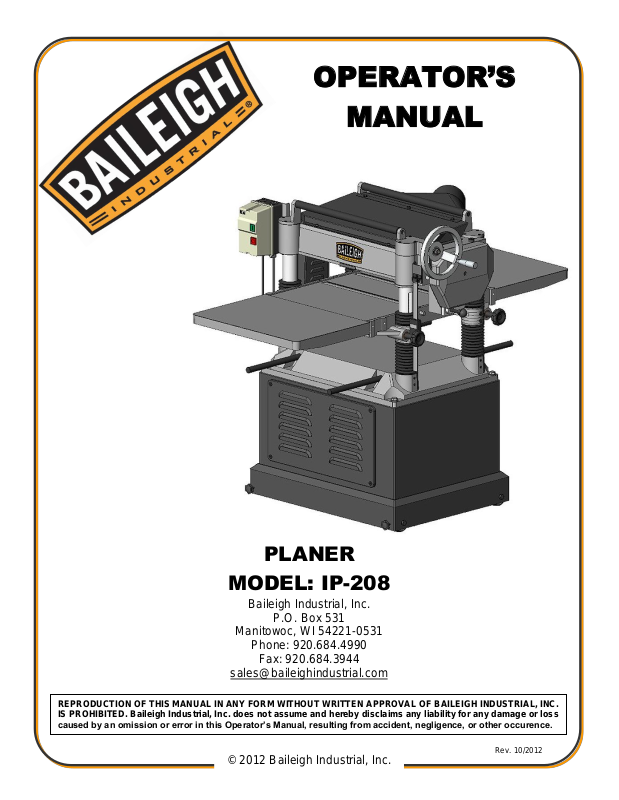

OPERATOR’S
MANUAL
PLANER
MODEL: IP-208
Manitowoc, WI 54221-0531
P.O. Box 531
Phone: 920.684.4990
Fax: 920.684.3944
Page 2
Table of Contents
THANK YOU & WARRANTY .......................................................................................... 1
INTRODUCTION ............................................................................................................ 3
GENERAL NOTES.......................................................................................................... 3

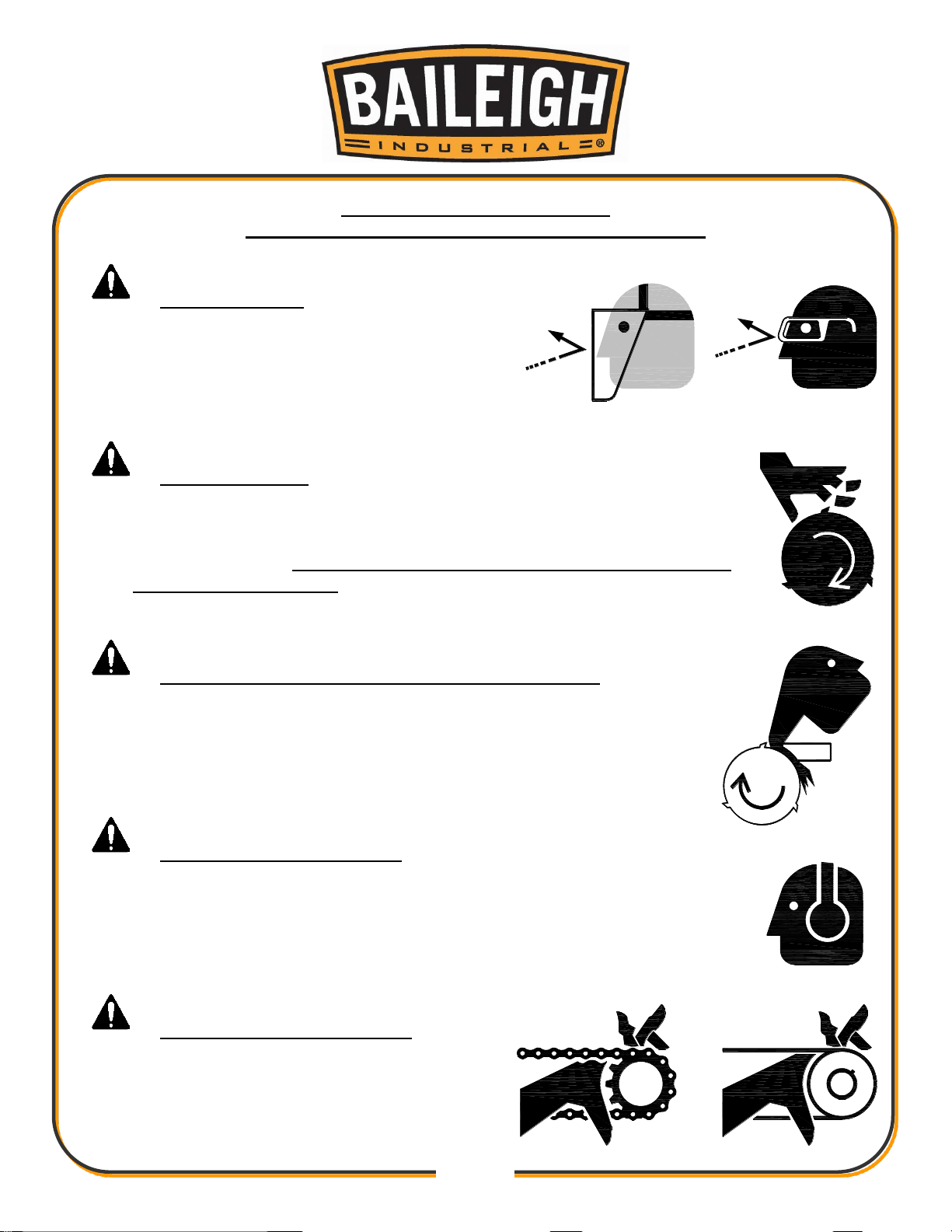

SAFETY INSTRUCTIONS .............................................................................................. 4
SAFETY PRECAUTIONS ............................................................................................... 6
SPECIFICATIONS .......................................................................................................... 9
TECHNICAL SUPPORT ................................................................................................. 9
UNPACKING AND CLEANING ..................................................................................... 10
Cleaning .................................................................................................................... 10
INSTALLATION and ASSEMBLY ................................................................................. 11

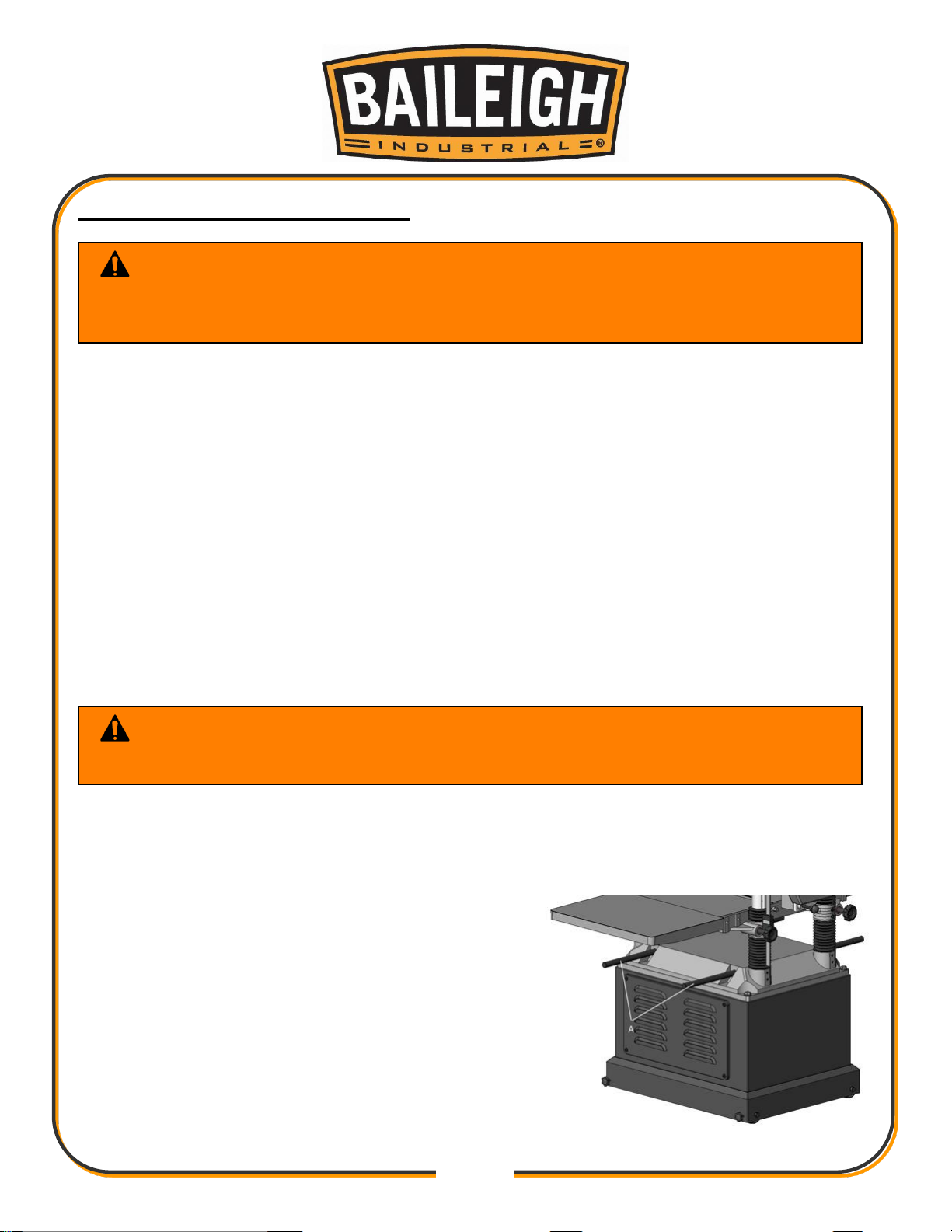

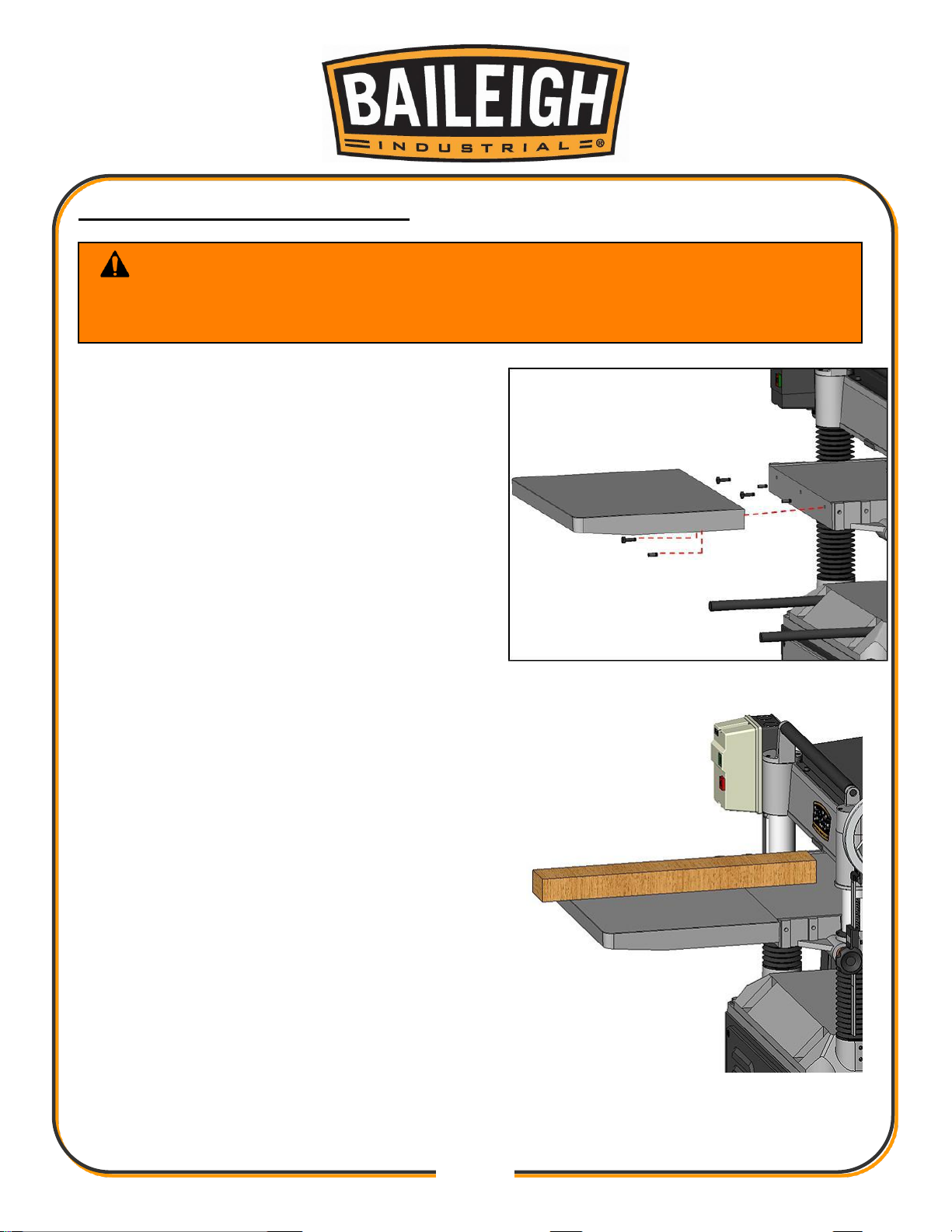

ASSEMBLY EXTENSION TABLE ................................................................................. 12

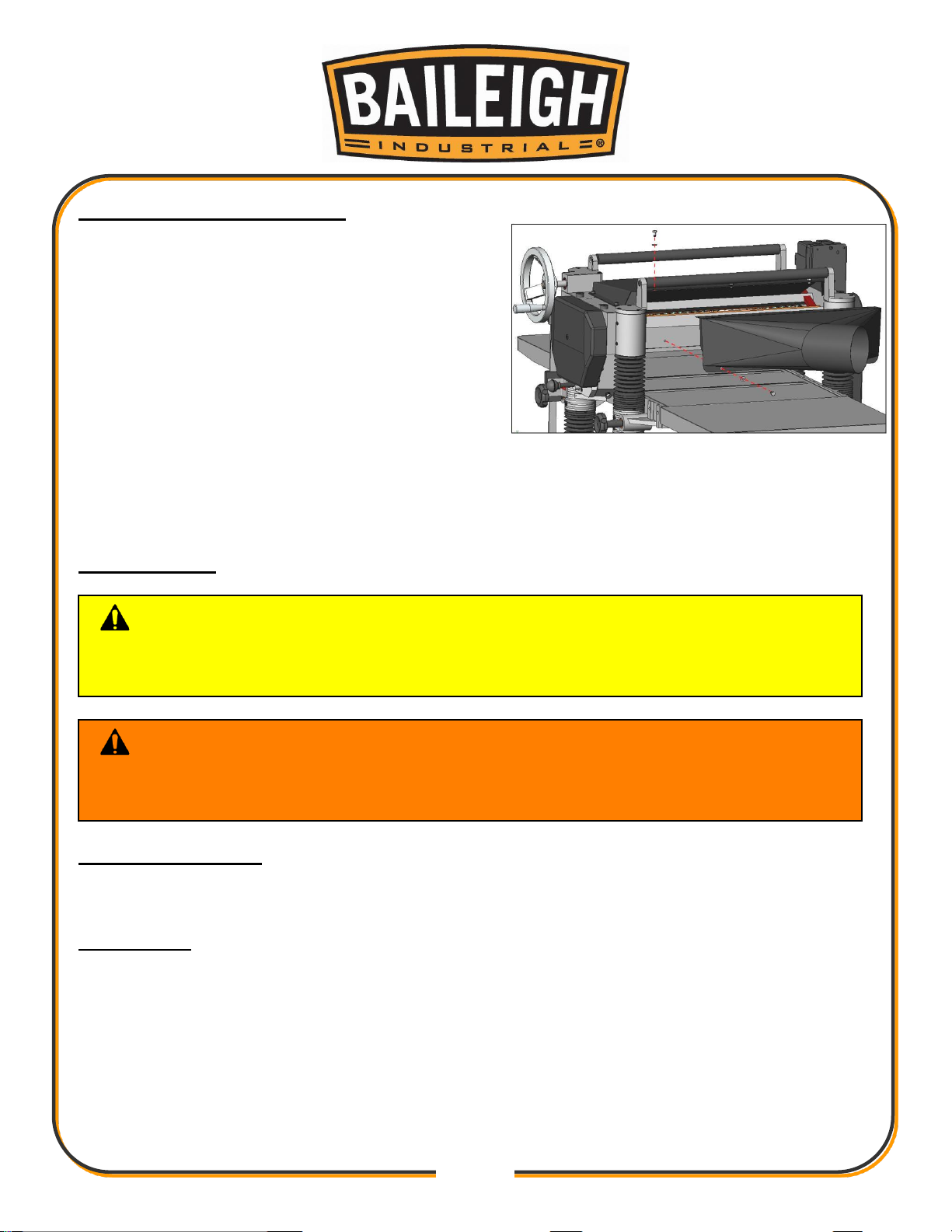

DUST CHUTE ASSEMBLY ........................................................................................... 13
ELECTRICAL ................................................................................................................ 13
Extension Cord Safety ............................................................................................... 14

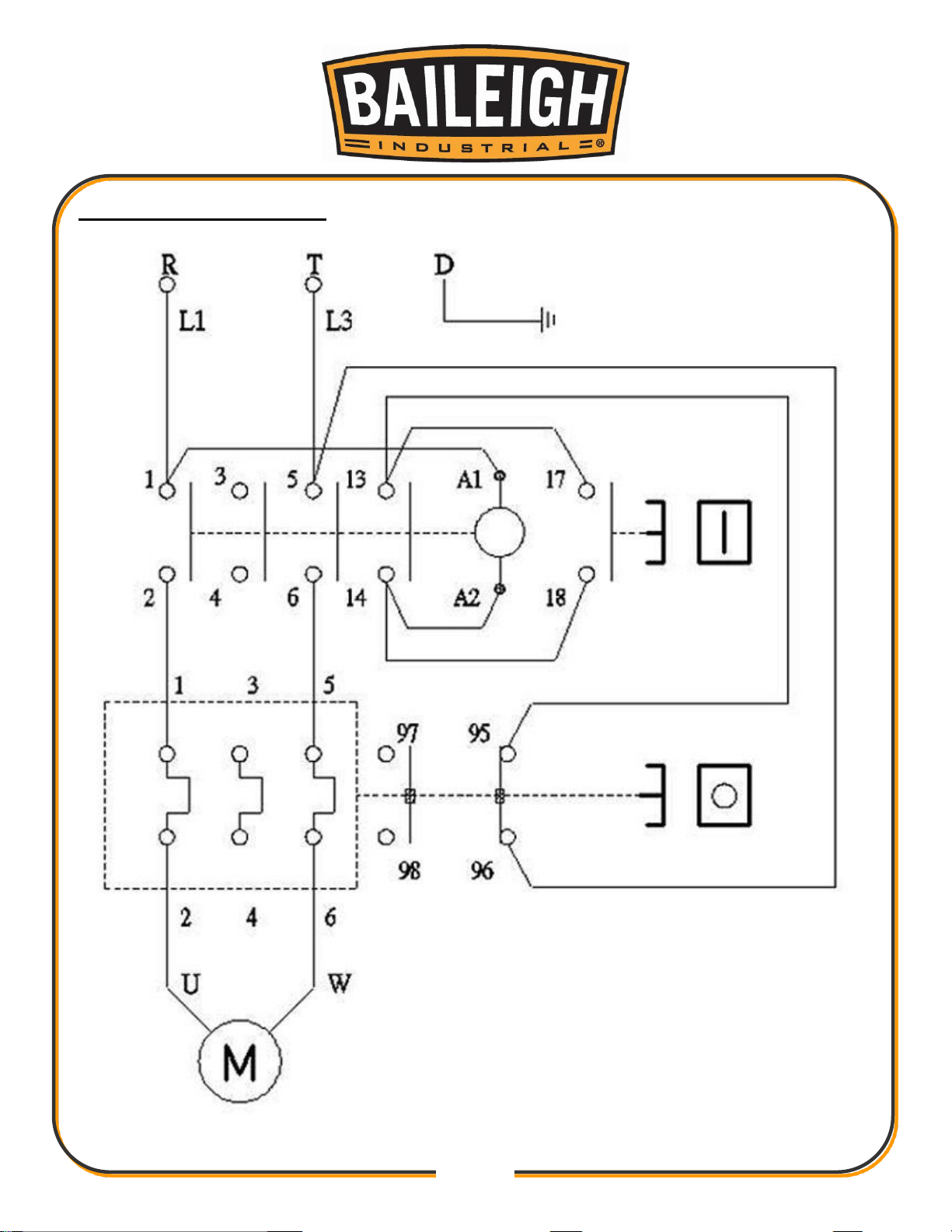

ELECTRICAL DIAGRAM .............................................................................................. 15

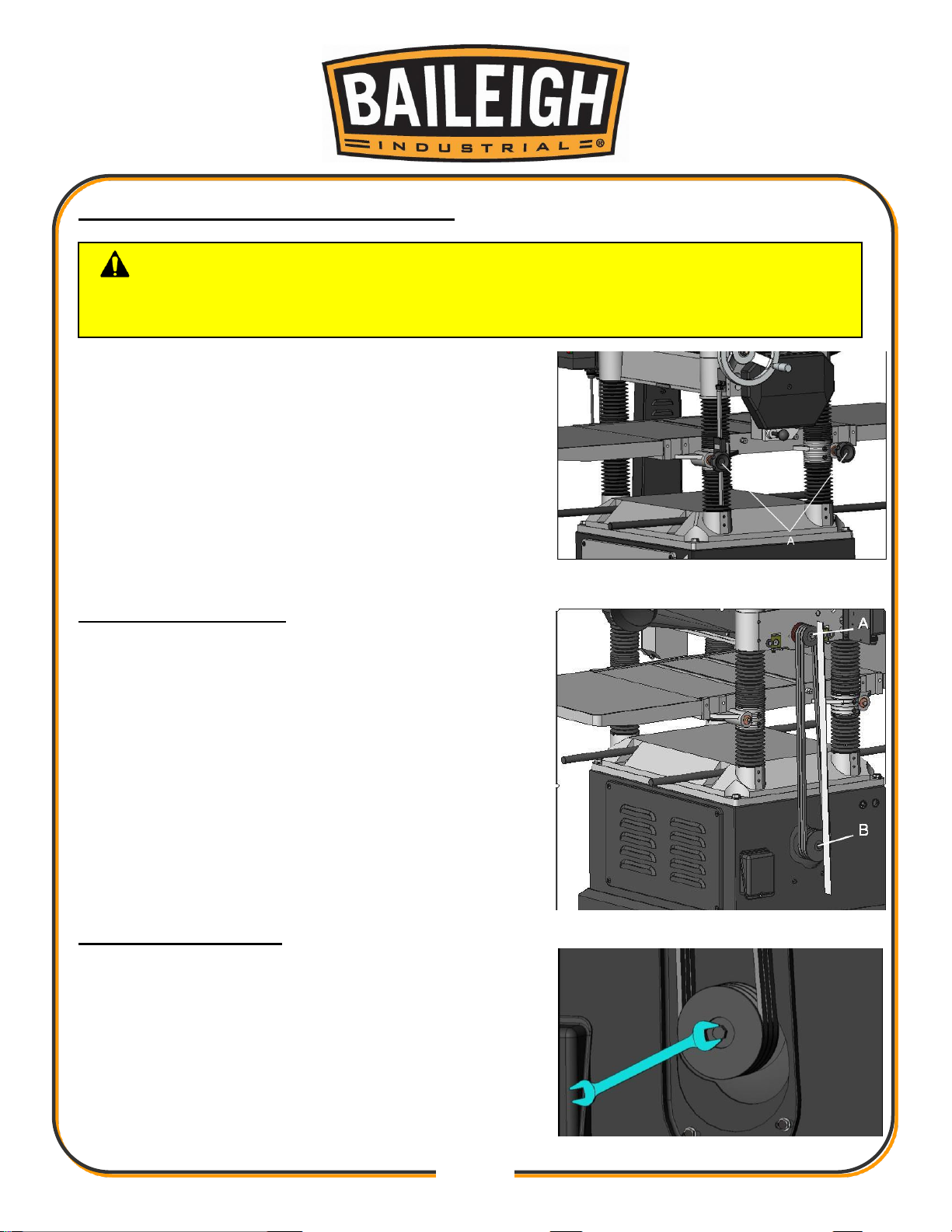

CONTROL THE DEPTH OF CUTTING ........................................................................ 16
CHECKING PULLEY .................................................................................................... 16
Adjusting Motor Mount ............................................................................................... 16
ADJUSTING BELT TENSION ....................................................................................... 17
FEED ROLL SPEED RATE .......................................................................................... 17
ROLL TRANSMITTING ................................................................................................. 18

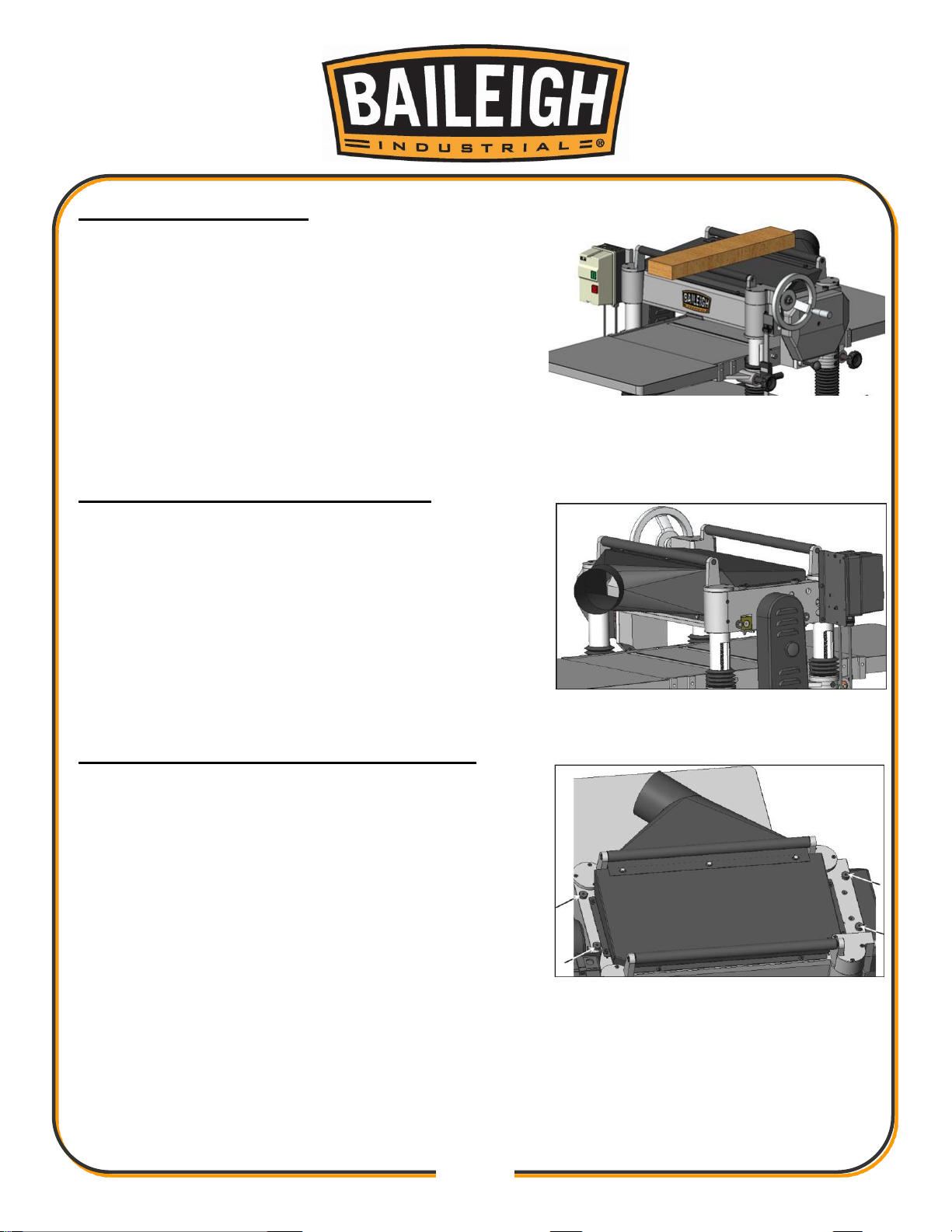

CONNECTING DUST COLLECTOR ............................................................................ 18
FEEDROLL PRESSURE AJDUSTMENT ..................................................................... 18
ADJUSTMENT TRANSMITTING ROLLER ................................ ................................ ... 19
ADJUSTING TABLE ROLLER ...................................................................................... 19
ADJUST ROLLER ......................................................................................................... 19

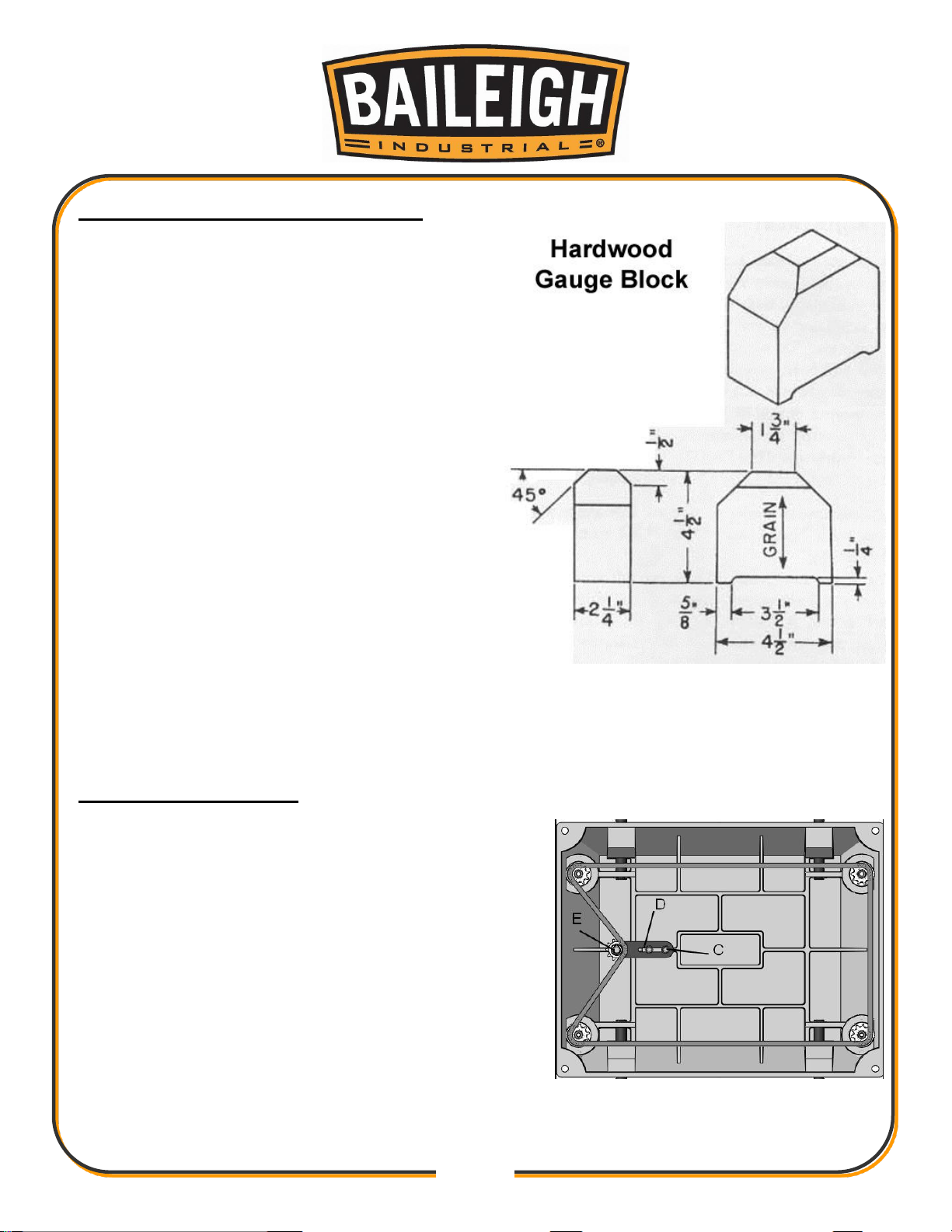

CONSTRUCTING GAUGE BLOCK .............................................................................. 20
ASSEMBLING CHAIN ................................................................................................... 20
ADJUSTING CUTTING HEAD PARALLEL TO TABLE ................................................. 21
ADJUSTING SPRING TENSION OF FEED ROLLER .................................................. 22

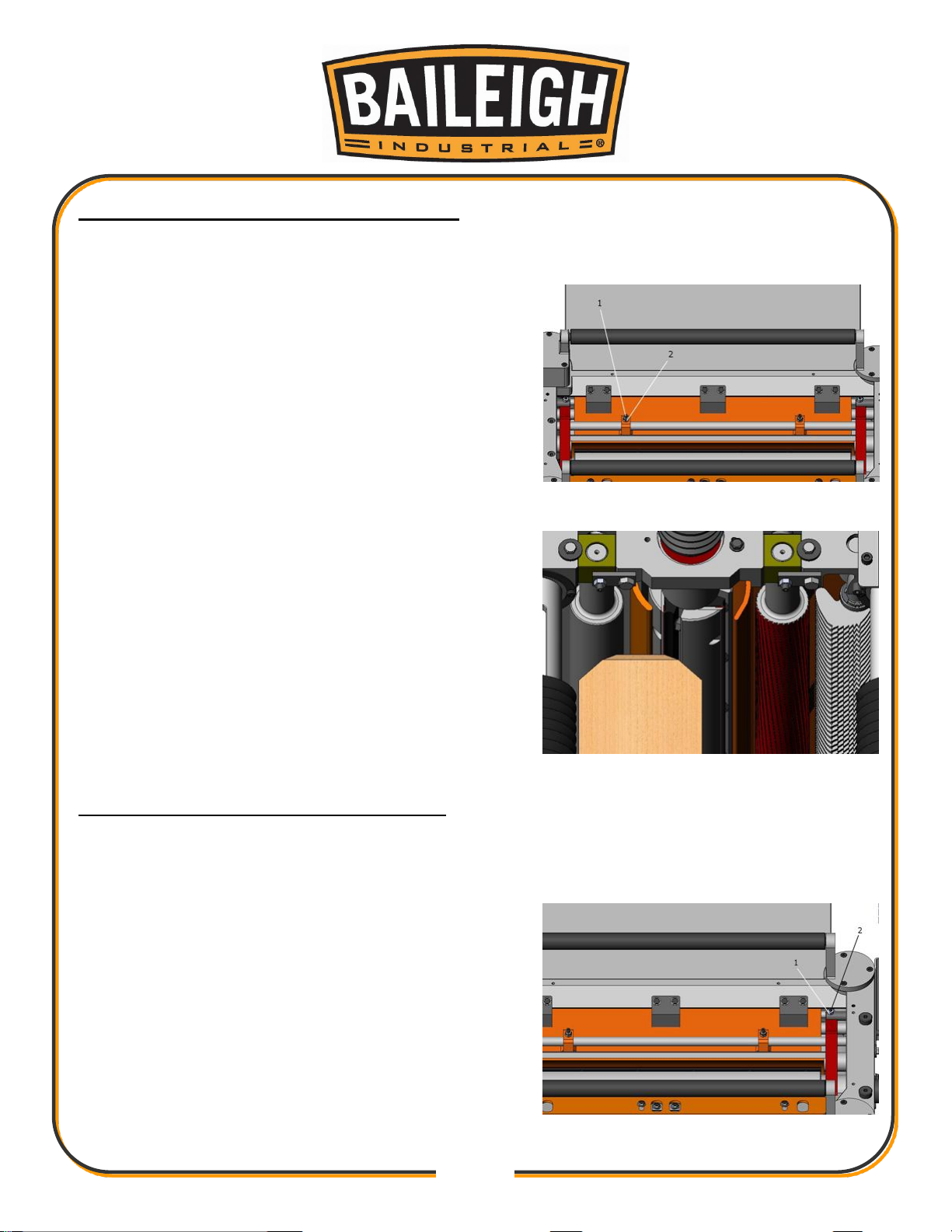

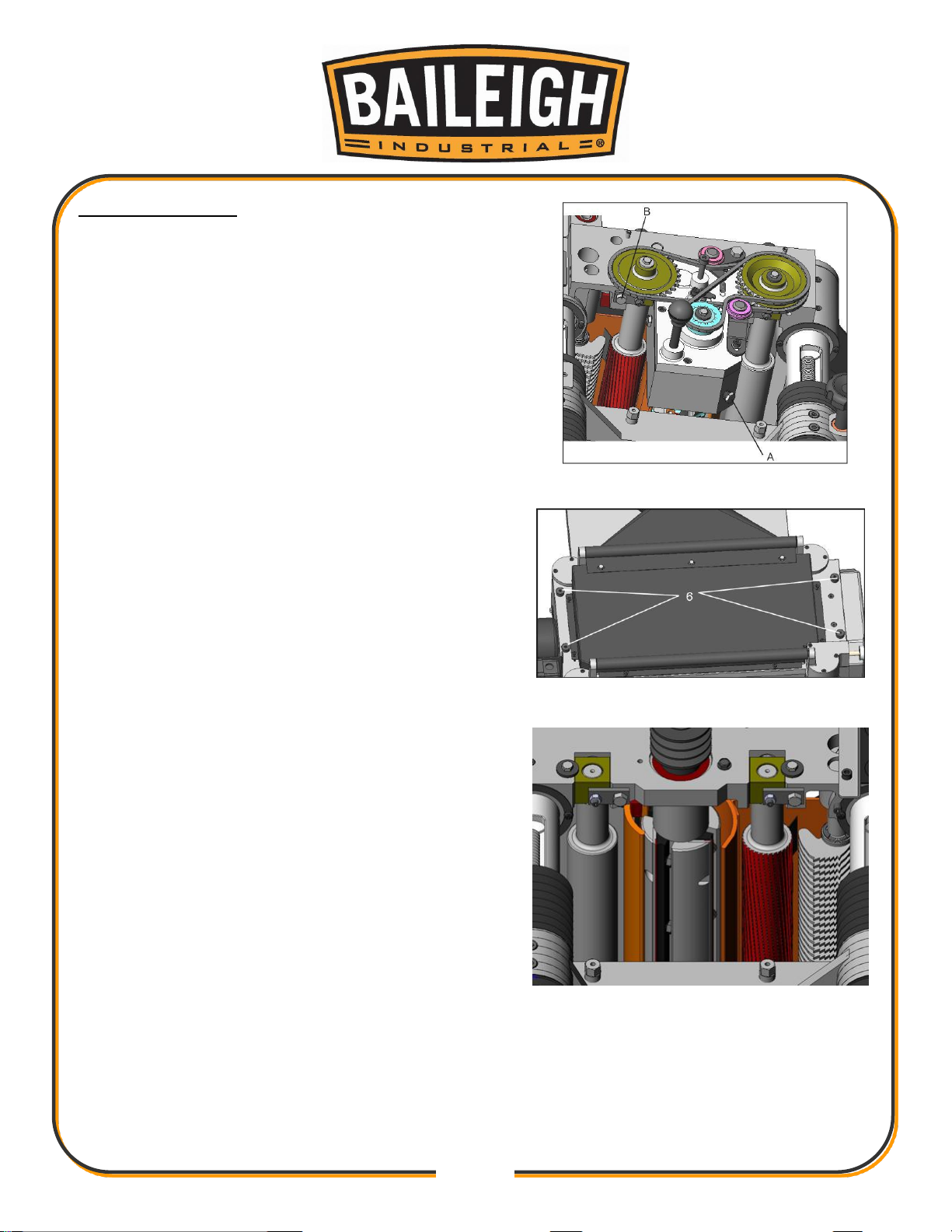

Adjusting Infeed and Outfeed Roller .......................................................................... 22
Infeed Roller .............................................................................................................. 23
Outfeed Roller ........................................................................................................... 23

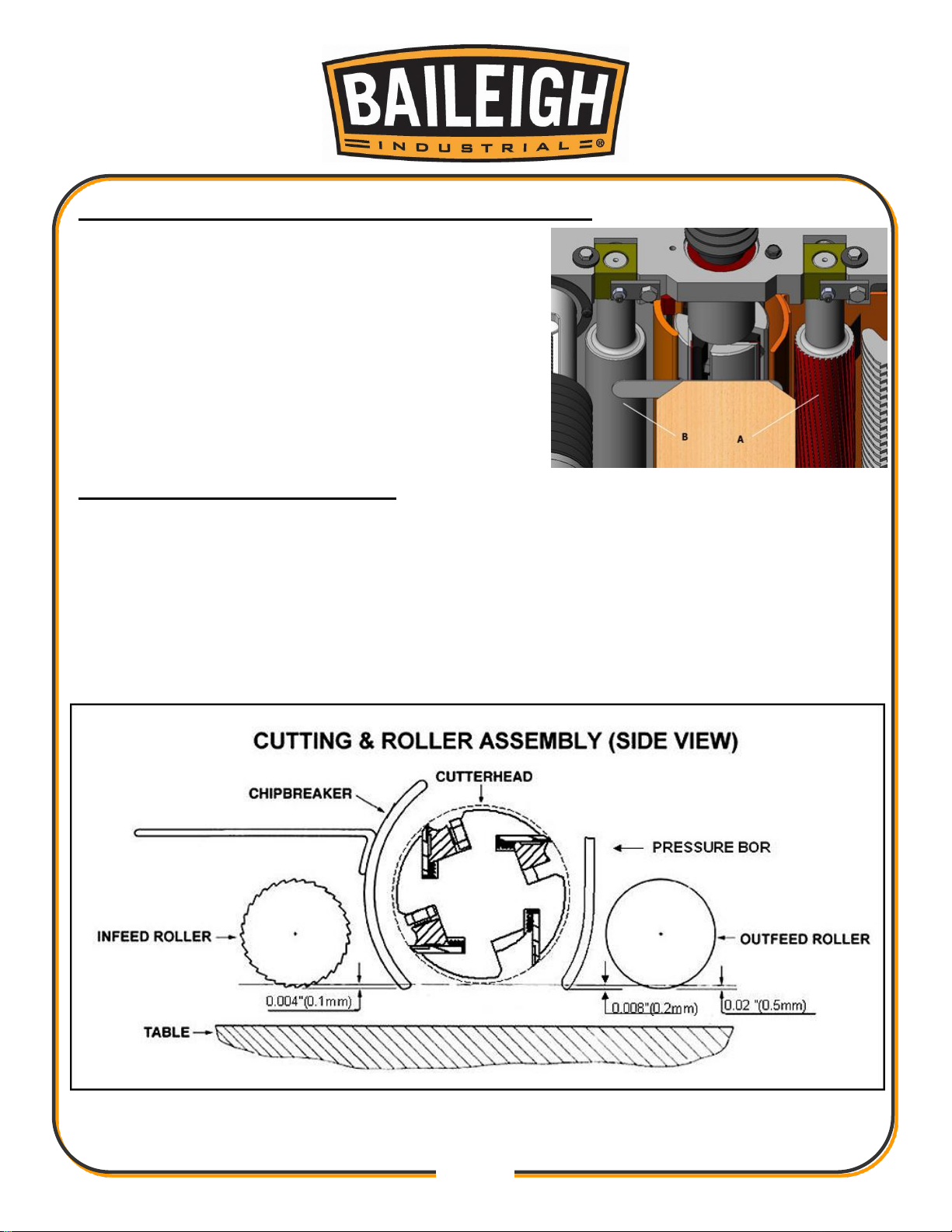

CHECK HEIGHT OF PRESSURE BAR ........................................................................ 24
CHECK HEIGHT OF CHIPBREAKER .......................................................................... 24

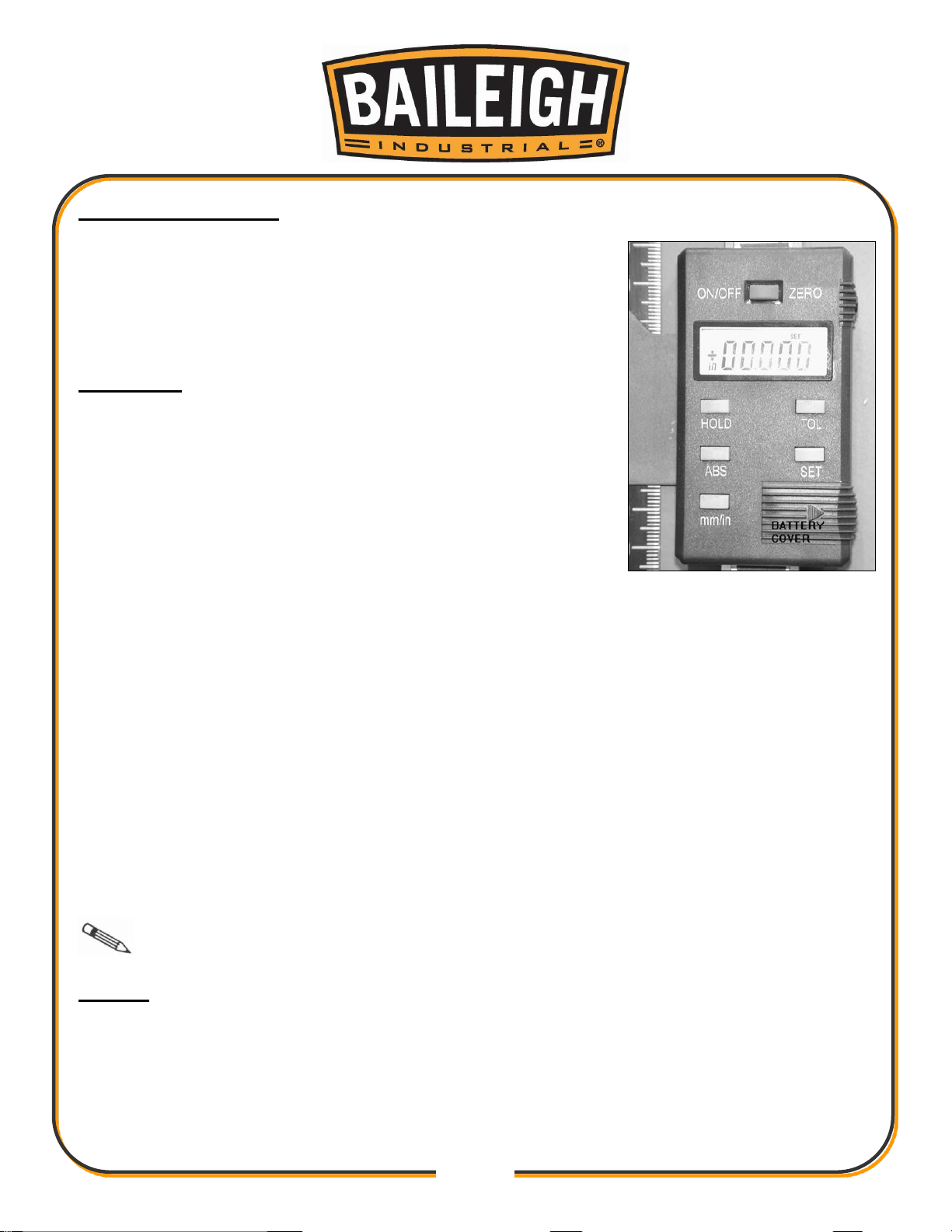

DIGITAL READOUT...................................................................................................... 25

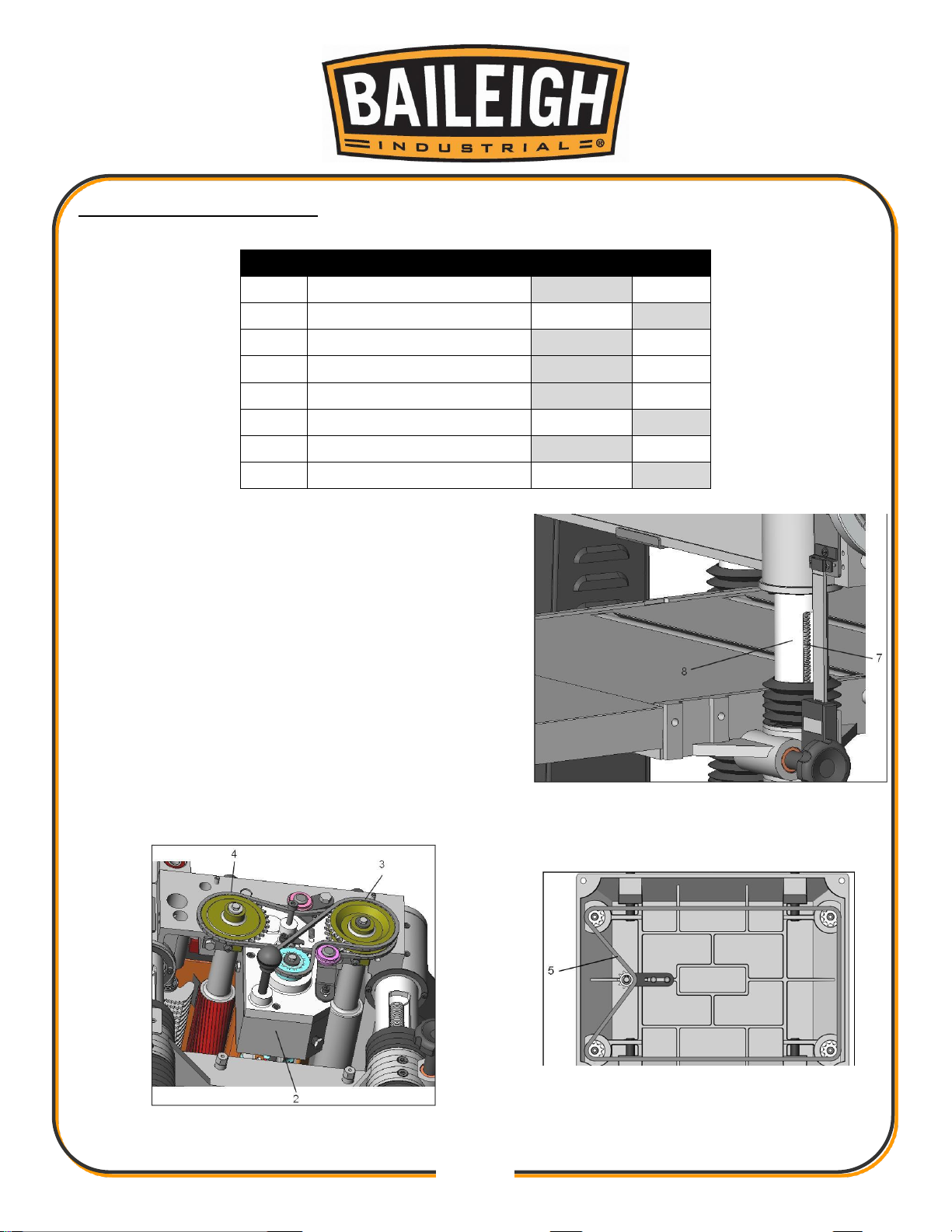

MAINTENANCE ............................................................................................................ 27
Parts Lubrication Required ........................................................................................ 28
Change Lubricant ...................................................................................................... 29

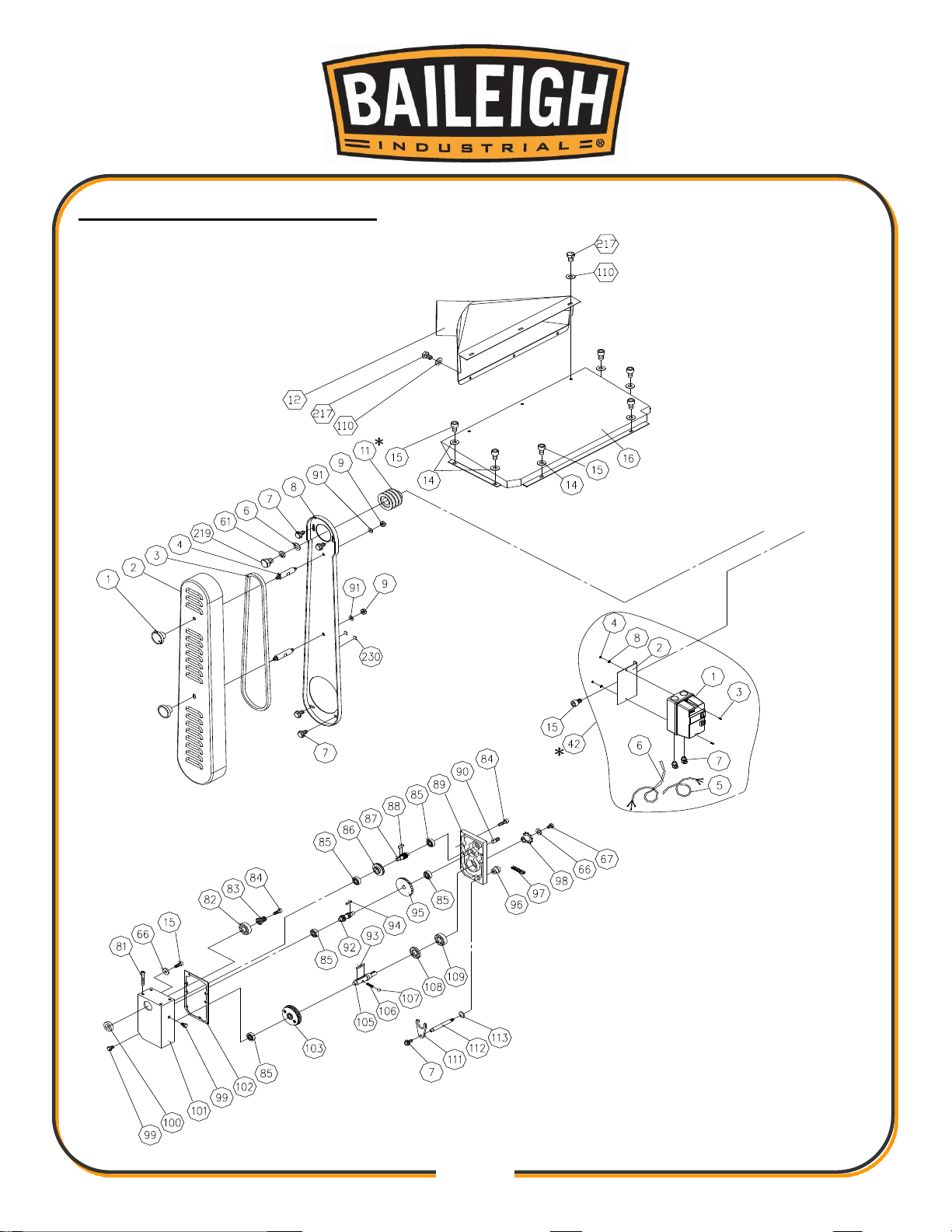

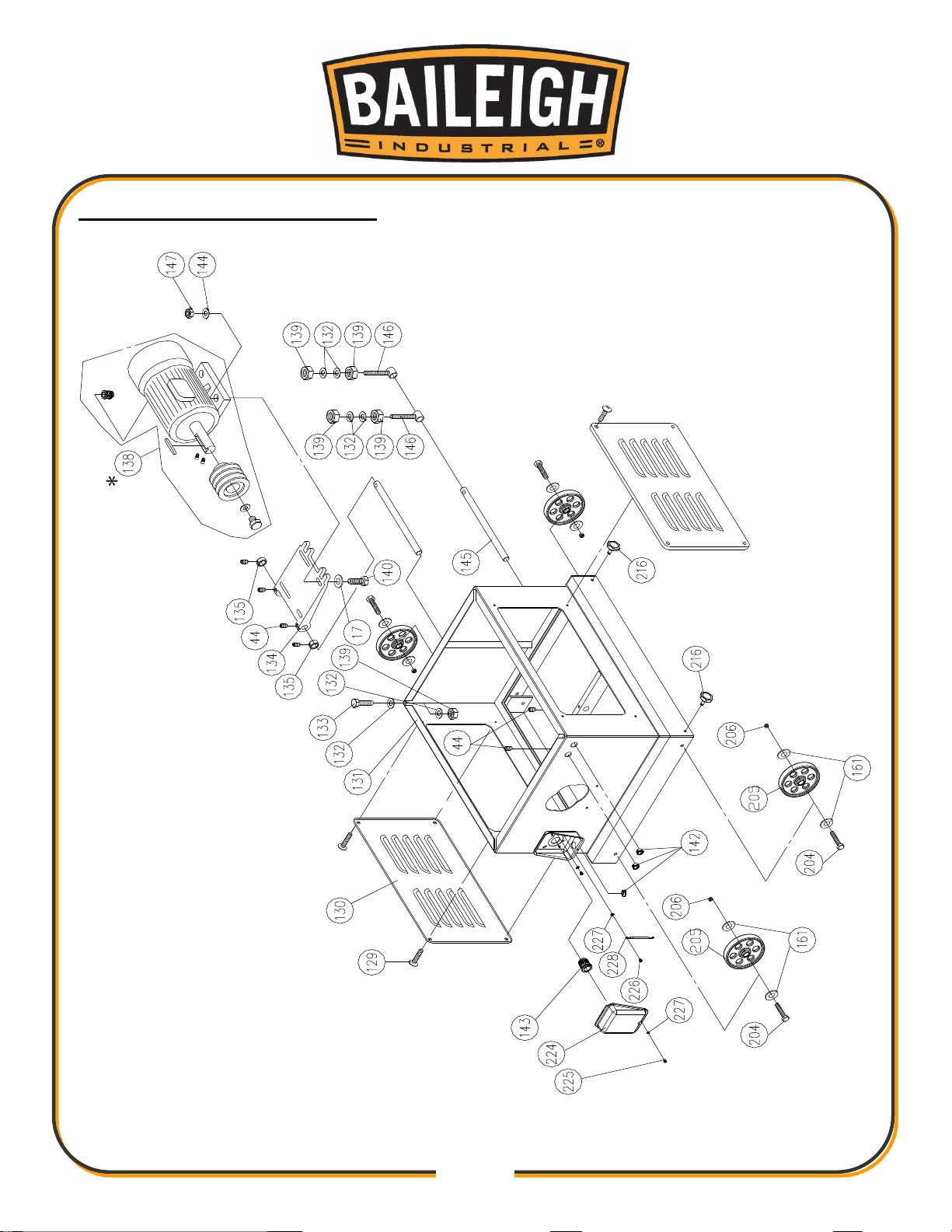

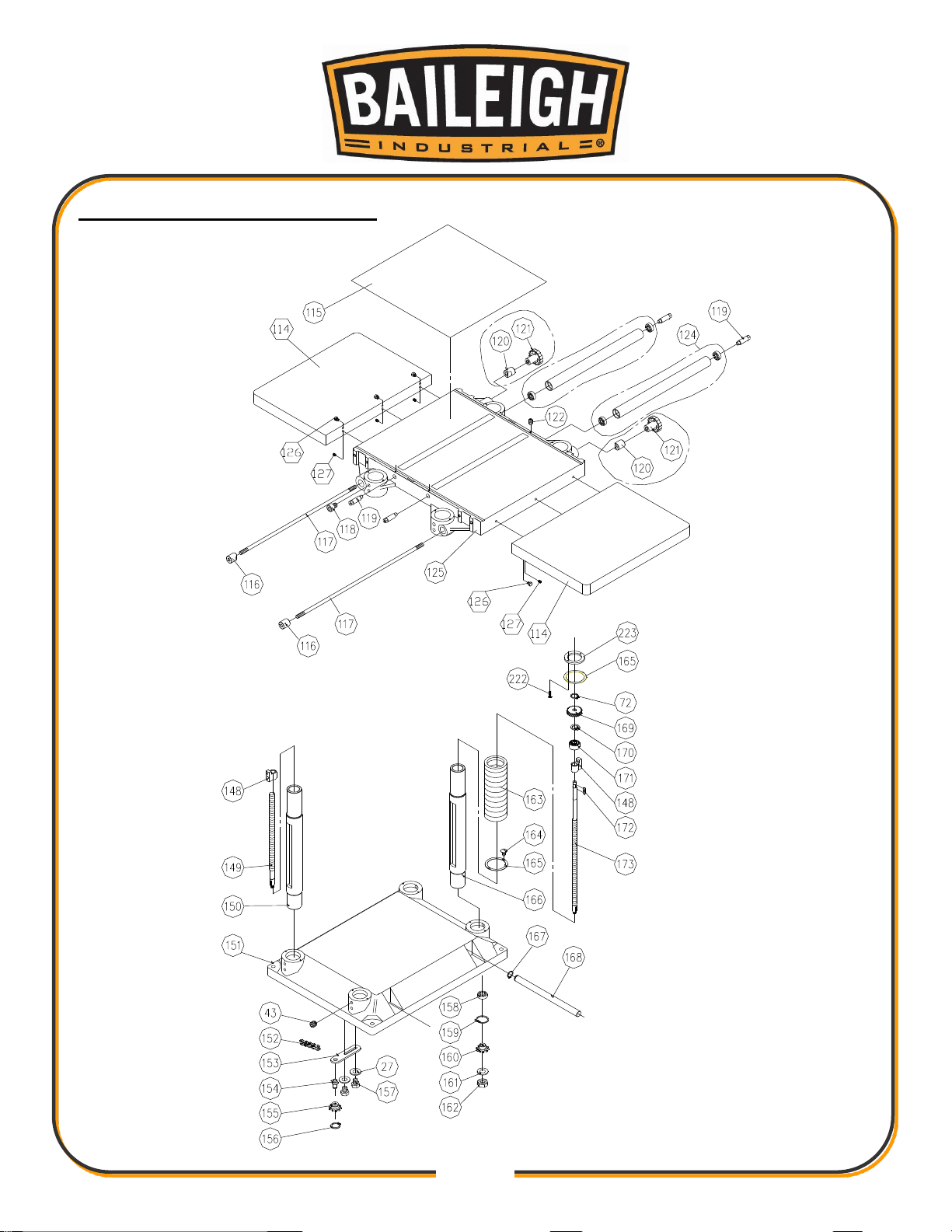

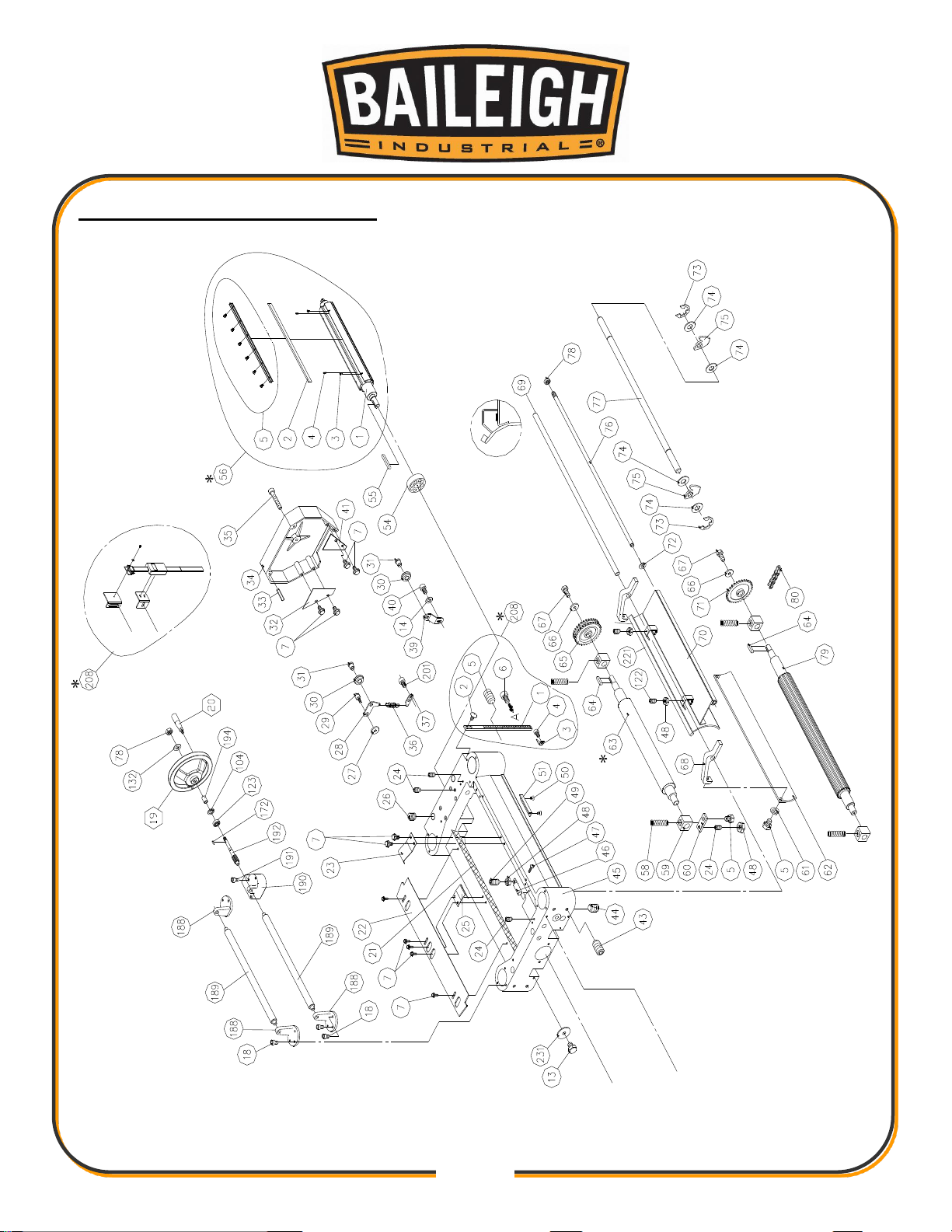

PARTS DIAGRAM – SHEET 1 ..................................................................................... 30
PARTS DIAGRAM – SHEET 2 ..................................................................................... 31
PARTS DIAGRAM – SHEET 3 ..................................................................................... 32
PARTS DIAGRAM – SHEET 4 ..................................................................................... 33
Parts List ................................................................................................................... 34
Page 3
1
1
THANK YOU & WARRANTY
Thank you for your purchase of a machine from Baileigh Industrial. We hope that you find it
productive and useful to you for a long time to come.
Inspection & Acceptance. Buyer shall inspect all Goods within ten (10) days after receipt thereof. Buyer’s
payment shall constitute final acceptance of the Goods and shall act as a waiver of the Buyer’s rights to inspect or
reject the goods unless otherwise agreed. If Buyer rejects any merchandise, Buyer must first obtain a Returned
Goods Authorization (“RGA”) number before returning any goods to Seller. Goods returned without a RGA will be
refused. Seller will not be responsible for any freight costs, damages to goods, or any other costs or liabilities
pertaining to goods returned without a RGA. Seller shall have the right to substitute a conforming tender. Buyer will
be responsible for all freight costs to and from Buyer and repackaging costs, if any, if Buyer refuses to accept
shipment. If Goods are returned in unsalable condition, Buyer shall be responsible for full value of the Goods.
Buyer may not return any special order Goods. Any Goods returned hereunder shall be subject to a restocking fee
equal to 30% of the invoice price.
Specifications. Seller may, at its option, make changes in the designs, specifications or components of the Goods
to improve the safety of such Goods, or if in Seller’s judgment, such changes will be beneficial to their operation or
use. Buyer may not make any changes in the specifications for the Goods unless Seller approves of such changes
in writing, in which event Seller may impose additional charges to implement such changes.
Limited Warranty. Seller warrants to the original end-user that the Goods manufactured or provided by Seller
under this Agreement shall be free of defects in material or workmanship for a period of twelve (12) months from
the date of purchase, provided that the Goods are installed, used, and maintained in accordance with any
instruction manual or technical guidelines provided by the Seller or supplied with the Goods, if applicable. The
original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of
the warranty period. The original end-user must also obtain a RGA from Seller prior to returning any Goods to
Seller for warranty service under this paragraph. Seller will not accept any responsibility for Goods returned without
a RGA. The original end-user shall be responsible for all costs and expenses associated with returning the Goods
to Seller for warranty service. In the event of a defect, Seller, at its sole option, shall repair or replace the defective
Goods or refund to the original end-user the purchase price for such defective Goods. Goods are not eligible for
replacement or return after a period of 30 days from date of receipt. The foregoing warranty is Seller’s sole
obligation, and the original end-user’s exclusive remedy, with regard to any defective Goods. This limited warranty
does not apply to: (a) die sets, tooling, and saw blades; (b) periodic or routine maintenance and setup, (c) repair or
replacement of the Goods due to normal wear and tear, (d) defects or damage to the Goods resulting from misuse,
abuse, neglect, or accidents, (f) defects or damage to the Goods resulting from improper or unauthorized
alterations, modifications, or changes; and (f) any Goods that has not been installed and/or maintained in
accordance with the instruction manual or technical guidelines provided by Seller.
EXCLUSION OF OTHER WARRANTIES. THE FOREGOING LIMITED WARRANTY IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. ANY AND ALL OTHER EXPRESS, STATUTORY OR IMPLIED
WARRANTIES, INCLUDING BUT NOT LIMITED TO, ANY WARRANTY OF MERCHANTABILITY OR FITNESS
FOR ANY PARTICULAR PURPOSE ARE EXPRESSLY DISCLAIMED. NO WARRANTY IS MADE WHICH
EXTENDS BEYOND THAT WHICH IS EXPRESSLY CONTAINED HEREIN.
Limitation of Liability. IN NO EVENT SHALL SELLER BE LIABLE TO BUYER OR ANY OTHER PARTY FOR
ANY INCIDENTIAL, CONSEQUENTIAL OR SPECIAL DAMAGES (INCLUDING, WITHOUT LIMITATION, LOST
PROFITS OR DOWN TIME) ARISING FROM OR IN MANNER CONNECTED WITH THE GOODS, ANY BREACH
BY SELLER OR ITS AGENTS OF THIS AGREEMENT, OR ANY OTHER CAUSE WHATSOEVER, WHETHER
BASED ON CONTRACT, TORT OR ANY OTHER THEORY OF LIABILITY. BUYER’S REMEDY WITH RESPECT
TO ANY CLAIM ARISING UNDER THIS AGREEMENT IS STRICTLY LIMITED TO NO MORE THAN THE
AMOUNT PAID BY THE BUYER FOR THE GOODS.
Page 4
2
2
Force Majuere. Seller shall not be responsible for any delay in the delivery of, or failure to deliver, Goods due to
causes beyond Seller’s reasonable control including, without limitation, acts of God, acts of war or
terrorism, enemy actions, hostilities, strikes, labor difficulties, embargoes, non-delivery or late delivery of materials,
parts and equipment or transportation delays not caused by the fault of Seller, delays caused by civil authorities,
governmental regulations or orders, fire, lightening, natural disasters or any other cause beyond Seller's reasonable
control. In the event of any such delay, performance will be postponed by such length of time as may be reasonably
necessary to compensate for the delay.
Installation. If Buyer purchases any Goods that require installation, Buyer shall, at its expense, make all
arrangements and connections necessary to install and operate the Goods. Buyer shall install the Goods in
accordance with any Seller instructions and shall indemnify Seller against any and all damages, demands, suits,
causes of action, claims and expenses (including actual attorneys’ fees and costs) arising directly or indirectly out
of Buyer’s failure to properly install the Goods.
Work By Others; Safety Devices. Unless agreed to in writing by Seller, Seller has no responsibility for labor or
work performed by Buyer or others, of any nature, relating to design, manufacture, fabrication, use, installation or
provision of Goods. Buyer is solely responsible for furnishing, and requiring its employees and customers to use all
safety devices, guards and safe operating procedures required by law and/or as set forth in manuals and instruction
sheets furnished by Seller. Buyer is responsible for consulting all operator’s manuals, ANSI or comparable safety
standards, OSHA regulations and other sources of safety standards and regulations applicable to the use and
operation of the Goods.
Remedies. Each of the rights and remedies of Seller under this Agreement is cumulative and in addition to any
other or further remedies provided under this Agreement or at law or equity.
Attorney’s Fees. In the event legal action is necessary to recover monies due from Buyer or to enforce any
provision of this Agreement, Buyer shall be liable to Seller for all costs and expenses associated therewith,
including Seller’s actual attorneys' fees and costs.
Governing Law/Venue. This Agreement shall be construed and governed under the laws of the State of
Wisconsin, without application of conflict of law principles. Each party agrees that all actions or proceedings arising
out of or in connection with this Agreement shall be commenced, tried, and litigated only in the state courts sitting in
Manitowoc County, Wisconsin or the u.s. Federal Court for the Eastern District of Wisconsin. Each party waives
any right it may have to assert the doctrine of “forum non conveniens” or to object to venue to the extent that any
proceeding is brought in accordance with this section. Each party consents to and waives any objection to the
exercise of personal jurisdiction over it by courts described in this section. Each party waives to the fullest extent
permitted by applicable law the right to a trial by jury.
Summary of Return Policy.
10 Day acceptance period from date of delivery. Damage claims and order discrepancies will not be accepted
after this time.
You must obtain a Baileigh issued RGA number PRIOR to returning any materials.
Returned materials must be received at Baileigh in new condition and in original packaging.
Altered items are not eligible for return.
Buyer is responsible for all shipping charges.
A 30% re-stocking fee applies to all returns.
Baileigh Industrial makes every effort to ensure that our posted specifications, images, pricing and product
availability are as correct and timely as possible. We apologize for any discrepancies that may occur. Baileigh
Industrial reserves the right to make any and all changes deemed necessary in the course of business including but
not limited to pricing, product specifications, quantities, and product availability.
For Customer Service & Technical Support:
Please contact one of our knowledgeable Sales and Service team members at:
(920) 684-4990 or e-mail us at [email protected]
Page 5
3
3
INTRODUCTION
The quality and reliability of the components assembled on a Baileigh Industrial machine
guarantee near perfect functioning, free from problems, even under the most demanding
working conditions. However if a situation arises, refer to the manual first. If a solution cannot be
found, contact the distributor where you purchased our product. Make sure you have the serial
number and production year of the machine (stamped on the nameplate). For replacement parts
refer to the assembly numbers on the parts list drawings.
Our technical staff will do their best to help you get your machine back in working order.
In this manual you will find: (when applicable)
Safety procedures
Correct installation guidelines
Description of the functional parts of the machine
Capacity charts
Set-up and start-up instructions
Machine operation
Scheduled maintenance
Parts lists
GENERAL NOTES
After receiving your equipment remove the protective container. Do a complete visual
inspection, and if damage is noted, photograph it for insurance claims and contact your
carrier at once, requesting inspection. Also contact Baileigh Industrial and inform them of the
unexpected occurrence. Temporarily suspend installation.
Take necessary precautions while loading / unloading or moving the machine to avoid any
injuries.
Your machine is designed and manufactured to work smoothly and efficiently. Following proper
maintenance instructions will help ensure this. Try and use original spare parts, whenever
possible, and most importantly; DO NOT overload the machine or make any unauthorized
modifications.
Note: This symbol refers to useful information throughout the manual.
Page 6
4
4

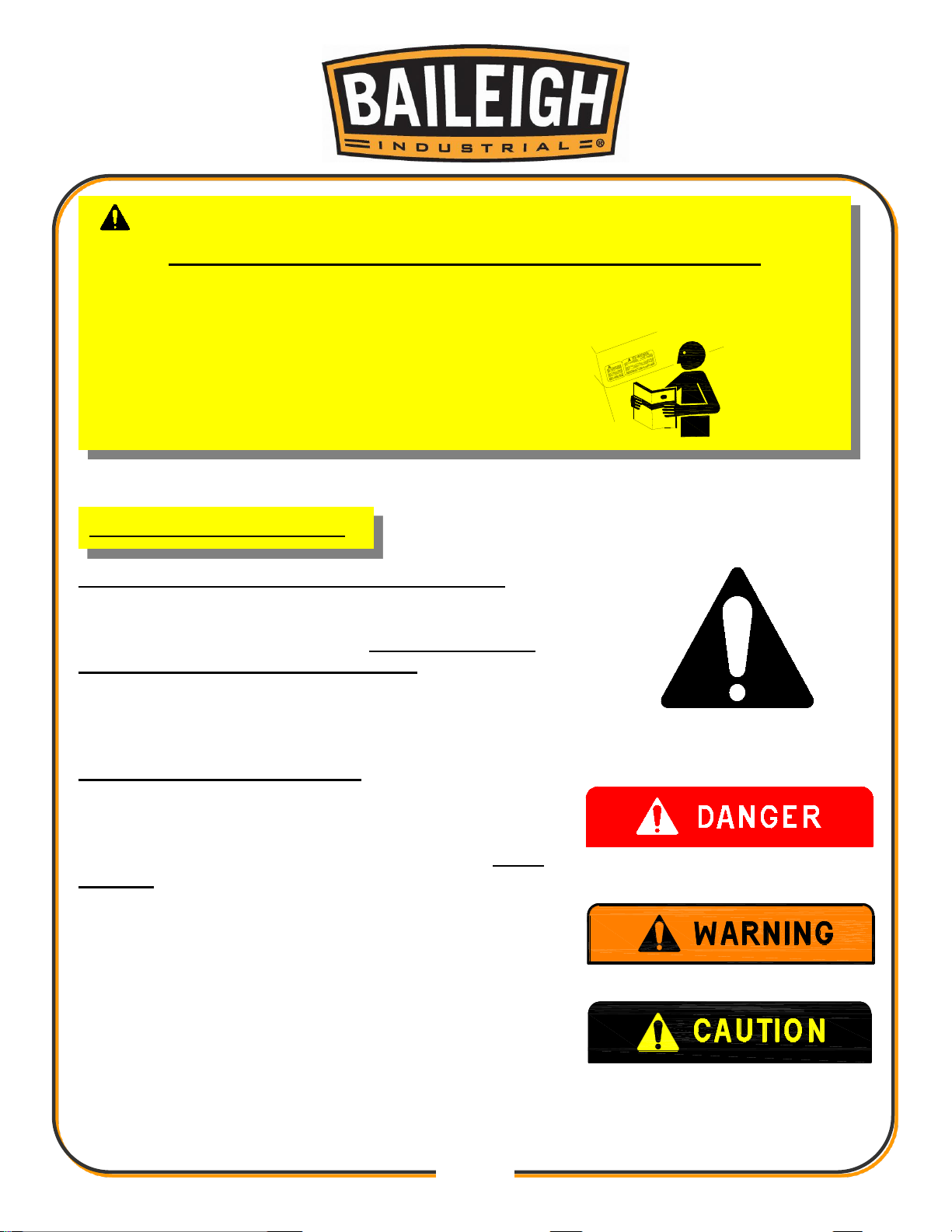

IMPORTANT
PLEASE READ THIS OPERATORS MANUAL CAREFULLY
It contains important safety information, instructions, and necessary operating procedures.
The continual observance of these procedures will help increase your production and
extend the life of the equipment.
SAFETY INSTRUCTIONS
LEARN TO RECOGNIZE SAFETY INFORMATION
This is the safety alert symbol. When you see this symbol
on your machine or in this manual, BE ALERT TO THE
POTENTIAL FOR PERSONAL INJURY!
Follow recommended precautions and safe operating
practices.
UNDERSTAND SIGNAL WORDS
A signal word – DANGER, WARNING, or CAUTION is
used with the safety alert symbol. DANGER identifies a
hazard or unsafe practice that will result in severe Injury
or Death.
Safety signs with signal word DANGER or WARNING are
typically near specific hazards.
General precautions are listed on CAUTION safety signs.
CAUTION also calls attention to safety messages in this
manual.
Page 7
5
5
SAVE THESE INSTRUCTIONS.
Refer to them often and use them to instruct others.
PROTECT EYES
Wear safety glasses or suitable eye
protection when working on or around
machinery.
BLADE HAZARD
Keep hands and fingers away from the rotating knife blades. These
rotating knives can be extremely dangerous if you do not follow proper
safety procedures. NEVER place hands closer than 3” (76mm ) to the
rotating cutting knives.
ENTANGLEMENT HAZARD – ROTATING BLADES
Contain long hair, DO NOT wear jewelry or loose fitting clothing.
PROTECT AGAINST NOISE
Prolonged exposure to loud noise can cause impairment or loss of
hearing. Wear suitable hearing protective devices such as ear muffs or
earplugs to protect against objectionable or uncomfortable loud noises.
BEWARE OF PINCH POINTS
Keep hands and fingers clear of all
potential pinch points. These include
sprockets and chains along with belts and
pulleys.
Page 8
6
6
WARNING:
SERIOUS PERSONAL INJURY
HIGH VOLTAGE
USE CAUTION IN HIGH VOLTAGE AREAS. DO NOT assume the
power to be off.
(FOLLOW PROPER LOCKOUT PROCEDURES)
SAFETY PRECAUTIONS
Wood working can be dangerous if safe and proper operating procedures are not followed. As
with all machinery, there are certain hazards involved with the operation of the product. Using
the machine with respect and caution will considerably lessen the possibility of personal injury.
However, if normal safety precautions are overlooked or ignored, personal injury to the operator
may result.
Safety equipment such as guards, push sticks, hold-downs, feather boards, goggles, dust
masks and hearing protection can reduce your potential for injury. But even the best guard won’t
make up for poor judgment, carelessness or inattention. Always use common sense and
exercise caution in the workshop. If a procedure feels dangerous, don’t try it.
REMEMBER: Your personal safety is your responsibility.
FAILURE TO FOLLOW THESE RULES MAY RESULT IN
1. FOR YOUR OWN SAFETY, READ INSTRUCTION MANUAL BEFORE OPERATING THE
MACHINE. Learn the machine’s application and limitations as well as the specific hazards.
2. Only trained and qualified personnel should operate this machine.
3. Kickback. Become familiar with the term “Kickback” and how it occurs before operating
this planer. Kickback happens when the piece part is thrown towards the operator at a high
rate of speed with the potential for serious injury.
4. Kickback Zone. The path directly behind the end of the in-feed table is referred to as the
“Kickback zone”. NEVER stand or allow others to stand in this area while the machine is
running. Position yourself to one side of the machine while the planer is running.
5. Reaching Inside Planer. To avoid serious personal injury from rotating knives, NEVER
remove guards or reach inside the planer while it is connected to power. Always Follow
proper lockout /tagout procedures.
Page 9
7
7
SAFETY PRECAUTIONS (cont.)
6. Clearing Jams. To avoid serious personal injury from rotating knives, ALWAYS STOP the
planer and disconnect power before removing a jammed piece part. Always follow proper
lockout/tagout procedures.
7. Using Quality Stock. Inspect the stock over carefully that you intend to plane. NEVER
plane a board that has loose knots, staples, or nails in it. DO NOT plane a piece of stock if
you have any doubts about its structural integrity.
8. Remove any adjusting tools. Before operating the machine, make sure any adjusting tools
have been removed.
9. Dull / Damaged Knives. Use only sharp, undamaged knives to avoid unnecessary kickback
of the piece part. Dull and damaged knives will also affect cut quality.
10. Looking Inside Planer. Wood chips fly around inside the planer at a high rate of speed as it
is running. To avoid possible injury from flying debris, DO NOT look inside the planer while it
is running.
11. Keep work area clean. Cluttered areas invite injuries.
12. Overloading machine. By overloading the machine you may cause injury from flying parts.
DO NOT exceed the specified machine capacities.
13. Dress appropriate. DO NOT wear loose fitting clothing or jewelry as they can be caught in
moving machine parts. Protective clothing and steel toe shoes are recommended when
using machinery. Wear a restrictive hair covering to contain long hair.
14. Use eye and ear protection. Always wear ISO approved impact safety goggles
15. Do not overreach. Maintain proper footing and balance at all times. DO NOT reach over or
across a running machine.
16. Stay alert. Watch what you are doing and use common sense. DO NOT operate any tool or
machine when you are tired.
17. Grain Direction. There is an increased chance of kickback when planing end grain or
against the grain. This could also produce chatter and excessive chip out of the material.
18. Observe work area conditions. DO NOT use machines or power tools in damp or wet
locations. Do not expose to rain. Keep work area well lighted. DO NOT use electrically
powered tools in the presence of flammable gases or liquids.
19. DO NOT bypass or defeat any safety interlock systems.
20. Know the location of the ON - OFF switch and the “E” - STOP button.
21. Keep visitors a safe distance from the work area.
Page 10
8
8
SAFETY PRECAUTIONS (cont.)
22. In-feed Roller Clearance. The in-feed roller is designed to pull material into the rotating
cutterhead. To avoid serious personal injury, keep hands, jewelry, clothing, and long hair
away from the in-feed roller while operating the machine.
23. Keep children away. Children must never be allowed in the work area. DO NOT let them
handle machines, tools, or extension cords.
24. DO NOT operate machine if under the influence of alcohol or drugs. Read warning
labels on prescriptions. If there is any doubt, DO NOT operate the machine.
25. DO NOT touch live electrical components or parts.
26. Be Sure all equipment is properly installed and grounded according to national, state, and
local codes. If machine is equipped with a three-prong plug, it should be plugged into a
three-hole electrical receptacle. If an adapter is used to accommodate a two-prong
receptacle, the adapter plug must be attached to a known ground. Never remove the third
prong.
27. Inspect power and control cables periodically. Replace if damaged or bare wires are
exposed. Bare wiring can kill!
28. Maintain machine in top condition. Keep clean for best and safest performance. Follow
instructions for lubricating and changing accessories.
29. Reduce the risk of unintentional starting. Make sure switch is in “OFF” position before
plugging in power cord.
30. Never leave machine running unattended. TURN POWER OFF. Don’t leave machine until
it comes to a complete stop.
31. Make sure machine is disconnected from power supply while motor is being mounted,
connected or reconnected.
32. Using Correct Materials. Planing materials other than natural wood fiber can result in
serious personal injury and machine damage. NEVER use this machine for anything except
planing in wood.
33. Warning: The dust generated by certain woods and wood products can be injurious to your
health. Always operate machinery in well ventilated areas and provide for proper dust
removal. Use wood dust collection systems whenever possible.
EMERGENCY STOP BUTTON
In the event of incorrect operation or dangerous conditions, the machine can be stopped
immediately by pressing the E-STOP button.
Page 11
9
9
Cutting Capacity (W x H)
20" x 8" (508 x 203mm)
Maximum Depth of Cut
1/8” (3.1mm)
Minimum Material Thickness
1/4” (6.3mm)
Cutterhead Speed
5000 RPM
Number Of Knives
4
Cutter Head Size
3.25” (82.5mm)
Motor
5Hp (3.72kw), 1Ph, 60Hz, 220V
Shipping Weight (Approx.)
830 lbs. (376kg)
SPECIFICATIONS
TECHNICAL SUPPORT
Our technical support department can be reached at 920.684.4990, and asking for the support
desk for purchased machines. Tech Support handles questions on machine setup, schematics,
warranty issues, and individual parts needs: (other than die sets and blades).
For specific application needs or future machine purchases contact the Sales Department at:
[email protected], Phone: 920.684.4990, or Fax: 920.684.3944.
Note:The manual cover photo illustrates the current production model. All other
illustrations are representative only and may not depict the actual color, labeling or accessories
and may be intended to illustrate technique only.
Note: The specifications and dimensions presented here are subject to change
without prior notice due to improvements of our products.
Page 12
10
10

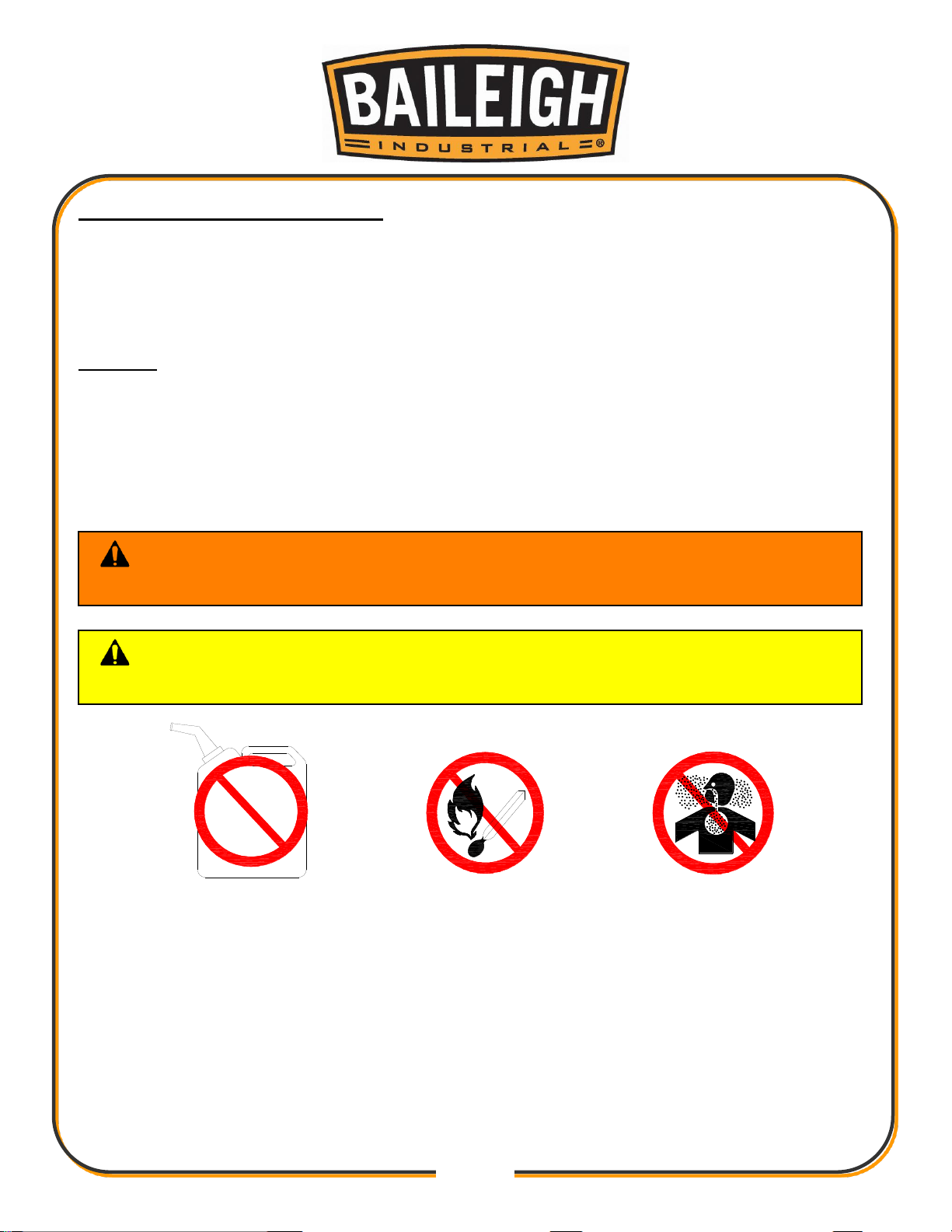

WARNING: DO NOT USE gasoline or other petroleum products to clean
the machine. They have low flash points and can explode or cause fire.
CAUTION: When using cleaning solvents work in a well ventilated area.
Many cleaning solvents are toxic if inhaled.
GAS
UNPACKING AND CLEANING
Remove planer and stand from the shipping cartons. Check for damage and ensure all parts are
intact. Any damage should be reported immediately to your distributor and shipping agent.
Before assembling, read the manual thoroughly, familiarizing yourself with correct assembly and
maintenance procedures and proper safety precautions.
Cleaning
Your machine may be shipped with a rustproof waxy oil coating and grease on the exposed
unpainted metal surfaces. To remove this protective coating, use a degreaser or solvent
cleaner. For a more thorough cleaning, some parts will occasionally have to be removed. DO
NOT USE acetone or brake cleaner as they may damage painted surfaces.
Follow manufacturer’s label instructions when using any type of cleaning product. After cleaning,
wipe unpainted metal surfaces with a light coating of quality oil or grease for protection.
Although some users prefer a wax coating for the table surfaces, white talcum powder rubbed in
vigorously once a week with a blackboard eraser will fill any casting pores and form a moisture
barrier. Talcum powder will not stain wood or mar finishes.
Page 13
11
11
WARNING: FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE
YOU READ AND UNDERSTAND THE ENTIRE INSTRUCTION MANUAL.
WARNING: Before operating; make sure it is positioned firmly on a solid
level floor. If it tips over on you, it could cause severe injury or death.
Fig. 1
INSTALLATION and ASSEMBLY
TO THE POWER SOURCE UNTIL THE MACHINE IS COMPLETELY ASSEMBLED AND
IMPORTANT:
Consider the following when looking for a suitable location to place the machine:
Overall weight of the machine.
Weight of material being processed.
Sizes of material to be processed through the machine.
Space needed for auxiliary stands, work tables, or other machinery.
Clearance from walls and other obstacles.
Maintain an adequate working area around the machine for safety.
Have the work area well illuminated with proper lighting.
Keep the floor free of oil and make sure it is not slippery.
Remove scrap and waste materials regularly, and make sure the work area is free from
obstructing objects.
If long lengths of material are to be fed into the machine, make sure that they are safely
supported and will not extend into any aisles.
The machine should be sited on a level, concrete floor. The accuracy of any machine depends
on the precise placement of it to the mounting surface. Locate the planer in an area that is level
and provides a solid foundation. Make sure that any potential kickback is not in line with aisles,
doorways, wash stations or other work areas.
Place shims under the four feet mounted in the base
as required for leveling.
There are four lifting handles (A) hidden in the bed of
the planer table. Pull the handles out for use and push
them down otherwise.
Page 14
12
12
WARNING:
understand the entire instruction manual.
Fig. 2
Fig. 3
ASSEMBLY EXTENSION TABLE
For your own safety, DO NOT connect the machine to the
power source until the machine is completely assembled and you read and
1. Use an assistant to help lift and align the holes
on the extension table to the main table.
2. Insert the bolts and loosely secure with
washers and nuts. (Fig. 2).
3. With the fasteners in position and snug, place
straight edge through machine so that it lies
across the main table and extension table.
(Fig. 3).
4. Align the extension table to the main table.
When the tables are aligned, hold in position
and securely tighten the fasteners.
Page 15
13
13
CAUTION: HAVE ELECTRICAL UTILITIES CONNECTED TO MACHINE BY
Check if the available power supply is the same as listed on the machine nameplate.
WARNING: Make sure the grounding wire (green) is properly connected
to avoid electric shock. DO NOT switch the position of the green grounding wire if
any electrical plug wires are switched during hookup.
Fig. 4
DUST CHUTE ASSEMBLY
1. Mount the dust chute to the planer hood with
hex head screws & flat washer.
2. Make sure the dust collection system has
sufficient capacity and suction for your planer.
3. Always turn on the dust collection system
before starting the planer. (Fig. 4).
ELECTRICAL
A CERTIFIED ELECTRICIAN!
Motor Specifications
Your tool is wired for 220 volt, 60Hz alternating current. Before connecting the tool to the power
source, make sure the machine is cut off from power source.
Connections
A separate electrical circuit should be used for your tools. If an extension cord is used, use
only 3-wire extension cords, which have grounding type plugs and receptacles, which accept
the tool’s plug. Before connecting the motor to the power line, make sure the switch is in the
“OFF” position and be sure that the electric current is of the same characteristics as
indicated on the tool.
All line connections should make good contact. Running on low voltage will damage the
motor.
Page 16
14
14
LENGTH
AMP RATING
25ft
50ft
100ft
0-6
16
16
16
7-10
16
16
14
11-12
16
16
14
13-16
14
12
12
17-20
12
12
10
21-30
10
10
No
WIRE GAUGE
WARNING:
receptacle.
In the event of a malfunction or breakdown, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock. This tool is equipped with an electric cord
having an equipment-grounding conductor and a grounding plug. The plug must be plugged
into a matching outlet that is properly installed and grounded in accordance with all local
codes and ordinances.
Do not modify the plug provided - if it will not fit the outlet, have the proper outlet installed by
a qualified electrician.
In all cases, make certain the receptacle in question is
properly grounded. if you are not sure, have a qualified electrician check the
Improper connection of the equipment-grounding conductor can result in risk of electric
shock. The conductor with insulation having an outer surface that is green with or without
yellow stripes is the equipment-grounding conductor. If repair or replacement of the electric
cord or plug is necessary, do not connect the equipment-grounding conductor to a live
terminal.
Check with a qualified electrician or service personnel if the grounding instructions are not
completely understood, or if in doubt as to whether the tool is properly grounded.
Use only 3-wire extension cords that have grounding type plugs and receptacles that accept
the tool’s plug.
Repair or replace damaged or worn cord immediately.
Extension Cord Safety
Extension cord should be in good condition and meet the minimum wire gauge requirements
listed below:
An undersized cord decreases line voltage, causing loss of power and overheating. All cords
should use a ground wire and plug pin. Replace any damaged cords immediately.
Page 17
15
15
ELECTRICAL DIAGRAM
Page 18
16
16
CAUTION: Always wear proper eye protection with side shields, face
shield, safety footwear, and leather gloves to protect from, chips, dust, burrs, and
slivers.
Fig. 5
Fig. 7
Fig. 6
CONTROL THE DEPTH OF CUTTING
The cutting depth scale is a combination of inch / metric
scale, the cutting range is from 0 to 8" (204 mm). The
distance between upward or downward of driving
handle is 0.059" (1.5mm) one complete turn.
Before adjusting the table upward, or downward; loosen
nut (A), after positioning to required position, tighten nut
(A) again to hold in position. (Fig. 5)
CHECKING PULLEY
To verify that motor pulley (B) is in line with the shaft
pulley of (A), using the edge of a straight scale check to
see if they are on-line with each other.(Fig. 6).
Adjusting Motor Mount
If motor pulley B and shaft pulley A, are not on-line
loosen screw as shown in (Fig. 7), move shaft to left and
right until adjusted to proper position and tighten the
screw again.
Page 19
17
17
Fig. 8
Fig. 9
Fig. 10

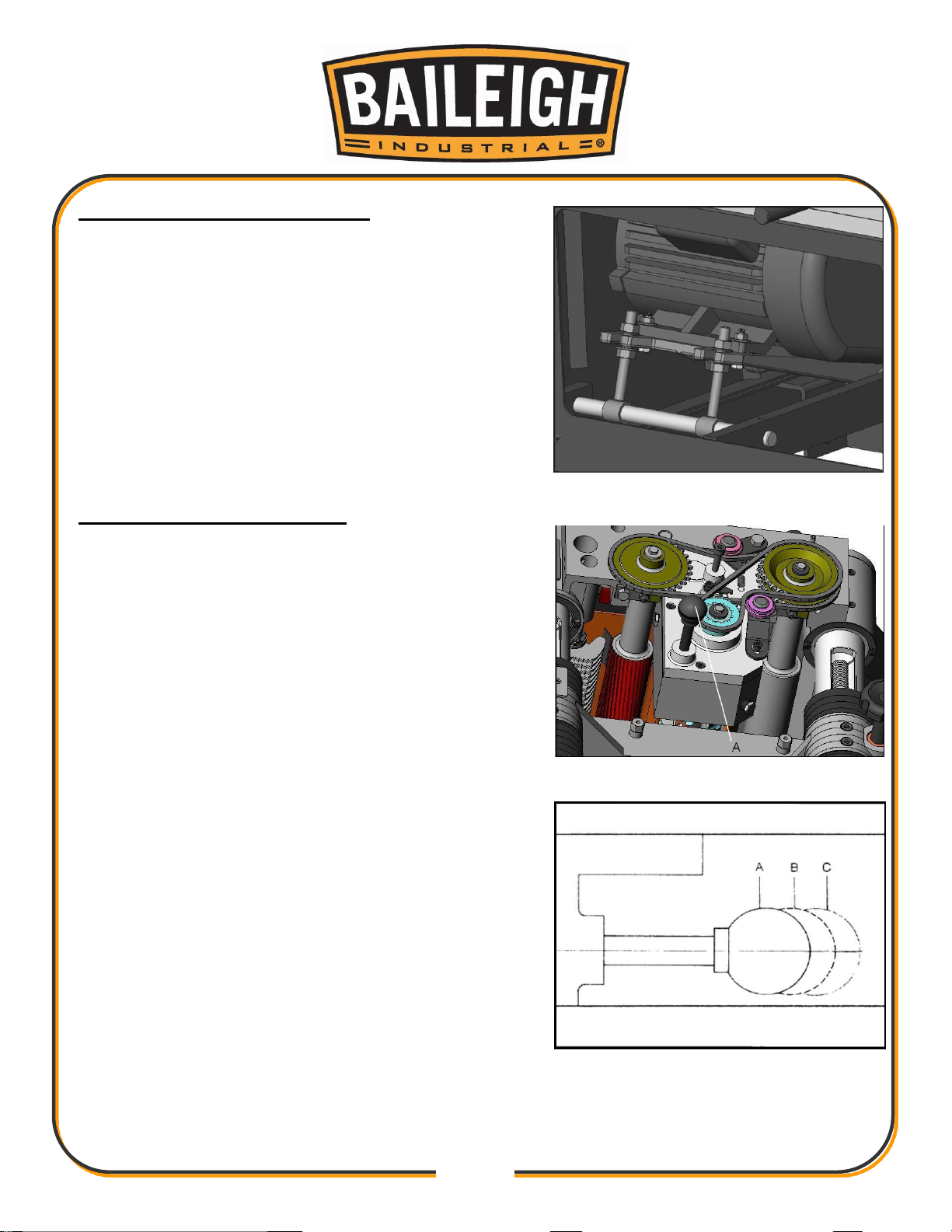

ADJUSTING BELT TENSION
Use the two bolts to adjust the belt tension (Fig. 8).
When achieved proper position of adjustment tighten
bolts to hold in place.
FEED ROLL SPEED RATE
The rate of speed is transmitted by shift gears located
in gear box.
The shift gear handle (Fig. 9) performs with three
different methods of speed by using the shift handle to
pull or push.
Position A: feed roll is functioning on 20-FPM speed
rate.
Position B: feed roll is functioning on 0-speed rate.
Position C: feed roll is functioning on 16-FPM speed
rate.
Page 20
18
18
Fig. 11
Fig. 12
Fig. 13
ROLL TRANSMITTING
The purpose of the roll located on top of machine, is
transmitting stock after cutting and shaving
workpieces. This roll will save you lots of time, and will
speed up you’re working rate. (Fig. 11)
CONNECTING DUST COLLECTOR
Connect dust collector system to hood of machine,
located at the back of machine. The dust collector will
collect all dust and particles while molding in process,
this system will give a clean and safe working
environment. (Fig. 12)
FEEDROLL PRESSURE AJDUSTMENT
The pressure of the feed roll will depend on the
pressure set by the springs, and screws.
To adjust the pressure, you must loosen or tighten the
lever. There are two sets of springs on both ends of the
feed roll, to ensure great results make sure both sides
are at the same level pressure. (Fig. 13)
Page 21
19
19
Fig. 14
Fig. 15
ADJUSTMENT TRANSMITTING ROLLER
Verify that roller and table are both at the same height.
(Fig. 14)
ADJUSTING TABLE ROLLER
To reduce friction between stock and table, two table roller have been assembled on machine.
Adjustments will be needed when planning with the different types of wood.
Roller must be adjusted high, when planning rough wood.
Roll must be adjusted low, when planning smooth wood.
ADJUST ROLLER
UNPLUG OR DISCONNECT PLANER FROM
POWER SOURCE AND LOCK OUT POWER.
Place a straight level on table roll, loosen screw (A)
adjust your shaft (B) to the proper height and tighten
back the screw to hold in position. (Fig. 15)
Always check to make sure that the front and back
height are the same. There must be no slant between
roller and table.
Page 22
20
20
Fig. 17
Fig. 16
CONSTRUCTING GAUGE BLOCK
UNPLUG OR DISCONNECT PLANER
FROM POWER SOURCE AND LOCK OUT
POWER.
The manufacturer has adjusted all machines
before delivery.
Verify that the screws are properly tightened.
The only time you will have to adjust your
machine is when it has been functioning for a
long time.
The adjustment will have to be made to adjust
the precision of the machine.
Always check the adjustments before starting on
a new project, this will save you time and money.
To check you will need the following supplies.
Straight scale
Thickness gauge
Home made gauge block of hard wood, with
the dimensions as shown in Fig. 16.
ASSEMBLING CHAIN
If head casting is not parallel to table, tilt planer on it’s
side. Remove bolt C and loosen bolt (D) (Fig. 17). This
will enable you to move the idler sprocket assembly (E)
this procedure will release the tension of the chain.
Remove chain from sprocket on the end that must be
adjusted. When chain has to be released, do not turn
the sprocket more than one or two teeth. Turn sprocket
clockwise to decrease the distance, and counter
clockwise to increase the distance between the caster.
Page 23
21
21
Fig. 18
Fig. 19

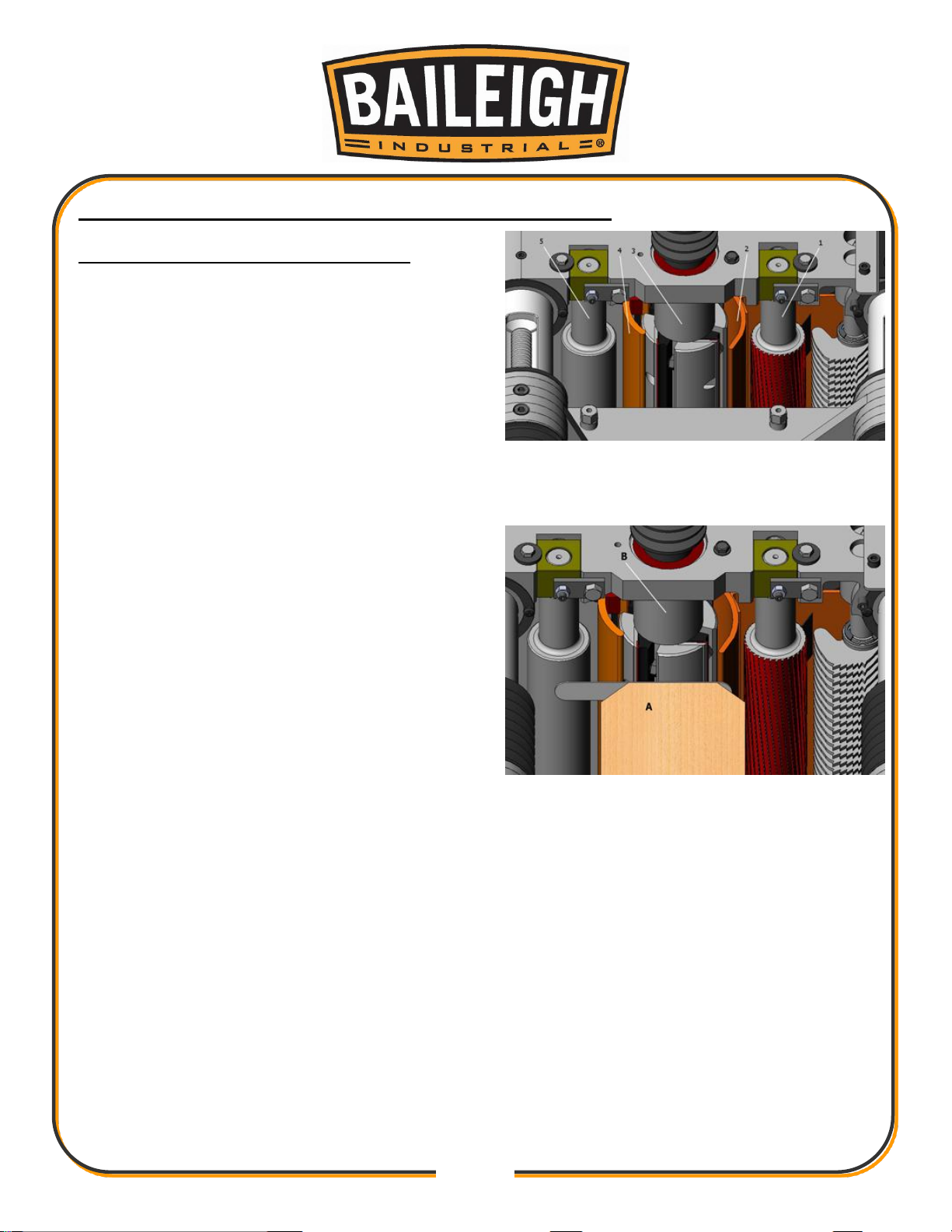

ADJUSTING CUTTING HEAD PARALLEL TO TABLE
Cutting Head and Roller Components
1 Infeed Roller
2 Chipbreaker
3 Cutter Head
4 Casting
5 Outfeed Roller
All parallel adjustments have been made to table
before shipment, no further adjustments are
required. The only verification you should make is
to check indirectly the parallel of the cutter head
and table. Proceed with the following:

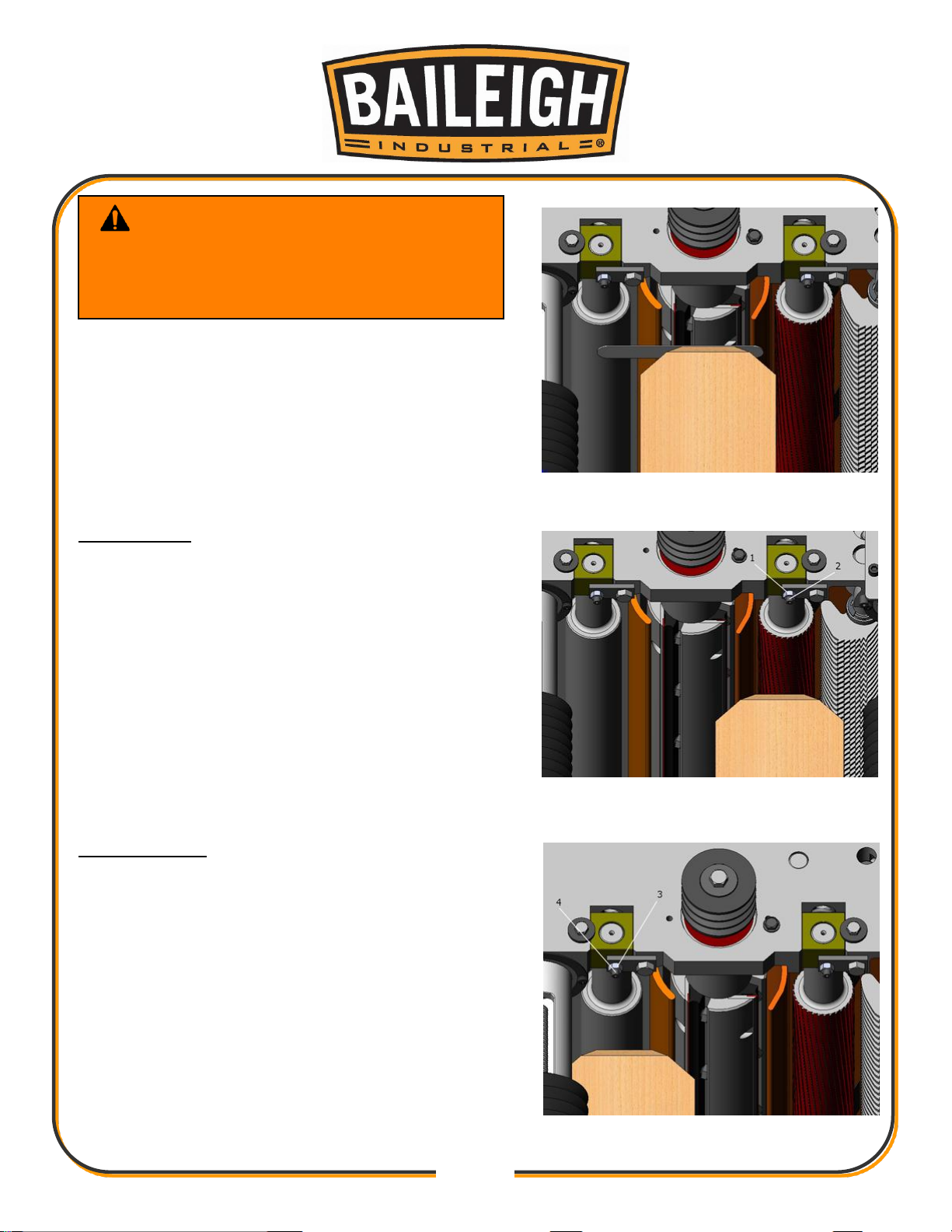

1. UNPLUG OR DISCONNECT PLANER FROM
POWER SOURCE AND LOCK OUT POWER.
2. Place gauge block between upper head
casting and table, make them contact slightly.
(Fig. 19).
3. Move gauge block to the opposite side,
making them to the same height.
4. Follow the same procedures to check the backside.
Page 24
22
22
Fig. 20
Fig. 21
ADJUSTING SPRING TENSION OF FEED ROLLER
The infeed roller (A) and the outfeed roller (B) are two
of the major parts of automatic transmitting of planer.
(Fig. 20).
To control pressure, spring tensions are used.
Adjusting Infeed and Outfeed Roller
Before starting with the adjustment, you must check the position of the cutting head. You will
need;
Thickness gauge 0.5m/m
Home made gauge block
Figure 21 shows the relative dimensions of the Cutter Head and Roller assembly. (Fig. 21).
Page 25
23
23
WARNING: Knife inserts are
dangerously sharp. Use extreme caution
when working with or around the knife
inserts.
Fig. 22
Fig. 23
Fig. 24
1. UNPLUG OR DISCONNECT PLANER FROM
POWER SOURCE AND LOCK OUT POWER.
2. Place gauge block under the cutterhead.
3. Raise the table and rotate the cutter head until the
blade just contacts the gauge block.
Infeed Roller
1. Place gauge block under the infeed roller. (Fig.
23).
2. Loosen nut (2) and turn screw (1). This will make
the infeed roller move upwards, or downwards.
3. Make infeed roller touch the top of gauge block.
4. Once adjusted, turn the nut tightly (2), and replace
screw (1).
5. The same procedures apply for the other end.
Outfeed Roller
1. Place gauge block under outfeed roller. (Fig. 24)
2. Loosen nut (3) and screw (4). This will allow for the
outfeed roller to move upwards, or downwards.
3. Make the roller touch the top of gauge block.
4. When adjustments have been finished, tighten nut
(3), and replace screw (4).
5. The same procedures apply for the other end.
Page 26
24
24
Fig. 25
Fig. 26
Fig. 27
CHECK HEIGHT OF PRESSURE BAR
When adjusting pressure bar, the correct position of wooden gauge and 0.2mm thickness gauge
must be as shown in (Fig. 21).
1. UNPLUG OR DISCONNECT PLANER FROM
POWER SOURCE AND LOCK OUT POWER.
2. Loosen screw (1) and nut (2). Turn the screw to
the right so that the pressure bar moves upward.
(Fig. 25).
3. Place gauge block and 0.2mm thickness gauge
under the cutterhead as shown in (Fig. 26).
4. Place gauge block under pressure bar.
5. Make pressure bar touch the top of the gauge
block.
6. Turn the screw (1) tightly, and replace the nut (2).
CHECK HEIGHT OF CHIPBREAKER
When adjusting the chipbreaker, the correct position of wooden gauge and 0.1mm thickness
gauge must be, as shown in (Fig. 26). Adjust process of screw and nut as shown in (Fig. 27).
1. Place wooden gauge and thickness gauge as
shown in (Fig. 26)
2. Loosen screw (1) and nut (2). Turn screw to the
right to make chipbreaker move upward.
3. Place gauge block under the chipbreaker.
4. Make chipbreaker move downwards slowly until it
touches the top of the gauge block.
5. Once adjusted, turn screw (1) tightly, and replace
the nut (2).
Page 27
25
25
Fig. 28
DIGITAL READOUT
The digital scale equipped with 20” planer can serve many
applications, however for wood planning we need only concern
ourselves with the ON/OFF, SET, and mm/in buttons. When set
properly the digital readout will display the thickness of the
finished product.
Calibration:
In order to calibrate the unit first run a board through the planer
and measure the finished thickness with a set of vernier calipers.
This is the number to be entered into the display unit. At this
point turn the unit on by pushing the ON/OFF button. Now press
the mm/in button to set the unit to American standard or the
metric system.
1. Press and hold the SET button until the ‘+’ sign starts to flash
and immediately release it.
2. Cycle the set button by pressing it until the ‘+’ sign remains on.
3. Press and hold the SET button until the second zero to the right of the ‘+’ plus sign starts to
flash and immediately release it.
4. Cycle the SET button by pressing it until the number reads the correct whole number taken
with the vernier calipers and immediately release the button.
5. Press and hold the SET button until the zero to the right of the decimal point starts to flash.
6. Repeat steps 4 and 5 until the last digit in the 0.001 place is entered.
7. Press and hold the SET button until the SET on the display starts to flashand immediately
release it.
8. Press and release the SET button one final time to complete the calibration.
Note: Do not turn the device off. If you do you will have to re-calibrate the unit.
Battery:
When the display begins to flash the battery should be replaced. The battery is to be replaced
with a SR144 (or equivalent) and can be found at most pharmacies or grocery stores. When
replacing the battery the positive side of the button cell must face out.
Page 28
26
26
Fraction
Decimal
Metric
1/32
0.031
0.794
1/16
0.063
1.588
3/32
0.094
2.381
1/8
0.125
3.175
5/32
0.156
3.969
3/16
0.188
4.763
7/32
0.219
5.556
1/4
0.250
6.350
9/32
0.281
7.144
5/16
0.313
7.938
11/32
0.344
8.731
3/8
0.375
9.525
13/32
0.406
10.319
7/16
0.438
11.113
15/32
0.469
11.906
1/2
0.500
12.700
17/32
0.531
13.494
9/16
0.563
14.288
19/32
0.594
15.081
5/8
0.625
15.875
21/32
0.656
16.669
11/16
0.688
17.463
23/32
0.719
18.256
3/4
0.750
19.050
25/32
0.781
19.844
13/16
0.813
20.638
27/32
0.844
21.431
7/8
0.875
22.225
29/32
0.906
23.019
15/16
0.938
23.813
31/32
0.969
24.606
1
1.00
25.400
CONVERSION CHART
Page 29
27
27
WARNING:
Make sure the electrical disconnect is OFF before working on
Always follow proper safety precautions when working on or around any machinery.
MAINTENANCE
the machine.
Maintenance should be performed on a regular basis by qualified personnel.
Maintenance on your planer should be done at periodic intervals to ensure that the machine is
in good working order. Inspection and maintenance should be performed at least twice a year
but more often if the lathe receives constant use.
Check daily for any unsafe conditions and fix immediately.
Check that all nuts and bolts are properly tightened.
On a weekly basis clean the machine and the area around it.
Lubricate threaded components and sliding devices.
Apply rust inhibitive lubricant to all non-painted surfaces.
Note: Proper maintenance can increase the life expectancy of your machine.
Check all fasteners to make sure they are tight and check all adjustments that they are in
order.
Clean and oil the tables so that the material will slide easily. Clean any rust spots that may
develop on the bed with a commercial rust remover.
Use compressed air to blow out the interior of the machine in order to keep chips and
sawdust from accumulating on the belts and pulleys.
Check the drive belt for tightness. It should be snug but not overly tight.
Use a mill file to remove any nicks or dings from the infeed or outfeed tables.
Page 30
28
28
No.
Position
Grease
Oil
1
Worm Gear
Yes
No
2
Gear Box
No
Yes
3
Chain
Yes
No
4
Chain
Yes
No
5
Chain
Yes
No
6
Bracket
No
Yes
7
Lead Screw
Yes
No
8
Column Clean & Oil
No
Yes
Fig. 29
Fig. 30
Fig. 31
Parts Lubrication Required
Worm Gear is used to adjust the table up or
down. (Fig. 29)
The oil in Gear Box must be changed after 2500
hours of work. (Fig. 30)
All chains must be lubricated regularly. (Fig. 31)
After 30 hours or more of work the lubrication of
bracket must be changed. (Fig. 32)
The machine comes equipped with four head
screws, it is important to always keep them
lubricated. (Fig. 33)
To ensure maximum performance always keep
the sliding rolls of table lubricated (Fig. 34).
Page 31
29
29
Fig. 32
Fig. 33
Fig. 34

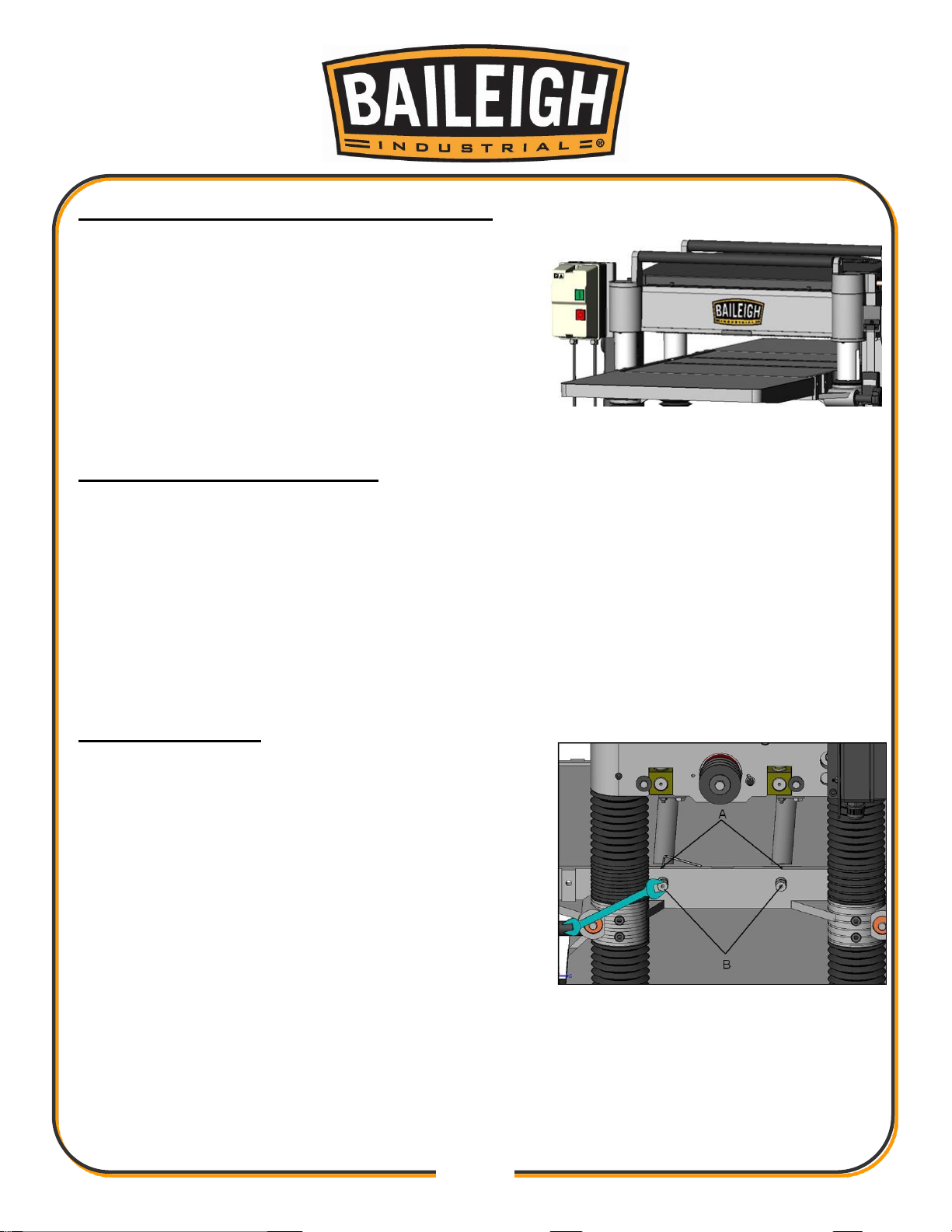

Change Lubricant
When lubrication needs to be changed:
1. Loosen the nut A on the outfeed hole.
2. Clean out old lubrication and let it dry.
3. Tighten nut A
4. Replace clean lubricant by hole B
Page 32
30
30
To Parts
Sheet 2
PARTS DIAGRAM – SHEET 1
Page 33
31
31
To Parts
Sheet 1
PARTS DIAGRAM – SHEET 2
Page 34
32
32
PARTS DIAGRAM – SHEET 3
Page 35
33
33
PARTS DIAGRAM – SHEET 4
Page 36
34
34
Item
Descriptions
Specification
Qty.
1
Nut 2 2
Belt Guard Front
1
3
V-Belt
M57 3 4
Bolt
2
5
Hex Screw
M8 x 1.25P x 20
7
6
Flat Washer
8.2 x 30 x 4.0T
2
7
Hex Screw W/Washer
M6 x 1.0P x 12
20
8
Belt Guard Rear
1
9
Hex Nut
5/16"-18NC (12.7B x 6.75H)
2
11
Cutterhead Pulley
1
12
Dust Chute
1
13
Hex Screw
M6 x 1.0P x 12
4
14
Flat Washer
6.6 x 13 x 1.0T
8
15
Cap Screw
M6 x 1.0P x 12
9
16
Dust Hood
1
17
Flat Washer
8.5 x 23 x 2.0T
4
18
Cap Screw
M6 x 1.0P x 16
9
19
Handwheel
1
20
Handle
1
21
Sponge
1
22
Chip Deflector
1
23
Spring Plate
3
24
Set Screw
M6 x 1.0P x 16
7
25
Spring Plate
1
26
Screw
4
27
Flat Washer
8.2 x 22 x 3.0T
3
28
Bracket
1
29
Shaft
1
30
Chain Tensioner
2
31
Chain Tensioner Shaft
2
32
Side Cover Guard
1
33
Spring Pin
6 x 20mm
2
34
Side Cover
1
Parts List
Page 37
35
35
Item
Descriptions
Specification
Qty.
35
Cap Screw
M8 x 1.25P x 40
1
36
Spring
1
37
Hook 1 39
Shaft
1
40
Cap Screw
M6 x 1.0P x 35
1
41
Side Cover Guard
1
42
Magnetic Switch Assembly
5HP, 220V-240V, 1PH (ON/OFF), CSA
1
42.1
Magnetic Switch
5HP, 220V-240V, 1PH
1
42.2
Switch Mounting Plate
1
42.3
Round Hd Screw
3/16"-24NC x 5/8"
2
42.4
Hex Nut
3/16"-24NC (8B x 4H)
2
42.5
Power Cord
SJT12AWG, 3C x 1450mm
1
42.6
Power Cord
SJT12AWG, 3C x 2000mm
1
42.7
Tooth Washer
5.3 x 10 (BW-5)
2
42.8
Relief Bushing
1/2" 2 43
Set Screw
M10 x 1.5P x 12
16
44
Set Screw
M8 x 1.25P x 12
7
45
Head 1 46
Shaft 2 47
Round Head Rivet
2 x 5mm
4
48
Hex Nut
M6 x 1.0P (10B x 5H)
8
49
Set Screw
M6 x 1.0P x 20
2
50
Flat Head Screw
M5 x 0.8P x 12
2
51
Limit Plate
1
54
Ball Bearing
6206 1 55
Key
8 x 8 x 36mm
1
56
4 Standard Blades Cutterhead
Assemblies
1
56.1
Cutter Head
1
56.2
Knife
4
56.3
Flat Head Screw
M5 x 0.8P x 12
8
56.4
Spring
8
56.5
Knife Lock Bar Assembly
4
56.6
Tilt Plate
1
56.7
Knife Gauge
2
Page 38
36
36
Item
Descriptions
Specification
Qty.
56.8
Retainer Plate
ETW-9
4
58
Spring
4
59
Bushing
4
60
Retainer Plate
4
61
Spring Washer
8.2 x 15.4mm
3
62
Pressure Plate
1
63
Outfeed Roller
1
64
Key
5 x 5 x 22mm
2
65
Chain Sprocket
1
66
Flat Washer
6.2 x 20 x 3.0T
4
67
Hex Screw
M6 x 1.0P x 16
3
68
Bracket
2
69
Shaft 1 70
Chip Breaker
1
71
Chain Sprocket
1
72
S-Ring
STW-12
2
73
Retaining Ring
ETW-15
2
74
Spacer
56
75
Anti-Kick Back
55
76
Shaft 1 77
Shaft 1 78
Hex Nut
M12 x 1.75P (19B x 10H)
2
79
Infeed Roller
1
80
Chain
#06B x 67P
1
81
Cap Screw
M8 x 1.25P x 50
4
82
Ball Bearing
6204 1 83
Gear
1
84
Cap Screw
M6 x 1.0P x 25
5
85
Ball Bearing
6201 5 86
Gear 1 87
Shaft 1 88
Key
5 x 5 x 12mm
1
89
Gearbox Cover
1
90
Pin
2
91
Flat Washer
8.5 x 16 x 1.5T
2
Page 39
37
37
Item
Descriptions
Specification
Qty.
92
Shaft 1 93
Key
6 x 6 x 40mm
1
94
Key
5 x 5 x 10mm
1
95
Gear
1
96
Knob 1 97
Chain
#06B x 50P
1
98
Chain Sprocket
1
99
Plug
PT1/4"-19
2
100
Oil Seal
TC28 x 40 x 8
1
101
Gearbox
1
102
Gearbox Gasket
1
103
Gear Assembly
1
104
Retaining Ring
RTW-32
1
105
Shaft
1
106
Spring
1
107
Steel Ball
6
1
108
Oil Seal
SC25 x 47 x 6
1
109
Ball Bearing
6204
1
110
Flat Washer
6.6 x 13 x 1.0T
7
111
Shifting Claw
1
112
Shaft
1
113
O-Ring
P12
1
114
Extension Table
2
115
Plastic Sheet
720 x 570 x 0.05T
1
116
Column Lock Bushing
2
117
Shaft
2
118
Cap Screw
M8 x 1.25P x 16
8
119
Eccentric Shaft
4
120
Column Lock Bushing
2
121
Knob
2
122
Set Screw
M6 x 1.0P x 12
6
123
Ball Bearing
6201
1
124
Roller W/Bearing
2
125
Table
1
126
Hex Screw
M8 x 1.25P x 25
6
Page 40
38
38
Item
Descriptions
Specification
Qty.
127
Set Screw
M8 x 1.25P x 20
6
129
Flat Head Screw
M6 x 1.0P x 20
8
130
Cover
2
131
Motor Assembly
1
132
Flat Washer
13 x 28 x 3.0T
13
133
Hex Screw
M12 x 1.75P x 50
4
134
Motor Plate
1
135
Spacer
2
138
Motor Assembly
5HP, 220V, 60HZ, 1PH, 2P
1
139
Hex Nut
M12 x 1.75P (19B x 10H)
8
140
Hex Screw
M8 x 1.25P x 40
4
142
Relief Bushing
NB-1722
3
143
Relief Bushing
PGA13.5-11B
1
144
Flat Washer
8.5 x 16 x 1.5T
4
145
Motor Mounting Shaft
2
146
Motor Mount Tension Shaft
Assembly
2
147
Hex Nut
M8 x 1.25P (13B x 6.5H)
4
148
Nut 4 149
Column Shaft
3
150
Column
3
151
Base
1
152
Chain
#40 x 166P
1
153
Chain Tensioner Bracket
1
154
Sprocket Shaft
1
155
Chain
1
156
S-Ring
STW-15
1
157
Hex Nut
M8 x 1.25P x 25
2
158
Ball Bearing
6202
4
159
Retaining Ring
RTW-35
4
160
Chain
4
161
Flat Washer
10.5 x 19 x 1.5T
12
162
Hex Nut
M10 x 1.25P (17B x 8H)
4
163
Expansion Bend
8
164
Self-Tapping Screw
M5 x 2.12P x 10
30
Page 41
39
39
Item
Descriptions
Specification
Qty.
165
Fixed Bush
16
166
Main Column
1
167
Retaining Ring
ETW-17
4
168
Rod
4
169
Worm Gear
1
170
Retaining Ring
RTW-38
1
171
Bushing
1
172
Key
4 x 4 x 10mm
2
173
Elevating Screw
1
174
Hex Wrench
3mm
1
175
Hex Wrench
4mm
1
176
Hex Wrench
5mm
1
177
Hex Wrench
6mm
1
178
Wrench Box
8 x 10mm
1
179
Wrench Box
12 x 14mm
1
180
Wrench Box
17 x 19mm
1
188
Roller Bracket
3
189
Roller
2
190
Worm Gearbox
1
191
Cap Screw
M6 x 1.0P x 50
3
192
Shaft
1
194
Spacer
1
201
Cap Screw
M6 x 1.0P x 10
2
204
Hex Nut
3/8"-16NC x 2-1/2"
4
205
Wheel
4
206
Hex Nut
3/8"-16NC (14.2B x 11.5H)
4
208
Digital Read Out Assembly
9 inch
1
208.1
Digital Read Out
9 inch
1
208.2
Lower Plate
1
208.3
Upper Plate
1
208.4
Set Screw
M10 x 1.5P x 30
1
208.5
Hex Nut
M10 x 1.5P
1
208.6
Flat Washer
8.5 x 16 x 1.0T
1
208.7
Cap Screw
M8 x 1.25P x 30
1
208.8
Flat Washer
4.3 x 10 x 1.0T
1
Page 42
40
40
Item
Descriptions
Specification
Qty.
208.9
Round Hd Screw
M4 x 0.7P x 6
1
208.10
Round Hd Screw
M3 x 0.5P x 6
2
216
Knob
5/16"-18NC x 3/4"
2
217
Hex Screw
M6 x 1.0P x 12
6
219
Hex Head Screw
M8 x 1.25P x 30
1
220
Wood Screw
M6 x 2.6P x 24
16
221
Sponge
3/8" x 1/2" x 525L
1
222
Round Hd Screw
M5 x 0.8P x 16
2
223
Washer
1
224
Terminal Cover
1
225
Round Hd Screw
3/16"-24NC x 1/4"
1
226
Round Hd Screw
M5 x 0.8P x 10
2
227
Tooth Washer
5.3 x 10 (BW-5)
3
228
Power Cord
SJT12AWG, 1C x 150mm
1
229
Parts Package
1
230
Pad
2
231
Flat Washer
6.2 x 22 x 3T
4
Page 43
41
41
NOTES
Page 44
42
42
NOTES
