OPERATOR’S
MANUAL
PLANER
MODEL: IP-156 AND IP-156-HH
IS PROHIBITED. Baileigh Industrial, Inc. does not assume and hereby disclaims any liability for any damage or loss
Manitowoc, WI 54221-0531
P.O. Box 531
Phone: 920.684.4990
Fax: 920.684.3944
sales@baileigh.com
Table of Contents
THANK YOU & WARRANTY .......................................................................................... 1
INTRODUCTION ............................................................................................................. 3
GENERAL NOTES .......................................................................................................... 3
SAFETY INSTRUCTIONS .............................................................................................. 4
SAFETY PRECAUTIONS ............................................................................................... 7
Dear Valued Customer: ................................................................................................... 7
TECHNICAL SPECIFICATIONS ................................................................................... 10
TECHNICAL SUPPORT ............................................................................................... 10
UNPACKING AND CHECKING CONTE NTS ................................................................ 11
Cleaning .................................................................................................................... 11
TRANSPORTING AND LIFTING .................................................................................. 12
INSTALLATION ............................................................................................................. 12
ASSEMBLY EXTENSION TABLE ................................................................................. 14
DUST CHUTE ASSEMBLY ........................................................................................... 15
ELECTRICAL ................................................................................................................ 16
Power cord connection: ............................................................................................. 17

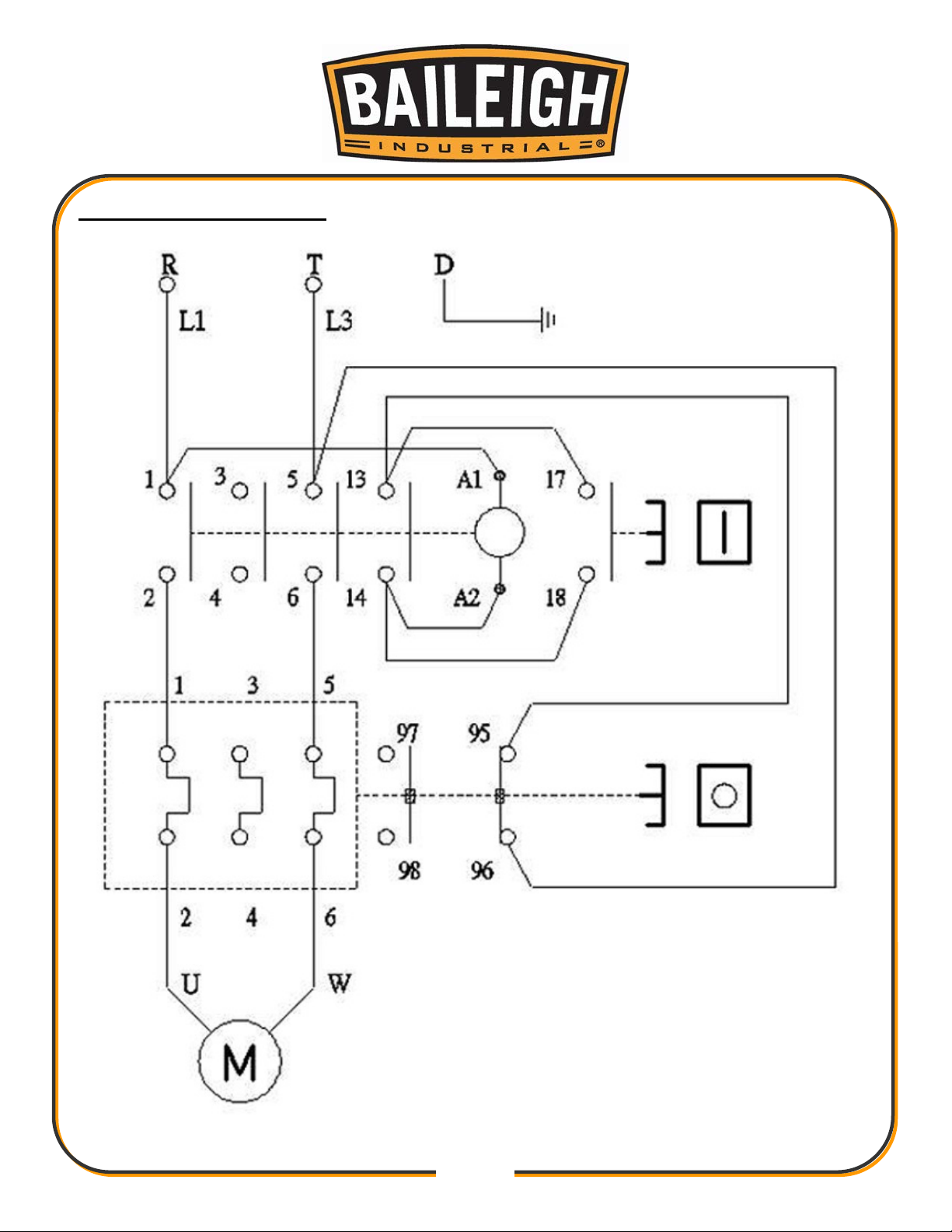

ELECTRICAL DIAGRAM .............................................................................................. 18
CONTROL THE DEPTH OF CUTTING ........................................................................ 19
CHECKING PULLEY .................................................................................................... 19
Adjusting Motor Mount ............................................................................................... 19
ADJUSTING BELT TENSION ....................................................................................... 20
FEED ROLL SPEED RATE .......................................................................................... 20
ROLL TRANSMITTING ................................................................................................. 21
CONNECTING DUST COLLECTOR ............................................................................ 21
FEEDROLL PRESSURE AJDUSTMEN T ..................................................................... 21
ADJUSTMENT TRANSMITTING ROLLER ................................................................... 22
ADJUSTING TABLE ROLLER ...................................................................................... 22
ADJUST ROLLER ......................................................................................................... 22
CONSTRUCTING GAUGE BLOCK .............................................................................. 23
ASSEMBLING CHAIN ................................................................................................... 23
ADJUSTING CUTTING HEAD PARALLEL TO TABLE ................................................. 24
ADJUSTING SPRING TENSION OF FEED ROLLER .................................................. 25
Adjusting Infeed and Outfeed Roller .......................................................................... 25
Infeed Roller .............................................................................................................. 26
Outfeed Roller ........................................................................................................... 26
CHECK HEIGHT OF PRESSURE BAR ........................................................................ 27
CHECK HEIGHT OF CHIPBREAKER .......................................................................... 27
MAINTENANCE ............................................................................................................ 28
Parts Lubrication Required ........................................................................................ 29
Change Lubricant ...................................................................................................... 30
Oil Disposal ............................................................................................................... 30

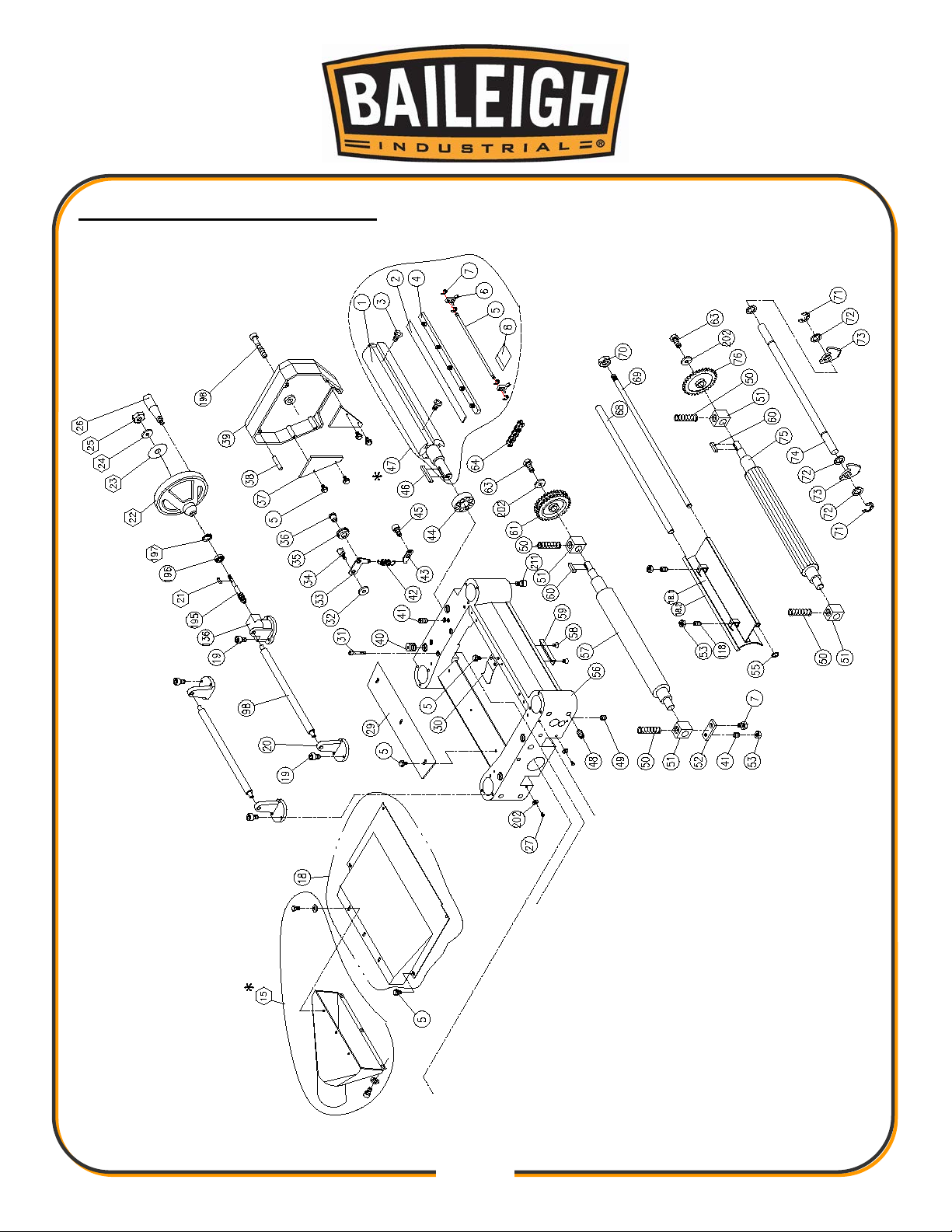

PARTS DIAGRAM – SHEET 1...................................................................................... 31
PARTS DIAGRAM – SHEET 2...................................................................................... 32
PARTS DIAGRAM – SHEET 3...................................................................................... 33
PARTS DIAGRAM – SHEET 4...................................................................................... 34
Parts List ................................................................................................................... 35
1
1
THANK YOU & WARRANTY
Thank you for your purchase of a machine from Baileigh Industrial. We hope that you find it
productive and useful to you for a long time to come.
Inspection & Acceptance. Buyer shall inspect all Goods within ten (10) days after receipt thereof. Buyer’s
payment shall co nstitute fin al accept ance of the Goo ds and shall ac t as a waiver of the Buyer’s r ights to inspect or
reject the goods unless otherwise agreed. If Buyer rejects any mer chandise, Buyer must first obtain a Returned
Goods Authorization (“ RGA”) number bef ore returning any goods to Seller. Goods returned without a RG A will be
refused. Seller will not be responsible for any freight costs, damages to goods, or any other costs or liabilities
pertaining to goods ret urne d withou t a RG A. Sel ler sh all have the r ight to s ubstit ute a co nfor m ing tender. Buyer will
be responsible for all freight costs to and from Buyer and repackaging costs, if any, if Buyer refuses to accept
shipment. If Goods are returned in unsalable condition, Buyer shall be responsible for full value of the Goods.
Buyer may not retur n an y special order Goods . An y Goods ret urned her eunder s hall be s ubject to a rest ocking f ee
equal to 30% of the invoice price.
Specifications. Seller ma y, at its opt ion, m ak e chang es in th e des igns, specif ications or com ponents of the Goods
to improve the safet y of such Goods, or if in Seller’s judgm ent, such chang es will be benef icial to t heir operat ion or
use. Buyer m ay not m ak e an y changes i n the specif ic ations f or th e G oods un les s Se ller a pproves of such c hang es
in writing, in which event Seller ma y impose additi ona l charges to im plement such changes.
Limited Warranty. Seller warrants to the original end-user that the Goods manufactured or provided by Seller
under this Agreement s hall be free of defects in material or workmanship f or a period of twelve (12) month s from
the date of purchase, provided that the Goods are installed, used, and maintained in accordance with any
instruction manual or technical guidelines provided by the Seller or supplied with the Goods, if applicable. The
original end-user m ust give written not ice to Seller of an y suspected defec t in the Goods prior to the expiration of
the warranty period. The original end-user must also obtain a RGA from Seller prior to returning any Goods to
Seller for warrant y service under th is para graph . Sell er will n ot accept a ny resp ons ibilit y for Goods returne d without
a RGA. The original end-us er shall be responsible f or all costs and expenses associated with retur ning the Goods
to Seller for warrant y service. In th e event of a defect, Sel ler, at its sol e option, s hall repa ir or replac e the defec tive
Goods or refund to the original end-user the purchase price f or such defective G oods. Goods are not elig ible for
replacement or return after a period of 10 days from date of receipt. The foregoing warranty is Seller’s sole
obligation, and the or iginal end-user’s exclusive remedy, with regard to a ny defectiv e Goods. T his limited warranty
does not apply to: ( a) die s ets, to oling, and s aw b lade s; (b) period ic or r outi ne m aintena nce and setup , (c ) repa ir or
replacement of the Go ods due to norm al wear and t ear , (d) def ects or dam age to the Go ods res ultin g from misuse,
abuse, neglect, or accidents, (f) defects or damage to the Goods resulting from improper or unauthorized
alterations, modifications, or changes; and (f) any Goods that has not been installed and/or maintained in
accordance with the instruction m anual or technical guidelines provid ed b y Seller.
EXCLUSION O F OTHER WARR ANTIES. THE FOREGOING LI MITED WARRANTY IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. ANY AND ALL OTHER EXPRESS, STATUTORY OR IMPLIED
WARRANTIES, INCLUDING BUT NOT LIMITED TO, ANY WARRANTY OF MERCHANTABILITY OR FI TNESS
FOR ANY PARTICULAR PURPOSE ARE EXPRESSLY DISCLAIMED. NO WARRANTY IS MADE WHICH
EXTENDS BEYOND THAT WHICH IS EXPRESSLY CONTAINED HEREIN.
Limitation of Liability. IN NO EV ENT SHALL SELLER B E LIABLE TO BUYE R OR ANY OTHER PART Y FOR
ANY INCIDENTIAL, CONSEQUENTIAL OR SPECIAL DAMAGES (INCLUDING, WITHOUT LIMITATION, LOST
PROFITS OR DOWN TIME) ARISING FROM OR IN MANNER CONNECTED W ITH THE GOODS, AN Y BREACH
BY SELLER OR ITS AGENTS OF THIS AGREEMENT , OR ANY OTHER CAUSE W HATSOEVER, WHETHER
BASED ON CONT RACT, TORT OR ANY OTHER T HEORY OF LIAB ILITY. BUYER ’S REMEDY W ITH RESPECT
TO ANY CLAIM ARISING UNDER THIS AGREEMENT IS STRICTLY LIMITED TO NO MORE THAN THE
AMOUNT PAID BY THE BUYER FOR THE GOODS.
2
2
Force Majuere. Seller shall not be responsible for any delay in the delivery of, or failure to deliver, Goods due to
causes beyond Seller’s reasonable control including, without limitation, acts of God, acts of war or terrorism, enemy
actions, hostilities, strikes, labor difficulties, embargoes, non-delivery or late delivery of materials, parts and
equipment or transportation delays not caused by the fault of Seller, delays caused by civil authorities,
governmental regulations or orders, fire, lightening, natural disasters or any other cause beyond Seller’s reasonable
control. In the event of any such delay, performance will be postponed by such length of time as may be reasonably
necessary to compensate for the delay.
Installation. If Buyer purchases any Goods that require installation, Buyer shall, at its expense, make all
arrangements and connections necessary to install and operate the Goods. Buyer shall install the Goods in
accordance with an y Seller instructions and shall ind emnify Seller against any a nd all damages, demands, suits,
causes of action, claim s and expenses (includin g actual attorneys’ fees and costs) arising direc tly or indirectly out
of Buyer’s failure to properly install the Goods.
Work By Others; Safety Devices. Unless agreed t o in writing by Seller, Seller has no respo nsibility for labor or
work performed by Bu yer or others, of any nature, relating to des ign, manufacture, fabr ication, use, installation or
provision of Goods. Bu yer is s olel y responsi ble f or f urnishing, and r equir ing its emplo yees an d cus tom ers to us e all
safety devices, guards and safe operating procedures required by law and/or as set forth in manuals and instruction
sheets furnished b y Seller. Buyer is responsible for consulting all opera tor manuals, ANSI or comparable s afety
standards, OSHA regulations and other sources of safety standards and regulations applicable to the use and
operation of the Goods.
Remedies. Each of the rights and r emedies of Seller under this Agreem ent is cumulative and in addition to an y
other or further remedies provided under this Agreement or at law or equity.
Attorney’s Fees. In the event legal action is necessary to recover monies due from Buyer or to enforce any
provision of this Agreement, Buyer shall be liable to Seller for all costs and expenses associated therewith,
including Seller’s actual attorney fees and costs.
Governing Law/Venue. This Agreement shall be construed and governed under the laws of the State of
Wisconsin, without applic ation of conf lict of law pr inci ples. Eac h p art y agrees that all acti ons or proc eedi ngs ar ising
out of or in connection with this Agr e ement shall be commenced, tried, and litigated only in the state courts sitting in
Manitowoc Count y, Wisconsin or the U.S. Federal C ourt for the Eastern Distr ict of Wisconsin. Each par ty waives
any right it m ay have to asser t the doctrine of “forum non c onveniens” or t o object to venue to the extent that a ny
proceeding is brought in accordance with this section. Each party consents to and waives any objection to the
exercise of personal j urisdiction over it b y courts described in th is section. Each part y waives to the fullest extent
permitted by applicable law the right to a trial by jury.
SUMMARY OF RETURN POLICY.
• 10 Day accep tance period from date of delivery. Damage claim s and order discrepancies will not be accepted
after this time.
• You must obtain a Baileigh iss ued RGA number PRIOR to returning any materials.
• Returned materials must be received at Baileigh in new condition and in original packaging.
• Altered items are not eligible for return.
• Buyer is responsible for all shipping charges.
• A 30% re-stocking fee applies to all returns.
Baileigh Industrial makes every effort to ensure that our posted specifications, images, pricing and product
availability are as correct and timely as possible. We apologize for any discrepancies that may occur. Baileigh
Industrial reserves the right to make any and all changes deemed necessary in the course of business including but
not limited to pricing, product specifications, quantities, and product availability.
For Customer Service & Technical Support:
Please contact one of our knowledgeable Sales and Service team members at:
(920) 684-4990 or e-mail us at sales@baileighindustrial.com
3
3
INTRODUCTION
The quality and reliability of the components assembled on a Baileigh Industrial machine
guarantee near perfect functioning, free from problems, even under the most demanding
working conditions. However, if a situation arises, refer to the manual first. If a solution cannot
be found, contact the distributor where you purchased our product. Make sure you have the
serial number and production year of the machine (stamped on the nameplate). For
replacement parts refer to the assembly numbers on the parts list drawings.
Our technical staff will do their best to help you get your machine back in working order.
In this manual you will find: (when applicable)
• Safety procedures
• Correct installation guidelines
• Description of the functional parts of the machine
• Capacity charts
• Setup and start-up instructions
• Machine operation
• Scheduled maintenance
• Parts lists
GENERAL NOTES
After receiving your equipment remove the protective container. Do a complete visual
inspection, and if damage is noted, photograph it for insurance claims and contact your
carrier at once, requesting inspection. Also contact Baileigh Industrial and inform them of the
unexpected occurrence. Temporarily suspend installation.
Take necessary precautions while loading / unloading or moving the machine to avoid any
injuries.
Your machine is designed and manufactured to work smoothly and efficiently. Following proper
maintenance instructions will help ensure this. Try and use original spare parts, whenever
possible, and most importantly; DO NOT overload the machine or make any unauthorized
modifications.
Note: This symbol refers to useful information throughout the manual.
4
4
DANGER
W
ARNING
CAUTION
NOTICE
IMPORTANT
PLEASE READ THIS OPERATORS MANU AL CAREFUL LY
It contains important safety information, instructions, and necessary operating procedures.
The continual observance of these procedures will help increase your production and
extend the life of the equipment.
SAFETY INSTRUCTIONS
LEARN TO RECOGNIZE SAFETY INFORMATION
This is the safety alert symbol. When you see this symbol
on your machine or in this manual, BE ALERT TO THE
POTENTIAL FOR PERSONAL INJURY!
Follow recommended precautions and safe operating practices.
UNDERSTAND SIGNAL WORDS
A signal word – DANGER, WARNING, or CAUTION – is used with the safety alert symbol.
NOTICE, which is not related to personal injury, is used without a symbol.
DANGER: Indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING: Indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION: Indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE: Indicates a situation which, if not avoided, could
result in property damage.
5
5

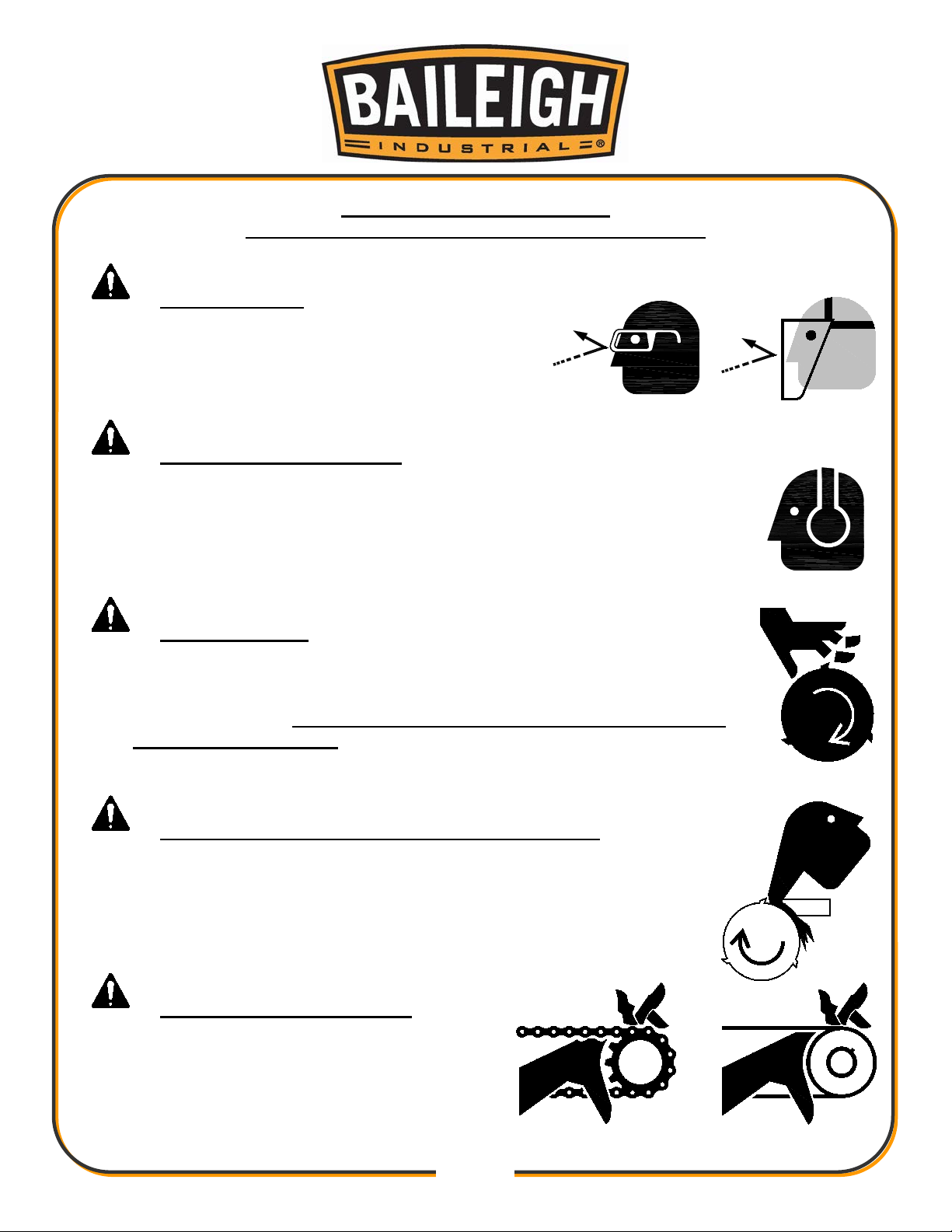

SAVE THESE INSTRUCTIONS.
Refer to them often and use them to instruct others.
PROTECT EYES
Wear safety glasses or suitable eye protection
when working on or around machinery.
PROTECT AGAINST NOISE
Prolonged exposure to loud noise can cause impairment or loss of
hearing. Wear suitable hearing protective devices such as ear muffs or
earplugs to protect against objectionable or uncomfortable loud noises.
BLADE HAZARD
Keep hands and fingers away from the rotating knife blades. These
rotating knives can be extremely dangerous if you do not follow proper
safety procedures. NEVER place hands closer than 3” (76mm) to the
rotating cutting knives.
ENTANGLEMENT HAZARD – ROTATING BLADES
Contain long hair, DO NOT wear jewelry or loose-fitting clothing.
BEWARE OF PINCH POINTS
Keep hands and fingers clear of all
potential pinch points . Th ese include
sprockets and chains along with belts and
pulleys.
6
6
HIGH VOLTAGE
USE CAUTION IN HIGH VOLTAGE AREAS. DO NOT assume the
power to be off.
(FOLLOW PROPER LOCKOUT PROCEDURE S)
DUST HAZARD
Wear appropriate dust mask. Dust created while using machinery can
cause cancer, birth defects, and long term respiratory damage. Be aware
of the dust hazards associated with all types of materials.
DUST PARTICLES AND IGNITION SO URCES
DO NOT operate the table saw in areas where explosion risks are
high. Such areas include locations near pilot lights, open flames, or
other ignition sources.
EMERGENCY STOP BUTTON
In the event of incorrect operation or dangerous conditions, the machine can be stopped
immediately by pressing the E-STOP button.
7
7
SAFETY PRECAUTIONS
Wood working can be dangerous if safe and proper operating procedures are not followed. As
with all machinery, there are certain hazards involved with the operation of the product. Using
the machine with respect and caution will considerably lessen the possibility of personal injury.
However, if normal safety precautions are overlooked or ignored, personal injury to the operator
may result.
Safety equipment such as guards, push sticks, hold-d owns, feather boards, gogg l es , dust
masks and hearing protection can reduce your potential for injury. But even the best guard will
not make up for poor judgment, carelessness or inattention. Always use common sense and
exercise caution in the workshop. If a procedure feels dangerous, don’t try it.
REMEMBER: Your personal safety is your responsibility.
WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN
SERIOUS PERSONAL INJURY
Dear Valued Customer:
• All Baileigh woodworking machines should be used only for their intended use.
• Baileigh does not recommend or endorse making any modifications or alterations to a
Baileigh machine. Modifications or alterations to a machine may pose a substantial risk of
injury to the operator or others and may do substantial damage to the machine.
• Any modifications or alterations to a Baileigh machine will invalidate the machine’s warranty.
Please enjoy your Baileigh machine! ....Please enjoy it SAFELY!
1. FOR YOUR OWN SAFETY, READ INSTRUCTI ON MANUAL BEFORE OPERATING THE
MACHINE. Learn the machine’s application and limitations as well as the specific hazards.
2. Only trained and qualified personnel can operate this machine.
3. Make sure guards are in place and in proper working order before operating
machinery.
4. Remove any adjusting tools. Before operating the machine, make sure any adjusting tools
have been removed.
5. Keep work area clean. Cluttered areas invite injuries.
6. Overloading machine. By overloading the machine, you may cause injury from flying parts.
DO NOT exceed the specified machine capacities.
7. Do not force tool. Your machine will do a better and safer job if used as intended. DO NOT
use inappropriate attachments in an attempt to exceed the machines rated capacity.
8
8
8. Use the right tool for the job. DO NOT attempt to force a small tool or attachment to do
the work of a large industrial tool. DO NOT use a tool for a purpose for which it was not
intended.
9. Dress appropriately. DO NOT wear loose fitting clothing or jewelry as they can be caught
in moving machine parts. Protective clothing and steel toe shoes are recommended when
using machinery. Wear a restrictive hair covering to contain long hair.
10. Use eye and ear protection. Always wear ISO approved impact safety goggles. Wear a
full-face shield if you are producing material chips and or filings.
11. Do not overreach. Ma i ntai n pr oper footing and balance at all times. DO NOT reach ov er or
across a running machine.
12. Stay alert. Watch what you are doing and use common sense. DO NOT operate any tool or
machine when you are tired.
13. Check for damaged parts. Before using any tool or machine, carefully check any part that
appears damaged. Check for alignment and binding of moving parts that may affect proper
machine operation.
14. Observe work area conditions. DO NOT use machines or power tools in damp or wet
locations. Do not expose to rain. Keep work area well lighted. DO NOT use electricall y
powered tools in the presence of flammable gases or liquids.
15. Keep children away. Children must never be allowed in the work area. DO NOT let them
handle machines, tools, or extension cords.
16. Store idle equipment. When not in use, tools must be stored in a dry location to inhibit rust.
Always lock up tools and keep them out of reach of children.
17. DO NOT touch live electrical components or parts.
18. Turn off power before checking, cleaning, or replacing any parts.
19. Be sure all equipment is properly installed and grounded according to national, state, and
local codes.
20. Inspect power and control cables periodically. Replace if damaged or bare wires are
exposed. Bare wiring can kil l!
21. DO NOT bypass or defeat any safety interlock systems.
22. Know the location of the ON - OFF switch and the “E” - STOP button.
23. Keep visitors a safe distance from the work area.
24. Do not remove any warning signs.
25. DO NOT operate machine if under the influence of alcohol or drugs. Read warning labels on
prescriptions. If there is any doubt, DO NOT operate the machine.
26. Maintain machine in top condition. Keep clean for best and safest performance. Follow
instructions for lubricating and changing accessories.
9
9
27. Warning: The dust generated by certain woods and wood products can be injurious to your
health. Always operate machinery in well-ventilated areas and provide for proper dust
removal. Use a wood dust collection system whenever possible.
28. Respiratory Protection. Wear an approved dust mask or respirator while using this
machine. Continued exposure to wood dust can cause allergies or long term respiratory
problems.
29. Kickback. Become familiar with the term “Kickback” and how it occurs before operating
this planer. Kickback happens when the piece part is thrown towards the operator at a high
rate of speed with the potential for serious injury.
30. Kickback Zone. The path directly behind the end of the in-feed table is referred to as the
“Kickback zone”. NEVER stand or allow others to stand in this area while the machine is
running. Position yourself to one side of the machine while the planer is running.
31. Reaching Inside Planer. To avoid serious personal injury from rotating knives, NEVER
remove guards or reach inside the planer while it is connected to power. Always Follow
proper lockout /tagout proc ed ur es .
32. Clearing Jams. To avoid serious personal injury from rotating knives, ALWAYS STOP the
planer and disconnect power before removing a jammed piece part. Always follow proper
lockout/tagout procedures.
33. Using Quality Stock. Inspect the stock over carefully that you intend to plane. NEVER
plane a board that has loose knots, staples, or nails in it. DO NOT plane a piece of stock if
you have any doubts about its structural integrity.
34. Dull / Damaged Knives. Use only sharp, undamaged knives to avoid unnecessary kickback
of the piece part. Dull and damaged knives will also affect cut quality.
35. Looking Inside Planer. Wood chips fly around inside the planer at a high rate of speed as it
is running. To avoid possible injury from flying debris, DO NOT look inside the planer while it
is running.
36. Grain Direction. There is an increased chance of kickback when planing end grain or
against the grain. This could also produce chatter and excessive chip out of the material.
37. In-feed Roller Clearance. The in-feed roller is designed to pull material into the rotating
cutterhead. To avoid serious personal injury, keep hands, jewelry, clothing, and long hair
away from the in-feed roller while operating the machine.
38. Reduce the risk of unintentional starting. Make sure switch is in “OFF” position before
plugging in power cord.
39. Never leave machine running unattended. TURN POWER OFF. Don’t leave machine until
it comes to a complete stop.
40. Using Correct Materials. Planing materials other than natural wood fiber can result in
serious personal injury and machine damage. NEVER use this mac h i ne for anything except
planing in wood.
10
10
Cutting Capacity (W x H)
15" x 6" (381 x 152mm)
Maximum Depth of Cut
1/8” (3.1mm)
Minimum Material Thic knes s
3/16” (4.7mm)
Minimum Stock Length
6” (152mm)
Cutterhead Speed
5000 RPM
Number of Knives (IP-156)
3
Number of Cutter Inserts (IP-156-HH)
JP31 – 68pcs
Cutter Head Size
3” (76.2mm)
Table Size (L x W)
48” x 15” (1219 x 381mm)
Feed Speed
16/20 FPM (4.8/6MPM)
Dust Collection Port
1 @ 4” (102mm)
Table Elevation
Manual
Power Supply
220V, 60Hz, 1Ph
Motor
3Hp (2.23kw), 220V, 60Hz, 1Ph, 15A
Net Weight (Approx.)
448 lbs. (203kg)
Shipping Weight (Approx.)
520 lbs. ( 236kg)
TECHNICAL SPECIFICATIONS
TECHNICAL SUPPORT
Our technical support department can be reached at 920. 68 4.4 990, and asking for the support
desk for purchased machines. Tech Support handles questions on machine setup, schematics,
warranty issues, and individual parts needs: (other than die sets and blades).
For specific application needs or future machine purchases contact the Sales Department at:
sales@baileigh.com, Phone: 920.684.4990, or Fax: 920.684.3944.
Note: The photos and illustrations used in this manual are representative only and
may not depict the actual color, labeling or accessories and may be intended to illustrate
technique only.
Note: The specifications and dimensions presented here are subject to change
without prior notice due to improvements of our products.
11
11
SUFFOCATION HAZARD! Immediately discard any plastic
the machine. They have low flash points and can explode or cause fire.
GAS
UNPACKING AND CHECKING CONTENTS
Your Baileigh machine is shipped complete. Separate all parts from the packing material and
check each item carefully. Make certain all items are accounted for before discarding any
packing material.
WARNING:
bags and packing materials to elimina te choking and suffocation hazards to children
and animals.
If any parts are missing, DO NOT place the machine into service until the missing
parts are obtained and installed correctly.
Cleaning
WARNING: DO NOT USE gasoline or other petroleum products to clean
CAUTION: When using cleaning solvents work in a well-ventilated area.
Many cleaning solvents are toxic if inhaled.
Your machine may be shipped with a rustproof waxy coating and/or grease on the exposed
unpainted metal surfaces. Fully and completely remove this protective coating using a
degreaser or solvent cleaner. Moving items will need to be moved along their travel path to
allow for cleaning the entire surface. For a more thorough cleaning, some parts will occasionally
have to be removed. DO NOT USE acetone or brake cleaner as they may damage painted
surfaces.
Follow manufacturer’s label instructions when using any type of cleaning product. After cleaning,
wipe unpainted metal surfaces with a light coating of quality oil or grease for protection.
Important: This wa xy coating is NOT a lubricant and will cause the machine to
stick and lose performance as the coating continues to dry.
12
12
NOTICE: Lifting and carrying operations should be carried out by skilled workers, such as a
chain carefully, making sure the machine is well balanced.

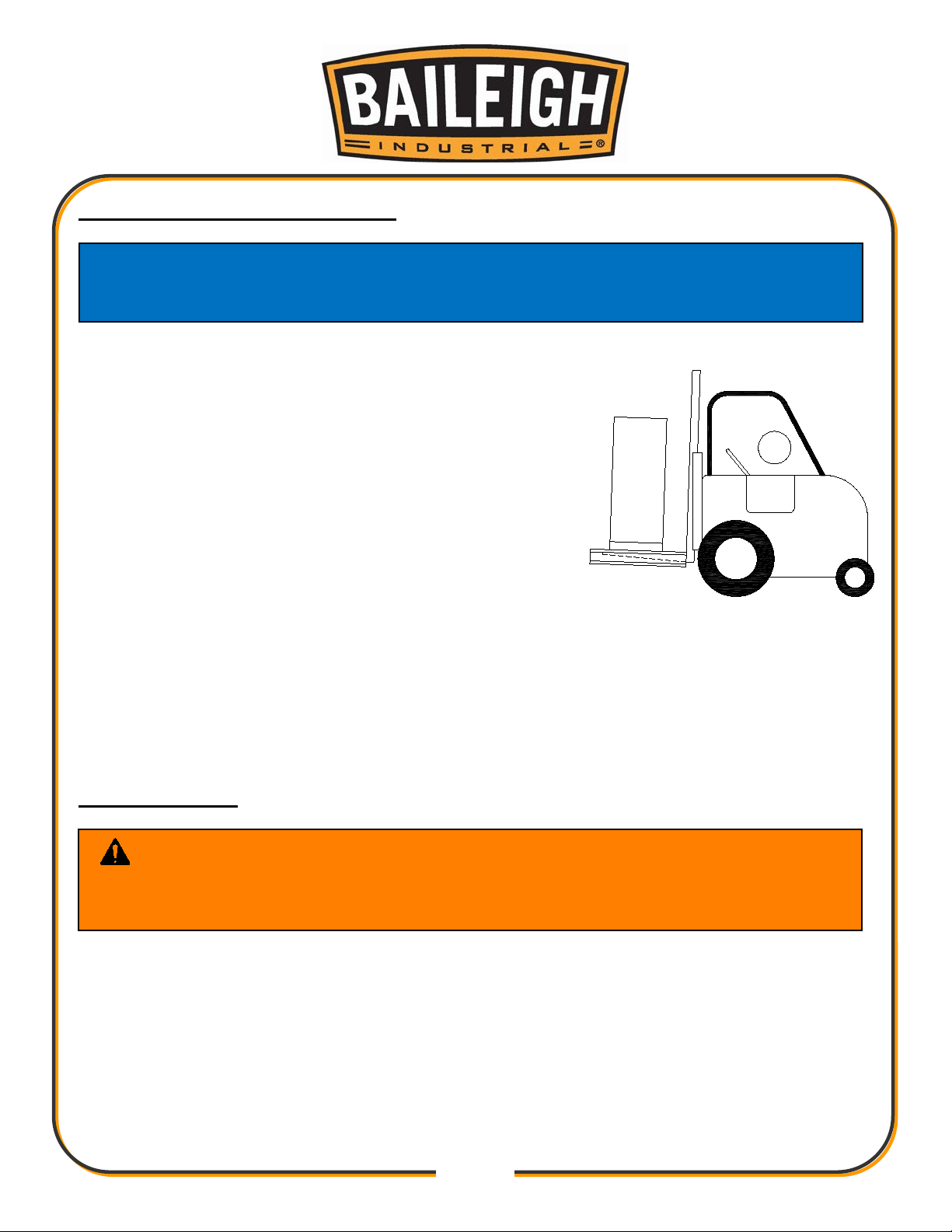

TRANSPORTING AND LIFTING
truck operator, crane operator, etc. If a crane is used to lift the machine, attach the lifting
Follow these guidelines when lifting with truck or trolley:
• The lift truck must be able to lift at least 1.5 – 2 times
the machines gross weight.
• Make sure the machine is balanced. While
transporting, avoid rough or jerky motion, and maintain
a safe clearance zone around the transport area.
• Use a fork lift with sufficient lifting capacity and forks
that are long enough to reach the complete width of
the machine.
• Remove the securing bolts that attach the machine to
the pallet.
• Approaching the machine from the side, lift the machine on the frame taking care that there
are no cables or pipes in the area of the forks.
• Move the machine to the required position and lower gently to the floor.
• Level the machine so that all the supporting feet are taking the weight of the machine and no
rocking is taking place.
INSTALLATION
WARNING: FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE
TO THE POWER SOURCE UNTIL THE MACHINE IS COMPLETELY ASSEMBLED AND
YOU READ AND UNDERSTAND THE ENTIRE INSTRUCTION MANUAL.
IMPORTANT:
Consider the following when looking for a suitable location to place the machine:
• Overall weight of the machine.
• Weight of material being processed.
• Sizes of material to be processed through the machine.
• Space needed for auxiliary stands, work tables, or other machinery.
• Clearance from walls and other obstacles.
13
13

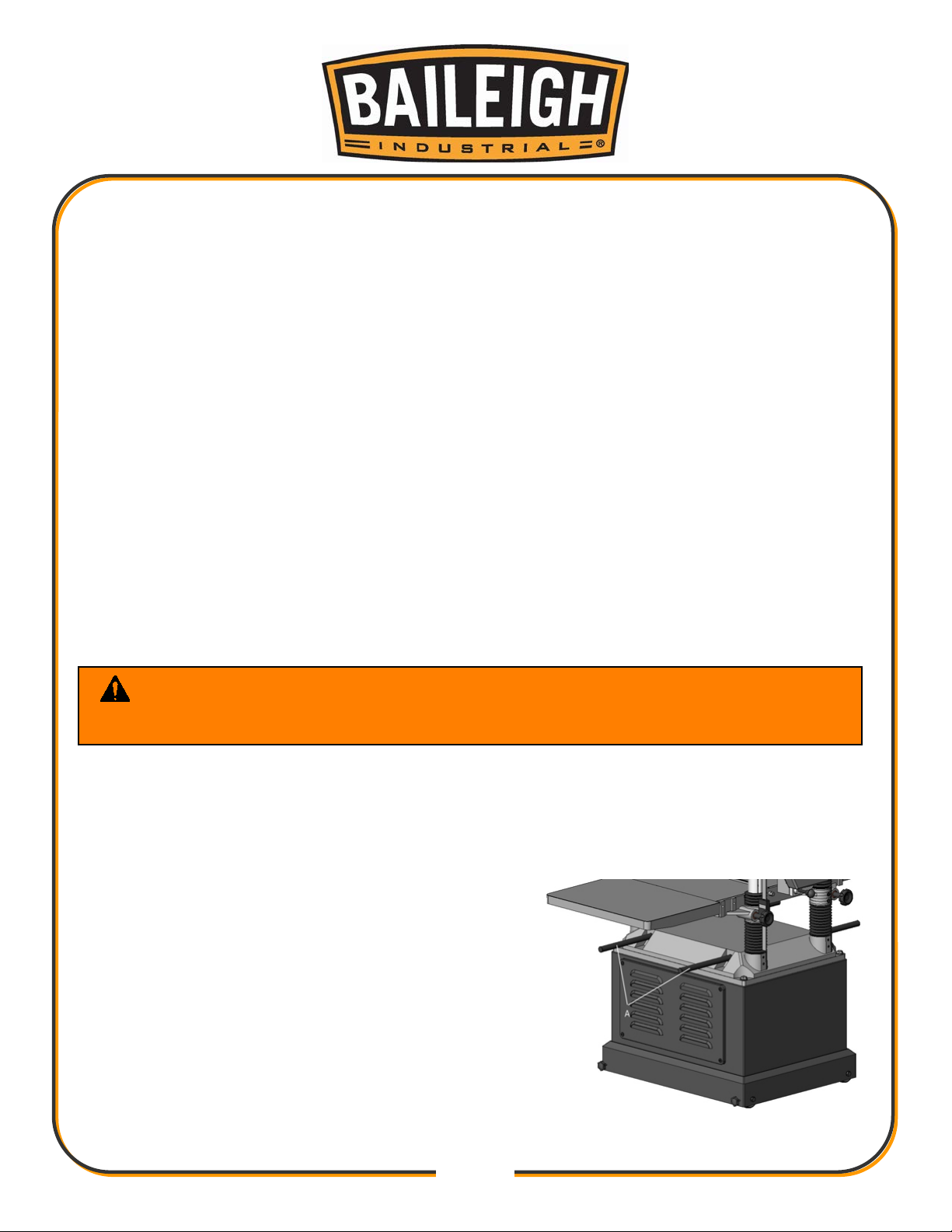

Fig. 1
• Maintain an adequate w or ki ng area arou nd th e machi n e for s a fety .
• Have the work area well illuminated with proper lighting.
• Keep the floor free of oil and make sure it is not slippery.
• Remove scrap and waste materials regularly, and make sure the work area is free from
obstructing objects.
• It is important to maintain free area around the machine, which is required for the working
place. If any long material is machined, it is necessary to have a sufficient room in front of
the machine as well behind it in the places of material input and output.
• FLOOR: This machine distributes a large amount of weight over a small area. Make certain
that the floor is capable of supporting the weight of the machine, work stock, and the
operator. The floor should also be a level surface. If the unit wobbles or rocks once in place,
be sure to eliminate by using shims.
• WORKING CLEARANCES: Take into consideration the size of the material to be
processed. Make sure that you allow enough space for you to operate the machine freely.
• POWER SUPPLY PLACEMEN T: The power supply should be located close enough to the
machine so that the power cord is not in an area where it would cause a tripping hazard. Be
sure to observe all electrical codes if installing new circuits and/or outlets.
WARNING: Before ope rating; make sure it is positioned firml y on a solid
level floor. If it tips over on you, it could cause severe injury or death.
• LEVELING: The machine should be sited on a level, concrete floor. The accuracy of any
machine depends on the precise placement of it to the mounting surface. Locate the planer
in an area that is level and provides a solid foundation. Make sure that any potential kickback
is not in line with aisles, doorways, wash stations or other work areas.
o Place shims under the four feet mounted in
the base as required for leveling.
There are four lifting handles (A) hidden in the bed of
the planer table. Pull the handles out for use and push
them in when not in use.
14
14
Fig. 2
Fig. 3

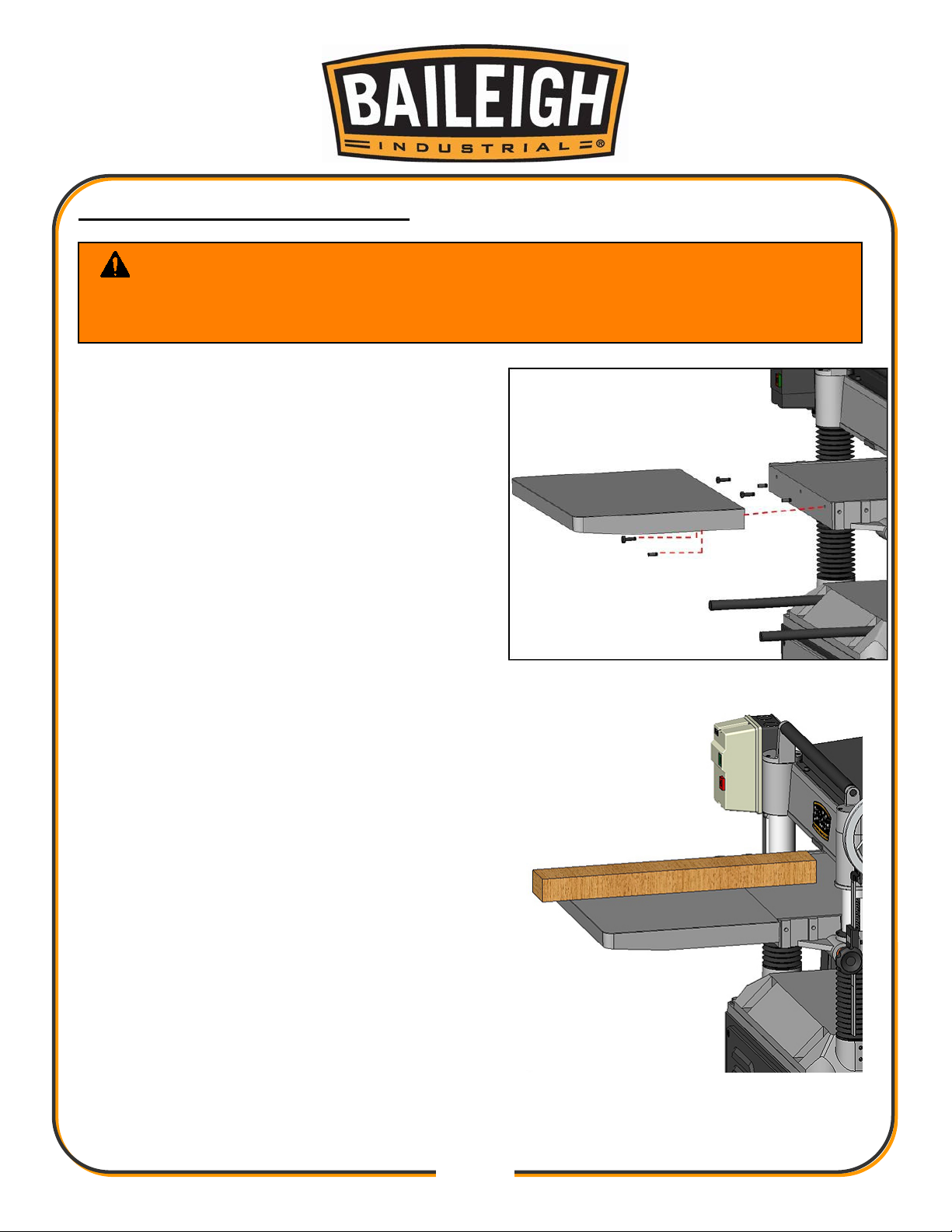

ASSEMBLY EXTENSION TABLE
WARNING: For your own safety, DO NOT connect the machine to the
power source until the machine is completely assembled and you read and
understand the entire instruction manual.
1. Use an assistant to help lift and align the holes
on the extension table to the main table.
2. Insert the bolts and loosely secure with
washers and nuts. (Fig. 2).
3. With the fasteners in position and snug, place
straight edge through machine so that it lies
across the main table and ex tensi on table.
(Fig. 3).
4. Align the extension table to the main table.
When the tables are aligned, hold in position
and securely tighten the fasteners.
15
15

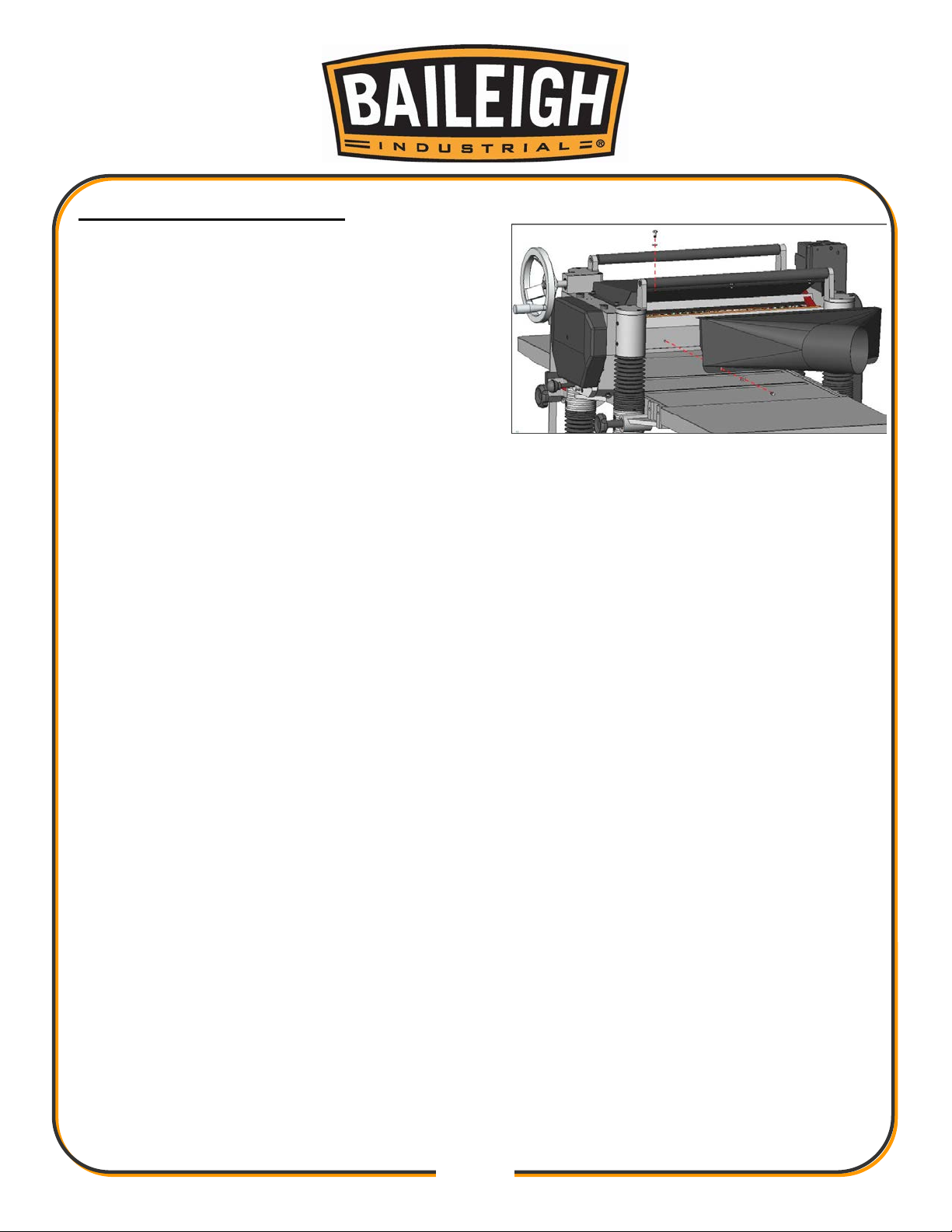

Fig. 4
DUST CHUTE ASSEMBLY
1. Mount the dust chute to the planer hood with
hex head screws & flat washer.
2. Make sure the dust collection system has
sufficient capacity and suction for your planer.
3. Always turn on the dust collection system
before starting the planer. (Fig. 4).
16
16
ELECTRICAL
CAUTION: HAVE ELECTRICAL UTILITI ES CONNECTED TO M ACHINE BY
A CERTIFIED ELECTRICIAN!
Check if the available power supply is the same as listed on the machine nameplate.
WARNING: Make sure the grounding wire (green) is properly connected
to avoid electric shock. DO NOT switch the position of the green grounding wire if
any electrical plug wires are switched during hookup.
Power Specifications
Your machine is wired for 220 volts, 60hz alternating current. Before connecting the machine to
the power source, make sure the power source is OFF.
Before switching on the power, you must check the voltage and frequency of the power to see if
they meet with the requirement, the allowed range for the voltage is ±5%, and for the frequency
is ±1%.
Considerations
• Observe local electrical codes when connecting the machine.
• The circuit should be protected with a time delay fuse or circuit breaker with a amperage
rating slightly higher than the full load current of machine.
• A separate electrical circuit should be used for your machine. Before connecting the motor to
the power line, make sure the switch is in the “OFF” position and be sure that the electric
current is of the same characteristics as indicated on the machine.
• All line connections should make good contact. Running on low voltage will damage the
motor.
• In the event of a malfunction or breakdown, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock. This machine is equipped with an electric
cord having an equipment-grounding conductor and a grounding plug. The plug must be
plugged into a matching outlet that is properly installed and grounded in accordance with all
local codes and ordinances.
WARNING: In all cases, make certain the receptacle in question is
properly grounded. If you are not sure, have a qualified electrician check the
receptacle.
17
17
LENGTH
AMP RATING
25ft
50ft
100ft
1-12
16
16
14
13-16
14
12
12
17-20
12
12
10
21-30
10
10
No
WIRE GAUGE
• Improper connection of the equipment-grounding conductor can result in risk of electric
shock. The conductor with insulation having an outer surface that is green with or without
yellow stripes is the equipment-grounding conductor. If repair or replacement of the electric
cord or plug is necessary, do not connect the equipment-grounding conductor to a live
terminal.
• Check with a qualified electrician or service personnel if the grounding instructions are not
completely understood, or if in doubt as to whether the machine is properly grounded.
• Repair or replace damaged or worn cord immediately.
Extension Cord Safety
Extension cord should be in good condition and meet the minimum wire gauge requirements
listed below:
An undersized cord decreases line voltage, causing loss of power and overheating. All cords
should use a ground wire and plug pin. Replace any damaged cords immediately.
Power cord connection:
1. Turn the main disconnect switch on the control panel to the OFF position.
2. Unwrap the power cord and route the cord away from the machine toward the power supply.
a. Route the power cord so that it will NOT become entangled in the machine in any
way.
b. Route the cord to the power supply is a way that does NOT create a trip hazard.
3. Connect the power cord to the power supply and check that the power cord has not been
damaged during installation.
4. When the machine is clear of any obstruction. The main power switch may be turn ON to test
the operation. Turn the switch OFF when the machine is not in operation.
18
18
ELECTRICAL DIAGRAM
19
19
Fig. 7
Fig. 5
Fig. 6

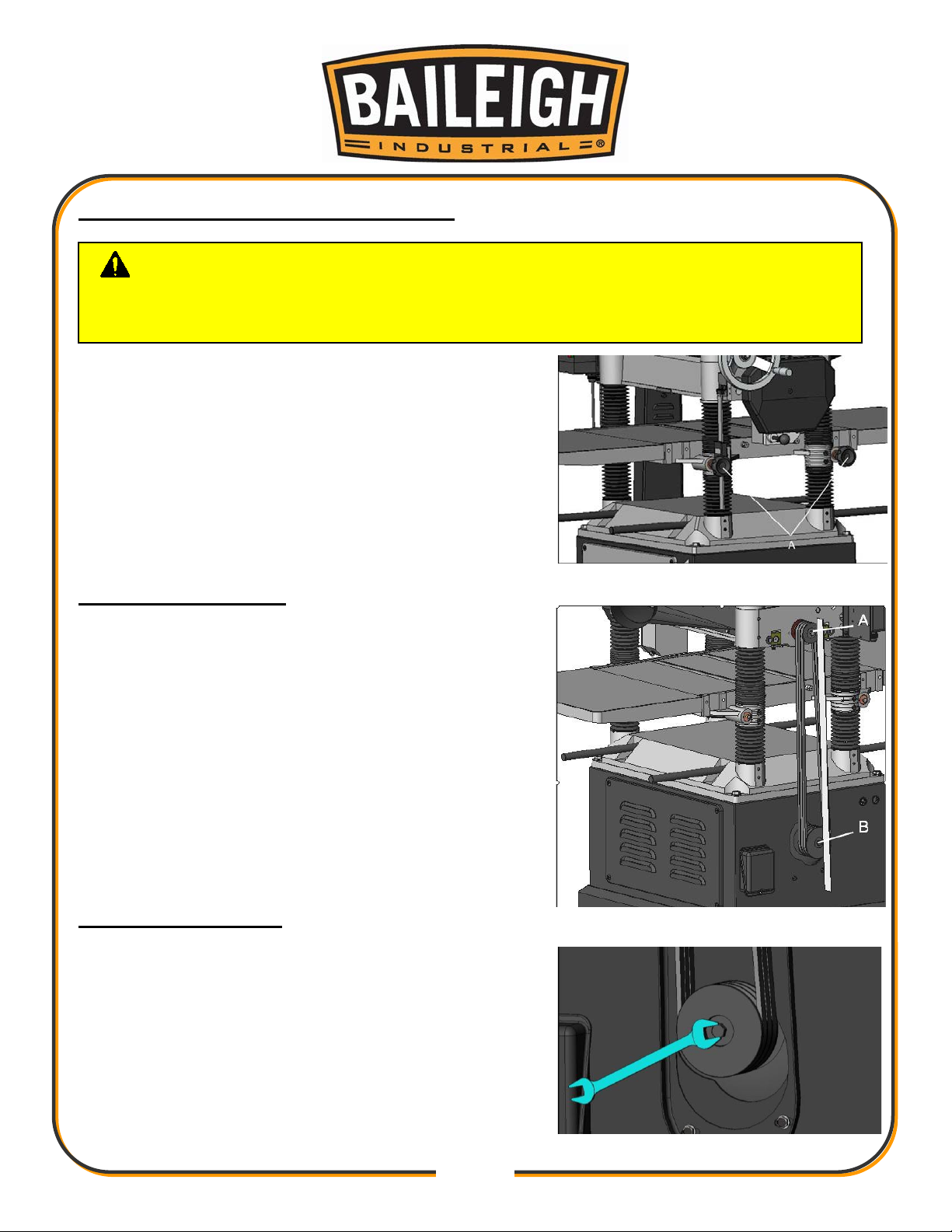

CONTROL THE DEPTH OF CUTTING
CAUTION: Always wear proper eye protection with side shields, face
shield, safety footwear, and leather gloves to protect from, chips, dust, burrs, and
slivers.
The cutting depth scale is a combination of inch / metric
scale, the cutting range is from 0 to 8" (204 mm). The
distance between upward or downward of driving
handle is 0.059" (1.5mm) one complete turn.
Before adjusting the table upward, or downward; loosen
nut (A), after positioning to required position, tighten nut
(A) again to hold in position. (Fig. 5)
CHECKING PULLEY
To verify that motor pulley (B) is in line with the shaft
pulley of (A), using the edge of a straight scale check to
see if they are on-line with each other (Fig. 6).
Adjusting Motor Mount
If motor pulley B and shaft pulley A, are not on-line
loosen screw as shown in (Fig. 7), move shaft to left and
right until adjusted to proper position and tighten the
screw again.
20
20
Fig. 8
Fig. 9
Fig. 10

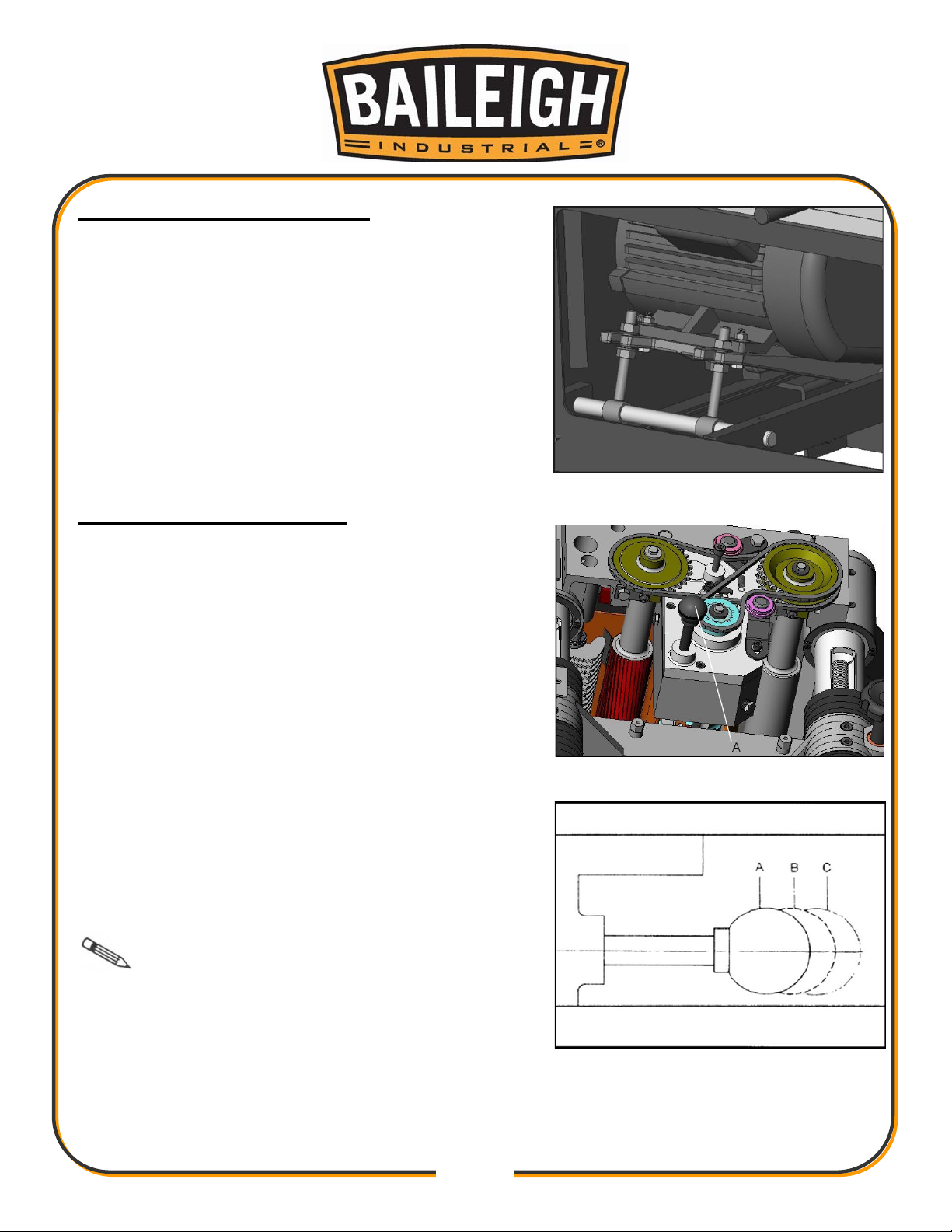

ADJUSTING BELT TENSION
Use the two bolts to adjust the belt tension (Fig. 8).
When achieved proper position of adjustment tighten
bolts to hold in place.

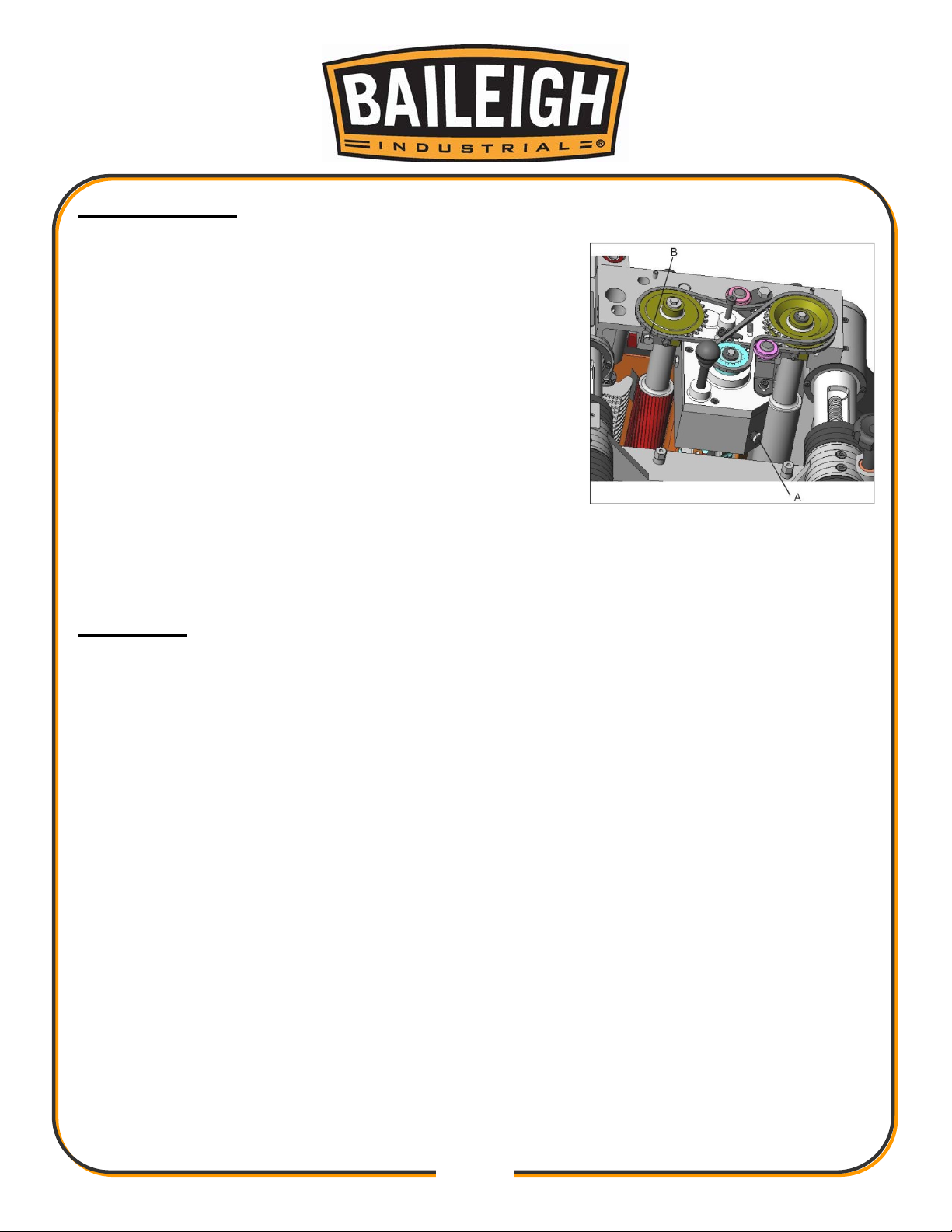

FEED ROLL SPEED RATE
The rate of speed is transmitted by shift gears located
in gear box.
The shift gear handle (Fig. 9) performs with three
different methods of speed by using the shift handle to
pull or push.
Position A: feed roll is functi o ni ng on 20-FPM spee d
rate.
Position B: feed roll is functi o ni ng on 0-spee d r ate.
Position C: feed roll is functioning on 16-FPM speed
rate.
Note: Only change gears when the motor
is running.
21
21
Fig. 11
Fig. 12
Fig. 13

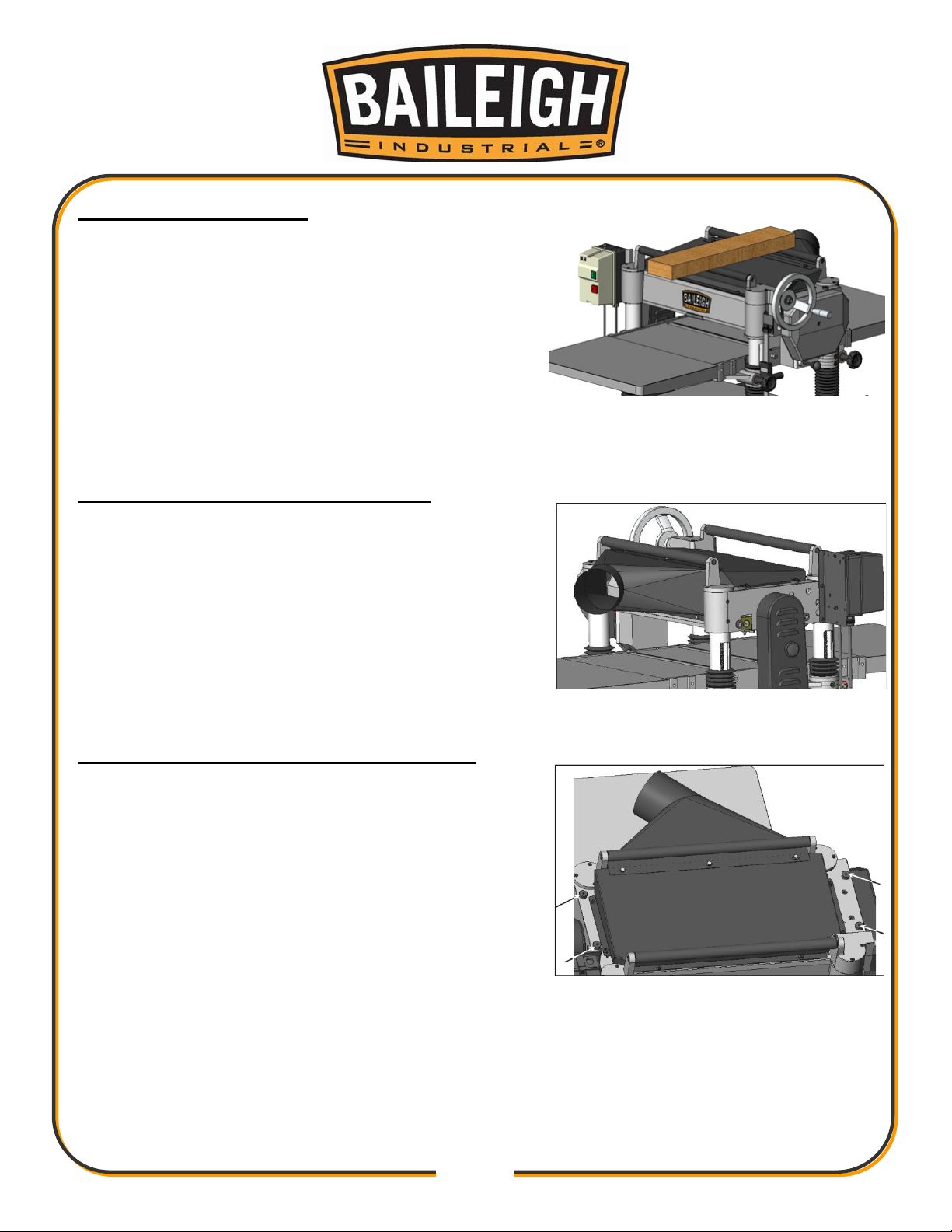

ROLL TRANSMITTING
The purpose of the roll located on top of machine, is
transmitting stock after cutting and shaving
workpieces. This roll will save you lots of time and will
speed up you’re working rate. (Fig. 11)
CONNECTING DUST COLLECTOR
Connect dust collector system to hood of machine,
located at the back of machine. The dust collector will
collect all dust and particles while molding in process,
this system will give a clean and safe working
environment. (Fig. 12)
FEEDROLL PRESSURE AJDUSTMENT
The pressure of the feed roll will depend on the
pressure set by the springs, and screws.
To adjust the pressure, you must loosen or tighten the
lever. There are two sets of springs on both ends of the
feed roll, to ensure great results make sure both sides
are at the same level pressure. (Fig. 13)
22
22
Fig. 14
Fig. 15

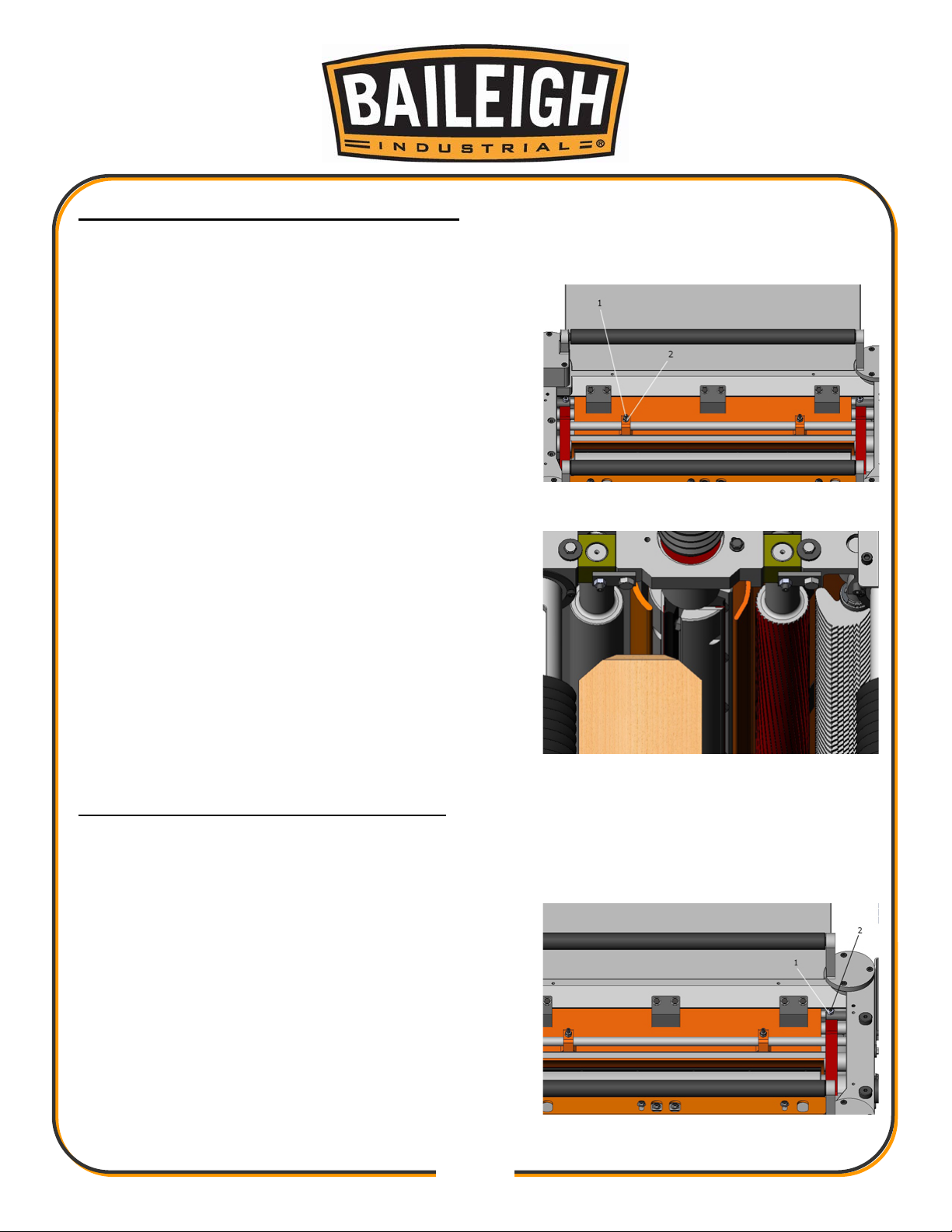

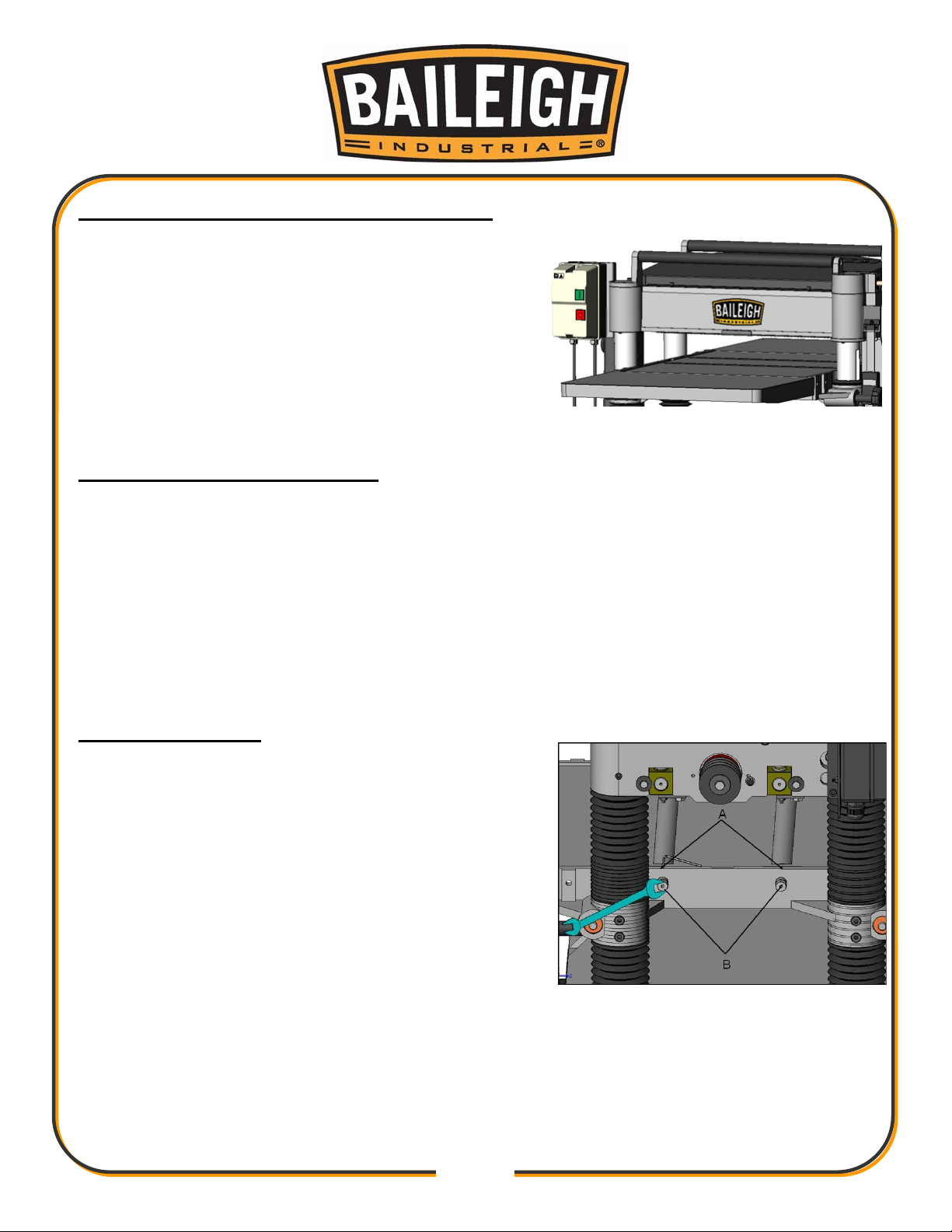

ADJUSTMENT TRANSMITTING ROLLER
Verify that roller and table are both at the same height.
(Fig. 14)
ADJUSTING TABLE ROLLER
To reduce friction between stock and table, two table rollers have been assembled on machine.
Adjustments will be needed when planning with the different types of wood.
• Roller must be adjusted high, when planning rough wood.
• Roll must be adjusted low, when planning smooth wood.
ADJUST ROLLER
• UNPLUG OR DISCONNECT PLANER FROM
POWER SOURCE AND LOCK OUT POWER.
• Place a straight level on table roll, loosen screw (A)
adjust your shaft (B) to the proper height and tighten
back the screw to hold in position. (Fig. 15)
Always check to make sure that the fr ont an d back
height are the same. There must be no slant between
roller and table.
23
23
Fig. 17
Fig. 16

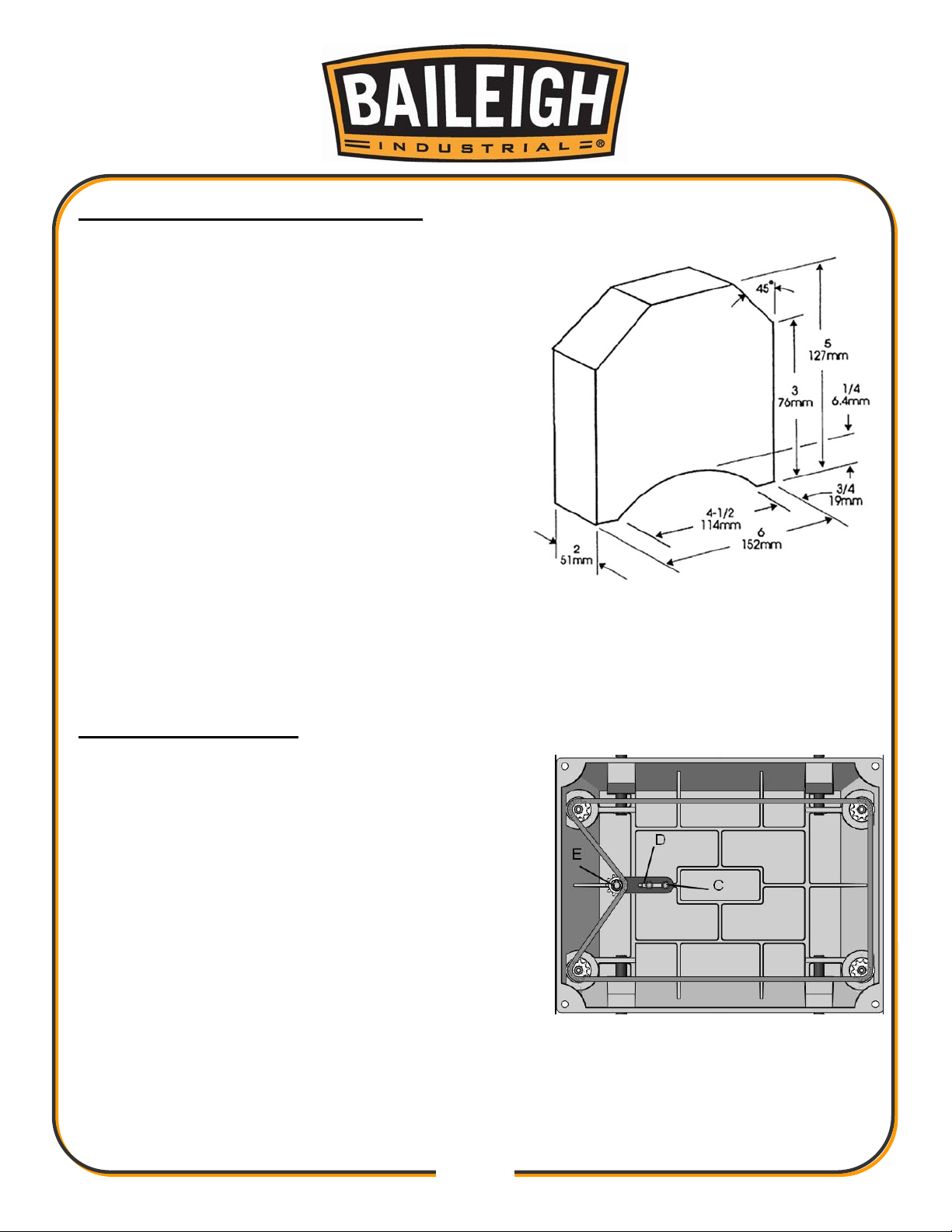

CONSTRUCTING GAUGE BLOCK
• UNPLUG OR DISCONNECT PLANER FROM
POWER SOURCE AND LOCK OUT POWER.
The manufacturer has adjus t ed all mac hi nes be fore
delivery.
Verify that the screws are properly tightened.
The only time you will have to adjust your machine
is when it has been functioning for a long time.
The adjustment will have to be made to adjust the
precision of the machine.
Always check the adjustments before starting on a
new project.
To check you will need the following supplies.
• Straight scale
• Thickness gauge
• Gauge block of hard wood made with the dimensions as shown in Fig. 16.
ASSEMBLING CHAIN
If head casting is not parallel to table, tilt planer on its
side. Remove bolt C and loosen bolt (D) (Fig. 17). This
will enable you to move the idler sprocket assembly (E)
this procedure will release the tension of the chain.
Remove chain from sprocket on the end that must be
adjusted. When chain has to be released, do not turn
the sprocket more than one or two teeth. Turn sprocket
clockwise to decrease the di st anc e, and cou nter
clockwise to increase the distance between the head
casting and table.
24
24

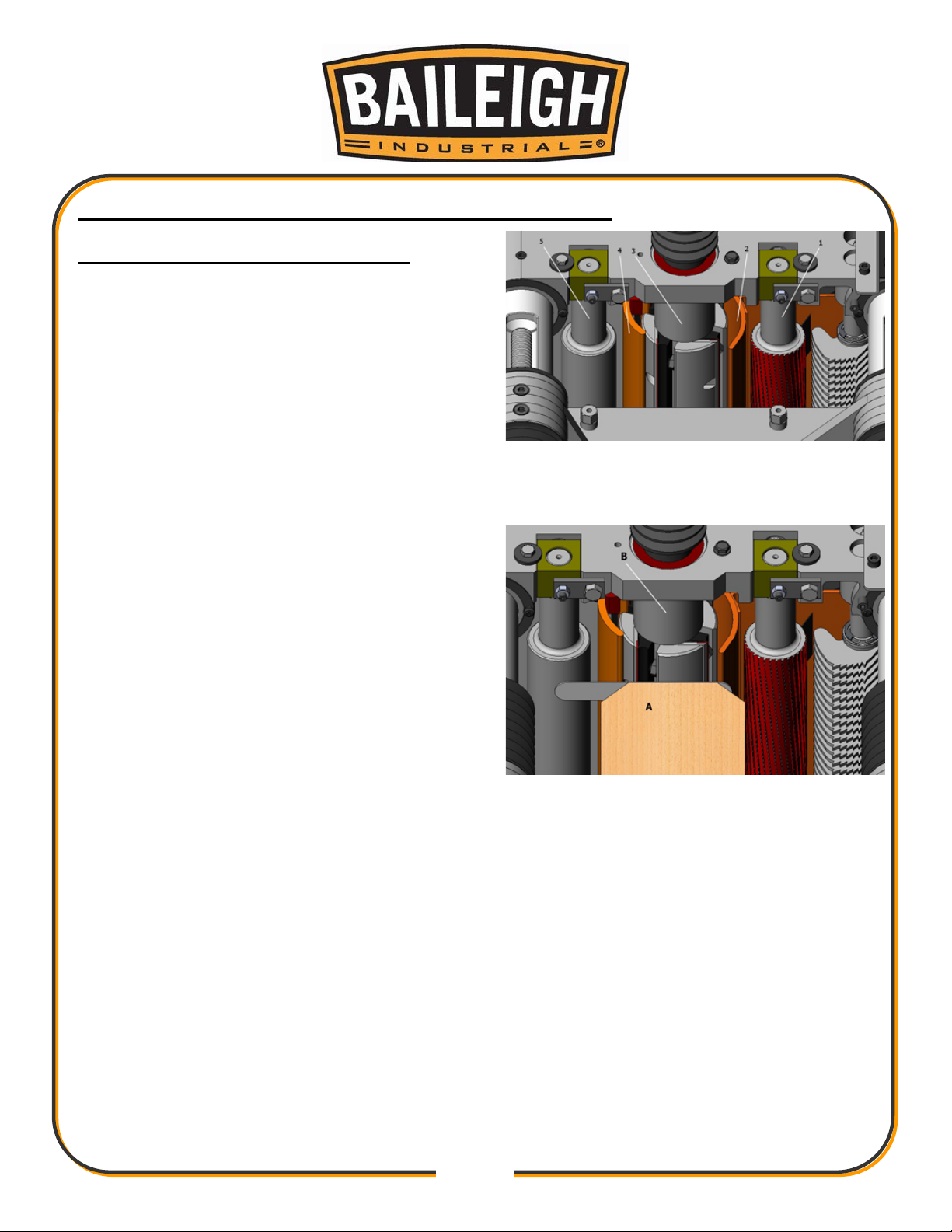

Fig. 18
Fig. 19
ADJUSTING CUTTING HEAD PARALLEL TO TABLE
Cutting Head and Roller Components
1 Infeed Roller
2 Chipbreaker
3 Cutter Head
4 Casting
5 Outfeed Roller
All parallel adjustments have been made to table
before shipment, no further adjustments are
required. The only verification you should make is
to check indirectly the parallel of the cutter head
and table. Proceed with the following:
1. UNPLUG OR DISCONNECT PLANER FROM
POWER SOURCE AND LOCK OUT POWER.
2. Place gauge block between upper head
casting and table, make them contact slightly.
(Fig. 19).
3. Move gauge block to the opposite side,
making them to the same height.
4. Follow the same procedures to check the backside.
25
25
Fig. 20
Fig. 21

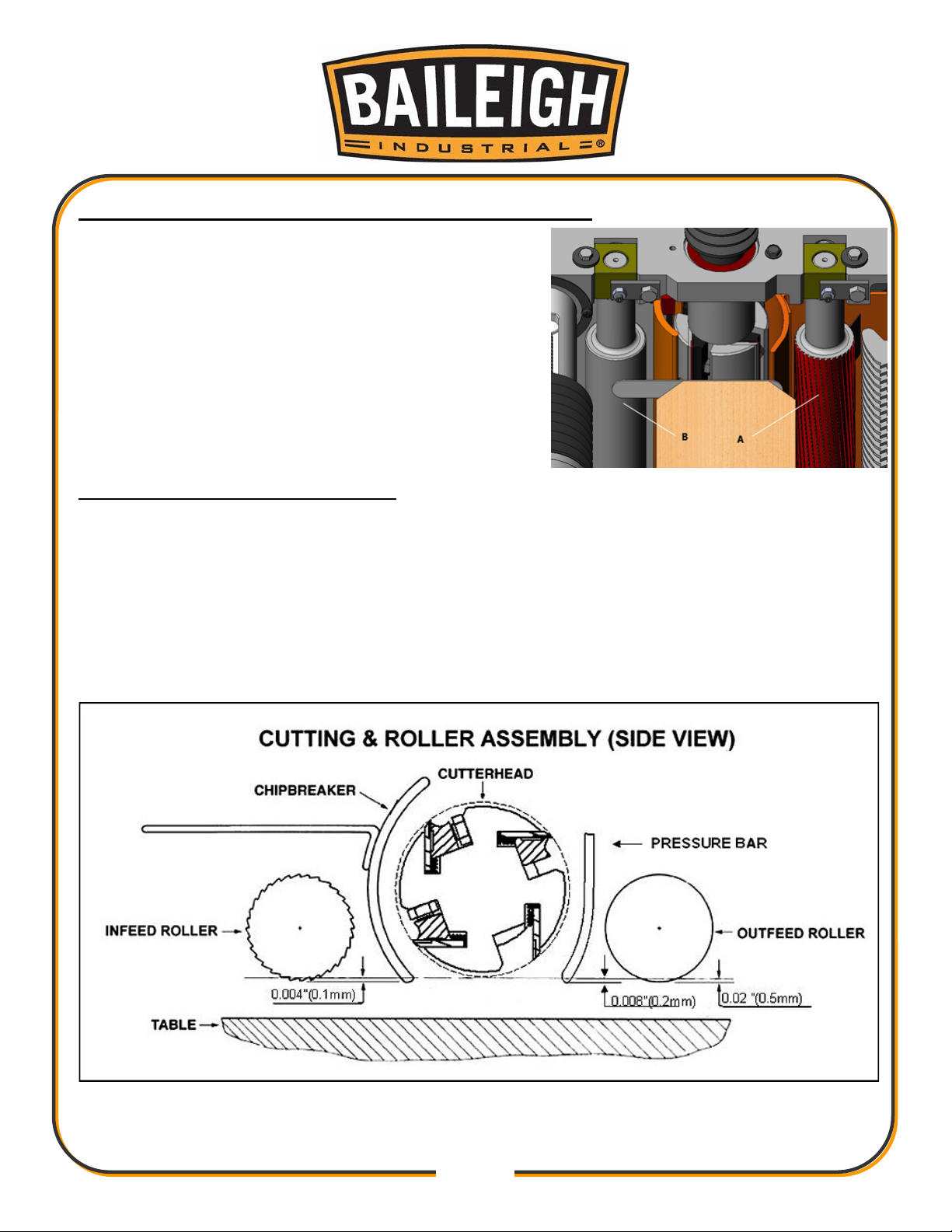

ADJUSTING SPRING TENSION OF FEED ROLLER
The infeed roller (A) and the outfeed roller (B) are two
of the major parts of automatic transmitting of planer.
(Fig. 20).
To control pressure, spring tensions are used.
Adjusting Infeed and Outfeed Roller
Before starting with the adjustment, you must check the position of the cutting head. You will
need;
• Thickness gauge 0.5m/m
• Gauge block
Figure 21 shows the relative dimensions of the Cutter Head and Roller assembly. (Fig. 21).
26
26

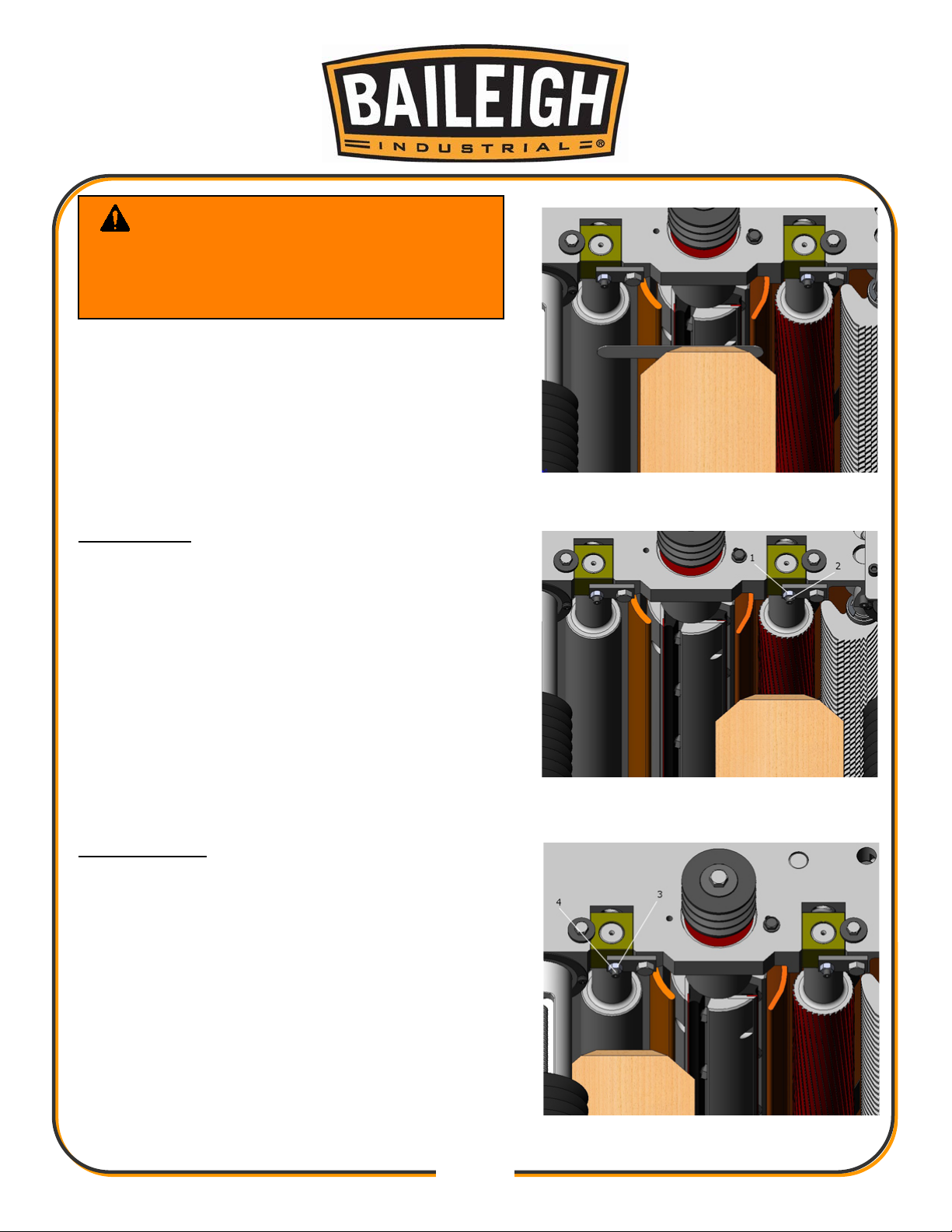

Knife inserts are
extreme caution
when working with or around the knife
Fig. 22
Fig. 23
Fig. 24
WARNING:
dangerously sharp. Use
inserts.
1. UNPLUG OR DISCONNECT PLANER FROM
POWER SOURCE AND LOCK OUT POWER.
2. Place gauge block under the cutterhead.
3. Raise the table and rotate the cutter head until the
blade just contacts the gauge block.
Infeed Roller
1. Place gauge block under the infeed roller. (Fig.
23).
2. Loosen nut (2) and turn screw (1). This will make
the infeed roller move upwards, or downwards.
3. Make infeed roller touch the top of gauge block.
4. Once adjusted, turn the nut tightly (2), and replace
screw (1).
5. The same procedures apply for the other end.
Outfeed Roller
1. Place gauge block under outfeed roller. (Fig. 24)
2. Loosen nut (3) and screw (4). This will allow for the
outfeed roller to move upw ar ds, or downwards.
3. Make the roller touch the top of gauge block.
4. When adjustments have been finished, tighten nut
(3), and replace screw (4).
5. The same procedures apply for the other end.
27
27
Fig. 25
Fig. 26
Fig. 27
CHECK HEIGHT OF PRESSURE BAR
When adjusting pressure bar, the correct position of wooden gauge and 0.2mm thickness gauge
must be as shown in (Fig. 21).
1. UNPLUG OR DISCONNECT PLANER FROM
POWER SOURCE AND LOCK OUT POWER.
2. Loosen screw (1) and nut (2). Turn the screw to
the right so that the pressure bar moves upward.
(Fig. 25).
3. Place gauge block and 0.2mm thickness gauge
under the cutterhead as shown in (Fig. 26).
4. Place gauge block under pressure bar.
5. Make pressure bar touch the top of the gauge
block.
6. Turn the screw (1) tightly and replace the nut (2).
CHECK HEIGHT OF CHIPBREAKER
When adjusting the chipbreaker, the correct position of wooden gauge and 0.1mm thickness
gauge must be, as shown in (Fig. 26). Adjust process of screw and nut as shown in (Fig. 27).
1. Place wooden gauge and thickness gauge as
shown in (Fig. 26)
2. Loosen screw (1) and nut (2). Turn screw to the
right to make chipbreaker move upward.
3. Place gauge block under the chipbreaker.
4. Make chipbreaker move downwards slowly until it
touches the top of the gauge block.
5. Once adjusted, turn screw (1) tightly, and replace
the nut (2).
28
28
MAINTENANCE
WARNING: Make sure the electrical disconnect is OFF before working on
the machine.
Maintenance should be performed on a regular basis by qualified personnel.
Always follow proper safety precautions when working on or around any machinery.
Maintenance on your planer should be done at periodic intervals to ensure that the machine is
in good working order. Inspection and maintenance should be performed at least twice a year
but more often if the lathe receives constant use.
• Check daily for any unsafe conditions and fix immediately.
• Check that all nuts and bolts are properly tightened.
• Do a general cleaning by removing dust and chips from the machi n e.
• On a weekly basis clean the machine and the area around it.
• Lubricate threaded components and sliding devices.
• Apply rust inhibitive lubricant to all non-painted surfaces.
Note: Proper maintenance can increase the life expectancy of your machine.
• Check all fasteners to make sure they are tight and check all adjustments that they are in
order.
• Clean and oil the tables so that the material will slide easily. Clean any rust spots that may
develop on the bed with a commercial rust remover.
• Use compressed air to blow out the interior of the machine in order to keep chips and
sawdust from accumulating on the belts and pulleys.
• Check the drive belt for tightness. It should be snug but not overly tight.
• Use a mill file to remove any nicks or dings from the infeed or outfeed tables.
Note: When cleaning chips and debris from the machine, use a brush and a shop
vacuum. DO NOT blow off the machine with compressed air. The force of the compressed air
may force chips into critical mechanisms or may inflict injury to yourself or others.
29
29

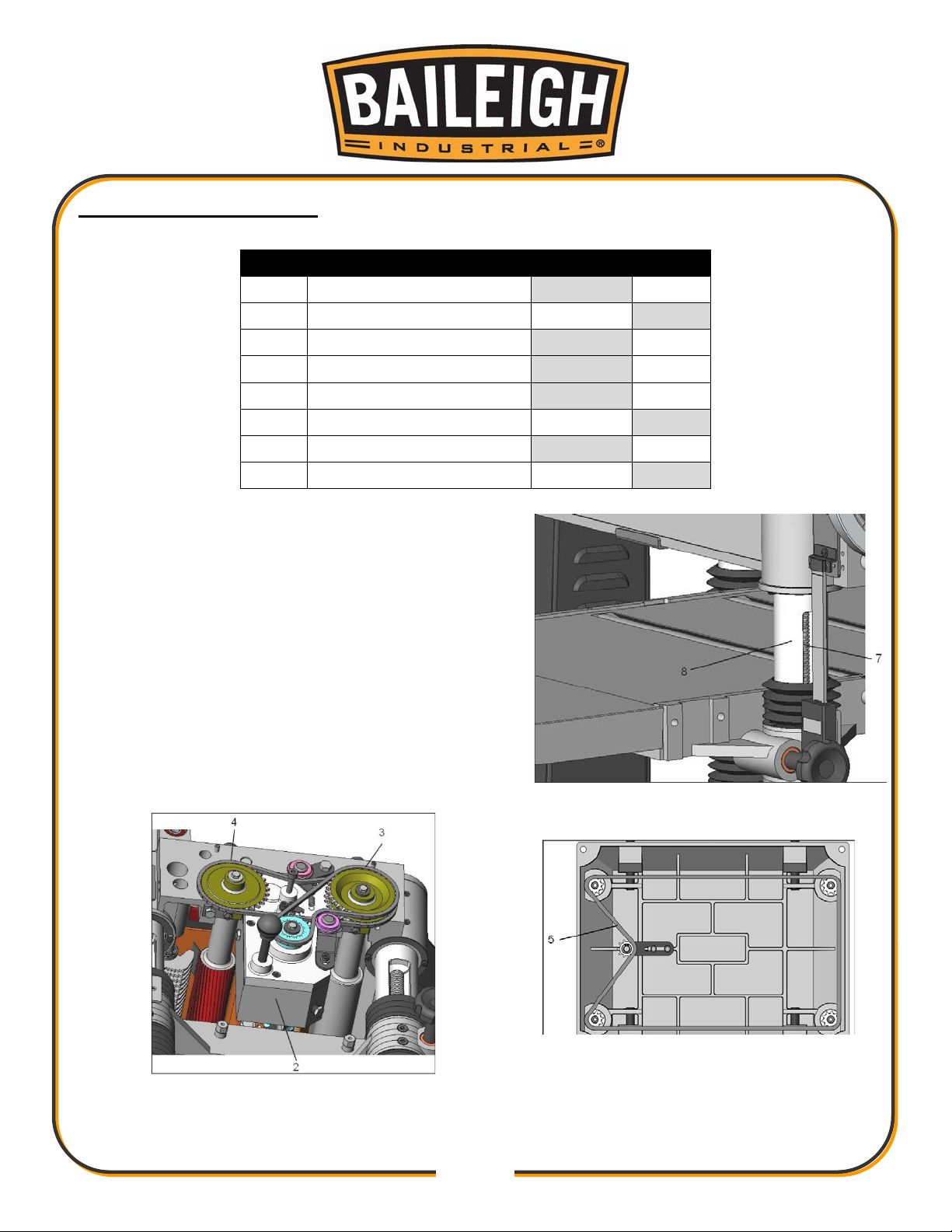

No.
Position
Grease
Oil
1
Worm Gear
Yes
No
2
Gear Box
No
Yes
3
Chain
Yes
No
4
Chain
Yes
No
5
Chain
Yes
No
6
Bracket
No
Yes
7
Lead Screw
Yes
No
8
Column Clean & Oil
No
Yes
Fig. 29
Fig. 30
Fig. 31
Parts Lubrication Required
• Worm Gear is used to adjust the table up or
down. (Fig. 29)
• The oil in Gear Box must be changed after 2500
hours of work. (Fig. 30)
• All chains must be lubricated regularly. (Fig. 31)
30
30
Fig. 32
Change Lubricant
When lubrication needs to be changed:
1. UNPLUG OR DISCONNECT PLANER FROM POWER
SOURCE AND LOCK OUT POWER.
2. Remove the gear box and chain drive cover.
3. Place a suitable container under the drain plug (A).
4. Remove the drain plug (A) and allow the old lubrication
to fully drain.
5. Install and tighten the drain plug (A).
5. Remove the fill plug (B) on the left side of the gearbox
and fill the gearbox until the oil just reaches the bottom
of the fill port. Fill is approximately 1qt. (.94L) of a 70W
to 75W gear oil. 75W-85 is acceptable.
6. Install and tighten the fill plug (B).
Oil Disposal
Used oil products must be disposed of in a proper manner following your local regulations.
31
31

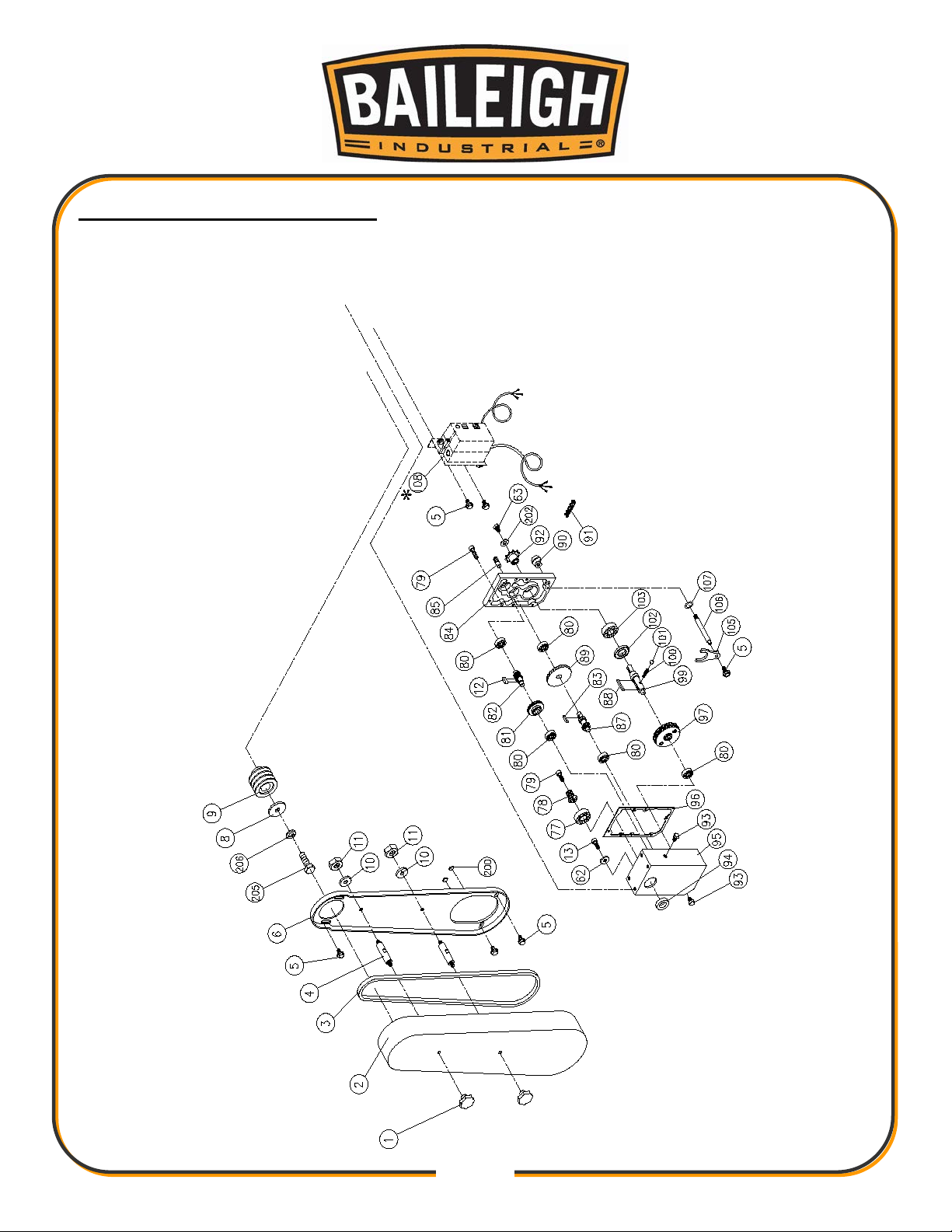

To Parts
Sheet 2
PARTS DIAGRAM – SHEET 1
32
32
From Parts
Sheet 1
PARTS DIAGRAM – SHEET 2
33
33
PARTS DIAGRAM – SHEET 3
34
34
PARTS DIAGRAM – SHEET 4
35
35
Item
Descriptions
Specification
Qty.
1
Nut 2
2
Belt Guard
1
3
V-Belt
M59 3 4
Stud Pivot
2
5
Hex Screw With Washer
M6 x 1.0P x 12
24
6
Guard
1
7
Hex Screw
M8 x 1.25P x 20
4
8
Flat Washer
8.2 x 30 x 4.0T
1
9
Cutterhead Pulley
1
10
Flat Washer
8.5 x 16 x 1.5T
2
11
Hex Nut
5/16"-18NC (12.7B x 6.75H)
2
12
Key
5 x 5 x 12mm
1
13
Cap Screw
M6 x 1.0P x 12
1
15
Dust Chute Assembly
1
18
Dust Hood Assembly
1
19
Cap Screw
M6 x 1.0P x 20
20
20
Roller Bracket
3
21
Key
4 x 4 x 10mm
2
22
Handwheel
1
23
Label 1
24
Flat Washer
10 x 20 x 1.5T
5
25
Hex Nut
M10 x 1.25P (17B x 8H)
7
26
Handle
1
27
Hex Screw
M6 x 1.0P x 12
4
28
Flat Washer
8.5 x 23 x 2.0T
12
29
Cover 1
30
Spring
3
31
Cap Screw
M8 x 1.25P x 50
4
32
Flat Washer
8.2 x 22 x 3.0T
3
33
Bracket
1
34
Shaft 1
35
Chain Tensioner
1
36
Chain Tensioner Shaft
1
Parts List
36
36
Item
Descriptions
Specification
Qty.
37
Side Cover Guard
2
38
Spring Pin
6 x 20mm
2
39
Side Cover
1
40
Screw
4
41
Set Screw
M6 x 1.0P x 16
5
42
Spring
1
43
Hook 1
44
Ball Bearing
6205 1 45
Cap Screw
M6 x 1.0P x 10
2
46
Key
8 x 8 x 36mm
1
47
3 Standard Blades Cutterhead Assembly
1
47.1
Cutter Head
1
47.2
Knife 3
47.3
Flat HD Soc. Screw
M5 x 0.8P x 12
6
47.4
Knife Lock Bar Assembly
3
47.5
Tilt Plate
1
47.6
Knife Gauge
2
47.7
Retaining Ring
ETW-9
4
47A
Helical Cutter Head (IP-156-HH)
JP31
1
47A.1
Cutter Inserts
15x15x2.5T Pkg of 10
68
48
Set Screw
M10 x 1.5P x 12
16
49
Set Screw
M8 x 1.25P x 12
1
50
Spring
4
51
Bushing Block
4
52
Bracket
4
53
Hex Nut
M6 x 1.0P (10B x 5H)
6
55
S-Ring
STW-12
1
56
Head Casting
1
57
Outfeed Roller
1
58
Pan Head Screw
M5 x 0.8P x 12
2
59
Limiter Depth
1
60
Key
5 x 5 x 22
2
61
Sprocket
1
62
Flat Washer
6.2 x 20 x 3.0T
1
63
Hex Screw
M6 x 1.0P x 16
3
37
37
Item
Descriptions
Specification
Qty.
64
Chain
#06B x 63P
1
68
Adjust Shaft
1
69
Stud Pivot
1
70
Hex Nut
M12 x 1.75P (19B x 10H)
1
71
Retaining Ring
ETW-15
2
72
Spacer
40
73
Anti-Kick Finger
39
74
Shaft 1
75
Infeed Roller
1
76
Chain 1
77
Ball Bearing
6204 1 78
Helical Gear
1
79
Cap Screw
M6 x 1.0P x 25
6
80
Ball Bearing
6201 5 81
Gear 1
82
Shaft 1
83
Key
5 x 5 x 10mm
1
84
Gear Cover
1
85
Pin 2
87
Gear Shaft
1
88
Key
6 x 6 x 40mm
1
89
Gear 1
90
Handle
1
91
Chain
#06B x 47P
1
92
Chain Sprocket
1
93
Plug
PT1/4"-19
2
94
Oil Seal
TC28 x 40 x 8
1
95
Gearbox
1
96
Gearbox Gasket
1
97
Gear Assembly
1
98
Roller 2
99
Gear Shaft
1
100
Spring
1
101
Steel Ball
6
1
102
Oil Seal
SC25 x 47 x 6
1
38
38
Item
Descriptions
Specification
Qty.
103
Ball Bearing
6204
1
105
Shifting Claw
1
106
Shaft 1
107
O-Ring
P12
1
108
Magnetic Switch Assembly
3HP, 220V-240V, 1PH
1
108
Magnetic Switch
3HP, 220V-240V, 1PH
1
108
Switch Mounting Plate
1
108
Pan HD Screw
3/16"-24NC x 1-3/4"
2
108
Hex Nut
3/16"-24NC (8B x 4H)
2
109
Tooth Washer
5.3 x 10 (BW-5)
2
109
Power Cord
12AWG, 3C x 1450mm
1
109
Power Cord
12AWG, 3C x 2000mm
1
109
Wire Protector
5/8" 2 110
Plastic Sheet
570 x 440 x 0.05T
1
111

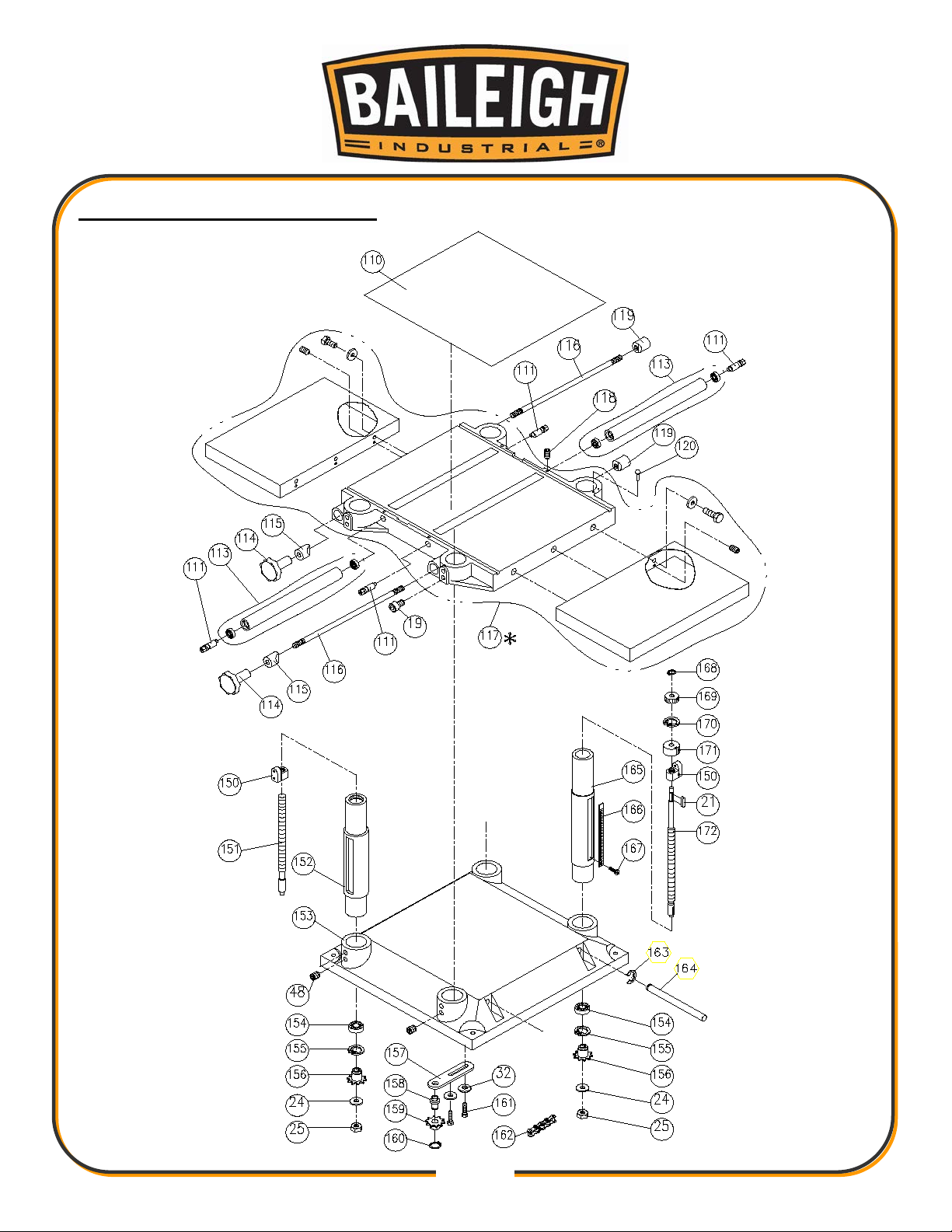

Eccentric Shaft
4
113
Roller Assembly
2
114
Lock Knob
2
115
Lock Smith
2
116
Screw Elevation
2
117.1
Cast Iron Extensi on Table
2
117.2
Extension Table Hardware
1
117.21
Hex Screw
6
117.22
Flat Washer
6
118
Set Screw
M6 x 1.0P x 12
11
119
Lock Smith
2
120
Rivet
2 x 5mm
2
121
Pan Head Screw
M6 x 1.0P x 20
4
122
Cover 1
123
Hex Screw
M8 x 1.25P x 45
4
124
Stand 1
131
Strain Relief
7W-2
2
132
Hex Nut
3/8"-16NC (14.2B x 11.5H)
4
133
Wheel
4
134
Hex Screw
3/8"-16NC x 2-1/2"
4
136
Worm Gear Box
1
39
39
Item
Descriptions
Specification
Qty.
141

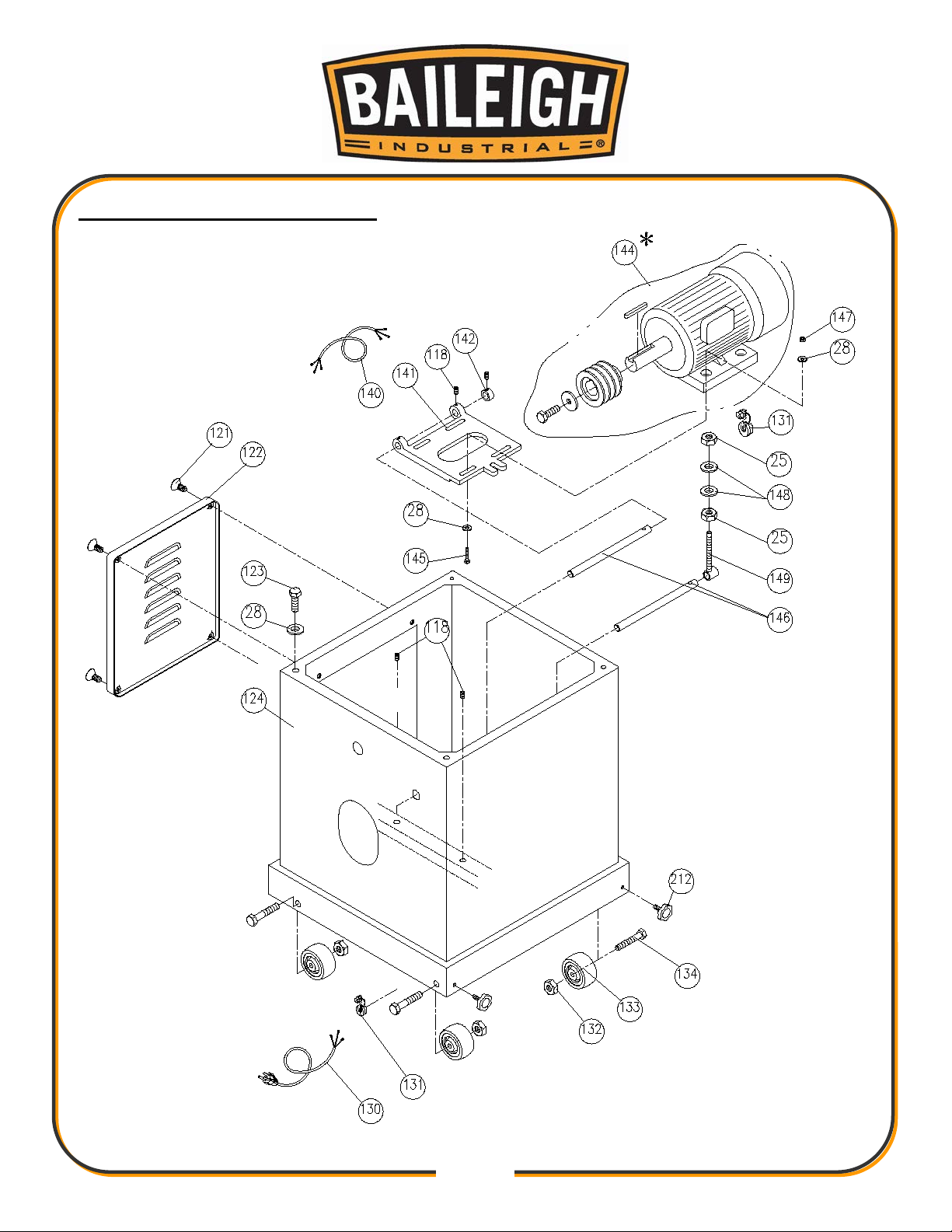

Motor Plate
1
142
Spacer
1
144
Motor Assembly
3HP, 220V, 60HZ, 1PH, 2P
1
145
Hex Screw
M8 x 1.25P x 30
4
146
Shaft 2
147
Hex Nut
M8 x 1.25P (13B x 6.5H)
4
148
Flat Washer
13 x 28 x 3.0T
2
149
Tension Bolt
1
150
Nut 4
151
Lead Screw
3
152
Column
3
153
Base 1
154
Ball Bearing
6202
4
155
Retaining Ring
RTW-35
4
156
Sprocket
4
157
Bracket
1
158
Shaft 1
159
Sprocket
1
160
S-Ring
STW-15
1
161
Hex Screw
M8 x 1.25P x 25
2
162
Chain
#410 x 134P
1
163
Retaining Ring
ETW-12
4
164
Key 4
165
Column
1
166
Scale 1
167
Pan Hd Screw
M3 x 0.5P x 6
1
168
S-Ring
STW-10
1
169
Gear 1
170
Retaining Ring
RTW-38
1
171
Bushing
1
172
Crank Lead Screw
1
181
Hex Wrench
6mm
1
182
Hex Wrench
5mm
1
183
Hex Wrench
4mm
1
184
Hex Wrench
3mm
1
40
40
Item
Descriptions
Specification
Qty.
185
Wrench Box
8 x 10mm
1
186
Wrench Box
12 x 14mm
1
187
Wrench Box
14 x 17mm
1
195
Screw Elevation
1
196
Ball Bearing
6200
1
197
Retaining Ring
RTW-30
1
198
Cap Screw
M8 x 1.25P x 45
1
200
Pad 2
202
Flat Washer
6.2 x 22 x 3T
7
205
Hex Screw
M8 x 1.25P x 30
1
206
Spring Washer
8.2 x 15.4
1
207
Plastic Sheet
1350 x 1330 x 0.1T
1
208
Wood Screw
M6 x 2.6P x 24
16
211
Cap Screw
M5 x 0.8P x 6
1
212
Lock Knob
5/16"-18NC x 3/4"
2
41
41
