Baicells Technologies R700A User Manual

R700 User Manual

Interface

Button

Illustrate

Power Button

Long press over 5 seconds to power on and long press to power off

WPS Button

Press to active the WPS

Reset

The Reset button is on the opposite side of the machine. If you forget Administrator

password or Wireless network key, you can press the Reset key to restore factory

default settings.

LED Indication

Indicator

Color

Working Status

Power LED

Amber

Charging

Blink:
Turn on-0.5s
Turn off-0.5s

Blue

Battery High(100%-50%) or Charge Completed

Green

Battery Middle (50%-10%)

Red

Blink: Battery too low nearly shutdown (<10%)

Purple

Blink: New SMS

Signal LED

Blue

Solid: Regiester to LTE(not connect)

Blink: Connected toLTE network

Red

Solid:No Service/Device Error

Wi-Fi LED

Blue

Solid:No Client

Blink: Client is actived

Blink: WPS is actived

Blink:
Turn on-0.2s
Turn off-0.1s

Installation

Follow the diagram to install the SIM card and SD card

Tips: Always switch the device off and disconnect the charger before removing the battery.

1. Remove the back cover and battery;

2. Insert the SIM card and SD card. Ensure that the contact area on the card is facing down and that the

beveled corner on the card is facing the beveled corner on the holder.

3. Align the battery contacts with the battery compartment connectors, and insert the battery. Replace

the back cover lastly.

Charge

Your battery has been partially charged at the factory. If the device indicates a low charge, do the

following:

1. Connect the charger to a wall outlet.

2. Connect the USB charger plug to your device’s USB port.

3. When the device indicates a full charge, disconnect the charger from the device, then from the wall

outlet.

One：Using charge adapter

Two：Using USB port

R700 Usage

R700 support 4G networks. Insert the SIM card, Wi-Fi devices and the computer can access the Internet

through R700, enjoy high-speed network services. Smart phones, tablet computers, game consoles and

other Wi-Fi devices can be connected with the R700 Wi-Fi connection for Internet access.

Computers & laptops etc may be connected to the R700 via USB cable for Internet Access.

R700 computer for the first time via a USB connection, you need to follow the prompts to install the

driver

Wi-Fi wireless Internet access

In order for a Wi-Fi device to establish a connection with the R700 for the first time, you will need to

select the R700 SSID (Wi-Fi name) & enter the relevant Wi-Fi password, which you may find in the

following ways:

Method one: on the nameplate view the default SSID and Wi-Fi passwords

Method Two: Login management page view

1. Computer, open your browser, input http://192.168.0.1 and enter.

●The default Account is:

admin

●The default Password is

:admin

Enter the Account and Password, login administration pages

2. Enter the Wi-Fi menu; view the default SSID and Wi-Fi password

●The default SSID is:

R700

●The default Wi-Fi Password is:

1234567890

★Recommend that you start using R700 administration pages after setting a convenient landing

memorizing SSID and a higher safety factor Wi-Fi passwords

Install the driver and connecting the device

USB Connection: Windows 7 for example

1. Keep R700 powering on, Plug the device into your computer, it will shows like the following pictures

step by step.

2. Double-click the , wait for the installation to complete

3. Check the network card is installed correctly, like the following pictures

Or,

Establish Wi-Fi connection: you must ensure that the computer equipped with a wireless network

card. If the computer showed the presence of Wi-Fi connectivity, the wireless LAN is available.

Otherwise, you need to check your wireless network card is working properly.

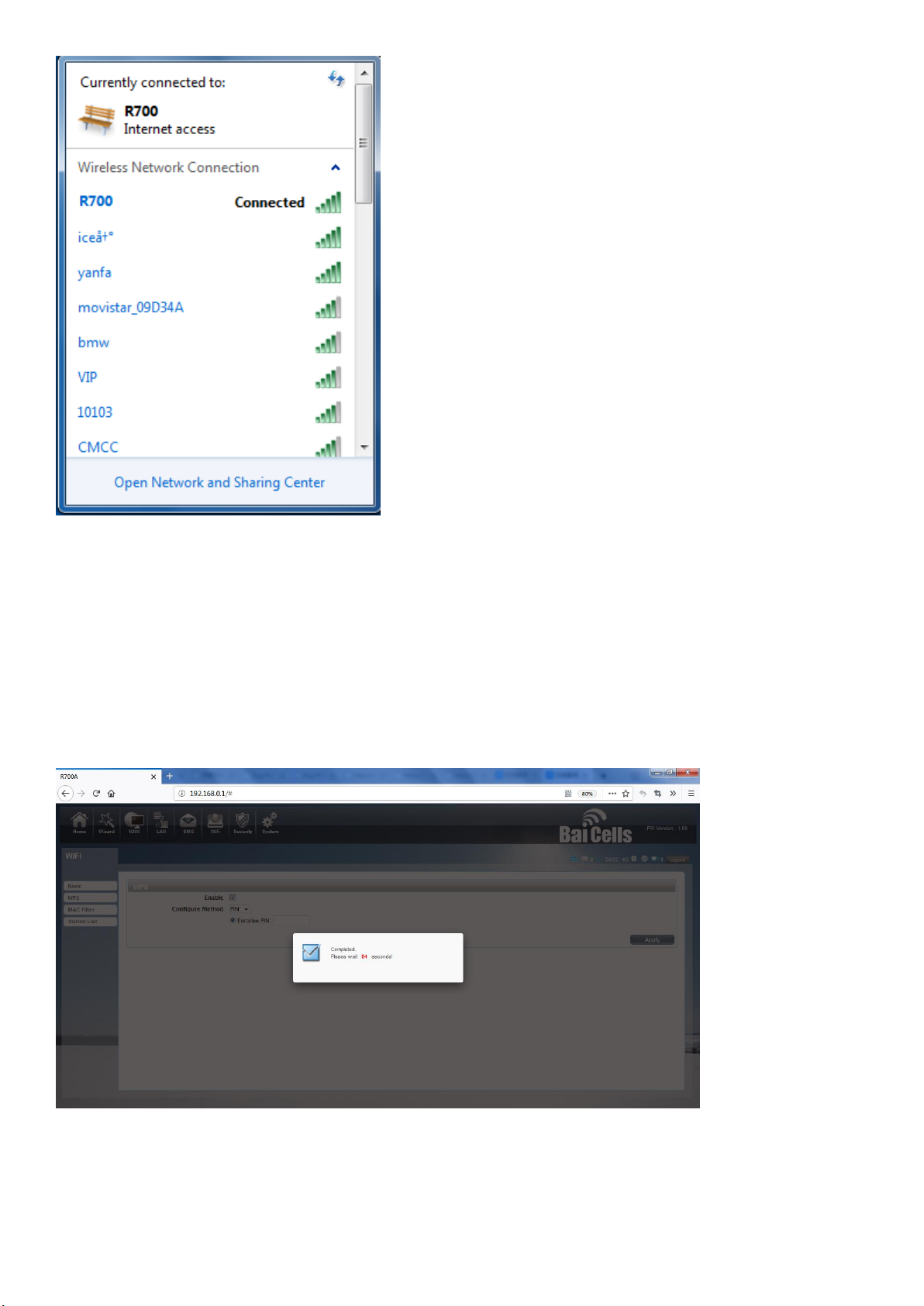

1. In the Wi-Fi list, select the SSID consistent with R700 Wi-Fi, click Connect

2. Enter the correct Wi-Fi password, click OK
