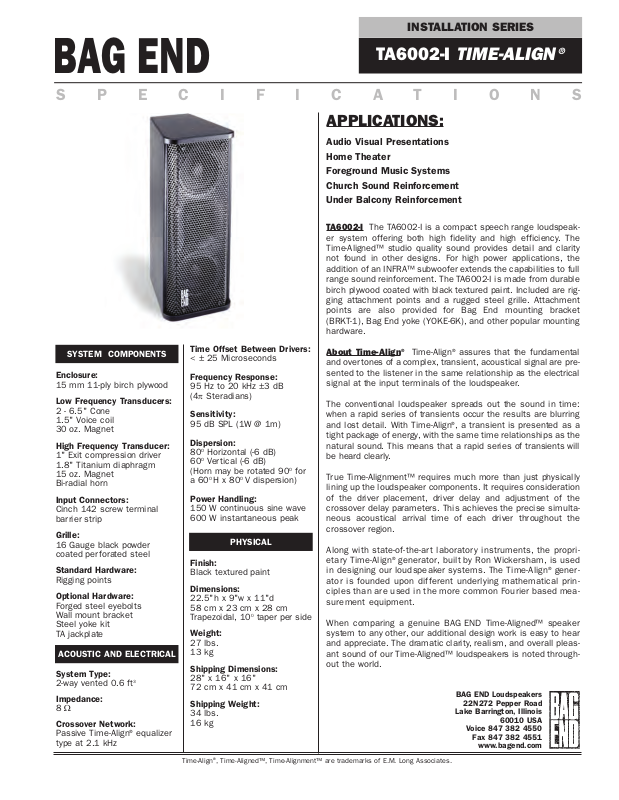

Bag End TA6002-I Specifications

INSTALLATION SERIES

TA6002-I TIME-ALIGN

®

BAG END

S P E C I F I C A T I O N S

APPLICATIONS:

Audio Visual Presentations

Home Theater

Foreground Music Systems

Church Sound Reinforcement

Under Balcony Reinforcement

TA6002-I The TA6002-I is a compact speech range loudspeak­er system offering both high fidelity and high ef ficiency. The
Time-Aligned™ studio quality sound provides detail and clarity
not found in other designs. For high power applications, the
addition of an INFRA™ subwoofer extends the capabilities to full
range sound reinforcement. The TA6002-I is made from durable
birch plywood coated with black textured paint. Included are rig­ging attachment points and a rugged steel grille. Attachment
points are also provided for Bag End mounting bracket
(BRKT-1), Bag End yoke (YOKE-6K), and other popular mounting
hardware.

SYSTEM COMPONENTS

Enclosure:

15 mm 11-ply birch plywood

Low Frequency Transducers:

2 - 6.5" Cone

1.5" Voice coil
30 oz. Magnet

High Frequency Transducer:

1" Exit compression driver

1.8" Titanium diaphragm
15 oz. Magnet
Bi-radial horn

Input Connectors:

Cinch 142 screw terminal
barrier strip

Grille:

16 Gauge black powder
coated per forated steel

Standard Hardware:

Rigging points

Optional Hardware:

Forged steel eyebolts
Wall mount bracket
Steel yoke kit
TA jackplate

ACOUSTIC AND ELECTRICAL

System Type:

2-way vented 0.6 ft

Impedance:

8 Ω

Crossover Network:

Passive Time-Align®equalizer
type at 2.1 kHz

3

Time Offset Between Drivers:

< ± 25 Microseconds

Frequency Response:

95 Hz to 20 kHz ±3 dB

π Steradians)

(4

Sensitivity:

95 dB SPL (1W @ 1m)

Dispersion:

80OHorizontal (-6 dB)

O

60

Vertical (-6 dB)

(Horn may be rotated 90

O

H x 80OV dispersion)

a 60

Power Handling:

150 W continuous sine wave
600 W instantaneous peak

PHYSICAL

Finish:

Black textured paint

Dimensions:

22.5"h x 9"w x 11"d
58 cm x 23 cm x 28 cm
Trapezoidal, 10

Weight:

27 lbs.
13 kg

Shipping Dimensions:

28" x 16" x 16"
72 cm x 41 cm x 41 cm

Shipping Weight:

34 lbs.
16 kg

Time-Align®, Time-Aligned™, Time-Alignment™ are trademarks of E.M. Long Associates.

0

taper per side

O

for

About Time-Align

and overtones of a complex, transient, acoustical signal are pre­sented to the listener in the same relationship as the electrical
signal at the input terminals of the loudspeaker.

The conventional loudspeaker spreads out the sound in time:
when a rapid series of transients occur the results are blurring
and lost detail. With Time-Align
tight package of energy, with the same time relationships as the
natural sound. This means that a rapid series of transients will
be heard clearly.

True Time-Alignment™ requires much more than just physically
lining up the loudspeaker components. It requires consideration
of the driver placement, driver delay and adjustment of the
crossover delay parameters. This achieves the precise simulta­neous acoustical arrival time of each driver throughout the
crossover region.

Along with state-of-the-ar t laborator y instr uments, the propri­etar y Time-Align
in designing our loudspeaker systems. The Time-Align
ator is founded upon different underlying mathematical prin­ciples than are used in the more common Fourier based mea­surement equipment.

When comparing a genuine BAG END Time-Aligned™ speaker
system to any other, our additional design work is easy to hear
and appreciate. The dramatic clarity, realism, and overall pleas­ant sound of our Time-Aligned™ loudspeakers is noted through­out the world.

®

Time-Align®assures that the fundamental

®

generator, built by Ron Wickersham, is used

®

, a transient is presented as a

®

gener-

BAG END Loudspeakers

22N272 Pepper Road

Lake Barrington, Illinois

Voice 847 382 4550

60010 USA

Fax [phone]

www.bagend.com

TA6002-I

GGRRIILLLLEE

POWDER
COATED STEEL
T6002G−1

RRAADDIIAALL HHOORRNN
E−601

SSCCRREEWW
#8 x 3/4"
PHIL PH SMS
Z−101 (4)

LLFF DDRRIIVVEERR
E−6A (2)

RRUUBBBBEERR
SSEEAALL
1/4" X 21"
Z−515 (2)

GGAASSKKEETT TTAAPPEE
Z−516

HHFF DDRRIIVVEERR
E−600

RRIIGGGGIINNGG
PPOOIINNTT

GGAASSKKEETT
LLOOOOPP
Z−519

AACCOOUUSSTTIICC FFOOAAMM
Z−528

BBOOLLTT

5/16"−18 x 1 1/4"
HEX SOCKET FH CAP
Z−120 (7)

RRIIGGGGIINNGG AANNDD
MMOOUUNNTTIINNGG
PPOOIINNTTSS

CCRROOSSSSOOVVEERR
HELD WITH SCREWS
#8 x 3/4" PHIL PH SMS
Z−101 (4)

RRIIGGGGIINNGG
PPOOIINNTT

SSCCRREEWW
#8 x 1" PHIL PH SMS
Z−102 (4)

BBAARRRRIIEERR
SSTTRRIIPP
CINCH 142
Z−322

T6002X−1

LLOOGGOO
Z−307

SSCCRREEWW
#8 x 3/4"
PHIL FH SMS
Z−103 (4)

SYSTEM SCHEMATIC

WWAASSHHEERR
#8 BLACK NYLON
Z−110 (4)

− BLACK

-

+

BARRIER STRIP INPUT

SSCCRREEWW
#8 x 3/4"
PHIL PH SMS
Z−101 (8)

+ RED

CROSSOVER

+ RED

NNOOTT SSHHOOWWNN::
ACOUSTIC DAMPENER Z−500 (2)

PACKING FOAM SET Z−578 (1)
PLASTIC BAG Z−626 (1)
SHIPPING CARTON Z−644 (1)

+ ORANGE

HF DRIVER
AND HORN

− GREEN

+ RED

LF DRIVER

− BLACK

LF DRIVER

− BLACK
