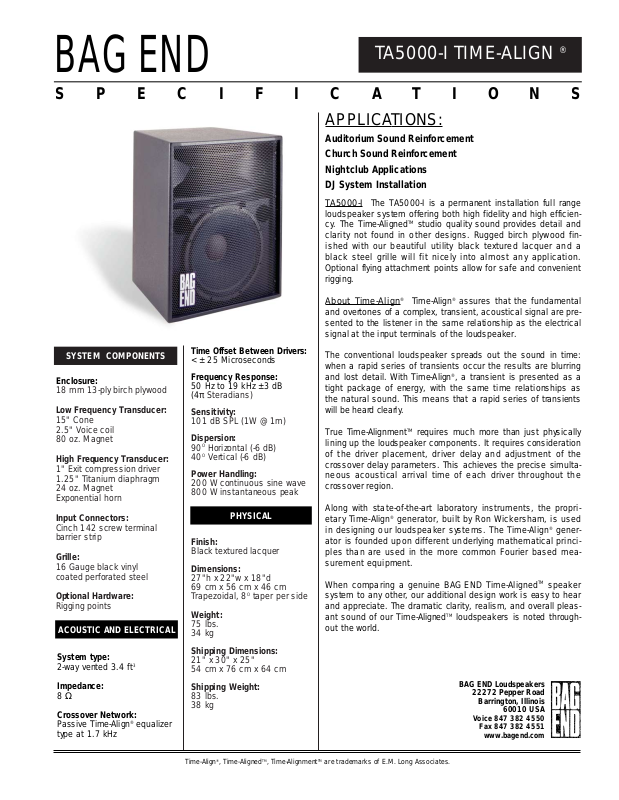

Bag End TA5000-I Specifications

ACOUSTIC AND ELECTRICAL

Enclosure:

18 mm 13-ply birch plywood

Low Frequency Transducer:

15" Cone

2.5" Voice coil
80 oz. Magnet

High Frequency Transducer:

1" Exit compression driver

1.25" Titanium diaphragm
24 oz. Magnet
Exponential horn

Input Connectors:

Cinch 142 screw terminal
barrier strip

Grille:

16 Gauge black vinyl
coated perforated steel

Optional Hardware:

Rigging points

SYSTEM COMPONENTS

PHYSICAL

Time Offset Between Drivers:

< ± 25 Microseconds

Frequency Response:

50 Hz to 19 kHz ±3 dB
(4π Steradians)

Sensitivity:

101 dB SPL (1W @ 1m)

Dispersion:

90

O

Horizontal (-6 dB)

40OVertical (-6 dB)

Power Handling:

200 W continuous sine wave
800 W instantaneous peak

Finish:

Black textured lacquer

Dimensions:

27"h x 22"w x 18"d
69 cm x 56 cm x 46 cm
Trapezoidal, 8

O

taper per side

Weight:

75 lbs.
34 kg

Shipping Dimensions:

21" x 30" x 25"
54 cm x 76 cm x 64 cm

Shipping Weight:

83 lbs.
38 kg

TA5000-I TIME-ALIGN

®

BAG END

SPECIFICATIONS

APPLICATIONS:

Auditorium Sound Reinforcement
Church Sound Reinforcement
Nightclub Applications
DJ System Installation

TA5000-I The TA5000-I is a permanent installation full range
loudspeaker system offering both high fidelity and high efficien­cy. The Time-Aligned

TM

studio quality sound provides detail and
clarity not found in other designs. Rugged birch plywood fin­ished with our beautiful utility black textured lacquer and a
black steel grille will fit nicely into almost any application.
Optional flying attachment points allow for safe and convenient
rigging.

About Time-Align

®

Time-Align®assures that the fundamental
and overtones of a complex, transient, acoustical signal are pre­sented to the listener in the same relationship as the electrical
signal at the input terminals of the loudspeaker.

The conventional loudspeaker spreads out the sound in time:
when a rapid series of transients occur the results are blurring
and lost detail. With Time-Align

®

, a transient is presented as a
tight package of energy, with the same time relationships as
the natural sound. This means that a rapid series of transients
will be heard clearly.

True Time-AlignmentTMrequires much more than just physically
lining up the loudspeaker components. It requires consideration
of the driver placement, driver delay and adjustment of the
crossover delay parameters. This achieves the precise simulta­neous acoustical arrival time of each driver throughout the
crossover region.

Along with state-of-the-art laboratory instruments, the propri­etary Time-Align®generator, built by Ron Wickersham, is used
in designing our loudspeaker systems. The Time-Align®gener­ator is founded upon different underlying mathematical princi­ples than are used in the more common Fourier based mea­surement equipment.

When comparing a genuine BAG END Time-AlignedTMspeaker
system to any other, our additional design work is easy to hear
and appreciate. The dramatic clarity, realism, and overall pleas­ant sound of our Time-AlignedTMloudspeakers is noted through­out the world.

Time-Align®, Time-AlignedTM, Time-AlignmentTMare trademarks of E.M. Long Associates.

BAG END Loudspeakers

22272 Pepper Road

Barrington, Illinois

60010 USA

Voice 847 382 4550

Fax [phone]

www.bagend.com

System type:

2-way vented 3.4 ft

3

Impedance:

8 Ω

Crossover Network:

Passive Time-Align

®

equalizer

type at 1.7 kHz

TA5000-I

LLOOGGOO
Z-301

GGRRIILLLLEE

VINYL
COATED STEEL
T5000G-1

WWAASSHHEERR
#8 BLACK NYLON
Z-110 (4)

HHFF DDRRIIVVEERR
E-500

GGAASSKKEETT LLOOOOPP
Z-520

LLFF DDRRIIVVEERR
E-15

SSCCRREEWW
#10 x 1 1/4"
PHIL PH SMS
Z-104 (6)

SSCCRREEWW
#8 x 3/4"
PHIL FH SMS
Z-103 (4

)

AACCOOUUSSTTIICC FFOOAAMM
Z-526

GGAASSKKEETT TTAAPPEE
Z-516

EEXXPPOONNEENNTTIIAALL
HHOORRNN
E-501

SSCCRREEWW
#10 x 1 1/4"
PHIL PH SMS
Z-104 (8)

BARRIER STRIP INPUT

HF DRIVER
AND HORN

- GREEN

+ ORANGE

LF DRIVER

+ RED

+ RED

- BLACK

- BLACK

CROSSOVER

SYSTEM SCHEMATIC

NNOOTT SSHHOOWWNN::
ACOUSTIC DAMPENER Z-500 (7.5)

SHIPPING CARTON Z-608 (1)
PLASTIC BAG Z-627 (1)
CORNER GUARD Z-629 (4)
EDGE GUARD Z-630 (14)
