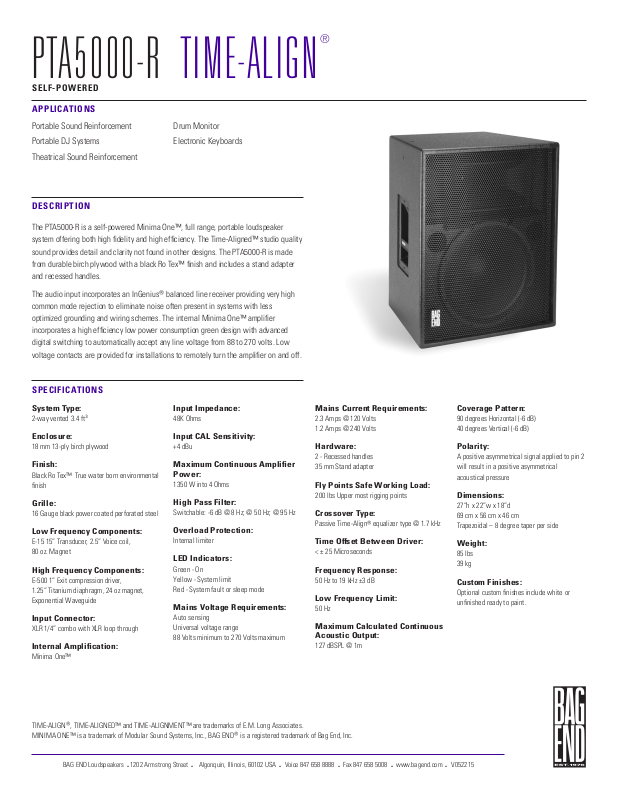

Bag End PTA5000-R Specifications

PTA5000-R TIME-ALIGN

SELF-POWERED

APPLICATIONS

Portable Sound Reinforcement

Portable DJ Systems

Theatrical Sound Reinforcement

DESCRIPTION

The PTA5000-R is a self-powered Minima One™, full range, portable loudspeaker
system offering both high delity and high efciency. The Time-Aligned™ studio quality

sound provides detail and clarity not found in other designs. The PTA5000-R is made

from durable birch plywood with a black Ro Tex™ nish and includes a stand adapter

and recessed handles.

The audio input incorporates an InGenius® balanced line receiver providing very high

common mode rejection to eliminate noise often present in systems with less
optimized grounding and wiring schemes. The internal Minima One™ amplier
incorporates a high efciency low power consumption green design with advanced

digital switching to automatically accept any line voltage from 88 to 270 volts. Low

voltage contacts are provided for installations to remotely turn the amplier on and off.

Drum Monitor

Electronic Keyboards

®

SPECIFICATIONS

System Type:

2-way vented 3.4 ft

Enclosure:

18 mm 13-ply birch plywood

Finish:

Black Ro Tex™ True water born environmental
nish

Grille:

16 Gauge black power coated perforated steel

Low Frequency Components:

E-15 15” Transducer, 2.5” Voice coil,
80 oz. Magnet

High Frequency Components:

E-500 1” Exit compression driver,

1.25” Titanium diaphragm, 24 oz magnet,
Exponential Waveguide

Input Connector:

XLR 1/4” combo with XLR loop through

Internal Amplication:

Minima One™

3

Input Impedance:

48K Ohms

Input CAL Sensitivity:

+4 dBu

Maximum Continuous Amplier

Power:

1350 W into 4 Ohms

High Pass Filter:

Switchable: -6 dB @ 8 Hz; @ 50 Hz; @ 95 Hz

Overload Protection:

Internal limiter

LED Indicators:

Green - On
Yellow - System limit
Red - System fault or sleep mode

Mains Voltage Requirements:

Auto sensing
Universal voltage range
88 Volts minimum to 270 Volts maximum

Mains Current Requirements:

2.3 Amps @ 120 Volts

1.2 Amps @ 240 Volts

Hardware:

2 - Recessed handles
35 mm Stand adapter

Fly Points Safe Working Load:

200 lbs Upper most rigging points

Crossover Type:

Passive Time-Align® equalizer type @ 1.7 kHz

Time Oset Between Driver:

< ± 25 Microseconds

Frequency Response:

50 Hz to 19 kHz ±3 dB

Low Frequency Limit:

50 Hz

Maximum Calculated Continuous
Acoustic Output:

127 dBSPL @ 1m

Coverage Pattern:

90 degrees Horizontal (-6 dB)
40 degrees Vertical (-6 dB)

Polarity:

A positive asymmetrical signal applied to pin 2
will result in a positive asymmetrical
acoustical pressure

Dimensions:

27”h x 22”w x 18”d

69 cm x 56 cm x 46 cm

Trapezoidal – 8 degree taper per side

Weight:

85 lbs

39 kg

Custom Finishes:

Optional custom nishes include white or
unnished ready to paint.

TIME-ALIGN®, TIME-ALIGNED™ and TIME-ALIGNMENT™ are trademarks of E.M. Long Associates.

MINIMA ONE™ is a trademark of Modular Sound Systems, Inc., BAG END® is a registered trademark of Bag End, Inc.

BAG END Loudspeakers . 1202 Armstrong Street . Algonquin, Illinois, 60102 USA . Voice 847 658 8888 . Fax [phone] . www.bagend.com . V.052215

PTA5000-R TIME-ALIGN

ABOUT TIME-ALIGN® TECHNOLOGY

Time-Align® assures that the fundamental and
overtones of a complex, transient, acoustical signal are
presented to the listener in the same relationship as the
electrical signal at the input terminals of the
loudspeaker. The conventional loudspeaker spreads out
the sound in time. When a rapid series of transients
occur the results are blurring and lost detail. With
Time-Align®, a transient is presented as a tight package
of energy, with the same time relationships as the
natural sound. This means that a rapid series of
transients will be heard clearly.

True Time-Alignment™ requires much more than just

physically lining up the loudspeaker components. It

requires consideration of the driver placement, driver

delay and adjustment of the crossover delay parameters.

This achieves the precise simultaneous acoustical arrival
time of each driver throughout the crossover region.

The rst Time-Aligned™ Loudspeaker was invented by
EM Long Associates in 1976 utilizing the Time-Align®

generator invented and built by Ronnald Wickersham. In

1980 Bag End® incorporated Time-Align® technology

into our full range loudspeaker systems. Along with
state-of-the-art laboratory instruments, the proprietary
Time-Align® generator is still in use today to verify the
time domain performance of our loudspeaker systems.
When comparing a genuine Bag End® Time-Aligned™
loudspeaker system to any other, our technology and
design is easy to hear and appreciate. The dramatic
clarity, realism, and overall pleasant sound of our

Time-Aligned™ systems are well noted worldwide.

ABOUT MINIMA ONE™

The Minima One™ is both a high delity and a high
efciency amplier. With efciency well over 80%, the
Minima One™ provides more power to the loudspeakers
and creates less heat in the amplier. In real world

applications there is practically no heat emitted from the

amplier and thus it requires no cooling fan.

Incorporating patented technology the comparison circuit

of the Minima One™ corrects every single cycle to drive

®

error to zero at the end of each cycle. On average, every
4 microseconds, the one cycle modulator transforms and

amplies the input signal into the ideal natural pulse

width modulation. Switching at 250 kHz with the single
cycle error correction insures extremely low distortion
and high reliability. The power factor corrected AC
power input, automatically and continuously adapts to
any voltage between 88 and 270 volts. The Minima

One™ is convenient and stable to operate on any power

grid in the world.

ABOUT OUR RO TEX™ FINISH

The durable Ro Tex™ nish is double layered on Bag
End™ “R” series or Road cabinets. And single layered on
installation or “I” cabinets. Ro Tex™ is a water born
environmentally safe nish. It’s uniquely strong and long
lasting. As it solidies it attaches and bonds to the

wooden cabinet to make a super hard and durable

permanent nish. Its light texture offers an attractive
and rugged nished look

DIMENSIONS
