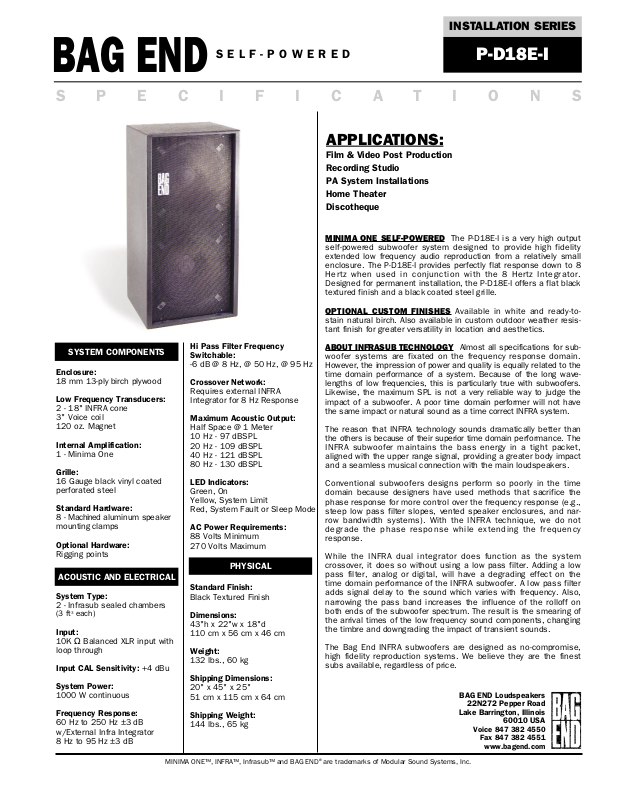

Bag End PD18E-I Specifications

SELF-POWERED

INSTALLATION SERIES

ACOUSTIC AND ELECTRICAL

Enclosure:

18 mm 13-ply birch plywood

Low Frequency Transducers:

2 - 18" INFRA cone
3" Voice coil
120 oz. Magnet

Internal Amplification:

1 - Minima One

Grille:

16 Gauge black vinyl coated
perforated steel

Standard Hardware:

8 - Machined aluminum speaker
mounting clamps

Optional Hardware:

Rigging points

SYSTEM COMPONENTS

PHYSICAL

System Type:

2 - Infrasub sealed chambers

(3 ft3each)

Input:

10K Ω Balanced XLR input with

loop through

Input CAL Sensitivity: +4 dBu

System Power:

1000 W continuous

Frequency Response:

60 Hz to 250 Hz ±3 dB
w/External Infra Integrator
8 Hz to 95 Hz ±3 dB

Standard Finish:

Black Textured Finish

Dimensions:

43"h x 22"w x 18"d
110 cm x 56 cm x 46 cm

Weight:

132 lbs., 60 kg

Shipping Dimensions:

20" x 45" x 25"
51 cm x 115 cm x 64 cm

Shipping Weight:

144 lbs., 65 kg

P-D18E-I

BAG END

Hi Pass Filter Frequency
Switchable:

-6 dB @ 8 Hz, @ 50 Hz, @ 95 Hz

Crossover Network:

Requires external INFRA
Integrator for 8 Hz Response

Maximum Acoustic Output:

Half Space @ 1 Meter
10 Hz - 97 dBSPL
20 Hz - 109 dBSPL
40 Hz - 121 dBSPL
80 Hz - 130 dBSPL

LED Indicators:

Green, On
Yellow, System Limit
Red, System Fault or Sleep Mode

AC Power Requirements:

88 Volts Minimum
270 Volts Maximum

APPLICATIONS:

Film & Video Post Production
Recording Studio
PA System Installations
Home Theater
Discotheque

MINIMA ONE SELF-POWERED The P-D18E-I is a very high output
self-powered subwoofer system designed to provide high fidelity
extended low frequency audio reproduction from a relatively small
enclosure. The P-D18E-I provides perfectly flat response down to 8
Hertz when used in conjunction with the 8 Hertz Integrator.
Designed for permanent installation, the P-D18E-I offers a flat black
textured finish and a black coated steel grille.

OPTIONAL CUSTOM FINISHES

Available in white and ready-to­stain natural birch. Also available in custom outdoor weather resis­tant finish for greater versatility in location and aesthetics.

ABOUT INFRASUB TECHNOLOGY

Almost all specifications for sub­woofer systems are fixated on the frequency response domain.
However, the impression of power and quality is equally related to the
time domain performance of a system. Because of the long wave­lengths of low frequencies, this is particularly true with subwoofers.
Likewise, the maximum SPL is not a very reliable way to judge the
impact of a subwoofer. A poor time domain performer will not have
the same impact or natural sound as a time correct INFRA system.

The reason that INFRA technology sounds dramatically better than
the others is because of their superior time domain performance. The
INFRA subwoofer maintains the bass energy in a tight packet,
aligned with the upper range signal, providing a greater body impact
and a seamless musical connection with the main loudspeakers.

Conventional subwoofers designs perform so poorly in the time
domain because designers have used methods that sacrifice the
phase response for more control over the frequency response (e.g.,
steep low pass filter slopes, vented speaker enclosures, and nar­row bandwidth systems). With the INFRA technique, we do not
degrade the phase response while extending the frequency
response.

While the INFRA dual integrator does function as the system
crossover, it does so without using a low pass filter. Adding a low
pass filter, analog or digital, will have a degrading effect on the
time domain performance of the INFRA subwoofer. A low pass filter
adds signal delay to the sound which varies with frequency. Also,
narrowing the pass band increases the influence of the rolloff on
both ends of the subwoofer spectrum. The result is the smearing of
the arrival times of the low frequency sound components, changing
the timbre and downgrading the impact of transient sounds.

The Bag End INFRA subwoofers are designed as no-compromise,
high fidelity reproduction systems. We believe they are the finest
subs available, regardless of price.

BAG END Loudspeakers

22N272 Pepper Road

Lake Barrington, Illinois

60010 USA

Voice 847 382 4550

Fax [phone]

www.bagend.com

MINIMA ONE™, INFRA™, Infrasub™ and BAG END®are trademarks of Modular Sound Systems, Inc.

SPECIFICATIONS

P-D18E-I

NNOOTT SSHHOOWWNN::
SHIPPING CARTON Z−603 (1)

PLASTIC BAG Z−627 (1)
CORNER GUARD Z−629 (8)
EDGE GUARD Z−630 (32)

BAG END Loudspeakers 22N272 Pepper Rd. Lake Barrington, Illinois 60010 USA Phone [phone] Fax [phone]

ABOUT

MINIMA ONE AMPLIFIER

T

ECHNOLOGY

The Minima One amplifier is
both a hi fidelity and a high efficiency amplifier.
More than 80% efficient the Minima One
provides more power to the loudspeakers and
creates less heat in the amplifier. In real world
applications there is practically no heat emitted
from the amplifier and thus requires no cooling
fan. Incorporating patented technology the com­parison circuit of the Minima One corrects every
single cycle to drive error to zero at the end of
each cycle. On average every 4 microseconds
the one cycle modulator transforms and ampli­fies the input signal into the ideal natural pulse
width modulation. Switching at 250KHz with
the single cycle error correction insures
extremely low distortion and high reliability.

The power factor corrected AC power input
automatically and continuously adapts to any
voltage between 88 and 270 volts. The Minima
One is convenient to power and stable to use
on any power grid in the world.

LLOOGGOO
Z−342

DDRRIIVVEERR
EL−18A (2)

GGRRIILLLLEE

VINYL
COATED STEEL
AFG−1

WWAASSHHEERR

#8 BLACK

NYLON Z−110 (6)

SSCCRREEWW

#8 x 3/4"
PHIL FH SMS
Z−103 (6)

GGAASSKKEETT TTAAPPEE
Z−516

GGAASSKKEETT
LLOOOOPP
Z−519

BBOOLLTT

5/16"−18 x 1 1/2"
SOCKET HEAD CAP SS
Z−105 (8)

SSPPEEAAKKEERR MMOOUUNNTTIINNGG
CCLLAAMMPP

Z−208 (8)

SSCCRREEWW

#8 x 3/4"
PHIL PH SMS
Z−101 (10)

MMIINNIIMMAA OONNEE
AMPLIFIER
MO−1

-

US Patents 5,278,490 and 6,084,450

95

50

8

-6dB Freq.

Apply 12 V DC

- +

to mute

88-270 VAC

1200 W max draw

Thru

In

Modular Sound Systems
Barrington, Illinois USA

Minima one

Level

Cal

1

3

2

3

1

2

Limit

Fault

On

modular amplifier
