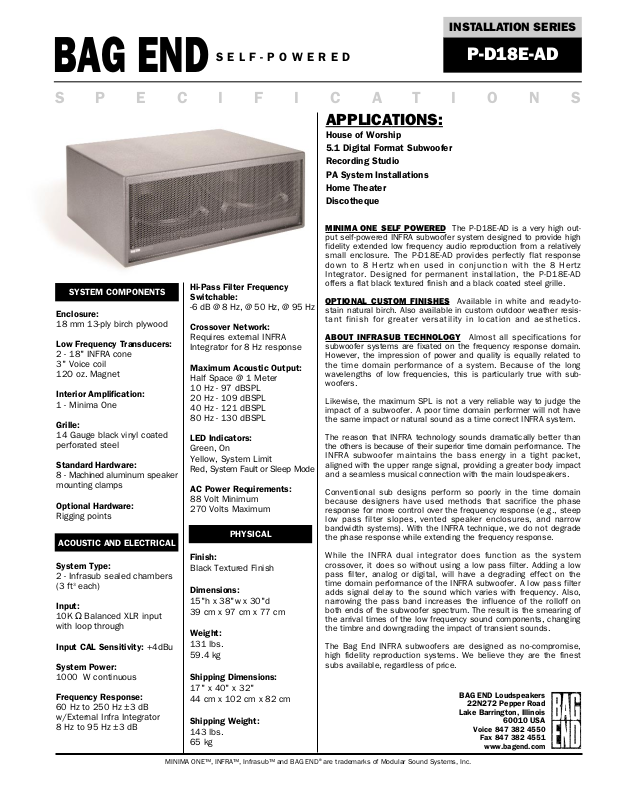

Bag End PD18E-AD Specifications

SELF-POWERED

SPECIFICATIONS

ACOUSTIC AND ELECTRICAL

Enclosure:

18 mm 13-ply birch plywood

Low Frequency Transducers:

2 - 18" INFRA cone
3" Voice coil
12O oz. Magnet

Interior Amplification:

1 - Minima One

Grille:

14 Gauge black vinyl coated
perforated steel

Standard Hardware:

8 - Machined aluminum speaker
mounting clamps

Optional Hardware:

Rigging points

SYSTEM COMPONENTS

PHYSICAL

System Type:

2 - Infrasub sealed chambers
(3 ft

3

each)

Input:

10K Ω Balanced XLR input

with loop through

Input CAL Sensitivity: +4dBu

System Power:

1000 W continuous

Frequency Response:

60 Hz to 250 Hz ±3 dB
w/External Infra Integrator
8 Hz to 95 Hz ±3 dB

Finish:

Black Textured Finish

Dimensions:

15"h x 38"w x 30"d
39 cm x 97 cm x 77 cm

Weight:

131 lbs.

59.4 kg

Shipping Dimensions:

17" x 40" x 32"
44 cm x 102 cm x 82 cm

Shipping Weight:

143 lbs.
65 kg

P-D18E-AD

BAG END

Hi-Pass Filter Frequency
Switchable:

-6 dB @ 8 Hz, @ 50 Hz, @ 95 Hz

Crossover Network:

Requires external INFRA
Integrator for 8 Hz response

Maximum Acoustic Output:

Half Space @ 1 Meter
10 Hz - 97 dBSPL
20 Hz - 109 dBSPL
40 Hz - 121 dBSPL
80 Hz - 130 dBSPL

LED Indicators:

Green, On
Yellow, System Limit
Red, System Fault or Sleep Mode

AC Power Requirements:

88 Volt Minimum
270 Volts Maximum

APPLICATIONS:

House of Worship

5.1 Digital Format Subwoofer
Recording Studio
PA System Installations
Home Theater
Discotheque

MINIMA ONE SELF POWERED The P-D18E-AD is a very high out­put self-powered INFRA subwoofer system designed to provide high
fidelity extended low frequency audio reproduction from a relatively
small enclosure. The P-D18E-AD provides perfectly flat response
down to 8 Hertz when used in conjunction with the 8 Hertz
Integrator. Designed for permanent installation, the P-D18E-AD
offers a flat black textured finish and a black coated steel grille.

OPTIONAL CUSTOM FINISHES

Available in white and ready-to­stain natural birch. Also available in custom outdoor weather resis­tant finish for greater versatility in location and aesthetics.

ABOUT INFRASUB TECHNOLOGY

Almost all specifications for
subwoofer systems are fixated on the frequency response domain.
However, the impression of power and quality is equally related to
the time domain performance of a system. Because of the long
wavelengths of low frequencies, this is particularly true with sub­woofers.

Likewise, the maximum SPL is not a very reliable way to judge the
impact of a subwoofer. A poor time domain performer will not have
the same impact or natural sound as a time correct INFRA system.

The reason that INFRA technology sounds dramatically better than
the others is because of their superior time domain performance. The
INFRA subwoofer maintains the bass energy in a tight packet,
aligned with the upper range signal, providing a greater body impact
and a seamless musical connection with the main loudspeakers.

Conventional sub designs perform so poorly in the time domain
because designers have used methods that sacrifice the phase
response for more control over the frequency response (e.g., steep
low pass filter slopes, vented speaker enclosures, and narrow
bandwidth systems). With the INFRA technique, we do not degrade
the phase response while extending the frequency response.

While the INFRA dual integrator does function as the system
crossover, it does so without using a low pass filter. Adding a low
pass filter, analog or digital, will have a degrading effect on the
time domain performance of the INFRA subwoofer. A low pass filter
adds signal delay to the sound which varies with frequency. Also,
narrowing the pass band increases the influence of the rolloff on
both ends of the subwoofer spectrum. The result is the smearing of
the arrival times of the low frequency sound components, changing
the timbre and downgrading the impact of transient sounds.

The Bag End INFRA subwoofers are designed as no-compromise,
high fidelity reproduction systems. We believe they are the finest
subs available, regardless of price.

BAG END Loudspeakers

22N272 Pepper Road

Lake Barrington, Illinois

60010 USA

Voice 847 382 4550

Fax [phone]

www.bagend.com

MINIMA ONE™, INFRA™, Infrasub™ and BAG END®are trademarks of Modular Sound Systems, Inc.

INSTALLATION SERIES
