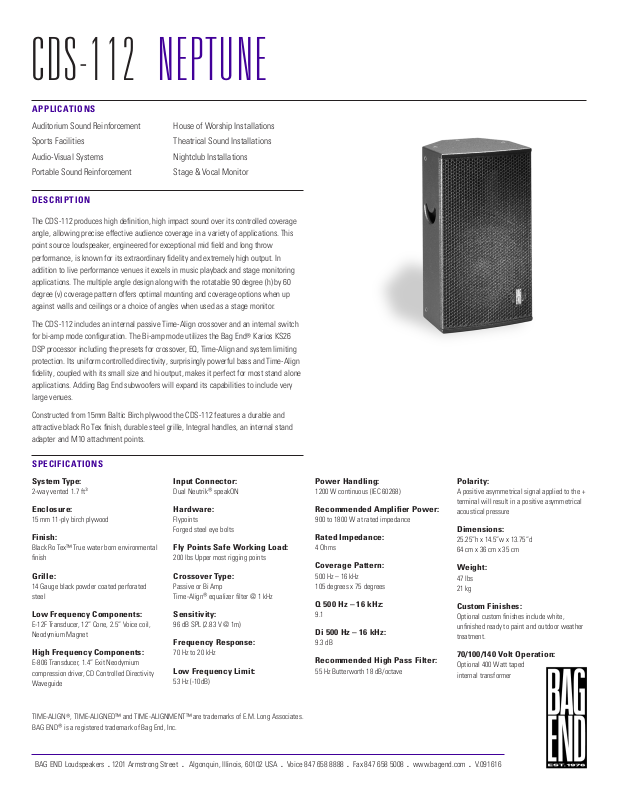

Bag End CDS-112 Data Sheet
CDS-112 NEPTUNE
APPLICATIONS
Auditorium Sound Reinforcement
Sports Facilities
Audio-Visual Systems
Portable Sound Reinforcement
DESCRIPTION
The CDS-112 produces high denition, high impact sound over its controlled coverage
angle, allowing precise effective audience coverage in a variety of applications. This
point source loudspeaker, engineered for exceptional mid eld and long throw
performance, is known for its extraordinary delity and extremely high output. In
addition to live performance venues it excels in music playback and stage monitoring
applications. The multiple angle design along with the rotatable 90 degree (h) by 60
degree (v) coverage pattern offers optimal mounting and coverage options when up
against walls and ceilings or a choice of angles when used as a stage monitor.
The CDS-112 includes an internal passive Time-Align crossover and an internal switch
for bi-amp mode conguration. The Bi-amp mode utilizes the Bag End® Karios KS26
DSP processor including the presets for crossover, EQ, Time-Align and system limiting
protection. Its uniform controlled directivity, surprisingly powerful bass and Time-Align
delity, coupled with its small size and hi output, makes it perfect for most stand alone
applications. Adding Bag End subwoofers will expand its capabilities to include very
large venues.
House of Worship Installations
Theatrical Sound Installations
Nightclub Installations
Stage & Vocal Monitor
Constructed from 15mm Baltic Birch plywood the CDS-112 features a durable and
attractive black Ro Tex nish, durable steel grille, Integral handles, an internal stand
adapter and M10 attachment points.
SPECIFICATIONS
System Type:
2-way vented 1.7 ft
Enclosure:
15 mm 11-ply birch plywood
Finish:
Black Ro Tex™ True water born environmental
nish
Grille:
14 Gauge black powder coated perforated
steel
Low Frequency Components:
E-12F Transducer, 12” Cone, 2.5” Voice coil,
Neodymium Magnet
High Frequency Components:
E-806 Transducer, 1.4” Exit Neodymium
compression driver, CD Controlled Directivity
Waveguide
3
Input Connector:
Dual Neutrik® speakON
Hardware:
Flypoints
Forged steel eye bolts
Fly Points Safe Working Load:
200 lbs Upper most rigging points
Crossover Type:
Passive or Bi Amp
Time-Align® equalizer lter @ 1 kHz
Sensitivity:
96 dB SPL (2.83 V @ 1m)
Frequency Response:
70 Hz to 20 kHz
Low Frequency Limit:
53 Hz (-10dB)
Power Handling:
1200 W continuous (IEC 60268)
Recommended Amplier Power:
900 to 1800 W at rated impedance
Rated Impedance:
4 Ohms
Coverage Pattern:
500 Hz – 16 kHz
105 degrees x 75 degrees
Q 500 Hz – 16 kHz:
9.1
Di 500 Hz – 16 kHz:
9.3 dB
Recommended High Pass Filter:
55 Hz Butterworth 18 dB/octave
Polarity:
A positive asymmetrical signal applied to the +
terminal will result in a positive asymmetrical
acoustical pressure
Dimensions:
25.25”h x 14.5”w x 13.75”d
64 cm x 36 cm x 35 cm
Weight:
47 lbs
21 kg
Custom Finishes:
Optional custom nishes include white,
unnished ready to paint and outdoor weather
treatment.
70/100/140 Volt Operation:
Optional 400 Watt taped
internal transformer
TIME-ALIGN®, TIME-ALIGNED™ and TIME-ALIGNMENT™ are trademarks of E.M. Long Associates.
BAG END® is a registered trademark of Bag End, Inc.
BAG END Loudspeakers . 1201 Armstrong Street . Algonquin, Illinois, 60102 USA . Voice 847 658 8888 . Fax 847 658 5008 . www.bagend.com . V.091616
CDS-112 NEPTUNE
ABOUT TIME-ALIGN® TECHNOLOGY
Time-Align® assures that the fundamental and
overtones of a complex, transient, acoustical signal are
presented to the listener in the same relationship as the
electrical signal at the input terminals of the
loudspeaker. The conventional loudspeaker spreads out
the sound in time. When a rapid series of transients
occur the results are blurring and lost detail. With
Time-Align®, a transient is presented as a tight package
of energy, with the same time relationships as the
natural sound. This means that a rapid series of
transients will be heard clearly.
True Time-Alignment™ requires much more than just
physically lining up the loudspeaker components. It
requires consideration of the driver placement, driver
delay and adjustment of the crossover delay parameters.
This achieves the precise simultaneous acoustical arrival
time of each driver throughout the crossover region.
The rst Time-Aligned™ Loudspeaker was invented by
EM Long Associates in 1976 utilizing the Time-Align®
generator invented and built by Ronnald Wickersham. In
1980 Bag End® incorporated Time-Align® technology
into our full range loudspeaker systems. Along with
state-of-the-art laboratory instruments, the proprietary
Time-Align® generator is still in use today to verify the
time domain performance of our loudspeaker systems.
When comparing a genuine Bag End® Time-Aligned™
loudspeaker system to any other, our technology and
design is easy to hear and appreciate. The dramatic
clarity, realism, and overall pleasant sound of our
Time-Aligned™ systems are well noted worldwide.
ABOUT OUR RO TEX™ FINISH
environmentally safe nish. It’s uniquely strong and long
lasting. As it solidies it attaches and bonds to the
wooden cabinet to make a super hard and durable
permanent nish. Its light texture offers an attractive
and rugged nished look
ABOUT BAG END® LOUDSPEAKERS
Bag End loudspeakers began in 1976 in a small shop by
people dedicated to the pursuit of making high quality
loudspeaker systems. Over the decades Bag End® has
employed the very best construction techniques and
innovative acoustical designs into their products. The
ground breaking introductions of the Time-Align® and
ELF™ Technologies into sound reinforcement and studio
monitor loudspeakers in the 1980’s was followed by
Minima One™ self-powered systems and the highly
unique E-Trap™, electronic bass trap. Over the decades,
Bag End® has been a leader in providing uniquely good
sounding products and extraordinary service to our
customers world wide.
DIMENSIONS
The durable Ro Tex™ nish is double layered on Bag
End™ “R” series or Road cabinets. And single layered on
installation or “I” cabinets. Ro Tex™ is a water born
BAG END Loudspeakers . 1201 Armstrong Street . Algonquin, Illinois, 60102 USA . Voice 847 658 8888 . Fax 847 658 5008 . www.bagend.com . V.091616
