Bafo Technologies BF-816 User Manual

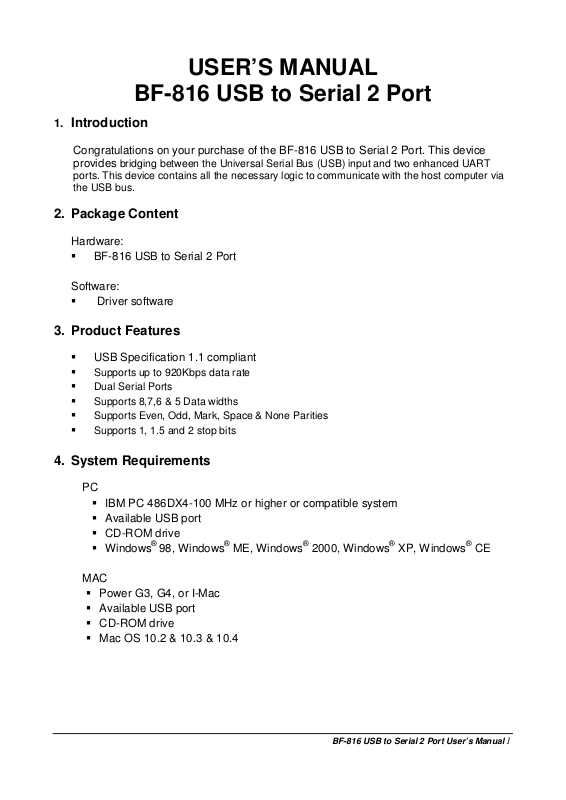

USER’S MANUAL

BF-816 USB to Serial 2 Port

1.

Introduction

Congratulations on your purchase of the BF-816 USB to Serial 2 Port. This device
provides

ports. This device contains all the necessary logic to communicate with the host computer via
the USB bus.

bridging between the Universal Serial Bus (USB) input and two enhanced UART

2. Package Content

Hardware:
 BF-816 USB to Serial 2 Port

Software:
 Driver software

3. Product Features

 USB Specification 1.1 compliant


Supports up to 920Kbps data rate



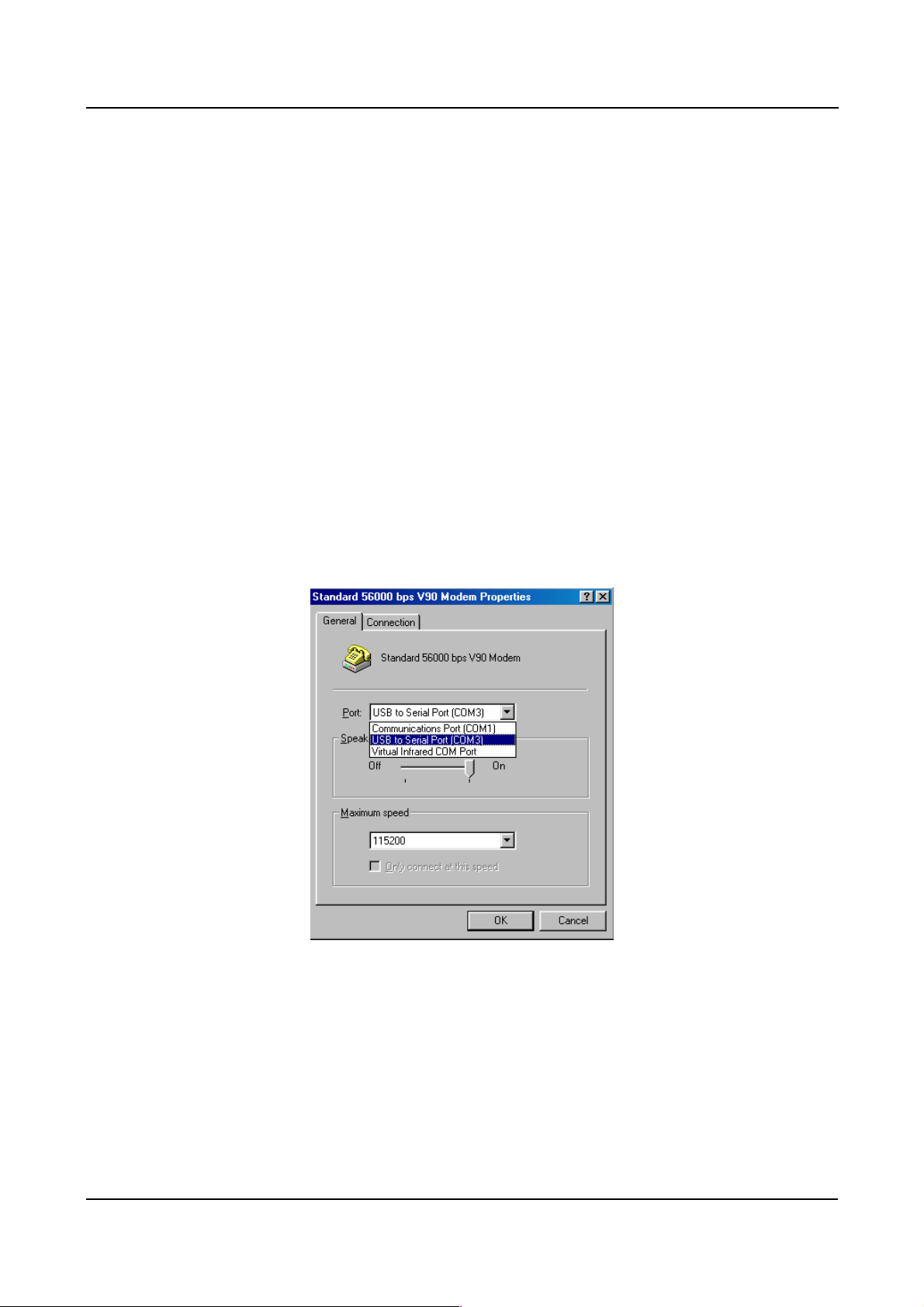

Dual Serial Ports



Supports 8,7,6 & 5 Data widths



Supports Even, Odd, Mark, Space & None Parities



Supports 1, 1.5 and 2 stop bits

4. System Requirements

PC

 IBM PC 486DX4-100 MHz or higher or compatible system
 Available USB port
 CD-ROM drive
 Windows® 98, Windows® ME, Windows® 2000, Windows® XP, Windows® CE

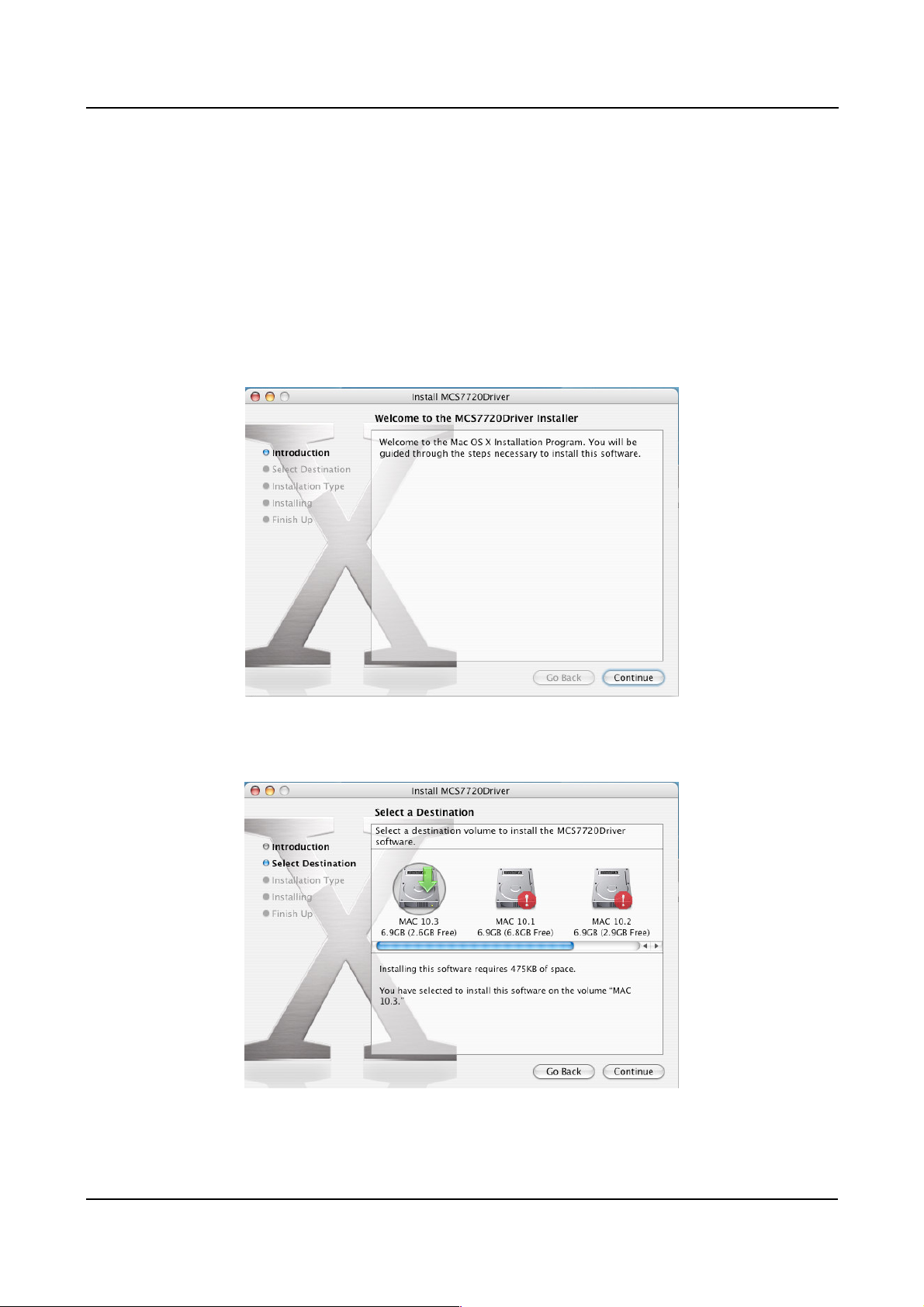

MAC

 Power G3, G4, or I-Mac
 Available USB port
 CD-ROM drive
 Mac OS 10.2 & 10.3 & 10.4

BF-816 USB to Serial 2 Port User’s Manual 1

5.

Driver Installation

5.1 Windows® 98SE & ME & 2000 Installation

NOTICE: Before you install the driver to your computer, please do not
connect the BF-816 USB to Serial 2 Port to your computer.

5.1.1 Turn on the power of computer and make sure the USB port is enabled and
can working properly.

5.1.2 Insert the driver of BF-816 USB to Serial 2 Port into CD-ROM drive.

Select “Install Products - BF-816 USB to Serial 2 Port - Install”.

5.1.3 Click the “Install” to continue.

5.1.4 Click “Exit” to end this installation.

5.1.5 Plug the BF-816 USB to Serial 2 Port into USB Port of PC.

Windows® will detect an USB Device. Your new hardware is installed and
ready to use.

BF-816 USB to Serial 2 Port User’s Manual 2

5.2 Windows® XP Installation

NOTICE: Before you install the driver to your computer, please do not
connect the BF-816 USB to Serial 2 Port to your computer.

5.2.1 Turn on the power of computer and make sure the USB port is enabled and
can working properly.

5.2.2 Insert the driver of BF-816 USB to Serial 2 Port into CD-ROM drive.

Select “Install Products - BF-816 USB to Serial 2 Port - Install”.

5.2.3 Click the “Install” to continue.

5.2.4 When the windows appear as below, click “Continue Anyway” to install
the driver.

5.2.5 When the windows appear as below, click “Continue Anyway” to install
the driver.

BF-816 USB to Serial 2 Port User’s Manual 3

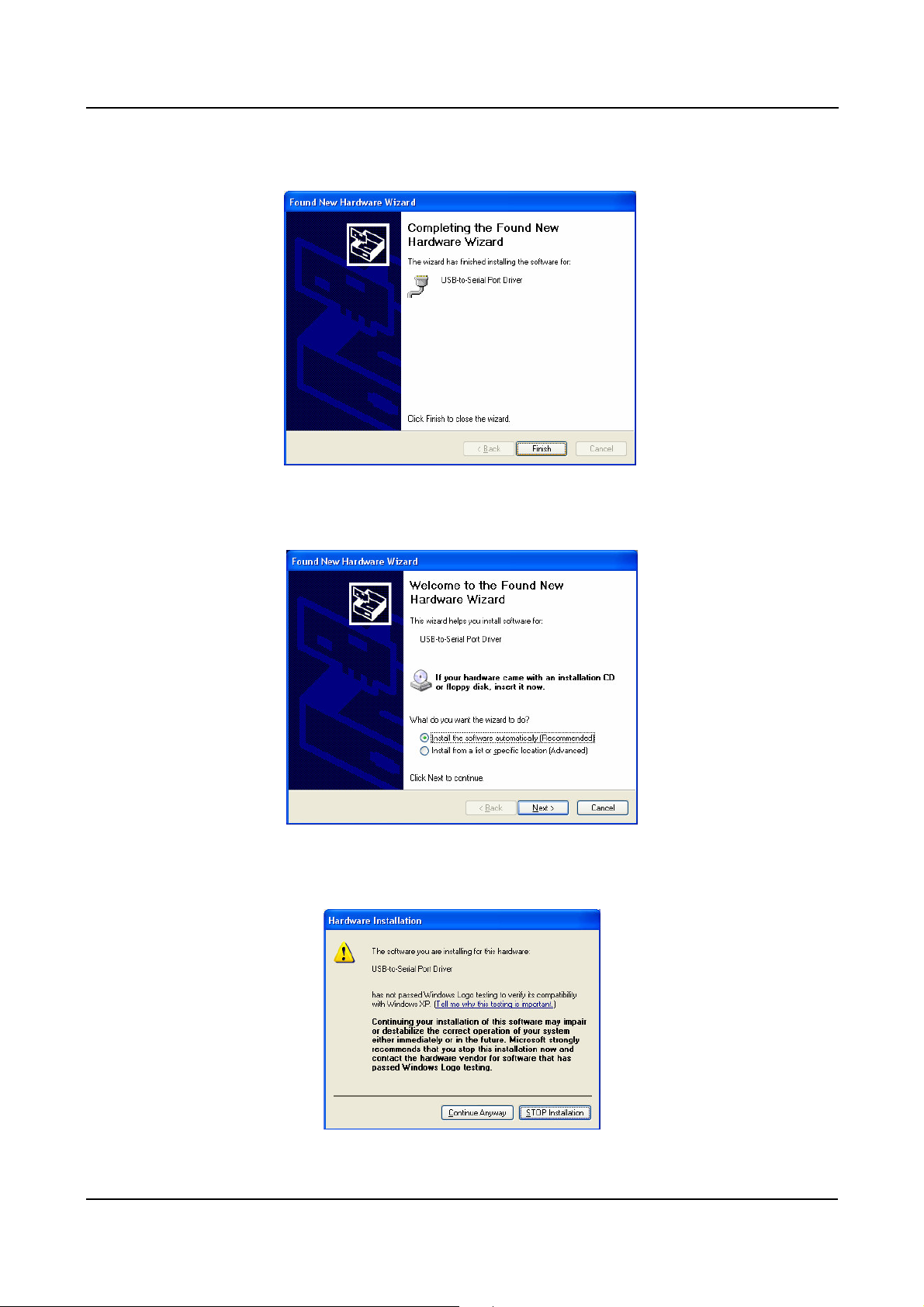

5.2.6 Click “Exit” to end this installation.

5.2.7 Plug the BF-816 USB to Serial 2 Port into USB Port of PC.

Windows® will detect an USB Device.

5.2.8 Select “Install the software automatically (recommended)”, then click
“Next” to continue.

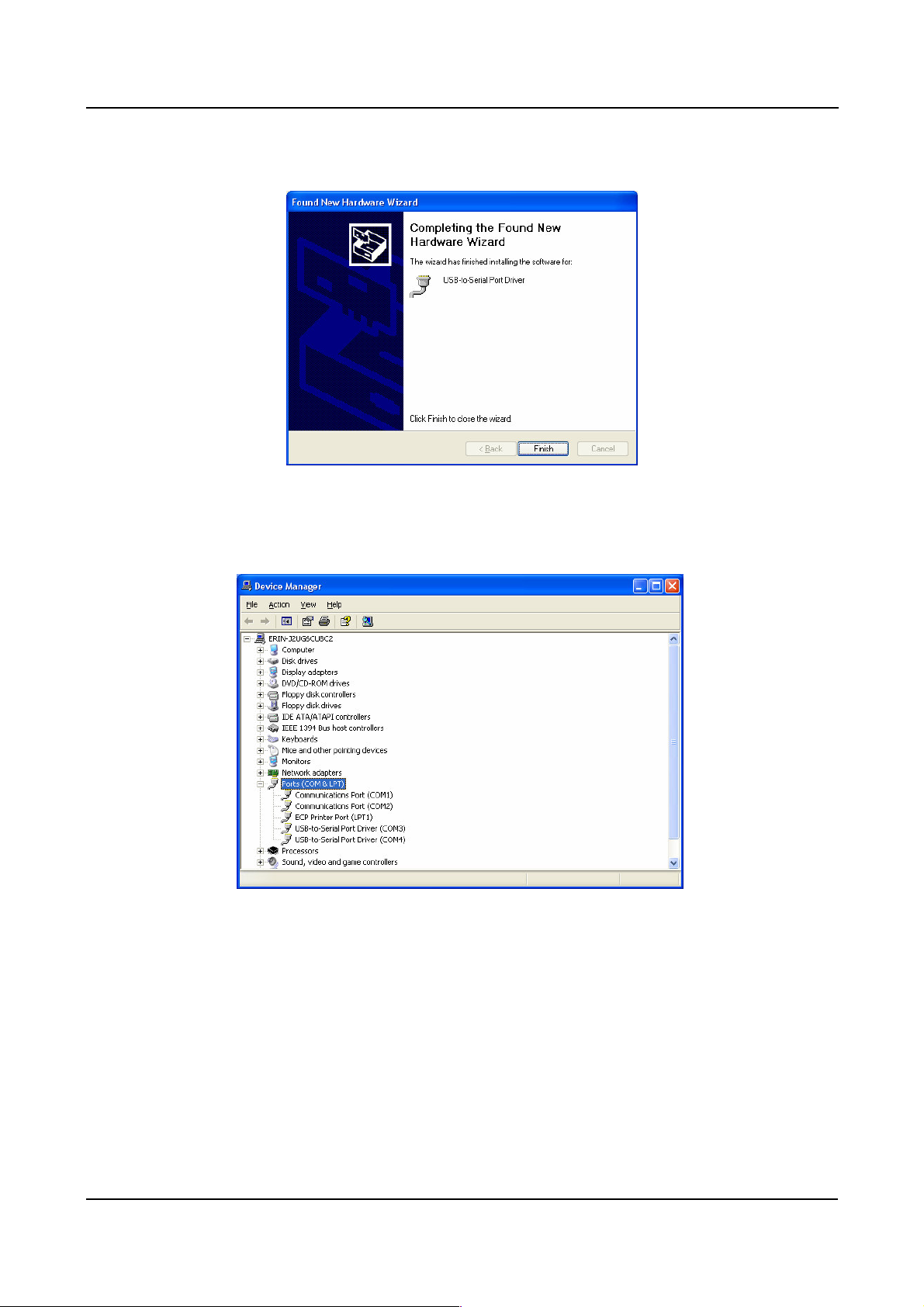

5.2.9 When the windows appear as below, click “Continue Anyway” to install
the driver.

BF-816 USB to Serial 2 Port User’s Manual 4
