Introduction

INTRODUCTION

Used in conjunction with any Badger Meter impeller flow monitor or transmitter, Badger Meter non-magnetic flow sensors provide an accurate rate of liquid flow as well as total accumulated flow. A number of sensor models are offered, which cover applications for a wide range of pipe sizes and pressure/temperature specifications.

The flow sensors generate a frequency which is proportional to flow rate. An internal preamplifier allows the pulse signal to travel up to 2000 feet without further amplification. Power to operate the sensor is provided by the flow monitor. The impeller bearing assembly, shaft and O-rings are replaceable in the field.

Badger Meter flow sensors feature a closed, six-bladed impeller design, using a proprietary, non-magnetic sensing technology. The forward-swept impeller shape provides higher, more constant torque than four-bladed impeller designs, and is less prone to fouling by water-borne debris. The forward-curved shape, coupled with the absence of magnetic drag, provides improved operation and repeatability, even at lower flow rates. As the liquid flow turns the impeller, a low impedance signal is transmitted with a frequency proportional to the flow rate.

Sensors of similar type are interchangeable, so there is no need for recalibration after servicing or replacement.

This manual provides instructions for the following insertion style flow sensors, as indicated:

220BR; 220SS; 220PV; 225BR; 226BR; 226SS

CERTIFICATION

MECHANICAL INSTALLATION

Flow measurement accuracy for all flow measuring devices is highly dependent on proper location in the piping system. Irregular flow velocity profiles caused by valves, fittings, and pipe bends can lead to inaccurate overall flow rate indications although local flow velocity measurement may be accurate. A sensor located where it can be affected by air bubbles, floating debris, or sediment may not achieve full accuracy and could be damaged. Badger Meter flow sensors are designed to operate reliably under adverse conditions. Follow these recommendations to provide maximum system accuracy:

• Choose a location along the pipe where 10 pipe diameters upstream and 5 pipe diameters downstream of the sensor provide no flow disturbance. Pipe bends, valves, other fittings, pipe enlargements and reductions should not be present in this length of pipe.

• The preferred location around the circumference of a horizontal pipe is on top. If trapped air or debris will interfere, then the sensor should be located further around the pipe from the top but not more than 45 degrees from top center. The sensor should never be located at the bottom of the pipe, as sediment may collect there. Locations off top center cause the impeller friction to increase, which may affect performance at low flow rates. Any circumferential location is correct for installation in vertical pipes.

• Allow an insertion depth of 1-1/2 inches (38 mm) for pipe sizes 2-1/2 inches and larger for accurate flow rate calibration. Detailed installation instructions for various sensor mounting configurations on the following pages include methods for providing correct insertion depth.

• Align the sensor so that the impeller rotation is parallel to flow. Alignment instructions are included on the following pages.

Page 3 February 2018 SEN-UM-01635-EN-11

Installation for 220BR, 220SS, 220PV

INSTALLATION FOR 220BR, 220SS, 220PV

Installation Procedure

The insertion depth and alignment of the flow sensor assembly are critical to the accuracy of the flow measurement. The flat end of the sensor sleeve assembly MUST BE INSTALLED 1-1/2 inches (38 mm) from the inside wall of the pipe. To allow for variations in wall thickness, lining, or coatings, the depth adjustment is controlled by the position of the hex nuts on the three threaded studs of the hex mounting adapter. The hex mounting adapter is provided with a 2 inch male NPT connection.

There are two methods of mounting these sensors in a 2-1/2 inch or larger pipe. One is with a 2 inch NPT threaded pipe saddle. The other is with a welded-on fitting such as a Thredolet®, also tapped for a 2 inch NPT connection. In either case, cut a 2 inch (51 mm) hole through a depressurized pipe and then secure the saddle or weld-on fitting to the pipe. (For drilling into a pressurized pipe, see "Installation into a Pressurized Pipeline" on page 7.) Install the 2 inch NPT adapter provided, using a thread sealant to prevent leakage. Tighten as necessary. Badger Meter insert style flow sensors are calibrated with the sensor inserted 1-1/2 inches (38 mm) into the pipe flow.

To determine the proper insertion depth, follow these steps:

1. Apply anti-seize thread lubricant (supplied with the sensor) to the threaded studs of the mounting adapter.

2. Insert the depth gauge into the mounting adapter and set it against the inside wall of the pipe as shown in Figure 1. Set the top of the upper adjusting nut to 3-3/4 inches (95 mm) as measured. Lock it in place with the bottom nut on the same stud. Repeat for the other adjusting nuts.

OTE:N For Model 220PVS, set the nuts 6-1/2 inches (165 mm) above the inside wall of the pipe.

Adjusting Nuts

20345

3 ¾”

Figure 1: Installation for 220BR and 220SS

3. Clean the O-rings and the ow sensor sleeve, and lightly lubricate the O-rings with silicone grease from the packet provided (or another acceptable lubricant). Take care not to get grease on the impeller or bearing.

4. Insert the ow sensor into the 2 inch NPT adapter so that the mounting holes in the positioning collar t over the studs on the adapter.

5. Lower the sensor onto the previously adjusted nuts. Install the lock nuts on top of the positioning collar and tighten. Now tighten the lower jam nuts rmly against the upper adjusting nuts to secure them for future removal of the sensor for inspection or service.

Page 4 February 2018SEN-UM-01635-EN-11

SET SCREW

ALIGNMENT ROD

Hot Tap Installation for 225BR, 226BR, and 226SS

Alignment of Flow Sensor

1. Loosen the positioning collar set screws with a 3/32 inch Allen wrench. Place the alignment rod through the sight holes in the ow sensor. See Figure 2. Using the alignment rod as a guide, align the ow sensor so the ow label arrow matches the pipe ow direction and the alignment rod is exactly parallel to the pipe. This procedure aligns the impeller directly into the uid ow.

Figure 2: Alignment of Flow Sensor 220BR and 220SS

2. As a backup to the ow arrow label, there is a small hole next to the larger sight hole of the upstream side. With a 3/32 inch Allen wrench, tighten the positioning collar set screws.

3. Double check that the sight holes in the sleeve are parallel down the pipe and the ow arrow label matches the pipe liquid ow direction.

4. Cable routing: The positioning collar is threaded for connection of a standard 1/2 inch electrical conduit (ex cable) or a wire strain relief. Route the cable as required. Be sure to leave enough ex in the cable or conduit to allow future removal of the sensor for service or cleaning.

Page 5 February 2018 SEN-UM-01635-EN-11

Hot Tap Installation for 225BR, 226BR, and 226SS

HOT TAP INSTALLATION FOR 225BR, 226BR, AND 226SS

Badger Meter Series 200 hot tap style liquid flow sensors are designed for use in cases where pipelines will be in continuous service, and depressurizing or draining the system for installation or service is not practical.

The Series 200 hot tap flow sensors are designed to be installed either in a depressurized pipe by hand, or “hot tapped” into a pressurized pipeline. Both installation procedures are in this manual. If there is the slightest possibility the pipe could be full or pressurized, follow the installation for a pressurized pipe. See "Installation into a Pressurized Pipeline" on page 7.

See Figure 4 for the location or identification of the various parts described in the following procedures.

Sensor Assembly Depth and Alignment

The insertion depth and alignment of the sensor assembly are critical to the accuracy of the flow measurement. The flat end of the sensor tube assembly must be installed 1-1/2 inches (38 mm) from the inside wall of the pipe. To allow for variations in wall thickness, lining or coatings, the depth adjustment is controlled by the position of the hex nuts on the three threaded studs of the hex mounting adapter. The hex mounting adapter is provided with a 2 inch male NPT connection. Both gate and ball valve units are provided with 2 inch nipples for mounting onto saddles and weld-o-lets.

Setting the Depth

1. Position the hex nuts 14-7/8 inches (378 mm), minus the thickness of the pipe, from the outside diameter of the pipe. For example, measure the wall thickness of the pipe from the coupon removed when the 1-7/8 inch (48 mm) hole was cut into the pipe. If the pipe was 1/8 inch (3 mm) thick, subtract 1/8 inch (3 mm) from 14-7/8 inches (378 mm), or position the nuts 14-3/4 inches (375 mm) from the outside diameter of the pipe. This will allow the 16-3/8 inch (416 mm) sensor to protrude 1-1/2 inches (38 mm) into the pipe.

2. Apply anti-seize thread lubricant, supplied with the sensor, to the threaded studs of the mounting adaptor.

Aligning the Impeller with the Flow

1. To align the impeller with the ow in the pipe, align the two sight holes at the top of the sensor tube assembly with the center line of the pipe. Make sure the alignment is made to the pipe, and not to a wall or surface near the sensor.

2. To adjust, loosen the two set screws in the positioning collar with the 3/32 inch Allen wrench (supplied in the installation kit).

3. Slip one end of the 1/4 inch x 18 inch steel rod (supplied in the installation kit) through the holes in the sensor tube.

4. Rotate the sensor tube until the rod is centered on the pipe. Make sure the ow label arrow on the sensor matches the liquid ow direction.

5. Tighten the positioning collar Allen screws to lock the sensor sleeve assembly in position.

OTE:N As a backup to the flow label arrow, there is a small hole located beside one of the sight holes to also indicate the

upstream side of the sensor.

Page 6 February 2018SEN-UM-01635-EN-11

Hot Tap Installation for 225BR, 226BR, and 226SS

Installation if the Pipe is Depressurized and Drained

1. Drill or cut a hole in the pipe with a 1-7/8 inch (48 mm) drill or hole saw. Note the pipe wall thickness for use in calculating sensor assembly depth. A location on the top of the pipe is best for overall performance and service life; however, any radial location on the top half of the pipe is acceptable. Allow a minimum of 10 pipe diameters upstream and 5 downstream from the sensor of straight unobstructed pipe to allow full development of the ow prole.

2. Install either a service saddle or welded pipe tting (2 inch female NPT) on the outside diameter of the pipe over the 1-7/8 inch (48 mm) hole.

3. Install the Badger Meter isolation valve and nipple onto the tting using pipe thread sealant or Teon® tape on all threads.

4. Install the Badger Meter hex mounting adapter onto the valve assembly. Use pipe thread sealant on the adapter.

5. Tighten the hex mounting adapter so that no stud is aligned with the center-line of the pipe. This could interfere with nal sensor alignment.

6. Measure the depth and set the height of the nuts of the hex mounting adapter.

OTE:N Badger Meter recommends that you purchase a Hot Tap insertion/removal Tool (Model HTT) for future service,

even if the sensor is installed in a drained system. The Model HTT allows you to remove the sensor sleeve assembly from the pipe line without draining the entire loop where the sensor is mounted.

7. In a fully depressurized and drained pipe, the sensor tube assembly may be installed by hand. If reinstalling into a drained system thought to have been depressurized and drained, verify by very slowly opening the isolation valve.

a. Carefully and very slowly open the isolation valve to relieve any pressure that may have built up.

b. Fully open the isolation valve.

c. Push the sensor sleeve into the pipe with a slight twisting motion.

d. Guide the sensor collar holes over the three hex adapter studs until the collar rests on the nuts. Hex nuts should have

been previously set to the correct height.

e. Install the three lock nuts onto these studs at the top of the positioning collar and securely tighten.

8. Loosen the two set screws in the positioning collar with a 3/32 inch Allen wrench.

9. Align the sensor sight holes along the pipe axis using the alignment rod from the sensor installation kit. M

10. Verify that the ow label arrow on the sensor matches the liquid ow direction inside the pipe.

11. Tighten the positioning collar set screws.

OTE:N As a backup to the flow label arrow, there is a small hole located beside one of the sight holes to also indicate the

upstream side of the sensor.

Installation into a Pressurized Pipeline

The Model HTT (Hot Tap Tool) provides the mechanical advantage required to safety insert and remove a Badger Meter hot tap flow sensor from line pressure, and provides a restraint when removing the sensor from a pressurized pipe.

Refer to Figure 3 for identification and location of the HTT parts described in this section.

For pipe sizes 2-1/2 inch and above, all Badger Meter sensors are inserted 1-1/2 inches (38 mm) from the inside wall of the pipe. The insertion depth is controlled by the position of the hex nuts on the three threaded rods.

To calculate the distance (D) between the top of the sensor hex mounting adapter and the bottom of the positioning collar (the top of the hex nut), ADD the H dimension, pipe wall thickness, and insertion depth, and SUBTRACT the total from the overall sensor length. See the example and formula on the next page, and refer to Figure 4.

Figure 3: Model HTT (Hot Tap Tool)

Page 7 February 2018 SEN-UM-01635-EN-11

BLEED PETCOCK

HEX NUT

JAM NUT

Hot Tap Installation for 225BR, 226BR, and 226SS

Example: The sensor is installed in an 8 inch schedule 80 pipe, with a pipe wall thickness of 1/2 inch. If the overall sensor length is 16-3/8 inches and the H dimension is 10 inches, the D value is calculated as follows:

D = Overall length − (H + pipe wall thickness + Insertion Depth) D = 16-3/8 in. − (10 in. + 1/2 in. + 1-1/2 in.) D = 16-3/8 in. − 12 in.

D = 4-3/8 in.

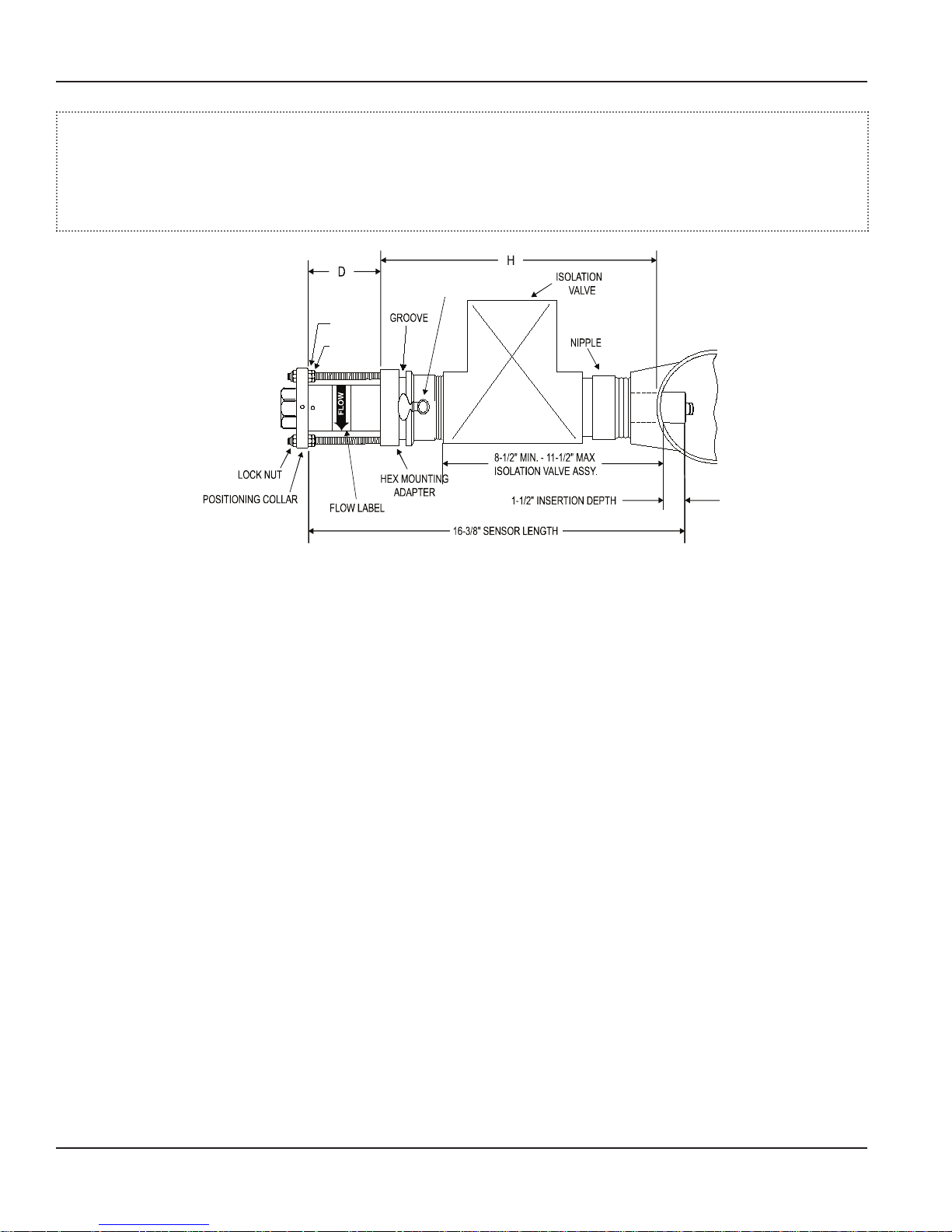

Figure 4: Sensor parts

1. Set one set of the hex/jam nuts so that the distance between the top surface of the hex nut and the top surface of the hex mounting adaptor is equal to the D dimension calculated above.

2. Then adjust the other two sets of hex/jam nuts 1-1/2 inches (38 mm) below the rst jam nut to allow clearance for the Model HTT (Hot Tap Tool) top yoke.

3. Fully extend the HTT by turning the drive nut counterclockwise with a 15/16 inch socket or box wrench (customer supplied) until the drive nut contacts the tool. Slide the positioning collar into the tool top yoke.

4. Remove the HTT split ring and clevis pin and slide the tool bottom yoke into the groove on the sensor hex mounting adaptor. Secure by replacing the clevis pin and split ring.

5. Mark the sleeve 2-3/4 inches (51 mm) from the impeller end of the metal sleeve. This mark is a stopping point to prevent the impeller/bearing from being damaged.

6. Open the bleed petcock valve on the hex mounting adapter to relieve the pressure resulting from the ow sensor sleeve insertion.

7. Carefully hand insert the hot tap ow sensor sleeve assembly into the hex mounting adapter until the mark lines up with the top of the hex mounting adapter. At this point, the sleeve will have been inserted past the top two O-rings in the adapter, approximately 1…1-1/4 inches (25…32 mm). Take care not to push the sensor past the mark on the sleeve as the impeller could be damaged if it strikes the closed valve.

8. Rotate the HTT so the threaded rod with the adjusted hex/jam nuts is centered in the top yoke of the hot tap tool.

9. Rotate the sensor sleeve so the positioning collar holes align with the threaded rods and ow direction label is in general direction making sure the positioning collar is located in the recessed area of the top yoke.

10. Slide the top yoke of the HTT over the positioning collar and secure by tightening the two thumbscrews on top of the yoke.

11. Close the bleed petcock and slowly open the isolation valve.

12. Slowly turn the 15/16 inch drive nut clockwise to insert the sensor sleeve assembly through the valve and into the pipeline.

13. Carefully guide the three threaded studs of the hex mounting adapter through the holes of the sensor positioning collar.

14. Carefully lower the sensor until the positioning collar contacts the hex nut preset for the correct depth adjustment.

Page 8 February 2018SEN-UM-01635-EN-11

Hot Tap Installation for 225BR, 226BR, and 226SS

15. Install the three lock nuts onto the threaded rods, tightening only the lock nut on the threaded rod with the preset hex/ jam nut.

16. Then bring the two remaining lock nuts down until they just contact the positioning collar. Do not tighten at this time.

17. Remove the HTT by loosening the two thumbscrews, removing the clevis pin and sliding the insertion tool o the sensor. Then bring the two remaining sets of hex/jam nuts up to the underside of the positioning collar and tighten.

18. Align the sensor by loosening the two set screws in the side of the positioning collar with a 3/32 inch Allen wrench.

19. Align the sensor sight holes along the pipe axis using the alignment rod from the sensor installation kit. Make sure the ow label arrow on the sensor matches the liquid ow direction inside the pipe.

20. Tighten the positioning collar set screws.

OTE:N As a backup to the flow label arrow, there is a small hole located beside one of the sight holes to also indicate the

upstream side of the sensor.

For removal of a Series 225, 226 flow sensor from a pressurized pipeline, refer to the document titled Hot Tap Flow Sensors Application Data Sheet, available in the Resource Library at www.badgermeter.com.

Page 9 February 2018 SEN-UM-01635-EN-11

Electrical Installation

ELECTRICAL INSTALLATION

OTE:N If the sensor has white and black wires instead of red and black, connect the white wire wherever red is indicated.

Standard Sensors

The metal collar on top of the 220 sensors or an optional conduit cap on the Series 250 sensors will accept 1/2 inch threaded conduit fittings.

1. Route the cable from the sensor to a Badger Meter ow monitor/transmitter. The cable can be extended up to 2000 feet, using 2-conductor shielded 20 AWG or larger stranded copper wire. Be sure to leave enough exibility in the cable or conduit to allow for future service of the ow sensor, if necessary.

2. When connecting to a Badger Meter ow monitor/transmitter, locate the section of terminal strip on the monitor labeled SENSOR INPUT or SENSOR. Connect the red (or white) wire to IN, SIGNAL(+) or SIGNAL terminal, connect the black wire to GND, SIGNAL(-) or COM terminal, and connect the shield drain wire (if applicable) to SLD.

OTE:N When interfacing with other equipment, consult the manufacturer for input designations. The signal wave forms and

power requirements are described in "Specifications" on page 18. See additional technical literature in the Resource Library at www.badgermeter.com.

IR Sensors

OTE:N The sensor leads are supplied with watertight caps over the ends. DO NOT remove the plastic caps from the sensor

leads until ready to splice.

1. Use a twisted pair cable suitable for direct burial to connect the sensor to the transmitter, monitor, or controller. Multi-pair telecommunication cable or direct burial cables can be used.

2. Make a watertight splice. Two-part epoxy type waterproof kits are recommended. Be sure the epoxy seals the ends of the cable jacket. Make sure the epoxy is hardened before inverting the splice or dropping it in standing water.

OTE:N Do NOT make an underground splice unless absolutely necessary.

3. Route the cable from the sensor to a Badger Meter ow monitor/transmitter. The cable can be extended up to 2000 feet, using 2-conductor shielded 20 AWG or larger stranded copper wire with appropriate ratings. Be sure to leave enough exibility in the cable or conduit to allow for future service of sensor, if necessary.

4. When connecting to a Badger Meter ow monitor/transmitter, locate the section of terminal strip on the monitor labeled SENSOR INPUT or SENSOR. Connect the red (or white) wire to IN, SIGNAL(+) or SIGNAL terminal, connect the black wire to GND, SIGNAL(-) or COM terminal, and connect the shield drain wire (if applicable) to SLD.

OTE:N When interfacing with other equipment, the signal wave forms and power requirements are described in

"Specifications" on page 18. See additional technical literature in the Resource Library at www.badgermeter.com.

Page 10 February 2018SEN-UM-01635-EN-11

Electrical Installation Safety

High Temperature Sensors

1. Route a cable from the sensor to a Badger Meter ow monitor/transmitter. The cable can be extended up to 2000 feet, using 2-conductor shielded 20 AWG or larger stranded copper wire. Be sure to leave enough exibility in the cable or conduit to allow for future service of sensor, if necessary.

2. Connect to the cable inside the sensor electronic housing on the Series 220 sensors, or attach to the sensor cable on the Series 225/226 and connect with standard wire nuts.

3. When connecting to a Badger Meter ow monitor or transmitter, locate the section of terminal strip on the monitor labeled SENSOR INPUT or SENSOR. Connect the red (or white) wire to IN, SIGNAL(+) or SIGNAL terminal, connect the black wire to GND, SIGNAL(-) or COM terminal, and connect the shield drain wire (if applicable) to SLD.

OTE:N When interfacing with other equipment, the signal wave forms and power requirements are as described in

"Specifications" on page 18.

ELECTRICAL INSTALLATION SAFETY

The Series 200 sensor is approved, as an entity, as intrinsically safe when installed in conformance with Badger Meter installation drawing 06-480-002 (Figure 5) as specified on the blue label identifying an intrinsically safe sensor.

Entity approval implies that only the sensor is approved as intrinsically safe. Unless power supplies, equipment, and instruments connected to the sensor are each rated either explosion-proof or intrinsically safe, these devices cannot be installed in a hazardous area. The referenced installation drawing shows such apparatus located in a non-hazardous location. Proper interfacing between the hazardous and non-hazardous areas must be provided. It is of absolute importance that this interface be constructed and that all wiring be performed by qualified contractors. To protect the intrinsic safety of the installation, the connection of the intrinsically safe sensor to instruments and or power supplies must take place using an approved intrinsically safe barrier located in a non-hazardous area. These barriers, listed below, are readily available from various suppliers.

Manufacturer Barrier

Crouse-Hinds Spec 504 Cat No. SB19140M0715

Measurement Technology Ltd. MTL 715+ 15V

R Stahl Intrinspak 9001/1-158-150-10

Page 11 February 2018 SEN-UM-01635-EN-11

12345678

Badger Meter

DRAWN

DF 05-18-15

CHECKED

JK 05-18-15

APPROVED

PART NAME SCALE

0.333

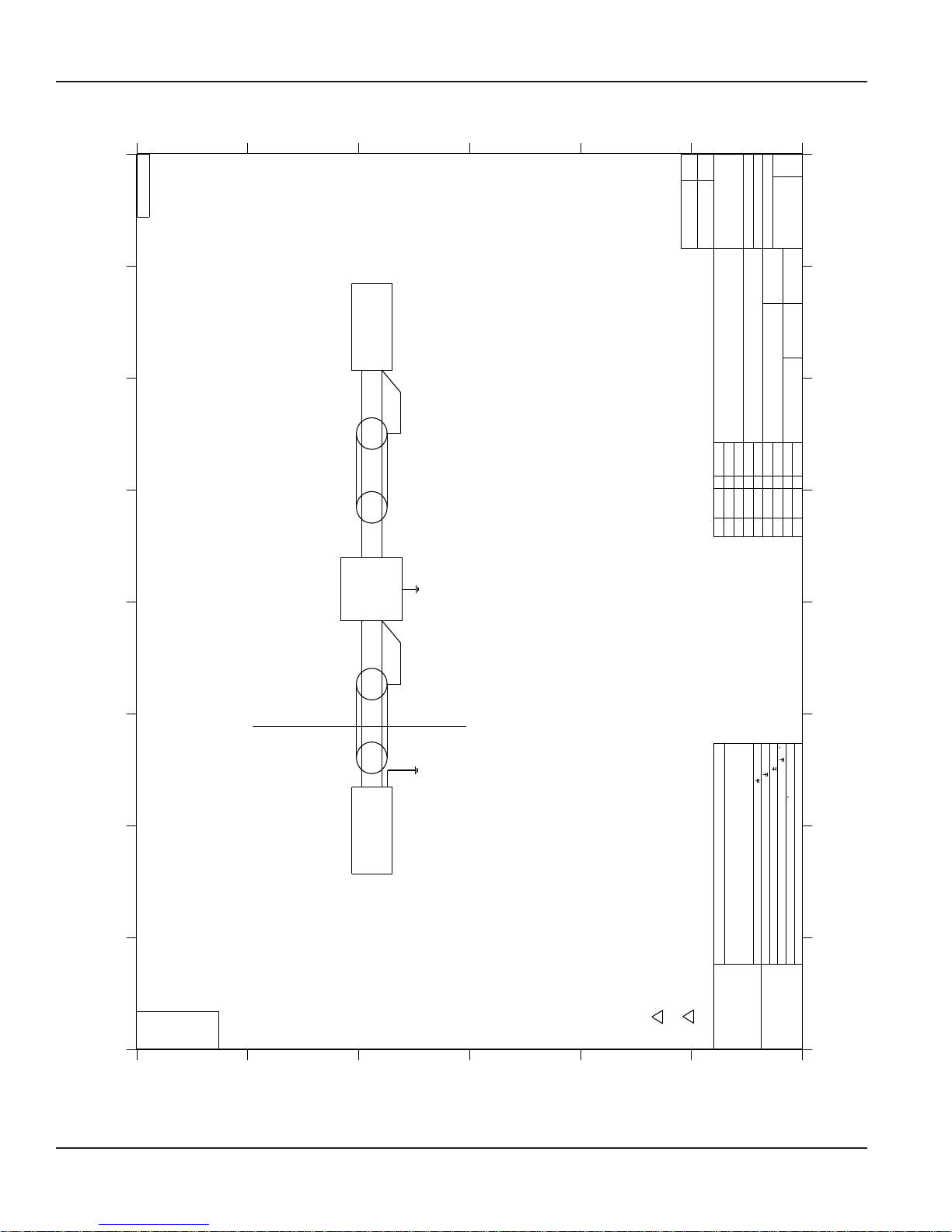

INSTALLATION DRAWING FOR CERTIFIED SENSORS

SHEET

1 OF 1

MATERIAL CAGE # SHEET SIZE

DRAWING # ISSUE

E 17979 DF 05-18-15

PRODUCT LINE EST WEIGHT VOLUME

06480002 E

ISSUE CHANGE BY DATE

DRAWING #

06480002

REVPART #

506480002

IMPORTED ITEMS REQUIRE

COUNTRY OF ORIGIN

MARKING IN COMPLIANCE

WITH 19 U.S.C. 1304

MACHINED SURFACES FINISH - 125 µINCHES OR BETTER

REMOVE ALL BURRS R.005 MAX OR .005 x 45

TOLERANCE ON ANGULAR DIMENSIONS 0.5

TOLERANCE ON 2 PLACE DIMENSIONS .01 [.25]

VENDOR NOTE

TOLERANCE ON 3 PLACE DIMENSIONS .005 [.127]

ALL PROPRIETARY RIGHTS

IN THE SUBJECT MATTER

SHOWN ON THIS DRAWING

ARE EXCLUSIVE PROPERTY

OF BADGER METER.

TOLERANCE ON 4 PLACE DIMENSIONS .0025 [.0635]

THIS DRAWING TO BE USED WITH CAD MODEL, WHEN SUPPLIED BY

BADGER METER, FOR COMPLETE PRODUCT DEFINITION PER ANSI Y14.41-2003

DRAWING AND TOLERANCES PER ANSI Y14.1-2004 & Y14.5-2009

ALL DIMENSIONS ARE IN INCHES [MM]

CONFIDENTIAL UNLESS OTHERWISE SPECIFIED

HAZARDOUS LOCATION

NONHAZARDOUS LOCATION

CSA CERTIFIED

INTRINSIC SAFETY BARRIER

RED

BLACK

DRAIN

RED

BLACK

DRAIN

P/N 220P****** &

P/N 228******* &

P/N 250BR******

FLOW METER

USABLE IN HAZARDOUS LOCATIONS

CLASS I, DIVISION 1,

GROUPS A, B, C, D

CLASS II, DIVISION 1,

GROUPS E, F, G

CLASS III

CROUSE-HINDS, SPEC 504, CAT, NO, SB19140M0715

MEASUREMENT TECHNOLOGY LTD, MTL 715+ 15 V,

R. STAHL INTRINSPAK 9001/01-158-150-10

NOTES: 1. INSTALLATION SHALL BE IN ACCORD WITH THE INTRINSIC

SAFETY BARRIER MANUFACTURERS INSTRUCTIONS AND

CANADIAN ELECTRICAL CODE

PS-COMPLY

Electrical Installation Safety

Page 12 February 2018SEN-UM-01635-EN-11

Figure 5: Sample installation drawing

Calibration

CALIBRATION

Badger Meter sensors use unique K and Offset numbers for calibration. These numbers are derived from calibration runs using NIST traceable instruments. Using both a K and an Offset number provides higher accuracy than using a K (pulse/gal) factor alone. K and Offset numbers for each tee configuration are listed in the following tables.

The "Calibration Table for Pipe Sizes 3…36 Inches" on page 14 provides calibration and operation data for most scheduled pipe sizes 3…18 inches. For tee-mounted sensors, see the Metal Tee or the Plastic Tee user manual, available in the Resource Library at www.badgermeter.com.

Description of Calibration Table Columns

Column Description

Column 1 Nominal Pipe Size (NPS) Column 2 Pipe outside diameter (O.D.) as defined by ASA B36.10 and other standards Column 3 Pipe inside diameter (I.D.) as defined by ASA B36.10 and other standards Columns 4 and 5 The K value and Offset that should be used in our frequency equation:

Freq=

This equation describes the frequency of the output signal of all Badger Meter flow sensors. By substituting the appropriate K and Offset values from the table, the sensor’s output frequency can be calculated for each pipe size. This information is required when calibrating an output board or when using the raw sensor data as direct output to interface with a device that is not a Badger Meter product.

Column 6 This column indicates the suggested flow range of sensors in each pipe size. Badger Meter sensors will operate

both above and below the indicated flow rates. However, good design practice dictates the use of this range for best performance.

Sensors should be sized for flow rather than pipe size. To prevent disturbances to the flow profile, always connect the sensor tee to the pipe nipples measuring at least ten pipe diameters in length on the downstream (delivery) side before making the transition in pipe size.

Gpm

– Oset

Page 13 February 2018 SEN-UM-01635-EN-11

Calibration

Calibration Table for Pipe Sizes 3…36 Inches

See the column descriptions on the previous page for additional information about the calibration table.

Column 1 Column 2 Column 3 Column 4 Column 5 Column 6

Pipe Size Pipe O.D. (in.) Pipe I.D. (in.) K Value Offset

3 inch Sch 10S 3.5 3.260 5.009 0.090 12…400

Std. Wt., Sch 40 3.5 3.068 4.362 0.063 12…400

Extra Strong, Sch 80 3.5 2.900 3.858 0.043 12…400

PVC Class 125 3.5 3.284 5.094 0.093 12…400 PVC Class 160 3.5 3.230 4.902 0.085 12…400 PVC Class 200 3.5 3.166 4.682 0.076 12…400

4 inch Sch 10S 4.5 4.260 9.597 0.241 20…600

Std. Wt., Sch 40 4.5 4.026 8.34 0.229 20…600

Extra Strong, Sch 80 4.5 3.826 7.354 0.188 20…600

PVC Class 125 4.5 4.224 9.396 0.240 20…600 PVC Class 160 4.5 4.154 9.013 0.240 20…600 PVC Class 200 4.5 4.072 8.578 0.239 20…600

5 inch Sch 10S 5.563 5.295 16.305 0.250 30…900

Std. Wt., Sch 40 5.50 5.047 14.674 0.248 30…900

Extra Strong, Sch 80 5.50 4.813 13.165 0.246 30…900

6 inch Sch 10S 6.625 6.357 24.089 0.260 50…1500

Std. Wt., Sch 40 6.5 6.065 21.574 0.257 50…1500

Extra Strong, Sch 80 6.5 5.761 19.457 0.254 50…1500

PVC Class 125 6.625 6.217 22.853 0.258 50…1500 PVC Class 160 6.625 6.115 21.968 0.257 50…1500 PVC Class 200 6.625 5.993 21.068 0.256 50…1500

8 inch Sch 10S 8.625 8.329 43.914 0.286 80…2500

Sch 20 8.625 8.125 41.653 0.283 80…2500 Sch 30 8.625 8.071 41.063 0.283 80…2500

Std. Wt., Sch 40 8.625 7.981 40.086 0.281 80…2500

Sch 60 8.625 7.813 38.288 0.279 80…2500

Extra Strong, Sch 80 8.625 7.625 36.315 0.276 80…2500

PVC Class 125 8.625 8.095 41.324 0.283 80…2500 PVC Class 160 8.625 7.961 39.869 0.281 80…2500 PVC Class 200 8.625 7.805 38.203 0.279 80…2500

10 inch Sch 10S 10.75 10.420 70.195 0.321 125…4000

Sch 20 10.75 10.250 67.668 0.318 125…4000 Sch 30 10.75 10.136 66.069 0.316 125…4000

Sch 40, Std.Wt. 10.75 10.020 64.532 0.314 125…4000

Extra Strong, Sch 60 10.75 9.750 61.016 0.309 125…4000

Sch 80 10.75 9.564 58.644 0.306 125…4000 PVC Class 125 10.75 10.088 65.431 0.315 125…4000 PVC Class 160 10.75 9.924 63.272 0.312 125…4000 PVC Class 200 10.75 9.728 60.733 0.309 125…4000

12 inch Sch 10S 12.75 12.390 104.636 0.367 175…5000

Sch 20 12.75 12.250 102.553 0.364 175…5000

Sch 30 12.75 12.090 99.347 0.36 175…5000

Std. Wt., Sch 40S 12.75 12.000 97.576 0.358 175…5000

Sch 40 12.75 11.938 96.369 0.356 175…5000

Sch 60 12.75 11.625 90.441 0.348 175…5000

Extra Strong 12.75 11.750 92.775 0.351 175…5000

Sch 80 12.74 11.376 85.922 0.342 175…5000 PVC Class 125 12.75 11.966 96.912 0.357 175…5000 PVC Class 160 12.75 11.770 93.152 0.352 175…5000 PVC Class 200 12.75 11.538 88.842 0.346 175…5000

Suggested Operating

Range (gpm)

Page 14 February 2018SEN-UM-01635-EN-11

Calibration

Column 1 Column 2 Column 3 Column 4 Column 5 Column 6

Suggested

Pipe Size Pipe O.D. (in.) Pipe I.D. (in.) K Value Offset

Operating Range

(gpm)

14 inch Sch 10S 14.00 13.500 122.307 0.391 200…6000

Sch 20 14.00 13.375 120.216 0.388 200…6000

Std. Wt., Sch 30 14.00 13.250 118.151 0.385 200…6000

Sch 40 14.00 13.124 116.096 0.382 200…6000 Sch 60 14.00 12.814 111.148 0.376 200…6000

Extra Strong 14.00 13.00 114.098 0.33 200…6000

Sch 80 14.00 12.50 106.299 0.369 200…6000

16 inch Sch 10S 16.00 15.500 159.243 0.44 300…9000

Sch 20 16.00 15.375 156.742 0.436 300…9000

Std. Wt., Sch 30 16.00 15.250 154.267 0.433 300…9000

Sch 60 16.00 14.688 143.456 0.419 300…9000

Extra Strong, Sch 40 16.00 15.000 149.394 0.427 300…9000

Sch 80 16.00 14.314 136.548 0.41 300…9000

18 inch Sch 10S 18.00 17.500 202.739 0.498 350…10,000

Sch 20 18.00 17.375 199.828 0.494 350…10,000 Sch 30 18.00 17.124 194.061 0.486 350…10,000

Std. Wt. 18.00 17.250 196.943 0.49 350…10,000

Sch 40 18.00 16.876 188.464 0.479 350…10,000 Sch 60 18.00 16.500 180.171 0.469 350…10,000

Extra Strong 18.00 17.000 191.25 0.482 350…10,000

Sch 80 18.00 16.126 172.152 0.457 350…10,000

20 inch Std. Wt., Sch 20 20.00 19.25 246.179 0.555 400…12,000

Sch 40 20.00 18.812 234.836 0.540 400…12,000

Extra Strong, Sch 30 20.00 19.000 239.666 0.547 400…12,000

Sch 80 20.00 17.938 213.14 0.511 400…12,000

22 inch Std. Wt., Sch 20 22.00 21.25 301.975 0.621 500…15,000

Extra Strong, Sch 30 22.00 21.00 294.642 0.616 500…15,000

Sch 80 22.00 19.75 259.513 0.573 500…15,000

24 inch Std. Wt., Sch 20 24.00 23.25 364.331 0.666 600…18,000

Extra Strong 24.00 23.00 356.178 0.660 600…18,000

Sch 40 24.00 22.624 344.109 0.652 600…18,000 Sch 80 24.00 21.562 311.271 0.628 600…18,000

26 inch Sch 10 26.00 25.376 437.809 0.719 700…21,000

Std. Wt. 26.00 25.25 433.247 0.716 700…21,000

Sch 20, Extra Strong 26.00 25.00 424.274 0.709 700…21,000

28 inch Sch 10 28.00 27.376 513.698 0.774 900…23,000

Std. Wt. 28.00 27.25 508.723 0.770 900…23,000

Extra Strong, Sch 20 28.00 27.00 498.930 0.763 900…23,000

30 inch Sch 10 30.00 29.376 596.147 0.833 1000…30,000

Std. Wt. 30.00 29.25 590.759 0.829 1000…30,000

Sch 20, Extra Strong 30.00 29.00 580.146 0.822 1000…30,000

32 inch Sch 10 32.00 31.376 685.156 0.897 1200…35,000

Std. Wt. 32.00 31.25 679.355 0.893 1200…35,000

Sch 20, Extra Strong 32.00 31.00 667.922 0.885 1200…35,000

Sch 40 32.00 30.624 650.919 0.873 1200…35,000

34 inch Sch 10 34.00 33.312 777.566 0.964 1300…40,000

Std. Wt. 34.00 33.25 774.511 0.962 1300…40,000

Extra Strong, Sch 20 34.00 33.00 762.258 0.953 1300…40,000

Sch 40 34.00 32.624 744.022 0.940 1300…40,000

36 inch Sch 10 36.00 35.376 882.855 1.040 1500…45,000

Std. Wt. 36.00 35.25 876.227 1.035 1500…45,000

Sch 20, Extra Strong 36.00 35.00 863.154 1.025 1500…45,000

Sch 40 36.00 34.50 837.315 1.007 1500…45,000

Page 15 February 2018 SEN-UM-01635-EN-11

NOTE DIRECTION OF ARROW

Impeller Assembly and Shaft Replacement

IMPELLER ASSEMBLY AND SHAFT REPLACEMENT

If you are replacing an existing Badger Meter sensor and have already calibrated your flow monitor/transmitter, no calibration changes are necessary. For installation of a new flow monitor or for relocation of a sensor in a new pipe size, see the calibration instructions in this manual.

1. Depressurize the pipe from which the sensor is to be removed. If the sensor is one of the Series 225/IR225 or 226/IR226, consult the installation section on hot tap sensors. NEVER disturb the securing lock nuts on a pipe under pressure

without the hot tap insertion tool Model HTT installed.

2. Remove the three lock nuts that secure the positioning collar to the threaded rods of the metal sensor.

OTE:N Before removing the lock nuts, record the dimension from the top of the 2 inch NPT adapter to the bottom of the

positioning collar. This dimension will be required later to reinstall.

USE PLIERS HERE

NOTE DIRECTION OF

IMPELLER

USE METAL PIN TO

REMOVE CERAMIC SHAF

Figure 6: Impeller assembly and shaft replacement

3. Remove the sensor from the hex adapter or the tee.

OTE:N Note the impeller blade orientation relative to the flow arrows and the alignment hole in metal sensors beside

one of the sight holes. To maintain proper calibration, the impeller must be reinstalled in the same manner, with the impeller blades pointing toward the small alignment hole, and into the flow direction as indicated by the flow arrows.

4. To remove the old impeller blade assembly, push the old shaft out of the sleeve with the new shaft (or small diameter rod) just far enough to grab the end with a pair of pliers and pull the shaft completely out. The impeller assembly will now be free and will drop out.

5. Inspect the shaft and bearings for wear, and replace as necessary.

6. See Figure 5. To reinstall, position the impeller in the cavity, oriented as in the NOTE above, so that the impeller blades point into the ow direction and toward the alignment hole located beside one of the sight holes on the metal sensors.

7. Carefully push the shaft through the sleeve and impeller, taking care not to damage the bearings. Make sure that the shaft is inserted far enough so that it clears the sleeve on each side of the impeller housing.

OTE:N If the shaft is not carefully installed, the bearing can be deformed preventing free rotation.

8. Inspect the O-rings for damage and replace as necessary. Clean the O-rings and the sleeve and relubricate with silicone grease from the packet provided or some other acceptable lubricant.

9. Install the sensor into the 2 inch NPT adapter or tee so that the alignment hole is facing upstream and ow arrows point in the direction of the actual ow. Since the positioning collar was not loosened during this operation, the studs should all line up perfectly when the sight holes are parallel to pipe. If this has been accidentally loosened, see "Electrical Installation

Safety" on page 11.

10. Install and tighten the nuts.

11. For metal sensors, double check that the distance from the top of the 2 inch NPT adapter to the bottom of the positioning collar equals the dimension as measured in Step 2, and holes in sleeve sight exactly down the pipe, the arrows point in the direction of ow, and alignment holes located beside one sight hole are pointing towards the source. If not, see

"Mechanical Installation" on page 3.

This completes the replacement procedure. The system can now be repressurized and tested.

Page 16 February 2018SEN-UM-01635-EN-11

Troubleshooting

TROUBLESHOOTING

1. If the voltage at the sensor input is less than 7V DC in a no ow situation, disconnect the sensor from the barrier strip and measure the voltage again at the sensor input terminals of the barrier strip. It should be between 8…20V DC. If the voltage at the sensor input is still below 7V DC or 3V DC, the problem may be with the monitor (hardware or programming).

2. If you suspect that the sensor is bad, you can test the monitor circuitry by connecting a piece of wire to one of the sensor input terminals, and tap the other side of the wire to the other sensor input terminal. Shorting across the sensor input terminals ON and OFF repeatedly allows the display to respond by trying to calculate a ow rate for the frequency of your shorting action. If the display does not show a change from 0.00, it indicates a problem with the monitor.

3. If the monitor tests OK and there are any splices in the cable, break the sensor cable at the splice closest to the sensor and retry the shorting test in Step 2.

4. If the cable tests OK, drain the pipe line, verify the pressure is o, and remove the top lock nuts holding the sensor electronics. Spin the impeller by hand. If ows are noted on the display, and the impeller spins freely, then the ow rates may have been below the design minimums, or the line was full of air. Try again. If the sensor fails to respond then replace the sensor.

Page 17 February 2018 SEN-UM-01635-EN-11

Specications

SPECIFICATIONS

Sensor Sleeve and Hex Adapter for 220BR

Sensor Sleeve and Hex Adapter for 225BR, and 226BR

Sensor Sleeve and Hex Adapter for 220SS and 226SS

Sensor Sleeve and Mounting Adapter for 220PV

Sleeve: Admiralty brass, UNS C44300 Hex adapter: Lead-free brass, C89833 Sleeve: Admiralty brass, UNS C44300 Hex adapter: Lead-free brass, C89833

Series 300 stainless steel

Polyvinyl chloride (PVC)

Standard version: 221 F (105 C) continuous service

Temperature Ratings for 220BR, 220SS

High temperature version: 285° F (140.6° C) continuous service; 305° F (150° C) peak temperature (limited duration)

220SS 180° F (82° C) 220BR 180° F (82° C)

Temperature Ratings

220PV 140° F (60° C) 225BR 180° F (82° C) 226BR 180° F (82° C) 226SS 180° F (82° C)

At 100° F At 300° F

220SS 400 psi 325 psi

Pressure Ratings

220BR 400 psi 325 psi 225BR 300 psi 210 psi

220PV 100 psi @ 68° F

226BR 400 psi 250 psi 226SS 400 psi 300 psi

Recommended Design Flow Range 0.5…30 ft/sec Initial detection below 0.3 ft/sec Accuracy ± 1.0% of full scale over recommended design flow range Repeatability ± 0.3% of full scale over recommended design flow range Linearity ± 0.2% of full scale over recommended design flow range

Supply voltage = 8V DC min. 35V DC max. Quiescent current = 600 uA (typical)

Transducer Excitation

OFF State (V

ON State (V

) = Supply voltage – (600 uA * Supply impedance)

High

) = 1.2V DC @ 40 mA (15 Ω + 0.7V DC)

Low

Output Frequency 3.2…200 Hz Output Pulse Width 5 msec ±25%

Electrical Cable for Standard Sensor Electronics

Electrical Cable for IR Sensor Electronics

20 feet of 2-conductor 20 AWG shielded UL type PTLC wire provided for connection to display or analog transmitter unit. Rated to 221° F (105° C). May be extended to a maximum of 2000 feet with similar cable and insulation appropriate for application.

48 inches of UL Style 116666 copper solid AWG 18 wire with direct burial insulation. Rated to 221° F (105° C).

Certifications CE certified

Page 18 February 2018SEN-UM-01635-EN-11

INTENTIONAL BLANK PAGE

User Manual

Page 19 February 2018 SEN-UM-01635-EN-11

Flow Sensors, Insertion Style Flow Sensors

Control. Manage. Optimize.

Data Industrial is a registered trademark of Badger Meter, Inc. Other trademarks appearing in this document are the property of their respective entities. Due to continuous research, product improvements and enhancements, Badger Meter reserves the right to change product or system specications without notice, except to the extent an outstanding contractual obligation exists. © 2018 Badger Meter, Inc. All rights reserved.

www.badgermeter.com

Badger Meter 225, 220SS, 220PV, 220BR, 226 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
