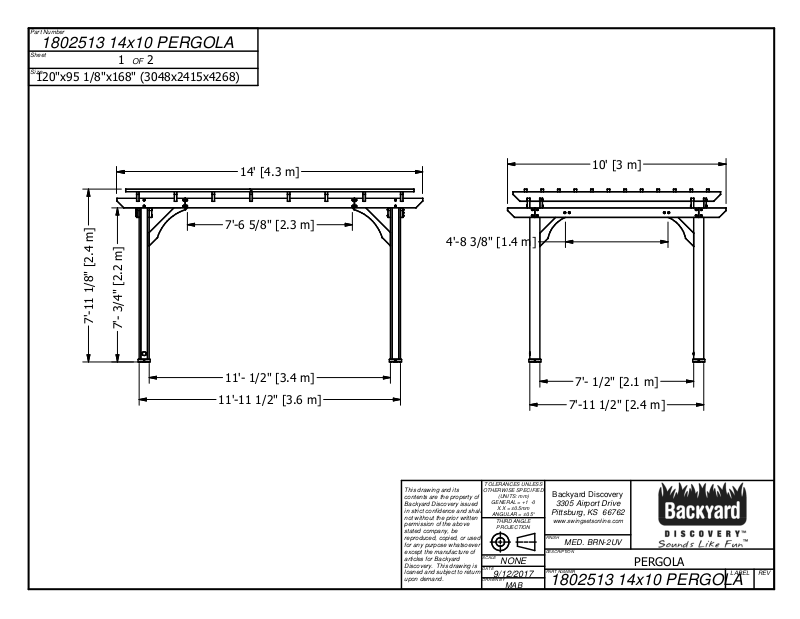

Page 1
Part Number
1802513 14x10 PERGOLA
Sheet
Size
120"x95 1/8"x168" (3048x2415x4268)
1 OF 2
]
m
4
.
2
[
"
8
/
1
1
1
-
'
7
]
m
2
.
2
[
"
4
/
3
-
'
7
14' [4.3 m]
7'-6 5/8" [2.3 m]
11'- 1/2" [3.4 m]
11'-11 1/2" [3.6 m]
10' [3 m]
4'-8 3/8" [1.4 m]
7'- 1/2" [2.1 m]
7'-11 1/2" [2.4 m]
This drawing and its
contents are the property of
Backyard Discovery issued
in strict confidence and shall
not without the prior written
permission of the above
stated company, be
reproduced, copied, or used
for any purpose whatsoever
except the manufacture of
articles for Backyard
Discovery. This drawing is
loaned and subject to return
upon demand.
TOLERANCES UNLESS
OTHERWISE SPECIFIED
(UNITS: mm)
GENERAL = +1 -0
X.X = ±0.5mm
ANGULAR = ±0.5°
THIRD ANGLE
PROJECTION
SCALE
NONE
DATE
9/12/2017
DRAWN BY
MAB
Backyard Discovery
3305 Airport Drive
Pittsburg, KS 66762
www.swingsetsonline.com
FINISH
MED. BRN-2UV
DESCRIPTION
PART NUMBER
PERGOLA
1802513 14x10 PERGOLA
LABEL
REV

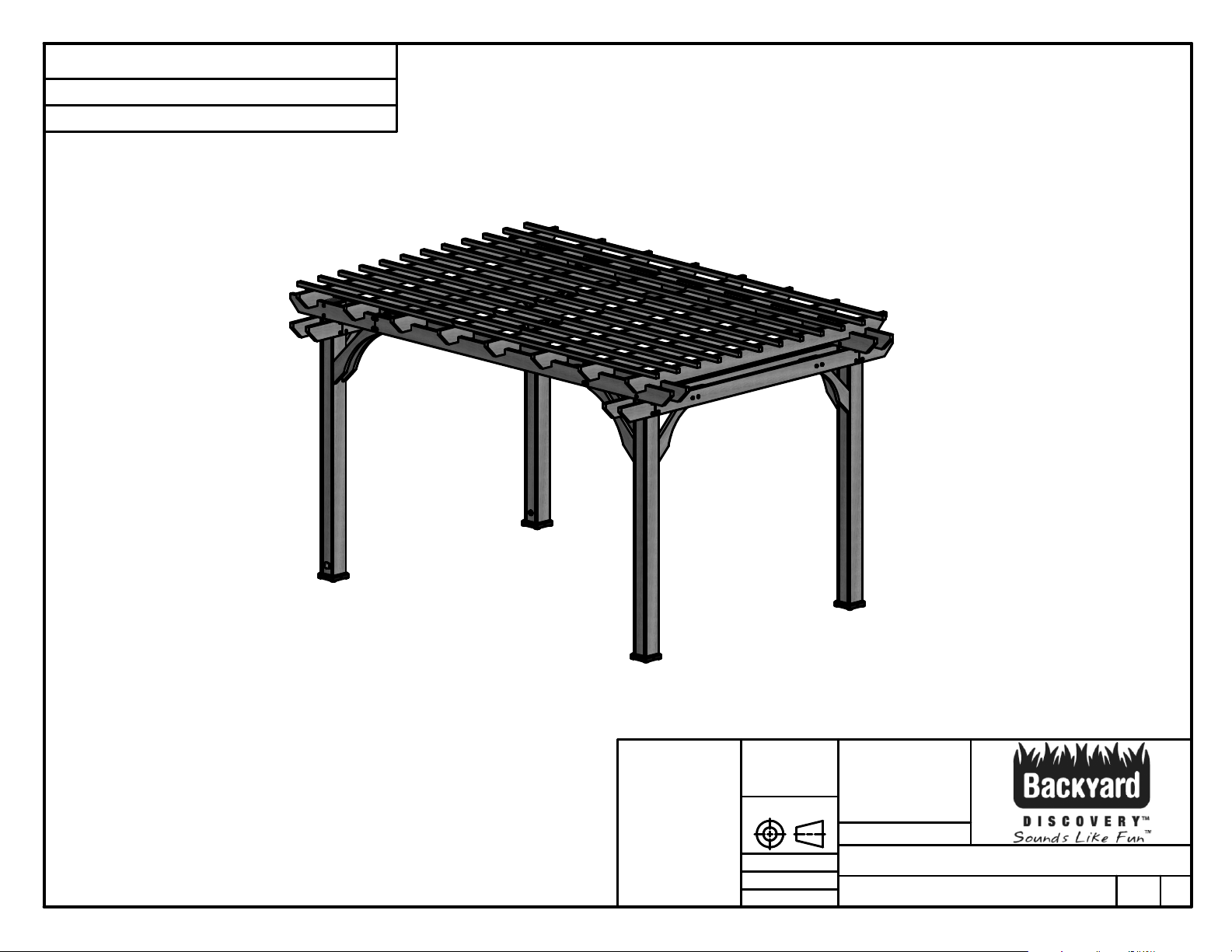

Page 2
Part Number
1802513 14x10 PERGOLA
Sheet
Size
120"x95 1/8"x168" (3048x2415x4268)
2 OF 2
This drawing and its
contents are the property of
Backyard Discovery issued
in strict confidence and shall
not without the prior written
permission of the above
stated company, be
reproduced, copied, or used
for any purpose whatsoever
except the manufacture of
articles for Backyard
Discovery. This drawing is
loaned and subject to return
upon demand.
TOLERANCES UNLESS
OTHERWISE SPECIFIED
(UNITS: mm)
GENERAL = +1 -0
X.X = ±0.5mm
ANGULAR = ±0.5°
THIRD ANGLE
PROJECTION
SCALE
NONE
DATE
9/12/2017
DRAWN BY
MAB
Backyard Discovery
3305 Airport Drive
Pittsburg, KS 66762
www.swingsetsonline.com
FINISH
DESCRIPTION
PART NUMBER
PERGOLA
1802513 14x10 PERGOLA
LABEL
REV
