Backyard Discovery READY SHED, 817220010 User Manual

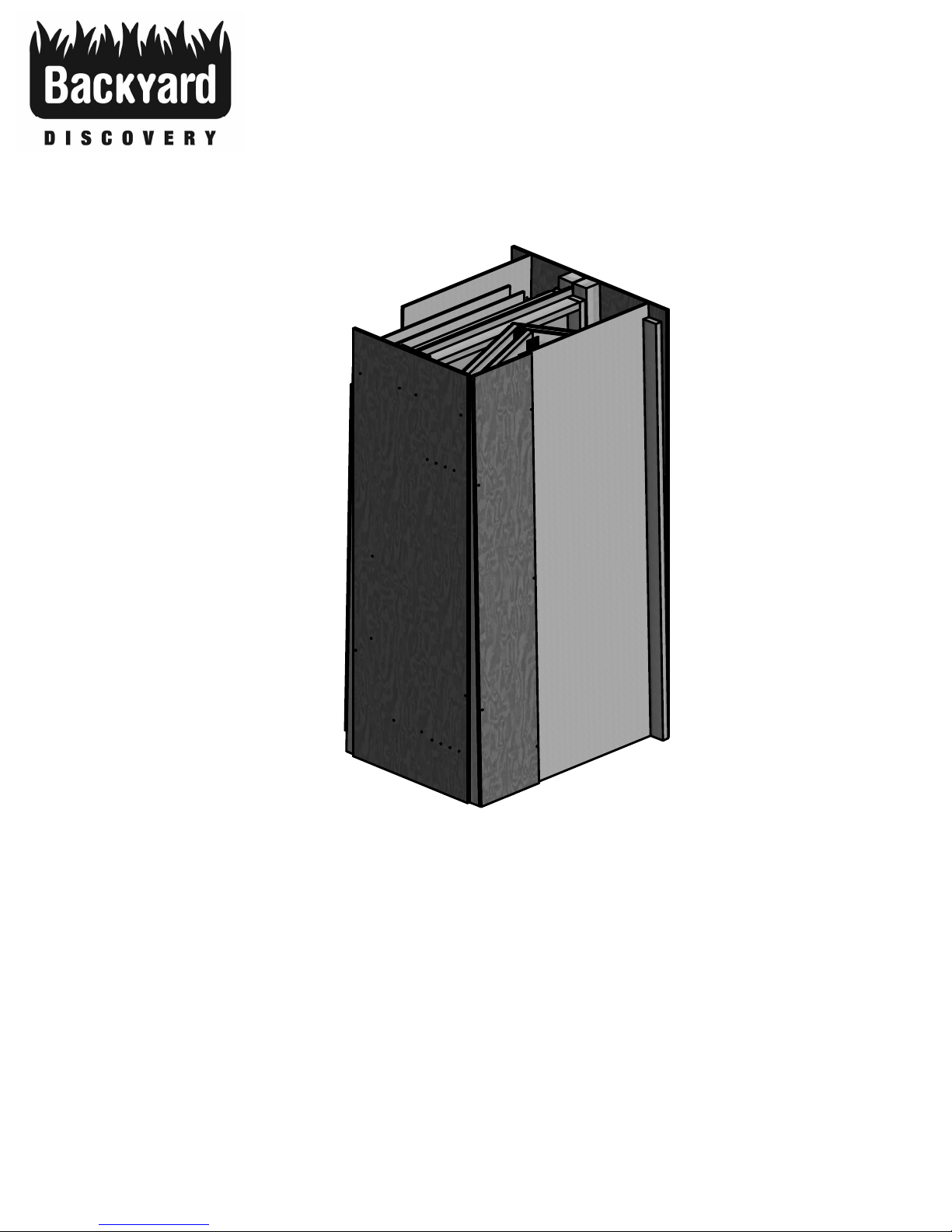

READY SHED

8X8 BARN SHED

DISASSEMBLY

MODEL: # 817220010

READ INSTRUCTIONS COMPLETELY BEFORE BEGINNING CONSTRUCTION.

Manufacturer: Backyard Discovery

3305 Airport Drive

Pittsburg, KS 66762

Save this assembly manual for future reference in the event that

you need to order replacement parts.

INS-

817220010-A-BARN SHED DISASSEMBLY-ENG 4-13-17

1-800-856-4445

STOP!

DO NOT RETURN THIS PRODUCT TO STORE!

If you have questions or concerns,

please call 800-856-4445

or

email [e-mail]

IMPORTANT!

READ INSTRUCTIONS COMPLETELY BEFORE BEGINNING.

BEFORE YOU BEGIN

• SAFETY FIRST

Your safety is what matters, follow the instructions fully to ensure it gets dissassembled correctly

and safely.

• SURFACE PREPARATION

To ensure proper disassembly you must uncrate your shed on a level firm surface.

• HANDLE WITH CARE

This crate is your shed, handle all parts with care as you follow the instructions to take it apart.

• DON'T THROW ANYTHING AWAY

Keep all parts during the disassembly until you are able to inventory the parts using the next Instruction

Manual found in your shed crate.

• DON'T SKIP ANY STEPS

This crate has been designed to keep it's parts from being damaged and from falling over.

Skipping steps could cause parts to fall and land on you or cause damage to your shed or
surrounding structures.

1

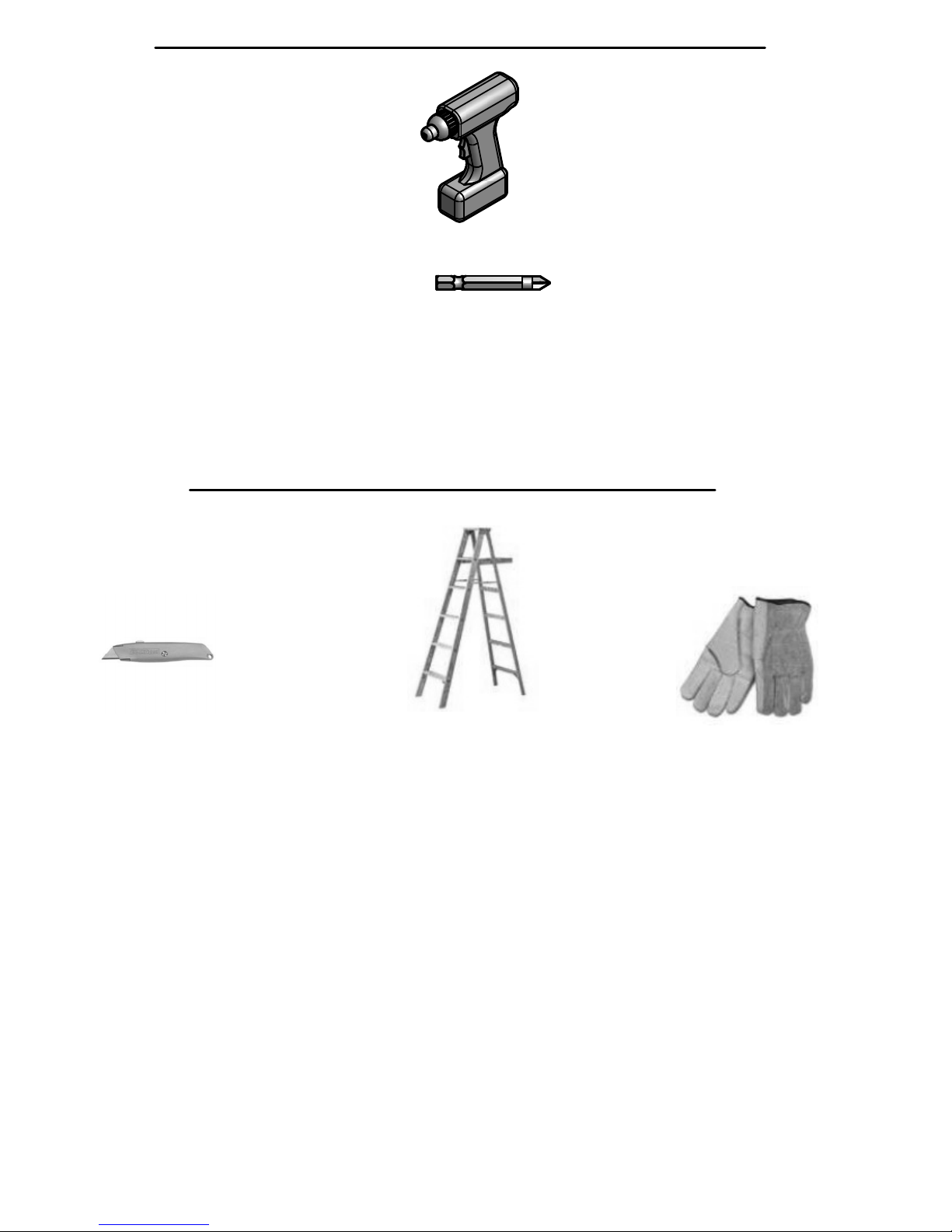

DISASSEMBLY TOOLS REQUIRED

• Drill

• Phillips Bit Driver

OTHER TOOLS WE SUGGEST

• Utility Knife

• 6' Ladder

• Gloves

2

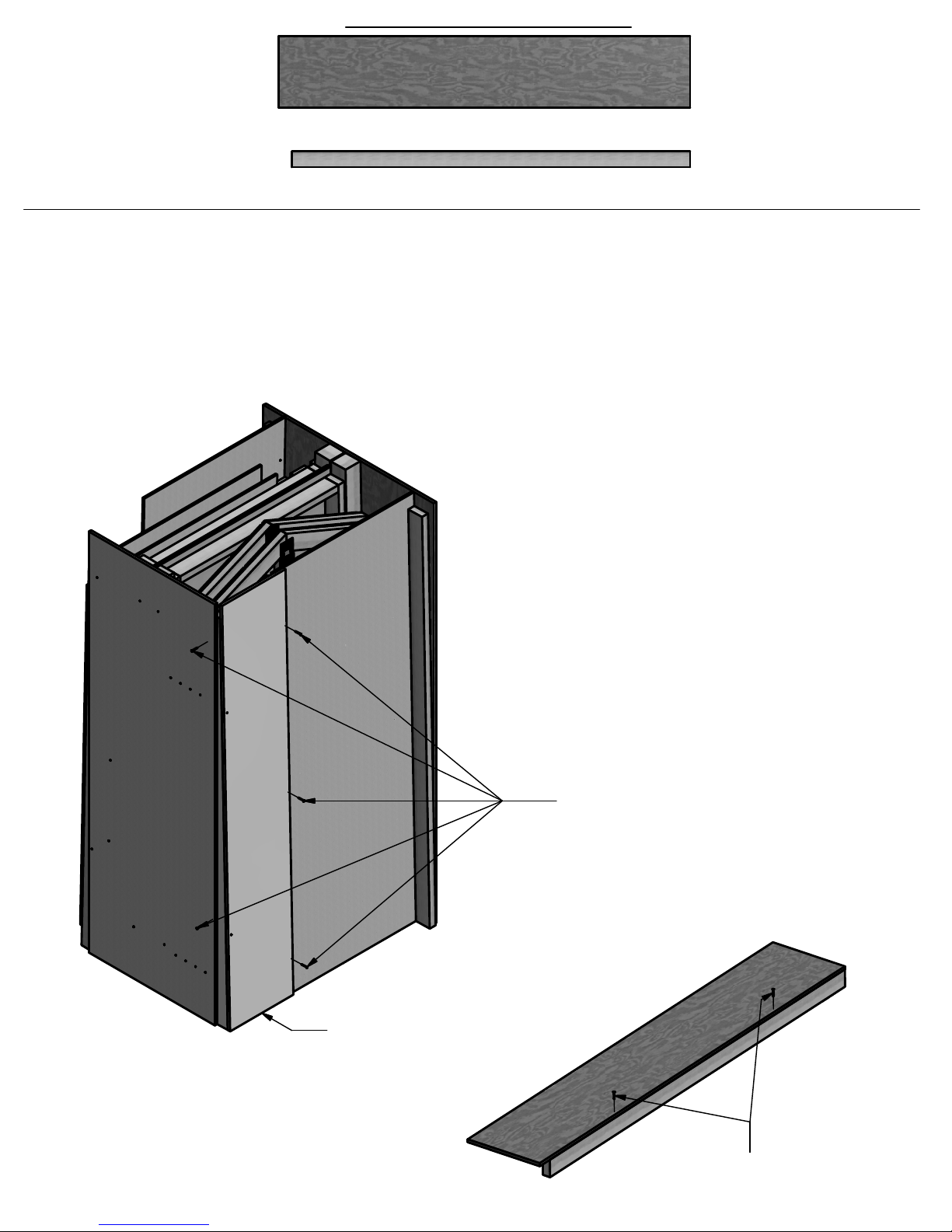

PARTS BEING REMOVED

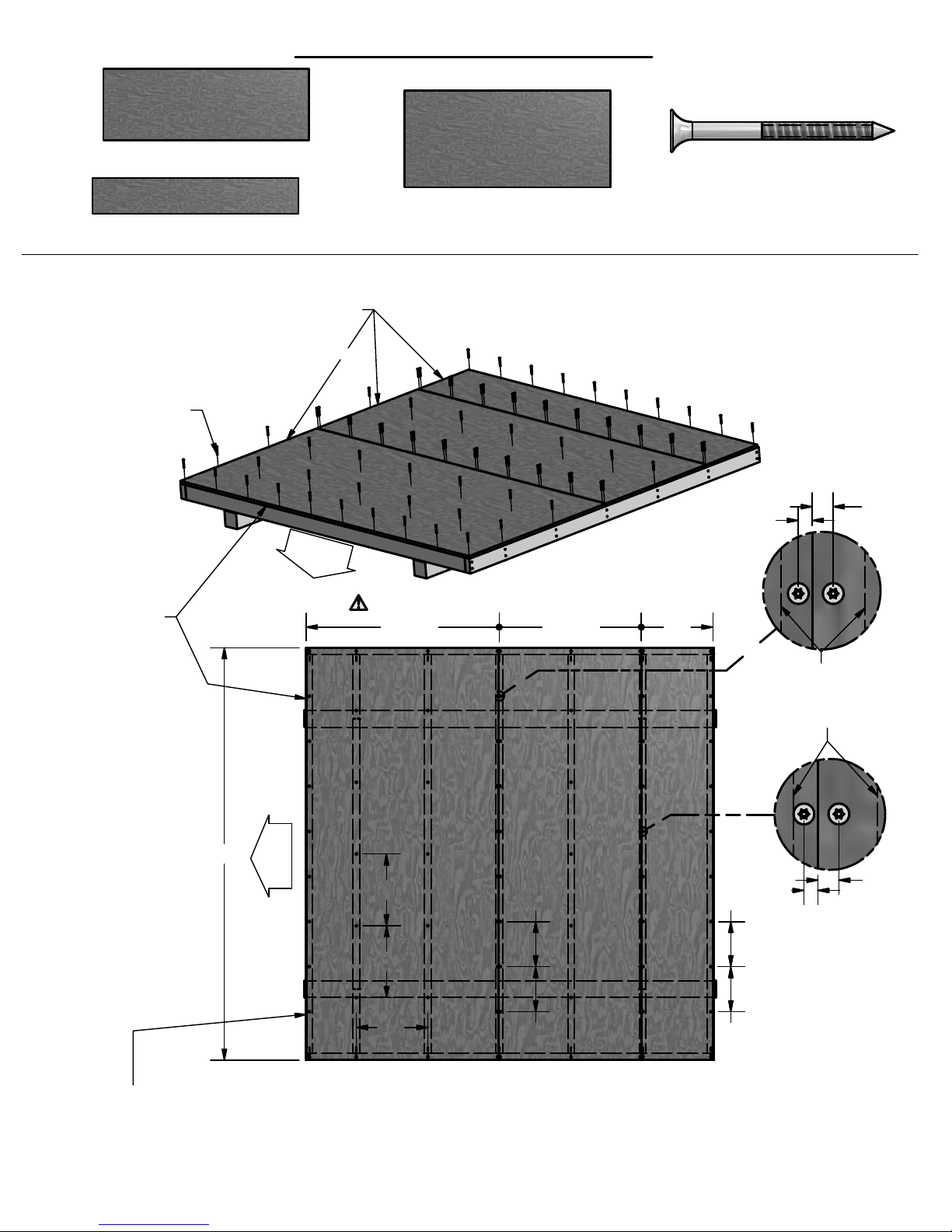

- 5/8" OSB FLOOR SHEATHING - W4L07734

(1)

5/8"x16"x92"

- FLOOR JOIST - W4L07662

(1)

DON'T SKIP ANY STEPS

This crate has been designed to keep it's parts from being damaged and from falling over.
Skipping steps could cause parts to fall and land on you or cause damage to your shed or
surrounding structures.

•These instructions will take you step by step through the disassembly process.

•

Only remove screws shown in the current step, do not skip foward or take out any additional screws

until instructed to.

1 1/2"x3 1/2"x89" TREATED

REMOVE ONLY THE 5 SCREWS
SHOWN HERE.

REMOVE ONLY THIS PIECE.

NEXT: REMOVE SCREW
(2 PLS)

3

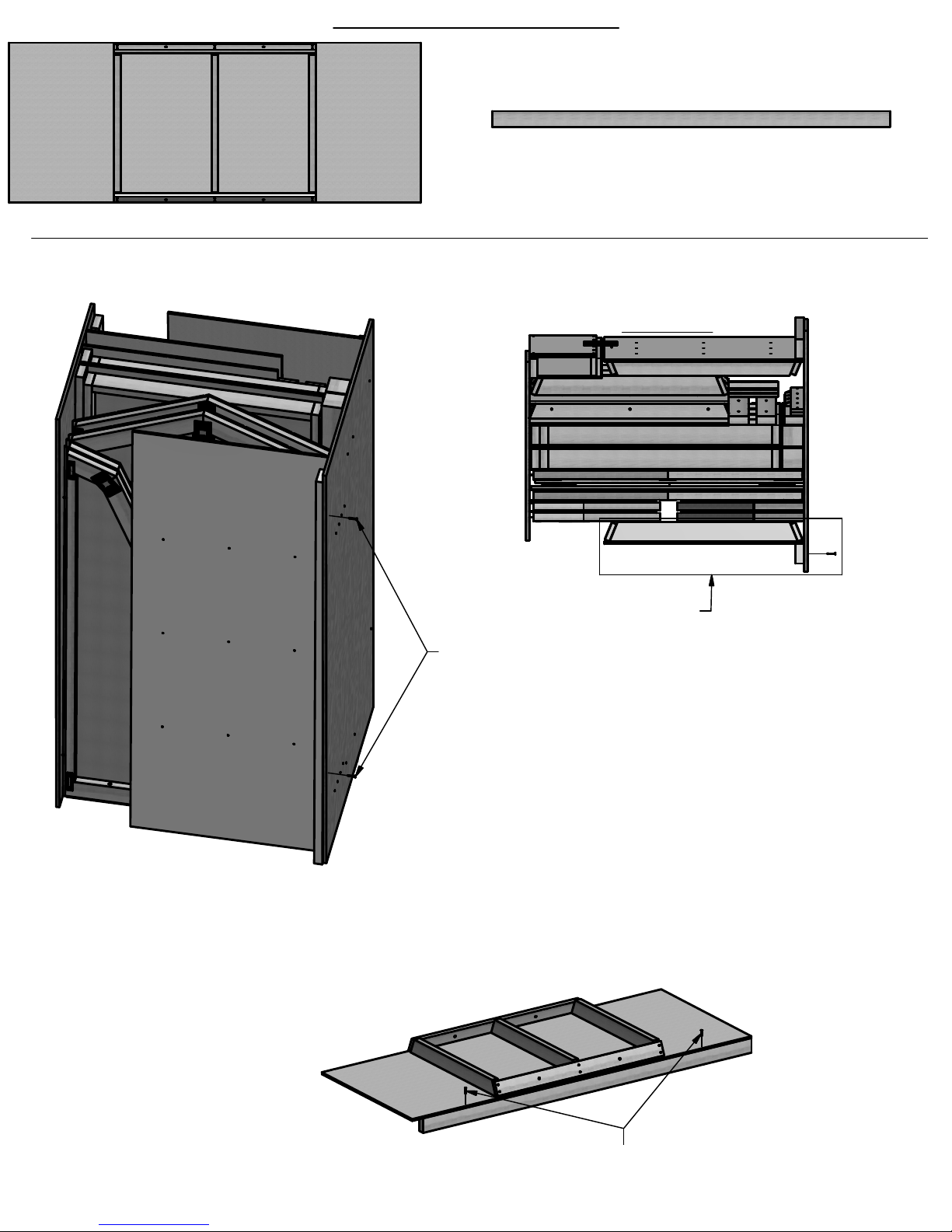

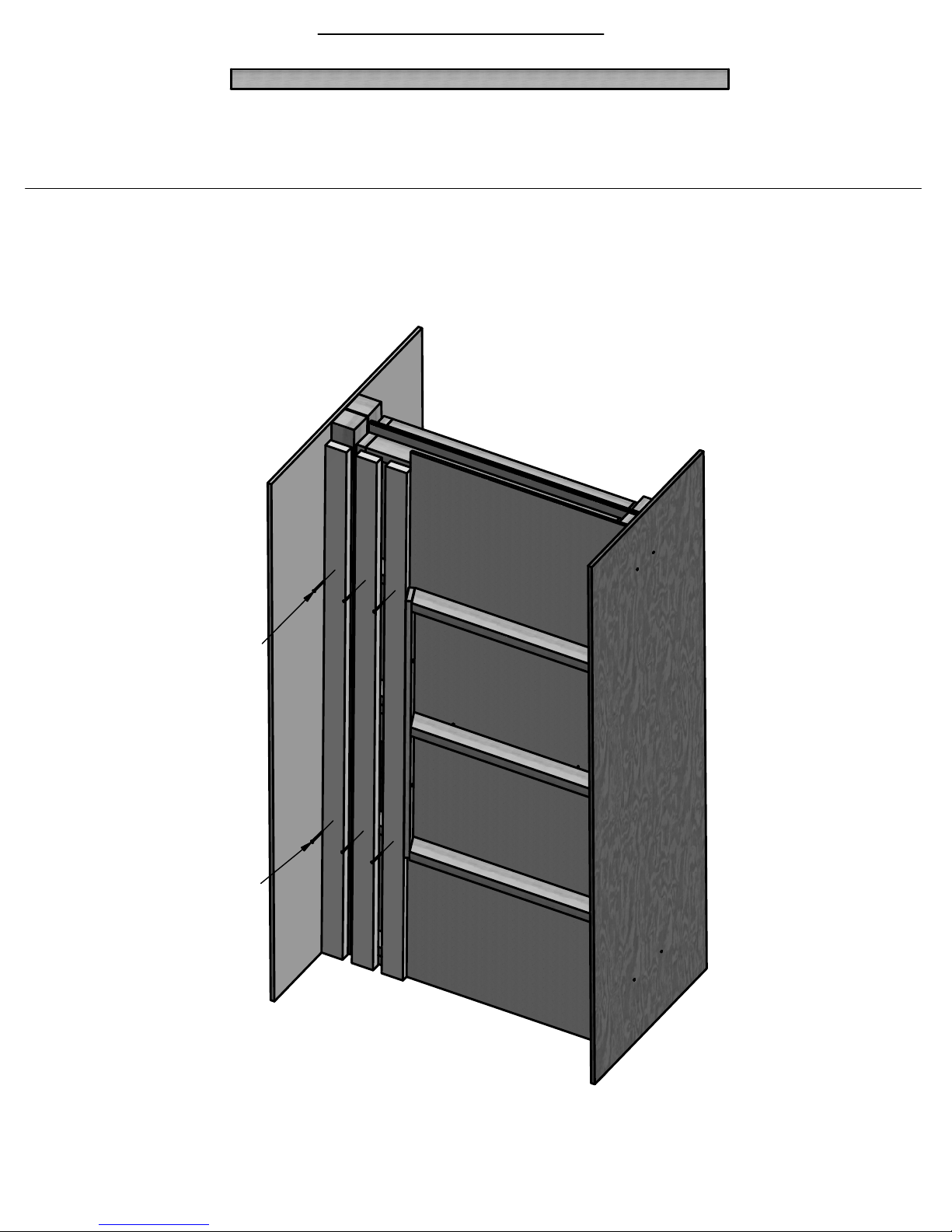

PARTS BEING REMOVED

- FLOOR JOIST - W4L07662

(1)

1 1/2"x3 1/2"x89" TREATED

(1) RP1 - ROOF PANEL - W2A02123

•Only remove screws shown in the current step, do not skip foward or take out any additional screws until instructed to.

TOP VIEW

REMOVE SCREW
(2 PLS)

REMOVE

NEXT: REMOVE SCREW
(2 PLS)

4

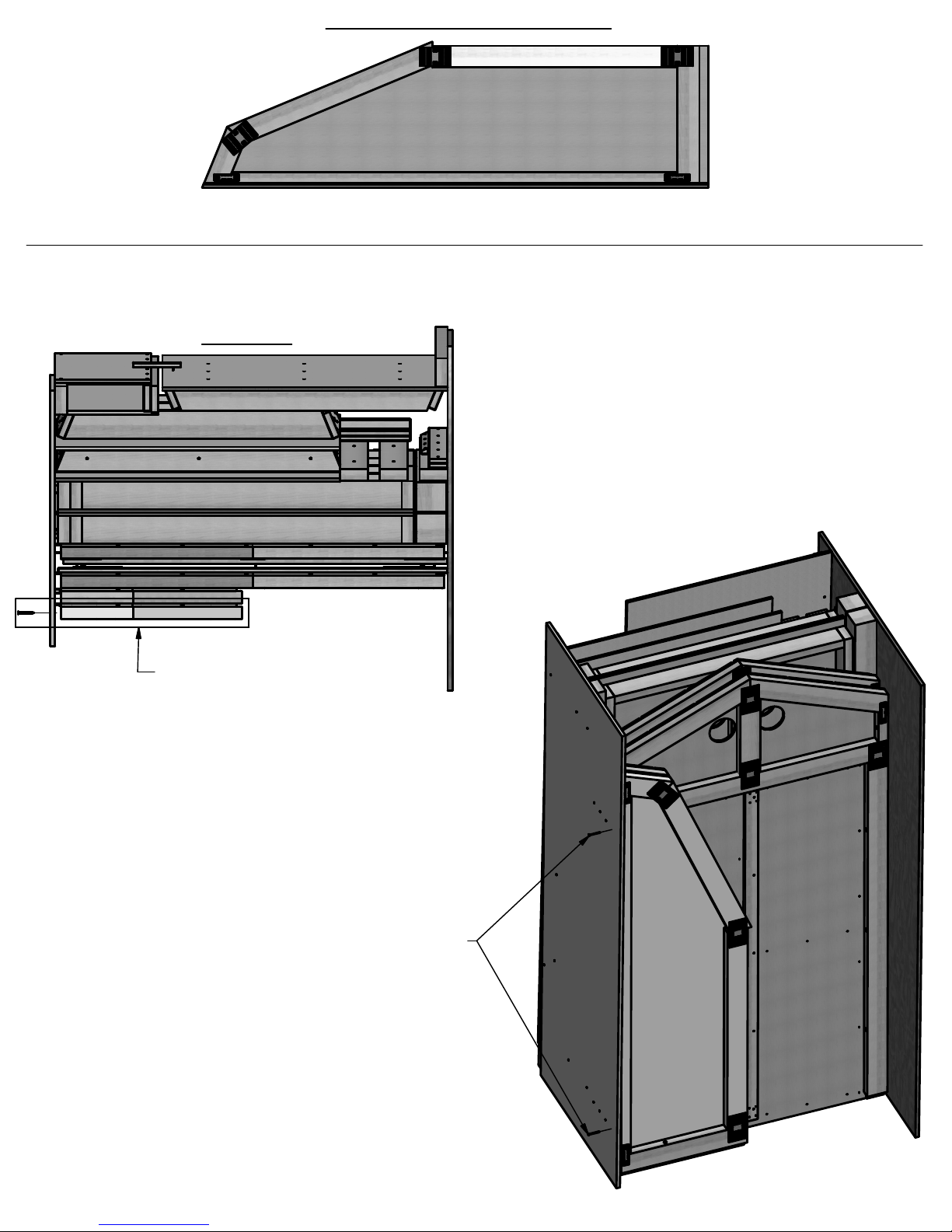

PARTS BEING REMOVED

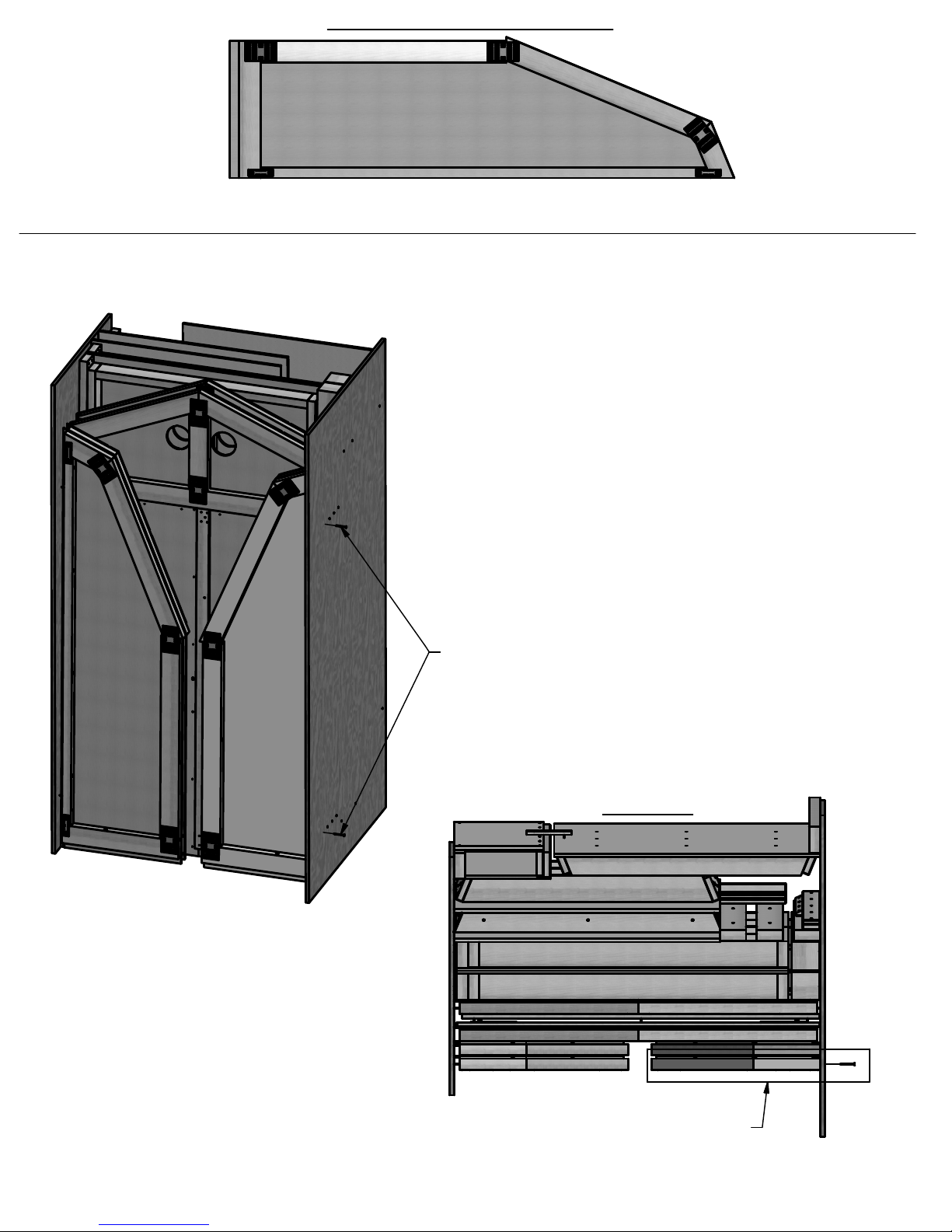

(1) WP5 - UNIVERSAL RIGHT
WALL PANEL - W2A02122

•Only remove screws shown in the current step, do not skip foward or take out any additional screws until instructed to.

REMOVE SCREW
(2 PLS)

TOP VIEW

REMOVE

5

PARTS BEING REMOVED

(1) WP5 - UNIVERSAL RIGHT
WALL PANEL - W2A02122

•Only remove screws shown in the current step, do not skip foward or take out any additional screws until instructed to.

TOP VIEW

REMOVE SCREW
(2 PLS)

REMOVE

6

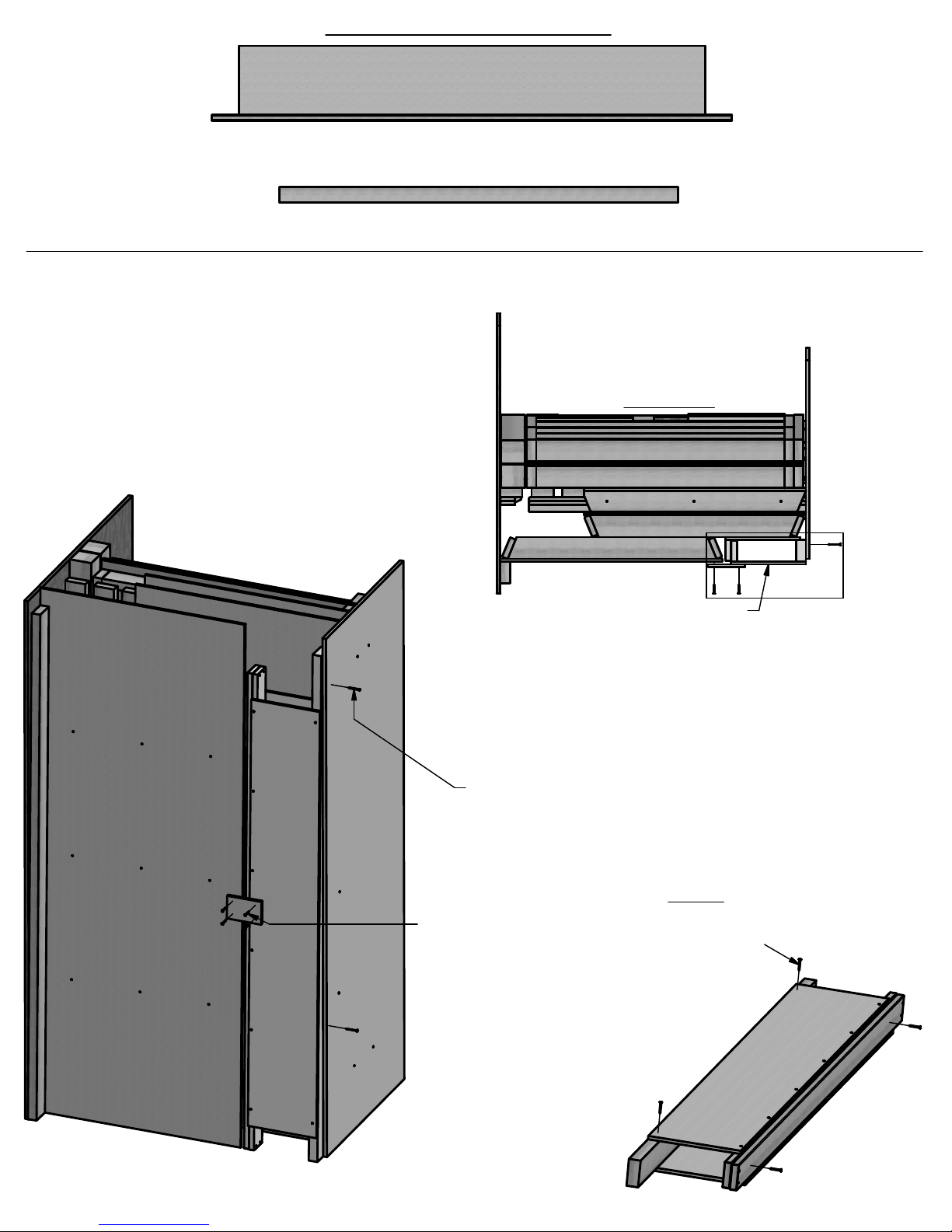

PARTS BEING REMOVED

(1) WP4 - UNIVERSAL LEFT
WALL PANEL - W2A02121

•Only remove screws shown in the current step, do not skip foward or take out any additional screws until instructed to.

TOP VIEW

REMOVE

REMOVE SCREW
(2 PLS)

7

PARTS BEING REMOVED

(1) WP4 - UNIVERSAL LEFT
WALL PANEL - W2A02121

•Only remove screws shown in the current step, do not skip foward or take out any additional screws until instructed to.

TOP VIEW

REMOVE

REMOVE 2 SCREWS

8

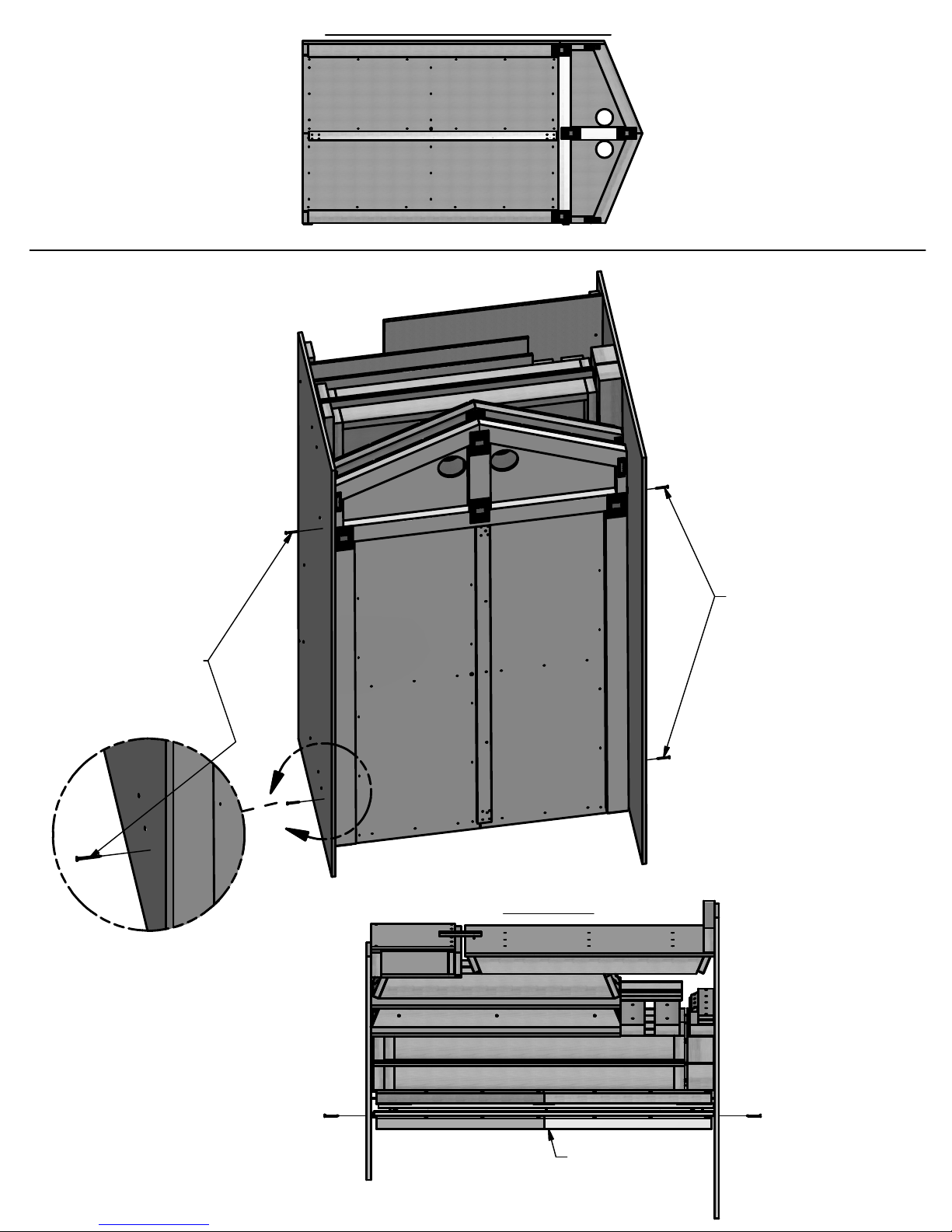

PARTS BEING REMOVED

(1) WP3 - FRONT CENTER WALL PANEL - W2A02120

•Only remove screws shown in the current step, do not skip foward or take out any additional screws until instructed to.

REMOVE SCREW
(2 PLS)

REMOVE SCREW
(2 PLS)

TOP VIEW

REMOVE

9

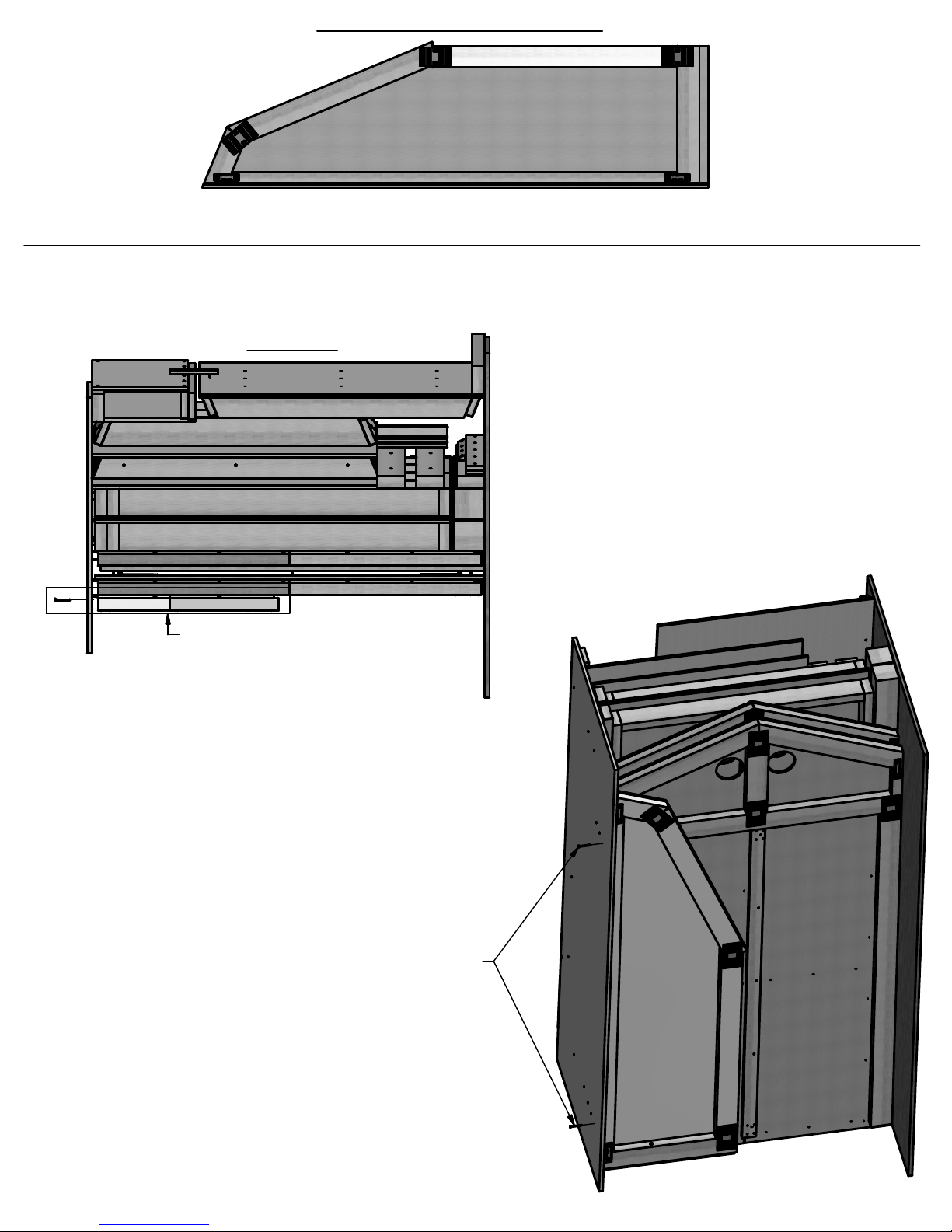

PARTS BEING REMOVED

(1) WP2 - REAR CENTER WALL PANEL - W2A02119

•Only remove screws shown in the current step, do not skip foward or take out any additional screws until instructed to.

TOP VIEW

CAUTION

LOOSE PARTS BEHIND, MOVE WITH

CAUTION.

REMOVE SCREW
(2 PLS)

REMOVE

REMOVE SCREW
(2 PLS)

10

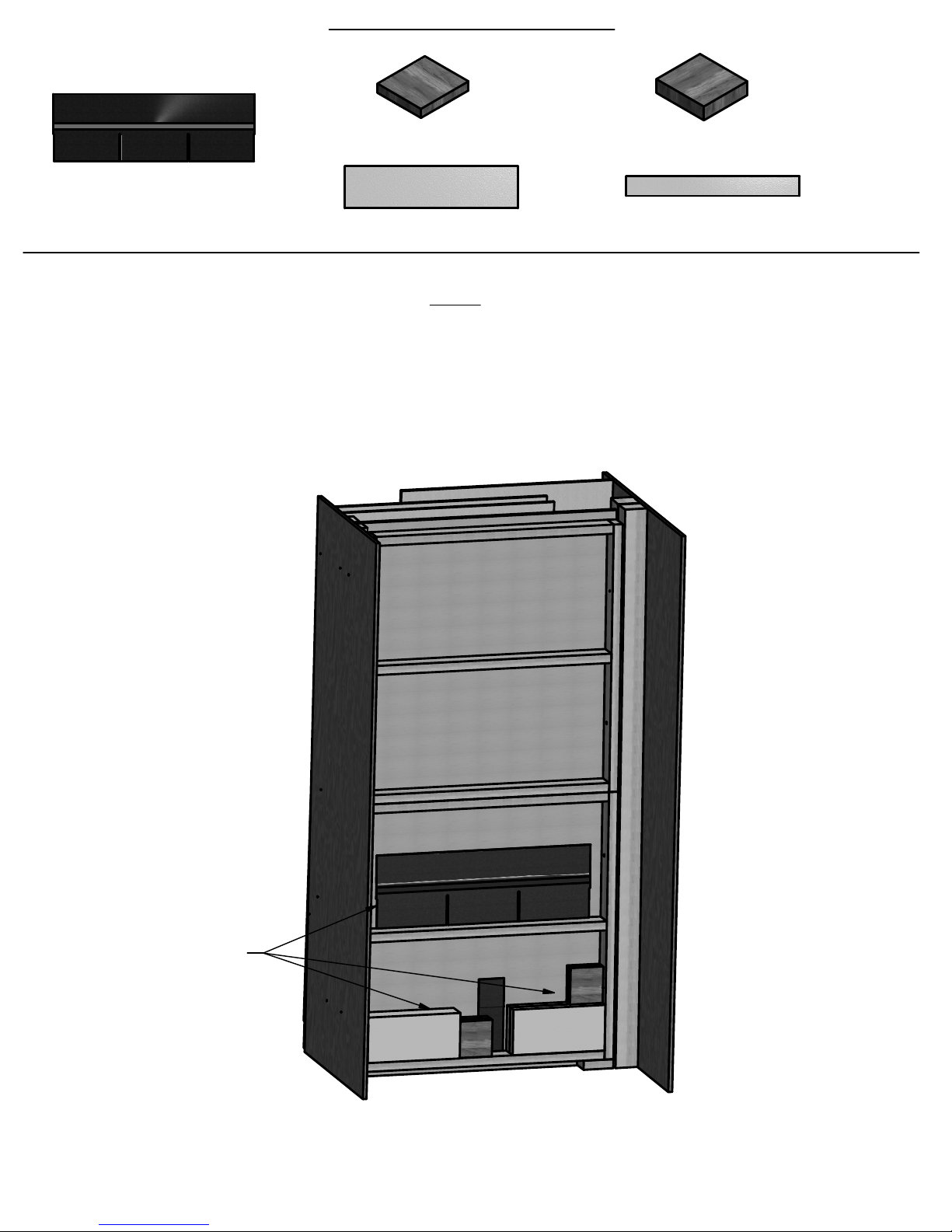

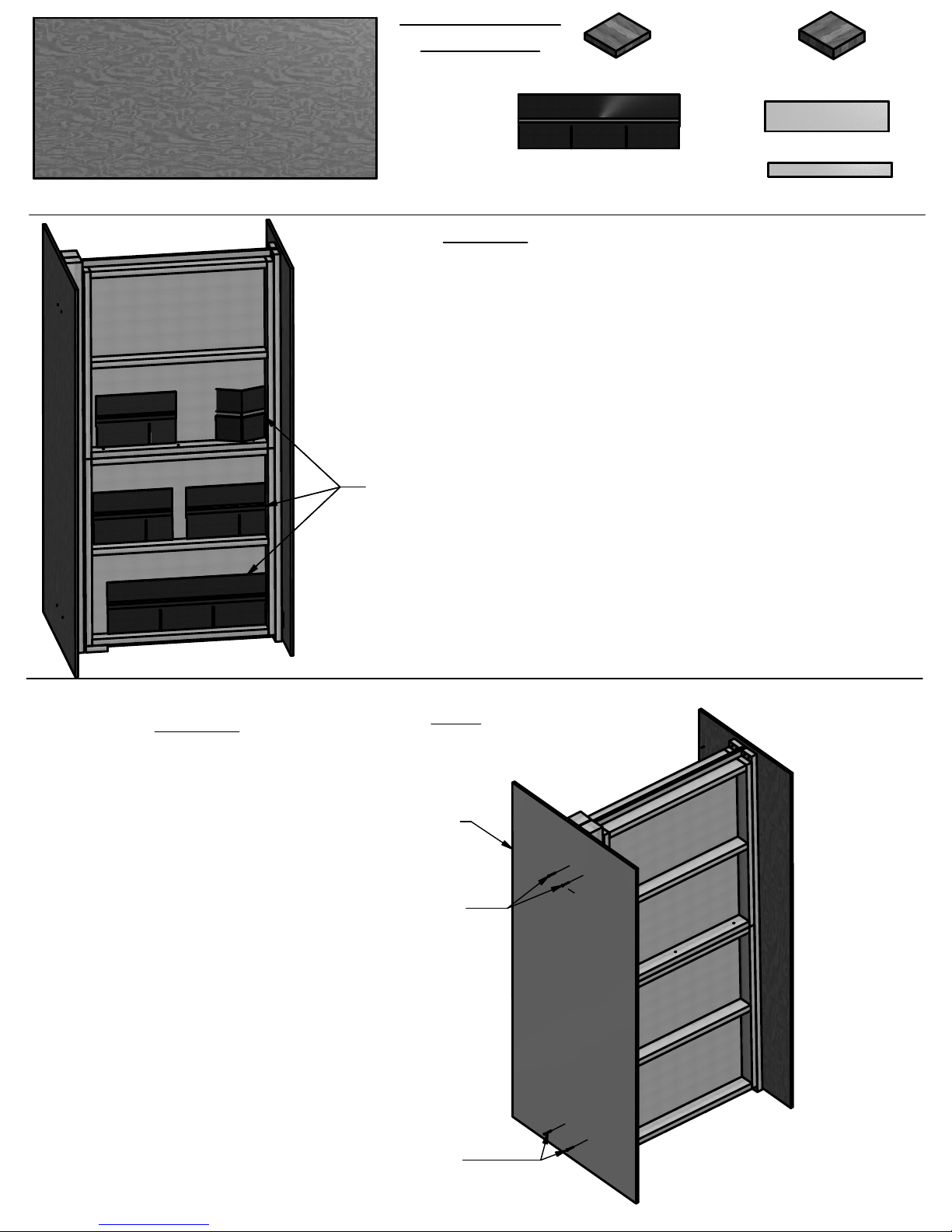

PARTS BEING REMOVED

- LEVELING BLOCK - W4L07757

(2)

1"x5 1/2"x6"

- LEVELING BLOCK - W4L07756

(2)

1 1/2"x5 1/2"x6"

SHINGLES

(2)

(1)

- 4" CONCRETE BLOCK - CB000001

- 2" CONCRETE BLOCK - CB000002

•Only remove item's shown in the current step, do not skip foward or take out any additional parts until instructed to.

STOP

ONLY REMOVE LOOSE PARTS AND

MOVE TO NEXT STEP.

REMOVE SHINGLES
AND LEVELING
MATERIALS

11

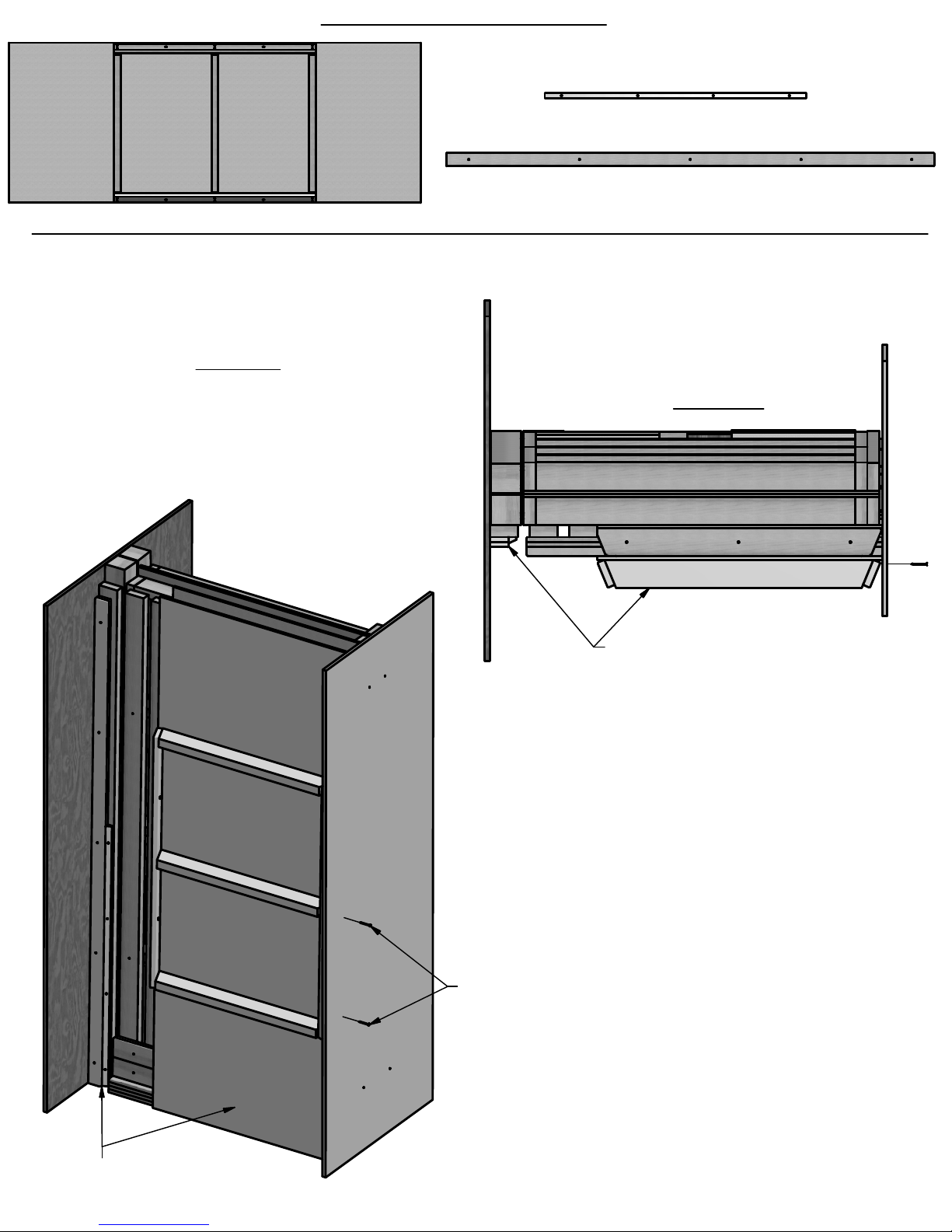

PARTS BEING REMOVED

(2) LP1 - LOFT PANEL - W2A02124

- FLOOR JOIST - W4L07662

(1)

1 1/2"x3 1/2"x89" TREATED

•Only remove screws shown in the current step, do not skip foward or take out any additional screws until instructed to.

TOP VIEW

REMOVE SCREW
(2 PLS)

REMOVE SCREW
(4 PLS)

REMOVE

NEXT:

REMOVE SCREW
(4 PLS)

12

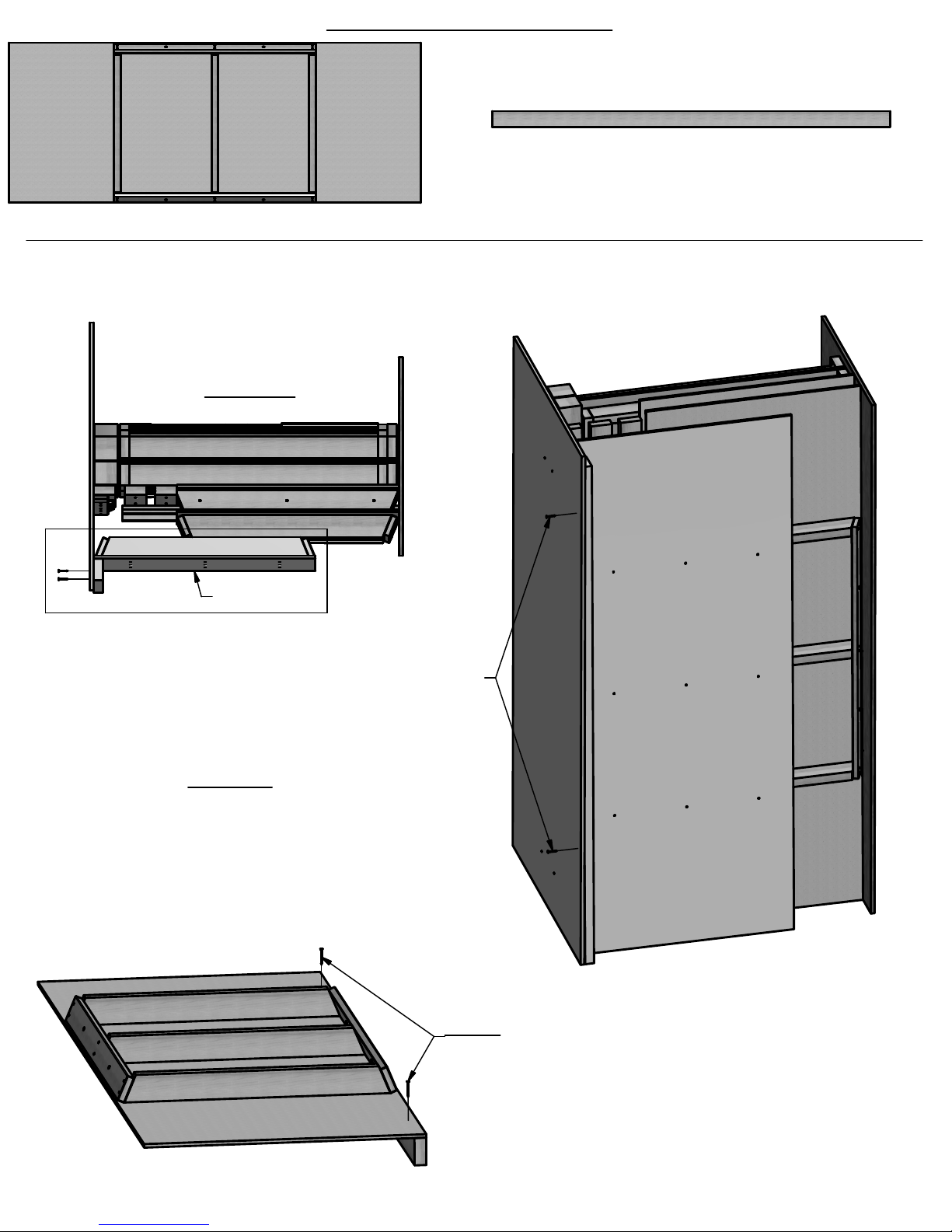

PARTS BEING REMOVED

- FLOOR JOIST - W4L07662

(1)

1 1/2"x3 1/2"x89" TREATED

(1) RP1 - ROOF PANEL - W2A02123

•Only remove screws shown in the current step, do not skip foward or take out any additional screws until instructed to.

TOP VIEW

REMOVE

REMOVE SCREW
(2 PLS)

CAUTION

LOOSE PARTS BEHIND, MOVE WITH

CAUTION.

NEXT:

REMOVE SCREW
(2 PLS)

13

PARTS BEING REMOVED

- DOOR DRIP BOARD - W4L07675

(1)

3/4"x1"x46 3/4" (20x24x1187)

- FASCIA BOARD - W4L07672

(2)

5/8"x2 3/8"x87 1/4" (16x60x2216)

(1) RP1 - ROOF PANEL - W2A02123

•Only remove screws shown in the current step, do not skip foward or take out any additional screws until instructed to.

CAUTION

LOOSE PARTS BEHIND, MOVE WITH

CAUTION.

TOP VIEW

REMOVE SCREW
(2 PLS)

REMOVE

REMOVE

14

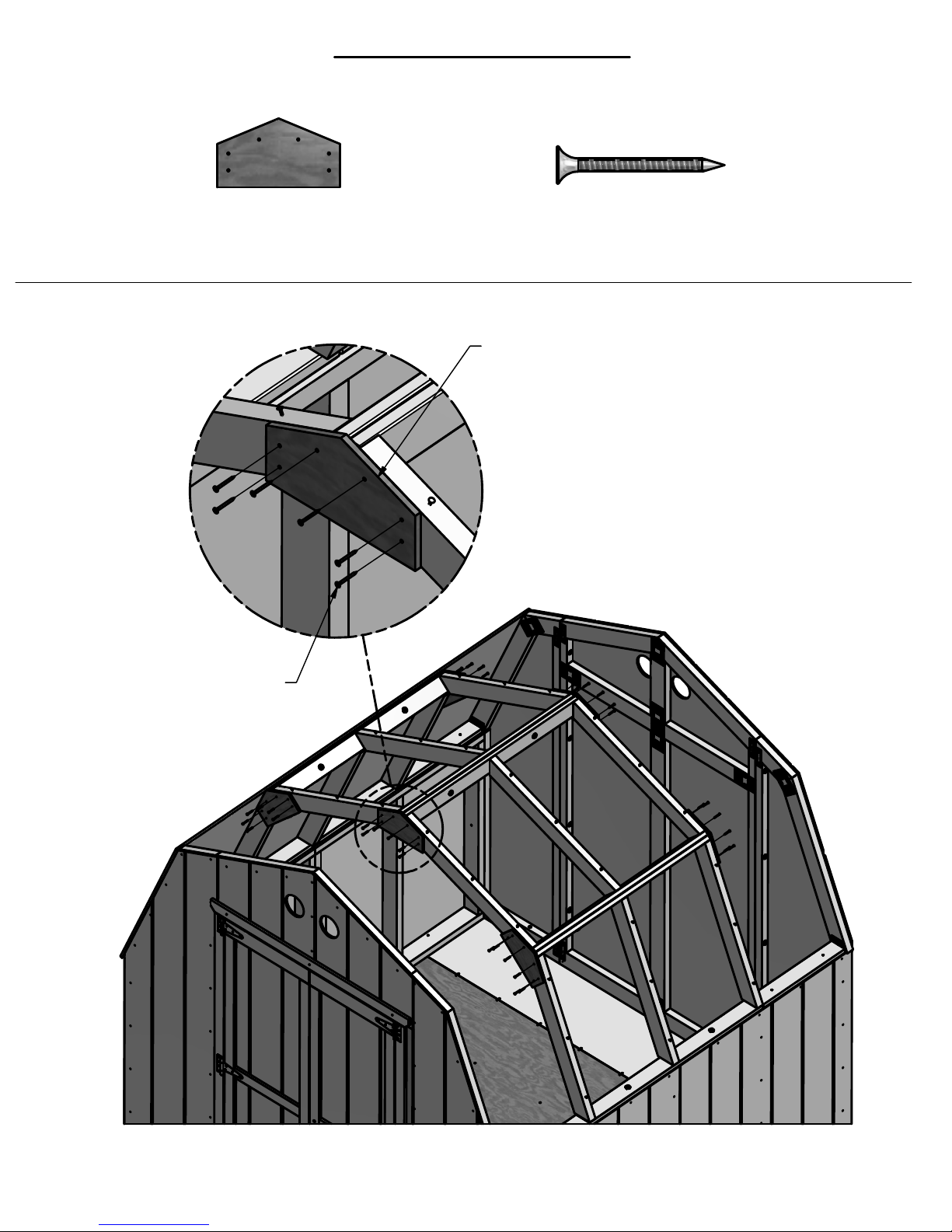

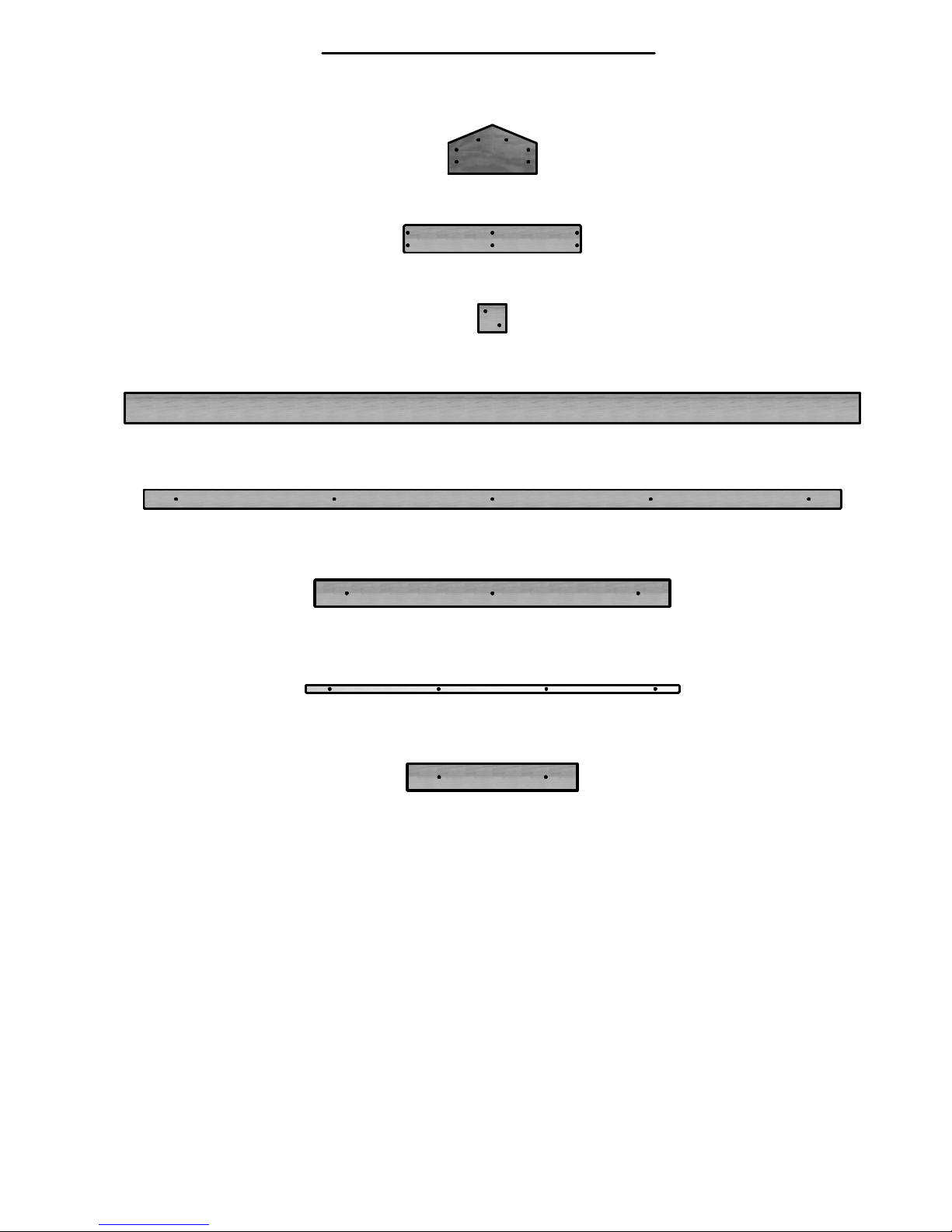

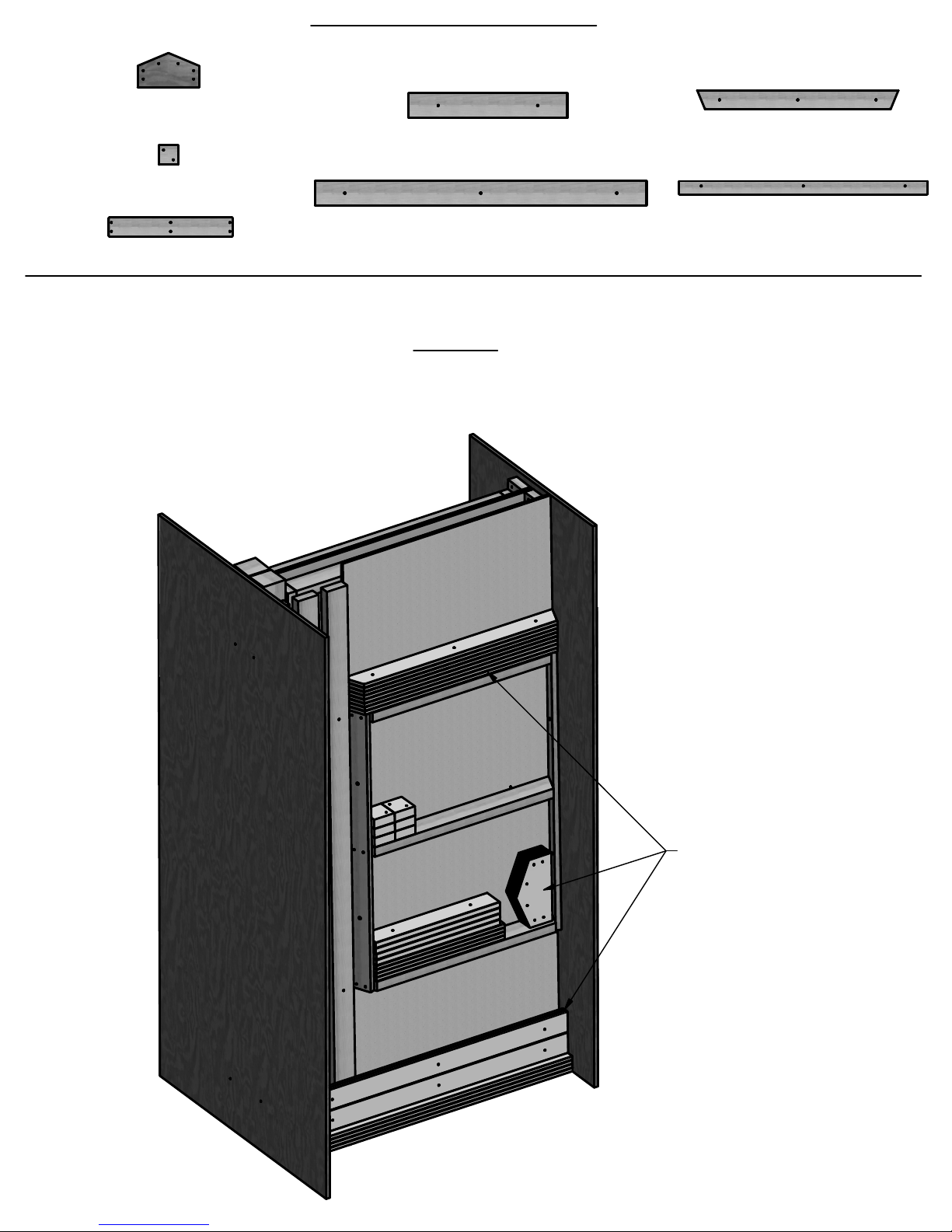

- 7/16" OSB GABLE BRACE - W4L07667

(6)

7/16"x6 1/8"x11" TREATED

- SUPPORT BLOCK - W4L07669

(6)

1 1/2"x3 1/2"x3 1/2"

- SUPPORT BOARD - W4L07668

(4)

5/8"x3 3/8"x22 1/8" (16x86x562)

PARTS BEING REMOVED

- FILLER BOARD - W4L07701

(4)

1"x3 3/8"x21 3/8" (24x86x543)

- VERTICAL TRIM - W4L07674

(4)

5/8"x3 3/8"x44 1/2" (16x86x1130)

CAUTION

LOOSE PARTS, MOVE WITH CAUTION.

- ANGLED ROOF TRIM - W4L07666

(8)

5/8"x3 3/8"x36" (16x86x914)

- SIDE VERTICAL TRIM - W4L07665

(4)

5/8"x2 3/8"x44 1/2" (16x60x1130)

REMOVE ALL LOOSE
PARTS.

15

PARTS BEING REMOVED

- FLOOR JOIST - W4L07662

(3)

1 1/2"x3 1/2"x89" TREATED

•Only remove screws shown in the current step, do not skip foward or take out any additional screws until instructed to.

REMOVE SCREW
(3 PLS)

REMOVE SCREW
(3 PLS)

16

PARTS BEING REMOVED

(1) RP1 - ROOF PANEL - W2A02123

•Only remove screws shown in the current step, do not skip foward or take out any additional screws until instructed to.

CAUTION

LOOSE PARTS BEHIND, MOVE WITH

CAUTION.

TOP VIEW

REMOVE SCREW
(2 PLS)

REMOVE

17

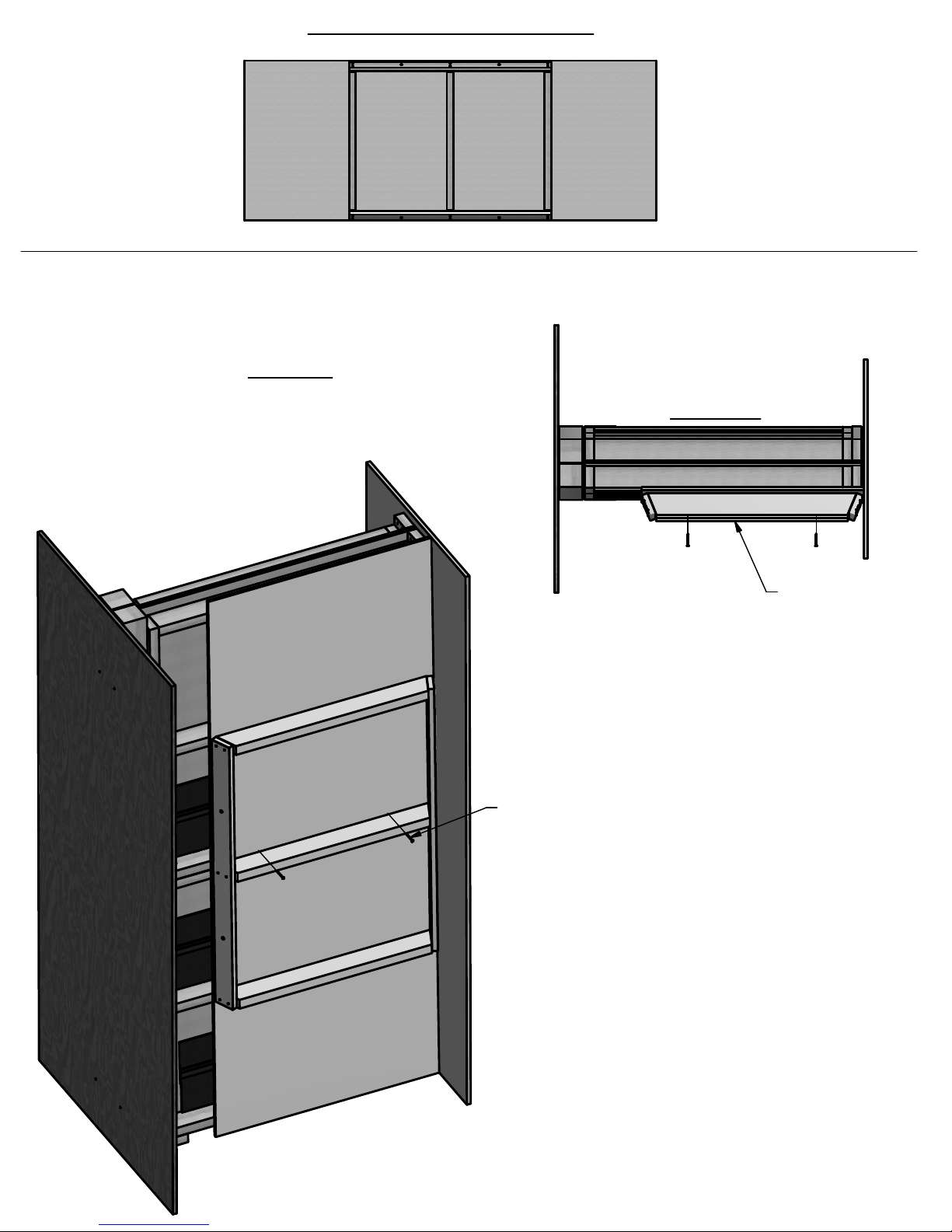

- 5/8" OSB FLOOR SHEATHING - W4L07664

(1)

5/8"x43"x92"

PARTS BEING

REMOVED

- LEVELING BLOCK - W4L07757

(2)

1"x5 1/2"x6"

SHINGLES

CAUTION

LOOSE PARTS, MOVE WITH CAUTION.

- LEVELING BLOCK - W4L07756

(2)

1 1/2"x5 1/2"x6"

(1)

- 4" CONCRETE BLOCK - CB000001

(2)

- 2" CONCRETE BLOCK - CB000002

REMOVE
SHINGLES.

•Only remove screws shown in the current step, do not skip foward or take out any additional screws until instructed to.

CAUTION

REMOVING BOARD WILL

NEXT

REDUCE STABILTY.

REMOVE LARGE SHEET.

REMOVE SCREW
(2 PLS)

REMOVE SCREW
(2 PLS)

18

PARTS BEING REMOVED

- 4 x 4 RUNNER - W4L07670

(2)

3 3/4"x3 3/4"x92" TREATED

- 5/8" OSB FLOOR SHEATHING - W4L07733

(1)

5/8"x31 7/8"x92"

•Only remove screws shown in the current step, do not skip foward or take out any additional screws until instructed to.

CAUTION

REMOVING BOARD WILL

REDUCE STABILTY.

REMOVE SCREW
(2 PLS)

TOP VIEW

REMOVE SCREW
(2 PLS)

REMOVE

REMOVE PARTS WITH

REMOVE SCREW
(2 PLS)

REMOVE

CAUTION

CAUTION.

REMOVE SCREW
(2 PLS)

REMOVE

19

REMOVE

•Only remove screws shown in the current step, do not skip foward or take out any additional screws until instructed to.

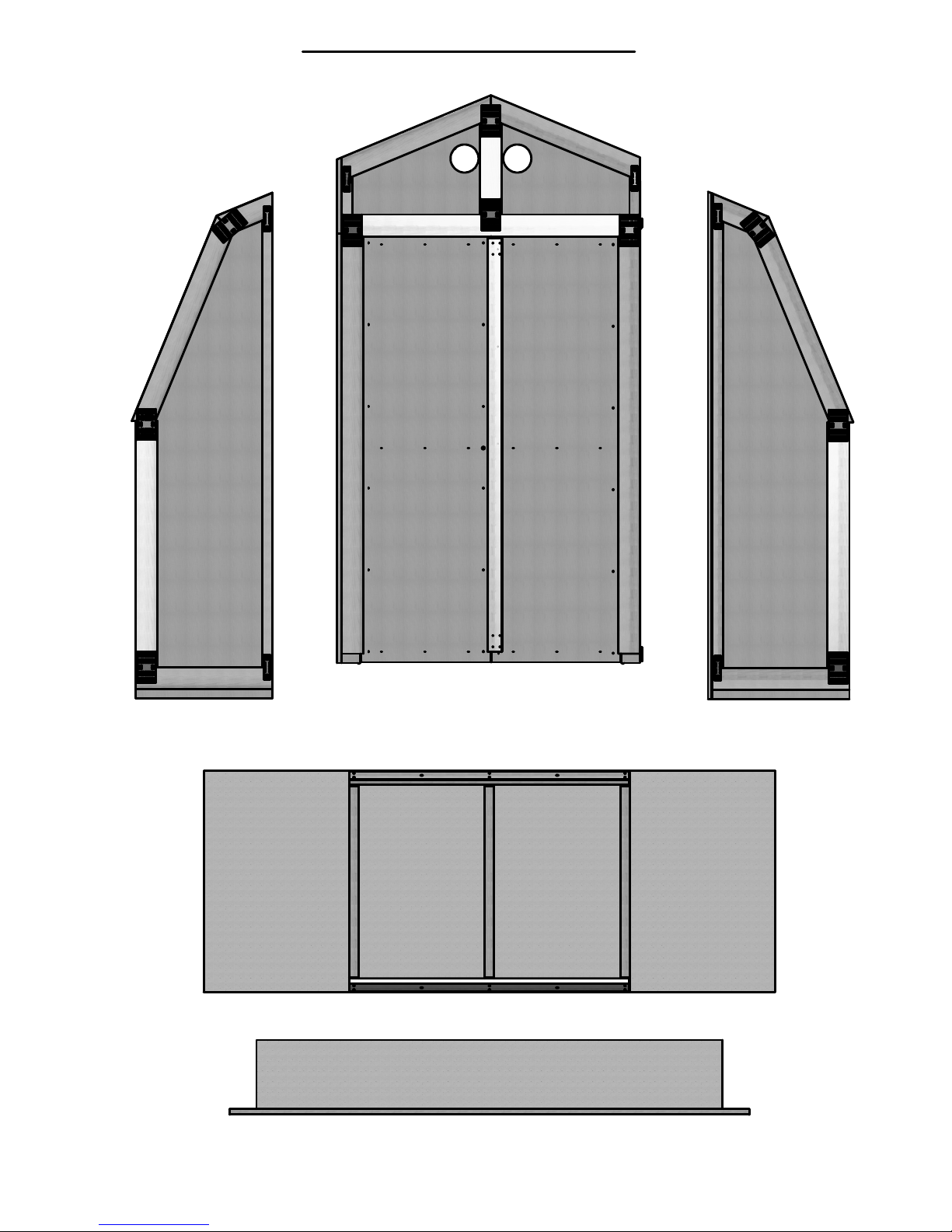

STOP

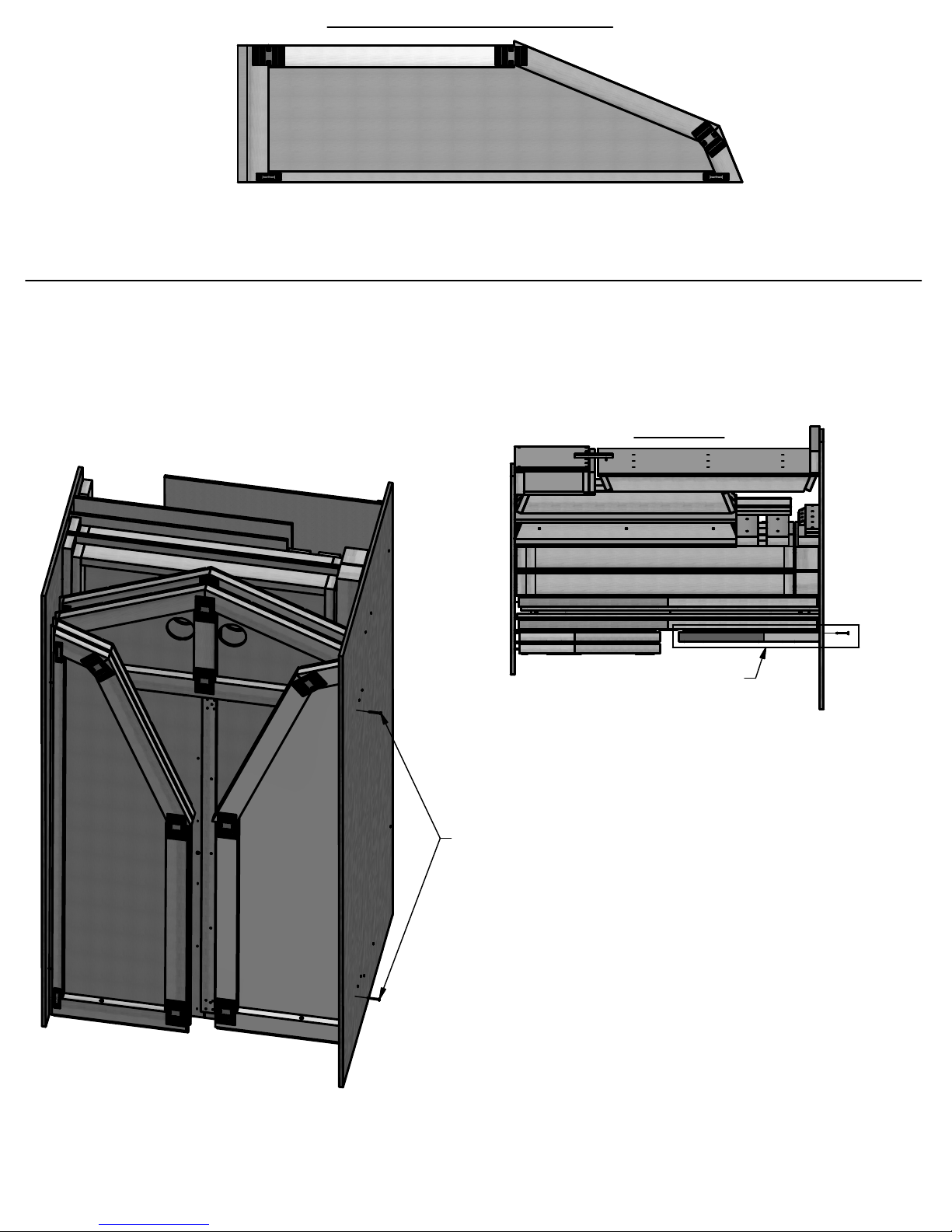

LAY DOWN REMAINING PARTS

BEFORE MOVING FOWARD.

L

A

Y

O

N

F

L

A

T

S

U

R

F

A

C

E

REMOVE

REMOVE 8 SCREWS
ON EACH SIDE AND
SEPARATE A-FRAME
STRUCTURE.

REMOVE

20

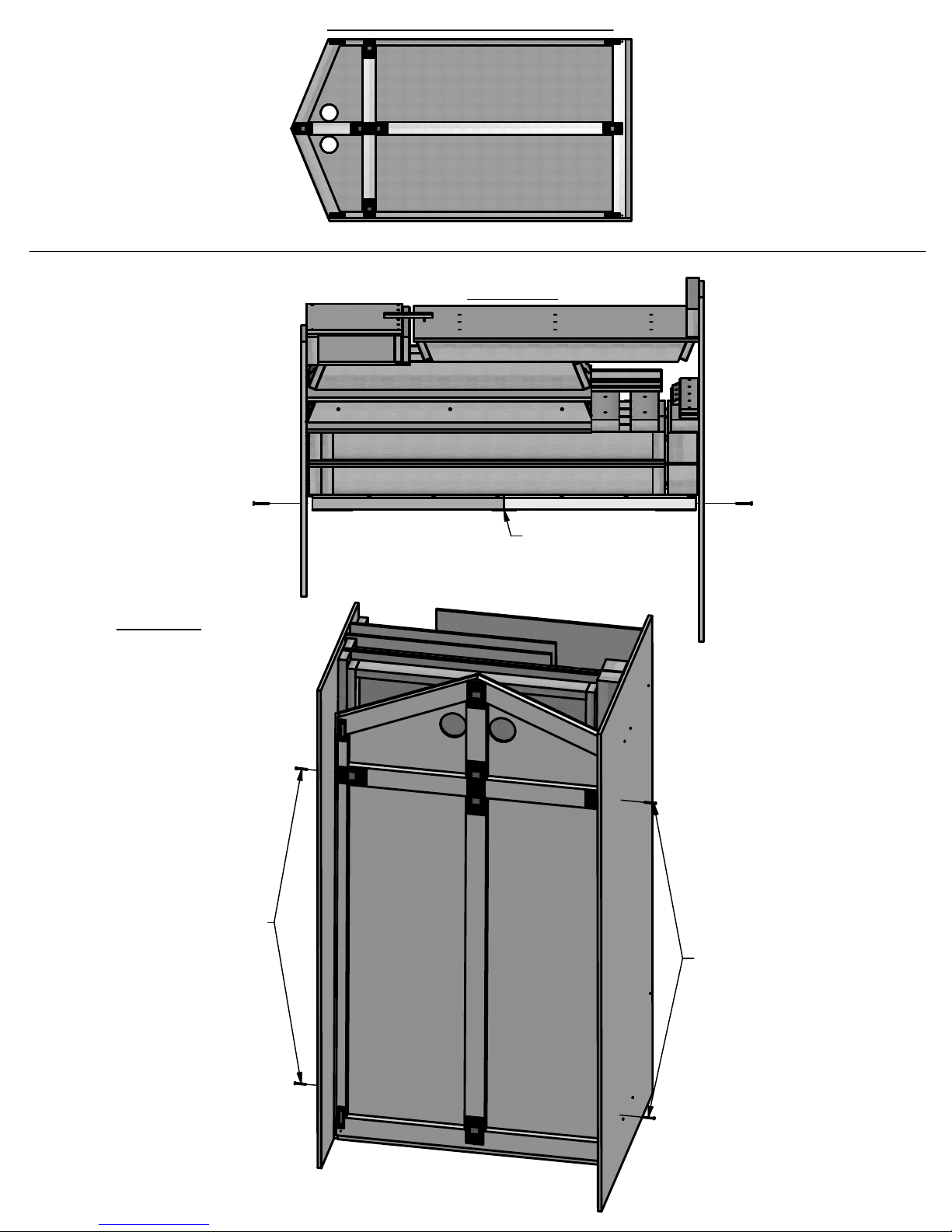

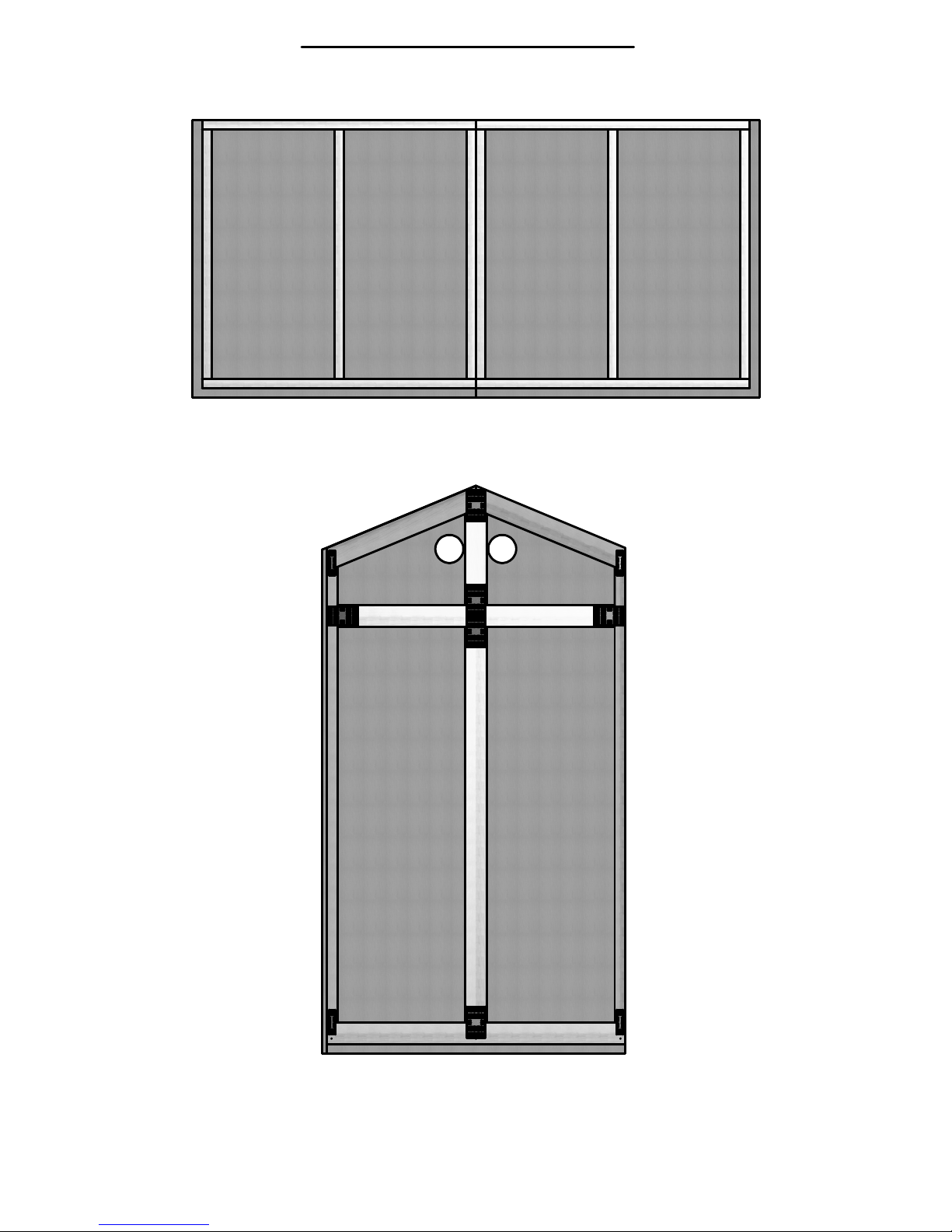

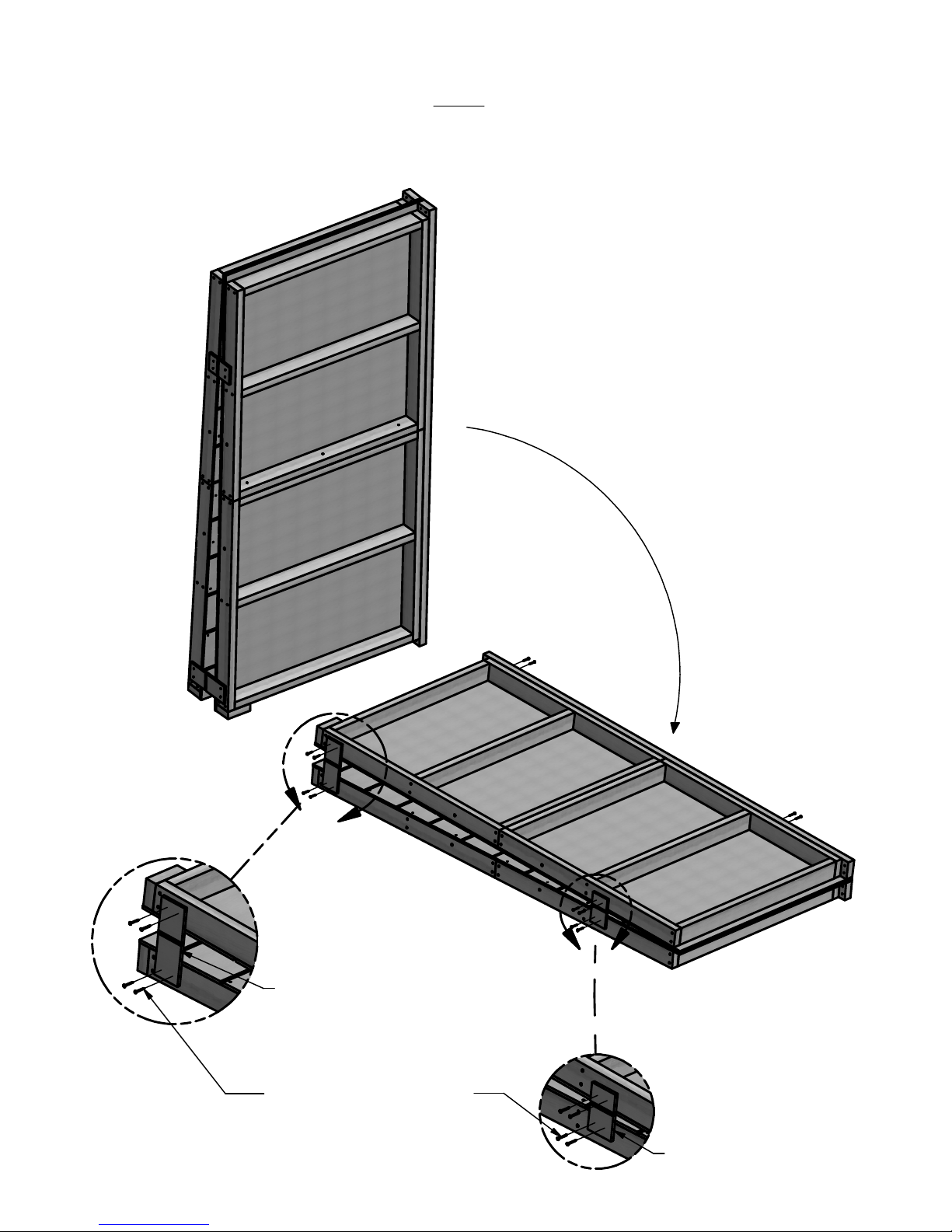

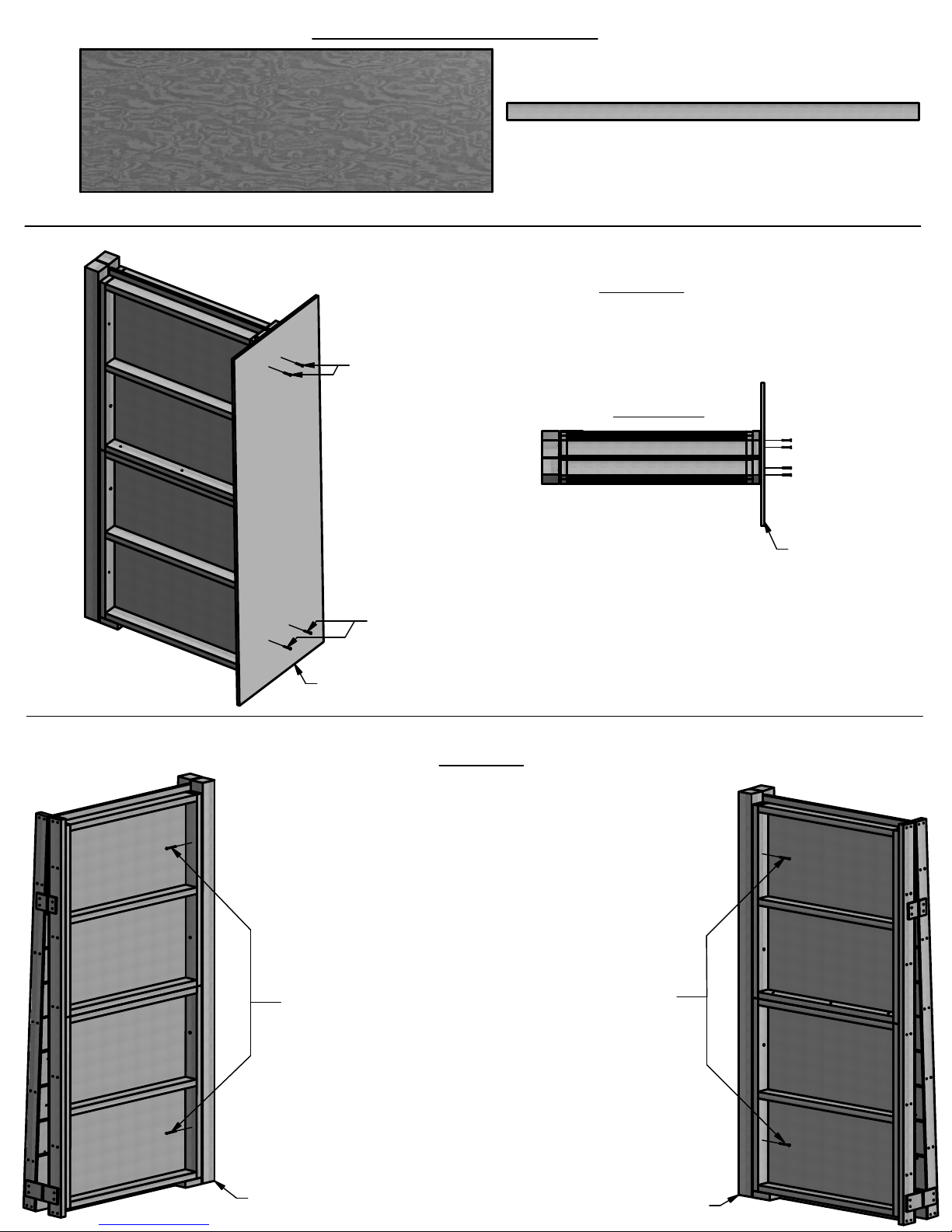

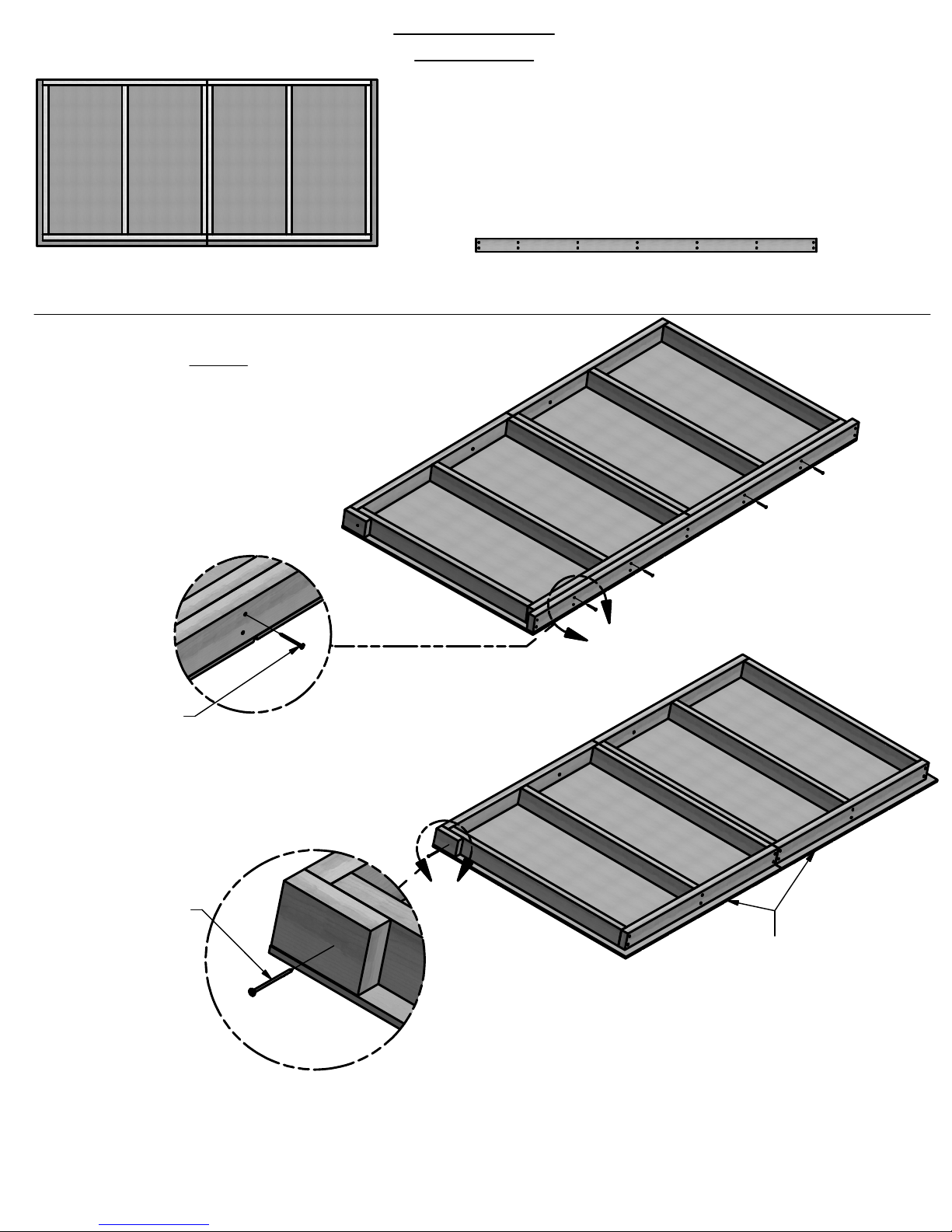

(2) WP1 - SIDE WALL PANEL - W2A02156

NOTE:

ONLY ONE WALL PANEL IS SHOWN.

SO YOU WILL DO THESE STEPS TWICE.

PARTS BEING

REMOVED

- RIM JOIST - W4L07661

(2)

1 1/2"x3 1/2"x91 1/4" TREATED

REMOVE SCREW

(4 PLS)

REMOVE SCREW

(1 PLS)

LEAVE THESE
PANELS TOGETHER.

•NOW THAT THE CRATE IS FULLY DISSASEMBLED IT'S TIME TO START WITH THE ASSEMBLY.
YOU CAN NOW FIND THE ASSEMBLY INSTRUCTION MANUAL AND GET STARTED.

21

READY SHED

8x8 BARN SHED

MODEL: # 817220010

READ INSTRUCTIONS COMPLETELY BEFORE BEGINNING CONSTRUCTION.

Manufacturer: Backyard Discovery

3305 Airport Drive

Pittsburg, KS 66762

Save this assembly manual for future reference in the event that

you need to order replacement parts.

INS-817220010-A-8x8 BARN SHED-ENG 5/3/17

1-800-856-4445

STOP!

DO NOT RETURN THIS PRODUCT TO STORE!

If you have questions or concerns,

please call 800-856-4445

or

email [e-mail]

IMPORTANT!

READ INSTRUCTIONS COMPLETELY BEFORE BEGINNING CONSTRUCTION.

BEFORE YOU BEGIN

• BUILDING RESTRICTIONS AND APPROVALS

Be sure to check with local building department and homeowners association for specific restrictions and/or

requirements before building.

• ENGINEERED DRAWINGS

Contact our Customer Service Department if engineered drawings are needed to pull local permits.

• SURFACE PREPARATION

To ensure proper assembly you must build your shed on a level firm surface.

• CHECK ALL PARTS

Inventory all parts listed on the Parts Identification page of this manual before beginning construction.

Contact our Customer Service Department if any parts are missing.

• ADDITIONAL MATERIALS

Additional materials needed, and not supplied, to complete your shed are listed on the Parts Identification page of

this manual.

KEEP THIS MANUAL FOR FUTURE REFERENCE

1

Caring For Your Structure

Wood Structures (Smart Panel)

• To prevent leaking and premature aging of your shed, we recommend wood structures be
thoroughly prepared before treatment. All joints between wall siding boards, window trim, door trim,
corner boards, soffits, fascias, rake trim, vents, and naturally occurring hairline cracks in knots
must be properly sealed with high quality caulking prior to treatment. We strongly recommend nail
holes in all material types be filled prior to treatment. In order to deter knots from bleeding through
your finish, pre-treat knots with a suitable product.

PAINT

-NOT INCLUDED-

When painting your shed, there are a few key areas that can easily be overlooked that must be painted:

Bottom edge of all siding and trim
Inside of doors and all 4 edges.

• Smart Siding is a pre-primed material, see manufacturers recommended finishing:

MANUFACTURER'S FINISHING INSTRUCTIONS

DO

• Apply finish coat as soon as possible or within 30 days of application.

• High-quality acrylic latex paint, specially formulated for use on wood and

engineered wood substrates, is highly recommended. Semi-gloss or
satin finish oil or alkyd paints are acceptable.

DO NOT USE

• Semi-transparent and transparent stains.

• Shake and shingle paints.

• Vinyl-based resin formulas such as vinyl acetate, PVA, vinyl acetate/

acrylic copolymer paints.

2

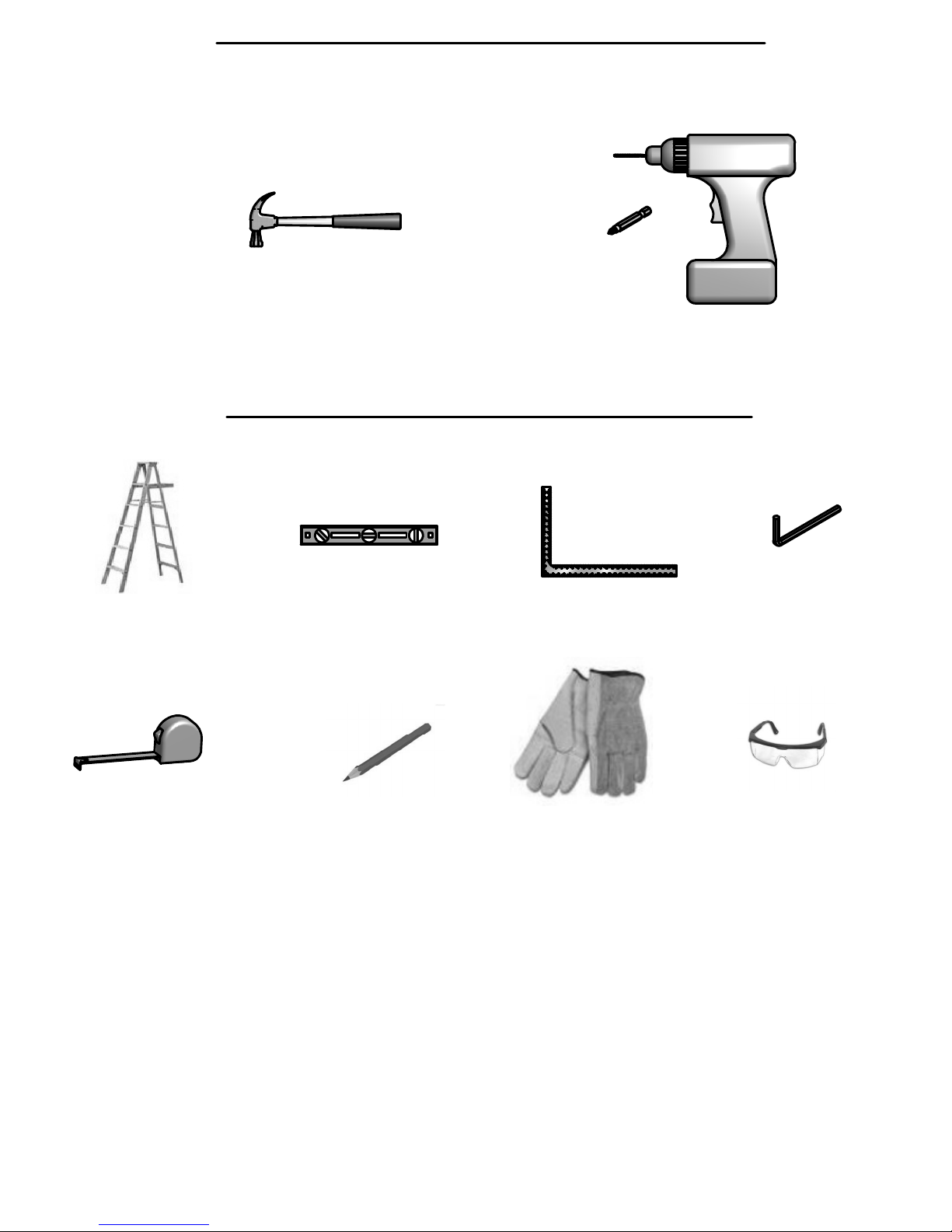

ASSEMBLY TOOLS REQUIRED

• Hammer

• Drill with 3/8" Bit & Phillips Head Driver

OTHER TOOLS WE SUGGEST

• 6' Ladder

• Tape Measure

• 4' Level

• Pencil

• Square

• Gloves

• 1/8" Allen Wrench

• Safety Glasses

3

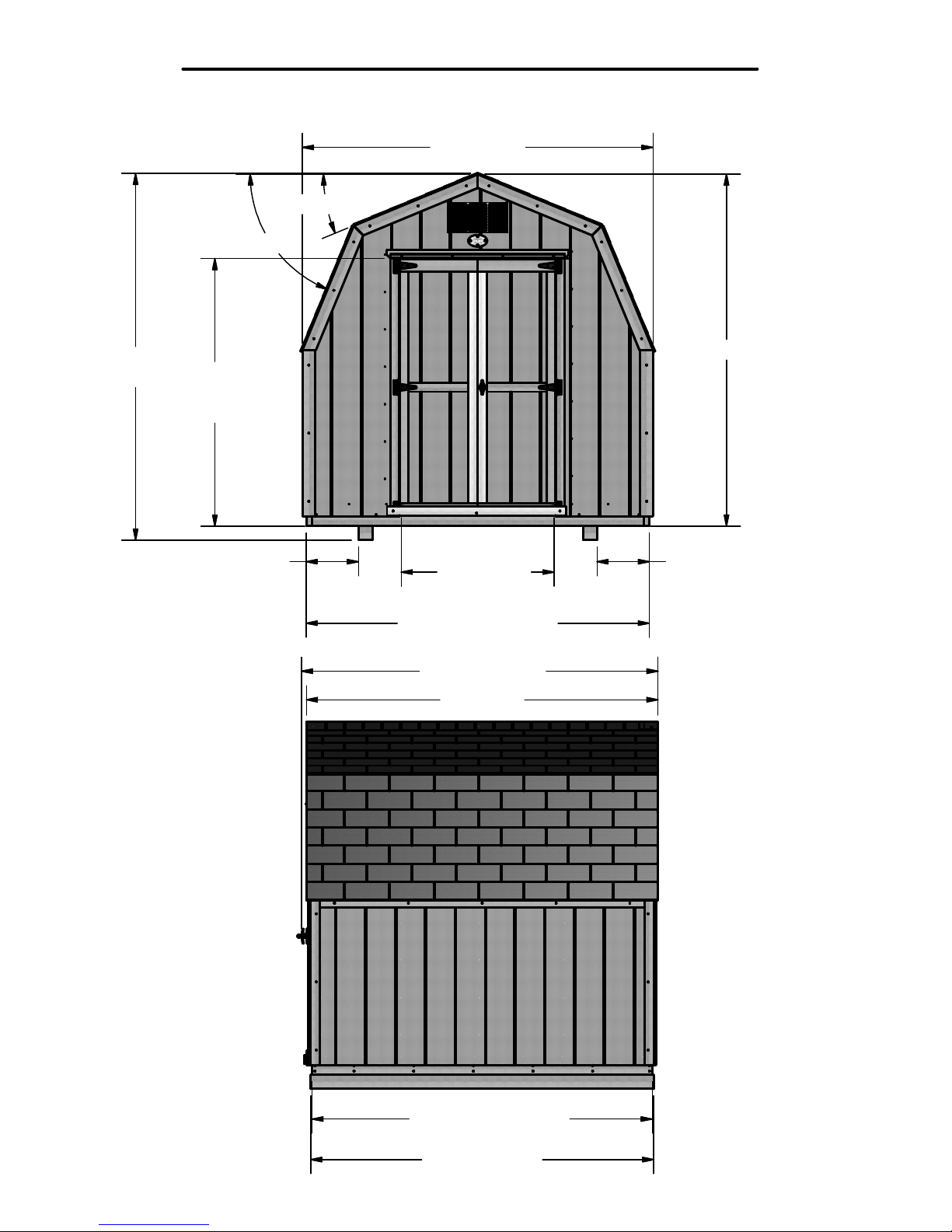

Basic Setup Dimensions

Place the shed on level ground, not less than 3 ft [1 m] from any structure or obstruction such

as a fence, garage, house, overhanging branches, laundry lines, or electrical wires.

7'-10" O.A.

22.5°

67.5°

8'-2 1/8"

O.A.

5'-11 5/8"

DOOR

OPENING

7'-10 1/4"

1'-2" 1'-2"

41" DOOR
OPENING

7'-8"

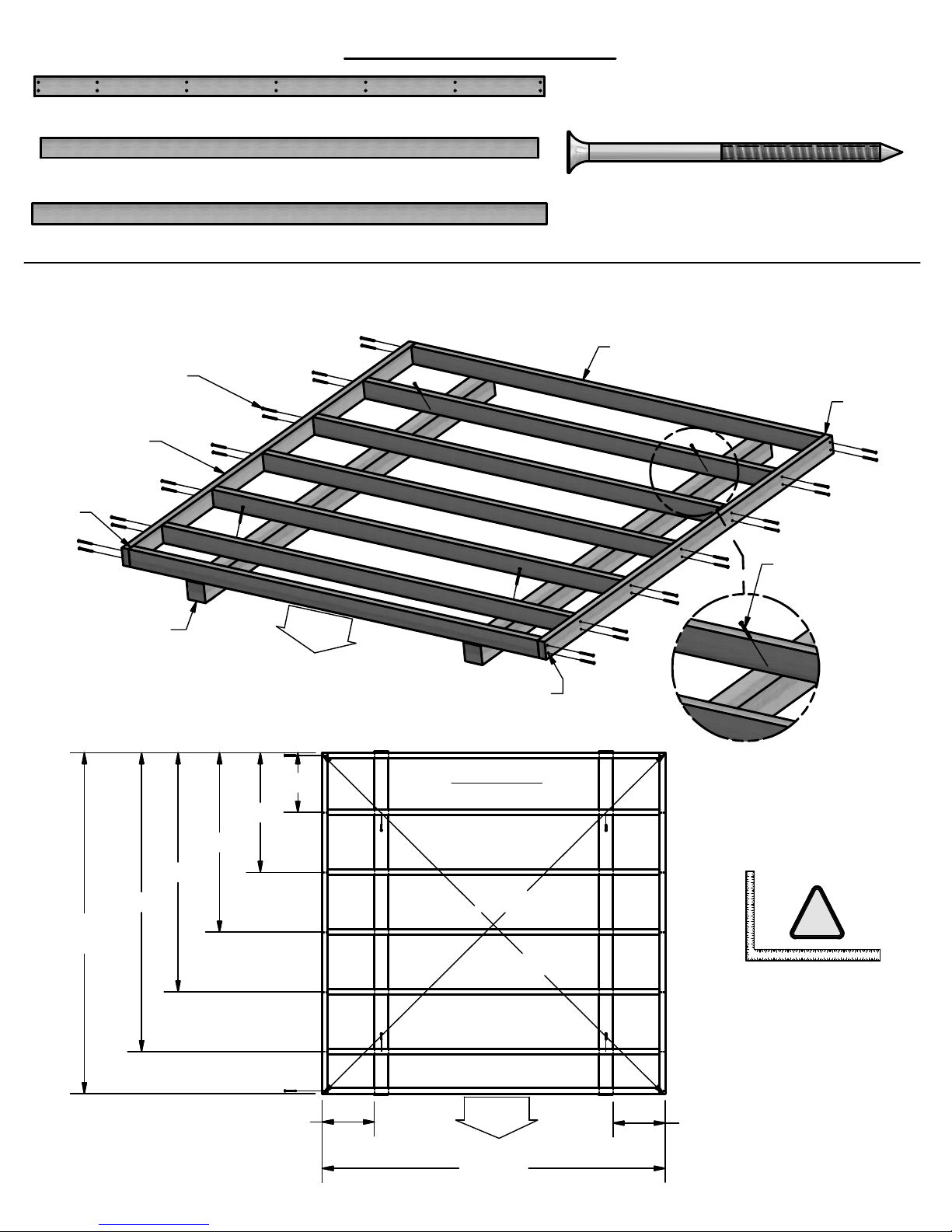

FLOOR FRAMING

7'-11 5/8" O.A.

7'-10 1/4"

7'-7 1/4"

FLOOR FRAMING

7'-8"

4x4 RUNNER

4

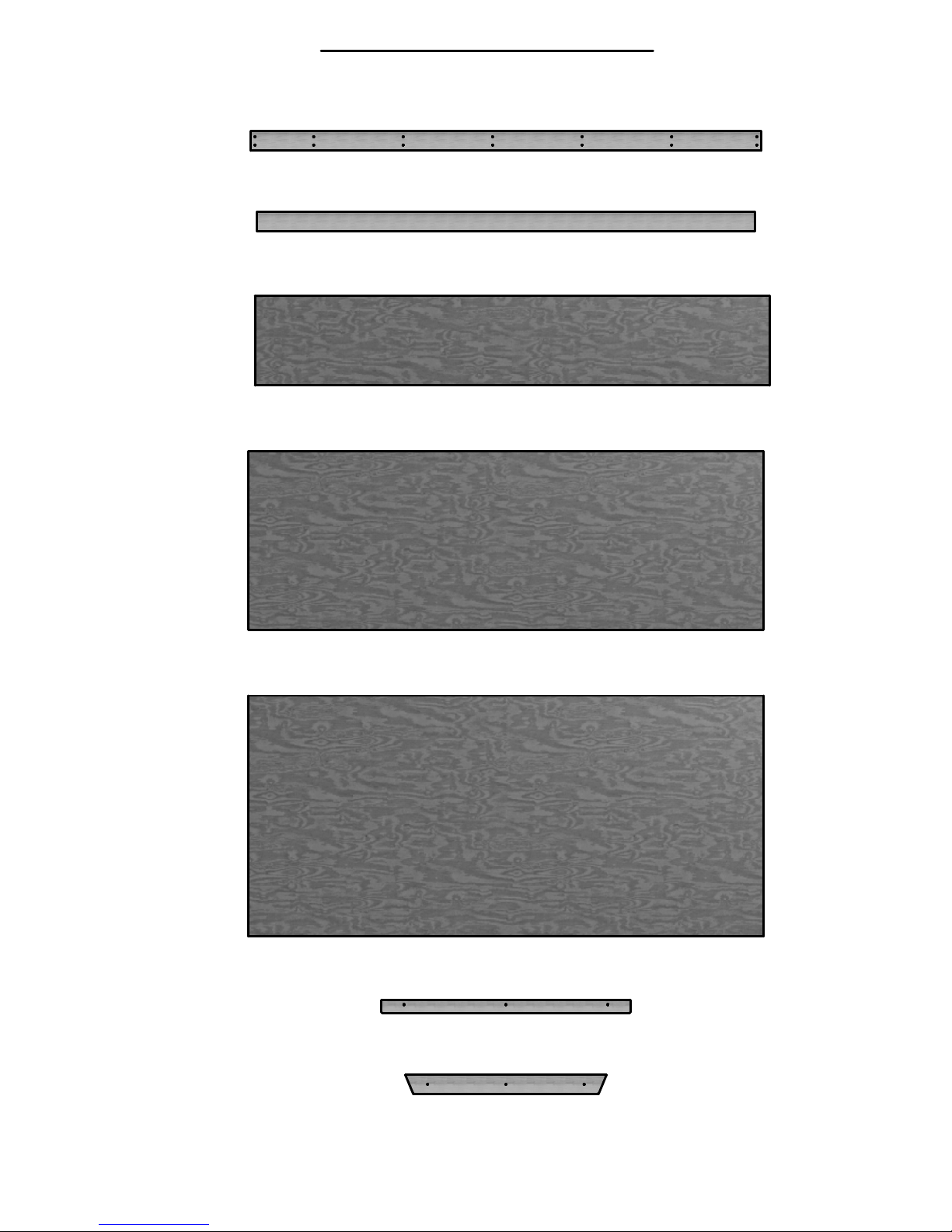

Parts Identification

Wood Components

(NOT TO SCALE)

- RIM JOIST - W4L07661

(2)

1 1/2"x3 1/2"x91 1/4" TREATED

- FLOOR JOIST - W4L07662

(7)

1 1/2"x3 1/2"x89" TREATED

- 5/8" OSB FLOOR SHEATHING - W4L07734

(1)

5/8"x16"x92"

- 5/8" OSB FLOOR SHEATHING - W4L07733

(1)

5/8"x31 7/8"x92"

- 5/8" OSB FLOOR SHEATHING - W4L07664

(1)

5/8"x43"x92"

- SIDE VERTICAL TRIM - W4L07665

(4)

5/8"x2 3/8"x44 1/2" (16x60x1130)

- ANGLED ROOF TRIM - W4L07666

(8)

5/8"x3 3/8"x36" (16x86x914)

5

Parts Identification

Wood Components

(NOT TO SCALE)

- 7/16" OSB GABLE BRACE - W4L07667

(6)

7/16"x6 1/8"x11" TREATED

- SUPPORT BOARD - W4L07668

(4)

5/8"x3 3/8"x22 1/8" (16x86x562)

- SUPPORT BLOCK - W4L07669

(6)

1 1/2"x3 1/2"x3 1/2"

- 4 x 4 RUNNER - W4L07670

(2)

3 3/4"x3 3/4"x92" TREATED

- FASCIA BOARD - W4L07672

(2)

5/8"x2 3/8"x87 1/4" (16x60x2216)

- VERTICAL TRIM - W4L07674

(4)

5/8"x3 3/8"x44 1/2" (16x86x1130)

- DOOR DRIP BOARD - W4L07675

(1)

3/4"x1"x46 3/4" (20x24x1187)

- FILLER BOARD - W4L07701

(4)

1"x3 3/8"x21 3/8" (24x86x543)

6

Parts Identification

Wall Panels

(2) WP1 - SIDE WALL PANEL - W2A02156

(1) WP2 - REAR CENTER WALL PANEL - W2A02119

7

Parts Identification

Wall Panels

(1) WP3 - FRONT CENTER WALL PANEL - W2A02120

(2) WP5 - UNIVERSAL RIGHT
WALL PANEL - W2A02122

(2) WP4 - UNIVERSAL LEFT
WALL PANEL - W2A02121

(4) RP1 - ROOF PANEL - W2A02123

(2) LP1 - LOFT PANEL - W2A02124

8

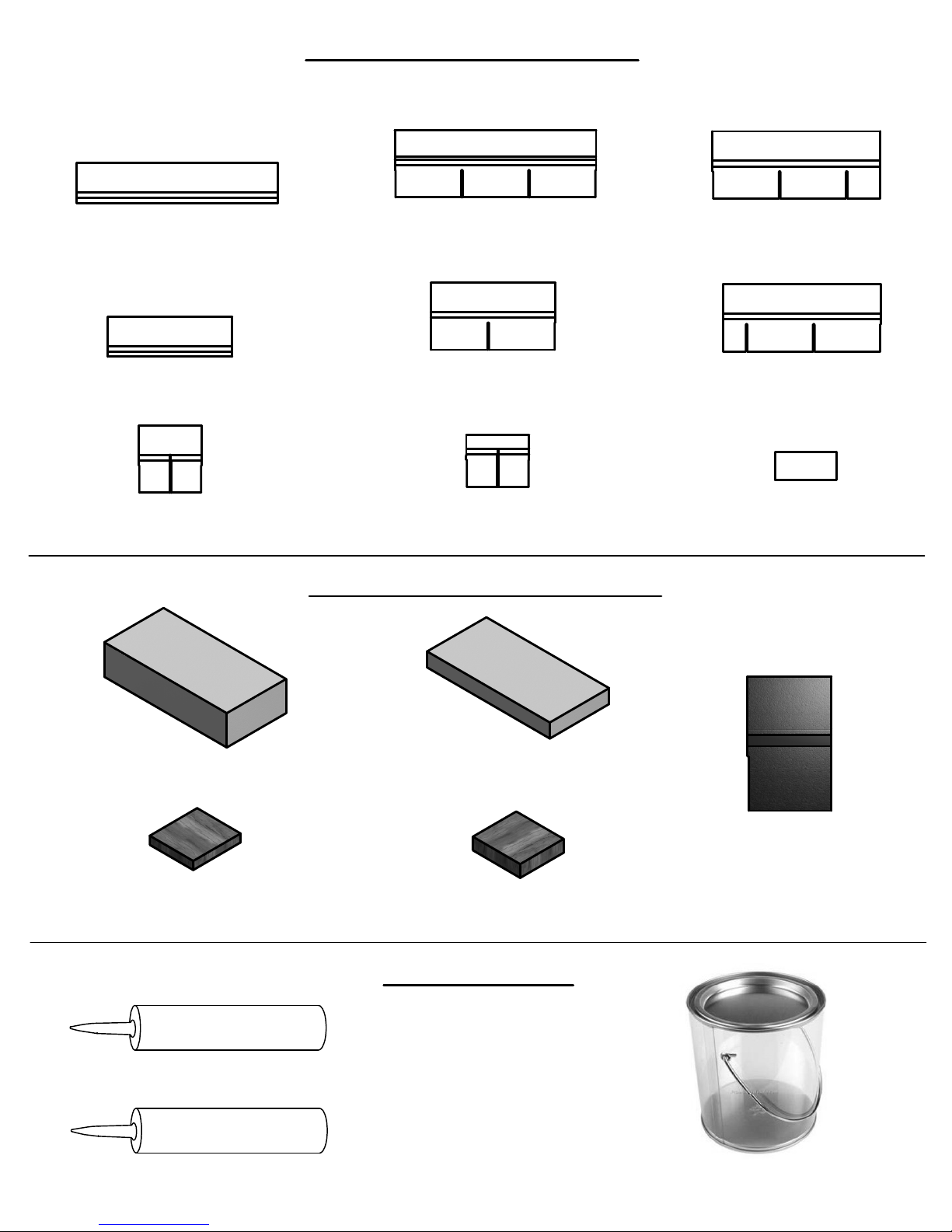

Parts Identification

Shingle Components

(NOT TO SCALE)

1

(4)

FULL - STARTER SHINGLE 7.125 x 36

(2)

- STARTER SHINGLE 7.125 x 22.25

(17)

- RIDGE CAP 12

(42)

FULL - ASPHALT SHINGLE 12 x 36

2

(14)

2 - ASPHALT SHINGLE 12 x 22.25

(1)

- RIDGE CAP 9.25

LEVELING MATERIALS:

(12)

1 - ASPHALT SHINGLE 12 x 30

3

(12)

3 - ASPHALT SHINGLE 12 x 28.25

(1)

- SHINGLE CAP 5 x 11.75

(1)

- 4" CONCRETE BLOCK - CB000001

- LEVELING BLOCK - W4L07757

(2)

1"x5 1/2"x6"

ROOF COATING

CAULK

(2)

- 2" CONCRETE BLOCK - CB000002

- LEVELING BLOCK - W4L07756

(2)

1 1/2"x5 1/2"x6"

MATERIALS:

Supplied by Owner

9

- LEVELING SHINGLE 12 x 7.5 - A6P0027-L

(4)

12 x 7.5

PAINT

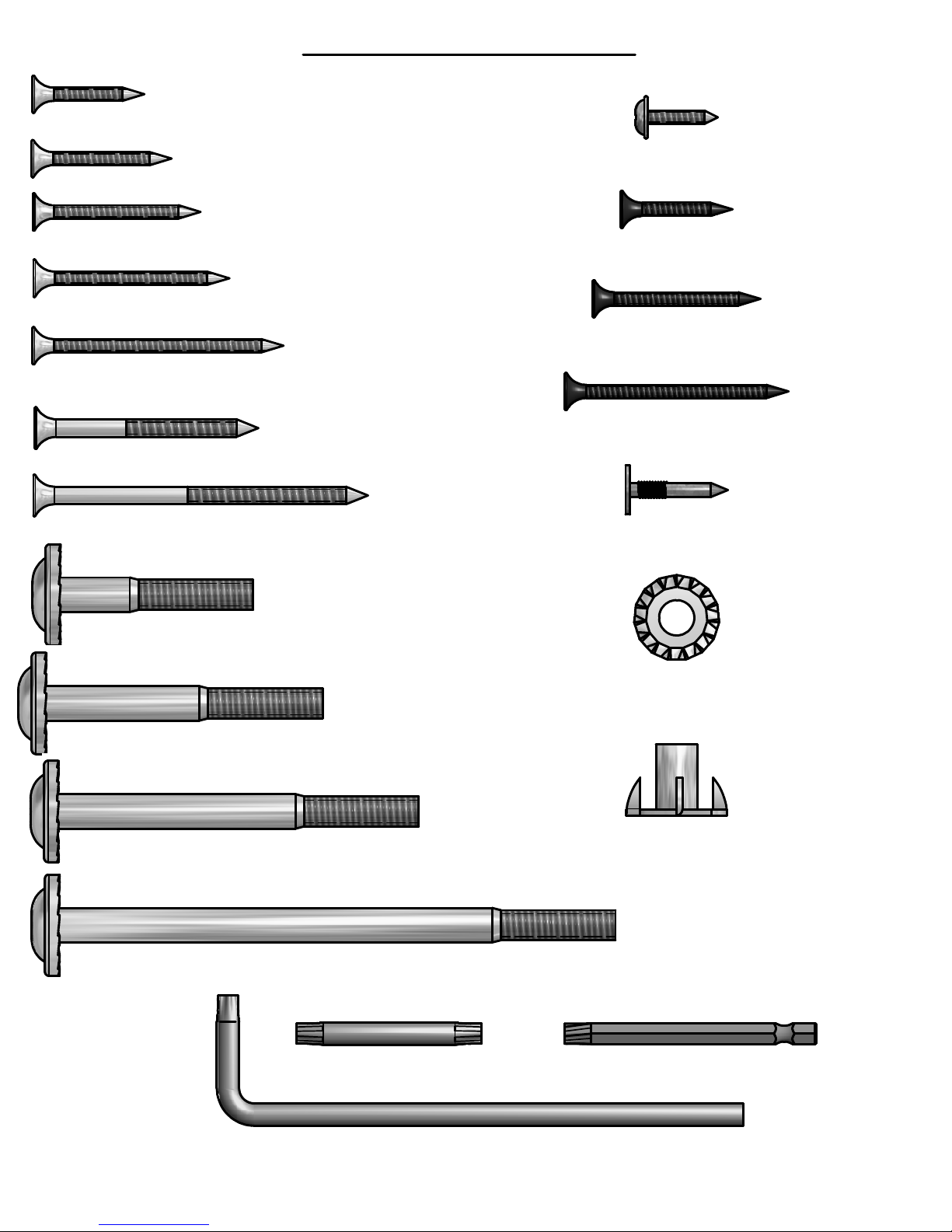

(17)

BN - SCREW PFH 8x1 - H100085

(26)

BQ - SCREW PFH 8x1 1/4 - H100087

(102)

BP - SCREW PFH 8x1 1/2 - H100086

(44)

BS - SCREW PFH 8x1 3/4 - H100089

(13)

BV - SCREW PFH 8x2 1/4 - H100091

(107)

- SCREW T-25 9x2 - H100579

Parts Identification

Hardware

(17)

CY - SCREW PWH 8x5/8 - H100128

(2)

- 8x1 PFH SCREW BLK - WC - H100445

(9)

VT - SCREW PFH 8x1-1/2 BLK - H100200

(4)

- SCREW PFH 8x2 BLK - H100391

(68)

- SCREW T-25 9x3 - H100578

(7)

J - BOLT WH 5/16x1 3/4 - H100011

(4)

M - BOLT WH 5/16x2 1/2 - H100014

(11)

Q - BOLT WH 5/16x3 1/4 - H100017

(7)

V - BOLT WH 5/16x5 - H100022

(362)

- 7/8" ROOFING NAIL GALV. - H100446

(28)

AC - WASHER LOCK EXT 8x19 - H100030

(28)

BG - T-NUT 5/16 - H100074

(2)

- T-40 TORX BIT - A100042

(1)

(1)

- T-40 TORX WRENCH - A100041

10

- T-25 TORX IMPACT DRIVER - A100580

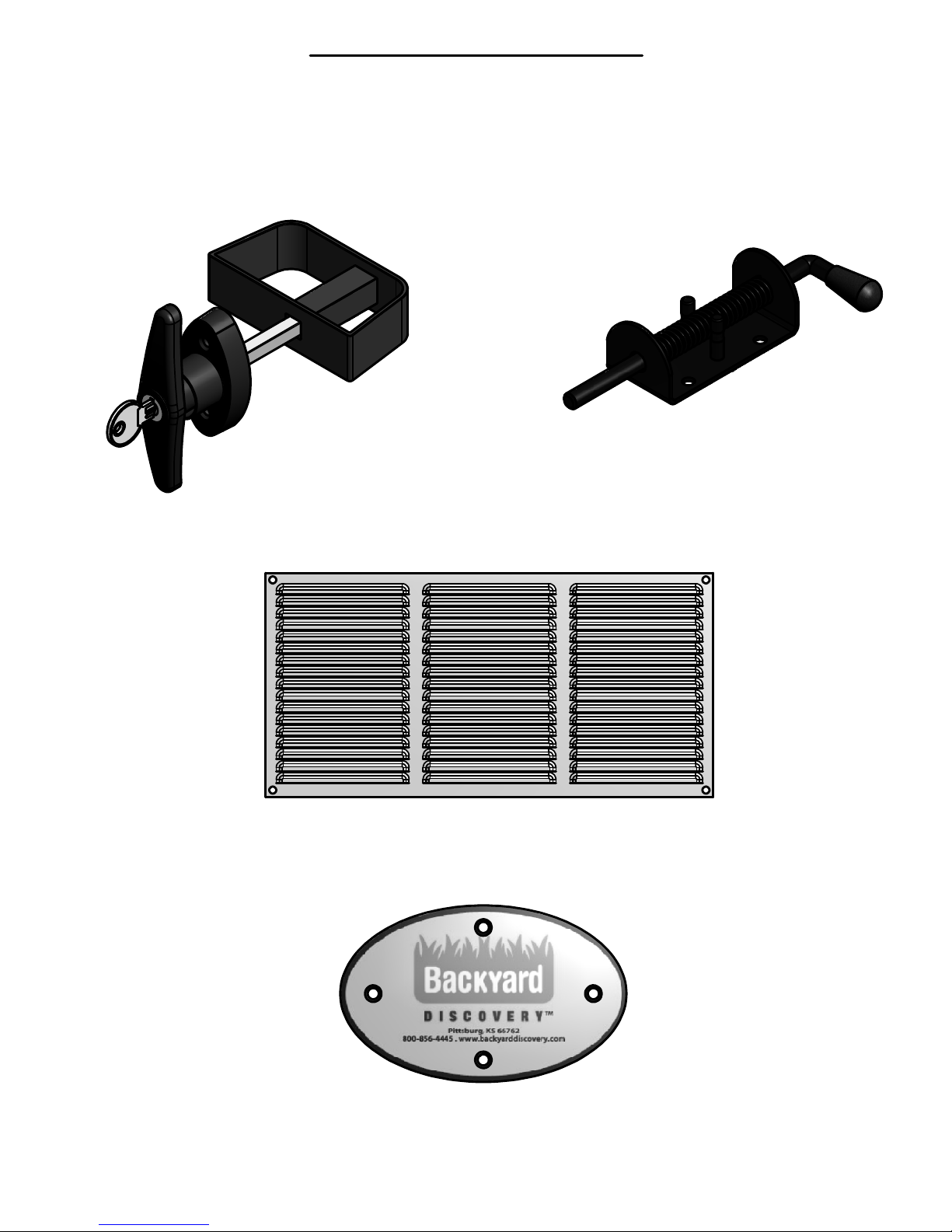

Parts Identification

Accessories

(NOT TO SCALE)

E

L

D

N

A

H

R

O

O

D

G

N

I

K

C

O

L

-

1)

(

4

7

07

0

4M

A

-

Y

L

B

M

E

S

S

A

H

C

T

A

L

G

N

I

R

P

S

-

)

2

(

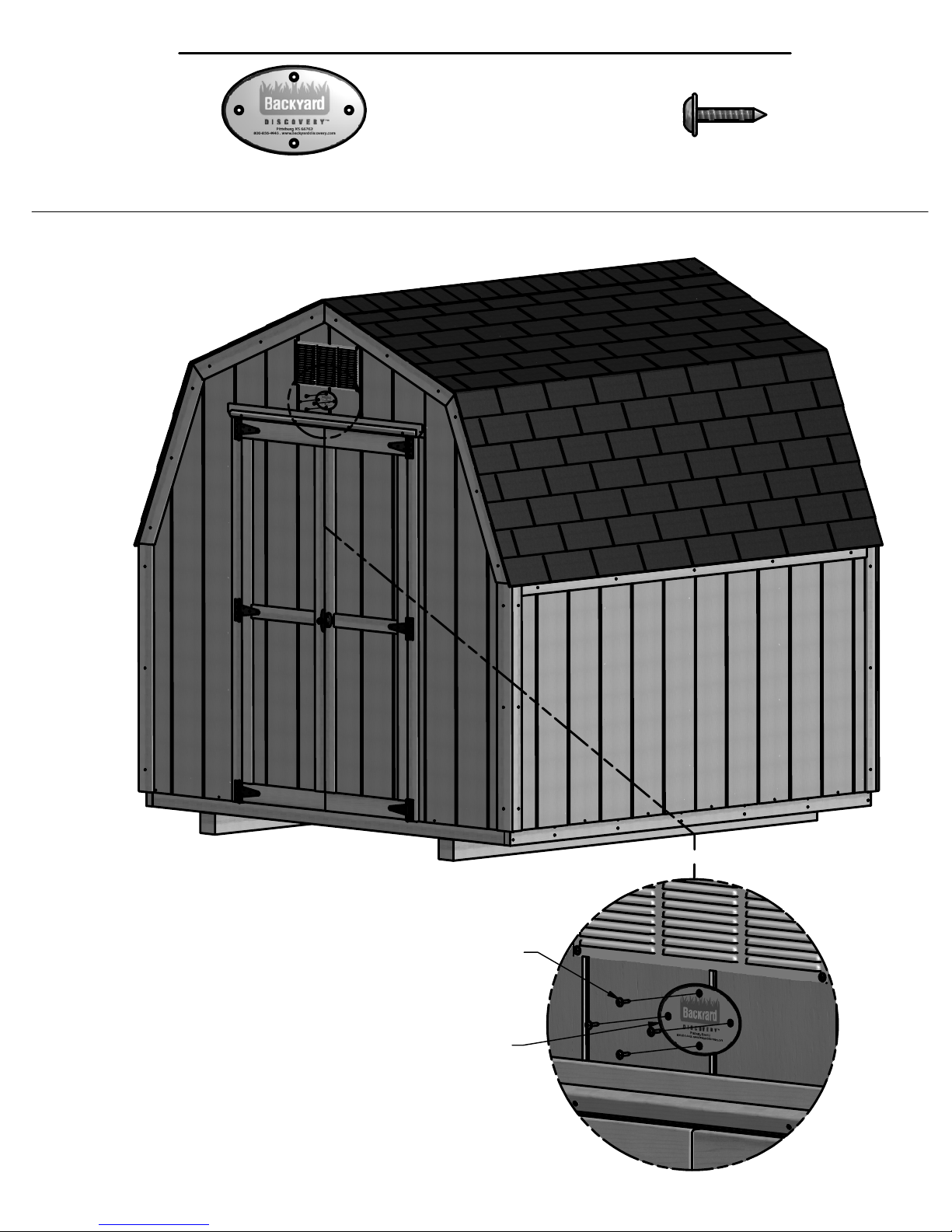

MX - BYD ID TAG (MEDIUM) WITHOUT AGES - A100240(1)

- VENT (8x16) - A4M00771(2)

11

FLOOR FRAME

- RIM JOIST - W4L07661

(2)

1 1/2"x3 1/2"x91 1/4" TREATED

- FLOOR JOIST - W4L07662

(7)

1 1/2"x3 1/2"x89" TREATED

- 4 x 4 RUNNER - W4L07670

(2)

3 3/4"x3 3/4"x92" TREATED

• IMPORTANT: On a level surface, make sure the floor frame is square before moving on to next step. It is critical that

the 4x4 Runners be touching solid ground everywhere during this step. Being level is not yet a priority as we will level the
structure after we get the floor assembled.

SCREW T-25 9x3

(28 PLCS)

RIM JOIST

(2 PLCS)

(32)

- SCREW T-25 9x3 - H100578

FLOOR JOIST
(7 PLCS)

FLUSH

FLUSH

4 x 4 RUNNER

(2 PLCS)

91 1/4"

O.A.

80"

64"

48"

32"

D

16"

O

O

R

Note pilot holes

Use a level to level structure.

TOP VIEW

SQUARE

SQUARE

SCREW T-25 9x3
(4 PLCS)

3

5

1

1

2

4

1

1

3

1

1

1

2

0

1

1

1
1

9

0
1

8

9

7

6

8

7

5

4

6

5

3

4

2

3

1

2

2

1

1

2

3

1

!

4

5

3

6

7

8

3

1

1

1

5

1

6

1

7

1

9

1

2

1

0

2

2

9

2

4

1

0

1

5

1

3

4

5

1

4

1

2

1

1

6

1

7

9

0

1

8

2

1

8

1

2

2

3

2

1

2

0

2

8

1

6

1

9

1

7

1

• We suggest you
measure from
outside corner to
outside corner for
squareness, as
shown.

NOTE USE PRE-DRILLED
PILOT HOLES TO HELP

14"

LOCATE JOIST LOCATIONS.

DOOR

14"

92 O.A.

12

FLOOR SHEATHING

- 5/8" OSB FLOOR SHEATHING - W4L07733

(1)

5/8"x31 7/8"x92"

- 5/8" OSB FLOOR SHEATHING - W4L07664

(1)

- 5/8" OSB FLOOR SHEATHING - W4L07734

(1)

5/8"x16"x92"

• Bring sheathing to square before securing with 2" torx drive fasteners.

5/8" OSB FLOOR SHEATHING

PLACE SHEATHING
SMOOTH SIDE UP.

SCREW T-25 9x2

(81 PLCS)

5/8"x43"x92"

(81)

- SCREW T-25 9x2 - H100579

FLUSH

START AT THE
FRONT OF THE
SHED AND WORK
TOWARDS THE
REAR.

92"

DOOR

D

O

O

R

ALL SCREWS LAND IN JOISTS BELOW.

43 1/8 31 3/4 16

16.00
10

1/4

FLOOR JOIST

1/4

10

3/8

FLOOR JOIST

3/8

Place screws at 10" apart on the front and back of all

Note: Make sheathing
flush to front leaving any
gaps to be at the back of

sheets.
Place screws at 16" apart on the center and sides of all
sheets as shown always landing on the joists.

the shed.

16.00

16

13

10

10

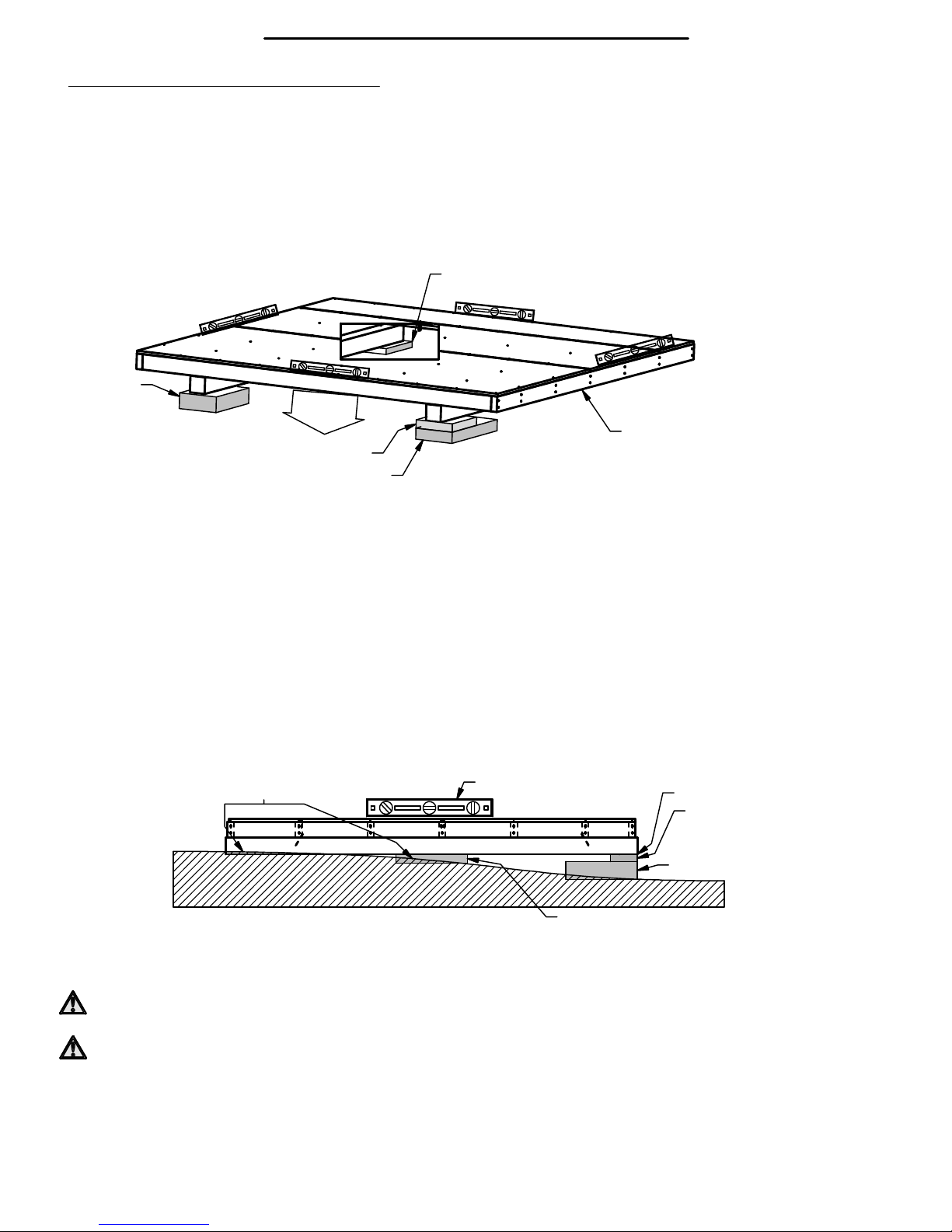

FLOOR LEVELING OPTIONS

There are multiple ways to level your floor frame. Our recommended leveling method is shown below.

NCLUDED LEVELING MATERIALS

I

•2 pcs - 2x6x6 Treated Wood Block

•2 pcs - 5/4x6x6 Treated Wood Block

•1 pcs - 4x8x16 Concrete Block

•2 pcs - 2x8x16 Concrete Block

•2 pcs - Asphalt Shingles (Can be cut into 4" strips as needed for spacing)

• Start by locating the most level ground in your preferred shed locations. This area must be a stable, solid, and dry
location. Enough leveling materials have been included to level a shed up to 6" out of level.

• Find the high ground and work in a circle leveling and raising each corner as needed until you've worked back to the
high corner.

2nd

Example:

4" Concrete Block

4 inches lower

3rd

Treated Wood Block

2 inches Lower

D

O

O

2" Concrete Block

R

2" Concrete Block

1st

High Ground

Leave high corner on
the ground.

Once the floor frame is level
use spacers to space the
center of 4x4 Runners to

3 1/2 inches lower

Finish

support the middle of your
shed.

LEVELING

•

Locate leveling material at the end of the runners.

• Asphalt shingles should be used between blocks and frame lumber to fine-tune and

level frame. Never use shingles in direct contact with the ground.

• Always work either clockwise or counter clockwise when leveling and blocking.

• (Optional) For best results and aiding in water drainage you can use gravel under each concrete block.

NOTE: If you need more leveling materials you can b
taps across the center of the block followed by one power blow in the center, repeat if needed until you get desired effect.

Note: If needed use a claw

Example:

hammer to remove dirt
under the 4x4's and blocks
to make them sit level.

rake Concrete Blocks in to two pieces. To do so tap 8-10 light to medium

Level

2x8x16 Concrete Block

Asphalt Shingle

2x6x6 Wood Block

4x8x16 Concrete Block

The leveling of the deck is crucial to the successful building of the shed. If it is not perfectly
level and flat the entire building will suffer.

Always support floor frame seams.

Note: If your shed location is more than 6" out of level you will either need to get more materials at your local
hardware store or relocate the shed location. (Note it's not recommended to exceed 16" of leveling materials at one
corner or side.

14

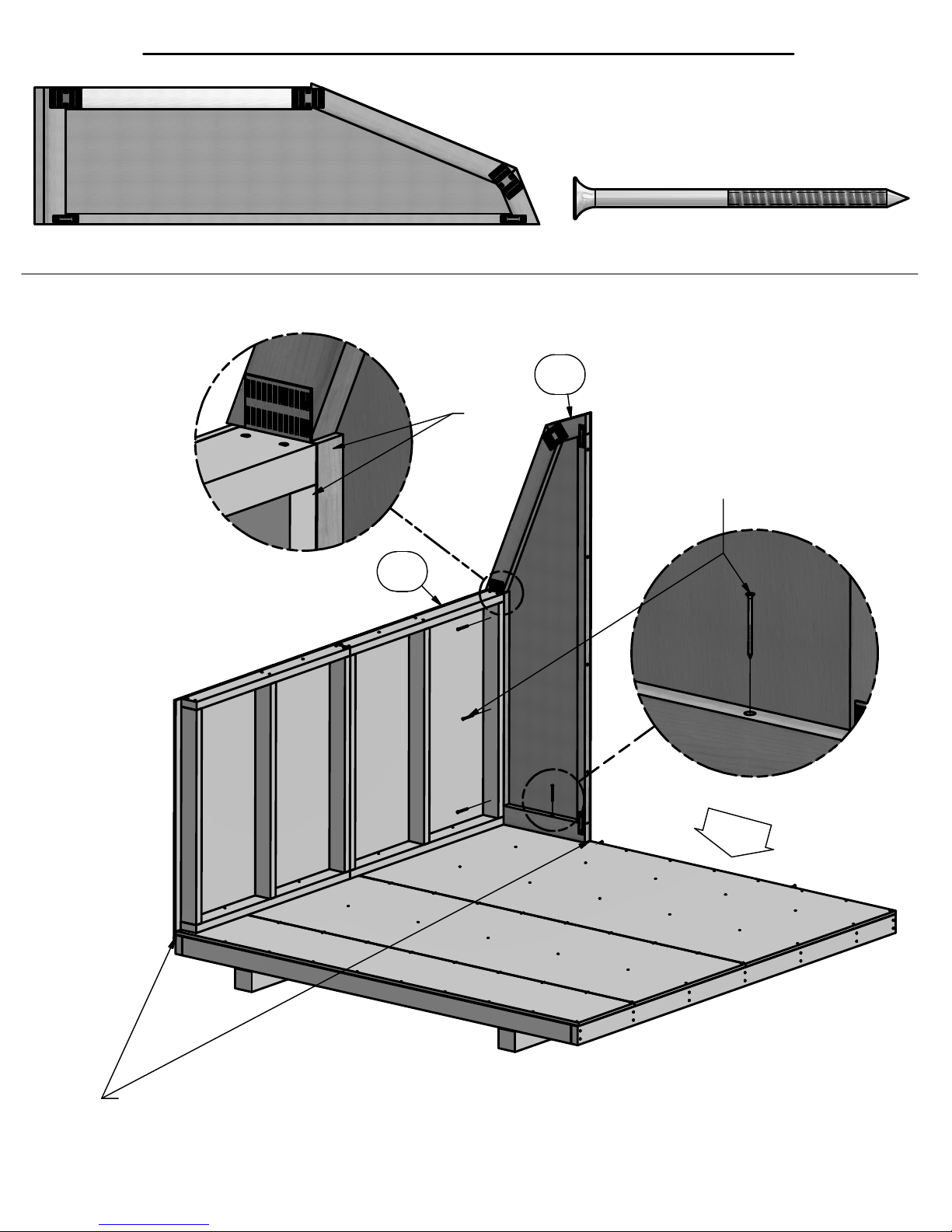

RIGHT SIDE WALL INSTALLATION

(4)

- SCREW T-25 9x3 - H100578

(1) WP1 - SIDE WALL PANEL - W2A02156

NOTE SIDING JOINT.

WP6

SCREW T-25 9x3

(4 PLCS)

IMPORTANT: Make sure to mate the wall panel
siding with joists. DO NOT LEAVE
ANY GAP BETWEEN THE PANEL SIDING AND
ANY OF THE FLOOR JOIST.

WP1

R

O

O

D

15

NOTE: MAKE SURE SCREWS
EITHER GO INTO RIM JOISTS
OR FLOOR JOISTS WHEN
MOUNTING WALLS.

FRONT RIGHT WALL INSTALLATION

(4)

- SCREW T-25 9x3 - H100578

(1) WP5 - UNIVERSAL RIGHT WALL PANEL - W2A02122

• Attach (WP5) front right side wall to (WP1) right side wall securing with 3" torx drive fasteners, approximately 3-1/2" from

both the top and bottom plates.

WP5

FLUSH

SCREW T-25 9x3
(4 PLCS)

WP1

D

O

O

R

• IMPORTANT: Make sure to mate the wall panel

siding with joists. DO NOT LEAVE
ANY GAP BETWEEN THE PANEL SIDING AND
ANY OF THE FLOOR JOIST.

16

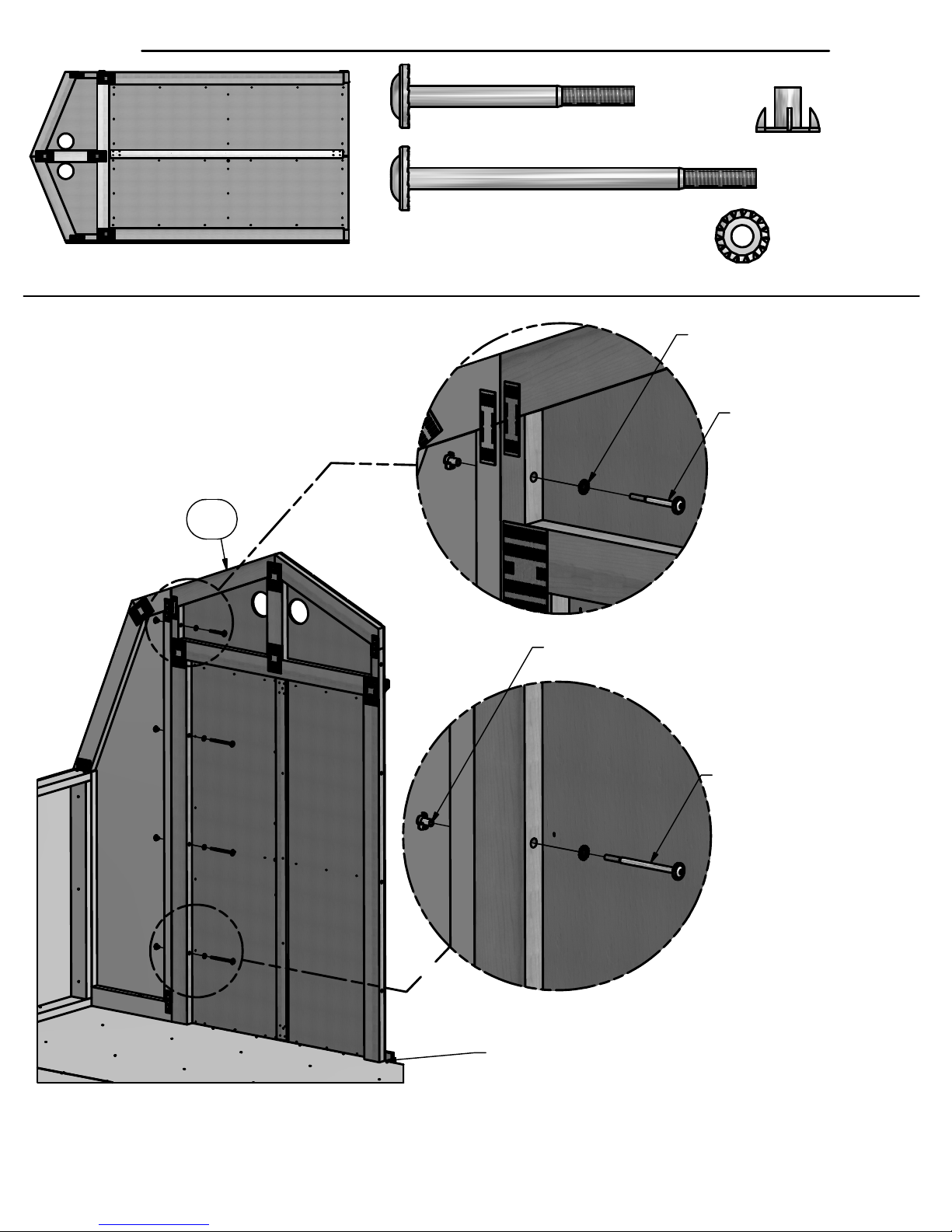

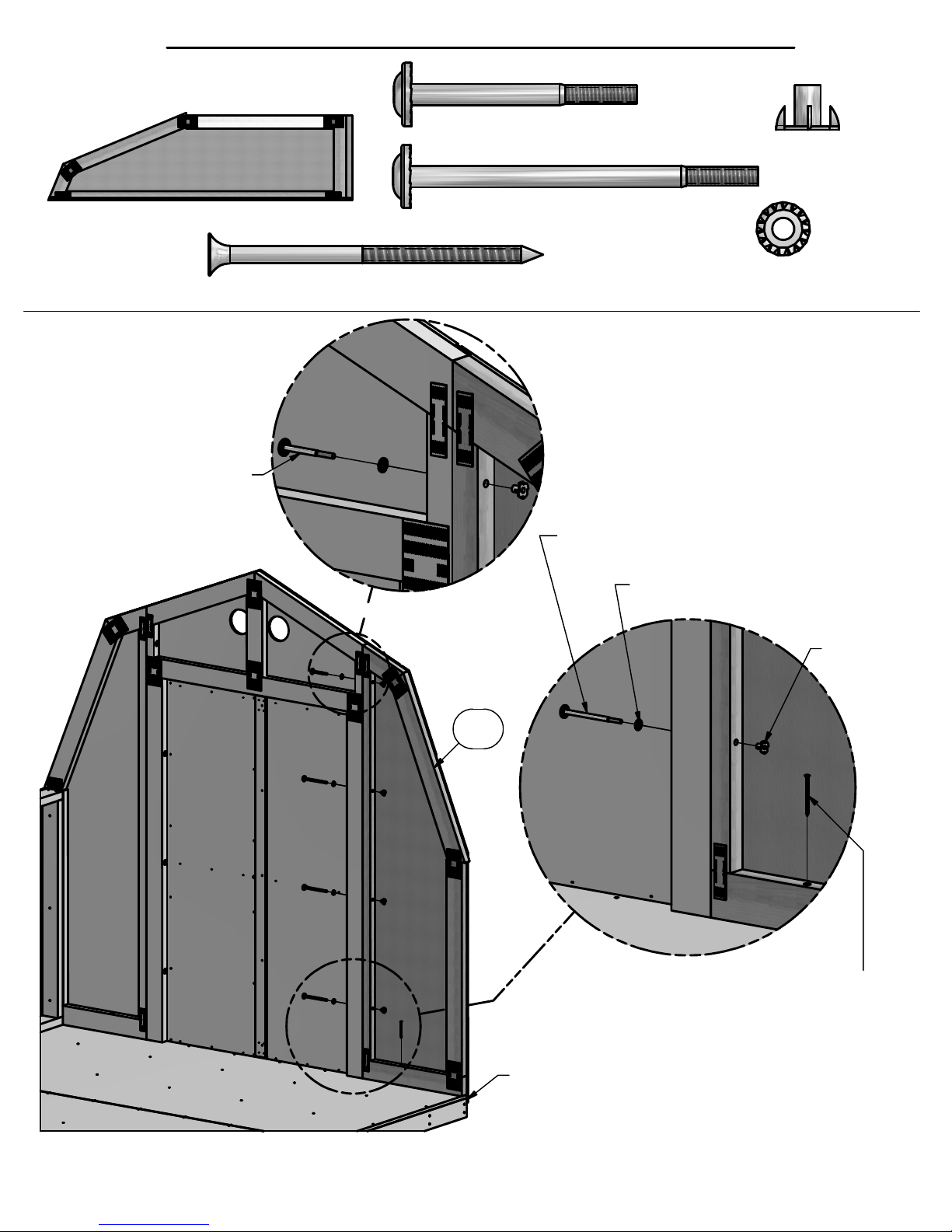

FRONT CENTER WALL INSTALLATION

(1)

Q - BOLT WH 5/16x3 1/4 - H100017

(4)

BG - T-NUT 5/16 - H100074

(3)

V - BOLT WH 5/16x5 - H100022

(1) WP3 - FRONT CENTER WALL PANEL - W2A02120

WP3

(4)

AC - WASHER LOCK EXT 8x19 - H100030

T-NUT 5/16
(4 PLCS)

WASHER LOCK EXT 8x19
(4 PLCS)

BOLT WH 5/16x3 1/4
(1 PLCS)

BOLT WH 5/16x5
(3 PLCS)

• IMPORTANT: Make sure to mate the wall panel
siding with joists. DO NOT LEAVE
ANY GAP BETWEEN THE PANEL SIDING AND
ANY OF THE FLOOR JOIST.

17

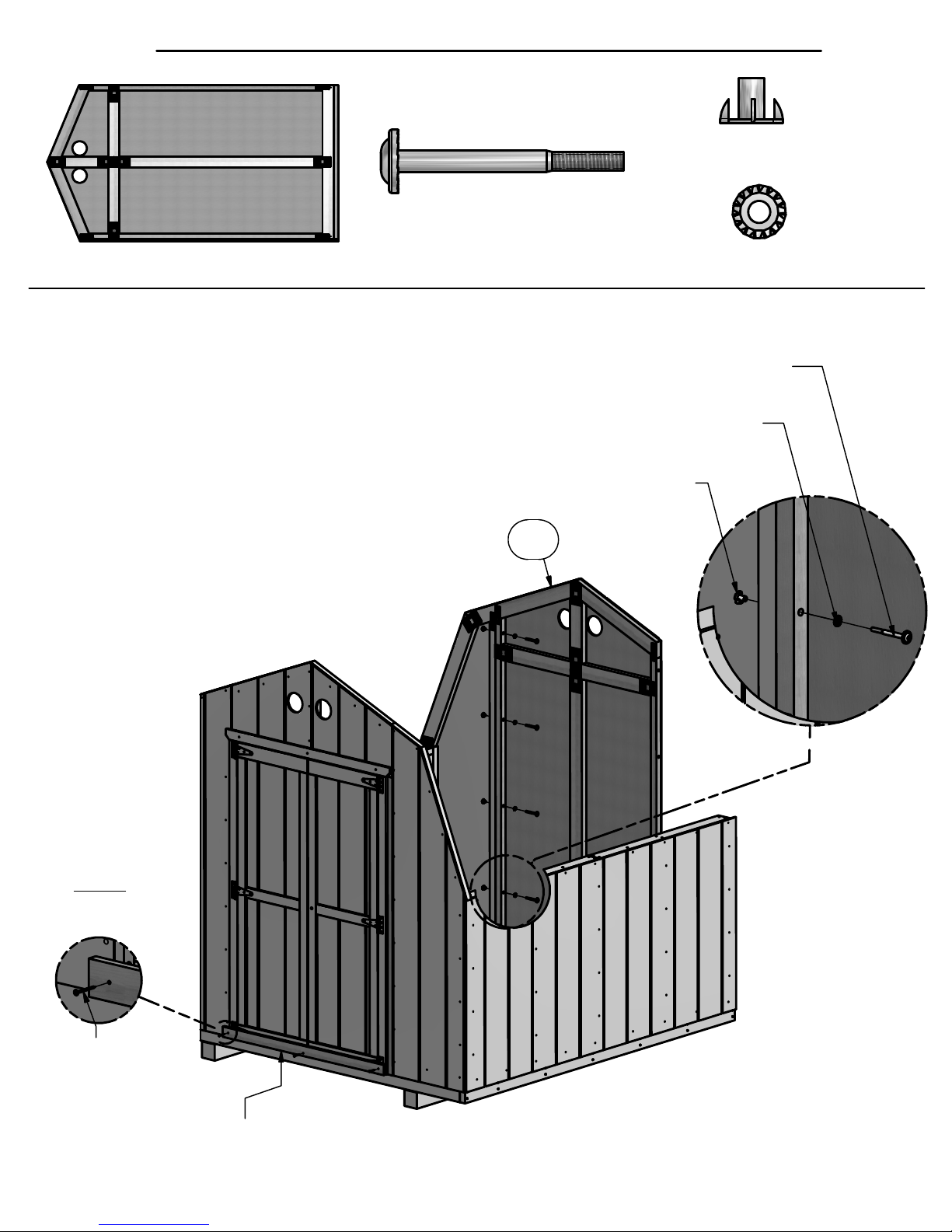

FRONT LEFT WALL INSTALLATION

(1) WP4 - UNIVERSAL LEFT WALL PANEL ­W2A02121

(1)

- SCREW T-25 9x3 - H100578

BOLT WH 5/16x3 1/4

(1 PLC)

(1)

Q - BOLT WH 5/16x3 1/4 - H100017

(3)

V - BOLT WH 5/16x5 - H100022

(4)

AC - WASHER LOCK EXT 8x19 - H100030

(4)

BG - T-NUT 5/16 - H100074

WP4

BOLT WH 5/16x5
(3 PLCS)

WASHER LOCK EXT 8x19
(4 PLCS)

T-NUT 5/16
(4 PLCS)

SCREW T-25 9x3
(1 PLC)

• IMPORTANT: Make sure to mate the wall panel
siding with joists. DO NOT LEAVE
ANY GAP BETWEEN THE PANEL SIDING AND
ANY OF THE FLOOR JOIST.

18

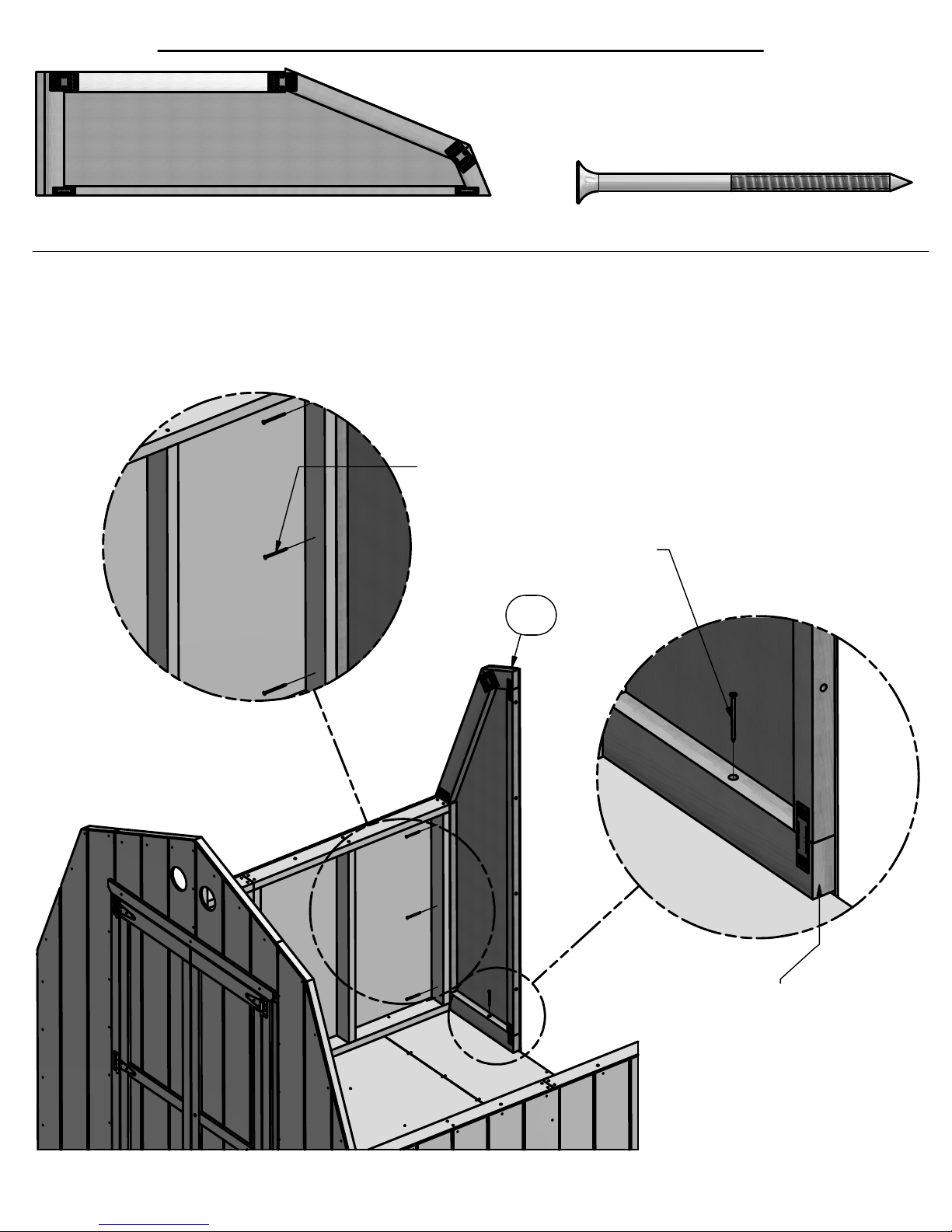

LEFT SIDE WALL INSTALLATION

(7)

- SCREW T-25 9x3 - H100578

(1) WP1 - SIDE WALL PANEL - W2A02156

• Attach (WP1) Side Wall Assembly by securing with 3" torx drive fasteners as shown below.

SCREW T-25 9x3

(4 PLCS)

WP4

WP6

SCREW T-25 9x3
(3 PLCS)

WP1

NOTE: MAKE SURE SCREWS
EITHER GO INTO RIM JOISTS
OR FLOOR JOISTS WHEN
MOUNTING WALLS.

• IMPORTANT: Make sure to mate the wall panel
siding with joists. DO NOT LEAVE
ANY GAP BETWEEN THE PANEL SIDING AND
ANY OF THE FLOOR JOIST.

19

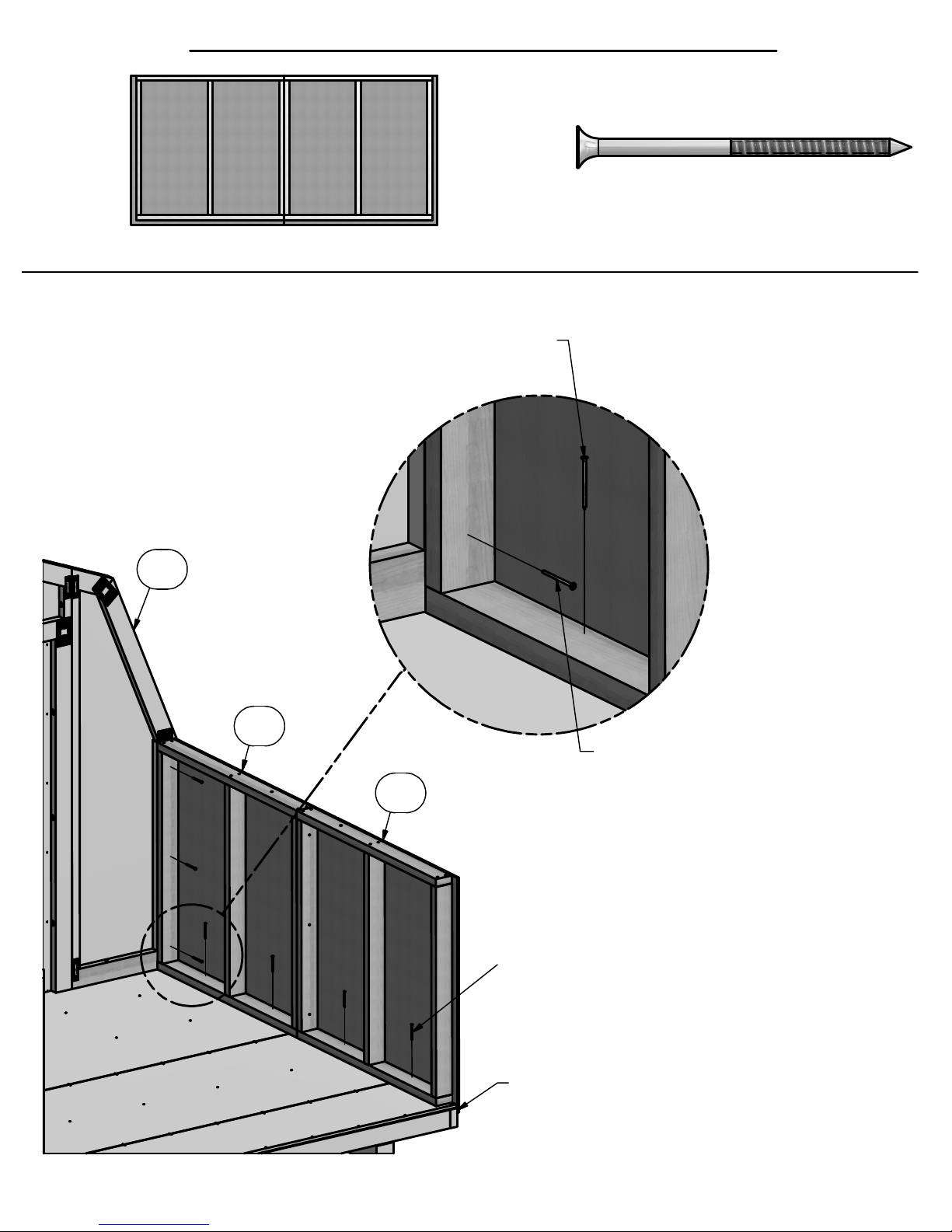

REAR LEFT WALL INSTALLATION

(1) WP5 - UNIVERSAL RIGHT WALL PANEL - W2A02122

SCREW T-25 9x3
(3 PLCS)

(

4)

- SCREW T-25 9x3 - H100578

SCREW T-25 9x3

(1 PLC)

WP5

IMPORTANT: Make sure
to mate the wall panel
siding with joists. DO
NOT LEAVE
ANY GAP BETWEEN
THE PANEL SIDING AND
ANY OF THE FLOOR
JOIST.

20

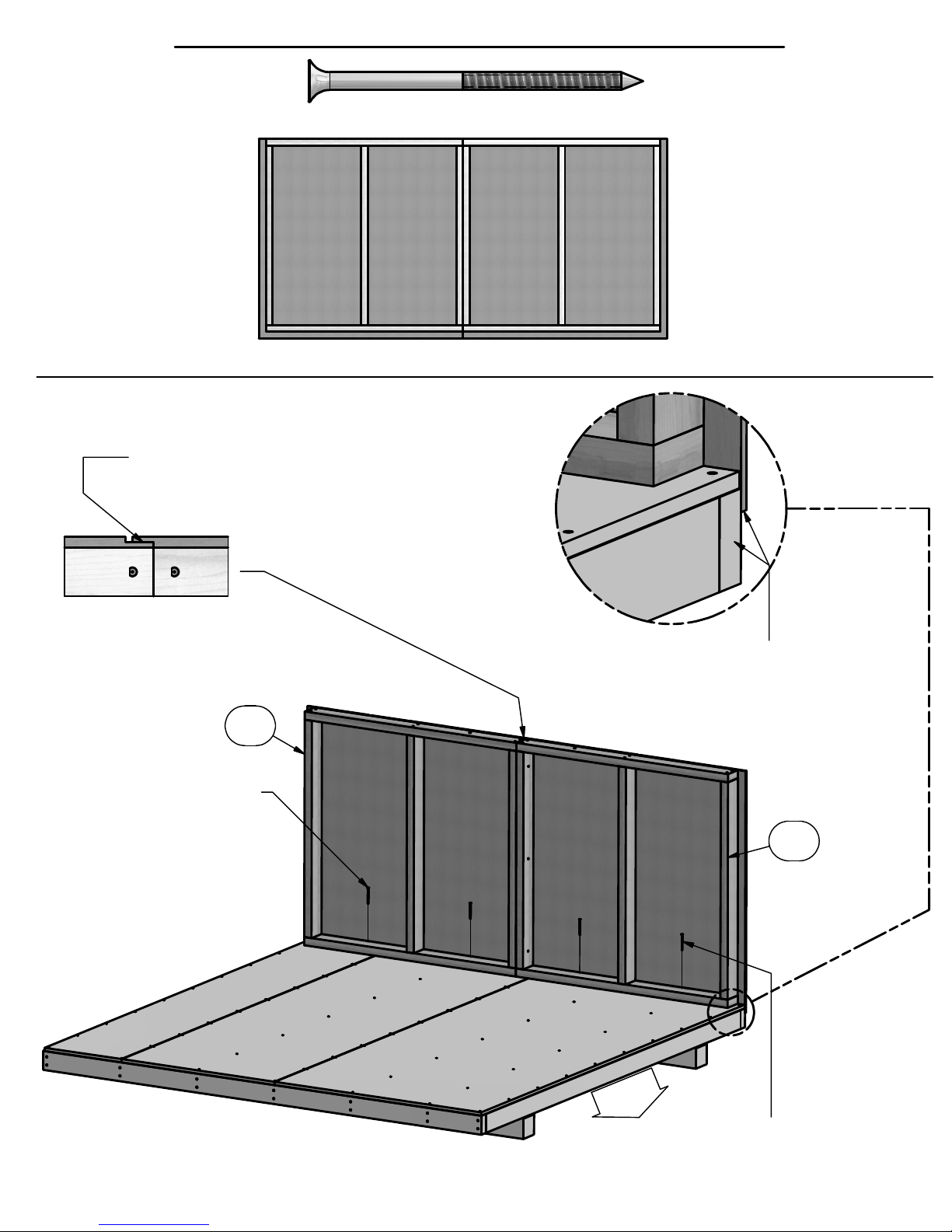

REAR CENTER WALL INSTALLATION

(4)

(1) WP2 - REAR CENTER WALL PANEL - W2A02119

MPORTANT: Make sure to mate the wall panel

• I
siding with joists. DO NOT LEAVE
ANY GAP BETWEEN THE PANEL SIDING AND
ANY OF THE FLOOR JOIST.

(

4)

BG - T-NUT 5/16 - H100074

Q - BOLT WH 5/16x3 1/4 - H100017

(4)

AC - WASHER LOCK EXT 8x19 - H100030

BOLT WH 5/16x3 1/4

WASHER LOCK EXT 8x19

T-NUT 5/16

(4 PLCS)

(4 PLCS)

(4 PLCS)

NEXT:

REMOVE SAFETY

STRAP FROM DOOR

WP2

REMOVE SCREW
(3 PLCS)

NOTE AFTER REMOVING SAFETY BOARD
OPEN AND CLOSE DOORS TO ENSURE
PROPER FUNCTION BEFORE MOVING ON.

21

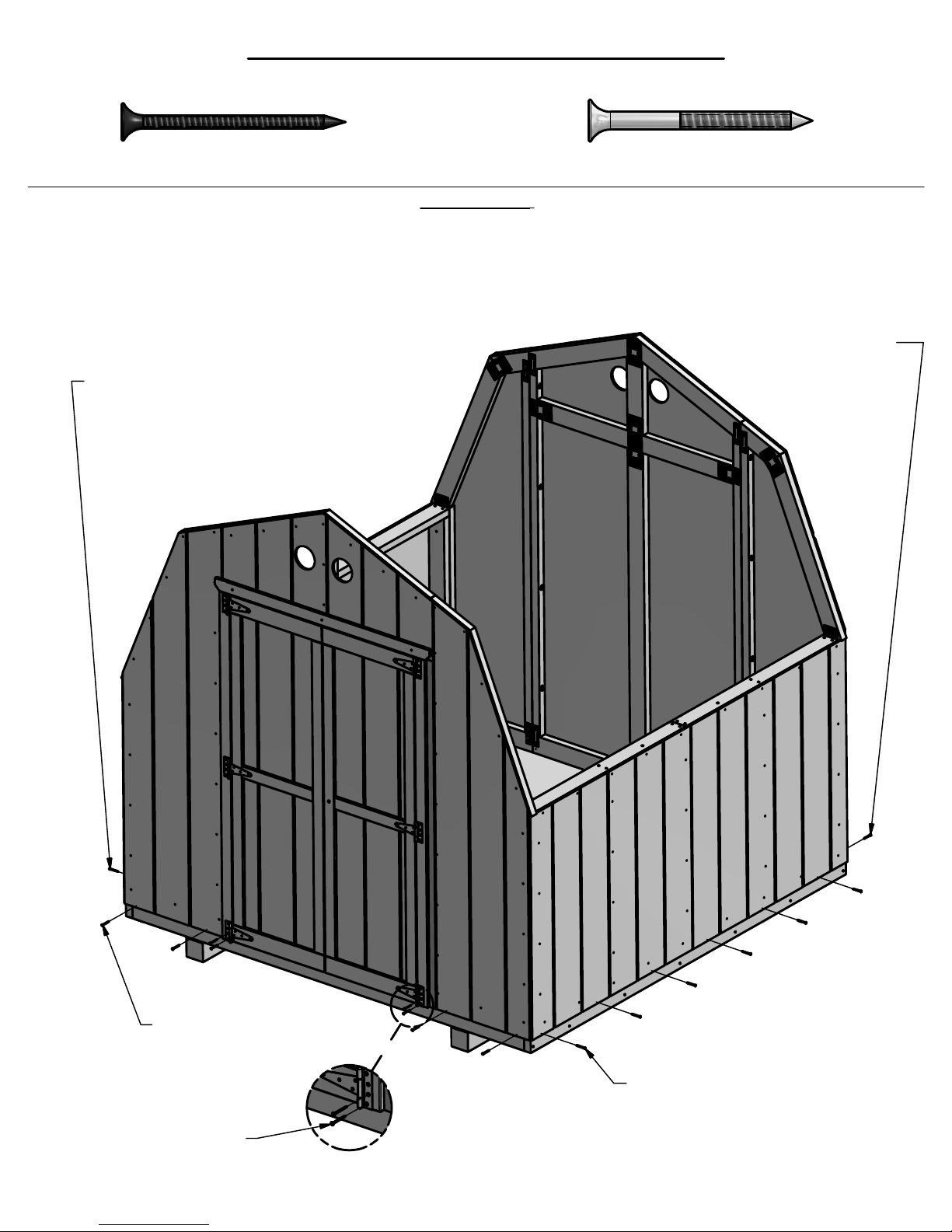

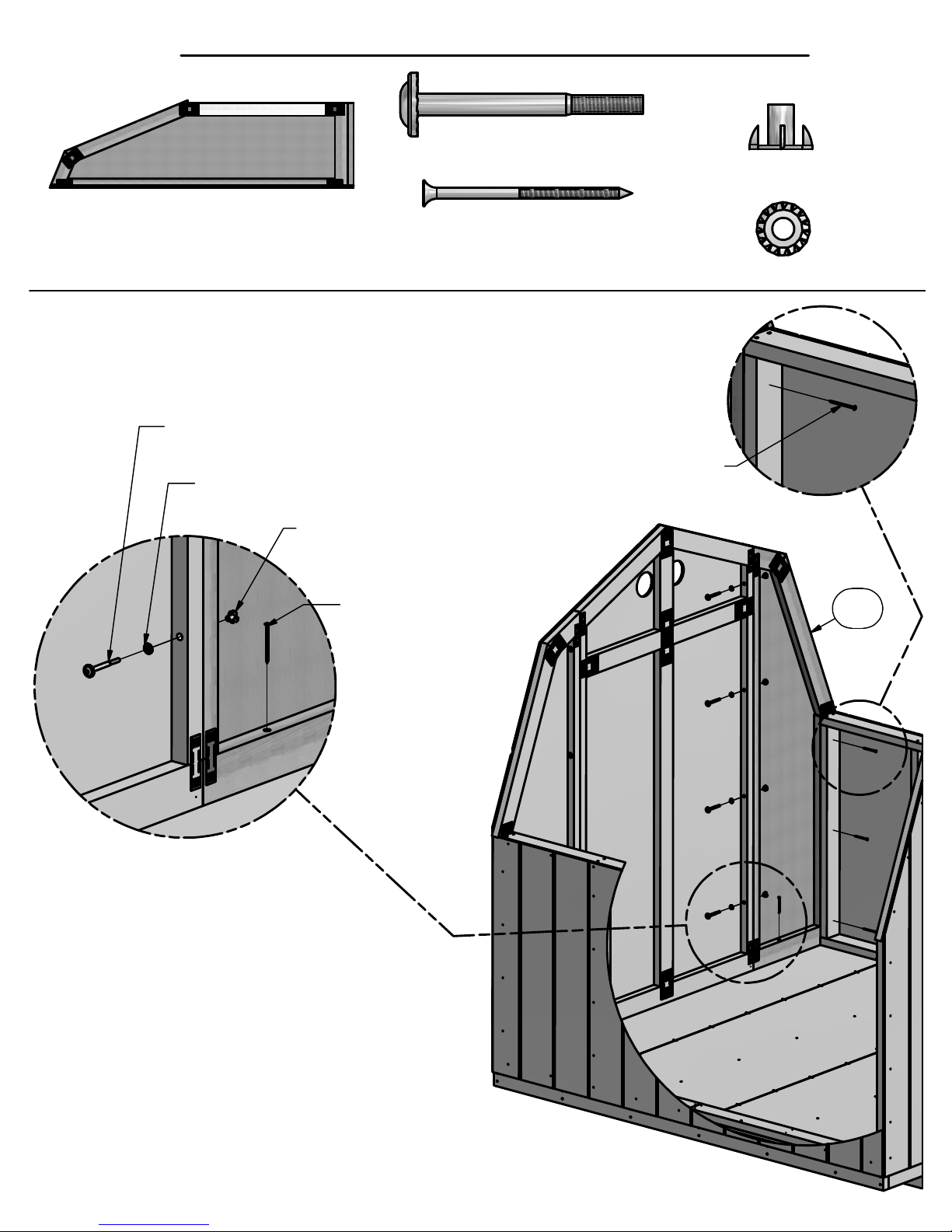

REAR RIGHT WALL INSTALLATION

(4)

Q - BOLT WH 5/16x3 1/4 - H100017

(4)

BG - T-NUT 5/16 - H100074

(1) WP4 - UNIVERSAL LEFT WALL PANEL ­W2A02121

BOLT WH 5/16x3 1/4
(4 PLCS)

WASHER LOCK EXT 8x19
(4 PLCS)

T-NUT 5/16
(4 PLCS)

SCREW T-25 9x3
(1 PLC)

(4)

- SCREW T-25 9x3 - H100578

(4)

AC - WASHER LOCK EXT 8x19 - H100030

SCREW T-25 9x3

(3 PLCS)

WP4

22

WALL PANEL FASTENERS

(22)

(4)

- SCREW PFH 8x2 BLK - H100391

-OPTIONAL-

For your convenience we recommend that the painting be done at this time. See "PAINT" on page 2 of this manual.

SCREW T-25 9x2
(6 PLCS)

- SCREW T-25 9x2 - H100579

SCREW T-25 9x2

(6 PLCS)

SCREW T-25 9x2
(4 PLCS)

SCREW PFH 8x2 BLK

(4 PLCS)

SCREW T-25 9x2
(6 PLCS)

23

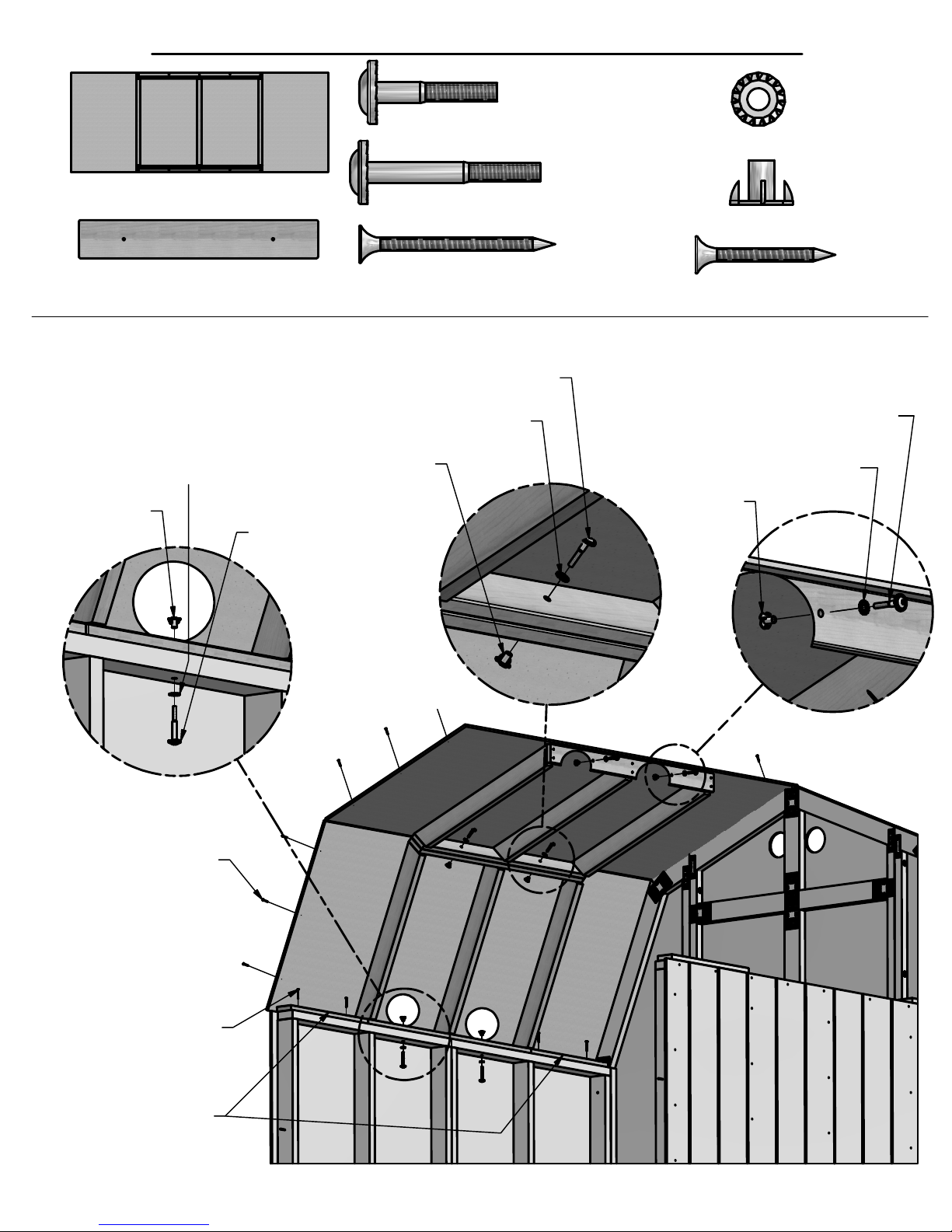

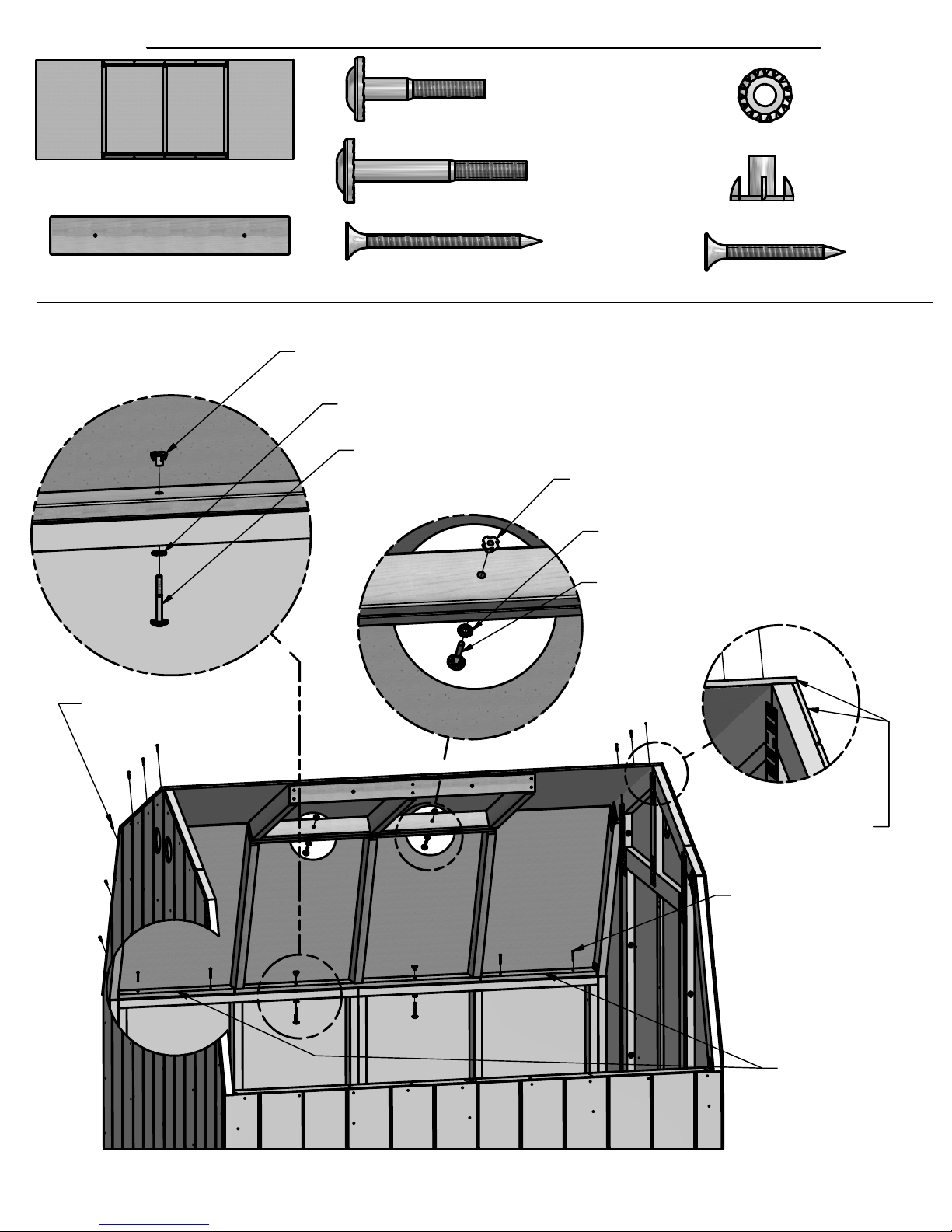

RIGHT ROOF PANELS INSTALLATION

(2) RP1 - ROOF PANEL - W2A02120

(2)

J - BOLT WH 5/16x1 3/4 - H100011

(2)

M - BOLT WH 5/16x2 1/2 - H100014

(4)

AC - WASHER LOCK EXT 8x19 - H100030

(4)

BG - T-NUT 5/16 - H100074

- FILLER BOARD - W4L07701

(2)

1"x3 3/8"x21 3/8" (24x86x543)

(4)

BS - SCREW PFH 8x1 3/4 - H100089

(12)

BQ - SCREW PFH 8x1 1/4 - H100087

• You will need to use the T-40 handwrench to secure the bolt and t-nut combinations.

T-NUT 5/16
(2 PLCS)

WASHER LOCK EXT 8x19
(2 PLCS)

BOLT WH 5/16x2 1/2
(2 PLCS)

T-NUT 5/16
(2 PLCS)

WASHER LOCK EXT 8x19
(2 PLCS)

BOLT WH 5/16x1 3/4
(2 PLCS)

SCREW PFH 8x1 1/4
(12 PLCS)

FLUSH

SCREW PFH 8x1 3/4
(4 PLCS)

FILLER BOARD
(2 PLCS)

24

LEFT ROOF PANELS INSTALLATION

(4)

J - BOLT WH 5/16x1 3/4 - H100011

(6)

AC - WASHER LOCK EXT 8x19 - H100030

(2) RP1 - ROOF PANEL - W2A02120

- FILLER BOARD - W4L07701

(2)

1"x3 3/8"x21 3/8" (24x86x543)

(2)

M - BOLT WH 5/16x2 1/2 - H100014

(4)

BS - SCREW PFH 8x1 3/4 - H100089

(6)

BG - T-NUT 5/16 - H100074

(12)

BQ - SCREW PFH 8x1 1/4 - H100087

• You will need to use the T-40 handwrench to secure the bolt and t-nut combinations.

BOLT WH 5/16x1 3/4

(2 PLCS)

BOLT WH 5/16x1 3/4

(2 PLCS)

WASHER LOCK EXT 8x19
(2 PLCS)

T-NUT 5/16

(2 PLCS)

WASHER LOCK EXT 8x19

T-NUT 5/16

(2 PLCS)

BOLT WH 5/16x2 1/2

(2 PLCS)

WASHER LOCK EXT 8x19

T-NUT 5/16

(2 PLCS)

(2 PLCS)

(2 PLCS)

SCREW PFH 8x1 1/4

(12 PLCS)

SCREW PFH 8x1 3/4

(4 PLCS)

FILLER BOARD

(2 PLCS)

25

GABLE BRACES

- 7/16" OSB GABLE BRACE - W4L07667

(6)

7/16"x6 1/8"x11" TREATED

(36)

BP - SCREW PFH 8x1 1/2 - H100086

7/16" OSB GABLE BRACE
(6 PLCS)

SCREW PFH 8x1 1/2

(36 PLCS)

26

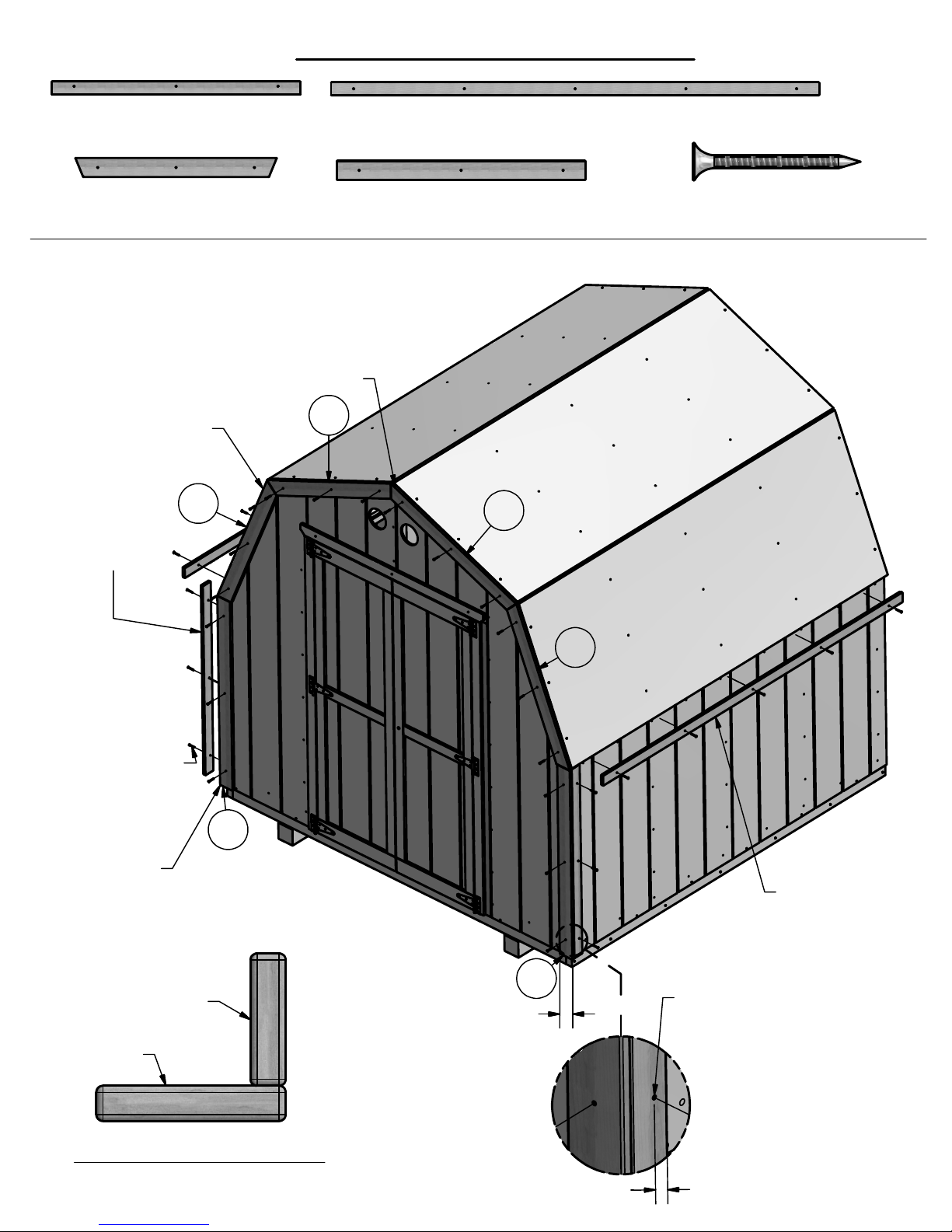

FRONT TRIM BOARDS

- SIDE VERTICAL TRIM - W4L07665

(2)

5/8"x2 3/8"x44 1/2" (16x60x1130)

- ANGLED ROOF TRIM - W4L07666

(4)

5/8"x3 3/8"x36" (16x86x914)

- VERTICAL TRIM - W4L07674

(2)

5/8"x3 3/8"x44 1/2" (16x86x1130)

- FASCIA BOARD - W4L07672

(2)

5/8"x2 3/8"x87 1/4" (16x60x2216)

(34)

BP - SCREW PFH 8x1 1/2 - H100086

• ASSEMBLE THE SIDE TRIM BOARDS FIRST AND THEN ASSEMBLE FRONT TRIM BOARDS IN
NUMERICAL ORDER.

START HERE

2

ANGLED ROOF TRIM

(4 PLCS)

4

1

SIDE VERTICAL TRIM
(2 PLCS)

SCREW PFH 8x1 1/2

(34 PLCS)

VERTICAL TRIM

(2 PLCS)

SIDE VERTICAL TRIM

VERTICAL TRIM

3

6

FASCIA BOARD
(2 PLCS)

5

NOTE BOARD/HOLE ORIENTATION.

3 3/8"

TRIM CAN ONLY GO ONE WAY.

CORNER TRIM PLACEMENT

27

7/8

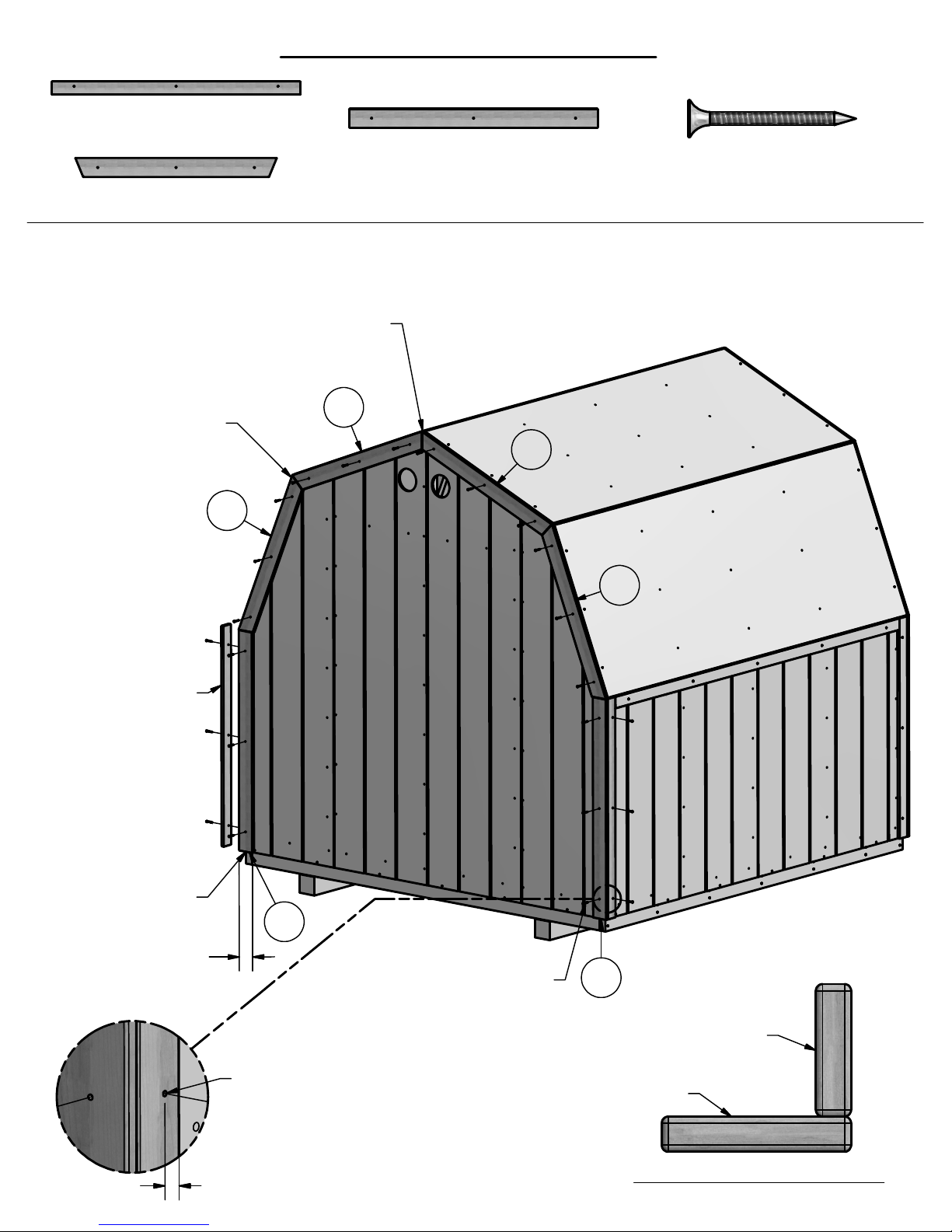

REAR TRIM BOARDS

- SIDE VERTICAL TRIM - W4L07665

(2)

5/8"x2 3/8"x44 1/2" (16x60x1130)

- ANGLED ROOF TRIM - W4L07666

(4)

5/8"x3 3/8"x36" (16x86x914)

• ASSEMBLE THE SIDE TRIM BOARDS FIRST AND THEN ASSEMBLE REAR TRIM BOARDS IN
NUMERICAL ORDER.

START HERE

2

ANGLED ROOF TRIM

(4 PLCS)

- VERTICAL TRIM - W4L07674

(2)

5/8"x3 3/8"x44 1/2" (16x86x1130)

(24)

BP - SCREW PFH 8x1 1/2 - H100086

1

SIDE VERTICAL TRIM

(2 PLCS)

VERTICAL TRIM

(2 PLCS)

3 3/8"

4

3

6

SCREW PFH 8x1 1/2

5

(24 PLCS)

NOTE BOARD/HOLE ORIENTATION.
TRIM CAN ONLY GO ONE WAY.

7/8

28

SIDE VERTICAL TRIM

FRONT TRIM

CORNER TRIM PLACEMENT

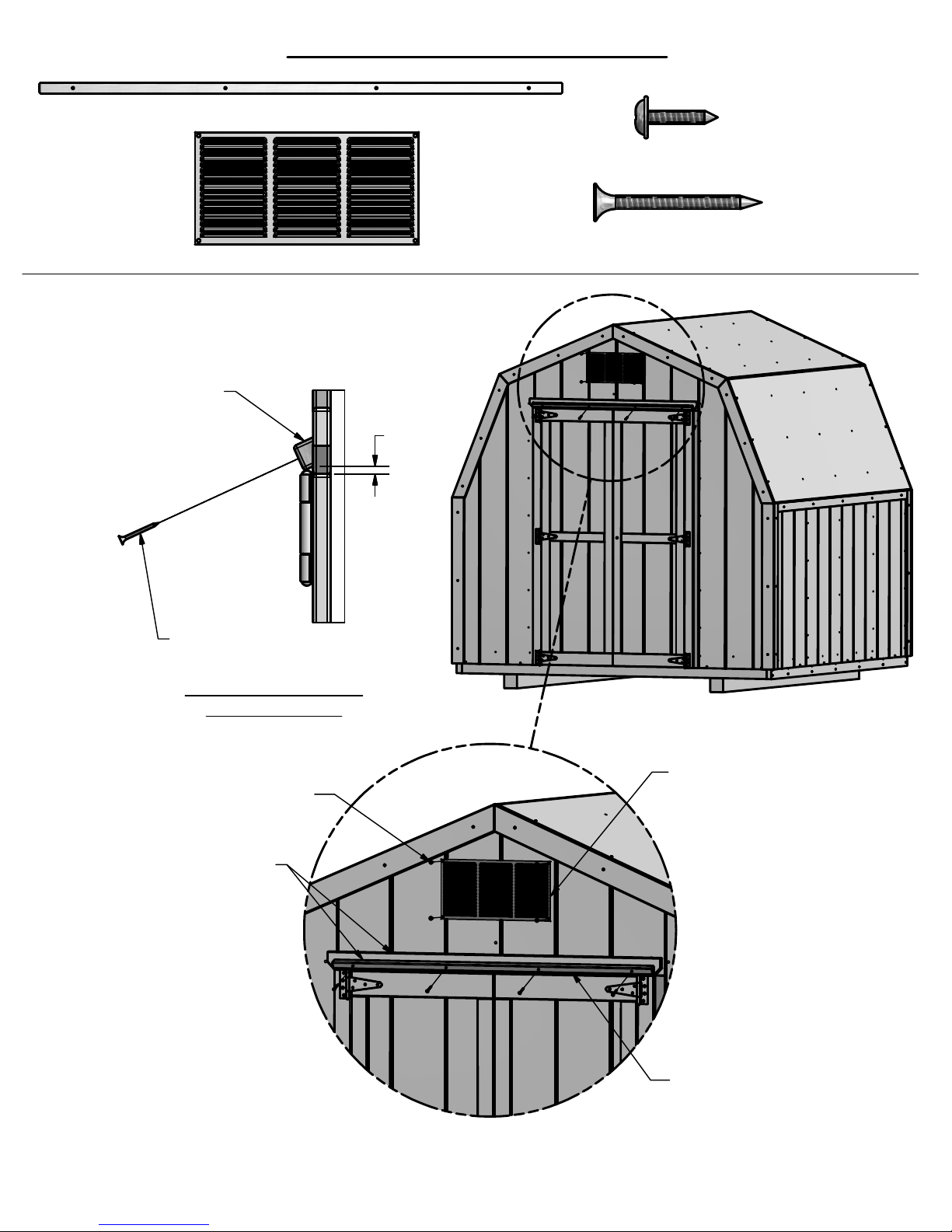

VENT INSTALLATION

- DOOR DRIP BOARD - W4L07675

(1)

3/4"x1"x46 3/4" (20x24x1187)

- VENT (8x16) - A4M00771(2)

• The vent (8x16) is installed over the 4-1/2" holes in the

front and rear center panels.

DOOR DRIP BOARD

1/4"

(8)

CY - SCREW PWH 8x5/8 - H100128

(4)

BP - SCREW PFH 8x1 1/2 - H100086

SCREW PFH 8x1 1/2
(4 PLCS)

DOOR DRIP BOARD

INSTALLATION

SCREW PWH 8x5/8

(8 PLCS)

To ensure that water does
not leak into the structure,
apply caulk in the grooves

and along the top of the

top door trim & drip board.

VENT (8x16) (2 PLCS)

The vent is installed the same
on both the front & back center
walls.

DOOR DRIP BOARD

29

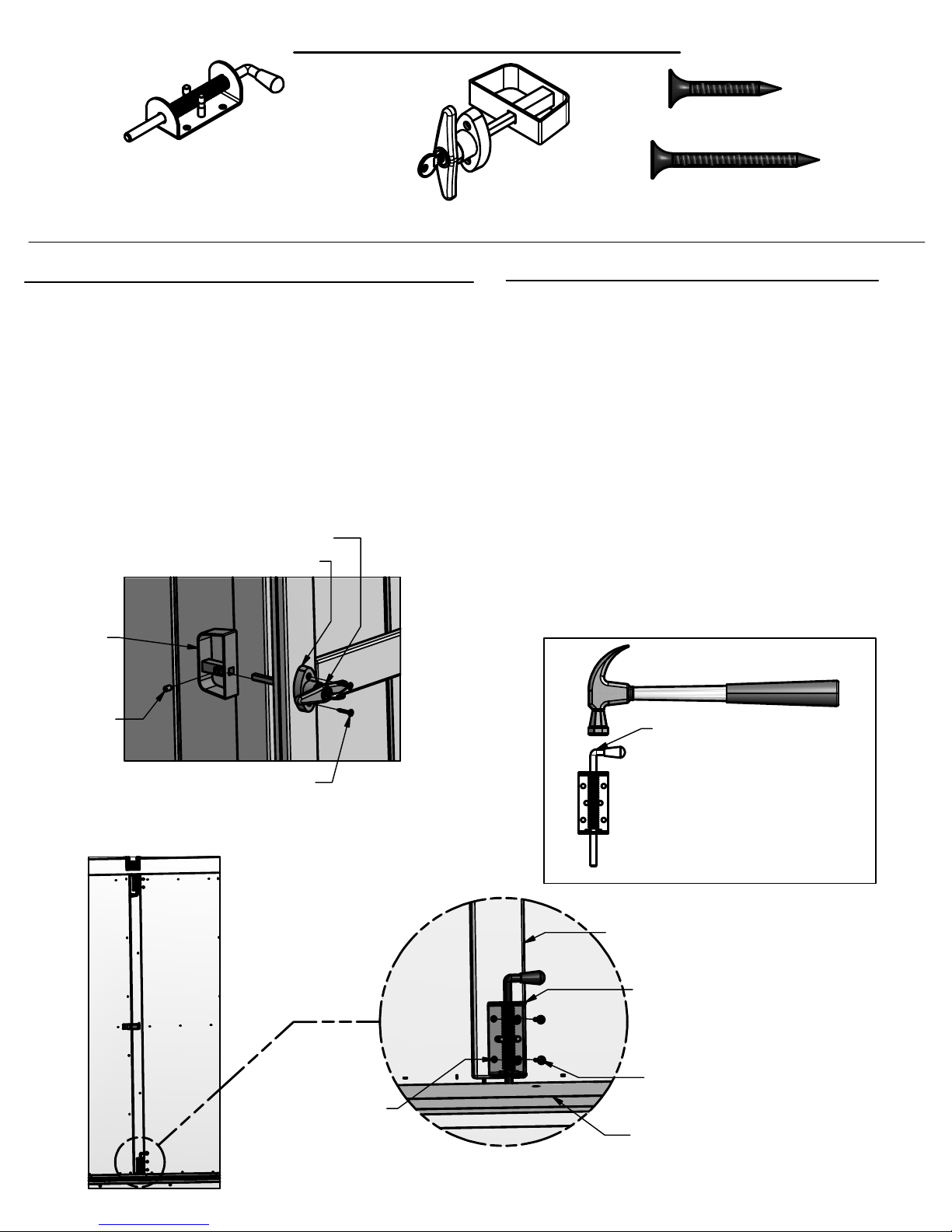

DOOR COMPONENTS

(2)

- SPRING LATCH ASSEMBLY - A4M00774

(1)

- LOCKING DOOR HANDLE

(2)

- 8x1 PFH SCREW BLK - WC - H100445

(8)

VT - SCREW PFH 8x1-1/2 BLK - H100200

PREFERRED HANDLE INSTALLATION

• Insert the handle into the hole from the outside with the

handle in the "unlocked" position. The escutcheon plate on
the latch should be mounted so the long dimension is
vertical to the shed. Secure the latch in place using the 1"
screws provided.

• Install the inside "D" handle onto the latch shaft using an

1/8" Allen wrench. The latch should be installed so there is
no play between the back of the inside handle and the back
of the door stop, located on the left door. When installing the
handle, be sure the inside latch is being installed on the
shaft so that it will latch on the left door when the outside
handle is in the "locked position".

NOTE ORIENTATION (HORIZONTAL)

NOTE ORIENTATION (VERTICAL)

NOTE

ORIENTATION

(VERTICAL)

NOTE ALLEN

SCREW

8x1 PFH SCREW BLK - WC

(2 PLCS)

SPRING LATCH INSTALLATION

• The spring latches should attach to the door stop on

the inside of the left door as you look at the door from
the outside. Holes need to be drilled into the floor and
header to make them functional.

• Carefully secure the latches in place so its parallel to

door edge using the 1-1/2" screws provided.

• Hold the spring latch pin down against the floor with

the end of the pin mated with the surface of the floor.
Mark the floor by tapping the top of the pin with a
hammer.

• Carefully drill a 3/8" hole into the floor allowing the pin

to slide freely in and out of the drilled hole.

• Repeat process for the top spring latch, hole being
drilled into door header.

TAP THE TOP OF THE
SPRING LATCH PIN TO
MAKE INDENTION IN
FLOOR AND HEADER.

NOTE PILOT HOLES

IN DOOR STOP.

DOOR STOP

SPRING LATCH
(2 PLS)

SCREW PFH 8x1-1/2 BLK
(8 PLS)

FLOOR BOARD

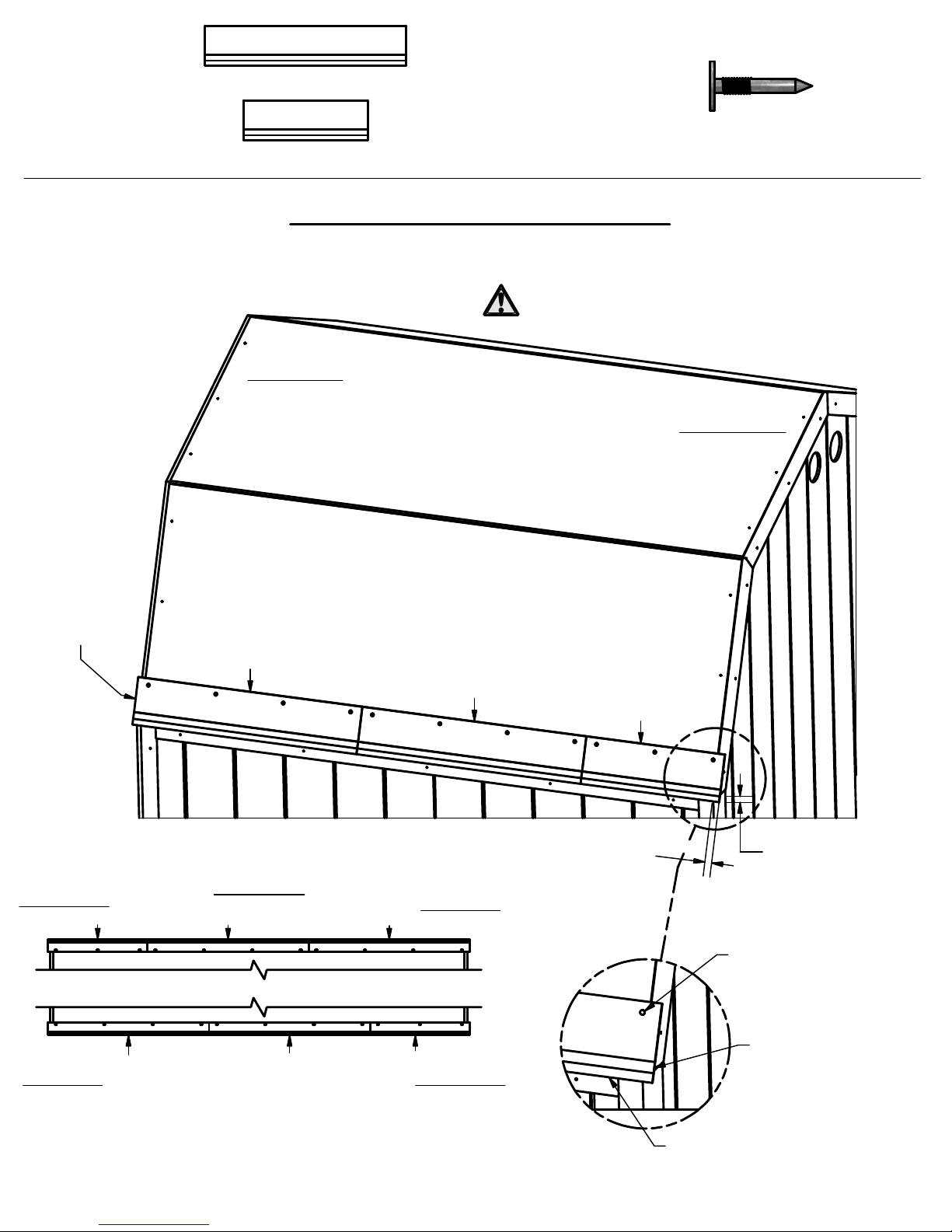

30

(2)

FULL - STARTER SHINGLE 7.125 x 36

(1)

- STARTER SHINGLE 7.125 x 22.25

STARTER SHINGLES

USE THESE STEPS FOR BOTH SIDES

LEFT SIDE

(11)

- 7/8" ROOFING NAIL GALV. - H100446

• WORK LEFT TO RIGHT WHEN

INSTALLING STARTER
SHINGLES.

RIGHT SIDE

START HERE

RIGHT SIDE

22.25" STARTER

FULL STARTER

LEFT SIDE

FULL STARTER

TOP VIEW

FULL STARTER

FULL STARTER

LEFT SIDE

FULL STARTER

22.25" STARTER

RIGHT SIDE

FULL STARTER

1/2" OVERHANG

22.25" STARTER

1/2" OVERHANG

7/8" ROOFING NAIL GALV.
(12 PLCS)

1/2" OVERHANG
ON ALL SIDES OF
SHED.

• NOTE HOW THE SHINGLE PLACEMENT CHANGES AS
YOU SWITCH SIDES WHILE WORKING FROM LEFT TO
RIGHT. THIS WORKS THE SAME WAY IN THE
FOLLOWING PAGES ONLY YOU WILL BE WORKING
FROM RIGHT TO LEFT.

STARTER SHINGLE 7.125 x 22.25
(1 PLC)

31

(1)

FULL - ASPHALT SHINGLE 12 x 36

1

(1)

1 - ASPHALT SHINGLE 12 x 30

(8)

- 7/8" ROOFING NAIL GALV. - H100446

• Familiarize yourself with a 3-Tab Shingle.

Notch

Tar / Sealing Strip

1"

Half Rain Slot

Full Rain Slot

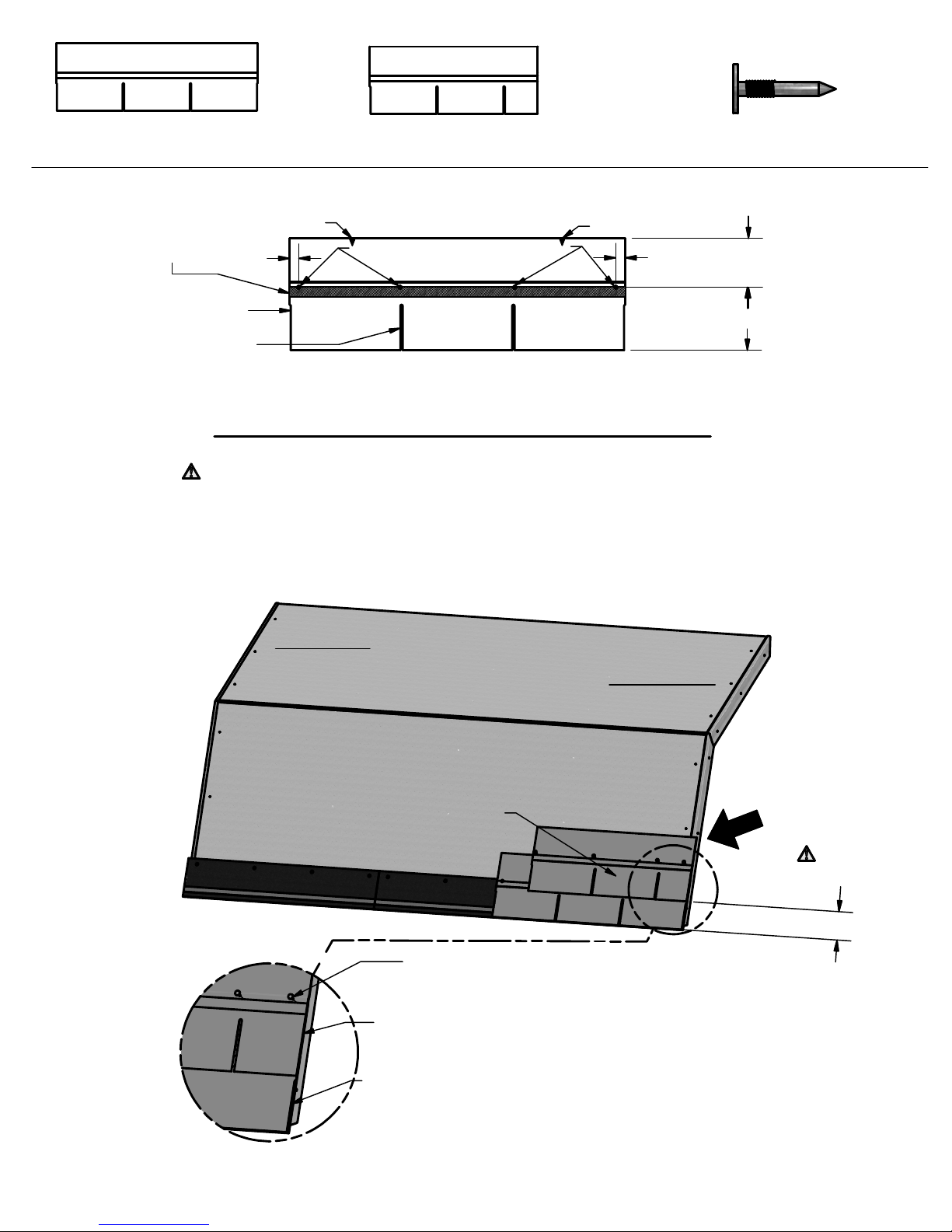

SHINGLE COURSE - START

PRE-CUTT SHINGLES WILL HAVE A NUMBER STAMPED ON THE
SHINGLE. ARRANGE THESE SHINGLES AS SHOWN TO GET
DESIRED RESULTS. (FULL SHINGLES ARE NOT NUMBERED)

• WORK RIGHT TO LEFT WHEN

INSTALLING SHINGLE COURSES.

LEFT SIDE

NAIL ON TOP EDGE OF SEAL STRIP.

SHINGLE NAIL PATTERN

Notch

1"

5 1/4

6 3/4 TO NAILS

NOTE NAIL PLACEMENT:
ONE NAIL ON EACH END
OF SHINGLES AND ONE
NAIL OVER EVERY RAIN
SLOT. USE
DIMENSIONS ABOVE
FOR NAIL LOCATIONS.

NOTE: SOME NAILS
ARE'NT SHOWN IN
THE FIRST COURSE
IN THIS
PRESENTATION.

NOTE NUMBERS ON SHINGLES.

7/8" ROOFING NAIL GALV.
(8 PLCS)

ASPHALT SHINGLE 12 x 30

1

(1 PLC)

ASPHALT SHINGLE 12 x 36
(1 PLC)

RIGHT SIDE

1

NOTE:

START SHINGLES WITH 1/2" OF
OVERHANG OFF THE EDGES OF
THE SHED AND FLUSH WITH THE
STARTER SHINGLES.

START HERE

5 1/4

SHINGLE SPACING

32

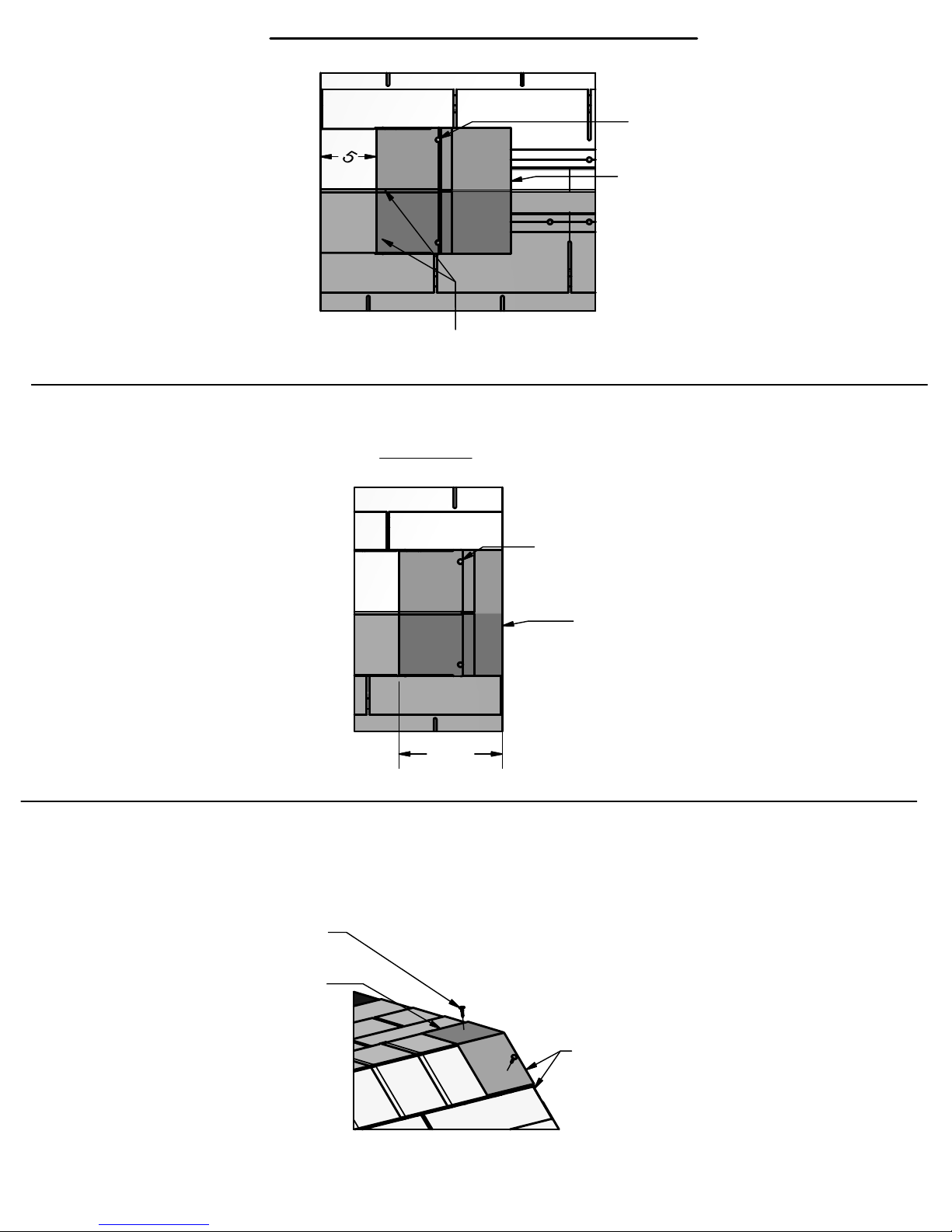

IMPORTANT NOTE:

SHINGLE #1 STARTS APPROXIMATELY 5 1/4"
ABOVE THE BOTTOM EDGE OF THE PRIOR
SHINGLE.

FULL

(19)

FULL - ASPHALT SHINGLE 12 x 36

2

(7)

2 - ASPHALT SHINGLE 12 x 22.25

1

(5)

1 - ASPHALT SHINGLE 12 x 30

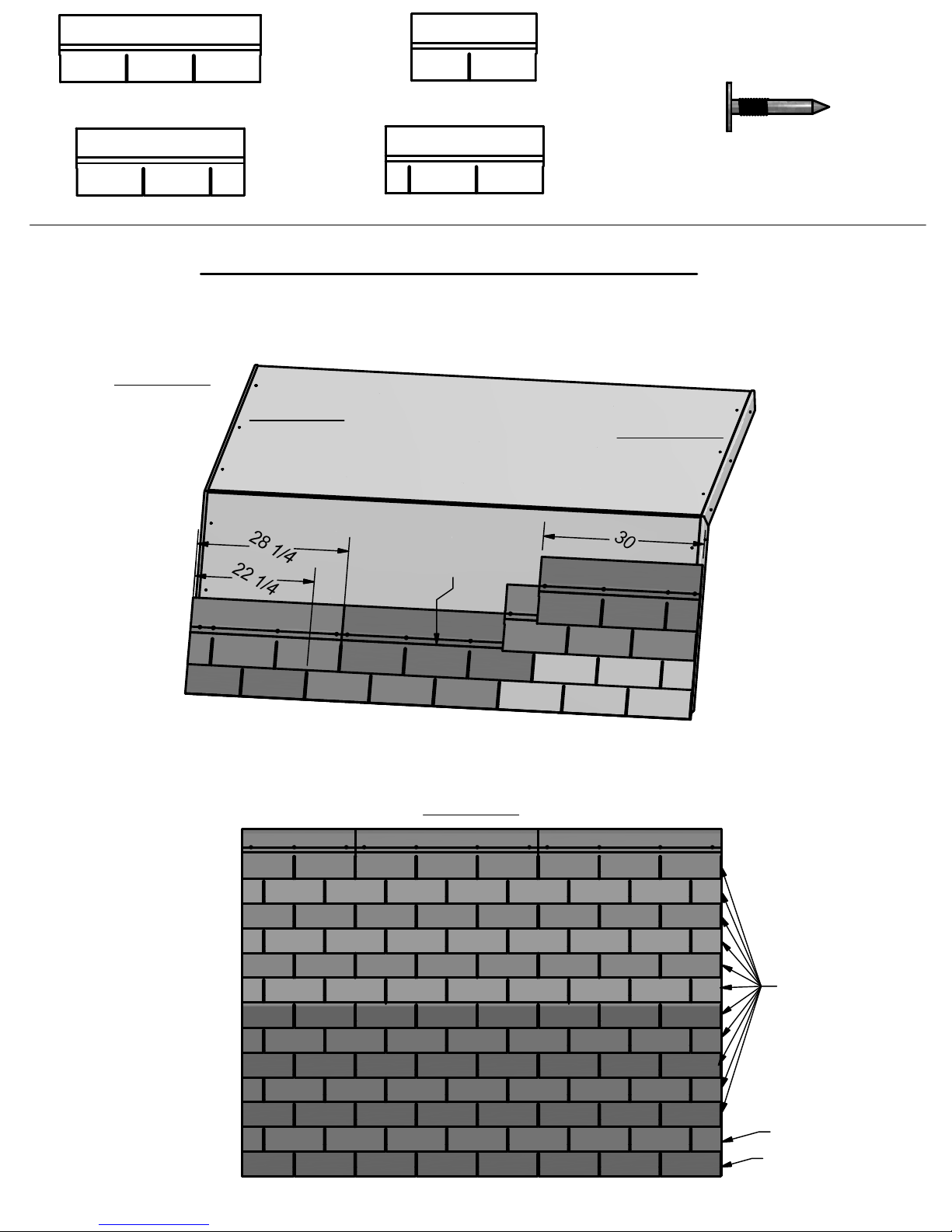

FINISH SHINGLE COURSES

• CONTINUE PLACING SHINGLES AS SHOWN USING THE NUMBERS ON
THEM TO DETERMINE PLACEMENT.

SIDE VIEW

LEFT SIDE

3

(6)

3 - ASPHALT SHINGLE 12 x 28.25

FULL SHINGLES

(141)

- 7/8" ROOFING NAIL GALV. - H100446

RIGHT SIDE

1

3

2

FULL

FULL

FULL

1

FULL

•REPEAT COURSES 1 & 2 ALL THE WAY UP THE SHED UNTIL YOU REACH THE PEAK AS
SHOWN BELOW.

SIDE VIEW

2

3

2

3

2

3

2

3

2

3

2

3

2

Full

Full

Full

Full

Full

Full

Full

Full

Full

Full

Full

Full

Full

Full

Full

Full

Full

Full

FullFull

1

1

1

Repeat Courses

1

1

1

2nd Course

1st Course

33

(1)

- RIDGE CAP 9.25

(38)

- 7/8" ROOFING NAIL GALV. - H100446

(17)

- RIDGE CAP 12

(1)

- SHINGLE CAP 5 x 11.75

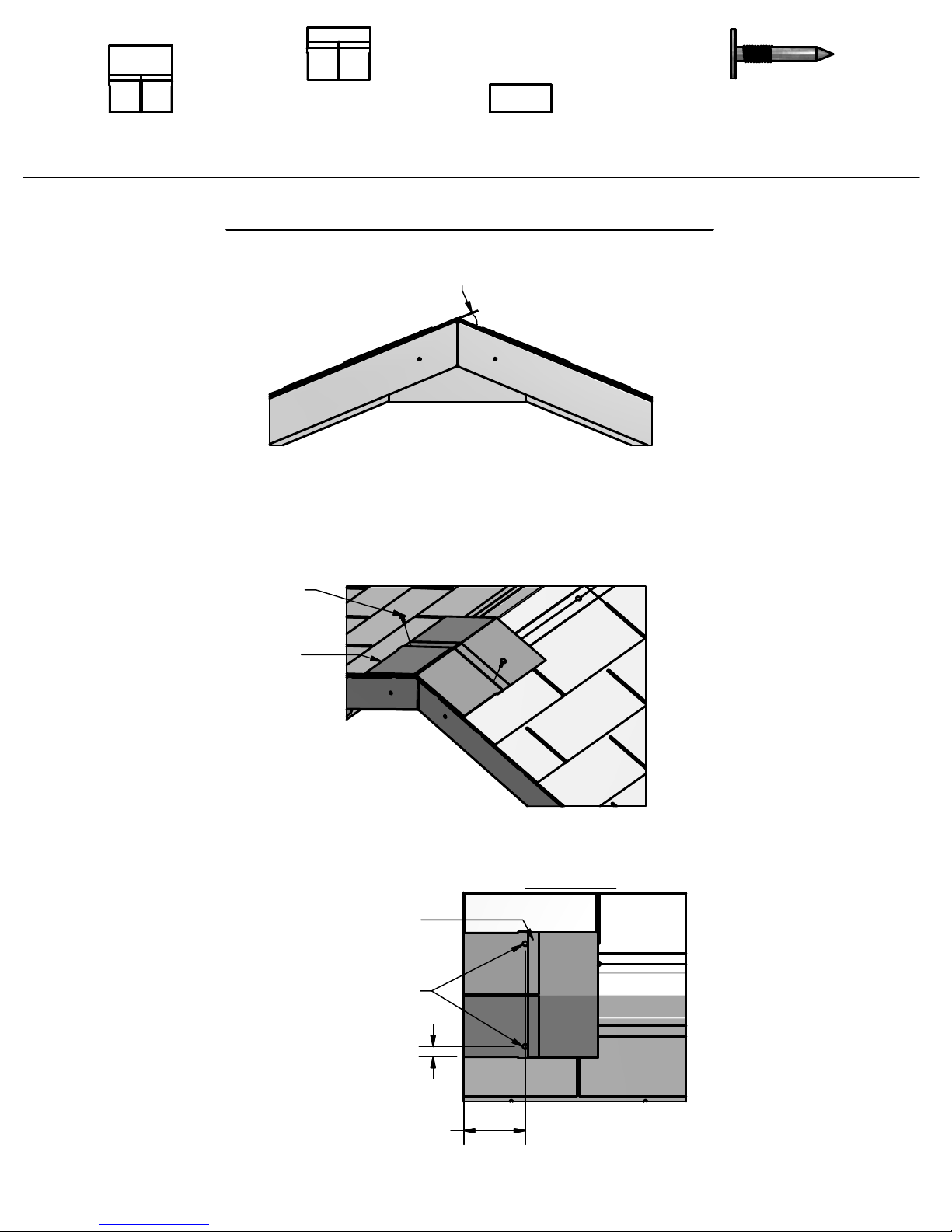

RIDGE CAP INSTALLATION

• IF NEEDED BEND EXCESS SHINGLES OVER PEAK BEFORE STARTING ON RIDGE CAPS.

INSTALL FIRST RIDGE CAP FLUSH WITH SHINGLES BELOW AS SHOWN.

•
START AT THE FRONT OF YOUR SHED AND WORK TOWARDS THE REAR.

7/8" ROOFING NAIL GALV.

(2 PLCS)

RIDGE CAP 12

(1 PLCS)

FRONT OF SHED.

WEATHER SEAL

ONE NAIL PER SIDE ABOVE WEATHER SEAL.

TOP VIEW

1

5 1/2

34

SHINGLES - RIDGE CA

P

• Install ridge caps 5" back, as shown.

FRONT OF SHED.

RIDGE CAP 12
(2 PLCS)

RIDGE CAP 12
(1 PLCS)

NOTE: NAILS ARE COVERED BY NEW RIDGE CAPS.

• Install last ridge cap 5" back as shown, it should be flush with the back of your
shed.

FRONT OF SHED.

TOP VIEW

9 1/4

7/8" ROOFING NAIL GALV.
(2 PLCS)

RIDGE CAP 9.25
(1 PLCS)

NOTE: THIS IS THE ONLY SHORT 9 1/4"
RIDGE CAP, IT WAS SPECIALLY DESIGNED
FOR THE REAR OF YOUR SHED.

REPEAT THIS STEP
(15 TIMES)

• Install 5" Cap as shown. It should be flush with the back of your shed and cover up
the nails from the prior step.

7/8" ROOFING NAIL GALV.

(2 PLS)

SHINGLE CAP 5 x 11.75

(1 PLS)

WHEN FINISHED USE
PROPER ROOF COATING
MATERIAL AROUND NAILS
TO PREVENT LEAKS.

FLUSH

• You have finished your ridge cap.

35

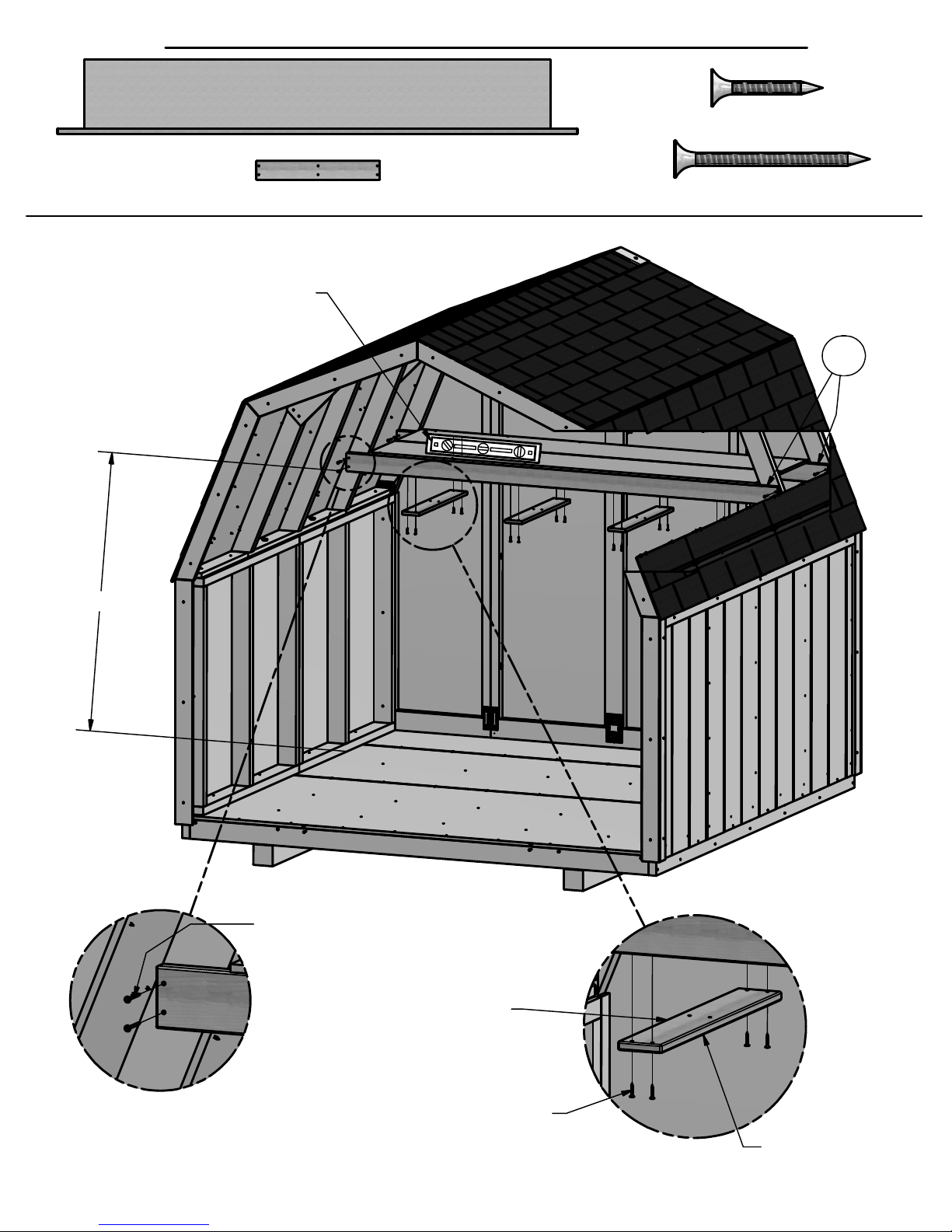

OPTIONAL - LOFT CONFIGURATION

(2) LP1 - LOFT PANEL - W2A02124

- SUPPORT BOARD - W4L07668

(4)

5/8"x3 3/8"x22 1/8" (16x86x562)

WE SUGGEST YOU LEVEL LOFT

PANELS BEFORE SECURING

TO ROOF RAFTERS.

(16)

BN - SCREW PFH 8x1 - H100085

(8)

BS - SCREW PFH 8x1 3/4 - H100089

LP1

51 1/4"

SCREW PFH 8x1 3/4
(8 PLCS)

Equally space the (4)
support boards along

the bottom of the (2)

loft panels.

SCREW PFH 8x1

(16 PLCS)

SUPPORT BOARD
(4 PLCS)

36

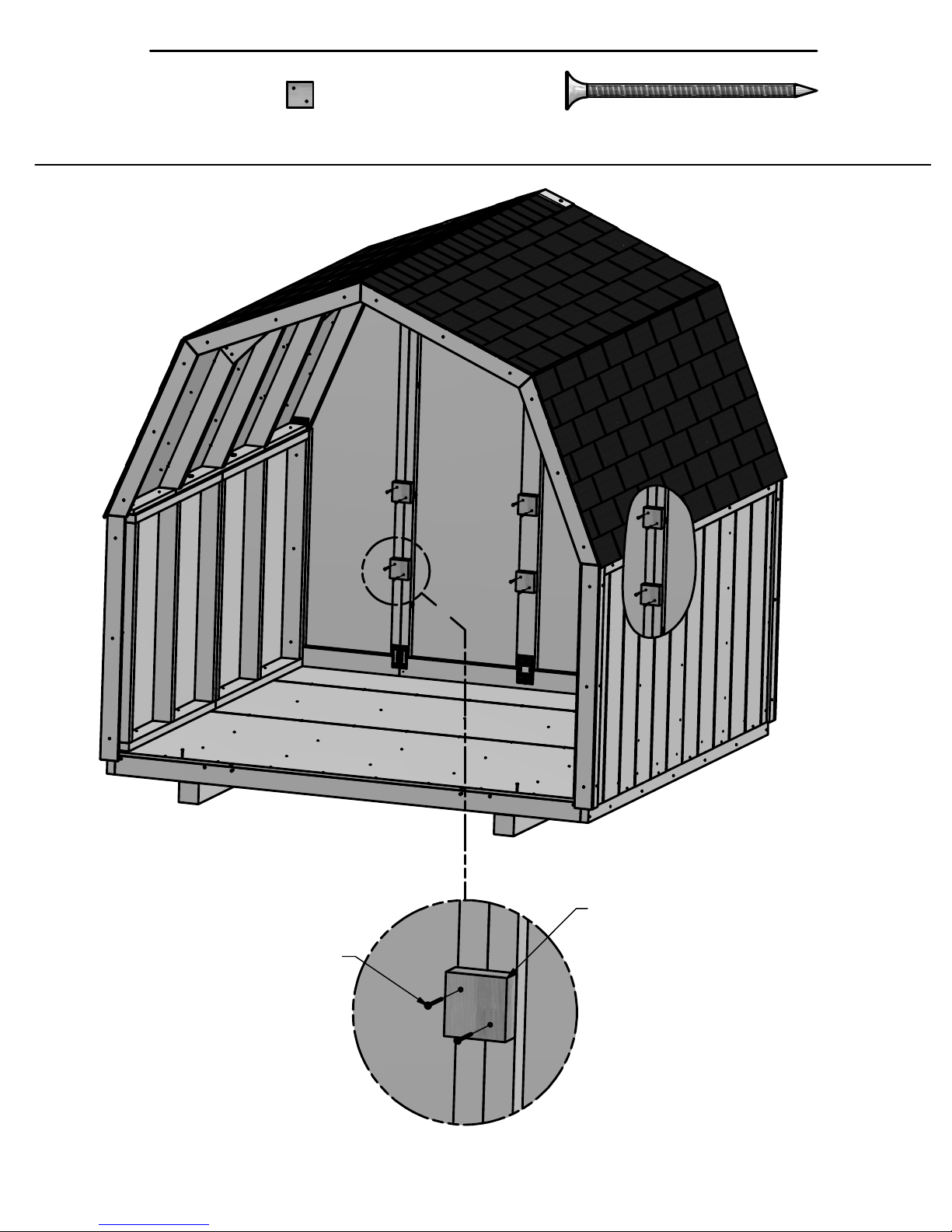

OPTIONAL - SHELF CONFIGURATION

- SUPPORT BLOCK - W4L07669

(6)

1 1/2"x3 1/2"x3 1/2"

(12)

BV - SCREW PFH 8x2 1/4 - H100091

SCREW PFH 8x2 1/4

(12 PLCS)

SECURE SUPPORT (6) BLOCKS
IN DESIRED HEIGHT LOCATIONS
NO HIGHER THAN 43".

37

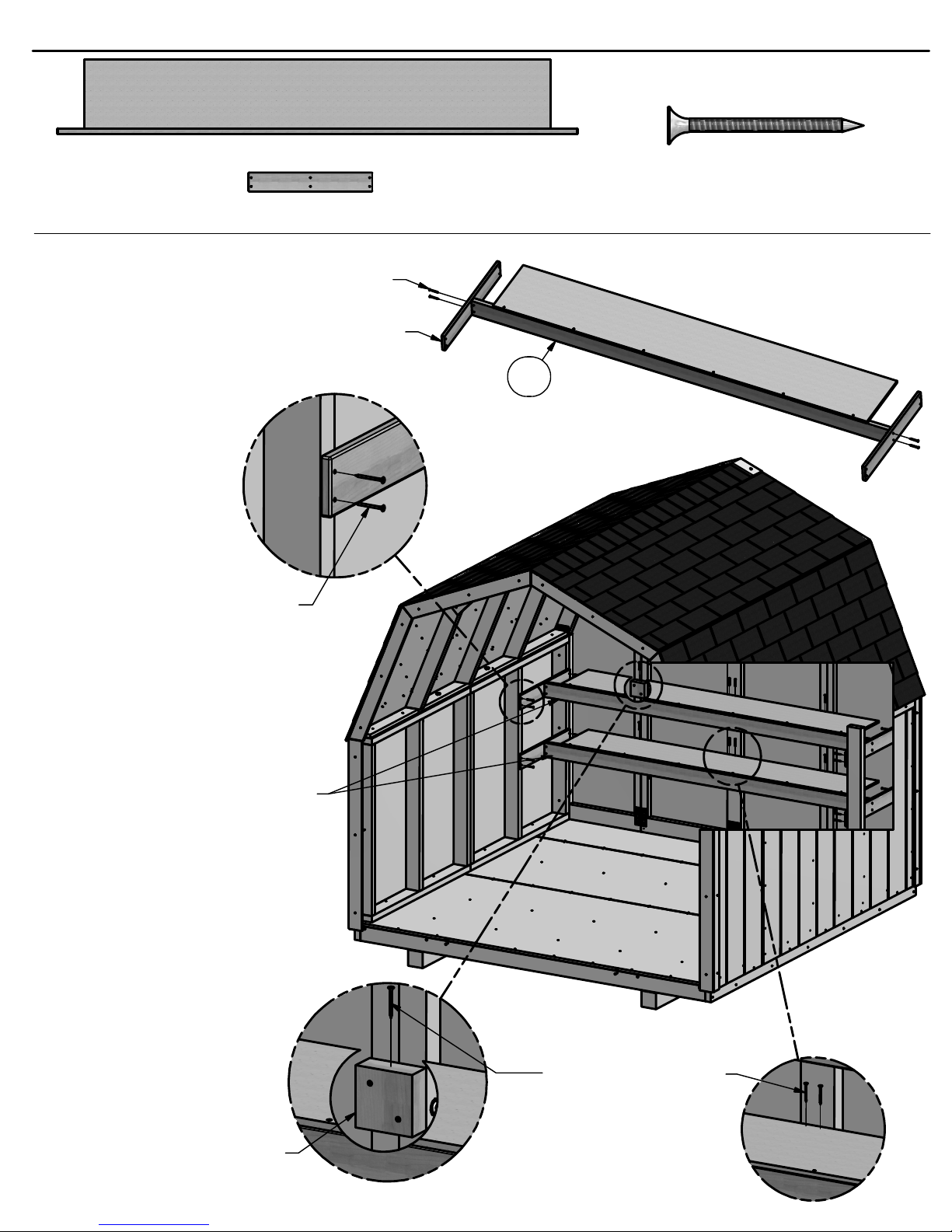

OPTIONAL - SHELF CONFIGURATION CONTINUED

(2) LP1 - LOFT PANEL - W2A02124

- SUPPORT BOARD - W4L07668

(4)

5/8"x3 3/8"x22 1/8" (16x86x562)

SCREW PFH 8x1 3/4

(4 PLCS)

SUPPORT BOARD

(2 PLCS)

(32)

LP1

ASSEMBLE (2) SHELVES
BEFORE INSTALLATION.

BS - SCREW PFH 8x1 3/4 - H100089

SCREW PFH 8x1 3/4

(16 PLCS)

LEVEL SHELF PANELS BEFORE

SECURING TO WALL STUDS.

SUPPORT BLOCK

(Assembled in previous step)

SCREW PFH 8x1 3/4
(8 PLCS)

38

BRANDING PLATE INSTALLATION

(4)

CY - SCREW PWH 8x5/8 - H100128

MX - BYD ID TAG (MEDIUM) WITHOUT AGES - A100240(1)

BYD ID TAG (MEDIUM) WITHOUT AGES

SCREW PWH 8x5/8

(4 PLCS)

39

Post Installation FAQs

Shingles Aren’t Laying Flat

This is a normal condition. Please allow a minimum of (2) full weeks of temperatures above 60º F for
shingles to seal.

Subfloor Sheathing

Small gaps between subfloor sheathing sheets are a normal aspect of construction. You may caulk
gaps to fill and seal them if you wish. Floors may also be painted for additional protection and
appearance. Consult with a professional paint and caulk supplier for recommendations.

Spring Latches Do Not Function Properly

Spring Latches can become misaligned due to building settling. The building can be re-leveled or
adjustments can be made to the Spring Latches. To adjust, loosen all but (1) mounting screw and
rotate it slightly until the latch pin is aligned with the hole, then re-install the screws.

My Door Handle Is Loose

The handle on the inside of your door may come loose over time. To tighten or re-install the handle,
tighten the set screw onto the flat surface of the square shaft using an Allen wrench. A small amount
of lubricant spray may help with a sticky lock.

Leveling Your Building

Your building is leveled but over time it may settle causing the doors to function improperly. Relevel
structure as needed.

40

Backyard Discovery Sheds
15 Year Limited Warranty

his Limited Warranty by Backyard Discovery applies to Products manufactured under the Backyard Discovery

T
brand.

B

ackyard Discovery warrants this product is free from defects in material and workmanship for a period of
fifteen (15) years from the original date of purchase. This fifteen (15) year warranty covers all parts including
wood, hardware, and accessories. All wood carries a fifteen (15) year pro-rated warranty against rot and
decay. Refer to the schedule below for charges associated with replacement of parts under this Limited
Warranty. In addition, Backyard Discovery will replace any parts within 30 days from date of purchase found to
be missing from or damaged in the original packaging.

Pro-Rated Part Replacement Schedule

Product Age Customer Pays

ALL PARTS

0-30 days from date of purchase. $0 for Parts and the Shipping is Free.
31 days to 1 Year. $0 for Parts and customer pays for shipping.

Wood Rot and Decay Only

0-5 Years. $0 for Parts and the Shipping is Free.
6-10 Years. 20% for Parts and customer pays for shipping.
11-15 Years. 40% for Parts and customer pays for shipping.
Over 15 Years. 100% for Parts and customer pays for shipping.

his warranty applies to the original owner and registrant and is non-transferable. All exposed surfaces must

T
be painted as soon as possible or within 30 days of purchase. Regular maintenance is required to assure
maximum life and performance of this product. Failure by the owner to maintain the product according to the
maintenance requirements may void this warranty. Maintenance guidelines are provided in the Owner’s
Manual.

his Limited Warranty does not cover:

T

• Labor for any inspection.

• Labor for replacement of any defective item(s).

• Incidental or consequential damages.

• Cosmetic defects which do not affect the performance or integrity of a part or the entire product.

• Vandalism, improper use, failure due to loading or use beyond the capacities stated in the applicabl

a

ssembly manual.

• Acts of nature including but not limited to wind, storms, hail, floods, excessive water exposure.

• Improper installation including but not limited to installation on uneven, non-level, or soft ground.

• Minor twisting, warping, checking, or any other natural occurring properties of wood that do not affect

the performance of the integrity of the product.

B

ackyard Discovery products have been designed with safety and quality in mind. Any modifications made to
the original product could damage the structural integrity of the unit leading to failure and possible injury.
Modifications void any and all warranties and Backyard Discovery assumes no liability for any modified
products or consequences resulting from failure of a modified product.

e

This product is warranted for RESIDENTIAL USE ONLY.
