Page 1

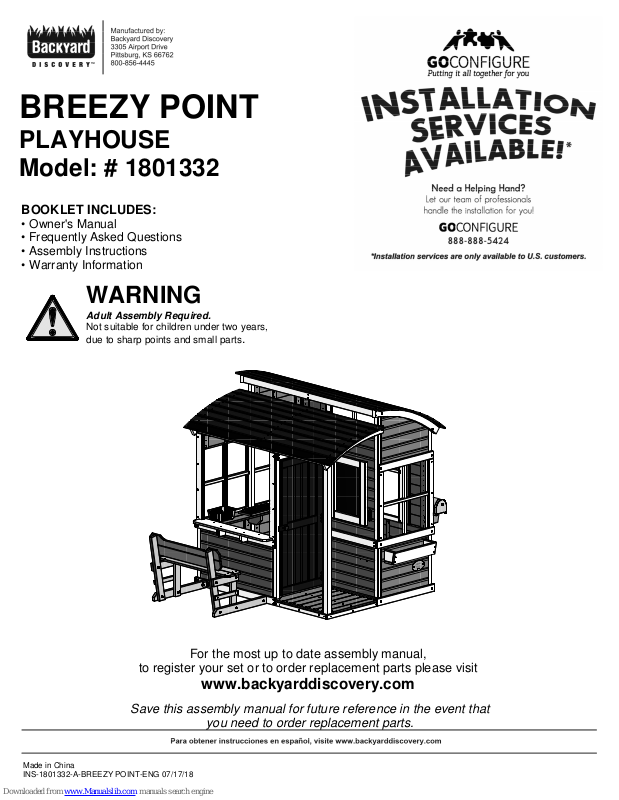

BREEZY POINT

PLAYHOUSE Model: # 1801332

BOOKLET INCLUDES:

• Owner's Manual

• Frequently Asked Questions

• Assembly Instructions

• Warranty Information

WARNING

Adult Assembly Required.

Not suitable for children under two years, due to sharp points and small parts

For the most up to date assembly manual,

to register your set or to order replacement parts please visit

www.backyarddiscovery.com

Save this assembly manual for future reference in the event that

you need to order replacement parts.

Made in China INS-1801332-A-BREEZY POINT-ENG 07/17/18

Page 2

With Go Configure, we bring you 18 years of experience right to your doorstep.

We service a wide array of indoor and outdoor recreation products that most consumers

don’t have the time or ability to deliver & install themselves.

We do the heavy lifting, so you don’t have to!

• 18+ Years of Experience Servicing Big Box Retailers and Direct Consumers

• Highly Skilled, Specialized, Courteous, Professional Service Technicians

• Over 140,000 Installations Annually

• White Glove Service Visit www.goconfigure.com for more info!

*Installation services are only available to U.S. customers.

• Satisfaction Guarantee

• Flexible Appointments, including weekends

• Coverage across the nation

Page 3

STOP

ALTO

Missing A Part?

CALL US BEFORE GOING

BACK TO THE STORE!

The store where you made your purchase

does not stock parts for this item.

If you have assembly questions or if you need parts,

whether they are missing or damaged

Call Toll-Free Help Line or visit www.backyarddiscovery.com

¡LLÁMENOS ANTES DE REGRESAR A LA TIENDA!

La enda donde realizó la compra no almacena piezas de este producto.

Si ene preguntas sobre el ensamblaje o si necesita piezas debido a que

faltan o están dañadas

llame gras a la línea de ayuda

1-800-856-4445

PLEASE READ THIS BEFORE STARTING ASSEMBLY

LEA ESTO ANTES DE COMENZAR CON EL ENSAMBLAJE

• READ THE ASSEMBLY MANUAL COMPLETELY, PAYING SPECIAL ATTENTION TO THE IMPORTANT TIPS AND SAFETY INFORMATION.

• AFTER YOU HAVE READ THE ASSEMBLY MANUAL, YOU WILL BE ABLE TO DECIDE IF YOU NEED PROFESSIONAL HELP TO COMPLETE THE ASSEMBLY OF THE STRUCTURE.

• SEPARATE AND IDENTIFY ALL PARTS TO MAKE SURE THAT YOU HAVE ALL OF THE PARTS LISTED.

• IF YOU CAN’T FIND ALL OF THE PARTS, CHECK THE PACKING MATERIAL. SMALL PARTS MAY HAVE FALLEN INTO IT

DURING SHIPMENT.

• IF YOU HAVE PROBLEMS WITH THE ASSEMBLY OR IF ANY PART IS MISSING OR DAMAGED, PLEASE CALL THE HELP LINE 1-800-856-4445 OR VISIT www.backyarddiscovery.com

•

• LEA ESTE MANUAL DE ENSAMBLAJE COMPLETAMENTE, Y PONGA ATENCIÓN ESPECIAL A LOS CONSEJOS IMPOR-

TANTES Y A LA INFORMACIÓN DE SEGURIDAD.

• DESPUÉS DE HABER LEÍDO EL MANUAL DE ENSAMBLAJE, PODRÁ DECIDIR SI NECESITA AYUDA PROFESIONAL PARA AYUDARLE A TERMINAR DE ENSAMBLAR LA ESTRUCTURA.

• SEPARE E IDENTIFIQUE TODAS LAS PIEZAS PARA ASEGURARSE DE QUE TENGA TODAS LAS PIEZAS ENUMERADAS.

• SI NO PUEDE ENCONTRAR TODAS LAS PIEZAS, REVISE EL MATERIAL DE EMPAQUE. LAS PIEZAS PEQUEÑAS PUE-

DEN HABERSE CAÍDO DURANTE EL ENVÍO.

• MANTÉNGASE ALEJADO DE LOS NIÑOS MENORES A LA EDAD RECOMENDADA.

• SI TIENE PROBLEMAS CON EL ENSAMBLAJE, O SI ALGUNA PIEZA FALTA O ESTÁ DAÑADA , LLAME A LA LÍNEA DE AYUDA AL 1-800-856-4445 O VISITE www.backyarddiscovery.com

PLEASE HAVE THE FOLLOWING INFORMATION WHEN YOU MAKE YOUR CALL:

1 – MODEL NUMBER OF THE PRODUCT LOCATED ON THE FRONT OF THE ASSEMBLY MANUAL 2 – DESRIPTION OF THE PART FROM THE PARTS LIST

CUANDO LLAME, TENGA LA SIGUIENTE INFORMACIÓN A LA MANO:

1 - NÚMERO DE MODELO DEL PRODUCTO, QUE SE ENCUENTRA EN EL FRENTE DEL MANUAL DE EN SAMBLAJE. 2 - DESCRIPCIÓN DE LA PIEZA, SEGÚN SE ENCUENTRA EN LA LISTA DE PIEZAS

Page 4

Owner’s Manual Play House

Dear Customer:

Please read entire booklet completely before beginning the assembly process.

Equipment is recommended for use by children 2 to 10 years of age. Structures are not

intended for public use. The Company does not warranty any of its residential structures subjected to commercial use such as: Daycare, Preschool, Nursery School, Recreational Park, or any similar Commercial Application.

WARNING: This Symbol points out important safety instructions which, if not

followed, could endanger the personal safety of yourself and your children and/or damage your property. You MUST read and follow all instructions in this manual before attempting to use this play house.

WARNING: Children must NOT use this play house until unit has been completely assembled and inspected by an adult to insure set has been properly assembled. Please follow all recommendations below. Failure to do so may result in the warranty being void and/or safety violations that

could result in serious injury. This manual contains helpful information concerning

Assembly Preparation, Installation Procedure, and Required Maintenance. Always keep the safety of your children in mind as your play structure is being built and as your children play with the unit. Before your children play with the unit please review the Operation Instructions with them to help ensure their safety

PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. KEEP THEM IN A SAFE PLACE WHERE YOU CAN REFER TO THEM AS NEEDED. IN ORDER TO PROVIDE YOU WITH THE MOST EFFICIENT SERVICE, IT IS REQUIRED THAT YOU PROVIDE US WITH THE PART NUMBERS WHEN ORDERING PARTS.

For Your Records:

Please take time and fill out the information below. This information will be needed for warranty issues.

Where Purchased: ______________ Date of Purchase: ________________

Installation Date: _______________ Installed by: ______________________

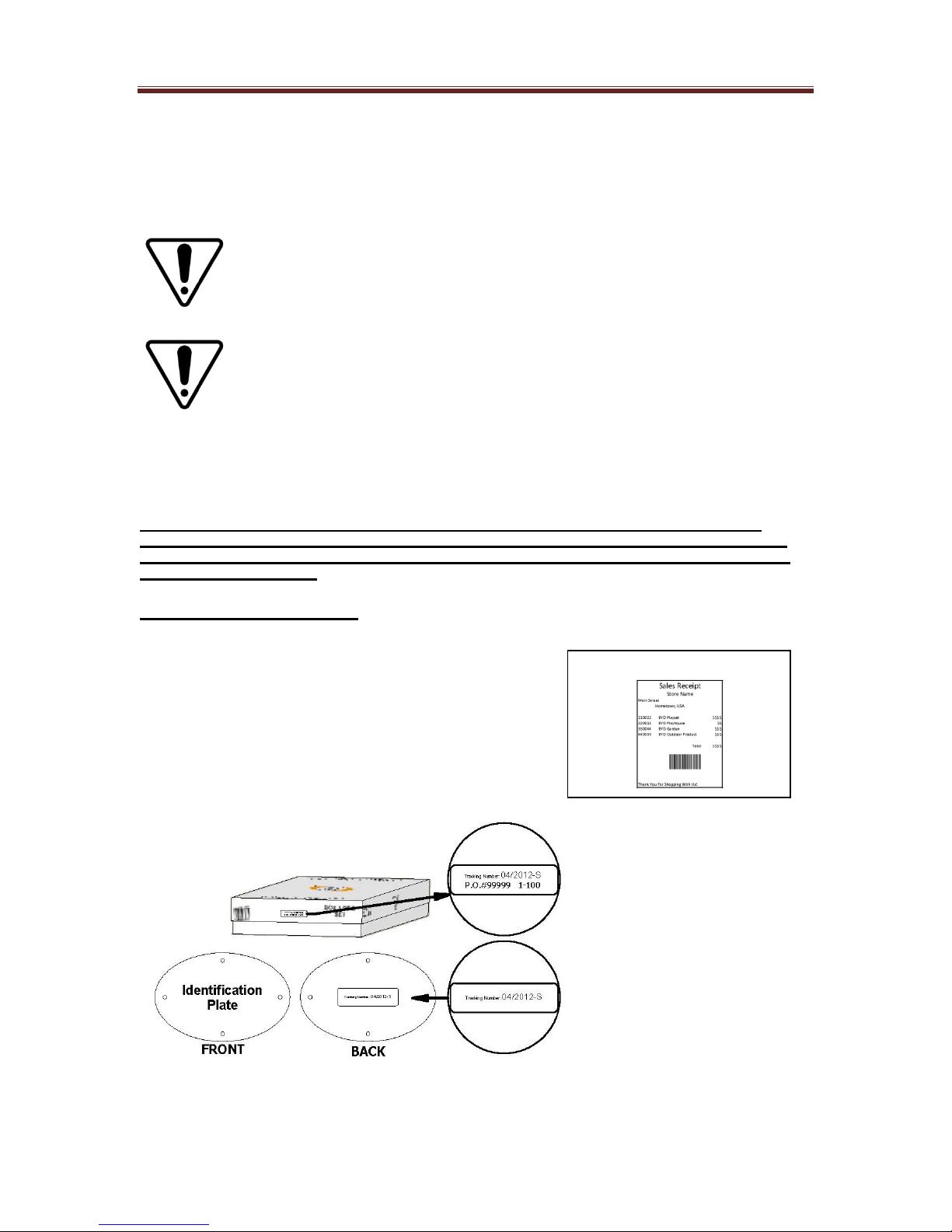

Staple Receipt Here

Tracking Number Reference Label

Tracking ID number on the carton and back of the ID plate are included for tracking purposes associated with warranty claims.

OWNER PH-2011

Page 5

Owner’s Manual Play House

Please refer to the Assembly section of the Assembly Manual for Maximum Fall Height.

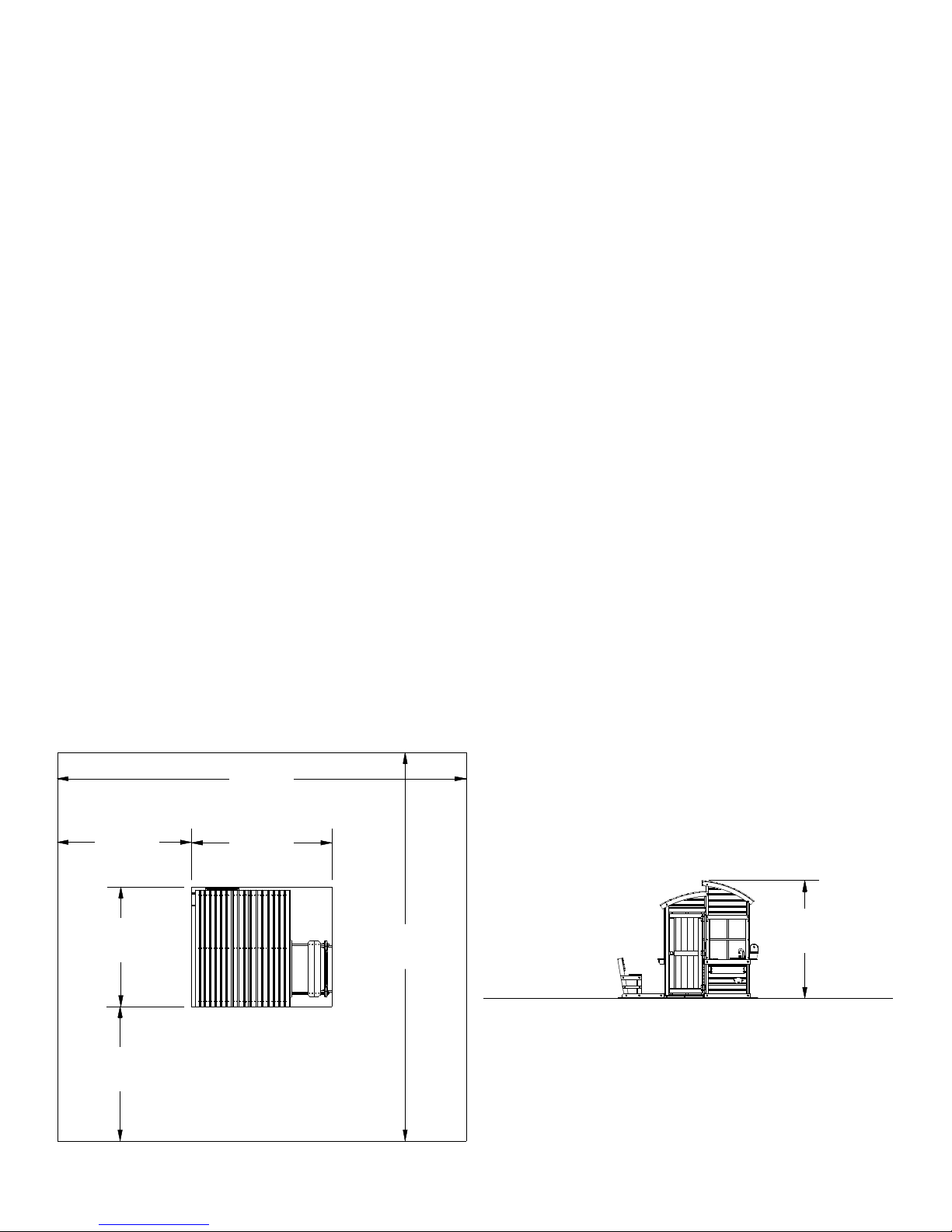

Positioning Your Play house

1. The Play house is designed to be installed on a level surface by an Adult with an Adult helper. Place in a flat area of your yard to minimize ground preparation.

2. Choose a level location for the equipment. This can reduce the likelihood of the play house tipping over and loose-fill surfacing material washing away during heavy rains.

3. Place the equipment not less than 6 ft (1.8 m) from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines, or electrical wires.

4. It is a good idea to place your Play house in an area that is convenient for adults to watch children at play.

5. Create a site free of obstacles that could cause injuries – such as low overhanging tree branches, overhead wires, tree stumps and/or roots, large rocks, bricks and concrete. We have additional suggestions in the Suggested Playground Surfacing Section.

6. Do not build your play house on top of surfacing material.

Suggested Playground Surfacing



Playground equipment should never be placed on hard surfaces such as concrete or asphalt.



Do not install loose fill surfacing over hard surfaces such as concrete or asphalt.



Shredded bark mulch, wood chips, fine sand and fine gravel, are added as shock absorbing materials after assembly. If used properly these materials can absorb some of the impact of a child’s fall.



All surface material should extend a minimum of 6 feet or (1.8 m) in all directions around the play area.



Do not apply playground surfacing until after the unit is completely constructed. Play house should not be built on top of surfacing.



Use containment, such as digging out around the perimeter and/or lining the perimeter with landscape edging.



Installations of rubber tiles or poured-in-place surfaces (other than loosefill materials) generally require a professional and are not “do-it-yourself” projects.



Shall use Playground Surfacing Materials (other than loose-fill material) which comply with the safety standard ASTM F1292 Standard Specification of Impact Attenuation of Surfacing Materials within the Use Zone of Playground Equipment.

OWNER PH-2011

Page 6

Owner’s Manual Play House

The following chart explains the fall height in feet from which a life

threatening head injury would not be expected

Critical Heights in feet (m) of Tested Materials

Material Uncompressed Depth Compressed Depth

6" (152mm) 9" (228mm) 12" (304mm) to 9" (228mm)

Wood Chips 7' (2.13m) 10' (3.05m) 11' (3.35m) 10' (3.05m)

Double-Shredded bark mulch

Engineered Wood Fibers 6' (1.83m) 7' (2.13m) >12' (3.66m) 6' (1.83m)

Fine Sand 5' (1.52m) 5' (1.52m) 9' (2.74m) 5' (1.52m)

Coarse Sand 5' (1.52m) 5' (1.52m) 6' (1.83m) 4' (1.22m)

Fine Gravel 5' (1.52m) 7' (2.13m) 10' (3.05m) 6' (1.83m)

Medium Gravel 5' (1.52m) 5' (1.52m) 6' (1.83m) 5' (1.52m)

Shredded Tires* 10-12' (3.0-3.6m) N/A N/A N/A

*This data is from tests conducted by independent testing laboratories on a 6-inch depth of uncompressed shredded tire samples

produced by four manufacturers. The tests reported critical heights, which varied from 10 feet to greater than 12 feet. It is recommended that

persons seeking to install shredded tires as a protective surface request test data from the supplier showing the critical height of the material

Operating Instructions:

NOTE: Your children’s safety is our #1 concern. Observing the following statements and warnings reduces the likelihood of serious or fatal injury. Please review these safety rules regularly with your children.

1. On-site adult supervision is required.

2. Instruct children not to climb when the equipment is wet.

3. Instruct children to never crawl on top of a play house roof.

4. The parents should have the children dress appropriately with well-fitting shoes. Loose clothing such as scarves and ponchos should not be worn. Always take off, tie up or tuck in cords and drawstrings on children’s clothing. These things can get caught on playground equipment and strangle a child.

5. Instruct children not to attach items to the equipment that are not specifically designed for use with that equipment (such as ropes, clothesline, pet leashes, etc.).

6. Instruct children to remove their bike or other sports helmet before playing on the playground equipment.

7. Instruct children not to use the equipment in a manner other than intended.

Maintenance Instructions:

At the beginning of each play season:

• Tighten all hardware.

• Lubricate all metallic moving parts per manufacture’s instructions.

6' (1.83m) 10' (3.05m) 11' (3.35m) 7' (2.13m)

when it was tested in accordance with ASTM F1292.

OWNER PH-2011

Page 7

Owner’s Manual Play House

• Check all protective coverings on bolts, pipes, edges and corners. Replace if they are loose, cracked, or missing.

• Check all moving parts including swing seats, ropes, cables, and chains for wear, rust, or other deterioration. Replace as needed.

• Check metal parts for rust. If found, sand and repaint using non Lead-based paint meeting the requirements of Title 16 CRF Part 1303.

• Modifications not approved by the party responsible for compliance could void user’s authority to operate the equipment.

• Check all wood members for deterioration and splinters. Sand down and splinters and replace deteriorating members.

• Reinstall any plastic parts, such as swing seats or any other items that were removed in the cold season.

• Rake and check depth of loose fill protective surfacing materials to prevent compaction and to maintain appropriate depth. Replace as necessary.

Twice a month during play season:

• Tighten all hardware.

• Lubricate all metallic moving parts per manufacture’s instructions.

• Check all protective coverings on bolts, pipes, edges and corners. Replace if

they are loose, cracked, or missing.

• Check all moving parts including swing seats, ropes, cables, and chains for wear, rust, or deterioration. Replace as needed.

• Rake and check depth of loose fill protective surfacing materials to prevent compaction and to maintain appropriate depth. Replace as necessary.

At the end of each play season or when the temperature drops below 32° F:

• Remove plastic swing seats and other items as specified by the manufacturer and take indoors or do not use.

• Rake and check depth of loose fill protective surfacing materials to prevent compaction and to maintain appropriate depth. Replace as necessary.

Additional Maintenance:

• Check the swing beam and hardware every two weeks due to wood expansion and contraction. It is particularly important that this procedure be followed at the beginning of each season.

• Inspect all wood members monthly. The grain of the wood sometimes will lift in the dry season causing splinters to appear. Light sand may be necessary to maintain a safe playing environment. Treat your play house with stain regularly, to help prevent severe checking/splitting and other weather damage.

• We have applied a waterborne transparent stain to your unit. This is done for color only. Once or twice a year, depending on your climate conditions, you must apply some type of protection (sealant) to the wood of your unit. Prior to the application of sealant, lightly sand any “rough” spots on your play house. Please note this is a requirement of your warranty.

• Creating and maintaining the Play house on a level location is very important. Make sure the play house is level and true once each year or at the beginning of each play season.

• Rake the surface periodically to prevent compaction and maintain appropriate depths.

OWNER PH-2011

Page 8

Owner’s Manual Play House

Owners shall be responsible for maintaining the legibility of the warning labels.

Disposal Instructions:

When the Play house use is no longer desired, it should be disassembled and disposed of in such a way that no unreasonable hazards will exist at the time the unit is discarded.

This package must be kept because it contains important information!

OWNER PH-2011

Page 9

Owner’s Manual Play House

APPENDIX A

Information on Playground Surfacing Materials:

The following information is from the United States Consumer Product Safety Commission’s Information Sheet for playground surfacing material; also

see the following website for additional information:.

www.cpsc.gov/cpscpub/pubs/323.html

X3. CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS

X3.1 Select Protective Surfacing—One of the most important things you can do to

reduce the likelihood of serious head injuries is to install shock-absorbing protective surfacing under and around your play equipment. The protective surfacing should be applied to a depth that is suitable for the equipment height in accordance with ASTM Specification F 1292. There are different types of surfacing to choose from; whichever product you select, follow these guidelines:

X3.1.1 Loose-Fill Materials: X3.1.1.1 Maintain a minimum depth of 9 inches of loose-fill materials such as wood

mulch/chips, engineered wood fiber (EWF), or shredded/recycled rubber mulch for equipment up to 8 feet high; and 9 inches of sand or pea gravel for equipment up to 5 feet high. NOTE: An initial fill level of 12 inches will compress to about a 9-inch depth of surfacing overtime. The surfacing will also compact, displace, and settle, and should be periodically refilled to maintain at least a 9-inch depth.

X3.1.2 Use a minimum of 6 inches of protective surfacing for play equipment less than 4

feet in height. If maintained properly, this should be adequate. (At depths less than 6 inches, the protective material is too easily displaced or compacted.) NOTE: Do not install home playground equipment over concrete, asphalt, or any other hard surface. A fall onto a hard surface can result in serious injury to the equipment user. Grass and dirt are not considered protective surfacing because wear and environmental factors can reduce their shock absorbing effectiveness. Carpeting and thin mats are generally not adequate protective surfacing. Ground level equipment such as a sandbox, activity wall, playhouse or other equipment that has no elevated play surface – does not need any protective surfacing.

X3.1.3 Use containment, such as digging out around the perimeter and/or lining the

perimeter with landscape edging. Don’t forget to account for water drainage.

X3.1.3.1 Check and maintain the depth of the loose-fill surfacing material. To maintain

the right amount of loose-fill materials, mark the correct level on play equipment support posts. That way you can easily see when to replenish and/or redistribute the surfacing.

X3.1.3.2 Do not install loose-fill surfacing over hard surfaces such as concrete or

asphalt.

X3.1.4 Poured-In-Place Surfaces or Pre-Manufactured Rubber Tiles — You may be

interested in using surfacing other than loose-fill materials – like rubber tiles or poured-in-place surfaces.

X3.1.4.1 Installations of these surfaces generally require a professional and are not “do-

it-yourself” projects.

X3.1.4.2 Review surface specification before purchasing this type of surfacing. Ask the

installer/manufacturer for a report showing that the product has been tested to the following safety standard: ASTM F 1292 Standard Specification for Impact Attenuation of Surfacing Materials within the Use Zone of Playground Equipment. This report should show the specific height for which the surface is intended to protect against serious head injury. This height should be equal to or greater than the fall height – vertical distance between a designated play surface (elevated surface for standing, sitting, or climbing) and the protective surfacing below – of your play equipment.

X3.1.4.3 Check the protective surfacing frequently for wear. X3.1.5 Placement — Proper placement and maintenance of protective surfacing is

essential. Be sure to:

X3.1.5.1 Extend surfacing at least 6 feet from the equipment in all directions.

OWNER PH-2011

Page 10

Owner’s Manual Play House

Surfacing — Technical Information Guide” and “Handbook for Public Playground Safety.” Copies of these reports can be obtained by sending a postcard to: Office of Public Affairs, U.S. Consumer Product Safety Commission, Washington, D.C., 20207 or call the toll-free hotline: 1800-638-2772.

The American Society for Testing and Materials takes no position respecting the validity of any parent right asserted in connection with any item mentioned in this standard. Users of this standard are expressly advised that determination of the validity of any such parent rights, and the risk of infringement of such rights, are entirely their own responsibility.

and must be reviewed every five years and if not revised, either approved or withdrawn. Your comments are invited either for revision of this standard or for additional standards and should be addressed to ASTM Headquarters. Your comments will receive careful consideration at a meeting of the responsible technical committee, which you may attend. If you feel that your comments have not received a fair hearing you should make your views known to the ASTM Committee on Standards. 100 Barr Harbor Drive, West Conshohocken, PA 19428.

This information has been extracted from the CPSC publications “Playground

The standard is subject to revision at any time by the responsible technical committee

OWNER PH-2011

Page 11

Play House Assembly Manual FAQs:

1. Does the area for the play house need to be level? Yes. Backyard Discovery recommends the play house be positioned on a flat level area for maximum safety and durability. Any stakes provided should be used to secure it firmly to the ground.

2. What size area is recommended for the play house? Backyard Discovery recommends at least a 6’ (six foot) perimeter around and above the play house for maximum safety.

3. What age range is appropriate for the play houses? Backyard Discovery play houses are recommended for children ages 2 – 10 years.

4. Is the wood treated with chemicals? Backyard Discovery uses 100% Chinese Cedar wood which is naturally bug resistant, decay and rot resistant. To help ensure your child’s safety, our wood is completely chemical free and we do not use pressure-treated wood. The stain we use is a top coat using a water-based product that is for appearance only.

5. How often should the play house be stained? Backyard Discovery recommends the play house be stained once each year. A water or oil based stain can be used at the customer’s discretion.

6. Why does it seem that my play house is developing cracks? Wood is a natural material; no two pieces are exactly alike. Each piece has its own characteristics and personality and reacts differently to climate changes. When any wood product is exposed to the elements, it develops “wood checks”. A check is the radial separation of the wood fibers running with the grain of the wood. These are caused by the varying temperature and moisture conditions. A check is not a crack – it does not affect the strength or durability of the wood or structural integrity of the play house.

7. Do Backyard Discovery play houses come with a warranty? Yes. All Backyard Discovery products carry a 1year replacement warranty on all parts for manufacturer’s defect. Our wood carries a 5 year warranty on rot and decay as well. Please see warranty details for more information.

8. What is the best way to get started assembling the play house? Backyard Discovery recommends taking all the parts out of the boxes and arranging them by part number before you begin any assembly. This will not only allow faster assembly, but will also identify any parts that may be missing or damaged so they can be replaced before assembly. If parts are missing or need replacement, go to

www.backyarddiscovery.com/support.aspx and follow the prompts to order them. Next, read the assembly

manual and get the tools ready for the job as recommended in the manual. If the assembly manual is lost or misplaced a new one can be printed from Backyard Discovery’s website: www.backyarddiscovery.com.

9. The play house seems to rock or sway too much. What’s wrong? Rocking is caused by uneven ground or obstructions such as rocks, roots, etc. under the ground rails. These should be removed and the ground underneath re-leveled to prevent rocking. Also ensure the play house is securely staked to the ground using any stakes provided.

10. The 2”x4” boards do not measure 2”x 4”. Why not? In the U.S. it’s common practice to describe lumber dimensions using the rough cut sizes from the sawmill and not the finished dimensions. Retailers, home stores, etc. all use this accepted practice for describing lumber dimensions. However, Backyard Discovery play houses are designed and constructed using the actual dimensions so everything fits properly and remains so during the life of the play house.

For more information and frequently asked questions, please refer to our website at www.backyarddiscovery.com.

Page 12

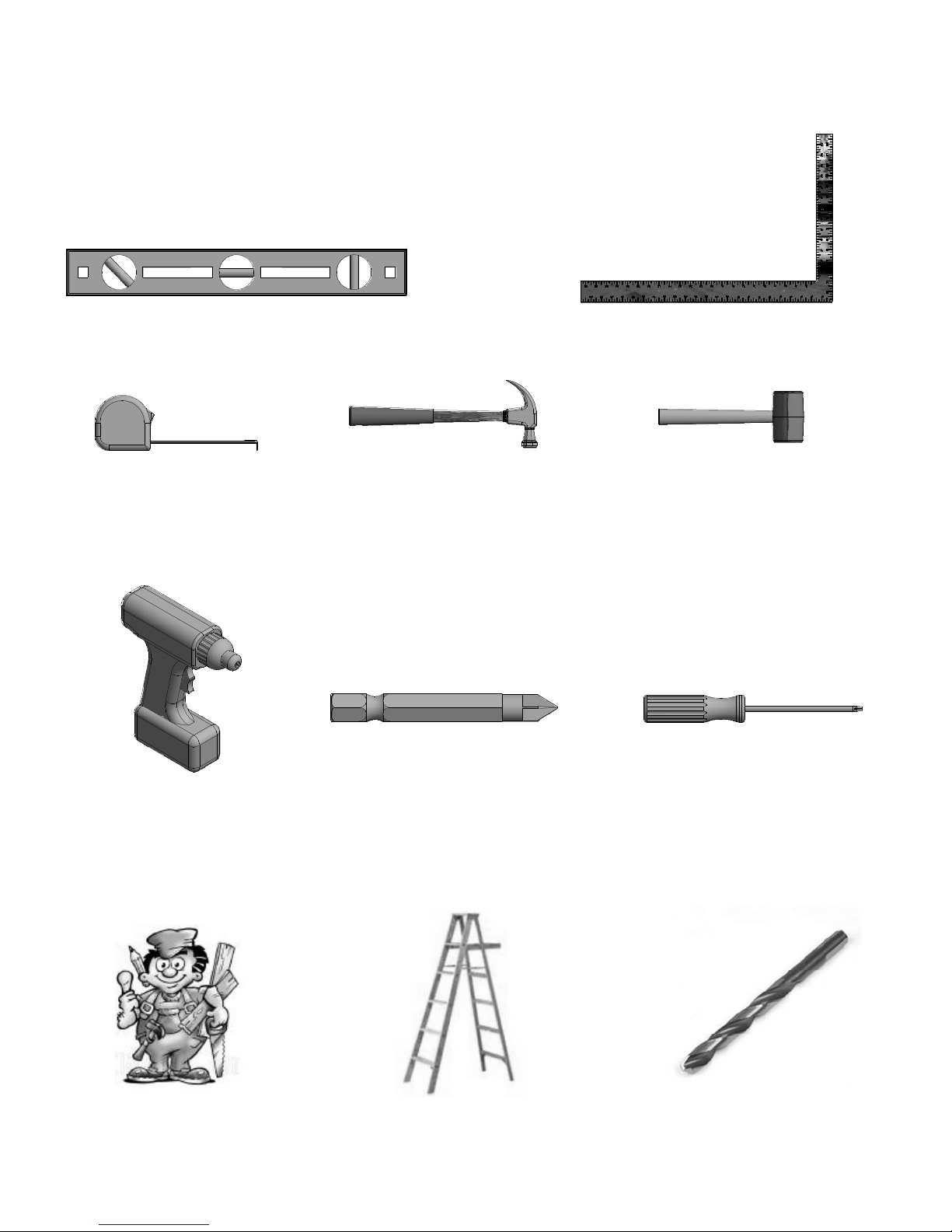

Tools Required for Installation:

(These are the tools that are generally required for assembly of our outdoor products. These tools are not included with the outdoor product purchase.)

(Level 24")

(Tape Measure)

(Claw Hammer)

(Square)

(Rubber Mallet - Optional)

(Cordless Drill or

Electric Drill)

(An Adult w/ an

Adult Helper)

(Drill Attachments: Phillips Head)

(Ladder)

(Phillips Screw Driver)

(3/16, 7/16" Drill Bits)

Page 13

SAFETY AND ASSEMBLY INFORMATION

« SPA

ISH

SELECTING THE CORRECT LOCATION FOR YOUR PLAY PRODUCT IS IMPORTANT

FOR YOUR CHILDREN’S SAFETY AND THE PRODUCT’S LONGEVITY

Dimensions:

• The Breezy Point has one layout option. Layout Ground Dimension 5'-4" x 6-3" x 5'-3" Tall

Safe Play Area* 18'-3" x 17'-4"

*Level Ground Surface - See below

Safe Play Area:

• The safe play area refers to a zone extending 6' beyond the play product on all sides, including the space above the play product.

• The ground surface must be level. Installing your play product on sloping ground can cause it to lean or "rack". This leaning puts additional stress on all connections and joints and in time will cause those connections to loosen and fail.

• The safe play area must be free of all structures, landscaping, trees and branches, rocks, wires, and other obstacles to safe play. Children can be seriously injured running or swinging into these obstacles.

• Remove all tripping hazards from the safe play area. Tripping hazards include: roots, stumps, rocks, landscaping, sprinkler heads, railroad ties, plumbing and electrical connections.

• Play product needs to be installed on solid ground.

General Information:

Your set has been designed and engineered for children only and for residential use only. A maximum of 150 lbs. per child is recommended for play activities designed for individual use. A maximum of 120 lbs. per child is recommended for play activities designed for multiple child use. A maximum of 6 children is recommended for this unit.

[1.8 m]

5'-4"

[1.6 m]

[1.8 m]

SAFE PLAY AREA DIAGRAM

18'-3"

[5.6 m]

6'-3"

[1.9 m]

17'-4"

[5.3 m]

House

5'-3"

[1.6 m]

Page 14

Important Note:

In the event the INK STAMP identifier is not easy to read or is missing from a wood component, match the unique geometric shape and dimensions of the wood component found in a specific assembly step

to the PARTS IDENTIFICATION section when required. This will aid in identifying the part for assembly

and (or) customer service issues.

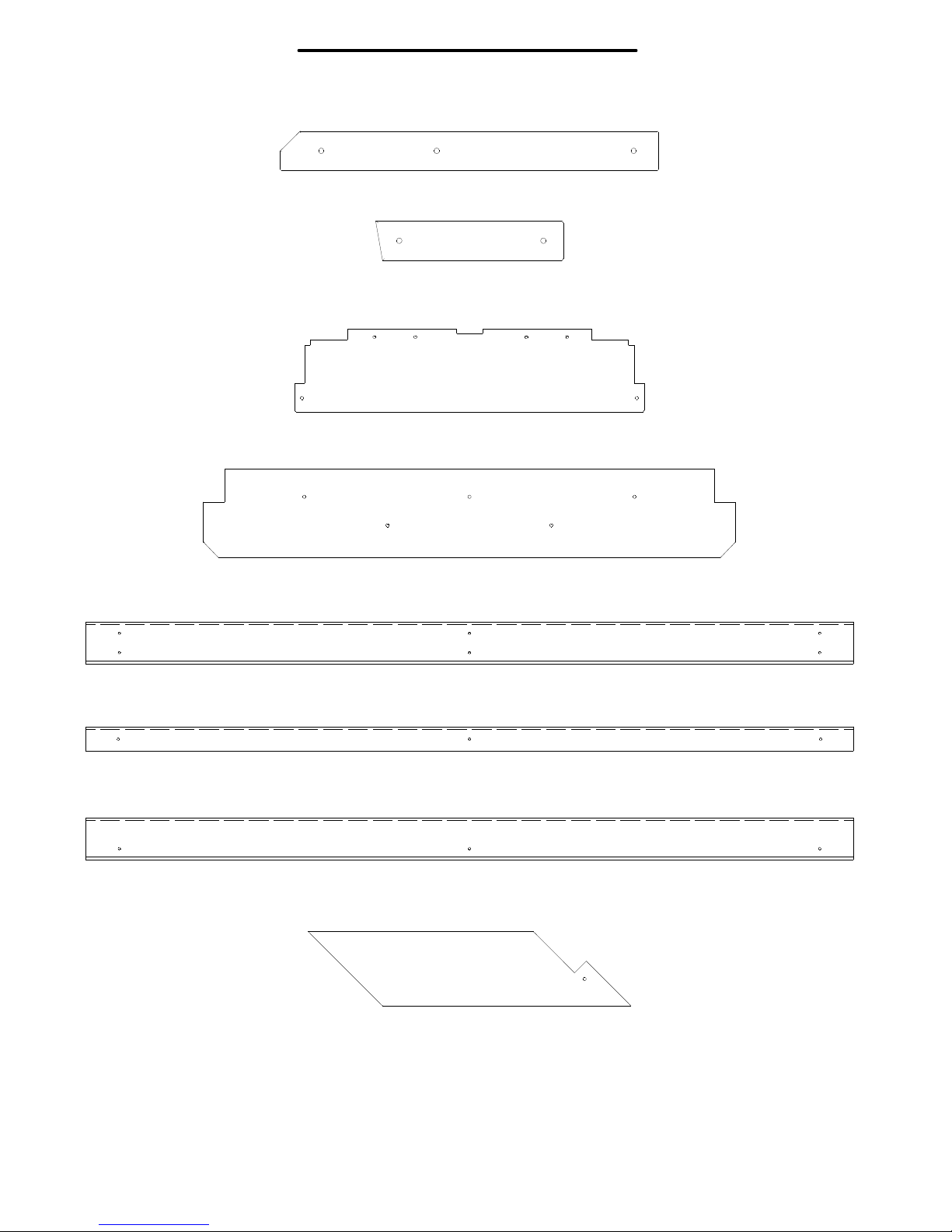

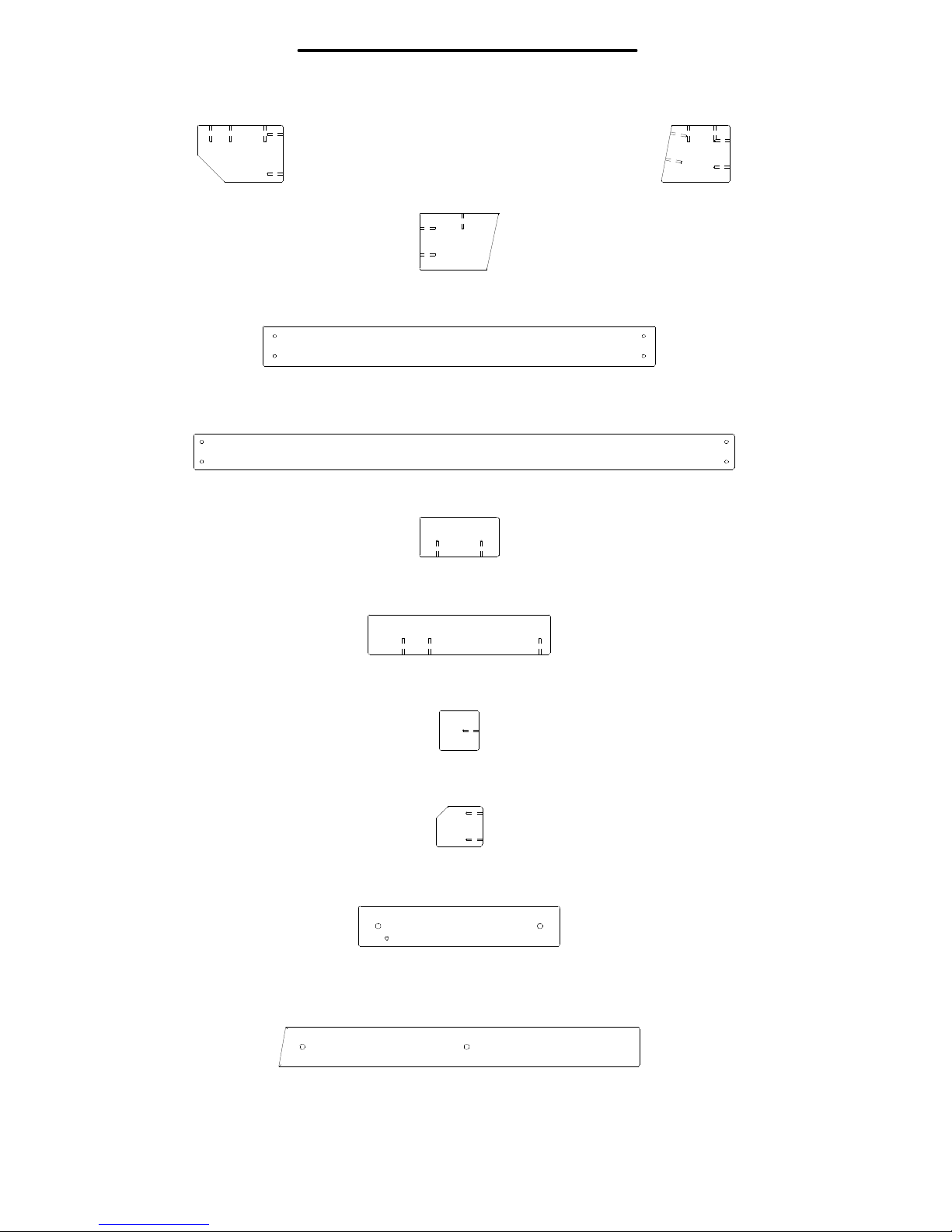

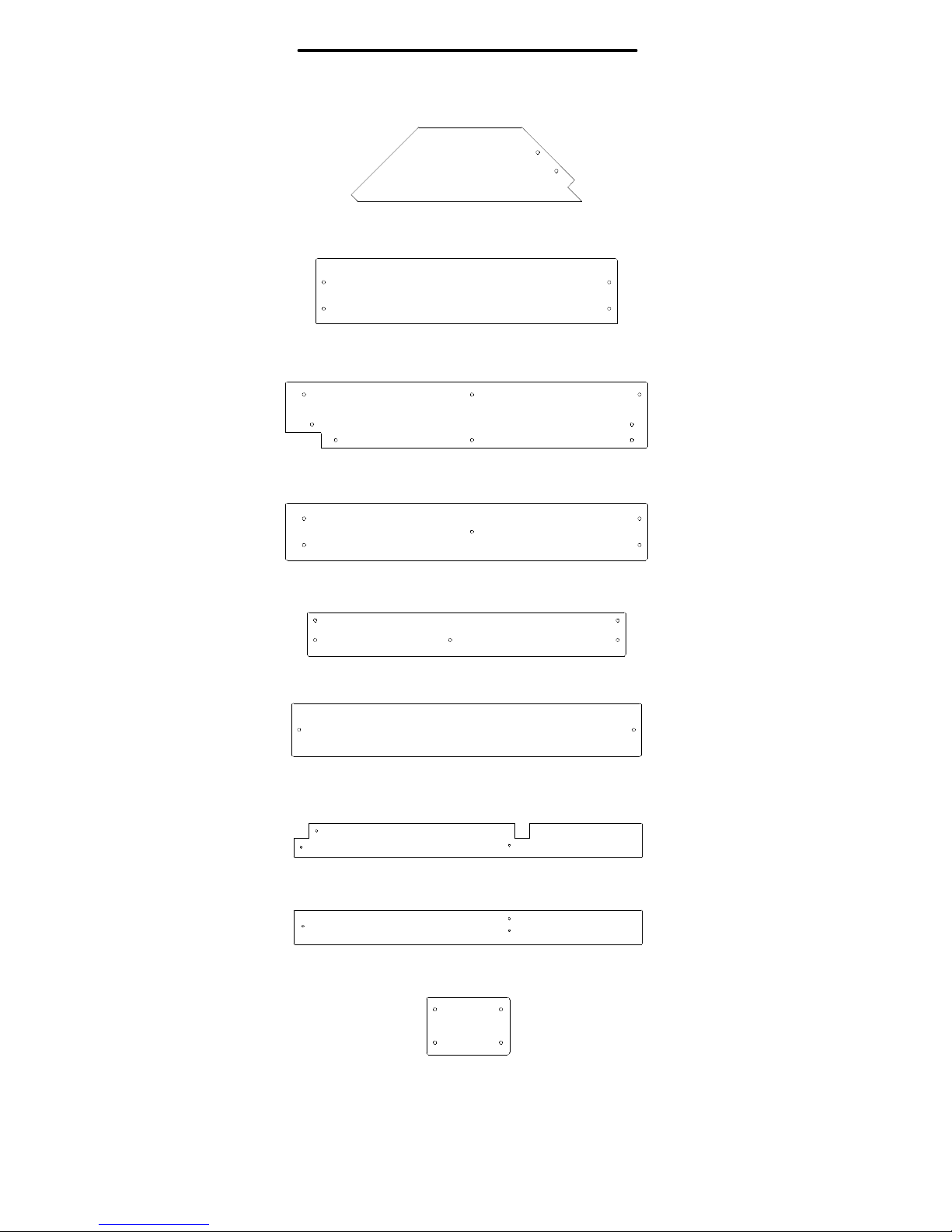

Parts Identification

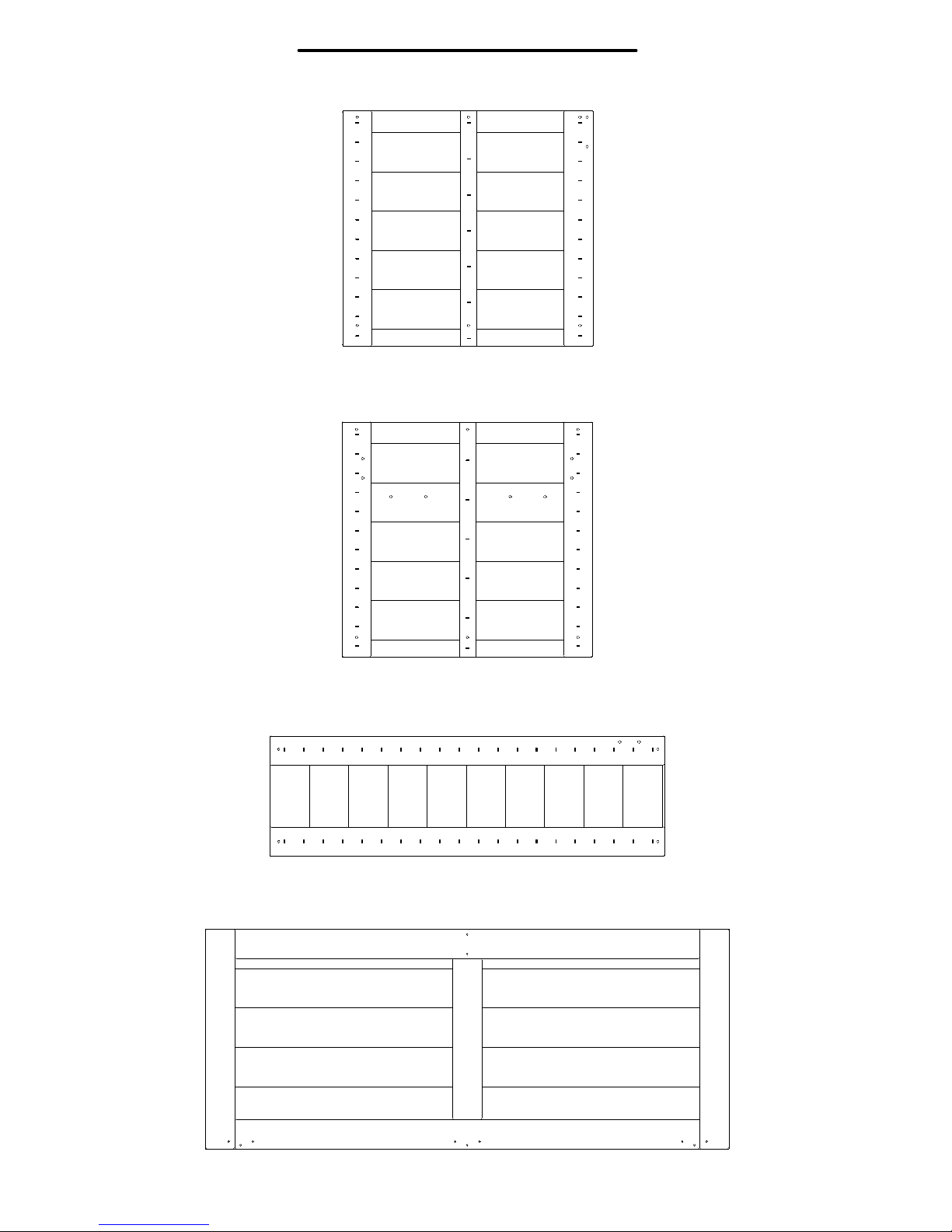

Wood Components

(NOT TO SCALE)

AA1 - UPRIGHT - W4L11864

(1)

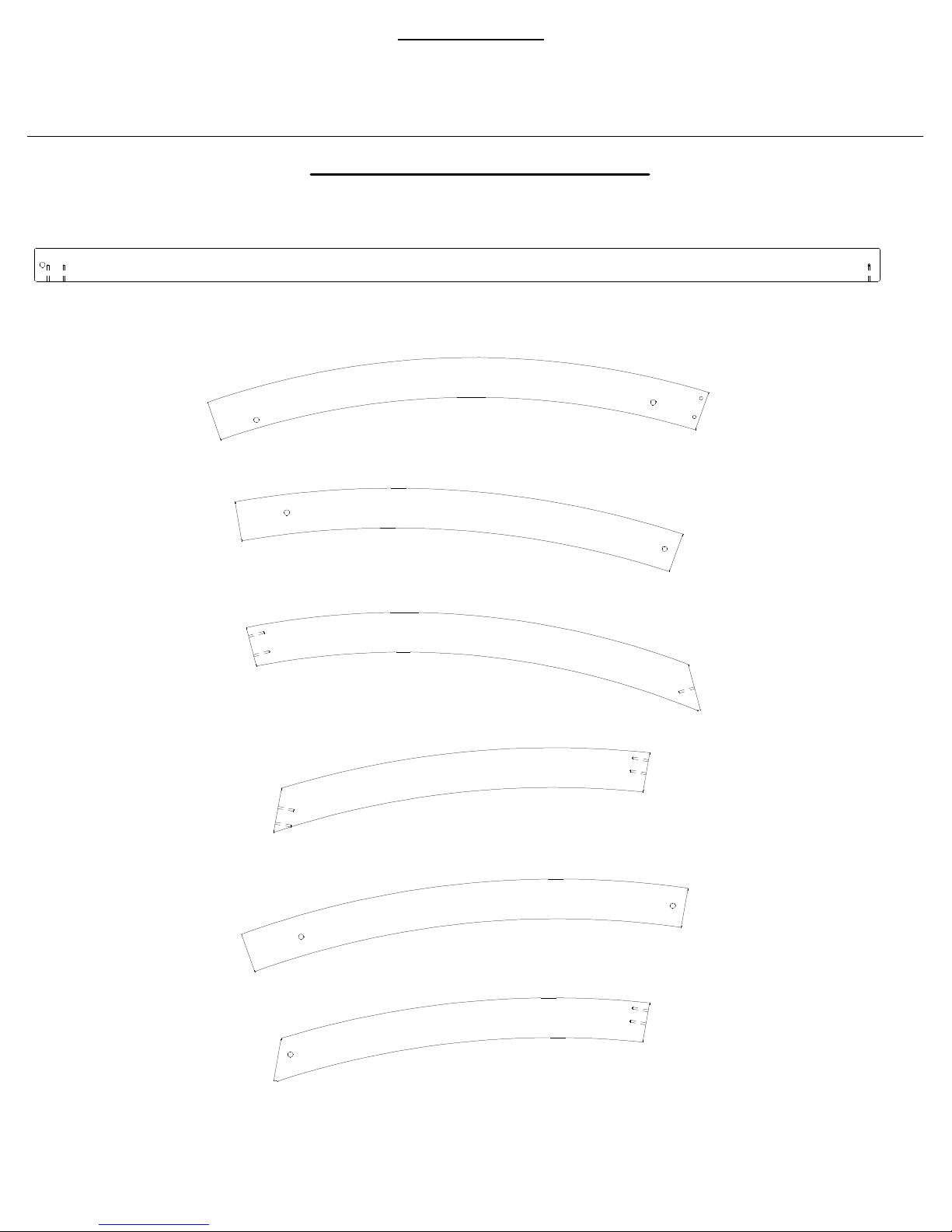

2"x2"x50 3/8" (50x50x1280)

G10 - ROOF TRUSS - W4L11863

(2)

1"x5 1/4"x29 7/8" (24x134x759)

G11 - ROOF TRUSS - W4L11862

(1)

1"x4 3/8"x26 3/4" (24x112x680)

G12 - ROOF TRUSS - W4L11867

(1)

1"x5 1/4"x27 3/8" (24x134x696)

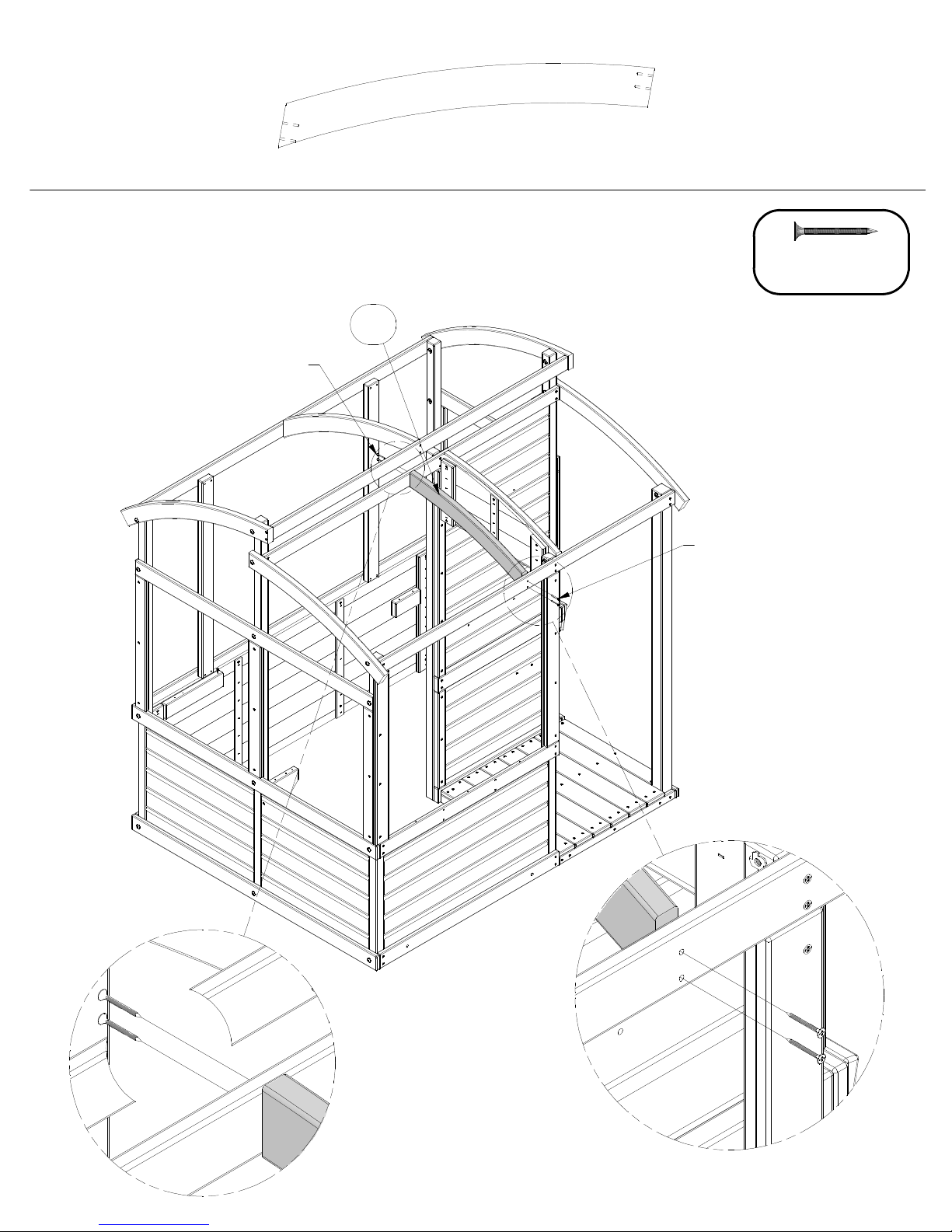

G14 - ROOF TRUSS - W4L11883

(1)

1"x4 3/8"x22 3/4" (24x112x578)

G15 - ROOF TRUSS - W4L11865

(1)

1"x4 3/8"x26 3/4" (24x112x680)

Q1 - ROOF TRUSS - W4L11880

(1)

1"x4 3/8"x22 3/4" (24x112x578)

Page 15

Parts Identification

Wood Components

(NOT TO SCALE)

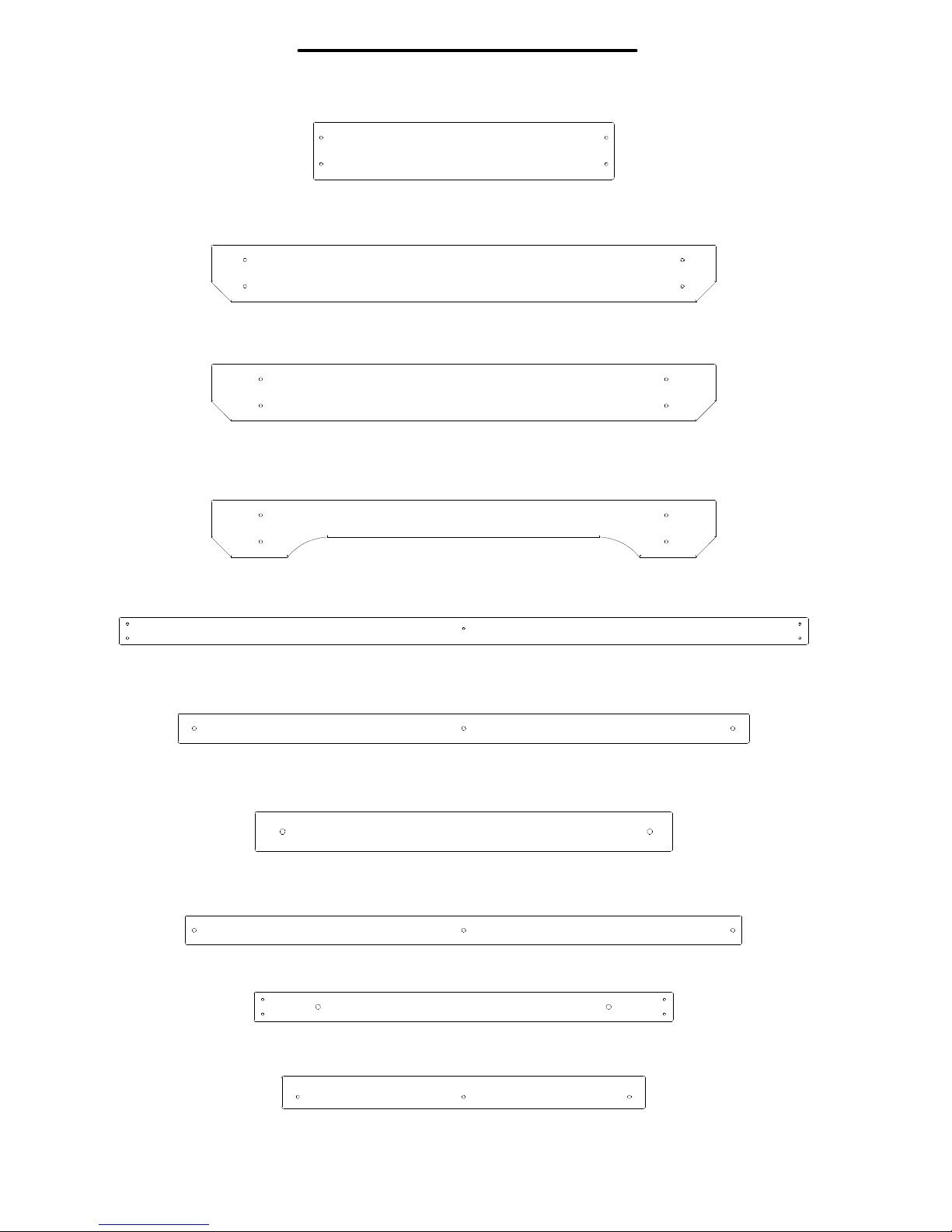

H1 - COUNTER SUPPORT - W4L11999

(1)

1"x3 3/8"x5 1/8" (24x86x130)

H12 - SUPPORT - W4L12026

(1)

15/16"x3 3/8"x4 3/4" (24x86x120)

J1 - RAIL - W4L11704

(2)

1"x2 3/8"x23 3/8" (24x60x595)

J2 - RAIL - W4L11705

(2)

1"x2 1/8"x32 1/4" (24x54x818)

J3 - SEAT BRACE - W4L11996

(4)

1"x2 3/8"x4 3/4" (24x60x120)

H2 - FLOWERBOX - W4L12028

(2)

1"x3 3/8"x4 1/8" (24x86x103)

J4 - COUNTER BRACE - W4L11997

(1)

1"x2 3/8"x10 7/8" (24x60x276)

J5 - COUNTER BRACE - W4L11998

(1)

1"x2 3/8"x2 3/8" (24x60x60)

J6 - SERVING SUPPORT - W4L12005

(2)

1"x2 3/8"x2 3/4" (24x60x70)

J8 - CHAIR UPRIGHT - W4L11684

(2)

1"x2 3/8"x12" (24x60x305)

J9 - CHAIR UPRIGHT - W4L11685

(2)

1"x2 3/8"x21 1/2" (24x60x546)

Page 16

Parts Identification

Wood Components

(NOT TO SCALE)

J10 - BENCH GROUND BOARD - W4L11688

(2)

1"x2 3/8"x22 1/2" (24x60x573)

J11 - CHAIR RAIL - W4L11686

(2)

1"x2 3/8"x11 1/8" (24x60x284)

K1 - SEAT - W4L11888

(1)

5/8"x5 1/4"x22 3/8" (16x134x567)

K2 - SERVING COUNTER - W4L12006

(1)

5/8"x5 1/4"x31 3/4" (16x134x806)

K91 - ROOF BOARD - W4L12014

(15)

3/8"x3 3/8"x62 1/2" (11x86x1586)

K92 - ROOF BOARD - W4L12015

(1)

3/8"x2 5/8"x62 1/2" (11x50x1586)

K94 - ROOF BOARD - W4L12019

(2)

3/8"x3 3/8"x62 1/2" (11x86x1586)

L1 - COUNTER - W4L12002

(1)

5/8"x4 3/8"x19 1/4" (16x112x488)

Page 17

Parts Identification

Wood Components

(NOT TO SCALE)

L2 - COUNTER - W4L12003

(1)

5/8"x4 3/8"x13 3/4" (16x112x349)

L3 - FLOWERBOX - W4L12030

(1)

5/8"x3 7/8"x18" (16x98x456)

L4 - FLOOR BOARD - W4L11875

(1)

5/8"x3 7/8"x21 5/8" (16x100x548)

M1 - FLOOR BOARD - W4L11874

(5)

5/8"x3 3/8"x21 5/8" (16x86x548)

M3 - FLOOR BOARD - W4L11876

(1)

5/8"x2 5/8"x19" (16x66x482)

M4 - SEAT - W4L11889

(1)

5/8"x3 3/8"x22 3/8" (16x86x567)

M5 - KITCHEN COUNTER - W4L12000

(1)

5/8"x3 3/8"x34 5/8" (16x86x880)

M6 - KITCHEN COUNTER - W4L12001

(1)

5/8"x3 3/8"x34 5/8" (16x86x880)

(1)

M7 - COUNTER SUPPORT - W4L12004 5/8"x3 3/8"x5" (16x86x126)

Page 18

Parts Identification

Wood Components

(NOT TO SCALE)

M8 - FLOWERBOX - W4L12027

(1)

5/8"x3 3/8"x18" (16x86x456)

M13 - BENCH SEAT - W4L11689

(2)

5/8"x3 3/8"x30 1/8" (16x86x764)

M14 - BENCH BACK - W4L11690

(1)

5/8"x3 3/8"x30 1/8" (16x86x764)

M15 - BENCH BACK - W4L11691

(1)

5/8"x3 3/8"x30 1/8" (16x86x764)

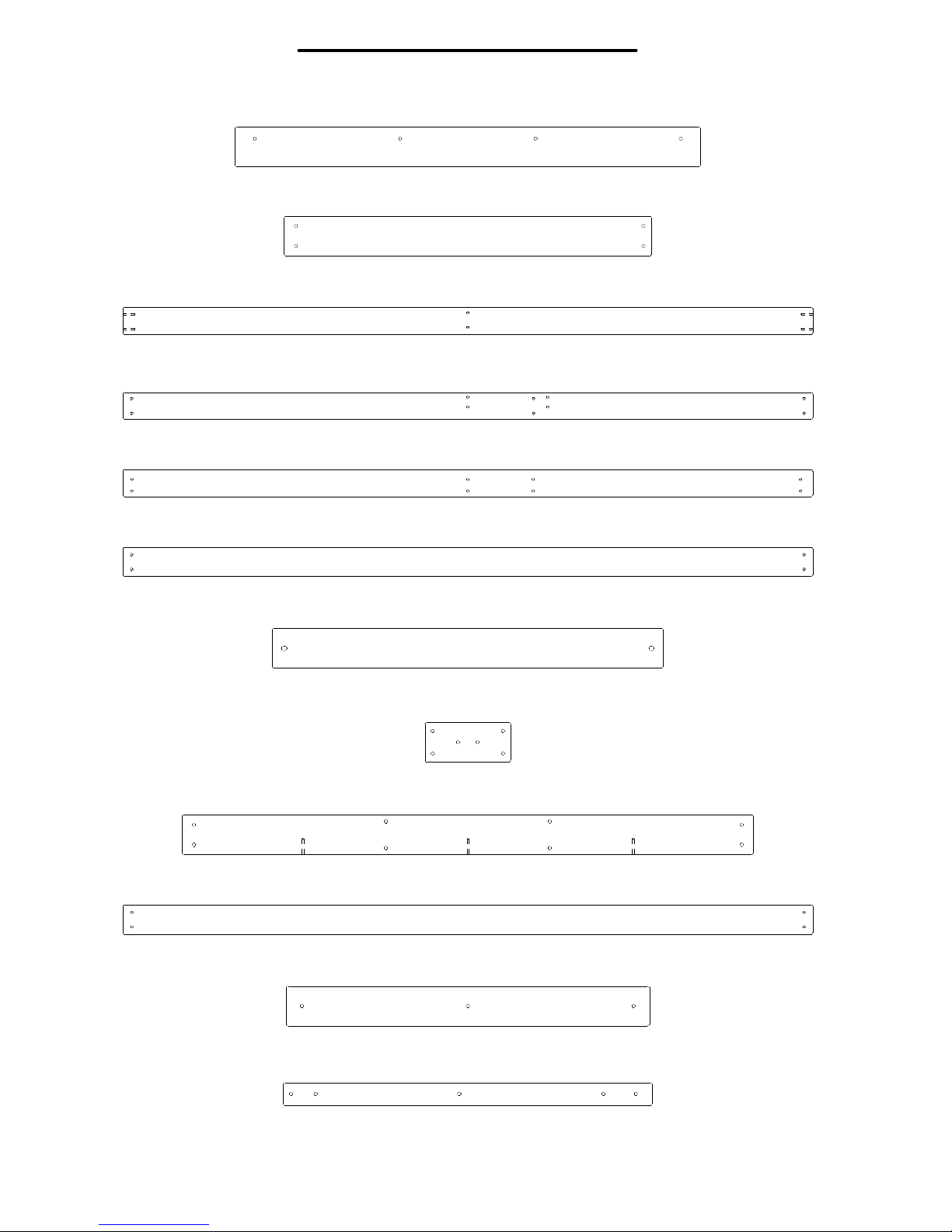

N1 - RAIL - W4L11696

(1)

5/8"x2 1/8"x56 1/8" (16x55x1424)

N2 - RAIL - W4L11697

(2)

5/8"x2 3/8"x46 1/2" (16x60x1180)

N3 - RAIL - W4L11698

(2)

5/8"x2 3/8"x24 7/8" (16x60x632)

N4 - RAIL - W4L11699

(1)

5/8"x2 3/8"x45 1/4" (16x60x1148)

N5 - RAIL - W4L11700

(1)

5/8"x2 3/8"x34" (16x60x865)

N6 - RAIL - W4L11701

(4)

5/8"x2"x21 5/8" (16x50x550)

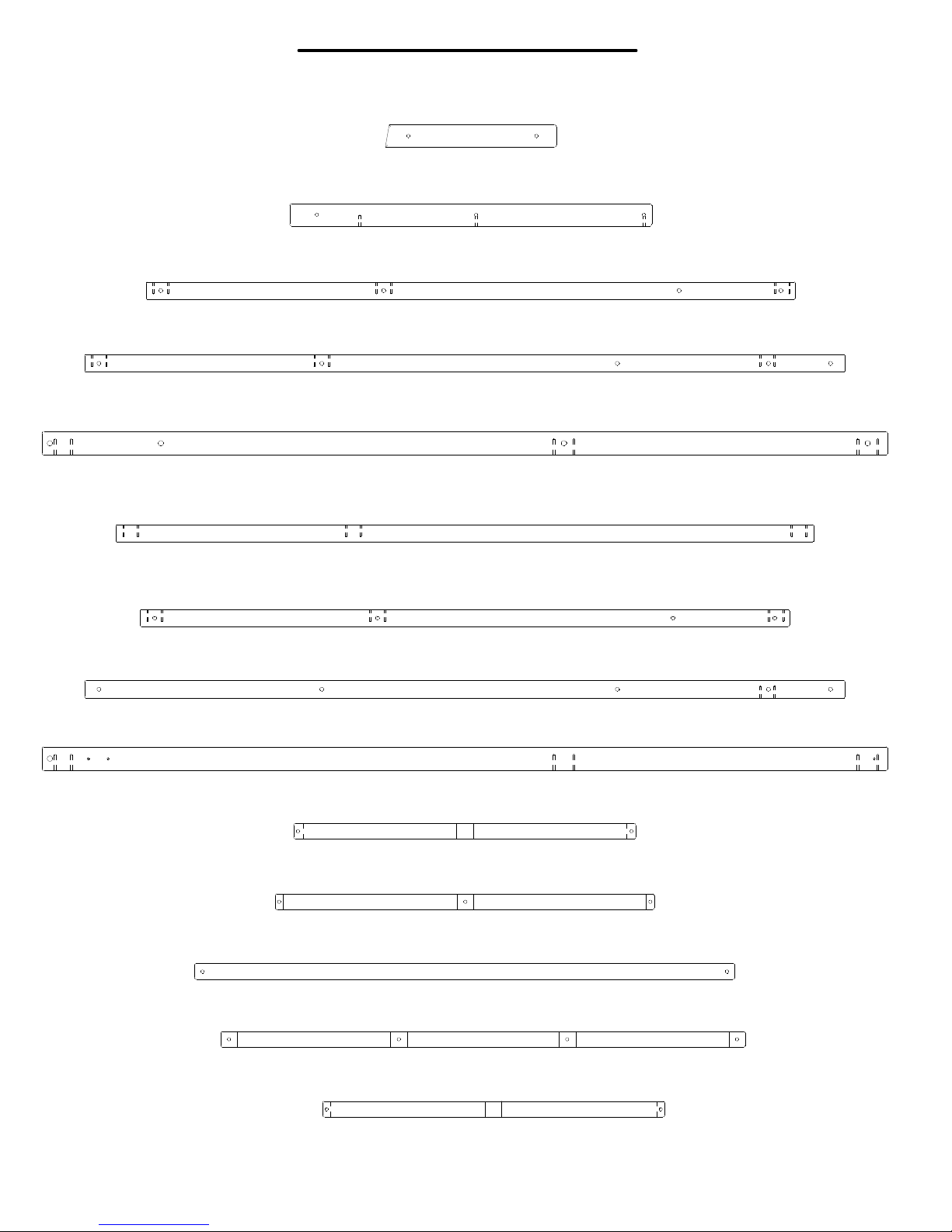

Page 19

Parts Identification

Wood Components

(NOT TO SCALE)

N7 - RAIL - W4L11702

(2)

5/8"x2 3/8"x27 3/4" (16x60x705)

N8 - RAIL - W4L11703

(1)

5/8"x2 3/8"x21 7/8" (16x60x556)

N9 - RAIL - W4L11866

(1)

5/8"x2 1/8"x56 1/8" (16x55x1424)

N12 - RAIL - W4L11881

(1)

5/8"x2 1/8"x56 1/8" (16x55x1424)

N13 - RAIL - W4L11882

(1)

5/8"x2 1/8"x56 1/8" (16x55x1424)

N14 - RAIL - W4L11886

(1)

5/8"x2 3/8"x56 1/8" (16x60x1424)

N15 - RAIL - W4L11887

(1)

5/8"x2 3/8"x23 1/4" (16x60x592)

N16 - CLEAT - W4L11890

(1)

5/8"x2 3/8"x5 1/8" (16x60x130)

N17 - RAIL - W4L12007

(1)

5/8"x2 3/8"x34" (16x60x865)

N18 - RAIL - W4L12009

(1)

5/8"x2 3/8"x56 1/8" (16x60x1424)

N19 - RAIL - W4L12011

(1)

5/8"x2 3/8"x21 5/8" (16x60x550)

O3 - RAIL - W4L11872

(1)

5/8"x1 3/8"x22" (16x34x559)

Page 20

Parts Identification

Wood Components

(NOT TO SCALE)

O1 - CHAIR RAIL - W4L11687

(2)

5/8"x1 3/8"x10 1/4" (16x34x259)

O2 - RAIL - W4L11873

(1)

5/8"x1 3/8"x21 5/8" (16x34x548)

P1 - UPRIGHT - W4L11692

(1)

1 3/8"x1 3/8"x52 3/4" (36x36x1340)

P2 - UPRIGHT - W4L11693

(1)

1 3/8"x1 3/8"x61 3/4" (36x36x1570)

P3 - UPRIGHT - W4L11694

(1)

1 3/8"x1 3/8"x50 3/8" (36x36x1280)

P4 - UPRIGHT - W4L11695

(1)

1 3/8"x1 3/8"x56 3/4" (36x36x1440)

P5 - UPRIGHT - W4L12010

(1)

1 3/8"x1 3/8"x52 3/4" (36x36x1340)

P6 - UPRIGHT - W4L12012

(1)

1 3/8"x1 3/8"x61 3/4" (36x36x1570)

P7 - UPRIGHT - W4L12013

(1)

1 3/8"x1 3/8"x50 3/8" (36x36x1280)

S1 - WINDOW TRIM - W4L12021

(1)

1"x1"x20 3/8" (24x24x518)

S2 - WINDOW TRIM - W4L12022

(3)

1"x1"x22 5/8" (24x24x574)

S3 - WINDOW TRIM - W4L12023

(2)

1"x1"x32 1/4" (24x24x818)

S4 - WINDOW TRIM - W4L12024

(1)

1"x1"x31 1/4" (24x24x794)

S5 - WINDOW TRIM - W4L12025

(2)

1"x1"x20 3/8" (24x24x518)

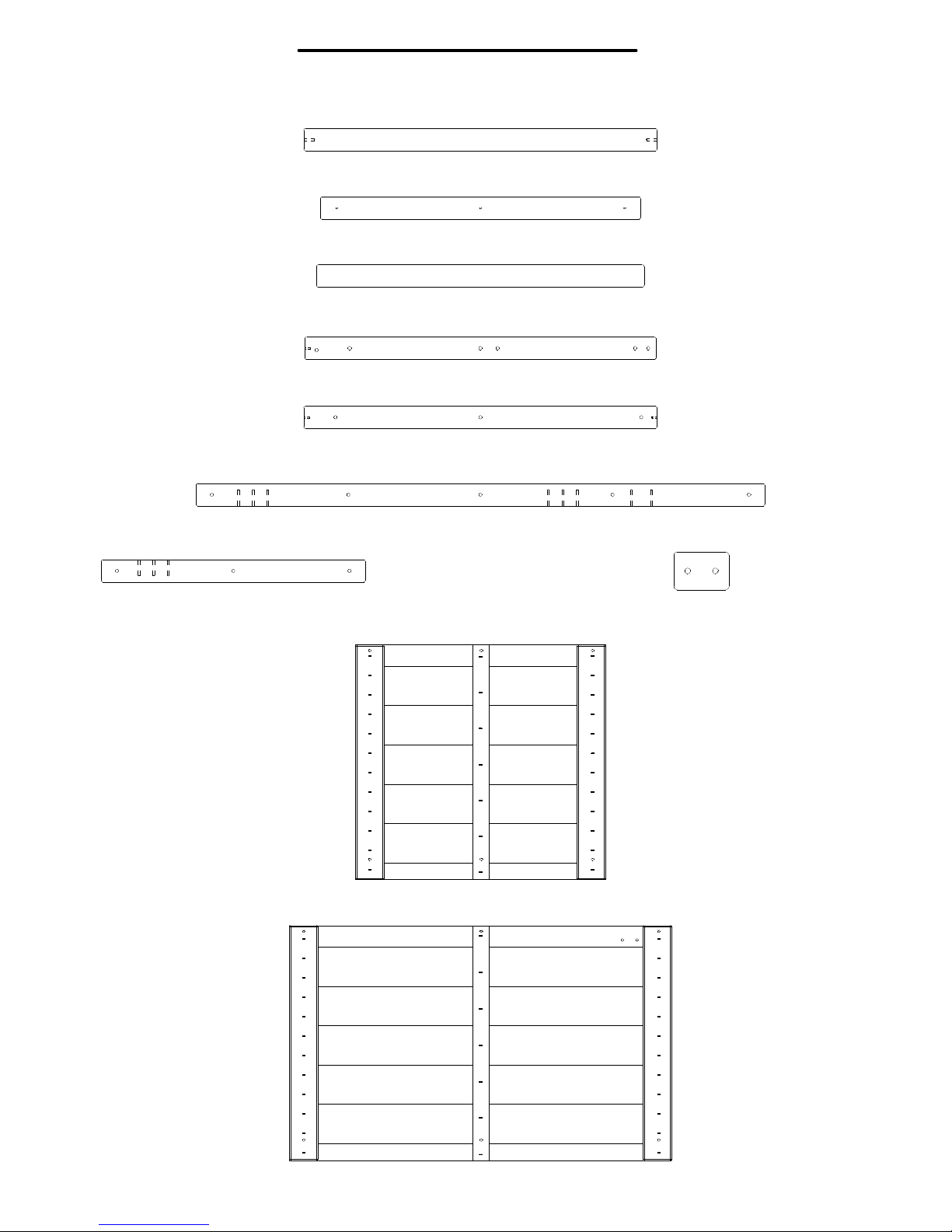

Page 21

Parts Identification

Wood Components

(NOT TO SCALE)

T1 - JOIST - W4L11870

(1)

1"x1 3/8"x21 1/8" (24x34x535)

T2 - JOIST - W4L11871

(1)

1"x1 3/8"x19 1/8" (24x34x485)

T3 - FLOOR SUPPORT - W4L11877

(1)

1"x1 3/8"x19 1/2" (24x34x496)

T4 - FLOOR SUPPORT - W4L11878

(1)

1"x1 3/8"x21" (24x34x532)

T5 - FLOOR SUPPORT - W4L11879

(1)

1"x1 3/8"x21 1/8" (24x34x535)

T7 - RAIL - W4L11885

(1)

1"x1 3/8"x15 3/4" (24x34x400)

T6 - RAIL - W4L11884

(1)

1"x1 3/8"x33 7/8" (24x34x861)

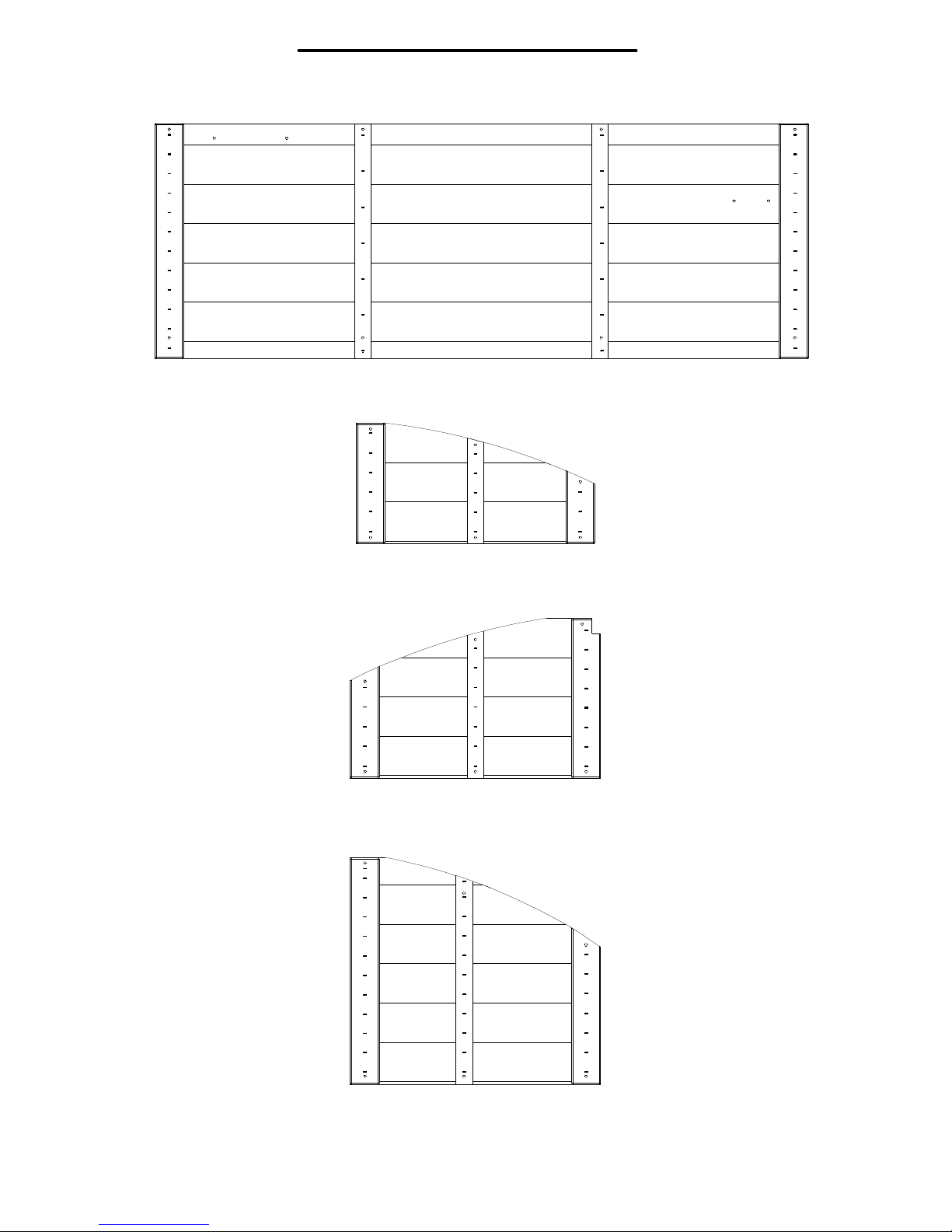

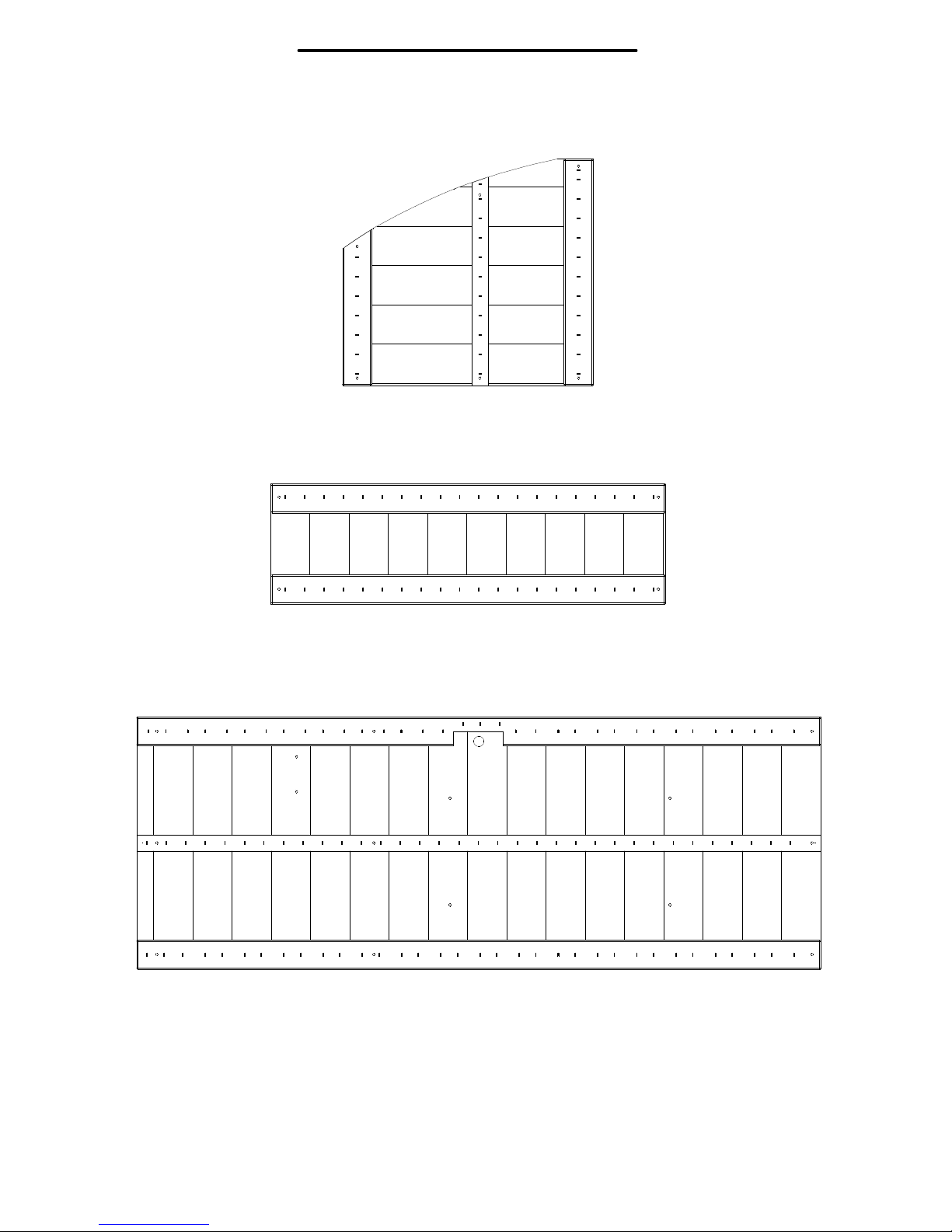

WP1 - WALL PANEL - W2A02671

(1)

1 1/8"x18 1/8"x20 1/2" (27x484x517)

T8 - FLOOR SUPPORT - W4L12124

(1)

1"x1 3/8"x2" (24x34x50)

(1)

WP2 - WALL PANEL - W2A02672

1 1/8"x18 1/8"x31 1/4" (27x484x790)

Page 22

Parts Identification

Wood Components

(NOT TO SCALE)

(1)

WP3 - WALL PANEL - W2A02673

1 1/8"x18 1/8"x50 1/4" (27x484x1349)

WP4 - WALL PANEL - W2A02674

1 1/8"x9 3/4"x19 1/2" (27x248x493)

WP5 - WALL PANEL - W2A02675

(1)

1 1/8"x13"x20 1/2" (27x329x517)

(1)

WP6 - WALL PANEL - W2A02676

1 1/8"x18 3/4"x20 1/2" (27x467x517)

Page 23

Parts Identification

Wood Components

(NOT TO SCALE)

(1)

WP7 - WALL PANEL - W2A02677

1 1/8"x18 3/4"x20 1/2" (27x467x517)

WP8 - WALL PANEL - W2A02678

1 1/8"x9 7/8"x32 1/8" (27x247x815)

(1)

WP9 - WALL PANEL - W2A02679

1 1/8"x20 1/2"x54 3/8" (27x520x1412)

Page 24

Parts Identification

Wood Components

(NOT TO SCALE)

WP10 - WALL PANEL - W2A02680

(1)

1 1/8"x18 1/8"x20 1/2 (27x484x517)

WP11 - WALL PANEL - W2A02681

(1)

1 1/8"x18 1/8"x20 1/2 (27x484x517)

WP12 - WALL PANEL - W2A02684

(1)

1 1/8"x9 7/8"x32 1/8 (27x247x815)

DP1 - DOOR PANEL - W2A02682

(1)

1 1/8"x17 3/4"x42 1/2 (27x452x1080)

Page 25

(2)

- SCREW PFH 8x1/2 - H100124

(2)

- SCREW PFH 8x3/4 - H100121

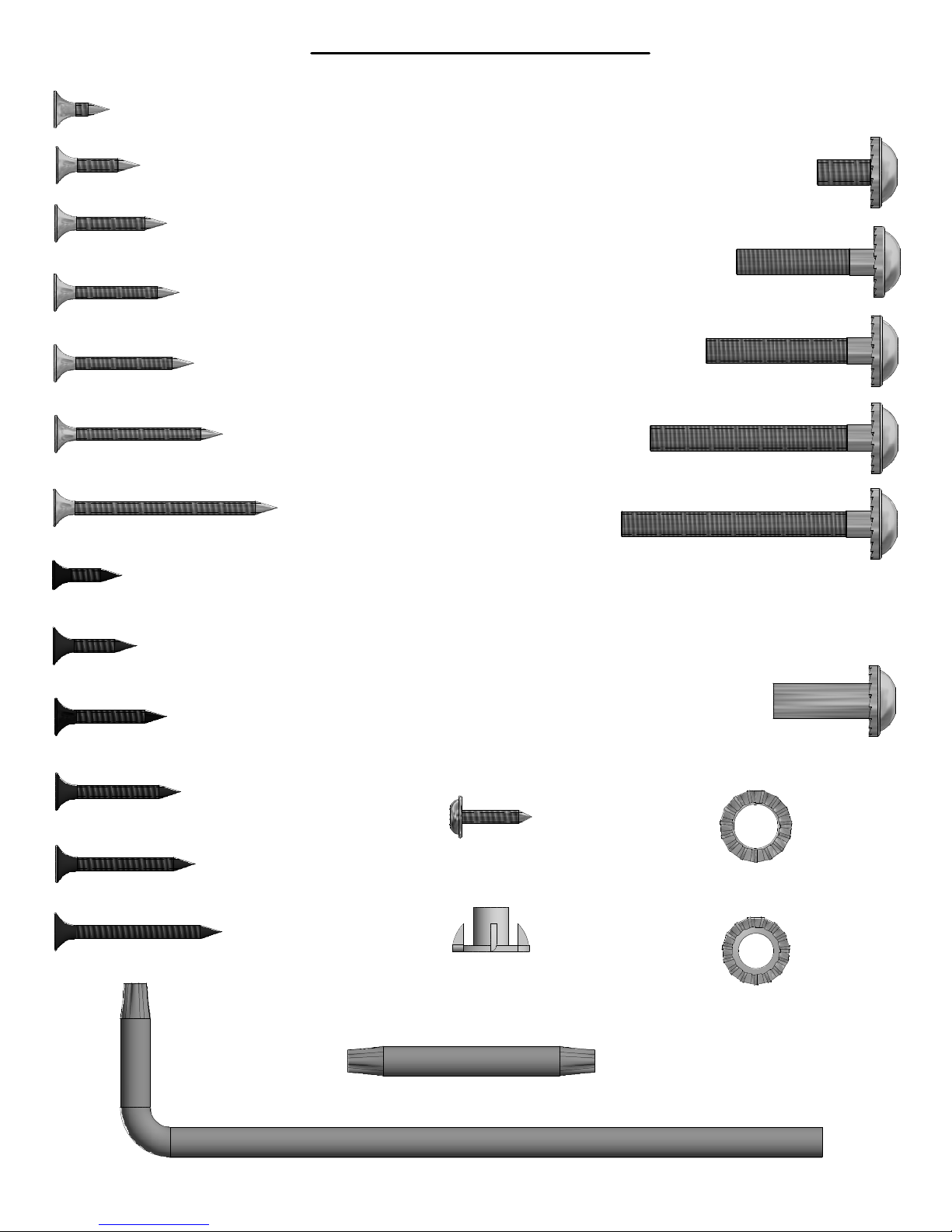

Parts Identification

Hardware

(2)

- BOLT WH 1/4x1/2 - H100141

(30)

(48)

(41)

(195)

(14)

(2)

(3)

- SCREW PFH 8x1 - H100085

- SCREW PFH 8x1-1/8" - H100088

- SCREW PFH 8x1-1/4" - H100087

- SCREW PFH 8x1-1/2" - H100086

- SCREW PFH 8x2 - H100111

- SCREW PFH 6x5/8 BLK - H100624

- SCREW PFH 8x3/4 BLK - H100395

(2)

(9)

(10)

- BOLT WH 1/4x1-1/4 - H100142

- BOLT WH 1/4x1-1/2 - H100143

(17)

- BOLT WH 1/4x2 - H100160

- BOLT WH 1/4x2-1/4 - H100566

(10)

(148)

(9)

(2)

- SCREW PFH 8x1 BLK - H100385

- SCREW PFH 8x1 1/8 BLK - H100380

- SCREW PFH 8x1 1/4 BLK - H100387

- SCREW PFH 8x1-1/2 BLK - H100200

(7)

- SCREW PWH 8x5/8 - H100128

(27)

(2)

- T-30 TORX BIT - H100147

(2)

- T-30 TORX WRENCH - H100114

- T-NUT 1/4 - H100072

(12)

- NUT BARREL WH 1/4x7/8 - H100140

(12)

(35)

- WASHER LOCK EXT 8x15 - H100139

- WASHER LOCK EXT 6x15 - H100138

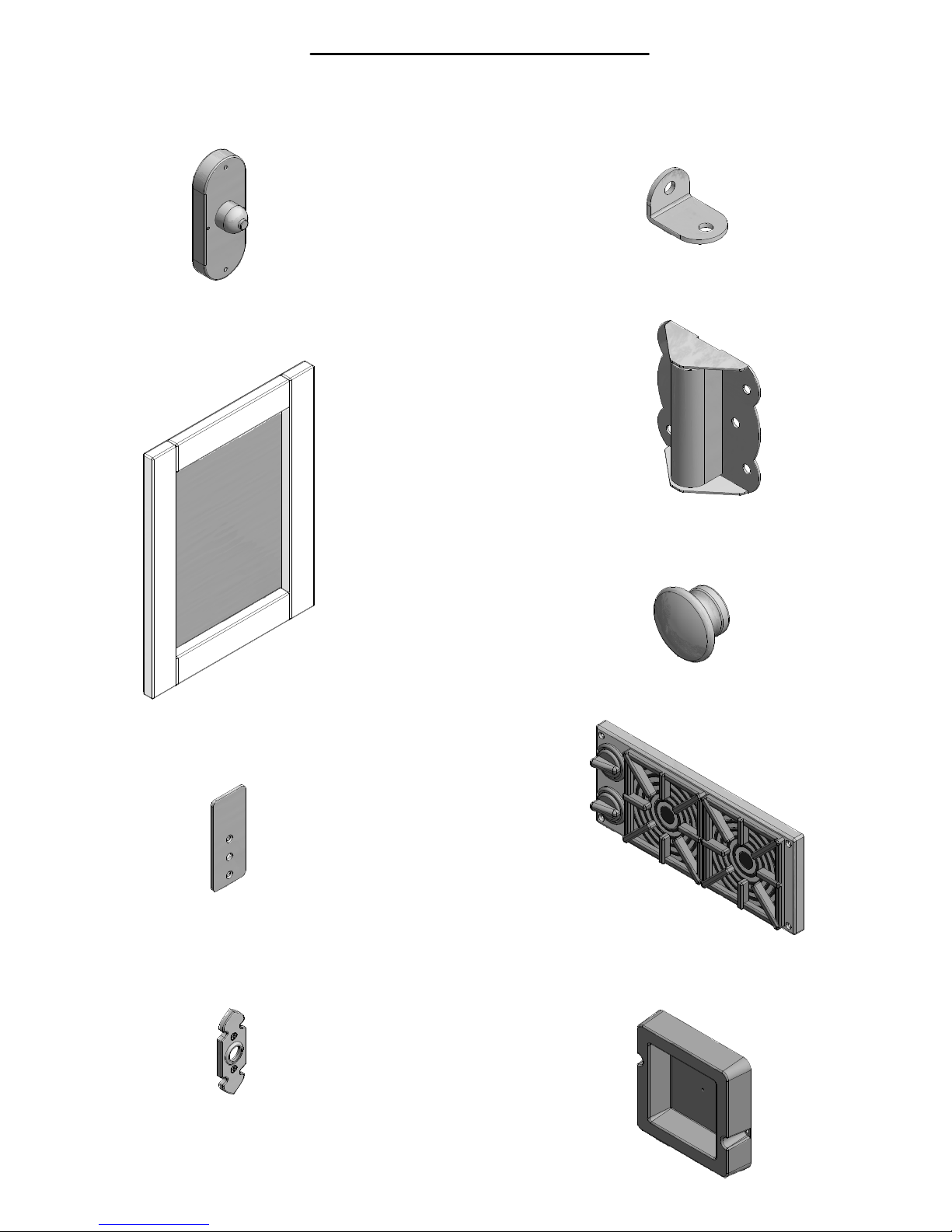

Page 26

(1)

MR - DOOR BELL - A100174

Parts Identification

Accessories

(NOT TO SCALE)

(2)

FZ - L BRACKET WHITE 32x51 - A100133

(1) CHALKBOARD - A4M00958

(1)

- DOOR STOP - A4M00933

- HINGE (DOOR, SPRING LOADED) - A4M00624

(3)

(1)

- KNOB - BLK - A6P00067

(1) STOVE KIT - A6P00025

(1)

- DOOR BELL PLATE - A6P00290

(1)

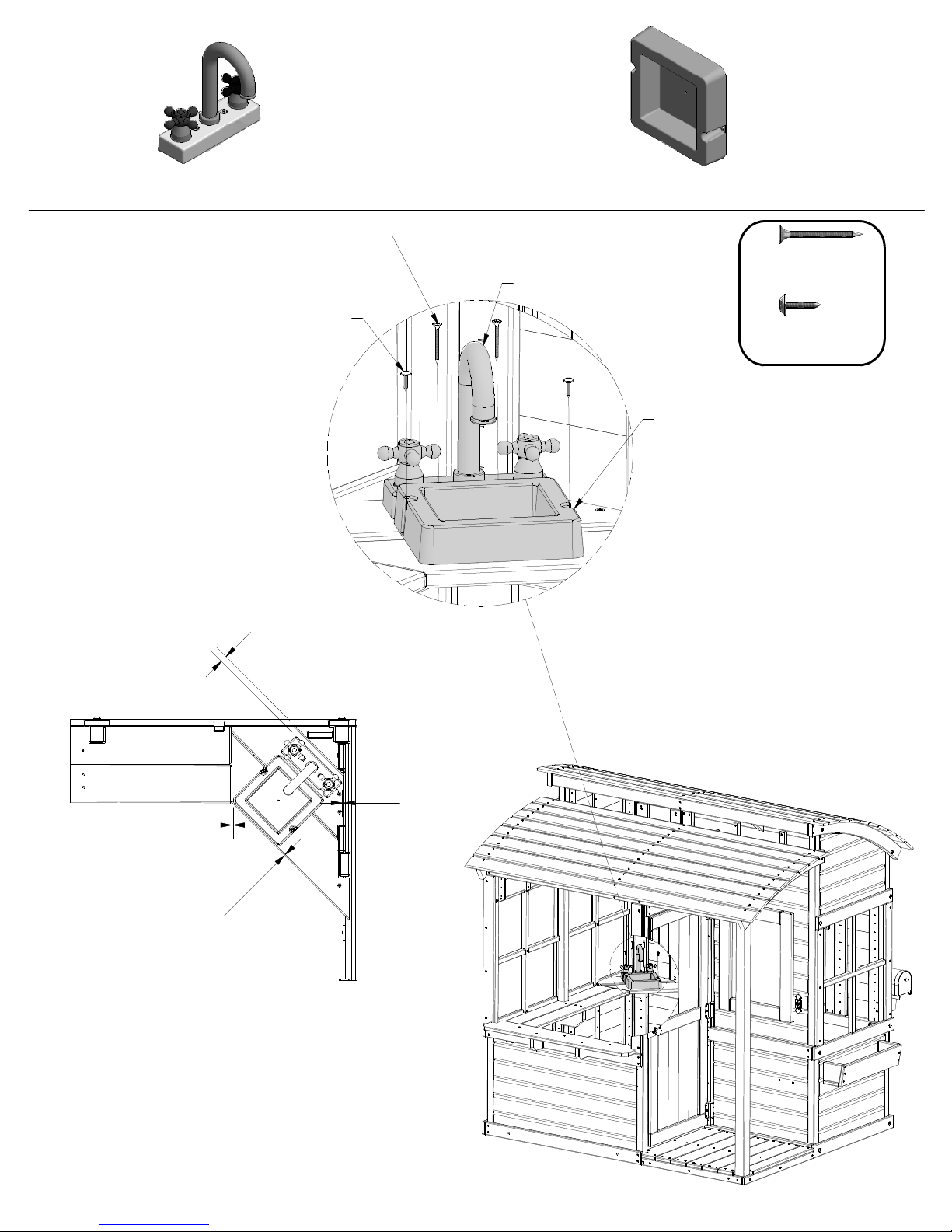

- SURFACE MOUNT BASIN - A6P00032

Page 27

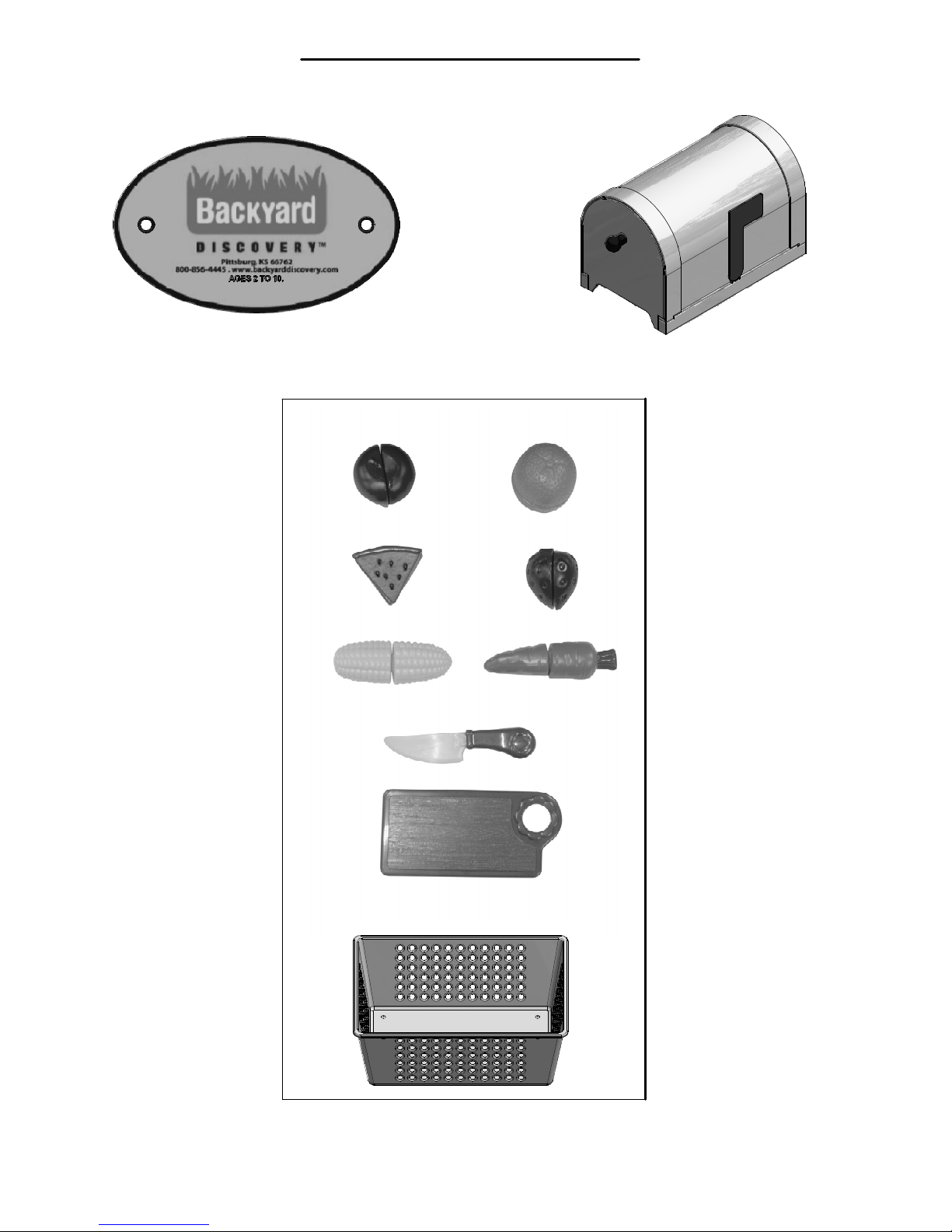

Parts Identification

- BYD ID TAG (MEDIUM) AGES 2 TO 10 - A4M00528

(1)

Accessories

(NOT TO SCALE)

(1)

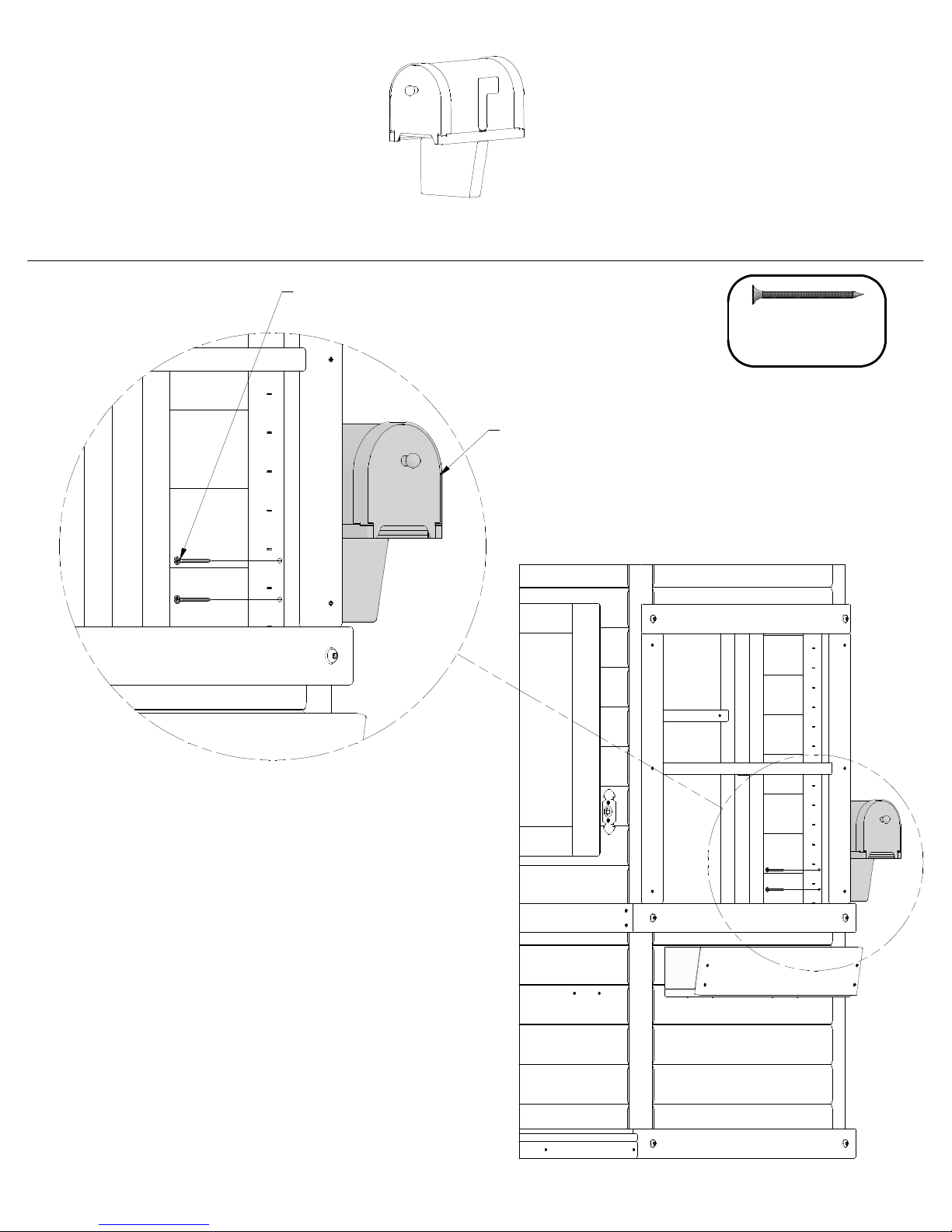

- MAILBOX - A6P00017

APPLE

WATERMELON

CORN

PLASTIC KNIFE

CUTTING BOARD

ORANGE

STRAWBERRY

CARROT

(1)

- FRUIT BASKET KIT - A6P00069

Page 28

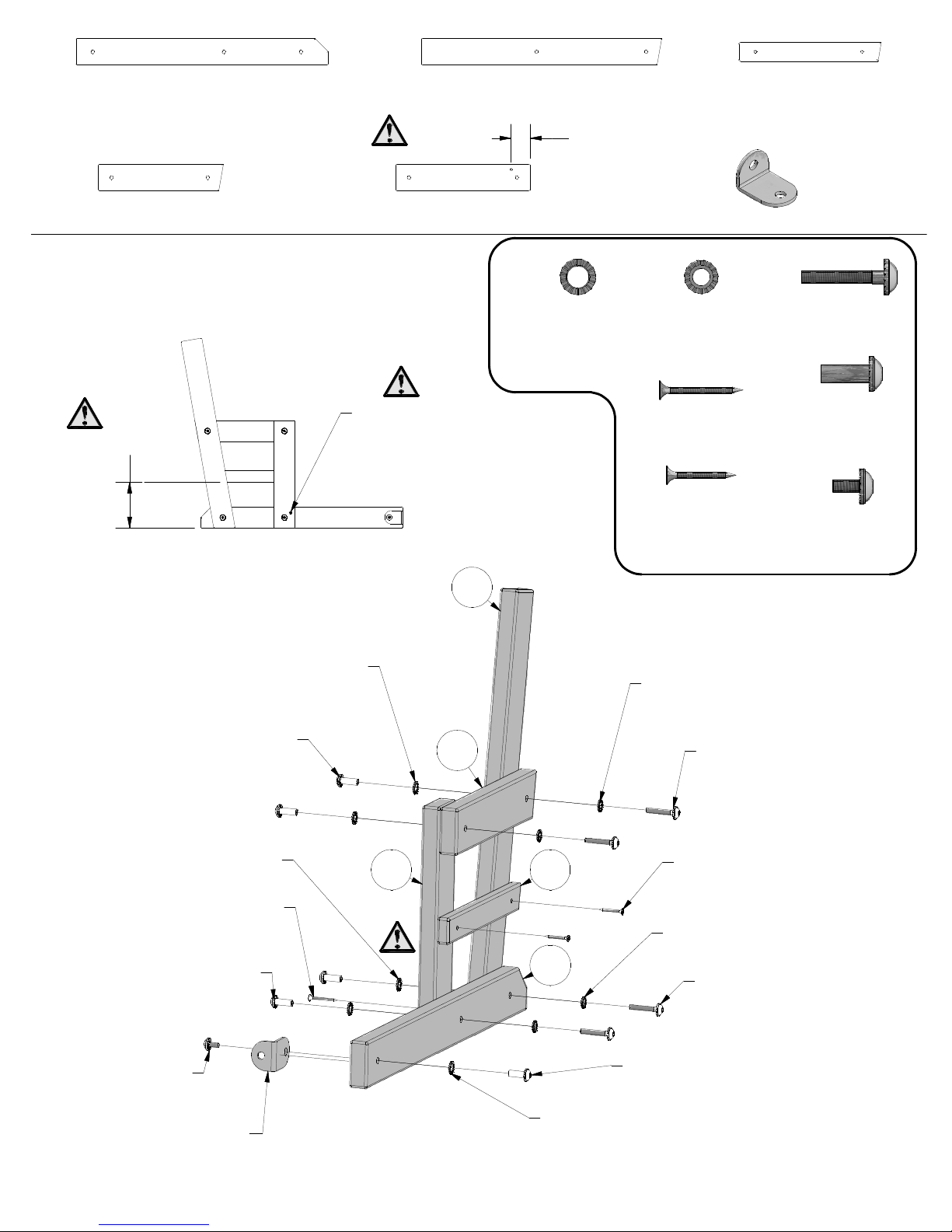

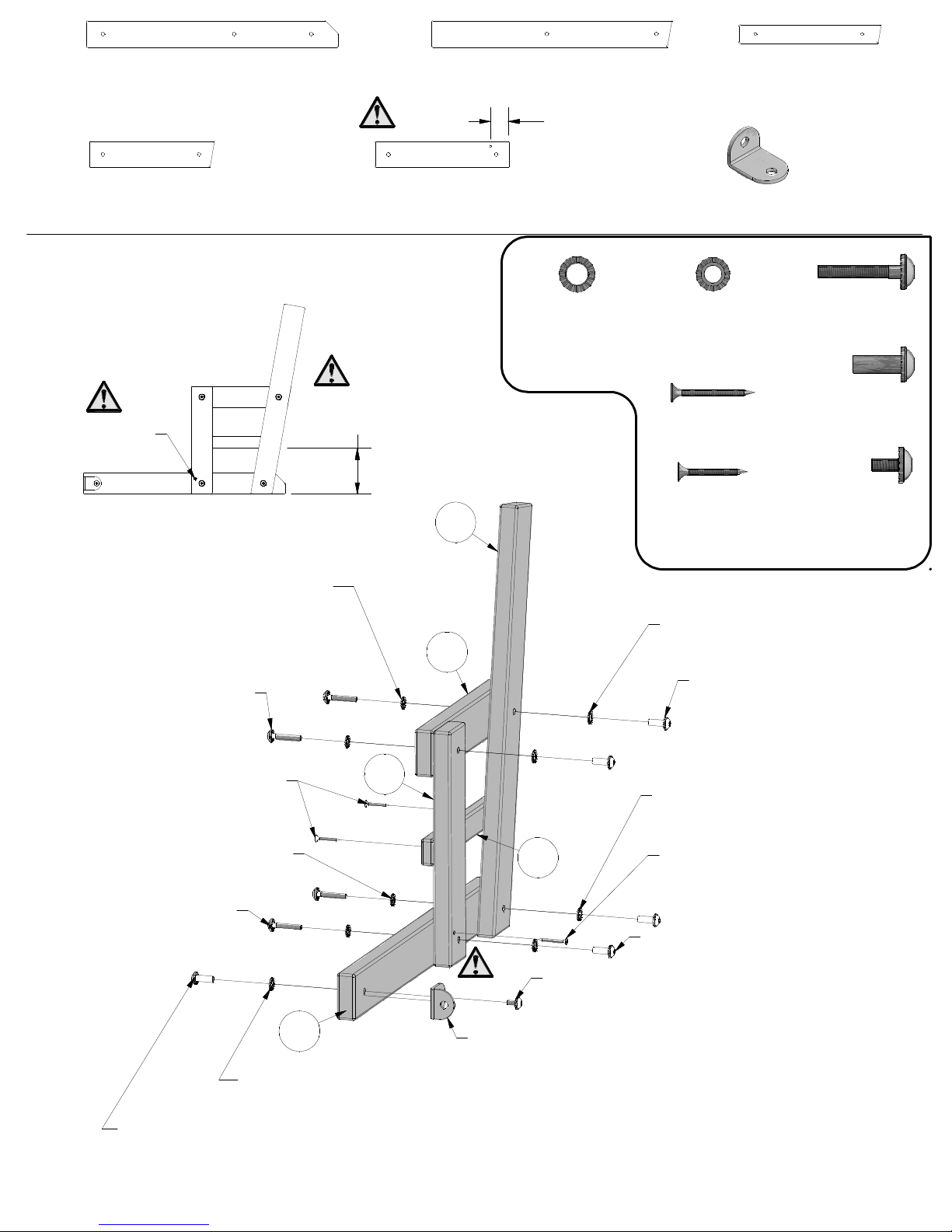

J10 - BENCH GROUND BOARD - W4L11688

(1)

1"x2 3/8"x22 1/2" (24x60x573)

(1)

NOTE HOLE LOCATON

J9 - CHAIR UPRIGHT - W4L11685 1"x2 3/8"x21 1/2" (24x60x546)

1 9/16 in [40 mm]

O1 - CHAIR RAIL - W4L11687

(1)

5/8"x1 3/8"x10 1/4" (16x34x259)

J11 - CHAIR RAIL - W4L11686

(1)

1"x2 3/8"x11 1/8" (24x60x284)

BENCH ASSEMBLY STEP 1

NOTE HOLE

LOCATION

WASHER LOCK EXT 6x15

5 1/8 in [130 mm]

(2 PLCS)

J8 - CHAIR UPRIGHT - W4L11684

(1)

1"x2 3/8"x12" (24x60x305)

J11

(5)

WASHER LOCK EXT 8x15 H100139

(1)

L BRACKET WHITE 32x51 - A100133

(4)

SCREW PFH

(1)

8x1-1/2" H100086

SCREW PFH

(2)

8x1-1/4" H100087

WASHER LOCK EXT 6x15 H100138

(4)

(5)

(1)

WASHER LOCK EXT 8x15 (2 PLCS)

BOLT WH 1/4x1-1/2 H100143

NUT BARREL WH 1/4x7/8 H100140

BOLT WH 1/4x1/2 H100141

BOLT WH 1/4x1 1/2

(2 PLCS)

SCREW PFH 8X1 1/4

(2 PLCS)

WASHER LOCK EXT 6x15

(2 PLCS)

BOLT WH 1/4x1 1/2

(2 PLCS)

WASHER LOCK EXT 8x15 (1 PLC)

NUT BARREL WH 1/4x7/8 (1 PLC)

J10

L BRACKET WHITE 32x51 (1 PLC)

RIGHT SIDE

NUT BARREL WH 1/4x7/8

(2 PLCS) BOLT WH 1/4x1/2 (1 PLC)

NUT BARREL WH 1/4x7/8 (2 PLCS)

WASHER LOCK EXT 8x15 (2 PLCS)

SCREW PFH 8X1 1/2 (1 PLC)

Page 29

J10 - BENCH GROUND BOARD - W4L11688

(1)

1"x2 3/8"x22 1/2" (24x60x573)

J9 - CHAIR UPRIGHT - W4L11685

(1)

1"x2 3/8"x21 1/2" (24x60x546)

O1 - CHAIR RAIL - W4L11687

(1)

5/8"x1 3/8"x10 1/4" (16x34x259)

J11 - CHAIR RAIL - W4L11686

(1)

1"x2 3/8"x11 1/8" (24x60x284)

BENCH ASSEMBLY STEP 2

5 1/8 in

[130 mm]

NOTE HOLE LOCATON

J8 - CHAIR UPRIGHT - W4L11684

(1)

1"x2 3/8"x12" (24x60x305)

NOTE HOLE LOCATION

(5)

1 11/16 in [43 mm]

WASHER LOCK EXT 8x15 H100139

(1)

L BRACKET WHITE 32x51 - A100133

(4)

(5)

(1)

BOLT WH 1/4x1-1/2 H100143

(4)

SCREW PFH

(1)

8x1-1/2" H100086

SCREW PFH 8x1-1/4"

(2)

H100087

WASHER LOCK EXT 6x15 H100138

NUT BARREL WH 1/4x7/8 H100140

BOLT WH 1/4x1/2 H100141

WASHER LOCK EXT 8x15

NUT BARREL WH 1/4x7/8

(2 PLCS)

WASHER LOCK EXT 8x15

(2 PLCS)

SCREW PFH 8X1 1/2

(1 PLC)

NUT BARREL WH 1/4x7/8

(2 PLCS)

J11

J10

WASHER LOCK EXT 6x15

(2 PLCS)

BOLT WH 1/4x1 1/2 (2 PLCS)

SCREW PFH 8X1 1/4 (2 PLCS)

WASHER LOCK EXT 6x15 (2 PLCS)

BOLT WH 1/4x1 1/2 (2 PLCS)

BOLT WH 1/4x1/2

(1 PLC)

L BRACKET WHITE 32x51

NUT BARREL WH 1/4x7/8 (1 PLC)

WASHER LOCK EXT 8x15 (1 PLC)

LEFT SIDE

Page 30

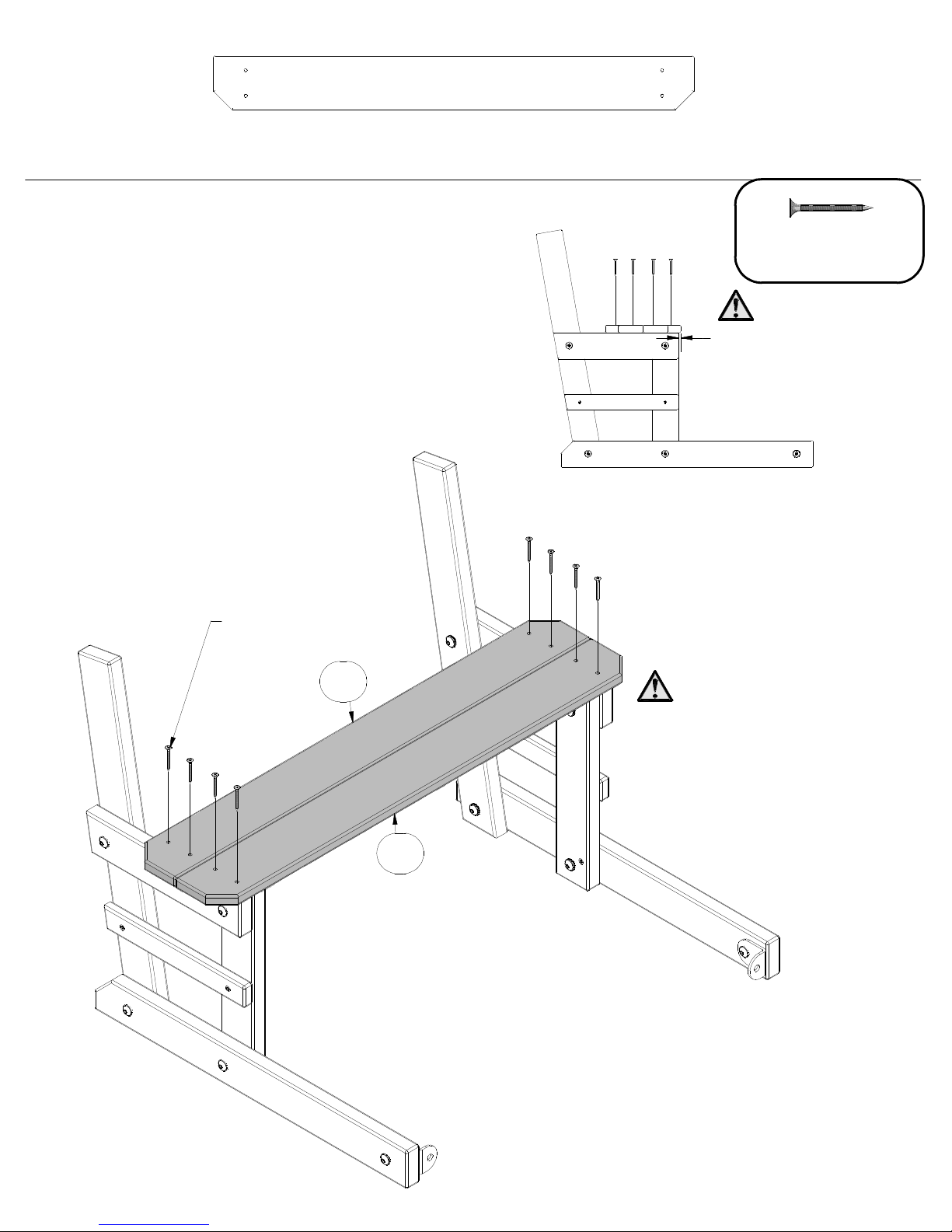

BENCH ASSEMBLY STEP 3

M13 - BENCH SEAT - W4L11689

(2)

5/8"x3 3/8"x30 1/8" (16x86x764)

1/4 in [6 mm]

SCREW PFH 8x1-1/2"

(8)

H100086

SCREW PFH 8X1 1/2 (8 PLCS)

M13

LEFT

RIGHT

Page 31

M14 - BENCH BACK - W4L11690

(1)

5/8"x3 3/8"x30 1/8" (16x86x764)

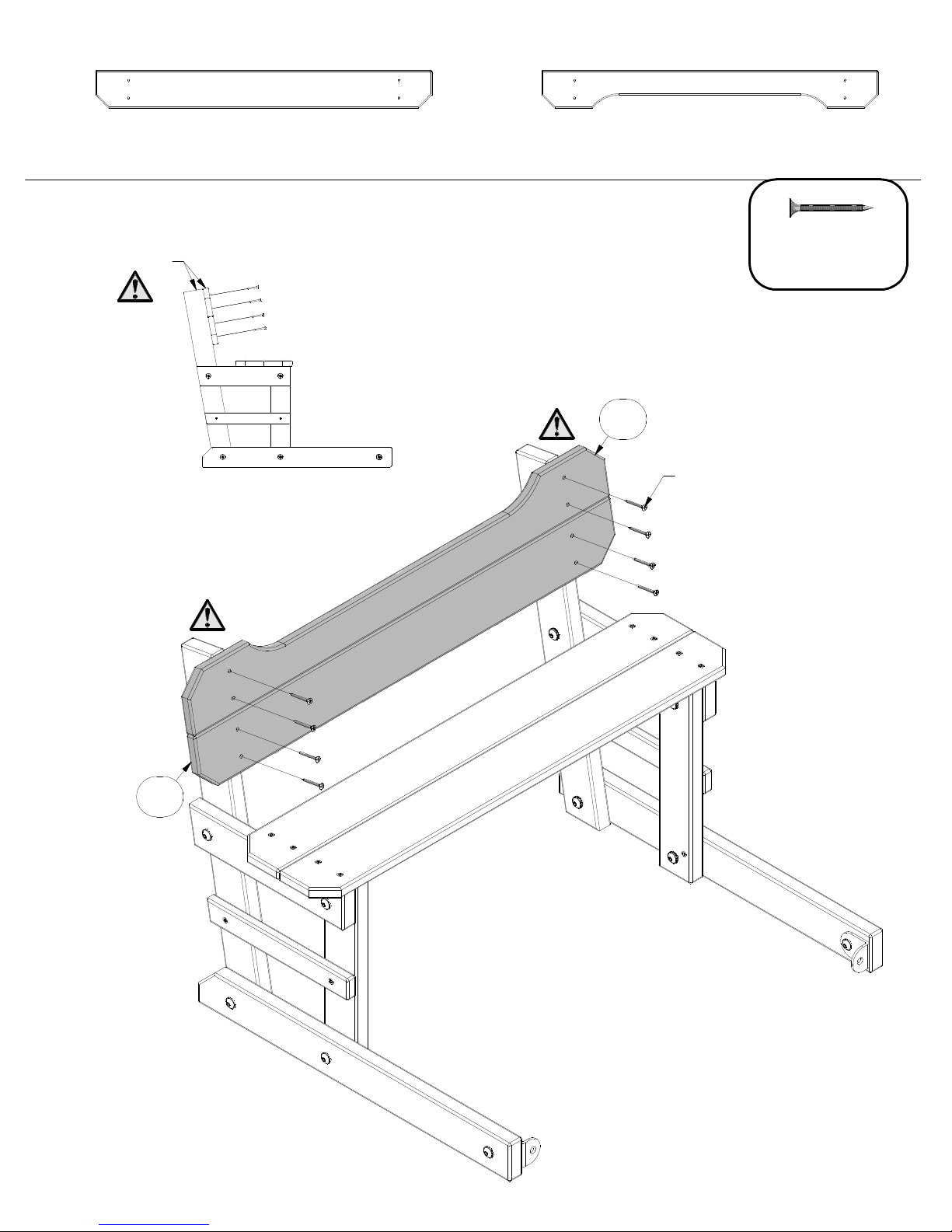

BENCH ASSEMBLY STEP 4

FLUSH

M15 - BENCH BACK - W4L11691

(1)

5/8"x3 3/8"x30 1/8" (16x86x764)

M15

SCREW PFH 8X1 1/2 (8 PLCS)

SCREW PFH

(8)

8x1-1/2" H100086

M14

RIGHT

LEFT

Page 32

N2 - RAIL - W4L11697

(1)

5/8"x2 3/8"x46 1/2" (16x60x1180)

N14 - RAIL - W4L11886

(1)

5/8"x2 3/8"x56 1/8" (16x60x1424)

7 1/16 in [180 mm]

TOP

P3 - UPRIGHT - W4L11694

(1)

1 3/8"x1 3/8"x50 3/8" (36x36x1280)

P5 - UPRIGHT - W4L12010

(1)

1 3/8"x1 3/8"x52 3/4" (36x36x1340)

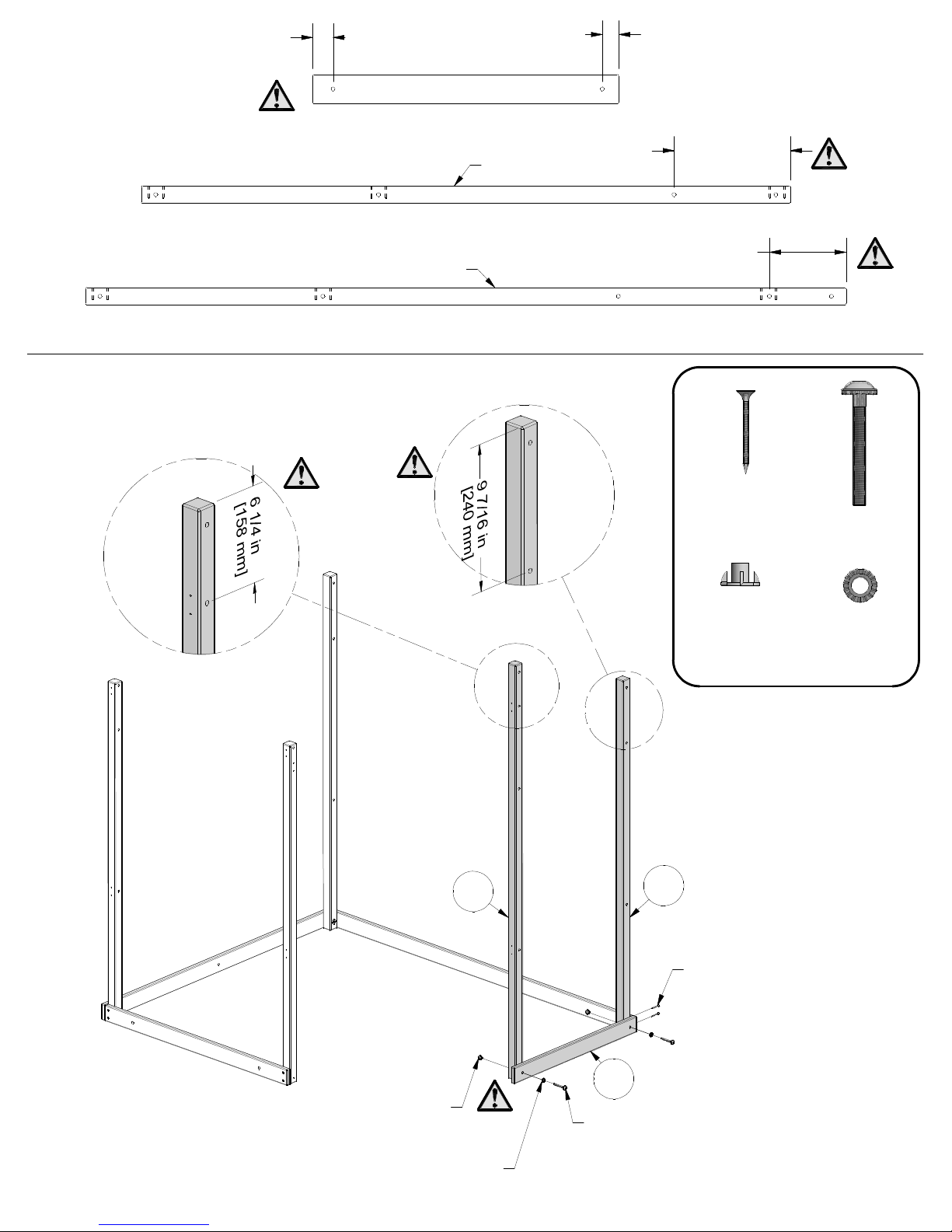

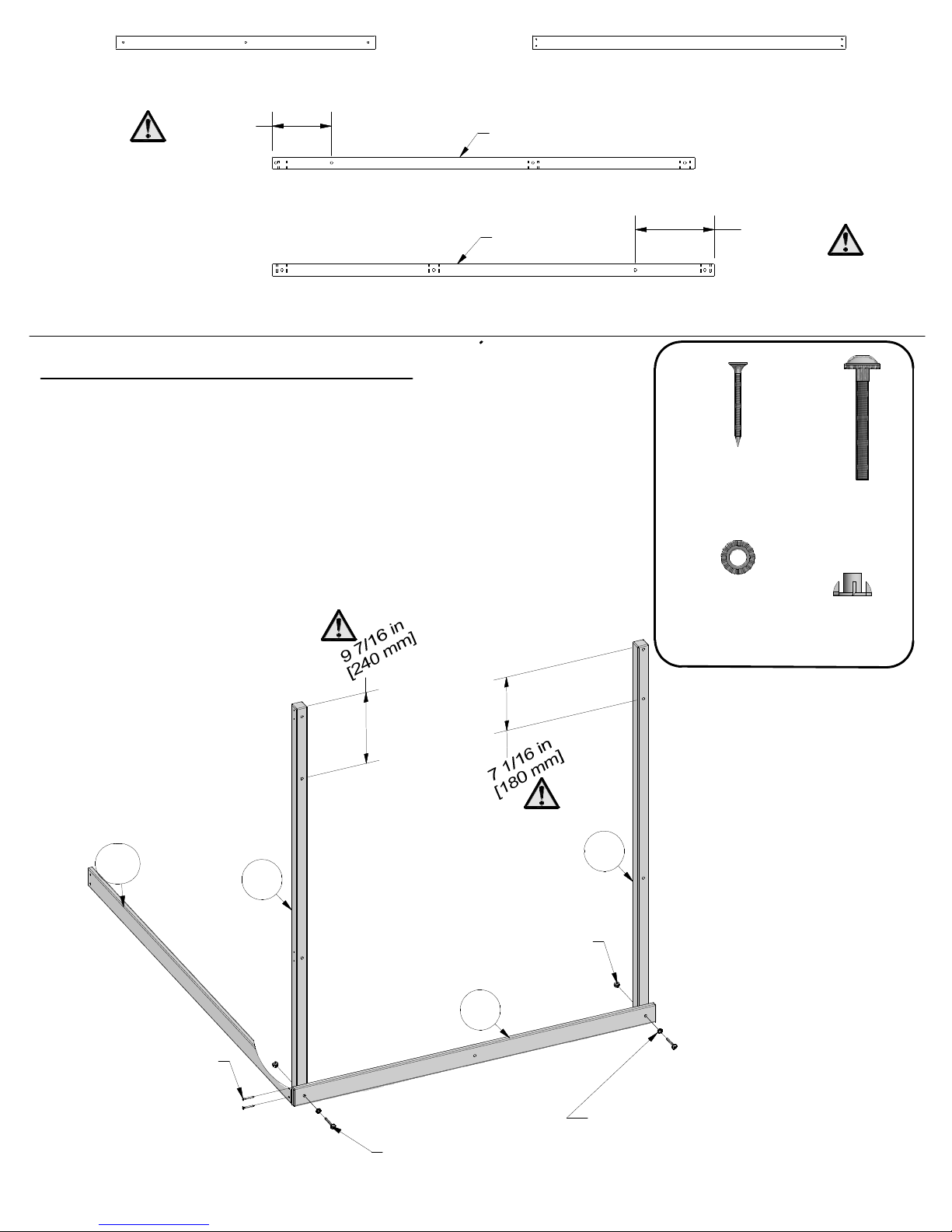

PLAYHOUSE ASSEMBLY

STEP 1:

RIGHT

SCREW PFH

(2)

8x1-1/2" H100086

9 7/16 in [240 mm]

TOP

(2)

BOLT WH 1/4x2 H100160

N14

RIGHT

T-NUT 1/4

(2 PLCS)

(2)

WASHER LOCK EXT 6x15 H100138

(2)

T-NUT 1/4 H100072

SCREW PFH 8X1 1/2

(2 PLCS)

REAR

WASHER LOCK EXT 6x15 (2 PLCS)

BOLT WH 1/4x2 (2 PLCS)

Page 33

STEP 2:

TOP

1/2 in [13 mm]

NOTE HOLE LOCATION

P7 - UPRIGHT - W4L12013

(1)

1 3/8"x1 3/8"x50 3/8" (36x36x1280)

N5 - RAIL - W4L11700

(1)

5/8"x2 3/8"x34" (16x60x865)

LEFT

SCREW PFH

(4)

8x1-1/2" H100086

NOTE HOLE LOCATION

TOP

REAR

LEFT

SCREW PFH 8X1 1/2 (4 PLCS)

Page 34

STEP 3:

LEFT

1 5/8 in [42 mm]

N3 - RAIL - W4L11698

(1)

5/8"x2 3/8"x24 7/8" (16x60x632)

1 5/16 in [34 mm]

RIGHT

P1 - UPRIGHT - W4L11692

(1)

1 3/8"x1 3/8"x52 3/4" (36x36x1340)

LEFT

P2 - UPRIGHT - W4L11693

(1)

1 3/8"x1 3/8"x61 3/4" (36x36x1570)

RIGHT

9 7/16 in [240 mm]

TOP

6 1/4 in [158 mm]

TOP

REAR

TOP

SCREW PFH

(2)

8x1-1/2" H100086

(2)

T-NUT 1/4 H100072

(2)

BOLT WH 1/4x2 H100160

WASHER LOCK EXT 6x15 H100138

LEFT

WASHER LOCK EXT 6x15

T-NUT 1/4

(2 PLCS)

RIGHT

SCREW PFH 8X1 1/2 (2 PLCS)

BOLT WH 1/4x2 (2 PLCS)

Page 35

(1)

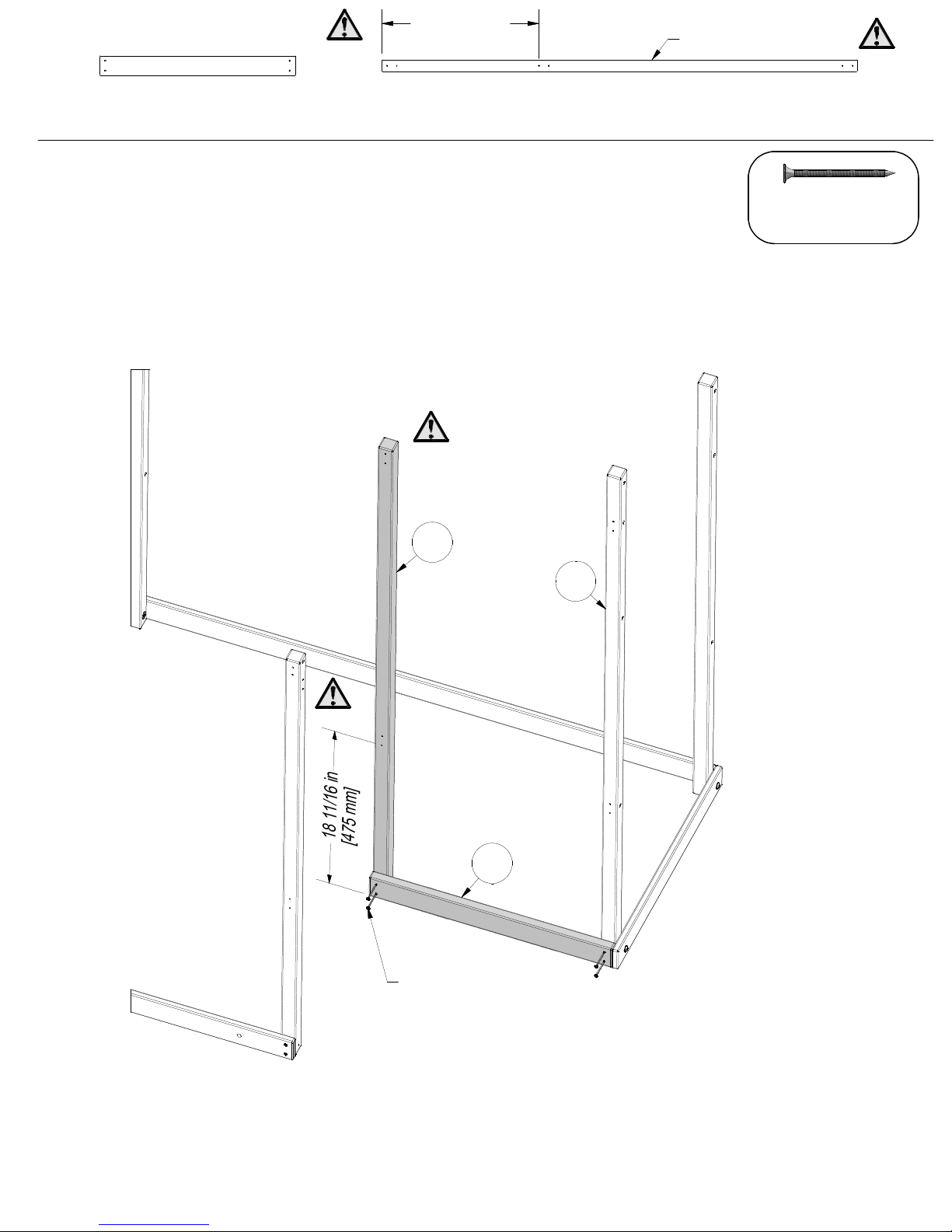

STEP 4:

J1 - RAIL - W4L11704 1"x2 3/8"x23 3/8" (24x60x595)

18 11/16 in [475 mm]

(1)

REAR

P4 - UPRIGHT - W4L11695 1 3/8"x1 3/8"x56 3/4" (36x36x1440)

TOP

SCREW PFH

(4)

8x2 H100111

TOP

REAR

FRONT

SCREW PFH 8X2 (4 PLCS)

LEFT

Page 36

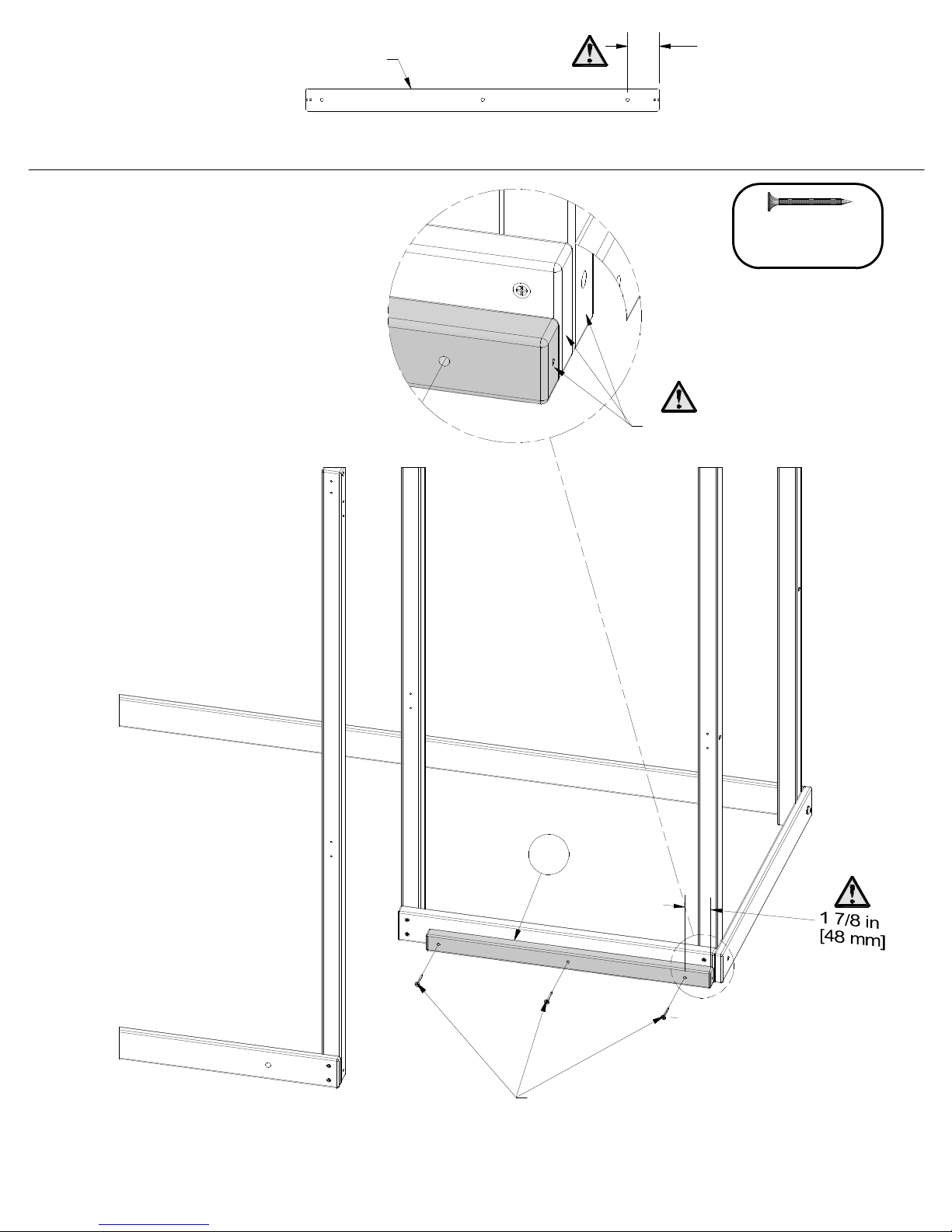

STEP 5:

TOP

T5 - FLOOR SUPPORT - W4L11879

(1)

1"x1 3/8"x21 1/8" (24x34x535)

FRONT

FLUSH

1 7/8 in [48 mm]

(3)

SCREW PFH 8x1-1/2" H100086

REAR

FRONT

LEFT

SCREW PFH 8X1 1/2 (3 PLCS)

Page 37

LEFT

11/16 in [18 mm]

STEP 6:

LEFT

13/16 in [21 mm]

T4 - FLOOR SUPPORT - W4L11878

(1)

1"x1 3/8"x21" (24x34x532)

BOTTOM

SCREW PFH

(1)

8x2 H100111

SCREW PFH

(1)

8x1-1/2" H100086

LEFT

11/16 in [18 mm]

SCREW PFH 8X1 1/2 (1 PLC)

RIGHT

SCREW PFH 8X2 (1 PLC)

FRONT

Page 38

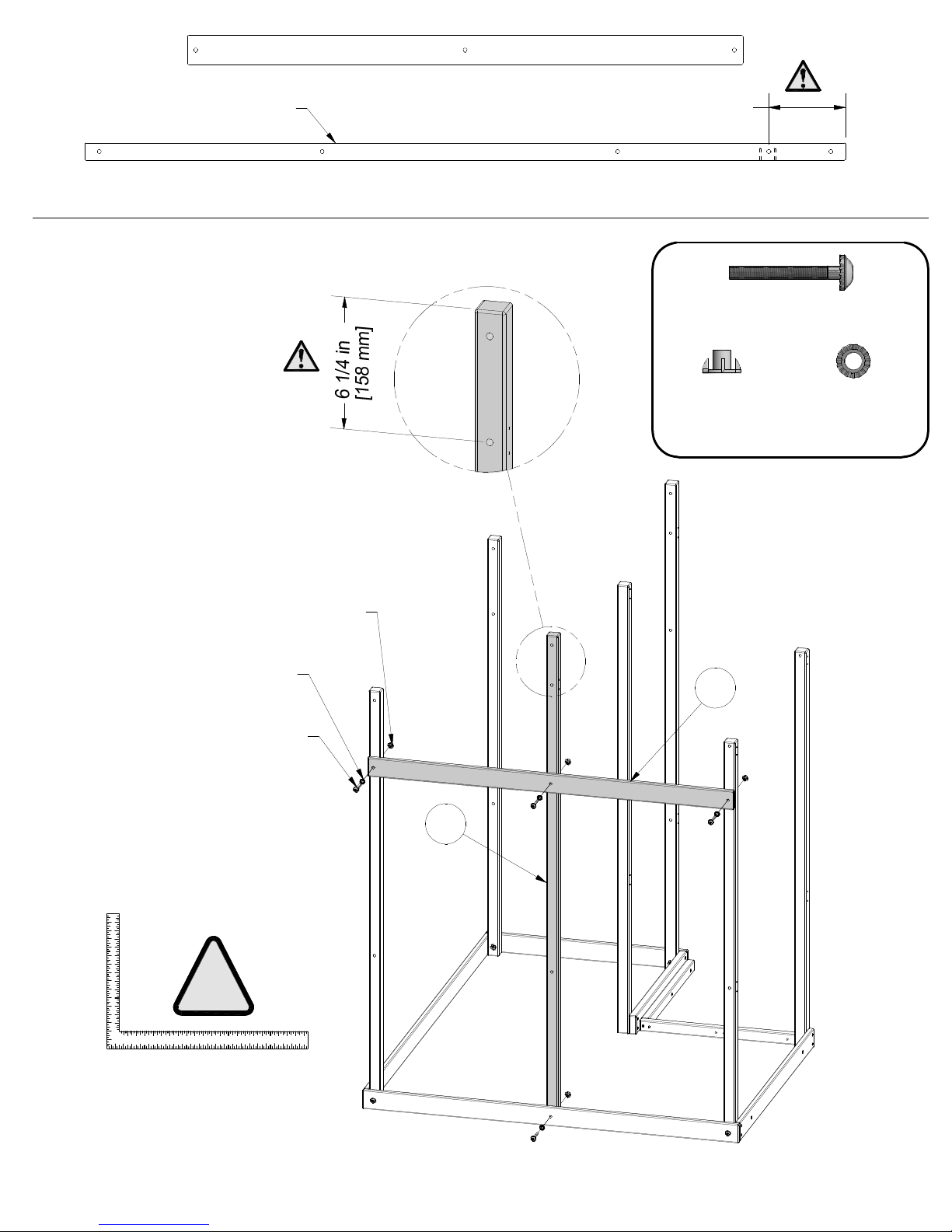

STEP 7:

RIGHT

N4 - RAIL - W4L11699

(1)

5/8"x2 3/8"x45 1/4" (16x60x1148)

P6 - UPRIGHT - W4L12012

(1)

1 3/8"x1 3/8"x61 3/4" (36x36x1570)

6 1/4 in [158 mm]

(4)

TOP

BOLT WH 1/4x2 H100160

T-NUT 1/4

WASHER LOCK EXT 6x15

(4 PLCS)

BOLT WH 1/4x2

(4 PLCS)

(4)

T-NUT 1/4 H100072

(4)

WASHER LOCK EXT 6x15 H100138

TOP

1 1

0 1

23456

111213141

891

16171

2021222

222120191817161514131211109876543

RIGHT

LEFT

REAR

Page 39

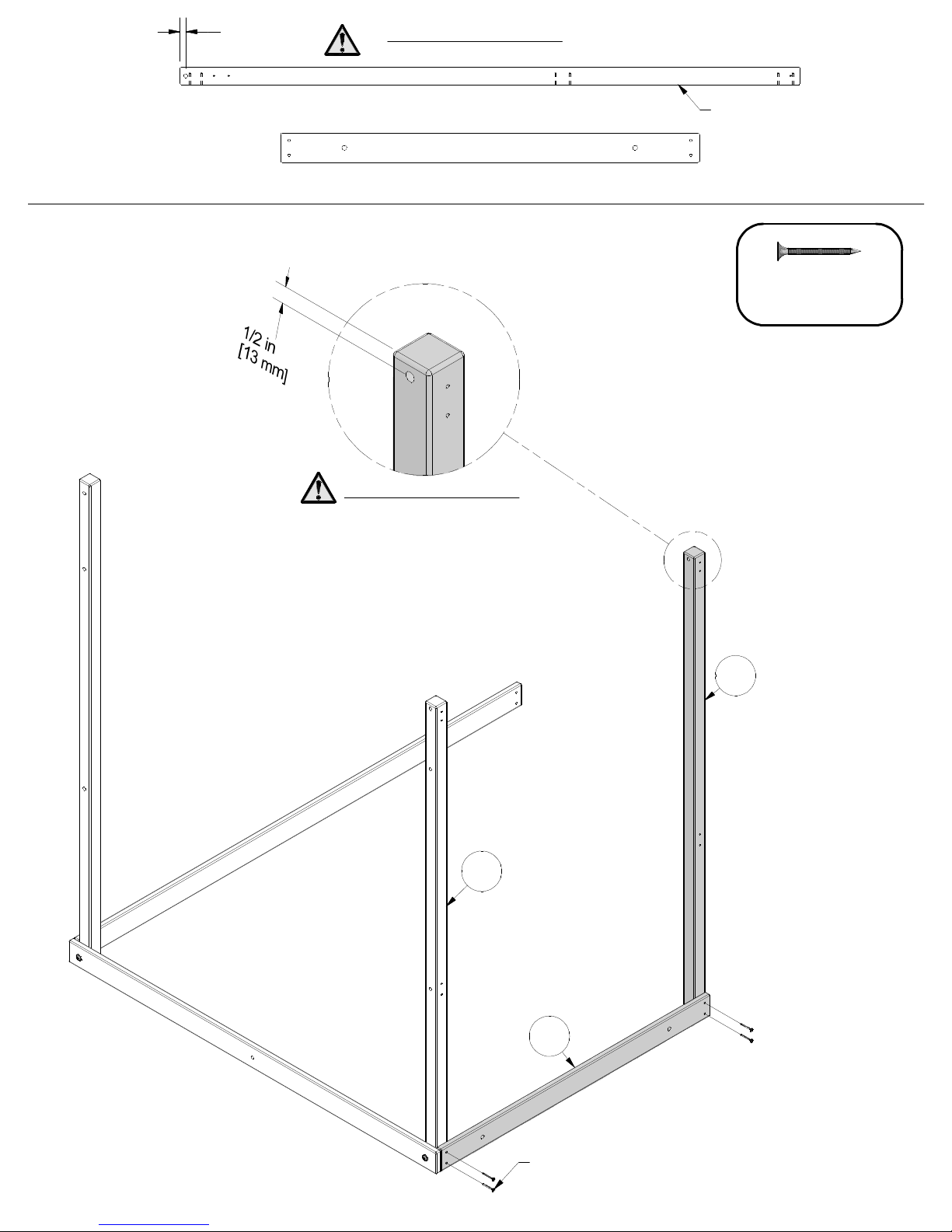

1/2 in [13 mm]

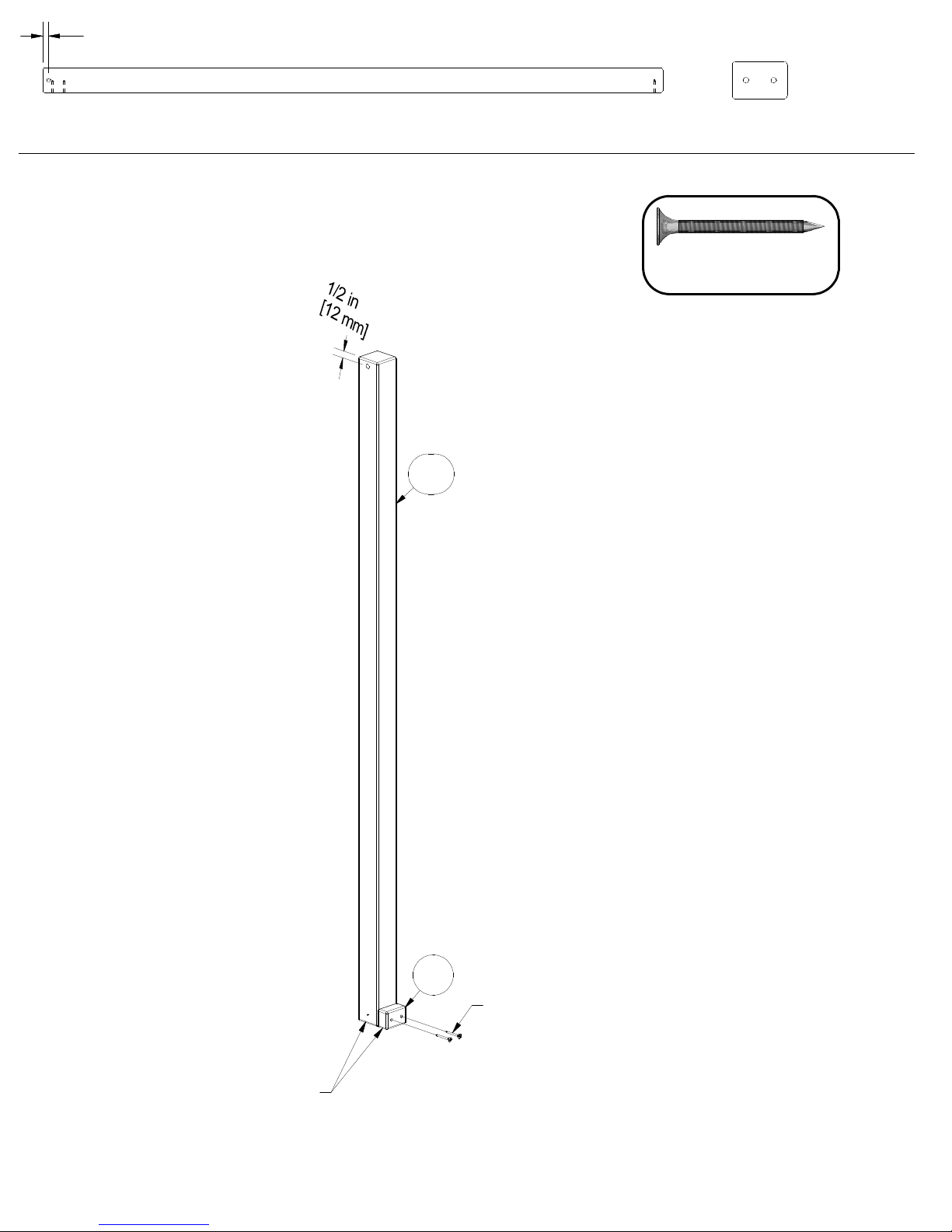

STEP 8:

AA1 - UPRIGHT - W4L11864

(1)

2"x2"x50 3/8" (50x50x1280)

AA1

T8 - FLOOR SUPPORT - W4L12124

(1)

1"x1 3/8"x2" (24x34x50)

SCREW PFH

(2)

8x1-1/2" H100086

FLUSH

SCREW PFH 8X1 1/2 (2 PLCS)

Page 40

(1)

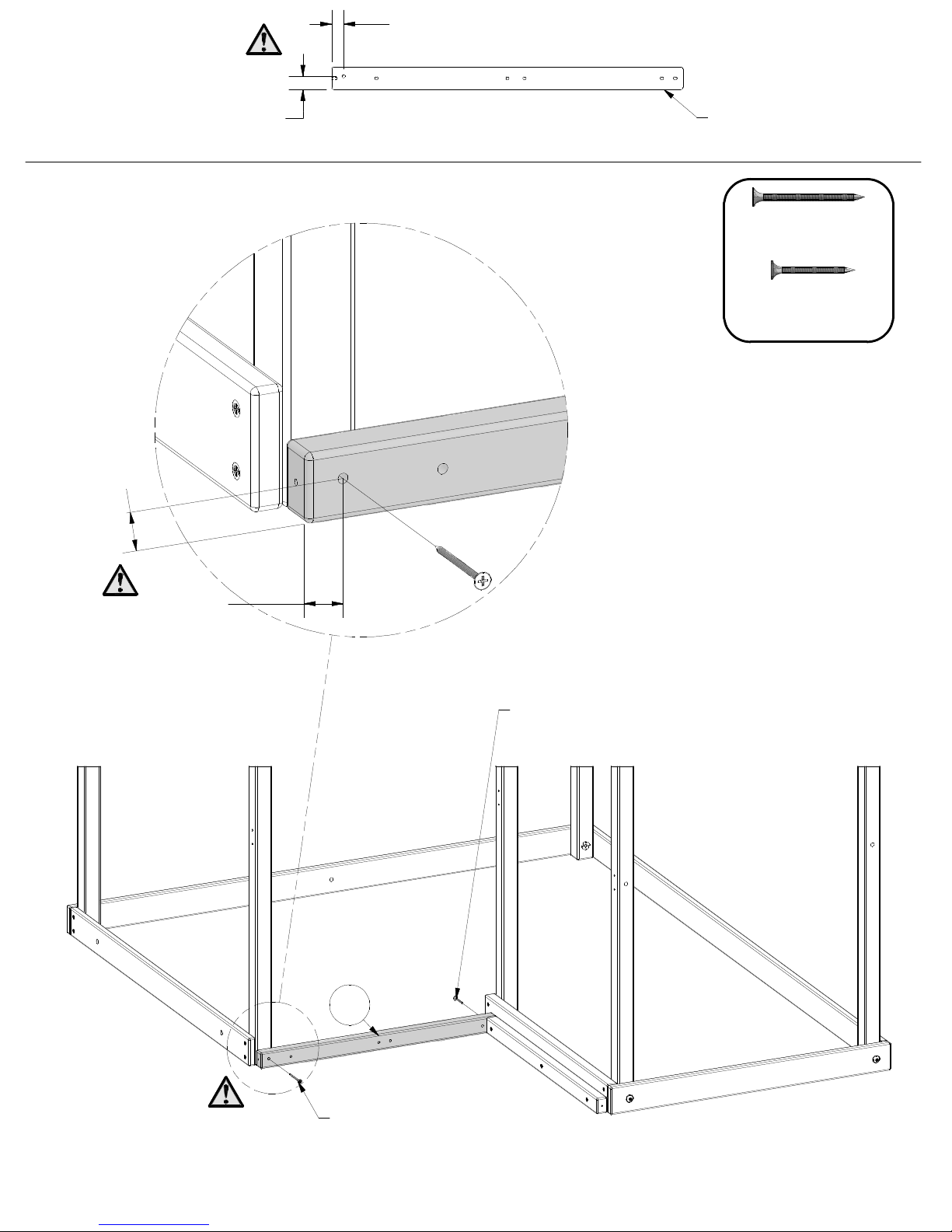

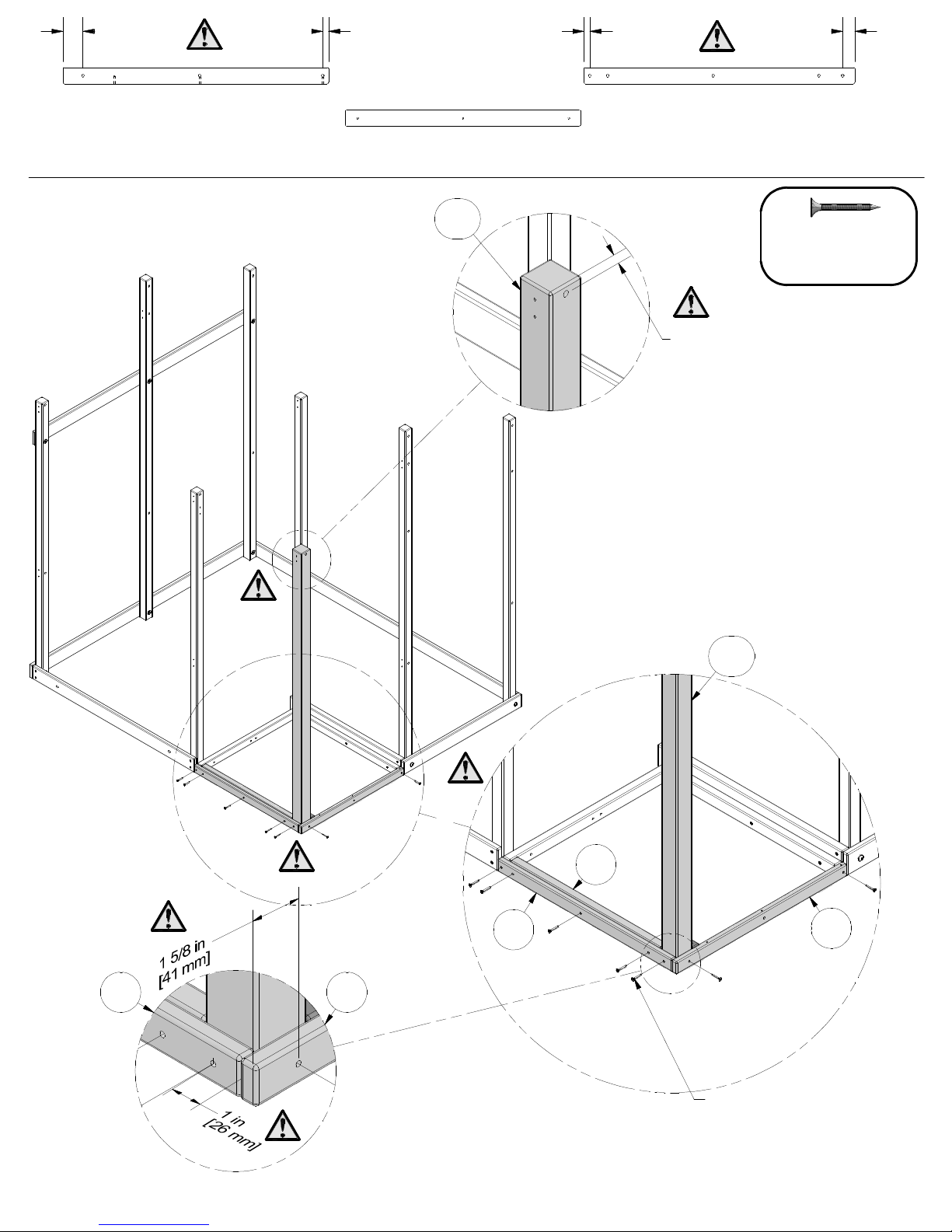

STEP 9:

1 5/8 in [41 mm]

O2 - RAIL - W4L11873 5/8"x1 3/8"x21 5/8" (16x34x548)

1/2 in [12 mm]

RIGHT

T2 - JOIST - W4L11871

(1)

1"x1 3/8"x19 1/8" (24x34x485)

1/2 in [13 mm]

O3 - RAIL - W4L11872

(1)

5/8"x1 3/8"x22" (16x34x559)

1 in [26 mm]

FRONT

REAR

RIGHT

AA1

SCREW PFH

(7)

8x1-1/4" H100087

1/2 in [13 mm]

AA1

LEFT

O2O3

FRONT

RIGHT

LEFT

FRONT

SCREW PFH 8X1 1/4 (7 PLCS)

Page 41

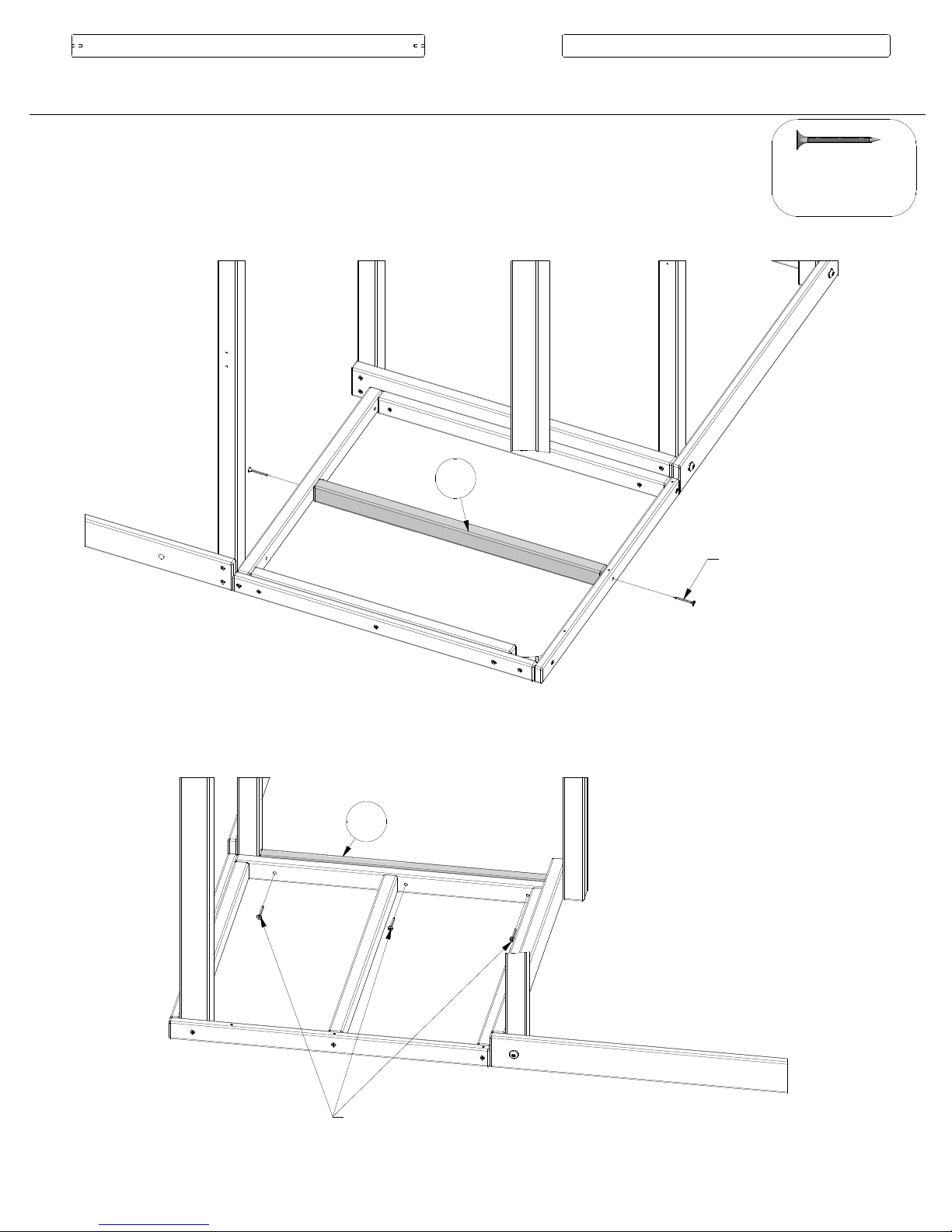

STEP 10:

T1 - JOIST - W4L11870

(1)

1"x1 3/8"x21 1/8" (24x34x535)

T3 - FLOOR SUPPORT - W4L11877

(1)

1"x1 3/8"x19 1/2" (24x34x496)

(5)

SCREW PFH 8x1-1/2" H100086

LEFT

SCREW PFH 8X1 1/2 (2 PLCS)

FRONT

SCREW PFH 8X1 1/2 (3 PLCS)

Page 42

1 1/8 in [28 mm]

LEFT

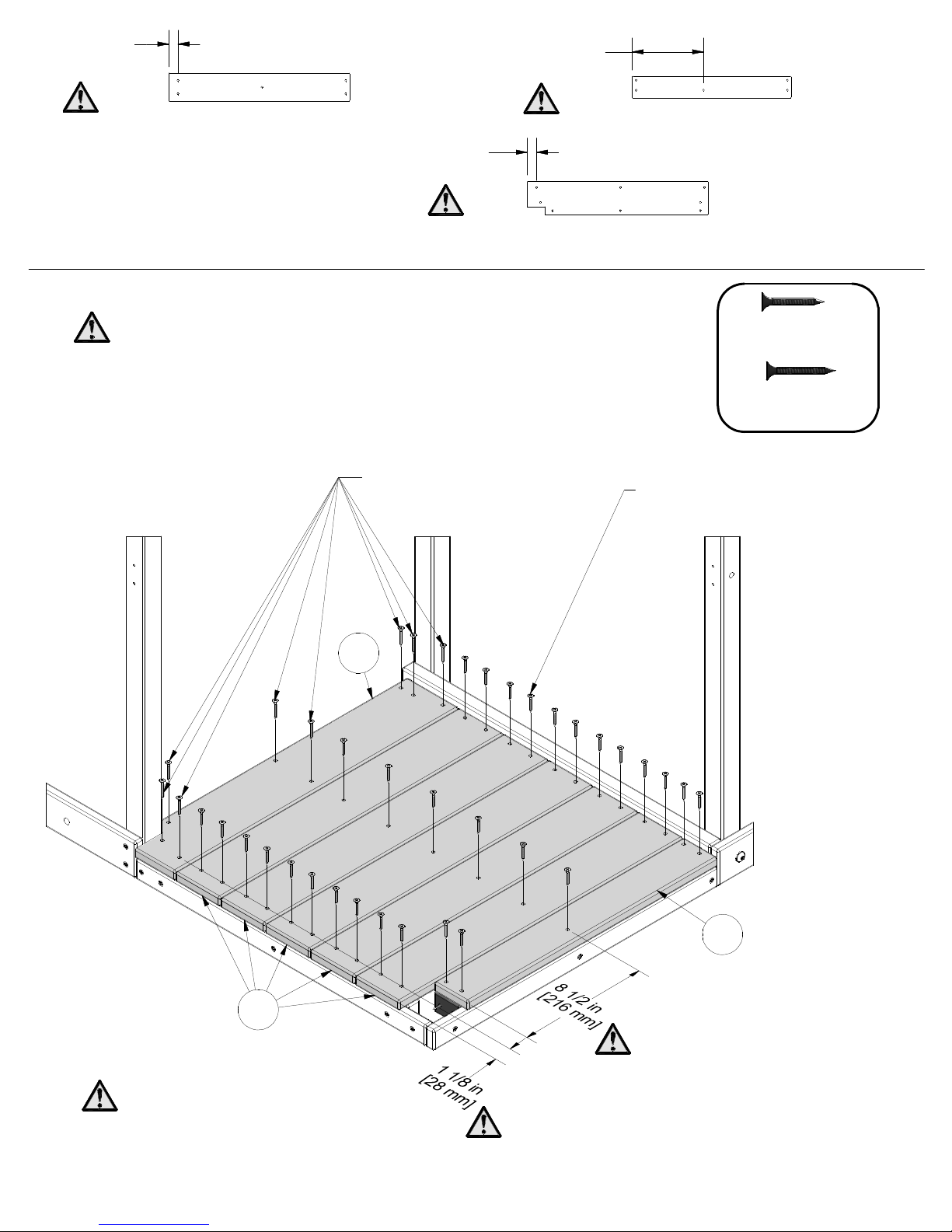

STEP 11:

M1 - FLOOR BOARD - W4L11874

(5)

5/8"x3 3/8"x21 5/8" (16x86x548)

NOTE: INSTALL FLOORBOARDS EVENLY SPACED

1 1/8 in [28 mm]

LEFT

8 1/2 in [216 mm]

LEFT

M3 - FLOOR BOARD - W4L11876

(1)

5/8"x2 5/8"x19" (16x66x482)

L4 - FLOOR BOARD - W4L11875

(1)

5/8"x3 7/8"x21 5/8" (16x100x548)

(30)

(8)

SCREW PFH 8x1 1/8 BLK H100380

SCREW PFH 8x1 1/4 BLK H100387

SCREW PFH 8X1 1/4 BLK (8 PLCS)

SCREW PFH 8X1 1/8 BLK (30 PLCS)

LEFT

UPRIGHT AA1 REMOVED FOR CLAIRITY

FRONT

Page 43

LEFT

6 3/4 in [172 mm]

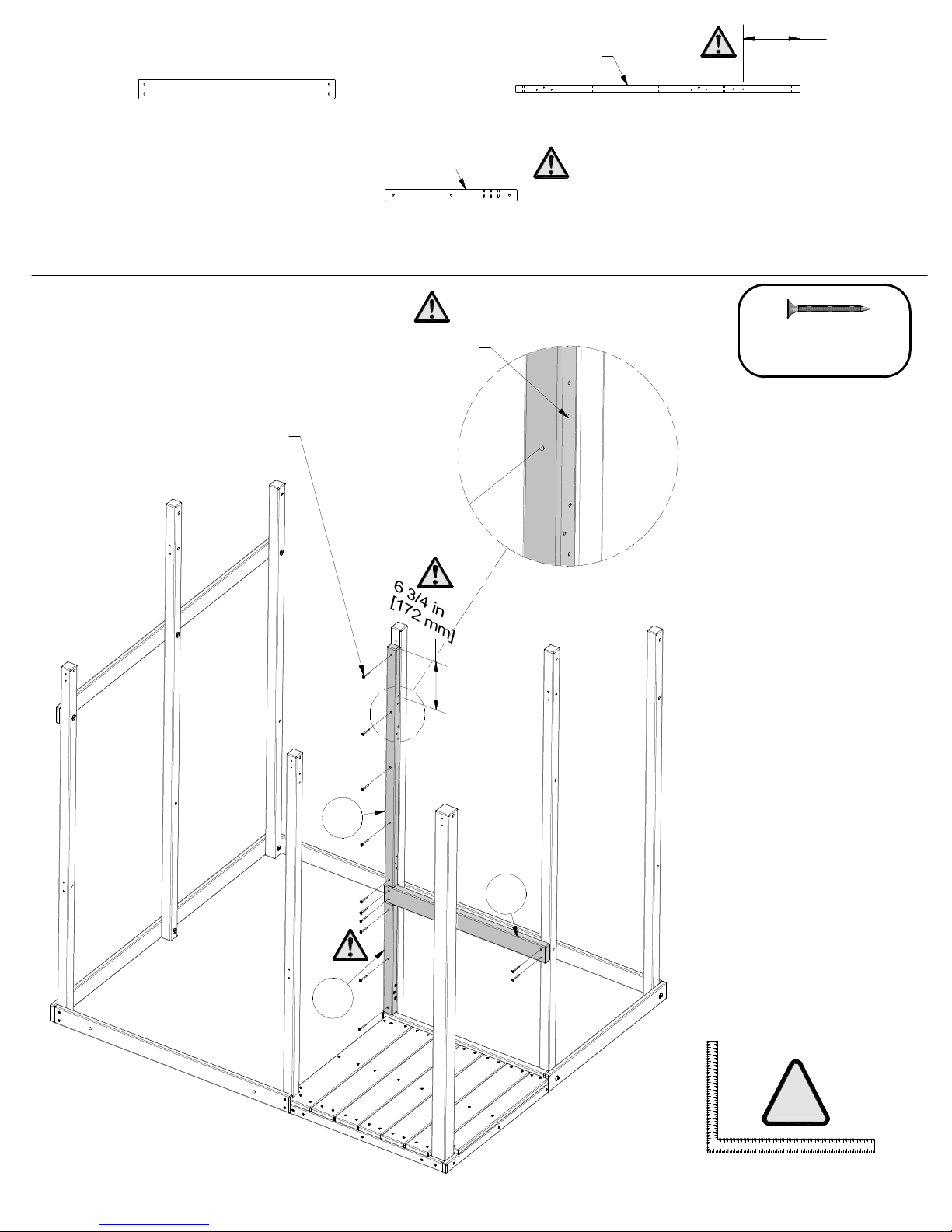

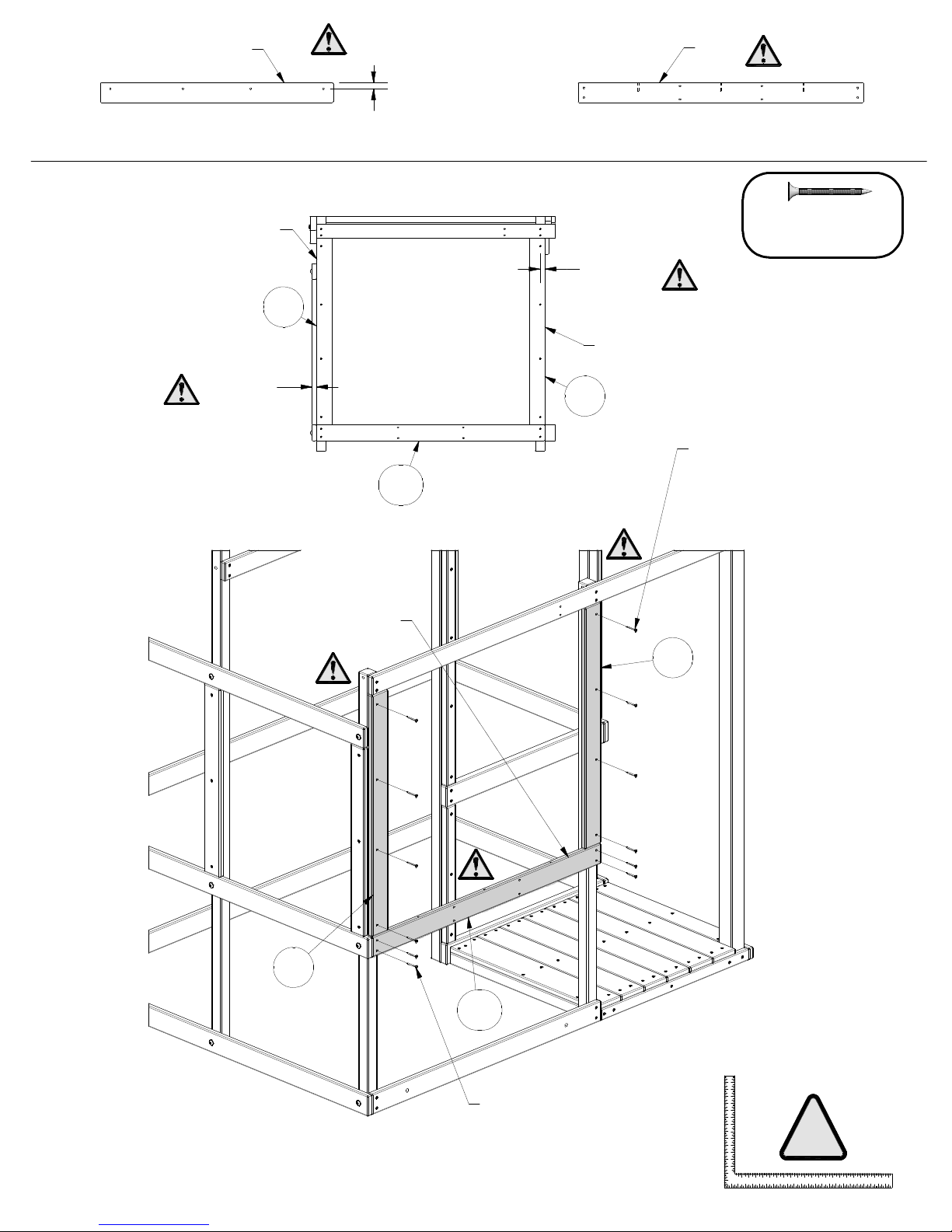

STEP 12:

J1 - RAIL - W4L11704

(1)

1"x2 3/8"x23 3/8" (24x60x595)

SCREW PFH 8X1 1/2

(12 PLCS)

FRONT

T7 - RAIL - W4L11885

(1)

1"x1 3/8"x15 3/4" (24x34x400)

NOTE HOLE LOCATIONS

T6 - RAIL - W4L11884

(1)

1"x1 3/8"x33 7/8" (24x34x861)

TOP

(12)

TOP

SCREW PFH 8x1-1/2" H100086

LEFT

TOP

151

1 1

0 1

FRONT

1234567

891

8765432

109

111213141

2221201

17161

2021222

17181

Page 44

1 5/8 in [42 mm]

LEFT

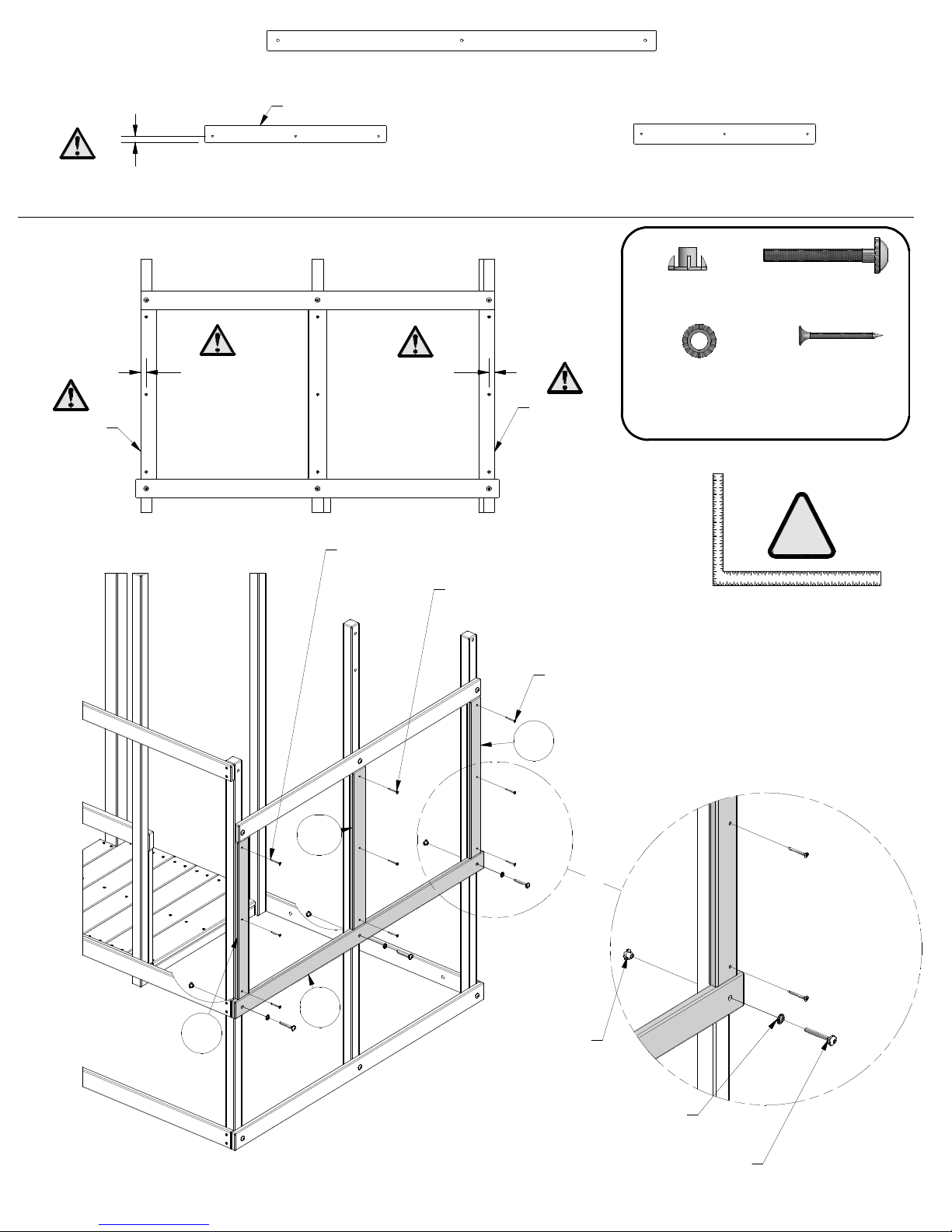

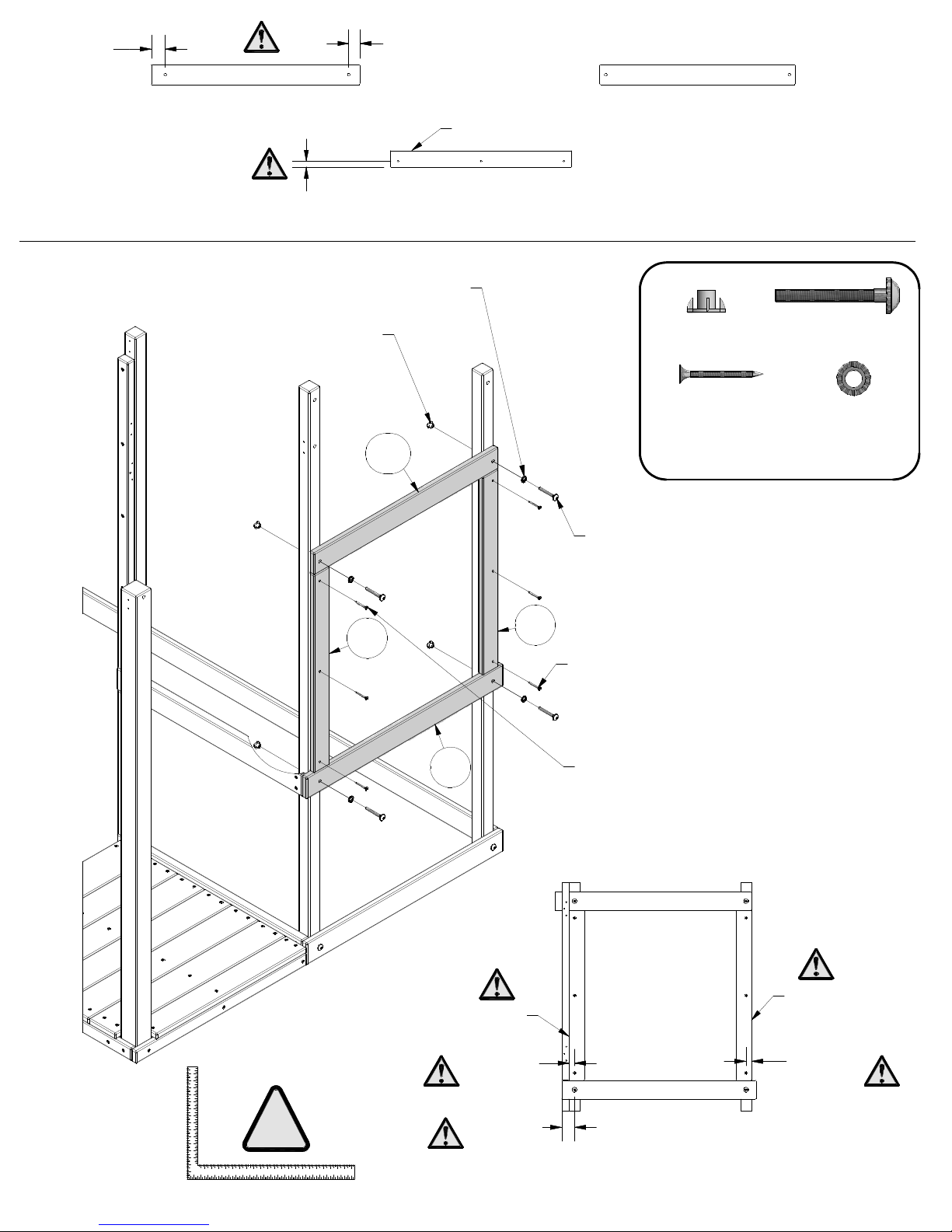

STEP 13:

N3 - RAIL - W4L11698

(1)

5/8"x2 3/8"x24 7/8" (16x60x632)

11/16 in [18 mm]

WASHER LOCK EXT 6x15

T-NUT 1/4

(4 PLCS)

1 5/16 in [34 mm]

INSIDE

N6 - RAIL - W4L11701

(2)

5/8"x2"x21 5/8" (16x50x550)

(4 PLCS)

N15

N15 - RAIL - W4L11887

(1)

5/8"x2 3/8"x23 1/4" (16x60x592)

TOP

T-NUT 1/4

(4)

H100072

SCREW PFH

(6)

8x1-1/2" H100086

(4)

BOLT WH 1/4x2 H100160

WASHER LOCK EXT

(4)

6x15 H100138

RIGHT

FRONT

FLUSH

BOLT WH 1/4x2 (4 PLCS)

SCREW PFH 8X1 1/2 (3 PLCS)

FLUSH

LEFT

151

1 1

0 1

1234567

987654321

10111213141

1716151413121

11/16 in [18 mm]

1 5/8 in [42 mm]

2221201

222

202

Page 45

FRONT

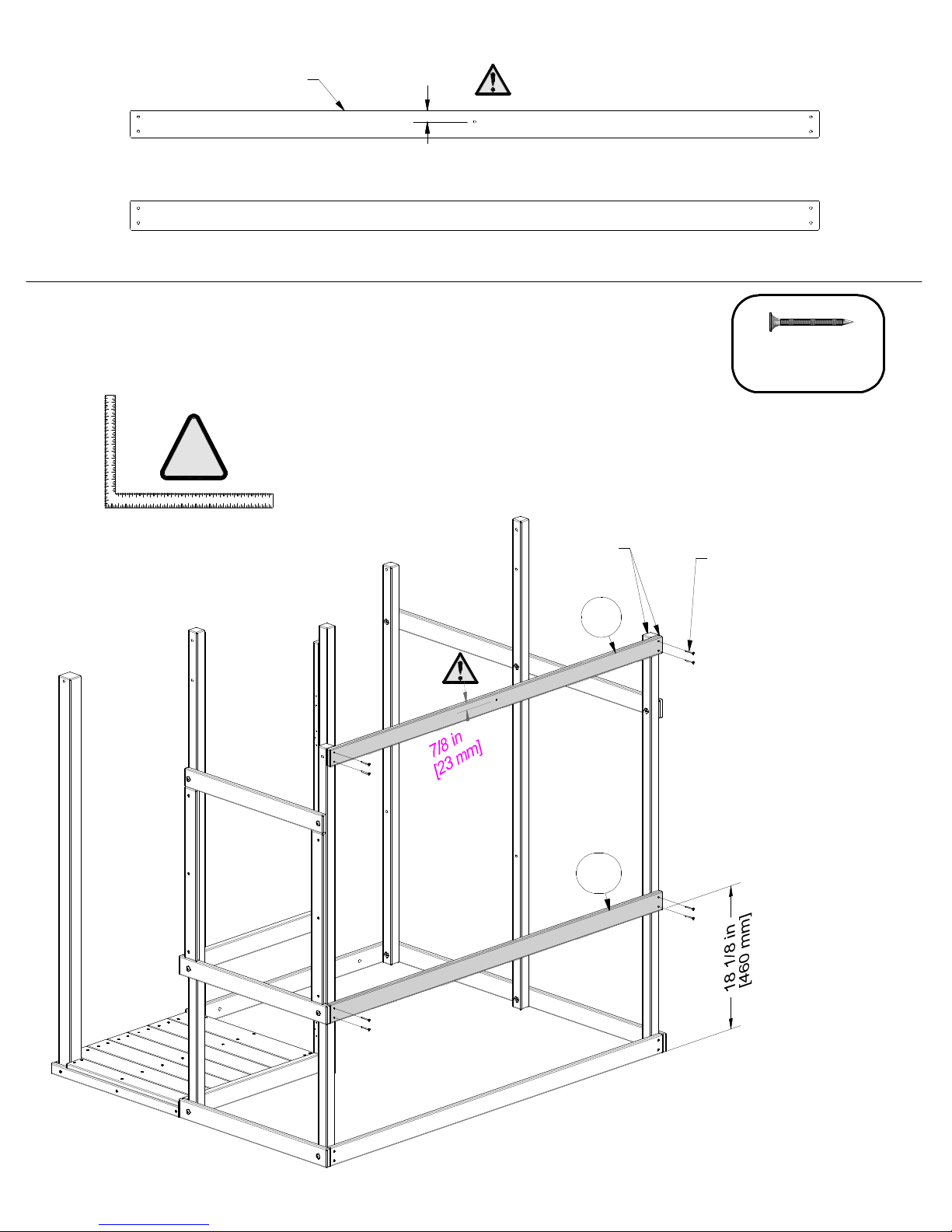

STEP 14:

513 1

1 1

0 1

1234567

891

8765432

109

111213141

13121

161718192021222

7/8 in

TOP

(1)

2221201

17161

[23 mm]

N1 - RAIL - W4L11696 5/8"x2 1/8"x56 1/8" (16x55x1424)

N18 - RAIL - W4L12009 5/8"x2 3/8"x56 1/8" (16x60x1424)

SCREW PFH

(8)

8x1-1/2" H100086

FLUSH

N18

SCREW PFH 8X1 1/2 (8 PLCS)

FRONT

RIGHT

Page 46

TOP

(1)

INSIDE

N2 - RAIL - W4L11697 5/8"x2 3/8"x46 1/2" (16x60x1180)

3/4 in [18 mm]

STEP 15:

FLUSH

N6 - RAIL - W4L11701

(2)

5/8"x2"x21 5/8" (16x50x550)

3/4 in [18 mm]

SCREW PFH 8X1 1/2 (3 PLCS)

FLUSH

N19 - RAIL - W4L12011

(1)

5/8"x2 3/8"x21 5/8" (16x60x550)

(3)

T-NUT 1/4 H100072

(3)

WASHER LOCK EXT

(3)

6x15 H100138

1 1

0 1

1234567

891

BOLT WH 1/4x2 H100160

SCREW PFH

(9)

8x1-1/2" H100086

8765432

109

111213141

16171

2221201

17161

2021222

RIGHT

N19

REAR

SCREW PFH 8X1 1/2 (3 PLCS)

T-NUT 1/4

(3 PLCS)

WASHER LOCK EXT 6x15

(3 PLCS)

BOLT WH 1/4x2

(3 PLCS)

Page 47

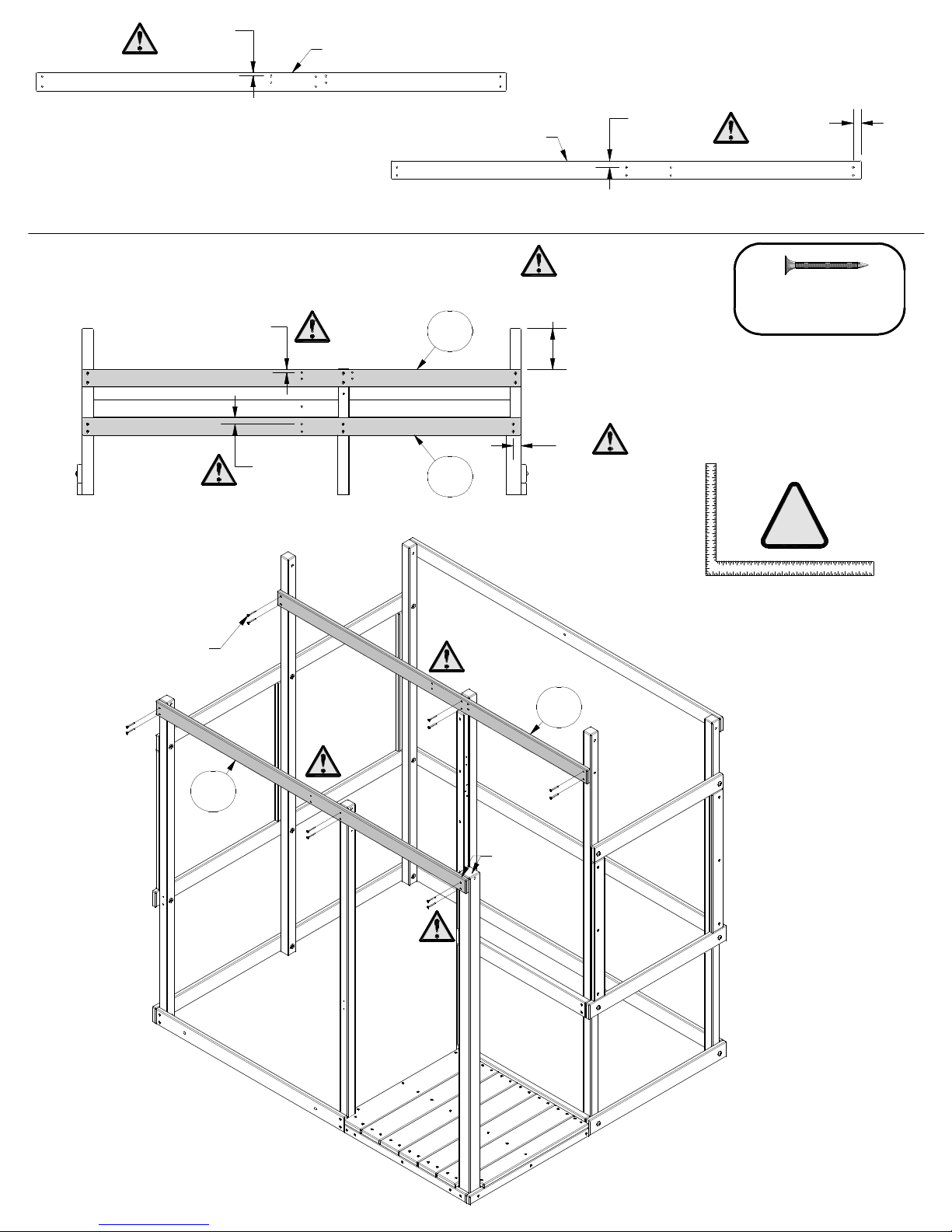

STEP 16:

3/8 in [10 mm]

N12 - RAIL - W4L11881

(1)

5/8"x2 1/8"x56 1/8" (16x55x1424)

TOP

FRONT

13/16 in

TOP

N13 - RAIL - W4L11882

(1)

5/8"x2 1/8"x56 1/8" (16x55x1424)

[20 mm]

1 in [25 mm]

FRONT

SCREW PFH 8X1 1/2

(12 PLCS)

3/8 in [10 mm]

13/16 in [20 mm]

N12

N13

5 1/4 in [133 mm]

FRONT

1 in [25 mm]

N12

SCREW PFH

(12)

8x1-1/2" H100086

1 1

0 1

12345678910111213141516

22212

191

16151413121110987654321

2021222

N13

LEFT

FLUSH

FRONT

Page 48

OUTSIDE

11/16 in [18 mm]

TOP

(2)

STEP 17:

N7 - RAIL - W4L11702 5/8"x2 3/8"x27 3/4" (16x60x705)

FLUSH

5/8 in [16 mm]

N17

(1)

11/16 in [18 mm]

FLUSH

N17 - RAIL - W4L12007 5/8"x2 3/8"x34" (16x60x865)

SCREW PFH

(12)

8x1-1/2" H100086

SCREW PFH 8X1 1/2 (6 PLCS)

HOLES UP

N17

LEFT

REAR

SCREW PFH 8X1 1/2 (6 PLCS)

151

1 1

0 1

12345678910111213141516

22212019181716151413121110987654321

2021222

Page 49

TOP

11/16 in [18 mm]

LEFT

1/2 in [13 mm]

Q1 - ROOF TRUSS - W4L11880

(1)

1"x4 3/8"x22 3/4" (24x112x578)

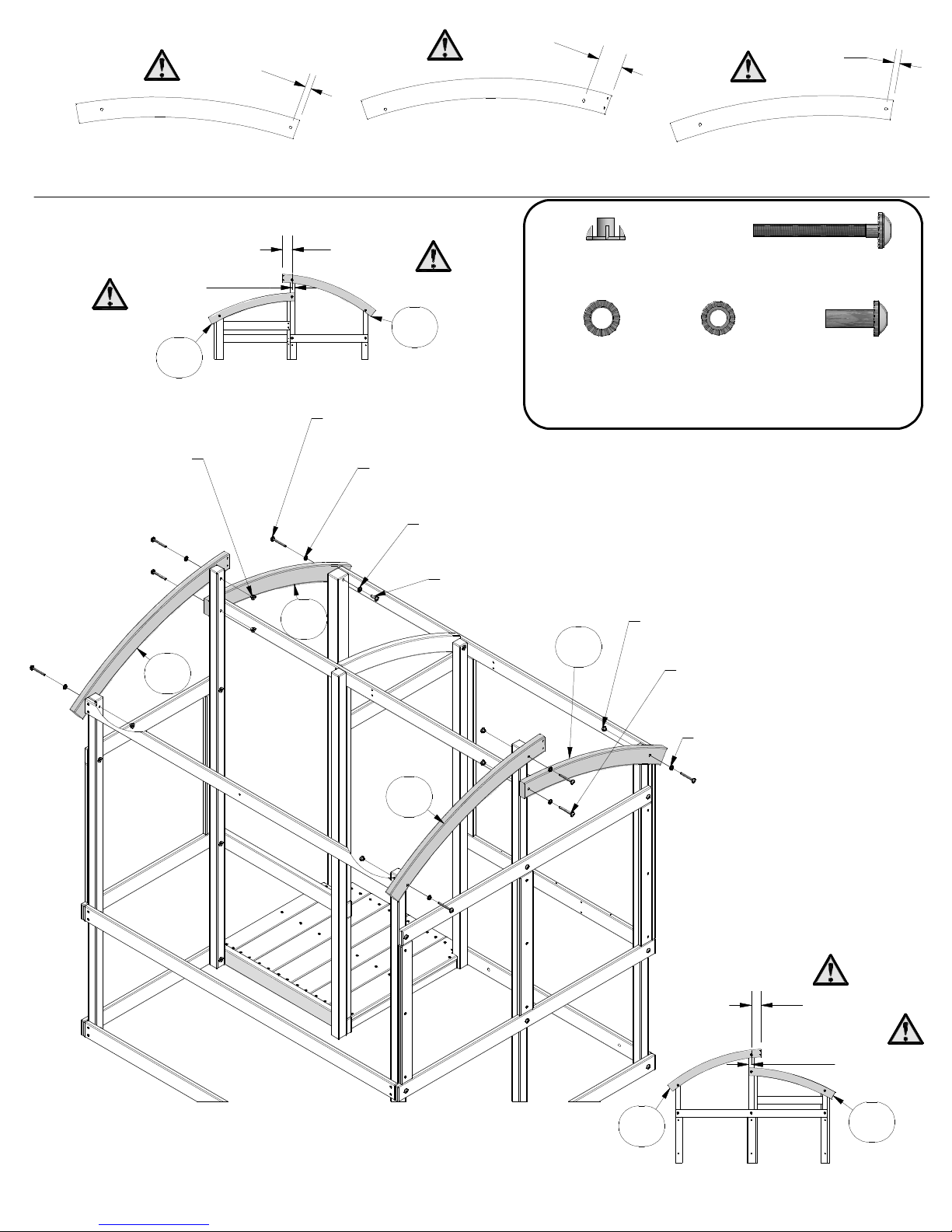

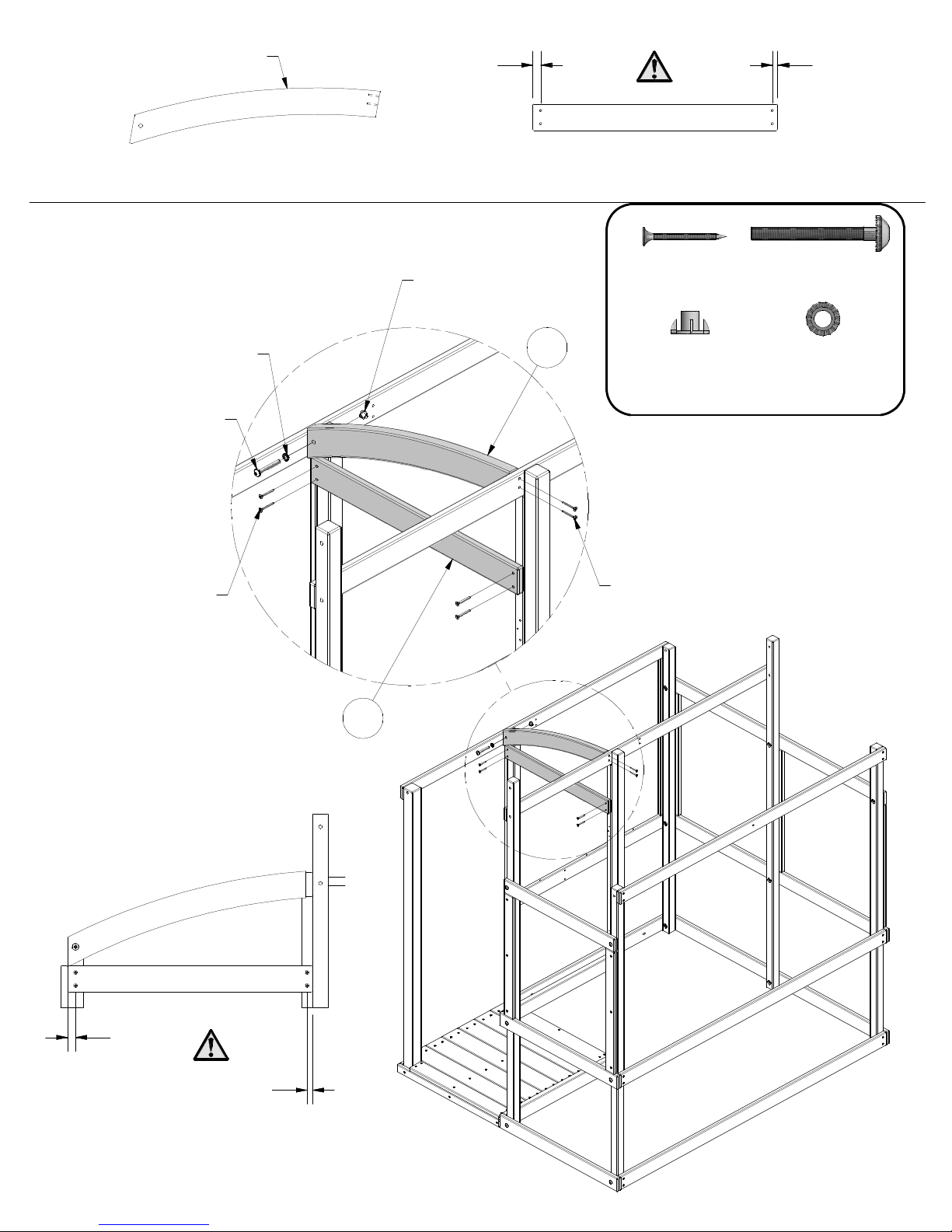

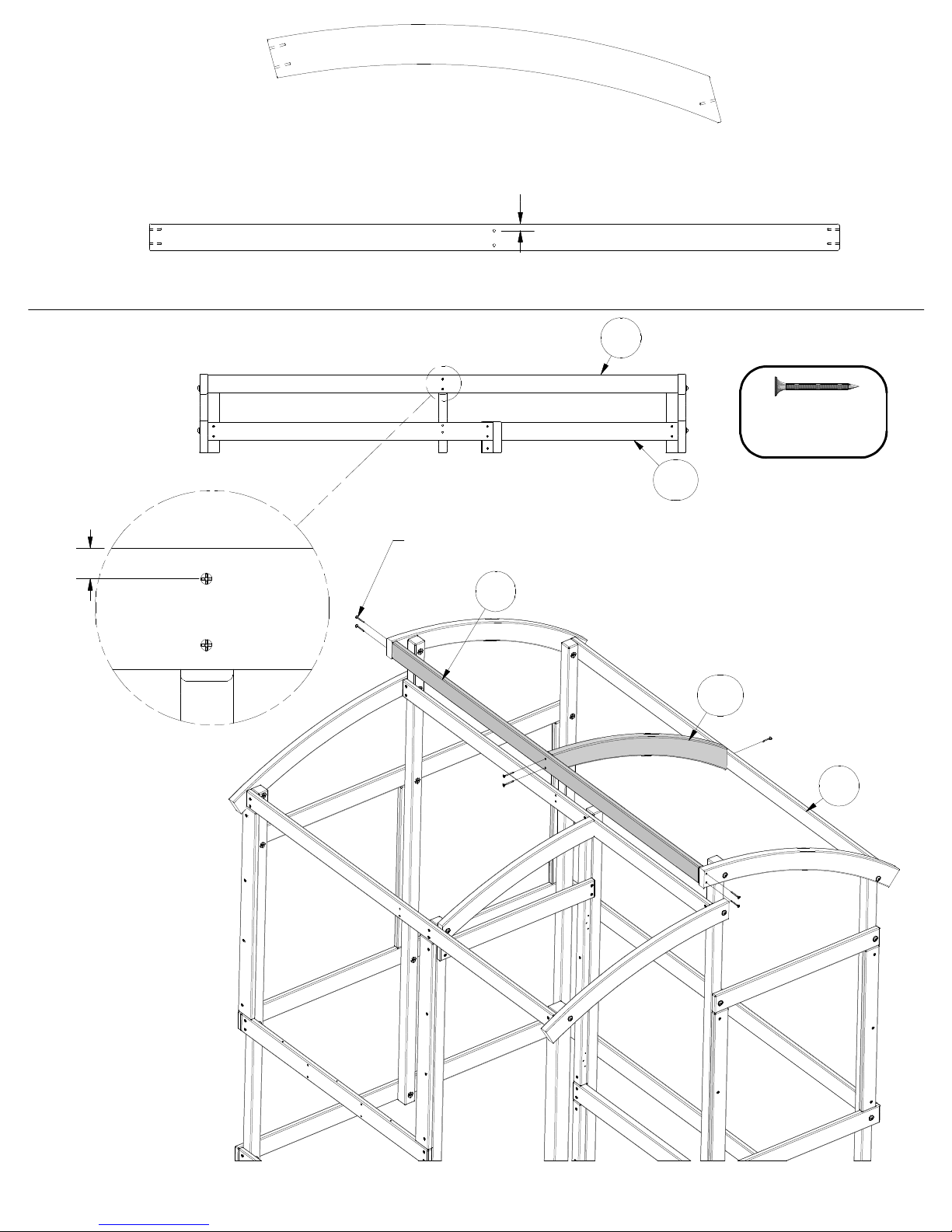

STEP 18:

WASHER LOCK EXT 6x15

(1 PLC)

BOLT WH 1/4x2 1/4

(1 PLC)

SCREW PFH 8X1 1/2

(2 PLCS)

LEFT

T-NUT 1/4 (1 PLC)

N8 - RAIL - W4L11703

(1)

5/8"x2 3/8"x21 7/8" (16x60x556)

SCREW PFH

(6)

8x1-1/2" H100086

(1)

T-NUT 1/4 H100072

SCREW PFH 8X1 1/2 (4 PLCS)

(1)

BOLT WH 1/4x2-1/4 H100566

WASHER LOCK EXT 6x15 H100138

11/16 in [18 mm]

LEFT

1/2 in [13 mm]

FRONT

Page 50

G11 - ROOF TRUSS - W4L11862

(1)

1"x4 3/8"x26 3/4" (24x112x680)

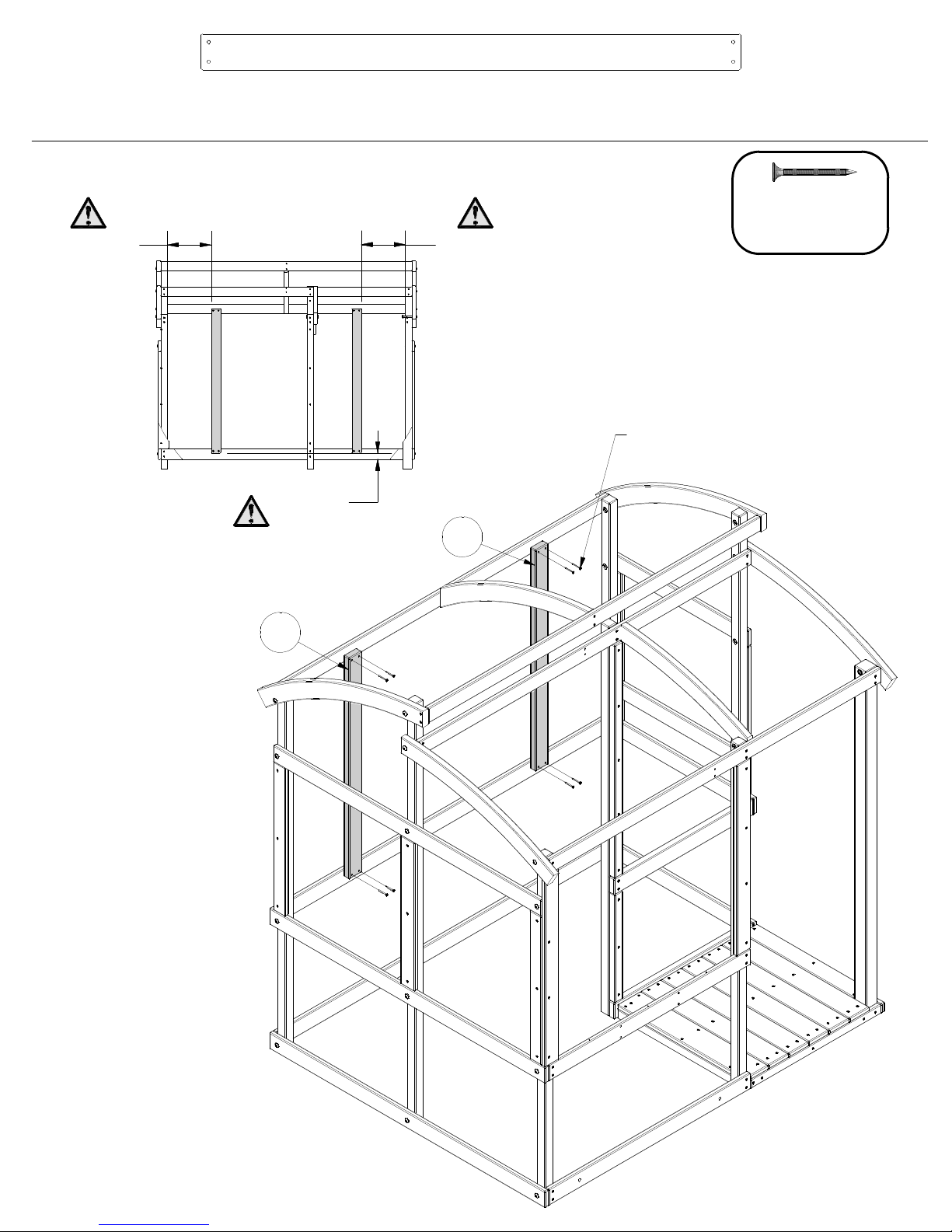

STEP 19:

3/4 in [19 mm]

2 15/16 in [74 mm]

G10 - ROOF TRUSS - W4L11863

(2)

1"x5 1/4"x29 7/8" (24x134x759)

3/4 in [19 mm]

G15 - ROOF TRUSS - W4L11865

(1)

1"x4 3/8"x26 3/4" (24x112x680)

3/4 in [19 mm]

G15

T-NUT 1/4

(3 PLCS)

G10

FRONT

G15

2 15/16 in [74 mm]

G10

BOLT WH 1/4x2 1/4 (4 PLCS)

WASHER LOCK EXT 6x15 (4 PLCS)

WASHER LOCK EXT 8x15 (1 PLC)

NUT BARREL WH 1/4x7/8 (1 PLC)

(7)

(1)

G11

T-NUT 1/4 H100072

WASHER LOCK EXT 8x15 H100139

T-NUT 1/4

(4 PLCS)

(8)

WASHER LOCK EXT 6x15 H100138

(1)

BOLT WH 1/4x2 1/4 (4 PLCS)

BOLT WH 1/4x2-1/4 H100566

NUT BARREL WH 1/4x7/8 H100140

FRONT

G10

REAR

G10

WASHER LOCK EXT 6x15 (4 PLCS)

2 15/16 in [74 mm]

3/4 in [19 mm]

G11

REAR

Page 51

G12 - ROOF TRUSS - W4L11867

(1)

1"x5 1/4"x27 3/8" (24x134x696)

9/16 in [14 mm]

TOP

STEP 20:

9/16 in [14 mm]

N9 - RAIL - W4L11866

(1)

5/8"x2 1/8"x56 1/8" (16x55x1424)

SCREW PFH 8X1 1/2 (7 PLCS)

BOTTOM

N12

G12

SCREW PFH

(7)

8x1-1/2" H100086

Page 52

STEP 21:

9 13/16 in [250 mm]

1 3/8 in [35 mm]

J2 - RAIL - W4L11705

(2)

1"x2 1/8"x32 1/4" (24x54x818)

9 13/16 in [250 mm]

SCREW PFH

(8)

8x1-1/2" H100086

SCREW PFH 8X1 1/2 (8 PLCS)

Page 53

J3 - SEAT BRACE - W4L11996

(1)

1"x2 3/8"x4 3/4" (24x60x120)

STEP 22:

FLUSH

(1)

WP9 - WALL PANEL - W2A02679 1 1/8"x20 1/2x54 3/8" (27x520x1412)

SCREW PFH

(2)

8x1-1/4" H100087

WP9

12 1/16 in [306 mm]

SCREW PFH 8X1 1/4

(2 PLCS)

HOLES UP

Page 54

TOP

STEP 23:

SCREW PFH 8X1 1/2

(6 PLCS)

HOLES UP

(1) WALL PANEL FROM STEP 22

PANEL FROM STEP 22

WITH A J3 INSTALLED IN STEP 22

SCREW PFH

(6)

8x1-1/2" H100086

SCREW PFH

(3)

8x1-1/8" H100088

FLUSH

SCREW PFH 8X1 1/8 (3 PLCS)

Page 55

STEP 24:

5/8 in [16 mm]

WP11 - WALL PANEL - W2A02681

(1)

1 1/8"x18 1/8"x20 1/2 (27x484x517)

5/8 in [16 mm]

J3 - SEAT BRACE - W4L11996

(2)

1"x2 3/8"x4 3/4" (24x60x120)

SCREW PFH

(4)

8x1-1/8" H100088

SCREW PFH 8X1 1/8

(4 PLCS)

12 1/16 in [306 mm]

WP11

HOLES UP

Page 56

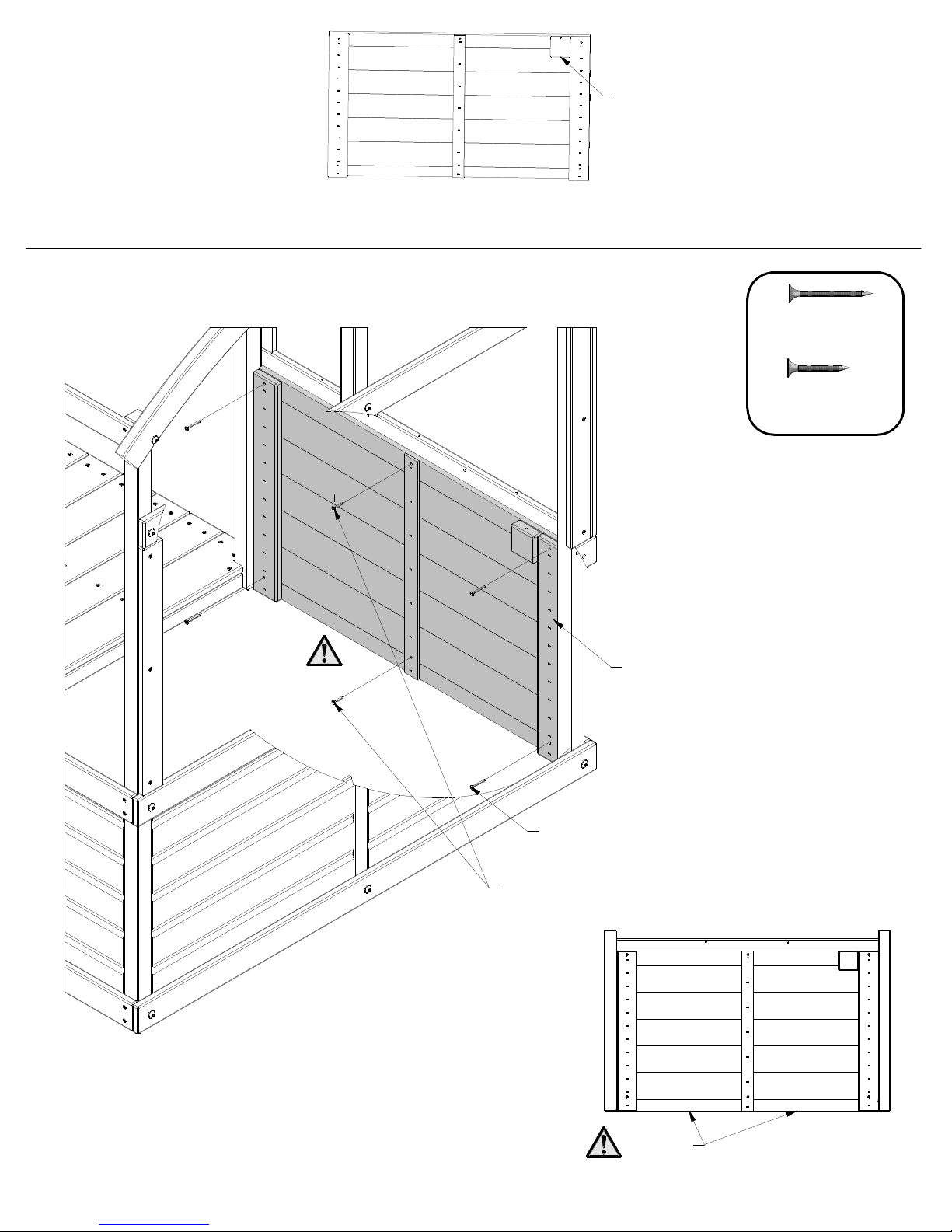

STEP 25:

FLUSH

WALL PANEL FROM STEP 24

(1)

WITH J3'S INSTALLED

CENTERED IN OPENING

SCREW PFH

(4)

8x1-1/2" H100086

SCREW PFH

(2)

8x1-1/8" H100088

WALL PANEL

FROM STEP 24

SCREW PFH 8X1 1/2

(4 PLCS)

SCREW PFH 8X1 1/8 (2 PLCS)

Page 57

REAR

WP3 - WALL PANEL - W2A02673

(1)

1 1/8"x18 1/8"x50 1/4" (27x484x1349)

(1)

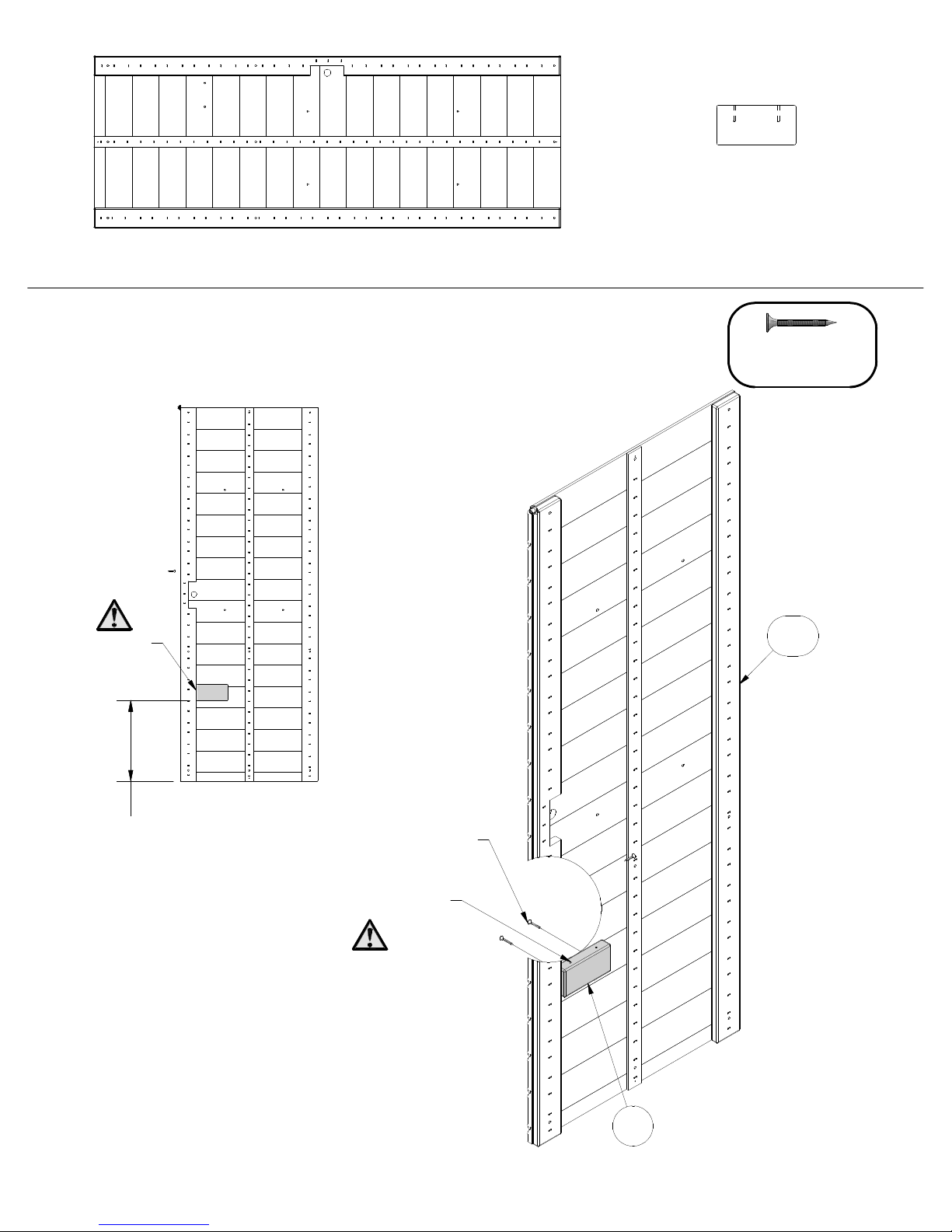

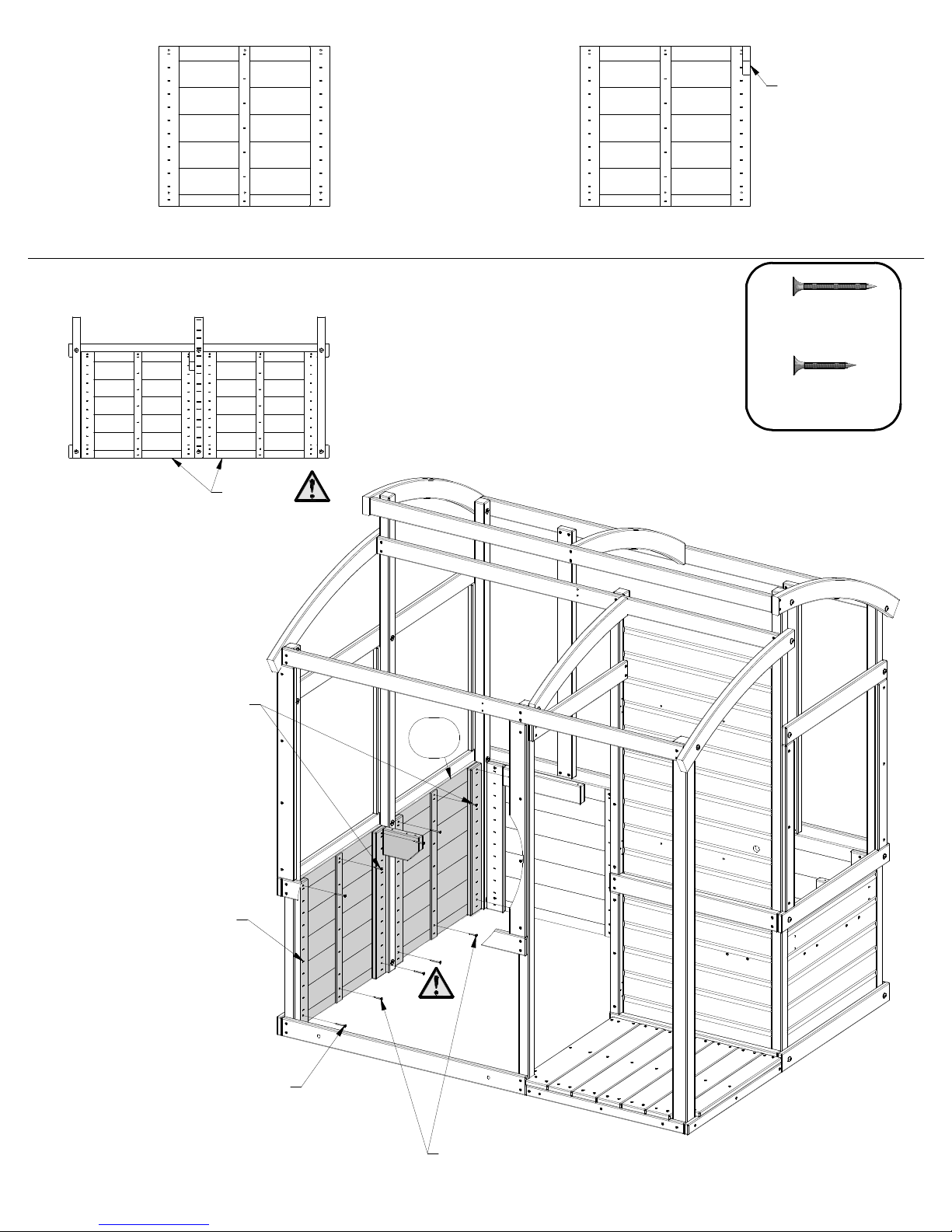

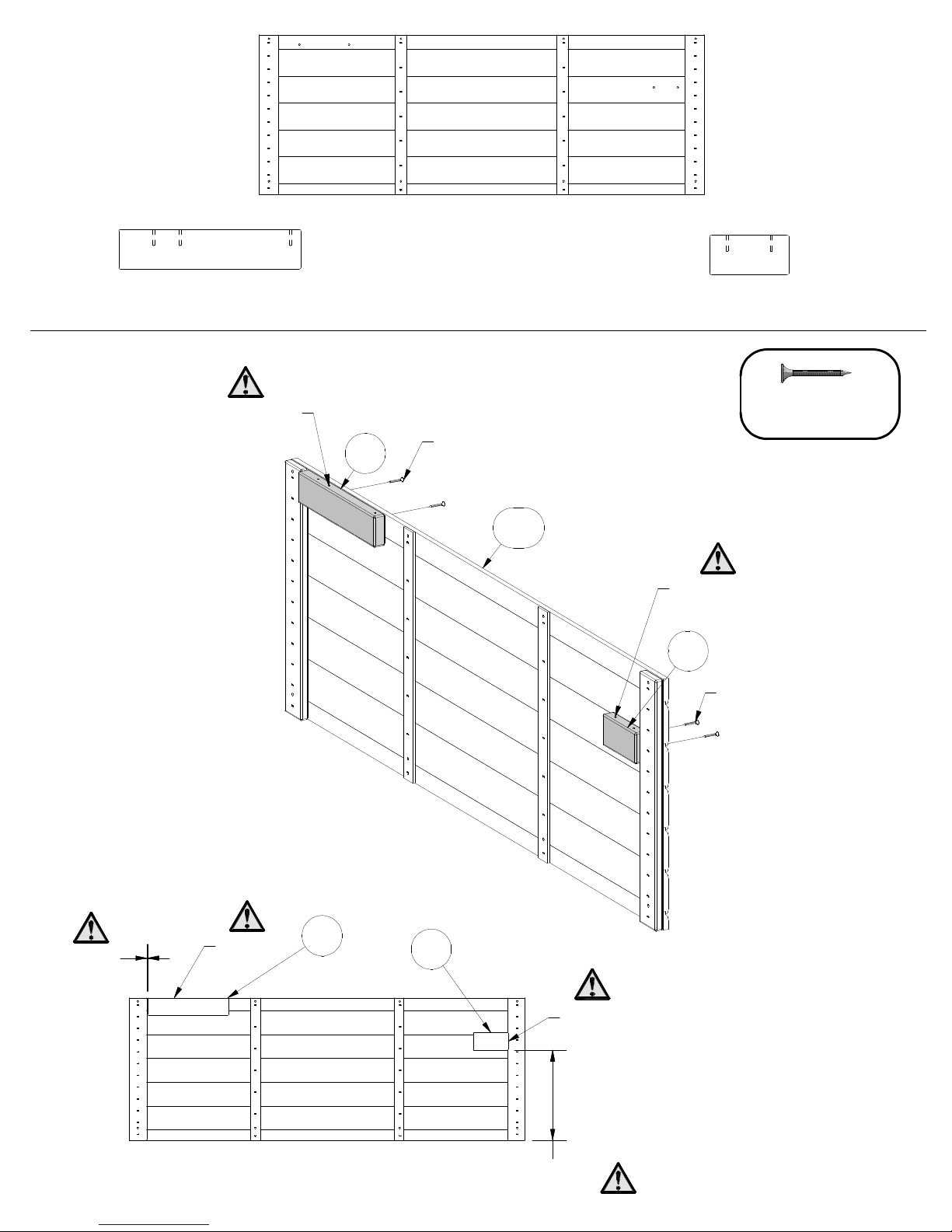

STEP 26:

J4 - COUNTER BRACE - W4L11997 1"x2 3/8"x10 7/8" (24x60x276)

HOLES UP

REAR

SCREW PFH 8X1 1/4 (2 PLCS)

WP3

J3 - SEAT BRACE - W4L11996

(1)

1"x2 3/8"x4 3/4" (24x60x120)

(4)

HOLES UP

SCREW PFH 8X1 1/4 (2 PLCS)

SCREW PFH 8x1-1/4" H100087

1/8 in

FLUSH

[3 mm]

REAR

FRONT

FLUSH

12 1/16 in [306 mm]

Page 58

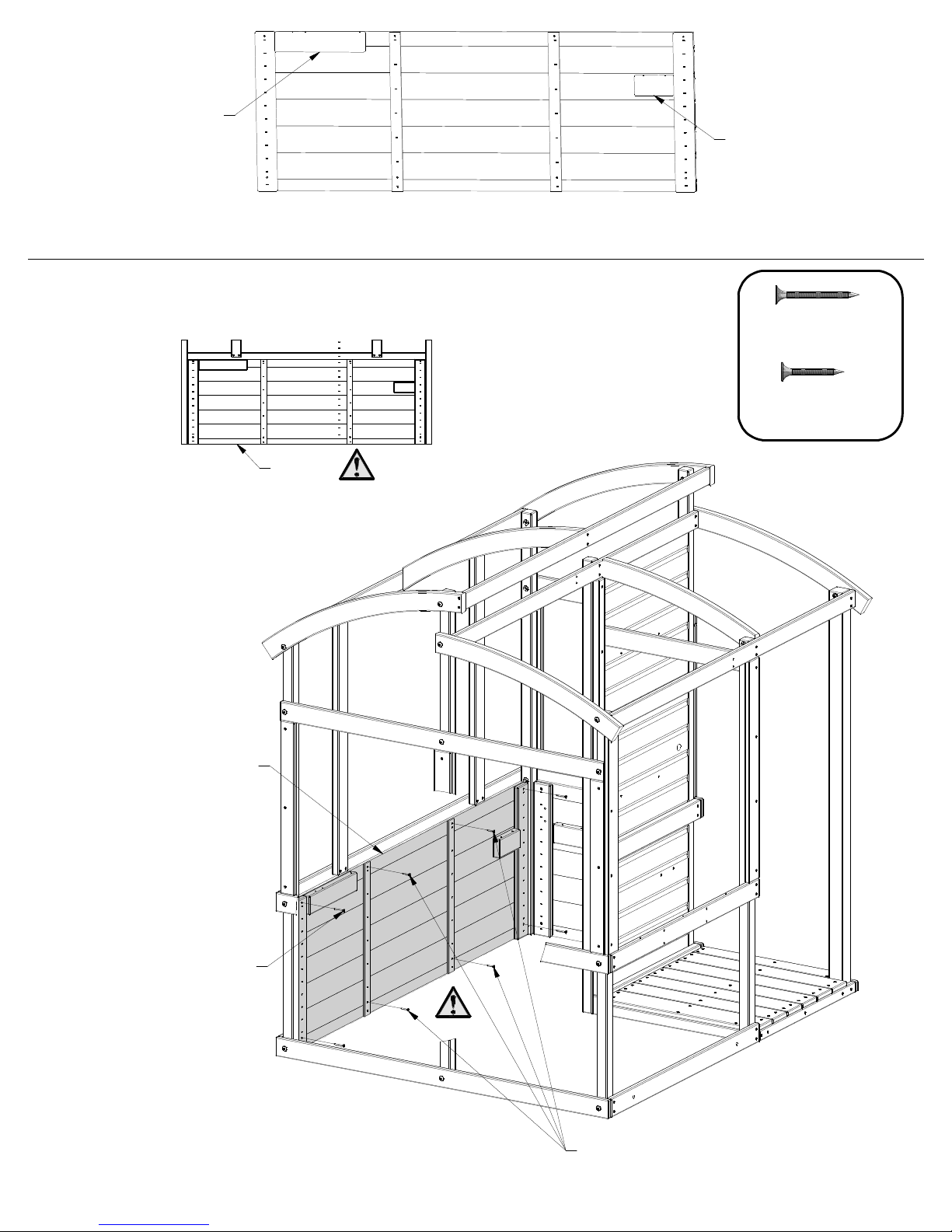

WITH J4 INSTALLED

FROM STEP 26

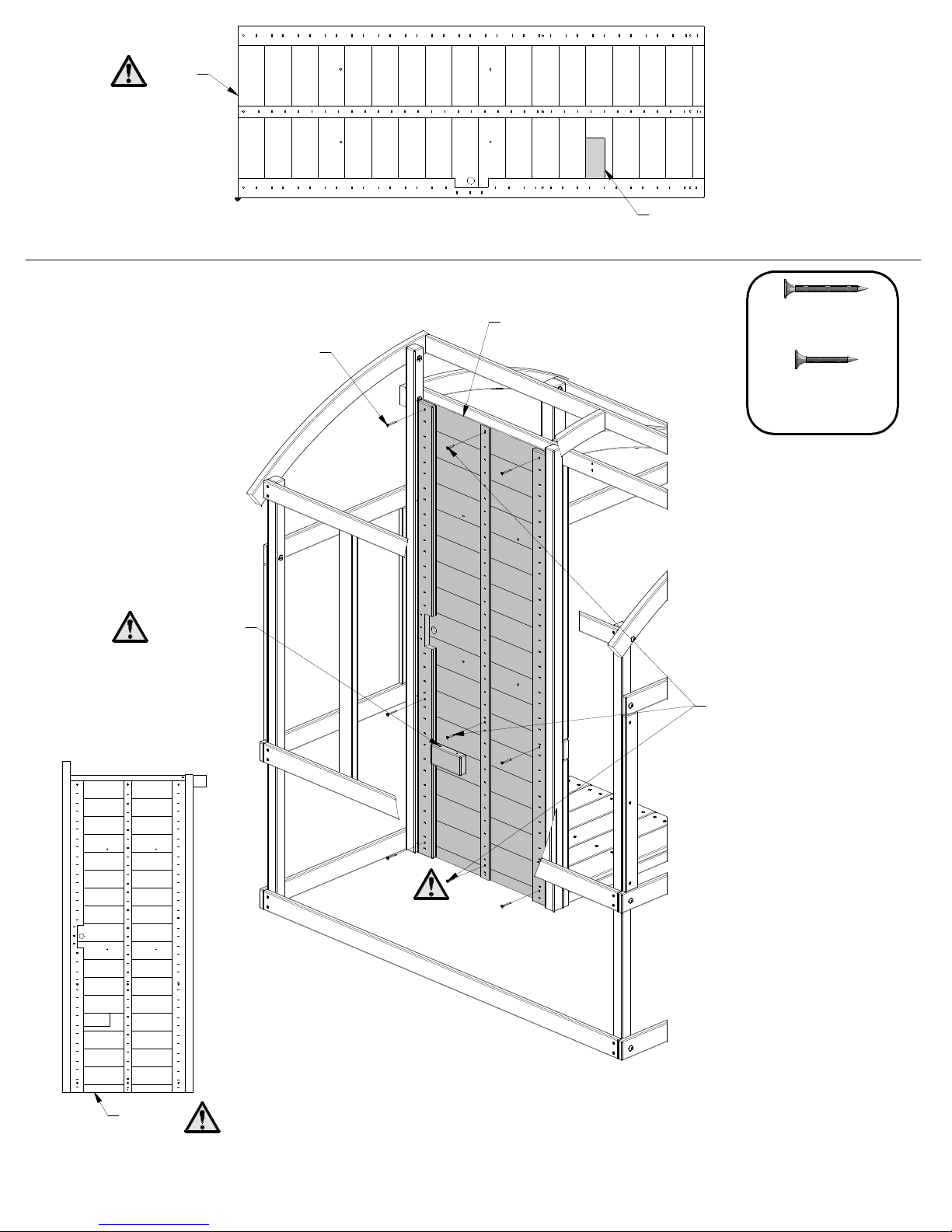

STEP 27:

FLUSH

WALL PANEL FROM STEP 26

(1)

WITH J3 INSTALLED FROM STEP 26

SCREW PFH

(4)

8x1-1/2" H100086

SCREW PFH 8x1-1/8"

(4)

H100088

WALL PANEL

FROM STEP 26

SCREW PFH 8X1 1/2

(4 PLCS)

SCREW PFH 8X1 1/8 (4 PLCS)

Page 59

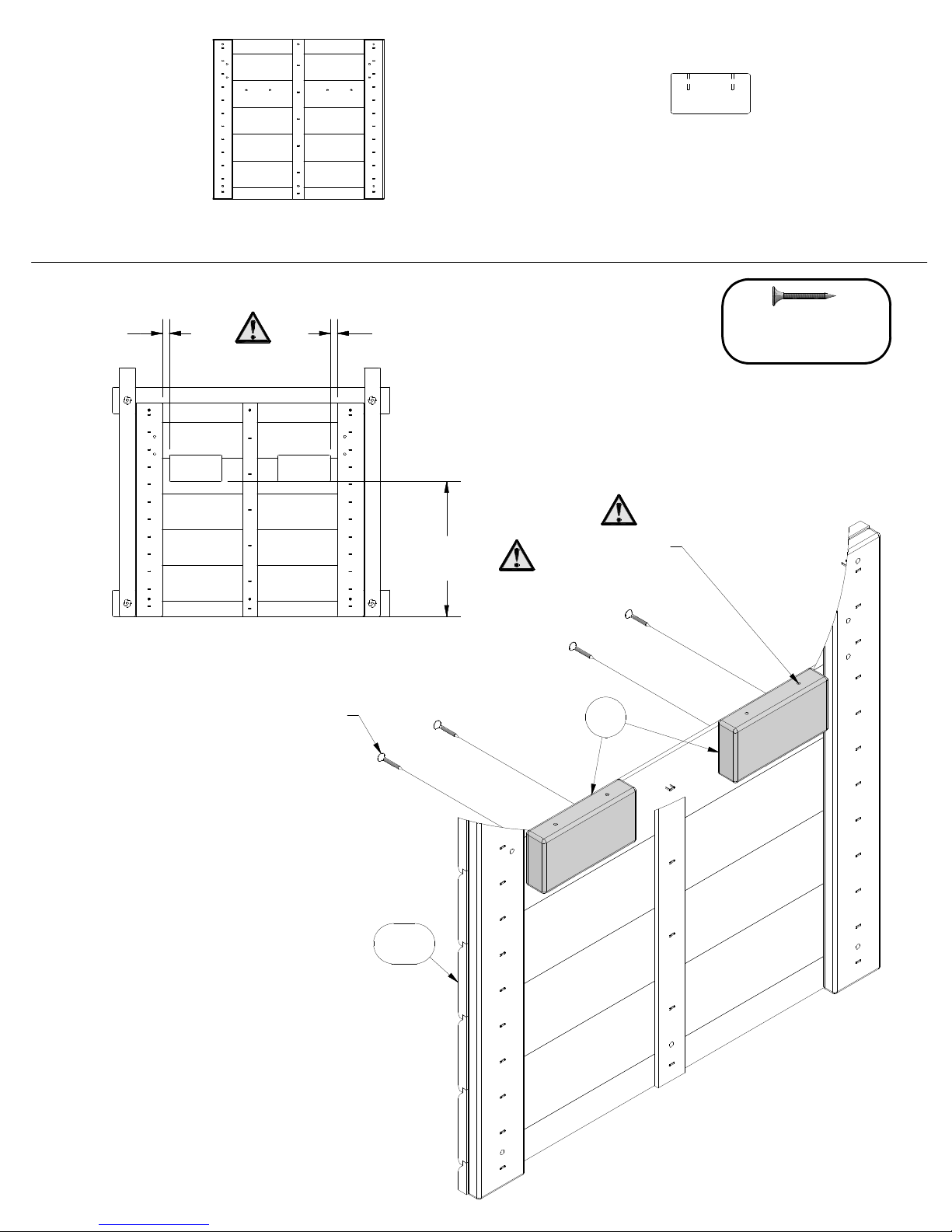

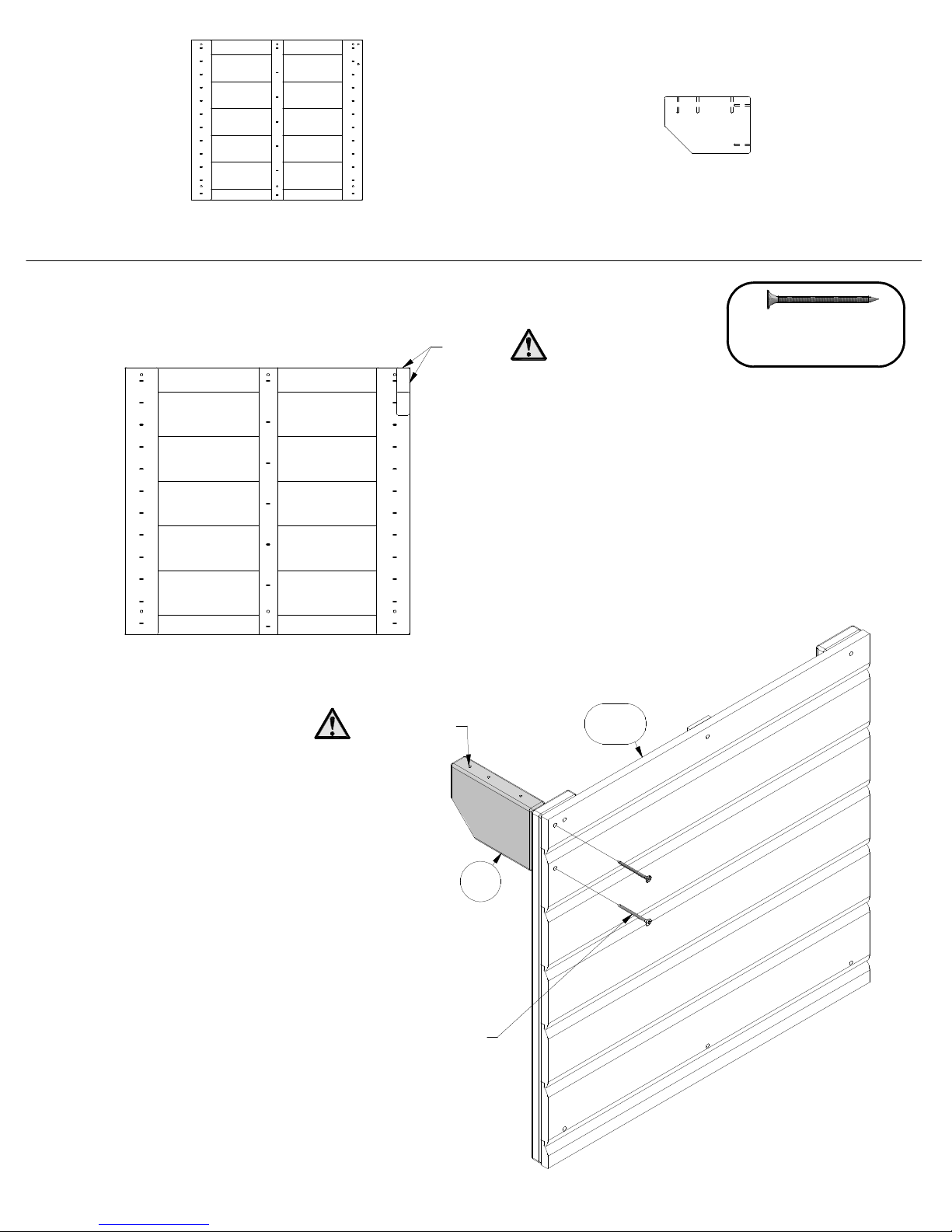

STEP 28:

WP10 - WALL PANEL - W2A02680

(1)

1 1/8"x18 1/8"x20 1/2" (27x484x517)

FLUSH

H1 - COUNTER SUPPORT - W4L11999

(1)

1"x3 3/8"x5 1/8" (24x86x130)

(2)

SCREW PFH 8x2 H100111

HOLES UP

SCREW PFH 8X2

(2 PLCS)

WP10

Page 60

TOP

H1 FROM STEP 28

(1)

STEP 29:

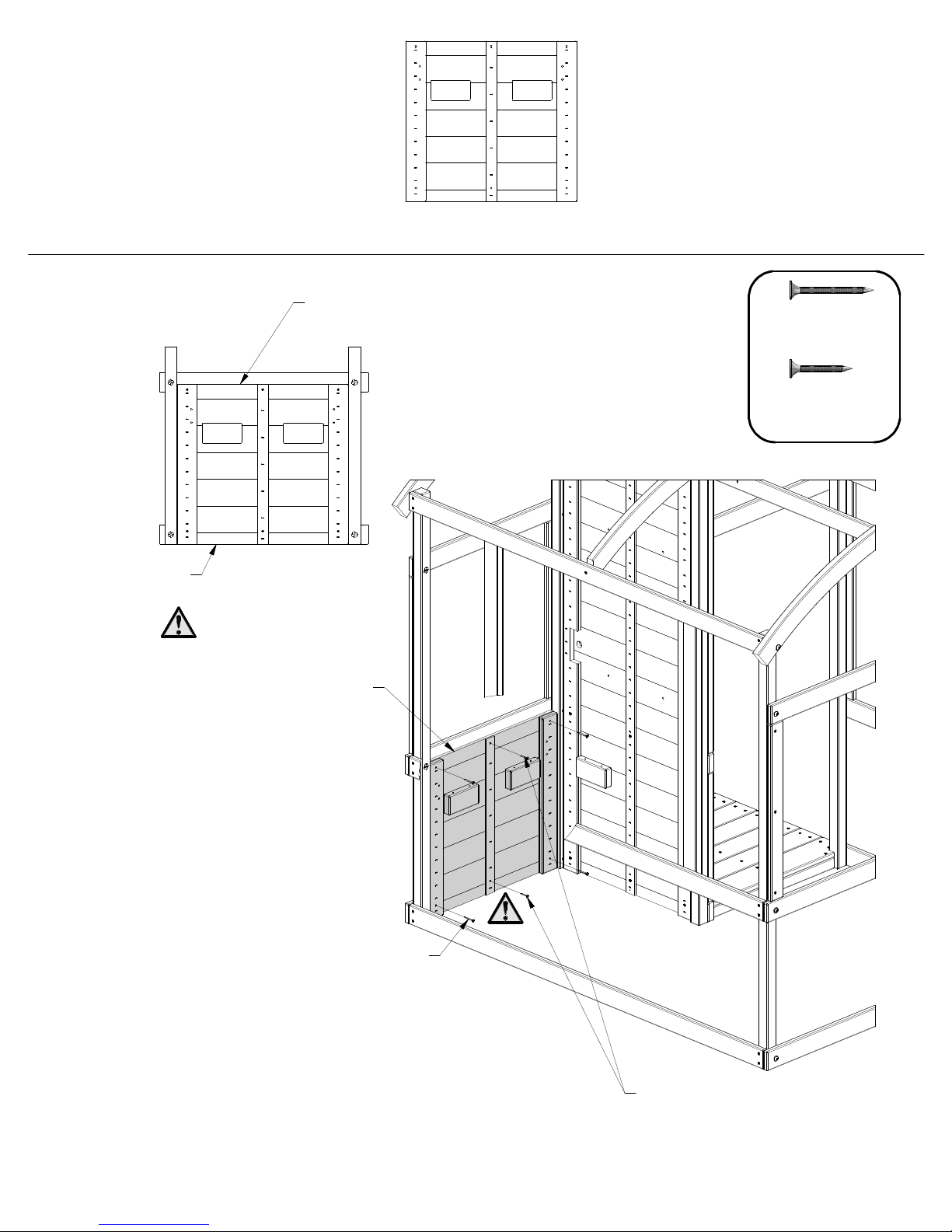

WP1 - WALL PANEL - W2A02671

1 1/8"x18 1/8"x20 1/2" (27x460x520)

FLUSH

WALL PANEL FROM STEP 28

(8)

(4)

SCREW PFH 8x1-1/2" H100086

SCREW PFH 8x1-1/8" H100088

SCREW PFH 8X1 1/8

(2 PLCS)

WALL PANEL

FROM STEP 28

SCREW PFH 8X1 1/2

(8 PLCS)

WP1

LEFT

FRONT

SCREW PFH 8X1 1/8 (2 PLCS)

Page 61

(1)

STEP 30:

J5 - COUNTER BRACE - W4L11998 1"x2 3/8"x2 3/8" (24x60x60)

HOLE UP

WP2 - WALL PANEL - W2A02672

(1)

1 1/8"x18 1/8"x31 1/4" (27x484x790)

SCREW PFH

(2)

8x1-1/4" H100087

SCREW PFH 8X1 1/4

(2 PLCS)

WP2

FLUSH

Page 62

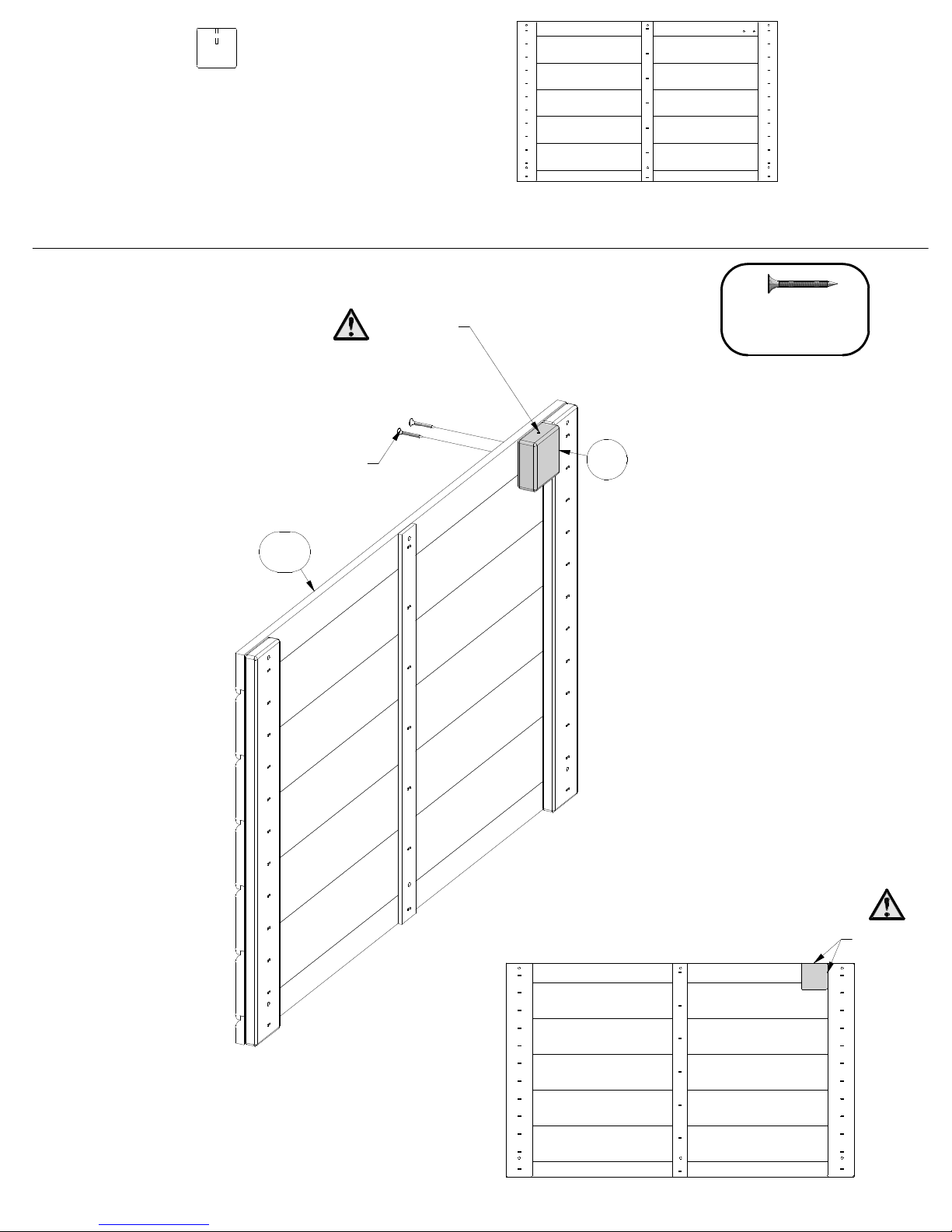

STEP 31:

(1)

WALL PANEL FROM STEP 30

WITH J5 INSTALLED FROM STEP 30

(4)

(2)

SCREW PFH 8x1-1/2" H100086

SCREW PFH 8x1-1/8" H100088

WALL PANEL FROM STEP 30

SCREW PFH 8X1 1/2 (4 PLCS)

SCREW PFH 8X1 1/8 (2 PLCS)

FLUSH

Page 63

TOP

7/8 in [22 mm]

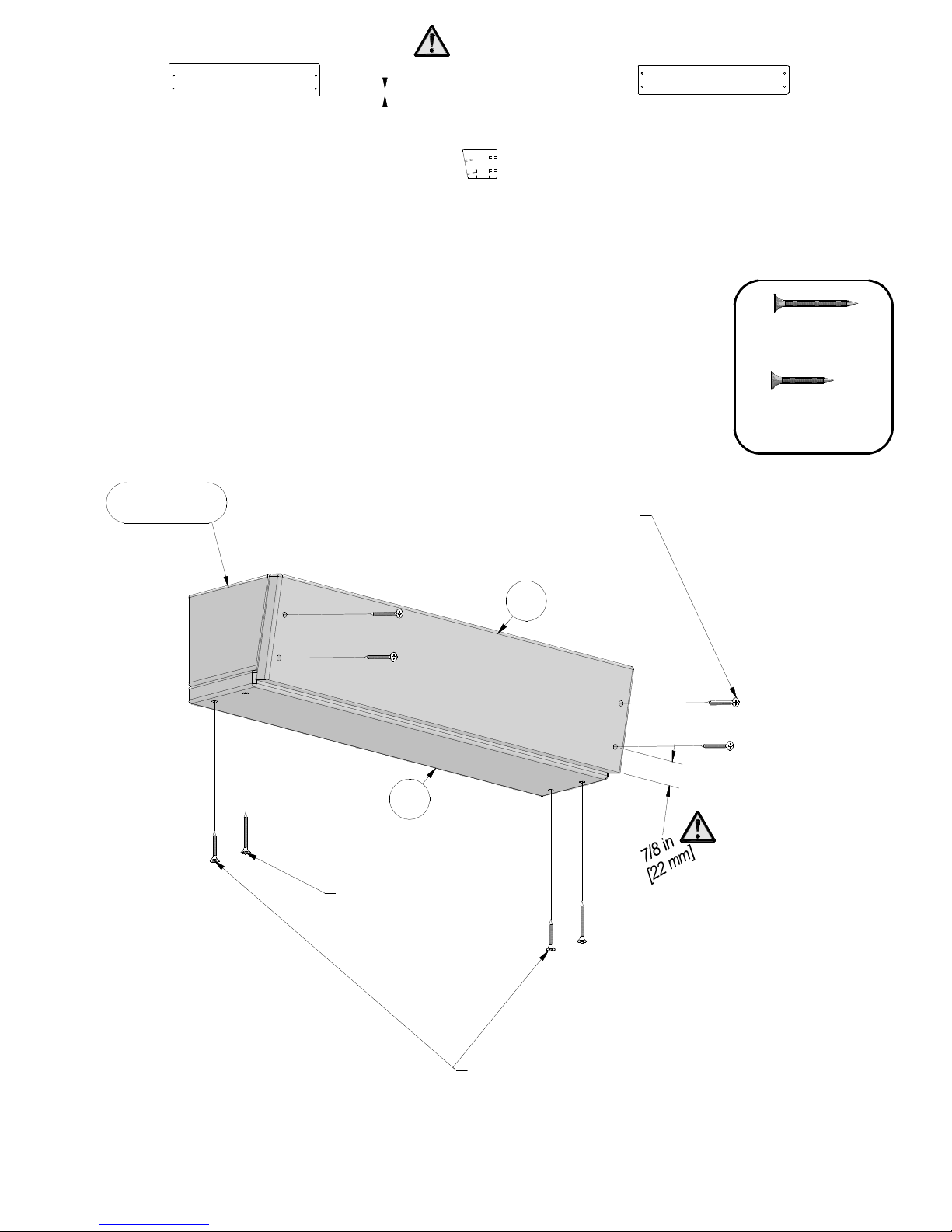

STEP 32:

L3 - FLOWERBOX - W4L12030

(1)

5/8"x3 7/8"x18" (16x98x456)

H2 (2 PLCS)

H2 - FLOWERBOX - W4L12028

(2)

1"x3 3/8"x4 1/8" (24x86x103)

SCREW PFH 8X1 1/2

M8 - FLOWERBOX - W4L12027

(1)

5/8"x3 3/8"x18" (16x86x456)

(4 PLCS)

SCREW PFH

(6)

8x1-1/2" H100086

SCREW PFH

(2)

8x1-1/8" H100088

TOP

SCREW PFH 8X1 1/2 (2 PLCS)

SCREW PFH 8X1 1/8 (2 PLCS)

Page 64

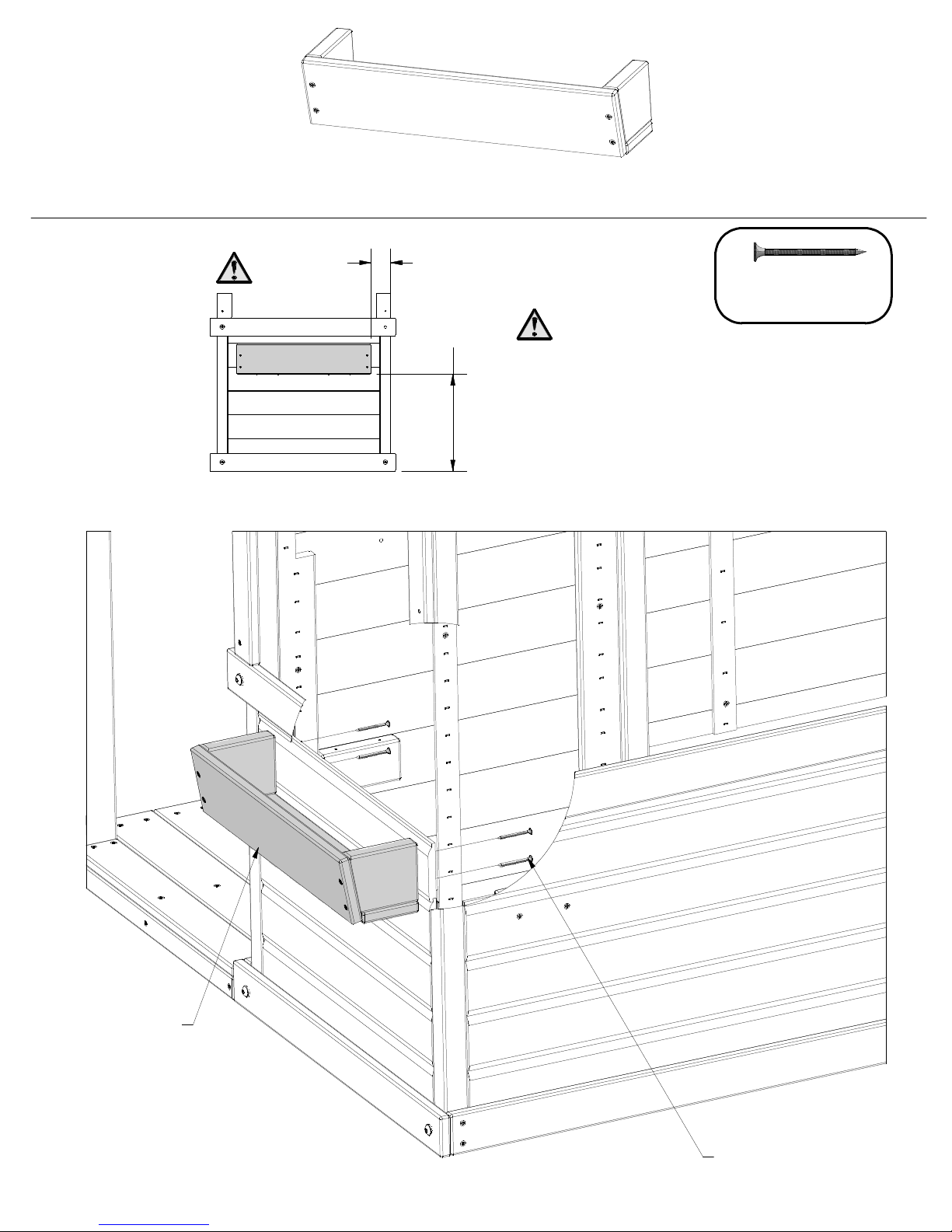

STEP 33:

2 11/16 in [68 mm]

FLOWER BOX

FROM STEP 32

12 15/16 in [329 mm]

SCREW PFH

(4)

8x2 H100111

FLOWER BOX

SCREW PFH 8X2 (4 PLCS)

Page 65

STEP 34:

WP4 - WALL PANEL - W2A02674

(1)

1 1/8"x9 3/4"x19 1/2" (27x248x493)

SCREW PFH

(4)

8x1-1/2" H100086

SCREW PFH

(2)

8x1-1/8" H100088

9/16 in [14 mm]

SCREW PFH 8X1 1/2

(4 PLCS)

WP4

SCREW PFH 8X1 1/8

(2 PLCS)

Page 66

STEP 35:

SCREW PFH 8X1 1/2

(2 PLCS)

G14 - ROOF TRUSS - W4L11883

(1)

1"x4 3/8"x22 3/4" (24x112x578)

G14

SCREW PFH

(4)

8x1-1/2" H100086

SCREW PFH 8X1 1/2 (2 PLCS)

LEFT

FRONT

Page 67

(1)

WP7 - WALL PANEL - W2A02677

1 1/8"x18 3/4"x20 1/2" (27x467x517)

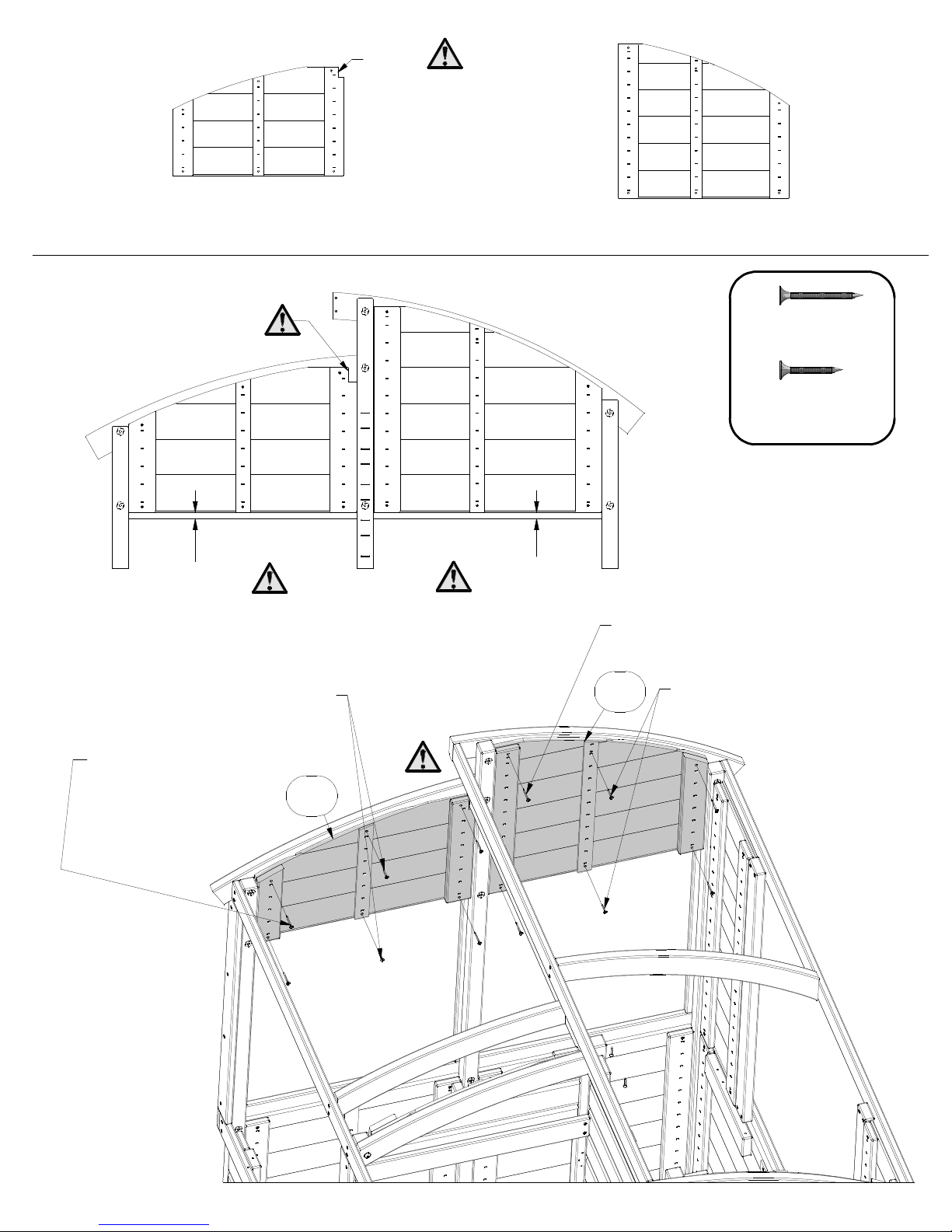

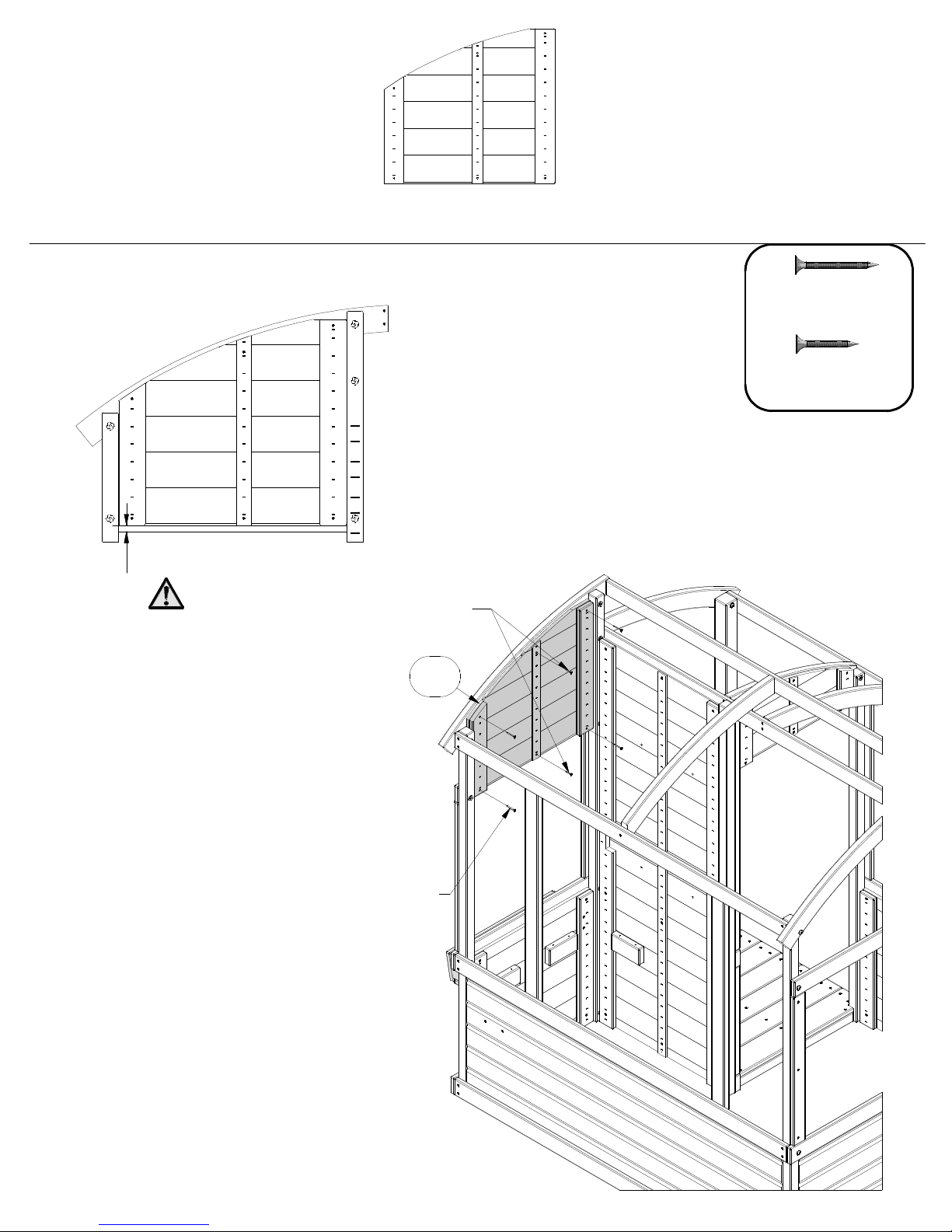

STEP 36:

9/16 in [14 mm]

SCREW PFH 8X1 1/8

(2 PLCS)

WP7

SCREW PFH

(4)

8x1-1/2" H100086

SCREW PFH

(2)

8x1-1/8" H100088

SCREW PFH 8X1 1/2

(4 PLCS)

Page 68

2 1/16 in [53 mm]

(1)

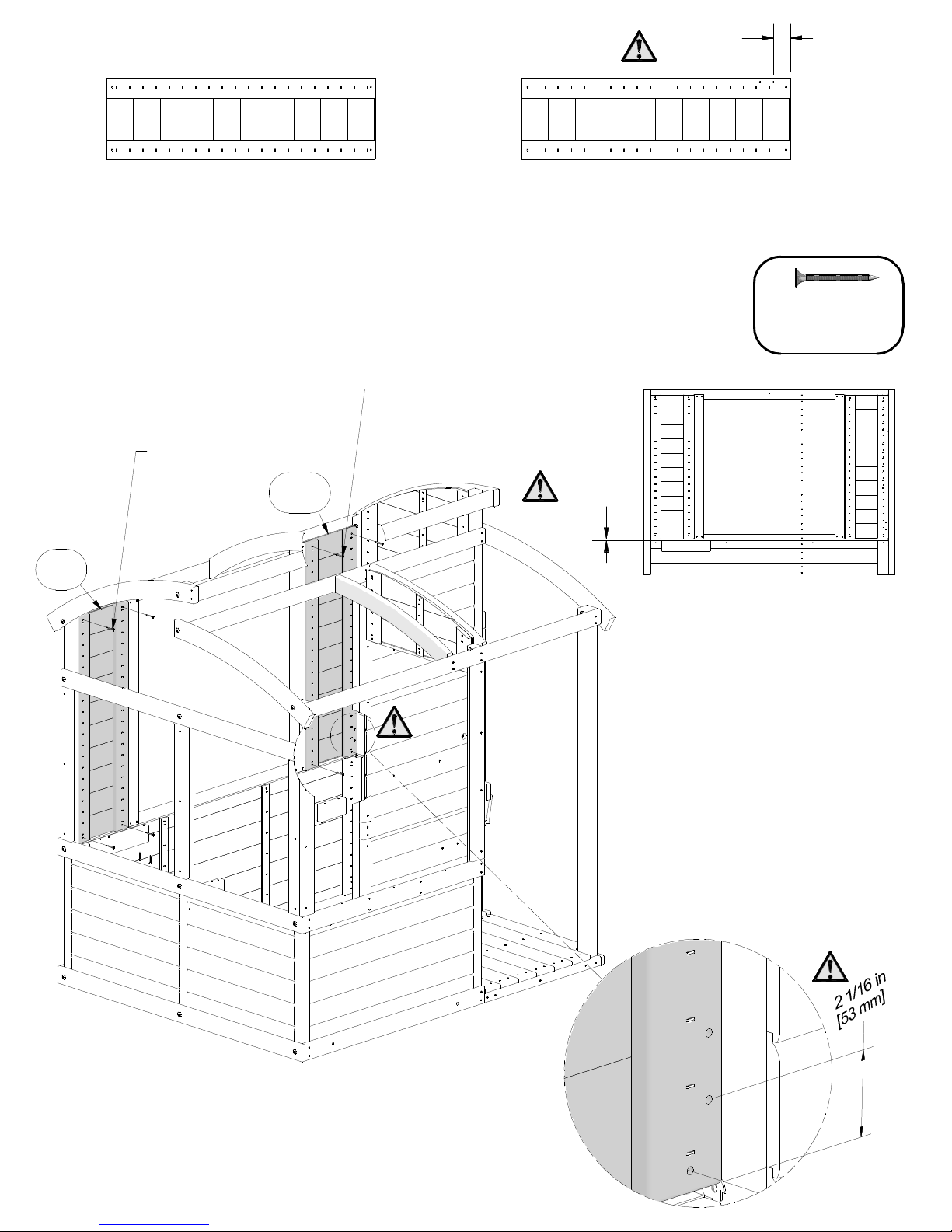

STEP 37:

WP8

WP8 - WALL PANEL - W2A02678

1 1/8"x9 7/8"x32 1/8" (27x247x815)

SCREW PFH 8X1 1/2 (4 PLCS)

WP12

WP12 - WALL PANEL - W2A02684

(1)

1 1/8"x9 7/8"x32 1/8" (27x247x815)

7/16 in [11 mm]

SCREW PFH

(8)

8x1-1/2" H100086

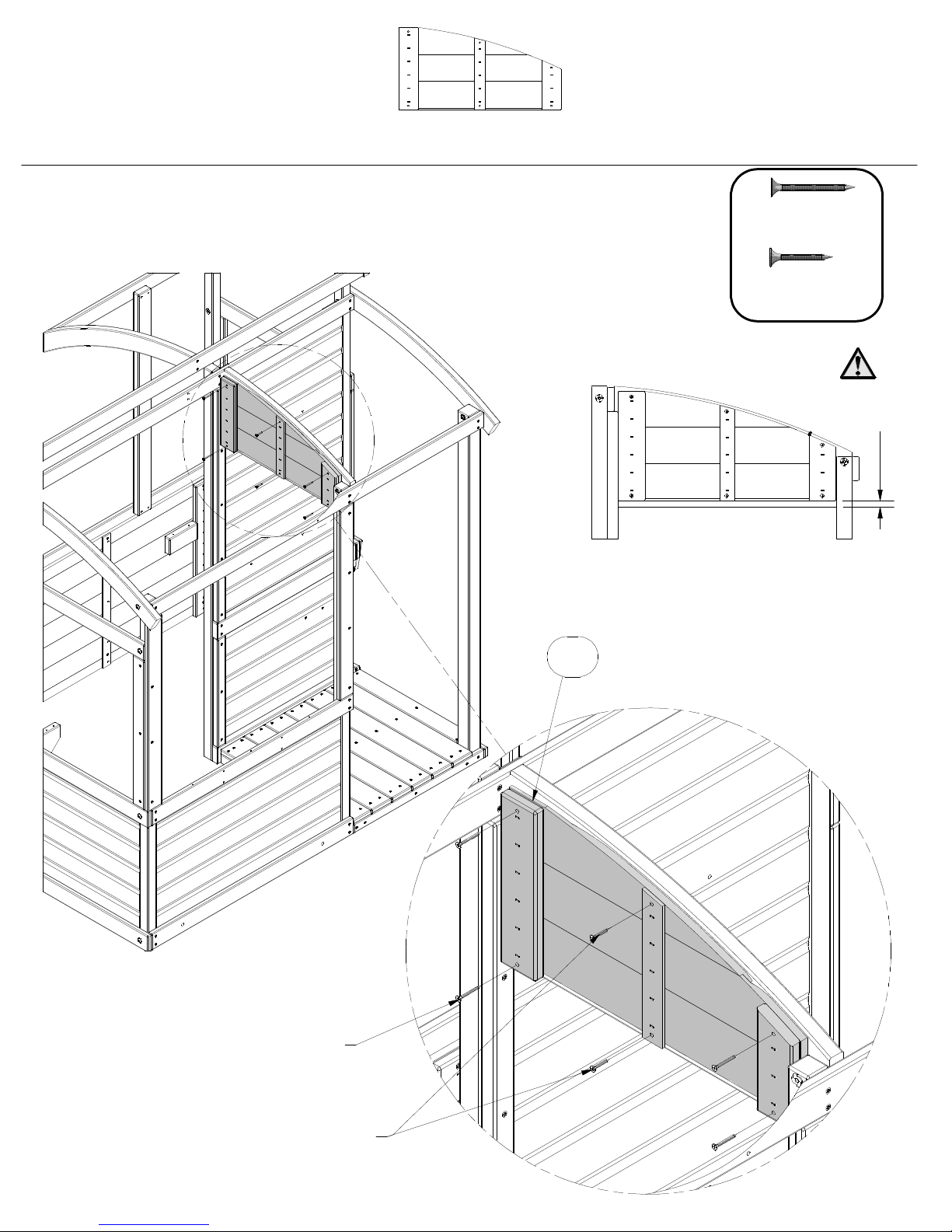

Page 69

(1)

STEP 38:

NOTE CUTOUT

WP5 - WALL PANEL - W2A02675

1 1/8"x13"x20 1/2" (27x329x517)

WP6 - WALL PANEL - W2A02676

(1)

1 1/8"x18 3/4"x20 1/2" (27x467x517)

(8)

SCREW PFH

(4)

8x1-1/8" H100088

SCREW PFH 8x1-1/2" H100086

9/16 in [14 mm]

SCREW PFH 8X1 1/8

(2 PLCS)

SCREW PFH 8X1 1/2 (4 PLCS)

WP5

9/16 in [14 mm]

SCREW PFH 8X1 1/2 (4 PLCS)

WP6

SCREW PFH 8X1 1/8 (2 PLCS)

Page 70

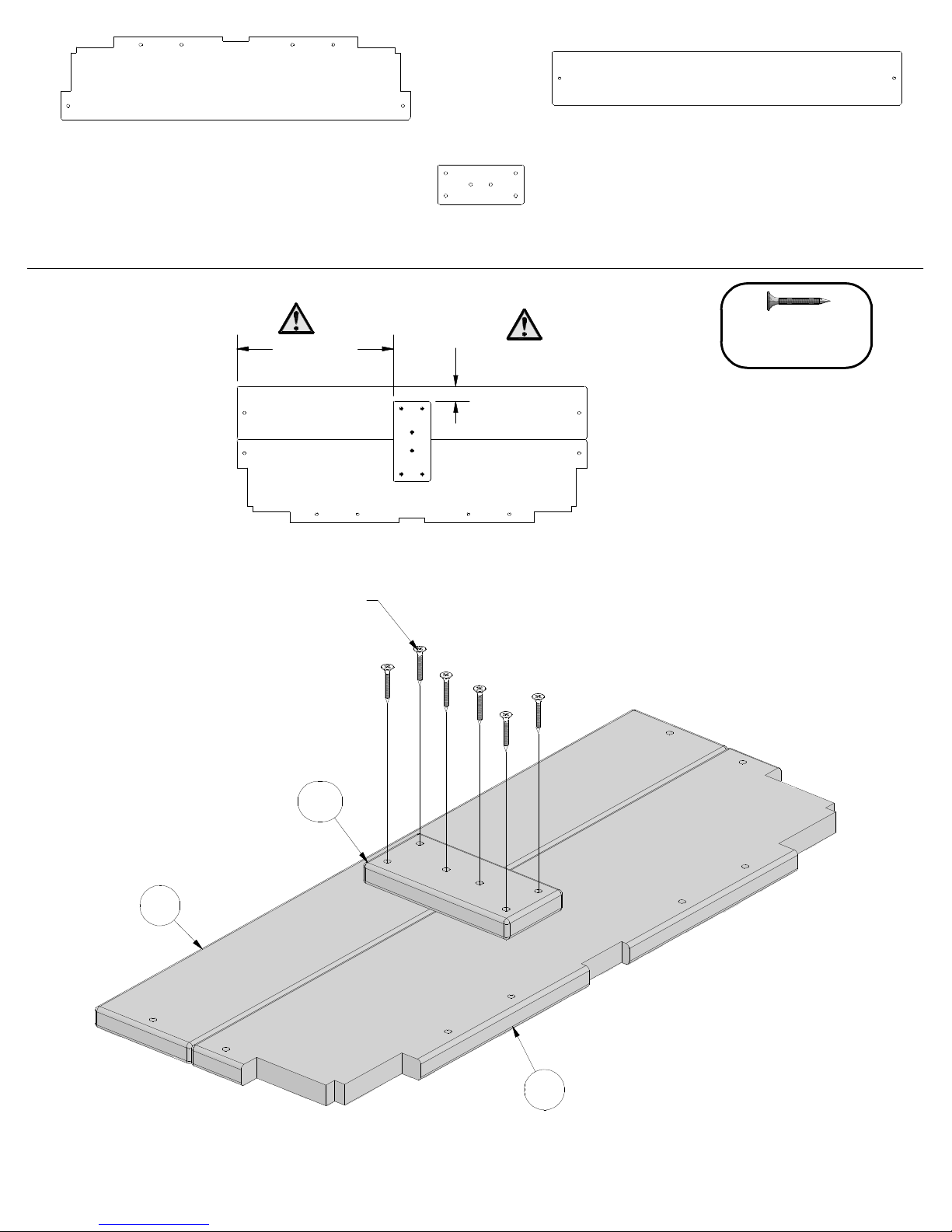

STEP 39:

K1 - SEAT - W4L11888

(1)

5/8"x5 1/4"x22 3/8" (16x134x567)

10 in [254 mm]

N16 - CLEAT - W4L11890

(1)

5/8"x2 3/8"x5 1/8" (16x60x130)

15/16 in [24 mm]

M4 - SEAT - W4L11889

(1)

5/8"x3 3/8"x22 3/8" (16x86x567)

SCREW PFH

(6)

8x1-1/8" H100088

SCREW PFH 8X1 1/8

(6 PLCS)

N16

Page 71

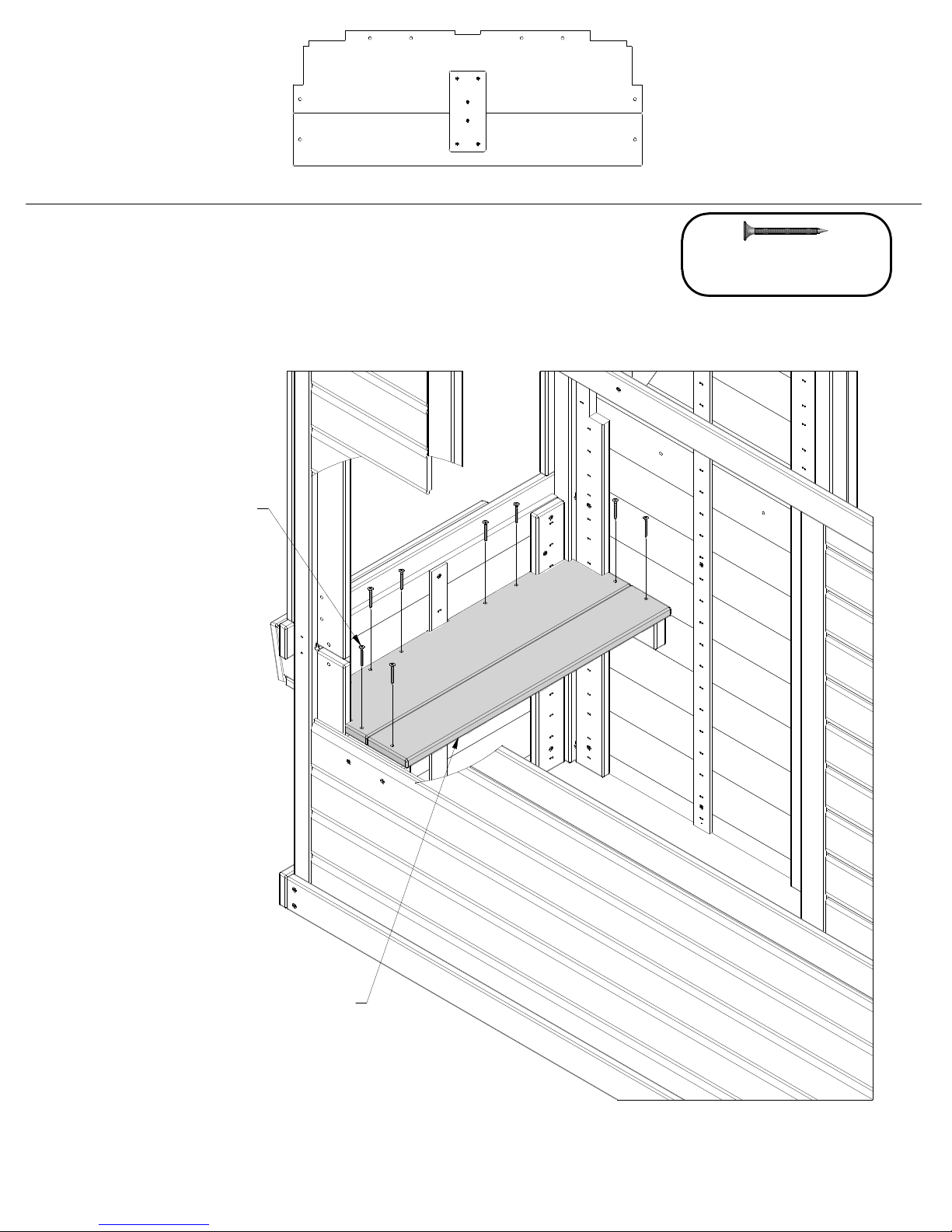

STEP 40:

SCREW PFH 8X1 1/2

(8 PLCS)

SEAT FROM STEP 39

SCREW PFH

(8)

8x1-1/2" H100086

SEAT FROM

STEP 39

Page 72

L1 - COUNTER - W4L12002

(1)

5/8"x4 3/8"x19 1/4" (16x112x488)

M7 - COUNTER SUPPORT - W4L12004

(1)

5/8"x3 3/8"x5" (16x86x126)

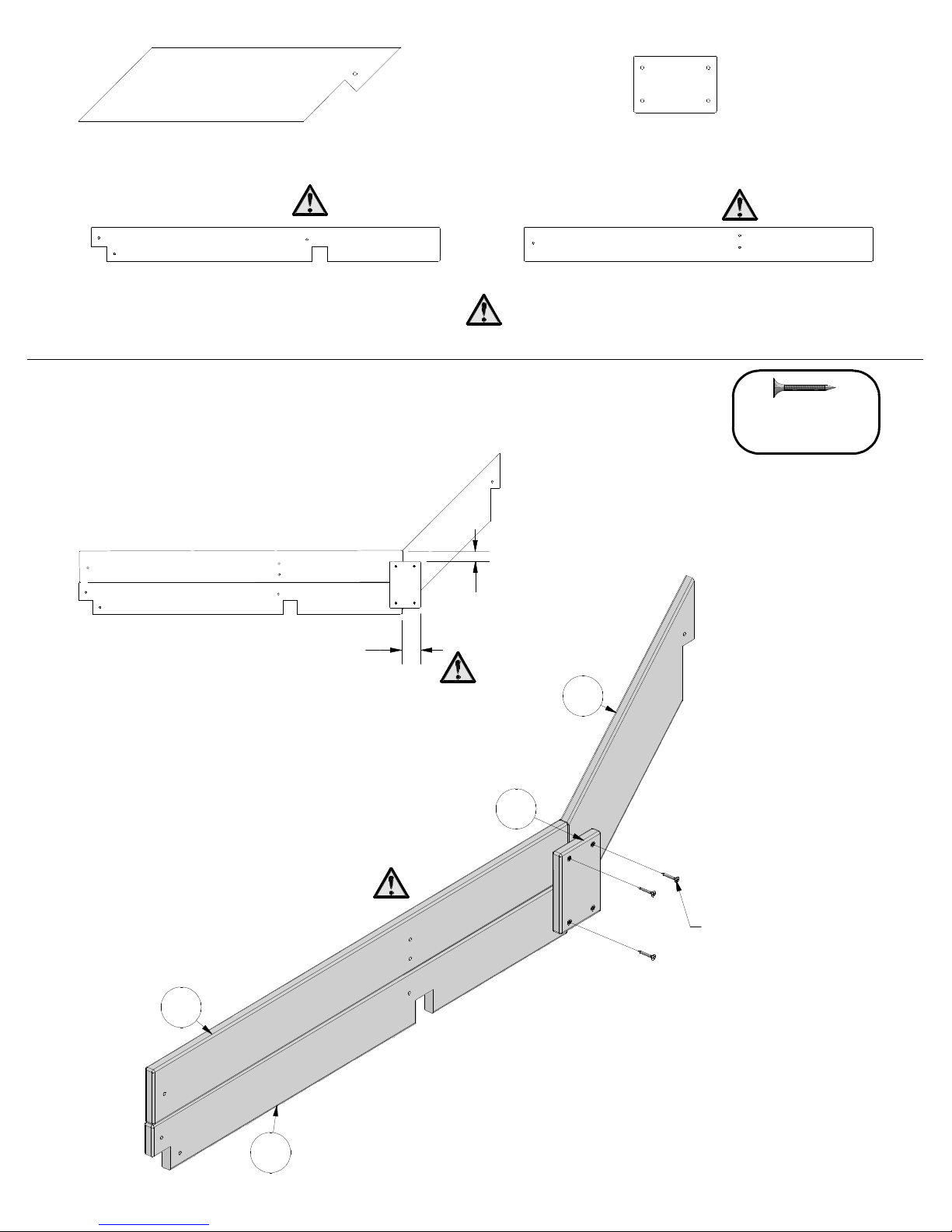

STEP 41:

M5 - KITCHEN COUNTER - W4L12000

(1)

5/8"x3 3/8"x34 5/8" (16x86x880)

2 1/16 in [52 mm]

(1)

NOTE ORIENTATION

1 1/16 in [27 mm]

M6 - KITCHEN COUNTER - W4L12001 5/8"x3 3/8"x34 5/8" (16x86x880)

SCREW PFH

(3)

8x1-1/8" H100088

SCREW PFH 8X1 1/8 (3 PLCS)

Page 73

STEP 42:

COUNTER FROM STEP 41

SCREW PFH 8x1-1/4"

(7)

H100087

SCREW PFH 8X1 1/4

(7 PLCS)

COUNTER FROM

STEP 41

Page 74

STEP 43:

L2 - COUNTER - W4L12003

(1)

5/8"x4 3/8"x13 3/4" (16x112x349)

SCREW PFH 8x1-1/4"

(2)

H100087

SCREW PFH

(1)

8x1-1/8" H100088

SCREW PFH 8X1 1/4 (2 PLCS)

SCREW PFH 8X1 1/8

(1 PLC)

Page 75

J6 - SERVING SUPPORT - W4L12005

(2)

1"x2 3/8"x2 3/4" (24x60x70)

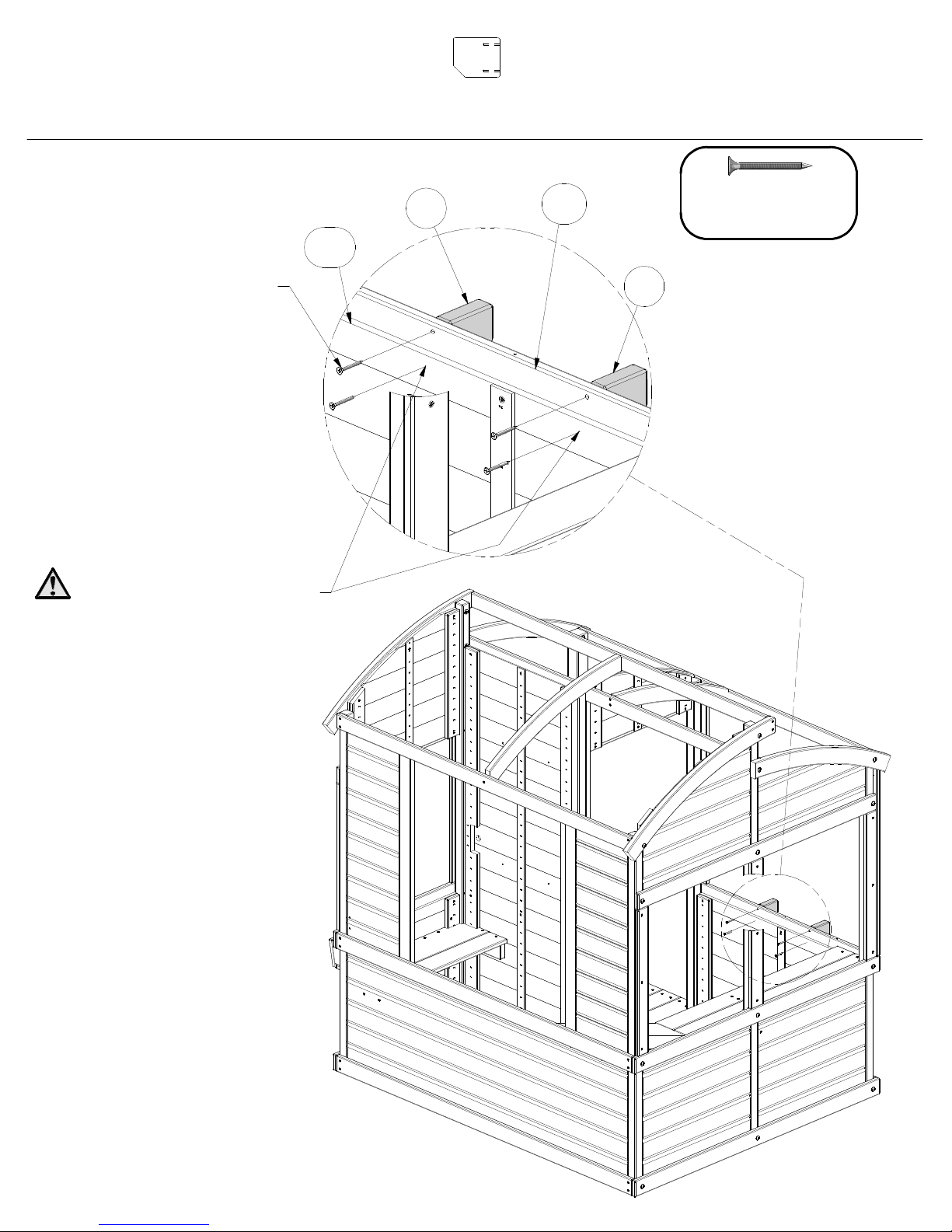

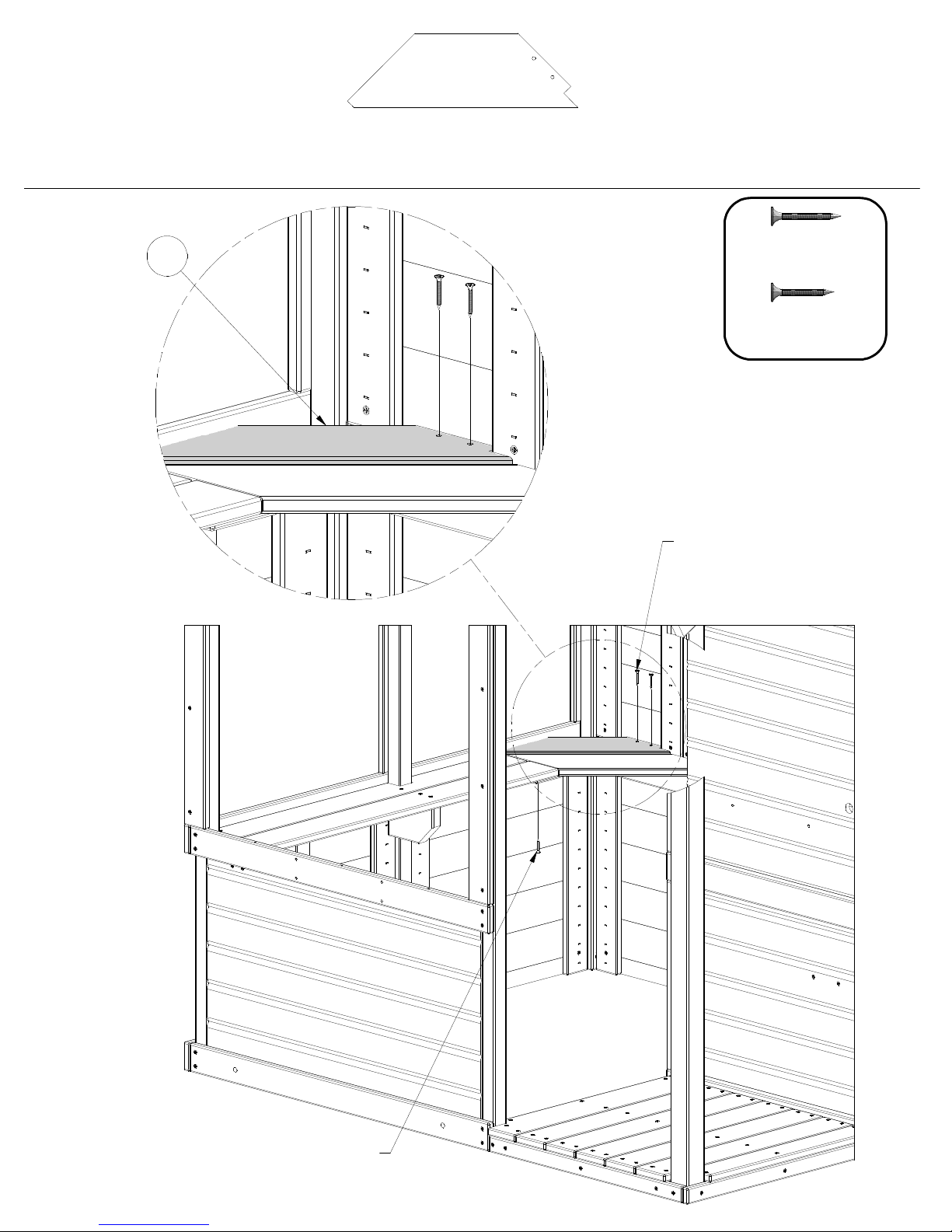

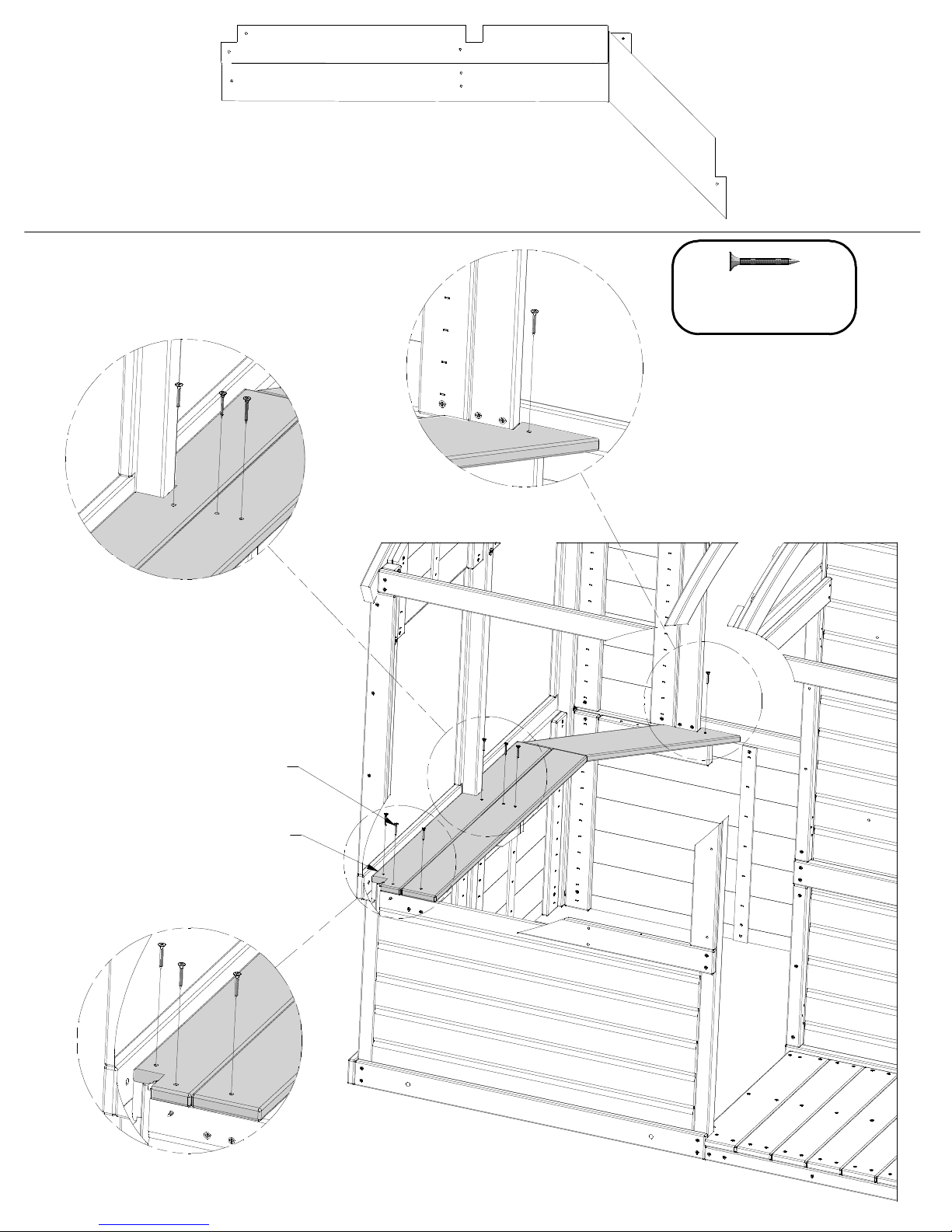

STEP 44:

SCREW PFH 8X1 1/2

(4 PLCS)

DRILL A 3/16" (5mm) HOLE

THRU THE WP2 WALL PANEL

USING THE N17 RAIL AS

A GUIDE.

WP2

N17

SCREW PFH

(4)

8x1-1/2" H100086

Page 76

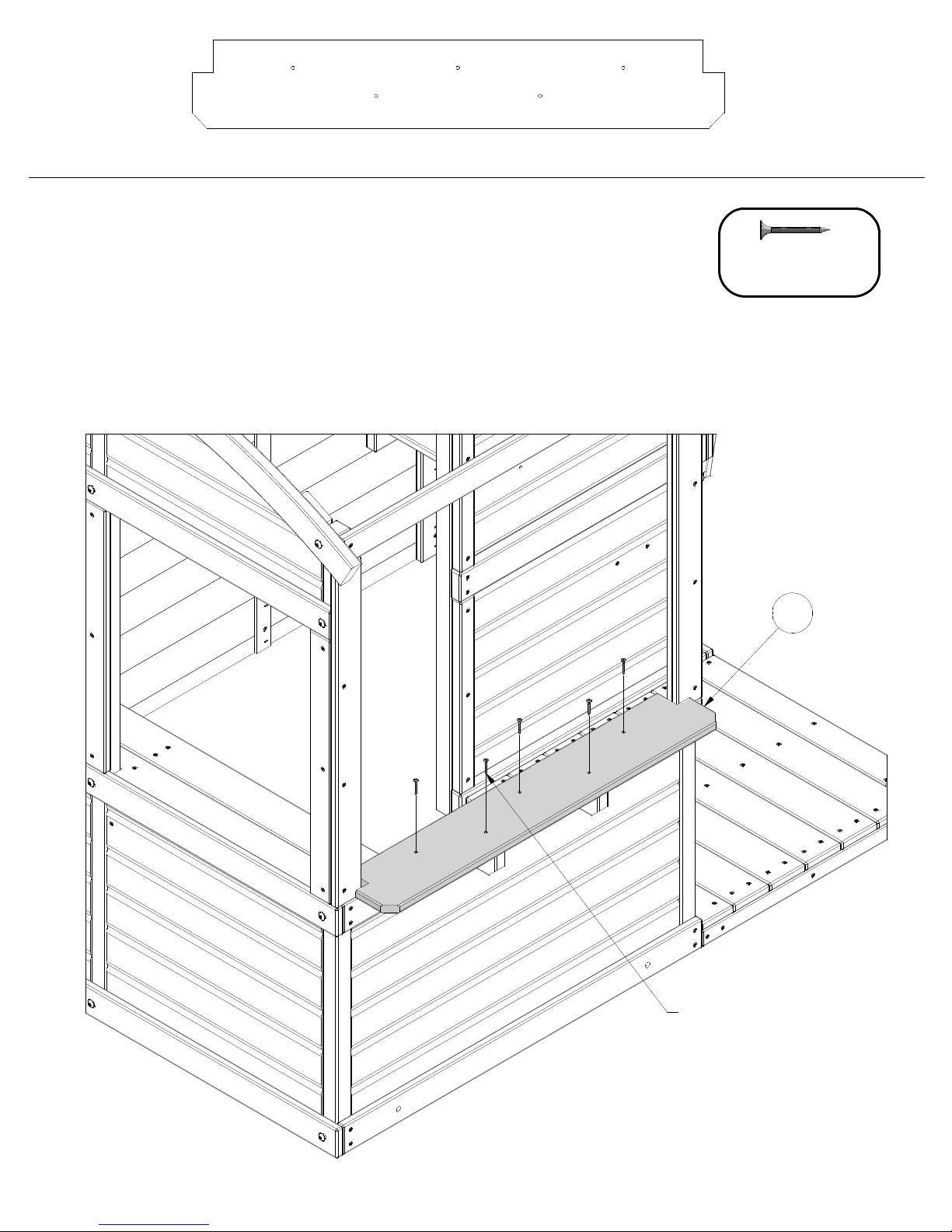

STEP 45:

K2 - SERVING COUNTER - W4L12006

(1)

5/8"x5 1/4"x31 3/4" (16x134x806)

SCREW PFH

(5)

8x1-1/4" H100087

SCREW PFH 8X1 1/4 (5 PLCS)

Page 77

K91 - ROOF BOARD - W4L12014

(7)

3/8"x3 3/8"x62 1/2" (11x86x1586)

K94 - ROOF BOARD - W4L12019

(1)

3/8"x3 3/8"x62 1/2" (11x86x1586)

NOTE HOLE LOCATION

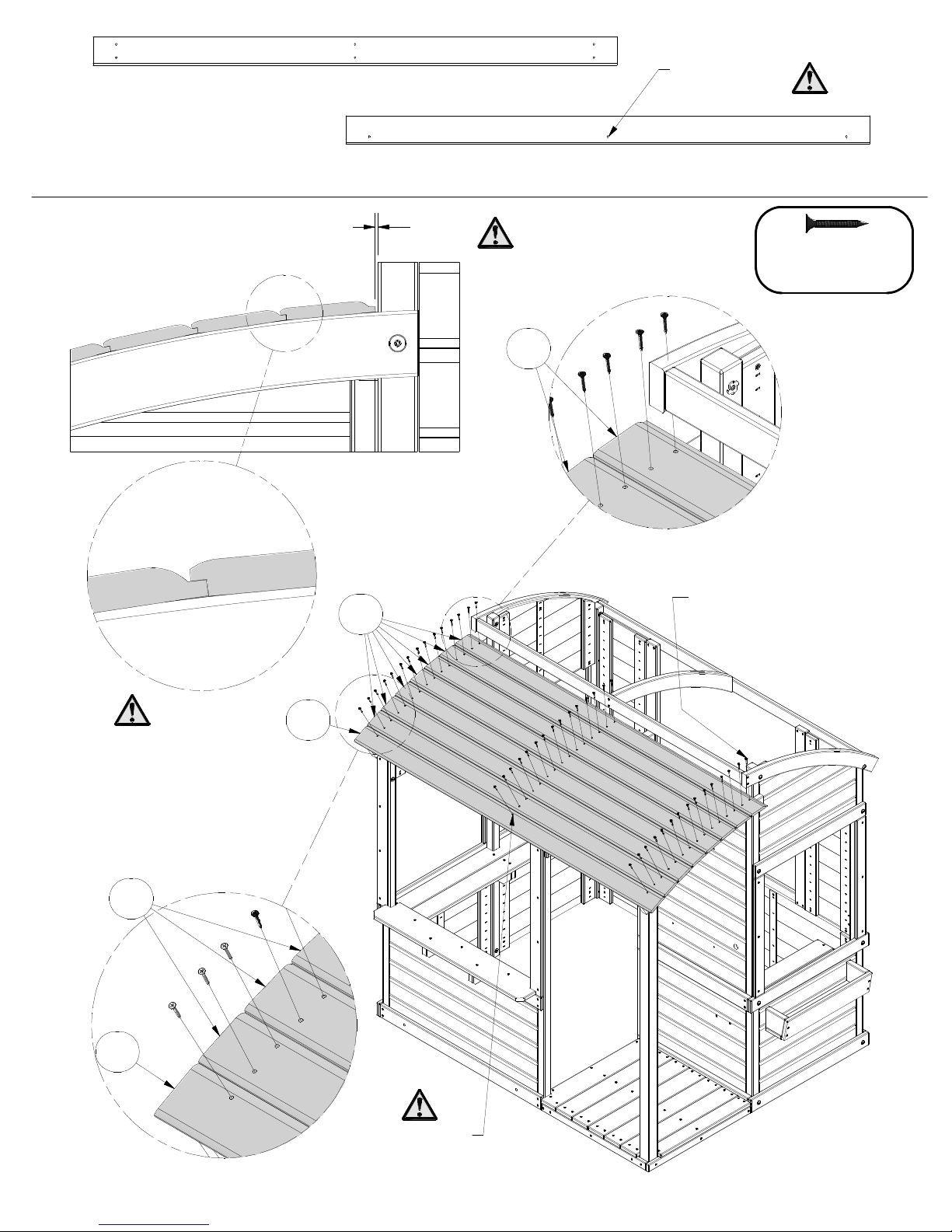

STEP 46:

1/8 in [3 mm]

K91

(45)

SCREW PFH 8x1 1/8 BLK H100380

SCREW PFH 8x1 1/8 BLK

K91

(45 PLCS)

K91

K94

NOTE ROOF ASSEMBLY

K94

NOTE HOLE

LOCATION

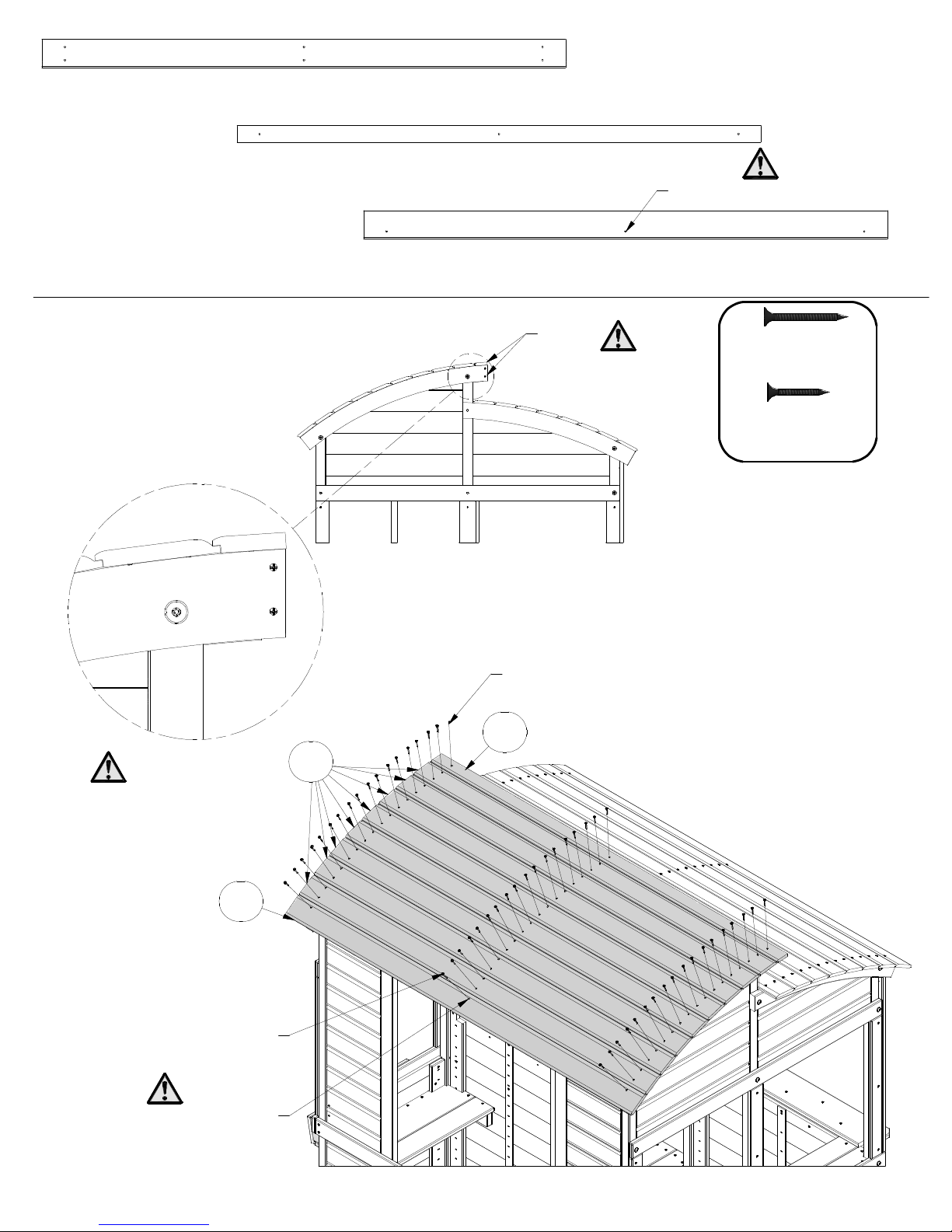

Page 78

STEP 47:

K91 - ROOF BOARD - W4L12014

(8)

3/8"x3 3/8"x62 1/2" (11x86x1586)

K92 - ROOF BOARD - W4L12015

(1)

3/8"x2 5/8"x62 1/2" (11x50x1586)

K94 - ROOF BOARD - W4L12019

(1)

3/8"x3 3/8"x62 1/2" (11x86x1586)

FLUSH

NOTE HOLE LOCATION

SCREW PFH

(1)

8x1-1/2 BLK H100200

SCREW PFH

(53)

8x1 1/8 BLK H100380

NOTE ROOF ASSEMBLY

K94

SCREW PFH 8X1 1/2 BLK

(1 PLC)

NOTE HOLE LOCATION

SCREW PFH 8X1 1/8 BLK (53 PLCS)

K92

K91

Page 79

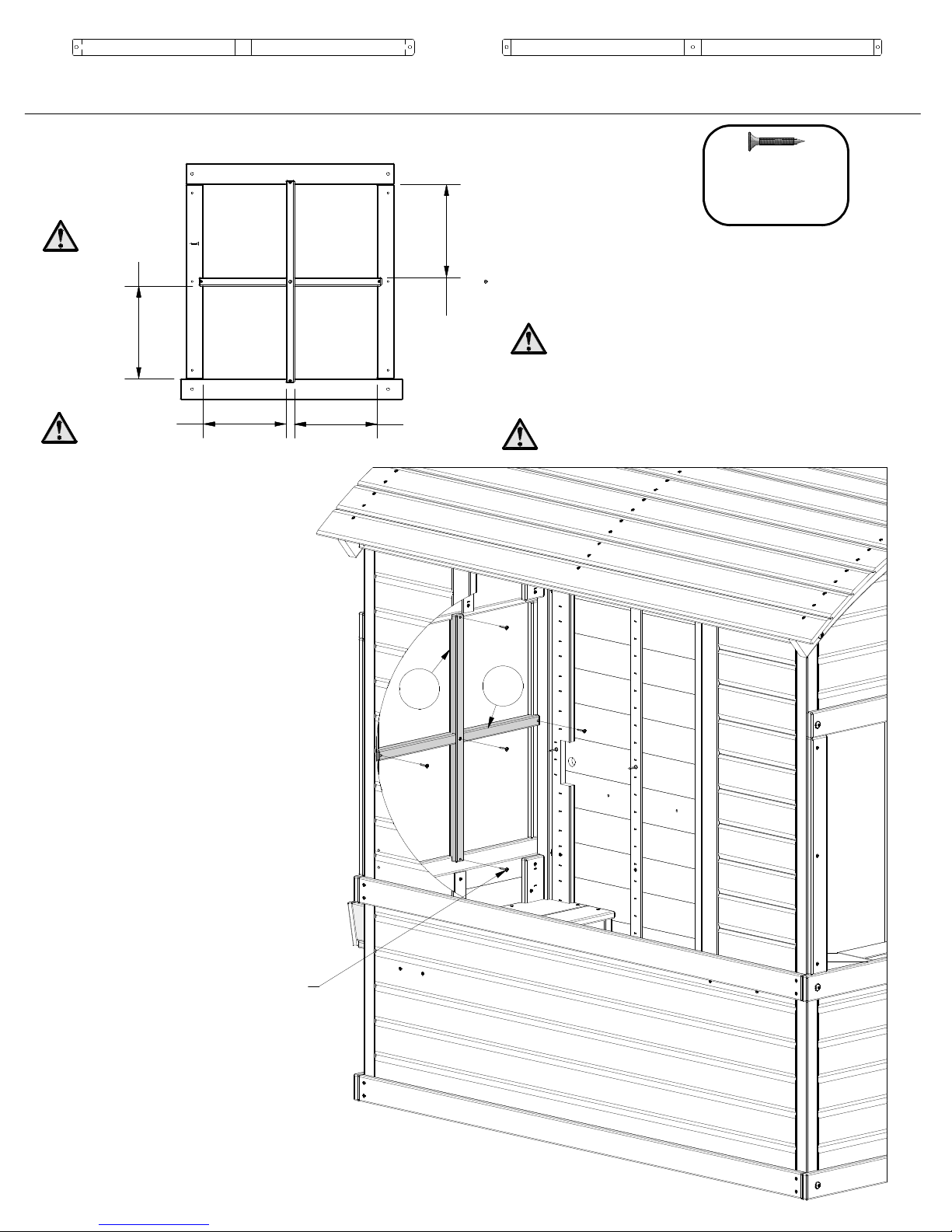

STEP 48:

10 3/8 in [263 mm]

S1 - WINDOW TRIM - W4L12021

(1)

1"x1"x20 3/8" (24x24x518)

10 3/8 in [263 mm]

S2 - WINDOW TRIM - W4L12022

(1)

1"x1"x22 5/8" (24x24x574)

(5)

SCREW PFH 8x1 H100085

9 3/16 in [234 mm]

SCREW PFH 8X1

(5 PLCS)

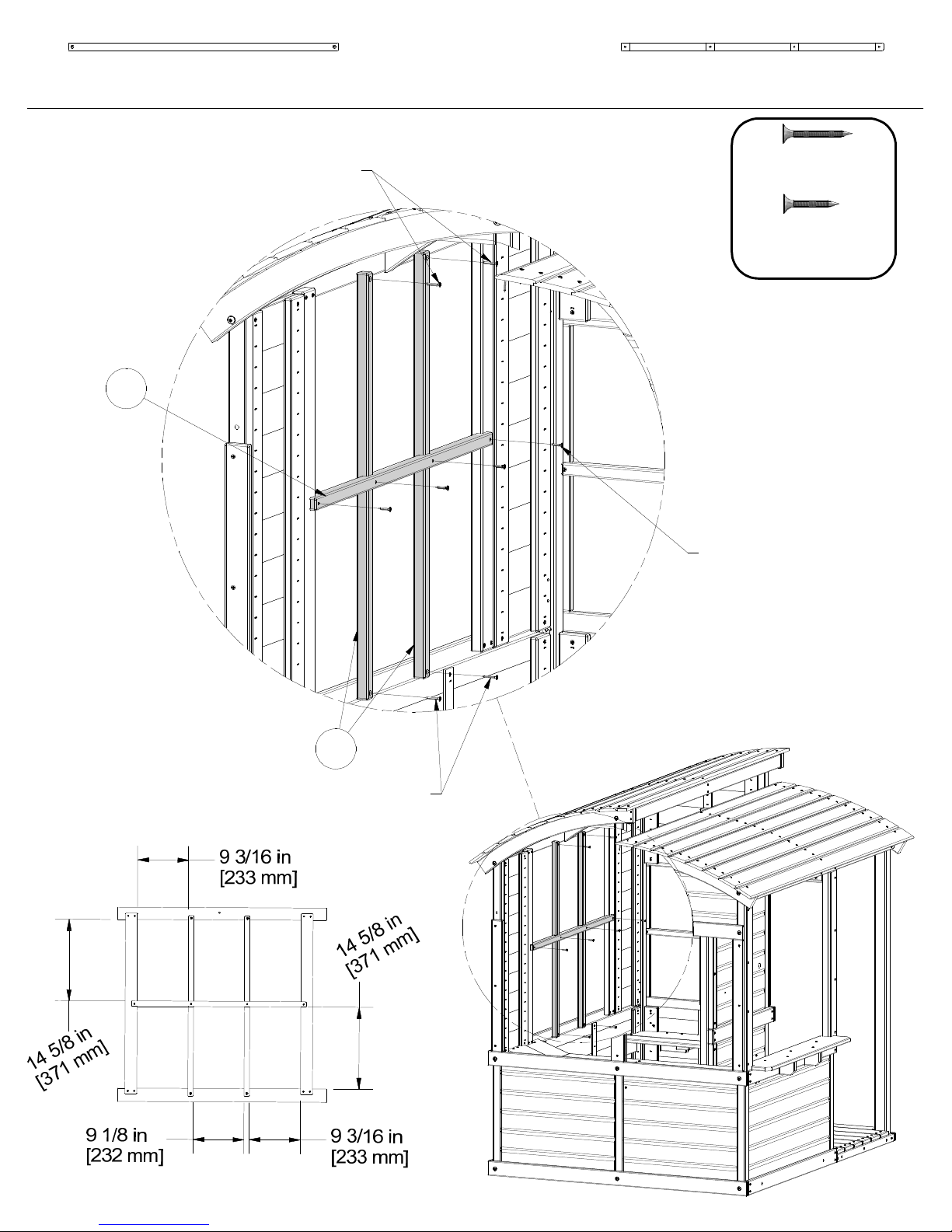

Page 80

S3 - WINDOW TRIM - W4L12023

(2)

1"x1"x32 1/4" (24x24x818)

S4 - WINDOW TRIM - W4L12024

(1)

1"x1"x31 1/4" (24x24x794)

STEP 49:

SCREW PFH 8X1 1/4

(2 PLCS)

SCREW PFH

(4)

8x1-1/4" H100087

SCREW PFH

(4)

8x1 H100085

SCREW PFH 8X1 (4 PLC)

SCREW PFH 8X1 1/4

(2 PLCS)

Page 81

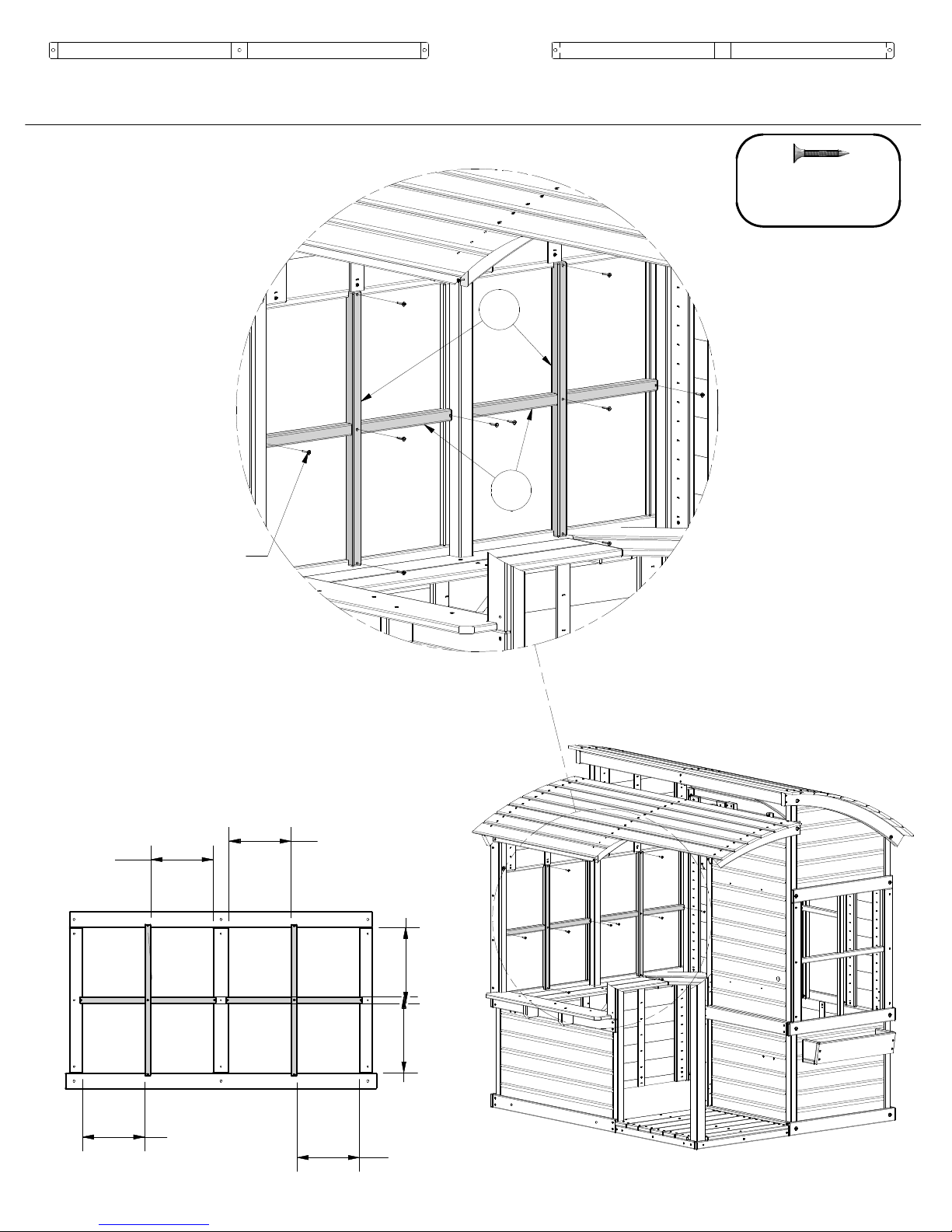

STEP 50:

S2 - WINDOW TRIM - W4L12022

(2)

1"x1"x22 5/8" (24x24x574)

S5 - WINDOW TRIM - W4L12025

(2)

1"x1"x20 3/8" (24x24x518)

(10)

SCREW PFH 8x1 H100085

SCREW PFH 8X1

9 1/4 in [235 mm]

(10 PLCS)

9 1/4 in [235 mm]

11 5/16 in [287 mm]

9 1/4 in [235 mm]

11 5/16 in [287 mm]

9 1/4 in [235 mm]

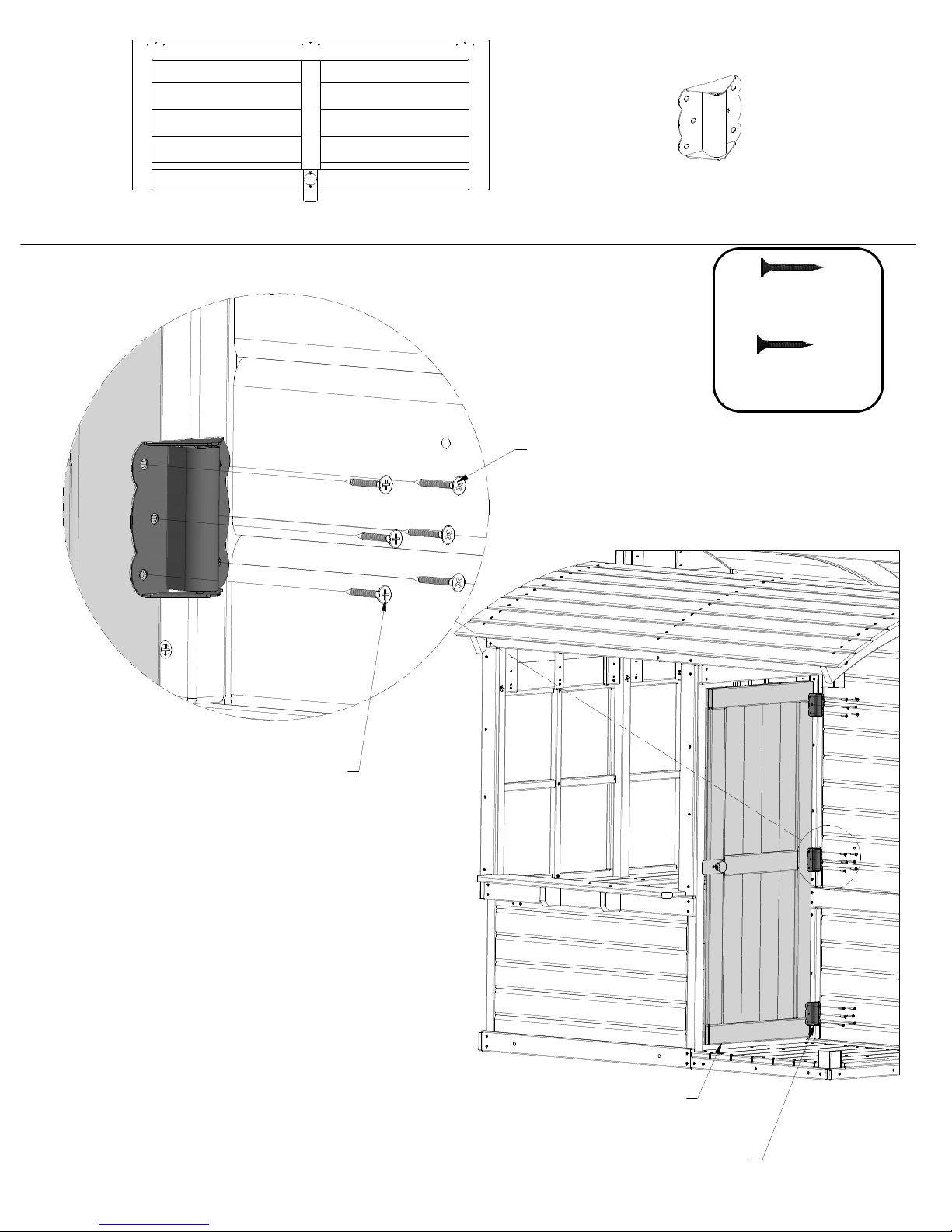

Page 82

(1)

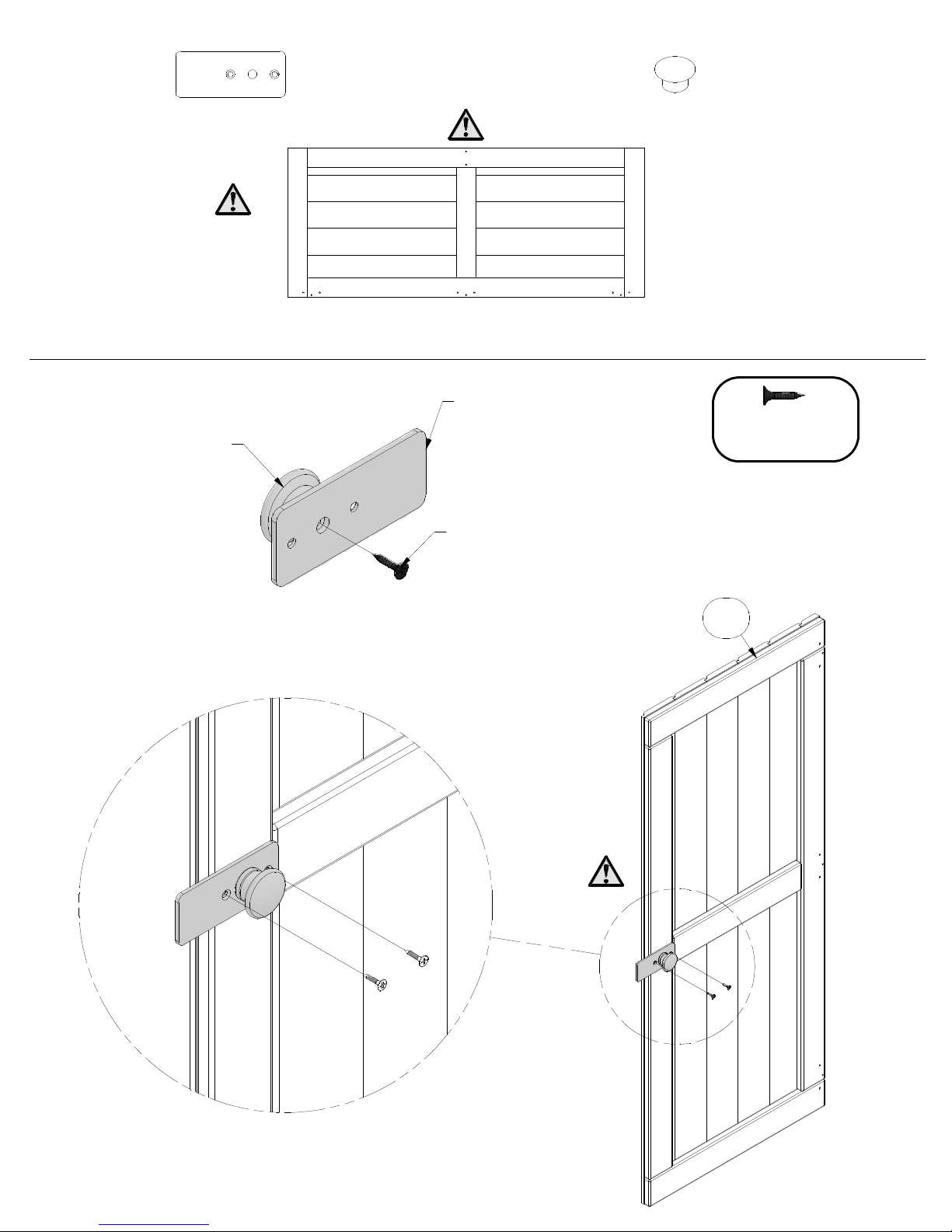

STEP 51:

- DOOR STOP - A4M00933

NOTE HOLE LOCATIONS

(1)

- KNOB - BLK - A6P00067

DP1 - DOOR PANEL - W2A02682

1 1/8"x17 3/4"x42 1/2 (27x472x1080)

KNOB - BLK

DOOR STOP

SCREW PFH 8x3/4 BLK (1 PLC)

(3)

DP1

SCREW PFH 8x3/4 BLK H100395

Page 83

STEP 52:

DOOR PANEL FROM STEP 51

- HINGE (DOOR, SPRING LOADED) - A4M00624

(3)

SCREW PFH

(9)

8x1 1/8 BLK H100380

SCREW PFH

(9)

8x1 BLK H100385

SCREW PFH 8X1 1/8 BLK (9 PLCS) IN JAMB

SCREW PFH 8X1 BLK

(9 PLCS)

IN DOOR

DOOR PANEL FROM

STEP 51

HINGE (DOOR, SPRING LOADED)

(3 PLCS)

Page 84

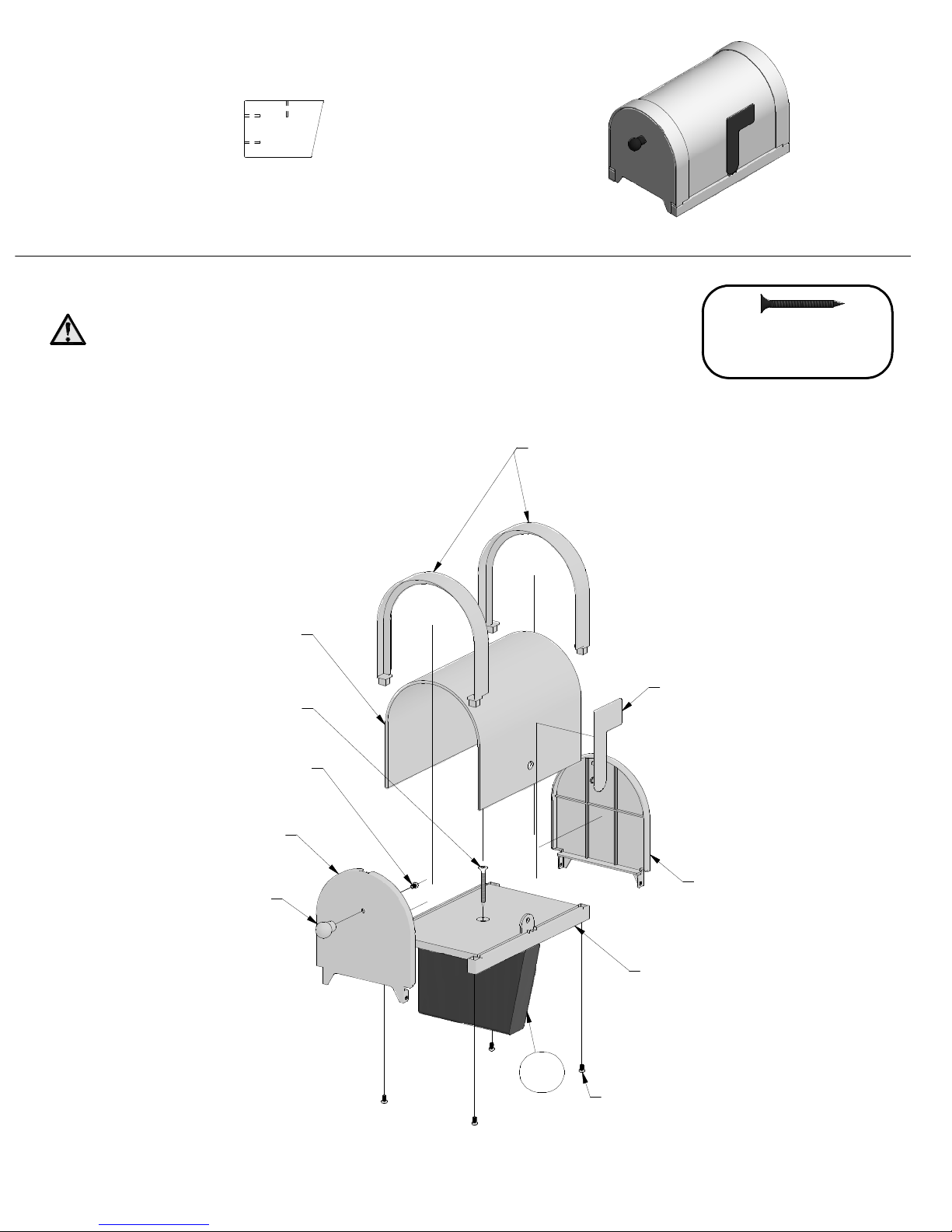

STEP 53:

H12 - SUPPORT - W4L12026

(1)

15/16"x3 3/8"x4 3/4" (24x86x120)

(1)

- MAILBOX - A6P00017

NOTE: MOUNT MAILBOX BASE TO H12 SUPPORT FIRST

MAILBOX BODY

(1 PLC)

SCREW PFH 8X1 1/2 BLK

(1 PLC)

MAILBOX MACHINE SCREW

(1 PLC)

MAILBOX FRAMES (2 PLCS)

MAILBOX FLAG (1 PLC)

SCREW PFH 8x1-1/2 BLK

(1)

H100200

MAILBOX FRONT DOOR

(1 PLC)

MAILBOX HANDLE

(1 PLC)

MAILBOX REAR DOOR (1 PLC)

MAILBOX BASE

(1 PLC)

H12

MAILBOX MACHINE SCREW (4 PLCS)

Page 85

MAILBOX/H1 ASSEMBLY

FROM STEP 53

STEP 54:

SCREW PFH 8X2 (2 PLCS)

SCREW PFH

(2)

8x2 H100111

MAILBOX ASSEMBLY FROM STEP 53

Page 86

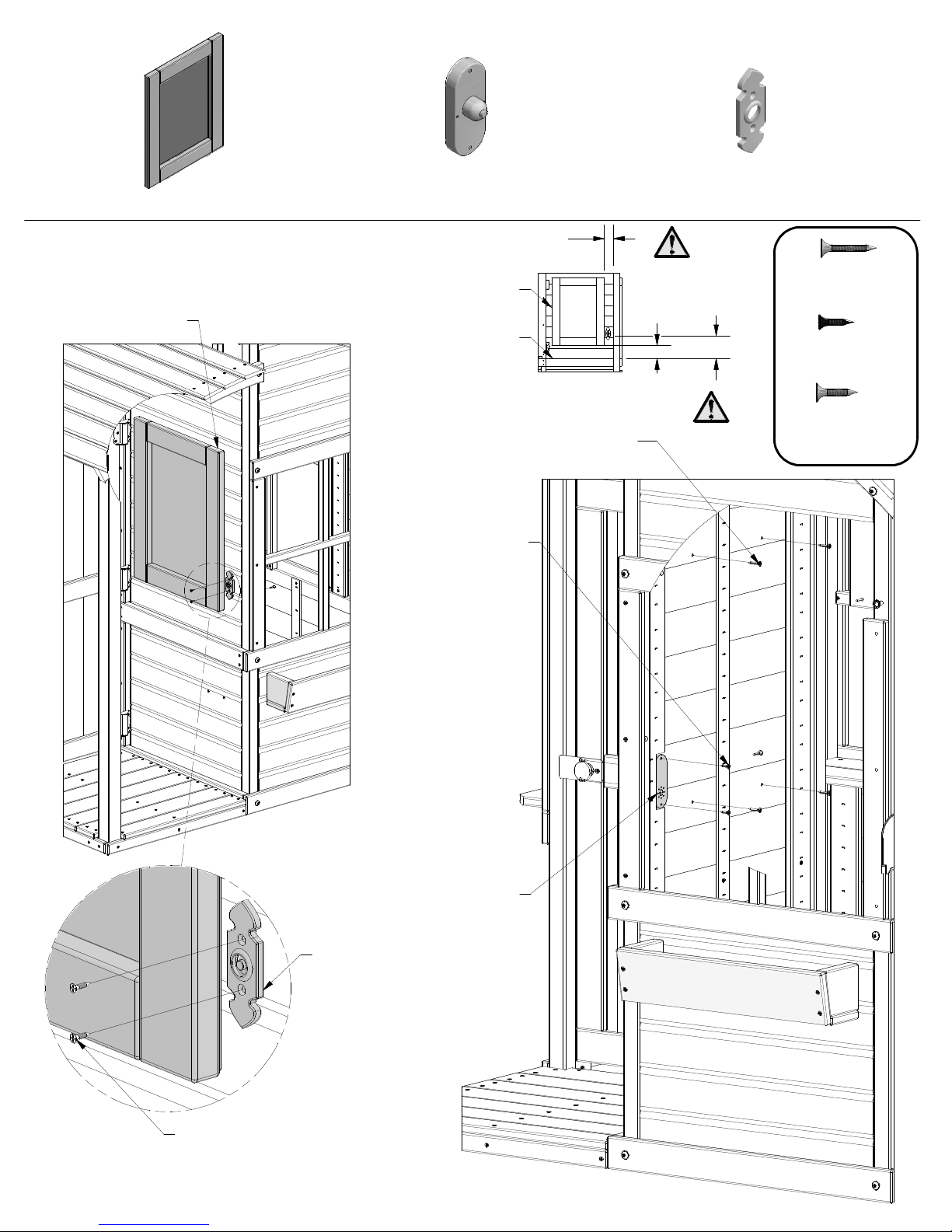

(1) CHALKBOARD - A4M00958

(1)

MR - DOOR BELL - A100174

(1)

- DOOR BELL PLATE - A6P00290

STEP 55:

CHALKBOARD

2 9/16 in [66 mm]

CHALKBOARD

RAIL

SCREW PFH 8X1

6 5/8 in [168 mm]

3 13/16 in [97 mm]

SCREW PFH

(4)

8x1 H100085

SCREW PFH

(2)

6x5/8 BLK H100624

SCREW PFH

(2)

8x3/4 H100121

(4 PLCS)

SCREW PFH 8X3/4

(2 PLCS)

DOOR BELL PLATE

SCREW PFH 6x5/8 BLK (2 PLCS)

DOOR BELL

Page 87

(1)

- FAUCET KIT - A6P00024

(1)

- SURFACE MOUNT BASIN - A6P00032

STEP 56:

SCREW PFH 8X1 1/2

(2 PLCS)

SCREW PWH 8x5/8

(2 PLCS)

mm]

9/16

[

FAUCET KIT

SCREW PFH 8x1-1/2"

(2)

H100086

SCREW

(2)

PWH 8x5/8 H100128

SURFACE MOUNT BASIN

1/8 in [4 mm]

3/16 in [4 mm]

Page 88

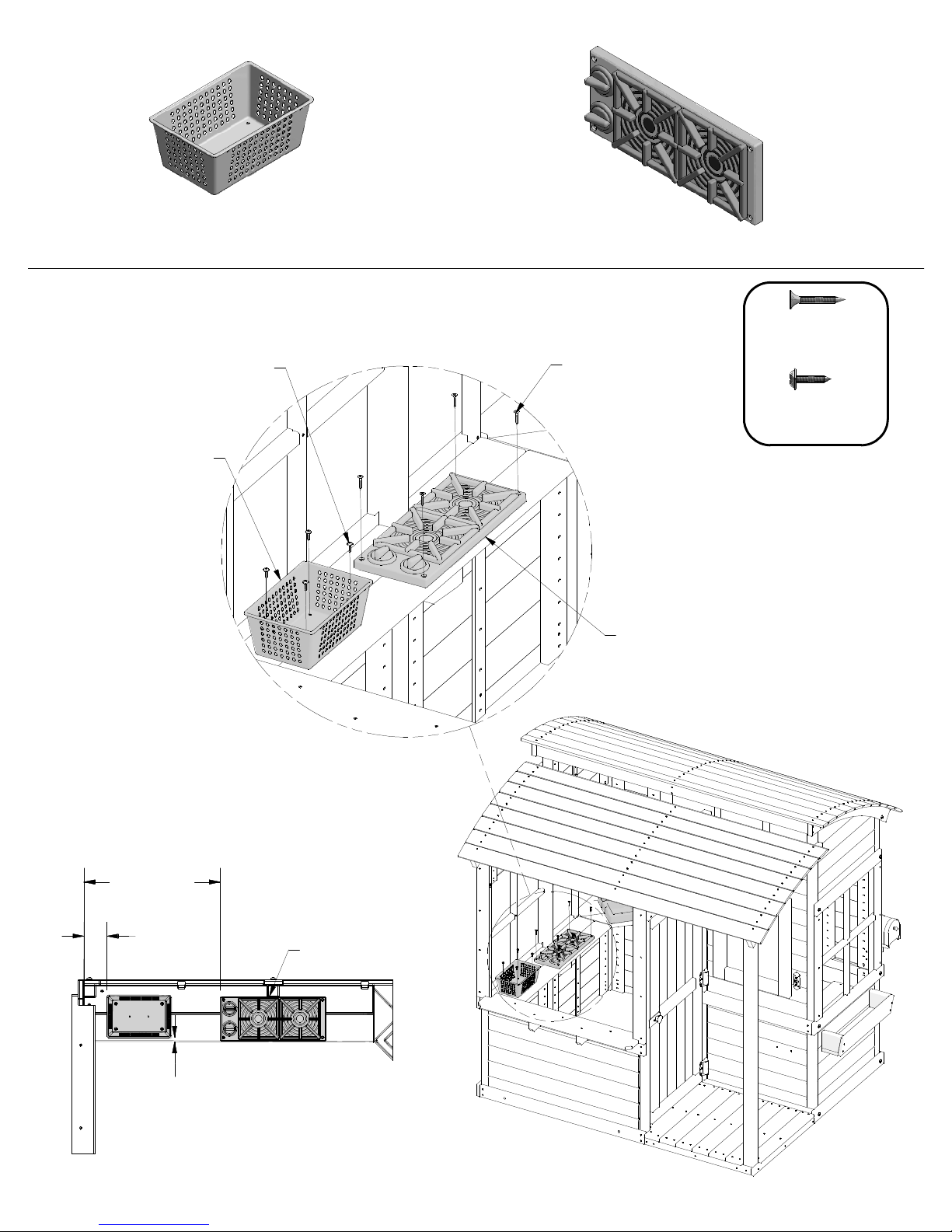

(1)

- FRUIT BASKET KIT - A6P00069

STEP 57:

SCREW PWH 8x5/8

FRUIT BASKET KIT

(PLACE FRUIT

IN BASKET)

(4 PLCS)

(1) STOVE KIT - A6P00025

(4)

SCREW PFH 8X1 (4 PLCS)

(4)

STOVE KIT

SCREW PFH 8x1 H100085

SCREW PWH 8x5/8 H100128

16 1/4 in [413 mm]

2 3/4 i [

0 m

]

FLUSH

] m

m 3

[

Page 89

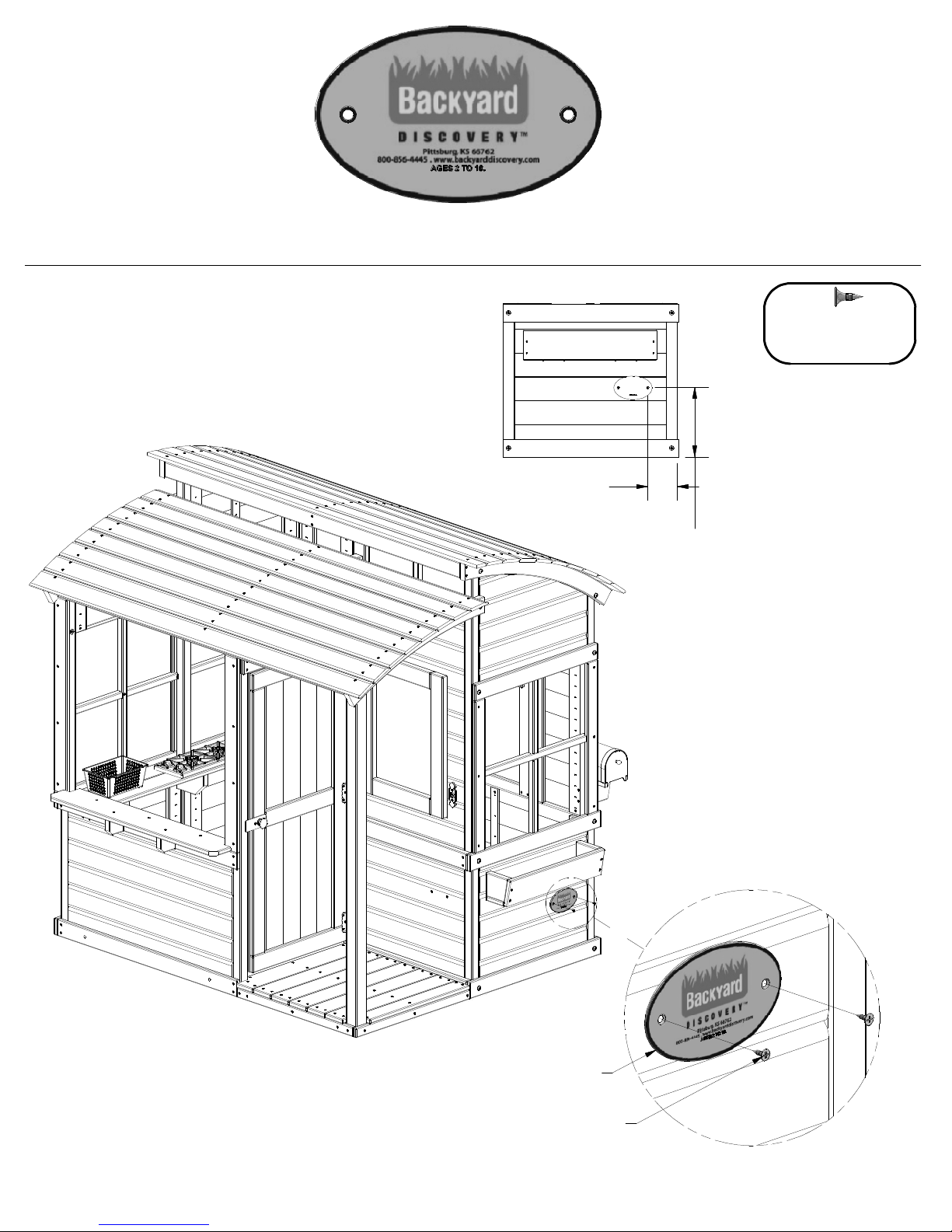

STEP 58:

- BYD ID TAG (MEDIUM) AGES 2 TO 10 - A4M00528

(1)

3 15/16 in [100 mm]

9 3/8 in [237 mm]

SCREW PFH

(2)

8x1/2 H100124

BYD ID TAG (MEDIUM) AGES 2 TO 10

SCREW PFH 8X1/2

(2 PLCS)

Page 90

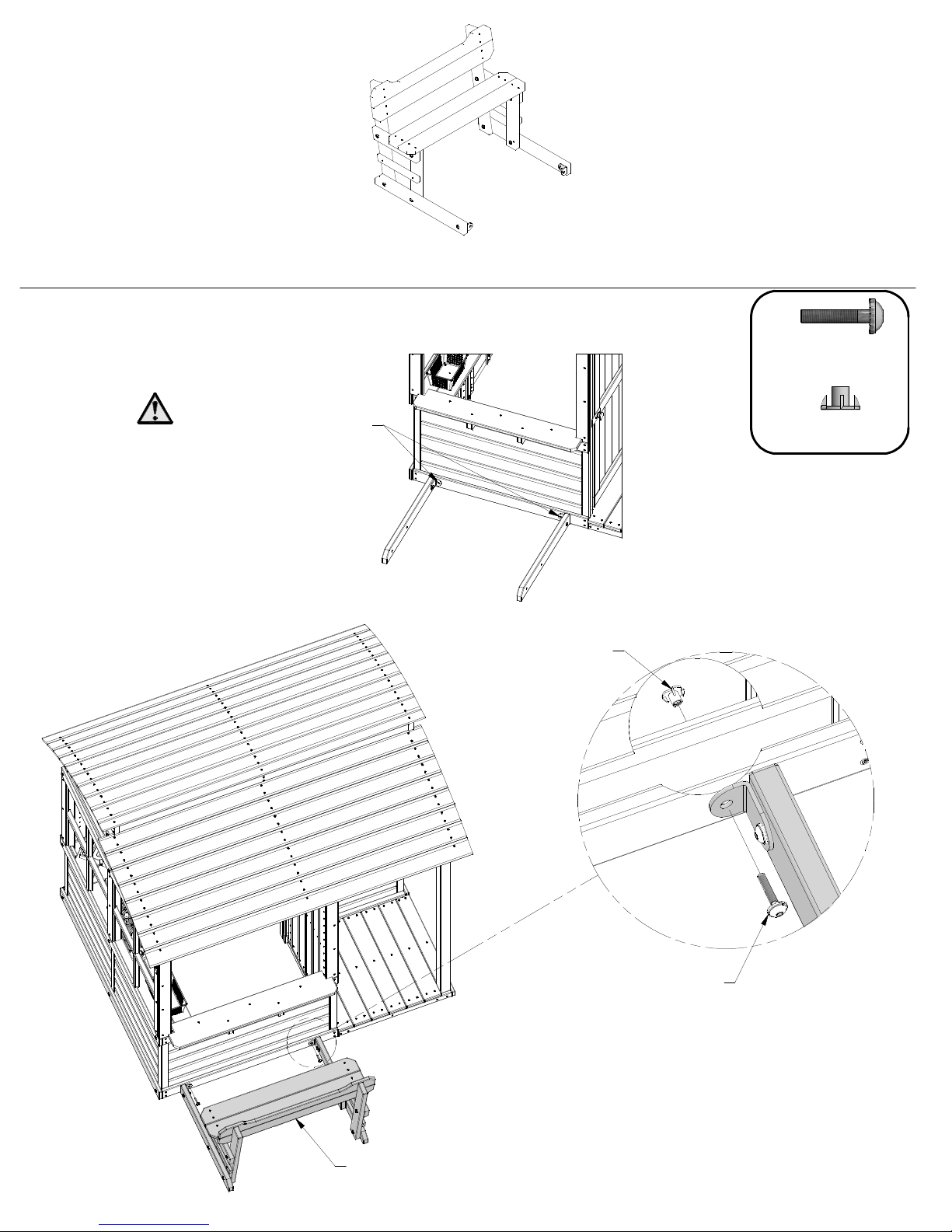

STEP 59:

(1)

BENCH ASSEMBLY FROM BENCH ASSEMBLY STEP 4

(2)

BOLT WH 1/4x1-1/4 H100142

USE HOLES IN RAIL,

DRILL 7/16" (10mm) HOLES

THRU THE WALL PANEL

AND ATTACH BENCH.

(BENCH REMOVED

FOR CLAIRITY)

T-NUT 1/4

(2 PLCS)

(2)

T-NUT 1/4 H100072

BOLT WH 1/4x1 1/4

(2 PLCS)

BENCH ASSEMBLY FROM BENCH ASSEMBLY STEP 4

Page 91

Limited Warranty

This Limited Warranty by Backyard Discovery applies to products manufactured under the Backyard Discovery brand or its other brands including but not limited to Backyard Botanical, Adventure Playsets, and Leisure Time Products.

Backyard Discovery warrants that this product is free from defect in materials and workmanship for a period of one (1) year from the original date of purchase. This one (1) year warranty covers all parts including wood, hardware, and accessories. All wood carries a five (5) year pro-rated warranty against rot and decay. Refer to the schedule below for charges associated with replacement of parts under this Limited Warranty. In addition, Backyard Discovery will replace any parts within the first 30 days from date of purchase found to be missing from or damaged in the original packaging.

This warranty applies to the original owner and registrant and is non- transferable. Regular maintenance is required to assure maximum life and performance of this product and failure by the owner to maintain the product according to the maintenance requirements may void this warranty. Maintenance guidelines are provided in the Owner’s Manual.

This Limited Warranty does not cover:

• Labor for any inspection

• Labor for replacement of any defective item(s)

• Incidental or consequential damages

• Cosmetic defects which do not affect performance or integrity of a part or

the entire product

• Vandalism, improper use, failure due to loading or use beyond the capacities stated in the applicable Assembly Manual.

• Acts of nature including but not limited to wind, storms, hail, floods, excessive water exposure

• Improper installation including but not limited to installation on uneven, unlevel, or soft ground

• Minor twisting, warping, checking, or any other natural occurring properties of wood that do not affect performance or integrity

Backyard Discovery products have been designed for safety and quality. Any modifications made to the original product could damage the structural integrity of the unit leading to failure and possible injury. Modification voids any and all warranties and Backyard Discovery assumes no liability for any modified products or consequences resulting from failure of a modified product.

This product is warranted for RESIDENTIAL USE ONLY. Under no circumstance should a Backyard Discovery product be used in public settings. Such use may lead to product failure and potential injury. Any and all public use will void this

Page 92

warranty. Backyard Discovery disclaims all other representations and warranties of any kind, express or implied.

This Warranty gives you specific legal rights. You may have other rights as well which vary from state to state or province to province. This warranty excludes all consequential damages, however, some states do not allow the limitation or exclusion of consequential damages and therefore this limitation may not apply to you.

Pro Rated Part Replacement Schedule

Product Age Customer Pays

All Parts

0-30 days from date of purchase $0 and free shipping 31 days to 1 year $0 + S&H

Wood Rot and Decay Only

1 year $0 and free shipping 2 years 20% + S&H 3 years 40% + S&H 4 years 60% + S&H 5 years 80% + S&H Over 5 years 100% + S&H

Rev 11/22/10 BRS
