Not suitable for children under two years,
due to sharp points and small parts
.
For the most up to date assembly manual,
to register your set or to order replacement parts please visit
www.backyarddiscovery.com
Save this assembly manual for future reference in the event that
you need to order replacement parts.
Made in China
INS-1801318-A-EAGLES NEST-ENG 06/27/18
Page 2
With Go Configure, we bring you 18 years of experience right to your doorstep.
We service a wide array of indoor and outdoor recreation products that most consumers
don’t have the time or ability to deliver & install themselves.
We do the heavy lifting, so you don’t have to!
• 18+ Years of Experience Servicing Big Box Retailers and Direct Consumers
• Highly Skilled, Specialized, Courteous, Professional Service Technicians
• Over 140,000 Installations Annually
• White Glove ServiceVisit www.goconfigure.com for more info!
*Installation services are only available to U.S. customers.
• Satisfaction Guarantee
• Flexible Appointments, including weekends
• Coverage across the nation
Page 3
STOP
PARE
Missing A Part?
CALL US BEFORE GOING
BACK TO THE STORE!
The store where you made your purchase
does not stock parts for this item.
If you have assembly questions or if you need parts,
whether they are missing or damaged
Call Toll-Free Help Line or visit www.backyarddiscovery.com
¡LLÁMENOS ANTES DE REGRESAR A LA TIENDA!
La enda donde realizó la compra no almacena piezas de este producto.
Si ene preguntas sobre el ensamblaje o si necesita piezas debido a que
faltan o están dañadas
llame gras a la línea de ayuda
1-800-856-4445
PLEASE READ THIS BEFORE STARTING ASSEMBLY
POR FAVOR LEA ESTAS INSTRUCCIONES ANTES DE COMENZAR EL ENSAMBLAJE
• READ THE ASSEMBLY MANUAL COMPLETELY, PAYING SPECIAL ATTENTION TO THE IMPORTANT TIPS AND SAFETY INFORMATION.
• AFTER YOU HAVE READ THE ASSEMBLY MANUAL, YOU WILL BE ABLE TO DECIDE IF YOU NEED PROFESSIONAL
HELP TO COMPLETE THE ASSEMBLY OF THE STRUCTURE.
• SEPARATE AND IDENTIFY ALL PARTS TO MAKE SURE THAT YOU HAVE ALL OF THE PARTS LISTED.
• IF YOU CAN’T FIND ALL OF THE PARTS, CHECK THE PACKING MATERIAL. SMALL PARTS MAY HAVE FALLEN INTO IT
DURING SHIPMENT.
• IF YOU HAVE PROBLEMS WITH THE ASSEMBLY OR IF ANY PART IS MISSING OR DAMAGED, PLEASE CALL THE
HELP LINE 1-800-856-4445 OR VISIT www.backyarddiscovery.com
• LEA EL MANUAL DE ENSAMBLAJE COMPLETAMENTE, PRESTANDO ESPECIAL ATENCIÓN A LOS CONSEJOS ÚTILES
IMPORTANTES Y A LA INFORMACIÓN SOBRE SEGURIDAD.
• DESPUÉS DE QUE HAYA LEÍDO EL MANUAL DE ENSAMBLAJE, PODRÁ DECIDIR SI NECESITA AYUDA PROFESIONAL
PARA EFECTUAR EL ENSAMBLAJE DE LA ESTRUCTURA.
• SEPARE E IDENTIFIQUE TODAS LAS PIEZAS PARA COMPROBAR QUE DISPONE DE TODAS LAS PARTES INDICADAS.
• SI NO PUEDE ENCONTRAR TODAS LAS PIEZAS, REVISE EL MATERIAL DE EMPAQUE. ES POSIBLE QUE ALGUNAS
PIEZAS PEQUEÑAS PUEDAN HABERSE CAÍDO ALLÍ DURANTE EL ENVÍO.
• MANTÉNGASE ALEJADO DE LOS NIÑOS MENORES A LA EDAD RECOMENDADA.
• SI TIENE PROBLEMAS CON EL ENSAMBLAJE O SI ALGUNA PIEZA FALTA O ESTÁ DAÑADA, LLAME A LA LÍNEA DE
AYUDA AL 1-800-856-4445 O VISITE www.backyarddiscovery.com
PLEASE HAVE THE FOLLOWING INFORMATION WHEN YOU MAKE YOUR CALL:
1 – MODEL NUMBER OF THE PRODUCT LOCATED ON THE FRONT OF THE ASSEMBLY MANUAL
2 – DESRIPTION OF THE PART FROM THE PARTS LIST
POR FAVOR TENGA VISIBLE LA SIGUIENTE INFORMACIÓN CUANDO LLAME:
1 - NÚMERO DE MODELO DEL PRODUCTO QUE SE ENCUENTRA UBICADO AL FRENTE DEL MANUAL
DE ENSAMBLAJE
2 - DESCRIPCIÓN DE LA PIEZA QUE SE ENCUENTRA EN LA LISTA DE PIEZAS
Page 4
Owner’s Manual Play House
Dear Customer:
Please read entire booklet completely before beginning the assembly process.
Equipment is recommended for use by children 3 to 10 years of age. Structures are not
intended for public use. The Company does not warranty any of its residential
structures subjected to commercial use such as: Daycare, Preschool, Nursery School,
Recreational Park, or any similar Commercial Application.
WARNING: This Symbol points out important safety instructions which, if not
followed, could endanger the personal safety of yourself and your children
and/or damage your property. You MUST read and follow all instructions in this
manual before attempting to use this play house.
WARNING: Children must NOT use this play house until unit has been
completely assembled and inspected by an adult to insure set has been
properly assembled. Please follow all recommendations below. Failure to
do so may result in the warranty being void and/or safety violations that
could result in serious injury. This manual contains helpful information concerning
Assembly Preparation, Installation Procedure, and Required Maintenance. Always keep the
safety of your children in mind as your play structure is being built and as your children play
with the unit. Before your children play with the unit please review the Operation Instructions
with them to help ensure their safety
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. KEEP THEM IN A SAFE
PLACE WHERE YOU CAN REFER TO THEM AS NEEDED. IN ORDER TO PROVIDE YOU WITH THE
MOST EFFICIENT SERVICE, IT IS REQUIRED THAT YOU PROVIDE US WITH THE PART NUMBERS
WHEN ORDERING PARTS.
.

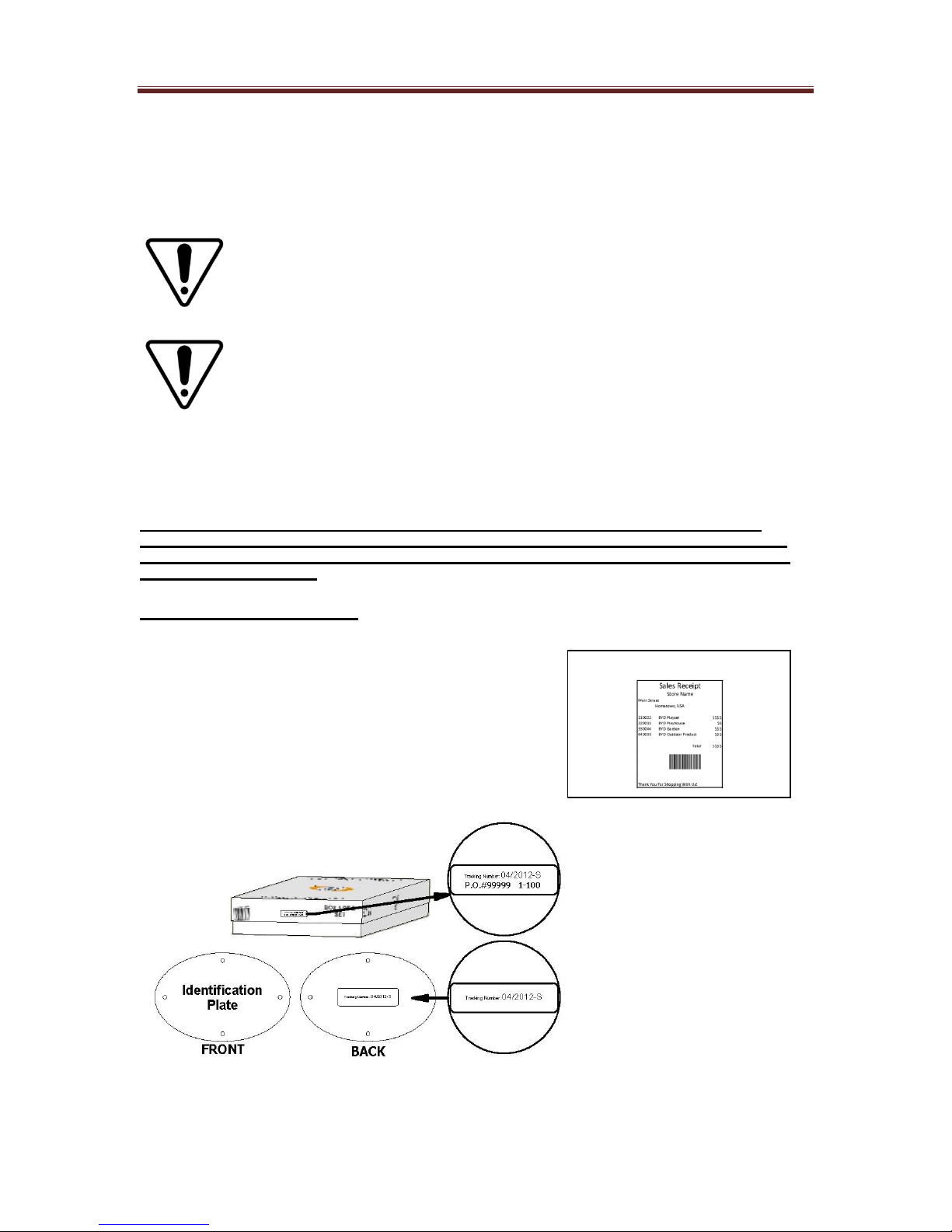

For Your Records:
Please take time and fill out the information below. This information will be needed for
warranty issues.
Where Purchased: ______________
Date of Purchase: ________________
Tracking ID number on the carton and back of the ID plate are included for
tracking purposes associated with warranty claims.
OWNER PH-2011
Page 5
Owner’s Manual Play House
Please refer to the Assembly section of the Assembly Manual for Maximum
Fall Height.

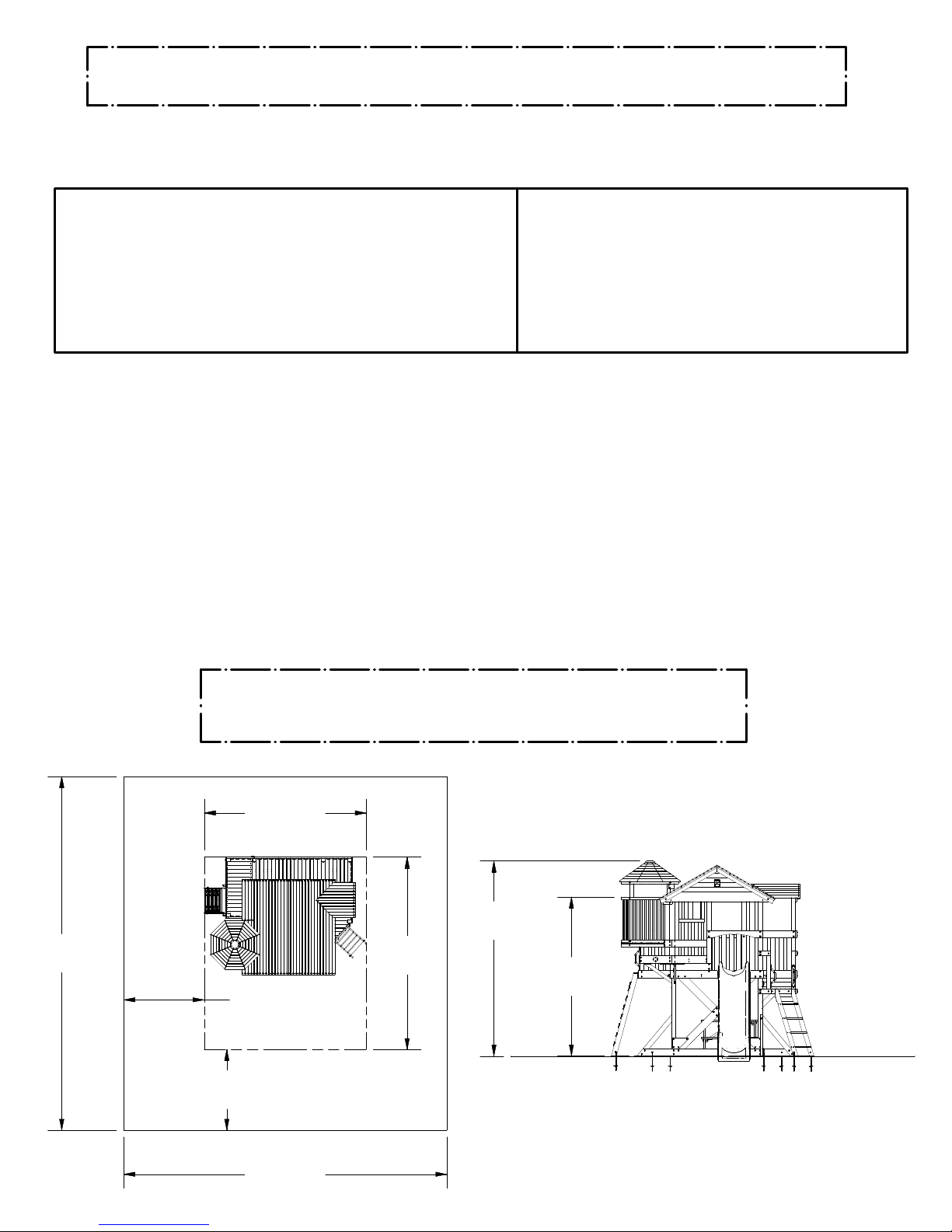

Positioning Your Play house
1. The Play house is designed to be installed on a level surface by an Adult with an
Adult helper. Place in a flat area of your yard to minimize ground preparation.
2. Choose a level location for the equipment. This can reduce the likelihood of the play
house tipping over and loose-fill surfacing material washing away during heavy rains.
3. Place the equipment not less than 6 ft (1.8 m) from any structure or obstruction such
as a fence, garage, house, overhanging branches, laundry lines, or electrical wires.
4. It is a good idea to place your Play house in an area that is convenient for adults to
watch children at play.
5. Create a site free of obstacles that could cause injuries – such as low overhanging
tree branches, overhead wires, tree stumps and/or roots, large rocks, bricks and
concrete. We have additional suggestions in the Suggested Playground Surfacing
Section.
6. Do not build your play house on top of surfacing material.
Suggested Playground Surfacing
Playground equipment should never be placed on hard surfaces such as
concrete or asphalt.
Do not install loose fill surfacing over hard surfaces such as concrete or
asphalt.
Shredded bark mulch, wood chips, fine sand and fine gravel, are added as
shock absorbing materials after assembly. If used properly these
materials can absorb some of the impact of a child’s fall.
All surface material should extend a minimum of 6 feet or (1.8 m) in all
directions around the play area.
Do not apply playground surfacing until after the unit is completely
constructed. Play house should not be built on top of surfacing.
Use containment, such as digging out around the perimeter and/or lining
the perimeter with landscape edging.
Installations of rubber tiles or poured-in-place surfaces (other than loosefill materials) generally require a professional and are not “do-it-yourself”
projects.
Shall use Playground Surfacing Materials (other than loose-fill material)
which comply with the safety standard ASTM F1292 Standard
Specification of Impact Attenuation of Surfacing Materials within the Use
Zone of Playground Equipment.
OWNER PH-2011
Page 6
Owner’s Manual Play House
The following chart explains the fall height in feet from which a life
Fine Gravel 5' (1.52m) 7' (2.13m) 10' (3.05m) 6' (1.83m)
Medium Gravel 5' (1.52m) 5' (1.52m) 6' (1.83m) 5' (1.52m)
Shredded Tires* 10-12' (3.0-3.6m) N/A N/A N/A
*This data is from tests conducted by independent testing laboratories on a 6-inch depth of uncompressed shredded tire samples
produced by four manufacturers. The tests reported critical heights, which varied from 10 feet to greater than 12 feet. It is recommended that
persons seeking to install shredded tires as a protective surface request test data from the supplier showing the critical height of the material
Operating Instructions:
NOTE: Your children’s safety is our #1 concern. Observing the
following statements and warnings reduces the likelihood of
serious or fatal injury. Please review these safety rules regularly
with your children.
1. On-site adult supervision is required.
2. Instruct children not to climb when the equipment is wet.
3. Instruct children to never crawl on top of a play house roof.
4. The parents should have the children dress appropriately with well-fitting
shoes. Loose clothing such as scarves and ponchos should not be worn.
Always take off, tie up or tuck in cords and drawstrings on children’s
clothing. These things can get caught on playground equipment and
strangle a child.
5. Instruct children not to attach items to the equipment that are not
specifically designed for use with that equipment (such as ropes,
clothesline, pet leashes, etc.).
6. Instruct children to remove their bike or other sports helmet before playing
on the playground equipment.
7. Instruct children not to use the equipment in a manner other than
intended.
Maintenance Instructions:
At the beginning of each play season:
• Tighten all hardware.
• Lubricate all metallic moving parts per manufacture’s instructions.
6' (1.83m) 10' (3.05m) 11' (3.35m) 7' (2.13m)
when it was tested in accordance with ASTM F1292.
OWNER PH-2011
Page 7
Owner’s Manual Play House
• Check all protective coverings on bolts, pipes, edges and corners. Replace if
they are loose, cracked, or missing.
• Check all moving parts including swing seats, ropes, cables, and chains for wear,
rust, or other deterioration. Replace as needed.
• Check metal parts for rust. If found, sand and repaint using non Lead-based paint
meeting the requirements of Title 16 CRF Part 1303.
• Modifications not approved by the party responsible for compliance could void
user’s authority to operate the equipment.
• Check all wood members for deterioration and splinters. Sand down and splinters
and replace deteriorating members.
• Reinstall any plastic parts, such as swing seats or any other items that were
removed in the cold season.
• Rake and check depth of loose fill protective surfacing materials to prevent
compaction and to maintain appropriate depth. Replace as necessary.
Twice a month during play season:
• Tighten all hardware.
• Lubricate all metallic moving parts per manufacture’s instructions.
• Check all protective coverings on bolts, pipes, edges and corners. Replace if
they are loose, cracked, or missing.
• Check all moving parts including swing seats, ropes, cables, and chains for wear,
rust, or deterioration. Replace as needed.
• Rake and check depth of loose fill protective surfacing materials to prevent
compaction and to maintain appropriate depth. Replace as necessary.
At the end of each play season or when the temperature drops below 32° F:
• Remove plastic swing seats and other items as specified by the manufacturer
and take indoors or do not use.
• Rake and check depth of loose fill protective surfacing materials to prevent
compaction and to maintain appropriate depth. Replace as necessary.
Additional Maintenance:
• Check the swing beam and hardware every two weeks due to wood expansion
and contraction. It is particularly important that this procedure be followed at the
beginning of each season.
• Inspect all wood members monthly. The grain of the wood sometimes will lift in
the dry season causing splinters to appear. Light sand may be necessary to
maintain a safe playing environment. Treat your play house with stain regularly,
to help prevent severe checking/splitting and other weather damage.
• We have applied a waterborne transparent stain to your unit. This is done for
color only. Once or twice a year, depending on your climate conditions, you must
apply some type of protection (sealant) to the wood of your unit. Prior to the
application of sealant, lightly sand any “rough” spots on your play house. Please note this is a requirement of your warranty.
• Creating and maintaining the Play house on a level location is very important.
Make sure the play house is level and true once each year or at the beginning of
each play season.
• Rake the surface periodically to prevent compaction and maintain appropriate
depths.
OWNER PH-2011
Page 8
Owner’s Manual Play House
Owners shall be responsible for maintaining the legibility of the warning labels.
Disposal Instructions:
When the Play house use is no longer desired, it should be disassembled and
disposed of in such a way that no unreasonable hazards will exist at the time the unit
is discarded.
This package must be kept because it contains important information!
OWNER PH-2011
Page 9
Owner’s Manual Play House
APPENDIX A
Information on Playground Surfacing Materials:
The following information is from the United States Consumer Product Safety
Commission’s Information Sheet for playground surfacing material; also
see the following website for additional information:.
www.cpsc.gov/cpscpub/pubs/323.html
X3. CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS
X3.1 Select Protective Surfacing—One of the most important things you can do to
reduce the likelihood of serious head injuries is to install shock-absorbing protective surfacing
under and around your play equipment. The protective surfacing should be applied to a depth
that is suitable for the equipment height in accordance with ASTM Specification F 1292. There
are different types of surfacing to choose from; whichever product you select, follow these
guidelines:
X3.1.1 Loose-Fill Materials:
X3.1.1.1 Maintain a minimum depth of 9 inches of loose-fill materials such as wood
mulch/chips, engineered wood fiber (EWF), or shredded/recycled rubber mulch for equipment
up to 8 feet high; and 9 inches of sand or pea gravel for equipment up to 5 feet high. NOTE: An
initial fill level of 12 inches will compress to about a 9-inch depth of surfacing overtime. The
surfacing will also compact, displace, and settle, and should be periodically refilled to maintain
at least a 9-inch depth.
X3.1.2 Use a minimum of 6 inches of protective surfacing for play equipment less than 4
feet in height. If maintained properly, this should be adequate. (At depths less than 6 inches, the
protective material is too easily displaced or compacted.) NOTE: Do not install home playground
equipment over concrete, asphalt, or any other hard surface. A fall onto a hard surface can result
in serious injury to the equipment user. Grass and dirt are not considered protective surfacing
because wear and environmental factors can reduce their shock absorbing effectiveness.
Carpeting and thin mats are generally not adequate protective surfacing. Ground level
equipment such as a sandbox, activity wall, playhouse or other equipment that has no elevated
play surface – does not need any protective surfacing.
X3.1.3 Use containment, such as digging out around the perimeter and/or lining the
perimeter with landscape edging. Don’t forget to account for water drainage.
X3.1.3.1 Check and maintain the depth of the loose-fill surfacing material. To maintain
the right amount of loose-fill materials, mark the correct level on play equipment support posts.
That way you can easily see when to replenish and/or redistribute the surfacing.
X3.1.3.2 Do not install loose-fill surfacing over hard surfaces such as concrete or
asphalt.
X3.1.4 Poured-In-Place Surfaces or Pre-Manufactured Rubber Tiles — You may be
interested in using surfacing other than loose-fill materials – like rubber tiles or poured-in-place
surfaces.
X3.1.4.1 Installations of these surfaces generally require a professional and are not “do-
it-yourself” projects.
X3.1.4.2 Review surface specification before purchasing this type of surfacing. Ask the
installer/manufacturer for a report showing that the product has been tested to the following
safety standard: ASTM F 1292 Standard Specification for Impact Attenuation of Surfacing
Materials within the Use Zone of Playground Equipment. This report should show the specific
height for which the surface is intended to protect against serious head injury. This height should
be equal to or greater than the fall height – vertical distance between a designated play surface
(elevated surface for standing, sitting, or climbing) and the protective surfacing below – of your
play equipment.
X3.1.4.3 Check the protective surfacing frequently for wear.
X3.1.5 Placement — Proper placement and maintenance of protective surfacing is
essential. Be sure to:
X3.1.5.1 Extend surfacing at least 6 feet from the equipment in all directions.
11
OWNER PH-2011
Page 10
Owner’s Manual Play House
Surfacing — Technical Information Guide” and “Handbook for Public Playground Safety.”
Copies of these reports can be obtained by sending a postcard to: Office of Public Affairs, U.S.
Consumer Product Safety Commission, Washington, D.C., 20207 or call the toll-free hotline: 1800-638-2772.
The American Society for Testing and Materials takes no position respecting the validity
of any parent right asserted in connection with any item mentioned in this standard. Users of
this standard are expressly advised that determination of the validity of any such parent rights,
and the risk of infringement of such rights, are entirely their own responsibility.
and must be reviewed every five years and if not revised, either approved or withdrawn. Your
comments are invited either for revision of this standard or for additional standards and should
be addressed to ASTM Headquarters. Your comments will receive careful consideration at a
meeting of the responsible technical committee, which you may attend. If you feel that your
comments have not received a fair hearing you should make your views known to the ASTM
Committee on Standards. 100 Barr Harbor Drive, West Conshohocken, PA 19428.
11
This information has been extracted from the CPSC publications “Playground
The standard is subject to revision at any time by the responsible technical committee
OWNER PH-2011
Page 11
Play House Assembly Manual FAQs:
1. Does the area for the play house need to be level? Yes. Backyard Discovery recommends the play house
be positioned on a flat level area for maximum safety and durability. Any stakes provided should be used to
secure it firmly to the ground.
2. What size area is recommended for the play house? Backyard Discovery recommends at least a 6’ (six foot)
perimeter around and above the play house for maximum safety.
3. What age range is appropriate for the play houses? Backyard Discovery play houses are recommended for
children ages 3 – 10 years.
4. Is the wood treated with chemicals? Backyard Discovery uses 100% Chinese Cedar wood which is naturally
bug resistant, decay and rot resistant. To help ensure your child’s safety, our wood is completely chemical free
and we do not use pressure-treated wood. The stain we use is a top coat using a water-based product that is
for appearance only.
5. How often should the play house be stained? Backyard Discovery recommends the play house be stained
once each year. A water or oil based stain can be used at the customer’s discretion.
6. Why does it seem that my play house is developing cracks? Wood is a natural material; no two pieces are
exactly alike. Each piece has its own characteristics and personality and reacts differently to climate changes.
When any wood product is exposed to the elements, it develops “wood checks”. A check is the radial
separation of the wood fibers running with the grain of the wood. These are caused by the varying temperature
and moisture conditions. A check is not a crack – it does not affect the strength or durability of the wood or
structural integrity of the play house.
7. Do Backyard Discovery play houses come with a warranty? Yes. All Backyard Discovery products carry a 1year replacement warranty on all parts for manufacturer’s defect. Our wood carries a 5 year warranty on rot
and decay as well. Please see warranty details for more information.
8. What is the best way to get started assembling the play house? Backyard Discovery recommends taking all
the parts out of the boxes and arranging them by part number before you begin any assembly. This will not
only allow faster assembly, but will also identify any parts that may be missing or damaged so they can be
replaced before assembly. If parts are missing or need replacement, go to
www.backyarddiscovery.com/support.aspx and follow the prompts to order them. Next, read the assembly
manual and get the tools ready for the job as recommended in the manual. If the assembly manual is lost or
misplaced a new one can be printed from Backyard Discovery’s website: www.backyarddiscovery.com.
9. The play house seems to rock or sway too much. What’s wrong? Rocking is caused by uneven ground or
obstructions such as rocks, roots, etc. under the ground rails. These should be removed and the ground
underneath re-leveled to prevent rocking. Also ensure the play house is securely staked to the ground using
any stakes provided.
10. The 2”x4” boards do not measure 2”x 4”. Why not? In the U.S. it’s common practice to describe lumber
dimensions using the rough cut sizes from the sawmill and not the finished dimensions. Retailers, home stores,
etc. all use this accepted practice for describing lumber dimensions. However, Backyard Discovery play
houses are designed and constructed using the actual dimensions so everything fits properly and remains so
during the life of the play house.
For more information and frequently asked questions, please refer to our website at www.backyarddiscovery.com.
Page 12

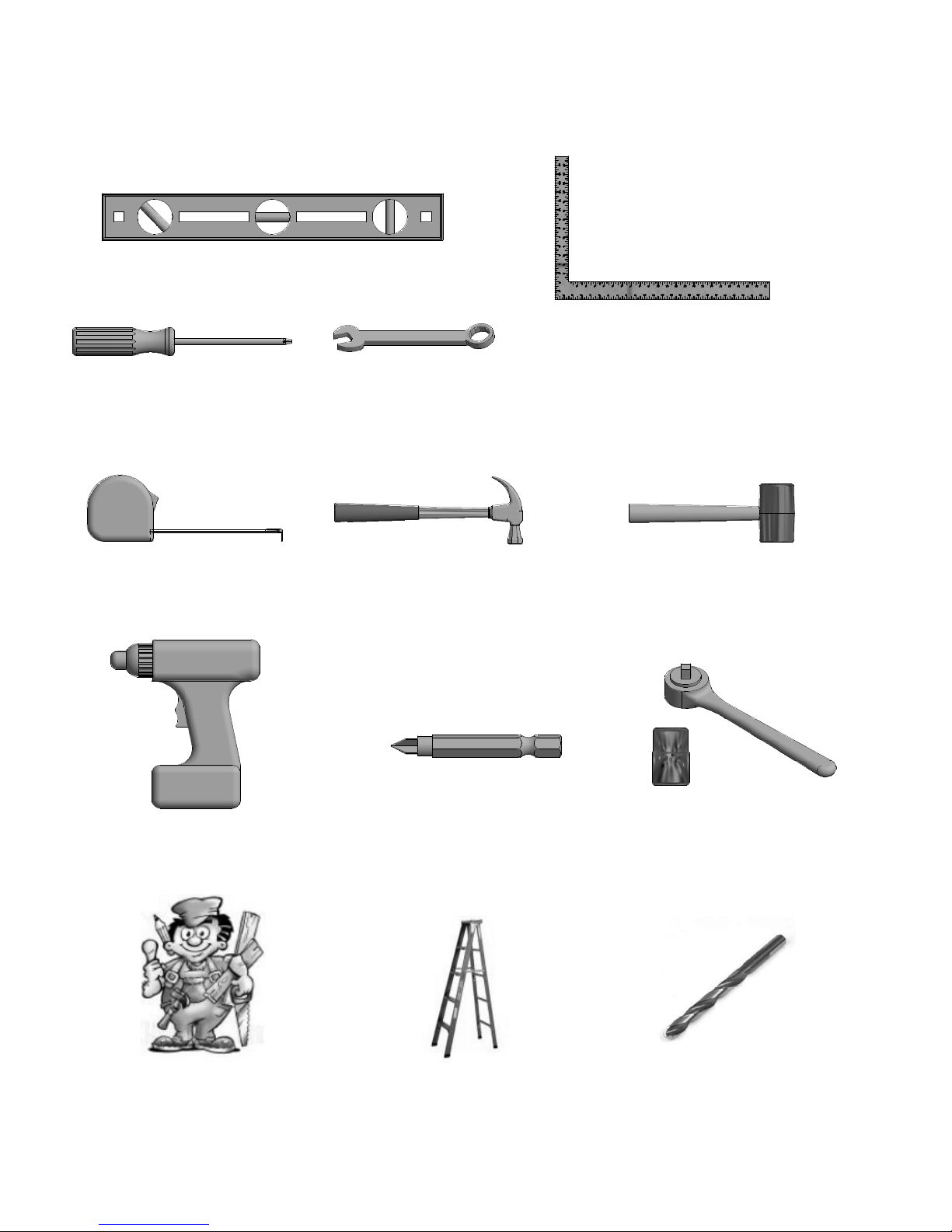

Tools Required for Installation:
(These are the tools that are generally required for assembly of our outdoor products. These tools
are not included with the outdoor product purchase.)
(Level 24")
(Square)
(Phillips Screw Driver)
(Tape Measure)
(Cordless Drill or Electric Drill)
(Open End Wrenches 1/2")
(Claw Hammer)
(Drill Attachments:
Phillips Head)
(Rubber Mallet - Optional)
(3/8" Drive Ratchet, 1/2" STD
Sockets 1/2" Deep Sockets)
(An Adult w/ an Adult Helper)
(Ladder)
(1/8" & 7/16" Drill Bits)
Page 13
«
S
P
A
N
I
S
H
SAFETY AND ASSEMBLY INFORMATION
SELECTING THE CORRECT LOCATION FOR YOUR PLAY PRODUCT IS IMPORTANT
FOR YOUR CHILDREN’S SAFETY AND THE PRODUCT’S LONGEVITY
Dimensions:
• The Eagles Nest has one layout option.
Layout Ground Dimension Safe Play Area*
12'-1" x 14'-4" x 139" Tall 24'-1" x 26'-4"
*Level Ground Surface - See below
Safe Play Area:
• The safe play area refers to a zone extending 6' beyond the play product on all sides, including the
space above the play product.
• The ground surface must be level. Installing your play product on sloping ground can cause it to
lean or "rack". This leaning puts additional stress on all connections and joints and in time will cause
those connections to loosen and fail.
• The safe play area must be free of all structures, landscaping, trees and branches, rocks, wires,
and other obstacles to safe play. Children can be seriously injured running or swinging into these
obstacles.
• Remove all tripping hazards from the safe play area. Tripping hazards include: roots, stumps, rocks,
landscaping, sprinkler heads, railroad ties, plumbing and electrical connections.
• Play product needs to be installed on solid ground.
General Information:
Your set has been designed and engineered for
children only and for residential use only.
A maximum of 150 lbs. per child is recommended for
play activities designed for individual use.
A maximum of 120 lbs. per child is recommended for
play activities designed for multiple child use.
A maximum of 6 children is recommended for this unit.
26'-3 5/8"
[8016 mm]
SAFE PLAY AREA DIAGRAM
12'- 7/8"
[3680 mm]
11'-7 1/4"
[3537 mm]
14'-3 5/8"
[1829 mm]
6'-0"
[1829 mm]
[4359 mm]
6'-0"
PLAYHOUSE
9'-5 7/16"
[2882 mm]
Safe play height: 11'-7" [3.5 m]
Maximum fall height: 9'-5" [2.9 m]
24'- 7/8"
[7337 mm]
Page 14

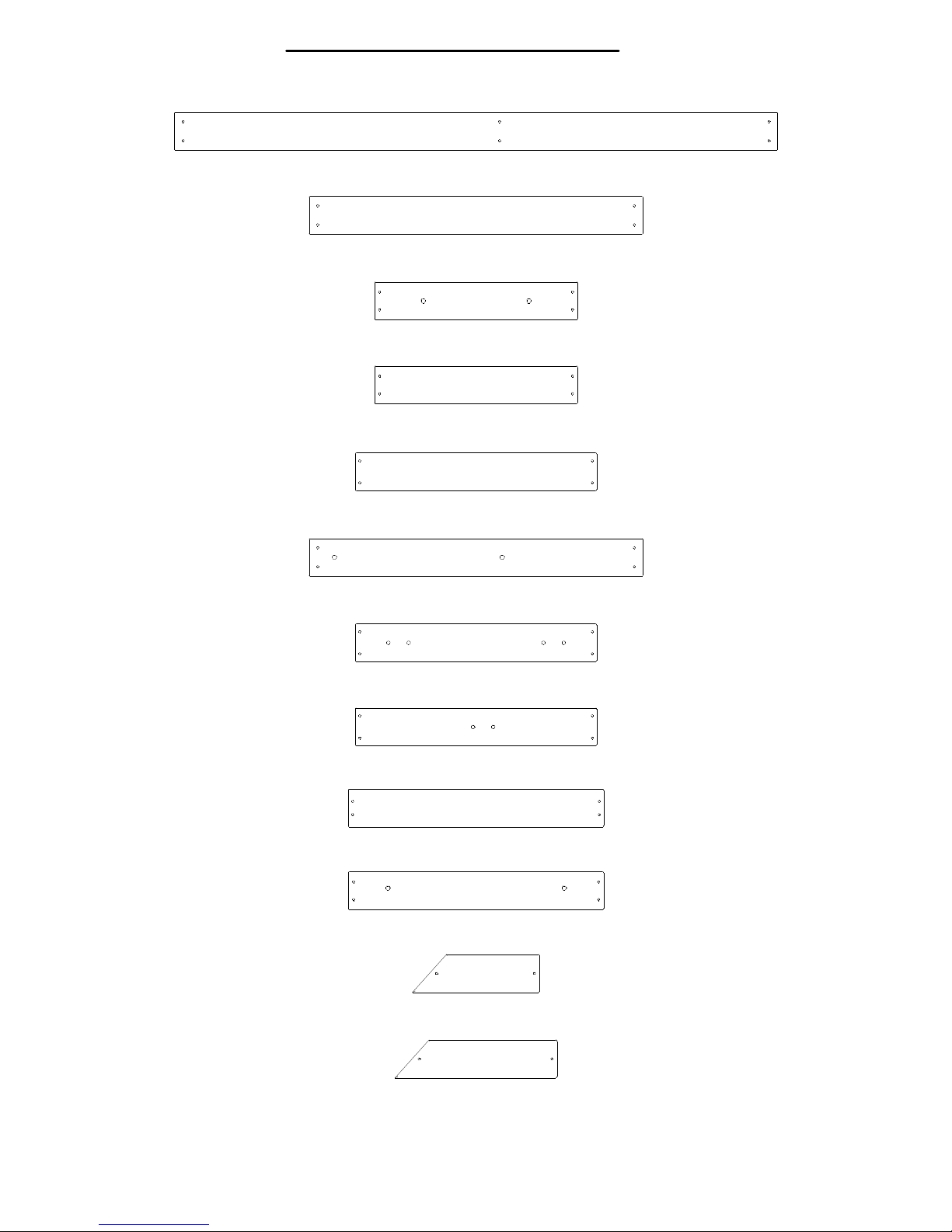

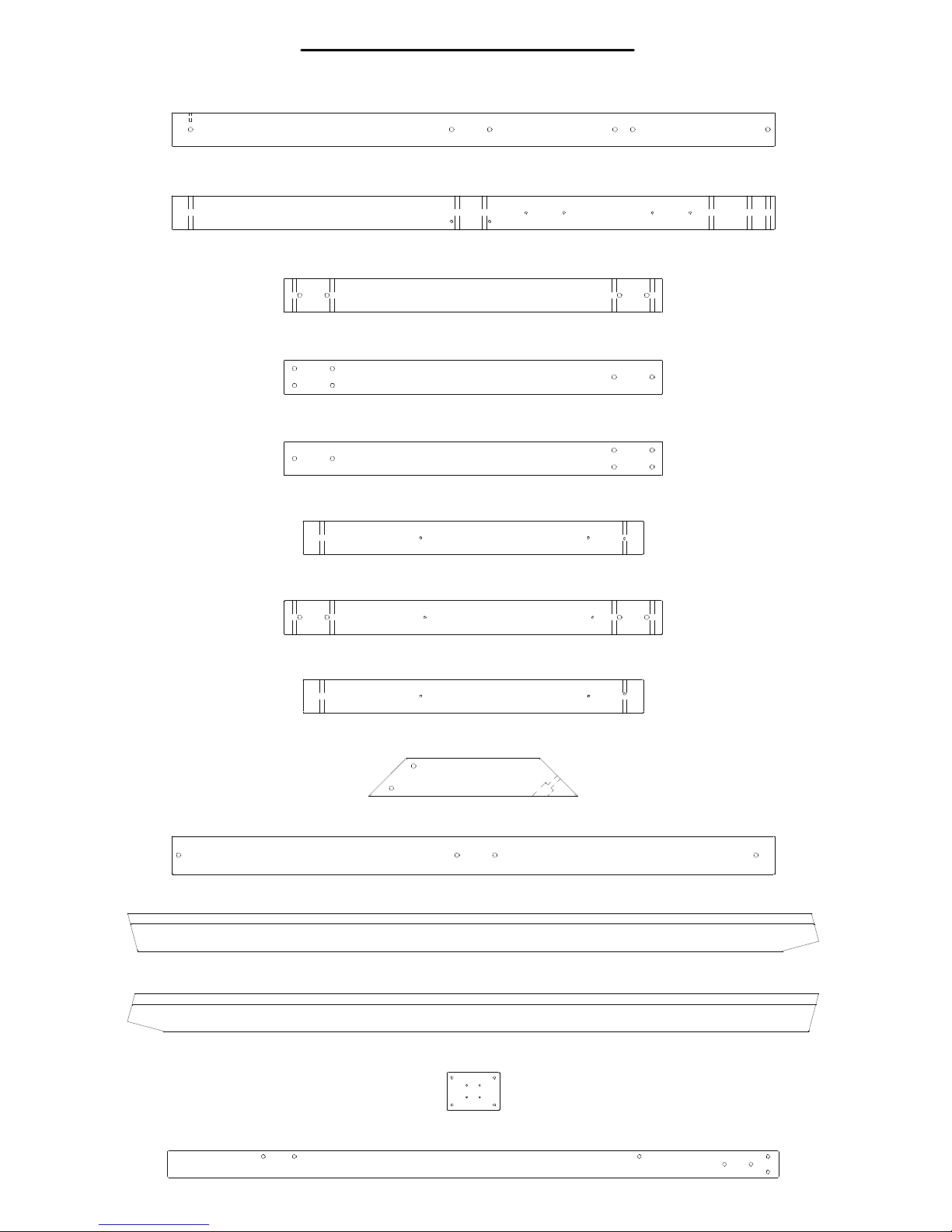

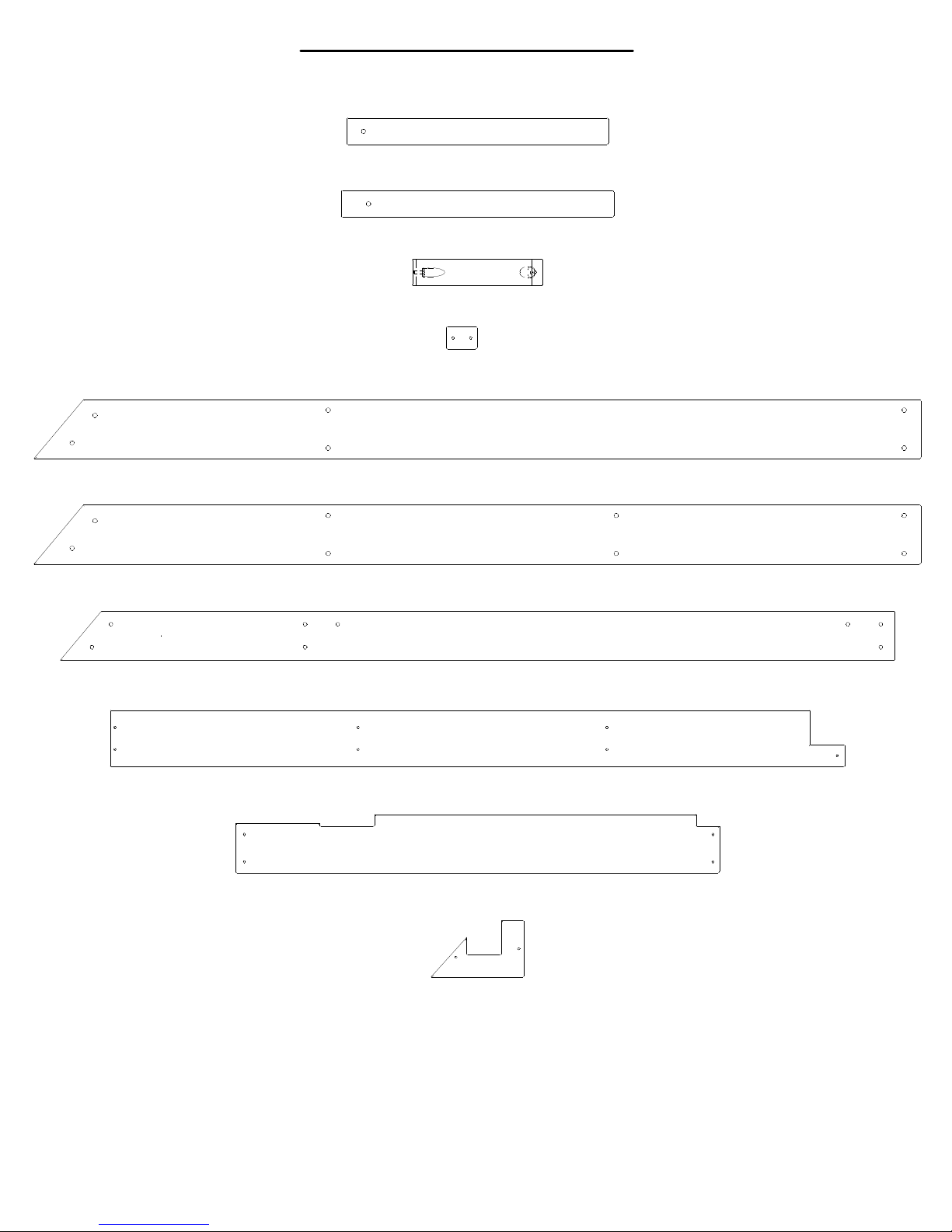

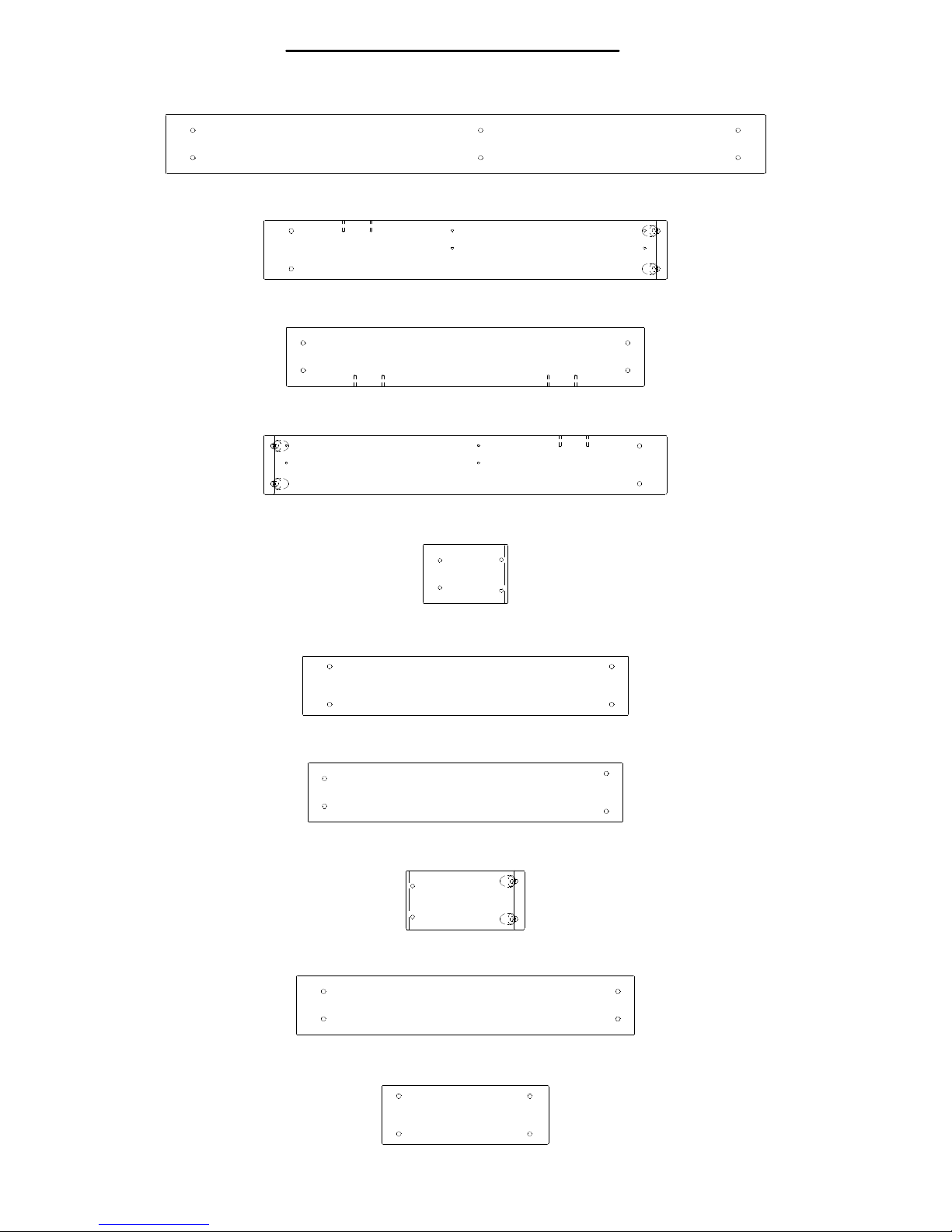

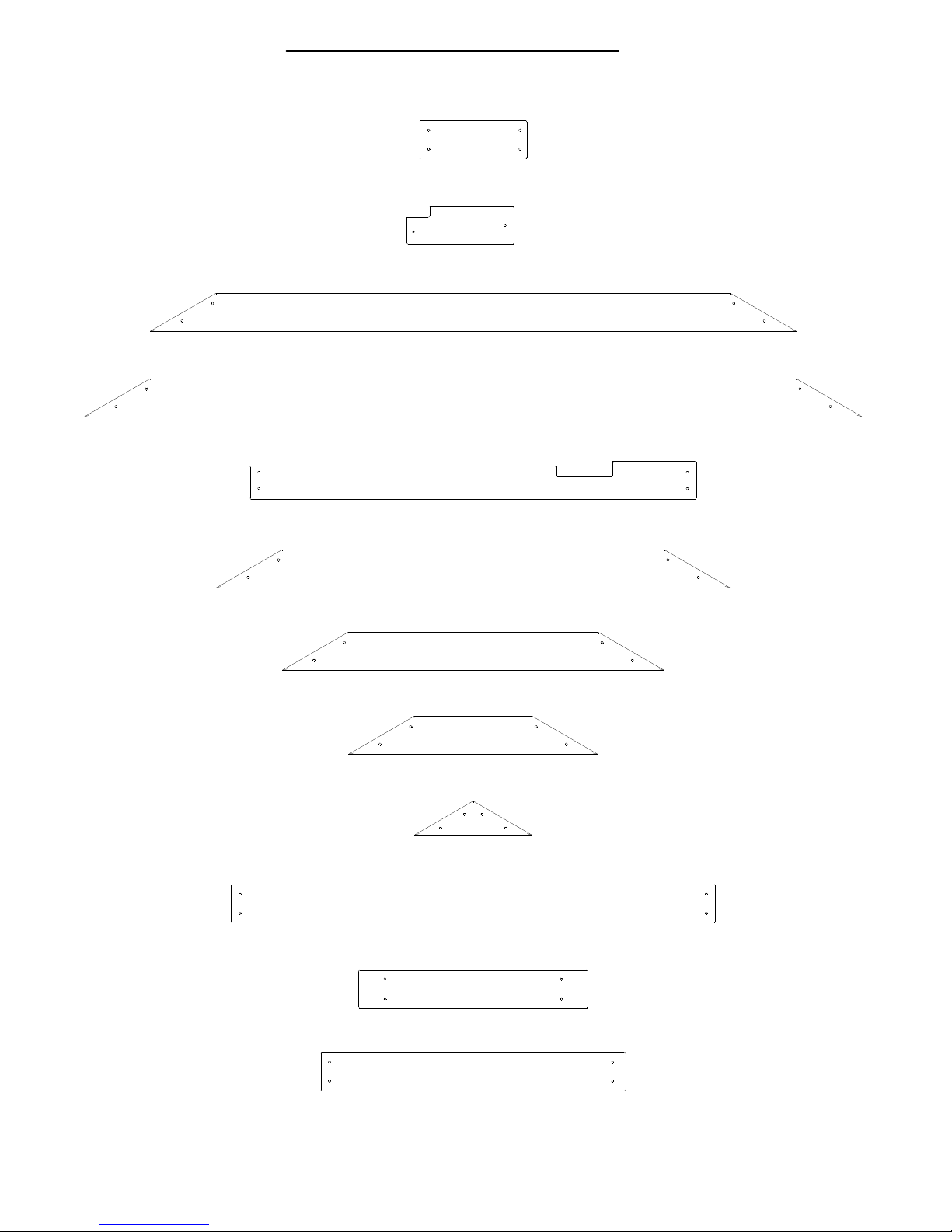

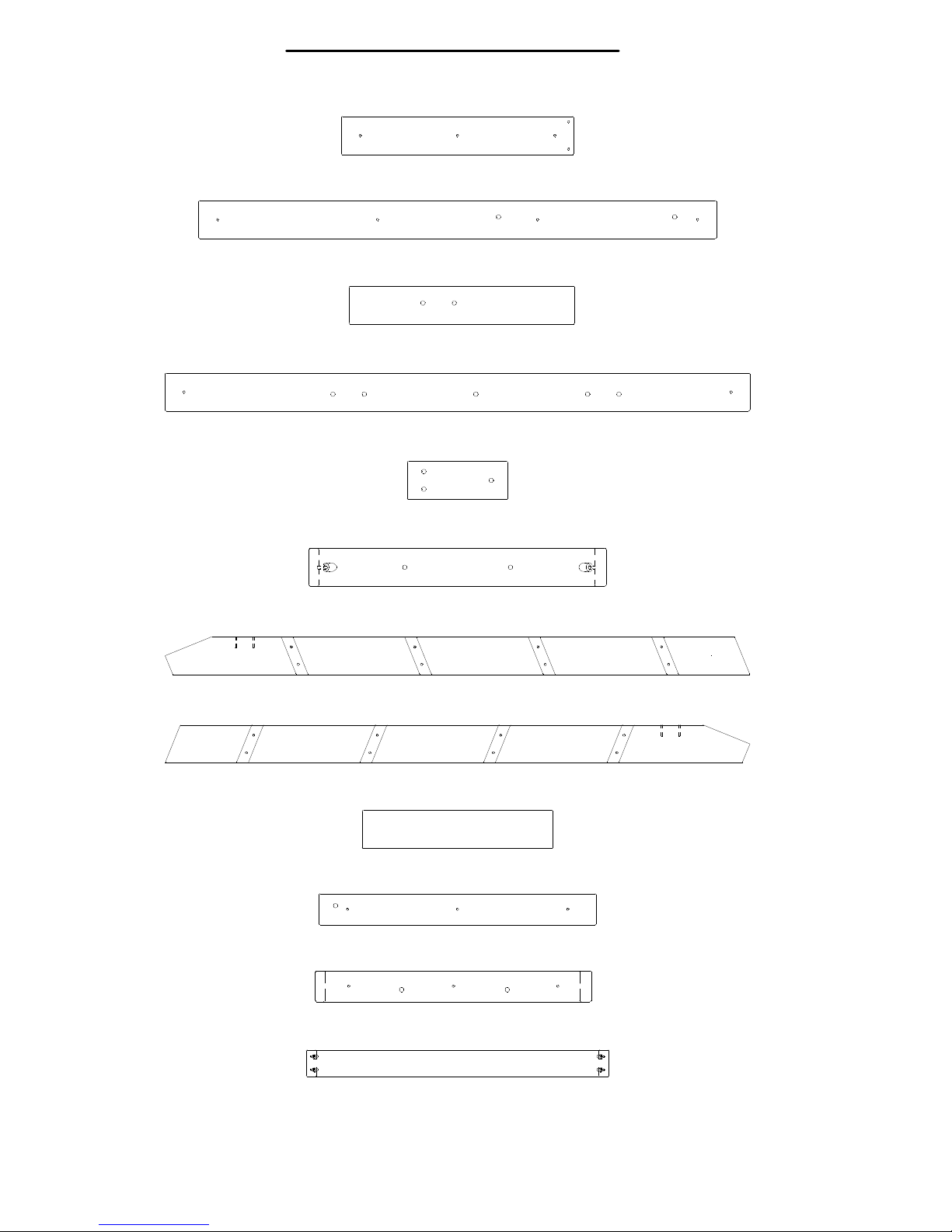

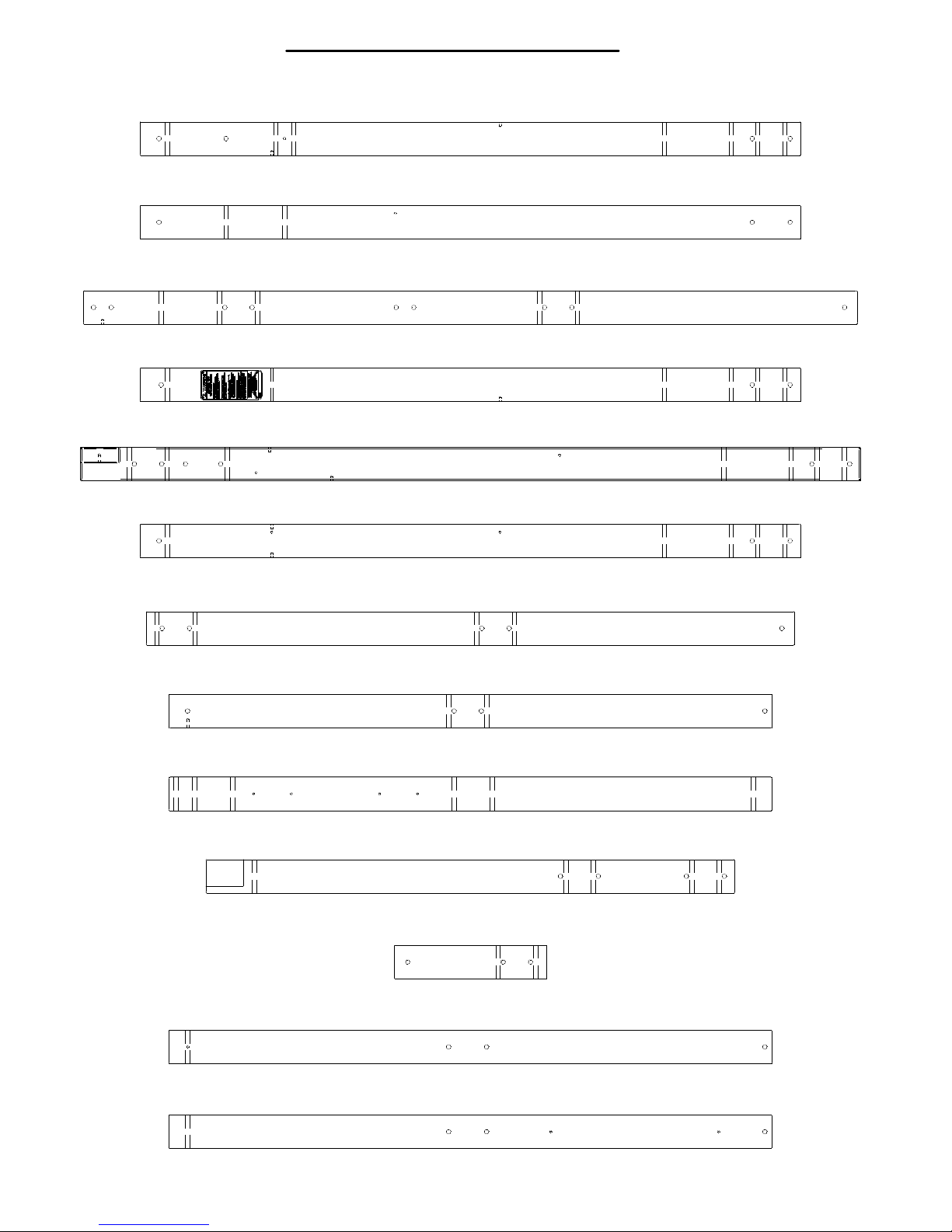

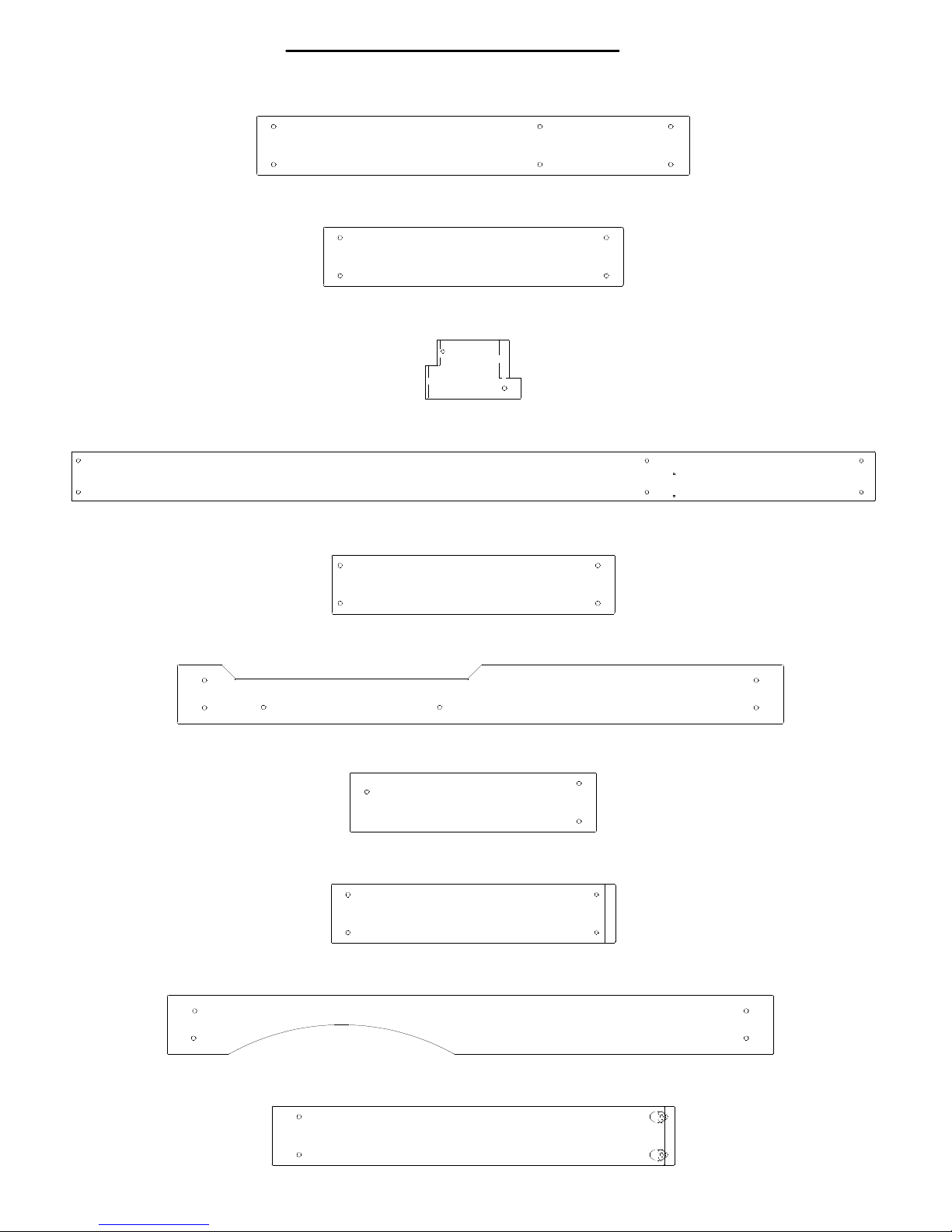

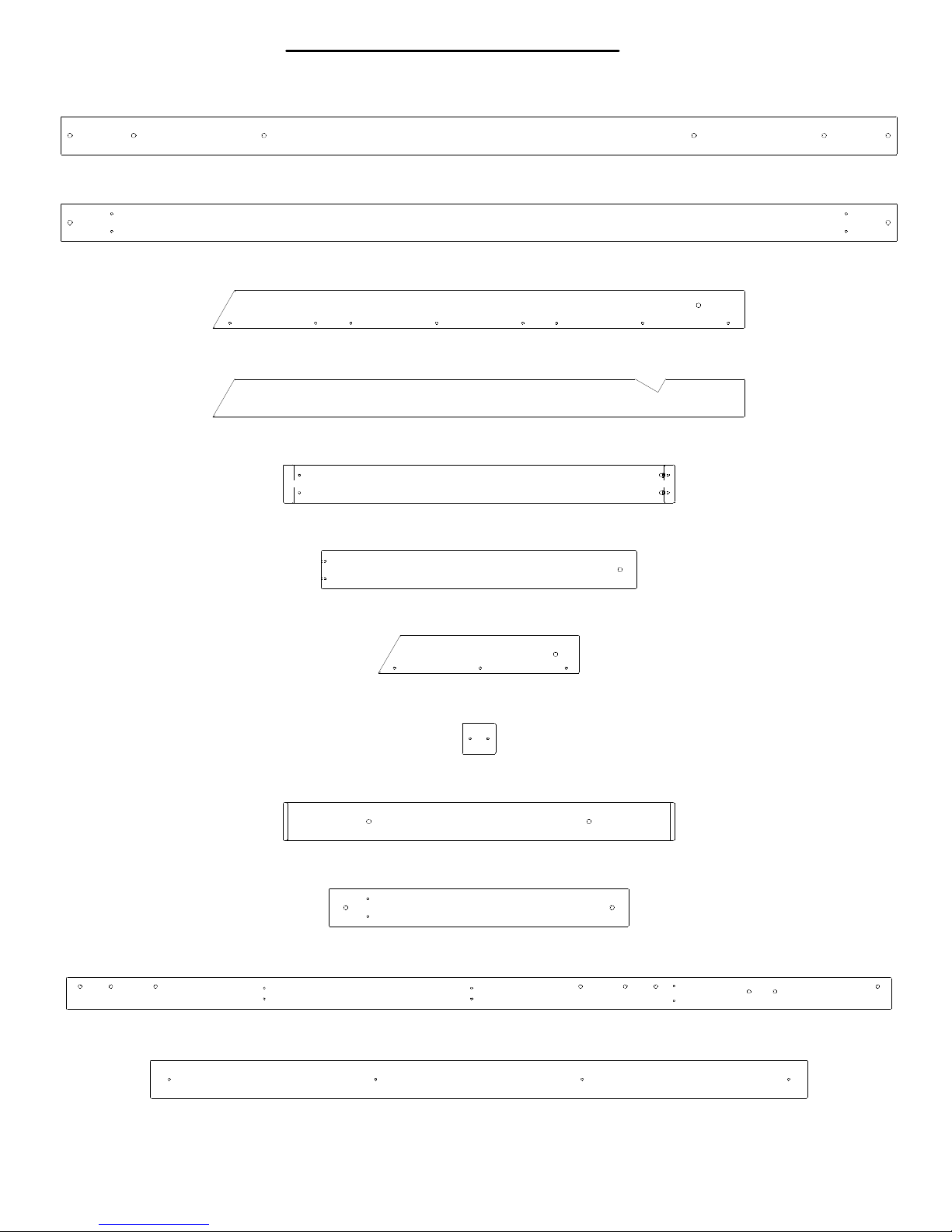

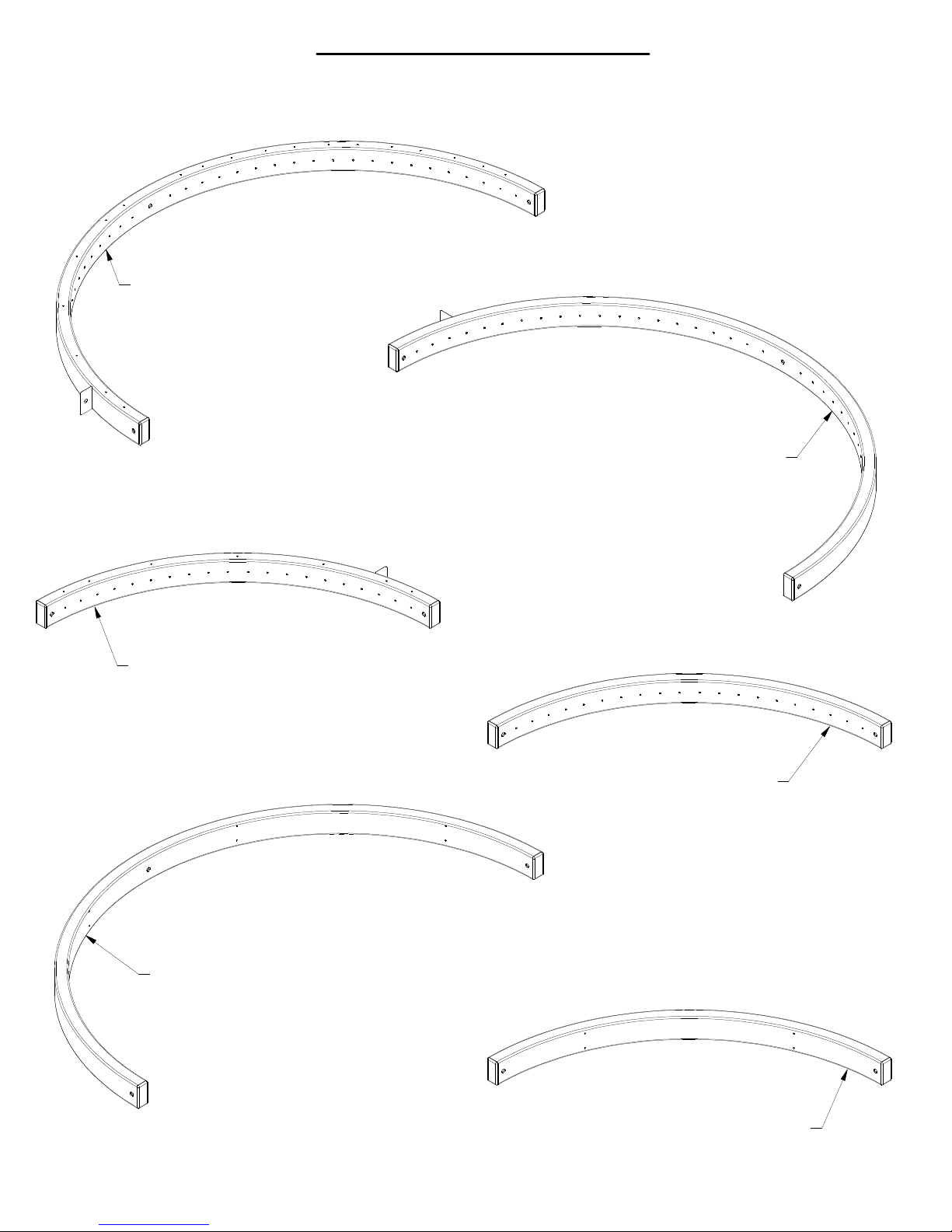

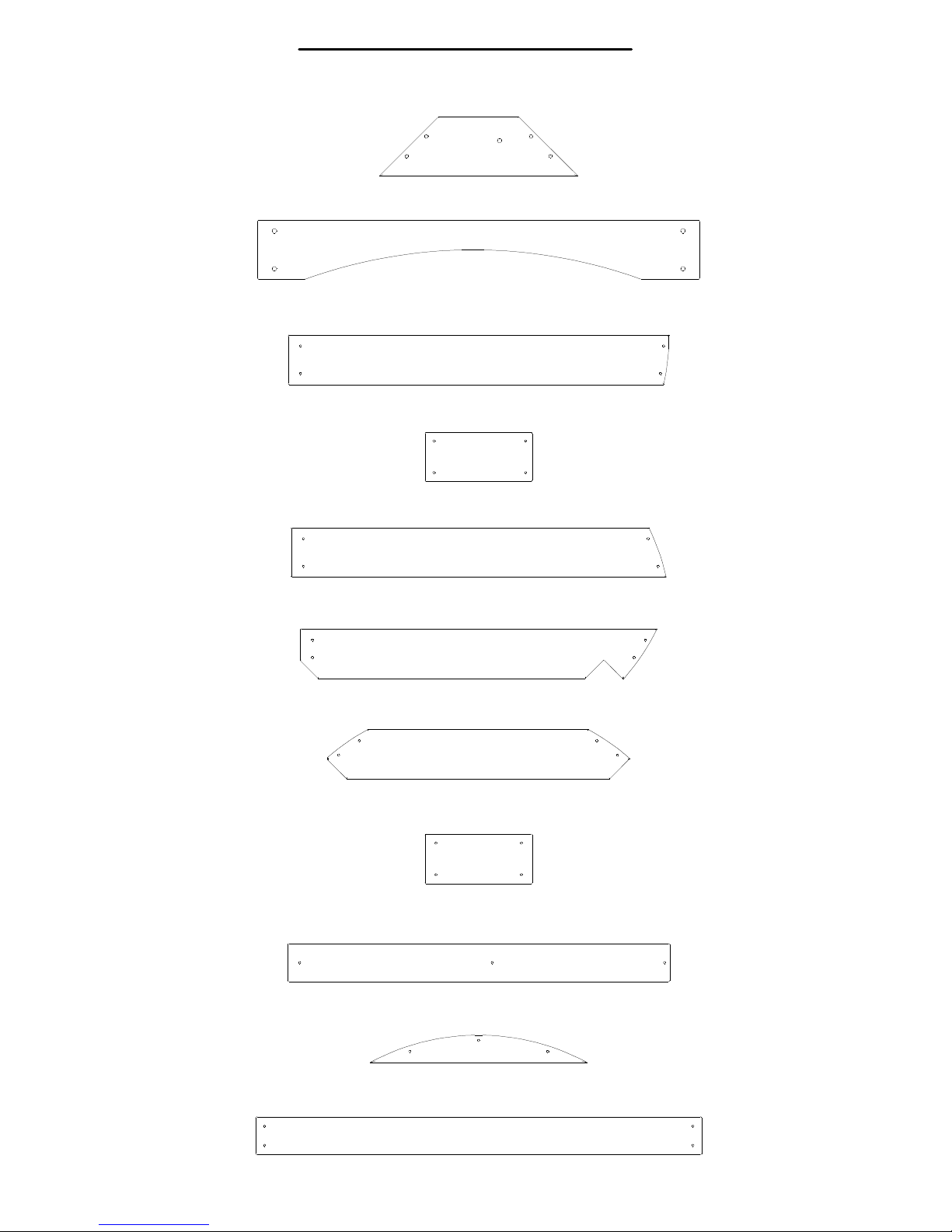

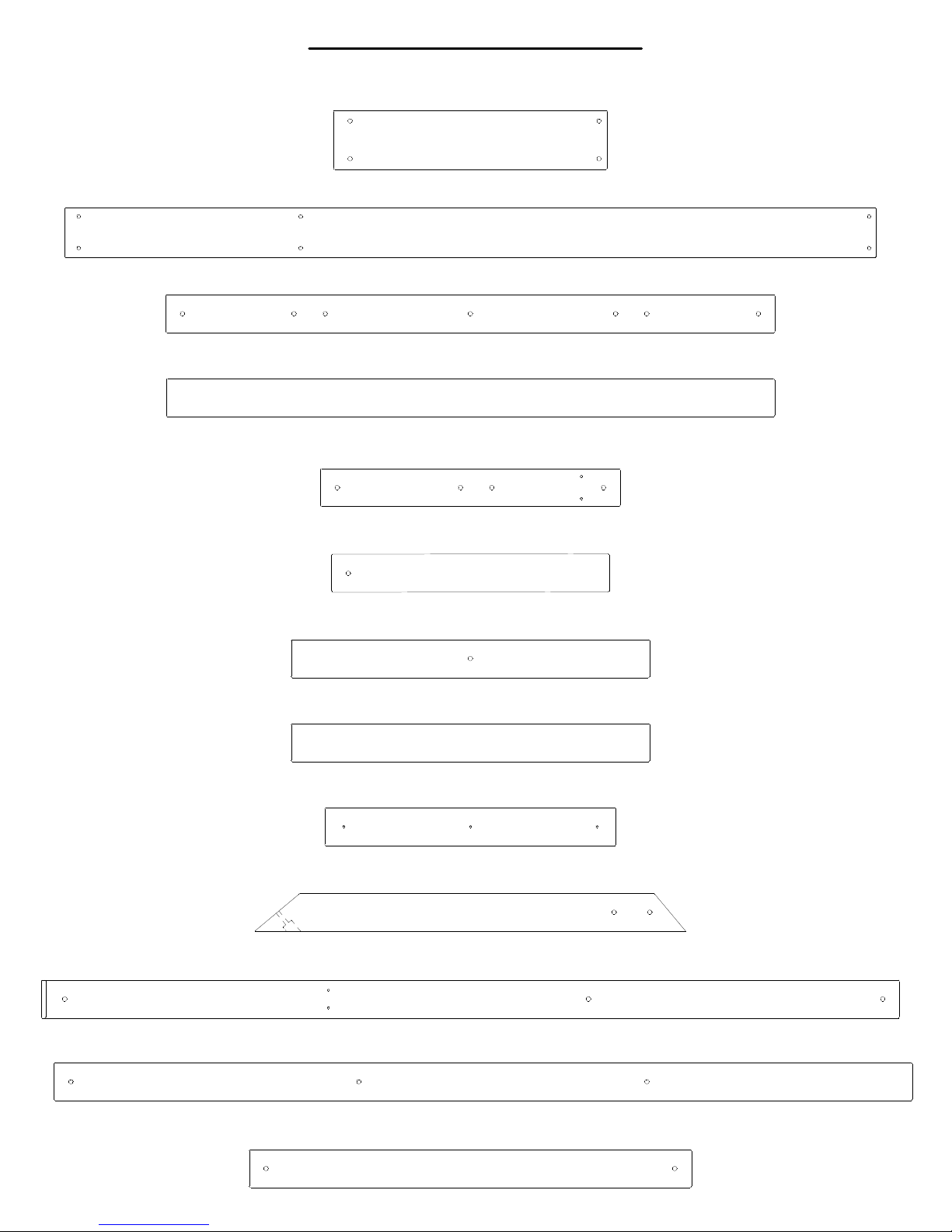

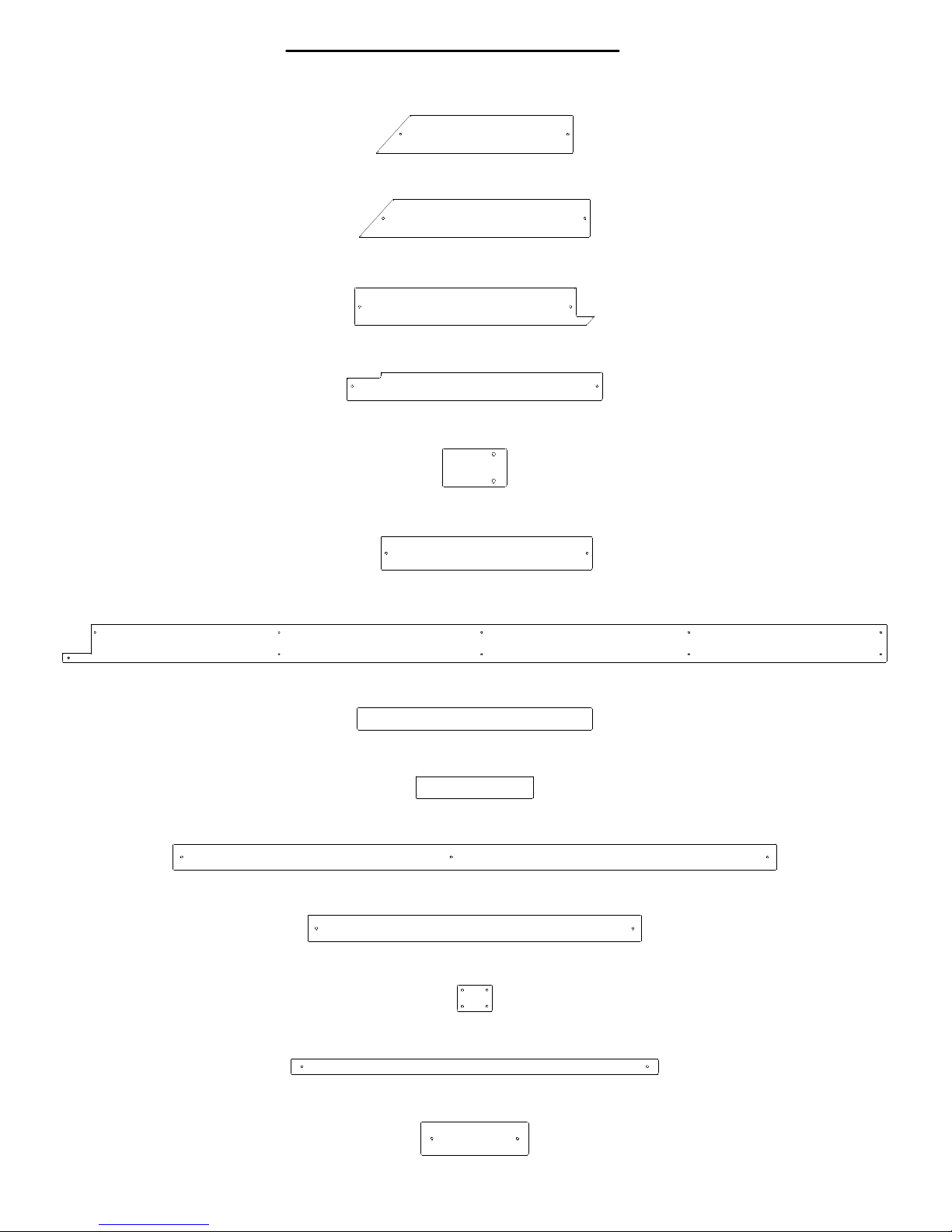

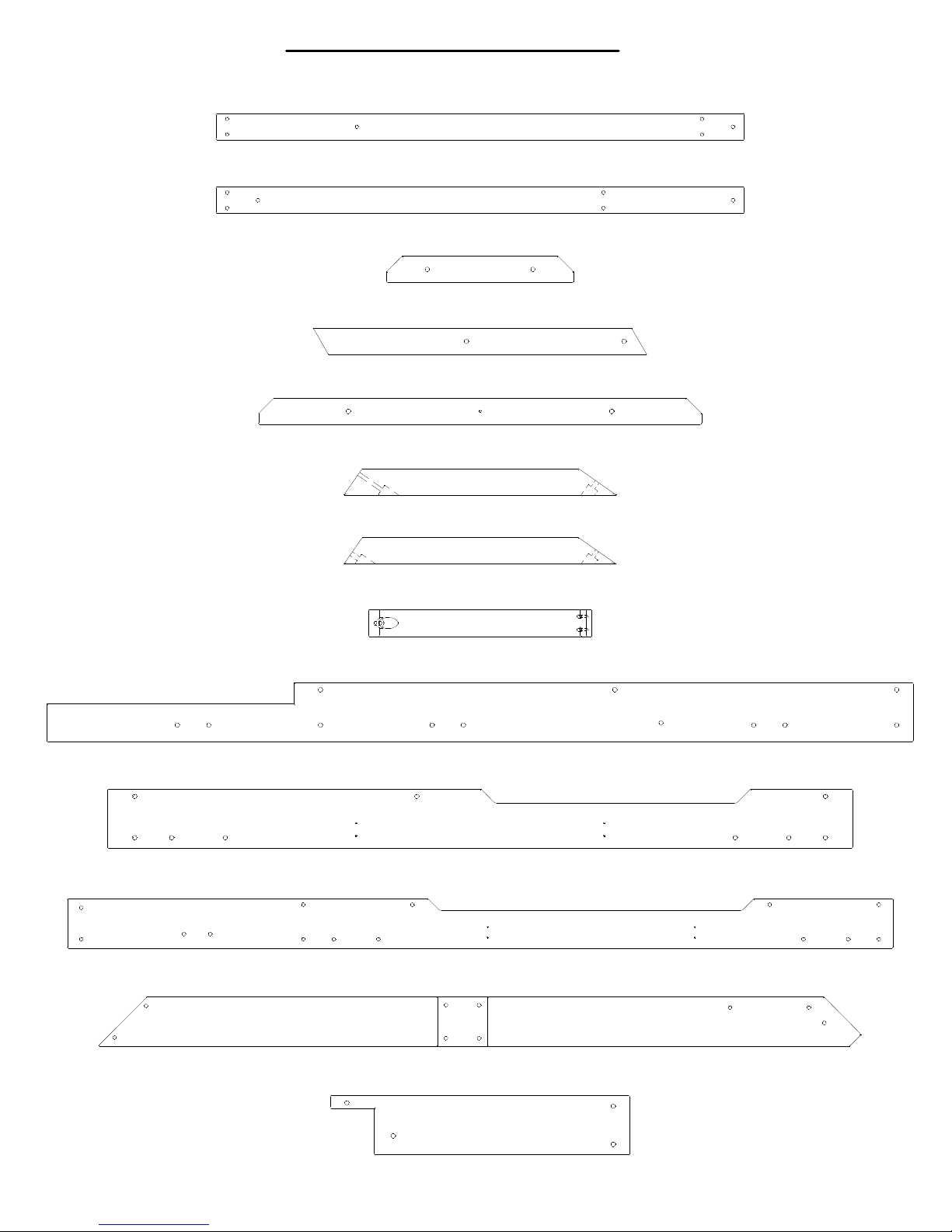

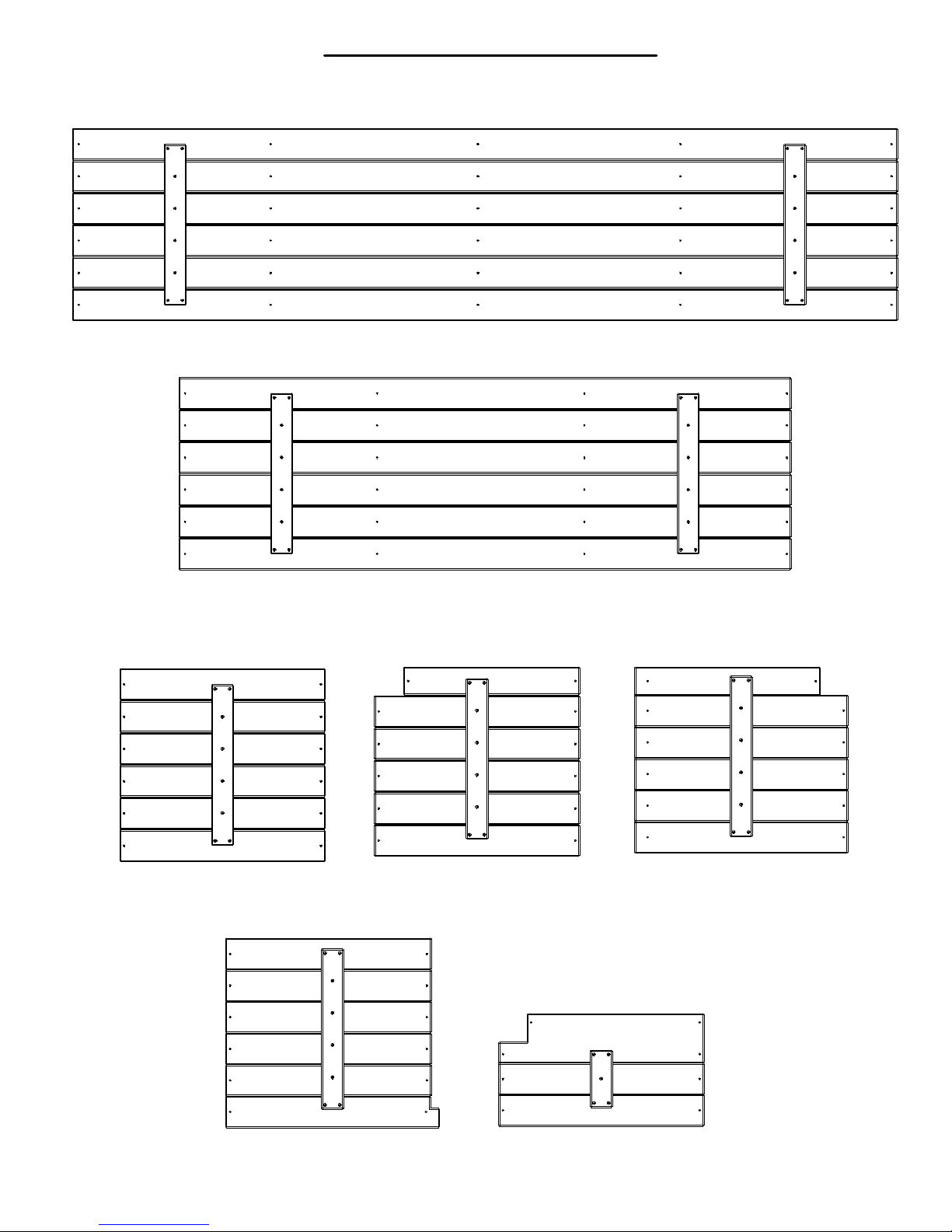

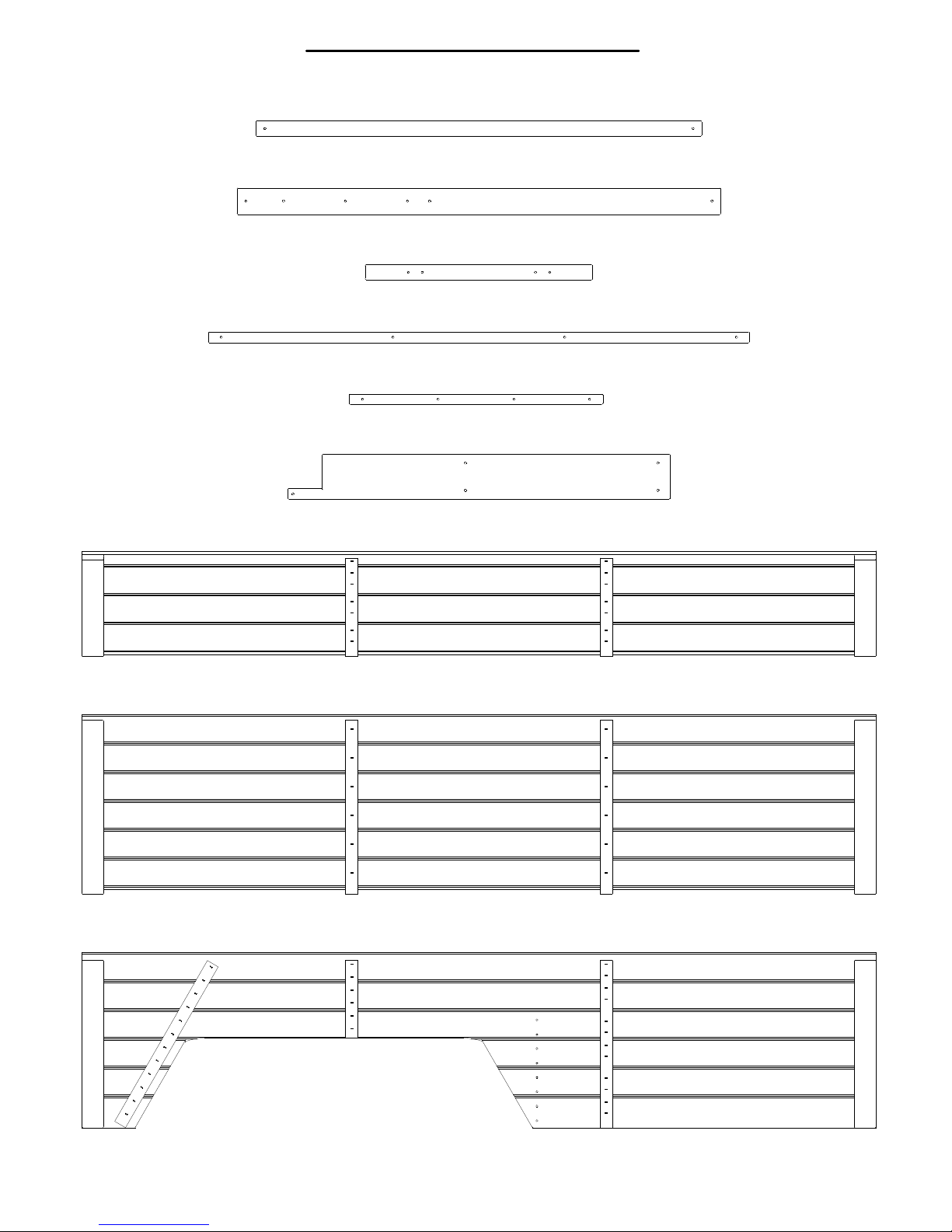

Parts Identification
Wood Components
(NOT TO SCALE)
B1 - POST - W4L08453
(1)
3"x3"x59" (76x76x1500)
B2 - POST - W4L08454
(1)
3"x3"x59" (76x76x1500)
B3 - POST - W4L08473
(1)
3"x3"x69 1/8" (76x76x1757)
B4 - POST - W2A02257
(1)
3"x3"x59" (76x76x1500)
B5 - POST - W4L08451
(1)
3"x3"x69 3/4" (76x76x1771)
B6 - POST - W4L08452
(1)
3"x3"x59" (76x76x1500)
B7 - POST - W4L08472
(1)
3"x3"x58" (76x76x1472)
B8 - POST - W4L08475
(1)
3"x3"x53 7/8" (76x76x1370)
B9 - POST - W4L08476
(1)
3"x3"x53 7/8" (76x76x1370)
B10 - POST - W4L08484
(1)
3"x3"x47 1/4" (76x76x1201)
B12 - POST - W4L08487
(1)
3"x3"x13 5/8" (76x76x345)
B13 - POST - W4L08523
(1)
3"x3"x53 7/8" (76x76x1370)
B14 - POST - W4L08524
(1)
3"x3"x53 7/8" (76x76x1370)
Page 15
Parts Identification
Wood Components
(NOT TO SCALE)
B15 - POST - W4L08552
(1)
3"x3"x53 7/8" (76x76x1370)
B16 - POST - W4L08553
(1)
3"x3"x53 7/8" (76x76x1370)
B17 - POST - W4L08696
(2)
3"x3"x33 7/8" (76x76x860)
B18 - POST - W4L08711
(1)
3"x3"x33 7/8" (76x76x860)
B19 - POST - W4L08712
(1)
3"x3"x33 7/8" (76x76x860)
B20 - POST - W4L08716
(1)
3"x3"x30 3/8" (76x76x773)
B21 - POST - W4L08746
(1)
3"x3"x33 7/8" (76x76x860)
B22 - POST - W4L08747
(1)
3"x3"x30 3/8" (76x76x773)
E1 - ANGLE SUPPORT - W4L08458
(8)
1 3/8"x3 3/8"x18 3/4" (36x86x475)
E2 - POST - W4L08522
(2)
3 3/8"x1 3/8"x53 7/8" (86x36x1370)
E3 - LEFT RAIL - W4L08723
(1)
1 3/8"x3 3/8"x61 3/4" (36x86x1570)
E4 - RIGHT RAIL - W4L08724
(1)
1 3/8"x3 3/8"x61 3/4" (36x86x1570)
E5 - BLOCK - W4L11861
(1)
1 3/8"x3 3/8"x4 3/4" (36x86x120)
F1 - POST - W4L08495
(2)
1 3/8"x2 3/8"x54 5/8" (36x60x1389)
Page 16
Parts Identification
Wood Components
(NOT TO SCALE)
F2 - POST - W4L08503
(1)
1 3/8"x2 3/8"x47 1/4" (36x60x1200)
F3 - POST - W4L08504
(1)
1 3/8"x2 3/8"x47 1/4" (36x60x1200)
F5 - PICNIC TABLE OUTER SUPPORT - W4L08555
(2)
1 3/8"x2 3/8"x16 3/4" (36x60x424)
F6 - PICNIC TABLE LEG - W4L08556
(4)
1 3/8"x2 3/8"x29 7/8" (36x60x757)
F8 - PICNIC TABLE LEG SUPPORT - W4L08558
(2)
1 3/8"x2 3/8"x39 5/8" (36x60x1006)
F10 - ANGLE SUPPORT BRACE - W4L11442
(1)
1 3/8"x2 3/8"x24 3/8" (36x60x618)
F11 - ANGLE SUPPORT BRACE - W4L11443
(1)
1 3/8"x2 3/8"x24 3/8" (36x60x618)
F12 - PICNIC TABLE SUPPORT - W4L11668
(2)
1 3/8"x2 3/8"x20 1/4" (36x60x513)
G1 - WALL SUPPORT - W4L08459
(1)
1"x5 1/4"x77 1/2" (24x134x1968)
G2 - WALL SUPPORT - W4L08460
(1)
1"x5 1/4"x66 5/8" (24x134x1692)
G3 - WALL SUPPORT - W4L08461
(1)
1"x5 1/4"x88 1/2" (24x134x2249)
G4 - CROSS BRACE - W4L08463
(4)
1"x5 1/4"x81 7/8" (24x134x2081)
G5 - WALL SUPPORT - W4L08464
(1)
1"x5 1/4"x26 3/4" (24x134x681)
Page 17
Parts Identification
Wood Components
(NOT TO SCALE)
G6 - WALL SUPPORT - W4L08465
(2)
1"x5 1/4"x53 5/8" (24x134x1362)
G7 - WALL SUPPORT - W4L08477
(1)
1"x5 1/4"x36" (24x134x915)
G8 - WALL SUPPORT - W4L08478
(1)
1"x5 1/4"x32" (24x134x813)
G10 - WALL SUPPORT - W4L08481
(1)
1"x5 1/4"x36" (24x134x915)
G11 - WALL SUPPORT - W4L08486
(1)
1"x5 1/4"x7 1/2" (24x134x192)
G12 - WALL SUPPORT - W4L08490
(1)
1"x5 1/4"x29 1/8" (24x134x741)
G13 - WALL SUPPORT - W4L08491
(1)
1"x5 1/4"x28 1/4" (24x134x716)
G14 - WALL SUPPORT - W4L08492
(1)
1"x5 1/4"x10 5/8" (24x134x269)
G15 - WALL SUPPORT - W4L08545
(1)
1"x5 1/4"x30 1/4" (24x134x768)
G16 - WALL SUPPORT - W4L08546
(1)
1"x5 1/4"x14 7/8" (24x134x378)
Page 18
Parts Identification
Wood Components
(NOT TO SCALE)
G17 - ENTRY BOARD - W4L08547
(1)
1"x5 1/4"x38 3/4" (24x134x983)
G18 - WALL SUPPORT - W4L08548
(1)
1"x5 1/4"x26 3/4" (24x134x681)
G19 - WALL SUPPORT - W4L08261
(1)
1"x5 1/4"x8 5/8" (24x134x218)
G20 - DECK BOARD - W4L08570
(1)
1"x5 1/4"x86 1/4" (24x134x2191)
G21 - DECK BOARD - W4L08572
(1)
1"x5 1/4"x25 1/4" (24x134x643)
G22 - DECK BOARD - W4L08697
(1)
1"x5 1/4"x54 1/4" (24x134x1377)
G23 - DECK BOARD - W4L08698
(1)
1"x5 1/4"x22" (24x134x560)
G24 - DECK BOARD - W4L08709
(1)
1"x5 1/4"x25 3/8" (24x134x645)
G25 - ENTRY BOARD - W4L08710
(1)
1"x5 1/4"x54 1/4" (24x134x1377)
G26 - WALL SUPPORT - W4L08485
(1)
1"x5 1/4"x36" (24x134x915)
Page 19
Parts Identification
Wood Components
(NOT TO SCALE)
G27 - DECK BOARD - W4L11666
(1)
1"x5 1/4"x24 1/2" (24x134x622)
G28 - DECK BOARD - W4L11667
(1)
1"x5 1/4"x87" (24x134x2211)
H1 - FLOOR SUPPORT - W4L08462
(1)
1"x3 3/8"x54 1/2" (24x86x1384)
H2 - FLOOR SUPPORT - W4L08468
(2)
1"x3 3/8"x54 3/8" (24x86x1382)
H3 - FLOOR SUPPORT - W4L08469
(1)
1"x3 3/8"x26 3/4" (24x86x681)
H4 - FLOOR SUPPORT - W4L08474
(2)
1"x3 3/8"x24 7/8" (24x86x631)
H5 - FLOOR SUPPORT - W4L08479
(1)
1"x3 3/8"x32" (24x86x813)
H6 - FLOOR SUPPORT - W4L08482
(1)
1"x3 3/8"x32" (24x86x813)
H7 - FLOOR SUPPORT - W4L08483
(1)
1"x3 3/8"x26" (24x86x661)
H8 - ANGLE BRACE - W4L08494
(4)
1 3/8"x3 3/8"x38 1/2" (36x86x978)
H10 - ROOF SUPPORT - W4L08513
(1)
1"x3 3/8"x76 3/4" (24x86x1949)
H11 - ROOF SUPPORT - W4L08518
(1)
1"x3 3/8"x76 3/4" (24x86x1949)
H12 - ROOF SUPPORT - W4L08519
(1)
1"x3 3/8"x39 1/2" (24x86x1004)
Page 20
Parts Identification
Wood Components
(NOT TO SCALE)
H13 - ROOF SUPPORT - W4L08520
(1)
1"x3 3/8"x74 3/4" (24x86x1900)
H14 - ROOF SUPPORT - W4L08521
(1)
1"x3 3/8"x74 3/4" (24x86x1900)
H15 - RAFTER - W4L08526
(4)
1"x3 3/8"x47 5/8" (24x86x1209)
H16 - RAFTER - W4L08527
(2)
1"x3 3/8"x47 5/8" (24x86x1209)
H17 - WALL SUPPORT - W4L08533
(1)
1"x3 3/8"x35" (24x86x889)
H18 - ROOF SUPPORT - W4L08541
(1)
1"x3 3/8"x28 1/4" (24x86x717)
H19 - RAFTER - W4L08551
(2)
1"x3 3/8"x18" (24x86x456)
H20 - FLOOR SUPPORT - W4L08562
(10)
1"x2 3/4"x3" (24x70x76)
H21 - BASE BOARD - W4L08563
(1)
1"x3 3/8"x35" (24x86x889)
H22 - GUARD RAIL - W4L08565
(1)
1"x3 3/8"x26 3/4" (24x86x681)
H23 - FLOOR SUPPORT - W4L08569
(1)
1"x3 3/8"x88 1/2" (24x86x2249)
H24 - FLOOR SUPPORT - W4L08571
(1)
1"x3 3/8"x58 3/4" (24x86x1493)
Page 21
Parts Identification
Wood Components
(NOT TO SCALE)
H25 - FLOOR SUPPORT - W4L08699
(1)
1"x3 3/8"x20 3/4" (24x86x528)
H26 - FLOOR SUPPORT - W4L08700
(1)
1"x3 3/8"x46 1/4" (24x86x1176)
H27 - FLOOR SUPPORT - W4L08701
(1)
1"x3 3/8"x20 1/8" (24x86x512)
H28 - FLOOR SUPPORT - W4L08713
(1)
1"x3 3/8"x52 1/4" (24x86x1328)
H29 - GUARD RAIL - W4L08715
(4)
1"x3 3/8"x9" (24x86x229)
H30 - FLOOR SUPPORT - W4L08717
(1)
1"x3 3/8"x26 5/8" (24x86x675)
H31 - LEFT UPRIGHT - W4L08718
(1)
1"x3 3/8"x52 1/4" (24x86x1328)
H32 - RIGHT UPRIGHT - W4L08719
(1)
1"x3 3/8"x52 1/4" (24x86x1328)
H33 - LADDER RUNG - W4L08722
(4)
1"x3 3/8"x17 1/8" (24x86x434)
H34 - FLOOR SUPPORT - W4L08743
(1)
1"x2 3/4"x24 7/8" (24x70x631)
H35 - FLOOR SUPPORT - W4L08744
(1)
1"x2 3/4"x24 5/8" (24x70x626.736)
J1 - WALL SUPPORT - W4L08496
(2)
1"x2 3/8"x27 1/8" (24x60x688)
Page 22
Parts Identification
Wood Components
(NOT TO SCALE)
J2 - FLOOR SUPPORT - W4L08507
(1)
1"x2 3/8"x23 3/8" (24x60x594)
J3 - FLOOR SUPPORT - W4L08508
(1)
1"x2 3/8"x24 3/8" (24x60x619)
J4 - WALL SUPPORT - W4L08550
(1)
1"x2 3/8"x11 5/8" (24x60x295)
J5 - FLOOR SUPPORT - W4L08745
(1)
1"x2"x2 3/4" (24x50x70)
K1 - BASE BOARD - W4L08455
(1)
1"x5 1/4"x79 1/4" (24x134x2014)
K2 - BASE BOARD - W4L08456
(1)
1"x5 1/4"x79 1/4" (24x134x2014)
K3 - BASE BOARD - W4L08457
(2)
1"x5 1/4"x89 1/2" (24x134x2274)
K4 - FLOOR BOARD - W4L08471
(1)
5/8"x5"x65 5/8" (16x128x1668)
K6 - WALL PICKET - W4L08561
(1)
5/8"x5 1/4"x43 1/4" (16x132x1099)
K7 - FLOOR BOARD - W4L08736
(1)
5/8"x5"x8 1/4" (16x128x211)
Page 23
Parts Identification
Wood Components
(NOT TO SCALE)
K8 - CROSS BRACE - W4L08480
(2)
5/8"x5 1/4"x17 3/4" (16x134x450)
K9 - SLIDE ARCH BOARD - W4L11444
(1)
5/8"x5 1/4"x39 1/2" (16x134x1004)
L1 - FLOOR BOARD - W4L07869
(2)
5/8"x4 3/8"x34" (16x112x865)
L2 - WALL PICKET - W4L08514
(1)
5/8"x4 3/8"x9 5/8" (16x112x243)
L4 - FLOOR BOARD - W4L08035
(2)
5/8"x4 3/8"x33 1/2" (16x112x852)
L5 - FLOOR BOARD - W4L08036
(2)
5/8"x4 3/8"x31 7/8" (16x112x811)
L6 - FLOOR BOARD - W4L08037
(2)
5/8"x4 3/8"x27" (16x112x687)
L8 - WALL PICKET - W4L08046
(4)
5/8"x4 3/8"x9 5/8" (16x112x244)
M1 - FLOOR BOARD - W4L08489
(7)
5/8"x3 3/8"x34 1/4" (16x86x869)
M7 - FLOOR BOARD - W4L08038
(2)
5/8"x2 1/2"x19 3/8" (16x62x493)
M9 - WALL PICKET - W4L08511
(2)
5/8"x3 3/8"x39 7/8" (16x86x1013)
Page 24
Parts Identification
Wood Components
(NOT TO SCALE)
M10 - WALL PICKET - W4L08515
(10)
5/8"x3 3/8"x9 5/8" (16x86x243)
M11 - WALL PICKET - W4L08516
(1)
5/8"x3 3/8"x9 5/8" (16x86x243)
M12 - WALL BOARD - W4L08528
(2)
5/8"x3 3/8"x57 3/4" (16x86x1466)
M13 - WALL BOARD - W4L08525
(2)
5/8"x3 3/8"x69 1/2" (16x86x1766)
M14 - WALL PICKET - W4L08517
(1)
5/8"x3 3/8"x39 7/8" (16x86x1013)
M15 - WALL BOARD - W4L08529
(2)
5/8"x3 3/8"x45 7/8" (16x86x1166)
M16 - WALL BOARD - W4L08530
(2)
5/8"x3 3/8"x34 1/8" (16x86x867)
M17 - WALL BOARD - W4L08531
(2)
5/8"x3 3/8"x22 3/8" (16x86x567)
M18 - WALL BOARD - W4L08532
(2)
5/8"x3"x10 1/2" (16x77x268)
M19 - WALL PICKET - W4L08534
(2)
5/8"x3 3/8"x43 1/4" (16x86x1099)
M20 - WALL BOARD - W4L08536
(1)
5/8"x3 3/8"x20 1/2" (16x86x521)
M21 - WALL PICKET - W4L08537
(6)
5/8"x3 3/8"x27 1/4" (16x86x692)
Page 25
Parts Identification
Wood Components
(NOT TO SCALE)
M22 - WALL PICKET - W4L08540
(2)
5/8"x3 3/8"x53 7/8" (16x86x1370)
M23 - WALL PICKET - W4L08544
(49)
5/8"x3 3/8"x29 7/8" (16x86x759)
M24 - ATTACHMENT BOARD - W4L08720
(1)
5/8"x3 3/8"x18 1/4" (16x86x462)
M25 - REAR SUPPORT - W4L08721
(1)
5/8"x3 3/8"x18 1/4" (16x86x462)
M26 - ROCK WALL BOARD - W4L08725
(10)
5/8"x3 3/8"x21 5/8" (16x86x548)
M27 - WALL PICKET - W4L08714
(1)
5/8"x3 3/8"x29 7/8" (16x86x759)
M28 - ROCK WALL BOARD - W4L08726
(4)
5/8"x3 3/8"x21 5/8" (16x86x548)
M29 - ROCK WALL BOARD - W4L08727
(4)
5/8"x3 3/8"x21 5/8" (16x86x548)
M30 - ROCK WALL END BOARD - W4L08728
(1)
5/8"x3 3/8"x22 7/8" (16x86x580)
M31 - ATTACHMENT BOARD - W4L08729
(1)
5/8"x3 3/8"x22 7/8" (16x86x580)
M32 - FLOOR BOARD - W4L08737
(1)
5/8"x3 3/8"x11 3/8" (16x86x289)
M33 - FLOOR BOARD - W4L08738
(1)
5/8"x3 3/8"x14 1/2" (16x86x368)
Page 26
Parts Identification
Wood Components
(NOT TO SCALE)
M34 - FLOOR BOARD - W4L08739
(1)
5/8"x3 3/8"x17 5/8" (16x86x447)
M35 - FLOOR BOARD - W4L08740
(1)
5/8"x3 3/8"x20 5/8" (16x86x525)
M36 - FLOOR BOARD - W4L08741
(1)
5/8"x3 3/8"x21 1/2" (16x86x546)
M37 - FLOOR BOARD - W4L08742
(1)
5/8"x2 1/2"x22 7/8" (16x64x580)
M38 - TURRET FILLER BOARD - W4L11445
(2)
5/8"x3 3/8"x5 3/4" (16x86x146)
M39 - FLOOR BOARD - W4L11558
(2)
5/8"x3"x18 7/8" (16x76x480)
N1 - FLOOR BOARD - W4L08470
(2)
5/8"x4"x88 1/2" (16x102x2248)
N2 - WINDOW BOTTOM - W4L08538
(1)
5/8"x2 3/8"x25 1/4" (16x60x640)
N3 - WINDOW SIDE - W4L08539
(2)
5/8"x2 3/8"x12 5/8" (16x60x321)
N4 - WALL PICKET - W4L08542
(4)
5/8"x2 3/8"x53 7/8" (16x60x1370)
N5 - WALL PICKET - W4L08543
(11)
5/8"x2 3/8"x29 7/8" (16x60x759)
N6 - RAFTER CLEAT - W4L11446
(1)
5/8"x2 3/8"x3 1/8" (16x60x80)
O1 - WALL PICKET - W4L08506
(60)
5/8"x1 3/8"x32 7/8" (16x34x835)
O2 - WALL PICKET - W4L08510
(2)
5/8"x3"x9 5/8" (16x75x244)
Page 27
Parts Identification
Wood Components
(NOT TO SCALE)
O3 - WALL PICKET - W4L08512
(1)
5/8"x1 3/8"x39 7/8" (16x34x1013)
O4 - WALL PICKET - W4L08535
(2)
5/8"x2 3/8"x43 1/4" (16x60x1099)
O70 - SLIDE MOUNTING BOARD - W4L09040
(1)
5/8"x1 3/8"x20 3/8" (16x34x517)
T1 - FLOOR SUPPORT - W4L08466
(1)
1"x1 3/8"x48 3/8" (24x34x1230)
T2 - FLOOR SUPPORT - W4L08467
(1)
1"x1 3/8"x22 5/8" (24x34x576)
Y1 - FLOOR BOARD - W4L08488
(2)
5/8"x4"x34 1/4" (16x102x869)
RP01 - ROOF PANEL - W2A02182
(2)
1 9/16"x11 5/16"x85 3/16" (40x287x2165)
RP02 - ROOF PANEL - W2A02184
(2)
1 9/16"x19 1/4"x85 3/16" (40x488x2165)
RP03 - ROOF PANEL - W2A02185
(1)
1 9/16"x18 3/4"x85 3/16" (40x476x2165)
Page 28

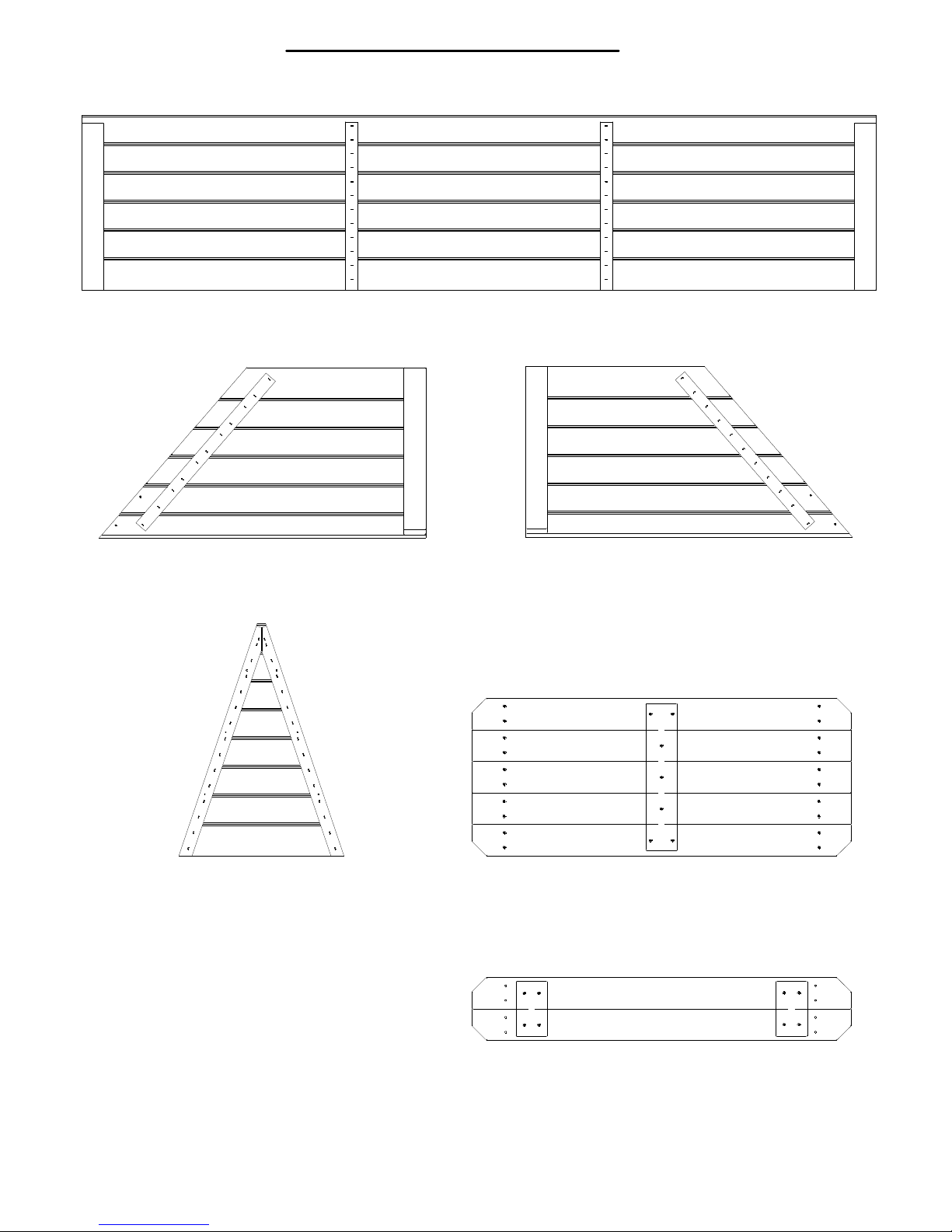

Parts Identification
Wood Components
(NOT TO SCALE)
RP04 - ROOF PANEL - W2A02186
(1)
1 9/16"x18 3/4"x85 3/16" (40x476x2165)
RP05 - SMALL ROOF PANEL - W2A02187
(1)
1 9/16"x18 1/4"x35" (40x464x891)
RP07 - ROOF PANEL - W2A02189
(8)
13/16"x17 11/16"x24 7/8" (21x450x632)
RP06 - SMALL ROOF PANEL - W2A02188
(1)
1 9/16"x18 1/4"x35" (40x464x891)
TP1 - PICNIC TABLE TOP - W2A02225
(1)
1 9/16"x17"x40 11/16" (40x430x1034)
TP2 - PICNIC TABLE SEAT - W2A02226
(2)
1 9/16"x6 3/4"x40 11/16" (40x172x1034)
Page 29
Parts Identification
Wood Components
(NOT TO SCALE)
FP1 - FLOOR PANEL - W2A02223
(1)
1 1/4"x20 9/16"x88 9/16" (32x523x2249)
FP3 - FLOOR PANEL - W2A02227
(3)
1 1/4"x22 1/16"x20 11/16" (32x560x525)
FP2 - FLOOR PANEL - W2A02224
(1)
1 1/4"x20 9/16"x65 11/16" (32x523x1668)
FP4 - FLOOR PANEL - W2A02228
(1)
1 1/4"x20 1/4"x22" (32x515x560)
FP5 - FLOOR PANEL - W2A02229
(1)
1 1/4"x19 15/16"x22 15/16" (32x506x582)
FP6 - FLOOR PANEL - W2A02230
(1)
1 1/4"x20 5/16"x22 15/16" (32x516x582)
FP7 - FLOOR PANEL - W2A02248
(1)
1 1/4"x12 1/16"x22 1/16" (32x306x560)
Page 30

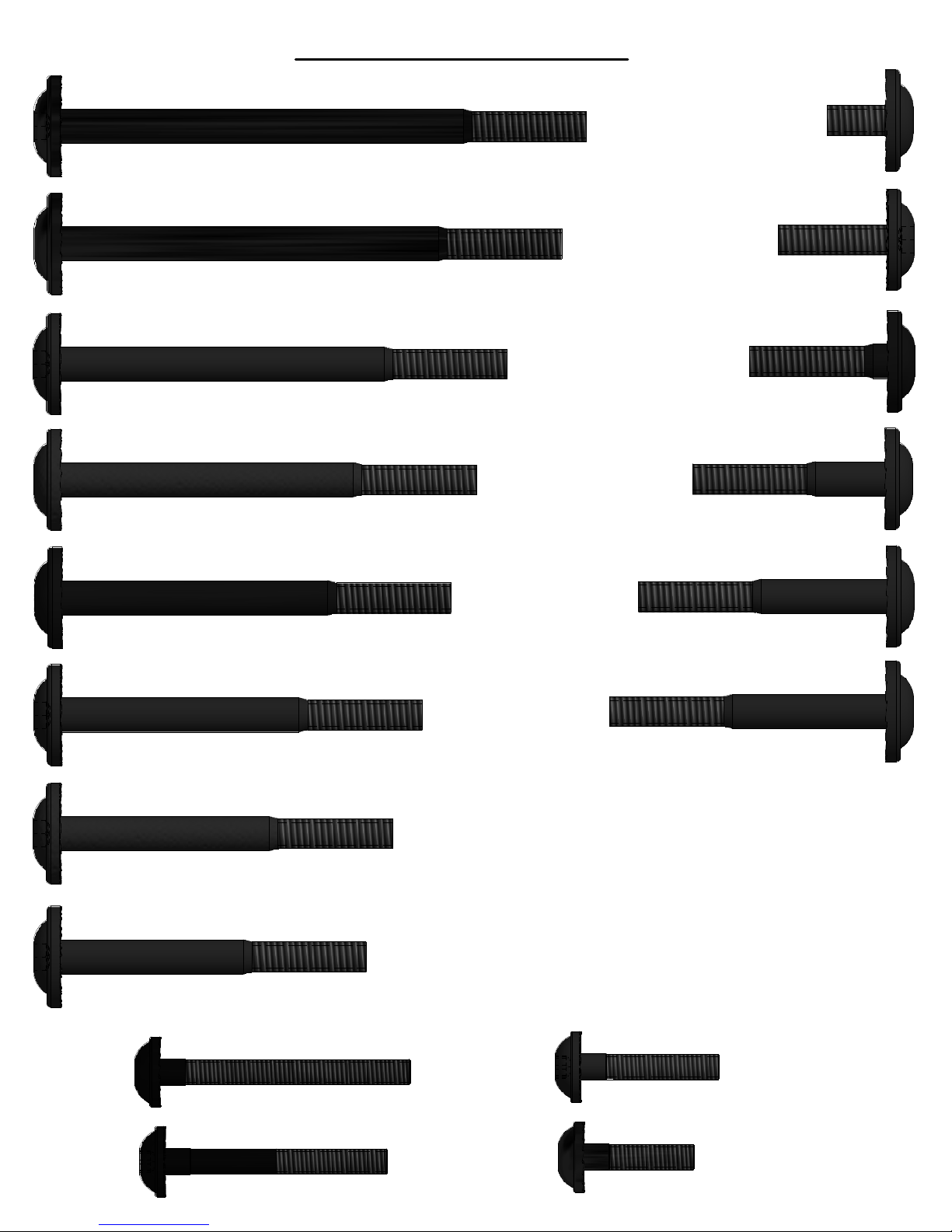

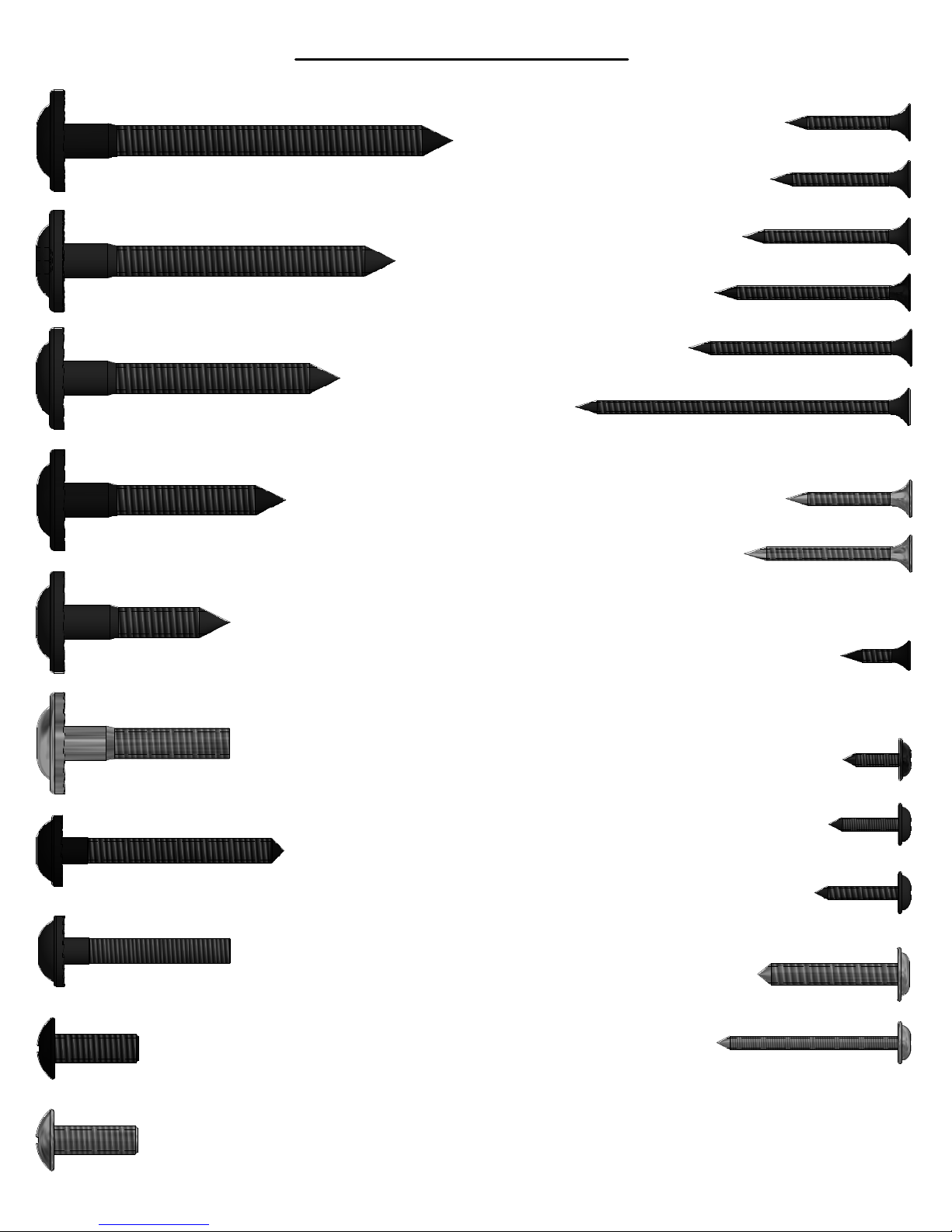

Parts Identification
(4)
- BOLT WH 5/16x4 3/4 BLK - H100480
(1)
- BOLT WH 5/16x4 1/2 BLK - H100534
(1)
- BOLT WH 5/16x4 BLK - H100512
Hardware
(19)
- BOLT WH 5/16x1/2 BLK - H100396
(9)
- BOLT WH 5/16x1 BLK - H100468
(2)
- BOLT WH 5/16x1 1/4 BLK - H100459
(138)
- BOLT WH 5/16x3 3/4 BLK - H100415
(4)
- BOLT WH 5/16x3-1/2 BLK - H100503
(7)
- BOLT WH 5/16x3 1/4 BLK - H100484
(9)
- BOLT WH 5/16x3 BLK - H100416
(13)
- BOLT WH 5/16x1 3/4 BLK - H100378
(36)
- BOLT WH 5/16x2-1/4 BLK - H100205
(4)
- BOLT WH 5/16x2-1/2 BLK - H100194
(4)
- BOLT WH 5/16x2-3/4 BLK - H100195
(24)
- BOLT WH 1/4x2-1/4 BLK - H100567
(4)
- BOLT WH 1/4x2 BLK - H100488
(1)
- BOLT WH 1/4x1-1/4 BLK - H100397
(12)
- BOLT WH 1/4x1 BLK - H100171
Page 31

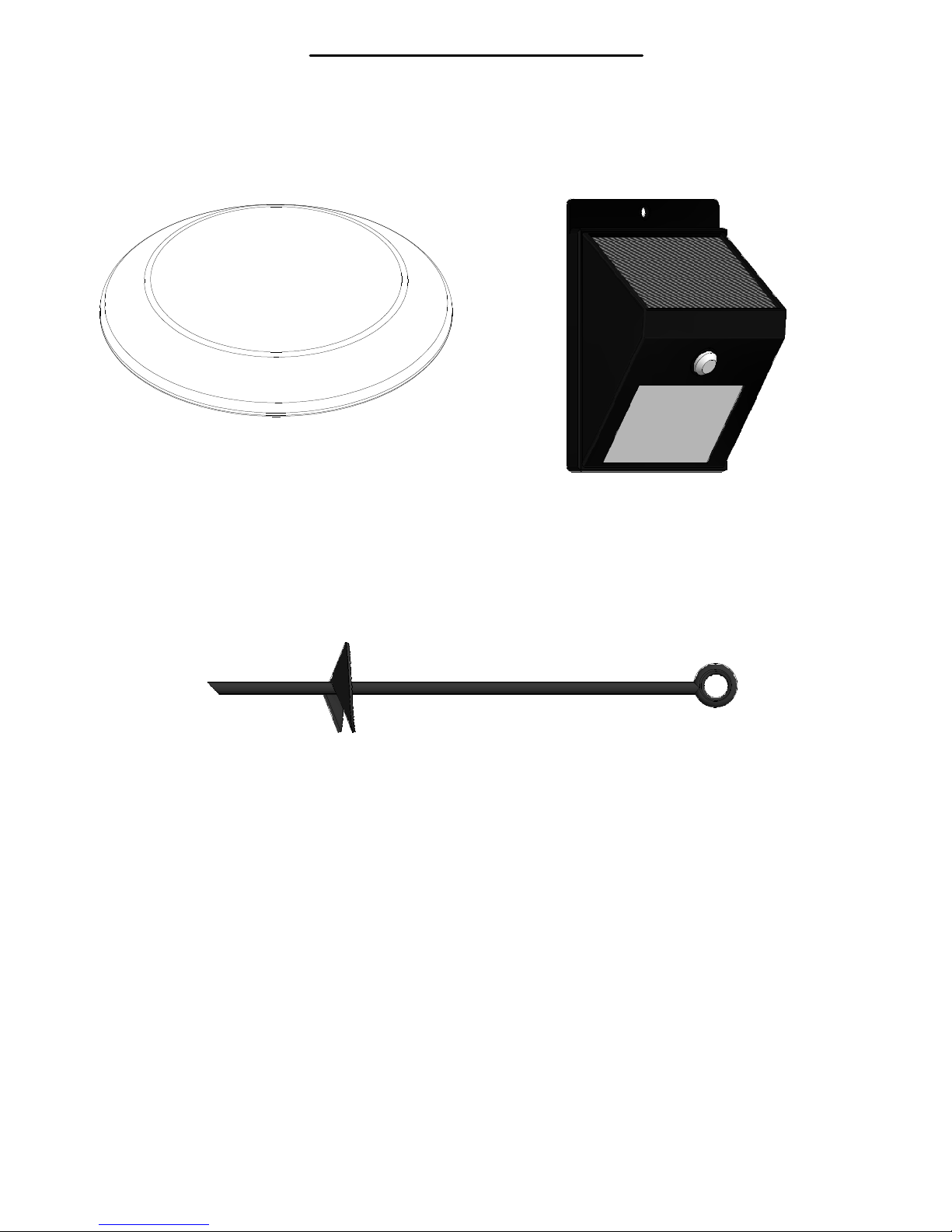

Parts Identification
(1)
- LAG SCREW WH 5/16x3 1/2 BLK - H100482
(1)
- LAG SCREW WH 5/16x3 BLK - H100206
(23)
- LAG SCREW WH 5/16x2-1/2 BLK - H100197
Hardware
(152)
- SCREW PFH 8x1 1/8 BLK - H100380
(290)
- SCREW PFH 8x1-1/4 BLK - H100387
(278)
- SCREW PFH 8x1-1/2 BLK - H100200
(44)
- SCREW PFH 8x1 3/4 BLK - H100382
(122)
- SCREW PFH 8x2 BLK - H100391
(4)
- SCREW PFH 8x3 BLK - H100362
(12)
- LAG SCREW WH 5/16x2 BLK - H100458
(12)
- LAG SCREW WH 5/16x1 1/2 BLK - H100471
(3)
- BOLT WH 5/16x1 1/2 SD - H100673
(11)
- LAG SCREW WH 1/4x2 BLK - H100487
(4)
- SCREW PFH 8x1 1/8 SD - H100540
(84)
- SCREW PFH 8x1 1/2 SD - H100538
(2)
- SCREW PFH 6x5/8 BLK - H100624
(9)
- SCREW PWH 8x1/2 BLK - H100408
(4)
- SCREW PWH 8x5/8 BLK - H100202
(70)
- SCREW PWH 8x3/4 BLK - H100392
(2)
- BOLT WH 1/4x1 1/2 BLK - H100406
(9)
- BOLT PTH 1/4x3/4 BLK - H100489
(26)
- BOLT PTH 1/4x3/4 SD - H100670
(150)
- SCREW TAPPING PWH #10x1-1/4 SD - H100746
(1)
- SCREW PWH 8x1-5/8 SD - H100736
Page 32
Parts Identification

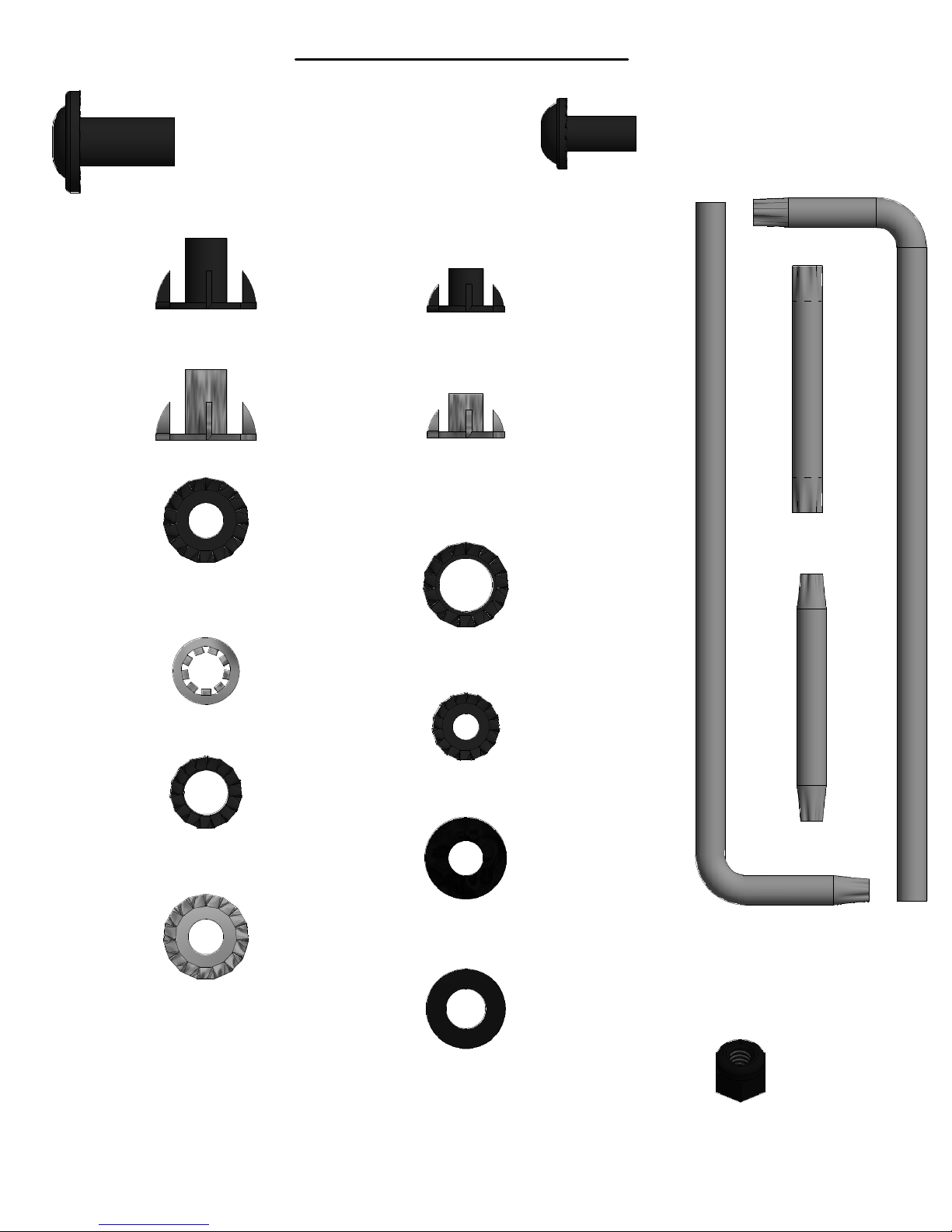

(24)
- NUT BARREL WH 5/16x7/8 BLK - H100192
(221)
- T-NUT 5/16 BLK - H100379
(33)
Hardware
(10)
- T-NUT 1/4 BLK - H100398
- NUT BARREL WH 1/4x5/8 BLK - H100404
(3)
- T-NUT 5/16 SD - H100556
(256)
- WASHER LOCK EXT 8x19 BLK - H100198
(24)
(26)
- WASHER LOCK INT 8x15 SD - H100710
(10)
- WASHER LOCK EXT 8x15 BLK - H100400
(26)
- T-NUT 1/4 SD - H100699
- WASHER LOCK EXT 12x19 BLK - H100199
(16)
- WASHER LOCK EXT 6x15 BLK - H100405
- T-40 TORX BIT - A100042
(1)
- T-30 TORX WRENCH - H100114
(1)
- T-30 TORX BIT - H100147
(1)
- T-40 TORX WRENCH - A100041
(1)
(17)
(3)
- WASHER LOCK EXT 8x19 SD - H100554
(9)
- WASHER FLAT 8x19 BLK - H100630
- WASHER FLAT 9x18 BLK - H100474
(9)
- NUT LOCK 1/4 BLK - H100653
Page 33
Parts Identification

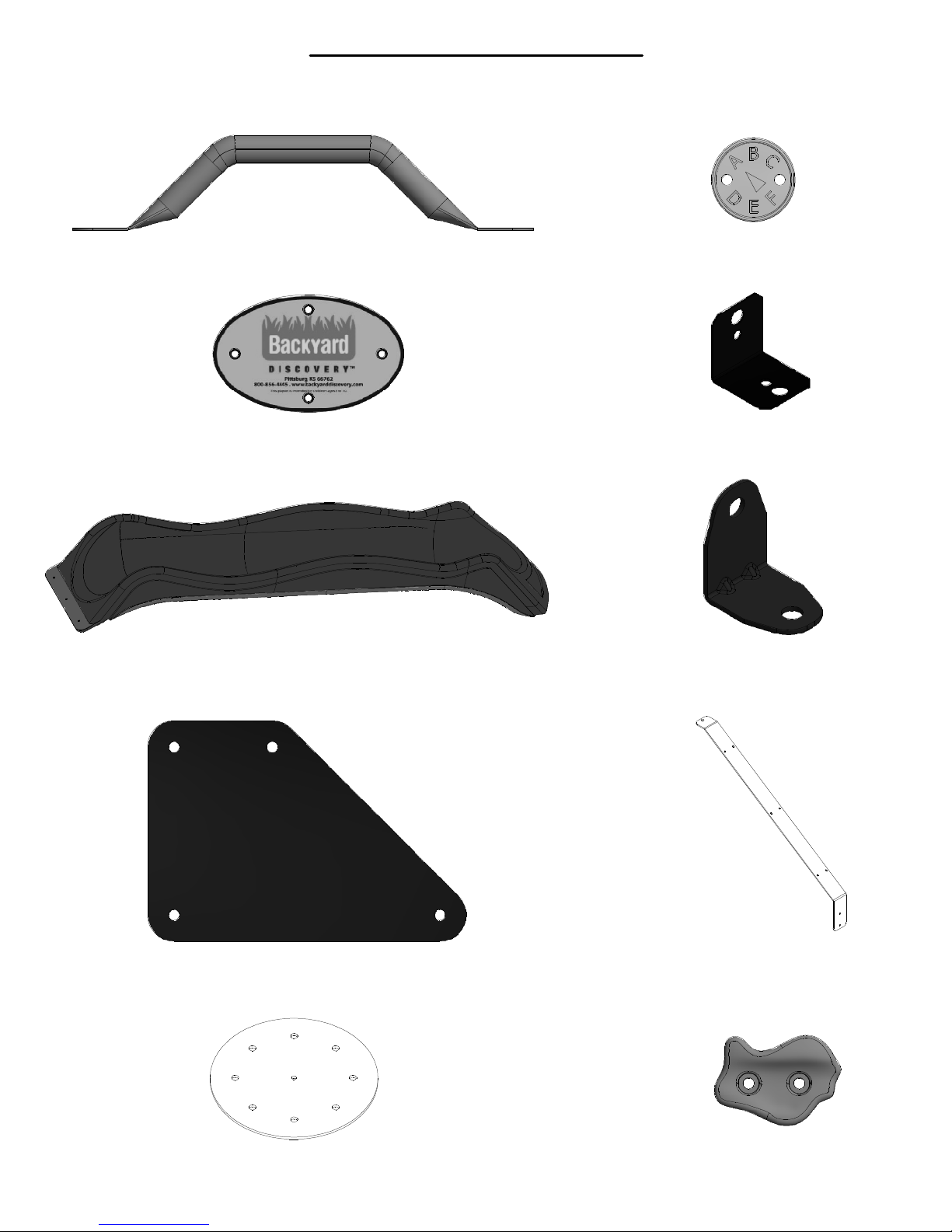

Accessories
(NOT TO SCALE)
(5)
FX - HAND GRIP METAL GREEN 381 c/c - A100118
(1)
- "A" REVISION TAG - A100314
- BYD ID TAG (MEDIUM) WITH AGES - A100175(1)
(1)
QU - SLIDE VF 10 FT - A100287
(4)
- 90° L-BRACKET - BLK - A4M00555
(4)
- L BRACKET 2.5x38x50x55 BLK - A4M00615
- TRIANGLE BRACE 100x200x12ga - BLK - A4M00827(4)
(1)
- ROUND ROOF RIB CONNECTOR PLATE - A4M00844
(8)
- METAL ROOF FULL RIB - A4M00842
(12)
- GREEN HC ROCK #2 - A6P00037
Page 34
Parts Identification
Accessories
(NOT TO SCALE)

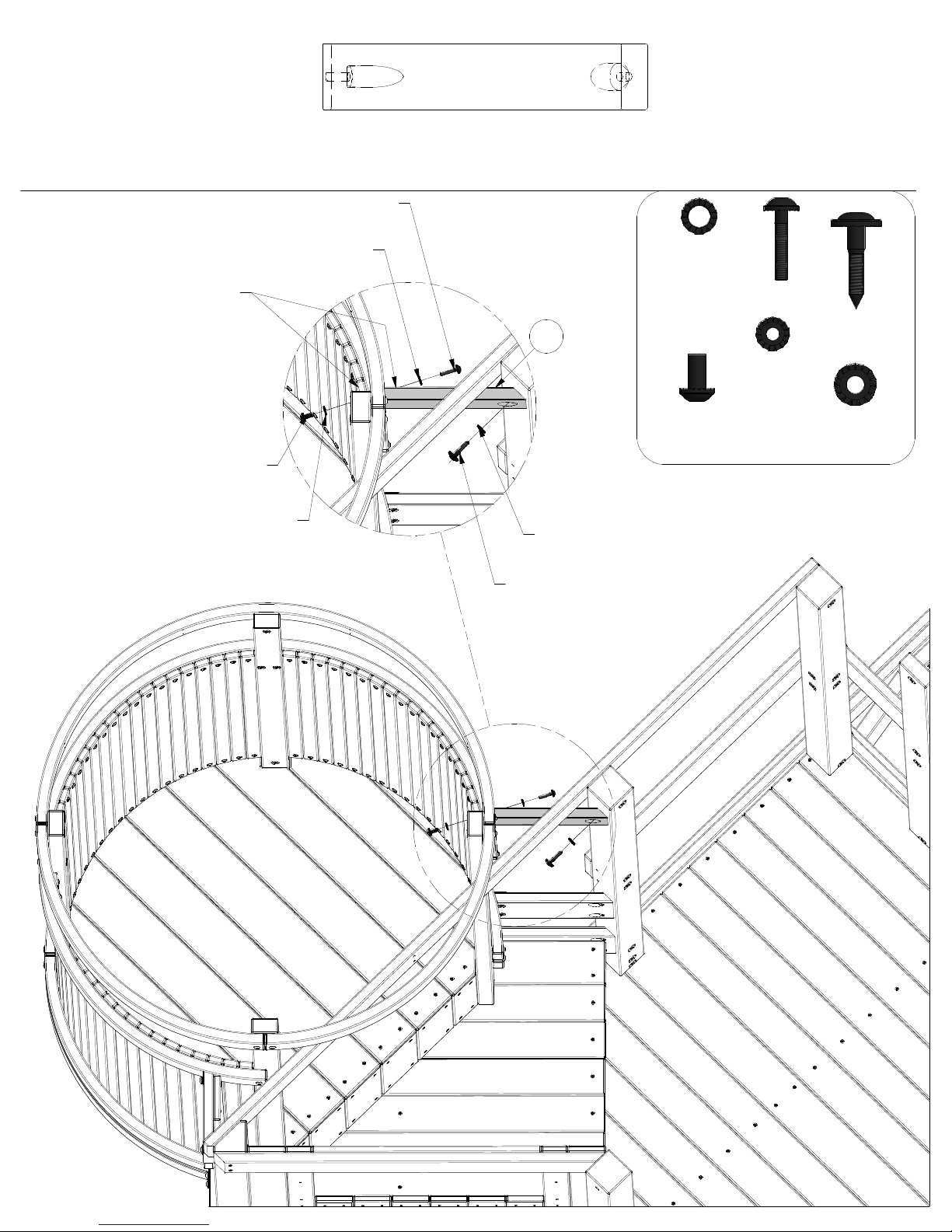

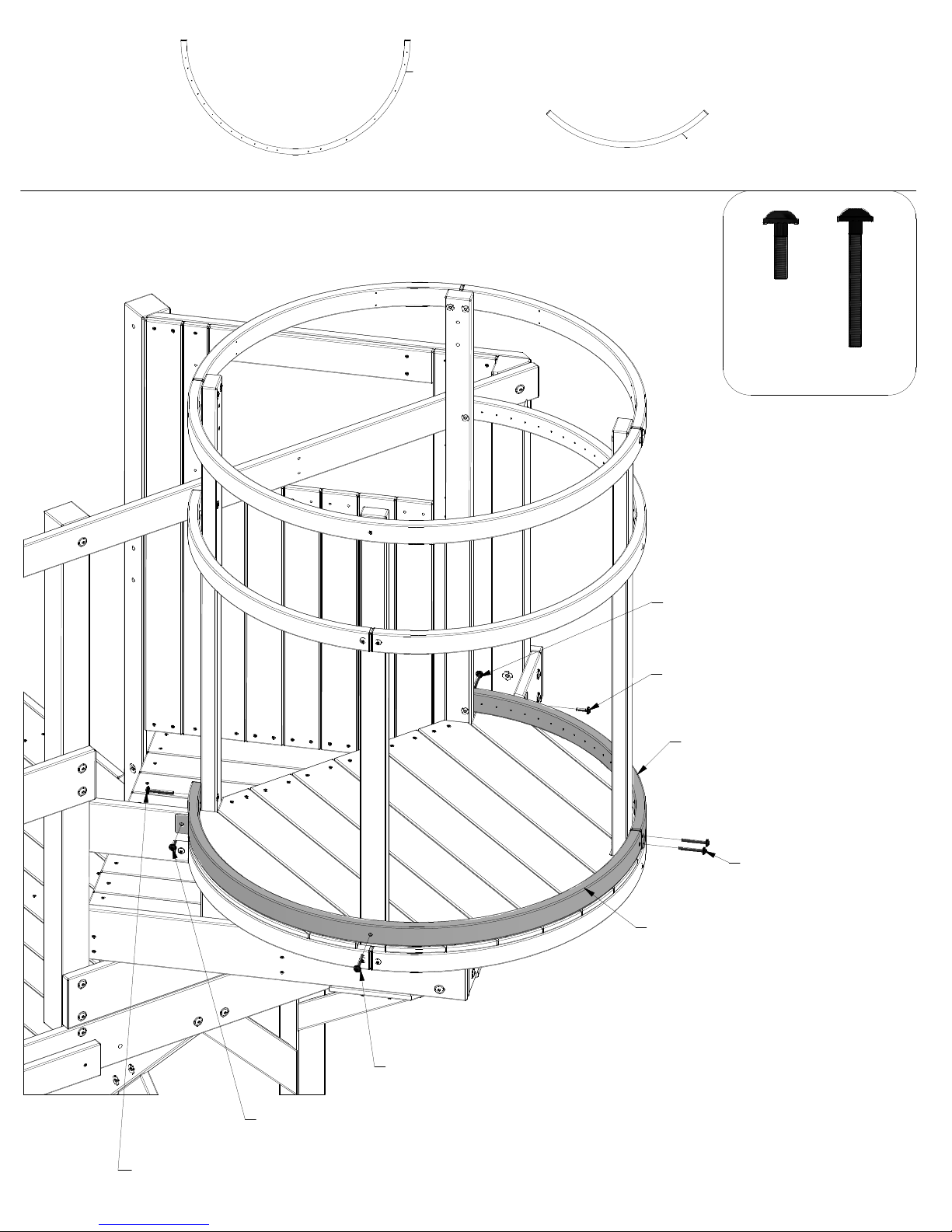

(2) -TURRET WALL ARCH BAND - A4M00880
(1) -TURRET WALL ARCH BAND - A4M00907
(2) -QUARTER ROUND TURRET FLOOR SUPPORT - A4M00881
(1) -QUARTER ROUND TURRET FLOOR SUPPORT - A4M00883
(1) -TURRET WALL ARCH BAND - A4M00896
(2) -QUARTER ROUND TURRET FLOOR SUPPORT - A4M00897
Page 35
Parts Identification
(1)
- ROUND ROOF PLASTIC CAP - A6P00239
Accessories
(NOT TO SCALE)
(2)
- SOLAR LIGHT - A6P00272
(8)
KC - METAL GROUND STAKE BROWN - A100178
Page 36
H31 - LEFT UPRIGHT - W4L08718
(1)
1"x3 3/8"x52 1/4" (24x86x1328)
H32 - RIGHT UPRIGHT - W4L08719
(1)
1"x3 3/8"x52 1/4" (24x86x1328)

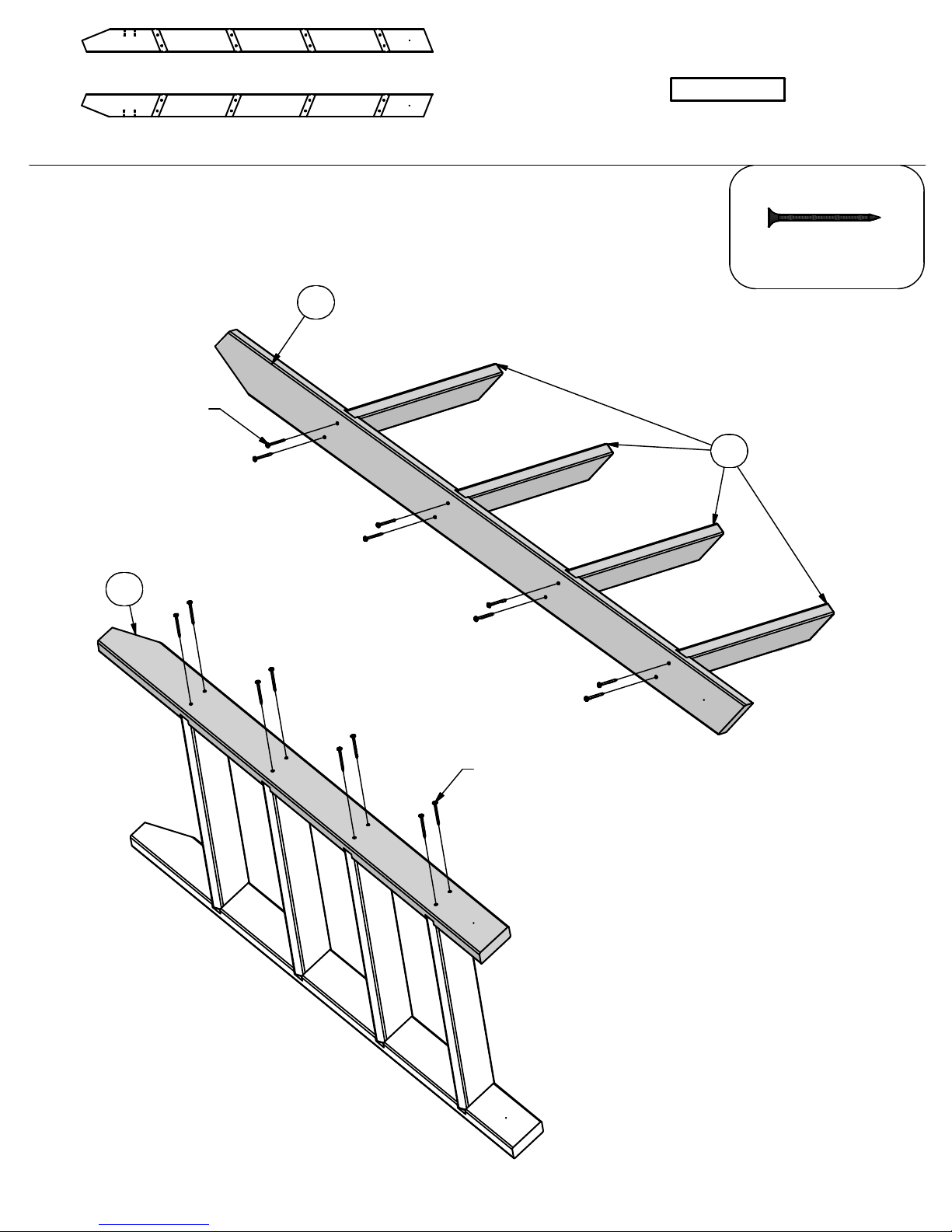

4 FOOT LADDER ASSEMBLY
STEP 1
SCREW PFH 8X2 BLK
(8 PLCS)
H31
H33 - LADDER RUNG - W4L08722
(4)
1"x3 3/8"x17 1/8" (24x86x434)
H33
(16)
SCREW PFH
8x2 BLK
H32
SCREW PFH 8X2 BLK
(8 PLCS)
Page 37
M25 - REAR SUPPORT - W4L08721
(1)
5/8"x3 3/8"x18 1/4" (16x86x462)

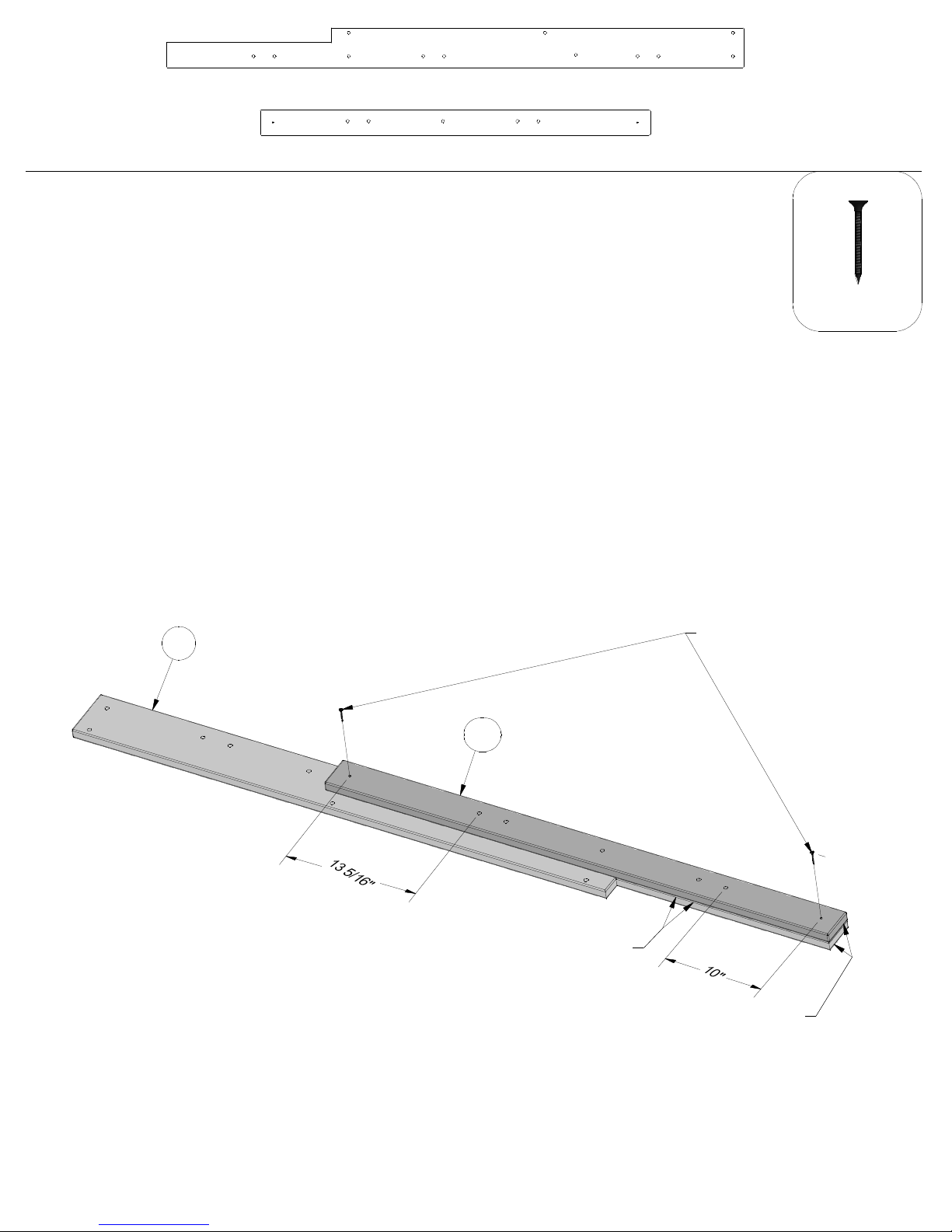

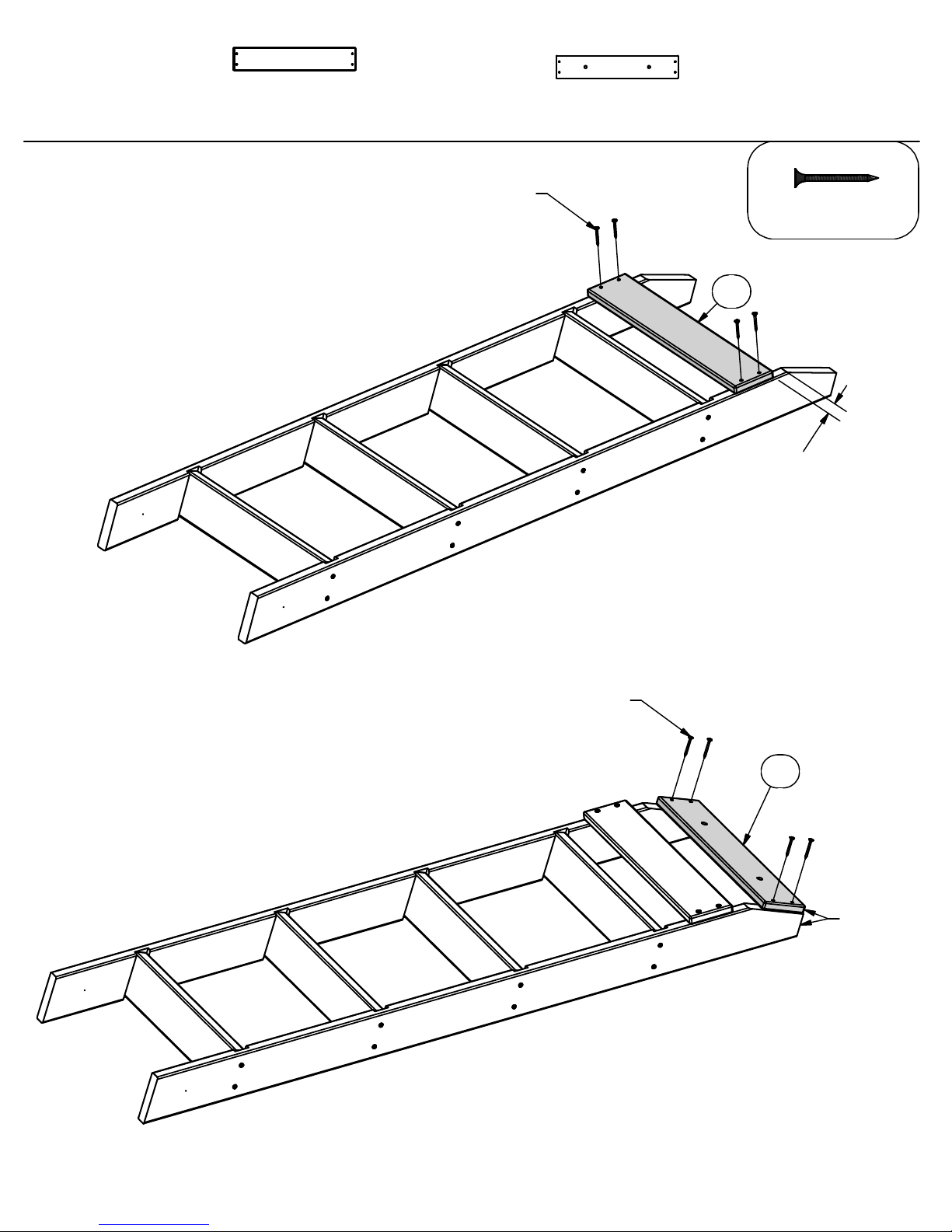

4 FOOT LADDER ASSEMBLY
STEP 2
M24 - ATTACHMENT BOARD - W4L08720
(1)
5/8"x3 3/8"x18 1/4" (16x86x462)
SCREW PFH 8X1-1/2 BLK
(8 PLCS)
M25
SCREW PFH
(8)
8x1-1/2 BLK
]
n
i
4
/
1
1
[
m
m
2
3
SCREW PFH 8X1-1/2 BLK
(8 PLCS)
M24
FLUSH
Page 38
E4 - RIGHT RAIL - W4L08724
(1)
1 3/8"x3 3/8"x61 3/4" (36x86x1570)
E3 - LEFT RAIL - W4L08723
(1)
1 3/8"x3 3/8"x61 3/4" (36x86x1570)

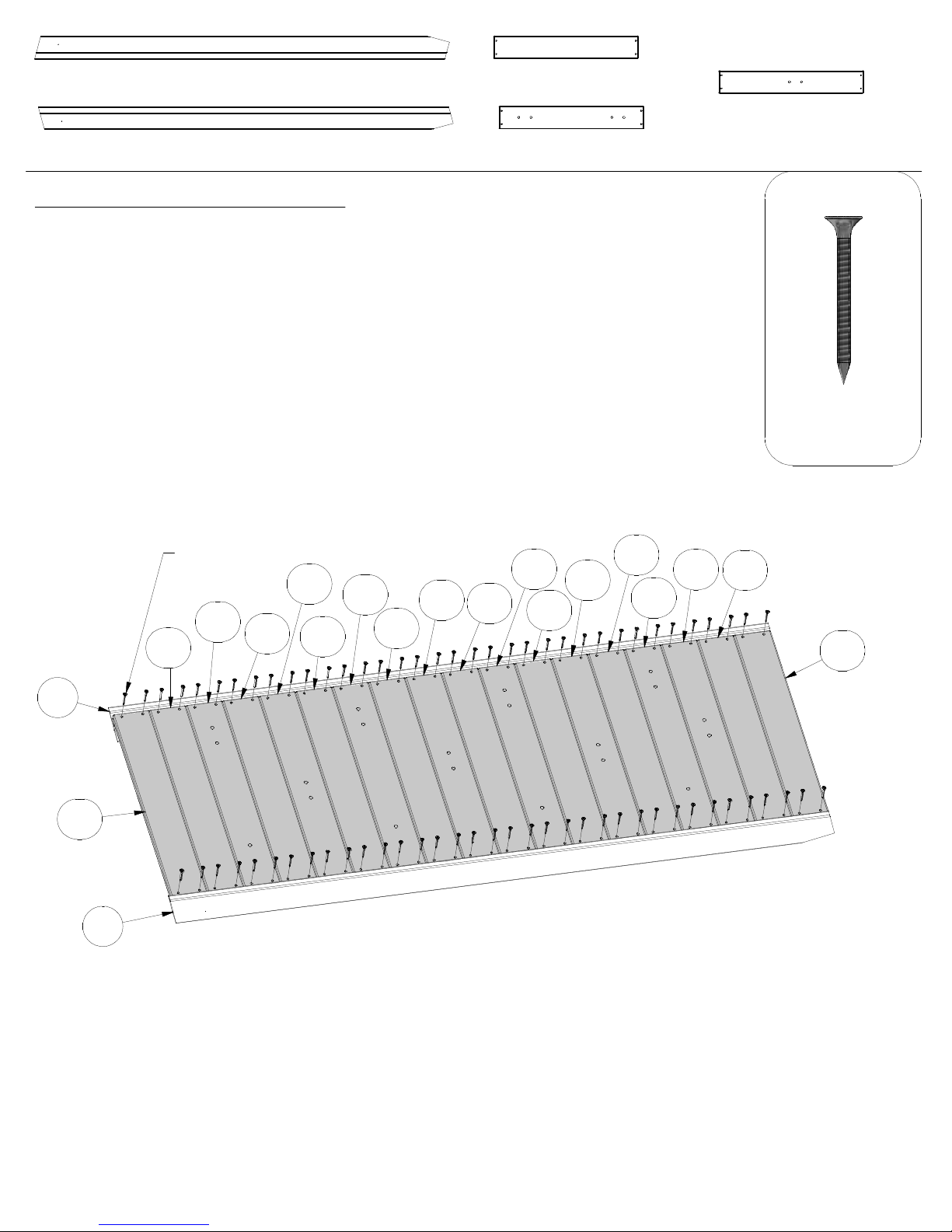

5 FOOT ROCK WALL ASSEMBLY
STEP 1
M26 - ROCK WALL BOARD - W4L08725
(10)
5/8"x3 3/8"x21 5/8" (16x86x548)
M28 - ROCK WALL BOARD - W4L08726
(4)
5/8"x3 3/8"x21 5/8" (16x86x548)
M29 - ROCK WALL BOARD - W4L08727
(4)
5/8"x3 3/8"x21 5/8" (16x86x548)
SCREW PFH
(72)
8x1 1/2 SD
E3
M26
E4
SCREW PFH 8X1 1/2 SD
M29
M28
M26
M26
M26
M28
M26
M29
M26
M28
M26
M29
M26
M28
M29
M26
M26
Page 39

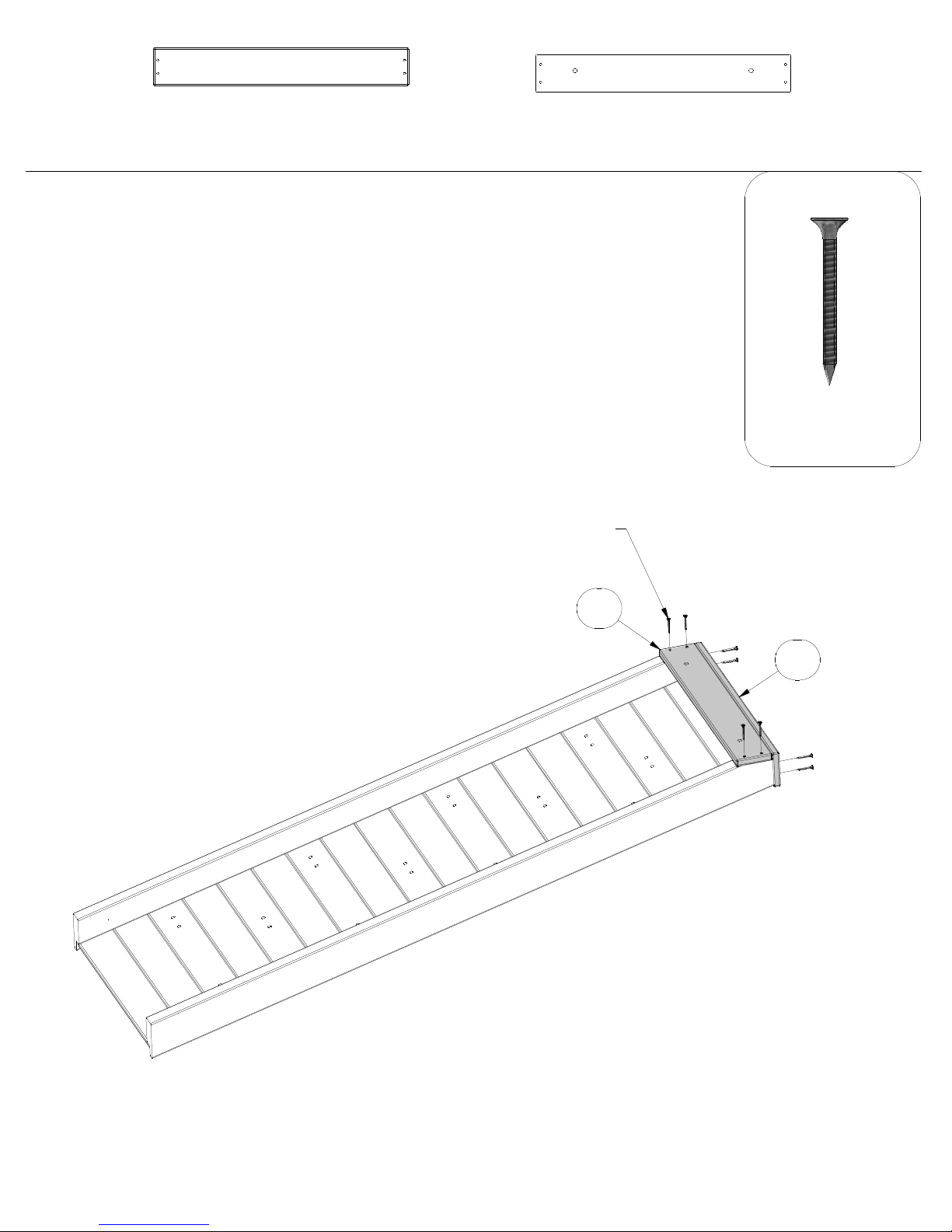

STEP 2
M30 - ROCK WALL END BOARD - W4L08728
(1)
5/8"x3 3/8"x22 7/8" (16x86x580)
M31 - ATTACHMENT BOARD - W4L08729
(1)
5/8"x3 3/8"x22 7/8" (16x86x580)
SCREW PFH 8X1 1/2 SD
(8 PLCS)
(8)
SCREW PFH
8x1 1/2 SD
M31
M30
Page 40

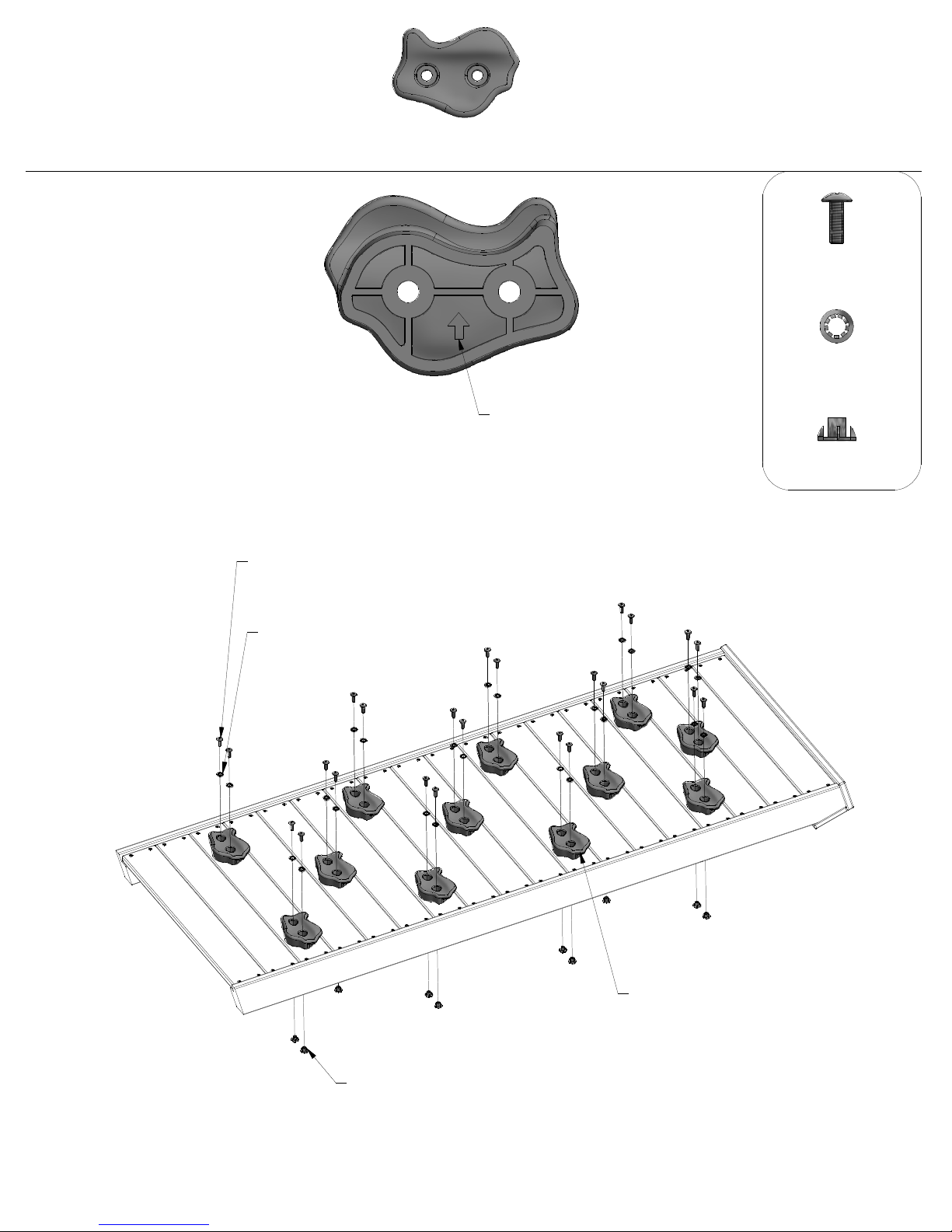

STEP 3
(12)
- GREEN HC ROCK #2 - A6P00037
BOLT PTH 1/4x3/4 SD
(24 PLCS)
ARROW POINTS
TO THE TOP.
(24)
(24)
(24)
T-NUT 1/4 SD
BOLT PTH
1/4x3/4 SD
WASHER
LOCK INT
8x15 SD
WASHER LOCK INT 8x15 SD
(24 PLCS)
T-NUT 1/4 SD
(24 PLCS)
GREEN HC ROCK #2
(12 PLCS)
Page 41
B1 - POST - W4L08453
(1)
3"x3"x59" (76x76x1500)
G2 - WALL SUPPORT - W4L08460
(1)
1"x5 1/4"x66 5/8" (24x134x1692)
B5 - POST - W4L08451
(1)
3"x3"x69 3/4" (76x76x1771)

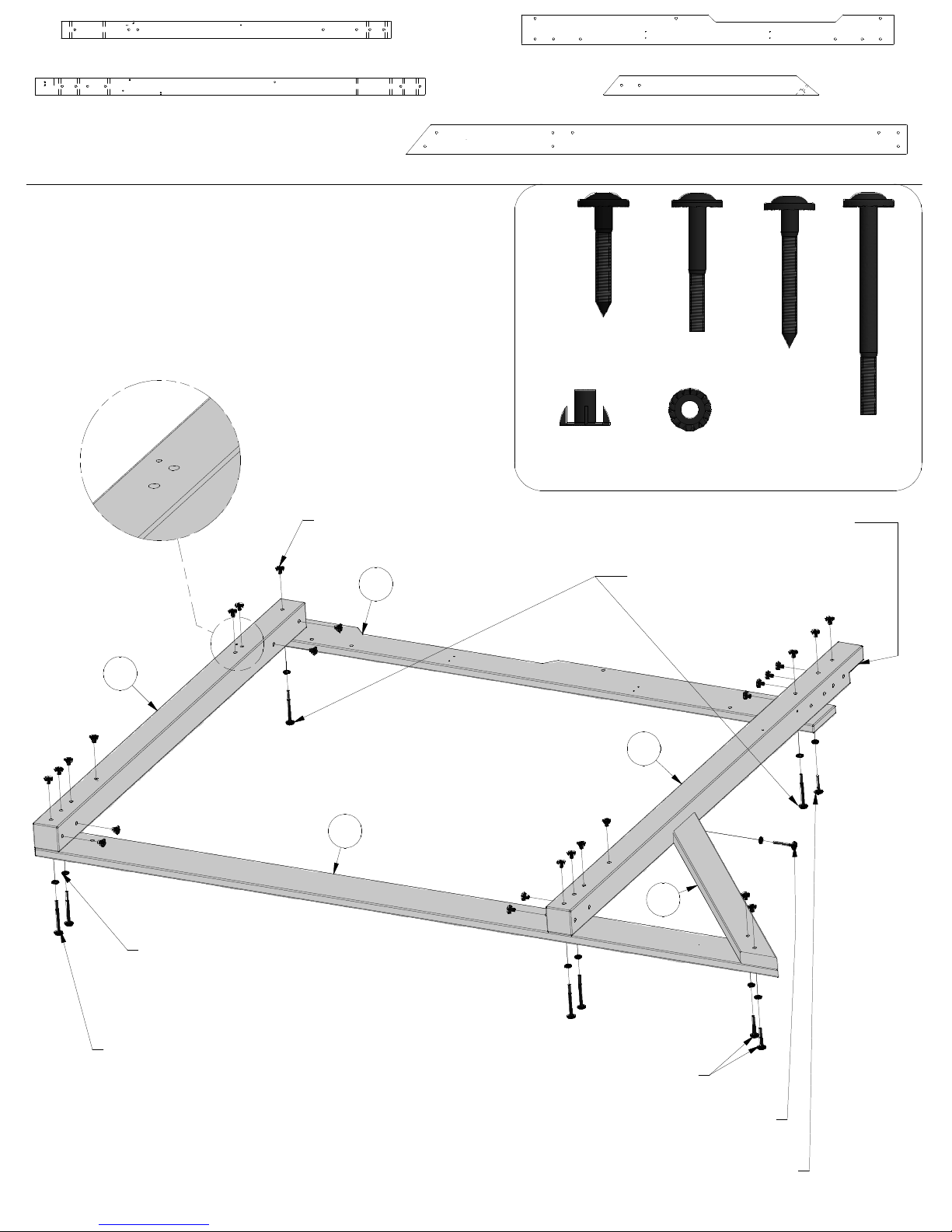

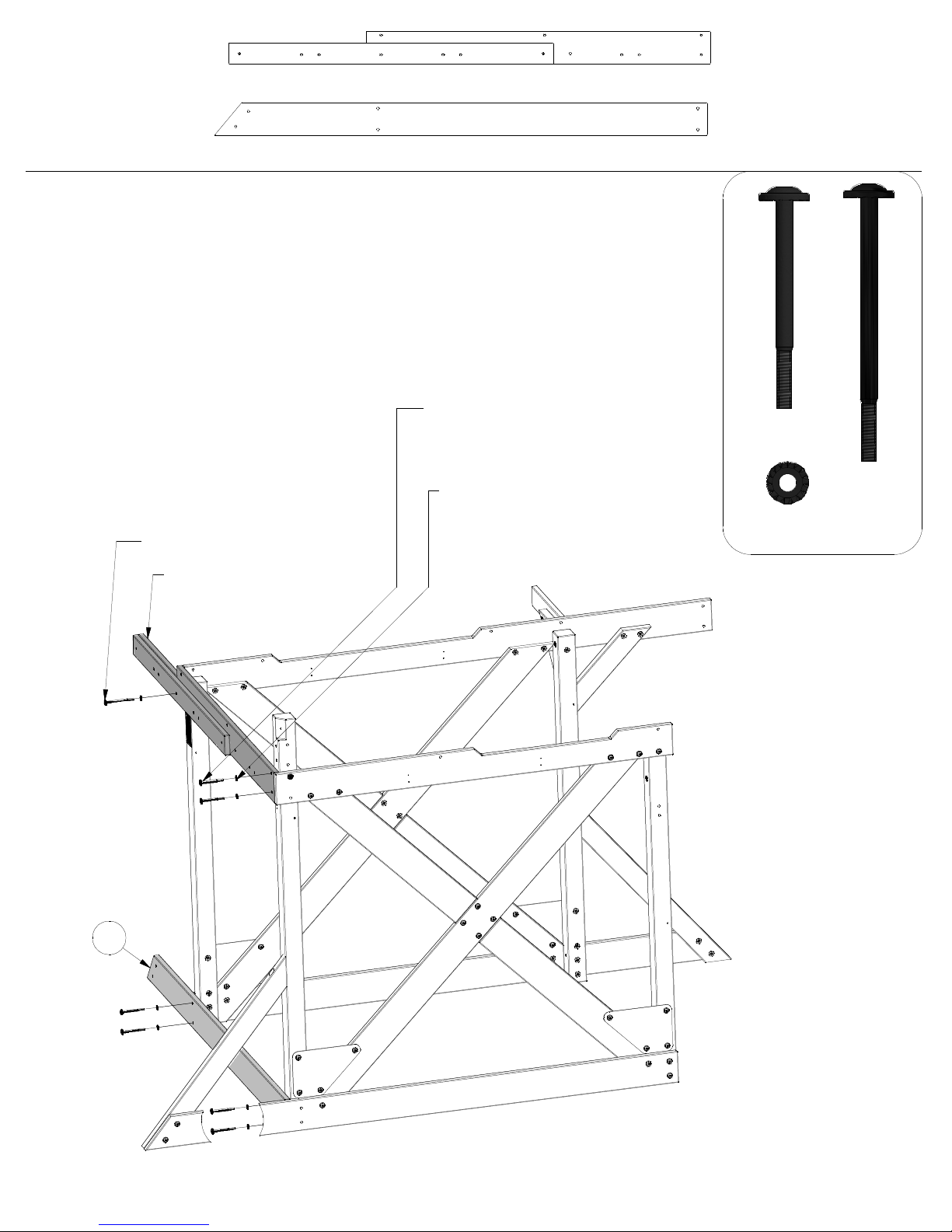

STEP 1
IT IS RECOMMENDED THAT YOU PLACE ALL
T-NUTS BEFORE YOU BEGIN ASSEMBLY OF
PARTS
T-NUT 5/16 BLK
(26 PLCS)
H8 - ANGLE BRACE - W4L08494
(1)
1 3/8"x3 3/8"x38 1/2" (36x86x978)
K3 - BASE BOARD - W4L08457
(1)
1"x5 1/4"x89 1/2" (24x134x2274)
LAG SCREW
(1)
WH 5/16x2
(26)
BLK
T-NUT 5/16
BLK
(2)
(10)
BOLT WH
5/16x2-1/4
BLK
WASHER
LOCK EXT
8x19 BLK
LAG SCREW
WH 5/16x2-1/2
(1)
BLK
(6)
NOTE NOTCH LOCATION
FOR PROPER ASSEMBLY
BOLT WH
5/16x3 3/4
BLK
B1
WASHER LOCK EXT 8x19 BLK
(10 PLCS)
K3
G2
BOLT WH 5/16x3-3/4 BLK
(2 PLCS)
B5
H8
BOLT WH 5/16x3-3/4 BLK
(4 PLCS)
BOLT WH 5/16x2-1/4 BLK
(2 PLCS)
LAG SCREW WH 5/16x2-1/2 BLK
(1 PLC)
LAG SCREW WH 5/16x2 BLK
(1 PLC)
Page 42

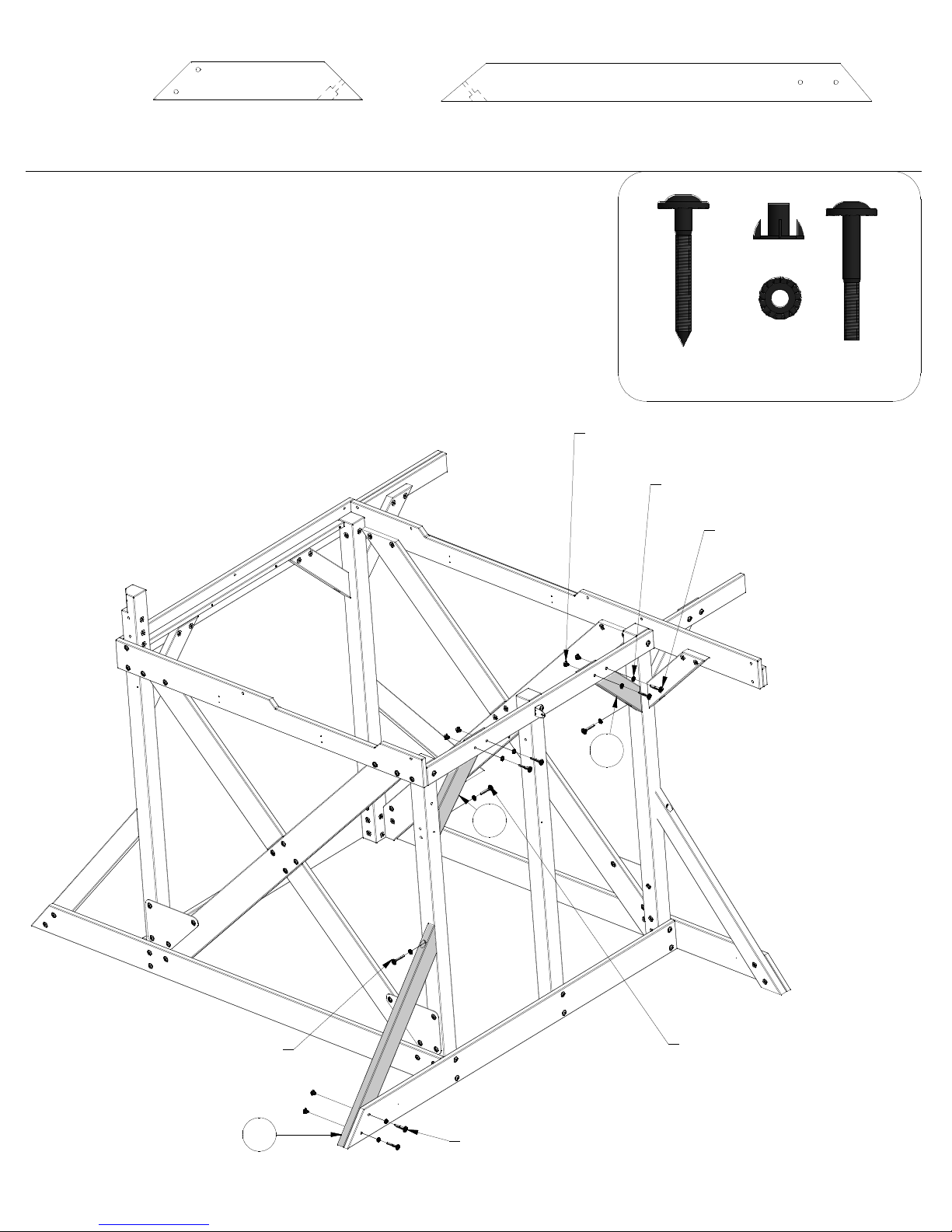

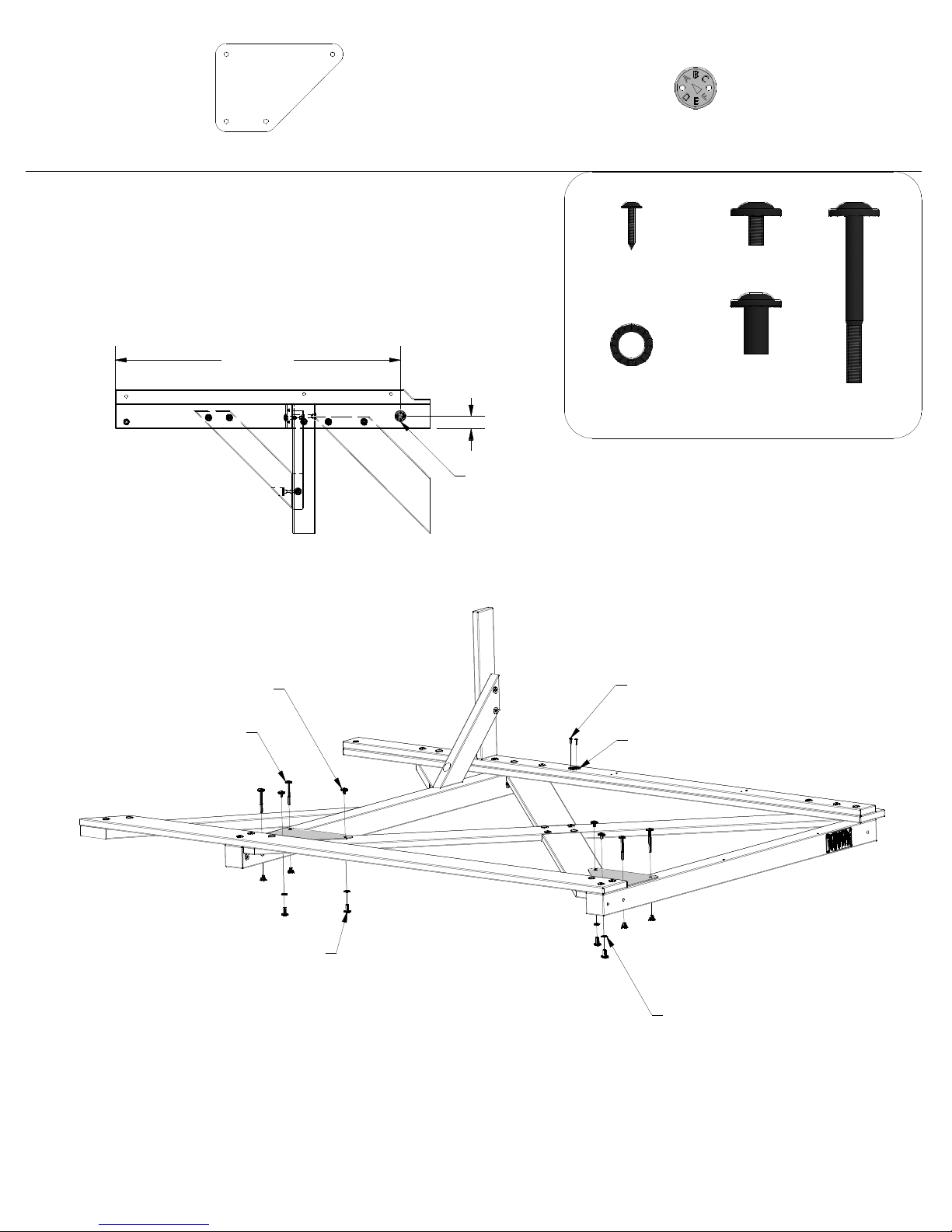

G4 - CROSS BRACE - W4L08463
(2)
1"x5 1/4"x81 7/8" (24x134x2081)

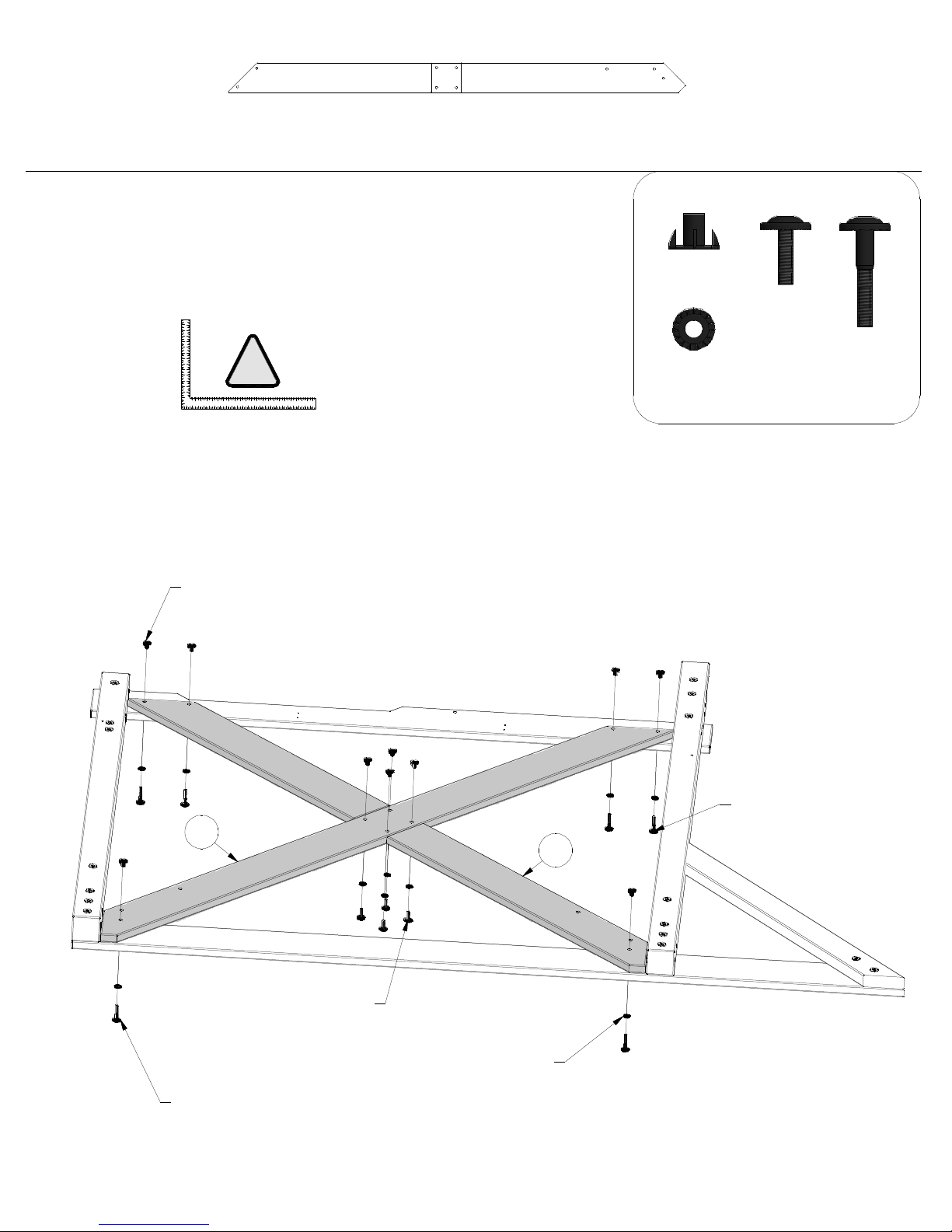

STEP 2
IT IS RECOMMENDED THAT YOU PLACE ALL
T-NUTS BEFORE YOU BEGIN ASSEMBLY OF
PARTS
5
3
1
1
4
2
1
1
3
1
1
1
2
0
1
1
1
1
9
0
1
8
9
7
6
8
7
5
4
6
5
3
2
4
3
1
2
1
1
1234567
!
2
111213141
5
891
0
222120191817161514131211109876543
1
8
2021222
3
1
6
1
9
1
7
IT IS RECOMMENDED THAT
YOU SQUARE THE ASSEMBLY
OF PARTS IN THIS STEP.
(10)
(10)
T-NUT 5/16
BLK
WASHER
LOCK EXT
8x19 BLK
(4)
BOLT WH
5/16x1 BLK
(6)
BOLT WH
5/16x1 3/4
BLK
T-NUT 5/16 BLK
(10 PLCS)
G4
BOLT WH 5/16x1 BLK
BOLT WH 5/16x1-3/4 BLK
(4 PLCS)
G4
(4 PLCS)
BOLT WH 5/16x1-3/4 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(10 PLCS)
Page 43

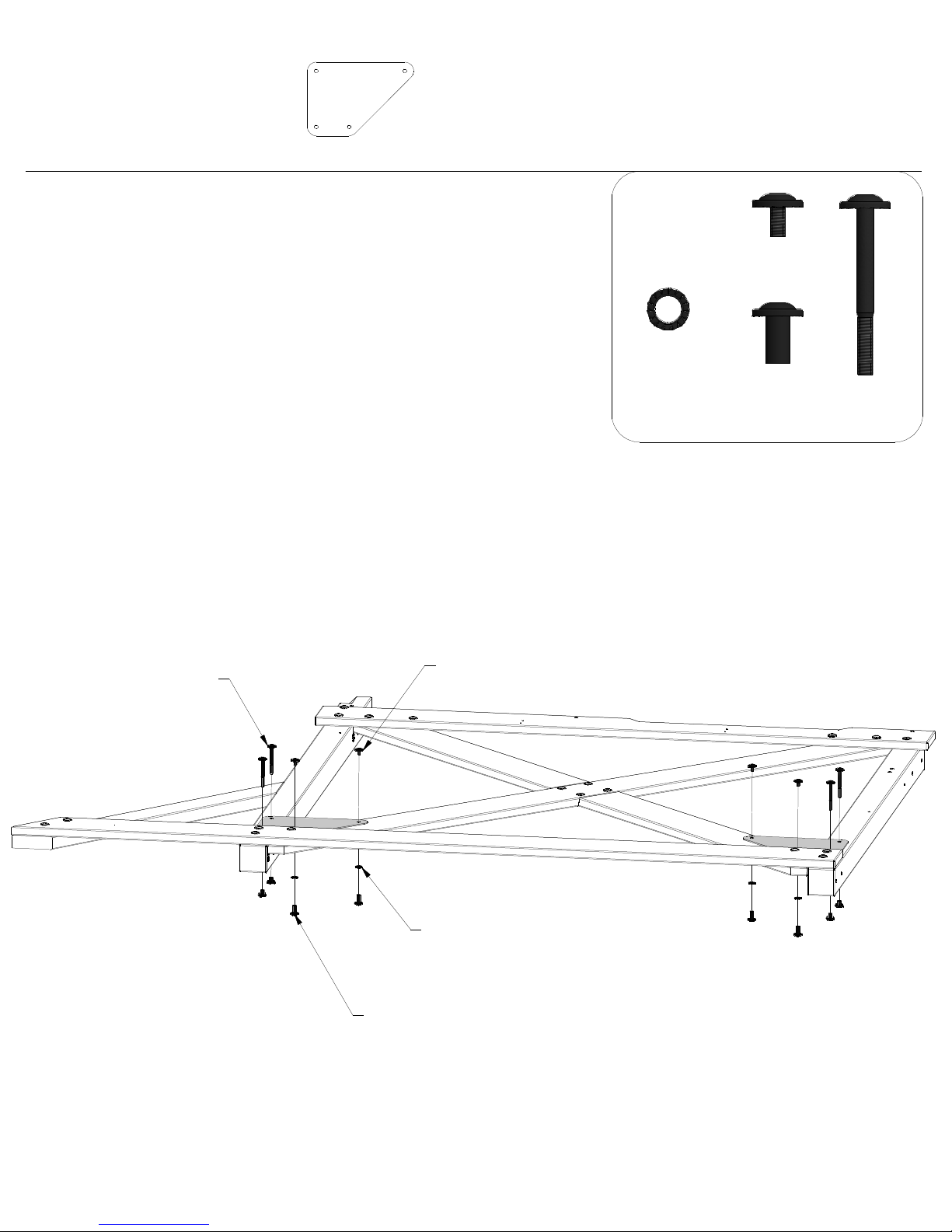

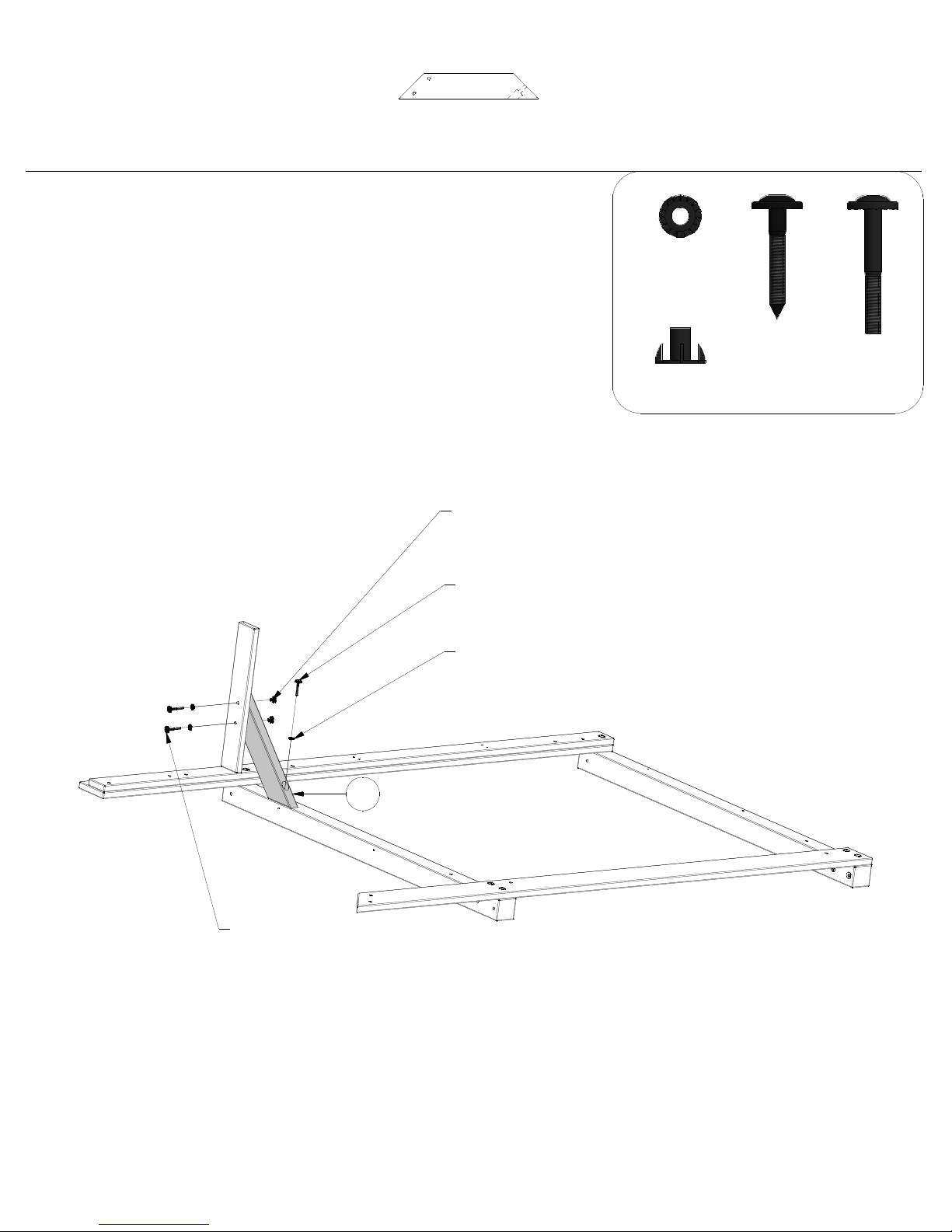

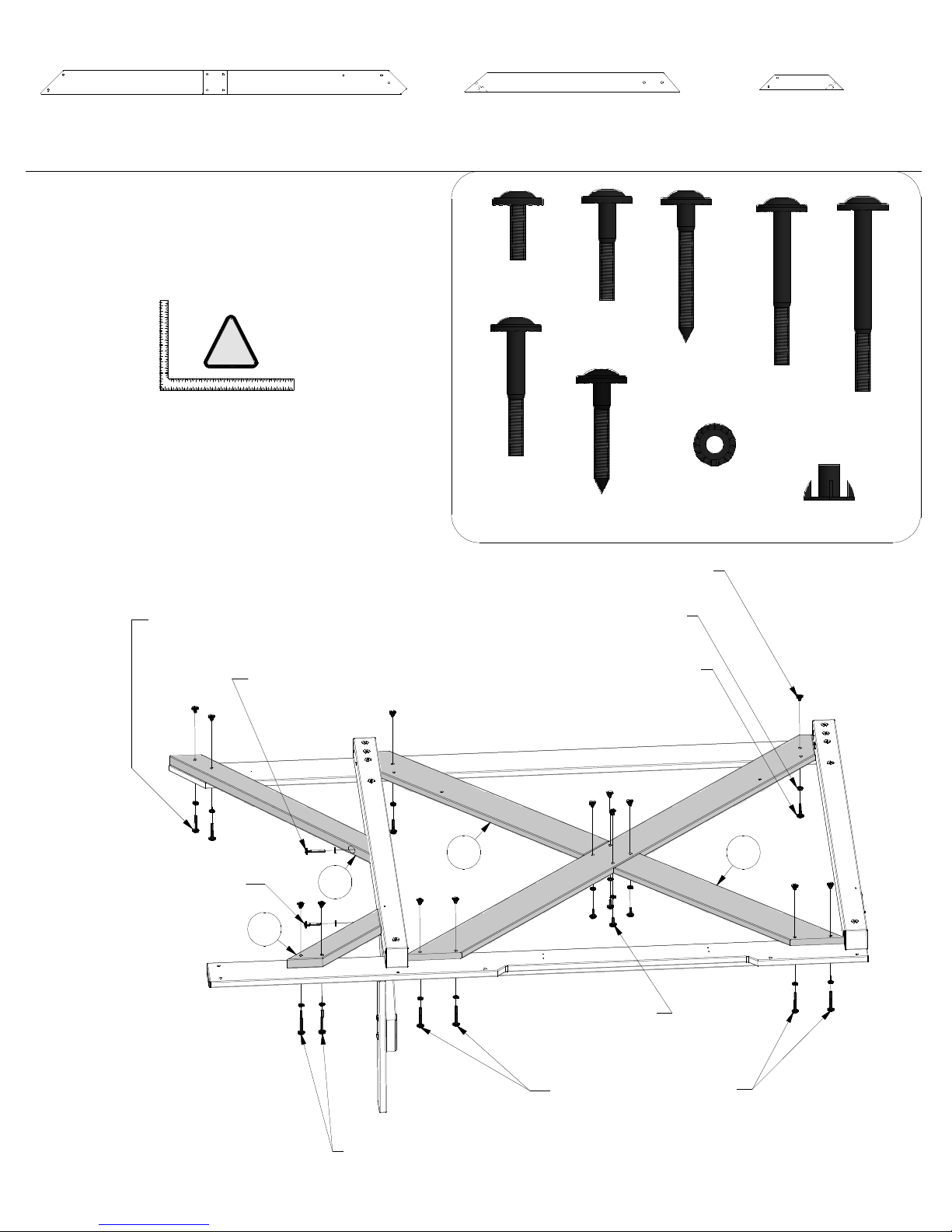

STEP 3
- TRIANGLE BRACE 100x200x12ga - BLK - A4M00827(2)
BOLT WH
(4)
5/16x1/2 BLK
WASHER
(4)
LOCK EXT
12x19 BLK
NUT BARREL
WH 5/16x7/8
(4)
BLK
(4)
BOLT WH
5/16x3 BLK
BOLT WH 5/16x3 BLK
(4 PLCS)
BOLT WH 5/16x1/2 BLK
(4 PLCS)
WASHER LOCK EXT 12x19 BLK
(4 PLCS)
NUT BARREL WH 5/16x7/8
(4 PLCS)
Page 44

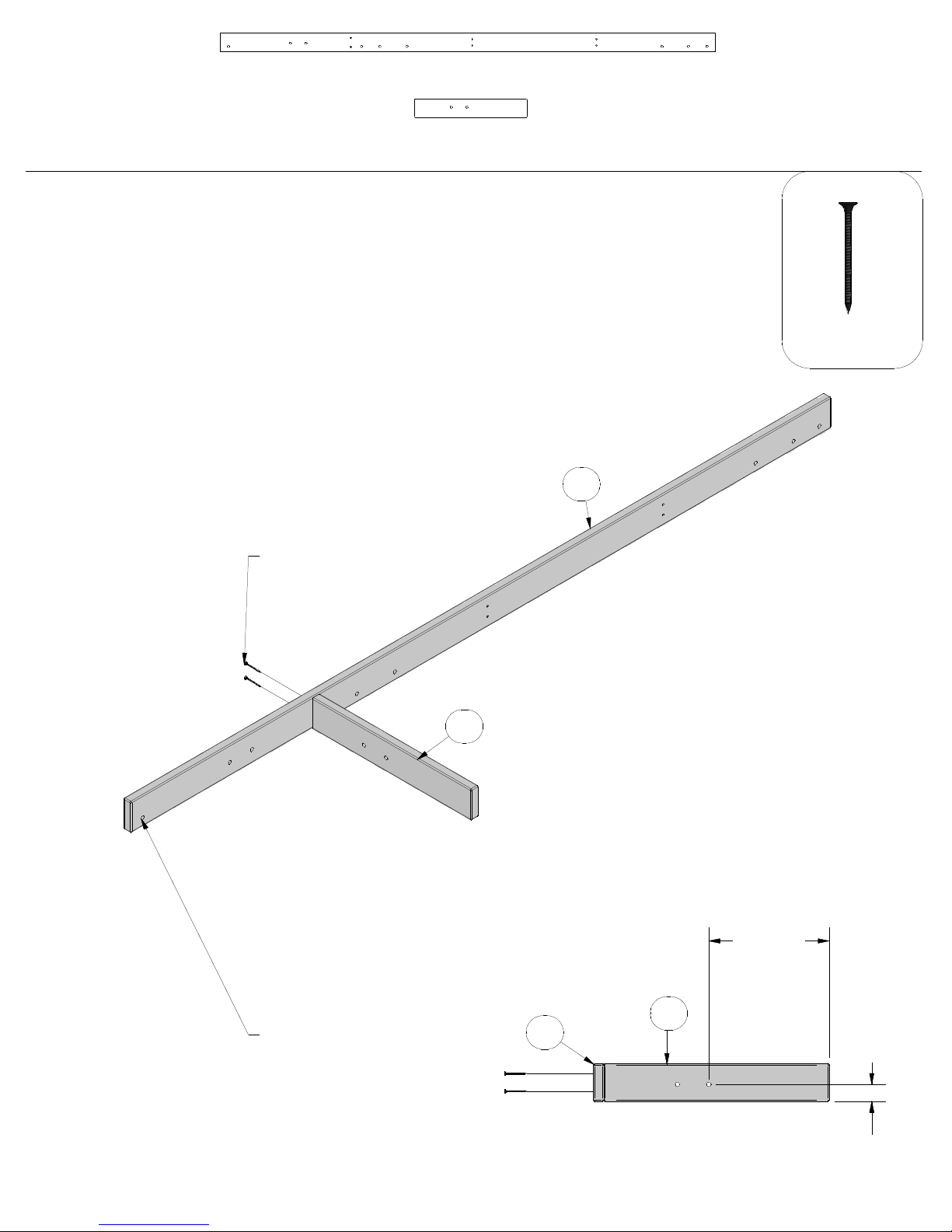

STEP 4
(1)
H23 - FLOOR SUPPORT - W4L08569
(1)
H27 - FLOOR SUPPORT - W4L08701
H23
SCREW PFH
(2)
8x2 BLK
SCREW PFH 8X2 BLK
(2 PLCS)
H27
10 3/4 in
[273 mm]
NOTE HOLE LAYOUT
FOR PROPER ASSEMBLY
H27
H23
1 1/2 in
[38 mm]
Page 45

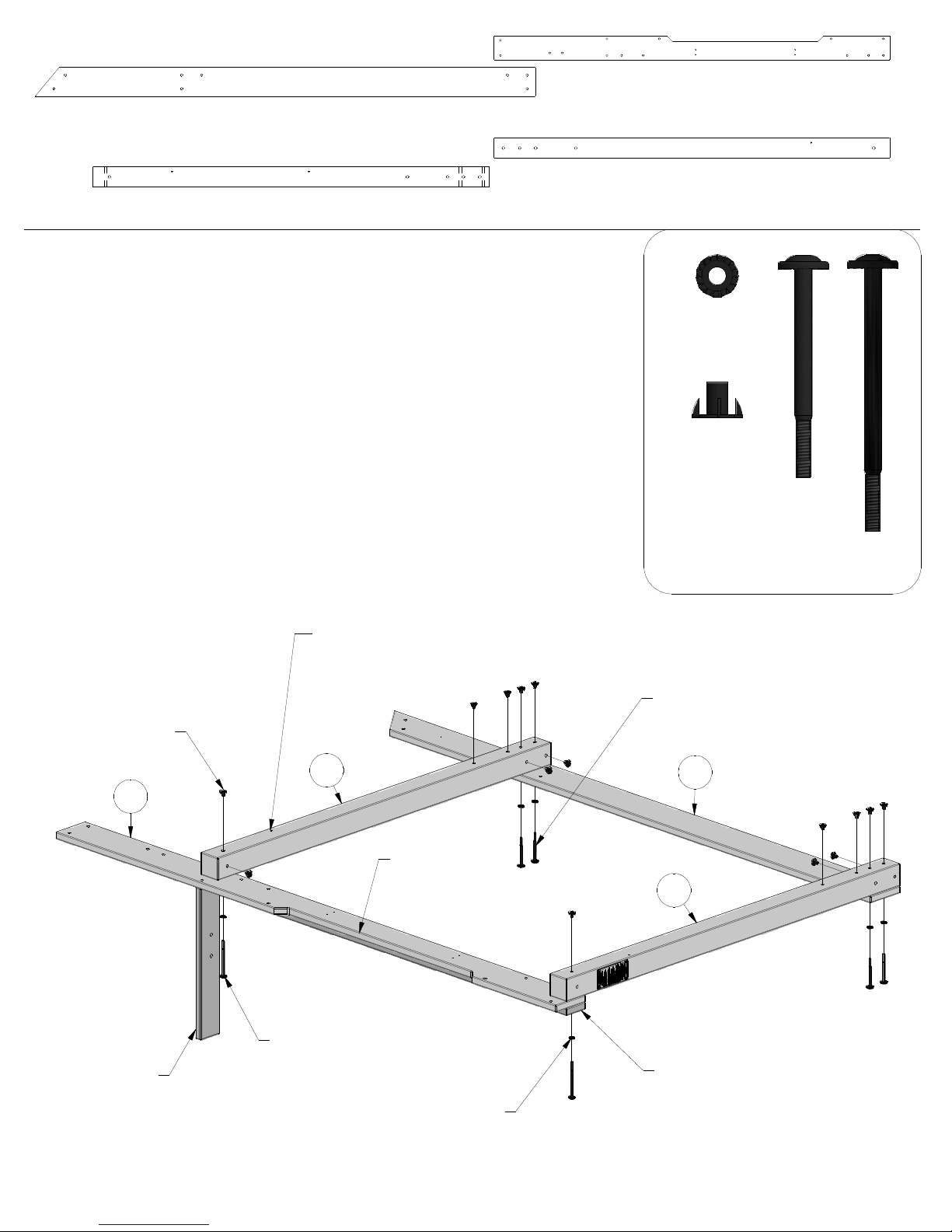

K3 - BASE BOARD - W4L08457
(1)
1"x5 1/4"x89 1/2" (24x134x2274)
B4 - POST - W2A02257
(1)
3"x3"x59" (76x76x1500)
STEP 5
IT IS RECOMMENDED THAT YOU PLACE ALL
T-NUTS BEFORE YOU BEGIN ASSEMBLY OF
PARTS
G3 - WALL SUPPORT - W4L08461
(1)
1"x5 1/4"x88 1/2" (24x134x2249)
B6 - POST - W4L08452
(1)
3"x3"x59" (76x76x1500)
WASHER
LOCK EXT
(6)
8x19 BLK
T-NUT 5/16
(16)
BLK
(4)
BOLT WH
5/16x3 3/4
BLK
(2)
BOLT WH
5/16x4 3/4
BLK
T-NUT 5/16 BLK
(16 PLCS)
G3
ASSEMBLY
FROM STEP 4
NOTE HOLE LOCATION
B6
NOTE NOTCH
ORIENTATION
FOR CORRECT
ASSEMBLY
BOLT WH 5/16x4-3/4 BLK
(2 PLCS)
BOLT WH 5/16x3-3/4 BLK
(4 PLCS)
K3
B4
ASSEMBLY
FROM STEP 4
WASHER LOCK EXT 8x19 BLK
(6 PLCS)
Page 46
E1 - ANGLE SUPPORT - W4L08458
(1)
1 3/8"x3 3/8"x18 3/4" (36x86x475)
STEP 6
IT IS RECOMMENDED THAT YOU PLACE ALL
T-NUTS BEFORE YOU BEGIN ASSEMBLY OF
PARTS
T-NUT 5/16 BLK
(2 PLCS)
(3)
(2)
WASHER
LOCK EXT
8x19 BLK
T-NUT 5/16
BLK
LAG SCREW
(1)
WH 5/16x2
BLK
(2)
BOLT WH
5/16x2-1/4
BLK
E1
BOLT WH 5/16x2-1/4 BLK
(2 PLCS)
LAG SCREW WH 5/16x2 BLK
(3 PLCS)
WASHER LOCK EXT 8x19 BLK
(3 PLCS)
Page 47
G4 - CROSS BRACE - W4L08463
(2)
1"x5 1/4"x81 7/8" (24x134x2081)
STEP 7
IT IS RECOMMENDED THAT YOU PLACE ALL
T-NUTS BEFORE YOU BEGIN ASSEMBLY OF
PARTS
3
151
4
2
1
1
3
1
1
1
2
0
1
1
1
1
9
0
1
8
9
7
6
8
7
5
4
6
5
3
4
2
1
3
2
1
1
1
234
!
22212
0
1
7
191
8
2
6
7
5
89101
1
2
1
1
4
15161718192021222
1
3
161514131211109876543
3
IT IS RECOMMENDED THAT
YOU SQUARE ASSEMBLY OF
PARTS AT THIS TIME.
H8 - ANGLE BRACE - W4L08494
(1)
1 3/8"x3 3/8"x38 1/2" (36x86x978)
BOLT WH
(4)
5/16x1 BLK
BOLT WH
(2)
5/16x1 3/4
BLK
BOLT WH
(2)
5/16x2-1/4
BLK
LAG SCREW
(1)
WH 5/16x2
BLK
LAG SCREW
(1)
WH 5/16x2-1/2
(16)
E1 - ANGLE SUPPORT - W4L08458
(1)
1 3/8"x3 3/8"x18 3/4" (36x86x475)
BLK
(4)
BOLT WH
5/16x2-3/4
BLK
(2)
WASHER
LOCK EXT
8x19 BLK
(14)
T-NUT 5/16
BLK
BOLT WH
5/16x3 1/4
BLK
BOLT WH 5/16x2-1/4 BLK
(2 PLCS)
LAG SCREW WH 5/16x2 BLK
(1 PLC)
WASHER LOCK EXT 8x19 BLK
LAG SCREW WH 5/16x2-1/2 BLK
(1 PLC)
G4
H8
E1
T-NUT 5/16 BLK
(14 PLCS)
(14 PLCS)
BOLT WH 5/16x1-3/4 BLK
(2 PLCS)
G4
BOLT WH 5/16x1 BLK
(4 PLCS)
BOLT WH 5/16x2-3/4 BLK
(4 PLCS)
BOLT WH 5/16x3-1/4 BLK
(2 PLCS)
Page 48
STEP 8
(2)
- TRIANGLE BRACE 100x200x12ga - BLK - A4M00827
(1)
- "A" REVISION TAG - A100314
38 1/4 in
[972 mm]
BOLT WH 5/16x1/2 BLK
(4 PLCS)
BOLT WH 5/16x3 BLK
(4 PLCS)
1 11/16 in
[43 mm]
"A" REVISION TAG
SCREW PWH
(2)
8x3/4 BLK
WASHER
LOCK EXT
(4)
12x19 BLK
BOLT WH
(4)
5/16x1/2 BLK
NUT BARREL
(4)
WH 5/16x7/8
BLK
SCREW PWH 8x3/4 BLK
(2 PLCS)
"A" REVISION TAG
(4)
BOLT WH
5/16x3 BLK
NUT BARREL WH 5/16x7/8
(4 PLCS)
WASHER LOCK EXT 12x19 BLK
(4 PLCS)
Page 49
STEP 9
G1 - WALL SUPPORT - W4L08459
(1)
1"x5 1/4"x77 1/2" (24x134x1968)
H28 - FLOOR SUPPORT - W4L08713
(1)
1"x3 3/8"x52 1/4" (24x86x1328)
SCREW PFH
(2)
8x1-1/2 BLK
G1
SCREW PFH 8X1-1/2 BLK
(2 PLCS)
H28
MAKE FLUSH
MAKE FLUSH
Page 50
STEP 10
BOLT WH 5/16x4-3/4 BLK
(1 PLC)
PRE-ASSEMBLED BOARDS
FROM STEP 9
PRE-ASSEMBLED BOARDS
FROM STEP 9
K1 - BASE BOARD - W4L08455
(1)
1"x5 1/4"x79 1/4" (24x134x2014)
BOLT WH 5/16x3-3/4 BLK
(6 PLCS)
WASHER LOCK EXT 8x19 BLK
(7 PLCS)
(6)
(7)
BOLT WH
5/16x3 3/4
BLK
WASHER
LOCK EXT
8x19 BLK
(1)
BOLT WH
5/16x4 3/4
BLK
K1
T
N
O
R
F
Page 51

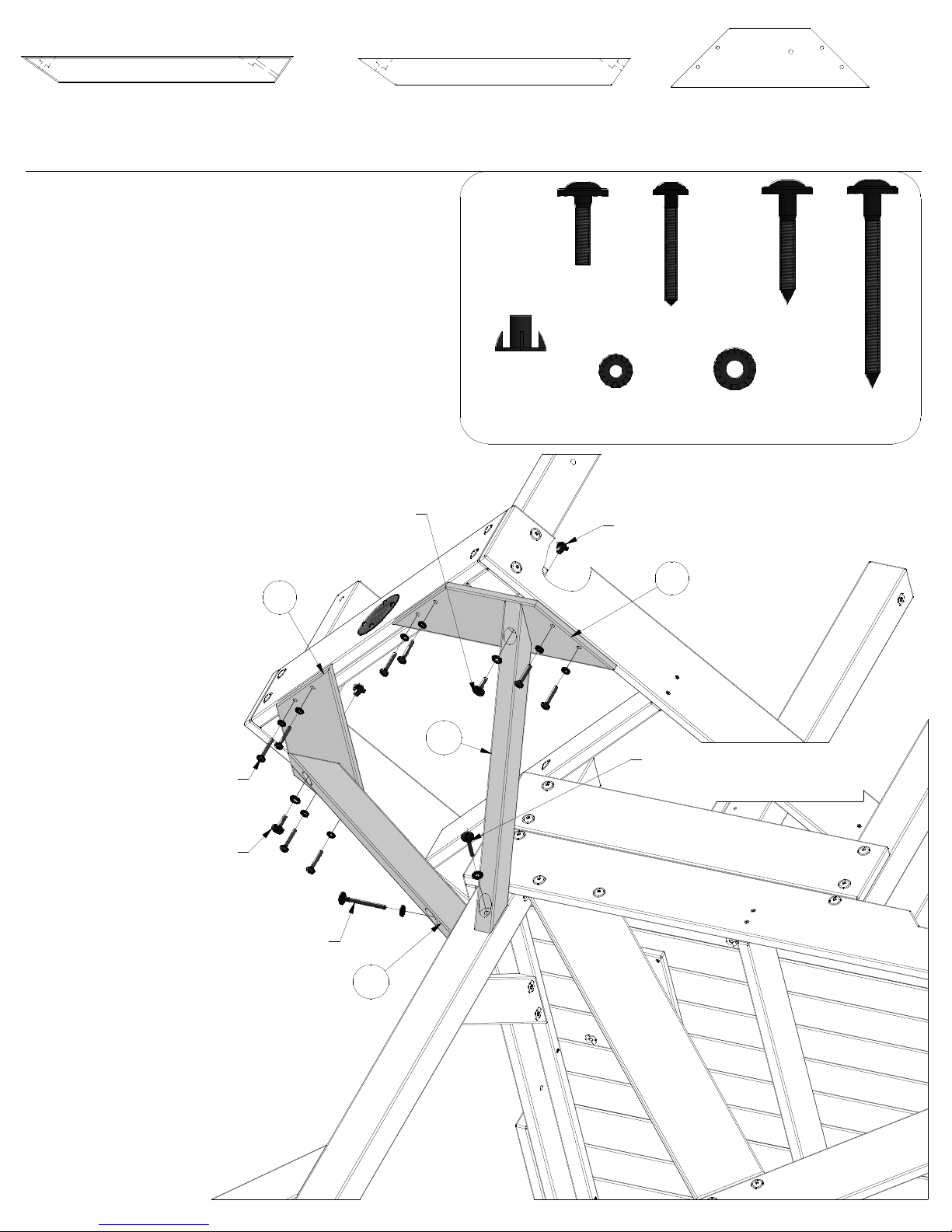

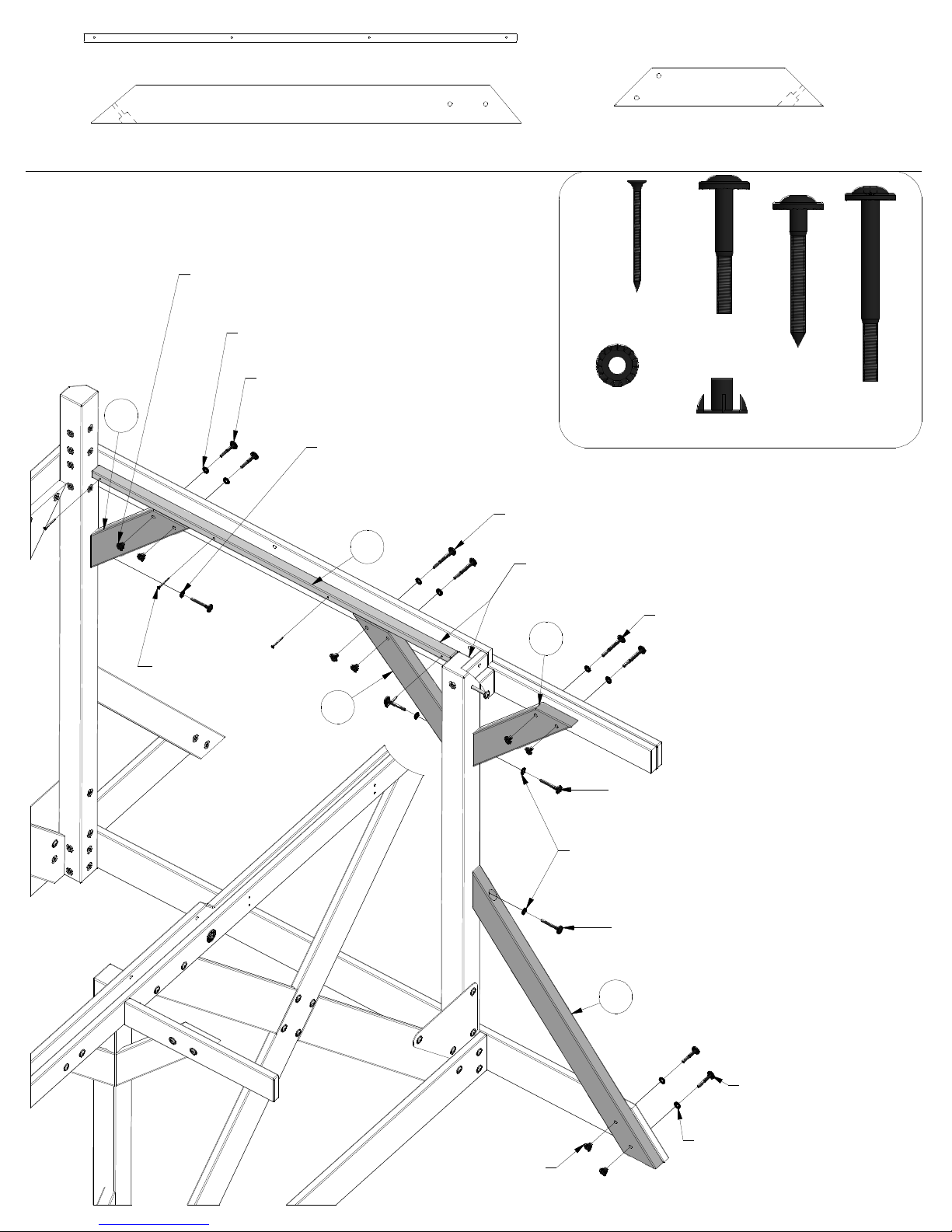

STEP 11
E1
T1 - FLOOR SUPPORT - W4L08466
(1)
1"x1 3/8"x48 3/8" (24x34x1230)
H8 - ANGLE BRACE - W4L08494
(1)
1 3/8"x3 3/8"x38 1/2" (36x86x978)
T-NUT 5/16 BLK
(6 PLCS)
WASHER LOCK EXT 8x19 BLK
(6 PLCS)
BOLT WH 5/16x2-1/4 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
(4)
(12)
E1 - ANGLE SUPPORT - W4L08458
(3)
1 3/8"x3 3/8"x18 3/4" (36x86x475)
SCREW PFH
8x2 BLK
WASHER
LOCK EXT
8x19 BLK
(4)
(8)
BOLT WH
5/16x2-1/4
BLK
(4)
T-NUT 5/16
BLK
LAG SCREW
WH 5/16x2-1/2
BLK
(4)
BOLT WH
5/16x3 1/4
BLK
SCREW PFH 8X2 BLK
(4 PLCS)
E1
T1
BOLT WH 5/16x3-1/4 BLK
(2 PLCS)
RESTS ON ANGLE BRACES
FLUSH WITH POST TOP
BOLT WH 5/16x3-1/4 BLK
E1
(2 PLCS)
LAG SCREW WH 5/16x2-1/2 BLK
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
LAG SCREW WH 5/16x2-1/2 BLK
T-NUT 5/16 BLK
(2 PLCS)
H8
BOLT WH 5/16x2-1/4 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
Page 52

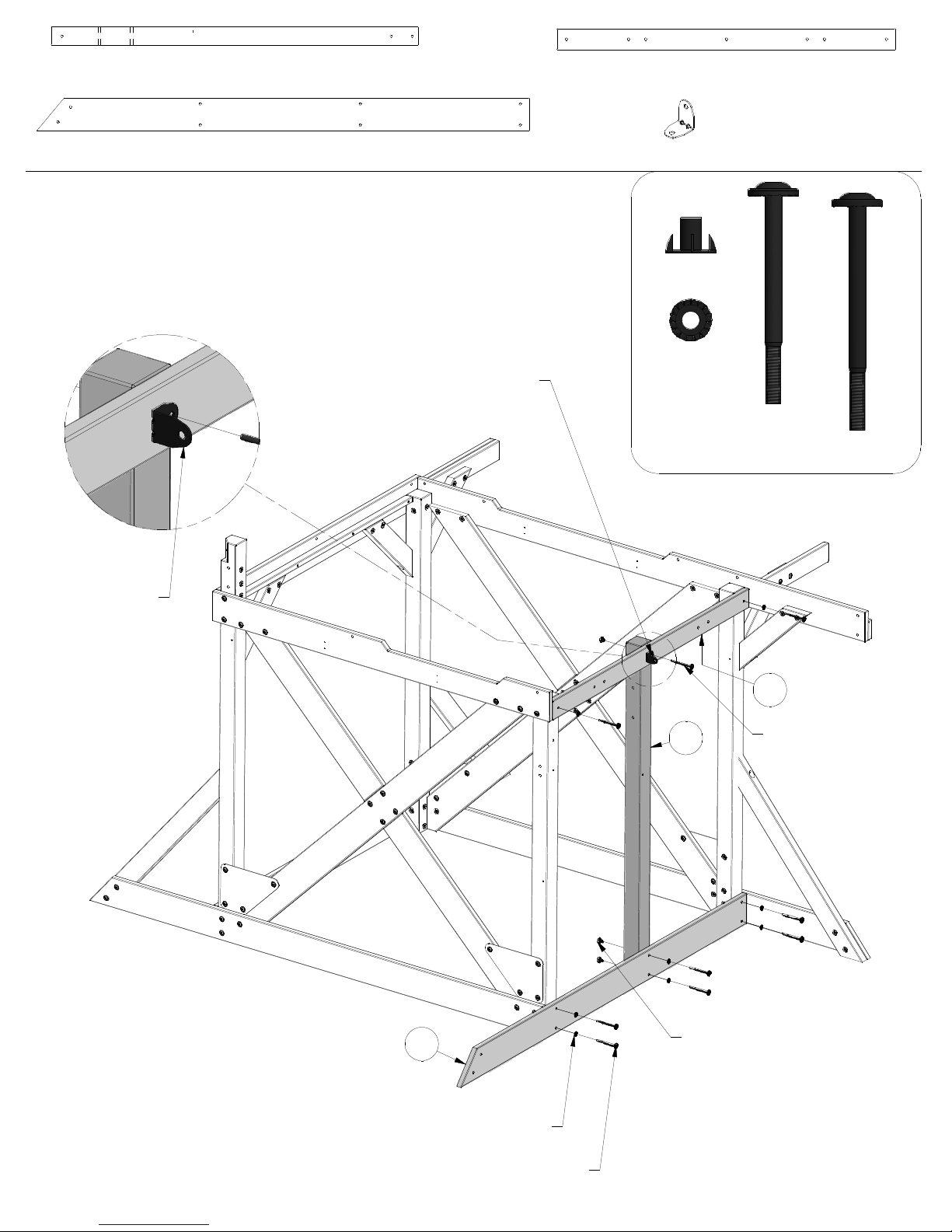

B2 - POST - W4L08454
(1)
3"x3"x59" (76x76x1500)
K2 - BASE BOARD - W4L08456
(1)
1"x5 1/4"x79 1/4" (24x134x2014)
STEP 12
IT IS RECOMMENDED THAT YOU PLACE ALL
T-NUTS BEFORE YOU BEGIN ASSEMBLY OF
PARTS
L BRACKET 2.5x38x50x55 BLK
(1 PLC)
H1 - FLOOR SUPPORT - W4L08462
(1)
1"x3 3/8"x54 1/2" (24x86x1384)
L BRACKET
(1)
2.5x38x50x55
BLK
T-NUT 5/16
(3)
(8)
BLK
WASHER
LOCK EXT
8x19 BLK
(8)
BOLT WH
5/16x3 3/4
BLK
(1)
BOLT WH
5/16x4 BLK
NOTE
ORIENTATION
K2
B2
T-NUT 5/16 BLK
(3 PLCS)
H1
BOLT WH 5/16x4 BLK
(1 PLC)
WASHER LOCK EXT 8x19 BLK
(8 PLCS)
BOLT WH 5/16x3-3/4 BLK
(8 PLCS)
Page 53
E1 - ANGLE SUPPORT - W4L08458
(2)
1 3/8"x3 3/8"x18 3/4" (36x86x475)
STEP 13
IT IS RECOMMENDED THAT YOU PLACE ALL
T-NUTS BEFORE YOU BEGIN ASSEMBLY OF
PARTS
H8 - ANGLE BRACE - W4L08494
(1)
1 3/8"x3 3/8"x38 1/2" (36x86x978)
LAG SCREW
(3)
WH 5/16x2-1/2
BLK
T-NUT 5/16 BLK
(6 PLCS)
WASHER LOCK EXT 8x19 BLK
(6 PLCS)
T-NUT 5/16
(6)
(9)
BLK
WASHER
LOCK EXT
8x19 BLK
(6)
BOLT WH
5/16x2-1/4
BLK
BOLT WH 5/16x2-1/4 BLK
(4 PLCS)
LAG SCREW WH 5/16x2-1/2 BLK
(1 PLC)
H8
E1
E1
LAG SCREW WH 5/16x2-1/2 BLK
(2PLCS)
BOLT WH 5/16x2-1/4 BLK
(2PLCS)
Page 54

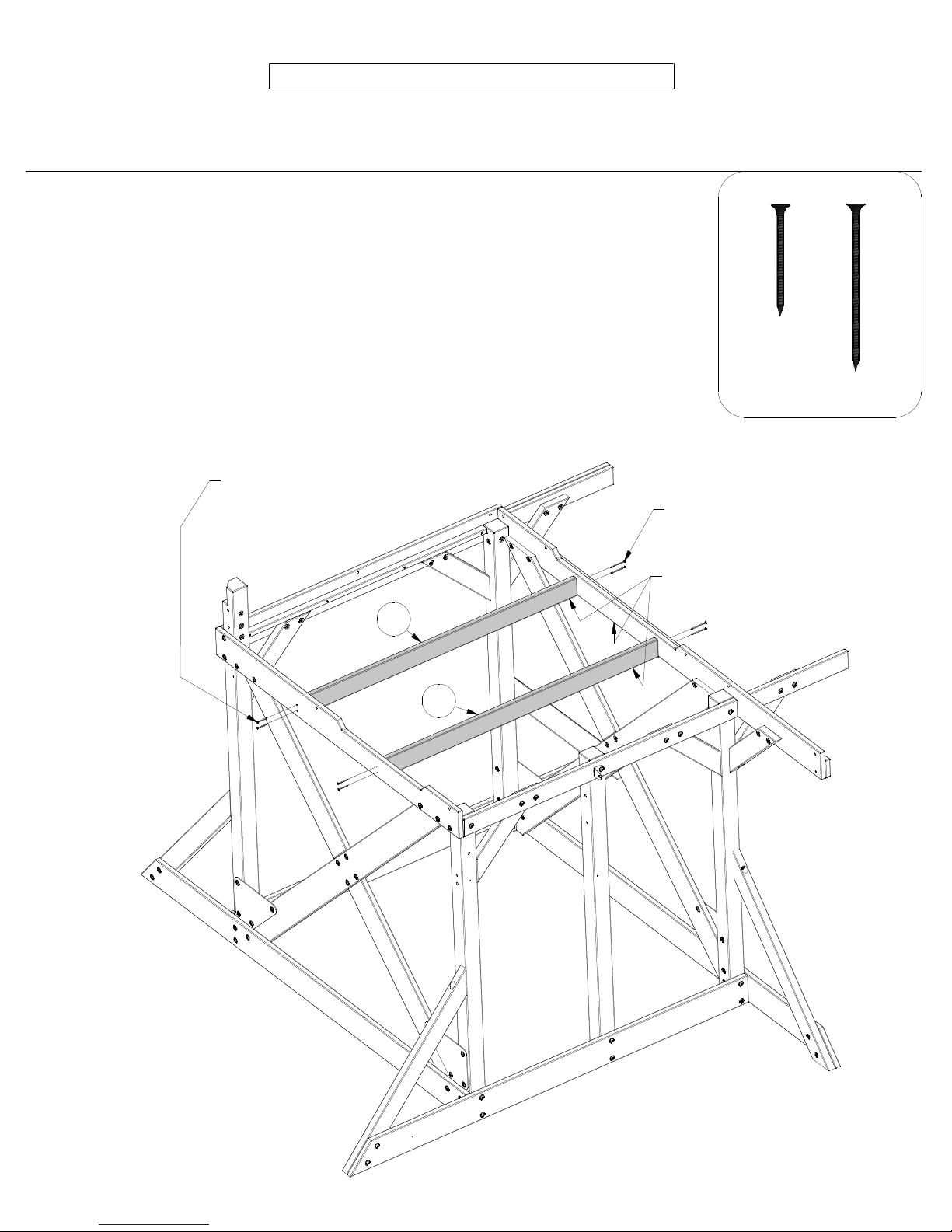

STEP 14
(2)
SCREW PFH 8X2 BLK
(4 PLCS)
H2 - FLOOR SUPPORT - W4L08468
1"x3 3/8"x54 3/8" (24x86x1382)
SCREW PFH
(4)
8x2 BLK
(4)
SCREW PFH 8x3 BLK
(4 PLCS)
SCREW PFH
8x3 BLK
H2
FLUSH TO
BOTTOM EDGE
H2
Page 55

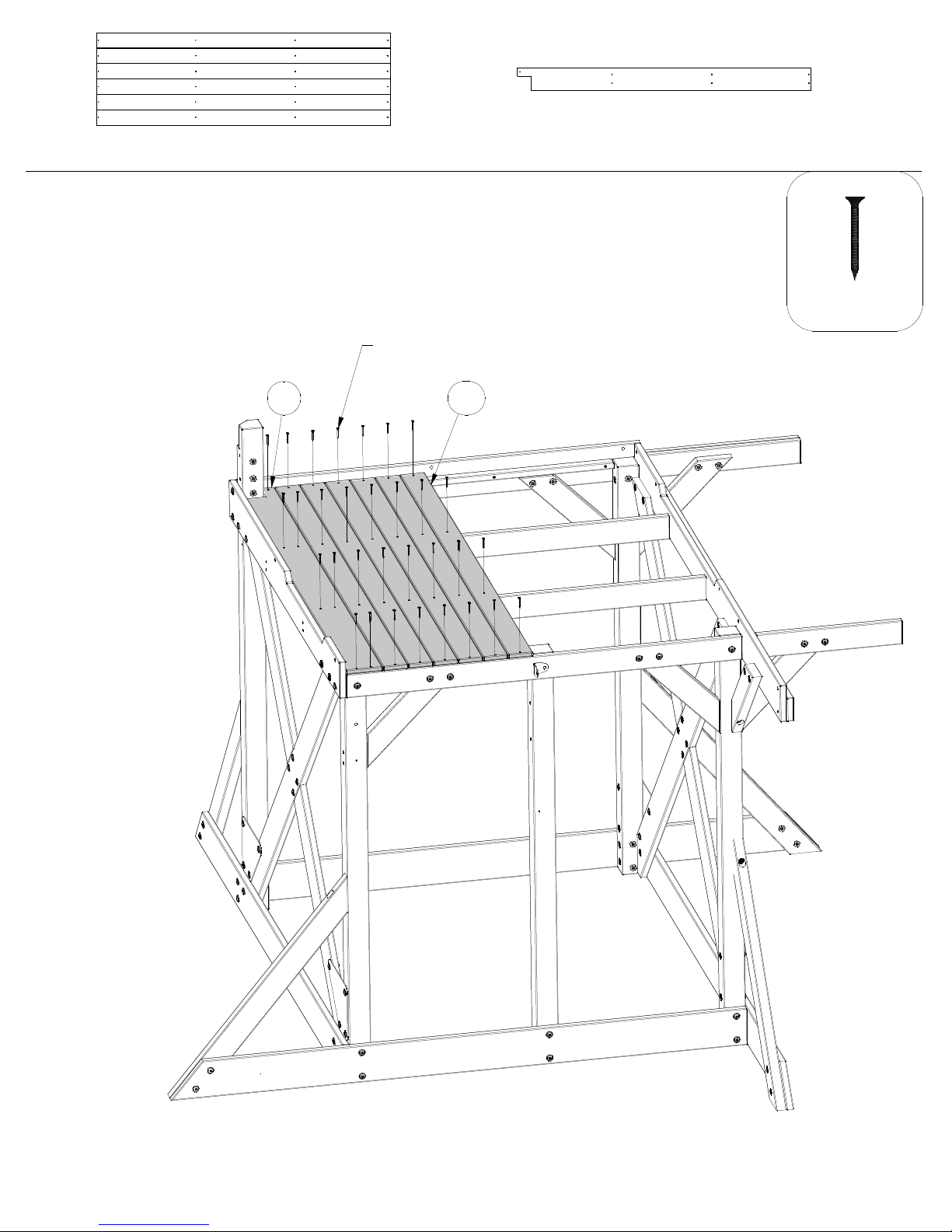

STEP 15
FP2 - FLOOR PANEL - W2A02224
(1)
1 1/4"x20 9/16"x65 11/16" (32x523x1668)
SCREW PFH 8x1-1/2 BLK
(31 PLCS)
K4 - FLOOR BOARD - W4L08471
(1)
5/8"x5"x65 5/8" (16x128x1668)
SCREW PFH
(31)
8x1-1/2 BLK
K4
FP2
Page 56

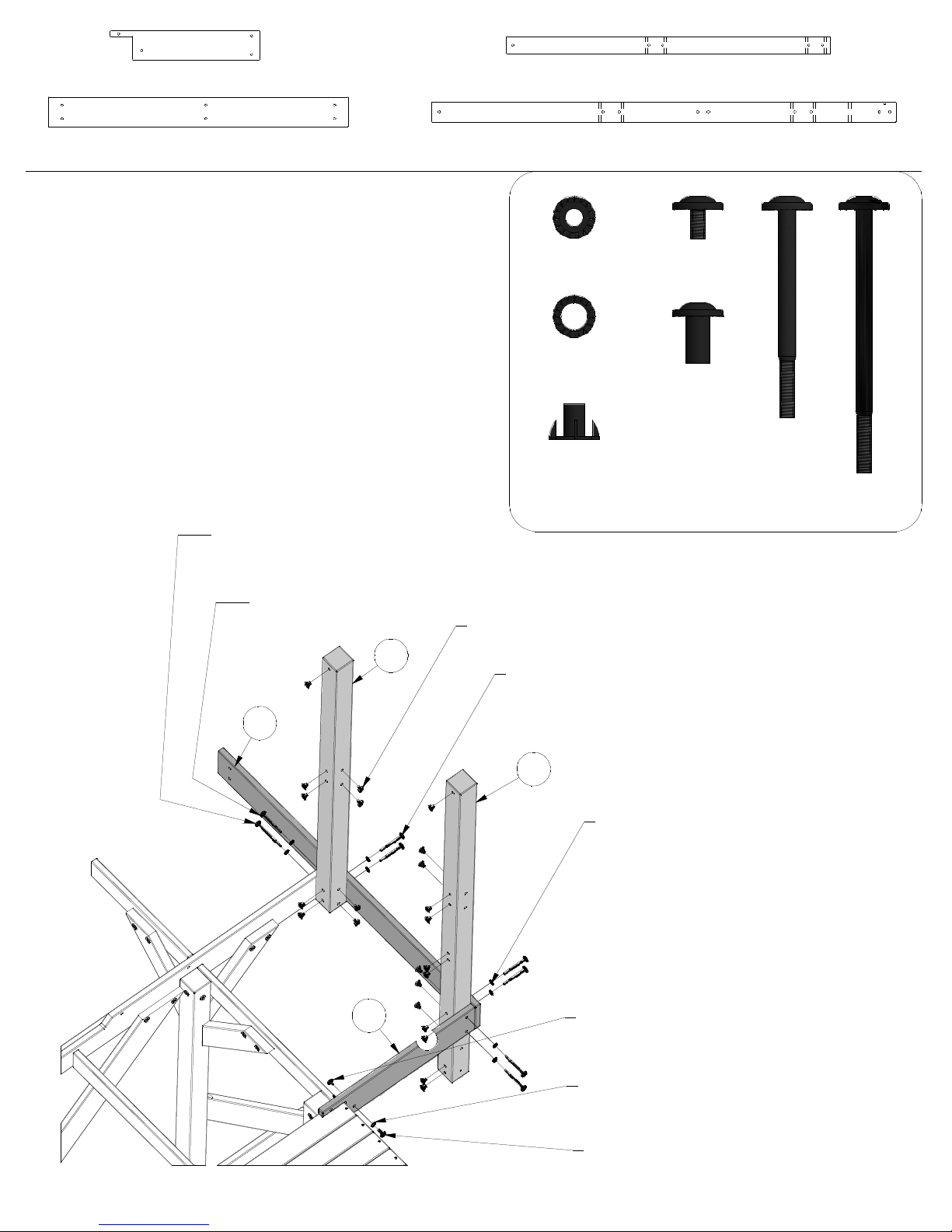

G5 - WALL SUPPORT - W4L08464
(1)
1"x5 1/4"x26 3/4" (24x134x681)
B7 - POST - W4L08472
(1)
3"x3"x58" (76x76x1472)
FRONT
G6 - WALL SUPPORT - W4L08465
(1)
1"x5 1/4"x53 5/8" (24x134x1362)
STEP 16
IT IS RECOMMENDED THAT YOU PLACE ALL
T-NUTS BEFORE YOU BEGIN ASSEMBLY OF
PARTS
BOLT WH 5/16x4-3/4 BLK
(1 PLC)
(8)
(1)
(23)
B3 - POST - W4L08473
(1)
3"x3"x69 1/8" (76x76x1757)
WASHER
LOCK EXT
8x19 BLK
WASHER
LOCK EXT
12x19 BLK
T-NUT 5/16
BLK
(1)
(1)
BOLT WH
5/16x1/2 BLK
NUT BARREL
WH 5/16x7/8
BLK
(7)
BOLT WH
5/16x3 3/4
BLK
(1)
BOLT WH
5/16x4 3/4
BLK
BOLT WH 5/16x3-3/4 BLK
(1 PLC)
B7
G6
G5
T-NUT 5/16 BLK
(23 PLCS)
BOLT WH 5/16x3-3/4 BLK
(6 PLCS)
B3
WASHER LOCK EXT 8x19 BLK
(8 PLCS)
BOLT WH 5/16x1/2 BLK
(1 PLC)
WASHER LOCK EXT 12x19 BLK
(1 PLC)
NUT BARREL WH 5/16x7/8
T
N
O
R
F
(1 PLC)
Page 57
(2)

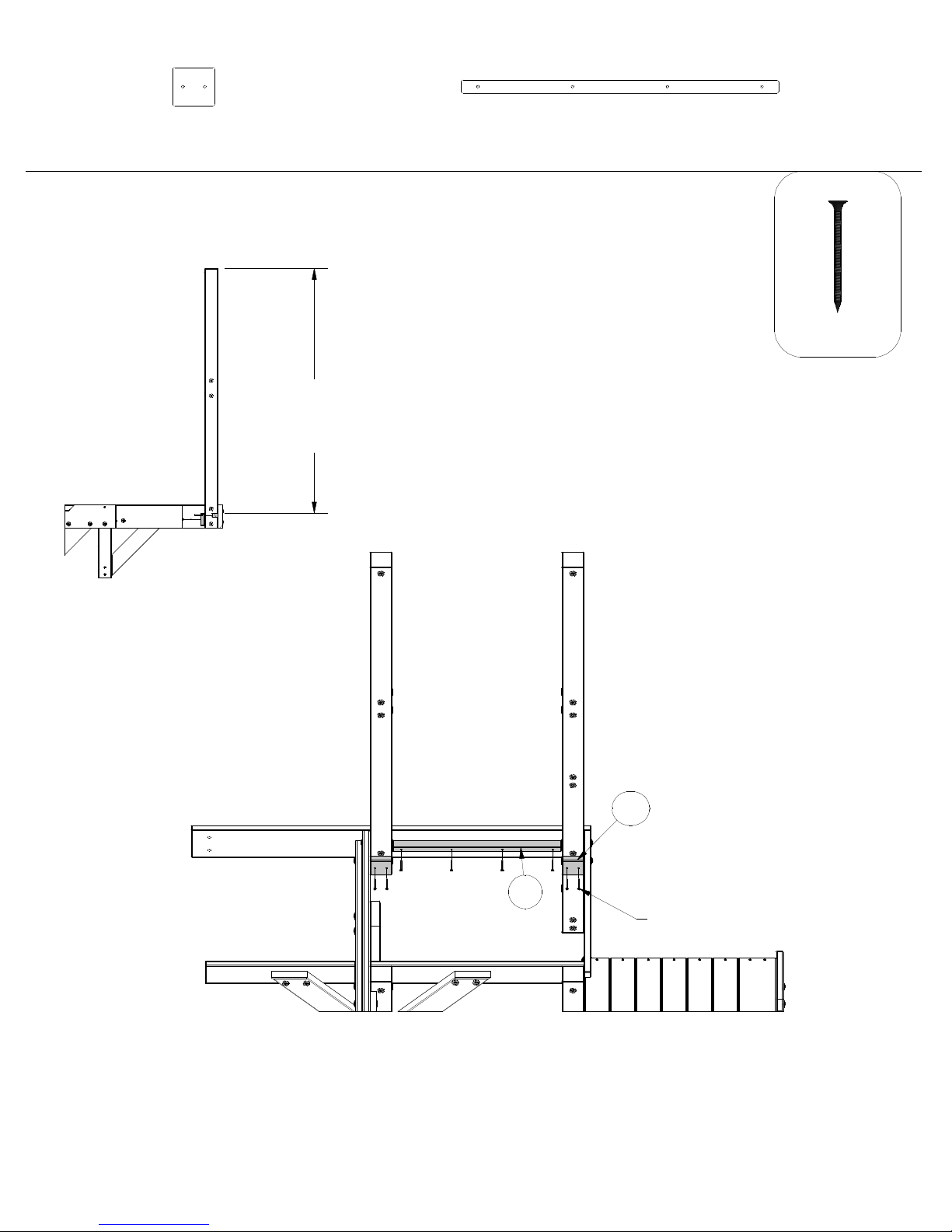

STEP 17
H20 - FLOOR SUPPORT - W4L08562
1"x2 3/4"x3" (24x70x76)
54 1/2 in
[1386 mm]
LOCATION TO TOP
OF FLOOR SUPPORT
T2 - FLOOR SUPPORT - W4L08467
(1)
1"x1 3/8"x22 5/8" (24x34x576)
SCREW PFH
(8)
8x2 BLK
H20
T2
SCREW PFH 8x2 BLK
(8 PLCS)
FRONT
Page 58

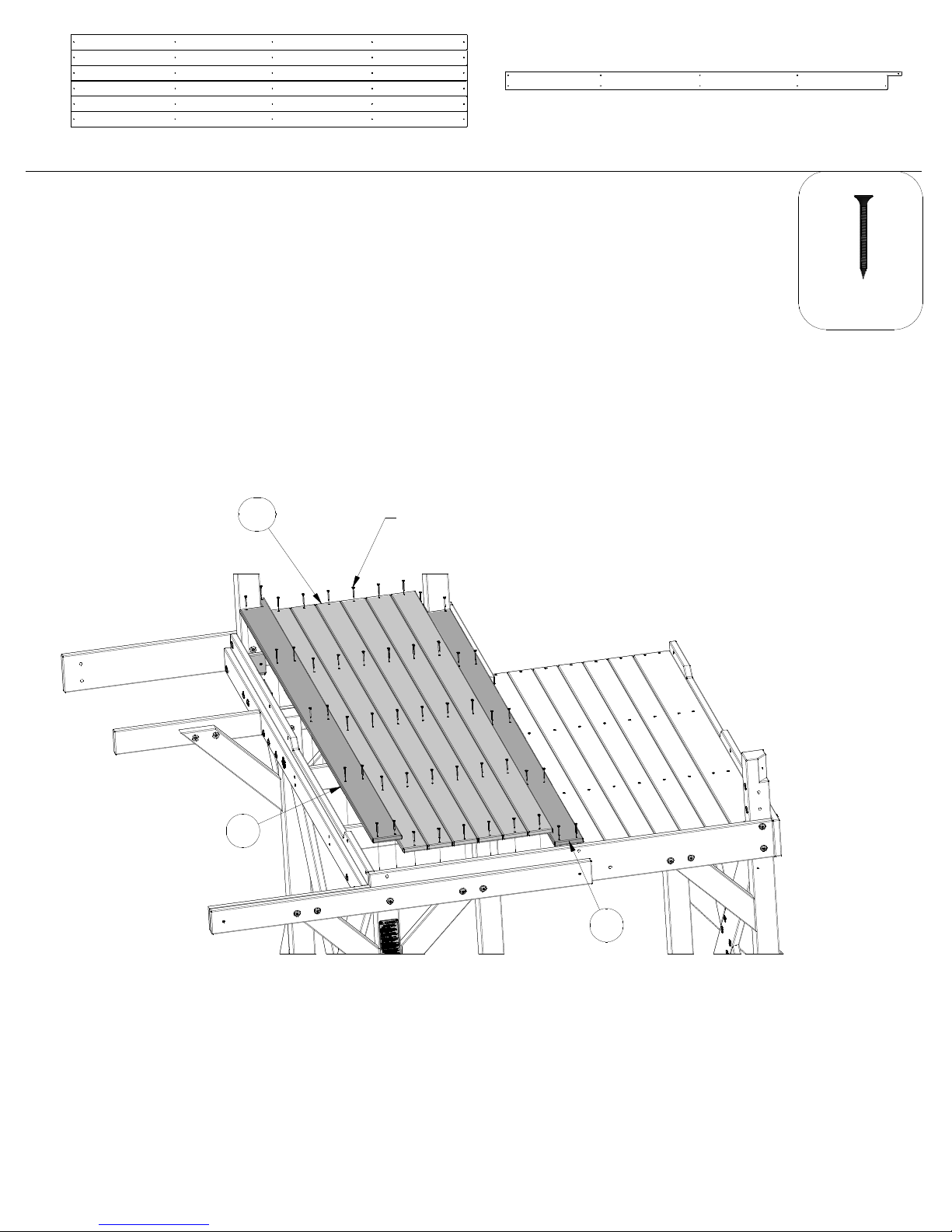

STEP 18
FP1 - FLOOR PANEL - W2A02223
(1)
1 1/4"x20 9/16"x88 9/16" (32x523x2249)
N1 - FLOOR BOARD - W4L08470
(2)
5/8"x4"x88 1/2" (16x102x2248)
SCREW PFH
(50)
8x1-1/2 BLK
N1
FP1
SCREW PFH 8x1-1/2 BLK
(50 PLCS)
FRONT
N1
Page 59

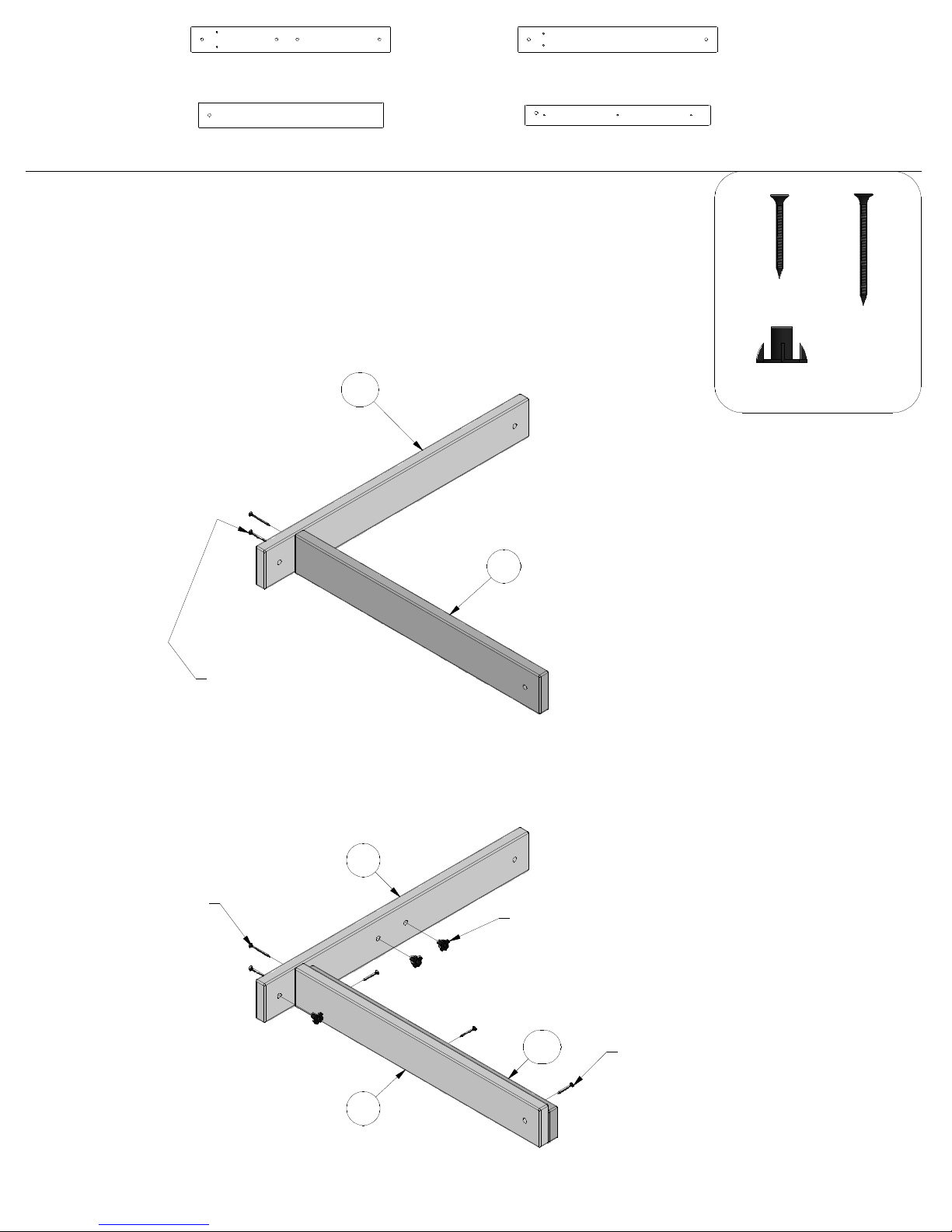

H3 - FLOOR SUPPORT - W4L08469
(1)
1"x3 3/8"x26 3/4" (24x86x681)
H22 - GUARD RAIL - W4L08565
(1)
1"x3 3/8"x26 3/4" (24x86x681)
H4 - FLOOR SUPPORT - W4L08474
(2)
1"x3 3/8"x24 7/8" (24x86x631)
STEP 19
IT IS RECOMMENDED THAT YOU PLACE ALL
T-NUTS BEFORE YOU BEGIN ASSEMBLY OF
PARTS
H22
SAFETY BOARDS
H34 - FLOOR SUPPORT - W4L08743
(1)
1"x2 3/4"x24 7/8" (24x70x631)
H4
SCREW PFH
(3)
8x1-1/2 BLK
T-NUT 5/16
(3)
BLK
SCREW PFH
(4)
8x2 BLK
SCREW PFH 8X2 BLK
(2 PLCS)
SCREWS GO
INTO H4 BOARD
SCREW PFH 8X2 BLK
(2 PLCS)
H3
H4
T-NUT 5/16 BLK
(3 PLCS)
FLOOR SUPPORT
H34
SCREW PFH 8X1-1/2 BLK
(3 PLCS)
Page 60

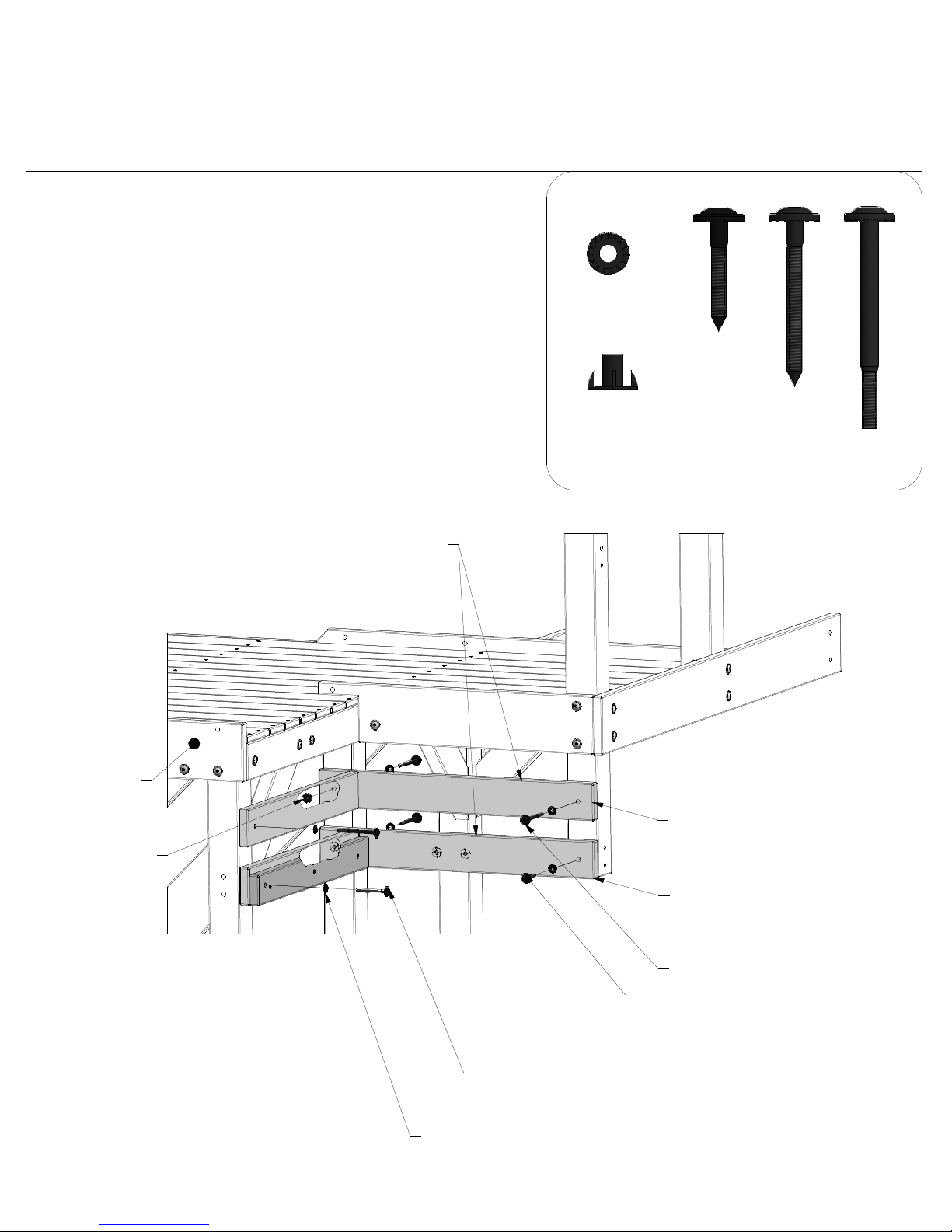

STEP 20
SUBASSEMBLIES FROM STEP 19
(6)
(1)
WASHER
LOCK EXT
8x19 BLK
T-NUT 5/16
BLK
LAG SCREW
(1)
WH 5/16x2
BLK
LAG SCREW
(1)
WH 5/16x3
BLK
(4)
BOLT WH
5/16x3 3/4
BLK
FRONT
T-NUT 5/16 BLK
(1 PLC)
SAFETY BOARDS
FROM STEP 19
FLOOR SUPPORTS
FROM STEP 19
BOLT WH 5/16x3-3/4 BLK
(4 PLCS)
LAG SCREW WH 5/16x2 BLK
(1 PLC)
LAG SCREW WH 5/16x3 BLK
(1 PLC)
WASHER LOCK EXT 8x19 BLK
(6 PLCS)
Page 61

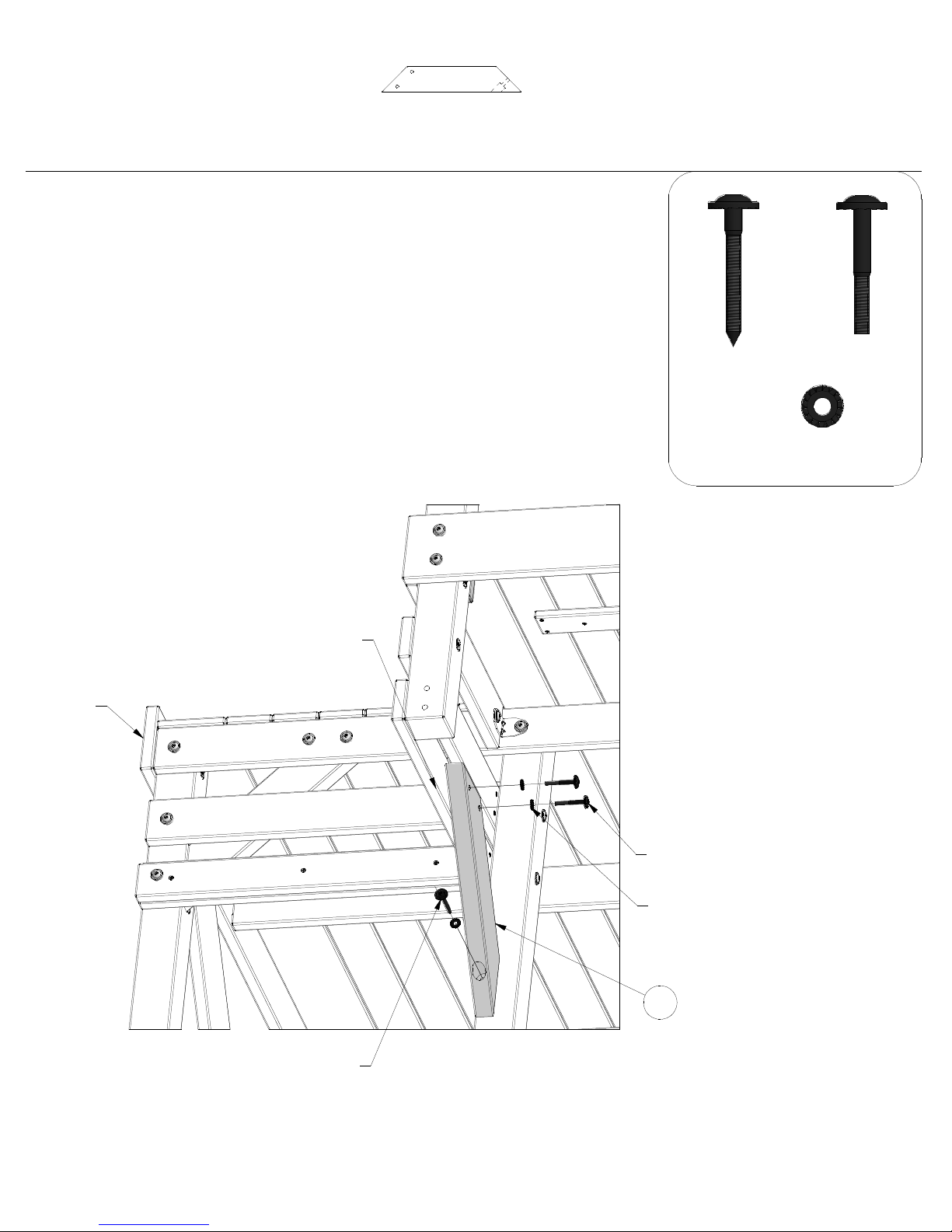

STEP 21
E1 - ANGLE SUPPORT - W4L08458
(1)
1 3/8"x3 3/8"x18 3/4" (36x86x475)
LAG SCREW
(1)
WH 5/16x2-1/2
BLK
(3)
BOLT WH
(2)
5/16x2-1/4
WASHER
LOCK EXT
8x19 BLK
BLK
FRONT
T-NUT 5/16 BLK
(2 PLCS)
BOLT WH 5/16x2-1/4 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(3 PLCS)
E1
LAG SCREW WH 5/16x2-1/2 BLK
(1 PLC)
Page 62

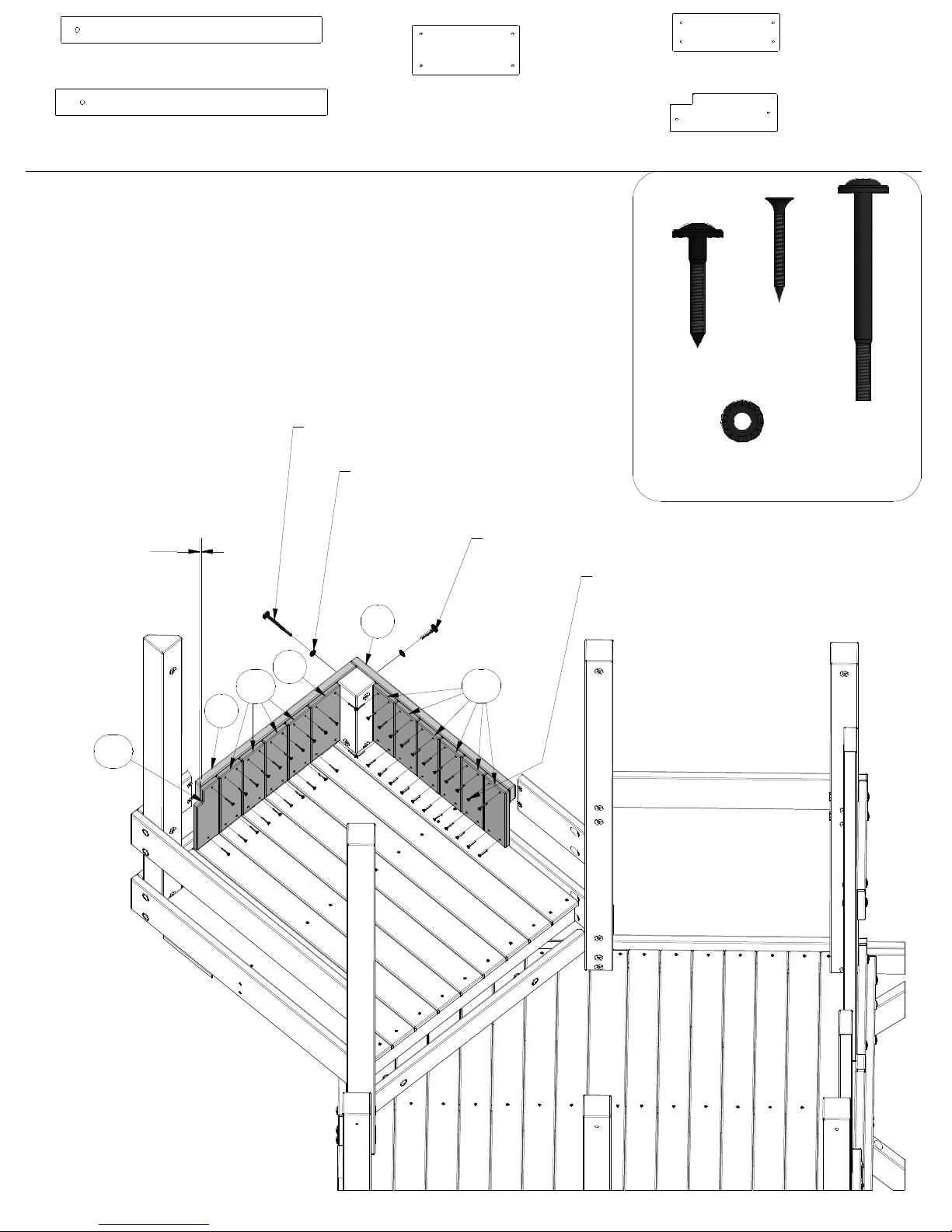

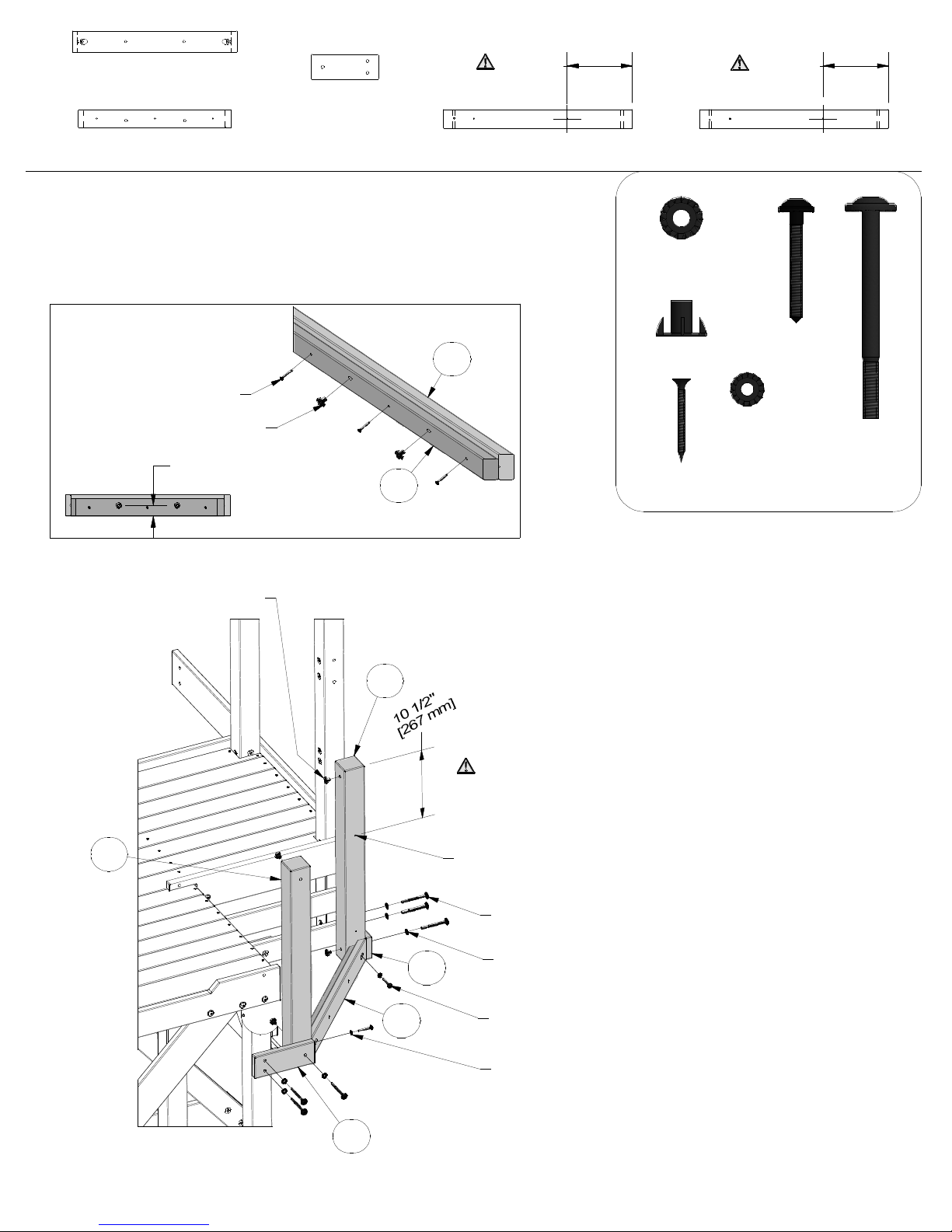

H30 - FLOOR SUPPORT - W4L08717
(1)
1"x3 3/8"x26 5/8" (24x86x675)
H35 - FLOOR SUPPORT - W4L08744
(1)
1"x2 3/4"x24 5/8" (24x70x626.736)
H29 - GUARD RAIL - W4L08715
(2)
1"x3 3/8"x9" (24x86x229)
STEP 22
IT IS RECOMMENDED THAT YOU PLACE ALL
T-NUTS BEFORE YOU BEGIN ASSEMBLY OF
PARTS
10 1/2"
[267 mm]
B20 - POST - W4L08716
(1)
3"x3"x30 3/8" (76x76x773)
TOP
(6)
(1)
WASHER
LOCK EXT
8x19 BLK
10 1/2"
[267 mm]
TOP
B22 - POST - W4L08747
3"x3"x30 3/8" (76x76x773)
SCREW PFH 8X1-1/2 BLK
(3 PLCS)
T-NUT 5/16 BLK
(2 PLCS)
2 in
[43 mm]
BOTTOM
T-NUT 5/16 BLK
(4 PLCS)
H35
ASSEMBLE FIRST
B22
H30
T-NUT 5/16
(6)
SCREW PFH
(3)
8x1-1/2 BLK
BLK
(2)
LAG SCREW
(2)
WH 1/4x2 BLK
WASHER
LOCK EXT
6x15 BLK
(6)
BOLT WH
5/16x3 3/4
BLK
B20
FRONT
H29
H30
NOTE HOLE ORIENTATION
ON BOTH B20 & B22.
BOLT WH 5/16x3-3/4 BLK
(6 PLCS)
WASHER LOCK EXT 8x19 BLK
H29
(6 PLCS)
LAG SCREW WH 1/4x2 in
(2 PLCS)
WASHER LOCK EXT 6x15 BLK
(2 PLCS)
Page 63

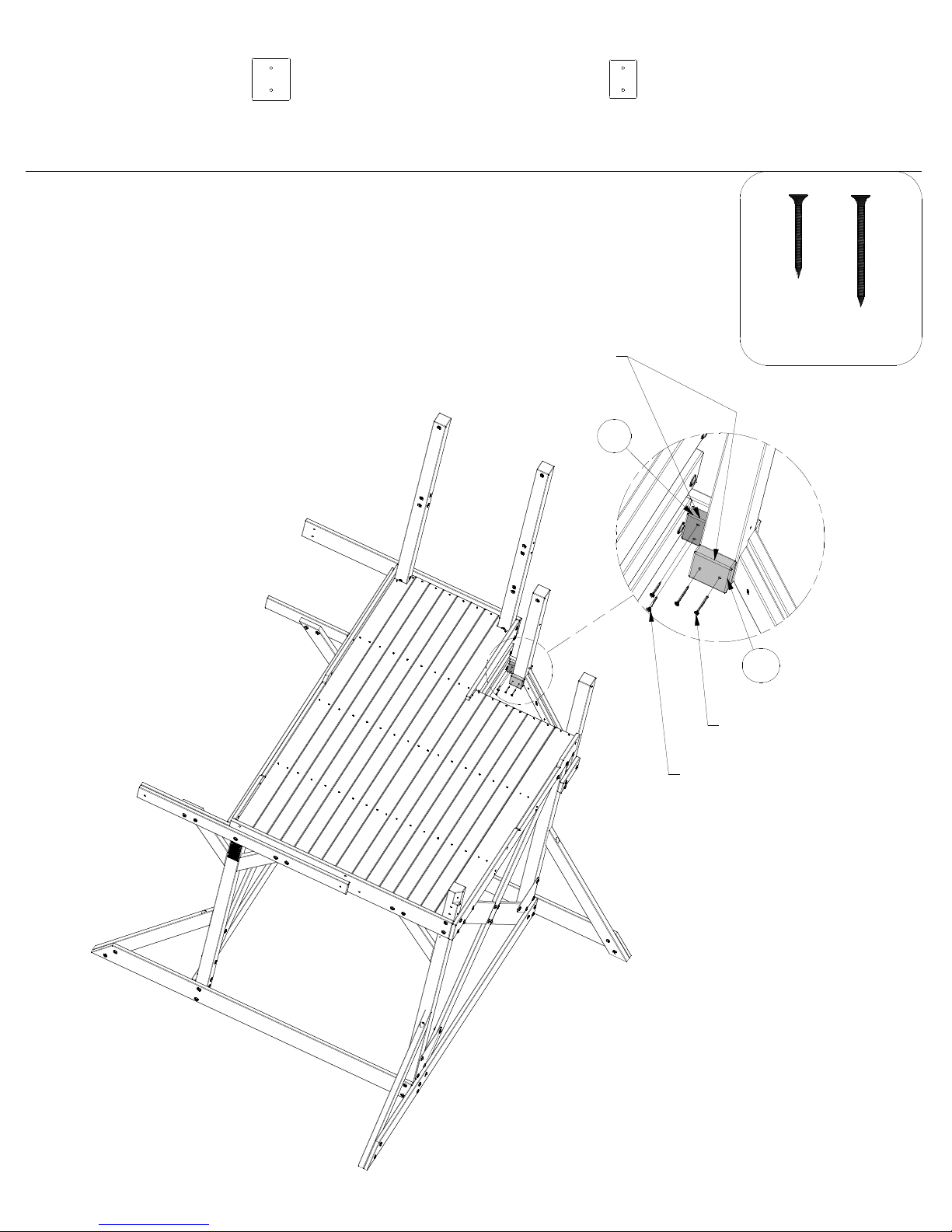

STEP 23
H20 - FLOOR SUPPORT - W4L08562
(1)
1"x2 3/4"x3" (24x70x76)
J5 - FLOOR SUPPORT - W4L08745
(1)
1"x2"x2 3/4" (24x50x70)
J5 & H20 ARE FLUSH
TO BOTTOM EDGE.
J5
SCREW PFH
(2)
8x1-1/2 BLK
SCREW PFH
(2)
8x2 BLK
H20
SCREW PFH 8x2 BLK
(2 PLCS)
SCREW PFH 8x1-1/2 BLK
(2 PLCS)
Page 64

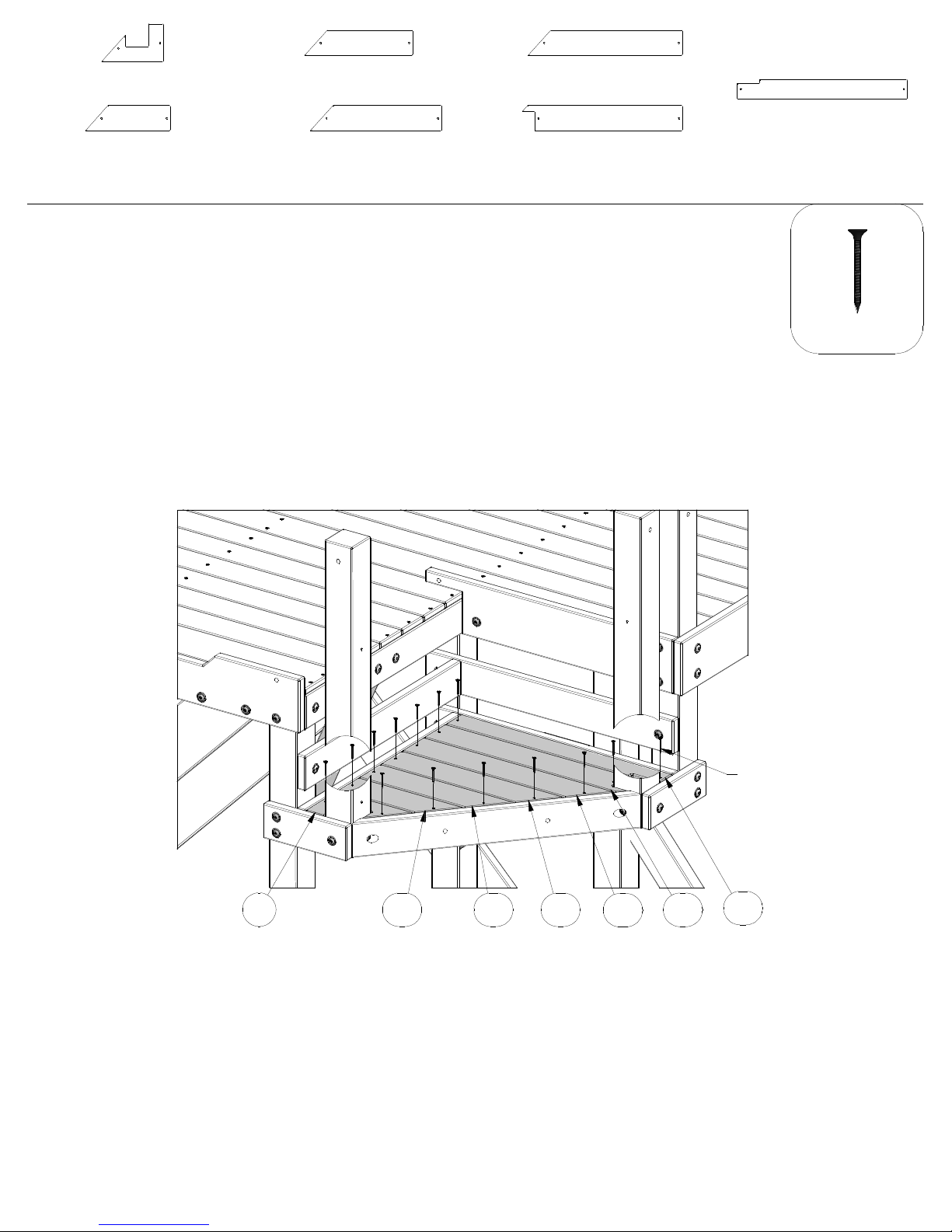

K7 - FLOOR BOARD - W4L08736
(1)
5/8"x5"x8 1/4" (16x128x211)
M32 - FLOOR BOARD - W4L08737
(1)
5/8"x3 3/8"x11 3/8" (16x86x289)
STEP 24
M33 - FLOOR BOARD - W4L08738
(1)
5/8"x3 3/8"x14 1/2" (16x86x368)
M34 - FLOOR BOARD - W4L08739
(1)
5/8"x3 3/8"x17 5/8" (16x86x447)
M35 - FLOOR BOARD - W4L08740
(1)
5/8"x3 3/8"x20 5/8" (16x86x525)
M36 - FLOOR BOARD - W4L08741
(1)
5/8"x3 3/8"x21 1/2" (16x86x546)
M37 - FLOOR BOARD - W4L08742
(1)
5/8"x2 1/2"x22 7/8" (16x64x580)
SCREW PFH
(14)
8x1-1/2 BLK
F
R
O
N
T
K7
M32M33M34
M35
M36
SCREW PFH 8X1-1/2 BLK
(14 PLCS)
M37
Page 65

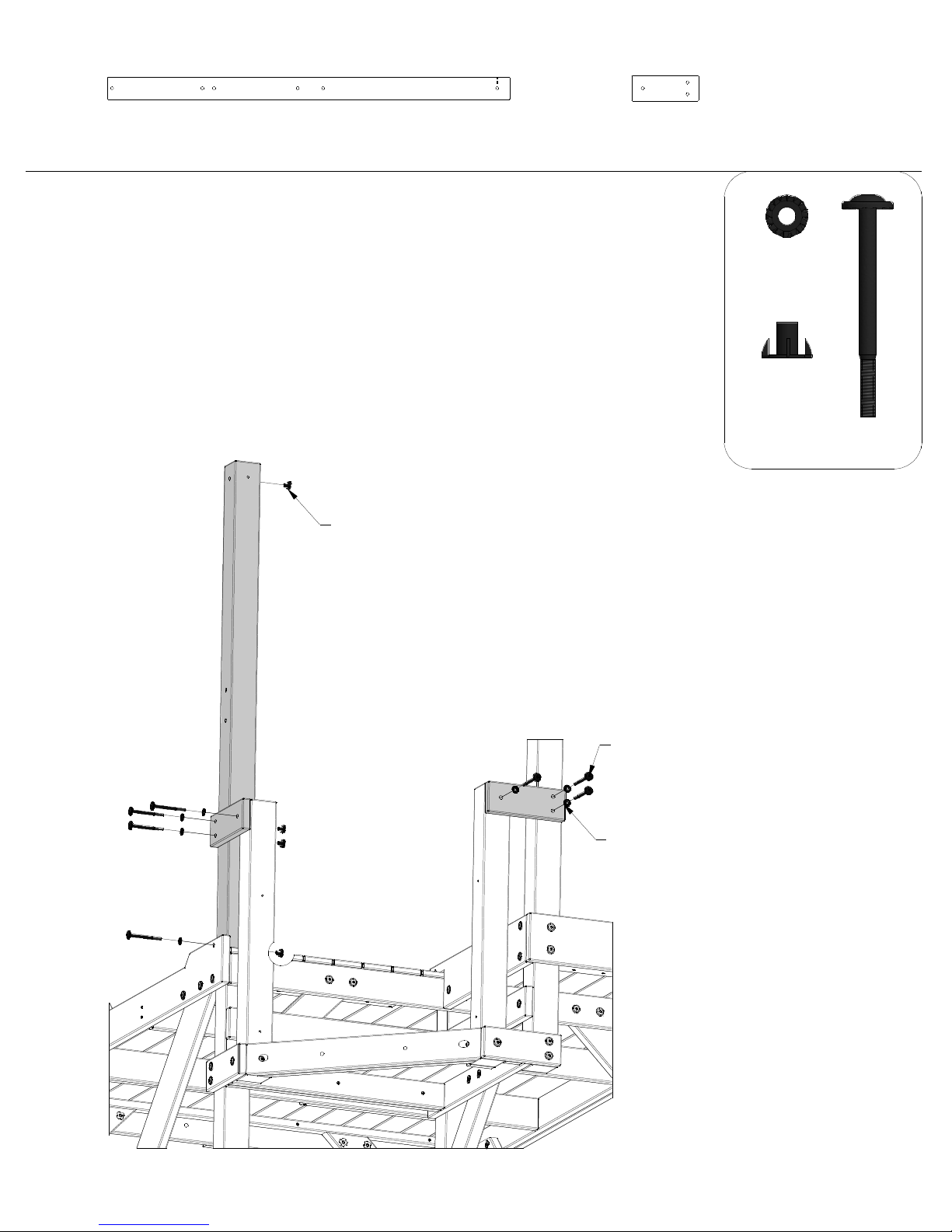

B15 - POST - W4L08552
(1)
3"x3"x53 7/8" (76x76x1370)
STEP 25
IT IS RECOMMENDED THAT YOU PLACE ALL
T-NUTS BEFORE YOU BEGIN ASSEMBLY OF
PARTS
T-NUT 5/16 BLK
(4 PLCS)
H29 - GUARD RAIL - W4L08715
(2)
1"x3 3/8"x9" (24x86x229)
(7)
(4)
WASHER
LOCK EXT
8x19 BLK
T-NUT 5/16
BLK
(7)
BOLT WH
5/16x3 3/4
BLK
FRONT
BOLT WH 5/16x3-3/4 BLK
(7 PLCS)
WASHER LOCK EXT 8x19 BLK
(7 PLCS)
Page 66

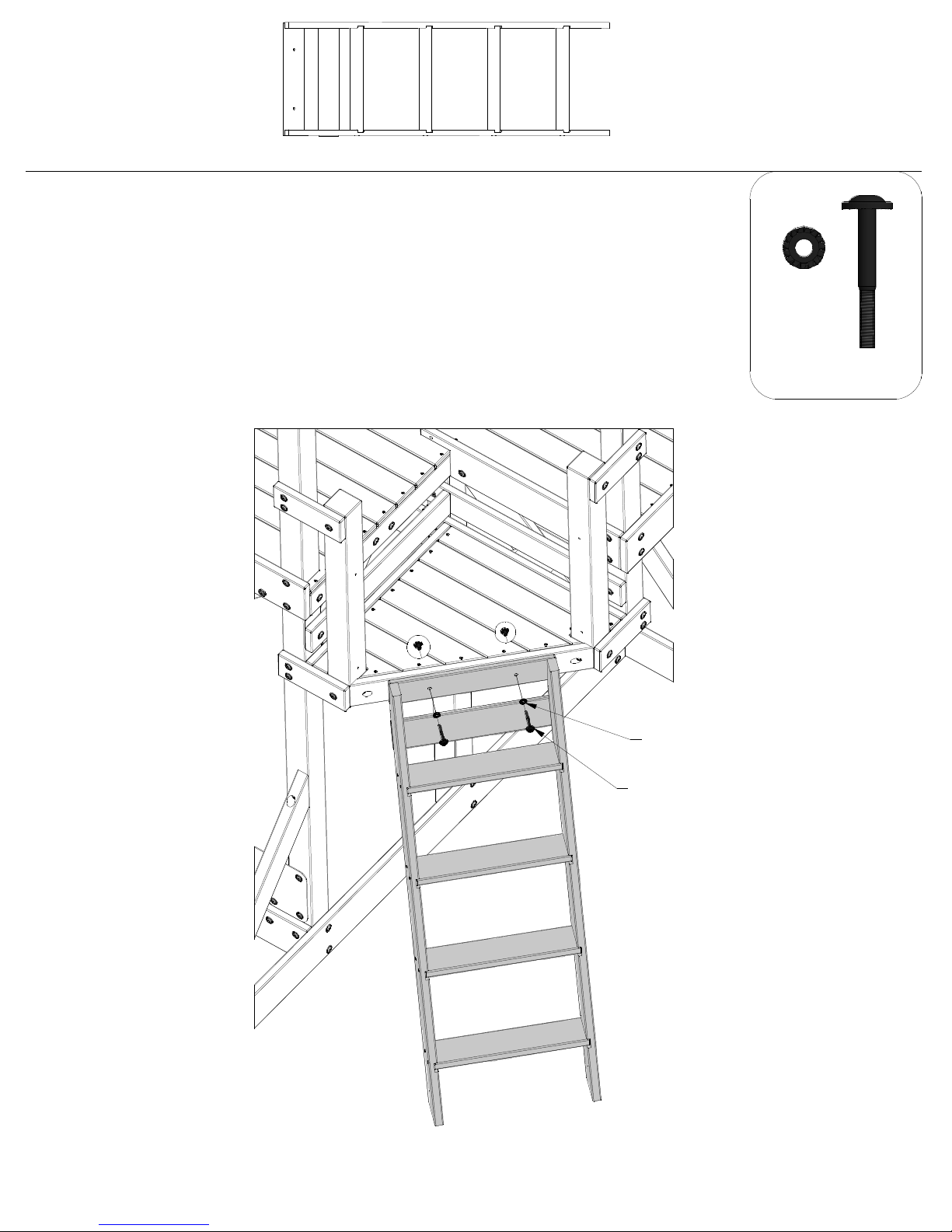

(1) 4 FT. LADDER ASSEMBLY
STEP 26
IT IS RECOMMENDED THAT YOU PLACE ALL
T-NUTS BEFORE YOU BEGIN ASSEMBLY OF
PARTS
(2)
WASHER
LOCK EXT
8x19 BLK
(2)
BOLT WH
5/16x2-1/2
BLK
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
BOLT WH 5/16x2-1/2 BLK
(2 PLCS)
Page 67

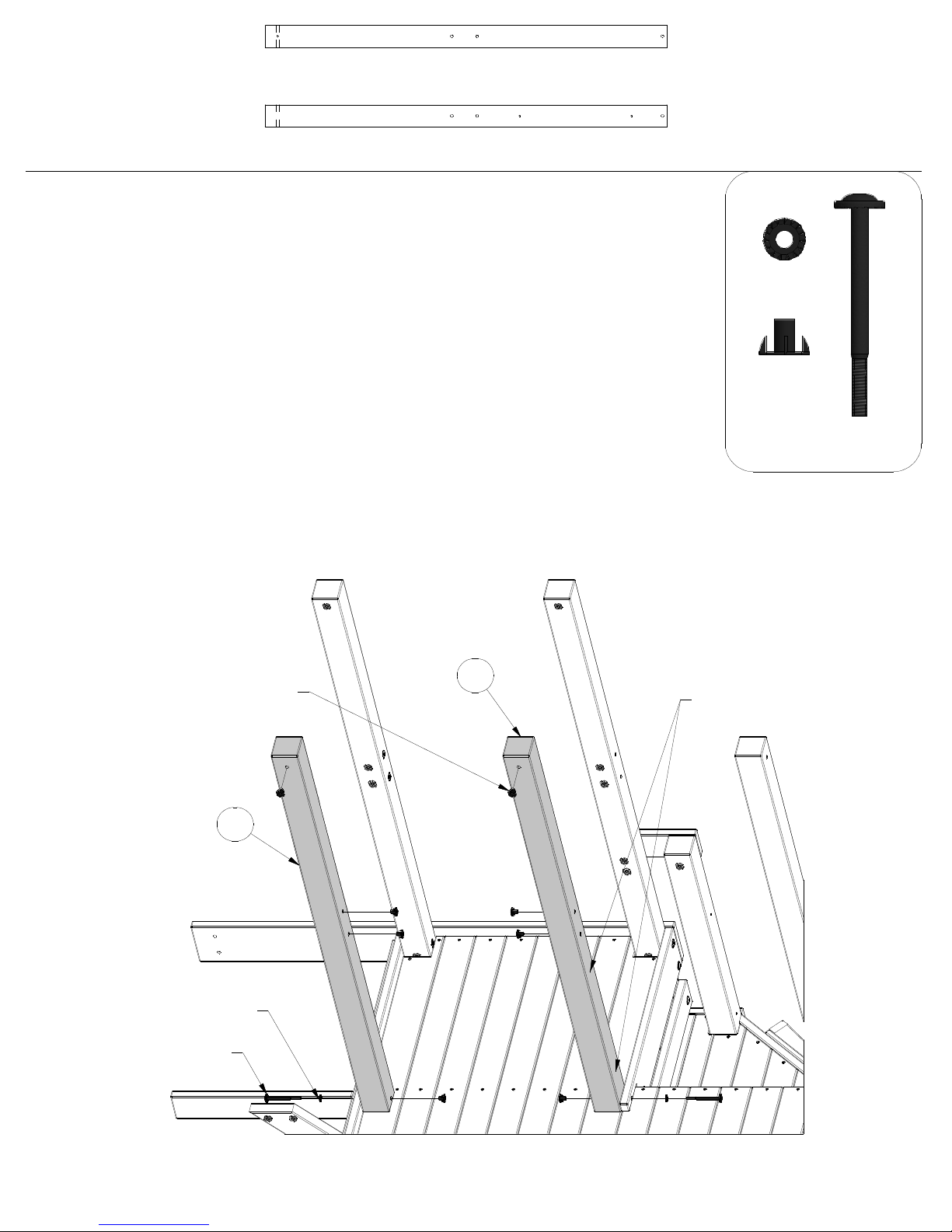

B13 - POST - W4L08523
(1)
3"x3"x53 7/8" (76x76x1370)
B14 - POST - W4L08524
(1)
3"x3"x53 7/8" (76x76x1370)
STEP 27
IT IS RECOMMENDED THAT YOU PLACE ALL
T-NUTS BEFORE YOU BEGIN ASSEMBLY OF
PARTS
(2)
(8)
WASHER
LOCK EXT
8x19 BLK
T-NUT 5/16
BLK
(2)
BOLT WH
5/16x3 3/4
BLK
T-NUT 5/16 BLK
(8 PLCS)
B13
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
BOLT WH 5/16x3-3/4 BLK
(2 PLCS)
B14
NOTE HOLE
LOCATION
FRONT
Page 68

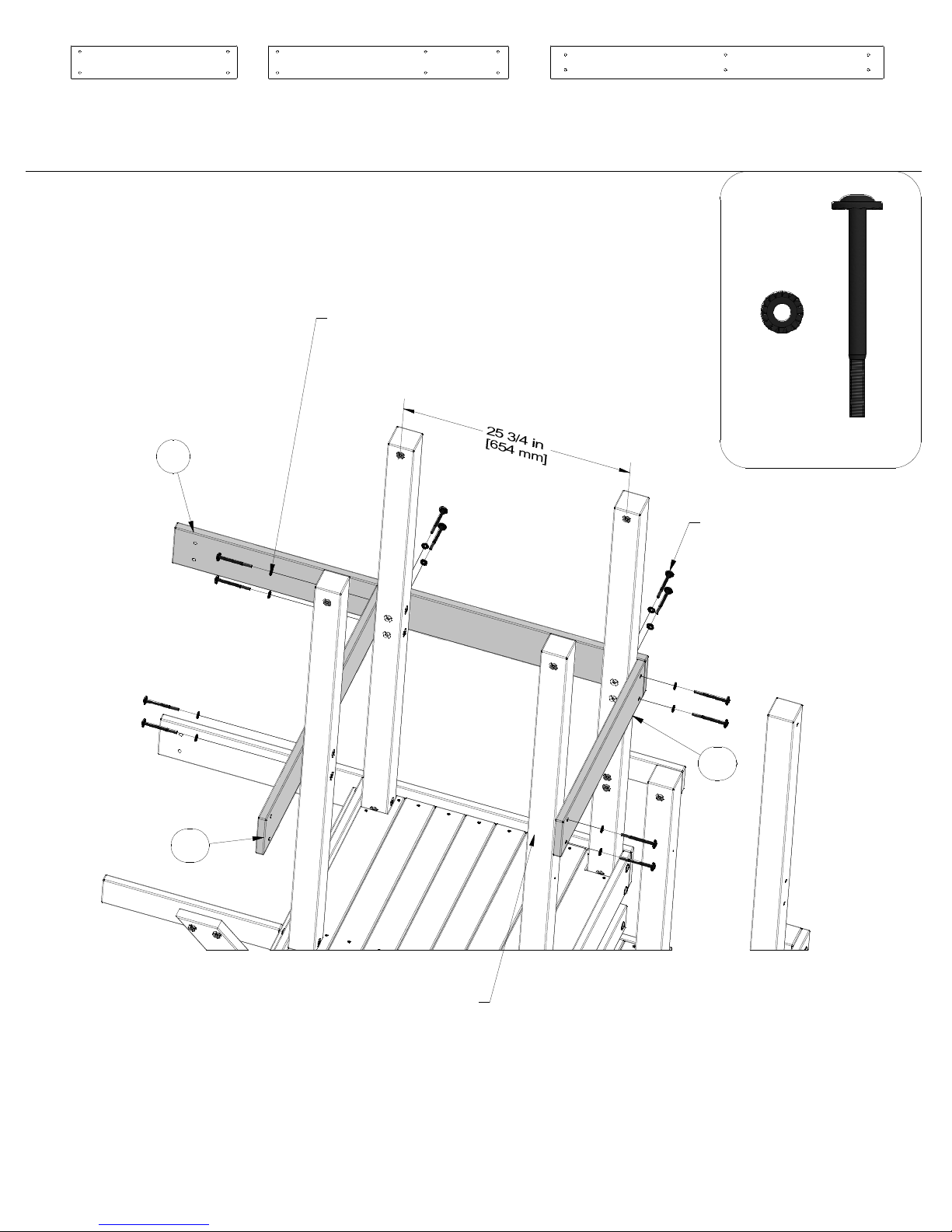

G18 - WALL SUPPORT - W4L08548
(1)
1"x5 1/4"x26 3/4" (24x134x681)
STEP 28
G6
G17 - ENTRY BOARD - W4L08547
(1)
1"x5 1/4"x38 3/4" (24x134x983)
WASHER LOCK EXT 8x19 BLK
(12 PLCS)
G6 - WALL SUPPORT - W4L08465
(1)
1"x5 1/4"x53 5/8" (24x134x1362)
WASHER
LOCK EXT
(12)
8x19 BLK
BOLT WH 5/16x3-3/4 BLK
(12 PLCS)
(12)
BOLT WH
5/16x3 3/4
BLK
G17
T-NUT 5/16 BLK
(12 PLCS)
R
F
G18
T
N
O
Page 69

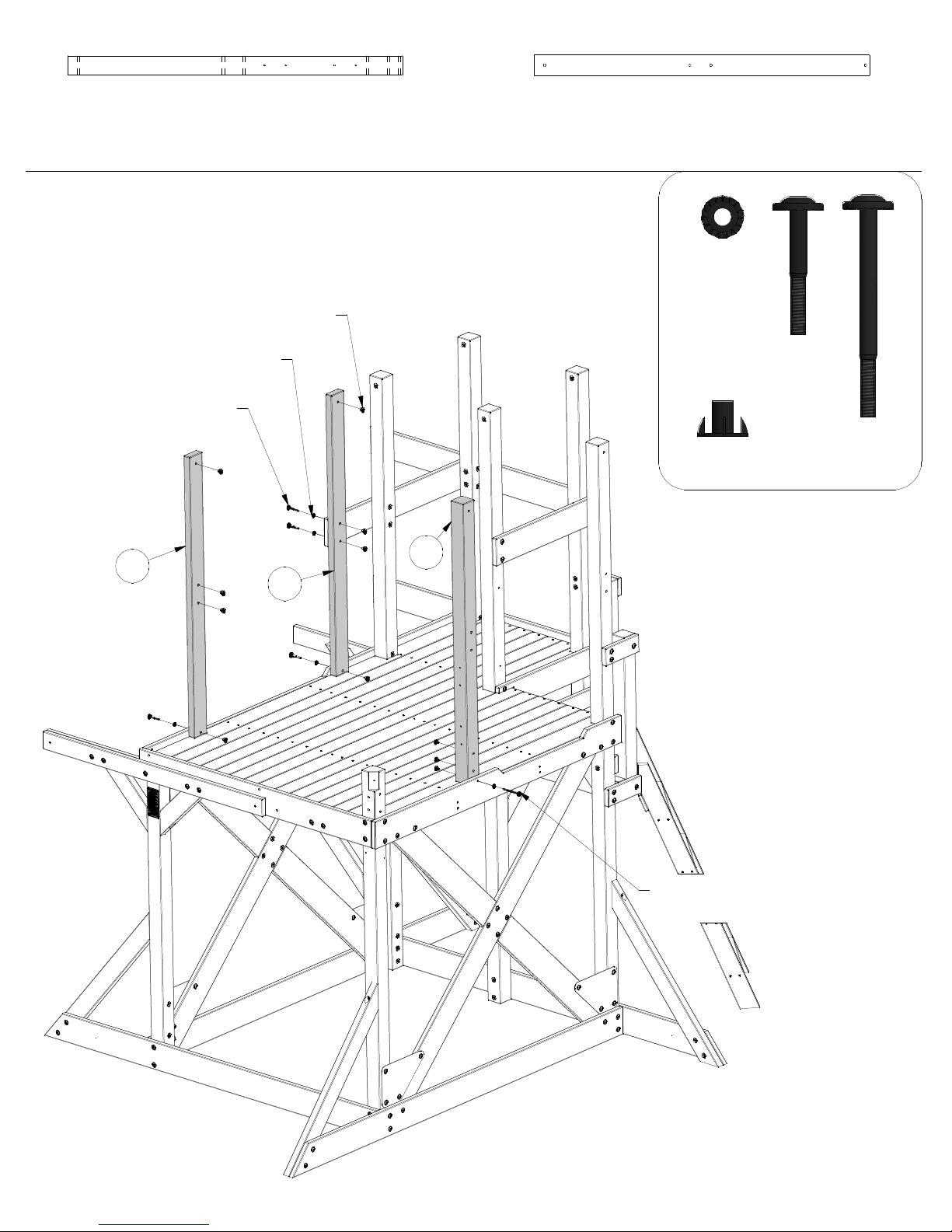

B9 - POST - W4L08476
(1)
3"x3"x53 7/8" (76x76x1370)
STEP 29
IT IS RECOMMENDED THAT YOU PLACE ALL
T-NUTS BEFORE YOU BEGIN ASSEMBLY OF
PARTS
T-NUT 5/16 BLK
(11 PLCS)
WASHER LOCK EXT 8x19 BLK
(5 PLCS)
BOLT WH 5/16x2-1/4 BLK
(4 PLCS)
E2 - POST - W4L08522
(2)
3 3/8"x1 3/8"x53 7/8" (86x36x1370)
WASHER
LOCK EXT
(5)
8x19 BLK
(4)
T-NUT 5/16
(11)
BLK
BOLT WH
5/16x2-1/4
BLK
(1)
BOLT WH
5/16x3 3/4
BLK
E2
B9
E2
BOLT WH 5/16x3-3/4 BLK
(1 PLC)
T
N
O
R
F
Page 70

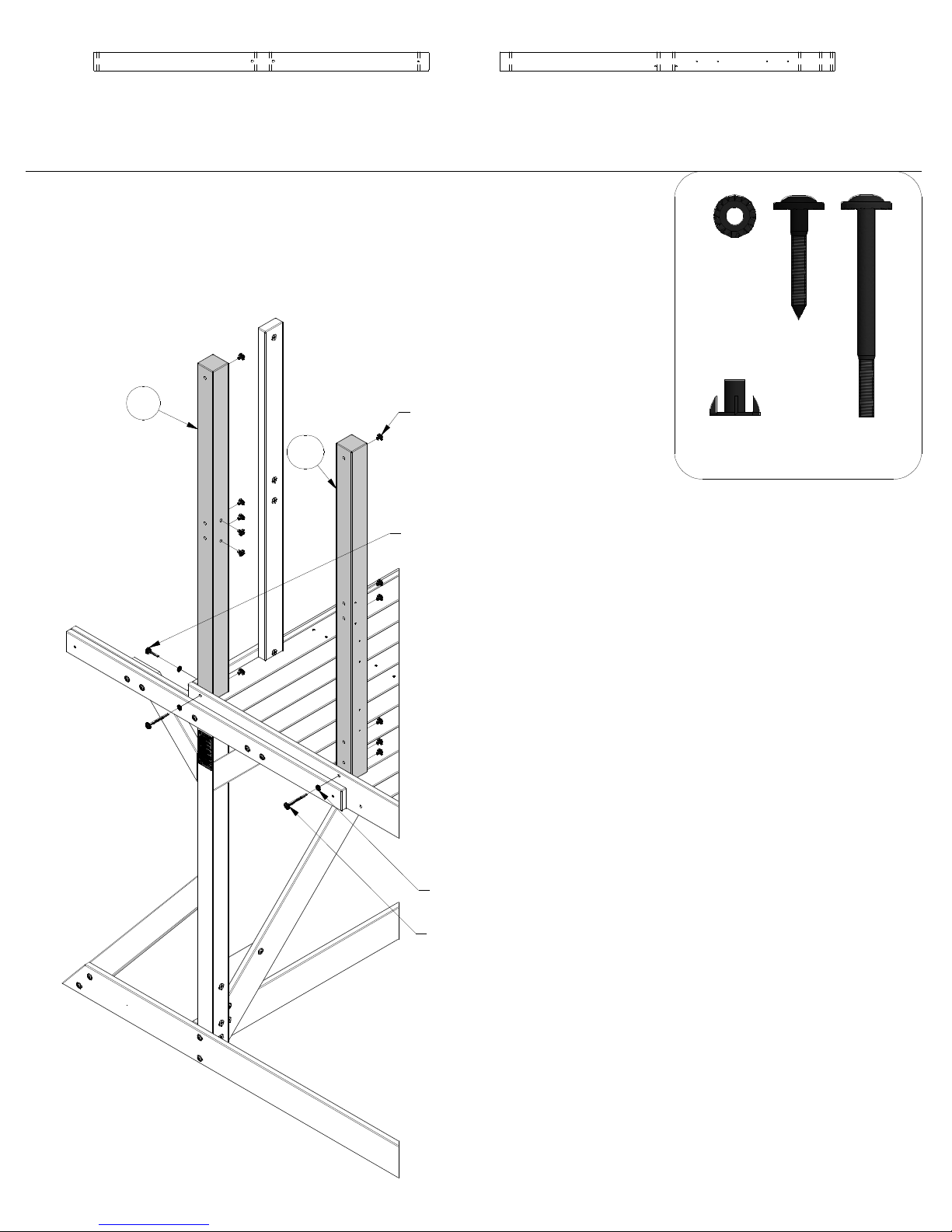

B8 - POST - W4L08475
(1)
3"x3"x53 7/8" (76x76x1370)
STEP 30
IT IS RECOMMENDED THAT YOU PLACE ALL
T-NUTS BEFORE YOU BEGIN ASSEMBLY OF
PARTS
B16 - POST - W4L08553
(1)
3"x3"x53 7/8" (76x76x1370)
(3)
WASHER
LOCK EXT
8x19 BLK
(1)
LAG SCREW
WH 5/16x2
BLK
B8
B16
T-NUT 5/16 BLK
(12 PLCS)
LAG SCREW WH 5/16x2 BLK
(1 PLC)
(12)
T-NUT 5/16
BLK
(2)
BOLT WH
5/16x3 3/4
BLK
B
L
E
F
T
WASHER LOCK EXT 8x19 BLK
K
C
A
(3 PLCS)
BOLT WH 5/16x3-3/4 BLK
(2 PLCS)
Page 71

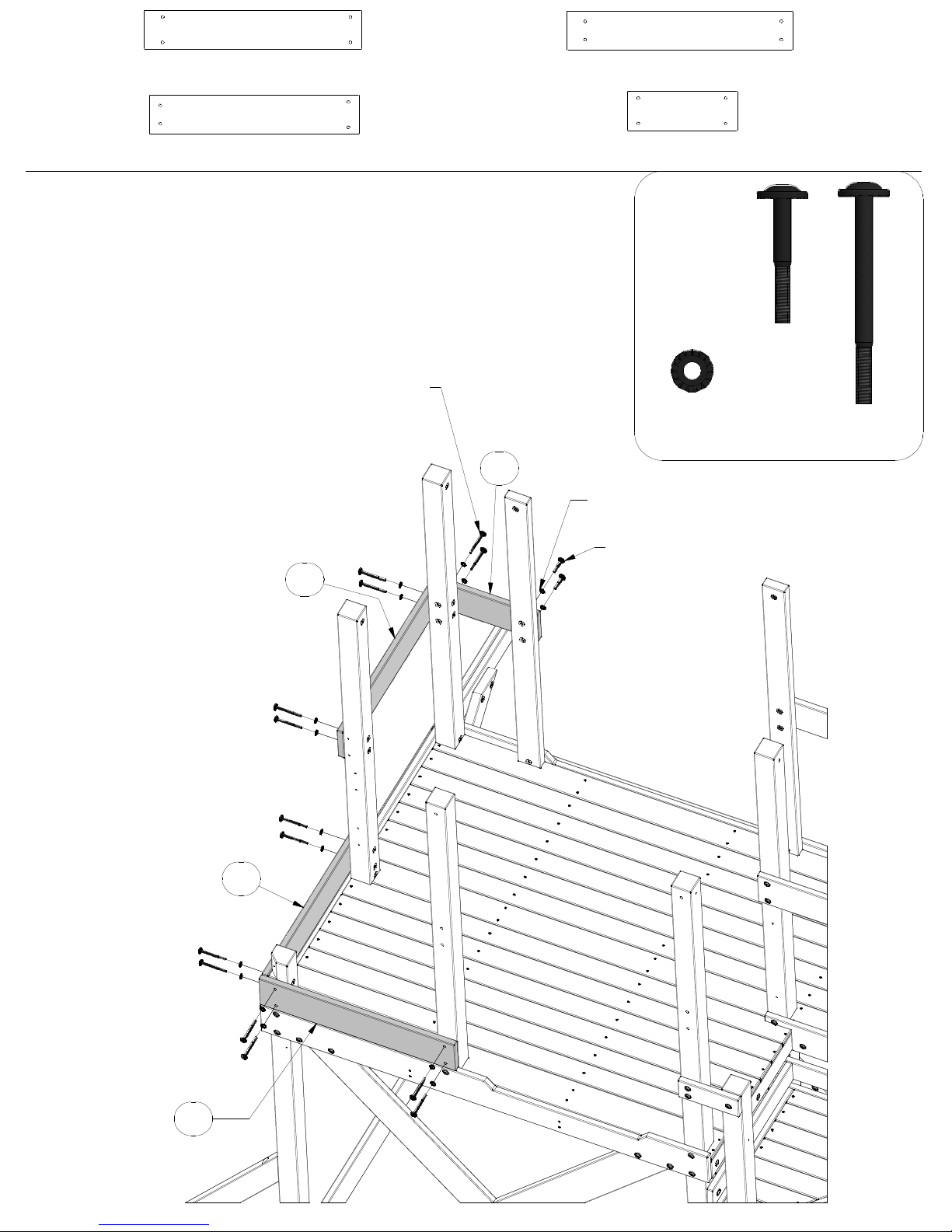

G12 - WALL SUPPORT - W4L08490
(1)
1"x5 1/4"x29 1/8" (24x134x741)
G15 - WALL SUPPORT - W4L08545
(1)
1"x5 1/4"x30 1/4" (24x134x768)
G13 - WALL SUPPORT - W4L08491
(1)
1"x5 1/4"x28 1/4" (24x134x716)
STEP 31
IT IS RECOMMENDED THAT YOU PLACE ALL
T-NUTS BEFORE YOU BEGIN ASSEMBLY OF
PARTS
BOLT WH 5/16x3-3/4 BLK
(14 PLCS)
G15
G16
G16 - WALL SUPPORT - W4L08546
(1)
1"x5 1/4"x14 7/8" (24x134x378)
(2)
WASHER
(16)
LOCK EXT
8x19 BLK
WASHER LOCK EXT 8x19 BLK
(16 PLCS)
BOLT WH 5/16x2-1/4 BLK
(2 PLCS)
BOLT WH
5/16x2-1/4
BLK
(14)
BOLT WH
5/16x3 3/4
BLK
G13
G12
Page 72

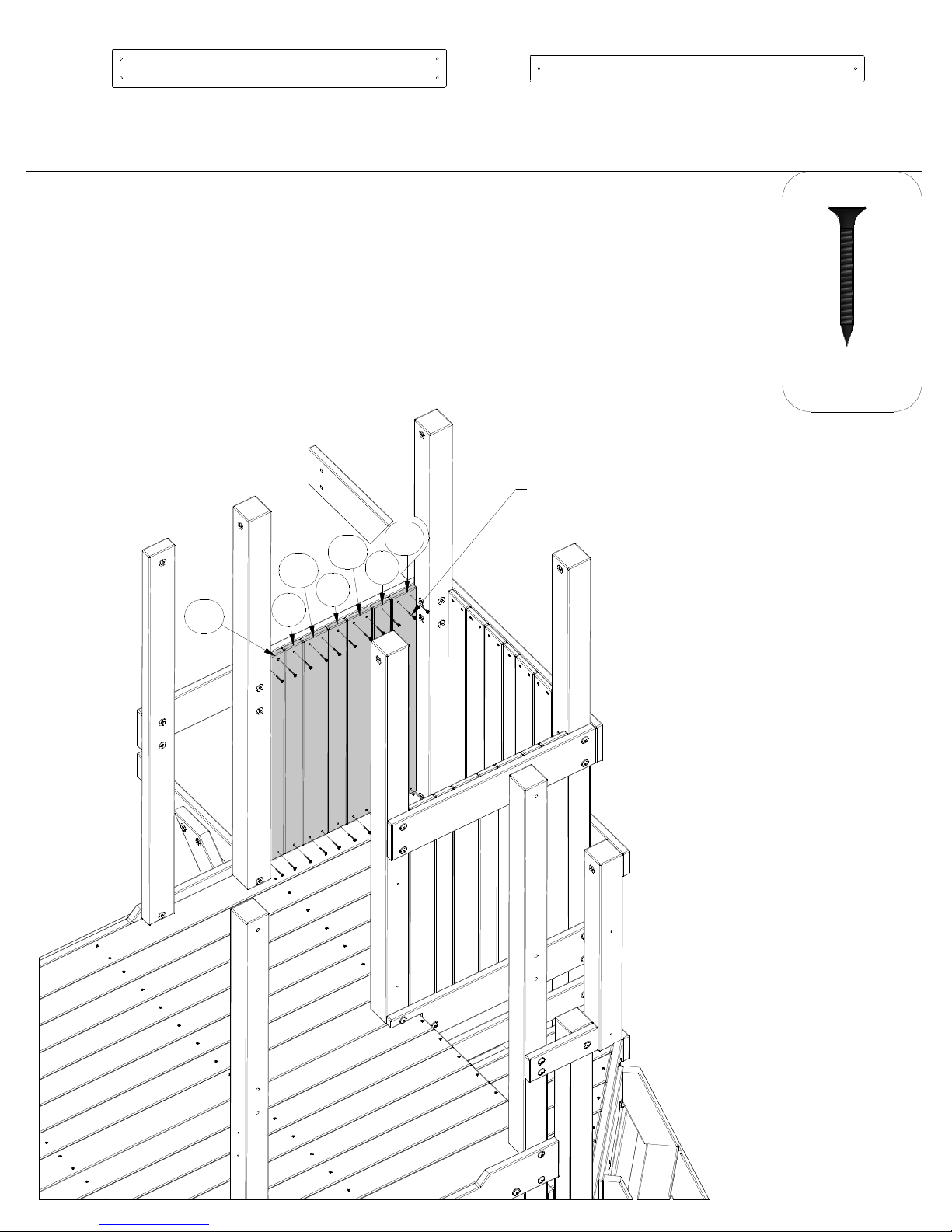

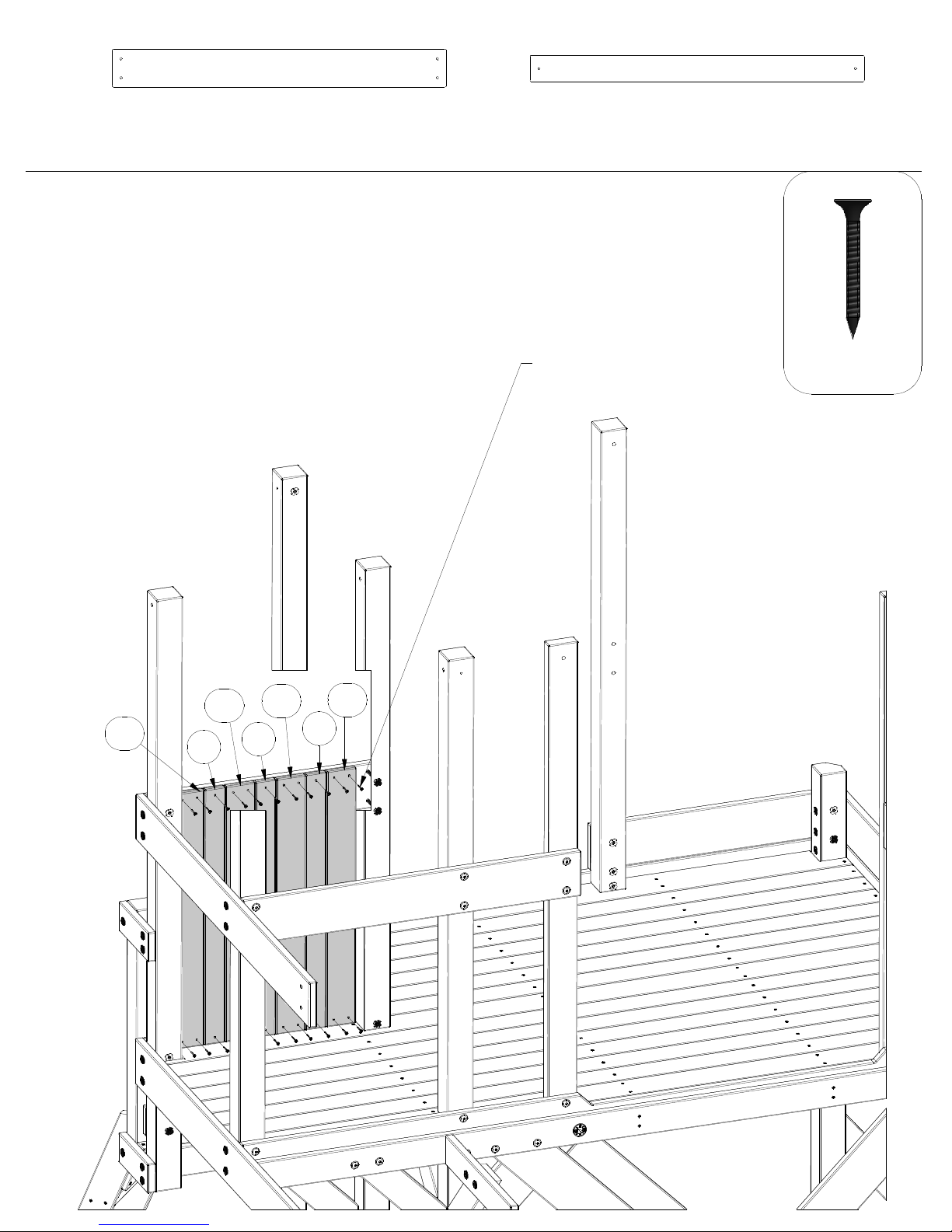

STEP 32
M23 - WALL PICKET - W4L08544
(4)
5/8"x3 3/8"x29 7/8" (16x86x759)
N5 - WALL PICKET - W4L08543
(3)
5/8"x2 3/8"x29 7/8" (16x60x759)
M23
N5
M23
N5
M23
N5
M23
SCREW PFH 8X1-1/4 BLK
(22 PLCS)
SCREW PFH
(22)
8x1-1/4 BLK
Page 73

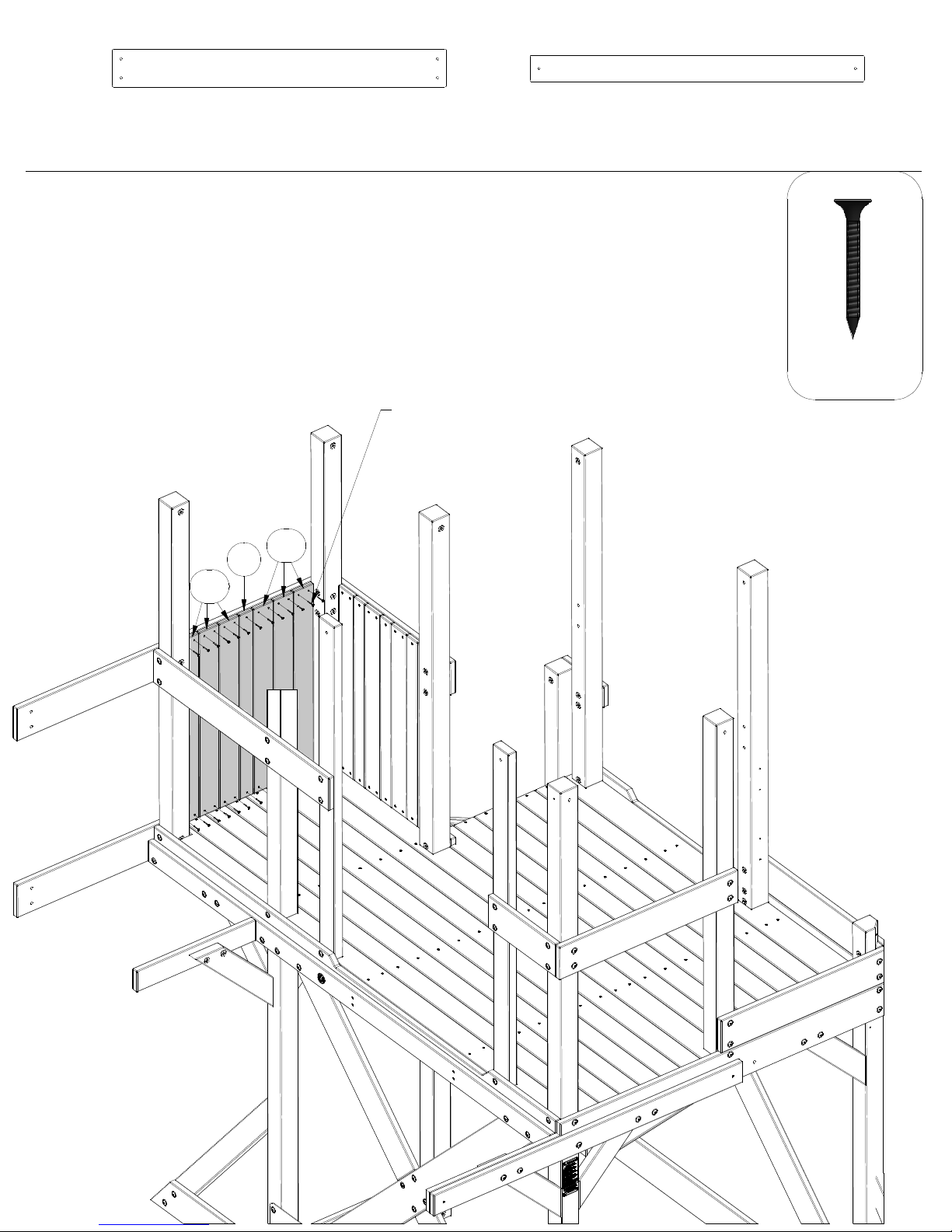

STEP 33
M23 - WALL PICKET - W4L08544
(6)
5/8"x3 3/8"x29 7/8" (16x86x759)
SCREW PFH 8X1-1/4 BLK
(26 PLCS)
N5 - WALL PICKET - W4L08543
(1)
5/8"x2 3/8"x29 7/8" (16x60x759)
SCREW PFH
(26)
8x1-1/4 BLK
M23
M23
N5
Page 74
STEP 34
M23 - WALL PICKET - W4L08544
(4)
5/8"x3 3/8"x29 7/8" (16x86x759)
N5 - WALL PICKET - W4L08543
(3)
5/8"x2 3/8"x29 7/8" (16x60x759)
SCREW PFH 8X1-1/4 BLK
(22 PLCS)
SCREW PFH
(22)
8x1-1/4 BLK
M23
M23
N5
M23
M23
N5
N5
Page 75

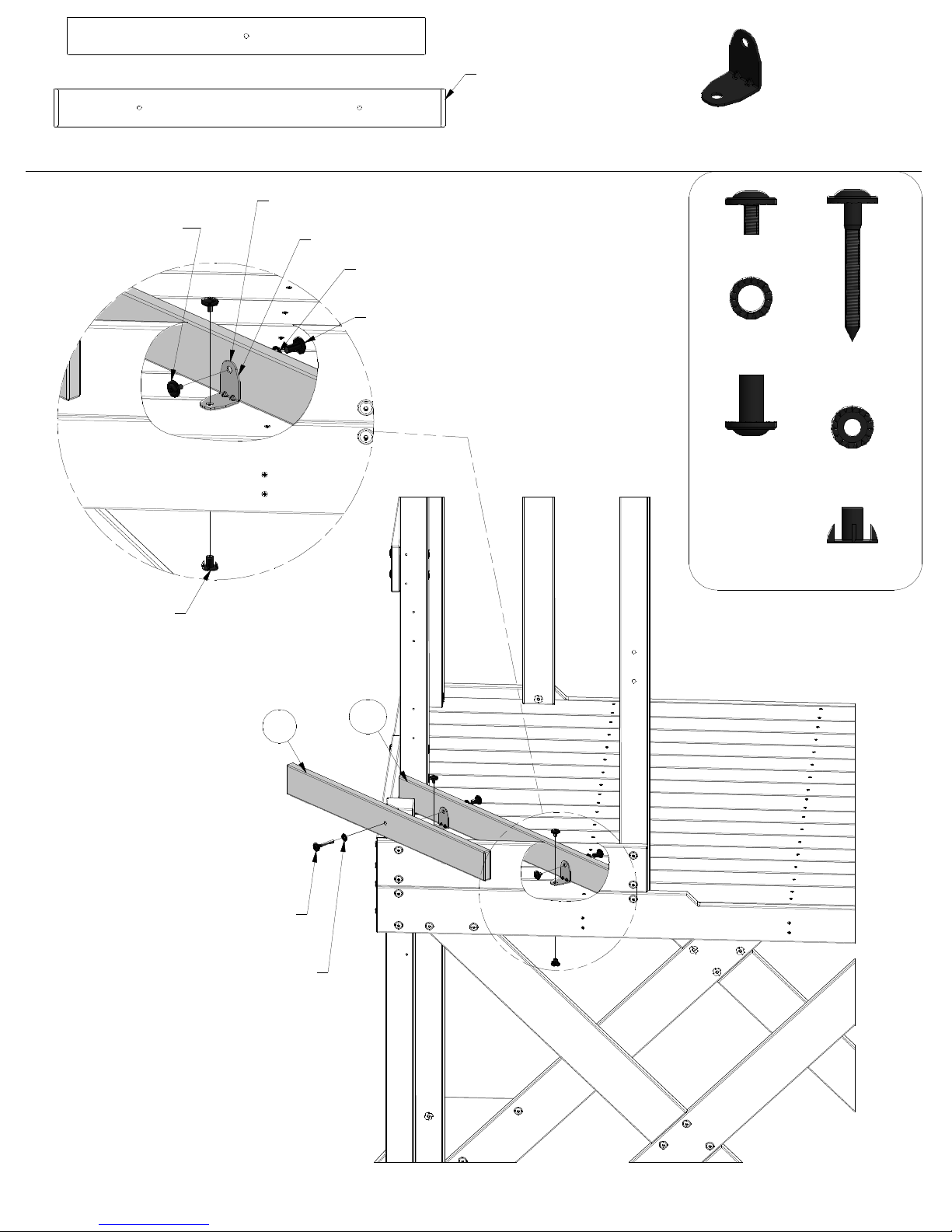

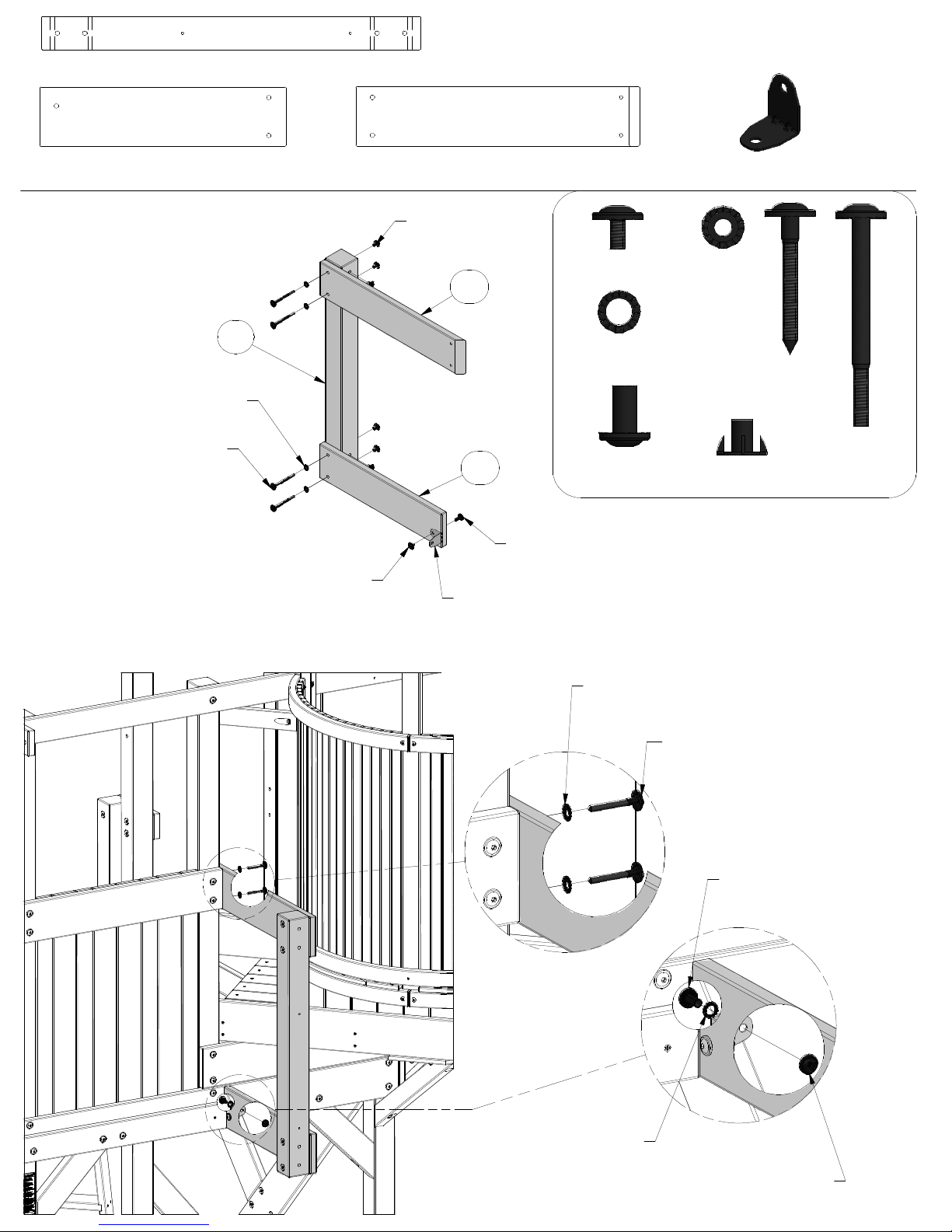

H5 - FLOOR SUPPORT - W4L08479
(1)
1"x3 3/8"x32" (24x86x813)
H21 - BASE BOARD - W4L08563
(1)
1"x3 3/8"x35" (24x86x889)
ANGLES ON
BRACKET SIDE.
(2)
- L BRACKET 2.5x38x50x55 BLK - A4M00615
STEP 35
BOLT WH 5/16x1/2 BLK
(2 PLCS)
T-NUT 5/16 BLK
(2 PLCS)
L BRACKET 2.5x38x50x55 BLK
(2 PLCS)
TALL SIDE
WASHER LOCK EXT 12x19 BLK
(2 PLCS)
NUT BARREL WH 5/16x7/8
(2 PLCS)
BOLT WH
(4)
5/16x1/2 BLK
WASHER
(2)
LOCK EXT
12x19 BLK
NUT BARREL
(2)
WH 5/16x7/8
BLK
LAG SCREW
(1)
WH 5/16x2-1/2
WASHER
(1)
LOCK EXT
8x19 BLK
T-NUT 5/16
(2)
BLK
BLK
ASSEMBLE L-BRACKETS TO
'H21' BOARD, AS SHOWN.
USING THE 'H21'
SUBASSEMBLY AS A
TEMPLATE, MARK THE HOLE
LOCATIONS WHERE SHOWN.
DRILL THROUGH THE DECK
USING A 3/8" OR 10MM DRILL
BIT.
LAG SCREW WH 5/16x2-1/2 BLK
(1 PLC)
WASHER LOCK EXT 8x19 BLK
H5
(1 PLC)
H21
Page 76

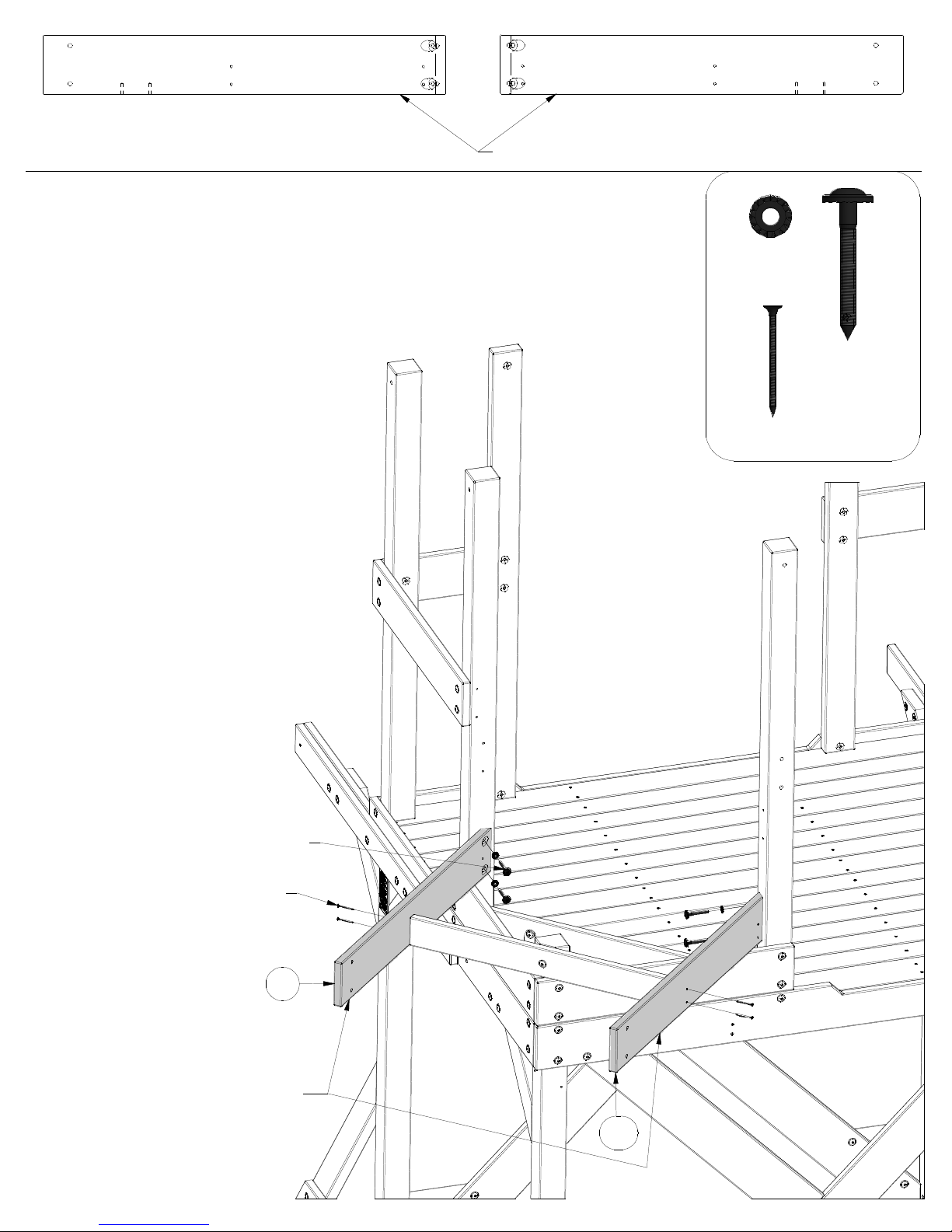

STEP 36
G7 - WALL SUPPORT - W4L08477
(1)
1"x5 1/4"x36" (24x134x915)
(1)
BOTTOM EDGE
G10 - WALL SUPPORT - W4L08481
1"x5 1/4"x36" (24x134x915)
WASHER
(4)
LOCK EXT
8x19 BLK
(4)
SCREW PFH
(4)
8x2 BLK
LAG SCREW
WH 5/16x2-1/2
BLK
LAG SCREW WH 5/16x2-1/2 BLK
(4 PLCS)
SCREW PFH 8X2 BLK
(4 PLCS)
G7
ENSURE BOTTOM
EDGE IS DOWN
G10
Page 77

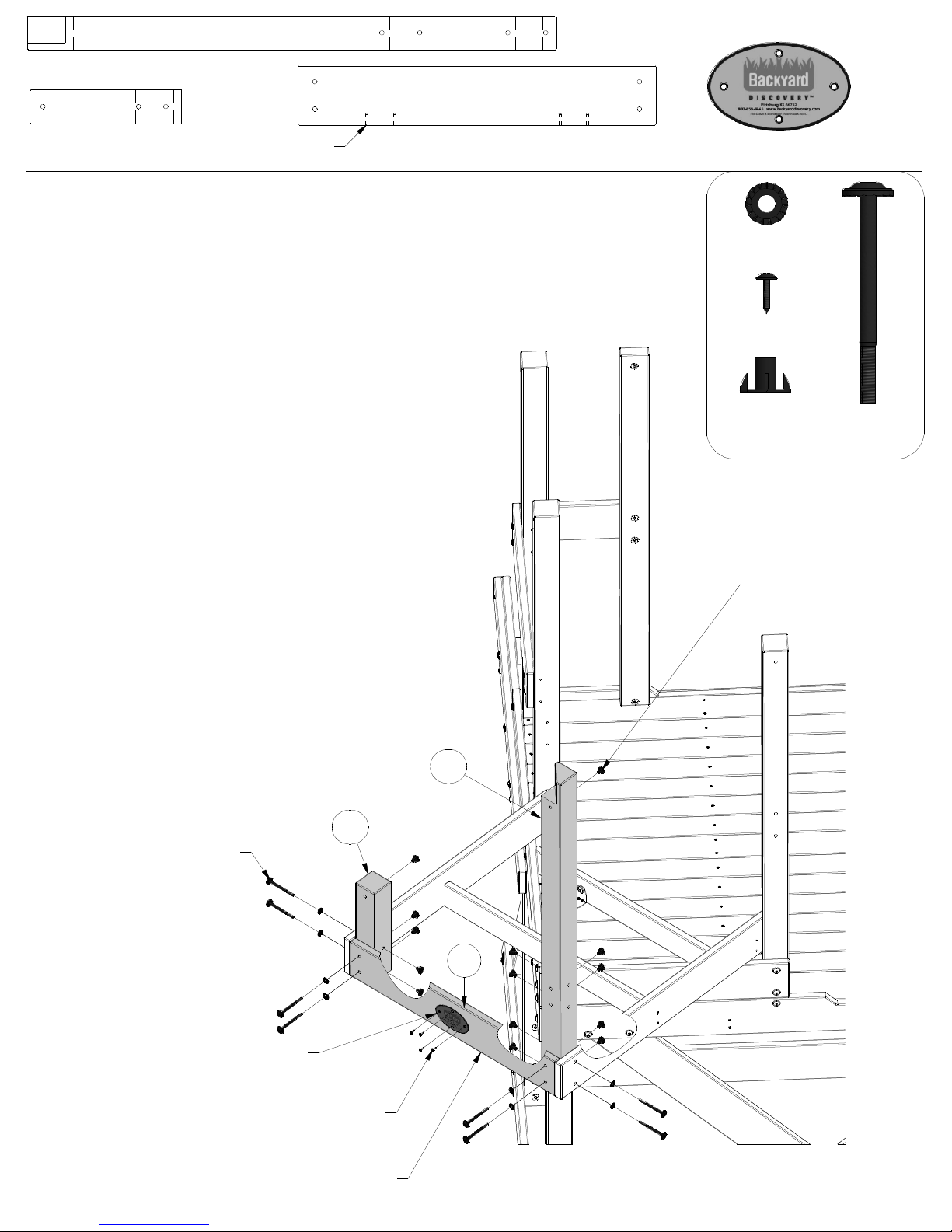

B10 - POST - W4L08484
(1)
3"x3"x47 1/4" (76x76x1201)
B12 - POST - W4L08487
(1)
3"x3"x13 5/8" (76x76x345)
BOTTOM EDGE
G8 - WALL SUPPORT - W4L08478
(1)
1"x5 1/4"x32" (24x134x813)
STEP 37
IT IS RECOMMENDED THAT YOU PLACE ALL
T-NUTS BEFORE YOU BEGIN ASSEMBLY OF
PARTS
(1)
- BYD ID TAG (MEDIUM) WITH AGES - A100175
WASHER
(8)
LOCK EXT
8x19 BLK
SCREW PWH
(4)
8x5/8 BLK
T-NUT 5/16
(14)
BLK
(8)
BOLT WH
5/16x3 3/4
T-NUT 5/16 BLK
(14 PLCS)
BLK
BOLT WH 5/16x3-3/4 BLK
(8 PLCS)
BYD ID TAG (MEDIUM) WITH AGES
SCREW PWH 8x5/8 BLK
(4 PLCS)
BOTTOM EDGE (SEE ABOVE)
B10
B12
G8
Page 78

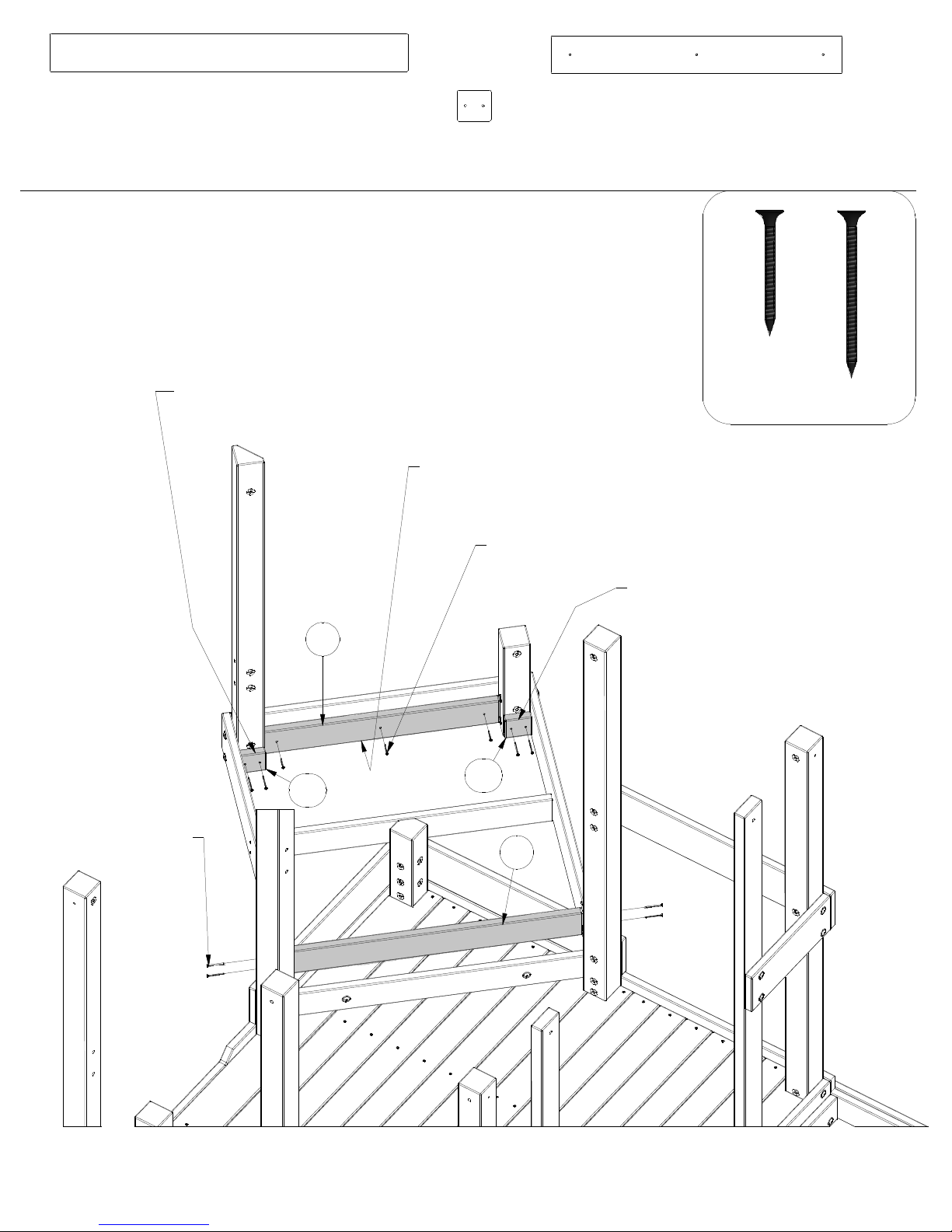

STEP 38
H6 - FLOOR SUPPORT - W4L08482
(1)
1"x3 3/8"x32" (24x86x813)
H20 - FLOOR SUPPORT - W4L08562
(2)
1"x2 3/4"x3" (24x70x76)
H7 - FLOOR SUPPORT - W4L08483
(1)
1"x3 3/8"x26" (24x86x661)
SCREW PFH
(7)
8x1-1/2 BLK
SCREW PFH 8X2 BLK
(4 PLCS)
H20 BOARDS ARE MOUNTED FLUSH
TO THE TOP EDGE OF H7 BOARD.
H7 BOARD MOUNTED FLUSH
TO THE BOTTOM EDGE.
H7
H20
SCREW PFH 8X1-1/2 BLK
(7 PLCS)
H20
H6
SCREW PFH
(4)
8x2 BLK
H20 BOARDS ARE MOUNTED FLUSH
TO THE TOP EDGE OF H7 BOARD.
