Backyard Discovery 1701014 User Manual

MOUNT

TRIUMPH

Backyard Discovery
3305 Airport Drive
Pittsburg, KS 66762
1-800-856-4445

WOODEN SWING SET

MODEL: # 1701014

• Owner's Manual

• Frequently Asked Questions

• Assembly Instructions

• Warranty Information

Register your new swing set on-line @

www.backyarddiscovery.com (you will also find any updates on

assembly instructions and information to order replacement parts)

Features the fastening system.

Save this assembly manual for future reference in the event that

you need to order replacement parts.

INS-1701014-A-MOUNT TRIUMPH SWING SET-ENG 01/27/17

Made in China

STOP

PARE

Missing A Part?

CALL US BEFORE GOING

BACK TO THE STORE!

The store where you made your purchase

does not stock parts for this item.

If you have assembly questions or if you need parts,

whether they are missing or damaged

Call Toll-Free Help Line or visit www.swingsetsonline.com

¡LLÁMENOS ANTES DE REGRESAR A LA TIENDA!

La tienda donde realizó la compra no almacena piezas de este producto.
Si tiene preguntas sobre el ensamblaje o si necesita piezas debido a que

faltan o están dañadas

llame gratis a la línea de ayuda

1-800-856-4445

PLEASE READ THIS BEFORE STARTING ASSEMBLY

POR FAVOR LEA ESTAS INSTRUCCIONES ANTES DE COMENZAR EL ENSAMBLAJE

• READ THE ASSEMBLY MANUAL COMPLETELY, PAYING SPECIAL ATTENTION TO THE IMPORTANT TIPS AND
SAFETY INFORMATION.

• AFTER YOU HAVE READ THE ASSEMBLY MANUAL, YOU WILL BE ABLE TO DECIDE IF YOU NEED PROFESSIONAL
HELP TO COMPLETE THE ASSEMBLY OF THE STRUCTURE.

• SEPARATE AND IDENTIFY ALL PARTS TO MAKE SURE THAT YOU HAVE ALL OF THE PARTS LISTED.

• IF YOU CAN’T FIND ALL OF THE PARTS, CHECK THE PACKING MATERIAL. SMALL PARTS MAY HAVE FALLEN INTO IT

DURING SHIPMENT.

• IF YOU HAVE PROBLEMS WITH THE ASSEMBLY OR IF ANY PART IS MISSING OR DAMAGED, PLEASE CALL THE
HELP LINE

• LEA EL MANUAL DE ENSAMBLAJE COMPLETAMENTE, PRESTANDO ESPECIAL ATENCIÓN A LOS CONSEJOS ÚTILES
IMPORTANTES Y A LA INFORMACIÓN SOBRE SEGURIDAD.

• DESPUÉS DE QUE HAYA LEÍDO EL MANUAL DE ENSAMBLAJE, PODRÁ DECIDIR SI NECESITA AYUDA PROFESIONAL
PARA EFECTUAR EL ENSAMBLAJE DE LA ESTRUCTURA.

• SEPARE E IDENTIFIQUE TODAS LAS PIEZAS PARA COMPROBAR QUE DISPONE DE TODAS LAS PARTES INDICADAS.

• SI NO PUEDE ENCONTRAR TODAS LAS PIEZAS, REVISE EL MATERIAL DE EMPAQUE. ES POSIBLE QUE ALGUNAS

PIEZAS PEQUEÑAS PUEDAN HABERSE CAÍDO ALLÍ DURANTE EL ENVÍO.

• MANTÉNGASE ALEJADO DE LOS NIÑOS MENORES A LA EDAD RECOMENDADA.

• SI TIENE PROBLEMAS CON EL ENSAMBLAJE O SI ALGUNA PIEZA FALTA O ESTÁ DAÑADA, LLAME A LA LÍNEA DE
AYUDA AL

1-800-856-4445 OR VISIT www.swingsetsonline.com

1-800-856-4445 O VISITE www.swingsetsonline.com

PLEASE HAVE THE FOLLOWING INFORMATION WHEN YOU MAKE YOUR CALL:

1 – MODEL NUMBER OF THE PRODUCT LOCATED ON THE FRONT OF THE ASSEMBLY MANUAL
2 – DESRIPTION OF THE PART FROM THE PARTS LIST

POR FAVOR TENGA VISIBLE LA SIGUIENTE INFORMACIÓN CUANDO LLAME:

1 - NÚMERO DE MODELO DEL PRODUCTO QUE SE ENCUENTRA UBICADO AL FRENTE DEL MANUAL
DE ENSAMBLAJE
2 - DESCRIPCIÓN DE LA PIEZA QUE SE ENCUENTRA EN LA LISTA DE PIEZAS

Owner’s Manual Play Set

OR

Staple Receipt Here

Dear Customer:

Please read entire booklet completely before beginning the assembly process.
Equipment is recommended for use by children 3 to 10 years of age. Structures are not intended for public

use. The Company does not warranty any of its residential structures subjected to commercial use
such as: Daycare, Preschool, Nursery School, Recreational Park, or any similar Commercial
Application.

WARNING: This Symbol points out important safety instructions which, if not followed, could

endanger the personal safety of yourself and your children and/or damage your property. You
MUST read and follow all instructions in this manual before attempting to use this playcenter.

WARNING: Children must NOT use this playcenter until unit has been completely
assembled and inspected by an adult to insure set has been properly installed and
anchored.

Please follow all recommendations below. Failure to do so may result in the warranty being void and/ or
safety violations that could result in serious injury. This manual contains helpful information concerning

Assembly Preparation, Installation Procedure, and Required Maintenance. Always keep the safety of your
children in mind as your play structure is being built and as your children play on the set. Before your children
play on the set please review the Operation Instructions with them to help ensure their safety.

PLEASE RETAIN THESE INST RUCTIONS FOR FUTURE REFERENCE . KEEP THEM IN A SA FE PLACE
WHERE YOU CAN REFER TO THEM AS NEEDED. IN ORDER TO PROVIDE YOU WITH THE MOST
EFFICIENT SERVICE, IT IS REQUIRED THAT YOU PROVIDE US WITH THE PART NUMBERS WHEN
ORDERING PARTS.

For Your Records:
Please take time and fill out the information below. This information will be needed for warranty
issues.
Where Purchased: ____________________
Date of Purchase: ____________________
Installation Date: _____________________
Installed by: _________________________
Tracking Number: ____________________

Tracking Number

Vertical ID Plate

Tracking Number Reference Label

Tracking ID number on the carton and back of the ID plate or vertical ID plate are included for tracking
purposes associated with warranty claims.

Rev10/14/13

Owner’s Manual Play Set

Please refer to the Assembly section of the Assembly Manual for Maximum Fall Height.

Positioning Your Playcenter

1. The Playcenter is designed to be installed on a level surface by an Adult with an Adult helper. Pl a c e
in a flat area of your y ard to min im i ze ground preparation.

2. Choose a level location for the equipment. This can reduce the likelihood of the play set tipping over
and loose-fill surfacing material washing away during heavy rains.

3. Place the equipment not less than 6 ft (1.8 m) from any structure or obstruction such as a fence,
garage, house, overhanging branches, laundry lines, or electrical wires.

4. Provide enough room so that the children can use the equipment safely. For example, for structures
with multiple play activities, a slide should not exit in front of a swing.

5. It is a good idea to place your Playcenter in an area t hat is convenient for adults to watch children at
play.

6. Create a site free of obstacles that could cause injuries – such as low overhanging tree branches,
overhead wires, tree stumps and/or roots, large rocks, bricks and concrete. Additional suggestions in
the Suggested Playground Surfacing Section.

7. Do not build your playset on top of surfacing material.

8. Locate bare metal platforms and slides out of direct sunlight to reduce the likelihood of serious burns.
A slide that faces north will receive the least direct sunlight.

9. Separate active and quiet activities f rom each ot her. For example, locate sandboxes away from swings
or use a guardrail or barrier to separate the sandbox from the movement of the swings.

Suggested Playground Surfacing

 Do not install home playground equipment over concrete, asphalt, packed earth, grass, carpet, or any

other hard surface. A fall onto a hard surface can result in serious injury to the equipment user.

 Do not install loose fill surfacing over hard surfaces such as concrete or asphalt.
 Shredded bark mulch, wood chips, fine sand and fine gravel, are added as shock absorbing materials

after assembly. If used properly these materials can absor b some of the impact of a child’s fall.

 All surface material should extend a minimum of 6 feet in all directions around the play area.
 Do not apply playground surfacing until after the unit is completely constructed. Playset should not be

built on top of s urfacing.

 Use containment, such as digging out around the perimeter and/or lining the perimeter with landscape

edging.

 Installations of rubber tiles or poured-in-place surfaces (other than loose-fill materials) generally require

a professional and are not “do-it-yourself ” projects.

 Shall use Playground Surfacing Materials (other than loose-fill mat erial) which comply with t he safety

standard ASTM F1292 Standard Specification of Impact Attenuation of Surfacing Materials within the
Use Zone of Playground Equipment.

Rev10/14/13

Owner’s Manual Play Set

Material

Uncompressed Depth

Compressed Depth

6" (152mm)

9" (228mm)

12" (304mm)

to 9" (228mm)

Wood Chips

7' (2.13m)

10' (3.05m)

11' (3.35m)

10' (3.05m)

Double-Shredded bark mulch

6' (1.83m)

10' (3.05m)

11' (3.35m)

7' (2.13m)

Engineered Wood Fibers

6' (1.83m)

7' (2.13m)

>12' (3.66m)

6' (1.83m)

Fine Sand

5' (1.52m)

5' (1.52m)

9' (2.74m)

5' (1.52m)

Coarse Sand

5' (1.52m)

5' (1.52m)

6' (1.83m)

4' (1.22m)

Fine Gravel

5' (1.52m)

7' (2.13m)

10' (3.05m)

6' (1.83m)

Medium Gravel

5' (1.52m)

5' (1.52m)

6' (1.83m)

5' (1.52m)

Shredded Tires*

10-12' (3.0-3.6m)

N/A

N/A

N/A

The following chart explains the fall height in feet from which a life threatening head injury

would not be expected

Critical Heights in feet (m) of Tested Materials

*This data is from tests conducted by independent testing laboratories on a 6-inch depth of uncompressed shredded tire samples produced by four manufacturers. The tests

reported critical heights, which varied from 10 feet to greater than 12 feet. It is recommended that persons seeking to install shredded tires as a protective surface request test

Operating Instructions:

1. This Playcenter is designed for specific number of occupants whose combined weight should
not exceed a designated weight on the elevated floor or the swing area, the total Unit capacity
is outlined in the Basic Setup Dimensions section of instruction manual. The maximum fall
height and recommended play area is also available in the Basic Setup Dimensions section of
the manual for the specific unit.

2. On-site adult supervision is required.

3. Instruct children not to walk close to, in front of, behind, or between moving swings or other
moving playground equi pment.

4. Instruct children to sit in and never stand on swings

5. Instruct children not to twist the chains and ropes and not to loop them over the top support
bar, since this may reduce the strength of the chain or rope.

6. Instruct children not to jump from swings or other playground equipment in motion.

7. Instruct children to not to push empty seats. The seat may hit them and cause serious injury.

8. Instruct and teach children to sit in the center of the swings with their full weight on the seats.

9. Instruct children not to use the equipment in a manner other than intended.

10. Instruct children to always go down slides feet first. Never slide head first.

11. Instruct children to look before they slide to make sure no one is at the bottom.

12. Instruct children to never run up a slide, as this increases their chances of falling.

13. The parents should dress children appropriately. (Examples would include the use of well­fitting shoes and the avoidance of ponchos, scarfs, and other loose-fitting clothing that is
potentially hazardous while using equipment).

14. Instruct children not to climb when the equipment is wet.

15. Instruct children to never jump from a fort deck. They should always use the ladder, ramp or
slide.

16. Instruct children to never crawl or walk across the top of monkey bars.

17. Instruct children to never crawl on top of a fort roof.

data from the supplier showing the critical height of the material when it was tested in accordance with ASTM F1292.

NOTE: Your children’s safety is our #1 concern. Observing the following statements
and warnings reduces the likelihood of serious or fatal injury. Please review these
safety rules regularly with your children.

Rev10/14/13

Owner’s Manual Play Set

18. Verify that any suspended climbing ropes, chain, or cable are secured at both ends and that
they cannot be looped back on it.

19. Instruct children not to attach items to the playground equipment that are not specifically
designed for use with the equipment, such as, but not limited to, jump ropes, clothesline, pet
leashes, cables and chain as they may cause a strangulation hazard.

20. Instruct children to never wrap their legs around swing chain.

21. Instruct children to never slide down the swin g chai n.

22. Instruct children to remove their bike or other sports helmet before playing on playground
equipment.

Maintenance Instructions:
At the beginning of each play season:

• Tighten all hardware.

• Lubricate all metallic moving parts per manufacturer’s instructions.

• Check all protective coverings on bolts, pipes, edges, and corners. Replace if they are loose,
cracked, or missing.

• Check all moving parts including swing seats, ropes, cables, and chains for wear, rust, or
other deterioration . Re pl ace as need ed.

• Check metal parts for rust. If found, sand and repaint using a non Lead-based paint meeting
the requirements of 16 CFR 1303.

• Check all wood members for deterioration and splinters. Sand down splinters and replace
deteriorating wood members.

• Reinstall any plastic parts, such as swing seats or any other items that were removed for the
cold season.

• Rake and check depth of loose fill protective surfacing materials to prevent compaction and
to maintain appropriate depth. Replace as necessary.

Twice a month during play season:

• Tighten all hardware.

• Check all protective coverings on bolts, pipes, edges, & corners. Replace if they are loose,
cracked, or missing.

• Rake and check depth of loose fill protective surfacing materials to prevent compaction and
to maintain appropriate depth. Replace as necessary.

• Once a month during play season.

• Lubricate all metallic moving parts per manufacturer’s instructions.

• Check all moving parts including swing seats, ropes, cables, and chains for wear, rust, or
other deterioration . Re pl ace as need ed.

At the end of each play season or when the temperature drops below 32° F:

• Remove plastic swing seats and other items as specified by the manufacturer and take

indoors or do not use.

• Rake and check depth of loose fill protective surfacing materials to prevent compaction and
to maintain appropriate depth. Replace as necessary.

Owners shall be responsible for maintaining the legibility of the warni ng labels.

Rev10/14/13

Owner’s Manual Play Set

Additional Maintenance:

• Check the swing beam and hardware every two weeks due to wood expansion and

contraction. It is particularly important that this procedure be followed at the beginning of each
season.

• Inspect wood parts monthly. The grain of the wood sometimes will lift in the dry season
causing splinters to appear. Light sand may be necessary to maintain a safe playing
environment. Treat your playset with stain regularly, to help prevent severe checking/splitting
and other weather damage.

• A waterbourne transparent stain has been applied to your playset. This is done for color only.
Once or twice a year, depending on your climate conditions, you must apply some type of
protection (sealant) to the wood of your unit. Prior to the application of sealant, lightly sand any
“rough” spots on your playset. Please no te this is a requirement of your warranty.

• Assembling and maintaining the playset on a level location is very important. As your children
play, your playset will slowly dig its way into the soil, and it is very important that it settles
evenly. Make sure the playset is level and true one each year or at the beginning of each play
season.

Disposal Instructions:

When the Playcenter use is no longer desired, it should be disassembled and disposed of in such a
way that no unreasonable hazards will exist at the time the unit is discarded.

Third Party Assembly:

Customer may, in their sole discretion, elect to use a third party person or service to assemble this
product. Backyard Discovery assumes no responsibility or liability for any charge incurred by the
Customer for any assembly services’.
Please see our warranty for more information about damaged and missing part replacement
coverage. Backyard Discovery will not reimburse Customer for the price of parts purchased.

Rev10/14/13

Owner’s Manual Play Set

APPENDIX A
Information on Playground Surfacing Materials:

The following information is from the United States Consumer Product Safet y Commission’s Information
Sheet for playground surfacing material; also see the following website for additional information:

www.cpsc.gov/cpscpub/pubs/323.html

X3. SECTION 4 OF THE CONSUMER PRODUCT SAFETY COMMISSION’S OUTDOOR HOME PLAYGROUND SAFETY
HANDBOOK

injuries is to install shock-absorbing protective surfacing under and around your play equipment. The protective surfacin g should be
applied to a depth that is suitable for the equipment height in accordance with ASTM Specification F 1292. There are different types of
surfacing to choose from; whichever product you select, follow these guidelines:

(EWF), or shredded/recycled rubber mulch for equipment up to 8 feet high; and 9 inches of sand or pea gravel for equipment up to 5
feet high. NOTE: An initial fill level of 12 inches will compress to about a 9-inch depth of surfacing overtime. The surfacing will also
compact, displace, and settle, and should be periodically refilled to maintain at least a 9-inch depth.

this should be adequate. (At depths less than 6 inches, the protective material is too easily displaced or compacted.) NOTE: Do not
install home playground equipment over concrete, asphalt, or any other hard surface. A fall onto a hard surface can result in serious
injury to the equipment user. Grass and dirt are not considered protective surfacing because wear and environmental factors can
reduce their shock absorbing effectiveness. Carpeting and thin mats are generally not adequate protective surfacing. Ground level
equipment such as a sandbox, activity wall, playhouse or other equipment that has no elevated play surface – does not need any
protective surfacing.

forget to account for water drainage.
mark the correct level on play equipment support posts. That way you can easily see when to replenish and/or redistribute the

surfacing.

loose-fill materials – like rubber tiles or poured-in-place surfaces.

showing that the product has been tested to the following safety standard: ASTM F 1292 Standard Specification for Impact Attenuation
of Surfacing Materials within the Use Zone of Playground Equipment. This report should show the specific height for which the surface
is intended to protect against serious head injury. This height should be equal to or greater than the fall height – vertical distance
between a designated play surface (elevated surface for standing, sitting, or climbing) and the protective surfacing below – of your play
equipment.

of the top bar from which the swing is suspended.

“Handbook for Public Playground Safety.” Copies of these reports can be obtained by sending a postcard to the: Office of Public Affairs,
U.S. Consumer Product Safety Commission, Washington, D.C., 20207 or call the toll-free hotli ne: 1-800-638-2772.

connection with any item mentioned in this standard. Users of this standard are expressly advised that determination of the validity of
any such parent rights, and the risk of infringement of such rights, are entirely their own responsibility.

and if not revised, either approved or withdrawn. Your comments are invited either for revision of this standard or for additional
standards and should be addressed to ASTM Headquarters. Your comments will receive careful consideration at a meeting of the
responsible technical c ommittee, which you may attend. If you feel that your comments have not received a fair hearing you should
make your views known to the ASTM Committee on Standards. 100 Barr Harbor Drive, West Conshohocken, PA 19428.

9

X3.1 Select Protective Surfacing—One of the most important things you can do to reduce the likelihood of serious head

X3.1.1 Loose-Fill Materials:
X3.1.1.1 Maintain a minimum depth of 9 inches of loose-fill materials such as wood mulch/chips, engineered wood fiber

X3.1.2 Use a minimum of 6 inches of protective surfacing for play equipment less than 4 feet in height. If maintained properly,

X3.1.3 U
X3.1.3.1 Check and maintain the depth of the loose-fill surfacing material. To maintain the right amount of loose-fill materials,

X3.1.3.2 Do not install loose-fill surfacing over hard surfaces such as concrete or asphalt.
X3.1.4 Poured-In-Place Surfaces or Pre-Manufactured Rubber Tiles — You may be interested in using surfacing other than

X3.1.4.1 Installations of these surfaces generally require a professional and are not “do-it-yourself” projects.
X3.1.4.2 Review surface specification before purchasing this type of surfacing. Ask the installer/manufacturer for a report

X3.1.4.3 Ch
X3.1.5 Placement — Proper placement and maintenance of protective surfacing is essential. Be sure to:
X3.1.5.1 Extend surfacing at least 6 feet from the equipment in all directions.
X3.1.5.2 For to-fro swings, extend protective surfacing in front of and behind the swing to a distance equal to twice the height

9

This information has been extracted from the CPSC publications “Playground Surfacing — Technical Information Guide” and

The American Society for Testing and Materials takes no position respecting the validity of any parent right asserted in

The standard is subject to revision at any time by the responsible technical committee and must be reviewed every five years

se containment, such as digging out around the perimeter and/or lining the perimeter with landscape edging. Don’t

eck the protective surfacing frequently for wear.

.

Rev10/14/13

Play Set Assembly Manual FAQs:

1. Does the area for the playset need to be level?
Yes. Backyard Discovery recommends the playset be positioned on a flat level area for maximum safety and durability. The stakes

provided should be used to secure it firmly to the ground.

2. What size area is recommended for the playset?
Backyard Discovery recommends at least a 6’ (six foot) perimeter around and above the playset for maximum safety.

3. What age range is appropriate for the playsets?
Backyard Discovery playsets are recommended for children ages 3 – 10 years.

4. Is the wood treated with chemicals?
Backyard Discovery uses 100% Chinese Cedar wood which is naturally bug resistant, decay and rot resistant. To help ensure your child’s

safety, our wood is completely chemical free and we do not use pressure-treated wood. The stain we use is a top coat using a water­based product that is for appearance only.

5. How often should the playset be stained?
Backyard Discovery recommends the playset be stained once each year. A water or oil based stain can be used at the customer’s

discretion.

6. Why does it seem that my swing set is developing cracks?
Wood is a natural material; no two pieces are exactly alike. Each piece has its own charact erist ic s and person ali ty and reacts differently

to climate changes. When any wood product is exposed to the elements, it develops “wood checks”. A check is the radial separation of
the wood fibers running wi th the grain of the wood. These are caused by the varying temperature and moisture conditions. A check is
not a crack – it does not affect the strength or durability of the wood or structural inte grit y of the play set.

7. Do Backyard Discovery playsets come with a warranty?
Yes. All Backyard Discovery products carry a 1-year replacement warranty on all parts for manufacturer’s defect. Our wood carries a 5

year warranty on rot and decay as well. Please see warranty details for more information.

8. What is the best way to get started assembling the playset?
Backyard Discovery recom m ends tak ing all the parts out of the boxes and arranging them by part number before you begin any

assembly. This will not only allow faster assembly, but will also identify any parts that may be missing or damaged so they can be
replaced before assembly. If parts are missing or need replacement, go to www.swingsetsonline.com/support.aspx and follow the
prompts to order them. Next, read the assembly manual and get the tools ready for the job as recommended in the manual. If the
assembly manual is lost or misplaced a new one can be printed from Backyard Discovery’s website: www.swingsetsonline.com.

9. The playset seems to rock or sway too much. What’s wrong?
Rocking is caused by uneven ground or obstructions such as rocks, roots, etc. under the ground rails. These should be removed and

the ground underneath re-leveled to prevent rocking. Also ensure the playset is securely staked to the ground using the stakes
provided.

10. The 2”x4” boards do not measure 2”x 4”. Why not?
In the U.S. it is common practice to describe lumber dimensions using the rough cut sizes from the sawmill and not the finished

dimensions. Retailers, home stores, etc. all use this accepted practice for describing lumber dimensions. However, Backyard Discovery
playsets are designed and con str uc ted usi ng the actu al dim e nsio ns so ever yth ing fits properly and remains so during the life of the
playset.

11. The end beam is not straight up and down. Why not?
This is normal. Backyard Discovery designs pla ys ets thi s way to ensure the strongest structure possible. The slight angle adds strength

and reduces rocking and twisting.

12. The S-hooks for the swings won’t close. What is wrong?
Backyard Discovery recommends placing them on a hard surface such as concrete (don’t do this on anything that will dent such as

metal or finished wood or glass which will break!). It will take quite a few strokes, but the hooks will close.

For more information and frequently asked questions, please refer to our website at www.swingsetsonline.com.

Tools Required for Installation:

(These are the tools that are generally required for assembly of our outdoor products.
These tools are not included with the outdoor product purchase.)

(Level 24")

(Square)

(Phillips Screw Driver)

(Tape Measure)

(Cordless Drill or

Electric Drill)

(Open End Wrenches 1/2")

(Claw Hammer)

(Drill Attachments:
Phillips Head)

(Rubber Mallet - Optional)

(3/8" Drive Ratchet, 1/2" STD
Sockets 1/2" Deep Sockets)

(An Adult w/ an

Adult Helper)

(Ladder)

(1/8" & 7/16" Drill Bits)

Basic Setup Dimensions

«

S

P

A

N

I

S

H

Place the set on level ground, not less than 6 ft [2 m] from any structure or obstruction such

as a fence, garage, house, overhanging branches, laundry lines, or electrical wires.

General Information:

Your set has been designed and engineered
for children only and for residential use only.
A maximum of 150 lbs. per child is
recommended for play activities designed for
individual use.
A maximum of 120 lbs. per child is
recommended for play activities designed for
multiple child use.
A maximum of 9 children is recommended for
this swing set.

6'-0"

27'-7 5/8"

15'-7 5/8"

15'-3 1/8"

27'-3 3/16"

Safe Play Zone

9'-11 1/8" O.A.

Important Assembly Notes

1) While assembling unit, take time before and after each phase to make sure fort is level. If fort is
not level, assembly will be difficult and improper assembly may result. Extra care must be taken to
ensure the fort is square.

2) Tighten bolts securely, tighten nuts on bolts flush to the tube or member.

3) Pay close attention to the ITEMS NEEDED FOR EACH PHASE. They can be a valuable aid when
sorting your wood and hardware. Assembly will be made easier if items are sorted by phase.

4) Pay close attention to make sure you are using the correct hardware in the correct phases. Using
incorrect hardware may result in improper assembly.

5) Whenever a T-nut is used, follow these directions. Place T-nut in pre-drilled hole. Tap in with hammer.
Place bolt with washers in the opposite side. Hand tighten to make sure the bolt is in the T-nut.
DO NOT over tighten.

6) Read the steps of each phase thoroughly. The written steps may include important information not
shown in the illustrations.

Safe play height: 15'-11 1/8" [4.7 m]
Maximum fall height: 6'-3 1/2" [1.8 m]

6'-0"

6'-3 1/2"

Parts Identification

Wood Components

(NOT TO SCALE)

E1 - RIGHT REAR UPRIGHT - W2A02080

(1)

1 3/8"x3 3/8"x51 3/4" (36x86x1314)

E2 - LEFT REAR UPRIGHT - W4L07493

(1)

1 3/8"x3 3/8"x51 3/4" (36x86x1314)

E3 - LEFT FRONT UPRIGHT - W4L07494

(1)

1 3/8"x3 3/8"x51 3/4" (36x86x1314)

E4 - RIGHT FRONT UPRIGHT - W4L07495

(1)

1 3/8"x3 3/8"x51 3/4" (36x86x1314)

E5 - RIGHT FRONT BALCONY UPRIGHT - W4L07502

(1)

1 3/8"x3 3/8"x80 3/4" (36x86x2052)

E6 - LEFT REAR UPRIGHT - W4L07509

(1)

1 3/8"x3 3/8"x43 1/2" (36x86x1104)

E7 - RIGHT REAR UPRIGHT - W4L07510

(1)

1 3/8"x3 3/8"x43 1/2" (36x86x1104)

E8 - LEFT FRONT UPRIGHT - W4L07511

(1)

1 3/8"x3 3/8"x43 1/2" (36x86x1104)

E9 - RIGHT FRONT UPRIGHT - W4L07512

(1)

1 3/8"x3 3/8"x43 1/2" (36x86x1104)

E10 - MOUNTING BLOCK - W4L07615

(2)

1 3/8"x3"x4 3/4" (36x76x120)

E11 - RIGHT FRONT BALCONY UPRIGHT - W4L07673

(1)

1 3/8"x3 3/8"x80 3/4" (36x86x2052)

E72 - LEFT RAIL - W4L07622

(1)

1 3/8"x3 3/8"x54 7/8" (36x86x1395)

Parts Identification

Wood Components

(NOT TO SCALE)

E73 - RIGHT RAIL - W4L07623

(1)

1 3/8"x3 3/8"x54 7/8" (36x86x1395)

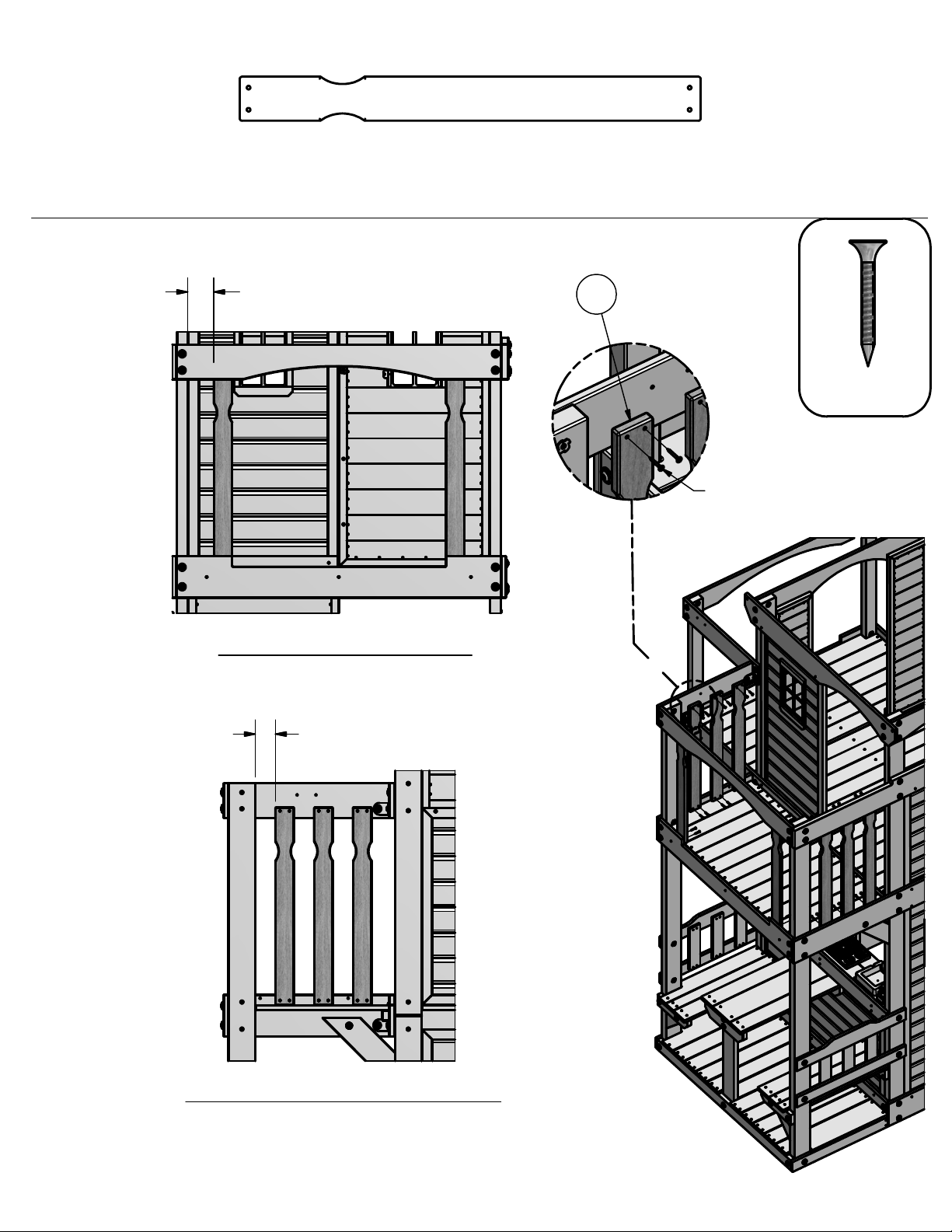

E77 - ANGLE BRACE - W4L07631

(2)

1 3/8"x3 3/8"x74 3/8" (36x86x1890)

F1 - RIGHT BALCONY UPRIGHT - W4L07506

(1)

1 3/8"x2 3/8"x31 3/4" (36x60x805)

F2 - LEFT BALCONY UPRIGHT - W4L07507

(1)

1 3/8"x2 3/8"x31 3/4" (36x60x805)

F3 - SUPPORT BLOCK - W4L07604

(1)

1 3/8"x2 3/8"x5 7/8" (36x60x148)

F4 - SUPPORT BLOCK - W4L07614

(1)

1 3/8"x2 3/8"x5 7/8" (36x60x148)

G1 - SWING BEAM MOUNT - W4L07513

(1)

1"x5 1/4"x62 1/8" (24x134x1577)

H1 - TABLE SUPPORT - W4L07583

(1)

1"x3 3/8"x22 3/8" (24x86x567)

H2 - TABLE SUPPORT - W4L07584

(1)

1"x3 3/8"x11 5/8" (24x86x295)

H3 - TABLE SUPPORT - W4L07585

(1)

1"x3 3/8"x11 5/8" (24x86x295)

H4 - DECK BRACE - W4L07616

(4)

1"x3 3/8"x12 3/4" (24x86x325)

H76 - LADDER RUNG - W4L07620

(4)

1"x3 3/8"x17 1/4" (24x86x437)

Parts Identification

Wood Components

(NOT TO SCALE)

H77 - LEFT UPRIGHT - W4L07617

(1)

1"x3 3/8"x58" (24x86x1474)

H78 - RIGHT UPRIGHT - W4L07618

(1)

1"x3 3/8"x58" (24x86x1474)

H79 - END SUPPORT - W4L07632

(1)

1"x3 1/2"x42" (24x86x1072)

H80 - GROUND BOARD - W4L07630

(1)

1"x3 3/8"x87 3/8" (24x86x2218)

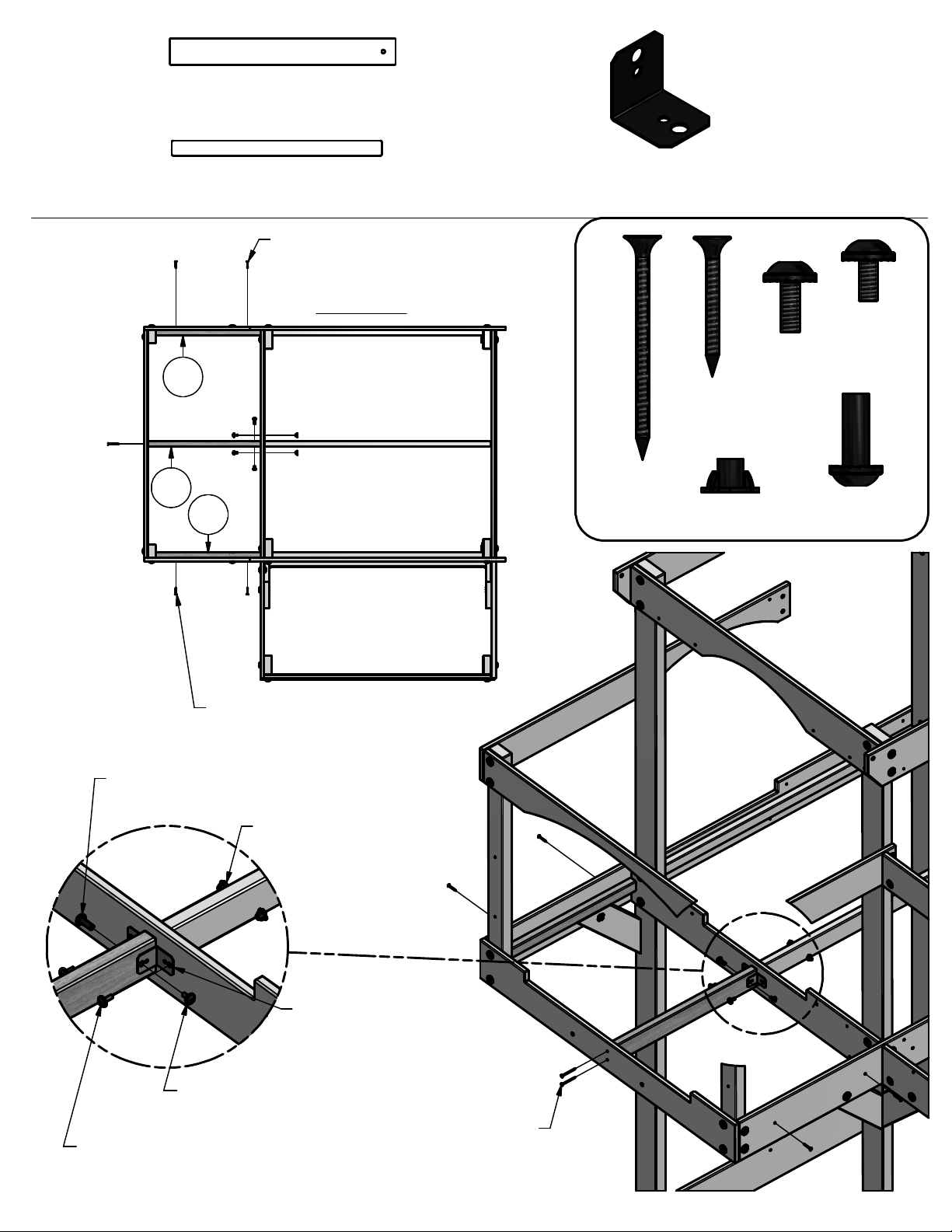

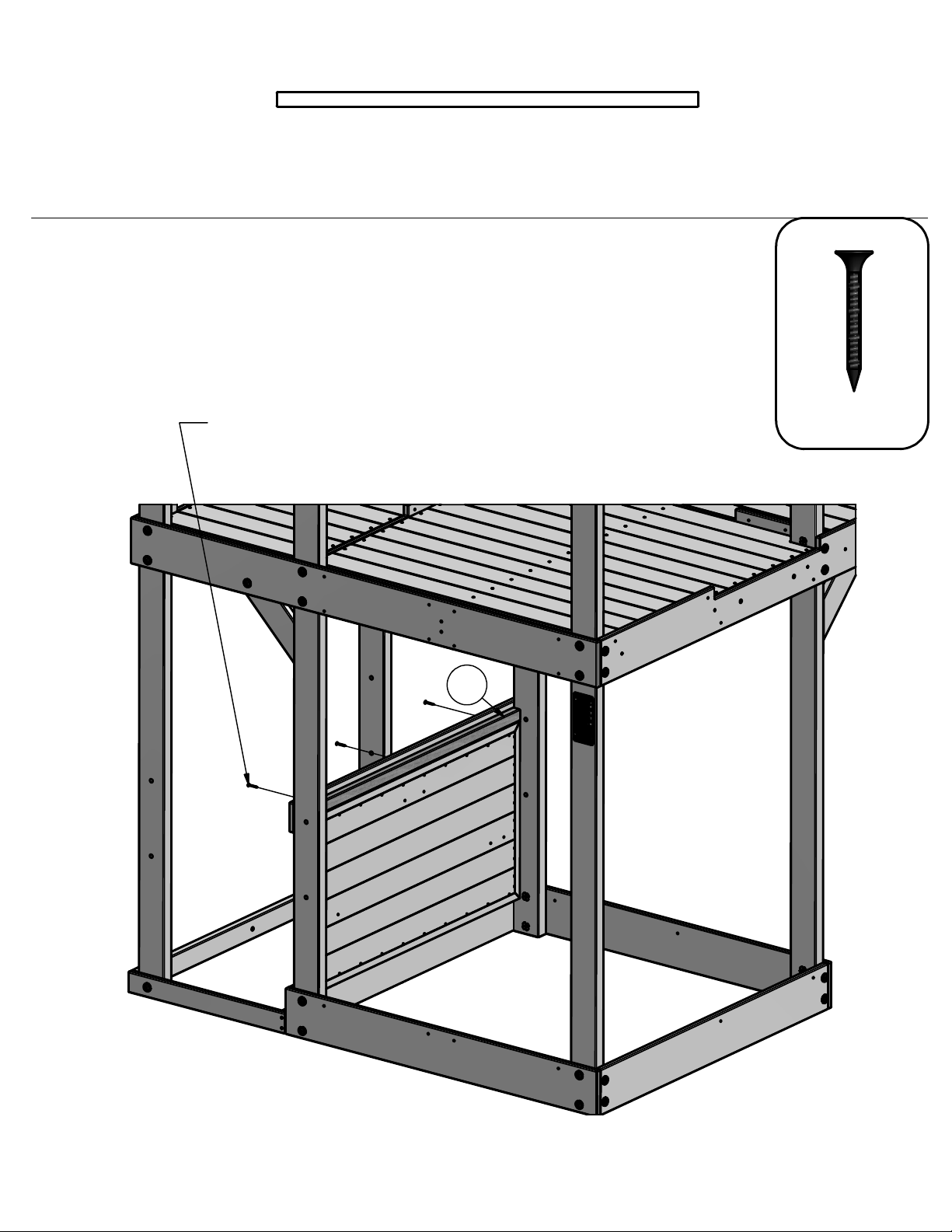

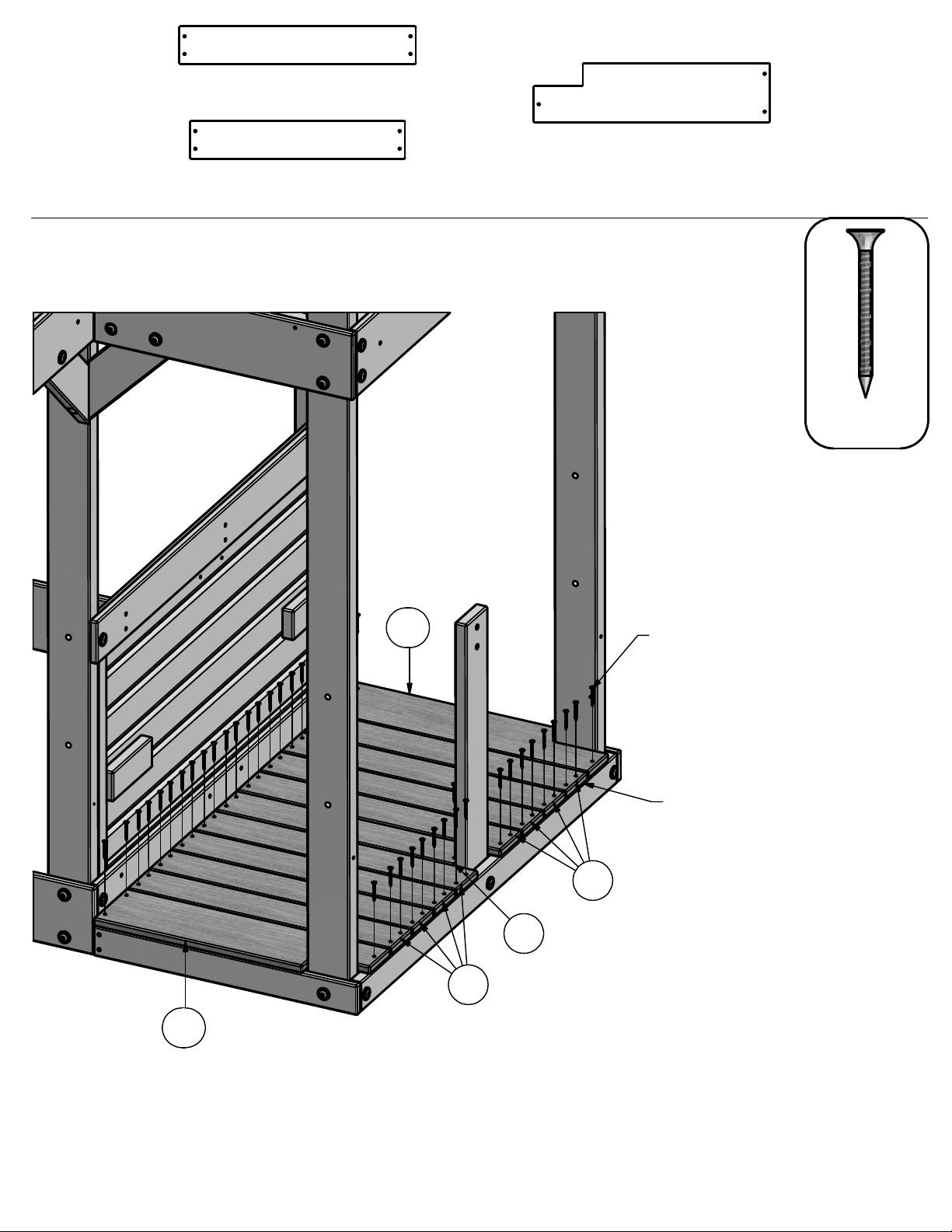

J1 - PORCH GROUND BOARD - W4L07504

(1)

1"x2 3/8"x40 1/2" (24x60x1030)

J2 - PORCH GROUND BOARD - W4L07505

(1)

1"x2 3/8"x40 5/8" (24x60x1032)

J3 - BENCH SUPPORT - W4L07586

(2)

1"x2 3/8"x9" (24x60x230)

J4 - ANGLE BRACE - W4L07587

(2)

1"x2 3/8"x10" (24x60x254)

J5 - SUPPORT BLOCK - W4L07588

(2)

1"x2 3/8"x2 7/8" (24x60x72)

J6 - SUPPORT BLOCK - W4L07589

(2)

1"x2 3/8"x6 1/4" (24x60x160)

J7 - SUPPORT BLOCK - W4L07595

(1)

1"x2 3/8"x3 3/8" (24x60x86)

J8 - FLOOR JOIST - W4L07602

(1)

1"x2 3/8"x40 1/2" (24x60x1029)

Parts Identification

Wood Components

(NOT TO SCALE)

J9 - FLOOR JOIST - W4L07603

(1)

1"x2 3/8"x20 1/4" (24x60x513)

K1 - GROUND BOARD - W4L07489

(1)

5/8"x5 1/4"x41 7/8" (16x134x1064)

K2 - GROUND BOARD - W4L07490

(1)

5/8"x5 1/4"x41 7/8" (16x134x1064)

K3 - GROUND BOARD - W4L07491

(1)

5/8"x5 1/4"x40 1/2" (16x134x1030)

K4 - GROUND BOARD - W4L07492

(1)

5/8"x5 1/4"x40 1/2" (16x134x1030)

K5 - RIGHT CENTER WALL RAIL - W4L07496

(1)

5/8"x5 1/4"x62 3/4" (16x134x1593)

K6 - FRONT CENTER WALL RAIL - W4L07497

(1)

5/8"x5 1/4"x61 3/8" (16x134x1560)

K7 - REAR CENTER WALL RAIL - W4L07498

(1)

5/8"x5 1/4"x61 3/8" (16x134x1560)

K8 - LEFT CENTER WALL RAIL - W4L07499

(1)

5/8"x5 1/4"x40 5/8" (16x134x1032)

Parts Identification

Wood Components

(NOT TO SCALE)

K9 - LEFT BALCONY WALL RAIL - W4L07500

(1)

5/8"x5 1/4"x20 3/4" (16x134x528)

K10 - FRONT BALCONY WALL RAIL - W4L07501

(1)

5/8"x5 1/4"x40 5/8" (16x134x1032)

K11 - LEFT SIDE WALL BOARD - W4L07508

(1)

5/8"x5 1/4"x41 7/8" (16x134x1064)

K12 - ARCHED WALL RAIL - W4L07579

(1)

5/8"x5 1/4"x40 5/8" (16x134x1032)

K13 - ARCHED WALL RAIL - W4L07580

(1)

5/8"x5 1/4"x40 5/8" (16x134x1032)

K14 - ANGLED WALL RAIL - W4L07581

(1)

5/8"x5 1/4"x45 3/4" (16x134x1162)

K15 - ANGLED WALL RAIL - W4L07582

(1)

5/8"x5 1/4"x45 3/4" (16x134x1162)

K16 - TABLE BOARD - W4L07594

(1)

5/8"x5 1/4"x23" (16x134x583)

K17 - FLOOR BOARD - W4L07596

(2)

5/8"x5 1/4"x21 1/8" (16x134x537)

Parts Identification

Wood Components

(NOT TO SCALE)

L1 - ARCHED WALL RAIL - W4L07514

(1)

5/8"x4 3/8"x40 5/8" (16x112x1032)

L2 - WALL RAIL - W4L07515

(1)

5/8"x4 3/8"x22 7/8" (16x112x582)

L3 - WALL RAIL - W4L07576

(1)

5/8"x4 3/8"x20 7/8" (16x112x529)

L4 - ARCHED WALL RAIL - W4L07577

(1)

5/8"x4 3/8"x43 1/2" (16x112x1106)

L5 - ARCHED WALL RAIL - W4L07578

(1)

5/8"x4 3/8"x40 5/8" (16x112x1032)

M1 - WALL RAIL - W4L07590

(1)

5/8"x3 3/8"x40 1/2" (16x86x1030)

M2 - BENCH BOARD - W4L07591

(2)

5/8"x3 3/8"x23" (16x86x583)

M3 - TABLE BOARD - W4L07593

(4)

5/8"x3 3/8"x23" (16x86x583)

M4 - FLOOR BOARD - W4L07597

(8)

5/8"x3 3/8"x21 1/8" (16x86x537)

M5 - FLOOR BOARD - W4L07598

(1)

5/8"x3 3/8"x19 1/4" (16x86x488)

Parts Identification

Wood Components

(NOT TO SCALE)

M6 - COUNTER TOP - W4L07605

(1)

5/8"x3 3/8"x37 5/8" (16x86x957)

M7 - COUNTER TOP - W4L07606

(1)

5/8"x3 3/8"x38 5/8" (16x86x981)

M8 - FLOOR BOARD - W4L07607

(1)

5/8"x3 3/8"x20 1/8" (16x86x512)

M9 - FLOOR BOARD - W4L07608

(10)

5/8"x3 3/8"x20 1/8" (16x86x512)

M10 - FLOOR BOARD - W4L07609

(1)

5/8"x3 3/8"x40 5/8" (16x86x1031)

M11 - FLOOR BOARD - W4L07610

(15)

5/8"x3 3/8"x40 5/8" (16x86x1031)

M12 - FLOOR BOARD - W4L07611

(2)

5/8"x3 3/8"x40 5/8" (16x86x1031)

M13 - FLOOR BOARD - W4L07671

(1)

5/8"x3 3/8"x20 1/8" (16x86x512)

M70 - SLIDE BED SUPPORT - W100935

(1)

5/8"x3 3/8"x19 7/8" (16x86x505)

M73 - REAR SUPPORT - W4L07619

(1)

5/8"x3 3/8"x18 1/4" (16x86x465)

M74 - ROCK WALL BOARD - W4L07624

(8)

5/8"x3 3/8"x25" (16x86x635)

M75 - ROCK WALL BOARD - W4L07627

(4)

5/8"x3 3/8"x25" (16x86x635)

Parts Identification

Wood Components

(NOT TO SCALE)

M76 - ROCK WALL BOARD - W4L07626

(4)

5/8"x3 3/8"x25" (16x86x635)

M102 - ATTACHMENT BOARD - W4L07628

(1)

5/8"x3 3/8"x26 1/4" (16x86x667)

M108 - TOP BOARD - W4L07625

(1)

5/8"x3 3/8"x26 1/4" (16x86x667)

M110 - ATTACHMENT BOARD - W4L07621

(1)

5/8"x3 3/8"x18 1/4" (16x86x465)

N1 - PORCH GROUND BOARD - W4L07503

(2)

5/8"x2 3/8"x21 1/8" (16x60x537)

N2 - PICKET - W4L07612

(18)

5/8"x2 3/8"x24 3/4" (16x60x628)

N3 - BENCH BOARD - W4L07592

(2)

5/8"x2 3/8"x23" (16x60x583)

SB74 - SWING BEAM EXTENDED - W4L07633

(1)

2"x5 1/4"x89 1/2" (50x134x2274)

T1 - SUPPORT BOARD - W4L07599

(3)

1"x1 3/8"x37 5/8" (24x34x957)

T2 - SUPPORT BOARD - W4L07600

(1)

1"x1 3/8"x37 3/4" (24x34x959)

T3 - SUPPORT BOARD - W4L07601

(2)

1"x1 3/8"x18 3/4" (24x34x477)

T4 - SUPPORT BOARD - W4L07613

(1)

1"x1 3/8"x37 3/4" (24x34x958)

W71 - SWING BEAM SUPPORT - W4L07629

(1)

2"x3 3/8"x49 5/8" (50x86x1260)

Parts Identification

Wood Components

(NOT TO SCALE)

(1) WP1 - FRONT WALL PANEL - W2A02082

1"x20 3/8"x37 3/4" (24x517x958)

(2) WP3 - TOP RIGHT FRONT WALL PANEL - W2A02084

1"x16 7/8"x24 5/8" (24x430x627)

(2) WP2 - RIGHT LOWER WALL PANEL - W2A02083

1"x16 7/8"x46 1/2" (24x430x1181)

(1) WP6 - TOP REAR WALL PANEL - W2A02087

1"x18 7/8"x11 3/4" (24x479x300)

(1) WP5 - TOP LEFT REAR WALL PANEL - W2A02086

1"x16 7/8"x46 1/2" (24x430x971)

Parts Identification

Wood Components

(NOT TO SCALE)

(1) WP7 - TOP FRONT WALL PANEL - W2A02088

1"x16 7/8"x38 1/4" (24x476x971)

(2) WP8 - TOP LEFT WALL PANEL - W2A02089

1"x11 3/4"x38 1/4" (24x214x971)

(2) WP10 - BENCH BACK ASSEMBLY - W2A02081

1 1/8"x11 7/8"x17 5/8" (27x303x615)

(2) WP9 - LOWER WALL PANEL - W2A02090

1"x16 7/8"x46 1/2" (24x476x1181)

(2) GP1 - GABLE PANEL - W2A02091

1 1/8"x53 1/2"x16 3/8" (27x1359x414)

Parts Identification

Wood Components

(NOT TO SCALE)

(2) RP1 - BOTTOM ROOF PANEL - W2A02092

1 3/8"x48"x19 3/8" (35x1220x491)

(2) RP2 - TOP ROOF PANEL - W2A02093

1 3/8"x48"x19 1/8" (35x1220x486)

(4)

CV - SCREW PFH 8x1/2 - H100124

(86)

BR - SCREW PFH 8x1 1/8 - H100088

(2)

BQ - SCREW PFH 8x1 1/4 - H100087

(245)

BP - SCREW PFH 8x1 1/2 - H100086

(13)

BS - SCREW PFH 8x1 3/4 - H100089

(41)

BW - SCREW PFH 8x3 - H100092

Parts Identification

Hardware

(1)

KA - BOLT WH 5/16x4 1/2 BLK - H100534

(3)

VN - BOLT WH 5/16x2-3/4 BLK - H100195

(2)

VM - BOLT WH 5/16x2-1/2 BLK - H100194

(7)

VY - BOLT WH 5/16x2-1/4 BLK - H100205

(4)

VW - SCREW PFH 8x1/2 BLK - H100203

(70)

- SCREW PFH 8x1 1/4 BLK - H100387

(17)

VT - SCREW PFH 8x1-1/2 BLK - H100200

(4)

- SCREW PFH 8x1 3/4 BLK - H100382

(24)

- SCREW PFH 8x2 BLK - H100391

(22)

CY - SCREW PWH 8x5/8 - H100128

(52)

- BOLT WH 5/16x2 BLK - H100457

(10)

- BOLT WH 5/16x1 3/4 BLK - H100378

(7)

- BOLT WH 5/16x1 1/2 BLK - H100407

(9)

- BOLT WH 5/16x1 1/4 BLK - H100459

(28)

BE - T-NUT 1/4 - H100072

(7)

BG - T-NUT 5/16 - H100074

(2)

- T-NUT 1/4 BLK - H100398

(79)

- T-NUT 5/16 BLK - H100379

(9)

- BOLT WH 5/16x1/2 BLK - H100396

(7)

CM - BOLT WH 5/16x1/2 - H100115

(9)

YK - BOLT WH 5/16x3/4 - H100222

(2)

G - BOLT WH 5/16x1 1/4 - H100009

(1)

- BOLT WH 1/4x1/2 BLK - H100401

Parts Identification

Hardware

(4)

LC - LAG SCREW WH 1/4x1-1/2 BLK - H100403

(2)

- LAG SCREW WH 1/4x2 BLK - H100487

(4)

(2)

AN - BOLT HEX 5/16x2-3/4 - H100047

AG - BOLT HEX 5/16x1 - H100040

(2)

- BOLT WH 1/4x5/8 BLK - H100486

(2)

KZ - BOLT WH 1/4x1-1/4 - H100142

(43)

- LAG SCREW WH 5/16x1 1/2 BLK - H100471

(9)

- LAG SCREW WH 5/16x2 BLK - H100458

(26)

BA - BOLT PTH 1/4x3/4 - H100063

(9)

C - NUT BARREL WH 5/16x1 1/2 - H100006

(7)

- NUT BARREL WH 5/16x5/8 BLK - H100469

(13)

VK - NUT BARREL WH 5/16x7/8 BLK - H100192

(2)

VZ - LAG SCREW WH 5/16x3 BLK - H100206

(7)

LC - LAG SCREW WH 1/4x1-1/2 - H100145

(2)

VL - NUT BARREL WH 5/16x1-1/2 BLK - H100193

(2)

KS - NUT BARREL WH 1/4x5/8 - H100136

(1)

- NUT BARREL WH 1/4x7/8 BLK - H100399

Parts Identification

Hardware

(9)

CJ - NUT LOCK 5/16 - H100110

(4)

BX - WASHER SPLIT 5/16 - H100095

(26)

CG - WASHER LOCK INT 8x15 - H100108

(16)

CD - WASHER FLAT 8x27 - H100105

(7)

- WASHER LOCK EXT 6x15 BLK - H100405

(133)

VR - WASHER LOCK EXT 8x19 BLK - H100198

(17)

VS - WASHER LOCK EXT 12x19 BLK - H100199

(8)

KV - WASHER LOCK EXT 6x15 - H100138

(7)

CB - WASHER SAFETY 17x30 - H100103

(9)

AC - WASHER LOCK EXT 8x19 - H100030

Parts Identification

Hardware

9
9
0
0
0
1

H

-

)
6

(

K
N

I
L

K
C

I
U
Q

R
E
G
N
A
H

G
N

I
W

S
"

2

/
1

9

­Z

B

(2)

- T-30 TORX WRENCH - H100114

2
4
0
0
0
1

A

­T

I
B

X
R
O

T
0

4

­T

-

)
2

(

(2)

- T-30 TORX BIT - H100147

)
2

(

1
4
0
0
0
1

A

­H

C
N
E
R

W
X

R
O

T
0

4

­T

-

Parts Identification

(NOT TO SCALE)

(2)

DP - SWING SEAT GREEN - A100027

(1)

DR - SLIDE RAIL 10' BOTTOM LEFT GREEN - A100030

Accessories

(2)

SY - PLASTIC SUNBURST - A100322

(4)

DW - SLIDE SUPPORT TUBE 21.34x505 - A100034

(1)

DS - SLIDE RAIL 10' BOTTOM RIGHT GREEN - A100031

(1)

DT - SLIDE RAIL 10' TOP LEFT GREEN - A100032

(1)

TR - SLIDE RAIL 10' TOP RIGHT GREEN - A100033

(1)

DX - SLIDE BED 10' LIGHT GREEN - A100035

Parts Identification

(1)

(4)

EA - HAND GRIP YELLOW PLASTIC - A100043

Accessories

(NOT TO SCALE)

SQ - "A" REVISION TAG - A100314

(2)

(6)

FA - QUICK LINK - A100069

GD - L BRACKET 66x66x127 - A100140

(2)

- 90° L-BRACKET - BLK - A4M00555

(1)

LP - STEERING WHEEL - A100105

(1)

(1)

TC - SWING BEAM EXTENSION BRACKET-RIGHT - A100326

HC - BYD ID TAG (LARGE) WITHOUT AGES - A100242(1)

TB - SWING BEAM EXTENSION BRACKET-LEFT - A100325

(2)

- L BRACKET BLACK 32x51 - A4M00710

(6)

- GROUND STAKE REBAR - A4M00527

(2)

KN - CHAIN GREEN 31" - A100177

(4)

EZ - CHAIN GREEN 51.25" - A100068

(1)

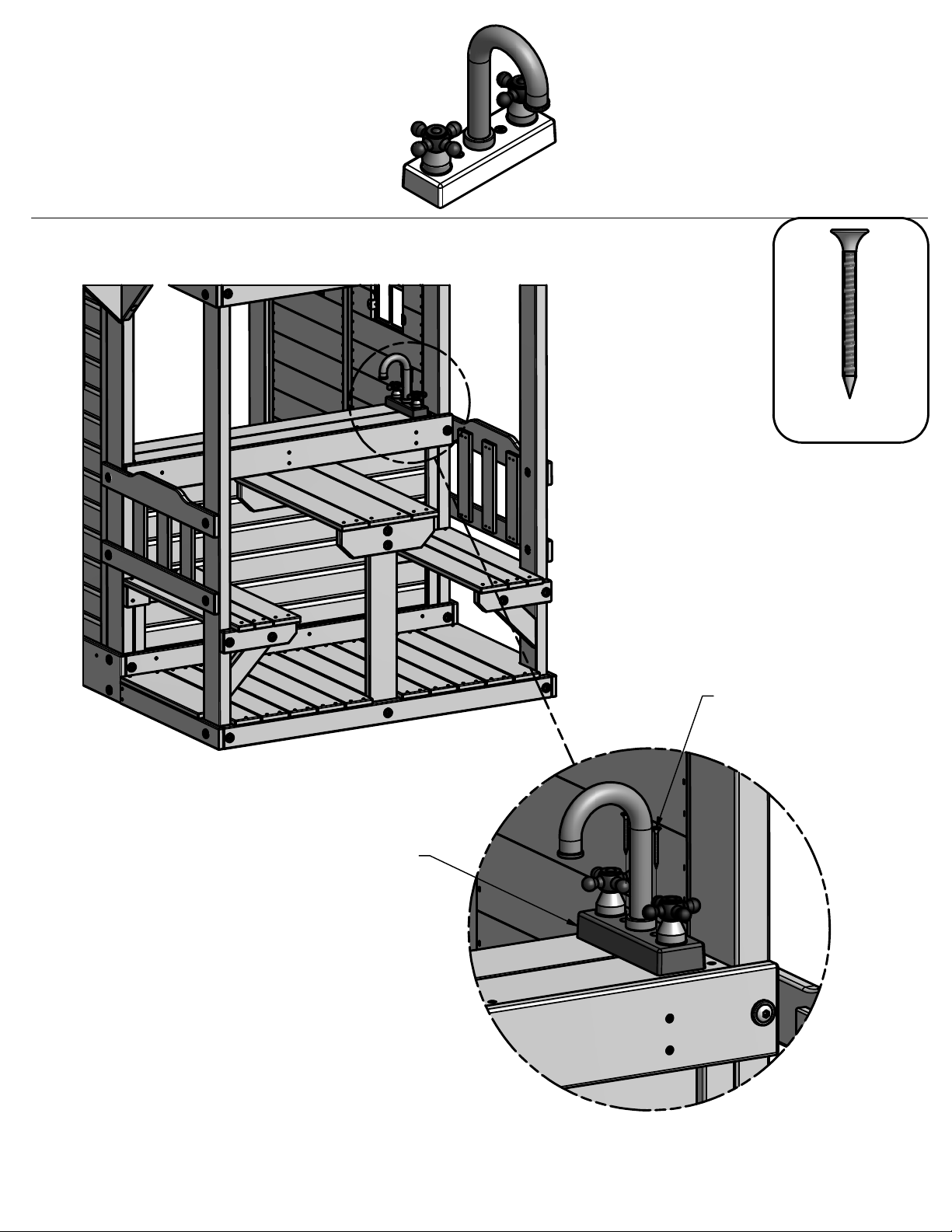

- FAUCET KIT - A6P00024

Parts Identification

Accessories

(NOT TO SCALE)

(1)

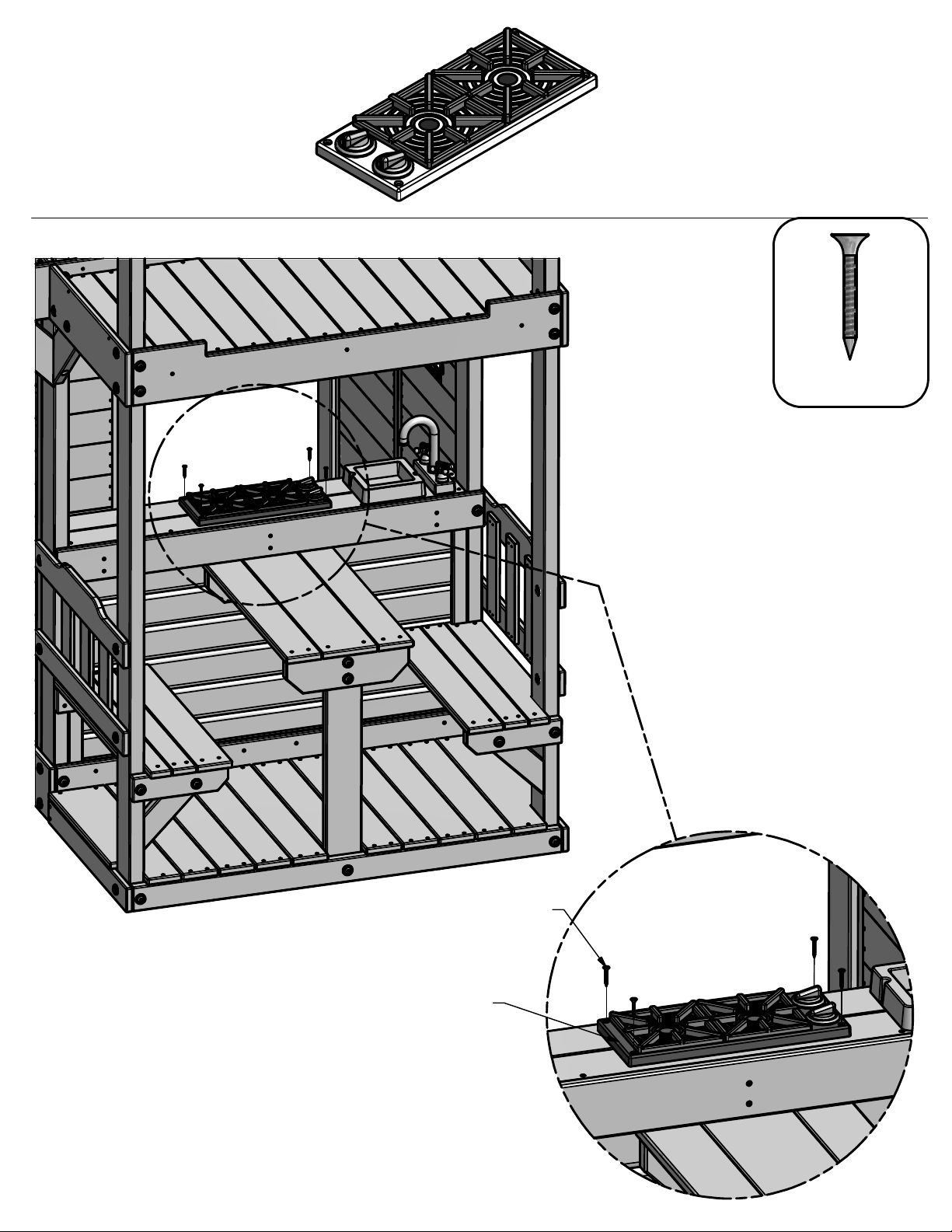

- STOVE KIT - A6P00025

(1)

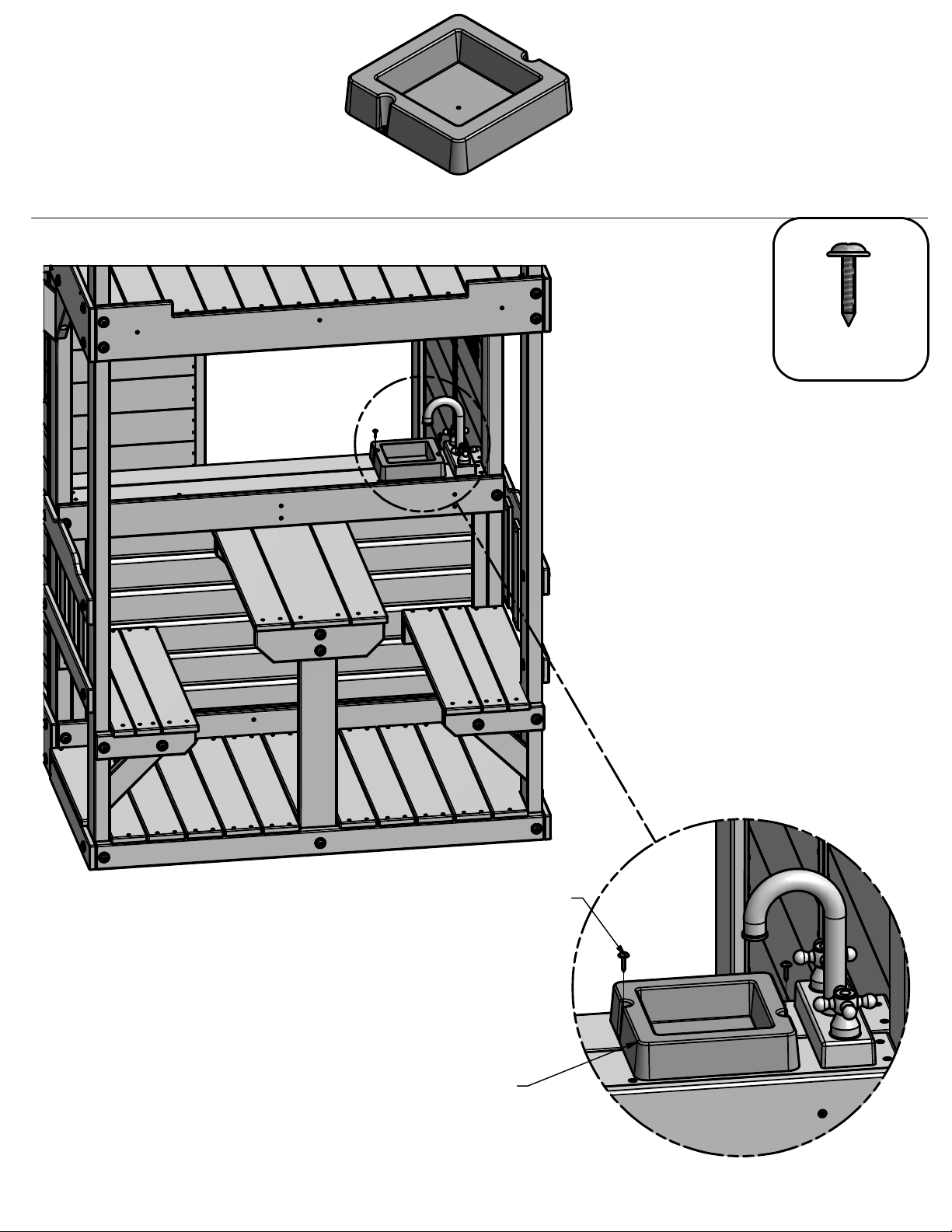

- SURFACE MOUNT BASIN - A6P00032

(1)

- TRAPEZE - A6P00034

(3)

- GREEN HC ROCK #1 - A6P00036

(3)

- RED HC ROCK #1 - A6P00038

(3)

- BLUE HC ROCK #2 - A6P00040

(3)

LN - Telescope - A6P00096(1)

- YELLOW HC ROCK #1 - A6P00042

Parts Identification

Accessories

(NOT TO SCALE)

APPLE

WATERMELON

CORN

PLASTIC KNIFE

ORANGE

STRAWBERRY

CARROT

CUTTING BOARD

(1)

FRUIT BASKET KIT - A6P00069

H77 - LEFT UPRIGHT - W4L07617

(1)

1"x3 3/8"x58" (24x86x1474)

H76 - LADDER RUNG - W4L07620

(4)

1"x3 3/8"x17 1/4" (24x86x437)

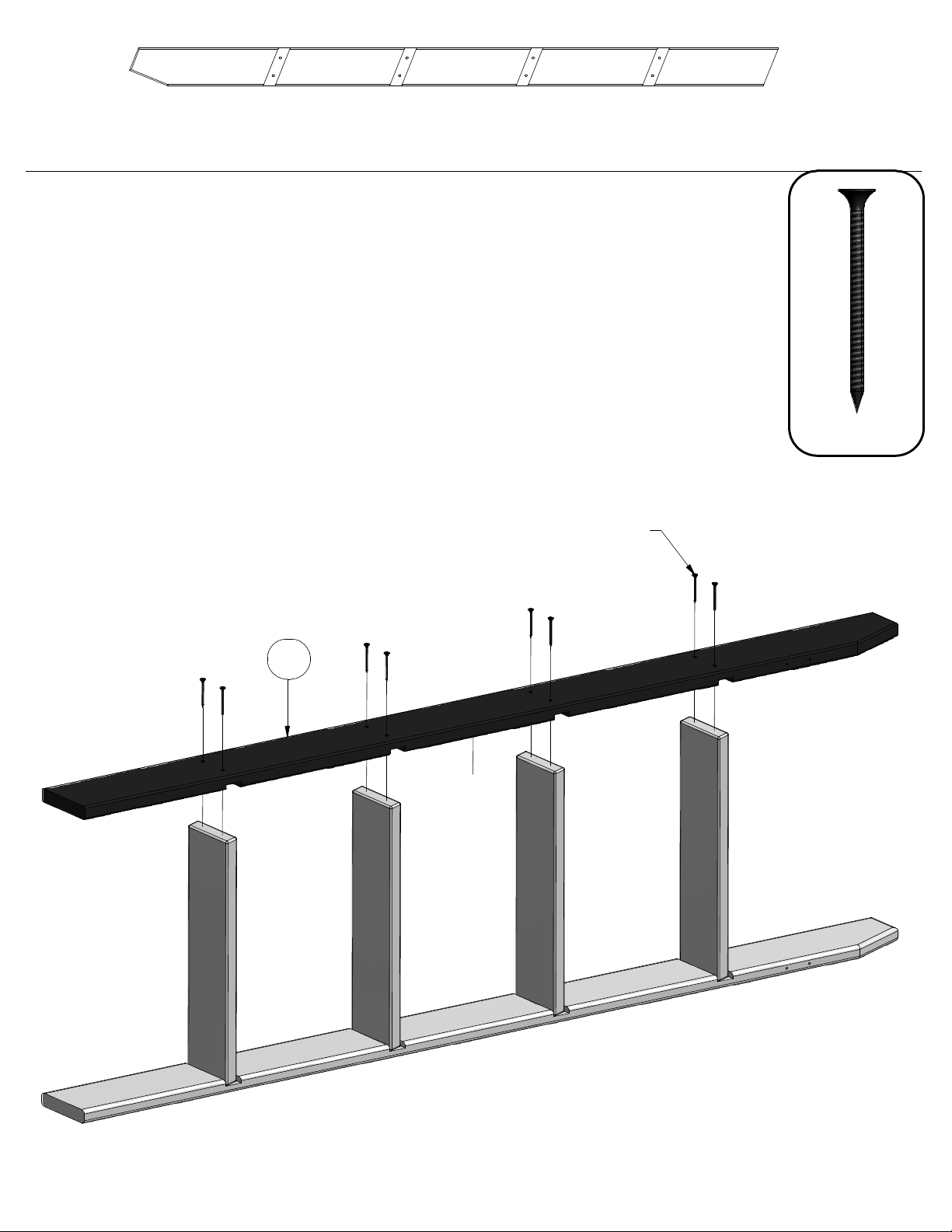

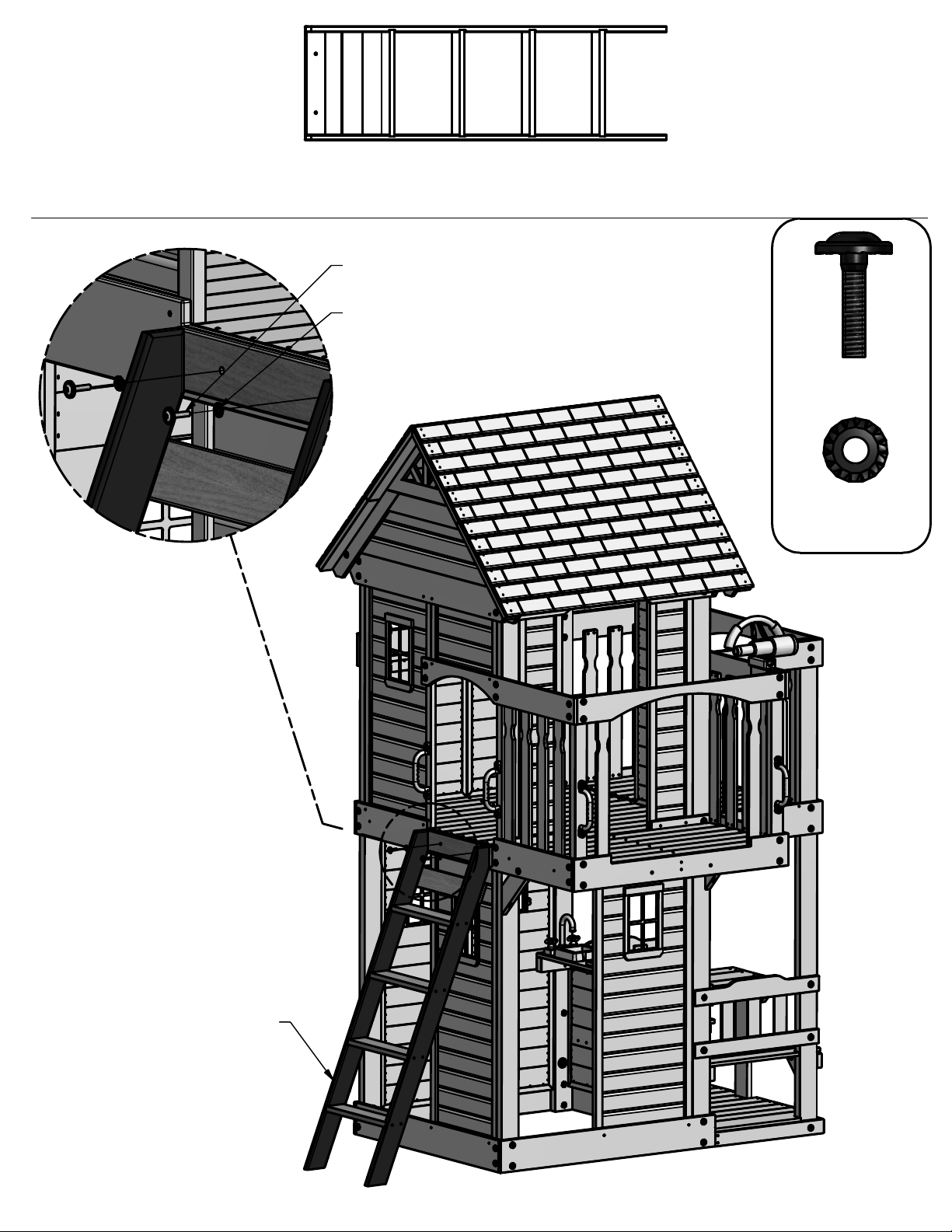

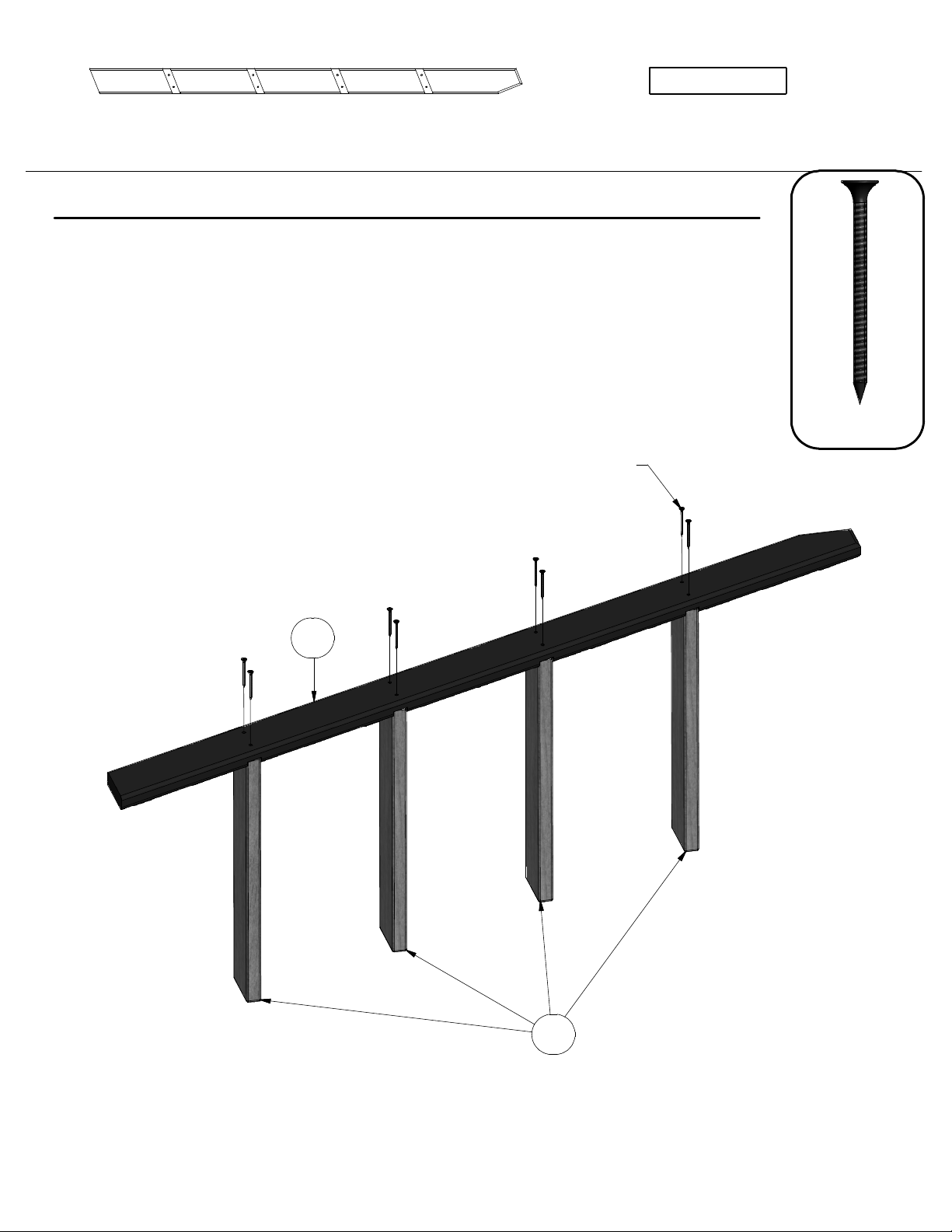

4 FT LADDER WITH ATTACHMENT BOARD

STEP 1

SCREW PFH 8x2 BLK

(8 PLCS)

(8)

SCREW PFH

8x2 BLK

H77

H76

STEP 2

H78 - RIGHT UPRIGHT - W4L07618

(1)

1"x3 3/8"x64 3/8" (24x86x1634)

SCREW PFH 8x2 BLK

(8 PLCS)

(8)

SCREW PFH

8x2 BLK

H78

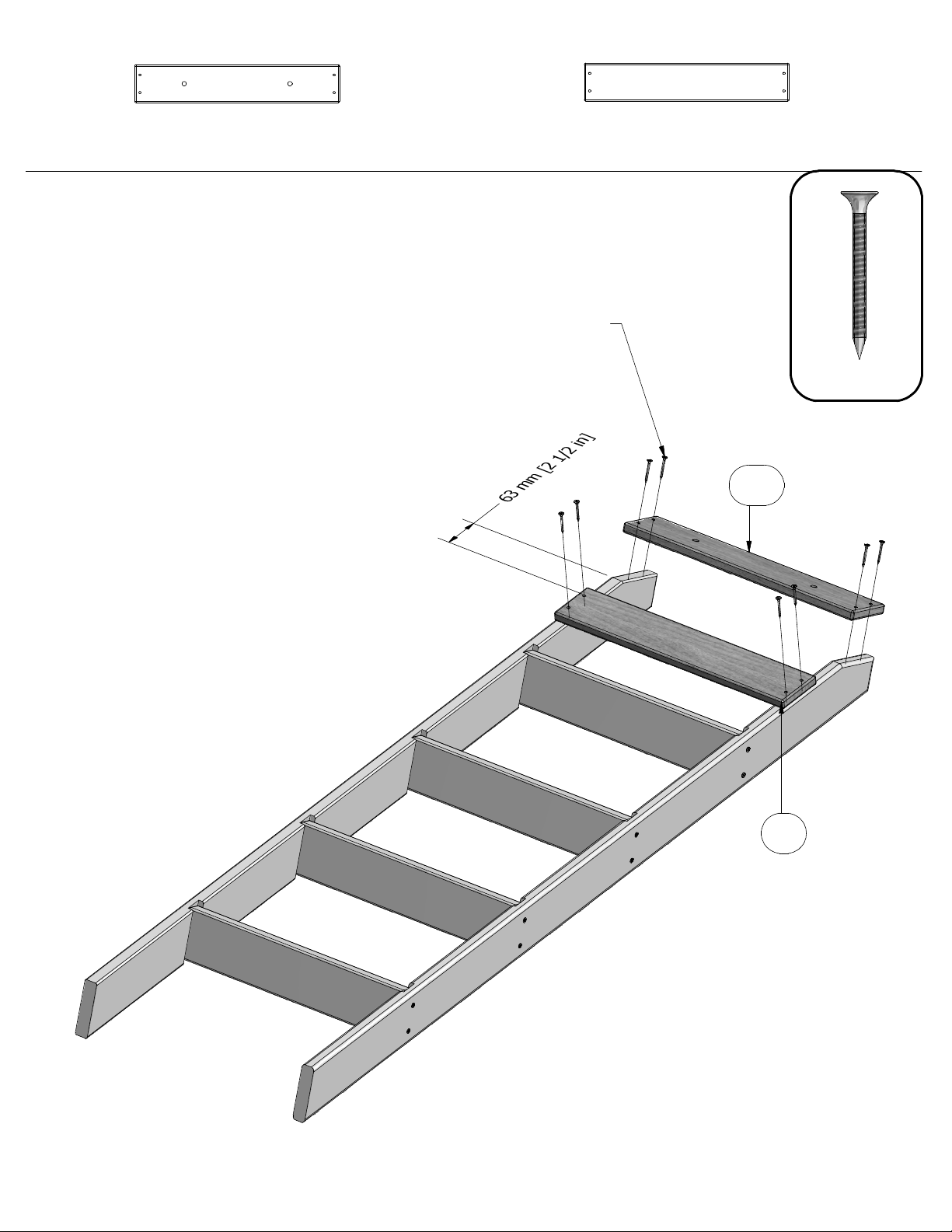

STEP 3

M110 - ATTACHMENT BOARD - W4L07621

(1)

5/8"x3 3/8"x18 1/4" (16x86x465)

(1)

SCREW PFH 8x1 1/2

(8 PLCS)

M73 - REAR SUPPORT - W4L07619
5/8"x3 3/8"x18 1/4" (16x86x465)

M110

(8)

SCREW PFH

8x1 1/2

M73

E72 - LEFT RAIL - W4L07622

(1)

1 3/8"x3 3/8"x54 7/8" (36x86x1395)

M74 - ROCK WALL BOARD - W4L07624

(8)

5/8"x3 3/8"x25" (16x86x635)

E73 - RIGHT RAIL - W4L07623

(1)

1 3/8"x3 3/8"x54 7/8" (36x86x1395)

(1)

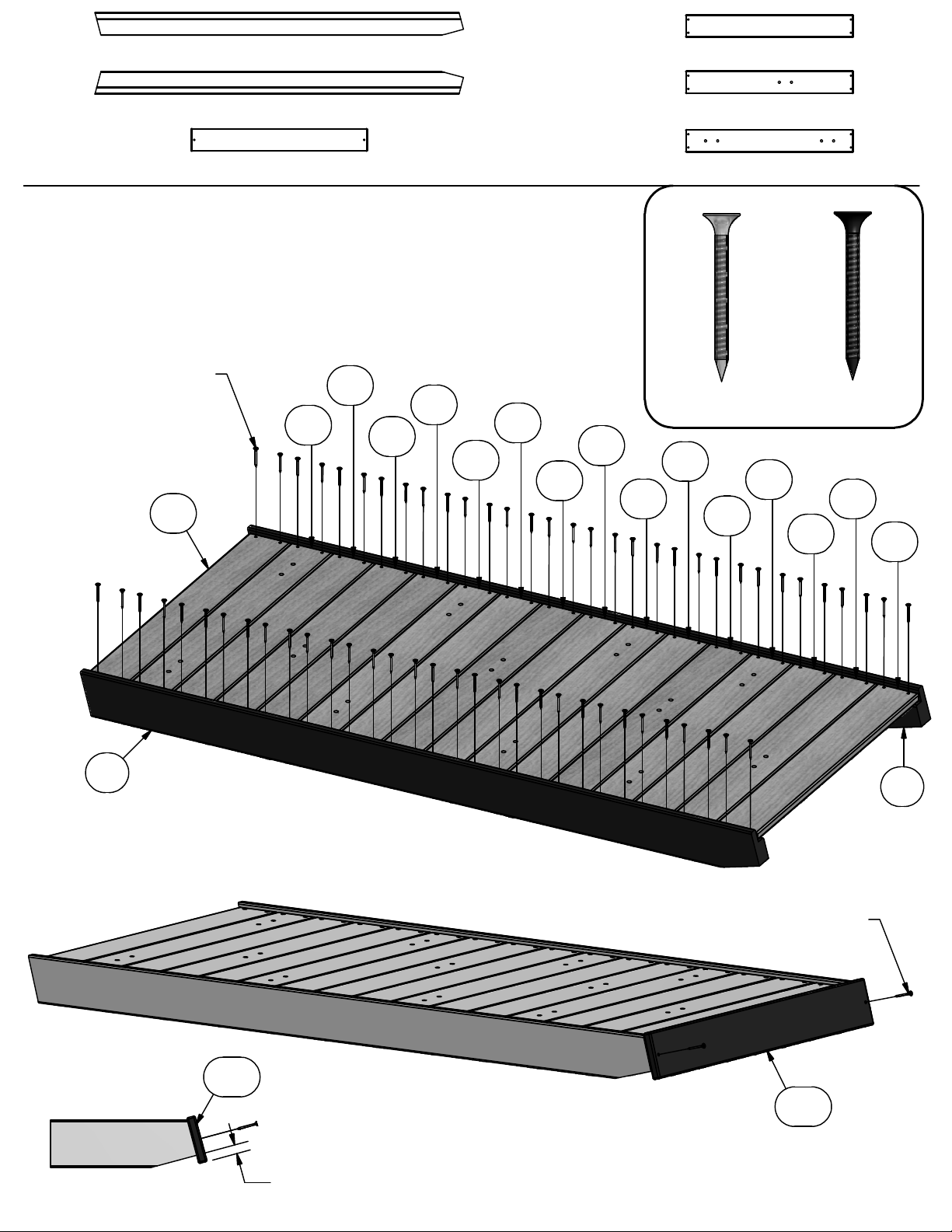

ROCKWALL
STEP 1

SCREW PFH 8x1 1/2

(64 PLCS)

M74

M108 - TOP BOARD - W4L07625
5/8"x3 3/8"x26 1/4" (16x86x667)

M74

M76

M75

M74

M76

M74

M75

M74

M75 - ROCK WALL BOARD - W4L07627

(4)

5/8"x3 3/8"x25" (16x86x635)

M76 - ROCK WALL BOARD - W4L07626

(4)

5/8"x3 3/8"x25" (16x86x635)

SCREW PFH

(64)

8x1 1/2

M74

M76

M76

M75

(2)

M74

SCREW PFH

8x1-1/2 BLK

M75

M74

E73

E72

SCREW PFH 8x1-1/2 BLK

(2 PLCS)

M108

M108

16 mm [5/8 in]

ROCKWALL
STEP 2

M102 - ATTACHMENT BOARD - W4L07628

(1)

5/8"x3 3/8"x26 1/4" (16x86x667)

(4)

SCREW PFH 8x1-1/2 BLK

(4 PLCS)

SCREW PFH

8x1-1/2 BLK

M102

(3)

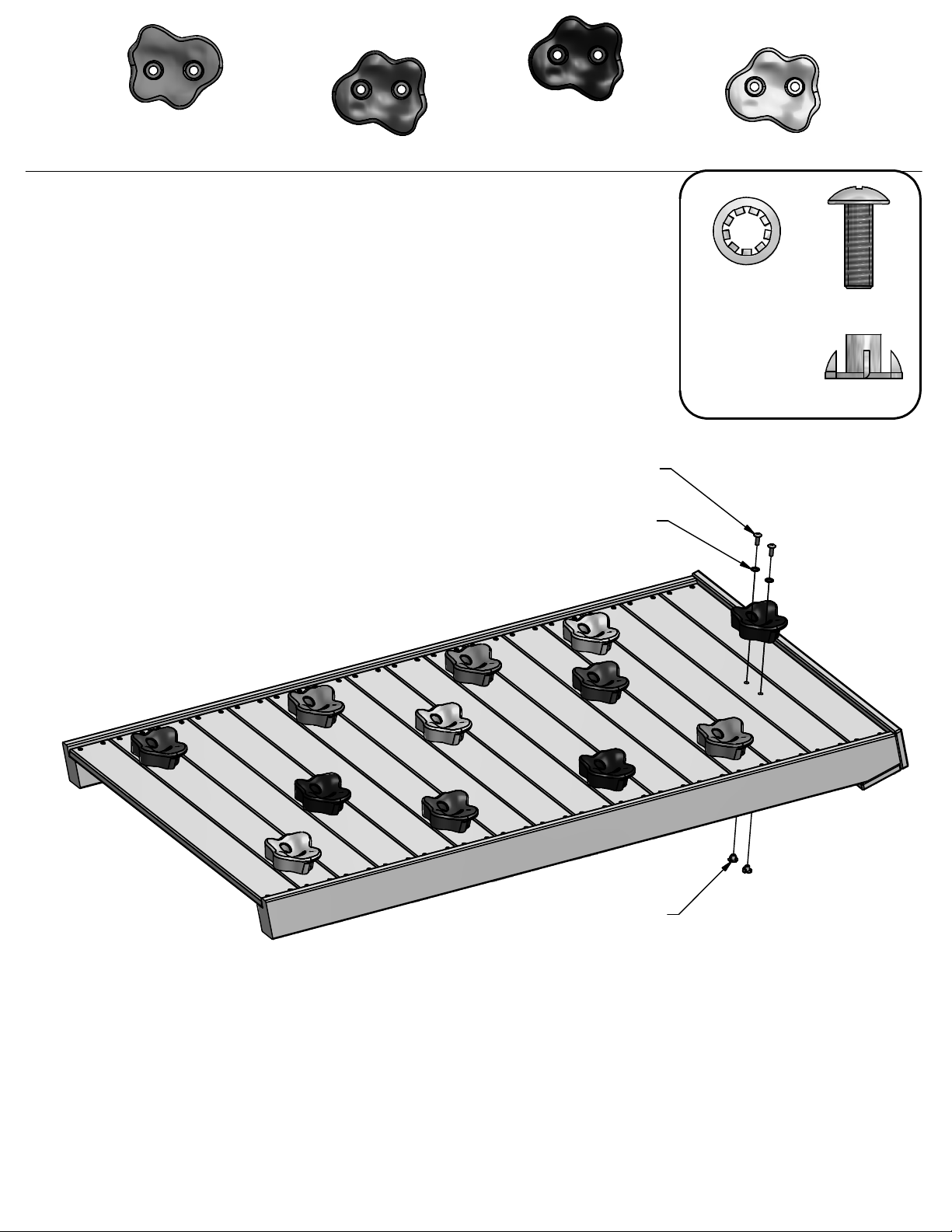

- GREEN HC ROCK #1 - A6P00036

ROCKWALL
STEP 3

(3)

- RED HC ROCK #1 - A6P00038

(3)

- BLUE HC ROCK #2 - A6P00040

BOLT PTH 1/4x3/4

(24 PLCS)

WASHER LOCK INT 8x15

(24 PLCS)

(3)

- YELLOW HC ROCK #1 - A6P00042

WASHER
LOCK INT

(24)

8x15

(24)

(24)

BOLT PTH

1/4x3/4

T-NUT 1/4

T-NUT 1/4
(24 PLCS)

(1)

TC - SWING BEAM EXTENSION BRACKET-RIGHT - A100326

(1)

TB - SWING BEAM EXTENSION BRACKET-LEFT - A100325

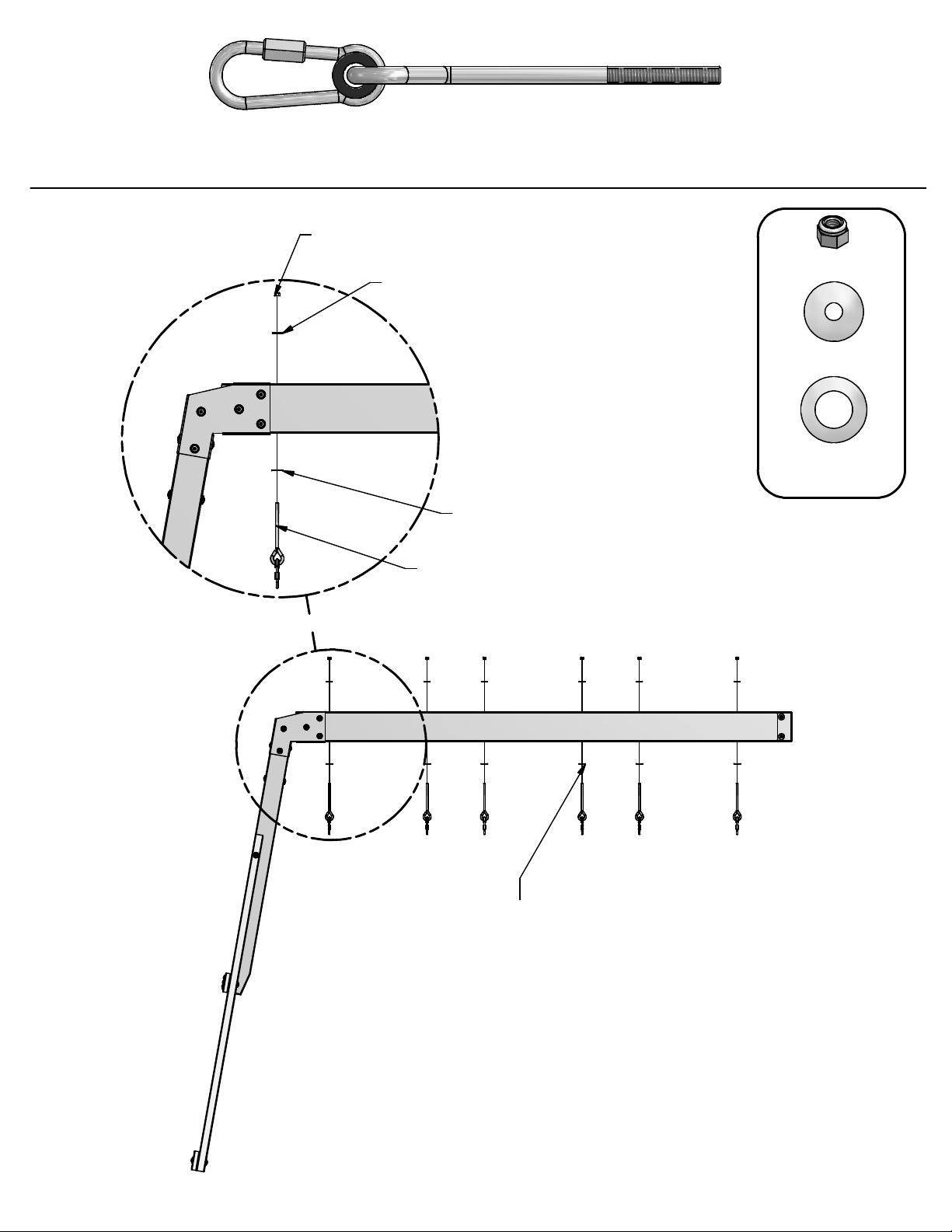

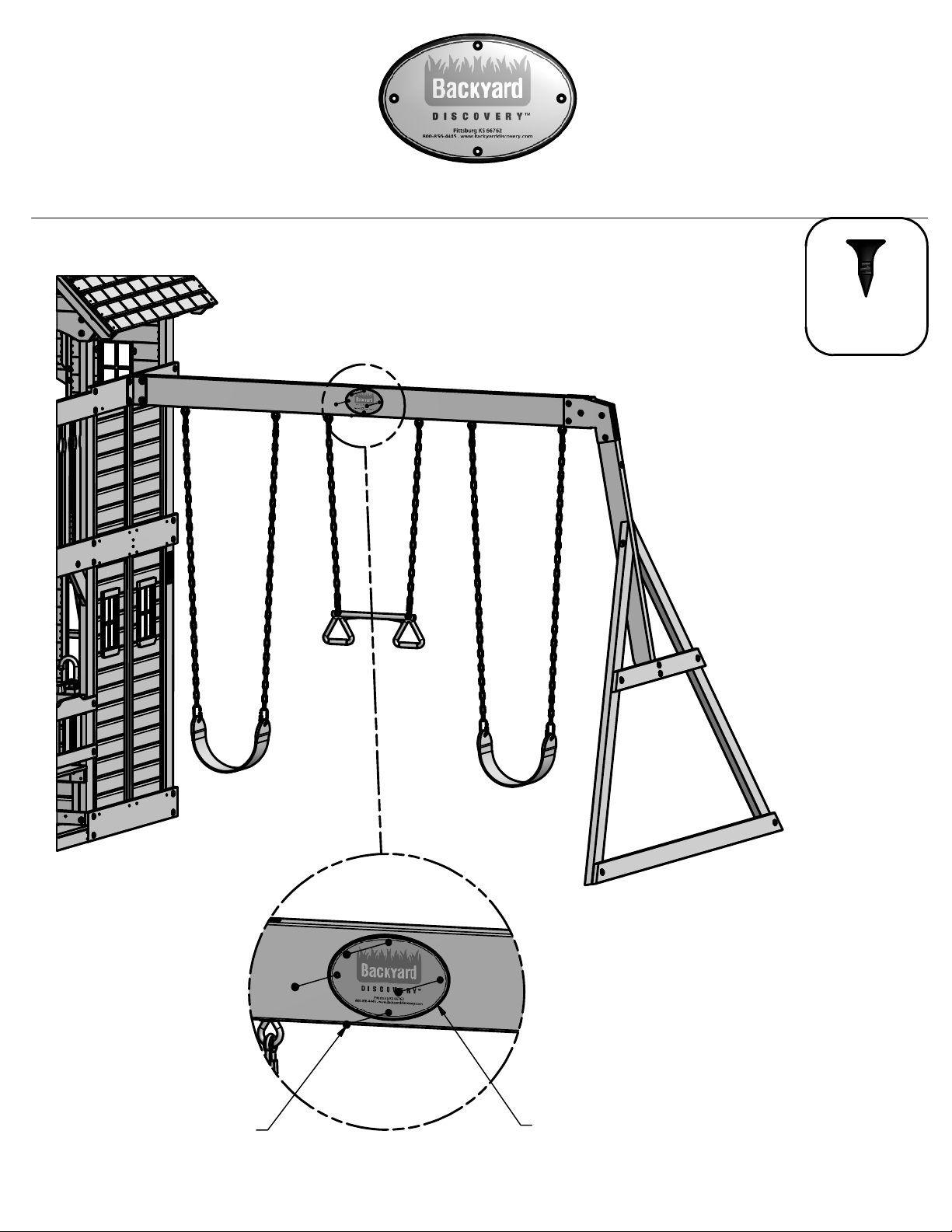

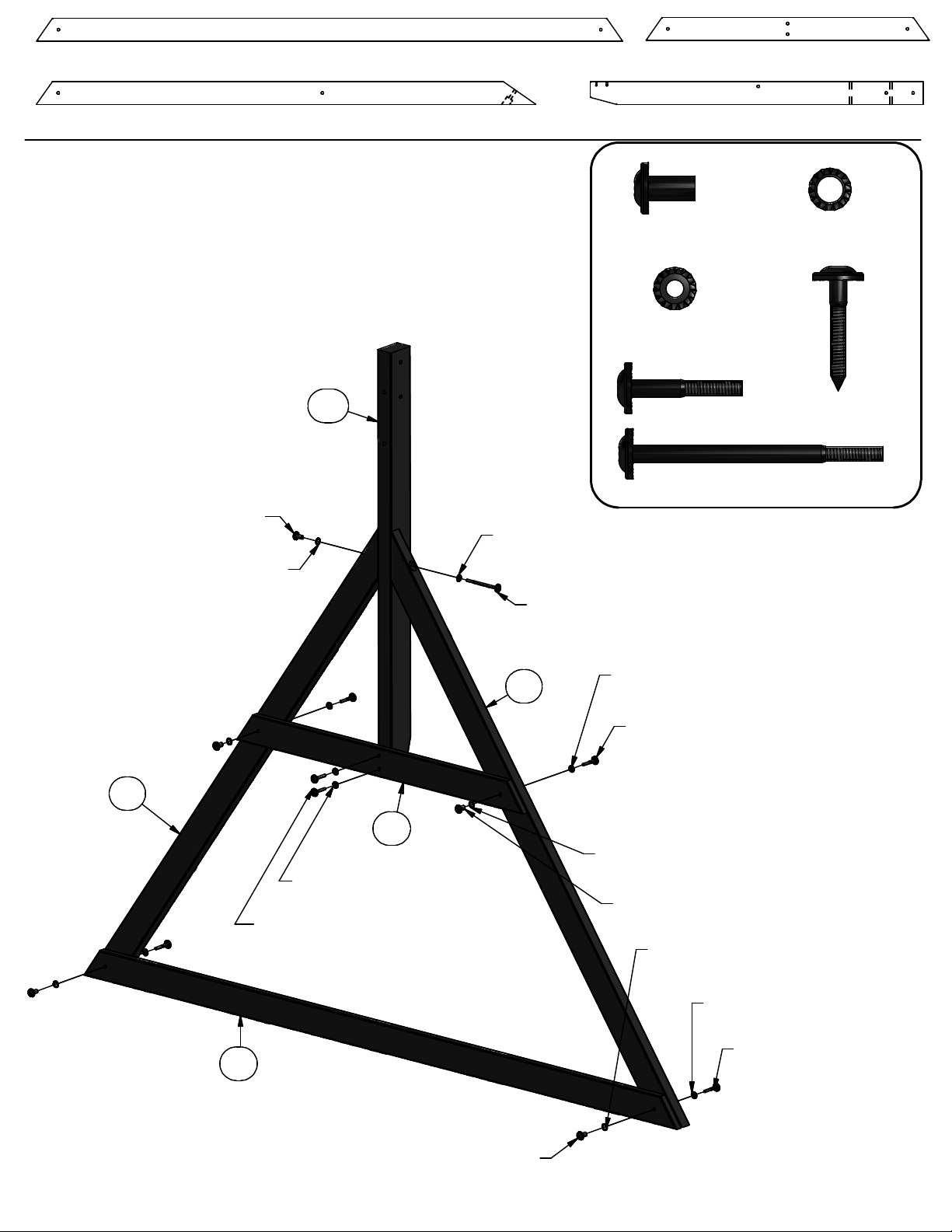

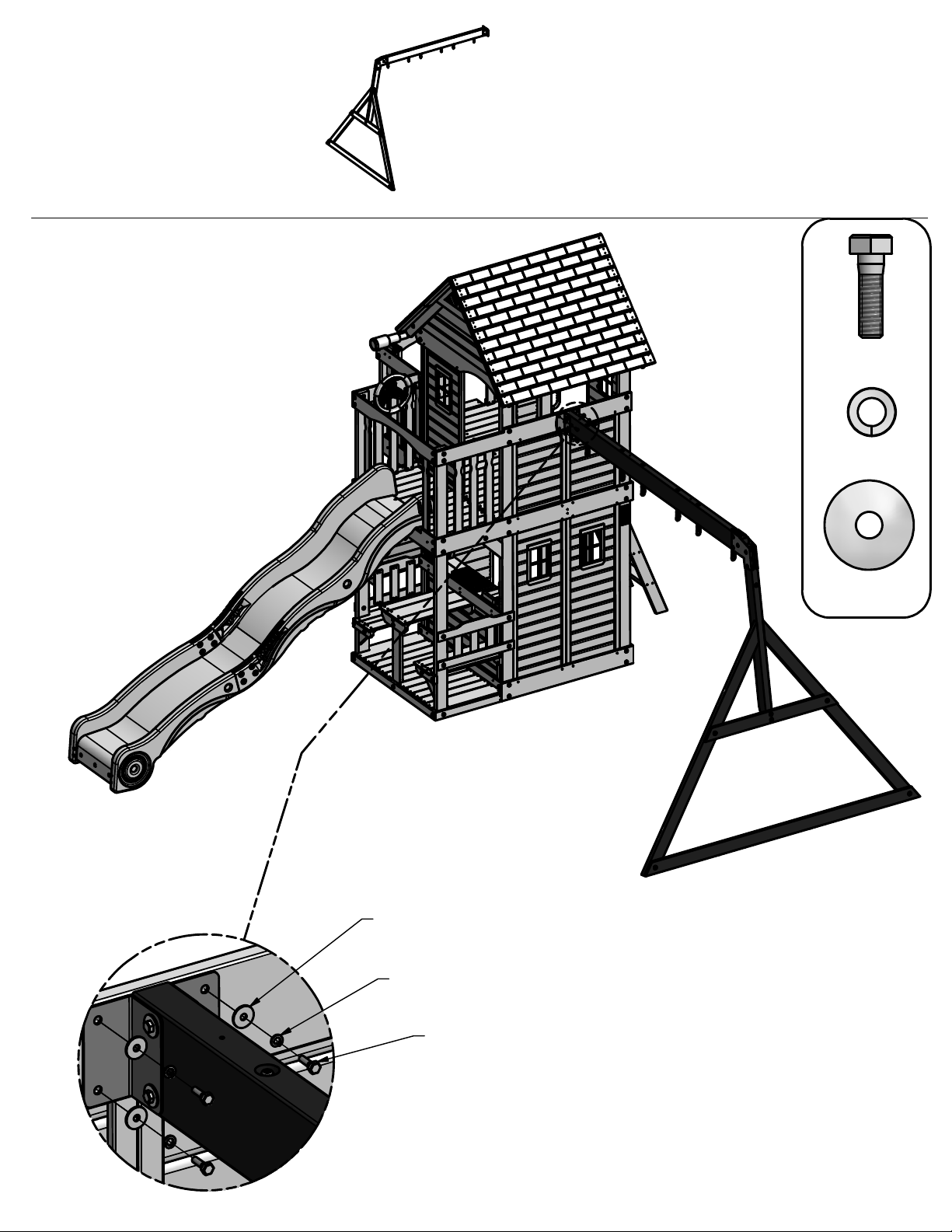

SWING BEAM ASSEMBLY

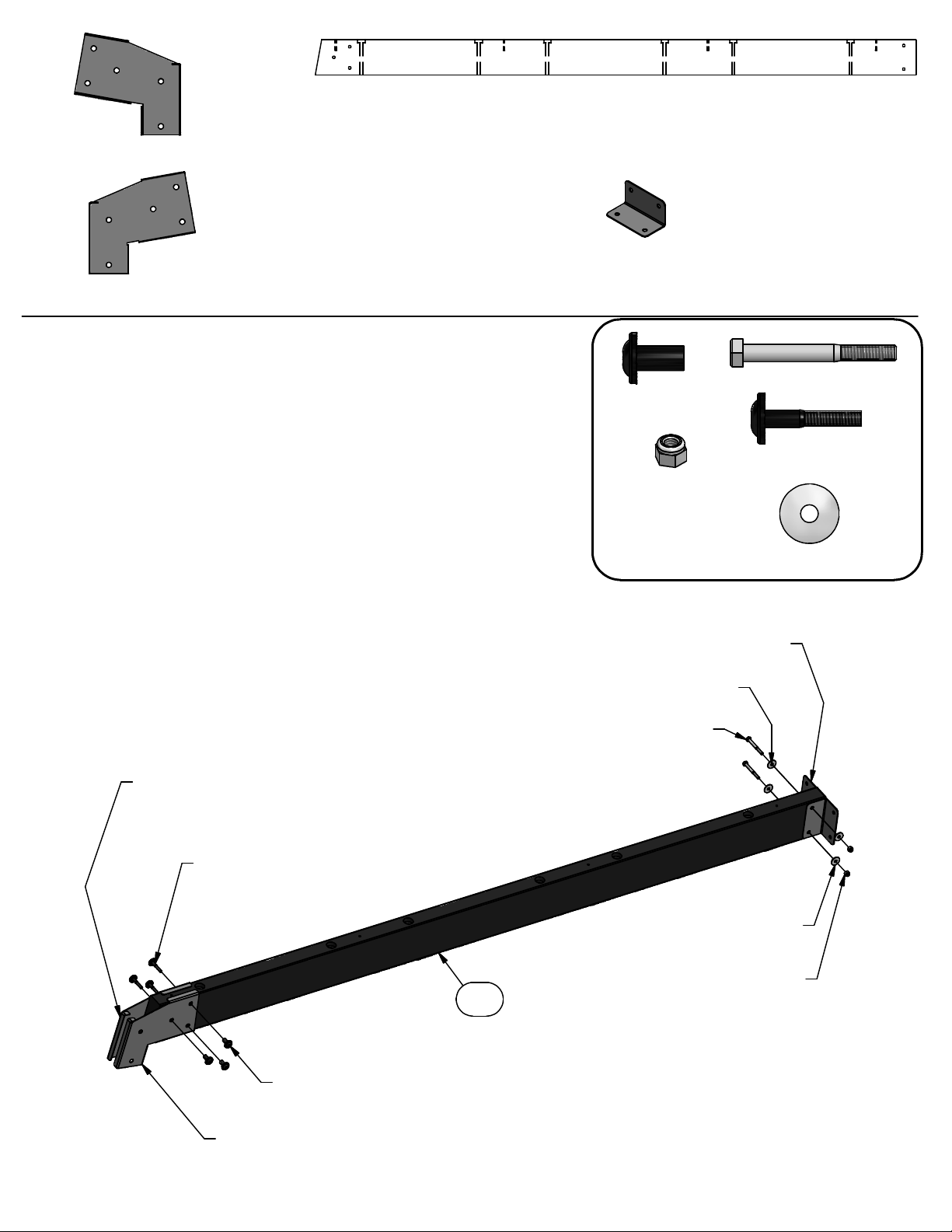

STEP 1

SB74 - SWING BEAM EXTENDED - W4L07633

(1)

2"x5 1/4"x89 1/2" (50x134x2274)

(2)

GD - L BRACKET 66x66x127 - A100140

NUT BARREL

(3)

WH 5/16x7/8

BLK

NUT LOCK

(2)

5/16

(3)

(2)

BOLT HEX

5/16x2-3/4

BOLT WH

5/16x1 3/4

BLK

SWING BEAM EXTENSION BRACKET-LEFT
(1 PLC)

BOLT WH 5/16x1 3/4 BLK
(3 PLCS)

SB74

L BRACKET 66x66x127

WASHER FLAT 8x27

(2 PLCS)

BOLT HEX 5/16x2-3/4

(2 PLCS)

WASHER FLAT 8x27

NUT LOCK 5/16

(4)

(2 PLCS)

(2 PLCS)

(2 PLCS)

WASHER

FLAT 8x27

NUT BARREL WH 5/16x7/8 BLK
(3 PLCS)

SWING BEAM EXTENSION BRACKET-RIGHT
(1 PLC)

H80 - GROUND BOARD - W4L07630

(1)

1"x3 3/8"x87 3/8" (24x86x2218)

H79 - END SUPPORT - W4L07632

(1)

1"x3 1/2"x42" (24x86x1072)

E77 - ANGLE BRACE - W4L07631

(2)

1 3/8"x3 3/8"x74 3/8" (36x86x1890)

SWING BEAM ASSEMBLY
STEP 2

NUT BARREL WH 5/16x7/8 BLK

(1 PLC)

WASHER LOCK EXT 12x19 BLK

(1 PLC)

W71

W71 - SWING BEAM SUPPORT - W4L07629

(1)

2"x3 3/8"x49 5/8" (50x86x1260)

NUT BARREL

WH 5/16x7/8

(5)

(7)

(4)

BLK

WASHER

LOCK EXT

8x19 BLK

BOLT WH

5/16x2 BLK

(1)

WASHER LOCK EXT 8x19 BLK
(1 PLC)

BOLT WH 5/16x4 1/2 BLK
(1 PLC)

BOLT WH

5/16x4 1/2

BLK

(5)

(2)

WASHER

LOCK EXT

12x19 BLK

LAG SCREW

WH 5/16x2

BLK

E77

H79

WASHER LOCK EXT 8x19 BLK
(2 PLCS)

LAG SCREW WH 5/16x2 BLK
(2 PLCS)

H80

E77

WASHER LOCK EXT 8x19 BLK
(2 PLCS)

BOLT WH 5/16x2 BLK
(2 PLCS)

WASHER LOCK EXT 12x19 BLK
(2 PLCS)

NUT BARREL WH 5/16x7/8 BLK
(2 PLCS)

WASHER LOCK EXT 12x19 BLK
(2 PLCS)

WASHER LOCK EXT 8x19 BLK
(2 PLCS)

BOLT WH 5/16x2 BLK
(2 PLCS)

NUT BARREL WH 5/16x7/8 BLK

(2 PLCS)

SWING BEAM ASSEMBLY
STEP 3

BOLT WH 5/16x1 3/4 BLK

(2 PLCS)

(2)

NUT BARREL

(2)

WH 5/16x7/8

BOLT WH

5/16x1 3/4

BLK

BLK

(2)

(2)

WASHER

LOCK EXT

8x19 BLK

WASHER

LOCK EXT

12x19 BLK

NUT BARREL

WH 5/16x1-1/2

(2)

BLK

(2)

BOLT WH

5/16x2-1/2

BLK

BOLT WH 5/16x2-1/2 BLK

(2 PLCS)

WASHER LOCK EXT 8x19 BLK

(2 PLCS)

NUT BARREL WH 5/16x7/8 BLK
(2 PLCS)

NUT BARREL WH 5/16x1-1/2 BLK
(2 PLCS)

WASHER LOCK EXT 12x19 BLK
(2 PLCS)

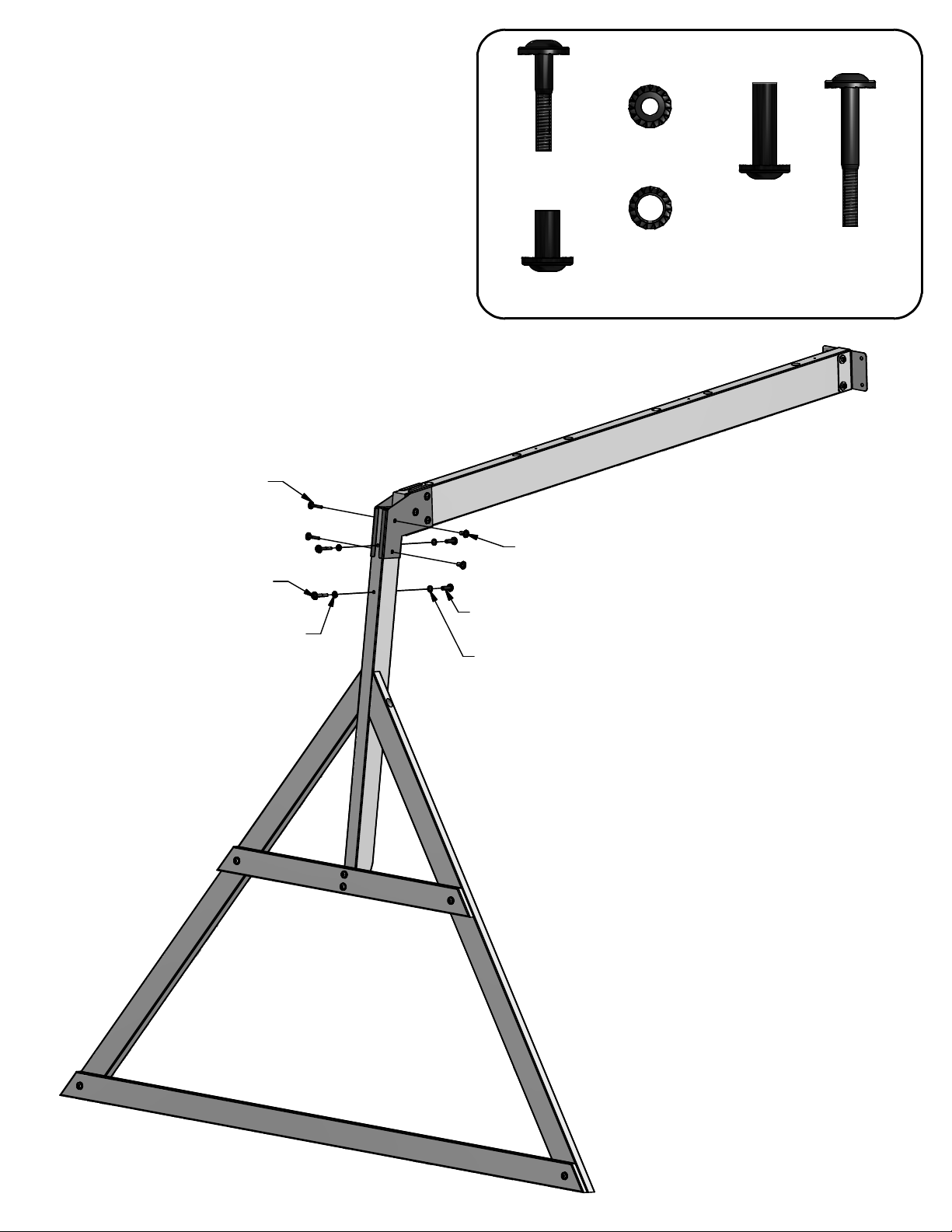

SWING BEAM ASSEMBLY
STEP 4

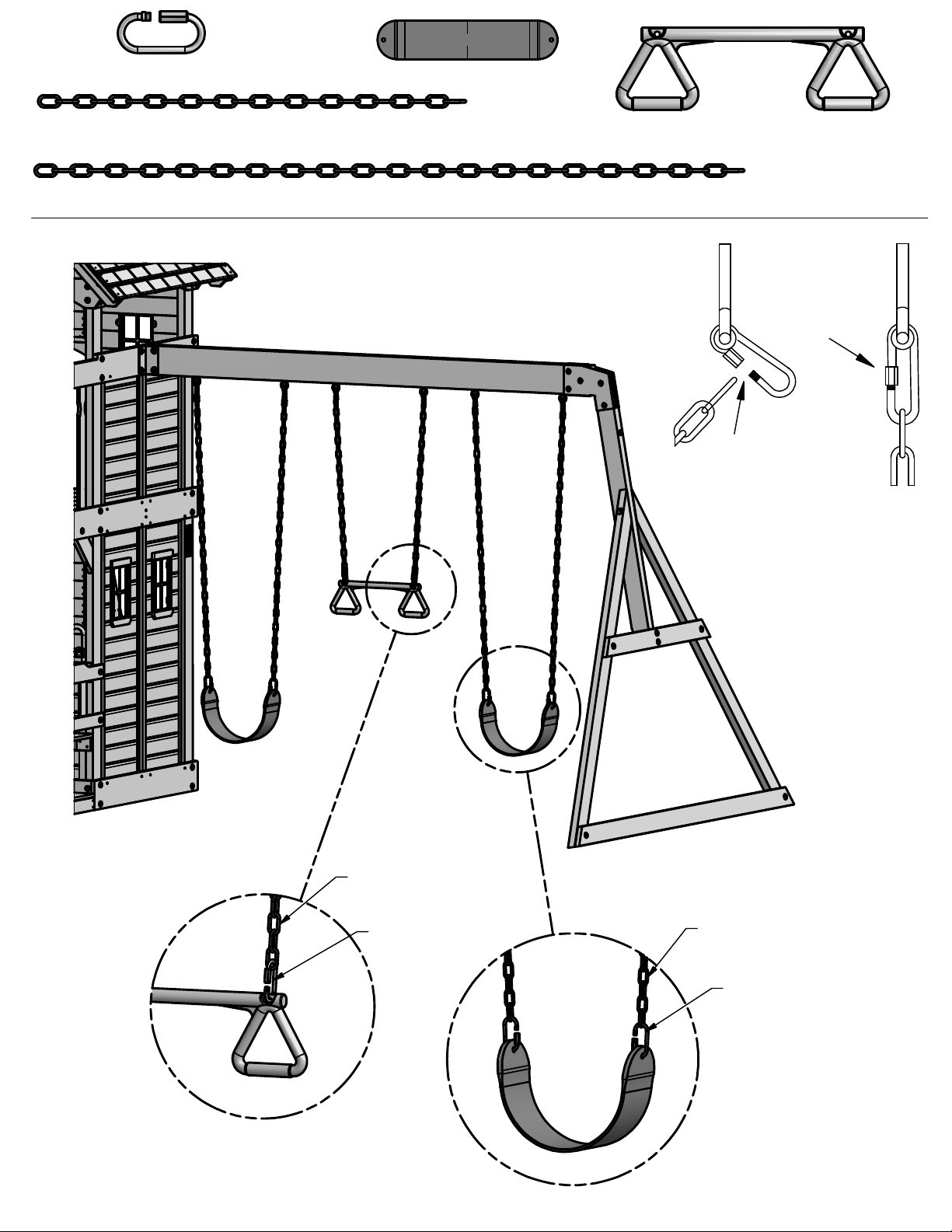

(6)

BZ - 9 1/2" SWING HANGER QUICK LINK - H100099

NUT LOCK 5/16
(6 PLCS)

WASHER FLAT 8x27
(6 PLCS)

WASHER SAFETY 17x30
(6 PLCS)

(6)

(6)

(6)

NUT LOCK

5/16

WASHER

FLAT 8x27

WASHER

SAFETY

17x30

9 1/2" SWING HANGER QUICK LINK
(6 PLCS)

NOTE: AS YOU TIGHTEN MAKE SURE SAFETY WASHERS
GET WEDGED BETWEEN THE BOARD AND SWING HANGER.

(1)

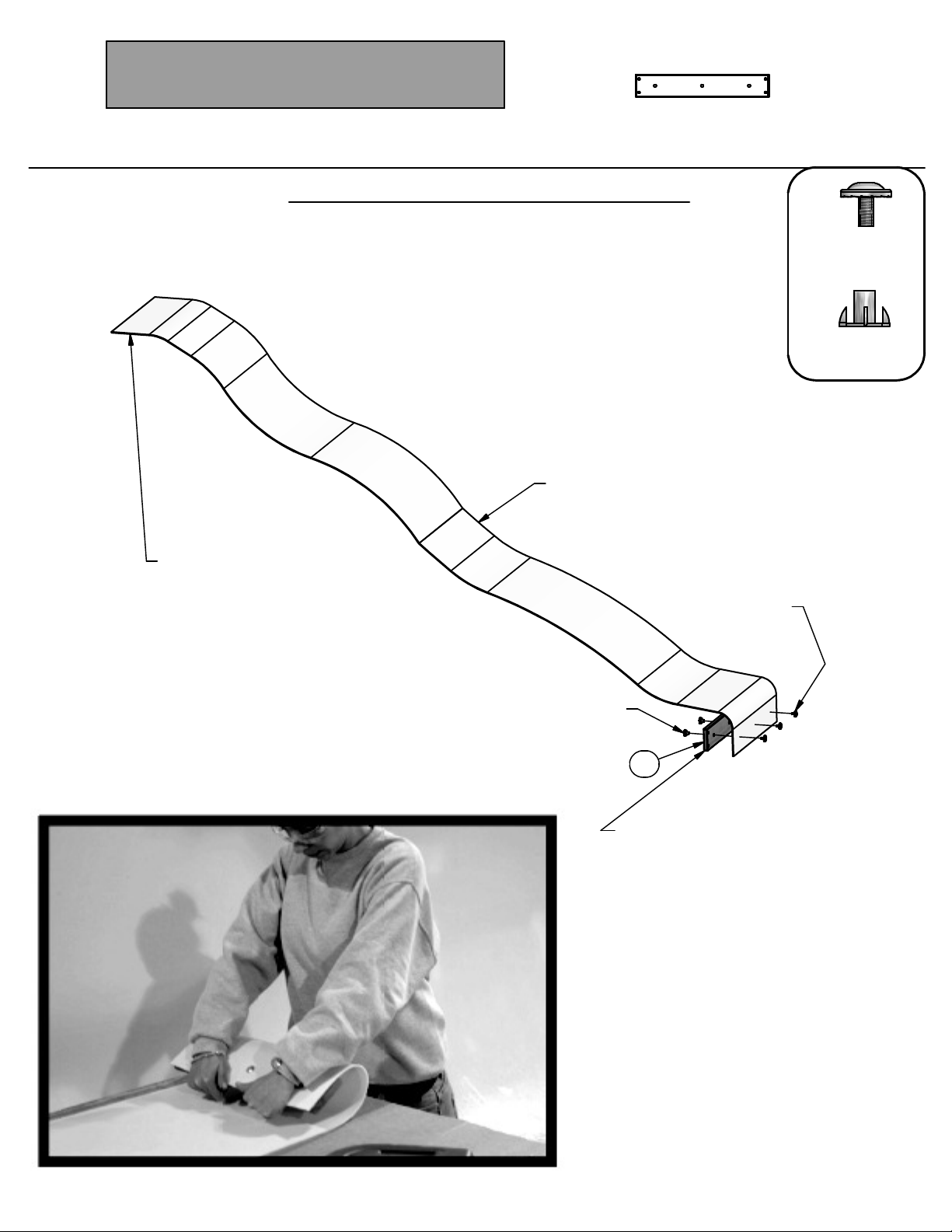

DX - SLIDE BED 10' LIGHT GREEN - A100035

M70 - SLIDE BED SUPPORT - W100935

(1)

5/8"x3 3/8"x19 7/8" (16x86x505)

STEP 1

TOP

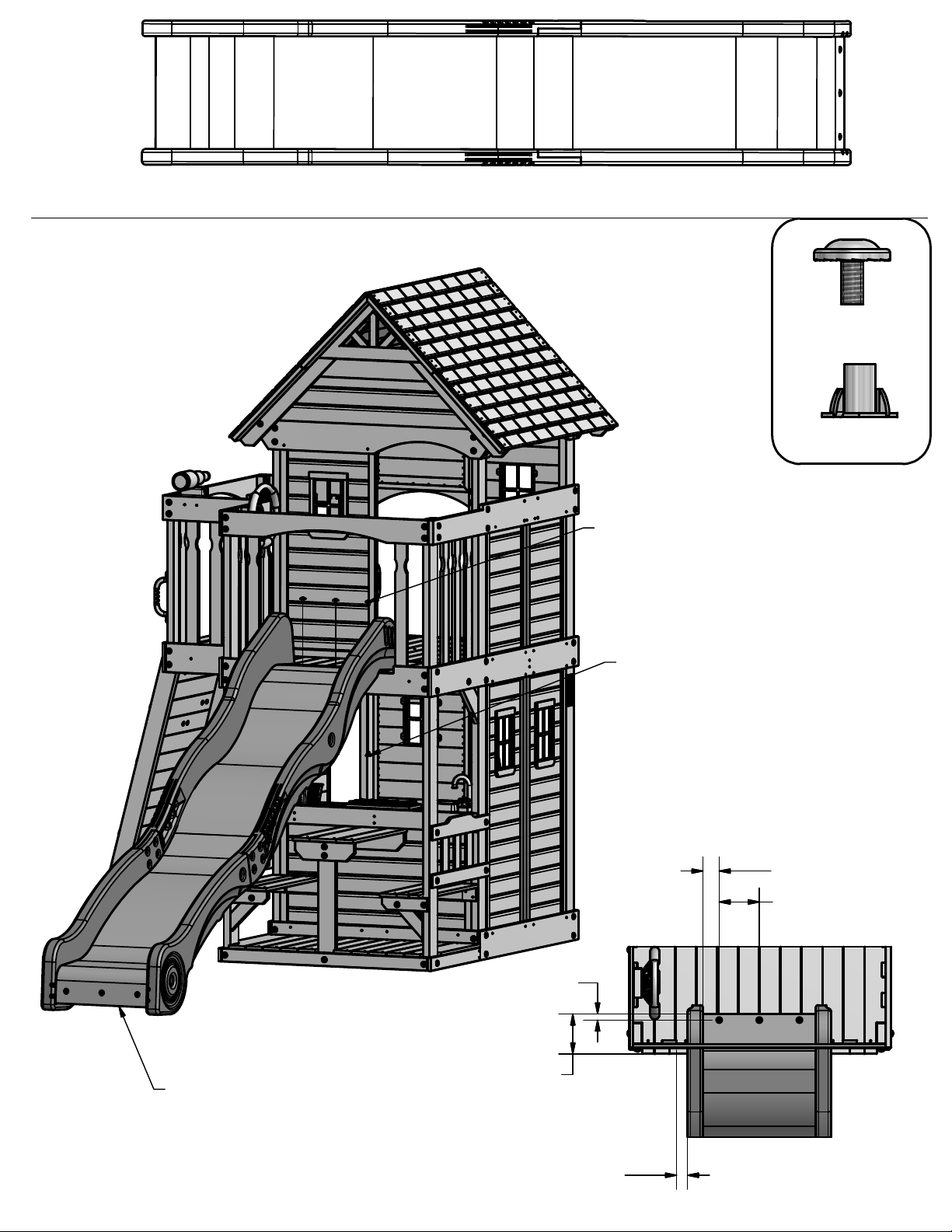

10 FOOT SLIDE ASSEMBLY

(SEE SLIDE ASSEMBLY
INSTALLATION STEP FOR
DECK MOUNTING HOLE
DRILLING LOCATIONS).

DX - SLIDE BED 10' LIGHT GREEN

BOLT WH 5/16x1/2

(3 PLCS)

(3)

(3)

BOLT WH

5/16x1/2

T-NUT 5/16

T-NUT 5/16

(3 PLCS)

M70

BOTTOM

USE M70 SLIDE BED SUPPORT AS A
TEMPLATE FOR DRILLING BOTTOM
HOLE PATTERN IN SLIDE BED. BE SURE
TO PLACE SLIDE BRACE UP 1/2" FROM
BOTTOM EDGE OF SLIDE BED BEFORE
MARKING HOLE PATTERN. USE A 7/16"
DRILL BIT TO DRILL HOLE PATTERN.

TIP: PREBENDING THE ENDS WILL EASE ASSEMBLY.

(1)

DS - SLIDE RAIL 10' BOTTOM RIGHT GREEN - A100031

(1)

TR - SLIDE RAIL 10' TOP RIGHT GREEN - A100033

(1)

DR - SLIDE RAIL 10' BOTTOM LEFT GREEN - A100030

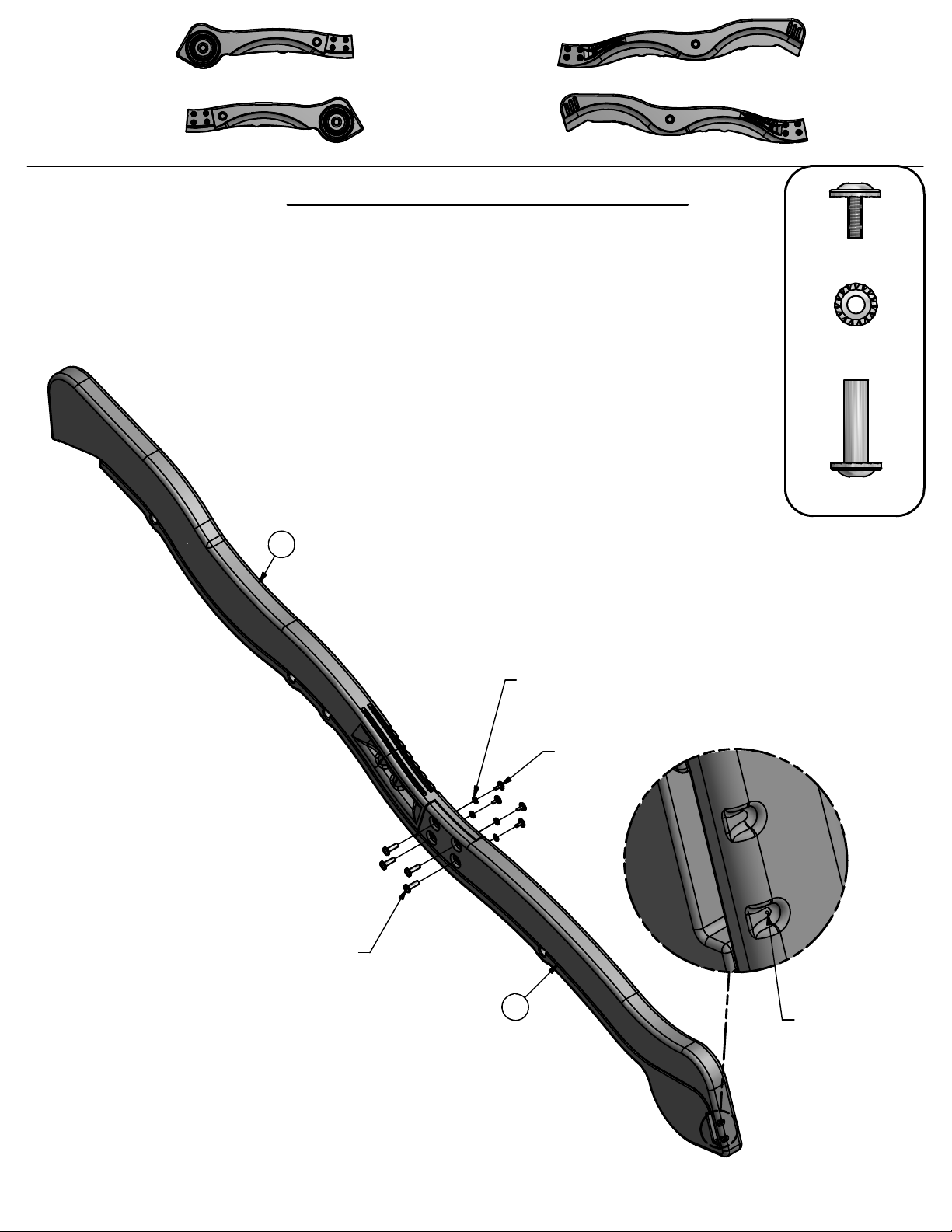

10 FOOT SLIDE ASSEMBLY

STEP 2

● REPEAT ON OTHER SIDE, MAKING A LEFT AND RIGHT ASSEMBLY.

TR

(1)

DT - SLIDE RAIL 10' TOP LEFT GREEN - A100032

BOLT WH

(8)

5/16x3/4

WASHER

LOCK EXT

(8)

8x19

NUT BARREL

(8)

WH 5/16x1 1/2

NUT BARREL WH 5/16x1 1/2

(4 PLCS)

WASHER LOCK EXT 8x19

(4 PLCS)

BOLT WH 5/16x3/4

(4 PLCS)

DS

Using an 1/8" drill bit,
Pilot drill all screw dimples
along the bottom and end
edge of the slide rails.

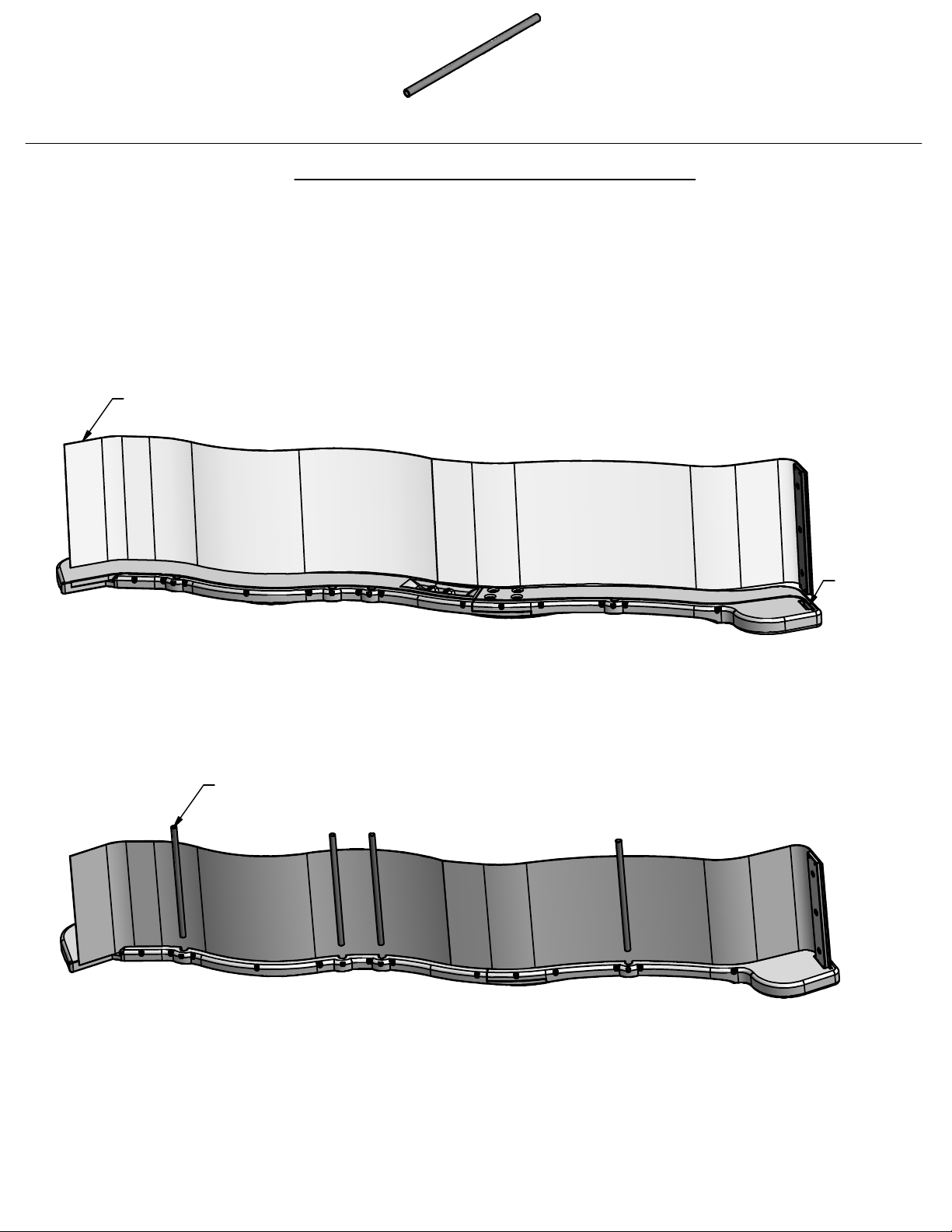

DW - SLIDE SUPPORT TUBE 21.34x505 - A100034

(4)

21.34 OD x 2.77 W x 505

10 FOOT SLIDE ASSEMBLY

STEP 3

● PLACE (1) SLIDE RAIL ASSEMBLY ON A FLAT SURFACE AND BEGIN INSERTING SLIDE BED AT THE BOTTOM OF THE SLIDE RAIL (FIG. 1). HAVE A
HELPER BEND THE SLIDE BED TOWARDS THE TOP OF THE SLIDE AND INSERT THE BED INTO THE SLIDE CAVITY. MAKE SURE SLIDE BED IS
COMPLETELY DOWN IN THE SLIDE CAVITY.

● INSTALL THE (4) SLIDE SUPPORT TUBES INTO THEIR RESPECTIVE PILOT LOCATIONS (FIG. 2).

SLIDE BED 10' LIGHT GREEN

DW - SLIDE SUPPORT TUBE 21.34x505

(4 PLCS)

START HERE

(FIG. 1)

(FIG. 2)

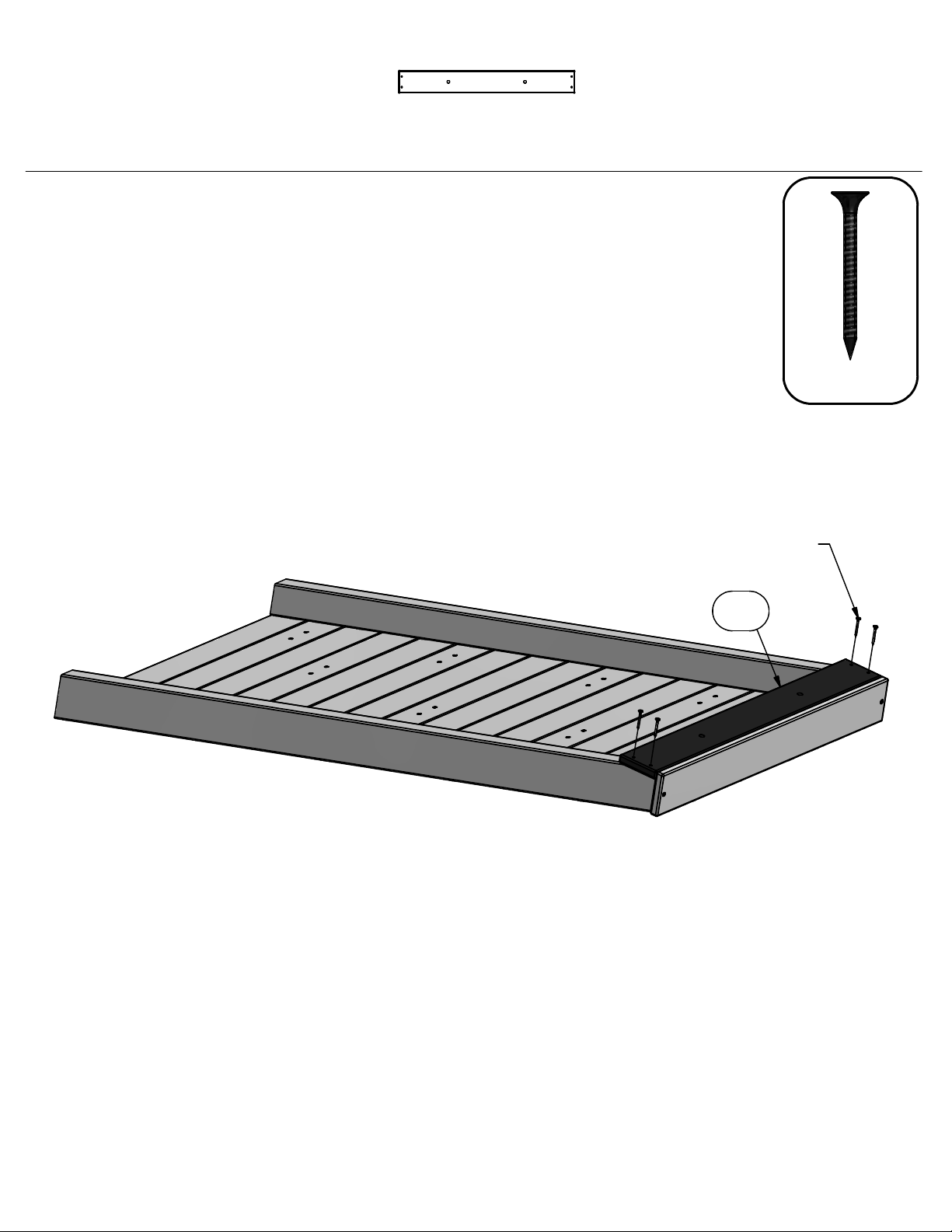

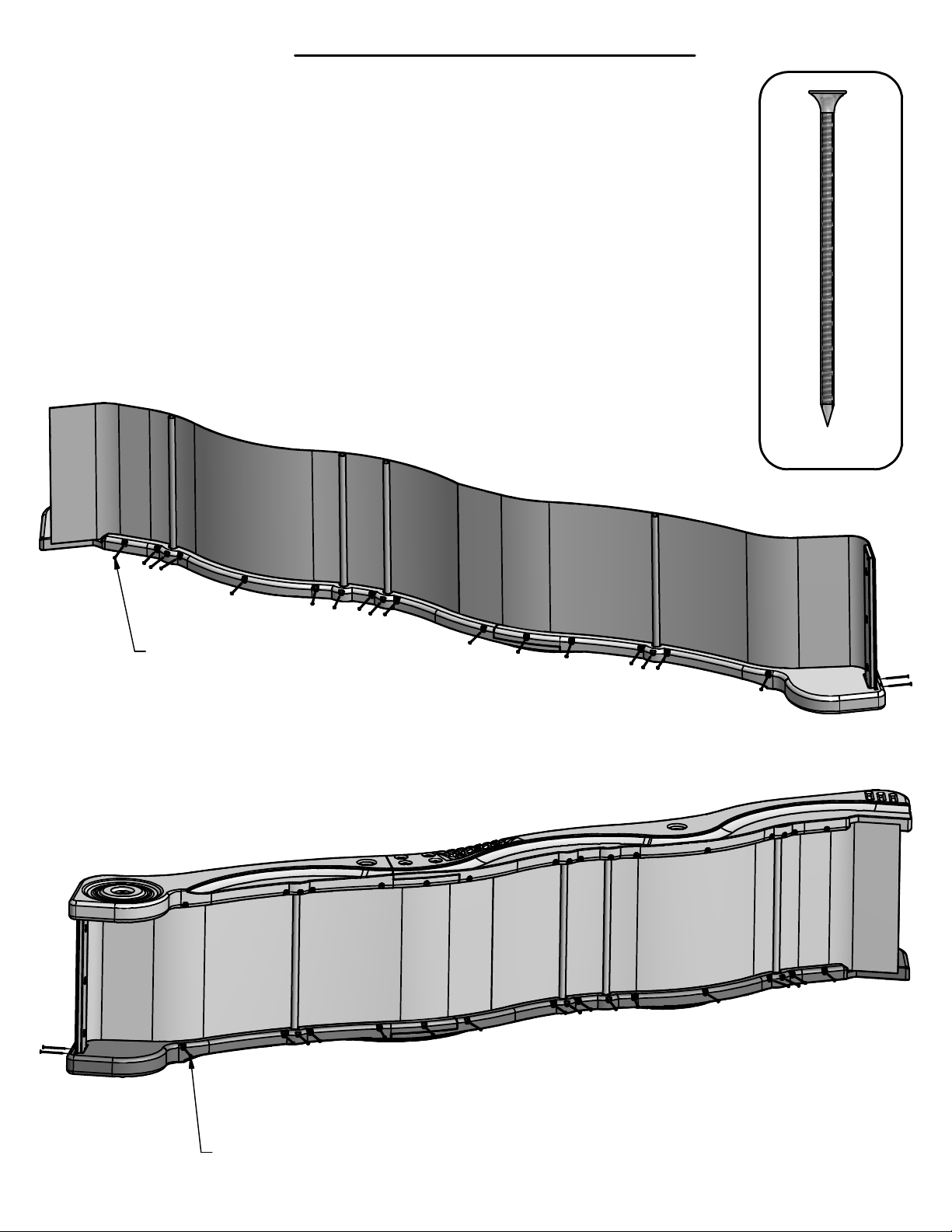

10 FOOT SLIDE ASSEMBLY

STEP 4

● ONCE THE SLIDE BED, SUPPORT TUBES, AND SUPPORT BOARD ARE COMPLETELY IN THE CAVITY AND
SUPPORT POCKET, SECURE USING 2-1/2" SCREWS AT EACH OF THE PILOT HOLE LOCATIONS AS SHOWN.

● REPEAT PROCESS FOR OPPOSITE SLIDE RAIL.

SCREW PFH

(38)

8x3

SCREW PFH 8x3

(19 PLCS)

SCREW PFH 8x3

(19 PLCS)

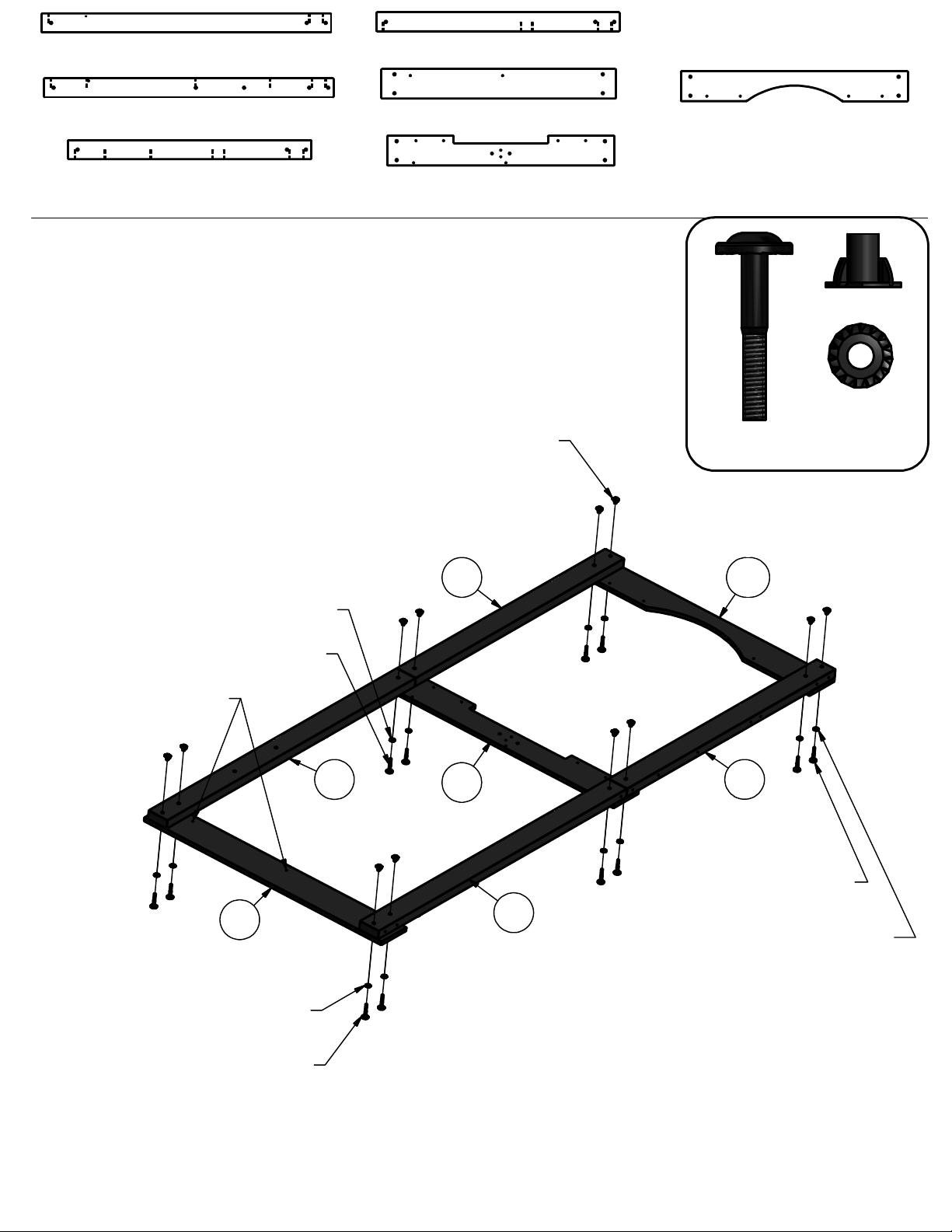

E1 - RIGHT REAR UPRIGHT - W2A02080

(1)

1 3/8"x3 3/8"x51 3/4" (36x86x1314)

K1 - GROUND BOARD - W4L07489

(1)

5/8"x5 1/4"x41 7/8" (16x134x1064)

G1 - SWING BEAM MOUNT - W4L07513

(1)

1"x5 1/4"x62 1/8" (24x134x1577)

E4 - RIGHT FRONT UPRIGHT - W4L07495

(1)

1 3/8"x3 3/8"x51 3/4" (36x86x1314)

E7 - RIGHT REAR UPRIGHT - W4L07510

(1)

1 3/8"x3 3/8"x43 1/2" (36x86x1104)

E9 - RIGHT FRONT UPRIGHT - W4L07512

(1)

1 3/8"x3 3/8"x43 1/2" (36x86x1104)

K12 - ARCHED WALL RAIL - W4L07579

(1)

5/8"x5 1/4"x40 5/8" (16x134x1032)

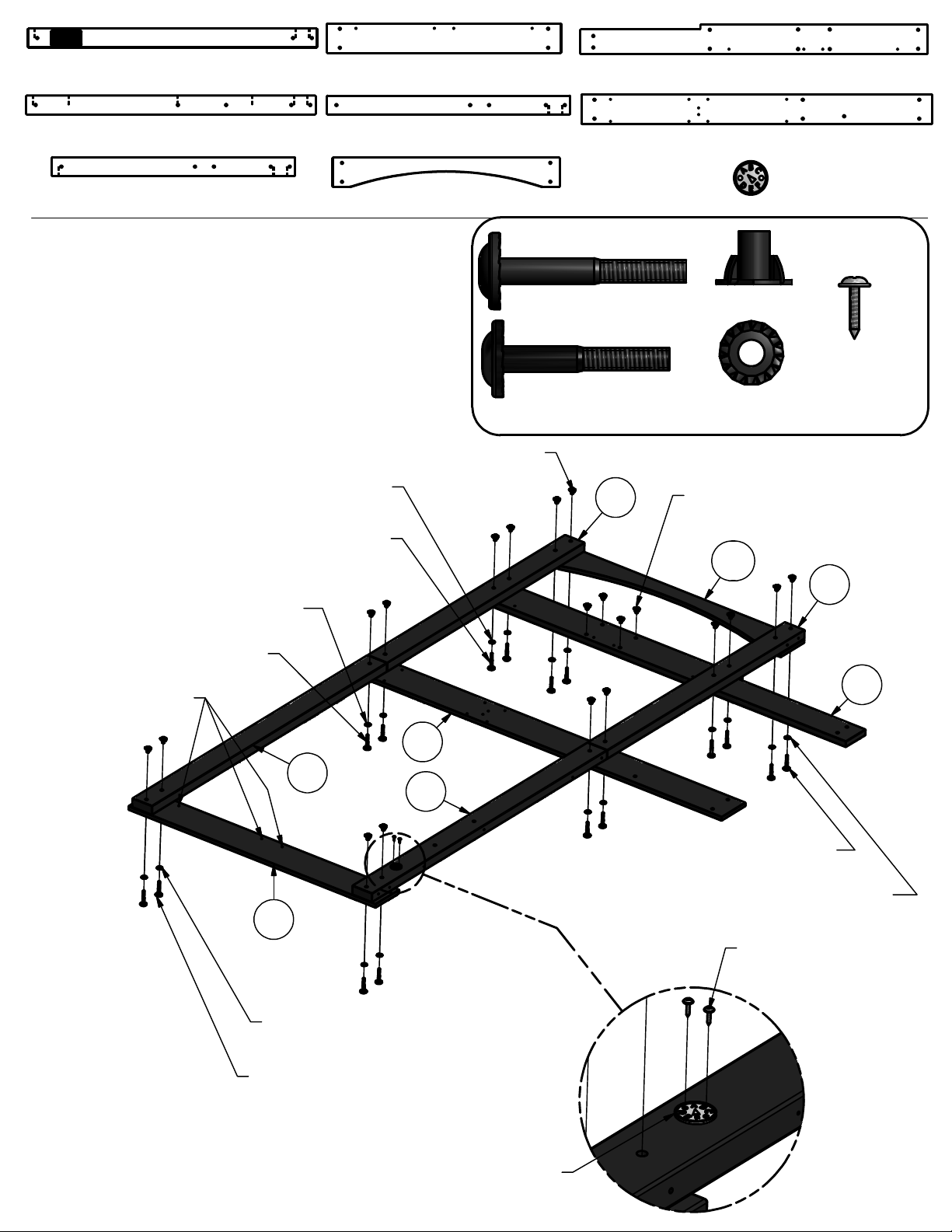

STEP 1

INSTALL T-NUTS INTO PARTS BEFORE
ASSEMBLY OF PARTS.

WASHER LOCK EXT 8x19 BLK

(4 PLCS)

BOLT WH 5/16x2-1/4 BLK

(4 PLCS)

WASHER LOCK EXT 8x19 BLK

(4 PLCS)

BOLT WH 5/16x2 BLK

(4 PLCS)

HOLES TOWARD THE

TOP OF FORT.

T-NUT 5/16 BLK

(16 PLCS)

(4)

(12)

(1)

(1)

BOLT WH
5/16x2-1/4

BLK

BOLT WH

5/16x2 BLK

E7

K5 - RIGHT CENTER WALL RAIL - W4L07496
5/8"x5 1/4"x62 3/4" (16x134x1593)

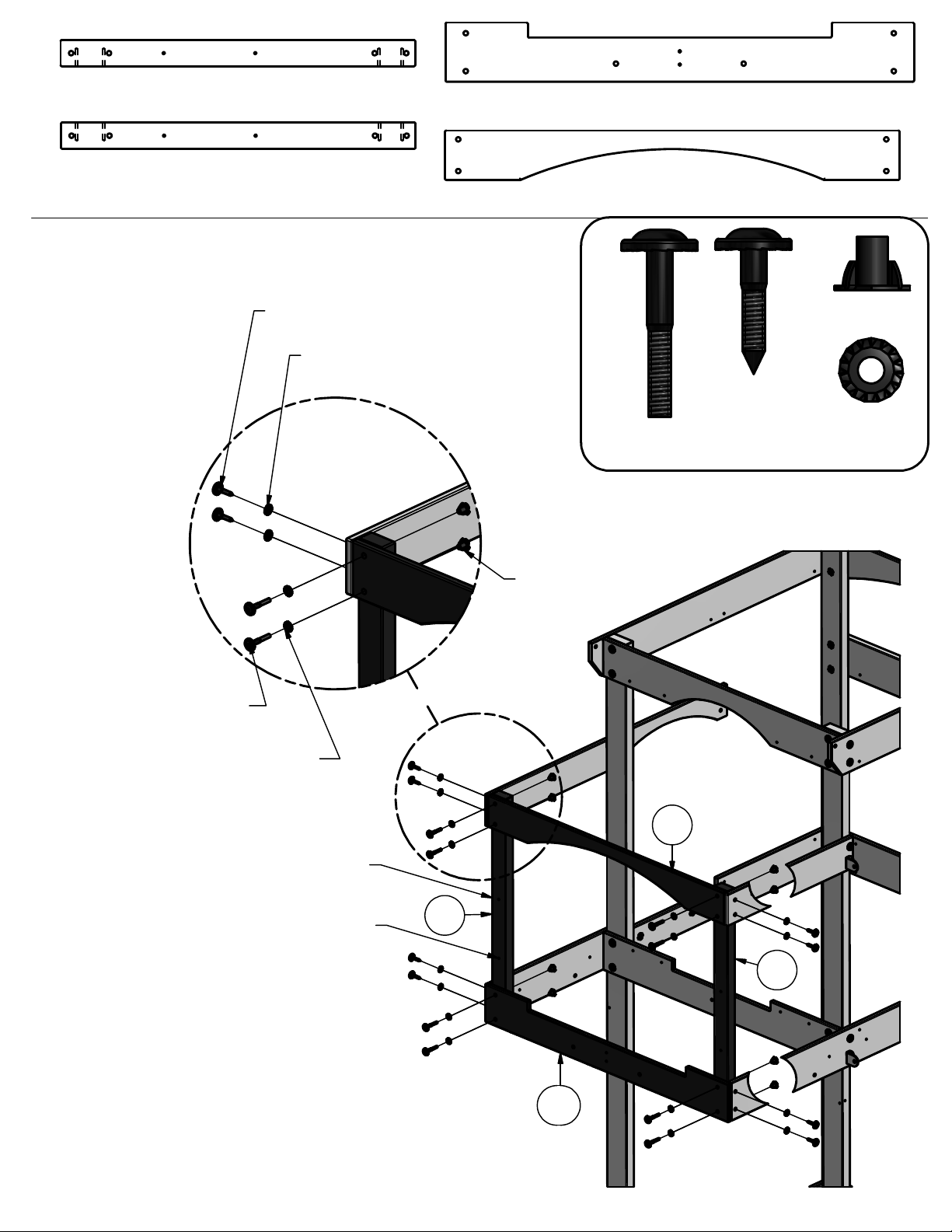

SQ - "A" REVISION TAG - A100314

T-NUT 5/16

(20)

(16)

BLK

WASHER

LOCK EXT

8x19 BLK

SCREW PWH

(2)

8x5/8

T-NUT 5/16 BLK
(4 PLCS)

K12

E9

G1

K5

E1

E4

K1

WASHER LOCK EXT 8x19 BLK
(4 PLCS)

BOLT WH 5/16x2 BLK
(4 PLCS)

"A" REVISION TAG

BOLT WH 5/16x2 BLK

(4 PLCS)

WASHER LOCK EXT 8x19 BLK

(4 PLCS)

SCREW PWH 8x5/8
(16 PLCS)

E2 - LEFT REAR UPRIGHT - W4L07493

(1)

1 3/8"x3 3/8"x51 3/4" (36x86x1314)

E8 - LEFT FRONT UPRIGHT - W4L07511

(1)

1 3/8"x3 3/8"x43 1/2" (36x86x1104)

E3 - LEFT FRONT UPRIGHT - W4L07494

(1)

1 3/8"x3 3/8"x51 3/4" (36x86x1314)

E6 - LEFT REAR UPRIGHT - W4L07509

(1)

1 3/8"x3 3/8"x43 1/2" (36x86x1104)

(1)

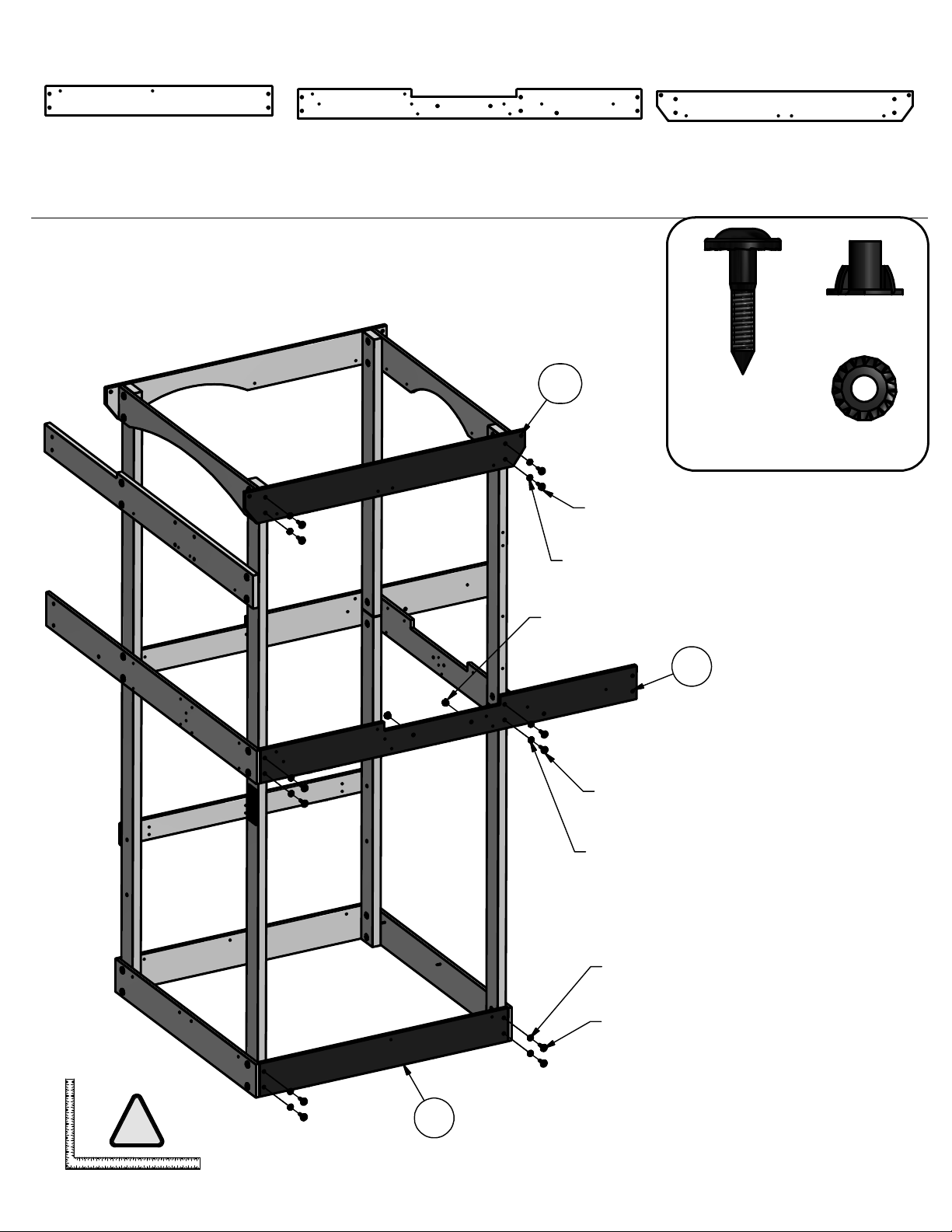

STEP 2

INSTALL T-NUTS INTO PARTS BEFORE
ASSEMBLY OF PARTS.

K2 - GROUND BOARD - W4L07490

(1)

5/8"x5 1/4"x41 7/8" (16x134x1064)

K8 - LEFT CENTER WALL RAIL - W4L07499
5/8"x5 1/4"x40 5/8" (16x134x1032)

T-NUT 5/16 BLK

(12 PLCS)

K13 - ARCHED WALL RAIL - W4L07580

(1)

5/8"x5 1/4"x40 5/8" (16x134x1032)

T-NUT 5/16

(12)

WASHER

LOCK EXT

(12)

8x19 BLK

(12)

BOLT WH

5/16x2 BLK

BLK

WASHER LOCK EXT 8x19 BLK

(4 PLCS)

BOLT WH 5/16x2 BLK

(4 PLCS)

HOLES TOWARD THE

TOP OF FORT.

K2

WASHER LOCK EXT 8x19 BLK

(4 PLCS)

E3

E8

K8

E2

K13

E6

BOLT WH 5/16x2 BLK

(4 PLCS)

WASHER LOCK EXT 8x19 BLK

(4 PLCS)

BOLT WH 5/16x2 BLK

(4 PLCS)

J1 - PORCH GROUND BOARD - W4L07504

(1)

1"x2 3/8"x40 1/2" (24x60x1030)

K4 - GROUND BOARD - W4L07492

(1)

5/8"x5 1/4"x40 1/2" (16x134x1030)

M1 - WALL RAIL - W4L07590

(1)

5/8"x3 3/8"x40 1/2" (16x86x1030)

STEP 3

K6 - FRONT CENTER WALL RAIL - W4L07497

(1)

5/8"x5 1/4"x61 3/8" (16x134x1560)

K15 - ANGLED WALL RAIL - W4L07582

(1)

5/8"x5 1/4"x45 3/4" (16x134x1162)

K15

(1)

(1)

- L BRACKET BLACK 32x51 - A4M00710

WASHER

LOCK EXT

(12)

8x19 BLK

LAG SCREW

WH 5/16x2

BLK

LAG SCREW

(10)

WH 5/16x1 1/2

BLK

K6

K4

LAG SCREW

(2)

WH 5/16x3

BLK

LAG SCREW WH 5/16x1 1/2 BLK
(4 PLCS)

WASHER LOCK EXT 8x19 BLK
(4 PLCS)

WASHER LOCK EXT 8x19 BLK

M1

(2 PLCS)

LAG SCREW WH 5/16x1 1/2 BLK
(2 PLCS)

HOLES LOCATED TOWARD BOTTOM OF BOARD.

WASHER LOCK EXT 8x19 BLK
(2 PLCS)

LAG SCREW WH 5/16x1 1/2 BLK
(2 PLCS)

WASHER LOCK EXT 8x19 BLK

(2 PLCS)

LAG SCREW WH 5/16x3 BLK

(2 PLCS)

J1

LAG SCREW WH 5/16x2 BLK
(1 PLC)

L BRACKET BLACK 32x51

K3 - GROUND BOARD - W4L07491

(1)

5/8"x5 1/4"x40 1/2" (16x134x1030)

STEP 4

K7 - REAR CENTER WALL RAIL - W4L07498

(1)

5/8"x5 1/4"x61 3/8" (16x134x1560)

K14 - ANGLED WALL RAIL - W4L07581

(1)

5/8"x5 1/4"x45 3/4" (16x134x1162)

(2)

T-NUT 5/16

BLK

K14

LAG SCREW

(12)

WH 5/16x1 1/2

BLK

LAG SCREW WH 5/16x1 1/2 BLK
(4 PLCS)

WASHER LOCK EXT 8x19 BLK
(4 PLCS)

T-NUT 5/16 BLK
(2 PLCS)

K7

LAG SCREW WH 5/16x1 1/2 BLK
(4 PLCS)

(12)

WASHER
LOCK EXT
8x19 BLK

WASHER LOCK EXT 8x19 BLK
(4 PLCS)

WASHER LOCK EXT 8x19 BLK
(4 PLCS)

LAG SCREW WH 5/16x1 1/2 BLK
(4 PLCS)

3

5

1

1

4

2

1

1

3

1

1

1

0

2

1

1

1
1

9

0
1

8

9

7

8

6

5

7

4

6

5

3

4

2

1

3

2

1

1

2

3

1

!

2

3

5

6

8

3

1

7

1

5

1

6

1

9

1

1

2

0

2

2

4

7

9

0

1

1

2

1

1

4

1

5

1

3

1

2

1

1

4

6

1

5

7

0

1

8

9

2

4

1

8

1

3

2

2

2

1

2

0

2

9

1

7

1

8

1

6

1

K3

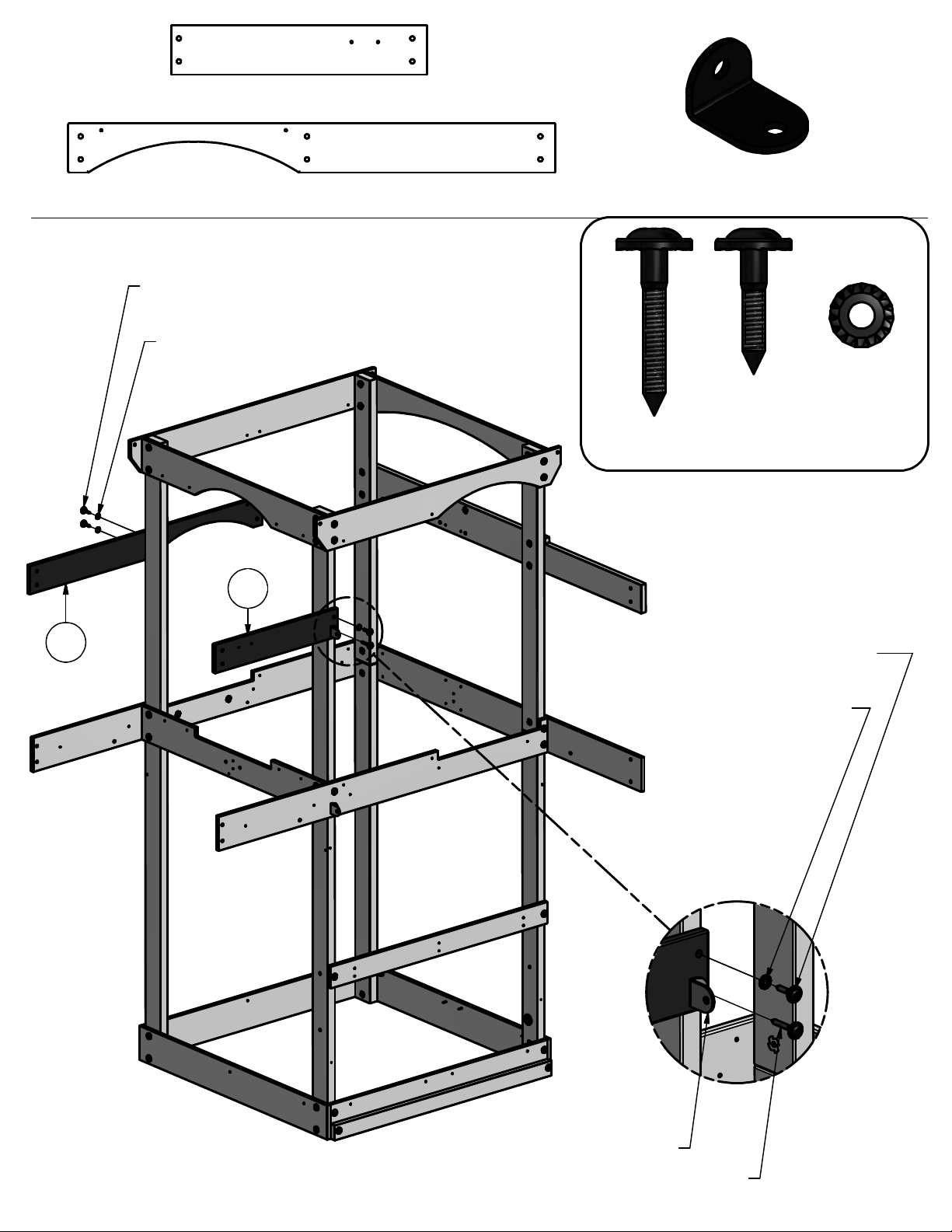

STEP 5

L2 - WALL RAIL - W4L07515

(1)

5/8"x4 3/8"x22 7/8" (16x112x582)

L4 - ARCHED WALL RAIL - W4L07577

(1)

5/8"x4 3/8"x43 1/2" (16x112x1106)

LAG SCREW WH 5/16x1 1/2 BLK
(2 PLCS)

(1)

- L BRACKET BLACK 32x51 - A4M00710

L4

WASHER LOCK EXT 8x19 BLK
(2 PLCS)

L2

(3)

LAG SCREW

(3)

WH 5/16x1 1/2

BLK

(1)

LAG SCREW

WH 5/16x2

BLK

LAG SCREW WH 5/16x1 1/2 BLK

(1 PLC)

WASHER LOCK EXT 8x19 BLK

(1 PLC)

WASHER

LOCK EXT

8x19 BLK

L BRACKET BLACK 32x51

LAG SCREW WH 5/16x2 BLK

(1 PLC)

F1 - RIGHT BALCONY UPRIGHT - W4L07506

(1)

1 3/8"x2 3/8"x31 3/4" (36x60x805)

F2 - LEFT BALCONY UPRIGHT - W4L07507

(1)

1 3/8"x2 3/8"x31 3/4" (36x60x805)

STEP 6

INSTALL T-NUTS INTO PARTS BEFORE
ASSEMBLY OF PARTS.

LAG SCREW WH 5/16x1 1/2 BLK
(8 PLCS)

WASHER LOCK EXT 8x19 BLK
(8 PLCS)

K11 - LEFT SIDE WALL BOARD - W4L07508

(1)

5/8"x5 1/4"x41 7/8" (16x134x1064)

L5 - ARCHED WALL RAIL - W4L07578

(1)

5/8"x4 3/8"x40 5/8" (16x112x1032)

LAG SCREW

(8)

WH 5/16x1 1/2

BOLT WH

(8)

5/16x2 BLK

BLK

(8)

(16)

T-NUT 5/16

BLK

WASHER

LOCK EXT

8x19 BLK

BOLT WH 5/16x2 BLK

(8 PLCS)

WASHER LOCK EXT 8x19 BLK

(8 PLCS)

NARROW EDGES WITH

HOLES FACE OUT.

NOTE HOLE ORIENTATION.

T-NUT 5/16 BLK
(8 PLCS)

L5

F2

F1

K11

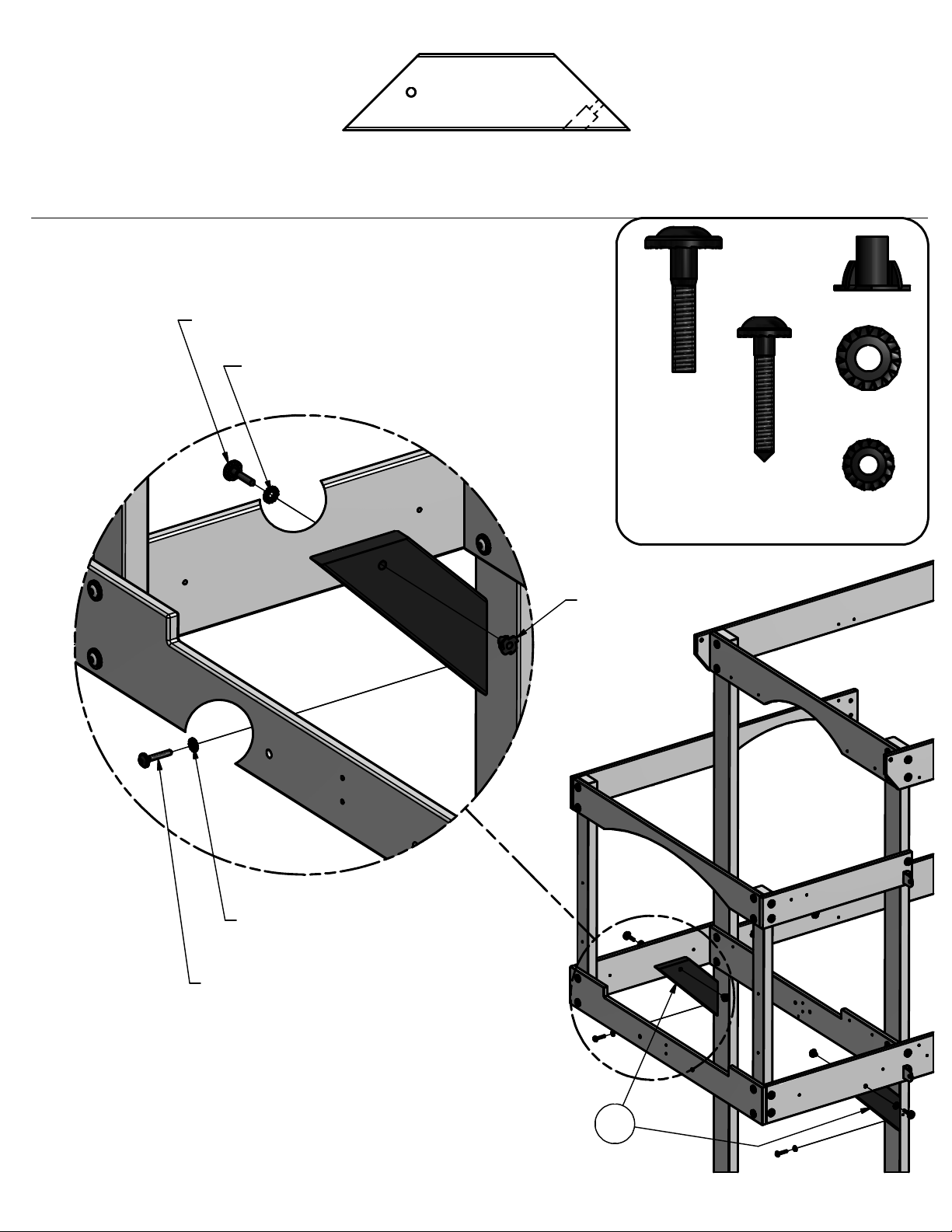

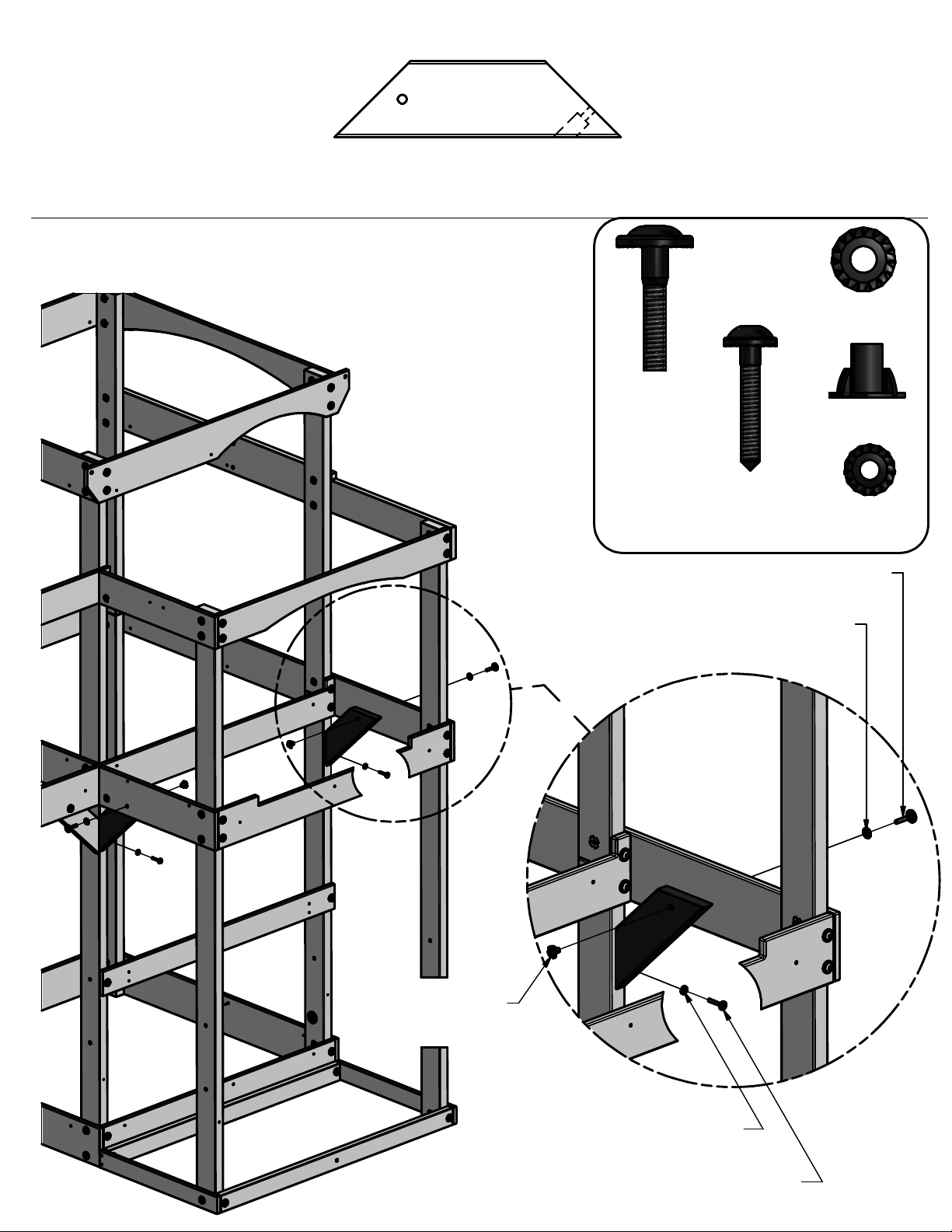

H4 - DECK BRACE - W4L07616

(2)

1"x3 3/8"x12 3/4" (24x86x325)

STEP 7

INSTALL T-NUTS INTO PARTS BEFORE ASSEMBLY OF
PARTS.

BOLT WH 5/16x1 1/2 BLK
(2 PLCS)

WASHER LOCK EXT 8x19 BLK
(2 PLCS)

(2)

BOLT WH
5/16x1 1/2

BLK

(2)

LAG SCREW

WH 1/4x1-1/2

BLK

(2)

(2)

(2)

T-NUT 5/16

BLK

WASHER

LOCK EXT

8x19 BLK

WASHER

LOCK EXT

6x15 BLK

WASHER LOCK EXT 6x15 BLK
(2 PLCS)

LAG SCREW WH 1/4x1-1/2 BLK
(2 PLCS)

T-NUT 5/16 BLK
(2 PLCS)

H4

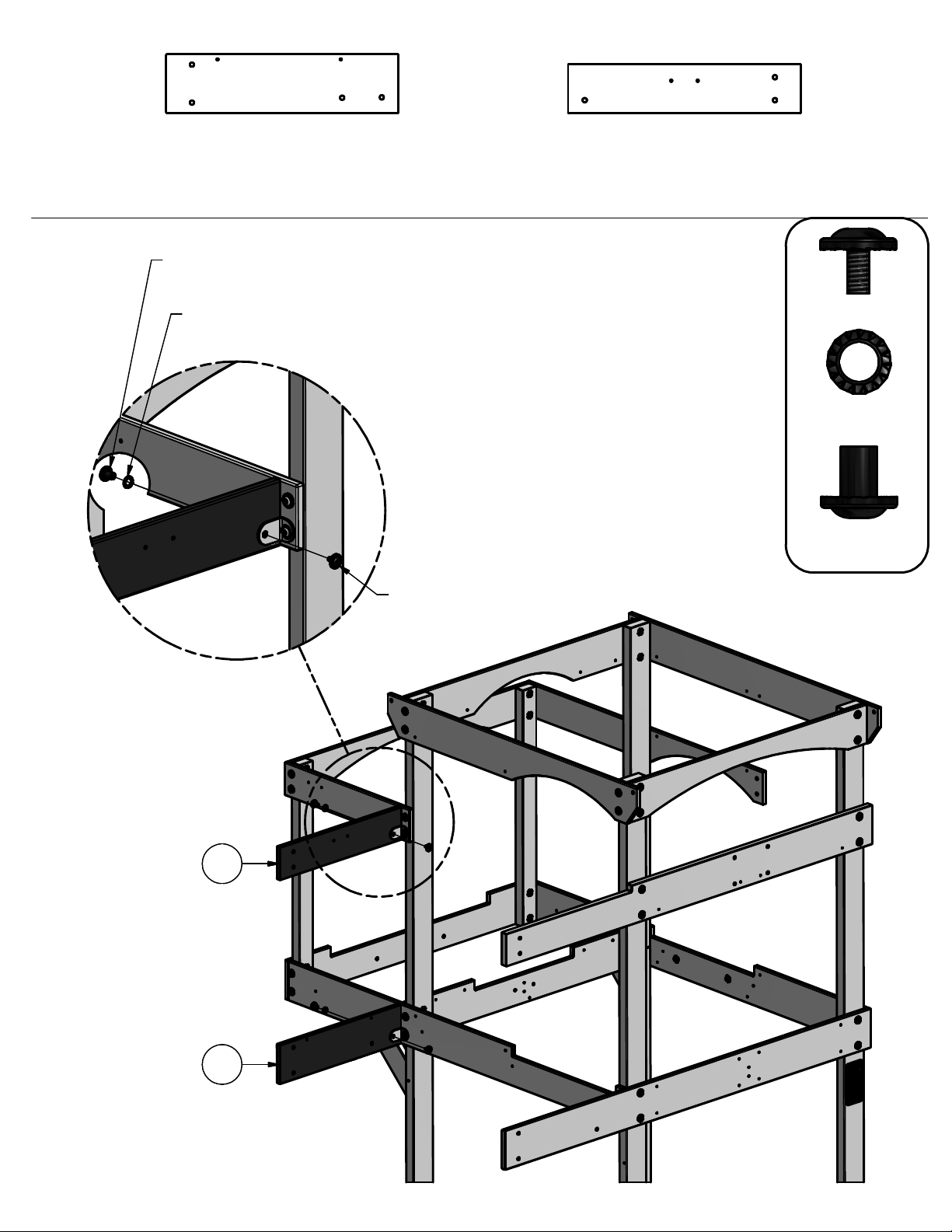

STEP 8

K9 - LEFT BALCONY WALL RAIL - W4L07500

(1)

5/8"x5 1/4"x20 3/4" (16x134x528)

NUT BARREL WH 5/16x5/8 BLK
(2 PLCS)

WASHER LOCK EXT 12x19 BLK
(2 PLCS)

L3 - WALL RAIL - W4L07576

(1)

5/8"x4 3/8"x20 7/8" (16x112x529)

(2)

5/16x1/2 BLK

(2)

NUT BARREL

WH 5/16x5/8

(2)

BOLT WH

WASHER

LOCK EXT

12x19 BLK

BLK

L3

BOLT WH 5/16x1/2 BLK
(2 PLCS)

K9

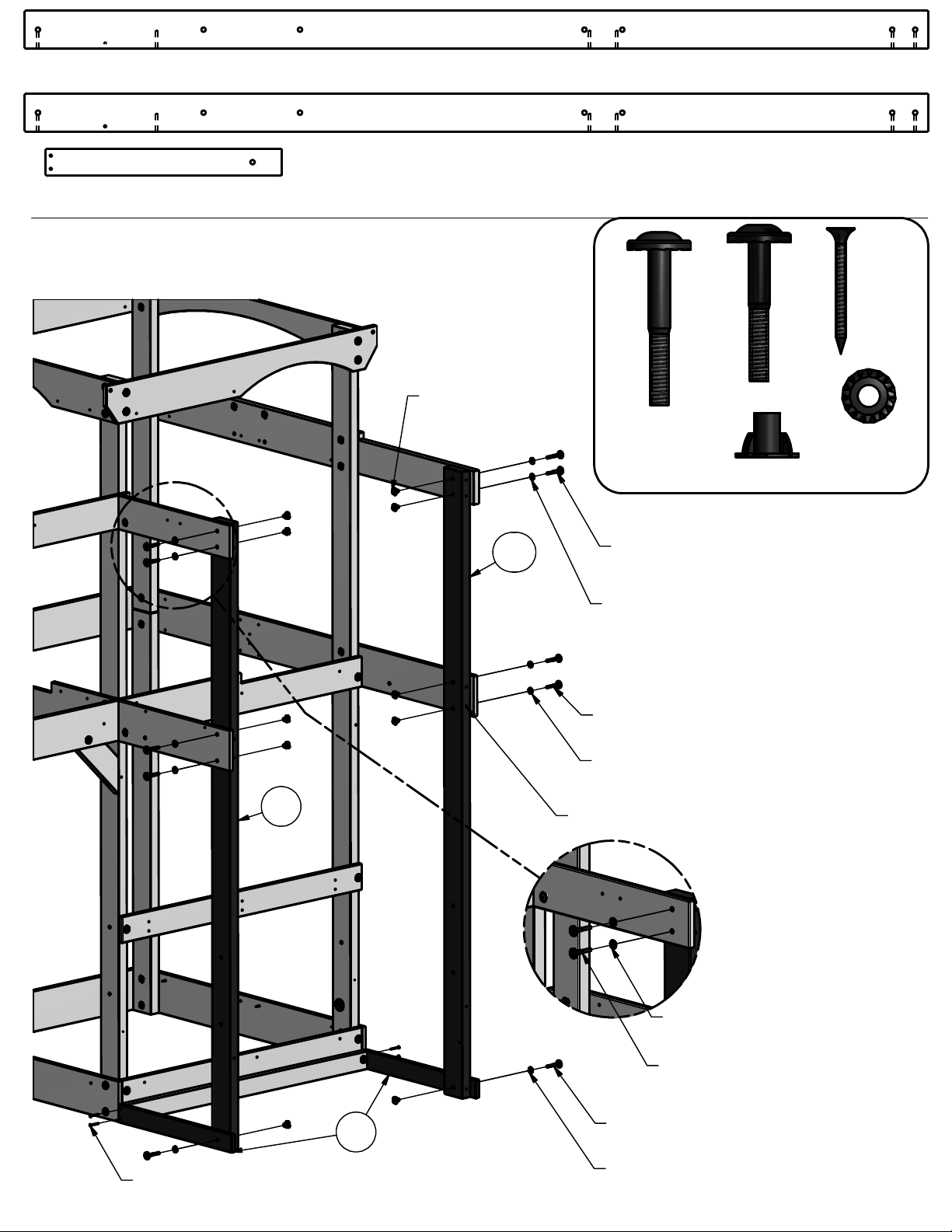

N1 - PORCH GROUND BOARD - W4L07503

(2)

5/8"x2 3/8"x21 1/8" (16x60x537)

E5 - RIGHT FRONT BALCONY UPRIGHT - W4L07502

(1)

1 3/8"x3 3/8"x80 3/4" (36x86x2052)

E11 - RIGHT FRONT BALCONY UPRIGHT - W4L07673

(1)

1 3/8"x3 3/8"x80 3/4" (36x86x2052)

STEP 9

INSTALL T-NUTS INTO PARTS BEFORE ASSEMBLY OF
PARTS.

T-NUT 5/16 BLK
(10 PLCS)

E11

BOLT WH

(8)

(10)

5/16x2 BLK

(10)

T-NUT 5/16

BLK

(2)

BOLT WH

5/16x2-1/4

BLK

BOLT WH 5/16x2-1/4 BLK
(2 PLCS)

WASHER LOCK EXT 8x19 BLK
(2 PLCS)

H

K

F

L

P

B

W

2

/

E

1

-

R

1

C

x

S

8

)
4

(

WASHER

LOCK EXT

8x19 BLK

E5

SCREW PFH 8x1-1/2 BLK
(4 PLCS)

N1

BOLT WH 5/16x2 BLK
(4 PLCS)

WASHER LOCK EXT 8x19 BLK
(4 PLCS)

PILOT HOLE OUT.

WASHER LOCK EXT 8x19 BLK
(2 PLCS)

BOLT WH 5/16x2 BLK
(2 PLCS)

BOLT WH 5/16x2 BLK
(2 PLCS)

WASHER LOCK EXT 8x19 BLK
(2 PLCS)

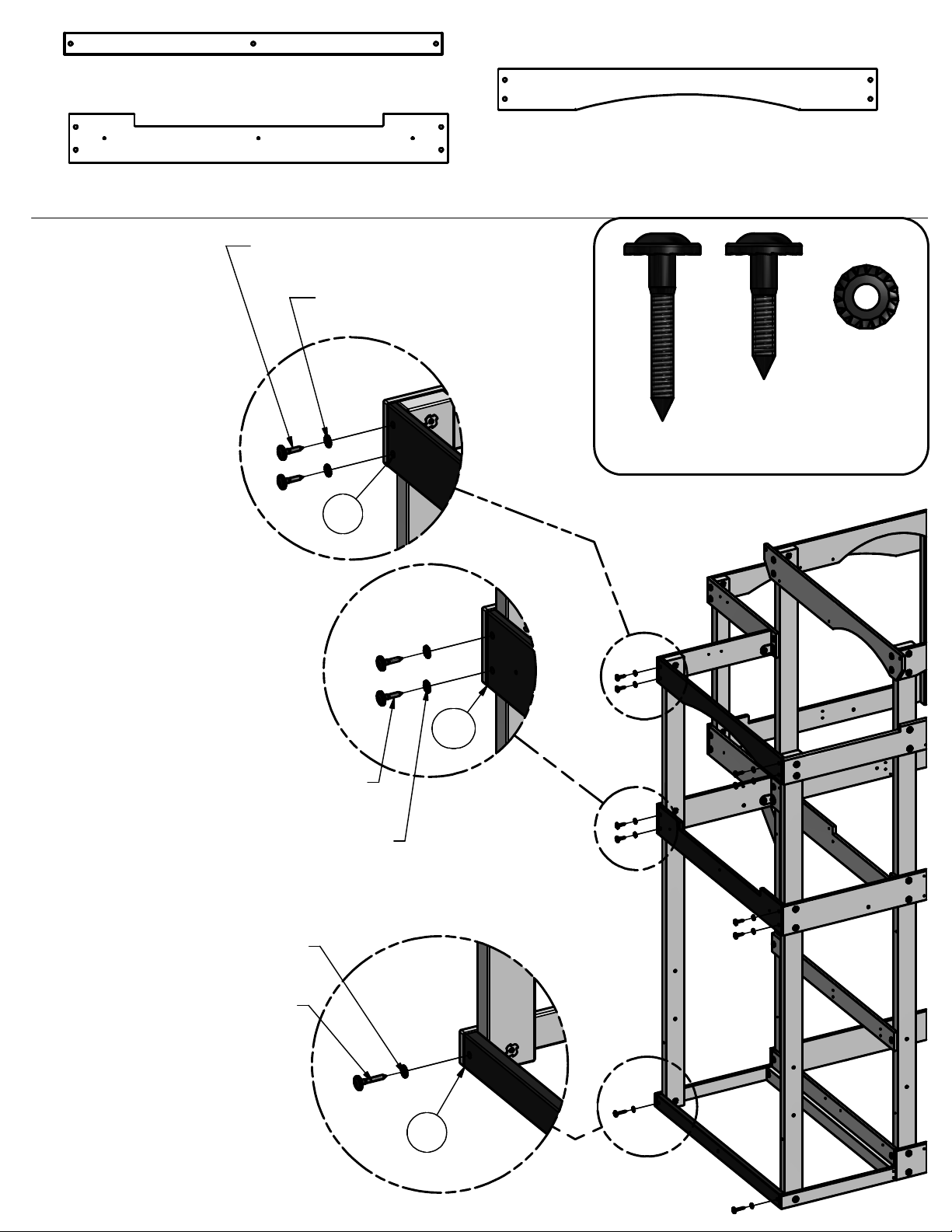

J2 - PORCH GROUND BOARD - W4L07505

(1)

1"x2 3/8"x40 5/8" (24x60x1032)

K10 - FRONT BALCONY WALL RAIL - W4L07501

(1)

5/8"x5 1/4"x40 5/8" (16x134x1032)

L1 - ARCHED WALL RAIL - W4L07514

(1)

5/8"x4 3/8"x40 5/8" (16x112x1032)

STEP 10

LAG SCREW WH 5/16x1 1/2 BLK
(4 PLCS)

WASHER LOCK EXT 8x19 BLK
(4 PLCS)

L1

(2)

LAG SCREW

WH 5/16x2

BLK

LAG SCREW

(8)

WH 5/16x1 1/2

BLK

(10)

WASHER
LOCK EXT
8x19 BLK

LAG SCREW WH 5/16x1 1/2 BLK

(4 PLCS)

WASHER LOCK EXT 8x19 BLK

WASHER LOCK EXT 8x19 BLK

(2 PLCS)

LAG SCREW WH 5/16x2 BLK

(2 PLCS)

(4 PLCS)

J2

K10

H4 - DECK BRACE - W4L07616

(2)

1"x3 3/8"x12 3/4" (24x86x325)

STEP 11

INSTALL T-NUTS INTO PARTS BEFORE ASSEMBLY OF
PARTS.

(2)

(2)

BOLT WH

5/16x1 1/2

BLK

(2)

LAG SCREW
WH 1/4x1-1/2

BLK

(2)

(2)

BOLT WH 5/16x1 1/2 BLK

(2 PLCS)

WASHER

LOCK EXT

8x19 BLK

T-NUT 5/16

BLK

WASHER

LOCK EXT

6x15 BLK

T-NUT 5/16 BLK

(2 PLCS)

WASHER LOCK EXT 8x19 BLK

(2 PLCS)

WASHER LOCK EXT 6x15 BLK

(2 PLCS)

LAG SCREW WH 1/4x1-1/2 BLK

(2 PLCS)

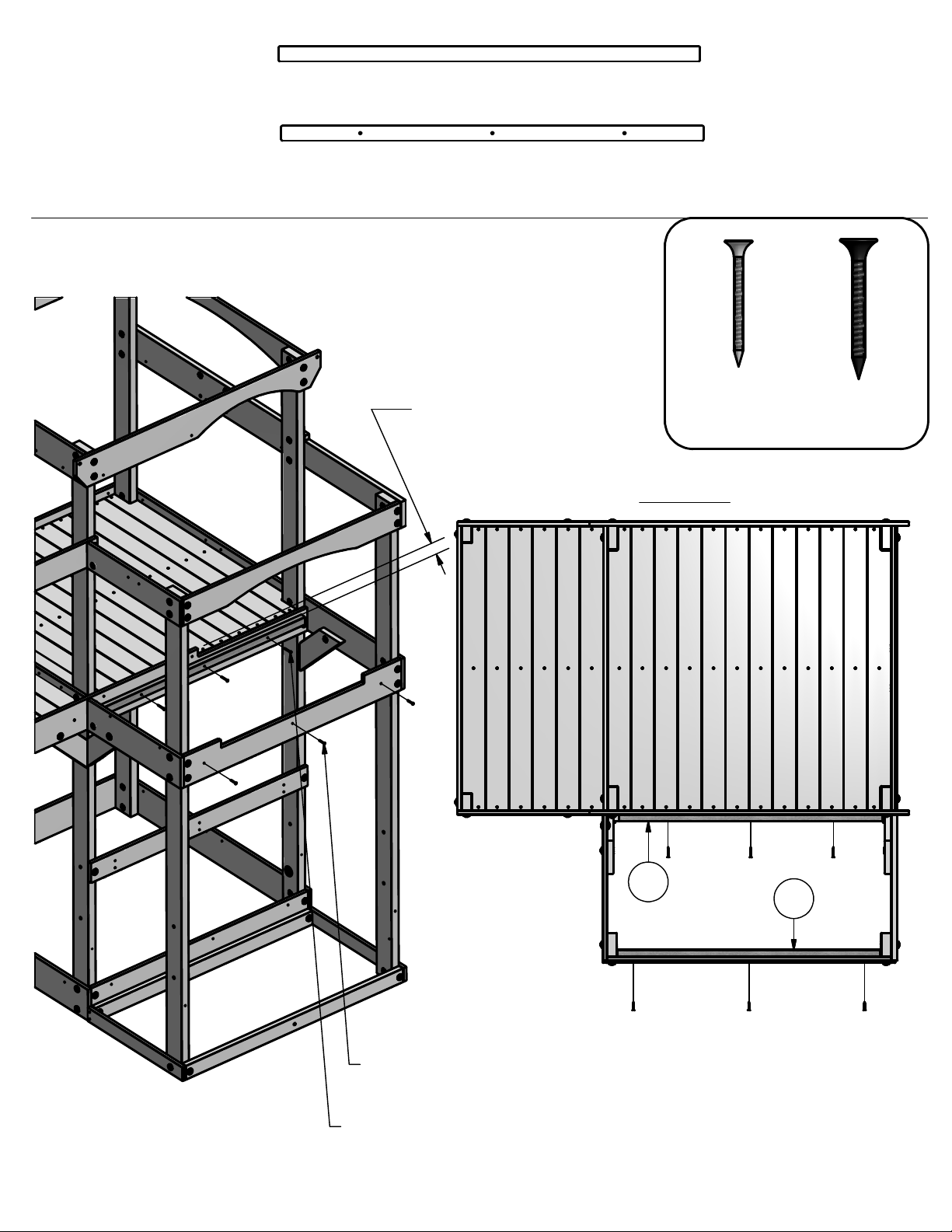

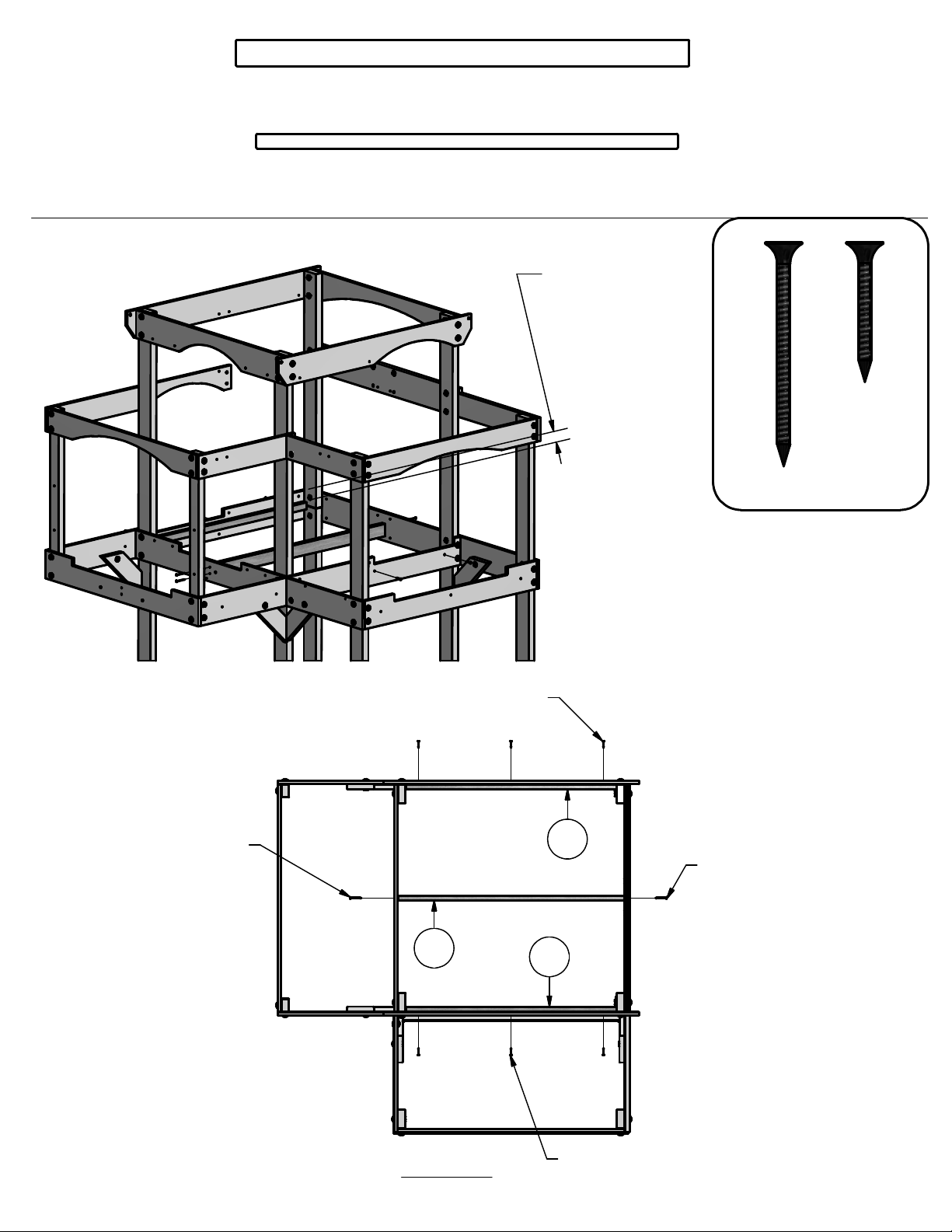

STEP 12

J8 - FLOOR JOIST - W4L07602

(1)

1"x2 3/8"x40 1/2" (24x60x1029)

T1 - SUPPORT BOARD - W4L07599

(2)

1"x1 3/8"x37 5/8" (24x34x957)

49 mm [1 7/8 in]

TOP OF ALL

SUPPORTS

(4)

(6)

SCREW PFH

8x2 BLK

SCREW PFH
8x1 1/4 BLK

SCREW PFH 8x2 BLK

(2 PLCS)

SCREW PFH 8x1 1/4 BLK

(3 PLCS)

J8

T1

SCREW PFH 8x2 BLK
(2 PLCS)

T1

TOP VIEW

SCREW PFH 8x1 1/4 BLK
(3 PLCS)

J9 - FLOOR JOIST - W4L07603

(1)

1"x2 3/8"x20 1/4" (24x60x513)

T3 - SUPPORT BOARD - W4L07601

(2)

1"x1 3/8"x18 3/4" (24x34x477)

(2)

- 90° L-BRACKET - BLK - A4M00555

STEP 13

J9

T3

T3

SCREW PFH 8x1 1/4 BLK
(2 PLCS)

TOP VIEW

(2)

(4)

SCREW PFH

8x2 BLK

(2)

(2)

SCREW PFH

8x1 1/4 BLK

T-NUT 1/4

BLK

(1)

BOLT WH

1/4x5/8 BLK

(1)

BOLT WH

1/4x1/2 BLK

NUT BARREL

WH 1/4x7/8

BLK

SCREW PFH 8x1 1/4 BLK
(2 PLCS)

NUT BARREL WH 1/4x7/8 BLK
(1 PLC)

T-NUT 1/4 BLK
(2 PLCS)

BOLT WH 1/4x1/2 BLK
(1 PLC)

BOLT WH 1/4x5/8 BLK
(2 PLCS)

90° L-BRACKET - BLK
(2 PLCS)

SCREW PFH 8x2 BLK

(2 PLCS)

STEP 14

M11 - FLOOR BOARD - W4L07610

(10)

5/8"x3 3/8"x40 5/8" (16x86x1031)

M12 - FLOOR BOARD - W4L07611

(2)

5/8"x3 3/8"x40 5/8" (16x86x1031)

(36)

SCREW PFH

8x1 1/2

M12

M11

M12

SCREW PFH 8x1 1/2

(36 PLCS)

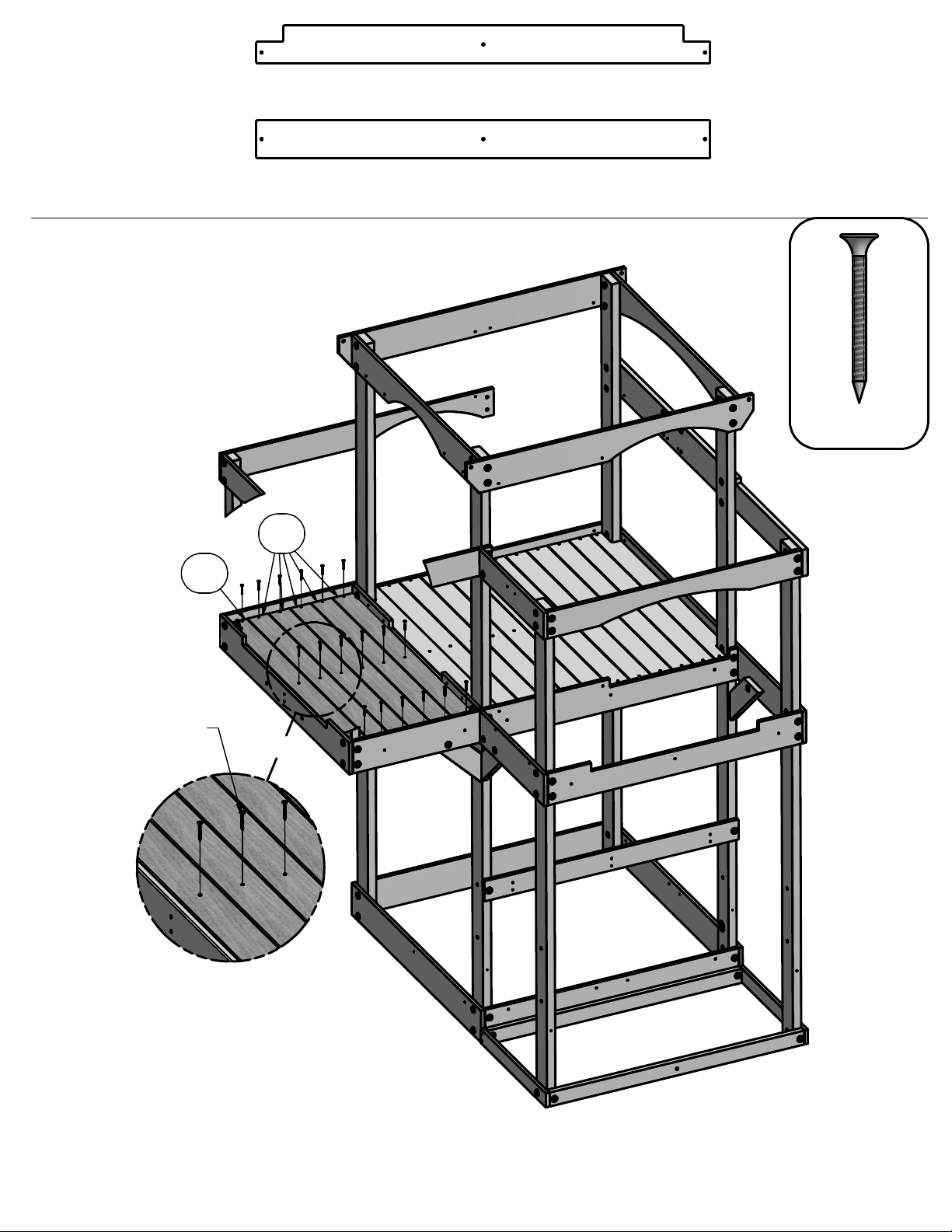

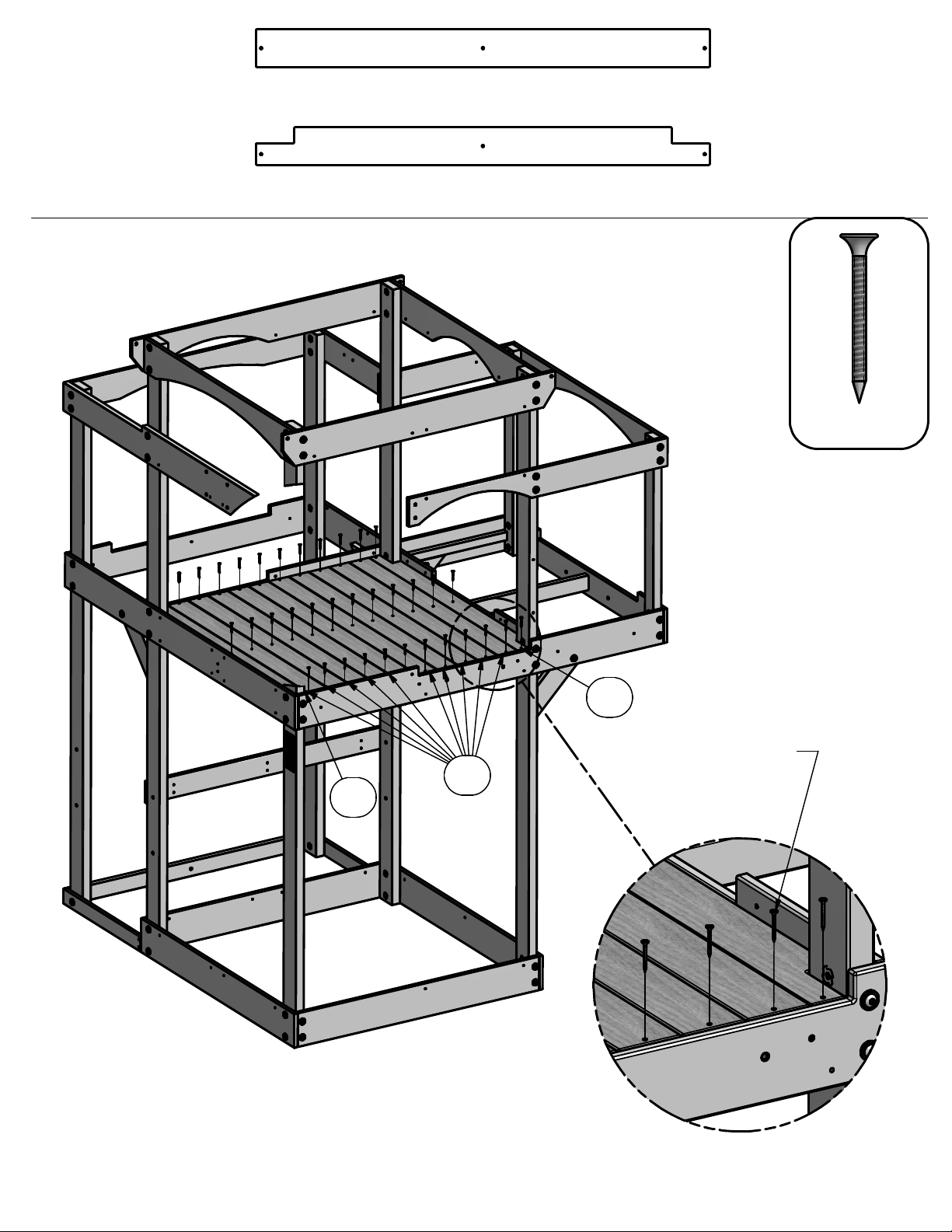

STEP 15

M10 - FLOOR BOARD - W4L07609

(1)

5/8"x3 3/8"x40 5/8" (16x86x1031)

M11 - FLOOR BOARD - W4L07610

(5)

5/8"x3 3/8"x40 5/8" (16x86x1031)

(18)

SCREW PFH

8x1 1/2

M10

SCREW PFH 8x1 1/2

(18 PLCS)

M11

STEP 16

T1 - SUPPORT BOARD - W4L07599

(1)

1"x1 3/8"x37 5/8" (24x34x957)

T2 - SUPPORT BOARD - W4L07600

(1)

1"x1 3/8"x37 3/4" (24x34x959)

49 mm [1 7/8 in]
BOTH SUPPORTS

(3)

TOP VIEW

SCREW PFH

8x1 1/2

(3)

SCREW PFH

8x1 1/4 BLK

SCREW PFH 8x1 1/4 BLK
(3 PLCS)

SCREW PFH 8x1 1/2
(3 PLCS)

T2

T1

(1)

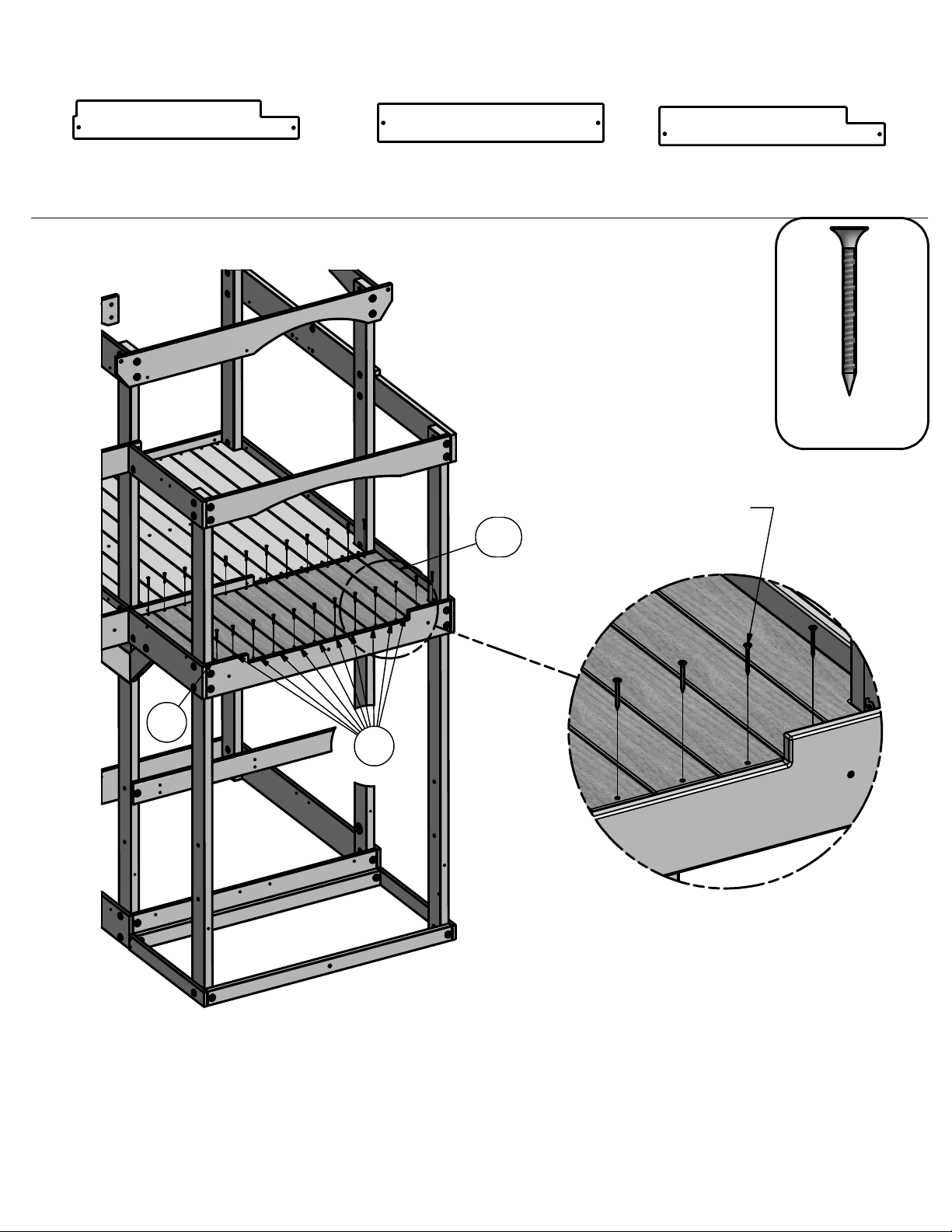

STEP 17

M8 - FLOOR BOARD - W4L07607
5/8"x3 3/8"x20 1/8" (16x86x512)

M9 - FLOOR BOARD - W4L07608

(10)

5/8"x3 3/8"x20 1/8" (16x86x512)

M13

M13 - FLOOR BOARD - W4L07671

(1)

5/8"x3 3/8"x20 1/8" (16x86x512)

SCREW PFH 8x1 1/2

(24 PLCS)

(24)

SCREW PFH

8x1 1/2

M8

M9

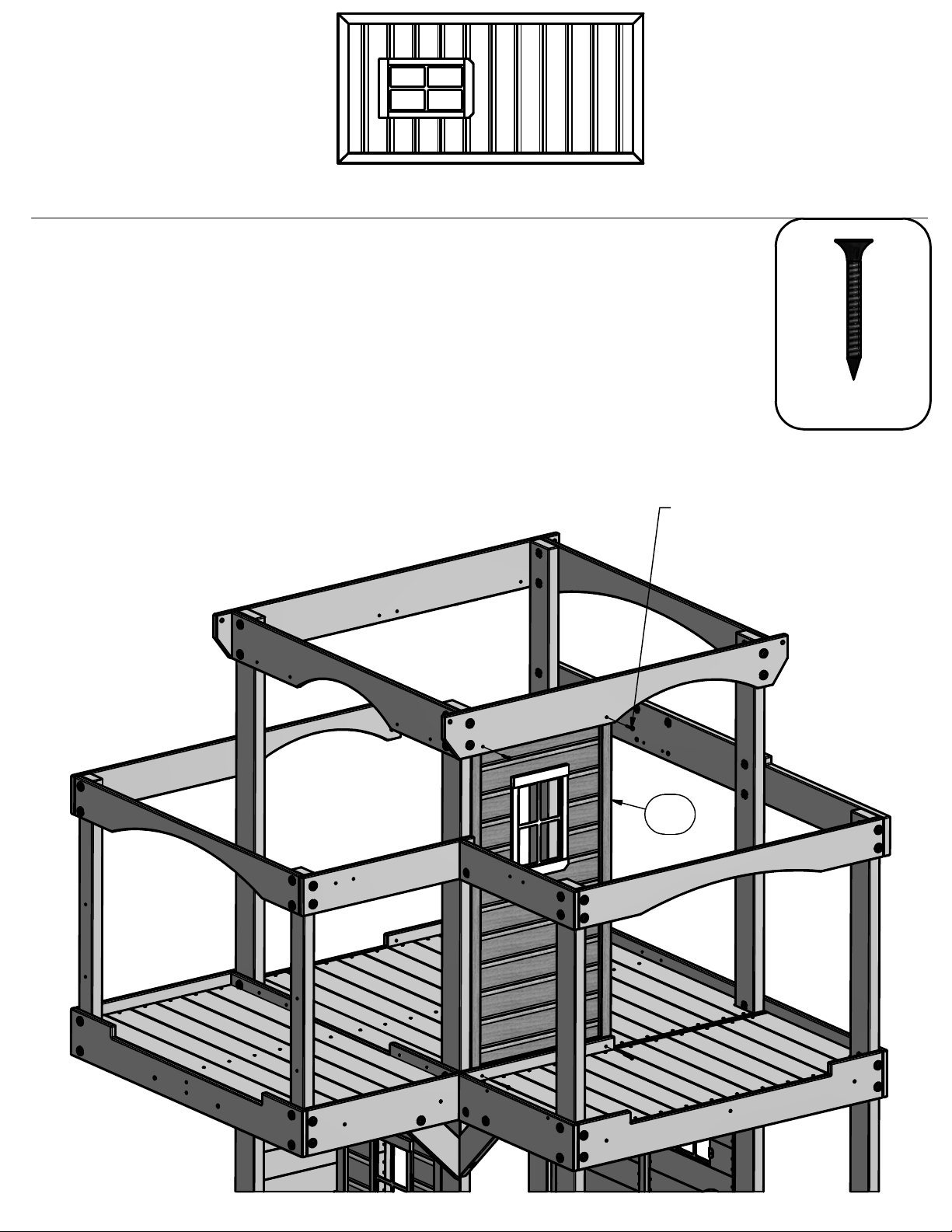

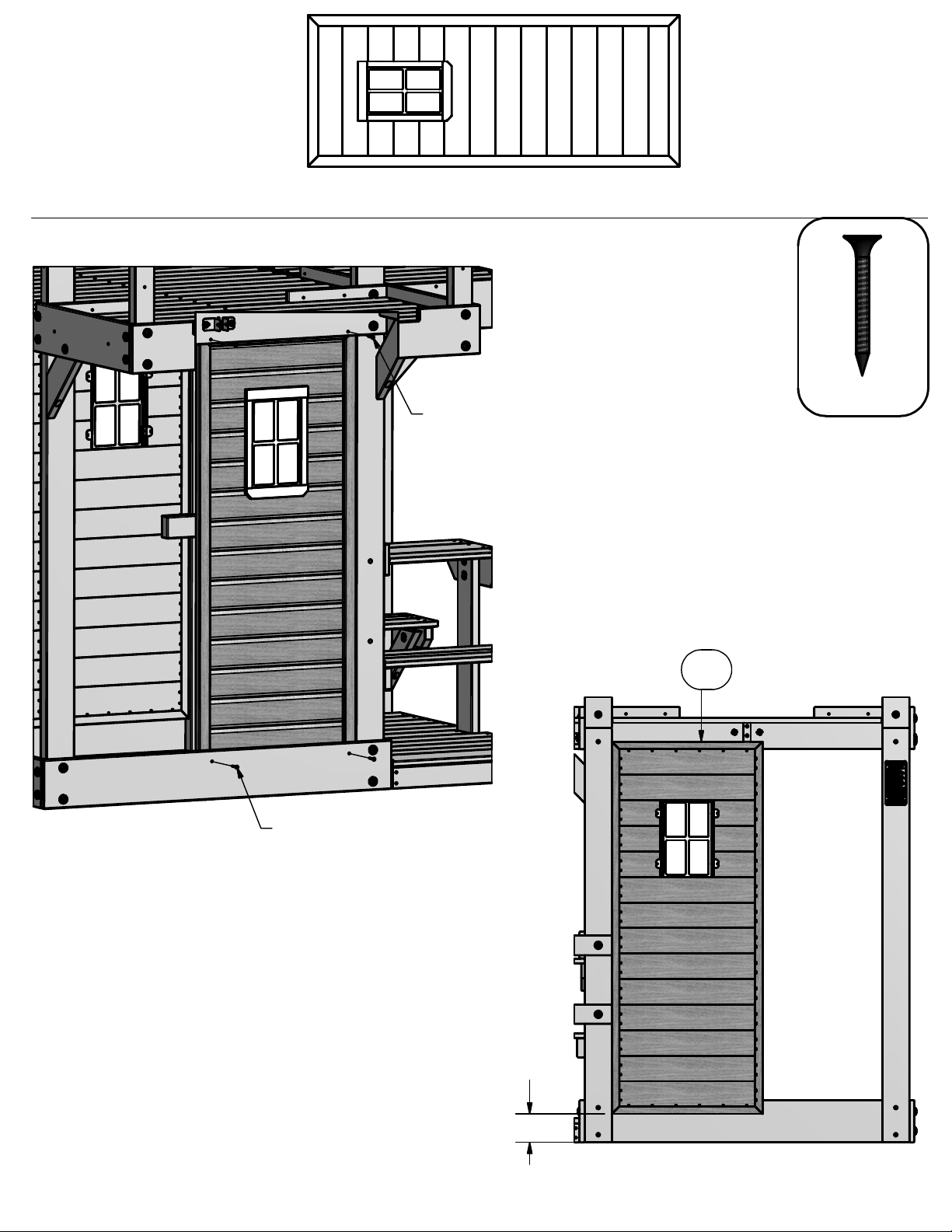

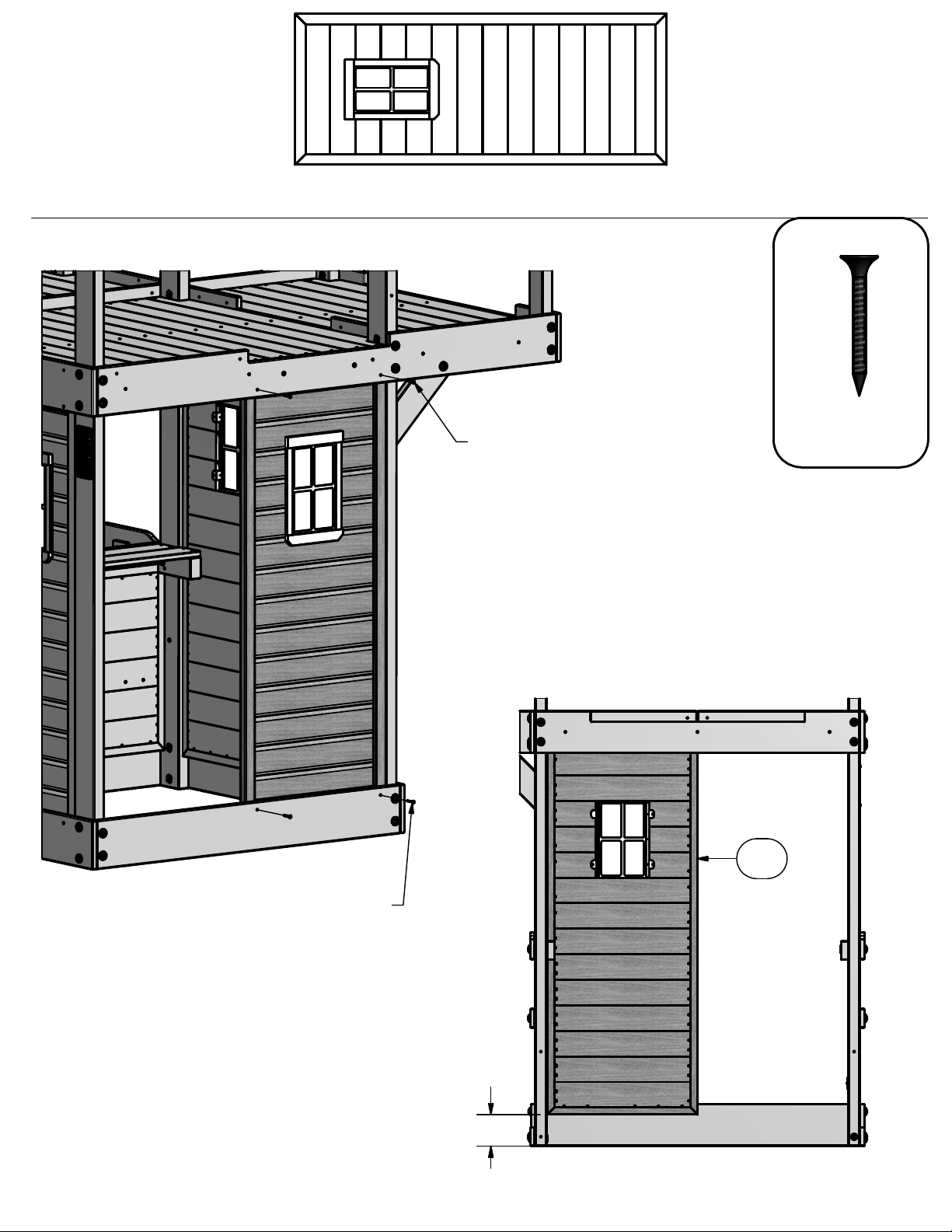

STEP 18

(1) WP1 - FRONT WALL PANEL - W2A02082

1"x20 3/8"x37 3/4" (24x517x958)

(7)

SCREW PFH

8x1 1/4 BLK

WP1

WP1

SCREW PFH 8x1 1/4 BLK
(3 PLCS)

SCREW PFH 8x1 1/4 BLK
(4 PLCS)

100 mm [3 7/8 in]

STEP 19

T4 - SUPPORT BOARD - W4L07613

(1)

1"x1 3/8"x37 3/4" (24x34x958)

SCREW PFH 8x1 1/4 BLK
(3 PLCS)

(3)

SCREW PFH

8x1 1/4 BLK

T4

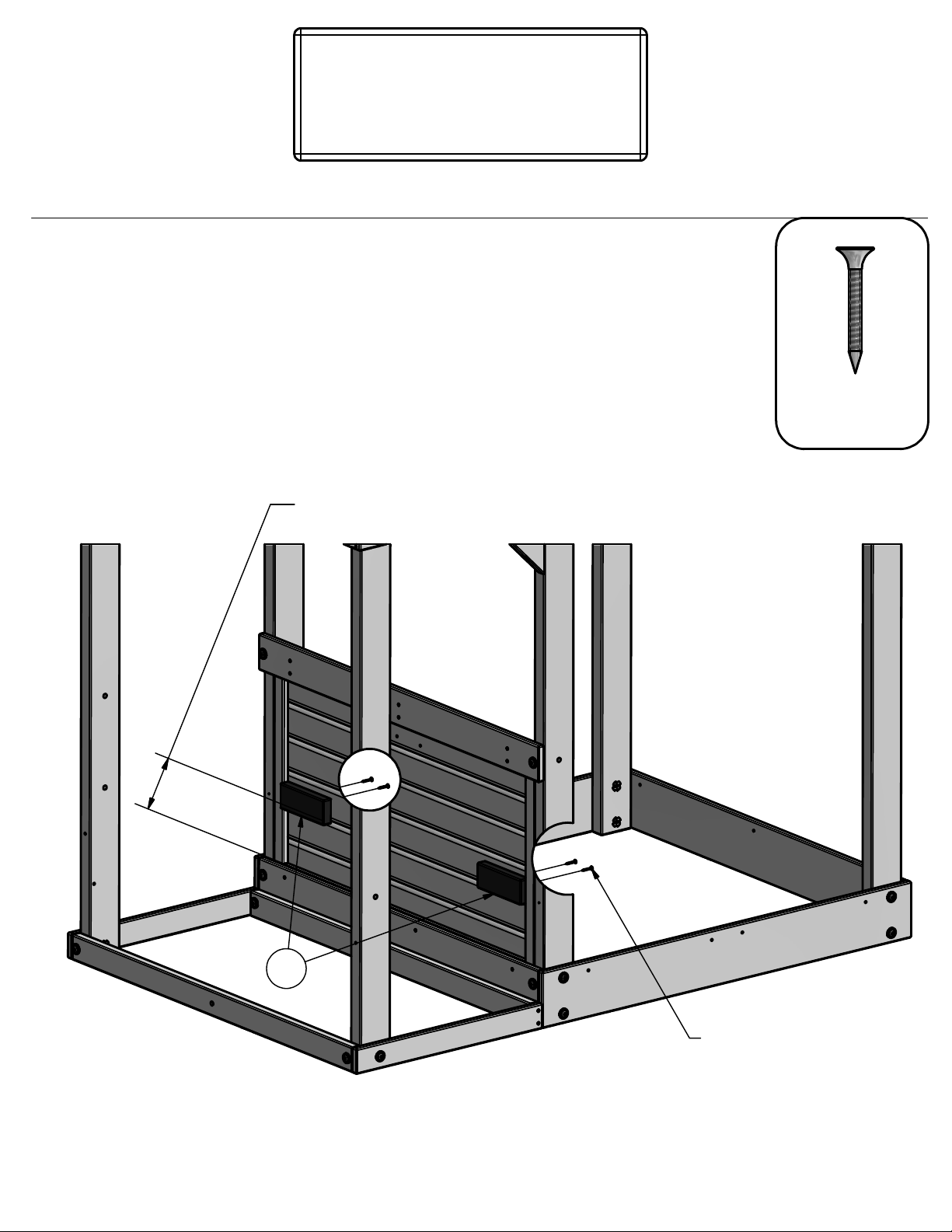

STEP 20

J6 - SUPPORT BLOCK - W4L07589

(2)

1"x2 3/8"x6 1/4" (24x60x160)

136 mm [5 3/8 in]

(4)

SCREW PFH

8x1 1/8

J6

SCREW PFH 8x1 1/8
(4 PLCS)

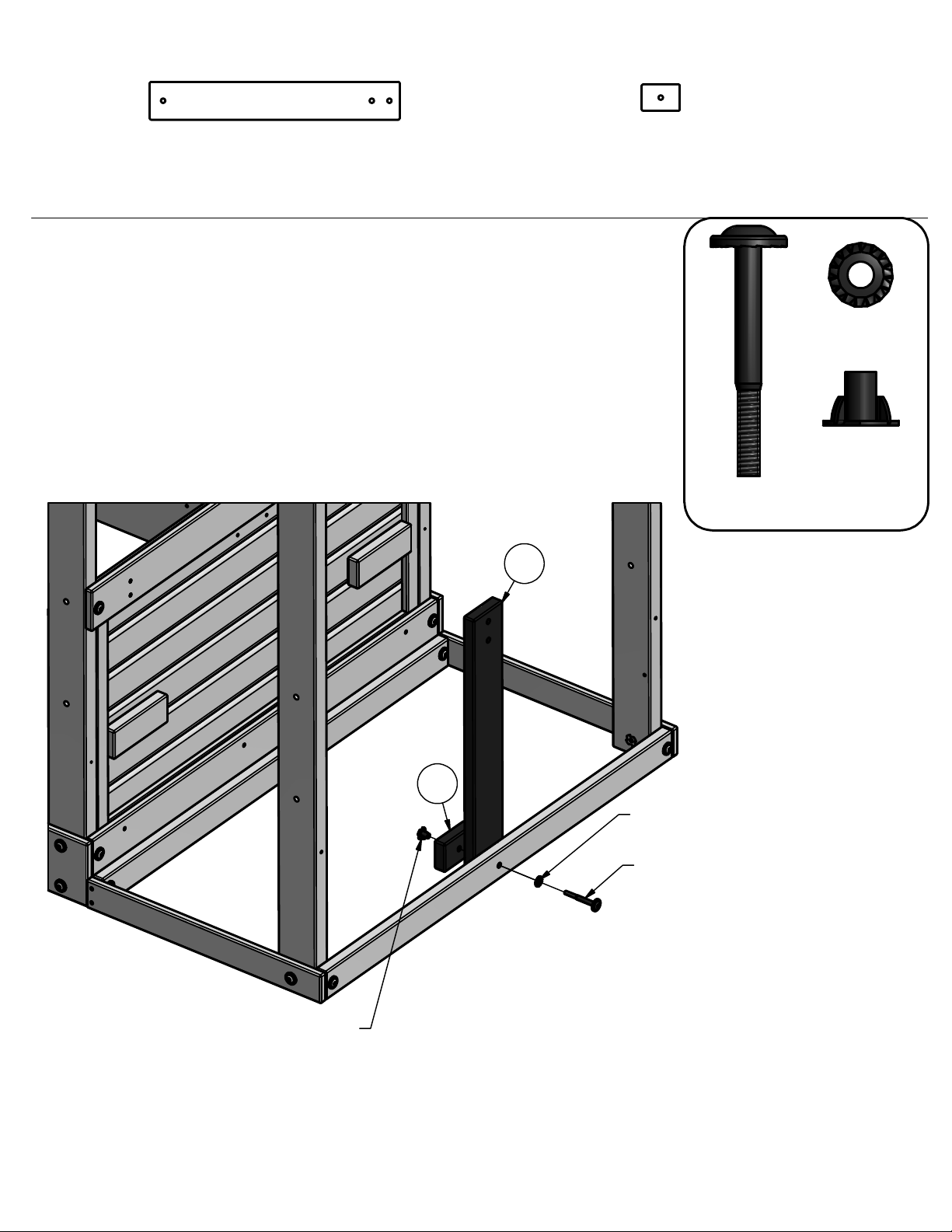

STEP 21

H1 - TABLE SUPPORT - W4L07583

(1)

1"x3 3/8"x22 3/8" (24x86x567)

H1

J7 - SUPPORT BLOCK - W4L07595

(1)

1"x2 3/8"x3 3/8" (24x60x86)

(1)

BOLT WH
5/16x2-3/4

BLK

(1)

(1)

WASHER

LOCK EXT

8x19 BLK

T-NUT 5/16

BLK

T-NUT 5/16 BLK

(1 PLC)

J7

WASHER LOCK EXT 8x19 BLK
(1 PLC)

BOLT WH 5/16x2-3/4 BLK
(1 PLC)

STEP 22

M4 - FLOOR BOARD - W4L07597

(8)

5/8"x3 3/8"x21 1/8" (16x86x537)

M5 - FLOOR BOARD - W4L07598

(1)

5/8"x3 3/8"x19 1/4" (16x86x488)

K17 - FLOOR BOARD - W4L07596

(2)

5/8"x5 1/4"x21 1/8" (16x134x537)

(42)

SCREW PFH

8x1 1/2

K17

K17

SCREW PFH 8x1 1/2
(42 PLCS)

EVENLY SPACE ALL
FLOOR BOARDS.

M4

M5

M4

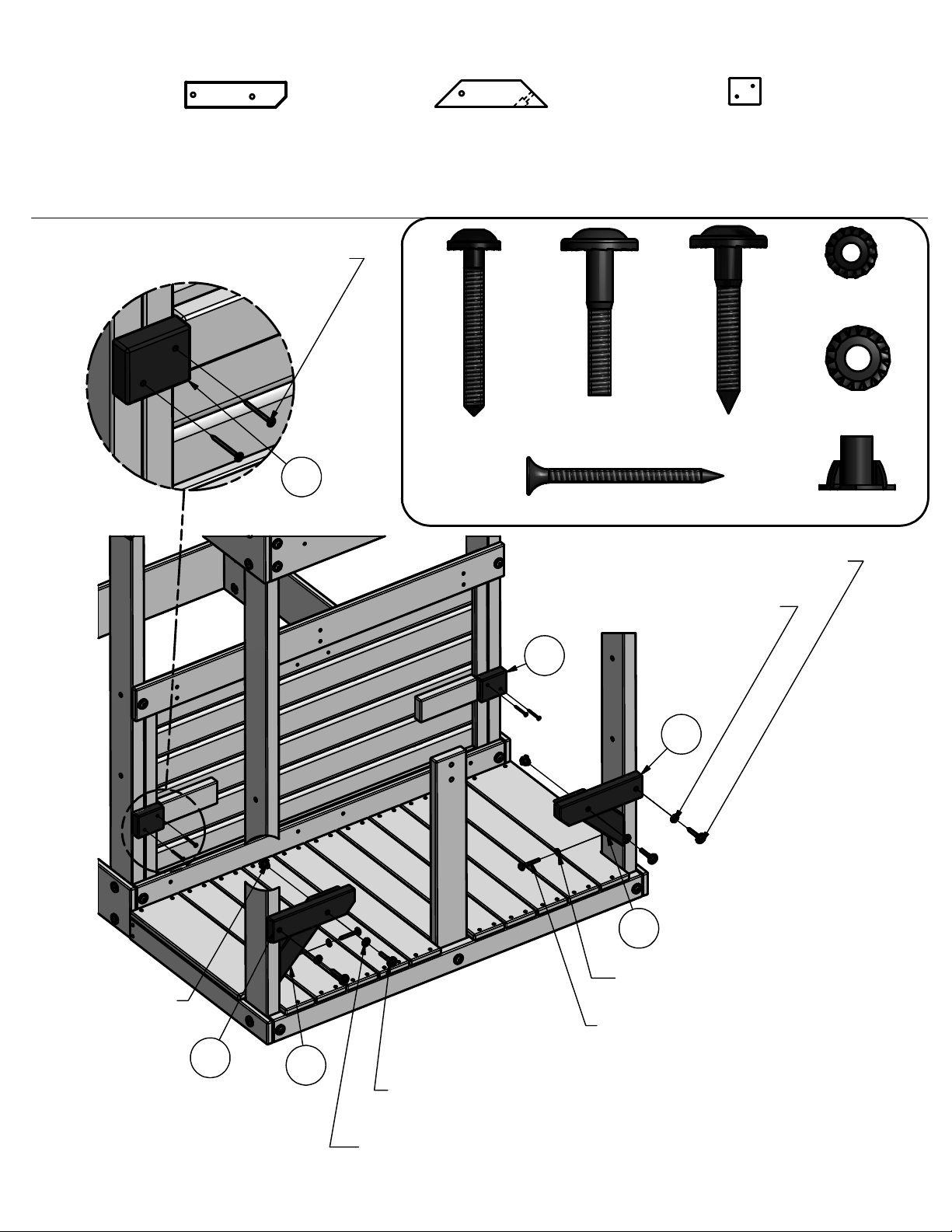

STEP 23

J3 - BENCH SUPPORT - W4L07586

(2)

1"x2 3/8"x9" (24x60x230)

SCREW PFH 8x1 3/4 BLK

(4 PLCS)

J4 - ANGLE BRACE - W4L07587

(2)

1"x2 3/8"x10" (24x60x254)

J5 - SUPPORT BLOCK - W4L07588

(2)

1"x2 3/8"x2 7/8" (24x60x72)

(2)

WASHER

LOCK EXT

6x15 BLK

J5

LAG SCREW

(2)

WH 1/4x2 BLK

BOLT WH

(2)

5/16x1 3/4

(4)

BLK

SCREW PFH

8x1 3/4 BLK

LAG SCREW

(2)

WH 5/16x2

BLK

LAG SCREW WH 5/16x2 BLK

WASHER LOCK EXT 8x19 BLK

(2 PLCS)

J5

J3

(4)

(2)

(2 PLCS)

WASHER

LOCK EXT

8x19 BLK

T-NUT 5/16

BLK

T-NUT 5/16 BLK

(2 PLCS)

J4

WASHER LOCK EXT 6x15 BLK
(2 PLCS)

LAG SCREW WH 1/4x2 BLK

J3

J4

(2 PLCS)

BOLT WH 5/16x1 3/4 BLK
(2 PLCS)

WASHER LOCK EXT 8x19 BLK
(2 PLCS)

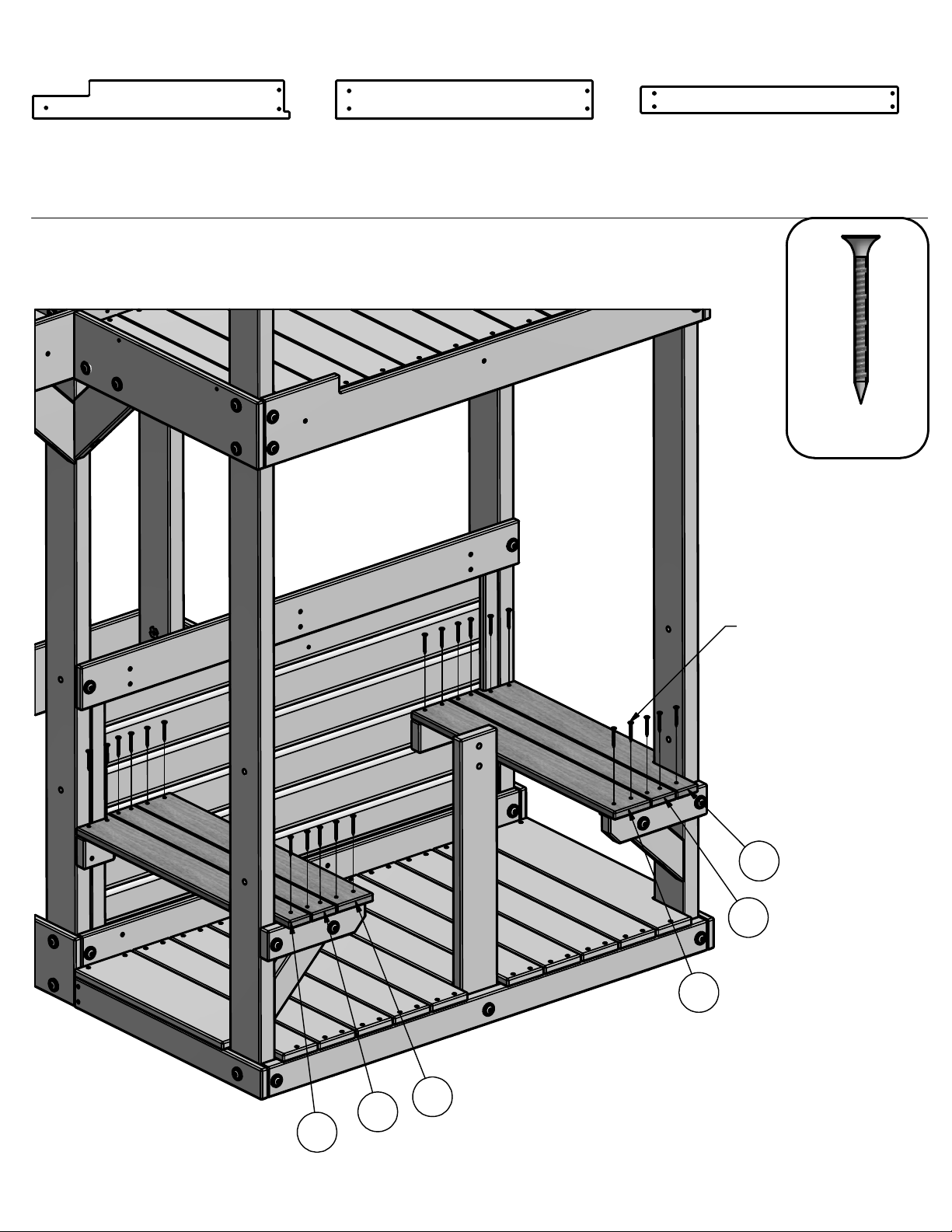

M2 - BENCH BOARD - W4L07591

(2)

5/8"x3 3/8"x23" (16x86x583)

STEP 24

M3 - TABLE BOARD - W4L07593

(2)

5/8"x3 3/8"x23" (16x86x583)

N3 - BENCH BOARD - W4L07592

(2)

5/8"x2 3/8"x23" (16x60x583)

(22)

SCREW PFH

8x1 1/2

M3

SCREW PFH 8x1 1/2
(22 PLCS)

M2

N3

M2

N3

M3

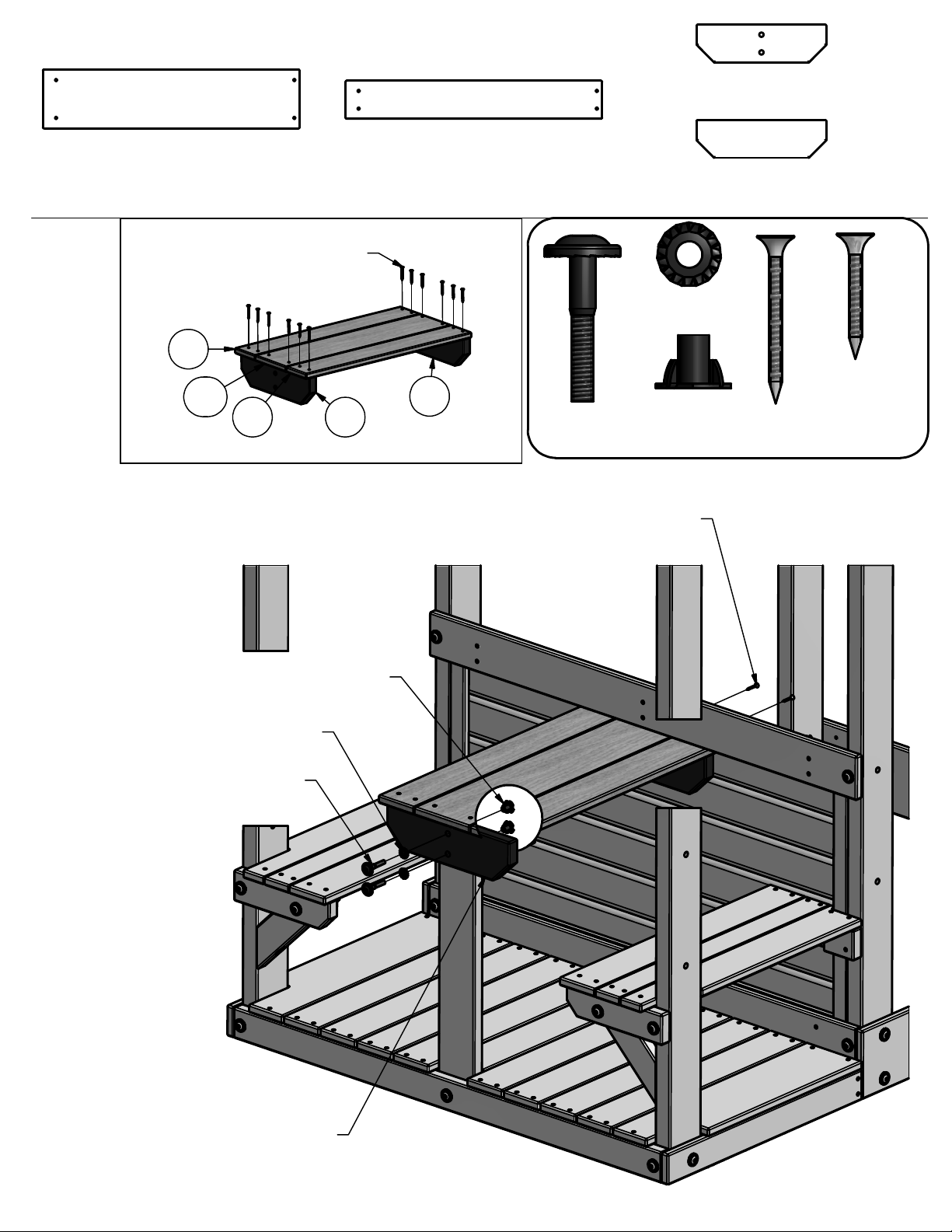

K16 - TABLE BOARD - W4L07594

(1)

5/8"x5 1/4"x23" (16x134x583)

STEP 25

M3 - TABLE BOARD - W4L07593

(2)

5/8"x3 3/8"x23" (16x86x583)

SCREW PFH 8x1 1/2

(12 PLCS)

M3

K16

H3

M3 H2

ASSEMBLE TABLE TOP ASSEMBLY AS SHOWN.

(2)

BOLT WH

5/16x1 3/4

BLK

H2 - TABLE SUPPORT - W4L07584

(1)

1"x3 3/8"x11 5/8" (24x86x295)

H3 - TABLE SUPPORT - W4L07585

(1)

1"x3 3/8"x11 5/8" (24x86x295)

WASHER

(2)

LOCK EXT

8x19 BLK

T-NUT 5/16

(2)

BLK

(12)

SCREW PFH

8x1 1/2

(2)

SCREW PFH

8x1 1/8

INSTALL T-NUTS INTO PARTS BEFORE
ASSEMBLY OF PARTS.

T-NUT 5/16 BLK

(2 PLCS)

WASHER LOCK EXT 8x19 BLK

(2 PLCS)

BOLT WH 5/16x1 3/4 BLK

(2 PLCS)

SCREW PFH 8x1 1/8

(2 PLCS)

TABLE TOP ASSEMBLY

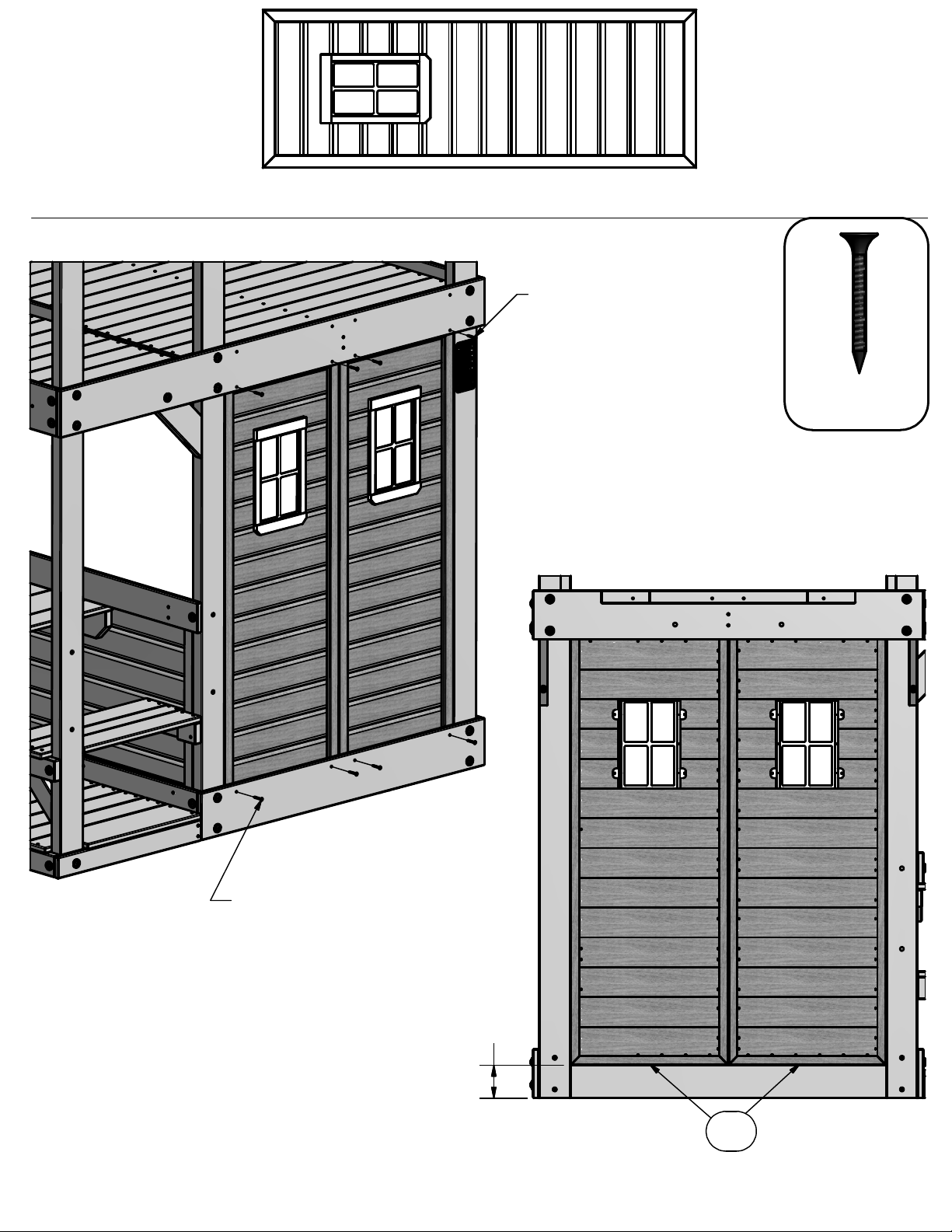

STEP 26

(2) WP2 - RIGHT LOWER WALL PANEL - W2A02083

1"x16 7/8"x46 1/2" (24x430x1181)

SCREW PFH 8x1 1/4 BLK
(4 PLCS)

(8)

SCREW PFH

8x1 1/4 BLK

SCREW PFH 8x1 1/4 BLK
(4 PLCS)

]
n

i
2

/
1

3

[
m

m
0

9

WP2

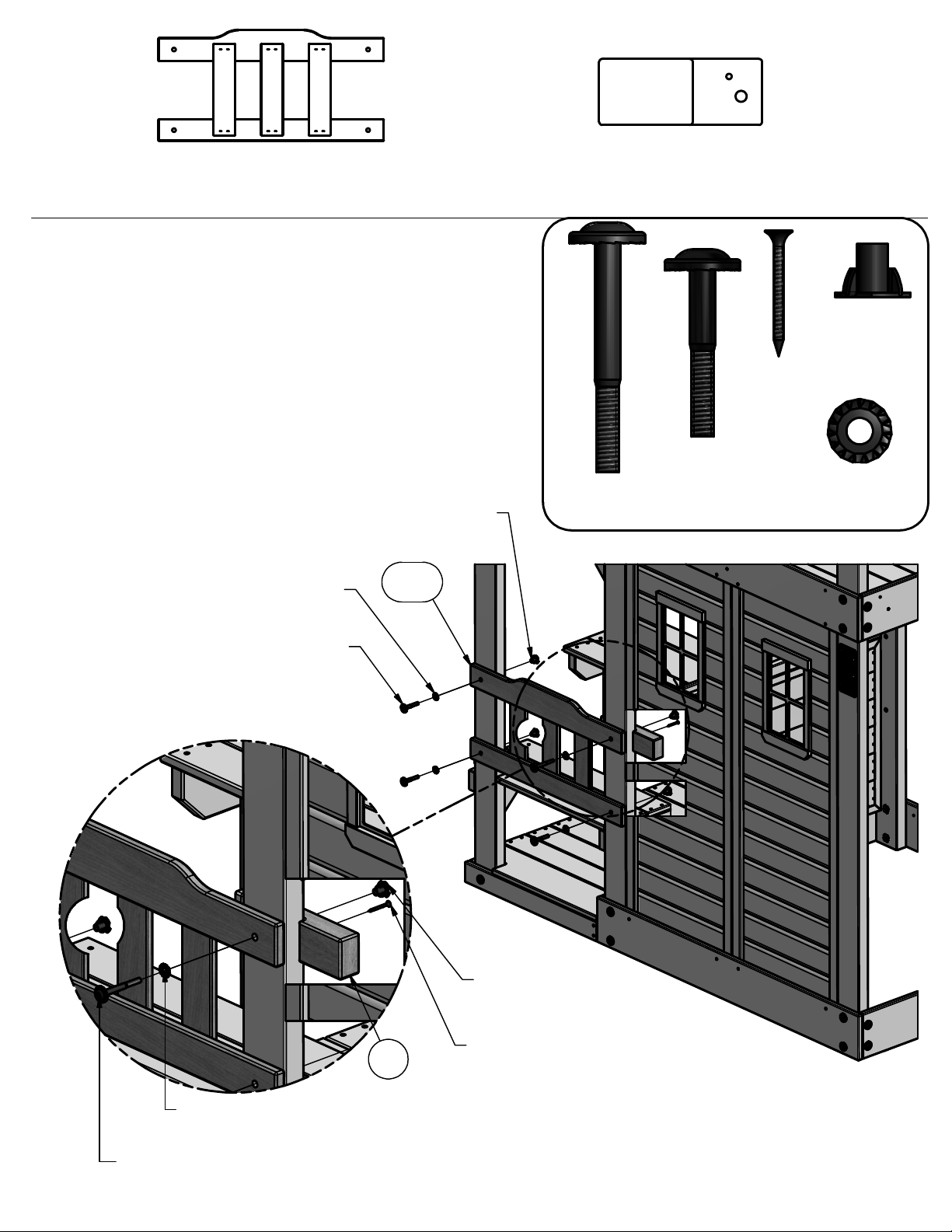

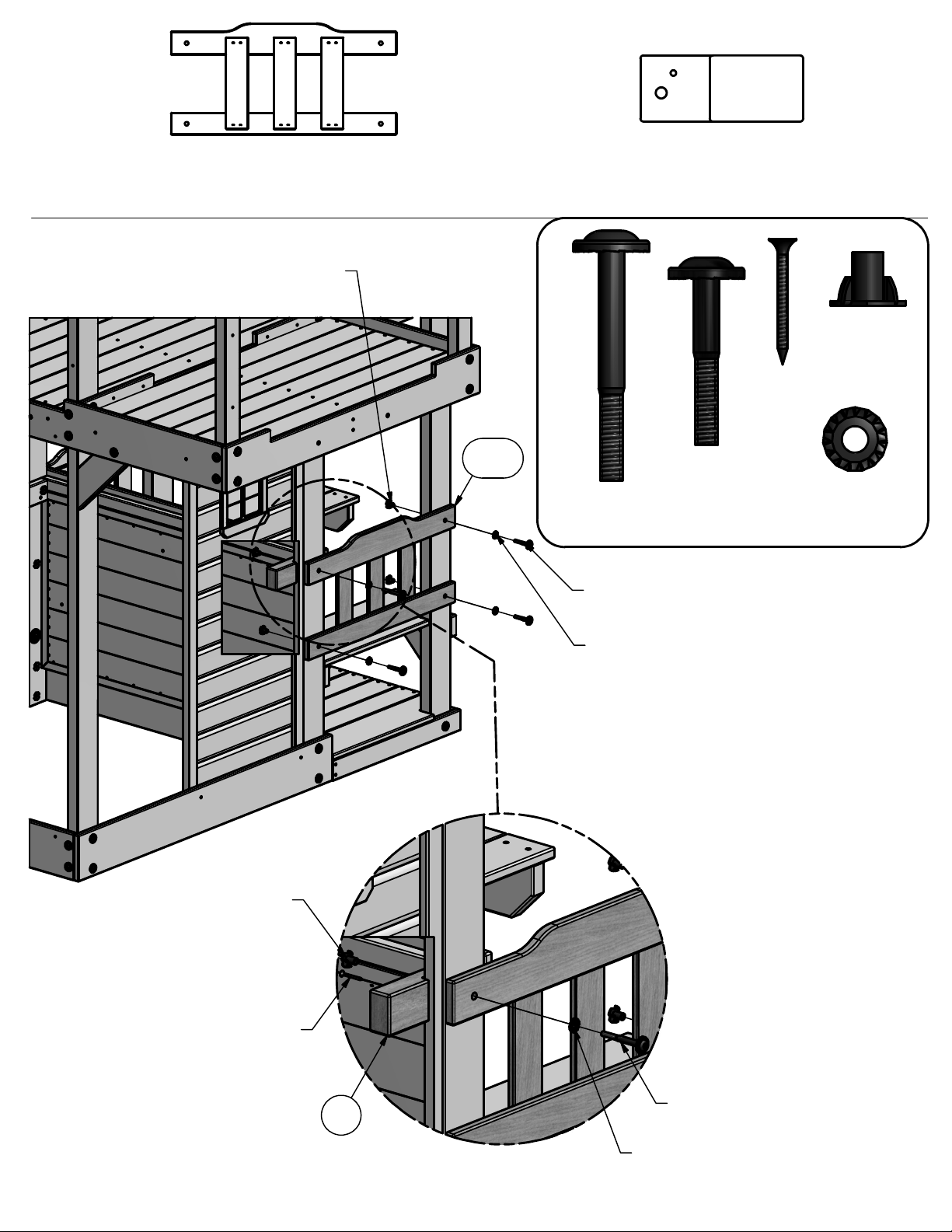

STEP 27

(1) WP10 - BENCH BACK ASSEMBLY - W2A02081

1 1/8"x11 7/8"x17 5/8" (27x303x615)

T-NUT 5/16 BLK

(3 PLCS)

F3 - SUPPORT BLOCK - W4L07604

(1)

1 3/8"x2 3/8"x5 7/8" (36x60x148)

BOLT WH

(3)

5/16x2 BLK

BOLT WH

(1)

5/16x2-3/4

BLK

(1)

SCREW PFH

8x1-1/2 BLK

(4)

(4)

T-NUT 5/16

BLK

WASHER

LOCK EXT

8x19 BLK

WASHER LOCK EXT 8x19 BLK

(3 PLCS)

BOLT WH 5/16x2 BLK

(3 PLCS)

WP10

T-NUT 5/16 BLK
(1 PLC)

WASHER LOCK EXT 8x19 BLK
(1 PLC)

BOLT WH 5/16x2-3/4 BLK
(1 PLC)

F3

SCREW PFH 8x1-1/2 BLK
(1 PLC)

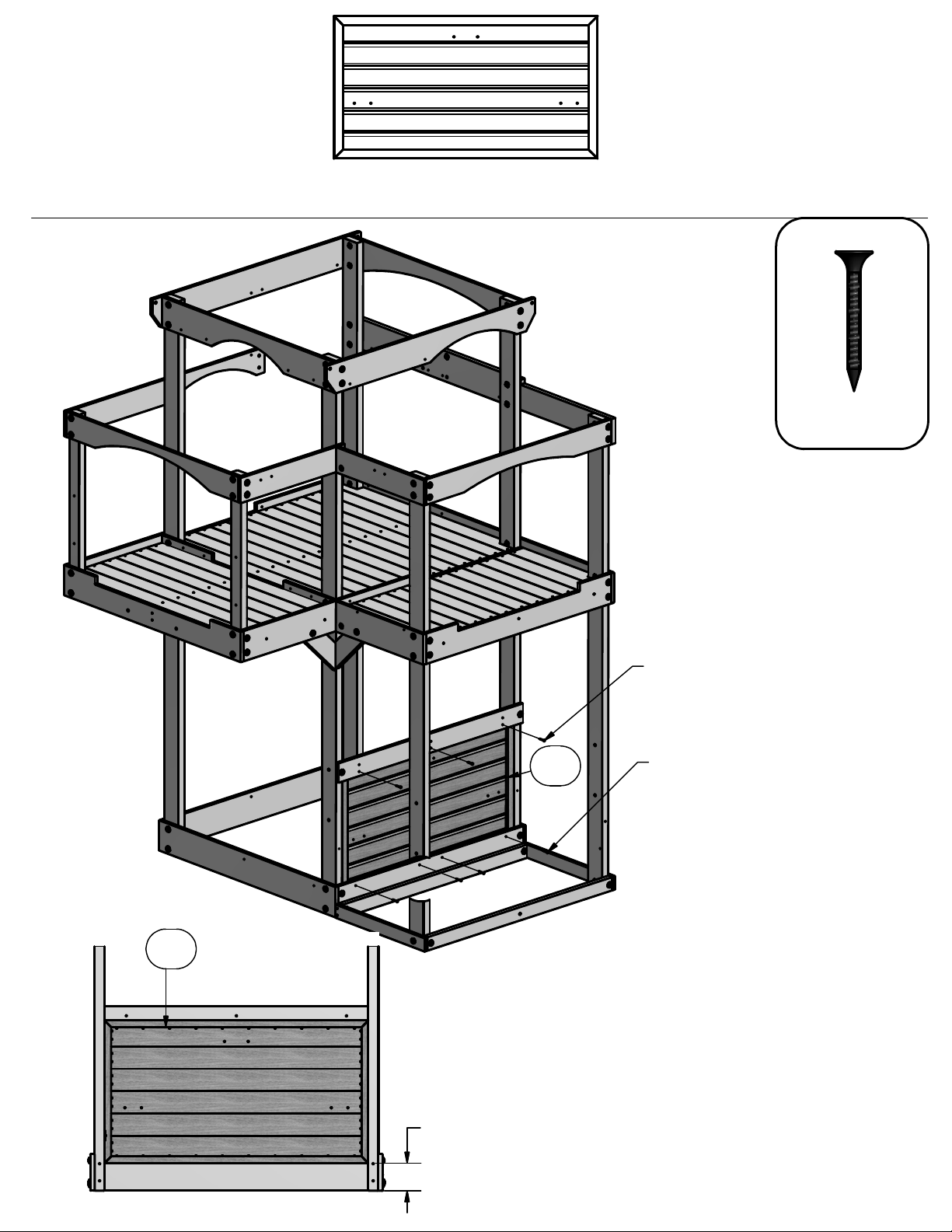

STEP 28

(1) WP9 - LOWER WALL PANEL - W2A02090

1"x16 7/8"x46 1/2" (24x476x1181)

SCREW PFH 8x1 1/4 BLK
(2 PLCS)

(4)

SCREW PFH

8x1 1/4 BLK

SCREW PFH 8x1 1/4 BLK
(2 PLCS)

]
n

i
2

/
1

3

[
m

m
0

9

WP9

STEP 29

(1) WP10 - BENCH BACK ASSEMBLY - W2A02081

1 1/8"x11 7/8"x17 5/8" (27x303x615)

T-NUT 5/16 BLK

(3 PLCS)

F4 - SUPPORT BLOCK - W4L07614

(1)

1 3/8"x2 3/8"x5 7/8" (36x60x148)

SCREW PFH

(1)

8x1-1/2 BLK

(4)

T-NUT 5/16

BLK

T-NUT 5/16 BLK

(1 PLC)

WP10

(1)

BOLT WH

5/16x2-3/4

BLK

(3)

BOLT WH

5/16x2 BLK

(4)

WASHER
LOCK EXT
8x19 BLK

BOLT WH 5/16x2 BLK

V

(3 PLCS)

WASHER LOCK EXT 8x19 BLK
(3 PLCS)

SCREW PFH 8x1-1/2 BLK

(1 PLC)

F4

BOLT WH 5/16x2-3/4 BLK
(1 PLC)

WASHER LOCK EXT 8x19 BLK
(1 PLC)

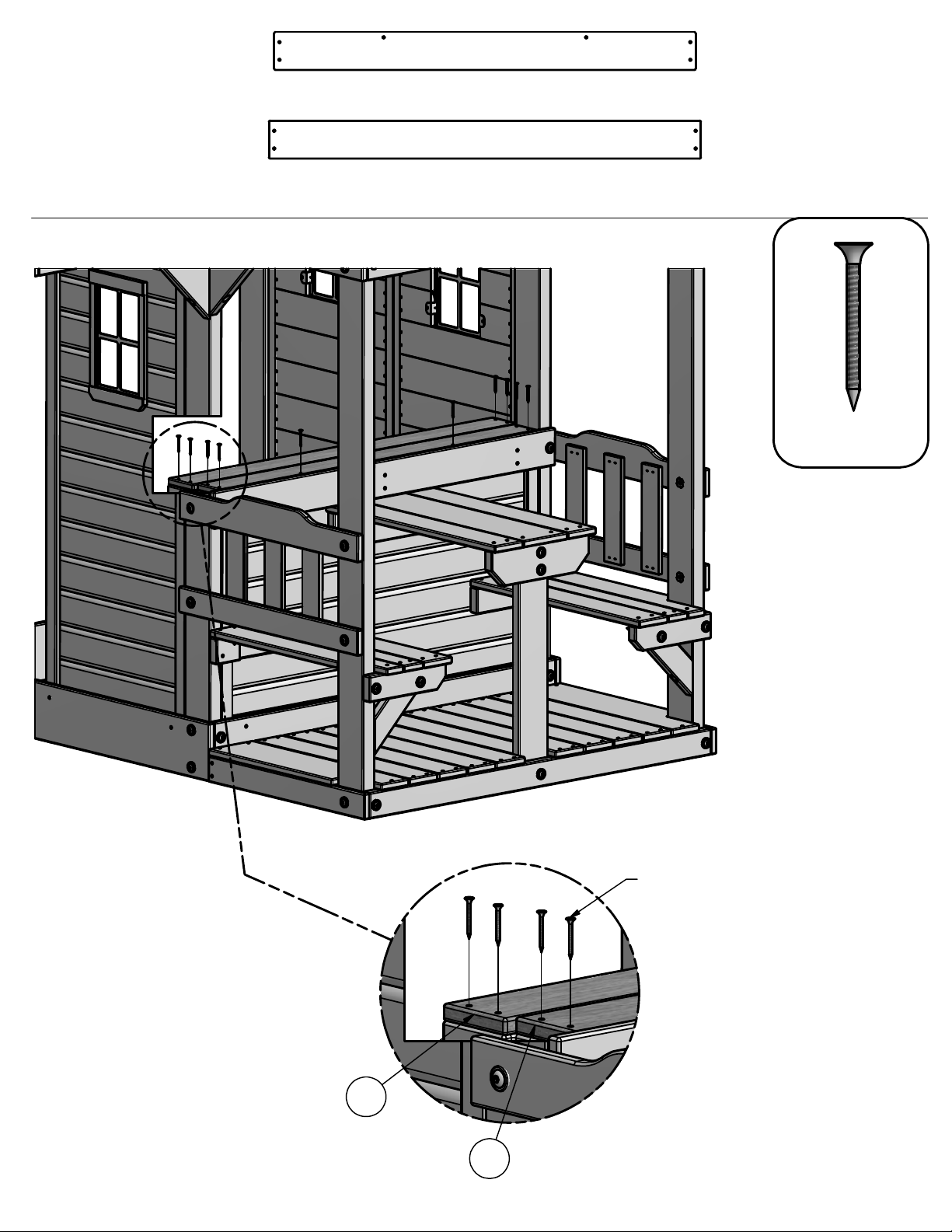

STEP 30

M6 - COUNTER TOP - W4L07605

(1)

5/8"x3 3/8"x37 5/8" (16x86x957)

M7 - COUNTER TOP - W4L07606

(1)

5/8"x3 3/8"x38 5/8" (16x86x981)

(10)

SCREW PFH

8x1 1/2

W

SCREW PFH 8x1 1/2
(10 PLCS)

M7

M6

STEP 31

(1) WP9 - LOWER WALL PANEL - W2A02090

1"x16 7/8"x46 1/2" (24x476x1181)

SCREW PFH 8x1 1/4 BLK
(2 PLCS)

(4)

SCREW PFH

8x1 1/4 BLK

SCREW PFH 8x1 1/4 BLK

(2 PLCS)

]
n

i
8

/
7

3

[
m

m
0

0
1

WP9

STEP 32

(1)

- FAUCET KIT - A6P00024

SCREW PFH

(2)

8x1 1/2

FAUCET KIT

SCREW PFH 8x1 1/2
(2 PLCS)

STEP 33

(1)

- SURFACE MOUNT BASIN - A6P00032

AA

SCREW PWH

(2)

8x5/8

SCREW PWH 8x5/8

(2 PLCS)

SURFACE MOUNT BASIN

STEP 34

(1)

- STOVE KIT - A6P00025

SCREW PFH

(4)

8x1 1/8

SCREW PFH 8x1 1/8

(4 PLCS)

STOVE KIT

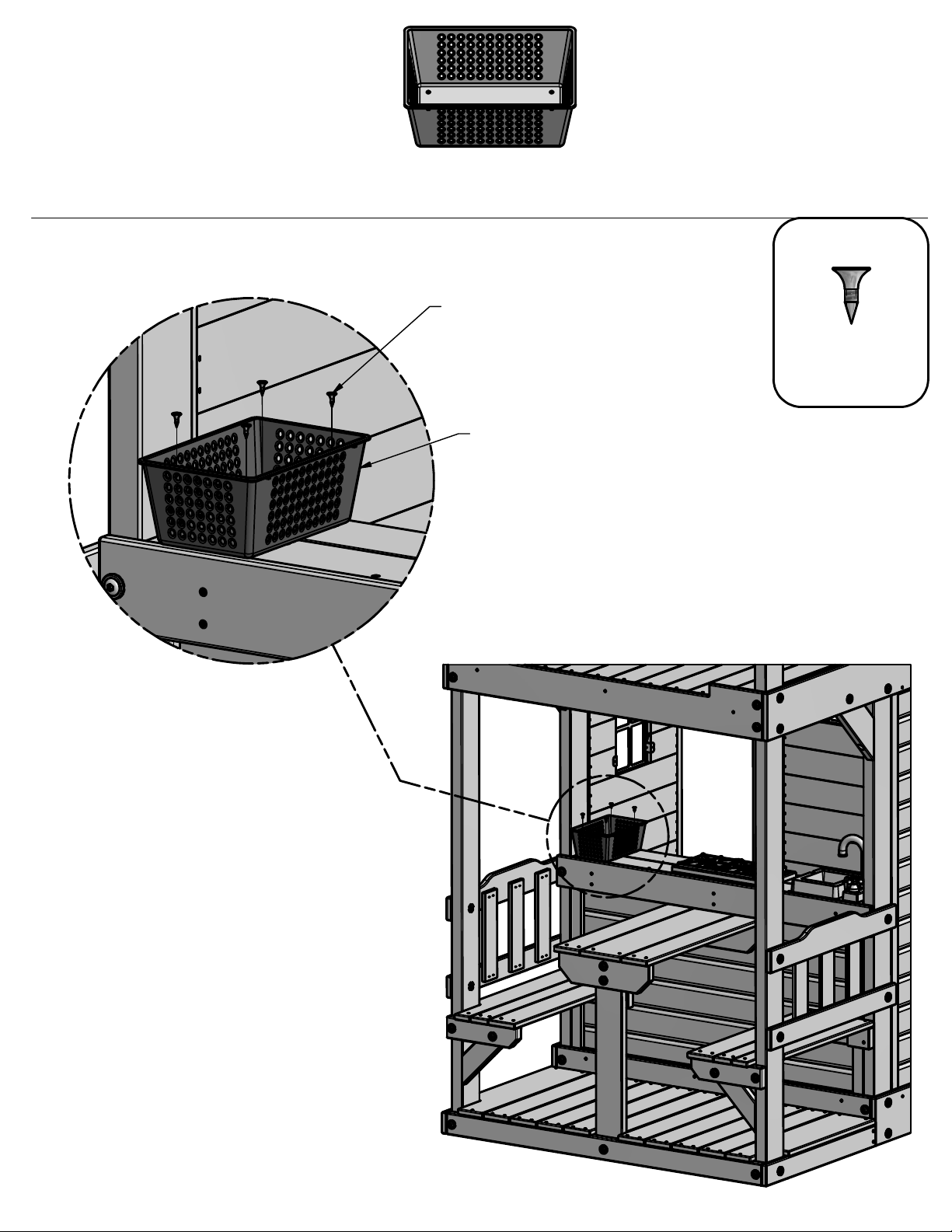

STEP 35

(1)

FRUIT BASKET KIT - A6P00069

SCREW PFH 8x1/2
(4 PLCS)

FRUIT BASKET KIT

(4)

SCREW PFH

8x1/2

AC

STEP 36

(1) WP7 - TOP FRONT WALL PANEL - W2A02088

1"x16 7/8"x38 1/4" (24x476x971)

SCREW PFH

(4)

8x1 1/4 BLK

SCREW PFH 8x1 1/4 BLK
(4 PLCS)

WP7

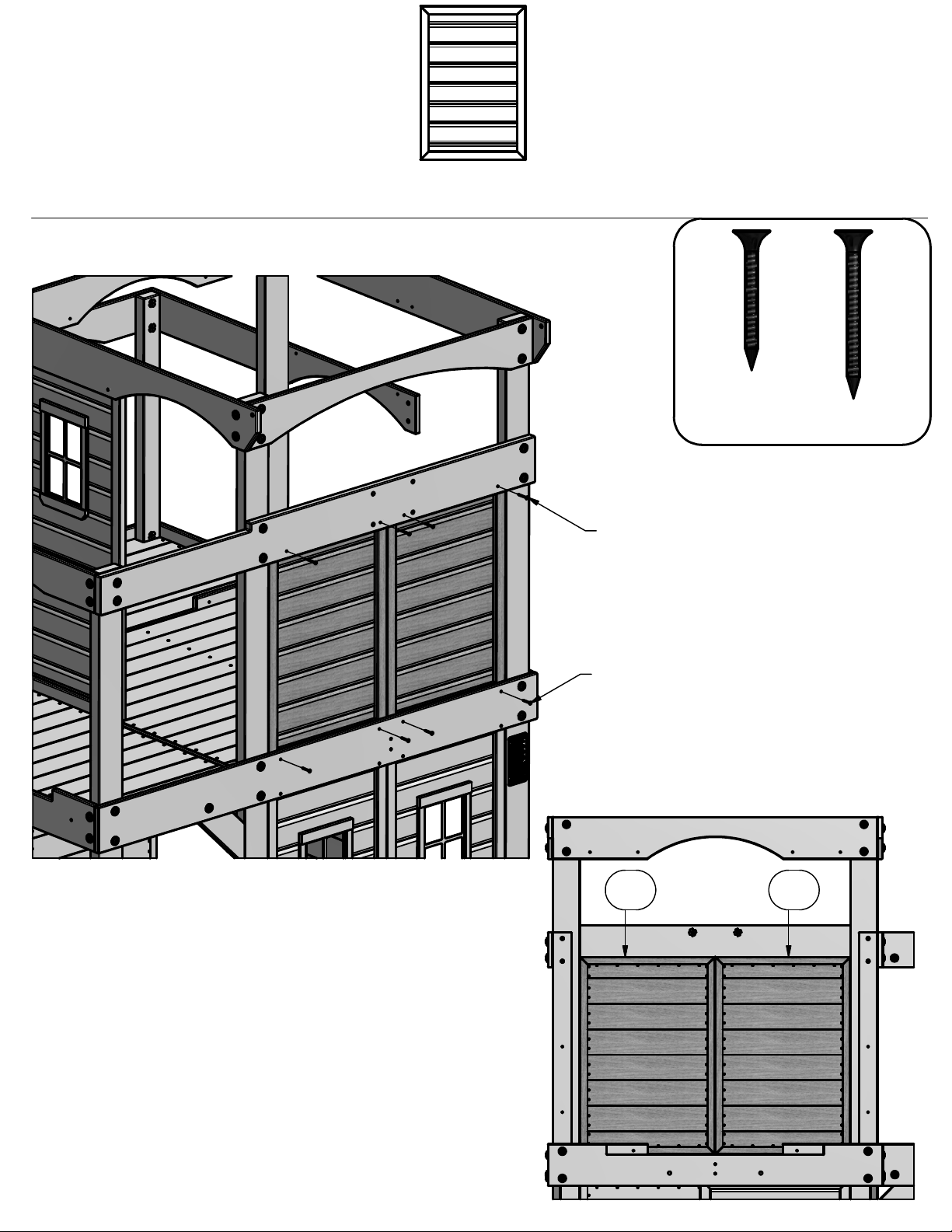

STEP 37

(2) WP3 - TOP RIGHT FRONT WALL PANEL - W2A02084

1"x16 7/8"x24 5/8" (24x430x627)

SCREW PFH 8x1-1/2 BLK
(4 PLCS)

(4)

SCREW PFH

8x1 1/4 BLK

(4)

SCREW PFH

8x1-1/2 BLK

SCREW PFH 8x1 1/4 BLK
(4 PLCS)

WP3WP3

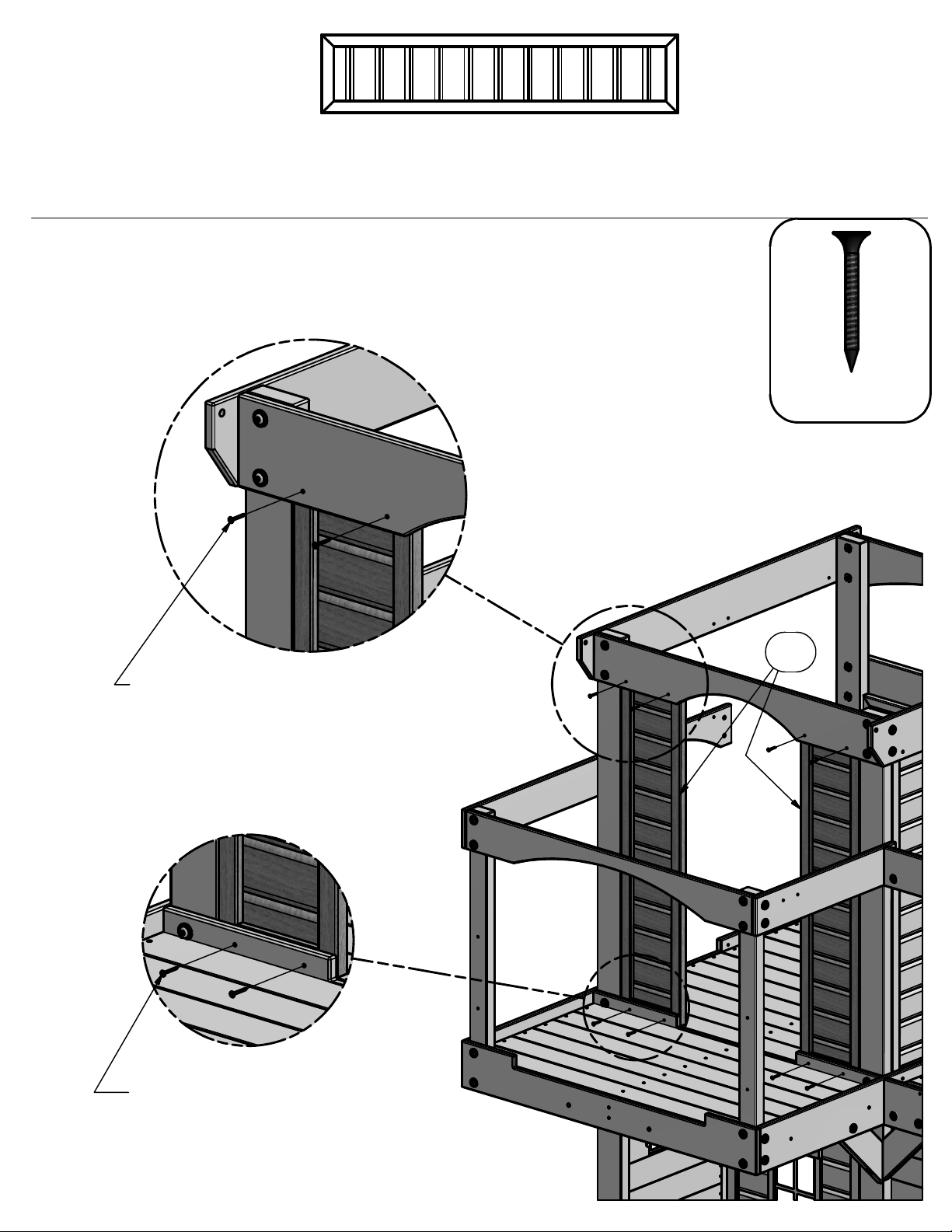

STEP 38

(2) WP8 - TOP LEFT WALL PANEL - W2A02089

1"x11 3/4"x38 1/4" (24x214x971)

(8)

SCREW PFH

8x1 1/4 BLK

SCREW PFH 8x1 1/4 BLK
(4 PLCS)

SCREW PFH 8x1 1/4 BLK
(4 PLCS)

WP8

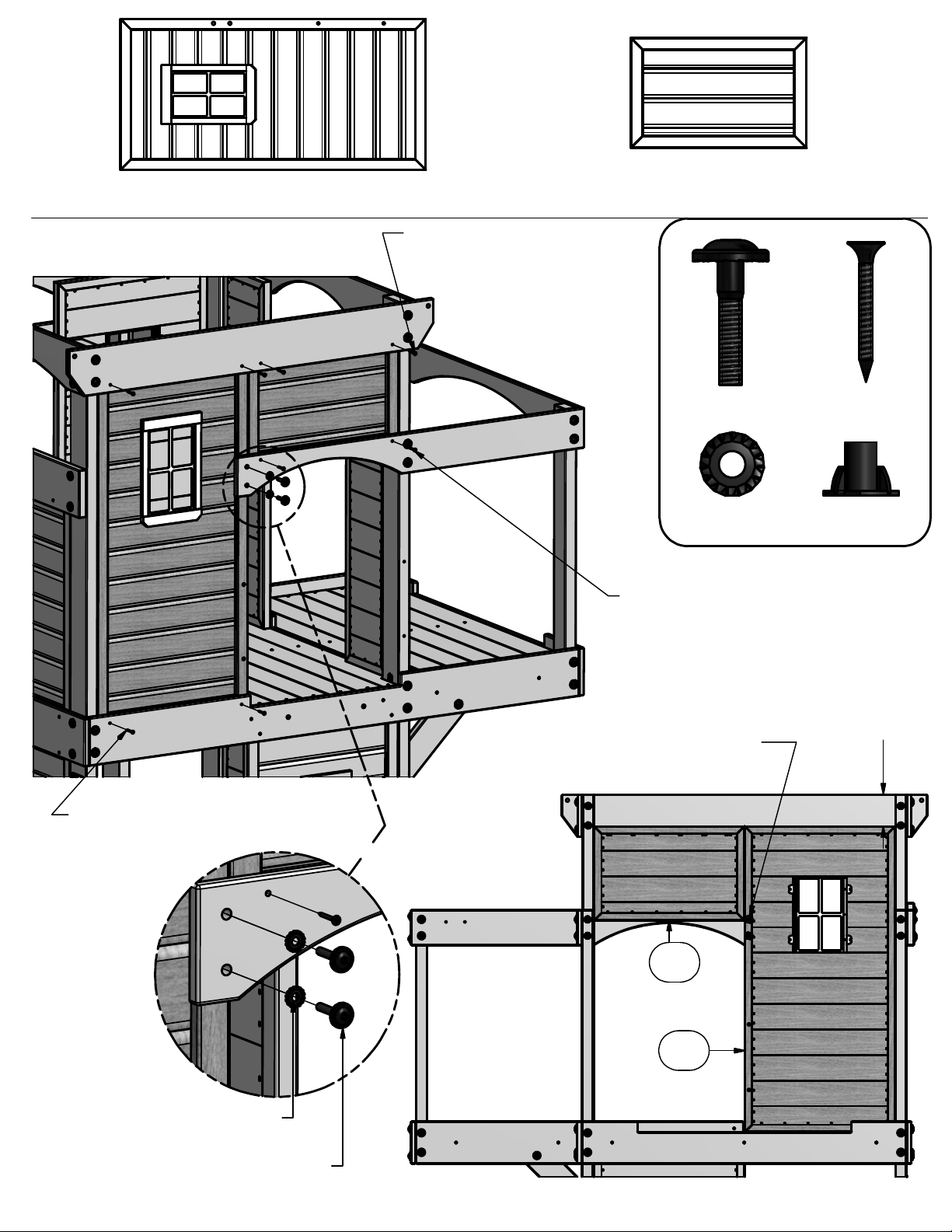

(1) WP5 - TOP LEFT REAR WALL PANEL - W2A02086

1"x16 7/8"x46 1/2" (24x430x971)

(1) WP6 - TOP REAR WALL PANEL - W2A02087

1"x18 7/8"x11 3/4" (24x479x300)

STEP 39

SCREW PFH 8x1 1/4 BLK
(4 PLCS)

BOLT WH

(2)

5/16x1 1/2

BLK

WASHER

LOCK EXT

(2)

8x19 BLK

SCREW PFH 8x1 1/4 BLK
(2 PLCS)

(8)

(2)

SCREW PFH

8x1 1/4 BLK

T-NUT 5/16

BLK

]
n

i
8

/
7

3

[
m

m
0

0

T-NUT 5/16 BLK

1

(2 PLCS)

SCREW PFH 8x1 1/4 BLK
(2 PLCS)

WASHER LOCK EXT 8x19 BLK

(2 PLCS)

BOLT WH 5/16x1 1/2 BLK

(2 PLCS)

WP6

WP5

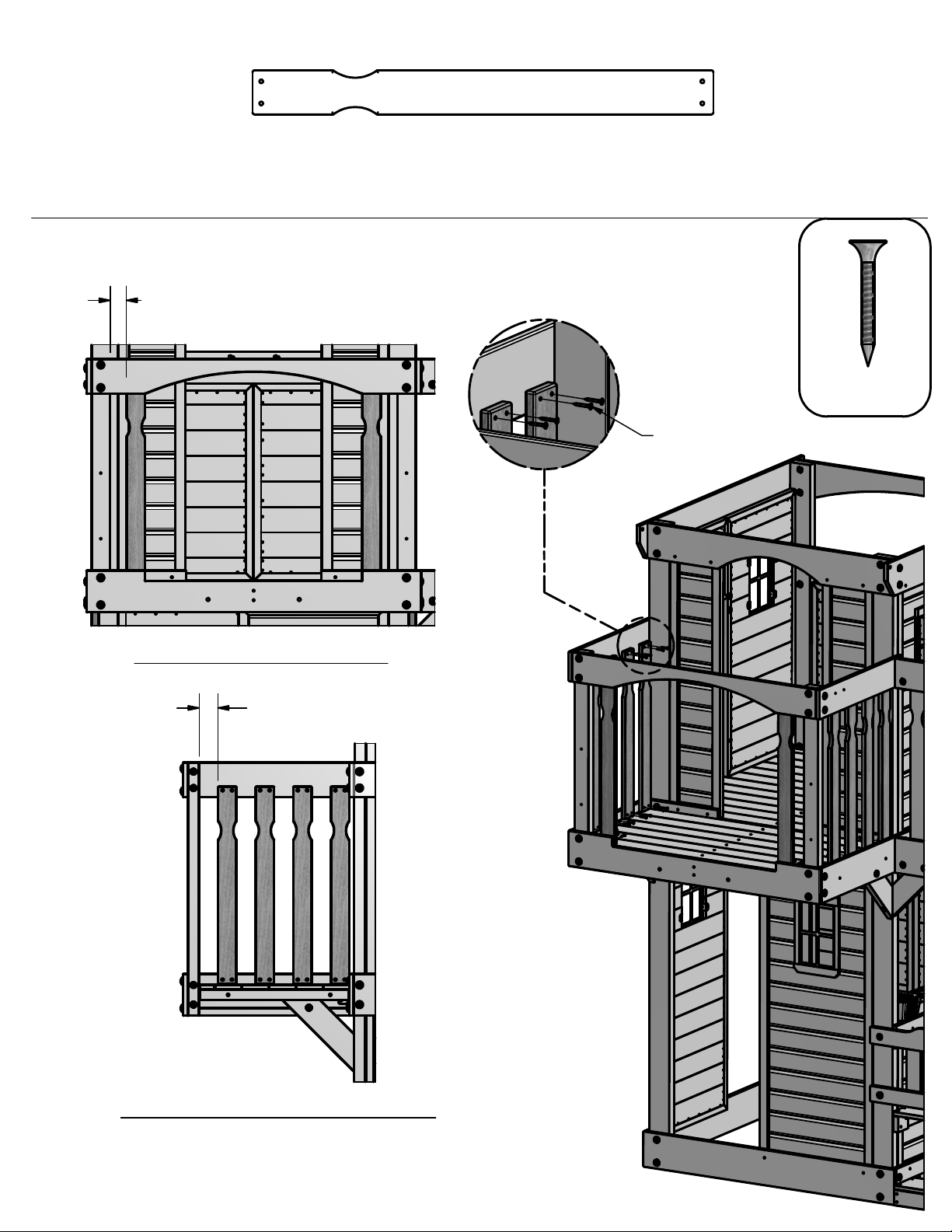

STEP 40

N2 - PICKET - W4L07612

(8)

5/8"x2 3/8"x24 3/4" (16x60x628)

82 mm [3 1/4 in]
TYP

FRONT PICKET PLACEMENT

63 mm [2 1/2 in]
(3 SPCS)

N2

SCREW PFH

(32)

8x1 1/8

SCREW PFH 8x1 1/8
(32 PLCS)

LEFT & RIGHT PICKET PLACEMENT

STEP 41

51 mm [2 in]
TYP

N2 - PICKET - W4L07612

(10)

5/8"x2 3/8"x24 3/4" (16x60x628)

(40)

SCREW PFH 8x1 1/8
(40 PLCS)

SCREW PFH

8x1 1/8

FRONT PICKET PLACEMENT

60 mm [2 3/8 in]
(4 SPCS)

AH

LEFT & RIGHT PICKET PLACEMENT

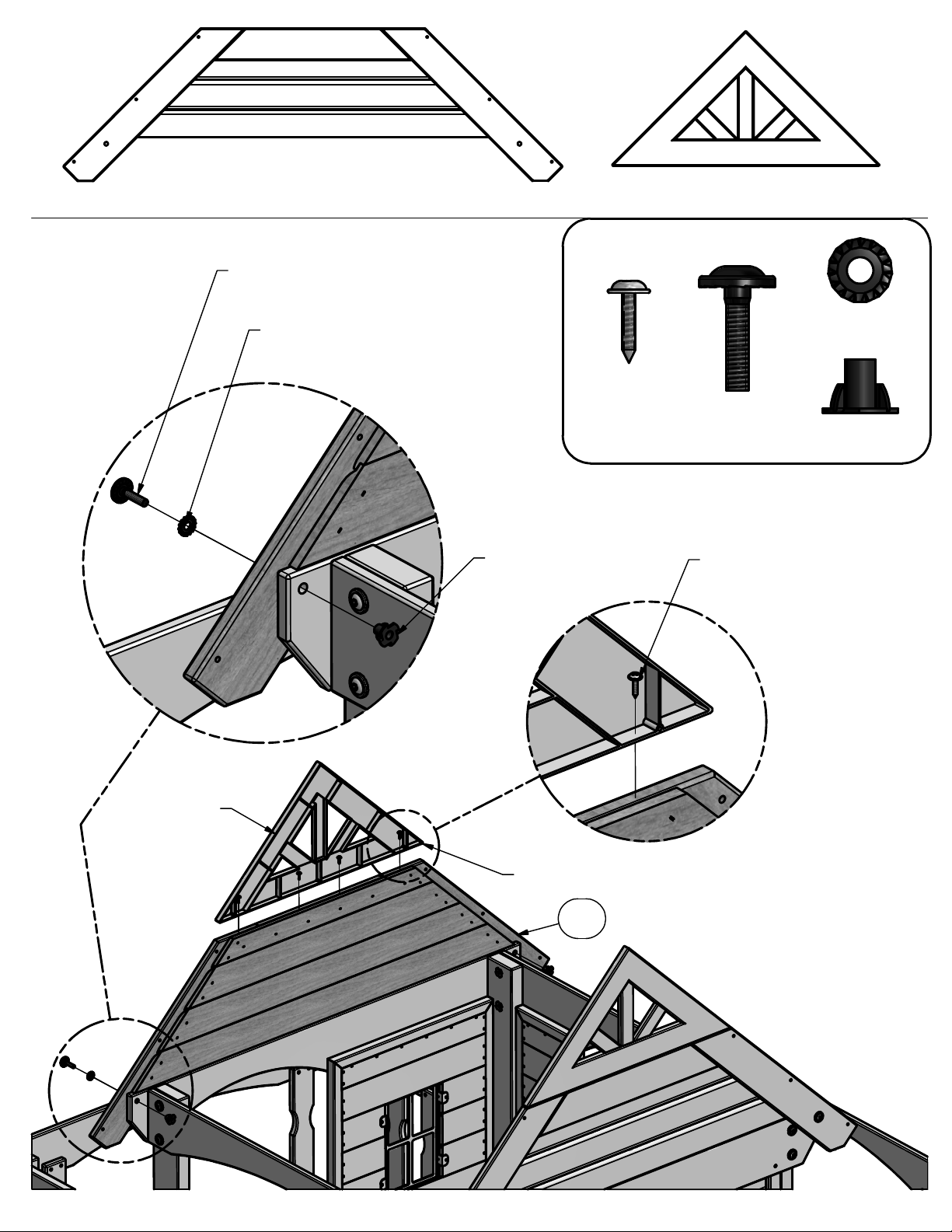

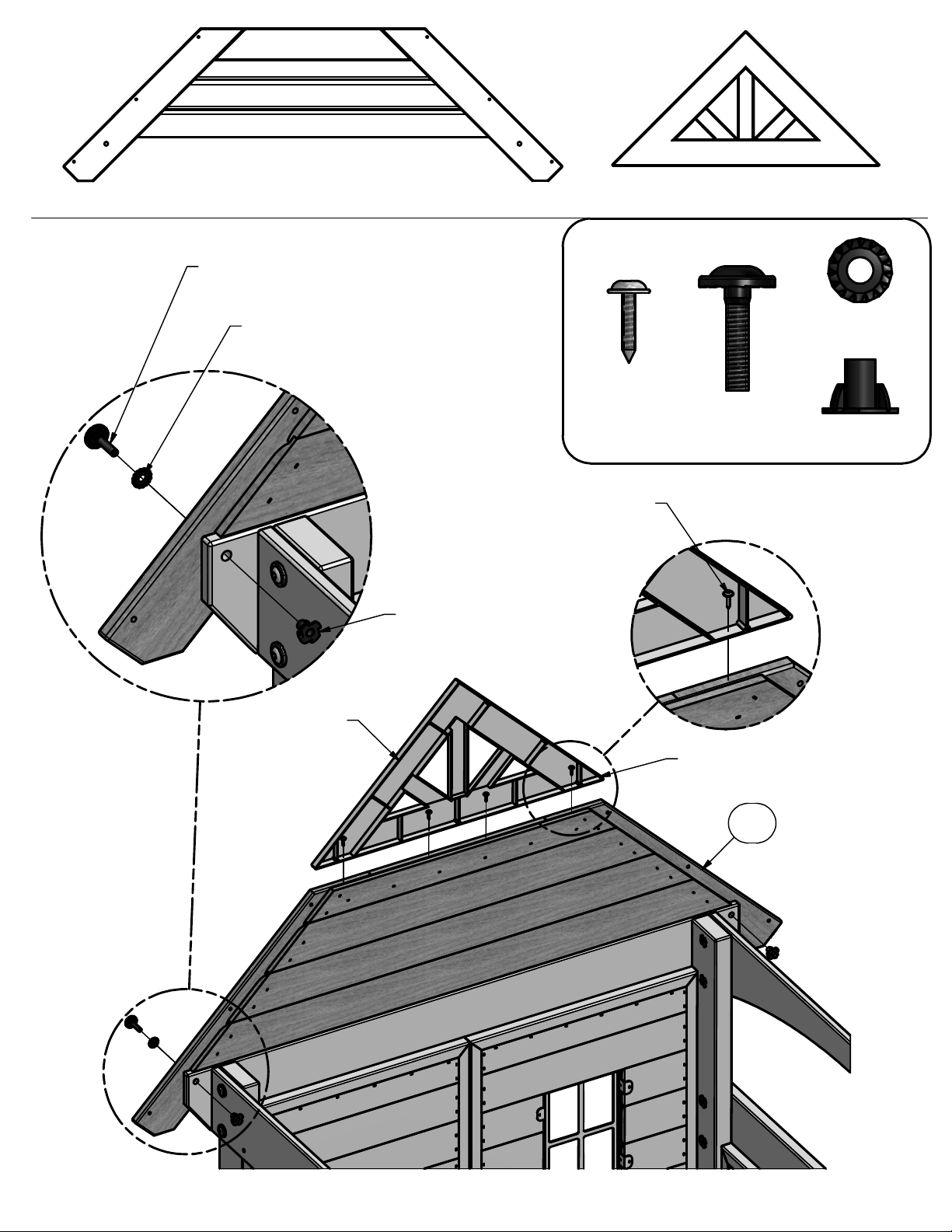

STEP 42

(1) GP1 - GABLE PANEL - W2A02091

1 1/8"x53 1/2"x16 3/8" (27x1359x414)

BOLT WH 5/16x1 1/4 BLK
(2 PLCS)

(1)

SY - PLASTIC SUNBURST - A100322

WASHER LOCK EXT 8x19 BLK
(2 PLCS)

T-NUT 5/16 BLK
(2 PLCS)

CENTER

STARBURST

SCREW PWH

(4)

8x5/8

SCREW PWH 8x5/8

(4 PLCS)

WASHER

LOCK EXT

(2)

8x19 BLK

BOLT WH

(2)

5/16x1 1/4

BLK

(2)

T-NUT 5/16

PLASTIC SUNBURST

BLK

GP1

STEP 43

(1) GP1 - GABLE PANEL - W2A02091

1 1/8"x53 1/2"x16 3/8" (27x1359x414)

BOLT WH 5/16x1 1/4 BLK
(2 PLCS)

WASHER LOCK EXT 8x19 BLK
(2 PLCS)

(1)

SCREW PWH

(4)

SY - PLASTIC SUNBURST - A100322

WASHER

LOCK EXT

(2)

8x19 BLK

8x5/8

(2)

BOLT WH

5/16x1 1/4

BLK

(2)

T-NUT 5/16

BLK

CENTER

SUNBURST

T-NUT 5/16 BLK
(2 PLCS)

PLASTIC SUNBURST

SCREW PWH 8x5/8
(4 PLCS)

GP1

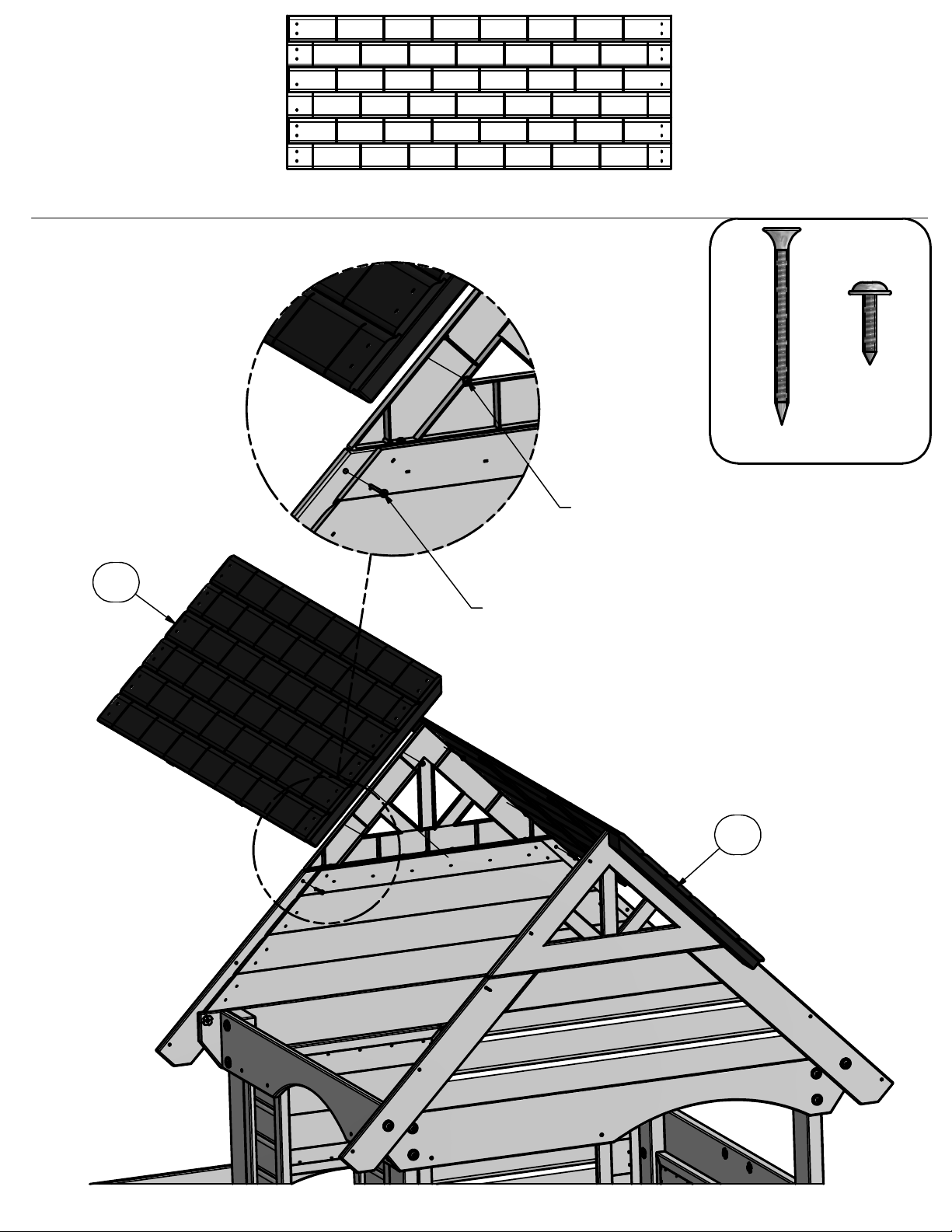

STEP 44

RP2

(2) RP2 - TOP ROOF PANEL - W2A02093

1 3/8"x48"x19 1/8" (35x1220x486)

SCREW PWH 8x5/8
(8 PLCS)

SCREW PFH 8x1 3/4
(4 PLCS)

(4)

(8)

SCREW PFH

8x1 3/4

SCREW PWH

8x5/8

RP2

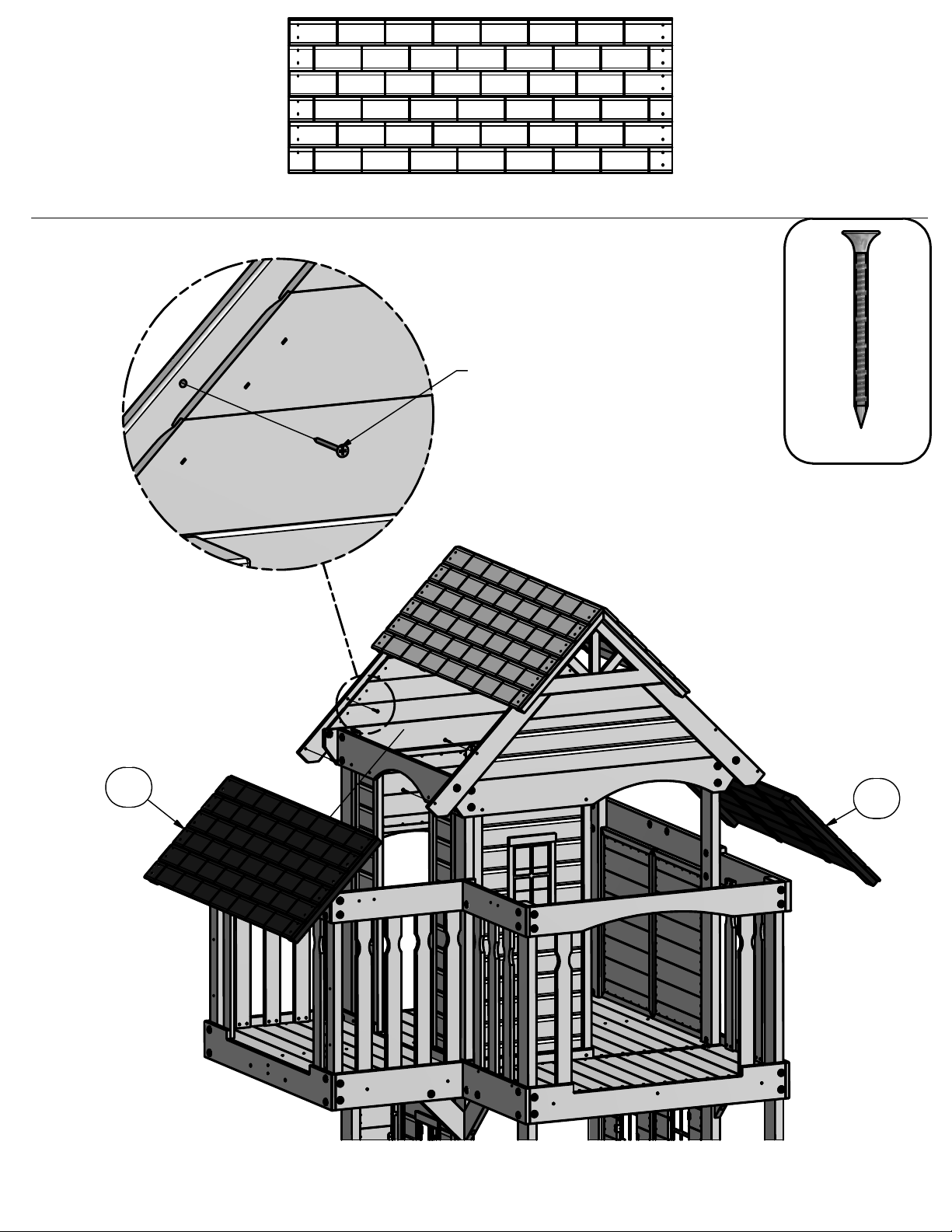

STEP 45

(2)

RP1 - BOTTOM ROOF PANEL - W2A02092

1 3/8"x48"x19 3/8" (35x1220x491)

SCREW PFH 8x1 3/4
(8 PLCS)

(8)

SCREW PFH

8x1 3/4

RP1

RP1

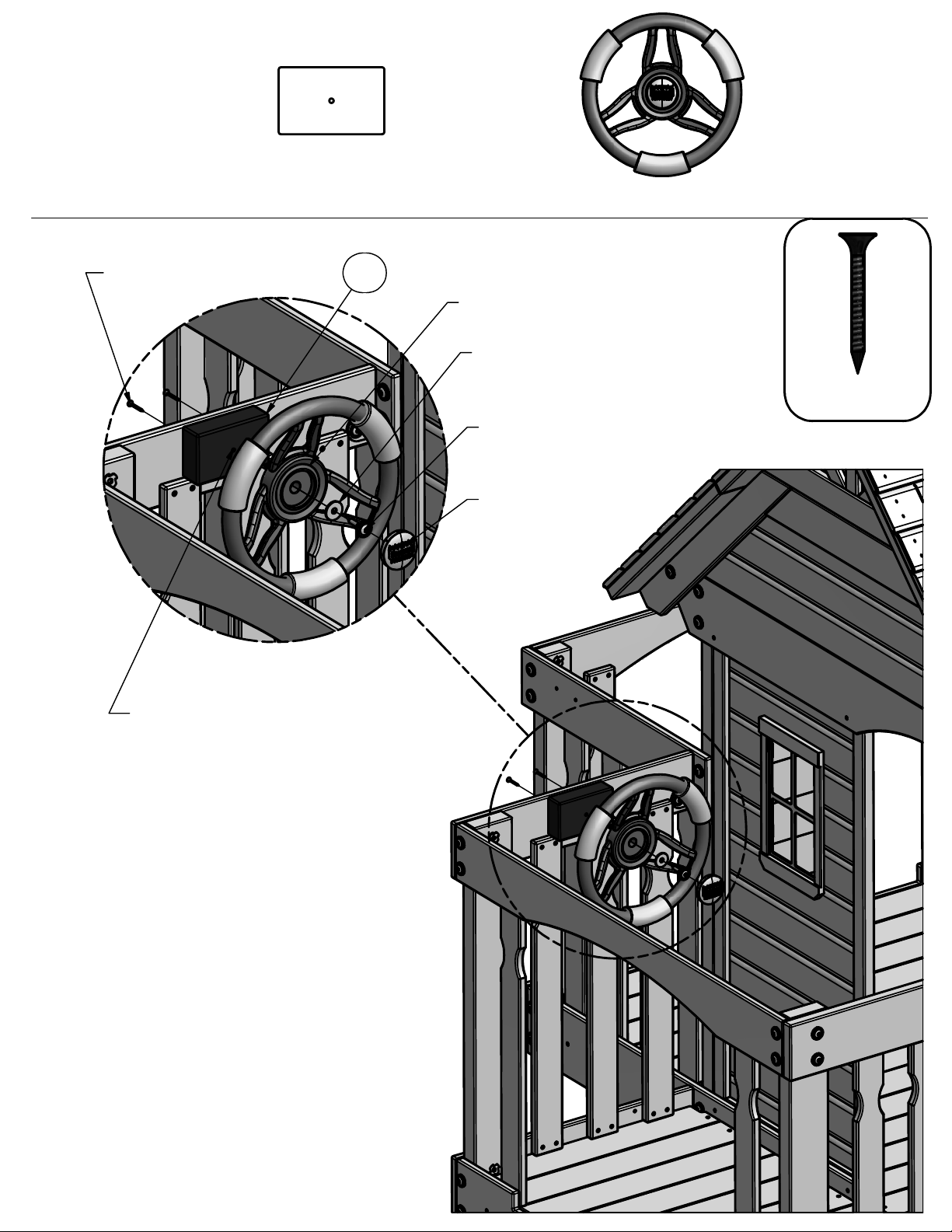

STEP 46

E10 - MOUNTING BLOCK - W4L07615

(1)

1 3/8"x3"x4 3/4" (36x76x120)

(1)

LP - STEERING WHEEL - A100105

SCREW PFH 8x1 1/4 BLK
(2 PLCS)

NOTE HOLE LOCATION
FOR PROPER ORIENTATION.

E10

STEERING WHEEL

WASHER FLAT 8x27
(INCLUDED IN KIT)

LAG SCREW WH 5/16x1 1/2
(INCLUDED IN KIT)

PLASTIC CAP
(INCLUDED IN KIT)

(2)

SCREW PFH

8x1 1/4 BLK

THIS HOLE FACES THE

RAIL IN THIS STEP.

(1)

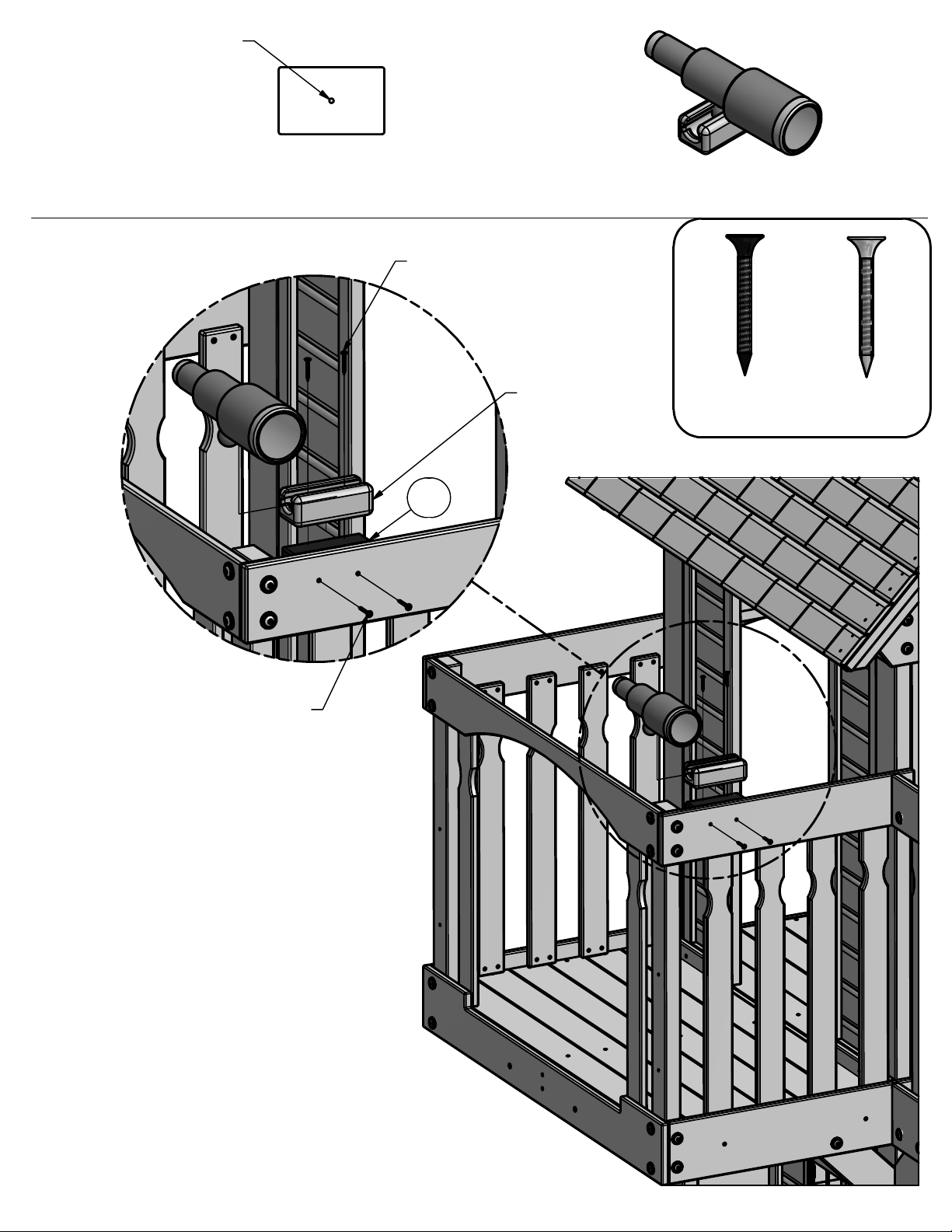

STEP 47

E10 - MOUNTING BLOCK - W4L07615
1 3/8"x3"x4 3/4" (36x76x120)

SCREW PFH 8x1 1/4
(2 PLCS)

(1)

LN - Telescope - A6P00096

SCREW PFH 8x1 1/4 BLK

(2 PLCS)

E10

TELESCOPE KIT

(2)

SCREW PFH

8x1 1/4 BLK

(2)

SCREW PFH

8x1 1/4

AT

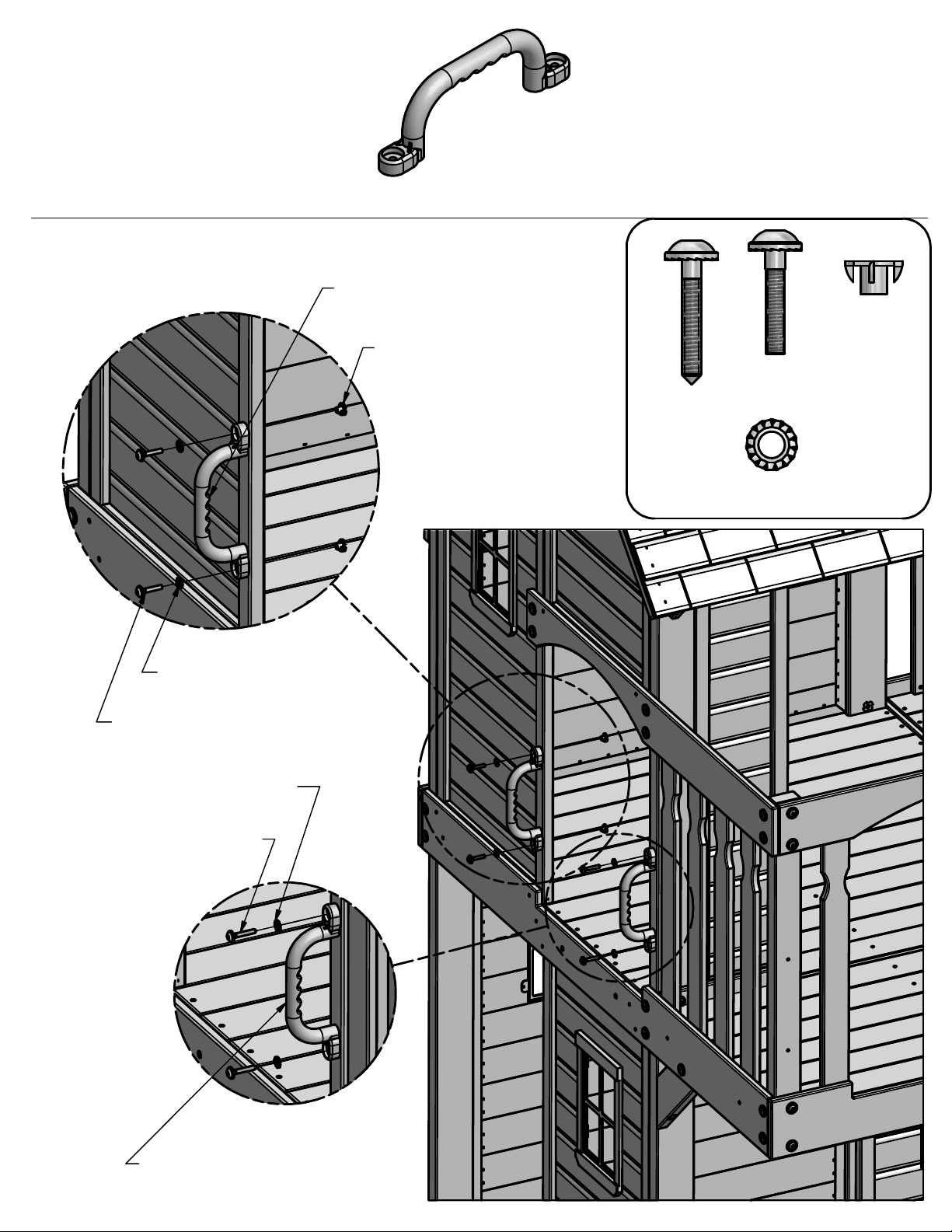

STEP 48

(2)

EA - HAND GRIP YELLOW PLASTIC - A100043

HAND GRIP YELLOW PLASTIC

T-NUT 1/4
(2PLCS)

(2)

(2)

LAG SCREW

WH 1/4x1-1/2

(4)

T-NUT 1/4 (2)

BOLT WH

1/4x1-1/4

WASHER

LOCK EXT

6x15

WASHER LOCK EXT 6x15
(2 PLCS)

BOLT WH 1/4x1-1/4
(2 PLCS)

WASHER LOCK EXT 6x15

(2 PLCS)

LAG SCREW WH 1/4x1-1/2

(2 PLCS)

HAND GRIP YELLOW PLASTIC

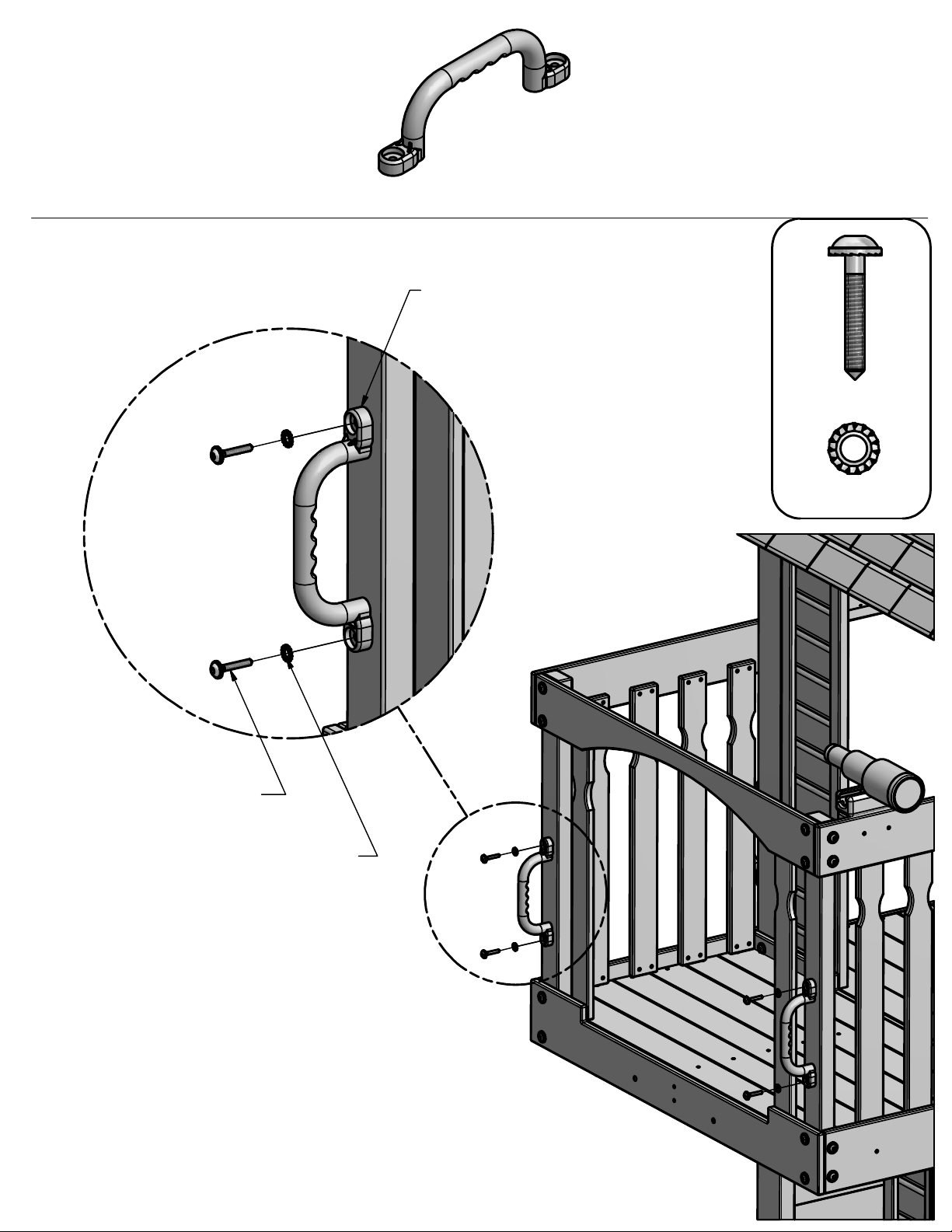

STEP 49

(2)

EA - HAND GRIP YELLOW PLASTIC - A100043

HAND GRIP YELLOW PLASTIC
(2 PLCS)

(4)

(4)

LAG SCREW
WH 1/4x1-1/2

WASHER

LOCK EXT

6x15

LAG SCREW WH 1/4x1-1/2

(4 PLCS)

WASHER LOCK EXT 6x15

(4 PLCS)

STEP 50

(1) LADDER ASSEMBLY

BOLT WH 5/16x1 1/4 BLK
(2 PLCS)

WASHER LOCK EXT 8x19 BLK
(2 PLCS)

(2)

(2)

BOLT WH
5/16x1 1/4

BLK

WASHER
LOCK EXT

8x19 BLK

LADDER ASSEMBLY

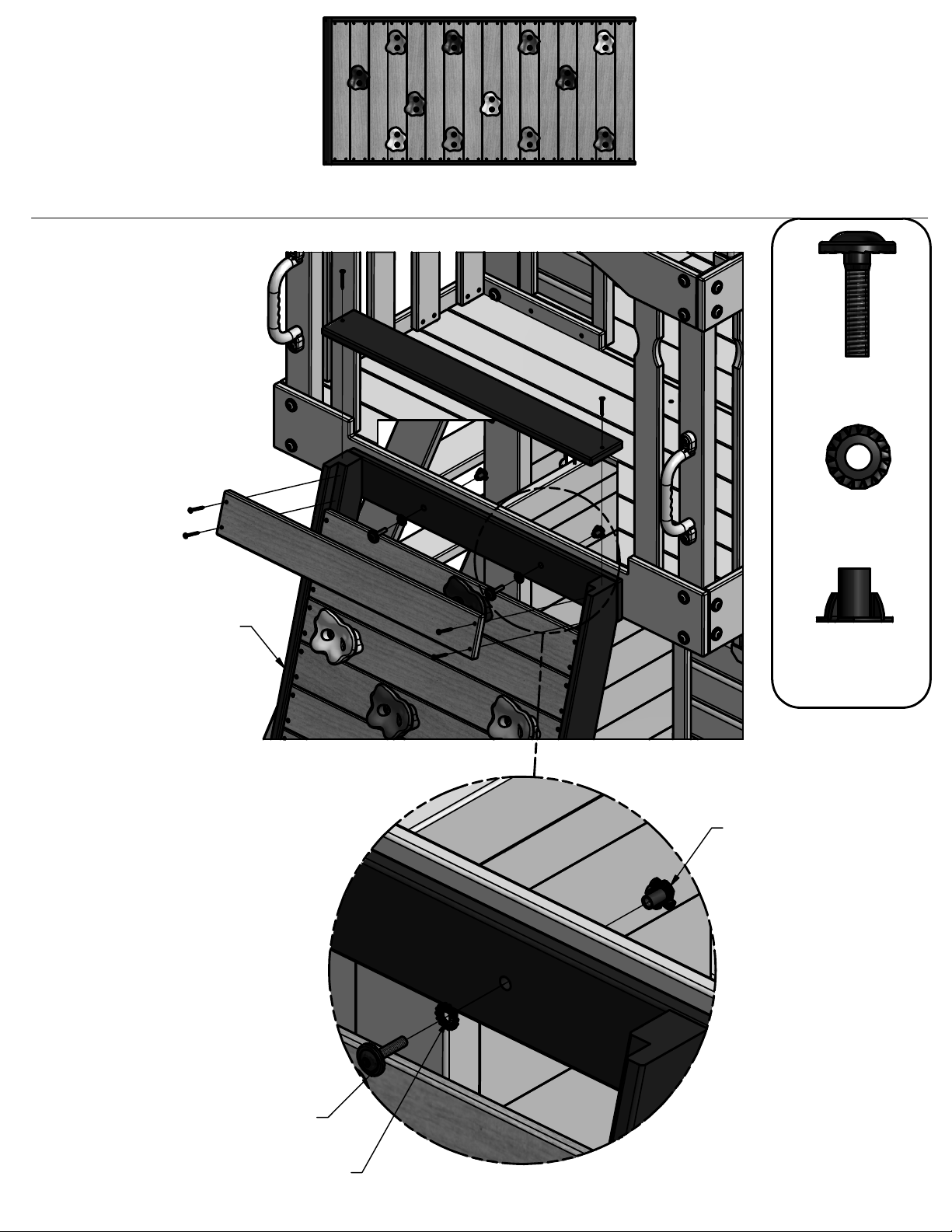

STEP 51

(1) ROCKWALL ASSEMBLY

(2)

(2)

BOLT WH

5/16x1 1/4

BLK

WASHER

LOCK EXT

8x19 BLK

ROCKWALL ASSEMBLY

T-NUT 5/16

(2)

BLK

T-NUT 5/16 BLK
(2 PLCS)

BOLT WH 5/16x1 1/4 BLK

(2 PLCS)

WASHER LOCK EXT 8x19 BLK

(2 PLCS)

STEP 52

USE A 7/16" DRILL BIT.

(1)

10' SLIDE ASSEMBLY

BOLT WH 5/16x1/2
(3 PLCS)

(3)

(3)

BOLT WH

5/16x1/2

T-NUT 5/16

10' SLIDE ASSEMBLY

T-NUT 5/16
(3 PLCS)

66 mm [2 5/8 in]

164 mm [6 1/2 in]

25 mm [1 in]

163 mm [6 3/8 in]

44 mm [1 3/4 in]

STEP 53

(1) 4' SWING BEAM ASSEMBLY

(4)

(4)

BOLT HEX

5/16x1

WASHER

SPLIT 5/16

WASHER FLAT 8x27
(4 PLCS)

WASHER SPLIT 5/16
(4 PLCS)

(4)

WASHER

FLAT 8x27

BOLT HEX 5/16x1
(4 PLCS)

(6)

FA - QUICK LINK - A100069

(2)

KN - CHAIN GREEN 31" - A100177

STEP 54

(2)

DP - SWING SEAT GREEN - A100027

(4)

EZ - CHAIN GREEN 51.25" - A100068

(1)

- TRAPEZE - A6P00034

TIGHTEN
QUICK
LINK

INSERT CHAIN
INTO
QUICK LINK

CHAIN GREEN 31"
(2 PLCS)

QUICK LINK
(2 PLCS)

CHAIN GREEN 51.25"
(4 PLCS)

QUICK LINK
(4 PLCS)

STEP 55

HC - BYD ID TAG (LARGE) WITHOUT AGES - A100242(1)

SCREW PFH

(4)

8x1/2 BLK

SCREW PFH 8x1/2 BLK

(4 PLCS)

BYD ID TAG (LARGE) WITHOUT AGES

«

S

P

A

N

I

S

H

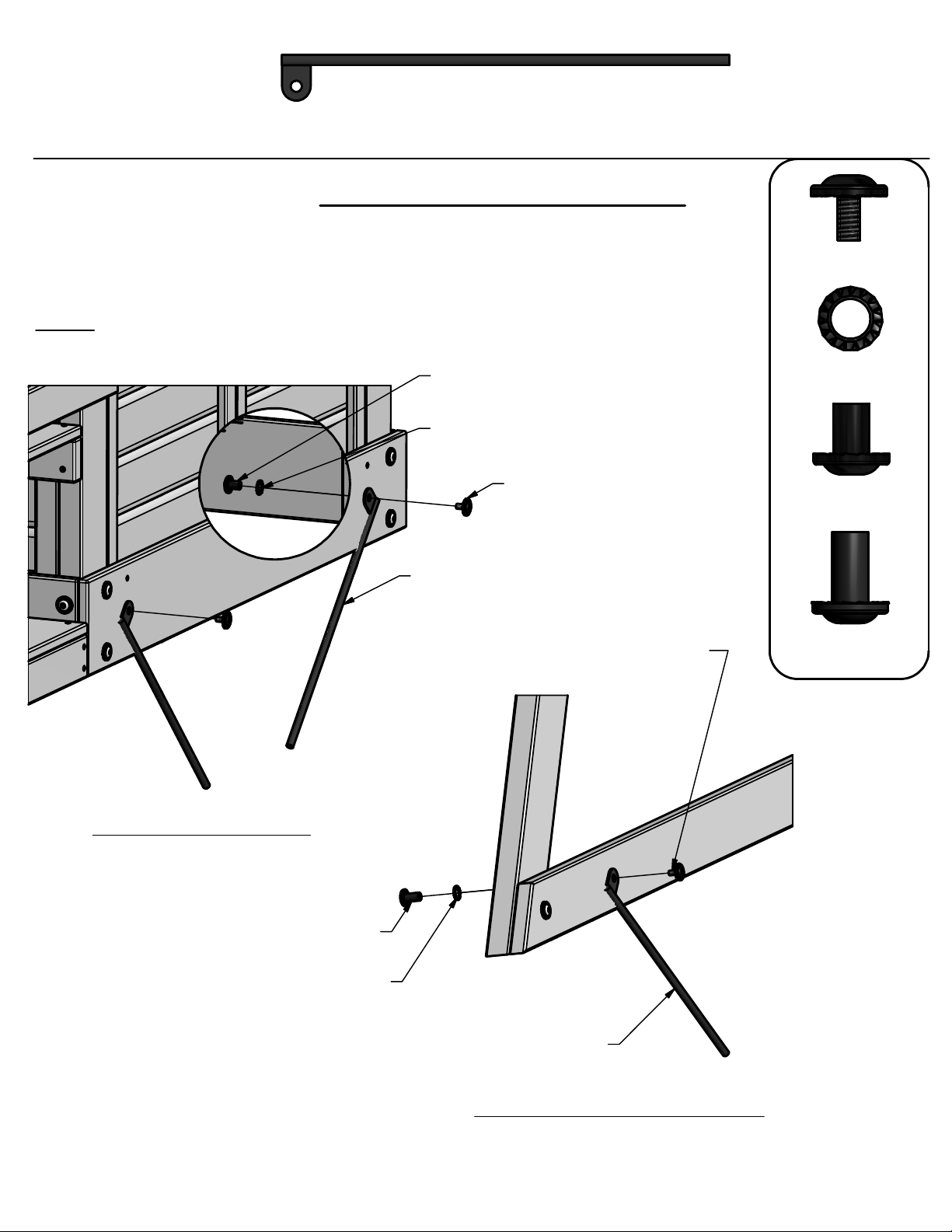

(6)

- GROUND STAKE REBAR - A4M00527

Anchoring Instructions

STEP 56

TAP IN GROUND STAKES AT AN APPROXIMATE 45° ANGLE AT THE LOCATIONS SHOWN.
USING GROUND STAKES AS A GUIDE, DRILL 7/16" DIA HOLES.

NOTE:

FAILURE TO USE GROUND STAKES CAN VOID WARRANTY & CAUSE INJURY!

NUT BARREL WH 5/16x5/8 BLK
(4 PLCS)

WASHER LOCK EXT 12x19 BLK
(4 PLCS)

(6)

(6)

BOLT WH

5/16x1/2 BLK

WASHER

LOCK EXT

12x19 BLK

FORT GROUND STAKES

NUT BARREL WH 5/16x7/8 BLK

(2 PLCS)

BOLT WH 5/16x1/2 BLK
(4 PLCS)

GROUND STAKE REBAR
(4 PLCS)

BOLT WH 5/16x1/2 BLK

(2 PLCS)

NUT BARREL

WH 5/16x5/8

(4)

NUT BARREL

(2)

WH 5/16x7/8

BLK

BLK

WASHER LOCK EXT 12x19 BLK

(2 PLCS)

GROUND STAKE REBAR

(2 PLCS)

FINAL STEP

DOUBLE CHECK EVERY BOLT, SCREW AND NUT FOR TIGHTNESS. MAKE SURE EVERY BOARD IS SECURE AND
MAKE SURE THE PLAY SET IS LEVEL.

ENJOY YOUR NEW PLAY SET!

SWING BEAM GROUND STAKES
