register your product at www.babystyledirect.co.uk
BabyStyle UK Limited
LE12 7RJ
UNITED KINGDOM
This instruction manual:
© BabyStyle UK Limited 2017
All rights reserved.
Oyster Zero LJS 0959/24012017
2 3
Important Safety Information
Primary features
Opening the chassis
Fitting/removing the front wheels
Fitting/removing the rear wheels
Folding the chassis
Operating the swivel front wheels Operating the swivel front wheels
Using the parking brake
Adjusting the seat unit backrest
Fitting/removing the bumper bar
Removing the Oyster Zero seat
Car Seat Options
Fitting/removing the Oyster car seat to/from the chassis
Fitting/removing the maxi Cosi Pebble/ Pebble PlusFitting/removing the maxi Cosi Pebble/ Pebble Plus
to/ from the chassis
Fitting/removing a carrycot to/from the chasis
Oyster Zero Harness
Using the safety harness
Hood/sun canopy
Fitting/removing the hood
Fitting and removing the ride on board Fitting and removing the ride on board
To stow the ride on board
Fitting/removing the seat pad
Fitting the footmuff
Fitting the stroller rain cover
Care and Maintenance
Warranty
2-3
4-5
6
6
7
8-9
99
10
10-11
11
12-13
14
14-15
1616
17-18
18
18
19
19
20
20-2120-21
21
21
21
22
23
CONTENTS
IMPORTANT SAFETY INFORMATION
It is important that any person intending to use this vehicle fully
understands the instructions.
WARNING Always use the restraint system.
This vehicle has been designed for one child, do not attempt
to carry more than one child in this vehicle.
WARNING Incorrect assembly, folding or use of this vehicle
may cause damage and affect the safety of the vehicle.Never may cause damage and affect the safety of the vehicle.Never
overload the vehicle; the weight limit for the shopping tray is 3kg,
and 500g for the cup holder.Always place articles in the centre
of the shopping tray provided.
WARNING A child’s safety is your responsibility.
WARNING Never leave your child unattended.
WARNING Ensure that all locking devices are engaged before use.
This vehicle is intended for children from birth to a maximum This vehicle is intended for children from birth to a maximum
weight of 20kg, with car seat attached - birth to 13kg, with the
carrycot attached- birth to 9kgs. The Oyster ride-on board has
a 20 kg weight limit.
The use of the most reclined seat position is recommended
for newborns.
Do not use accessories that are not approved by the
manufacturer.manufacturer.
WARNING Any load attached to the handle affects the stability
of the vehicle.
WARNING Never leave the vehicle without first engaging the
parking device. Avoid uphill or downhill parking.
WARNING Check that the car seat attachment devices are
correctly engaged before use.
Do not use the vehicle on steps, stairs or escalators as it may be Do not use the vehicle on steps, stairs or escalators as it may be
dangerous to your child.
WARNING Never completely lift or carry this stroller while
occupied. Your child’s safety may be at risk.
WARNING This product is not suitable for running or skating
Check on a regular basis to make sure that all essential
components & locking devices are functioning correctly.
Do not use replacement parts other than those supplied by Do not use replacement parts other than those supplied by
the manufacturer or distributor.
WARNING To avoid injury ensure that your child is kept away
when unfolding and folding this product.
WARNING Do not let your child play with this product.
All references to left and right are given from the perspective
of a person standing in the pushing position.
This vehicle does not replace a cot or a bed. Should your child This vehicle does not replace a cot or a bed. Should your child
need to sleep, then it should be placed in a suitable pram body,
cot or bed.
WARNING: Do not attach any accessories to the stroller handle
when the seat unit is reclined.
Important- Read these instructions carefully before use and
keep them for future reference. Your child’s safety may be
affected if you do not follow these instructions.
4 5
Travel clip
Primary locking clip
Shopping basket
Swivel wheel
lock collar
Footrest
Storage pocket
Hood attachment device
Chassis folding strap
Hood arm
Handle grip
Calf support
Viewing window
Backrest recline strap
Rear wheel
release button
Parking brake
Bumper bar
Bumper bar release button
Flip out hood canopy
Front wheel
release button
Wrist Tether Strap
6
Step 1. Step 2.
7
8 9
Push
Pull
Pull
LEVER UP- BRAKE OFF
LEVER DOWN- BRAKE ON
10 11
To return to the upright position; press in
the button on the seat backrest. Holding
in the button, pull back the adjustment
straps whilst pushing forward the button
unit.
12 13
Hold the car seat by the carry handle and
lower it onto the car seat adaptors. The
adaptors should slot into the cavity at the
base of the car seat handle left and right.
Push the car seat down firmly until the car
seat clicks and locks into position. Check
that the car seat is secure and locked bythat the car seat is secure and locked by
pulling up on the car seat handle.
To remove the car seat from the chassis;
press down on the two buttons on the sides
of the car seat (not the handle adjustment
buttons) and lift the car seat away from the
chassis. To remove the adaptors from the
chassis pull up on the recessed handles chassis pull up on the recessed handles
and lift the adaptors away from the Oyster
Zero carrycot adaptors.
To remove the carrycot adaptors, press the
bumper bar release buttons (left and right).
Oyster LB321 Car
Seat Adaptor
Oyster Zero
Carrycot
Adaptor
The Oyster LB321 adaptors can now be
pushed into the carrycot adaptors (left and
right).
14 15
To remove the carrycot from the chassis;
pull up on the carrycot release handles and
lift the carrycot away from the chassis. To
remove the adaptors from the chassis push
the bumper bar release buttonand pull
adaptor away from the chassis.
Hold the car seat by the carry handle and
lower it onto the car seat adaptors. The
adaptors should slot into the cavity at the
base of the car seat handle left and right.
Push the car seat down firmly until the car
seat clicks and locks into position. Check
that the car seat is secure and locked bythat the car seat is secure and locked by
pulling up on the car seat handle.
To remove the car seat from the chassis;
press down on the two buttons on the sides
of the car seat (not the handle adjustment
buttons) and lift the car seat away from the
chassis. To remove the adaptors from the
chassis push the bumper bar release buttonchassis push the bumper bar release button
and pull adaptor away from the chassis.
The carrycot can be fitted to the chassis by
using the relevant adaptors. To attach the
adaptors to the chassis; remove the bumper
bar. Attach the adaptors to the chassis frame
by pushing the adaptor in to the bumper bar
attachment points.
Hold the carrycot by the carry handle and Hold the carrycot by the carry handle and
lower it on to the carrycot adaptors. The
carrycot attachment assemblies should slide
into the adaptors on both sides.
Push the carrycot down firmly until the
carrycot clicks and locks into position.-
Check that the carrycot is secure and
locked by
pulling up on the carrycot handle
16 17

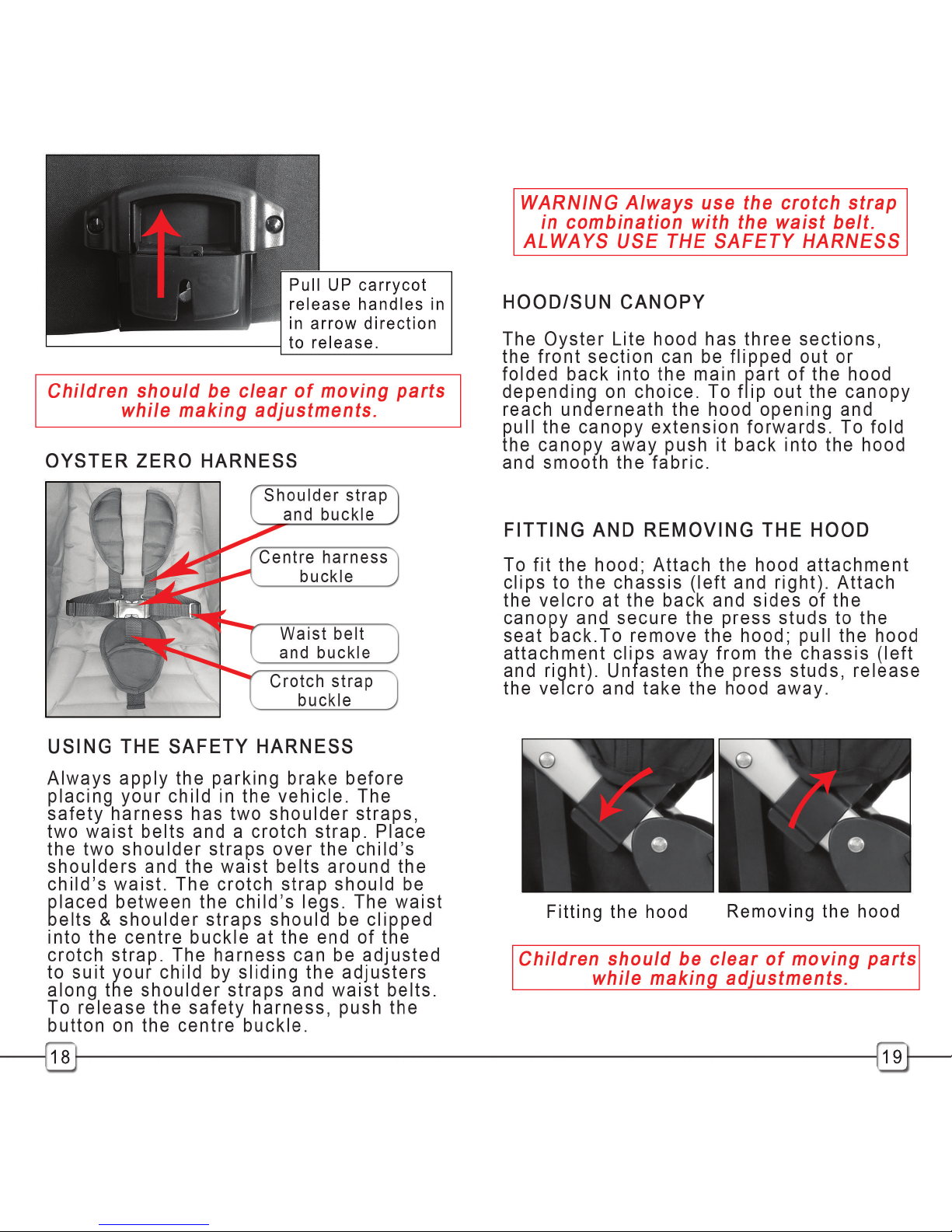

Fitting the hood
Removing the hood
18
Pull UP carrycot
release handles in
in arrow direction
to release.
19
20 21
TO STOW THE RIDE ON BOARD
To remove the ride on board: Pull the two
triggers underneath the board and lift the
board away from the rear axle.
Lift up the board and secure using the
press stud at the top of the board and the
press stud found on the chassis tether strap
A stroller has many moving parts and
requires regular maintenance by the user.
Simple cleaning and lubricating will make
the stroller look good & operate better for
longer. The stroller will be used in many
different environments, country walks, a trip
to the coast; a winter’s walk to school, all to the coast; a winter’s walk to school, all
can increase wear, lead to rust and
corrosion and reduce the life of the product.
Regular cleaning, care and maintenance will
reduce the effects of the environment on the
stroller. The warranty does not protect the
stroller against overloading, misuse,
neglect or lack of care and maintenance by neglect or lack of care and maintenance by
the user.
BabyStyle UK Ltd provides a warranty in
support of the retailer from whom you
purchased this product. The warranty is
effective for 12 months from the date of
purchase for the original purchaser/owner.
Proof of purchase will (at the discretion of Proof of purchase will (at the discretion of
BabyStyle UK Ltd) be required in order for
your retailer to claim on the warranty. The
warranty excludes any fault caused by
misuse, damage or neglect. It is the user’s
responsibility to undertake routine
inspection and maintenance of the vehicle
in order to avoid damage to the vehicle in order to avoid damage to the vehicle
and/or injury to the child. The vehicle is
returned to the retailer at the owners’
expense in order to ascertain if a claim
under the warranty is justified.
Please carefully read the instructions on
how to look after your stroller. This does
not affect your statutory rights.not affect your statutory rights.
CARE AND MAINTENANCE
WARRANTY
22
• Regularly check screws, rivets, bolts &
fastenings to ensure they are locked tight and
secure. Replace any parts in an inferior
condition. Should you intend to use the
pushchair during the winter, by the sea or
off-road; it is important to clean thoroughly &
dry the vehicle after use. Salt from the ocean or dry the vehicle after use. Salt from the ocean or
from roads will corrode metal parts unless
removed. After use in these circumstances
clean with fresh water and dry thoroughly after
use.
• Check on a regular basis that all chassis
locking devices are working correctly.
• If any part of the pushchair is damaged • If any part of the pushchair is damaged
contact your local BabyStyle retailer
immediately without using the pushchair.
• Do not expose your pushchair to excessive
sunlight for extensive periods of time, even
normal exposure to sunlight may cause the
colour of the fabric to change.
• Take care not to tear the fabrics while • Take care not to tear the fabrics while
transporting the pushchair.
• Light oil or silicone spray is suitable to use
as a lubricant for moving parts.
• Ensure that zips are either fully open or fully
closed or they may be damaged.
• Always use the rain cover in inclement
weather.weather.
• Do not place items on the hood/canopy, it
may damage the vehicle and/or render it unsafe.
• Rubber tyres can leave marks on some
surfaces. The tyres can react with some
surfaces (vinyl floor coverings, carpets etc.) and
cause stains. Always stand the stroller on a
protective surface indoors.protective surface indoors.
• Routinely clean the metal parts with a damp
cloth & then dry immediately.
• Fabrics should be cleaned following the
guidance on the care labels.
• Do not wash in the washing machine. Sponge
clean or hand wash with mild detergent and
warm water (30°C).warm water (30°C).
23
