Page 1
9260(A) 9360
b3c
www.b3c-pesa
ge.fr
9260 (A) - 9360 Ver 2014 EN September BC
9260(A)
9360
OPERATING MANUAL
(
GB
)
Compacts scales
Page 2
2
INSTRUCTION FOR USE AND MAINTENANCE
www.b3c-pesage.fr
9260(A) - 9360
Thank you for choosing the professional compact scale. All the features of this product were
designed to the state of the art and are optimised for simple and straightforward use. If you
any queries or problems not indicated in the operating manual, please contact our service.
INDEX
INSTRUCTION FOR USE AND MAINTENANCE - WARRANTY ................. 2
1 - GETTING STARTED ..................................................................................... 3
2 - LEVEL INDICATOR ....................................................................................... 4
3 - KEYPAD FUNCTIONS .................................................................................. 5
4 - ZÉRO FUNCTION - 5 - BACKLIGHT FUNCTION ........................................ 6
6 - TARE FUNCTION .......................................................................................... 6
7 - SELECT MODE WEIGHING / COUNTING ................................................... 7
8 - COUNTING MODE ........................................................................................ 7
9 - ACCUMULATION FUNCTION ...................................................................... 7
10 - CALIBRATION ............................................................................................ 8
11 - BATTERY OPERATION ............................................................................... 9
12 - TECHNICAL DATA .................................................................................... 10
13 - SPARE PARTS ...........................................................................................11
INTENDED USE
The scale is used for weighing and counting products. This scale is intended for internal operations.
The scale complies with the type described in the EC type Approval Certicate as well as the applicable requirement of EC Directives 89/336/EEC and 73/23/EEC.
SAFETY INSTRUCTIONS
Before using the scale, please read with care the information given in the operating manual. It contains important instructions for installation, proper use
and maintenance of the appliance.
B3C SAS shall not liable for damages arising out of failure to heed the following instructions: When
using electrical components under increased safety requirement, always comply with the appropriate
regulations. Never perform work on the appliance while the power is switched on. Improper installation
will render the warranty null and avoid. Ensure the voltage marked on the power supply unit matches
your mains power supply. The device meets the requirement for electromagnetic compatibility. Do not
exceed the maximum values specied in the applicable standards.
Page 3
ENGLISH
3
CLEANING
It’s sufcient to clean the scale with a moist cloth and a regular cleaning agent. Do not use any scourers.
MAINTENANCE
The scale does not require any routine maintenance. However, we recommend to check the scale’s precision
at regular intervals.
NOTE
Interference suppression of the unit corresponds to the valid EU directive 89/336/EEC. The display value may
be inuenced by extreme electrostatic and electro-magnetic interference, e.g. operation of a radio unit or a
mobile phone in the immediate vicinity of the unit. When the electrostatic interference is no longer present,
the unit can again be used for its intended purpose. You may need to switch it on again. If there is permanent
electrostatic interference, we recommend to connect the platform with the ground. The scale is a measuring
instrument. Air currents, vibrations, rapid changes in temperature and direct sunlight may have an effect on the
accuracy of the scale.
WARRANTY - LIABILITY
This equipment is a measuring device.
No responsibility shall be accepted for damage caused through any of the following reasons: unsuitable or
improper storage or use, incorrect or commissioning by the owner or third parties, natural wear, changes or
modications, incorrect or negligent handling, overuse, chemical, electrochemical or electrical interference. If
operating, climatic or any other inuences lead to a major change in conditions or material quality, the warranty
for perfect until functioning shall be rendered null and void. Always keep the original packaging in case you
have to return the scale.
Page 4
4
GETTING STARTED
www.b3c-pesage.fr
9260(A) - 9360

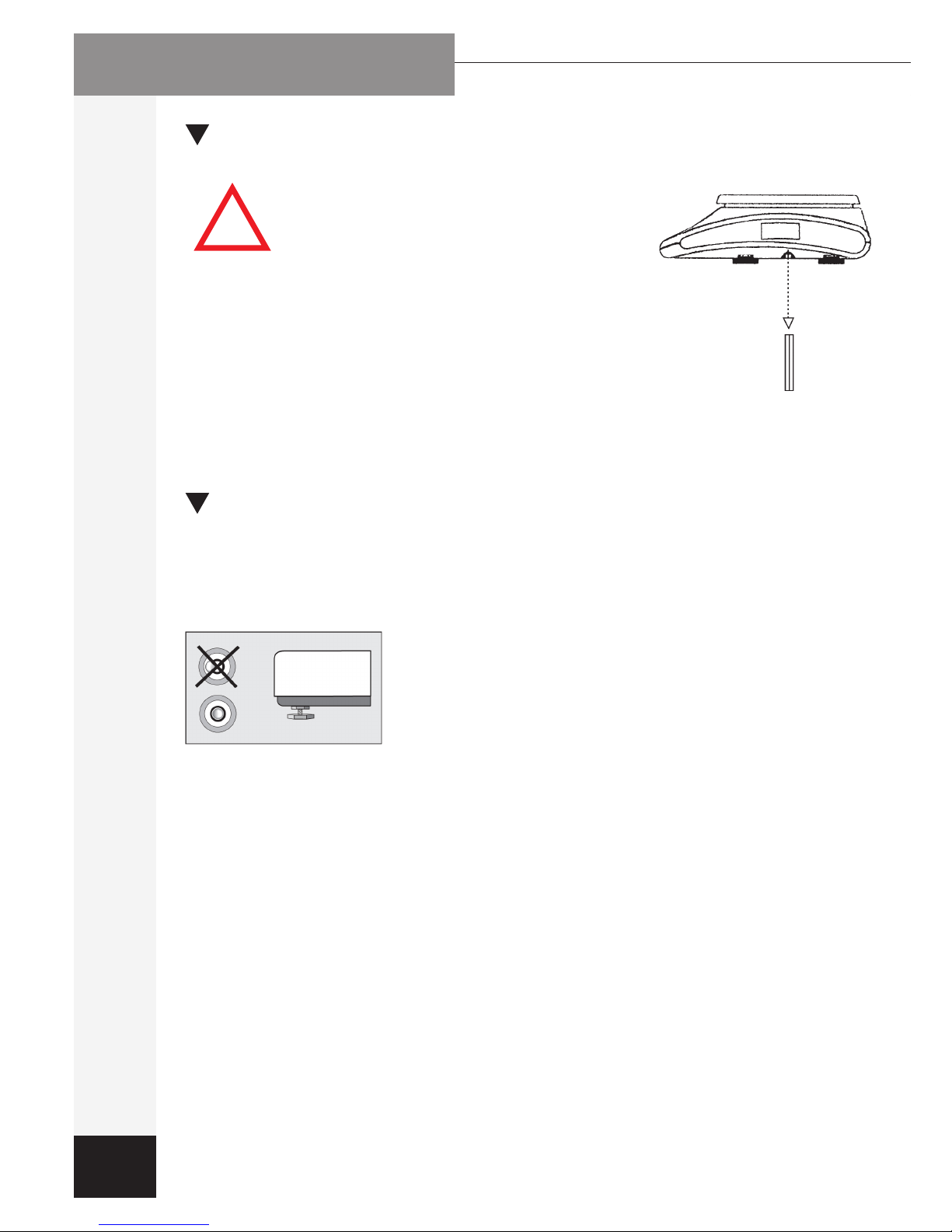

1 - GETTING STARTED
1 - When the initial use, please refer to the
following drawing to take off the protection
screw. When the transportation will be
made, please install the protection screw
on the machine to avoid any damage sensitive
components.
2 - LEVEL INDICATOR
The scale is equipped with a level indicator on the left bottom side of the front panel and four
adjustable leveling feet. Adjust the leveling feet until the bubble appears in the center circle of the
indicator
!
Page 5
ENGLISH
5

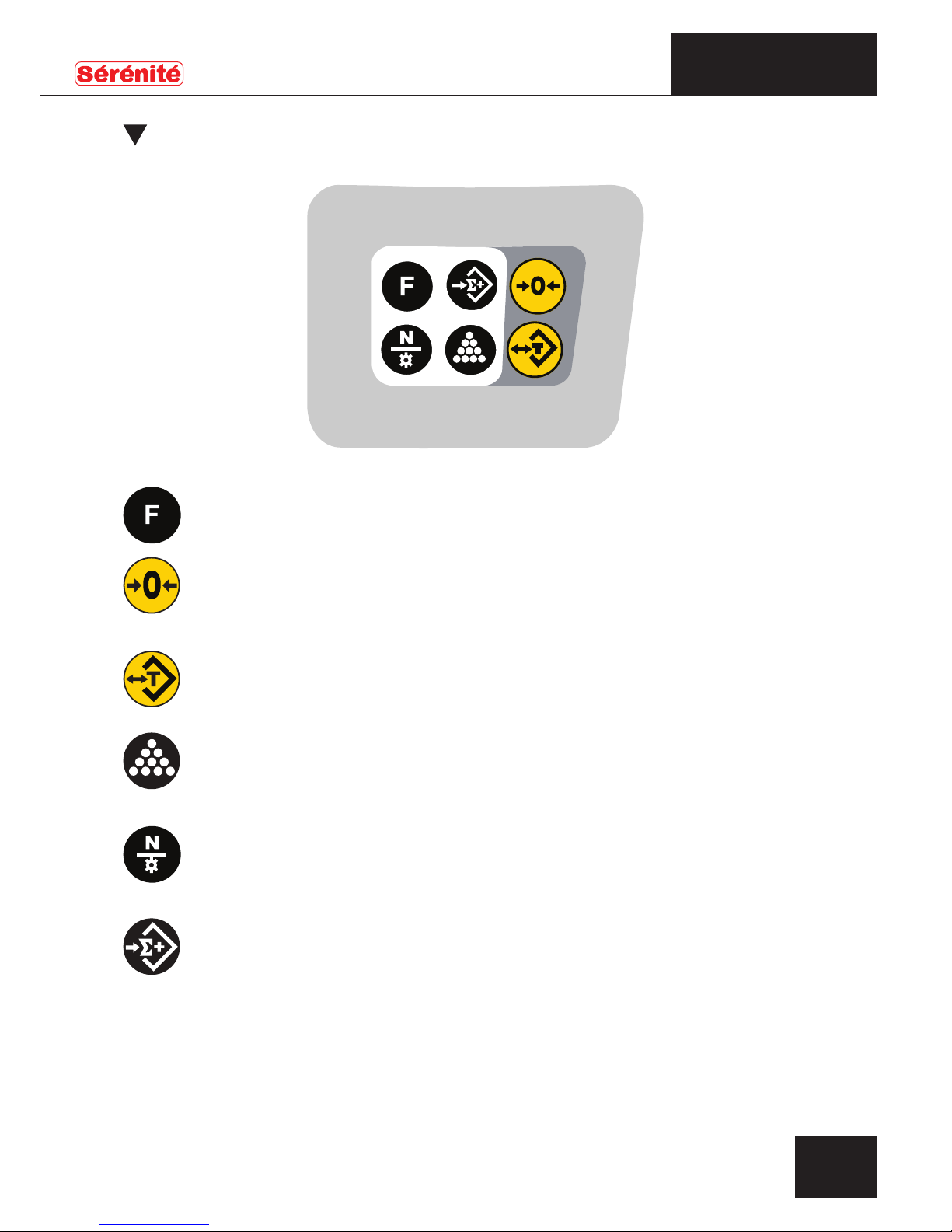

3 - KEYPAD FUNCTIONS
Select weighing or counting mode.
If there is a minor weight displayed without anything on the pan,
press this key, the weight will become “0”.
Tare the weight of a container. Indicate the net weight.
Input sample size
To modify the backlight.
In the calibration mode, to change the value (0 -9).
Accumulate weight measured, Exit accumulation state.
In the counting mode Choose the sample size.
9260-A
01 64 99 34 34 - www.b3c-pesage.com
Page 6
6
FUNCTIONS
www.b3c-pesage.fr
9260(A) - 9360
4
ZERO FUNCTION
1 - If the zero shifts during operation, press the key to set it to zero.
The Zero function is only active over a ± 2%. Range
5
BACKLIGHT FUNCTION
1 - Press the key to select the backlight mode :
bl.1 = Auto backlight mode. When the weight is over 10 scale divisions or any of the keys
are pressed, the backlight will be effective. When the weight is zero for about 8 seconds, the
backlight will go off automatically.
bl.2 = The backlight will always be on.
bl.3 = The backlight will be turned off.
6
TARE FUNCTION
Tare weight is the weight of a container and can be subtracted by
placing an empty container on the scale pan.
1 - When the display is stable, press the key and the display will become zero and the
display will have a tare indication.
Cancel the tare function by pressing the key with no weight on the scale pan .
NOTE
Tare range is the full capacity of the scale
Page 7
ENGLISH
7
7
OPERATIONS
1 - Turn on the scale. Press key to choose the weighing or counting functions.
8
COUNTING MODE
1 - After entering into counting mode, press the key to select the sample size.
NOTE
10, 20, 50, 100, 200, 500, 1000 pcs.
2 - Put the sample number on the scale and press key.
When the symbol” c” disappears the sampling procedure is nished and you can start to use the counting
function.
If the unit weight is too small (less than 0.2 or 0.04d of a scale division), the display will show “ –or –
pcs”.
9
ACCUMULATION FUNCTION
In weighing or counting mode, make it to zero, place the goods.
1 - After the display is stable, press the key to enter into accumulation mode.
2 - After accumulation, total accumulated weight and total accumulation times are shown in display
window in turn.
3 - In accumulation mode, press the key to return to operation mode.
Clear accumulation
Press the key, meanwhile also press the key to clear the memory of accumulation.
Accumulation error !
When the total accumulation time is more than 99 times or the total accumulated weight is more than the
display range, the scale will give you error message, at the same time, the current operation is useless
!
Page 8
8
FUNCTIONS
www.b3c-pesage.fr
9260(A) - 9360
10
CALIBRATION
WITH AN UNKNOWN WEIGHT
1 - Turn on scale.
2 - During the scale in self-testing, press the, and keys about 3 seconds.
3 - When the display shows “CC” to put on the pan the same asked weight mass.
When the display is stable press the key . Auto calibration is nished.
WITH AN KNOWN WEIGHT
1 - Turn on scale.
2 - During the scale in self-testing, press the, and keys about 3 seconds.
3 - When the display shows “CC”, to change the gure, use the key to move
and to select the new calibration value.
Put on the pan the weight mass.
Press the, key to conrm. Auto calibration is nished.
ERROR MESSAGE
When the display is shown E1.E2.E5.OL message, please
send the scale back to your dealers for repair
!
Page 9
ENGLISH
9
11
BATTERY OPERATION
The scale can be operated from the battery if desired. The battery life is
approximately 30-70 hours.
When the battery needs charging a symbol “ ” on the weight display will be on.
The battery should be charged when the symbol is on.
The scale will still operate for about 10 hours after which it will automatically switch off to protect the battery.
There is an LED “AC” to indicate the status of battery charging on the right of display.
When the scale is plugged into the mains power the internal battery will be charged.
If it the led is green
●
: the battery has been charged.
If it the led is red
●
: the battery is nearly discharged.
If it the led is yellow
●
: the battery is increasing the charge level.
NOTE
The battery should changed if the scale is not used for long time
12
TECHNICAL DATA
Désignations 9360.03 9260.03 9360.06 9260.06 9360.15 9260.15 9360.30 9260.30
Weighting range (Max) 3kg 6kg 15kg
30kg
Readability (d) 0,05g 0,1g 0,1g 0,2g 0,2g 0,5g
0,5g 1g
Verication “M” non
Calibration 1kg (M1) 2kg (M1) 5kg (M1)
10kg (M1)
Power supply SAW-0801000 Input 100-240VAC 50/60Hz 0.5A (max) - Output 8V=1000A (ref 618.12080)
Battery life 6V 4AH (ref 590.003) - 50h (backlight on) - 60h (backlight off) - Loading time : 12 h
Permissible ambient temperature
de 0°C à + 40°C
Rate of humidity Max 80%
Carter L X P X H (mm) (L) 300 x (P) 320 x (H) 115
Plateau (mm) (L) 300 x (P) 220
Protecting cover YES
Net weight (kg) 3,8kg
Page 10
10

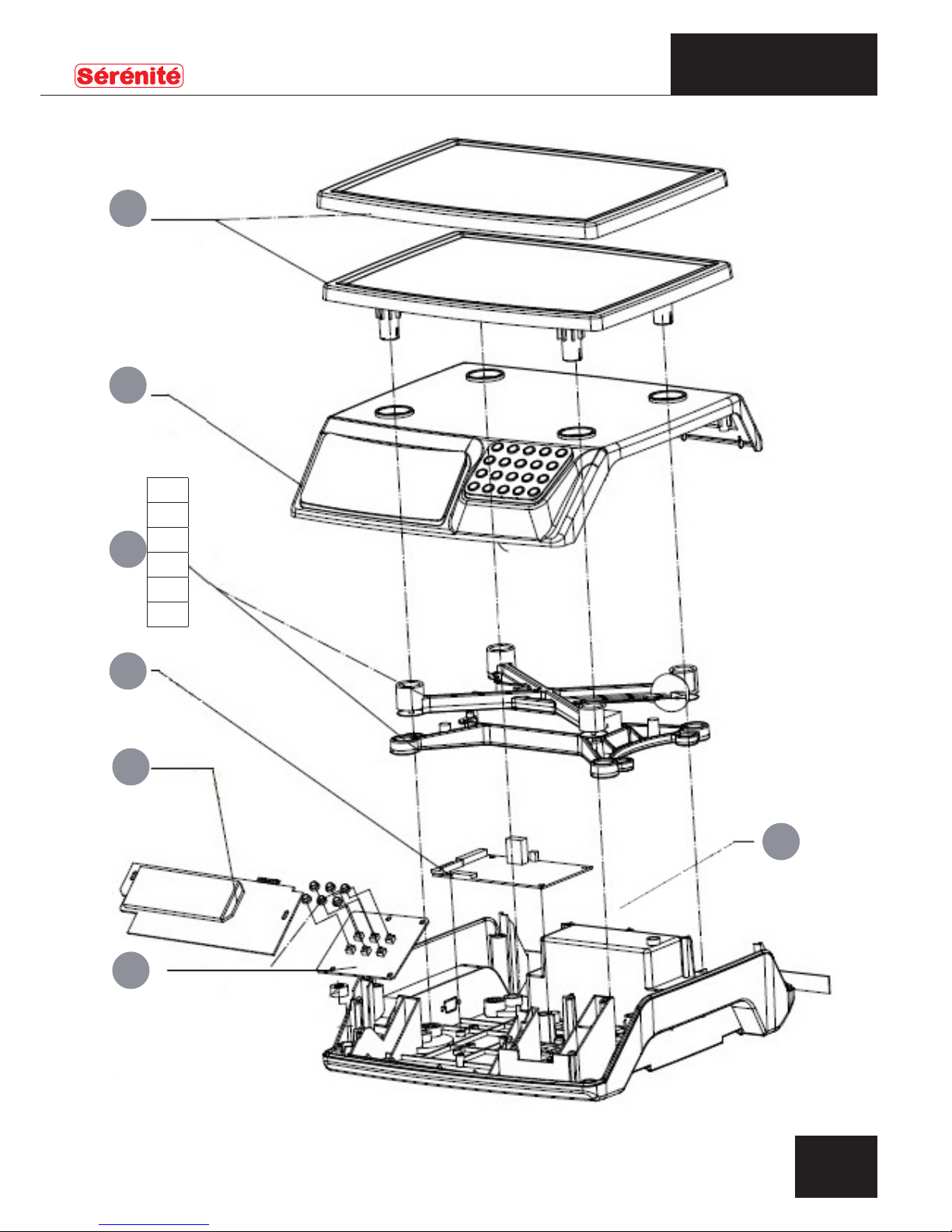

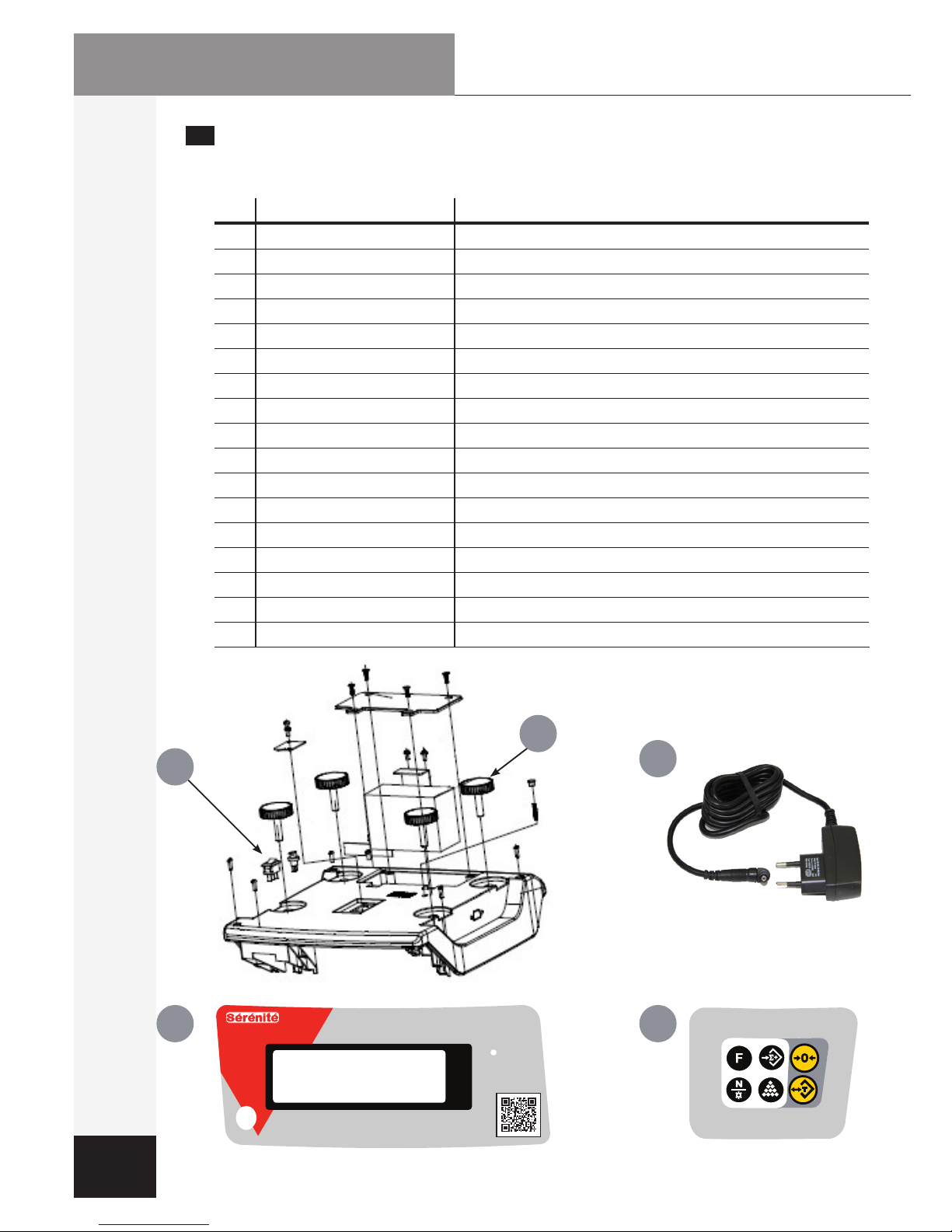

SPARE PARTS
www.b3c-pesage.fr
9260(A) - 9360
13
PIECES DETACHEES
ID Référence Désignation
1 2012010 Stainless steel pan 300x230
2 2012004 Plastic pan
3.1 19020007-21 Load cell 6kg/0,1g
3.2 19020007-22 Load cell 6kg/0,2g
3.3 19020007-31 Load cell 15kg/0,2g
3.4 19020007-32 Load cell 15kg/0,5g
3.5 19020007-41 Load cell 30kg/0,5g
3.6 19020007-42 Load cell 30kg/1g
9
0210002 CPU Main board
10 0210001 LCD Display board
11 0210003 Keyboard
12 590.003 Battery 6V 4AH/20HR
13 20030033 Leveling feet
14
20030009
ON/OFF Switch
15 618-120809 Power supply
16 33014 Keypad overlay
17 33015 Display overlay
9260-A
ACC
b3c
01 64 99 34 34 - www.b3c-pesage.com
17 16
15
14
13
Page 11
ENGLISH
11
3.1
3.2
3.3
3.4
3.5
3.6
1
2
9
10
11
12
3
Page 12
DECLARATION OF EC CONFORMITY
DÉCLARATION CE DE CONFORMITÉ
DECLARACION CE DE CONFORMIDAD
DICHIARAZIONE DI CONFORMITA CE
VERKLARING CONFORMITEIT EG
DECLARAÇÃO (CE) DE CONFORMIDADE
MANUFACTURER - FABRICANT - FABRICANTE - PRODUTTORE - HERSTELLER - VERDELER
B3C SAS
ADRESS - ADRESSE - DIRECCIÓN - INDIRIZZO - ADRES - MORADA
10 Boulevard des Alliés 91720 MAISSE - FRANCE
E-MAIL
PRODUCT - PRODUIT - PRODUCTO - PRODOTTO - BEZEICHNUNG - PRODUÇÃO
GB - Compact scale 9260(A) - 9360
FR - Balance électronique 9260(A) - 9360
ES - Balanzas electrónicas 9260(A) - 9360
IT - Bilance electroniche 9260(A) - 9360
ND - Electronische weegschaal Reeks 9260(A) - 9360
POR - Balanças industriais 9260(A) - 9360
The indicated balances respect the following European Standards
Cet appareil est conforme aux directives européennes en vigueur
Las balanzas indicadas anteriormente cumplen las siguientes Normas Europeas
Le bilance indicate precedentemente soddisfare le seguenti Norme Europee
Die aufgeführten Waagen respektieren folgende europäische Normen
Het toestel voldoet aan volgende normen
As balanças cumprem as seguintes Normas da CEE
2004/108/CE - 2006/95/CE
