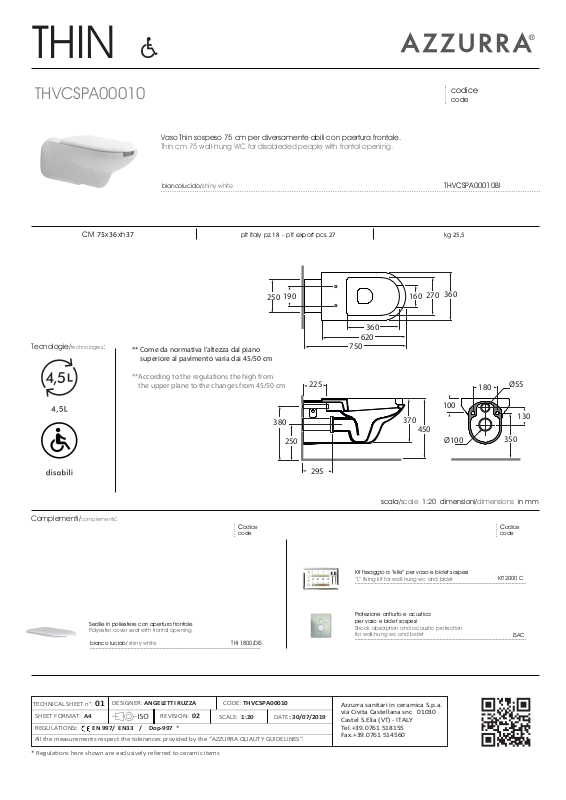

Azzurra THVCSPA00010 Datasheet

THIN

THVCSPA00010

CM 75x 36xh 37 plt italy pz.18 - plt export pcs.27 kg 25,5

Tecnologie/technologies:

Vaso Thin sospeso 75 cm per diversamente abili con paertura frontale.

Thin cm 75 wall-hung WC for disableded people with frontal opening.

bianco lucido/shiny white

** Come da normativa l’altezza dal piano
superiore al pavimento varia dai 45/50 cm

250

190

750

360

620

160

codice

code

THVCSPA00010BI

360

270

Complementi/complements:

Sedile in poliestere con apertura frontale

Polyester cover seat with frontal opening

bianco lucido/ shiny white

**According to the regulations the high from
the upper plane to the changes from 45/50 cm

380

codice

code

THI 1800/DIS

250

225

295

100

370

450

Ø100

scala/scale 1:20 dimensioni/dimensions in mm

Kit fissaggio a “elle” per vaso e bidet sospesi

“L” fixing kit for wall-hung wc and bidet

Protezione antiurto e acustica
per vaso e bidet sospesi

Shock absorption and acoustic protection
for wall-hung wc and bidet

180

Ø55

350

codice

code

KIT 2000 C

ISAC

130

TECHNICAL SHEET n°

SHEET FORMAT

REGULATIONS

All the measurements respect the tolerances provided by the “AZZURRA QUALITY GUIDELINES”.

* Regula�ons here shown are exclusively referred to ceramic items

: A4

: EN 997/ EN33 / Dop-997

: 01

DESIGNER

: ANGELETTI RUZZA

REVISION

: 02

*

CODE: THVCSPA00010

SCALE

: 1:20

DATE: 30/07/2019

Azzurra sanitari in ceramica S.p.a.
via Civita Castellana snc 01030
Castel S.Elia (VT) - ITALY
Tel.[phone]
Fax.[phone]
