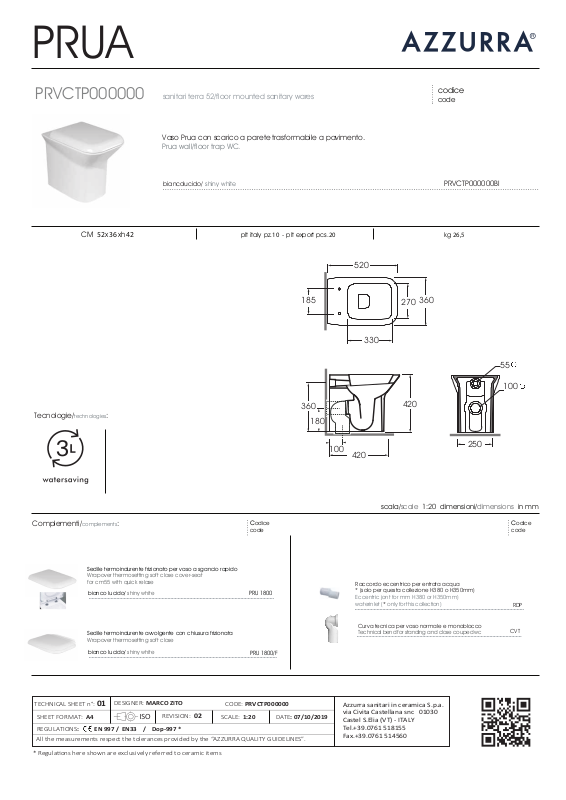

Azzurra PRVCTP000000 Datasheet

PRUA

PRVCTP000000

sanitari terra 52/floor mounted sanitary wares

Vaso Prua con scarico a parete trasformabile a pavimento.

Prua wall/floor trap WC.

bianco lucido/ shiny white

CM 52x 36xh 42 plt italy pz.10 - plt export pcs.20 kg 26,5

codice

code

PRVCTP000000BI

520

185

270

360

330

55

Tecnologie/technologies:

Complementi/complements:

Sedile termoindurente frizionato per vaso a sgancio rapido

Wrapover thermosetting soft close cover-seat
for cm55 with quick relase

bianco lucido/ shiny white

Sedile termoindurente avvolgente con chiusura frizionata

Wrapover thermosetting soft close

bianco lucido/ shiny white

codice

code

PRU 1800

PRU 1800/F

360

180

420

100

420

scala/scale 1:20 dimensioni/dimensions in mm

Raccordo eccentrico per entrata acqua
* (solo per questa collezione H380 o H350mm)

Eccentric jont for mm H380 or H350mm)

(* only for this collection)

waterinlet

Curva tecnica per vaso normale e monoblocco

Technical bend for standing and close couped wc

250

100

codice

code

RDP

CVT

TECHNICAL SHEET n°

SHEET FORMAT

REGULATIONS

All the measurements respect the tolerances provided by the “AZZURRA QUALITY GUIDELINES”.

* Regula�ons here shown are exclusively referred to ceramic items

: A4

: EN 997 / EN33 / Dop-997 *

: 01

DESIGNER

: MARCO ZITO

REVISION

: 02

CODE: PRVCTP000000

SCALE

: 1:20

DATE: 07/10/2019

Azzurra sanitari in ceramica S.p.a.
via Civita Castellana snc 01030
Castel S.Elia (VT) - ITALY
Tel.[phone]
Fax.[phone]
