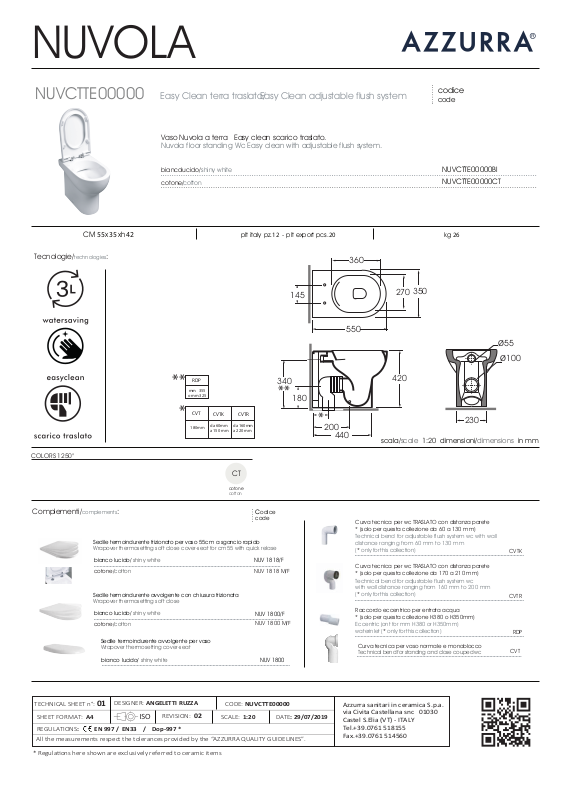

Azzurra NUVCTTE00000 Datasheet

NUVOLA

NUVCTTE00000

CM 55x 35xh 42 plt italy pz.12 - plt export pcs.20 kg 26

Tecnologie/technologies:

Easy Clean terra traslato/

Easy Clean adjustable flush system

Vaso Nuvola a terra Easy clean scarico traslato.

Nuvola floor standing Wc Easy clean with adjustable flush system.

bianco lucido/shiny white

cotone/cotton

145

360

550

270

codice

code

NUVCTTE00000BI

NUVCTTE00000CT

350

Ø55

Ø100

COLORS 1250°

Complementi/complements:

Sedile termoindurente frizionato per vaso 55cm a sgancio rapido

Wrapover thermosetting soft close cover-seat for cm55 with quick relase

bianco lucido/ shiny white

cotone/cotton

Sedile termoindurente avvolgente con chiusura frizionata

Wrapover thermosetting soft close

bianco lucido/ shiny white

cotone/cotton

Sedile termoindurente avvolgente per vaso

Wrapover thermosetting cover-seat

bianco lucido/ shiny white

**

*

RDP

mm 355

o mm 325

CVT

180mm

CVTK

da 60mm
a 150 mm

da 160mm
a 220 mm

CT

cotone

cotton

CVTR

340

**

codice

code

NUV 1818/F

NUV 1818 M/F

NUV 1800/F

NUV 1800 M/F

NUV 1800

180

*

200

420

440

scala/scale 1:20 dimensioni/dimensions in mm

A

Curva tecnica per wc TRASLATO con distanza parete
* (solo per questa collezione da 60 a 130 mm)

Technical bend for adjustable flush system wc with wall
distance ranging from 60 mm to 130 mm
(

*

only for this collection)

Curva tecnica per wc TRASLATO con distanza parete
* (solo per questa collezione da 170 a 210 mm)

Technical bend for adjustable flush system wc
with wall distance ranging from 160 mm to 200 mm
(

*

only for this collection)

Raccordo eccentrico per entrata acqua
* (solo per questa collezione H380 o H350mm)

Eccentric jont for mm H380 or H350mm)

(* only for this collection)

waterinlet

Curva tecnica per vaso normale e monoblocco

Technical bend for standing and close couped wc

230

CVTK

CVTR

RDP

CVT

TECHNICAL SHEET n°

SHEET FORMAT

REGULATIONS

All the measurements respect the tolerances provided by the “AZZURRA QUALITY GUIDELINES”.

* Regula�ons here shown are exclusively referred to ceramic items

: A4

: EN 997 / EN33 / Dop-997 *

: 01

DESIGNER

: ANGELETTI RUZZA

REVISION

: 02

CODE: NUVCTTE00000

SCALE

: 1:20

DATE: 29/07/2019

Azzurra sanitari in ceramica S.p.a.
via Civita Castellana snc 01030
Castel S.Elia (VT) - ITALY
