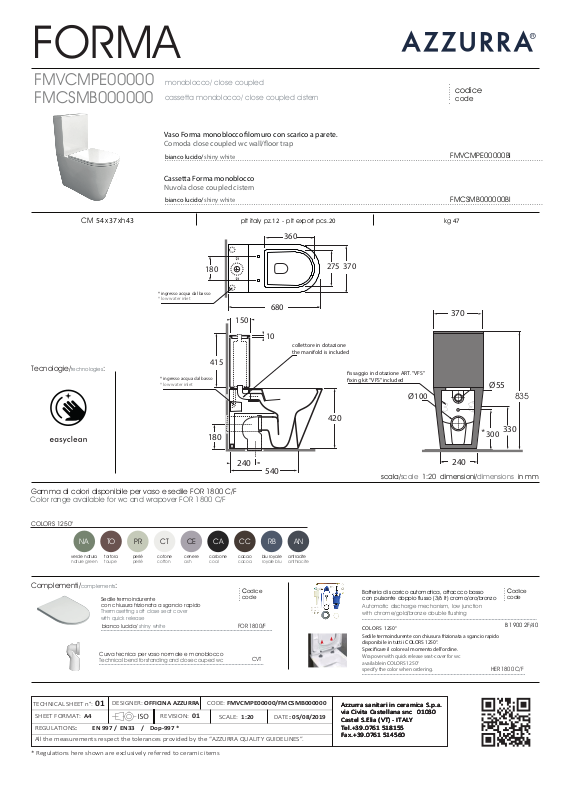

Azzurra FMCSMB000000, FMVCMPE00000 Datasheet
FORMA
FMVCMPE00000
FMCSMB000000
CM 54 x 37xh 43 plt italy pz.12 - plt export pcs.20 kg 47
Tecnologie/technologies:
monoblocco/ close coupled
cassetta monoblocco/ close coupled cistern
Vaso Forma monoblocco lomuro con scarico a parete.
Comoda close coupled wc wall/oor trap
bianco lucido/shiny white
Cassetta Forma monoblocco
Nuvola close coupled cistern
bianco lucido/shiny white
360
180
* ingresso acqua dal basso
* low water inlet
680
150
10
collettore in dotazione
the manifold is included
415
* ingresso acqua dal basso
* low water inlet
275 370
ssaggio in dotazione ART. ”VFS”
xing kit ”VFS” included
Ø100
codice
code
FMVCMPE00000BI
FMCSMB000000BI
370
Ø55
835
180
Gamma di colori disponibile per vaso e sedile FOR 1800 C/F
Color range available for wc and wrapover FOR 1800 C/F
COLORS 1250°
NA
verde natura
nature green
tortora
toupe
Complementi/complements:
Sedile termoindurente
con chiusura frizionata a sgancio rapido
Thermosetting soft close seat cover
with quick release
bianco lucido/ shiny white
Curva tecnica per vaso normale e monoblocco
Technical bend for standing and close couped wc
TO
PR
perlè
perlè
CT
cotone
cotton
CE
cenere
ash
CA
carbone
coal
240
CC
cacao
cacoa
codice
code
FOR 1800/F
CVT
540
RB
blu royale
royale blu
AN
antracite
anthracite
420
*
300
240
scala/scale 1:20 dimensioni/dimensions in mm
Batteria di scarico automatica, attaccco basso
con pulsante doppio flusso (3/6 lt) cromo/oro/bronzo
Automatic discharge mechanism, low junction
with chrome/gold/bronze double flushing
COLORS 1250°
Sedile termoindurente con chiusura frizionata a sgancio rapido
disponibile in tutti i COLORS 1250°.
Specicare il colore al momento dell’ordine.
Wrapover with quick release seat-cover for wc
available in COLORS 1250°
specify the color when ordering.
HER 1800 C/F
330
codice
code
B 1900 2F/40
TECHNICAL SHEET n°
SHEET FORMAT
REGULATIONS
All the measurements respect the tolerances provided by the “AZZURRA QUALITY GUIDELINES”.
* Regula�ons here shown are exclusively referred to ceramic items
: A4
: EN 997 / EN33 / Dop-997 *
: 01
DESIGNER
: OFFICINA AZZURRA
REVISION
CODE: FMVCMPE00000/FMCSMB000000
: 01
SCALE
: 1:20
DATE: 05/08/2019
