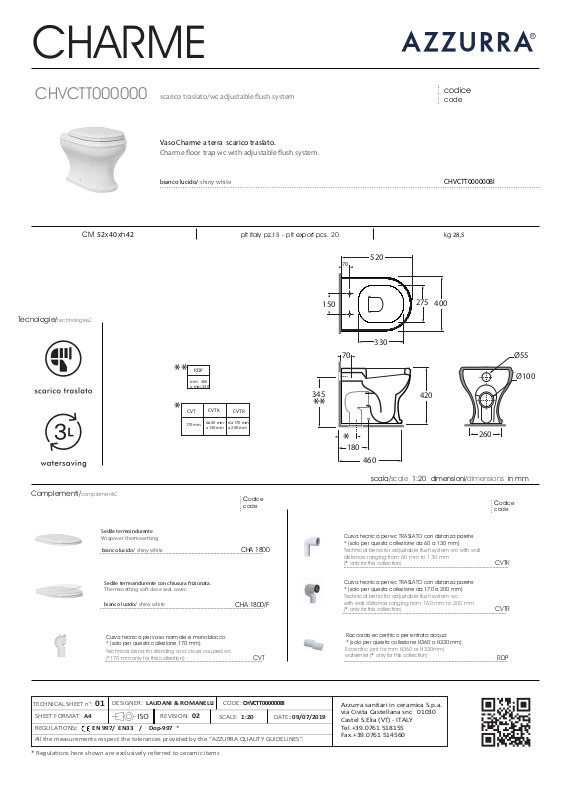

Azzurra CHVCTT000000 Datasheet
CHARME
CHVCTT000000
CM 52x 40xh 42 plt italy pz.15 - plt export pcs. 20 kg 28,5
Tecnologie/
technologies:
scarico traslato/wc adjustable ush system
Vaso Charme a terra scarico traslato.
Charme oor trap wc with adjustable ush system.
bianco lucido/ shiny white
RDP
**
mm 360
o mm 330
CVTK
da 60 mm
a 130 mm
CVTR
da 170 mm
a 200 mm
CVT
*
170 mm
345
**
150
70
70
*
180
460
520
330
275
420
codice
code
CHVCTT000000BI
400
Ø55
Ø100
260
Complementi/complements:
Sedile termoindurente
Wrapover thermosetting
bianco lucido/ shiny white
Sedile termoindurente con chiusura frizionata.
Thermosetting soft close seat cover.
bianco lucido/ shiny white
Curva tecnica per vaso normale e monoblocco
* (solo per questa collezione 170 mm)
Technical bend for standing and close couped wc
(*170 mm only for this collection)
TECHNICAL SHEET n°
SHEET FORMAT
REGULATIONS
All the measurements respect the tolerances provided by the “AZZURRA QUALITY GUIDELINES”.
* Regula�ons here shown are exclusively referred to ceramic items
: A4
: EN 997/ EN33 / Dop-997
: 01
DESIGNER
: LAUDANI & ROMANELLI
REVISION
*
: 02
CODE:
SCALE
codice
code
CHA 1800
CHA 1800/F
CVT
CHVCTT000000BI
: 1:20
DATE: 09/07/2019
scala/scale 1:20 dimensioni/dimensions in mm
Curva tecnica per wc TRASLATO con distanza parete
* (solo per questa collezione da 60 a 130 mm)
Technical bend for adjustable flush system wc with wall
distance ranging from 60 mm to 130 mm
*
only for this collection)
(
Curva tecnica per wc TRASLATO con distanza parete
* (solo per questa collezione da 170 a 200 mm)
Technical bend for adjustable flush system wc
with wall distance ranging from 160 mm to 200 mm
(
*
only for this collection)
Raccordo eccentrico per entrata acqua
* (solo per questa collezione H360 o H330mm)
Eccentric jont for mm H360 or H330mm)
waterinlet
Azzurra sanitari in ceramica S.p.a.
via Civita Castellana snc 01030
Castel S.Elia (VT) - ITALY
Tel.+39.0761 518155
Fax.+39.0761 514560
(* only for this collection)
codice
code
CVTK
CVTR
RDP
