AW-CU277B EVB User Guide
IEEE 802.11 b/g/n + Bluetooth 4.0 HS Smart Energy Module
(PCB 1288 Ver:I2,I3)
V0.2
2016/06/06
Kai. Wu
Relative Software
Application Software
•FTDI VCP Drivers (FT2232D)
•Libusb-win32-bin-1.2.6.0
•Cygwin
Set-up Procedure
1. Download FTDI VCP Drivers (FT2232D)
2. Download Libusb-win32-bin-1.2.6.0
3. Set Up CU277B EVB for Windows
4. Install FTDI VCP Drivers
5. Install Libusb-win32-bin-1.2.6.0
6. Install Cygwin
7. Insert file “OpenOCD.zip” (By wmsdk_bundle-2.13.78)
8. Burning MCU Image with normal firmware
9. Run WIFI Normal Driver
10. Burning MCU Image with MFG firmware
11. Run WIFI/BT MFG tool
12. Radiation Statement
2
Confidential
Relative Hardware I2
EVB Power Supply Option:
1. USB B-type 5V Input
2. Power Jack 5V Input
(If the USB B-type driving force
shortage)
CU277B Reset
LDO 5V to 3.3V
CU277B Wake
Up
JP11 for CU277B boots
Option
External 32.768KHz to
CU277B
FTDI USB to UART/JTAG with CU277B
(COM Port 1 for CU277B’s JTAG, COM Port 2 for CU277B’s
UART0)
External QSPI flash to CU277B
AW-CU277B
USB B-type
5V Input
USB 5V input
Power Jack 5V Input
3
Confidential
Relative Hardware I3
EVB Power Supply Option:
1. USB B-type 5V Input
2. Power Jack 5V Input
(If the USB B-type driving force
shortage)
External QSPI flash to CU277B
AW-CU277BB
External 32.768KHz to
CU277B
FTDI USB to UART/JTAG with CU277B
(COM Port 1 for CU277B’s JTAG, COM Port 2 for CU277B’s
UART0)
LDO 5V to 3.3V
USB B-type
5V Input
LDO 5V to 3.3V
JP11 for CU277B boots
Option
CU277B Wake Up
CU277B Reset
4
Power Jack 5V Input
Confidential
1. Download FTDI VCP Drivers (FT2232D)
Install the driver manually. You can get the driver from FTDI’s web site.
http://www.ftdichip.com/Drivers/VCP.htm
5
Confidential
2. Download Libusb-win32
You can get the driver from libusb-win32’s web site.
http://sourceforge.net/projects/libusb-win32
6
Confidential
3-1. Set Up CU277B EVB I2 for Windows
The USB port (B type) connects the CU277B evaluation board to the
PC.
Please refer to “AW-CU277B
EVB PCB Info” document.
ANT2
ANT1
7
Confidential
3-2. Set Up CU277B EVB I3 for Windows
The USB port (B type) connects the CU277B evaluation board to the
PC.
Please refer to “AW-CU277B
EVB PCB Info” document.
ANT2
ANT1
8
Confidential
4-1. Install FTDI VCP Drivers
DONE
9
Confidential
4-2. Install FTDI VCP Drivers
Verifying Driver Installation:
To verify that driver installation has completed successfully, you can open the
“Device Manager” (right-click My Computer, select Properties).
In the System Properties windows, select Hardware, Device Manager.
Two “USB Serial Port” should be listed under MY-PC\Ports (COM & LPT)
10
Confidential
5-1. Install Libusb-win32
Install inf-wizard:
USB Serial Converter A (Interface 0)
11
Confidential
5-2. Install Libusb-win32
Verifying Driver Installation:
To verify that driver installation has completed successfully, you can open the
“Device Manager” (right-click My Computer, select Properties).
In the System Properties windows, select Hardware, Device Manager.
One “USB Serial Converter A” should be listed under MY-PC\Ports (lib usb-
win32 devices)
DONE
Confidential
12

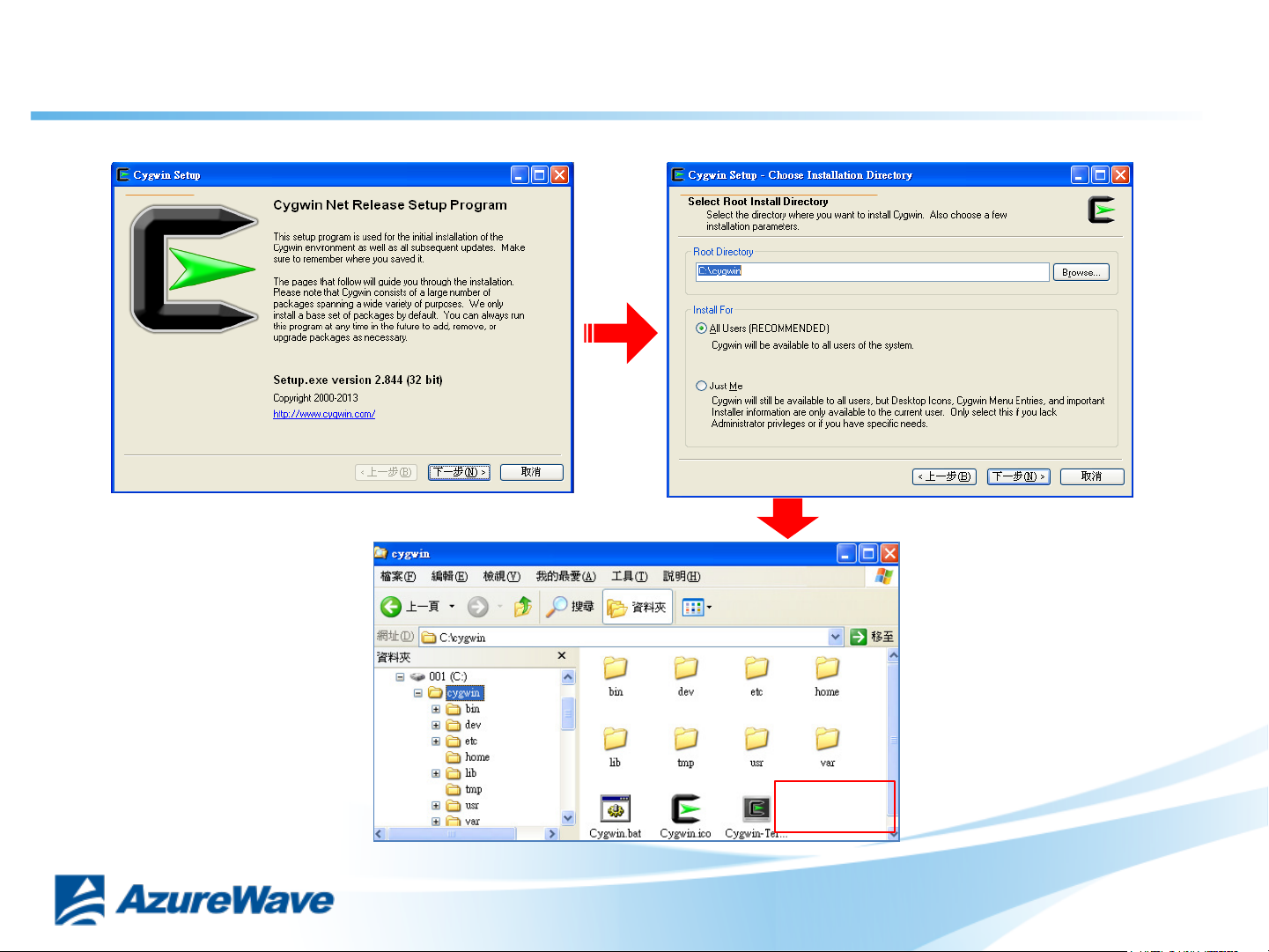

6-1. Install Cygwin
Install Cygwin:
1. Install Cygwin from: http://www.cygwin.com/setup_x86.exe (for x86 32-bit systems) or
http://www.cygwin.com/setup_x86_64.exe (for x86 64-bit systems)
2. Select the option Install from Internet
3. Use default installation path: c:\cygwin. If you chose an alternate installation directory, please
make sure that there are no spaces in the path.
4. Pick the Local Package Directory (this is the download cache directory)
5. Select the option Direct Connection
6. Select any mirror you want to use
7. Add additional packages to the default selection:
Click “Next”. The Cygwin Setup window will show the progress as each package gets installed.
Note:
If you are not familiar with cygwin, please visit http://cygwin.com/ for additional
information and details. In particular, the Cygwin User Guide
(http://cygwin.com/cygwin-ug-net/) is a good resource for new users.
13
Confidential
6-2. Install Cygwin
DONE
14
Confidential
7-1. Insert file “OpenOCD.zip”
Unzip “CU277B_OpenOCD.zip” and put “readelf.exe” to C:\cygwin\bin
15
Confidential
7-2. Insert file “OpenOCD.zip”
Unzip “CU277B_OpenOCD.zip” and put them to C:\cygwin\
16
Confidential
7-3. Insert file “OpenOCD.zip”
Process C:\cygwin\Cygwin.bat
17
Confidential
7-4. Insert file “OpenOCD.zip”
Key in command : cd /cygdrive/c/cygwin/OpenOCD
18
Confidential
8-1. Burning Normal F/W
Check config_normal.txt, layout.txt … 6 files in the OpenOCD folder
Check files name
19
Confidential
8-2. Burning Normal F/W
Key in command : ./flashprog.sh -l layout.txt -b config_normal.txt
20
Confidential
8-3. Burning Normal F/W
Burning information print as followed:
Note : Please restart DUT after burning (Plug-in and Plug-out USB)
21
Confidential
9-1. Run normal F/W
Open OS terminal and set USB comport (reference to the page9 ), set
baud-rate as 115200
115200
off
off
22
Confidential
9-2. Run normal F/W
Enter help on the screen to see a full list of commands available for use
EX:
wlan-scan
That will scan around AP
23
Confidential
9-3. Normal F/W Antenna Switch
Antenna Switch Command for Internal/External Paths
AW-CU277B External Antenna Path command:
iwpriv mlan0 regrdwr 1 0x232c 0x20
iwpriv mlan0 regrdwr 7 0x1005 0
iwpriv mlan0 regrdwr 7 0x1005 **Check GPIO is Reg 0x00**
AW-CU277B Internal Antenna Path command:
iwpriv mlan0 regrdwr 1 0x232c 0x20
iwpriv mlan0 regrdwr 7 0x1005 1
iwpriv mlan0 regrdwr 7 0x1005 **Check GPIO is Reg 0x20**
24
Confidential
10-1. Burning MFG F/W
Check config8777_mfg.txt, layout.txt … 5files in OpenOCD folder
Check files name
25
Confidential
10-2. Burning MFG F/W
Command : ./flashprog.sh –l layout.txt –b config_mfg.txt
26
Confidential
10-3. Burning MFG F/W
Burning information print as followed:
Note : Please restart DUT after burning (Plug-in and Plug-out USB)
27
Confidential

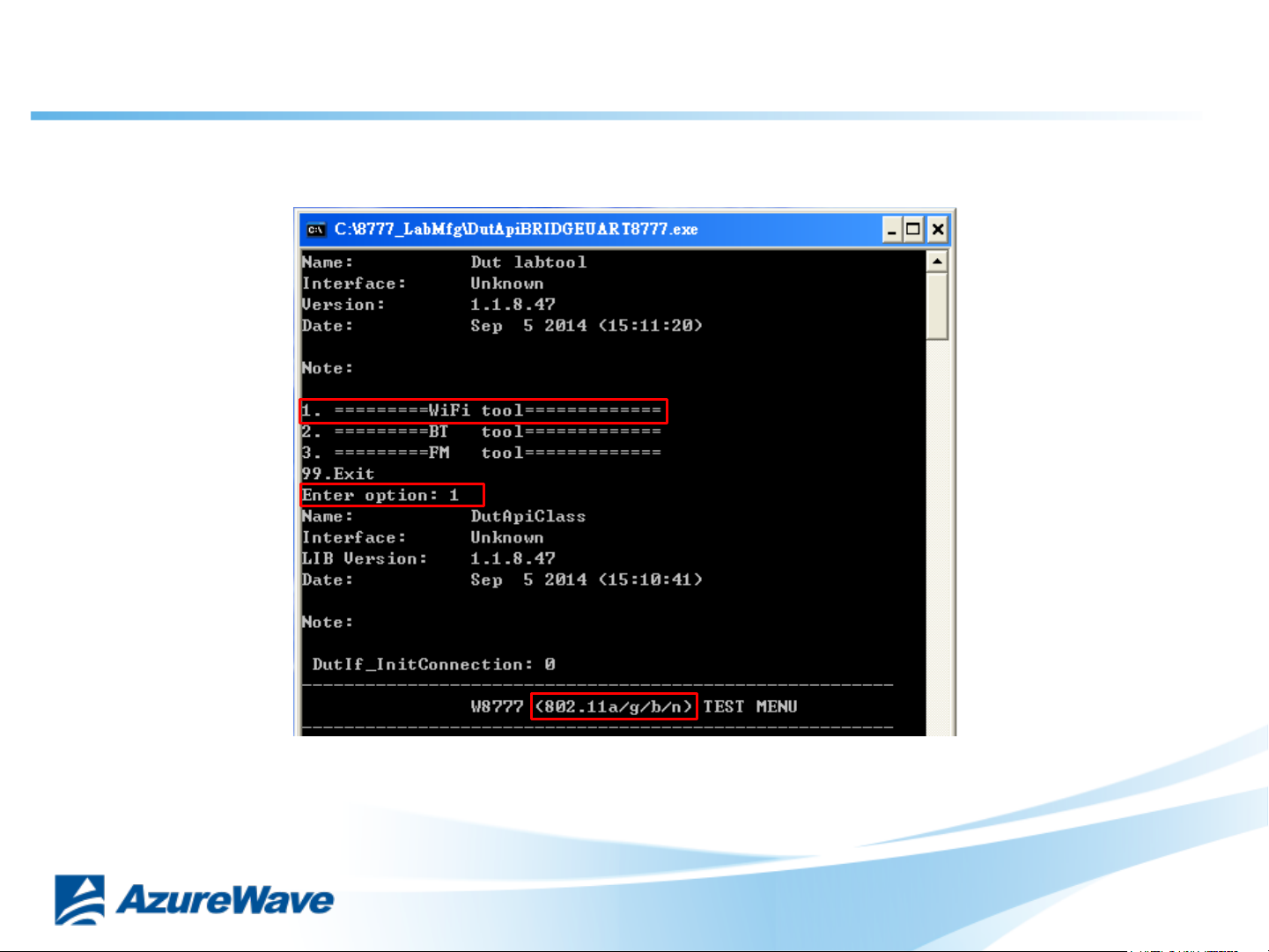

11-1. Run Marvel 88w8777 WIFI MFG tool
Set USB comport
DutInitSet to 2(OTP)
Run Marvel 88w8777 MFG tool
28
Confidential
11-2. Run Marvel 88w8777 WIFI MFG tool
29
Confidential
11-3. Run Marvel 88w8777 BT MFG tool
30
Confidential
12-1. Radiation Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Federal Communication Commission Interference Statement
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Country Code selection feature to be disabled for products marketed to the US/CANADA
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna,
3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied firmware programming tool.
OEM shall not supply any tool or info to the end-user regarding to Regulatory Domain change.
31
Confidential
12-2. Radiation Statement
As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their
end-product for any additional compliance requirements required with this module installed
IMPORTANT NOTE
In the event that these conditions can not be met
authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the
antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: TLZ-CU277B”.
Manual Information to the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s
manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada. Son fonctionnement est soumis aux deux conditions suivantes:
(1) Ce dispositif ne peut causer d'interférences; et(2) Ce dispositif doit accepter toute interférence, y compris les interférences qui peuvent causer
un mauvais fonctionnement de l'appareil.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être
installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
(for example certain laptop configurations or co-location with another transmitter), then the FCC
Industry Canada statement:
32
Confidential
12-3. Radiation Statement
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their
end-product for any additional compliance requirements required with this module installed.
Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes:
1) L'antenne doit être installée de telle sorte qu'une distance de 20 cm est respectée entre l'antenne et les utilisateurs, et
2) Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne.
Tant que les 2 conditions ci-dessus sont remplies, des essais supplémentaires sur l'émetteur ne seront pas nécessaires. Toutefois, l'intégrateur
OEM est toujours responsable des essais sur son produit final pour toutes exigences de conformité supplémentaires requis pour ce module
installé.
IMPORTANT NOTE:
In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the
Canada authorization is no longer considered valid and the IC ID can not be used on the final product. In these circumstances, the OEM integrator
will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate Canada authorization.
NOTE IMPORTANTE:
Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour certaines configurations d'ordinateur portable ou de certaines colocalisation avec un autre émetteur), l'autorisation du Canada n'est plus considéré comme valide et l'ID IC ne peut pas être utilisé sur le produit
final. Dans ces circonstances, l'intégrateur OEM sera chargé de réévaluer le produit final (y compris l'émetteur) et l'obtention d'une autorisation
distincte au Canada.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the
antenna and users. The final end product must be labeled in a visible area with the following: “Contains IC: 6100A-CU277B”.
33
Confidential
12-4. Radiation Statement
Model
Type
Connector
Gain
2400~2483.5MHz
ANT3216
Chip
UFL
3.29
FXP73.07.0100A
Monopole
UFL
3
NanoBlue
Monopole
UFL
2
PC11.07.0100A
Dipole
UFL
3
GW.17.07.0250E
Dipole
UFL
2.7
EDA-1313-2G4C1-A16
Dipole
UFL
2.39
DQ60CQA1200
Dipole
UFL
2.84
FXP74.07.0100A
PIFA
UFL
4
MSA-4008-25GC1-A1
PIFA
UFL
2.98
PC17.07.0070A
PIFA
UFL
0.9
T-543-80A1077-1
PIFA
UFL
0.55
Plaque signalétique du produit final
Ce module émetteur est autorisé uniquement pour une utilisation dans un dispositif où l'antenne peut être installée de telle sorte qu'une distance
de 20cm peut être maintenue entre l'antenne et les utilisateurs. Le produit final doit être étiqueté dans un endroit visible avec l'inscription suivante:
"Contient des IC: 6100A-CU277B".
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s
manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.
Manuel d'information à l'utilisateur final
L'intégrateur OEM doit être conscient de ne pas fournir des informations à l'utilisateur final quant à la façon d'installer ou de supprimer ce module
RF dans le manuel de l'utilisateur du produit final qui intègre ce module.
Le manuel de l'utilisateur final doit inclure toutes les informations réglementaires requises et avertissements comme indiqué dans ce manuel.
This radio transmitter (IC: 6100A-CU277B) has been approved by Industry Canada to operate with the antenna types listed below with the
maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type,
are strictly prohibited for use with this device.
Cet émetteur radio (IC: 6100A-CU277B) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous
avec le gain maximal admissible indiqué. Types d'antennes ne figurent pas dans cette liste, ayant un gain supérieur au gain maximum indiqué
pour ce type, sont strictement interdits pour une utilisation avec cet appareil.
34
Confidential
12-5. Radiation Statement
Taiwan 警語：
第十二條→經型式認證合格之低功率射頻電機，非經許可，公司，商號或使用者均不得擅自變更頻率加大功率或變更原設計之特性及功能
第十四條→低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用
前項合法通信，指依電信法規定作業之無線電通信 低功率射頻電機須忍受合法通信或工業科學及醫療用電波輻射性電機設備之干擾
1. 本模組於取得認證後將依規定於模組本體標示審驗合格標籤
2. 系統廠商應於平台上標示本產品內含射頻模組: CC XX xx YY yyy Z z W字樣
35
Confidential
Loading...
