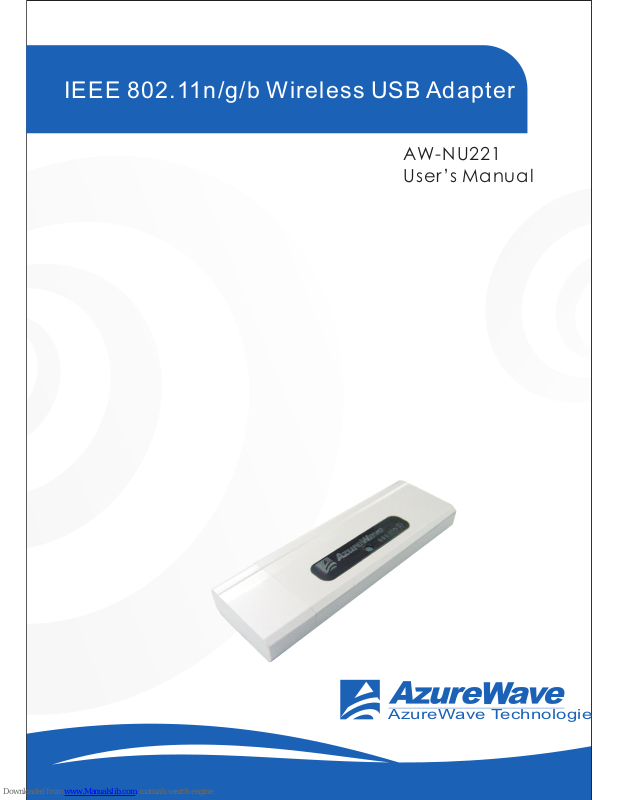

AW-NU221
User’s Manual
IEEE 802.11n/g/b Wireless USB Adapter
AzureWave Technologies, Inc.
AW-NU221
User’s Manual
English
July 2007
PRO N
Contents
I. Introduction
1.1Overview
1.2 Features
1.3 Product Review
1.Appearance
2.Connection Mode
2. Installation
2.1 System Requirements
2.2 Hardware Installation
2.3 Operation Range
2.4 Setup: Windows XP OS
2.5Setup: Windows Vista OS
3. Network Connection
3.1 For Windows XP OS
3.2 For Windows Vista OS
4. Setup for Ad-hoc Mode
4.1For Windows XP OS
4.2 For Windows Vista OS
5. Regulatory
Contents of Package:
Azurewave AW-NU221
1.802.11n/g/b Wireless USB Adapter
2.CD-ROM (includes manual and driver)
3.Quick Installation Guide
1
2
3
※ If any of the above items are missing, please contact your retailer.
System Requirements:
1. Windows Vista / XP
2. A computer or laptop with an available USB 1.1or 2.0 port
3. At least 64 MB of memory and a 300 MHZ processor
4. CD-ROM Drive
5. 20MB Hard disk space
PR
O
N
PRO N
Introduction
1.1 Overview
Azurewave AW-NU221 USB 2.0 Wireless Adapter is a highly integrated
wireless local area network (WLAN) solution to let users enjoy the digital
content through the latest wireless technology without using extra cables
and cords. It provides easy-to-use, high performance, cost effective and
low power solution. Moreover, AW-NU221 enables compatible highspeed wireless connectivity within home, business and public access
wireless networks.
Compliant with the IEEE 802.11n/g/b standard, AW-NU221 uses Direct
Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division
Multiplexing (OFDM), BPSK, QPSK, CCK and QAM baseband modulation
technologies. When you are using AW-NU221, a high level of integration
and full implementation of the power management functions specified in
the IEEE 802.11 standard can minimize system power requirements.
The AW-NU221 802.11n/g/b Wireless USB Adapter is a convenient Plug &
Play solution and provides up to 128-bit level of WEP security to your
wireless data transfers. It is able to run in the operating systems of
Windows XP/Vista in either Infrastructure mode or Ad-Hoc mode.
Comparing to previous wireless technology, AW-NU221 got great
improvements on speed and range. The wireless range increased up to
two times wider and coverage area reduced the situation of dead spots.
“Multiple In, Multiple Out” (MIMO) technology uses signal reflections to
increase the range and maintain wireless connections up to five times
farther; therefore, with MIMO, AW-NU221 is able to double the data rate
up to 150Mbps (none security and WPA/WPA2-AES).
1.2 Features
USB 2.0 Wireless Adapter
Compliant with IEEE 802.11n/g/b standard
2 antennas to support 1 (Transmit) x 2 (Receive) MIMO technology
High speed wireless connection up to 300Mbps
(For download only, it must connect to the other two Spatial Streams
Modulation Access Point)
High performance and low power consumption
Enhanced wireless security with 64/128-bit WEP encryption an WPA/WPA2
1.3 Product Review
1.Appearance
Here is the appearance of AW-NU221:
USB Cap
LED: Green color
Antenna location
PRON
Router/AP
ADSL or Cable Modem
(If any)
Internet
Station 1
Infrastructure Mode
AW-NU221
Station 2
It is recommended to choose this mode when there is no access point showed on your
wireless network.
AW-NU221
Station 2
Station 1
Station 3
Ad-hoc mode Ad-hoc mode
Ad-hoc mode
PRON
Ad-hoc Mode
The difference between Ad-hoc mode and Infrastructure mode is that Ad-hoc mode
does not need the access point or router. When you use this mode, your computer
will act as a server within the valid range and connect directly to others in the same
LAN workgroup.
2. Installation
2.1 System Requirements
Before you install AW-NU221, please make sure your system meets the
following requirements.
*Desktop or Laptop with USB 1.1/2.0 port
*Minimum of 64MB system memory
*Operating system: XP/Vista
*An optical drive/CD-ROM for utilities and driver installation
*20MB Hard Disk spaces
2.2 Hardware Installation
*Find an available USB 1.1/2.0 port on your desktop or laptop.
*Plug AW-NU221 wireless USB adapter into USB port of desktop or laptop.
2.3 Operation Range
The operating range of AW-NU221 varies from the working environment.
However, this device made improvement on speed and range, which
also reduced dead spots in coverage area. AW-NU221 is two times wider
than previous wireless products. By default, this USB wireless adapter will
automatically adjust the data rate. The transmission speed may vary
according to the environment. The closer the wireless stations are the
better the signal and transmission speed they will receive.
2.4 Setup: Windows XP OS
Insert the "Driver CD" into the CD-ROM drive in your PC. The installation
screen pops up by auto-run. If not, please go to File Manager to find the
root directory of the CD-ROM, and double click the "AUTORUN" file icon.
*The contents of the "Driver CD" packed with AW-NU221 are subject to
change without notice. Please visit the website of product for updates.
If your computer is running a Windows operating system, it will
automatically detect the AW-NU221 after the system boots up and
displays a "Found New Hardware Wizard" window. Please click [Cancel]
and proceed with the following steps.
1. Please wait few seconds for setup wizard to prepare installation
2. Please select click [Install] to proceed
3. The Wizard is running installation
4. Please wait few seconds for Wizard to setup
5. Please select your country to continue installation
6. A dialogue box pops up to ask whether you want to restart computer,
please select
7. When it is completed, please click [Finish]
8. When the process is finished, the system will show a message of
"Found New Hardware"
2.5 Setup: Windows Vista OS
Please follow the steps to complete installation.
1. Click [Install Driver]
2. Now the Setup Wizard is preparing installation
3. Please click [Install] to proceed
4. The system is process installation
5. When you see this dialogue box, please select your country
6. Please select “Yes, I want to restart my computer now” to reboot your
computer
7. When the setup is completed, please click [Finish]
3. Network Connection
3.1 For Windows XP OS
Please see the following steps to setup network connection for Windows XP.
1. Find the network icon on the desktop shortcut and right-click on it. Choose
"View Available Wireless networks"
2. You will see several options, please select one and click [Connect]
3. Please wait for few seconds to let system connecting to selected
wireless network
5. Now the selected wireless network is connected
4. You may need to type the network key when it is required
6. You can check the connection status by clicking [Status] in the
pop-up dialogue
7. Here is the wireless network connection status

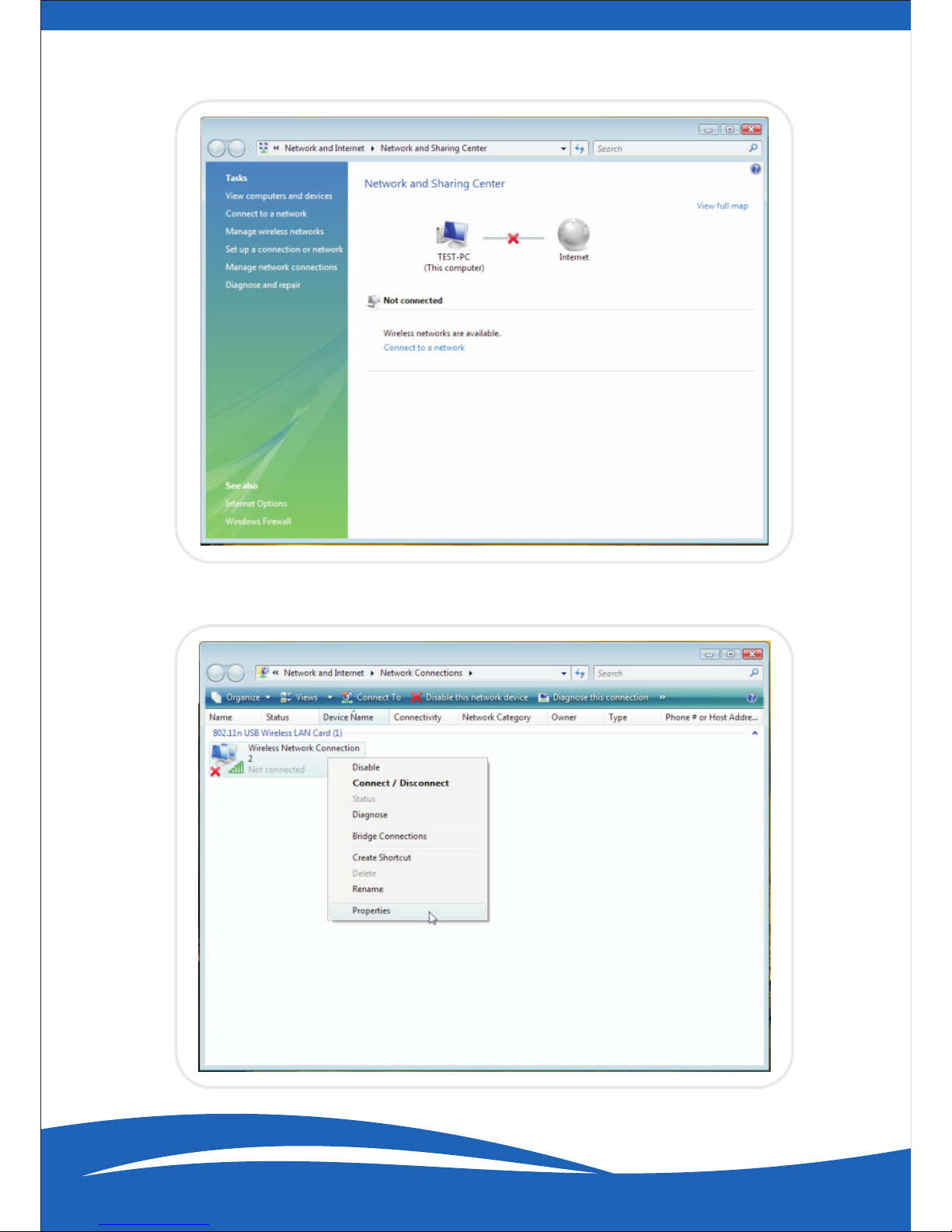

3.2 For Windows Vista OS
Following are the instructions to setup wireless connection for Windows Vista.
1. Right-click on the network icon located on desktop shortcut. When you see the
dialogue, please click [Connect to a network]
2. Choose wireless network within your range and click [Connect]
* If selected network is not secure, please choose [Connect anyway]
3. You may need to wait for few seconds when Windows connects to
wireless network
4. Now the selected wireless network is connected
5. If you want to see the connection status, please right-click on the
Network icon on desktop shortcut and choose “Network and
Sharing center”
6. Select “Manage network connections” bar
7. If you want to see the connection status, please right-click on the
network you choose and select [Status]
8. This is the information of network status
4. Setup for Ad-hoc Mode
4.1 For Windows XP OS
If you want to choose Ad-hoc mode, please right-click network icon on
desktop shortcut and choose "Open Network Connections", or go to
[Control Panel] and double-click "Network Connection" icon.
When you see the “Network Connections” screen, please follow the steps
below to setup Ad-hoc mode.
1. Double-click “Wireless Network USB Adapter” icon to enter its properties
2. Click "General" tab and double-click the "Internet Protocol (TCP/IP)" item
3. Choose “Use the following IP address:” and type the IP address;
then click [OK]
*Note: the IP address of the other wireless card should be set with the
same subnet mask
4. Right-click the "Wireless Network Connection" icon and choose "properties"
5. Select “Wireless Network” tab and choose [Add]
6. Type “Network name (SSID)” and choose “Data encryption”
if you want to protect the network security
4.2 For Windows Vista OS
Please follow the steps to setup Ad-hoc mode for Windows Vista.
1. Right-click the Network icon on desktop shortcut and choose
“Network and Sharing center”
7. When you see the dialogue showing your network is unsecured,
please click [Continue Anyway]
8. Now your network is in Ad-hoc mode
2. Select “Manage network connections” bar
3. Right-click “Wireless Network Connection” icon to see its properties
4. When you see the warning message, please click [Continue]
5. Choose “Networking” tab and double-click the
“Internet Protocol Version 4 (TCP/IPv4)” item
6. Choose “Use the following IP address” and type the IP address;
then click [OK]
*Note: the IP address of the other wireless card should be set with the
same subnet mask
7. Choose “Manage wireless networks” bar
8. Select [Add]
9. Choose “Create ad-hoc network”
10. Please click [Next]
11. Enter “Network name” and if you want to protect the network security,
please choose in “security type”; then click [Next]
12. Now your network is in Ad-hoc mode
5. Regulatory
Europe EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive
1999/5/EC. The following test methods have been applied in order to prove
presumption of conformity with the essential requirements of the R&TTE
Directive 1999/5/EC:
EN 60 950-1: 2001 +A11: 2004
Safety of Information Technology Equipment
EN50371 : (2002-03)
Generic standard to demonstrate the compliance of low power electronic
and electrical apparatus with the basic restrictions related to human
exposure to electromagnetic fields (10 MHz - 300 GHz) -- General public
EN 300 328 V1.6.1 (2004-11)
Electromagnetic compatibility and Radio spectrum Matters (ERM);
Wideband transmission systems; Data transmission equipment operating in
the 2,4 GHz ISM band and using wide band modulation techniques;
Harmonized EN covering essential requirements under article 3.2 of the
R&TTE Directive
EN 301 489-1 V1.6.1: (2005-09)
Electromagnetic compatibility and Radio Spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 1: Common technical requirements
EN 301 489-17 V1.2.1 (2002-08)
Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 17: Specific conditions for 2,4 GHz wideband transmission
systems and 5 GHz high performance RLAN equipment
This device is a 2.4 GHz wideband transmission system (transceiver),
intended for use in all EU member states and EFTA countries, except in
France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum
authorities in order to obtain authorization to use the device for setting up
outdoor radio links and/or for supplying public access to
telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and
in some areas the RF output power may be limited to 10 mW EIRP in the
frequency range of 2454 2483.5 MHz. For detailed information the end-user
should contact the national spectrum authority in France.
[Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve
shodě se základními požadavky a dalšími příslušnými
ustanoveními směrnice 1999/5/ES.
Česky [Czech]
Dansk [Danish]
Undertegnede [fabrikantens navn] erklærer herved, at følgende
udstyr [udstyrets typebetegnelse] overholder de væsentlige
krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt [Name des Herstellers], dass sich das Gerät
[Gerätetyp] in Übereinstimmung mit den grundlegenden
Anforderungen und den übrigen einschlägigen Bestimmungen
der Richtlinie 1999/5/EG befindet.
Eesti [Estonian]
Käesolevaga kinnitab [tootja nimi = name of manufacturer]
seadme [seadme tüüp = type of equipment] vastavust direktiivi
1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele
teistele asjakohastele sätetele.
English
Hereby, [name of manufacturer], declares that this [type of
equipment] is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
Español [Spanish]
Por medio de la presente [nombre del fabricante] declara que el
[clase de equipo] cumple con los requisitos esenciales y
cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
Ελληνική [Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ
[type of equipment] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ
ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ
ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français [French]
Par la présente [nom du fabricant] déclare que l'appareil [type
d'appareil] est conforme aux exigences essentielles et aux
autres dispositions pertinentes de la directive 1999/5/CE.
0560
Con la presente [nome del costruttore] dichiara che questo
[tipo di apparecchio] è conforme ai requisiti essenziali ed alle
altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Italiano [Italian]
Latviski [Latvian]
Ar šo [name of manufacturer / izgatavotāja nosaukums]
deklarē, ka [type of equipment / iekārtas tips] atbilst Direktīvas
1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem
noteikumiem.
L
[Lithuanian]
ietuvių
Šiuo [manufacturer name] deklaruoja, kad šis [equipment type]
atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos
nuostatas.
Nederlands
[Dutch]
Hierbij verklaart [naam van de fabrikant] dat het toestel [type
van toestel] in overeenstemming is met de essentiële eisen en
de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese]
Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel
tal-prodott] jikkonforma mal-ħtiġijiet essenzjali u ma
provvedimenti oħrajn relevanti li hemm fid-Dirrettiva
1999/5/EC.
Magyar
[Hungarian]
Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel
a vonatkozó alapvetõ követelményeknek és az 1999/5/EC
irányelv egyéb elõírásainak.
Polski [Polish]
Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu]
jest zgodny z zasadniczymi wymogami oraz pozostałymi
stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese]
[Nome do fabricante] declara que este [tipo de equipamento]
está conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
[Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z
bistvenimi zahtevami in ostalimi relevantnimi določili
direktive 1999/5/ES.
Slovensko
[Slovenian]
Slovensky
[Slovak]
[Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa
základné požiadavky a všetky príslušné ustanovenia Smernice
1999/5/ES.
Lietuvių
[Lithuanian]
Šiuo [manufacturer name] deklaruoja, kad šis [equipment type]
atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos
nuostatas.
Suomi [Finnish]
[Valmistaja = manufacturer] vakuuttaa täten että [type of
equipment = laitteen tyyppimerkintä] tyyppinen laite on
direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien
direktiivin muiden ehtojen mukainen.
Svenska [Swedish]
Härmed intygar [företag] att denna [utrustningstyp] står I
överensstämmelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Loading...
