Aztech MH-400E User Manual

AZTECH CONVERTING SYSTEMS

212 W Lodge Drive
TEMPE, AZ 85283
PHONE [phone]
FAX [phone]

www.aztechconverting.com

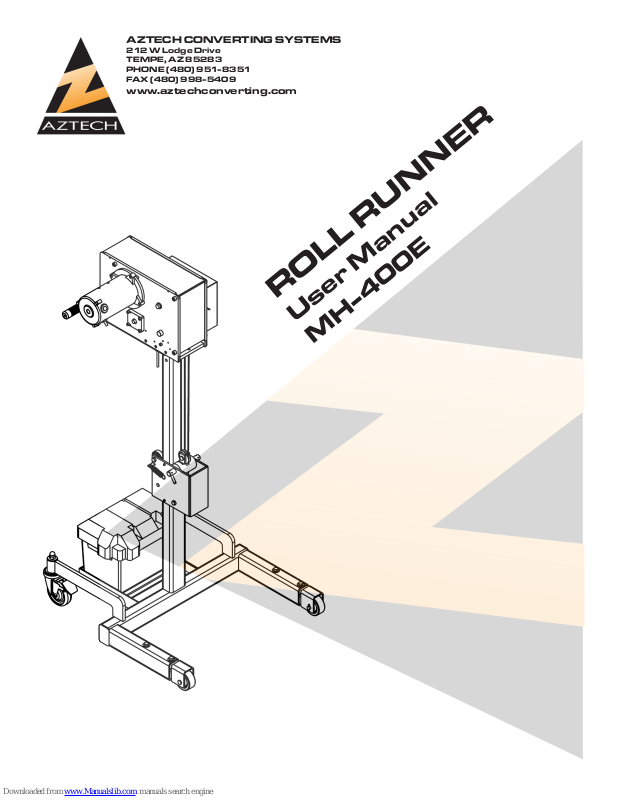

ROLL RUNNER

User Manual

MH-400E

AZTECH CONVERTING SYSTEMS

MH-400E
USER MANUAL

TABLE OF CONTENTS

SECTION 1: GENERAL INFORMATION 1-5

SECTION 2: MACHINE SETUP 5

SECTION 3: MACHINE OPERATION 6-9

SECTION 4: MAINTENANCE AND REPAIRS 10

SECTION 5: STATION DETAILS 11-12

SECTION 6: REPLACEMENT PARTS 13

SECTION 7: WARRANTIES AND SERVICE 14

AZTECH CONVERTING SYSTEMS

MH-400E

USER MANUAL

Section 1: General Information

1-1: Introduction

The AZTECH RollRunner Model 400E Roll Handling Cart is designed and manufactured to help re­duce workplace injuries by performing various material handling functions utilizing AZTECH’s inno­vative quick-change attachment system. The RollRunner with its all-steel construction and simplis­tic design will prove to be an invaluable product for your work environment and is sure to provide
your company many years of safe, dependable service.

The 400E series is an augmentation of the MH-400 featuring electric winch operation to further
reduce on-the-job strain.

1-2: Machine Information and Specications

MH-400EA MH-400EB MH-400EC

Fig. 1-1: MAX LIFT HEIGHTS

The MH-400 operates on a cable and winch lift system. The lift hieght is limited by the height of
the upright boom. Currently, three different lift heights are offered. They are the 400A, 400B and
400C. Their respective maximum lifts are shown in Fig. 1-1.

The 400A and the 400B have similar footprints, while the 400C is slightly larger. Their respective
sizes are shown in Figs 1-2, 1-3 & 1-4.

1

AZTECH CONVERTING SYSTEMS

MH-400E
USER MANUAL

MH-400EA

MAX LOAD: 400 LBS (181 kg)

MAX Lift Height: 38.25 (97cm)

Dimensions: 28.25 X 34 X 57.25

All dimensions are inches unless

otherwise specied

2 Rev 1.0

Fig. 1-2: THE MH-400A

AZTECH CONVERTING SYSTEMS

MH-400E

USER MANUAL

MH-400EB

MAX LOAD: 400 LBS (181 kg)

MAX Lift Height: 48 (122cm)

Dimensions: 28.25 X 34 X 50.75

All dimensions are inches unless

otherwise specied

Fig. 1-3: THE MH-400B

3

AZTECH CONVERTING SYSTEMS

MH-400E
USER MANUAL

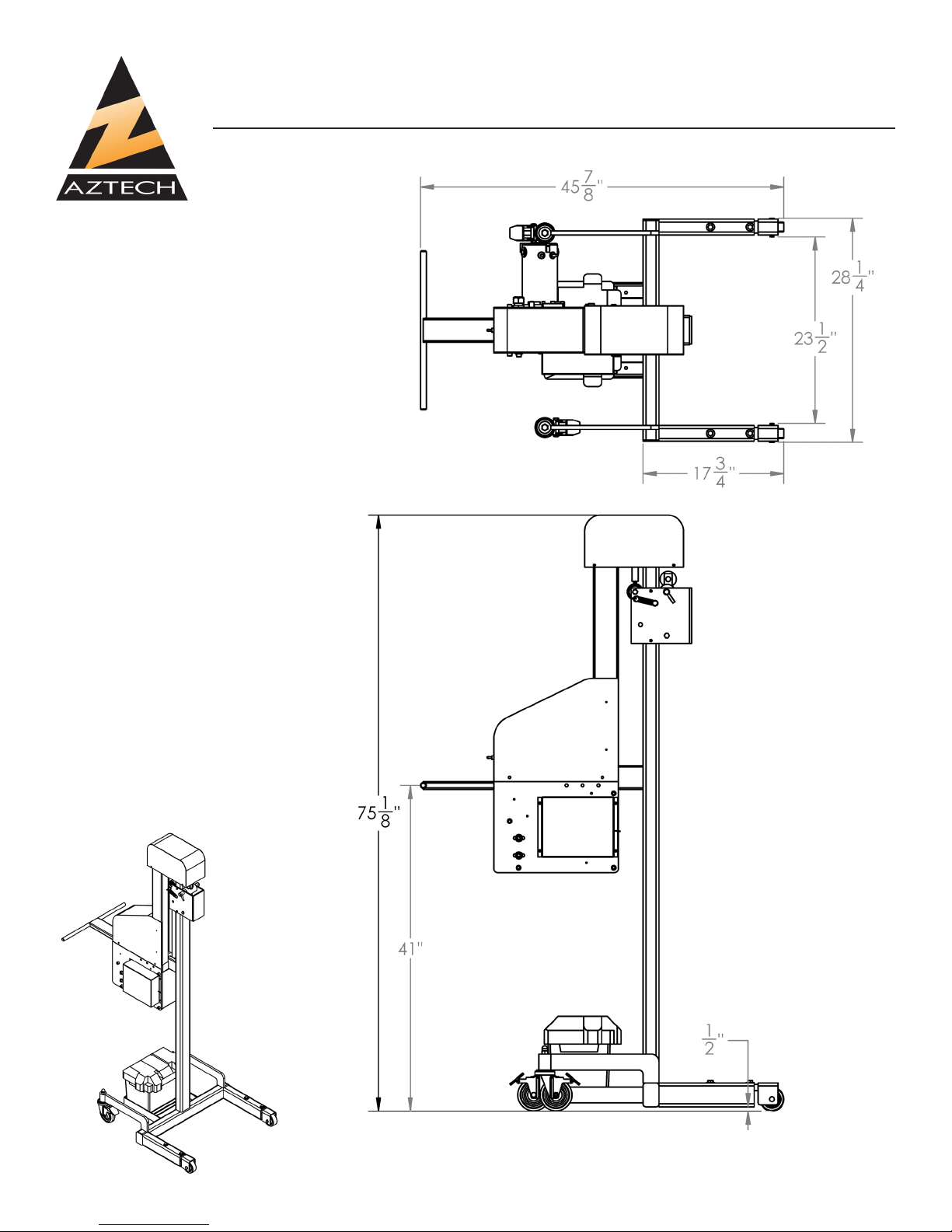

MH-400EC

MAX LOAD: 400 LBS (181 kg)

MAX Lift Height: 62.00 (157cm)

Dimensions: 28.25 X 39 X 73.35

All dimensions are inches unless

otherwise specied

4 Rev 1.0

Fig. 1-4: THE MH-400C

AZTECH CONVERTING SYSTEMS

MH-400E

USER MANUAL

1-3: Care and Maintenance

The RollRunner is relatively maintenance free, generally only re­quiring periodic inspections. Over time, you may need to replace
the lift cable, which is simply performed by removing the old ca­ble and inserting the new cable and crimping at the open end.

1-4: Safety

The RollRunner is equipped
with a safety brake which will
automatically engage in the
event of lift cable breakage.
(see Figure 1-5)

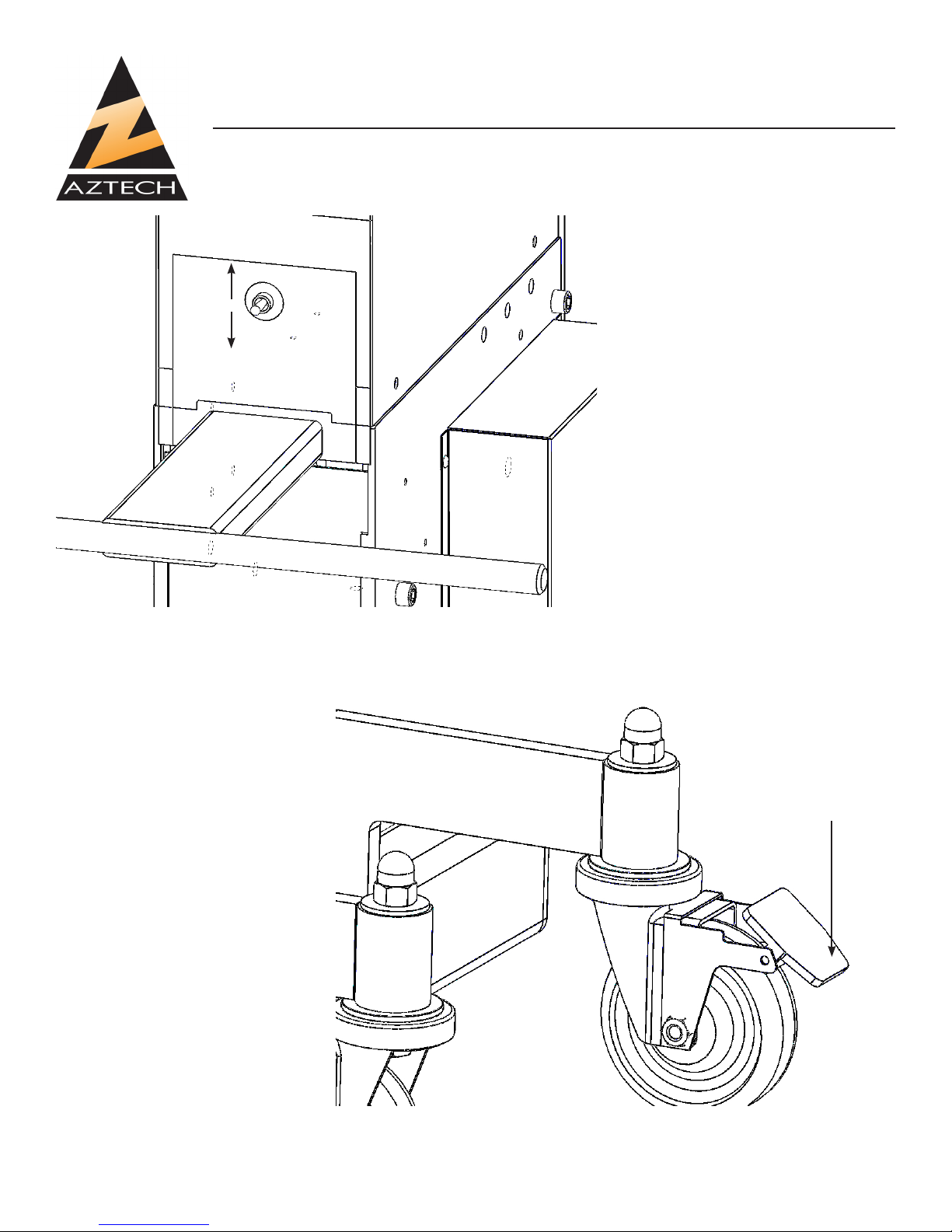

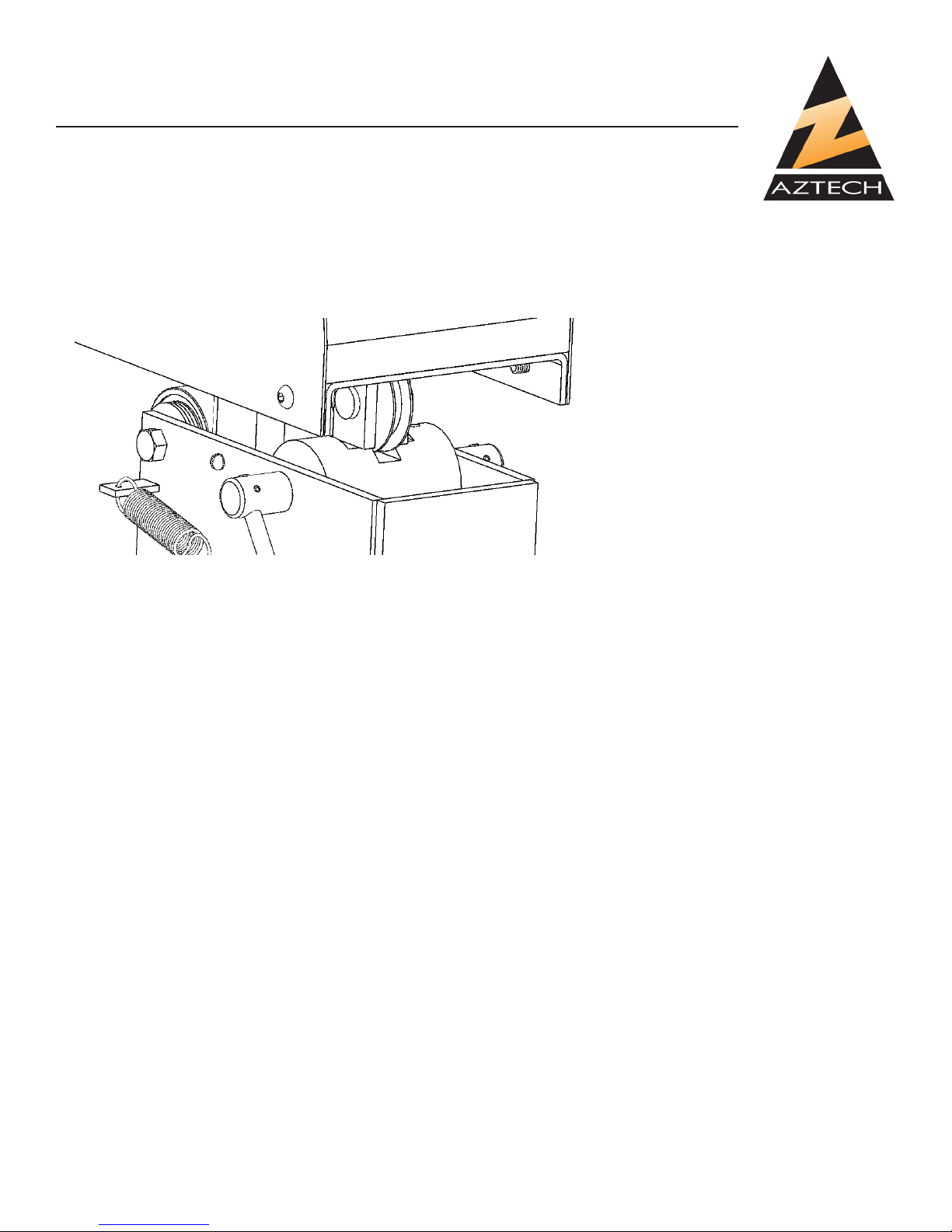

Fig. 1-5: SAFETY BRAKE DETAIL

NEVER:

Section 2: Machine Setup

2-1: Uncrating & Inspection

After carefully removing your
RollRunner from the crate,
check to assure that all the
bolts are tight and that no
components have come loose
during shipment. Carefully
inspect all 4 wheels making
sure they roll freely and are
free of damage. If any visible
damage has occurred in ship­ment, contact AZTECH imme­diately.

2-2: Safety Brake Inspection

As noted in 1-4, your RollRun­ner is equipped with a safety
brake which will prevent a load
from falling in the event of a ca-

-Operate the ROLL RUNNER without the safety cover.

-Lift load over people

-Exceed the 400 LB weight limitation

-Use the ROLL RUNNER to transport people

ble break. To assure it is work­ing properly, check to see
that the 2 springs that activate
the safety brake have tension
and are attached at both ends.

2-2 Battery Connection

The RollRunner’s motorized
lift utilizes a 12 Volt deep-cycle
battery (not provided) which
may be purchased at virtually
any automotive or department
store. To connect the battery,
simply connect red cable to
the positive (+) terminal, and
the other cable to the negative
(-) terminal. The RollRunner
comes with an auxillary battery
charger and will need to be

charged periodically dependant
on use. Generally the higher
the cold cranking amps (CCA)
the battery is rated at, the less
frequently it would need to be
charged.

2-4: Winch & Cable Inspec­tion

Before lifting a load for the
rst time, remove the protec­tive winch cover and visually
inspect to assure that the
cable is seated properly in the
grooves of the pulleys.

5

AZTECH CONVERTING SYSTEMS

MH-400E
USER MANUAL

Section 3: Machine Operation

RAISE

LOWER

Fig. 1-5: CRANK OPERATION

3-1: Operating Lift

To operate the motorized lift,
raise switch to “UP” position to
raise the load, and lower switch
to “DOWN” position to lower
the load (see Fig. 1-5). The
RollRunner is equipped with
upper and lower limit switches
which will automatically shut
down the machine when the
load reaches its highest and
lowest points of travel.

3-2: Rear Wheel Safety

Brakes

The RollRunner is equipped
with back wheel safety brakes
which are to be used to hold
the cart in place once in de­sired position and as a safety
feature to keep the cart from
rolling while in the stationary
position. To operate, simply
press handle down and snap
into place to activate brake,
and lift to de-activate brake.

PRESS TO

LOCK

6 Rev 1.0

Fig. 1-5: SAFETY BRAKE

AZTECH CONVERTING SYSTEMS

MH-400E

USER MANUAL

3-3 Changing Attachments

The Rollrunner utilizes a EZ Change Attachment System which
makes it capable of performing numerous tasks. To change
attachments, simply lift attachment off the trolley and lower into
place making certain that retainer tab slides into the Slot at the
top of the trolley.

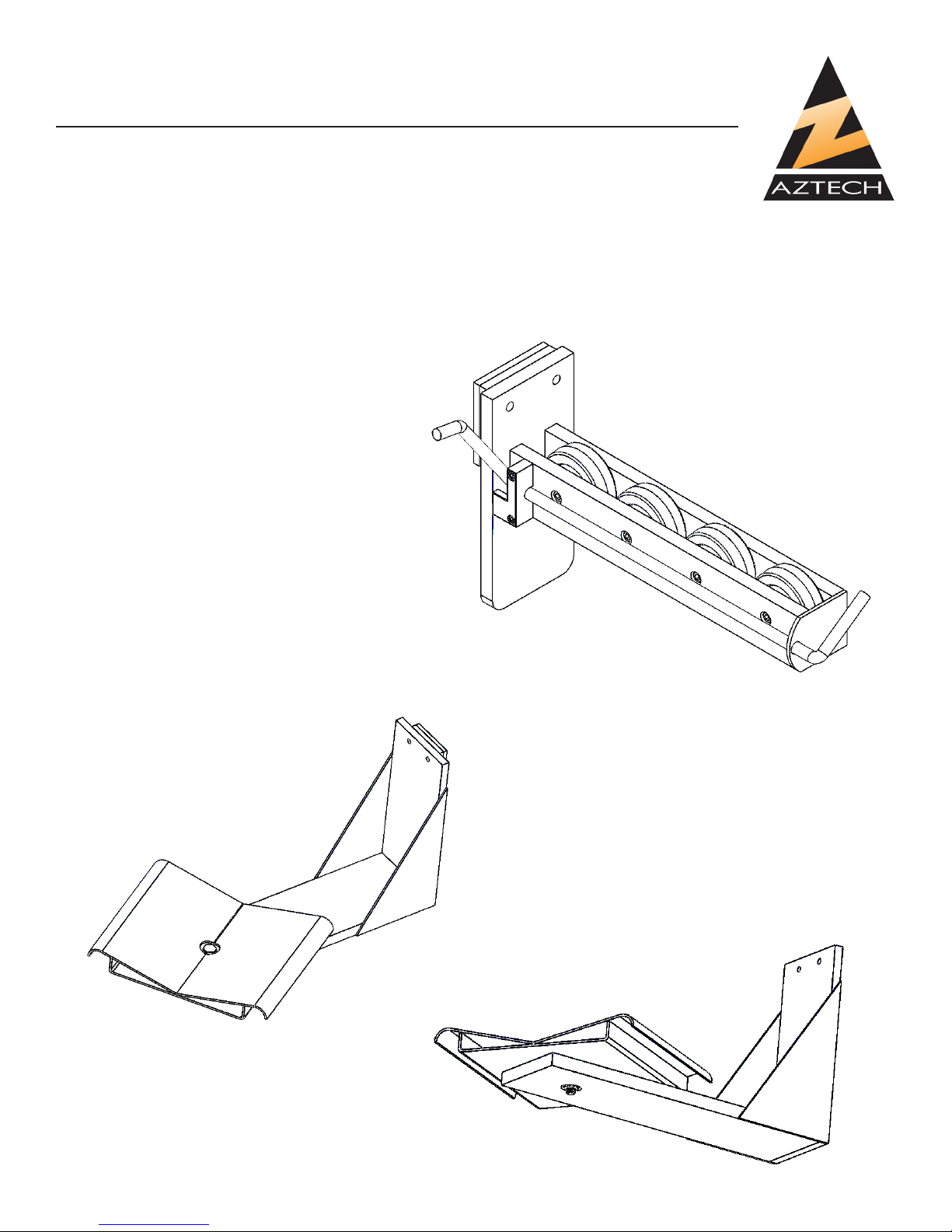

3-4: Available Attachments

Roller Core Boom: For load­ing and unloading rolls from the
side position by supporting the
roll through the roll’s core.

360 Degree Swivel-Cradle:

Supports the roll from the bottom
and can be turned 360 degrees for
precise alignment.

7

AZTECH CONVERTING SYSTEMS

MH-400E
USER MANUAL

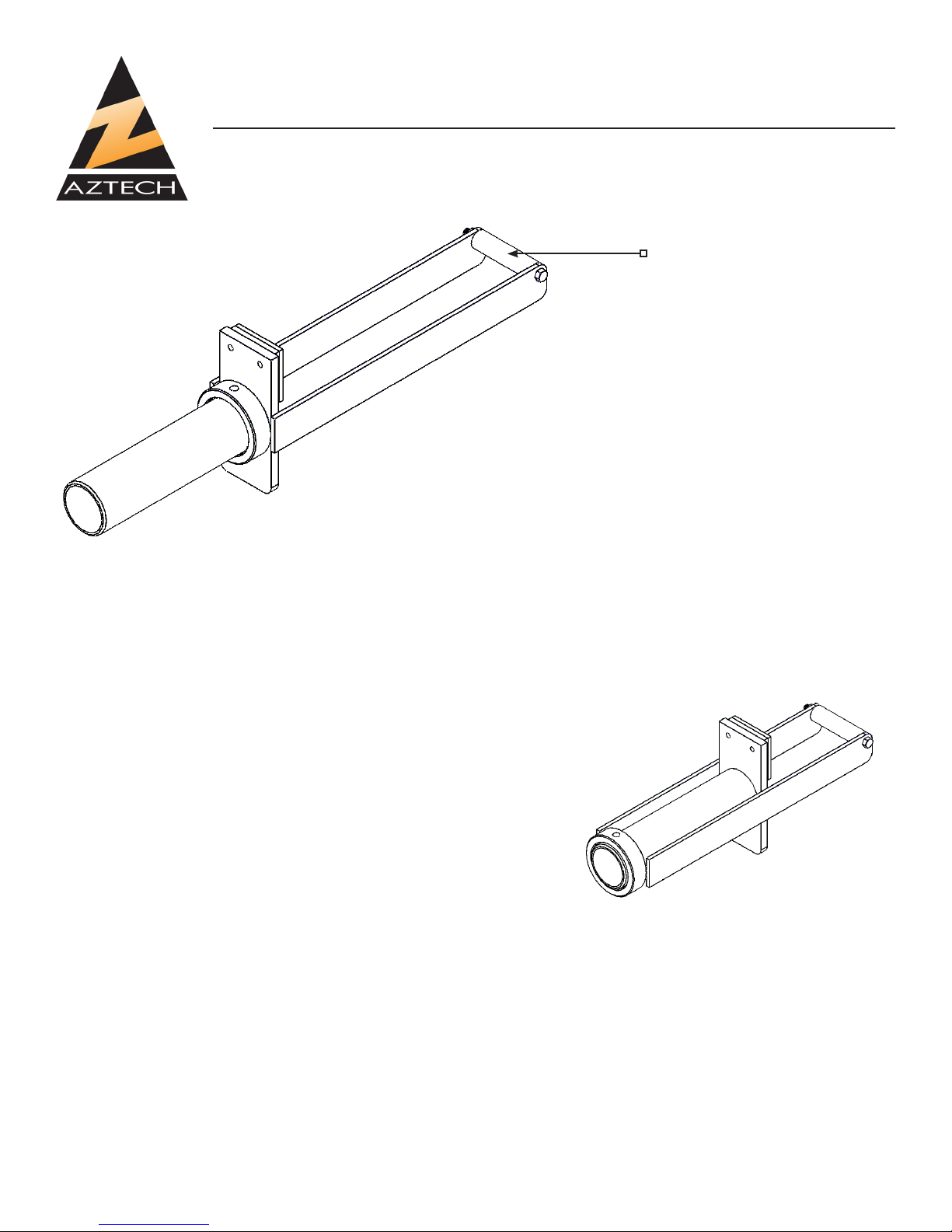

SLIDE HANDLE FORWARD
TO UNLOAD CORE

EJECTOR CORE:

Allows the operator to manually
unload the roll without walking
around the machine.

8 Rev 1.0

BOOM ACESSORIES MAY BE ORDERED INDIVIDUALLY.

Please contact your AZTECH sales representative for more information.

AZTECH CONVERTING SYSTEMS

MH-400E

USER MANUAL

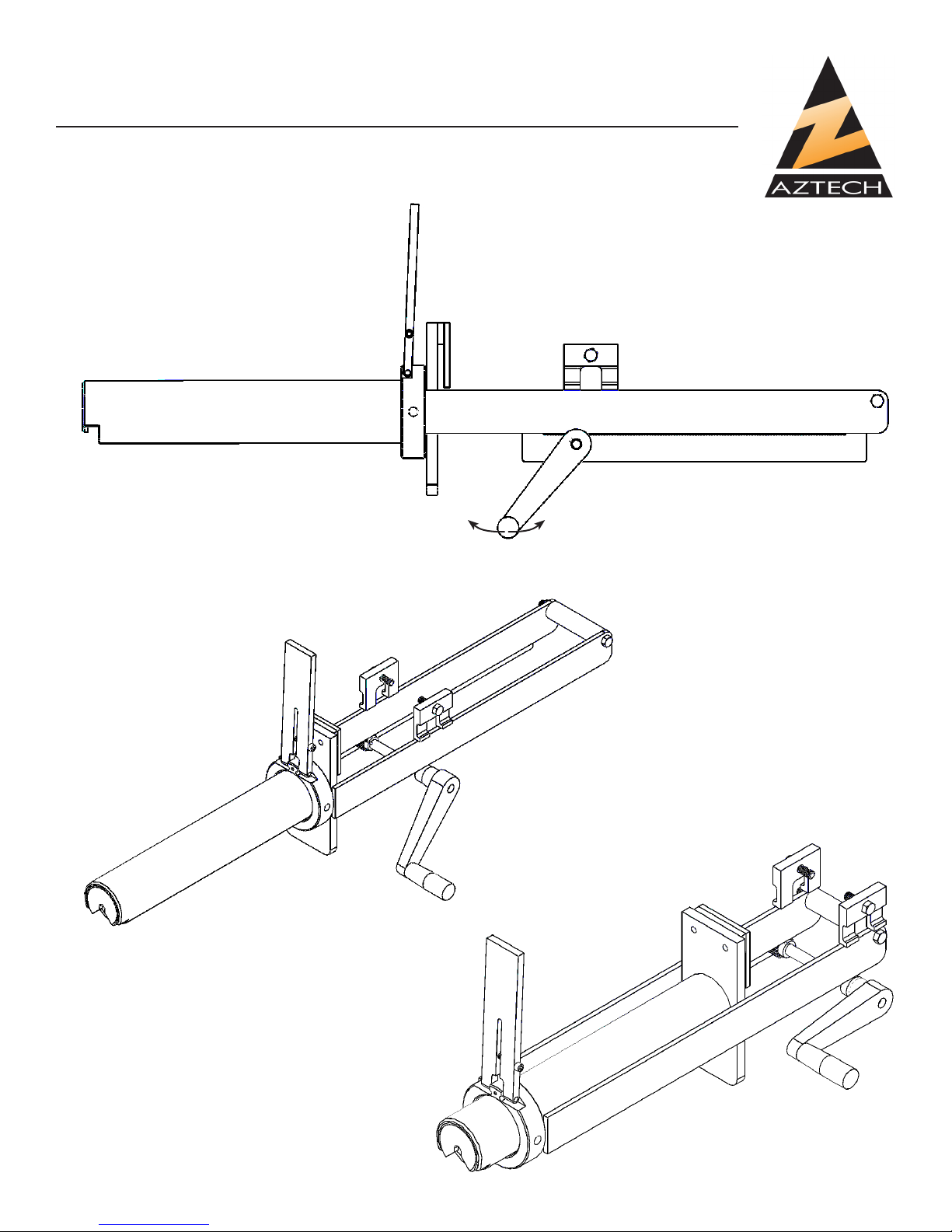

LOCK & LOAD EJECTOR:

Allows the operator to automat­ically unload the roll by operat­ing a crank.

EXTENDRETRACT

9

AZTECH CONVERTING SYSTEMS

MH-400E
USER MANUAL

Section 4: Maintenance and Repairs

4-1 Periodic Inspections

To keep your RollRunner operating properly, AZTECH recommends performing the following peri­odic inspection:

• Inspect cable for frayed strands or wear. If any are found, replace the cable immediately.

• Inspect the pulley on the trolley to assure that it turns easily.

• Inspect the lift attachment(s). If any cracks or damage is found, have the attachment repaired or

replaced.

• Inspect the springs on the safety brake to assure they are connected at both ends.

• Inspect the toe brake on the rear heels for proper operation.

• Check water level in battery and add distilled water as needed.

4-2 Charging the Battery

As noted in 2-2, your RollRunner utilizes a 12V Deep Cycle Bat­tery that on occasion will need to be charged utilizing the charger
supplied with the unit, or any automotive battery charger you may
have.

10 Rev 1.0

AZTECH CONVERTING SYSTEMS

MH-400E

USER MANUAL

Section 5: Station Details

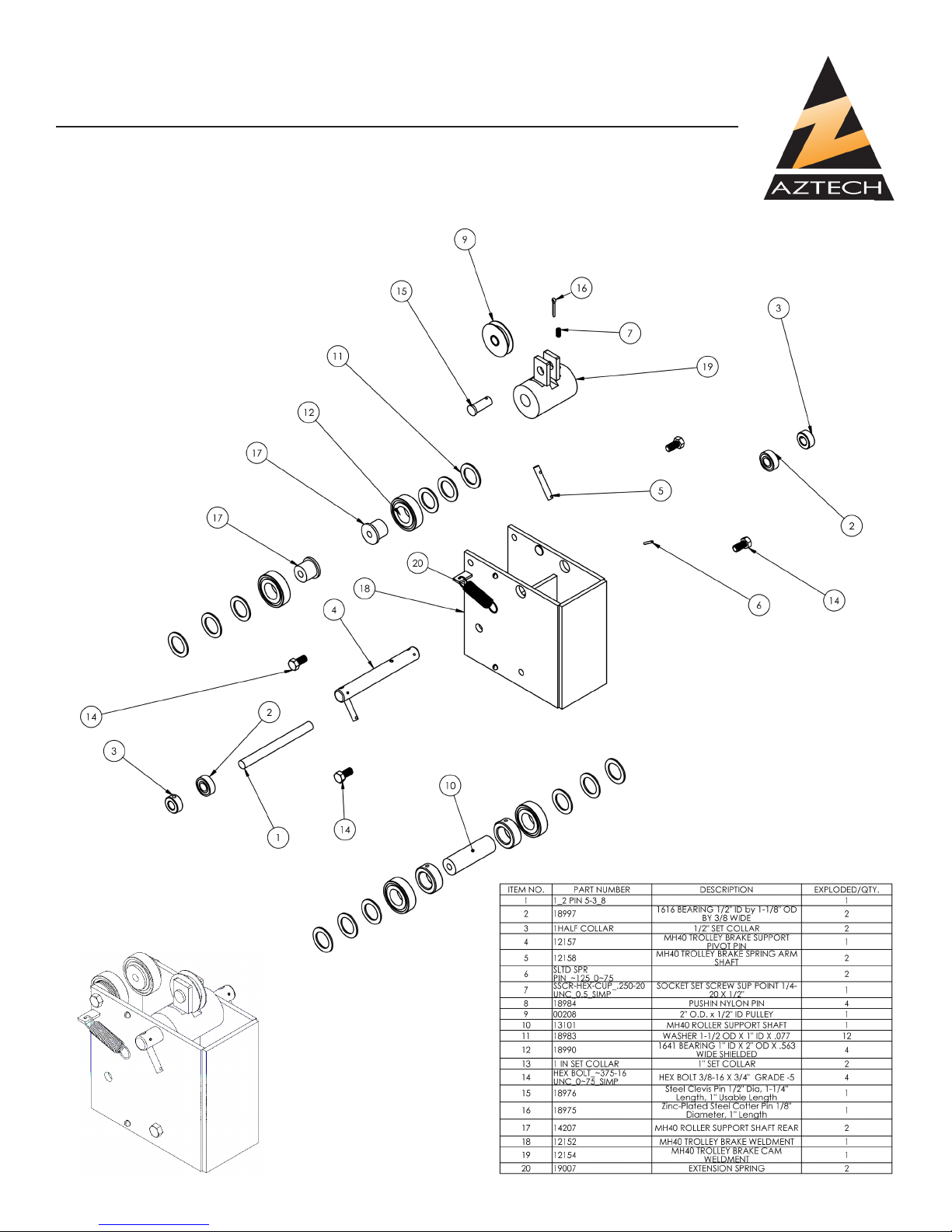

Section 5-1: Trolley Assembly

11

AZTECH CONVERTING SYSTEMS

MH-400E
USER MANUAL

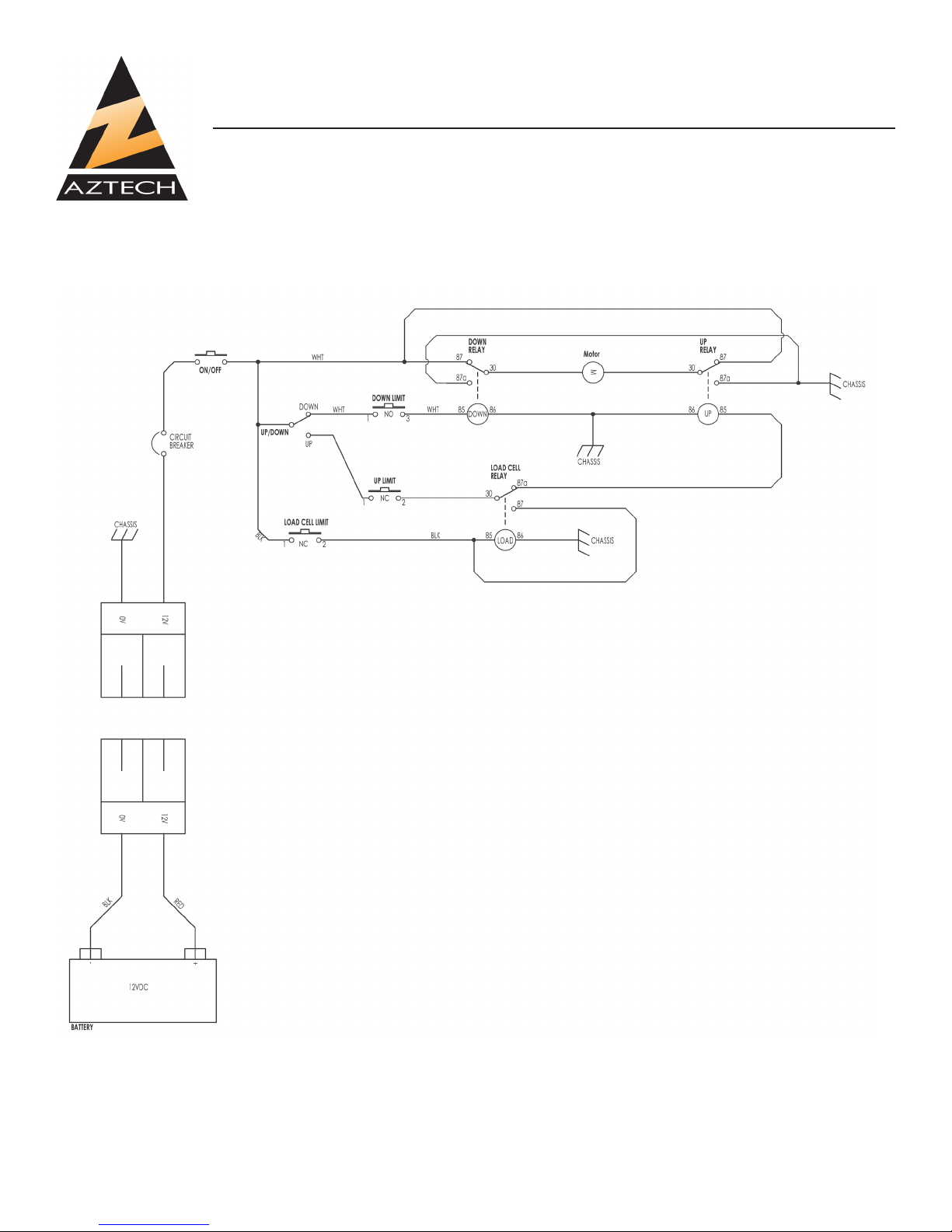

Section 5-2: Schematic

DISCONNECT BATTERY BEFORE ATTEMPTING

ANY SERVICE

12 Rev 1.0

AZTECH CONVERTING SYSTEMS

MH-400E

USER MANUAL

Section 6: Replacement Parts

6-1: Replacement Casters

FRONT: CAS002-781
REAR w/BRAKE: CAS084-894

6-2: Replacement Lift Cables

MH-400EA - 17823
MH-400EB - 17824
MH-400EC - 17825

13

AZTECH CONVERTING SYSTEMS

MH-400E
USER MANUAL

Section 7: Warranties and Service

parts or materials to Seller, who

7-1: Warranties & Provisions

WARRANTIES

All equipment manufactured
and sold by AZTECH Convert­ing Systems (Seller) is war­ranted to be free of defective
materials and workmanship
under normal use and service
for a period of
one (1) year from the date of
delivery to Buyer’s premises.
All commercial components not
manufactured by Seller
carry the original manufactur­er’s warranty. At Seller’s discre­tion, Seller may provide on-site
warranty service for a period of
ninety (90) days from the afore­mentioned date.

REMEDIES

If within the Warranty Period
any such Equipment is proven
to Seller’s satisfaction to be
defective in either material or
workmanship, Seller, at its sole
discretion, shall (a) repair or
replace defective parts on the
Equipment at Seller’s cost, or
(b) grant a reasonable allow­ance on account of such a
breach. If within the Warranty
Period the Seller receives no­tice from Buyer of defects in
parts or materials. Seller will
ship (ground, prepaid) replace­ment parts) and invoice Buyer
for the full cost of the replace­ment parts). Buyer will receive
a Return Authorization (RMA)
from seller, and return defective

14 Rev 1.0

at its sole discretion shall deter­mine whether defective parts or
materials are or are not subject
to exclusion from this warranty
as provided herein. Any de­fective parts or material not
excluded from the Warranty
Period will then be fully credit­ed to Buyer.

EXCLUSIONS

THE FOLLOWING ITEMS ARE
EXCLUDED FROM THIS
WARRANTY.

• Defects or damage caused by

careless or improper use.

• Parts that need periodic

replacement from wear during
normal operation.

• Routine maintenance and

adjustment.

• Failure or damage caused by

improper installation or inade­quate maintenance
by Buyer.

• Failure or damage caused
by equipment modications by

Buyer.

• Equipment damage resulting

from an accident, or abnormal
conditions of operation.

DISCLAIMER

NO OTHER WARRANTY IS
EXPRESSED OR IMPLIED
INCLUDING WARRANTIES
OF MERCHANTABILITY AND
FITNESS FOR ANY PARTIC­ULAR PURPOSE. SELLER IS
NOT LIABLE FOR INCIDEN­TAL OR CONSEQUENTIAL

DAMAGE SUCH AS, BUT
NOT LIMITED TO LOSS IN
PROFITS, LOSS OF USE OF
EQUIPMENT, OR INCREASED
IN OPERATING COSTS OR
EXPENSES.

7-2: Technical Service

In the event that your MH-400
is not functioning properly
or if you have any technical
questions, an AZTECH Tech­nical Service representative is
available to assist you. Contact
information is as follows:

Phone: [phone]
Fax: [phone]

E-Mail: techservice@aztech­converting.com
