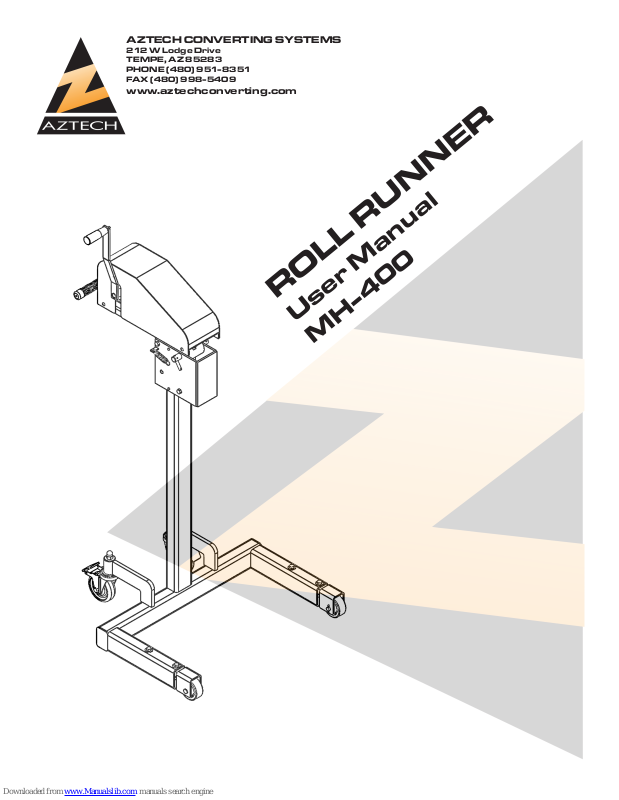

AZTECH CONVERTING SYSTEMS
212 W Lodge Drive
TEMPE, AZ 85283
PHONE (480) 951-8351
FAX (480) 998-5409
www.aztechconverting.com
ROLL RUNNER
User Manual
MH-400
AZTECH CONVERTING SYSTEMS
MH-400E
USER MANUAL
TABLE OF CONTENTS
SECTION 1: GENERAL INFORMATION 1-5
SECTION 2: MACHINE SETUP 5
SECTION 3: MACHINE OPERATION 6-9
SECTION 4: MAINTENANCE AND REPAIRS 10
SECTION 5: TROLLEY BRAKE DETAIL 11
SECTION 6: REPLACEMENT PARTS 12
SECTION 7: WARRANTIES AND SERVICE 13
AZTECH CONVERTING SYSTEMS
MH-400
USER MANUAL
Section 1: General Information
1-1: Introduction
The AZTECH RollRunner Model 400 Roll Handling Cart is designed and manufactured to help reduce workplace injuries by performing various material handling functions utilizing AZTECH’s innovative quick-change attachment system. The RollRunner with its all-steel construction and simplistic design will prove to be an invaluable product for your work environment and is sure to provide
your company many years of safe, dependable service.
1-2: Machine Information and Specications
MH-400A MH-400B MH-400C
Fig. 1-1: MAX LIFT HEIGHTS
The 400A and the 400B have similar footprints, while the 400C is slightly larger. Their respective
sizes are shown in Figs 1-2, 1-3 & 1-4.
The MH-400 operates on a cable and winch lift system. The lift hieght is limited by the height of
the upright boom. Currently, three different lift heights are offered. They are the 400A, 400B and
400C. Their respective maximum lifts are shown in Fig. 1-1.
1
AZTECH CONVERTING SYSTEMS
MH-400
USER MANUAL
MH-400A
MAX LOAD: 400 LBS (181 kg)
MAX Lift Height: 38.25 (97cm)
Dimensions: 28.25 X 34 X 50.75
All dimensions are inches unless
otherwise specied
2 Rev 1.0
Fig. 1-2: THE MH-400A
AZTECH CONVERTING SYSTEMS
MH-400
USER MANUAL
MH-400B
MAX LOAD: 400 LBS (181 kg)
MAX Lift Height: 48 (122cm)
Dimensions: 28.25 X 34 X 50.75
All dimensions are inches unless
otherwise specied
Fig. 1-3: THE MH-400B
3
AZTECH CONVERTING SYSTEMS
MH-400
USER MANUAL
MH-400C
MAX LOAD: 400 LBS (181 kg)
MAX Lift Height: 62.00 (157cm)
Dimensions: 28.25 X 39 X 73.35
All dimensions are inches unless
otherwise specied
4 Rev 1.0
Fig. 1-4: THE MH-400C
AZTECH CONVERTING SYSTEMS
MH-400
USER MANUAL
1-3: Care and Maintenance
The RollRunner is relatively maintenance free, generally only requiring periodic inspections. Over time, you may need to replace
the lift cable, which is simply performed by removing old cable
and inserting the new cable and crimping at the open end.
1-4: Safety
The RollRunner is equipped
with a safety brake which will
automatically engage in the
event of lift cable breakage.
(see Figure 1-5)
Fig. 1-5: SAFETY BRAKE DETAIL
NEVER:
Section 2: Machine Setup
2-1: Uncrating & Inspection
After carefully removing your
RollRunner from the crate,
check to assure that all the
bolts are tight and that no
components have come loose
during shipment. Carefully
inspect all 4 wheels making
sure they roll freely and are
free of damage. If any visible
damage has occurred in shipment, contact AZTECH immediately.
-Operate the ROLL RUNNER without the safety cover.
-Lift load over people
-Exceed the 400 LB weight limitation
-Use the ROLL RUNNER to transport people
2-2: Safety Brake Inspection
As noted in 1-4, your RollRunner is equipped with a safety
brake which will prevent a load
from falling in the event of a cable break. To assure it is working properly, check to see
that the 2 springs that activate
the safety brake have tension
and are attached at both ends.
2-3: Winch & Cable Inspection
Before lifting a load for the
rst time, remove the protective winch cover and visually
inspect to assure that the
cable is seated properly in the
grooves of the pulleys.
5
LOWER
AZTECH CONVERTING SYSTEMS
MH-400
USER MANUAL
Section 3: Machine Operation
3-1: Operating Lift
To operate the lift, turn crank
handle clockwise to raise and
RAISE
counter-clockwise to lower. (
see Figure 3-1) When raising
the lift, make certain that the
winch makes a clicking sound.
This clicking denotes that the
winch is performing properly.
Fig. 1-5: CRANK OPERATION
3-2: Rear Wheel Safety
Brakes
The RollRunner is equipped
with back wheel safety brakes
which are to be used to hold
the cart in place once in desired position and as a safety
feature to keep the cart from
rolling while in the stationary
position. To operate, simply
press handle down and snap
into place to activate brake,
and lift to de-activate brake.
PRESS TO
LOCK
6 Rev 1.0
Fig. 1-5: SAFETY BRAKE
AZTECH CONVERTING SYSTEMS
MH-400
USER MANUAL
3-3 Changing Attachments
The Rollrunner utilizes a EZ Change Attachment System which
makes it capable of performing numerous tasks. To change
attachments, simply lift attachment off the trolley and lower into
place making certain that retainer tab slides into the Slot at the
top of the trolley.
3-4: Available Attachments
Roller Core Boom: For loading and unloading rolls from the
side position by supporting the
roll through the roll’s core.
360 Degree Swivel-Cradle:
Supports the roll from the bottom
and can be turned 360 degrees for
precise alignment.
7
AZTECH CONVERTING SYSTEMS
MH-400
USER MANUAL
SLIDE HANDLE FORWARD
TO UNLOAD CORE
EJECTOR CORE:
Allows the operator to manually
unload the roll without walking
around the machine.
8 Rev 1.0
BOOM ACESSORIES MAY BE ORDERED INDIVIDUALLY.
Please contact your AZTECH sales representative for more information.
AZTECH CONVERTING SYSTEMS
MH-400
USER MANUAL
LOCK & LOAD EJECTOR:
Allows the operator to automatically unload the roll by operating a crank.
EXTENDRETRACT
9
AZTECH CONVERTING SYSTEMS
MH-400
USER MANUAL
Section 4: Maintenance and Repairs
4-1 Periodic Inspections
To keep your RollRunner operating properly, AZTECH recommends performing the following periodic inspection:
• Inspect cable for frayed strands or wear. If any are found, replace the cable immediately.
• Inspect the pulley on the trolley to assure that it turns easily.
• Inspect the lift attachment(s). If any cracks or damage is found, have the attachment repaired or
replaced.
• Inspect the springs on the safety brake to assure they are connected at both ends.
• Inspect the toe brake on the rear heels for proper operation.
10 Rev 1.0
AZTECH CONVERTING SYSTEMS
MH-400
USER MANUAL
Section 5: Trolley Brake Detail
11
AZTECH CONVERTING SYSTEMS
MH-400
USER MANUAL
Section 6: Replacement Parts
6-1: Replacement Casters
FRONT: CAS002-781
REAR w/BRAKE: CAS084-894
6-2: Replacement Lift Cables
MH-400A - 13907
MH-400B - 13908
MH-400C - 13909
12 Rev 1.0
AZTECH CONVERTING SYSTEMS
MH-400
USER MANUAL
Section 7: Warranties and Service
7-1: Warranties & Provisions
WARRANTIES
All equipment manufactured
and sold by AZTECH (Seller) is
warranted to be free of defective materials and workmanship
under normal use and service
for a period of
one (1) year from the date of
delivery to Buyer’s premises.
All commercial components not
manufactured by Seller
carry the original manufacturer’s warranty. At Seller’s discretion, Seller may provide on-site
warranty service for a period of
ninety (90) days from the aforementioned date.
REMEDIES
If within the Warranty Period
any such Equipment is proven
to Seller’s satisfaction to be
defective in either material or
workmanship, Seller, at its sole
discretion, shall (a) repair or
replace defective parts on the
Equipment at Seller’s cost, or
(b) grant a reasonable allowance on account of such a
breach. If within the Warranty
Period the Seller receives notice from Buyer of defects in
parts or materials. Seller will
ship (ground, prepaid) replacement parts) and invoice Buyer
for the full cost of the replacement parts). Buyer will receive
a Return Authorization (RMA)
from seller, and return defective
parts or materials to Seller, who
at its sole discretion shall deter-
mine whether defective parts or
materials are or are not subject
to exclusion from this warranty
as provided herein. Any defective parts or material not
excluded from the Warranty
Period will then be fully credited to Buyer.
EXCLUSIONS
THE FOLLOWING ITEMS ARE
EXCLUDED FROM THIS
WARRANTY.
• Defects or damage caused by
careless or improper use.
• Parts that need periodic
replacement from wear during
normal operation.
• Routine maintenance and
adjustment.
• Failure or damage caused by
improper installation or inadequate maintenance
by Buyer.
• Failure or damage caused
by equipment modications by
Buyer.
• Equipment damage resulting
from an accident, or abnormal
conditions of operation.
DISCLAIMER
NO OTHER WARRANTY IS
EXPRESSED OR IMPLIED
INCLUDING WARRANTIES
OF MERCHANTABILITY AND
FITNESS FOR ANY PARTICULAR PURPOSE. SELLER IS
NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGE SUCH AS, BUT
NOT LIMITED TO LOSS IN
PROFITS, LOSS OF USE OF
EQUIPMENT, OR INCREASED
IN OPERATING COSTS OR
EXPENSES.
7-2: Technical Service
In the event that your MH-400
is not functioning properly
or if you have any technical
questions, an AZTECH Technical Service representative is
available to assist you. Contact
information is as follows:
Phone: 1-800-829-8351
Fax: 1-480-998-5409
E-Mail: techservice@aztechconverting.com
13
