Aztech MDP3858WE User's Manual
MDP3858W Series
MDP3858WE Series
PCI 56K MODEM
Users Manual
Version 1.0
Contents
○○○○○○○○○○○○○○○○○○○○
Preface .......................................................................
Introduction ................................................................
Before You Begin .........................................................
2.1 Minimum System Requirements ...............................................
2.2 Safety Precaution ...................................................................
2.3 Installation Notes ...................................................................
Setting Up the Modem Card .........................................
3.1 Installing the Modem Card ......................................................
3.2 Connecting the Modem Card...................................................
Installing the Modem Drivers .........................................
4.1 For Windows® 95 ..................................................................
4.2 For Windows
®
98 ..................................................................
4
5
6
6
6
7
8
8
11
14
14
17
4.3 For Windows NT® 4.0 ............................................................

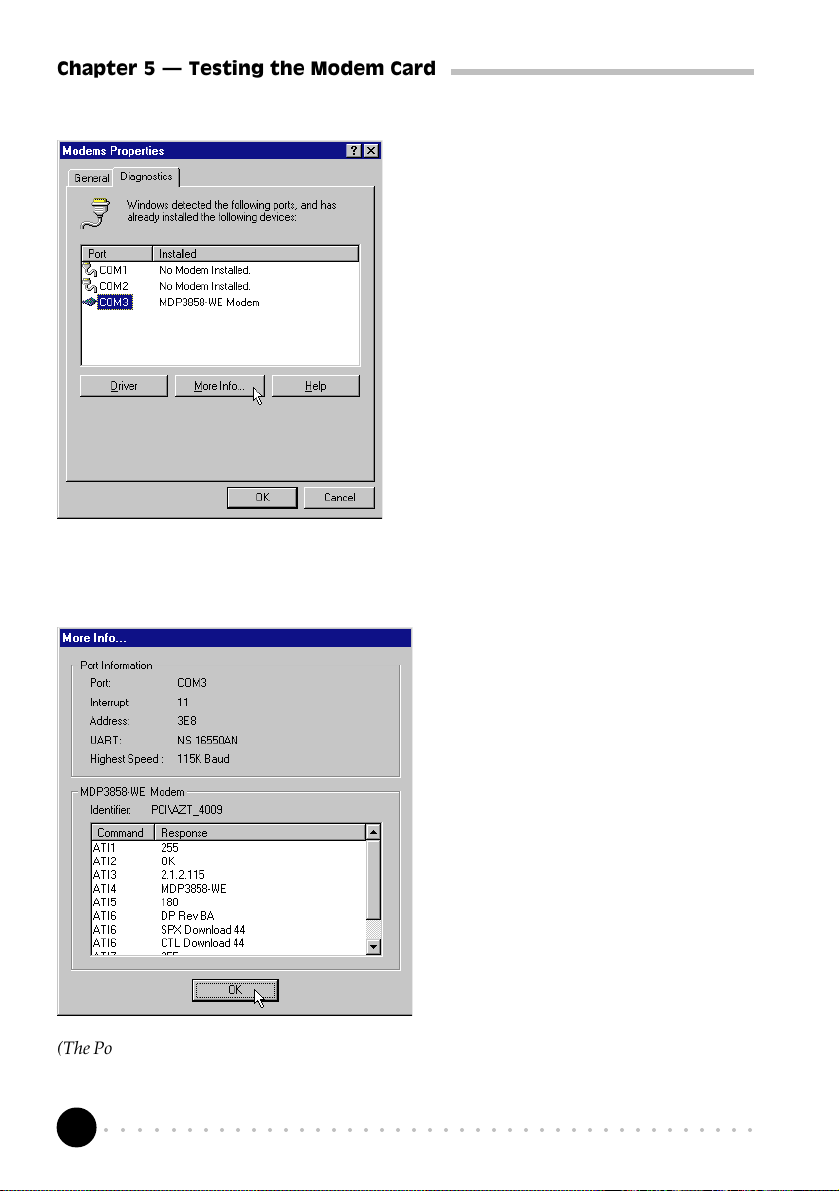

Testing the Modem Card................................................
5.2 For Windows® 95/98 .............................................................
5.2 For Windows NT
®
4.0 ............................................................
19
20
20
23
Frequently Asked Questions ..........................................
24
A.1 Technical Terms ....................................................................
A.2 Common Questions ...............................................................
Technical Specifications ................................................
TAD Connection .........................................................
24
25
31
33
P/N: 040-512388-101
Chapter 1 Introduction
Preface
This manual covers the models MDP3858SP-W, MDP3858V-W and MDP3858-W for
MDP3858W series and MDP3858SP-WE, MDP3858V-WE and MDP3858-WE for
MDP3858W series.
This manual will give you a step-by-step guide of the followings:
1. Installation of your modem card to your computer
2. Connection to the phone line for internet
3. Installation of modem drivers required to run the modem
4. Testing of the modem card
The section - Frequently Asked Questions (FAQ) will explain some of the
technical terms used in this manual, as well as the possible solutions for some of
the commonly asked questions by users.
For further technical details on your card, you may refer to the ReadMe.txt file
found in your MDP3858 Installation Disk/CD.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
4
Chapter 1 Introduction
○○○○○○○○○○○○○○○○○○○○
Introduction
Congratulations on your purchase of 56K PCI Modem!
With the 56K PCI Modem alone, you can perform a comprehensive range of modem-
related functions including data communications, sending and receiving of faxes.
Depending on the model that you have bought, you can also do telephone /
speakerphone operations.
The intensive demands of todays Internet applications will no longer be a bottleneck.
Using the 56K PCI Modem, you can now download graphic intensive web pages, high
bandwidth audio and video files as well as large file size software programs at speeds of
up to 56Kbps.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
5
Chapter 2 Before You Begin
○○○○○○○○○○○○○○○○○○○
Before You Begin
This chapter contains information that you need to know before installing your modem
card. They are the basic system requirements needed for your modem card to run, the
safety rules to follow, as well as the installation guidelines.
2.1 Minimum System Requirements
• IBM PC computer with Pentium
®
166 processor
• PCI Bus slot
• 16MB RAM
• 10MB hard disk space (system files and modem drivers only)
• CD-ROM drive
• Windows
®
95/98/NT®4.0
2.2 Safety Precaution
• Do not remove your card from its protective bag until you are ready to
install it.
• Always try to hold the card by its edges. Avoid touching any electronic
components on your card.
• Static electricity can cause permanent damage to your card. To prevent
such a damage, you must ground yourself during the installation:
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
6
Chapter 2 Before You Begin
» Use a grounding strap - a coiled wire with a clip at one end and an
elastic strap at the other. Wear the strap around your wrist and attach
the clip to any non-painted metal surface of your computer chassis.
» If you do not have a grounding strap, touch any non-painted surface
of your computer chassis before you begin installation, and again
every minute or so until the installation is completed.
2.3 Installation Notes
• Computers come in different shapes and sizes. Therefore, the installation
procedures in this manual apply generally and you should compare the
illustrations here with your computer.
• A Philips screwdriver is required.
• The documentation for your computer should come in handy during the
installation. Have it ready by your side.
• If you have an existing modem non Plug-and-Play installed in your computer,
you must first de-install its modem drivers before you remove the card.
Refer to the documentation of your existing modem card for more details.
If your existing modem is Plug-and-Play, then you can proceed to install
your new modem card.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
7
Chapter 3 Setting Up Your System
○○○○○○○○○○○○○○○○○○○
Setting Up Your Modem Card
This chapter contains information on how to install the modem card and the
3.1 Installing the Modem Card
You need to remove any existing modem installed in your computer.
If your modem is non Plug-and-Play, you need to de-install its
modem drivers before you remove it. Check your existing modem
documentation for details on this.
Power off your computer and any connected devices before installing
your modem!
telephone line to your computer.
¶ Remove the cover of your
computer.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
8
· Select an available PCI
Bus slot and remove its
cover plate. Keep the
mounting screw to
secure your card later.
Chapter 3 Setting Up Your System
PCI Bus Slot
Cover Plate
Mounting Screw
¸ Align your card with
the selected PCI Bus
slot and firmly push it
into the slot. If the card
does not slide in, do
not force it. Make sure
that the card is lined up
properly and try again.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
9
Chapter 3 Setting Up Your System
¹ Secure your card to your
computer chassis with the
mounting screw.
º Replace the cover of your
computer.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
10
