Aztech DSL 205U User Manual

ADSL USB Modem

Easy Start

Read Me First)

(

Version 1.0

Protocols discussed

RFC 1483

RFC 1577

RFC 2364

RFC 2516

Contents...

About this Easy Start ............................................... 2

Safety Guidelines ..................................................... 2

Package.................................................................. 2

Minimum System Requirements ................................ 3

Front Indicators ....................................................... 3

Step 1: Installing Your ADSL USB Modem Driver........ 4

Step 2: Setting Up ADSL USB Modem ...................... 6

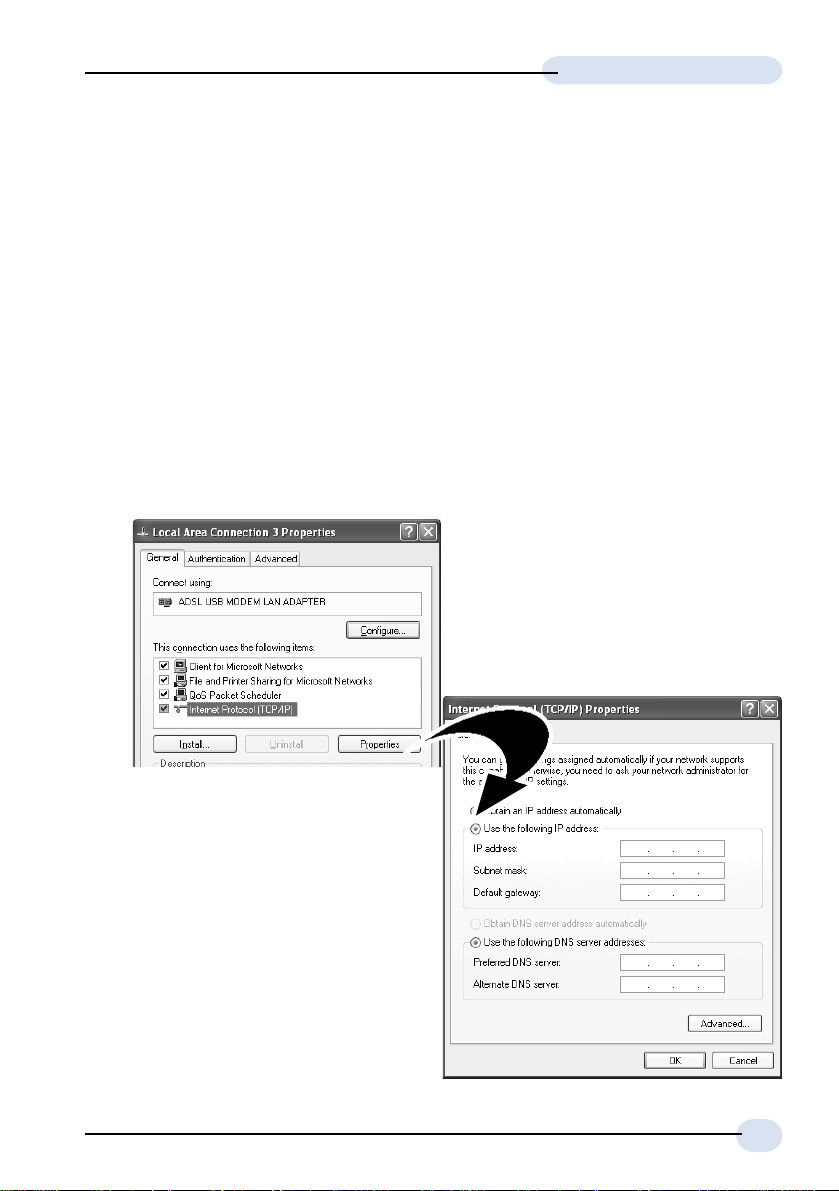

Step 3: Configuring the IP Settings (For RFC 1577

user only) ................................................... 7

3.1 For Windows® XP ............................ 7

3.2 For Windows® Me / Windows® 98

Second Edition ................................. 8

3.3 For Windows® 2000 ....................... 10

Step 4: Dial-Up to the Internet (for RFC 2364 and

RFC 2516 users) ....................................... 11

Windows® 98 Second Edition, Windows® Me, Windows® XP and Windows® 2000

supported

ADSL USB Modem Easy Start

Product warranty does not apply to damage caused by lightning, power surges or wrong voltage.

Safety Guidelines

• Keep the modem away from fluid, direct sunlight and excessive heat.

• During times of lightning strike/thunderstorm, do not use the modem.

• This product is for use only in UL Listed computers.

• To reduce the risk of fire, use only No. 26 AWG or larger telecommunication

line cord.

About this

Easy Start

On commonly asked questions or for problems encountered during the setting up / running of your modem, please refer to the Frequently

Asked Questions & Troubleshooting Guide located in the \Manuals

folder on your Installation CD.

This booklet contains information on setting up your

ADSL USB Modem. It touches on the key installation

procedures to help you setup your modem !

Package

If you found any missing items, please contact your dealer immediately.

(The actual cables that are included with your package may differ in appearance from country to

country)

ADSL

USB

Modem

this Easy Start

Installation CD

Telephone extension cable

USB cable

Micro-Filter (optional)

1 Micro-Filter can be purchased separately from your dealer.

ADSL USB Modem Easy Start

Minimum System Requirements

• IBM PC -based computer with Pentium® 233 processor

• 32MB RAM

• 20MB hard disk space (system files and modem driver only)

• A free USB Port

• CD-ROM drive

• Windows® 98 Second Edition / Windows® Me / Windows® XP /

Windows® 2000

Front Indicators

The indicators show the status for the following:

Power

ADSL

Power : Lights up when power is supplied via the USB port from your PC

ADSL : Lights up when the ADSL line is established

Data : Blinks when the modem is transmitting/receiving data

Data

ADSL USB Modem Easy Start

Step 1: Installing Your

ADSL USB Modem Driver

If you have connected the Modem to your PC BEFORE installing the driver, you will be prompted with the New Hardware Wizard.

Click Cancel at the prompt. Disconnect the USB cable from your Modem and proceed with the following installation first!

The following contains the driver installation instructions for the protocols RFC

1483 (Bridging), RFC 1577 (IPoA), RFC 2364 (PPPoA) and RFC 2516 (PPPoE).

You only need to install one of them, as determined by your ADSL Service Provider.

i. Power on your computer. Place the Installation CD on your CD-ROM Drive.

ii. From the Installation CD, go to the appropriate folder, either 'RFC1483',

'RFC1577', 'RFC2364' or 'RFC2516' (as determined by your ADSL Service

Provider) and double-click the file setup.exe.

iii. At the following screen, click Next.

iv. Allow some time for Windows to copy the required files.

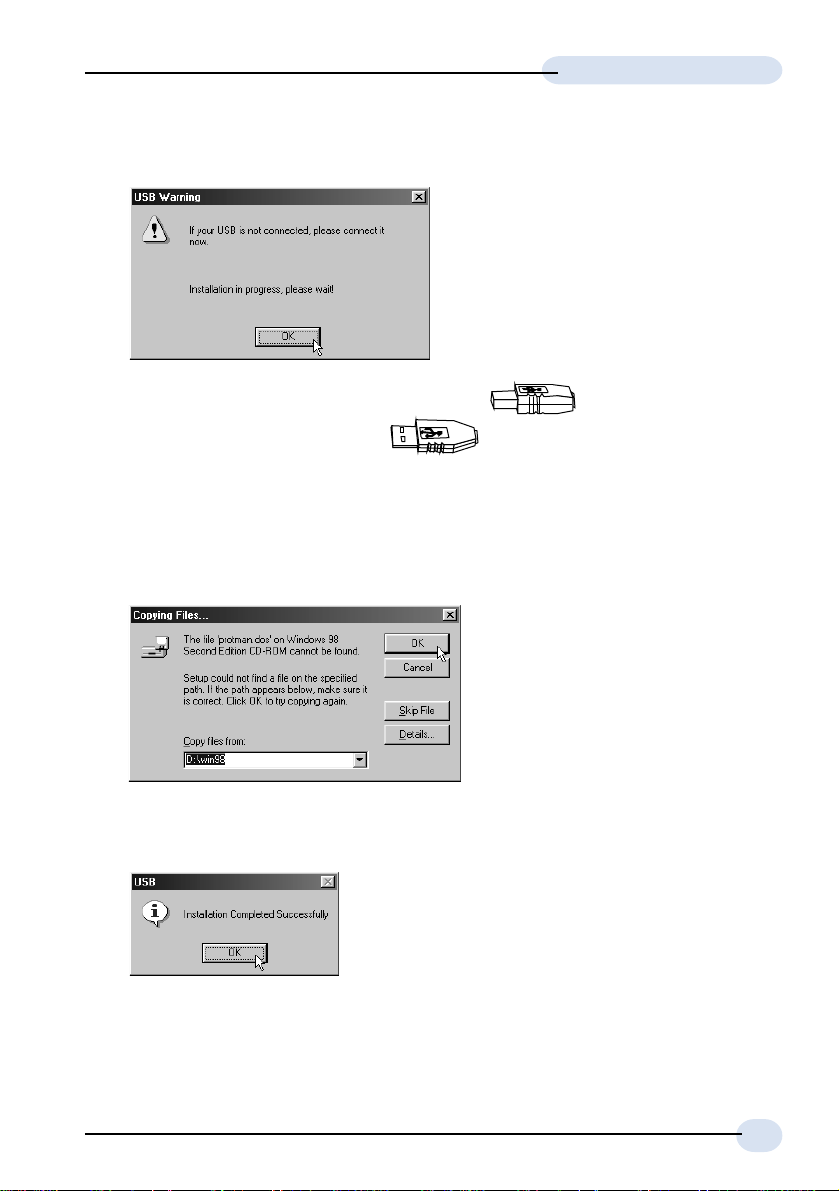

v. At the following prompt,

click Finish to restart your

computer.
