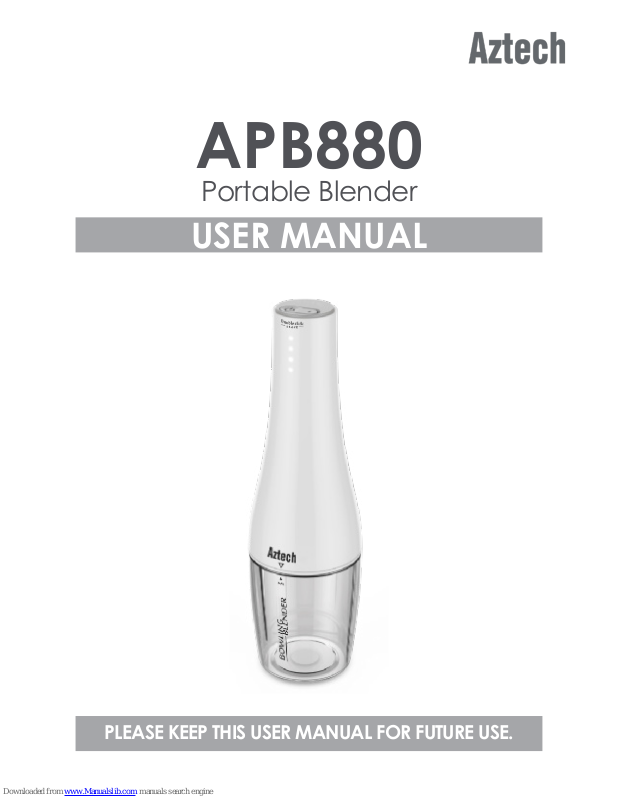

APB880
Portable Blender
USER MANUAL
PLEASE KEEP THIS USER MANUAL FOR FUTURE USE.
USER MANUAL CONTENTS
SAFETY INSTRUCTIONS.......................................................................3
PACKAGE CONTENTS.......................................................................5
PRODUCT OVERVIEW.......................................................................5
USING THE PRODUCT.........................................................................6
CLEANING & MAINTENANCE...........................................................7
TECHNICAL SPECIFICATIONS............................................................9
SAFETY INSTRUCTIONS
IT IS STRONGLY ADVISED THAT YOU READ ALL OF THE PROVIDED SAFETY GUIDES
AND OPERATING INSTRUCTIONS IN THIS USER MANUAL FIRST BEFORE USING THE
PRODUCT.
Personal Safety:
• Only unlock the blender cup after powering off the blender and the
blades have completely stopped.
• Make sure the product is not operating before inserting or removing
any parts, or cleaning.
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they are under supervision.
Battery Safety:
• This product is battery-operated, chargeable using the micro USB
included in the package. Before rst use, charge the product for at
least four hours, and clean the inside of the blender cup thoroughly.
3
4
Electrical Safety:
• The blender will power off after 30 seconds of use, or three to ve
seconds idle time. To extend product lifespan, do not use the product
continuously for more than ve times.
• If the blades stop during the operation, it is probably due to the
size of the fruit. The blender will power off automatically with three
consecutive beeps. Remove the blockage and put the fruit in the
blender cup properly, then lock the blender cup and press the power
button to blend again.
• This product is intended for juicing only. Do not grind meat, nuts or
any bean products with the product.
Service:
• Before using the product and after any impact, check for signs of
wear or damage and repair as necessary.
• Do not use the product if any part is damaged or defective.
• Repairs should be carried out by a service agent or a qualied person
in accordance with relevant safety regulations. Repairs by unqualied
persons could be dangerous.
• Never modify the product in any way as this may increase the risk of
personal injury.
• Only use replacement parts or accessories provided or recommended
by manufacturer.
Intended Use:
• This product is intended for personal and household use only.
Warranty void if product is used for industrial or commercial purposes
or not used according to the instructions in this manual. Manufacturer
will not be liable for any damage caused.
Warning:
• Do not clean in a dishwasher.
• Do not submerge the base in water.
5
• Main Body
• Travel Cup Lid
PACKAGE CONTENTS
• Micro USB Cable
• Easy Start Guide
COMPONENTS
• User Manual
• Warranty Policy
PRODUCT OVERVIEW
BASE
POWER BUTTON
& CHARGING PORT
SEALING RING
BLADES
BLENDER CUP
TRAVEL CUP LID
6
USING THE PRODUCT
STEP 1
Wash and cut the fruit into small pieces
(around 1.5cm x 1.5cm). Remove thick
peel, skin or shell, or anything hard
before blending.
Put the fruit pieces into the blender
cup, lling up approximately 60% of
the maximum capacity. Add water
until the maximum line of the cup.
NOTE: Do not ll the fruit pieces and
water past the maximum capacity line
to avoid spillage.
STEP 3
Press and hold the Power Button for
two seconds to power on.
Double-press the Power Button to start
blending. The default runtime is 30
seconds. Gently shake the product
during the operation for a better
blend.
DOUBLE-PRESS THE
POWER BUTTON
STEP 2
Seal the base on the blender cup
rmly. A “beep” will sound, indicating
that the blender cup is rmly sealed.
7
STEP 4
Once completed, remove the base
and replace it with the travel cup lid
to serve.
CLEANING & MAINTENANCE
When the product fails to turn on
and the power indicator shows only
one light, charge the blender via the
charging port (USB power supply).
When fully charged, all four power
indicators will light up.
If the product’s cumulative working
time exceeds 180 seconds (six times)
within 20 minutes, the product will be
automatically locked for 30 minutes
(unable to operate).
CHARGING THE BATTERY
NOTE
With overvoltage protection, the LED indicator will be ashing as a
warning when the rated voltage of the charger is higher than 5V. The
blender will not charge. Use a 5V charger when this problem arises.
8
PROBLEM REASON SOLUTION
Unable to start
operation/Stop working
during operation with an
indicator light ashing
Low battery Fully charge the battery
Stop before the end of
runtime
Idle protection Fill up the blender and
restart
Stop working during
operation with three
beeps
The motor is stuck Remove the blockage
around the blades and
restart
Water leakage Sealing ring is not in
place or the blender cup
is not rmly closed
Reinstall the sealing ring,
and tighten the blender
cup
CLEANING THE PRODUCT
TROUBLESHOOTING
9
TECHNICAL SPECIFICATIONS
Rated Voltage DC 7.4V
Input Voltage DC 5V
Motor Speed 18000 RPM
Battery Capacity 2000mAh x 2
Capacity 350 ml
Net Weight 542 g
Size 80mm x 80mm x 268mm
10
NOTES
11
NOTES
Copyright © 2018 Aztech Technologies Pte Ltd (CRN:199800635M). All rights reserved.
