Aztech 4-Port Wireless G Router, 4-Port User Manual
4-Port Wireless G Router
User Manual
VERSION 1.0
User Manual
Contents
About this Manual ......................................................... 6
About the Router........................................................... 7
Requirements .........................................................................................7
Software..........................................................................................................................................7
Hardware.........................................................................................................................................7
Package Contents ...................................................................................8
Device Design .........................................................................................9
Front Panel......................................................................................................................................9
Back Panel.....................................................................................................................................10
Getting Started............................................................ 11
Planning Your Network.........................................................................12
Remove or Disable Conflicts..................................................................13
Internet Sharing, Proxy, and Security Applications..................................................................13
Configuring TCP/IP Settings ........................................................................................................14
Configuring Internet Properties..................................................................................................14
Removing Temporary Internet Files ..........................................................................................15
Hardware Setup ....................................................................................16
Connecting to the Internet....................................................................18
Connecting Via the Web Interface..............................................................................................18
Connecting Via the Utility Wizard...............................................................................................22
Connecting Wireless Devices.................................................................23
About the Web Interface ............................................. 24
Accessing the Web Manager .................................................................24
Components..........................................................................................24
Buttons ..........................................................................................................................................24
Commands ....................................................................................................................................25
Menus............................................................................................................................................25
Page 2 of 129
User Manual
Setup Menu ................................................................. 33
Basic Menu .................................................................. 34

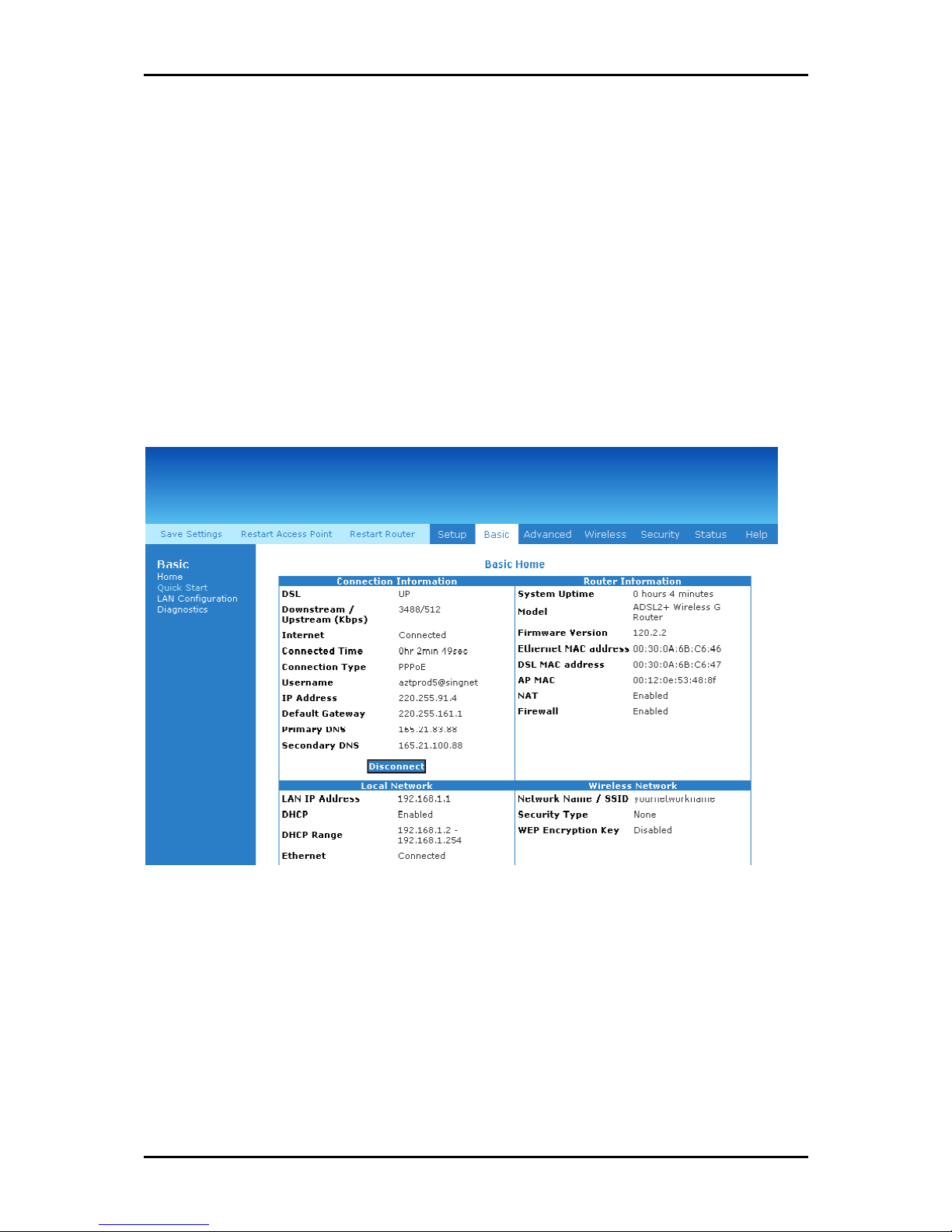

Home ....................................................................................................35
Connection Information...............................................................................................................35
Router Information.......................................................................................................................35
Local Network Information .........................................................................................................35
Wireless Network Information ...................................................................................................35
Quick Start ............................................................................................35
LAN Configuration.................................................................................36
Diagnostics ...........................................................................................37
Ping Test........................................................................................................................................37
Full Modem Test...........................................................................................................................38

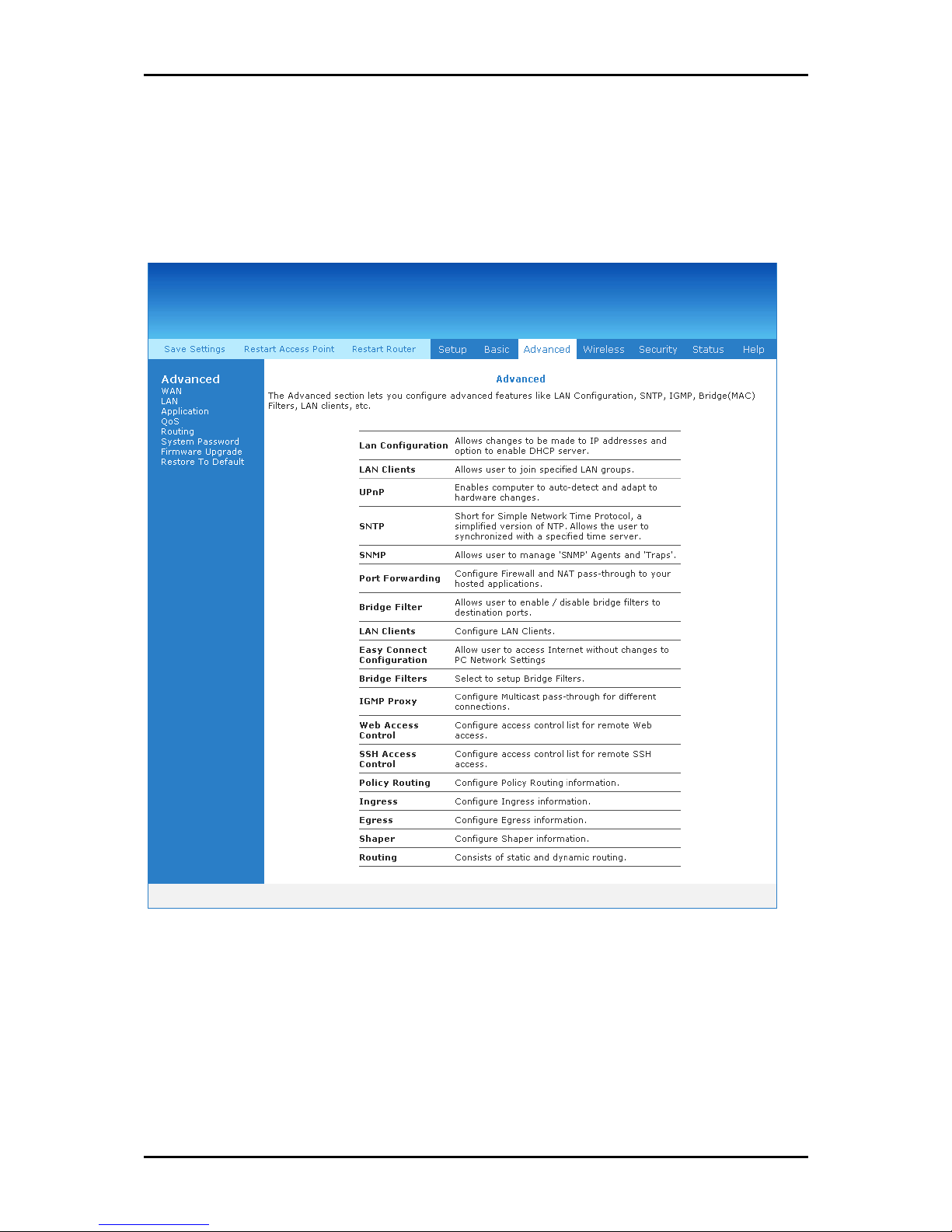

Advanced Menu........................................................... 39
WAN......................................................................................................40

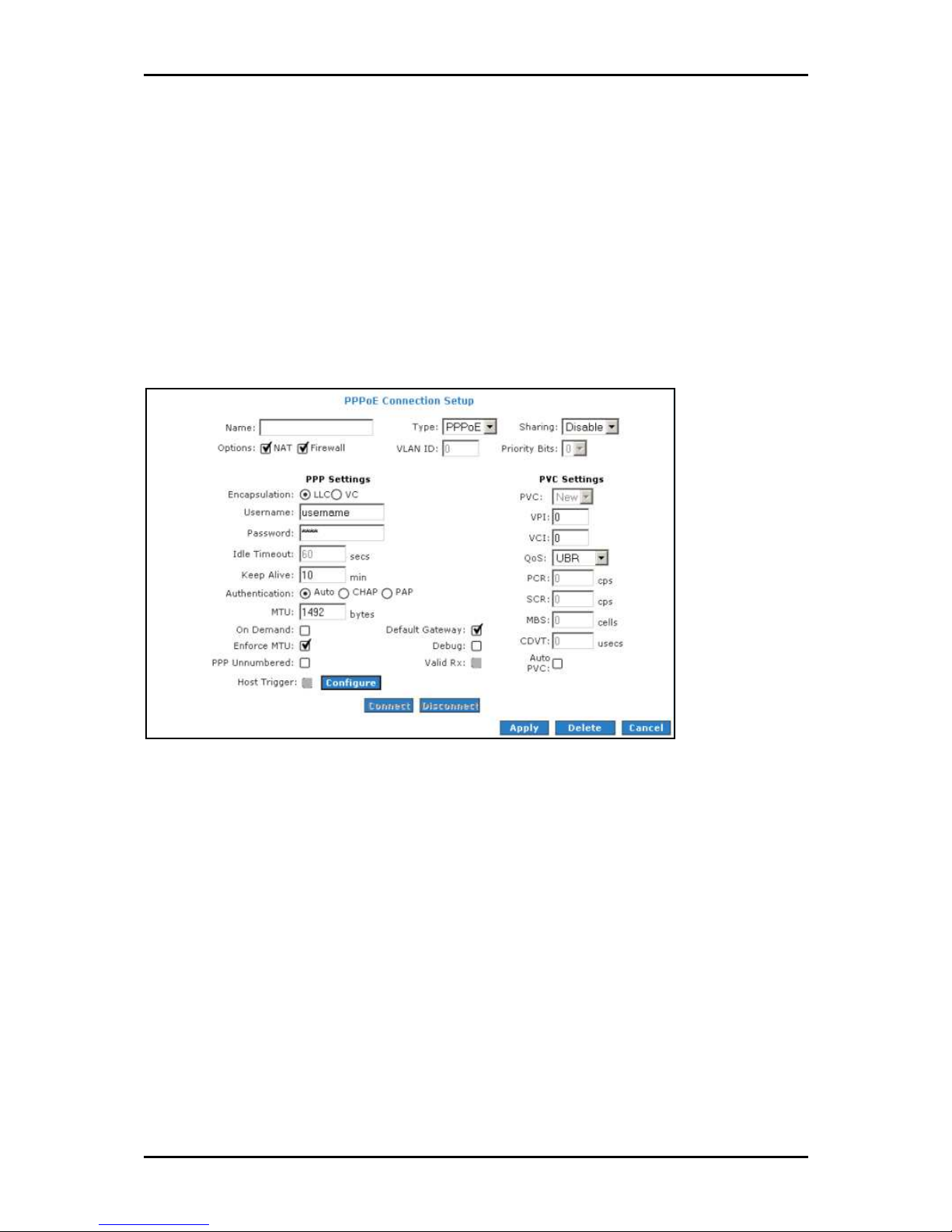

New Connection ...........................................................................................................................40
ADSL Modulation ..........................................................................................................................47

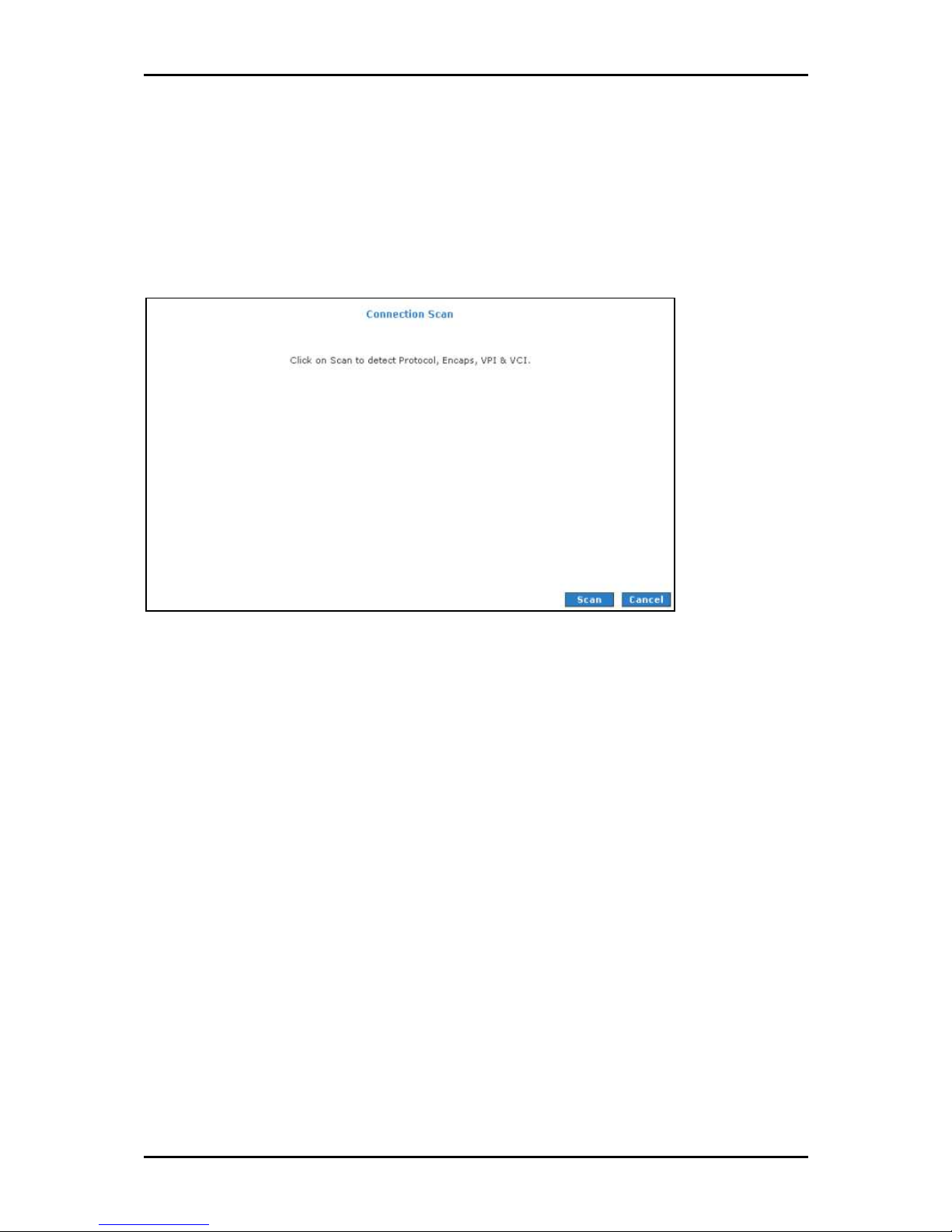

Connection Scan ...........................................................................................................................48
LAN .......................................................................................................49
LAN Configuration ........................................................................................................................49
LAN Group Configuration.............................................................................................................51
Assign ISP DNS, SNTP...................................................................................................................53
LAN Clients ....................................................................................................................................54
Applications..........................................................................................56
Universal Plug and Play...............................................................................................................57

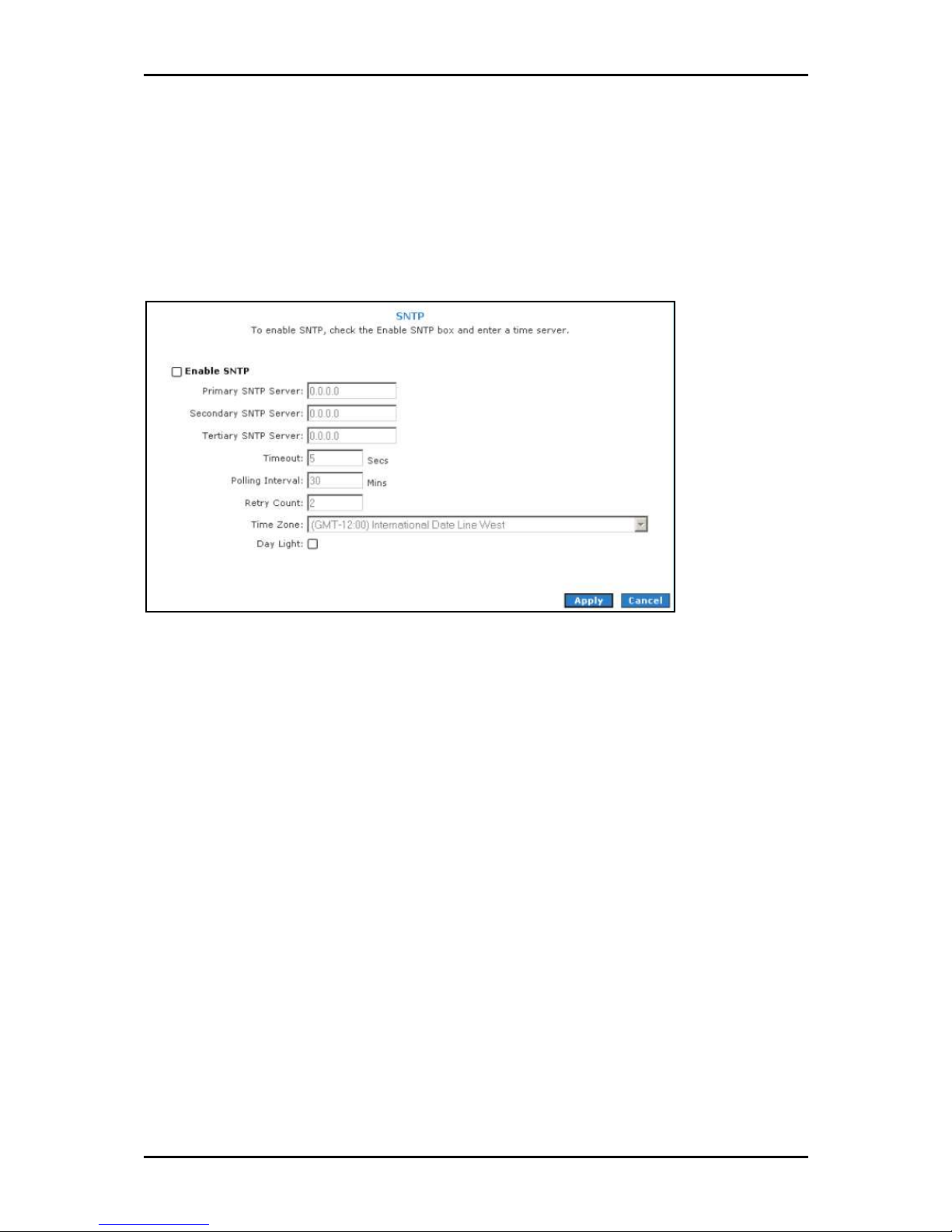

Simple Network Timing Protocol................................................................................................58
Simple Network Management Protocol ....................................................................................60
IGMP Proxy....................................................................................................................................61
TR-068 WAN Access .....................................................................................................................63

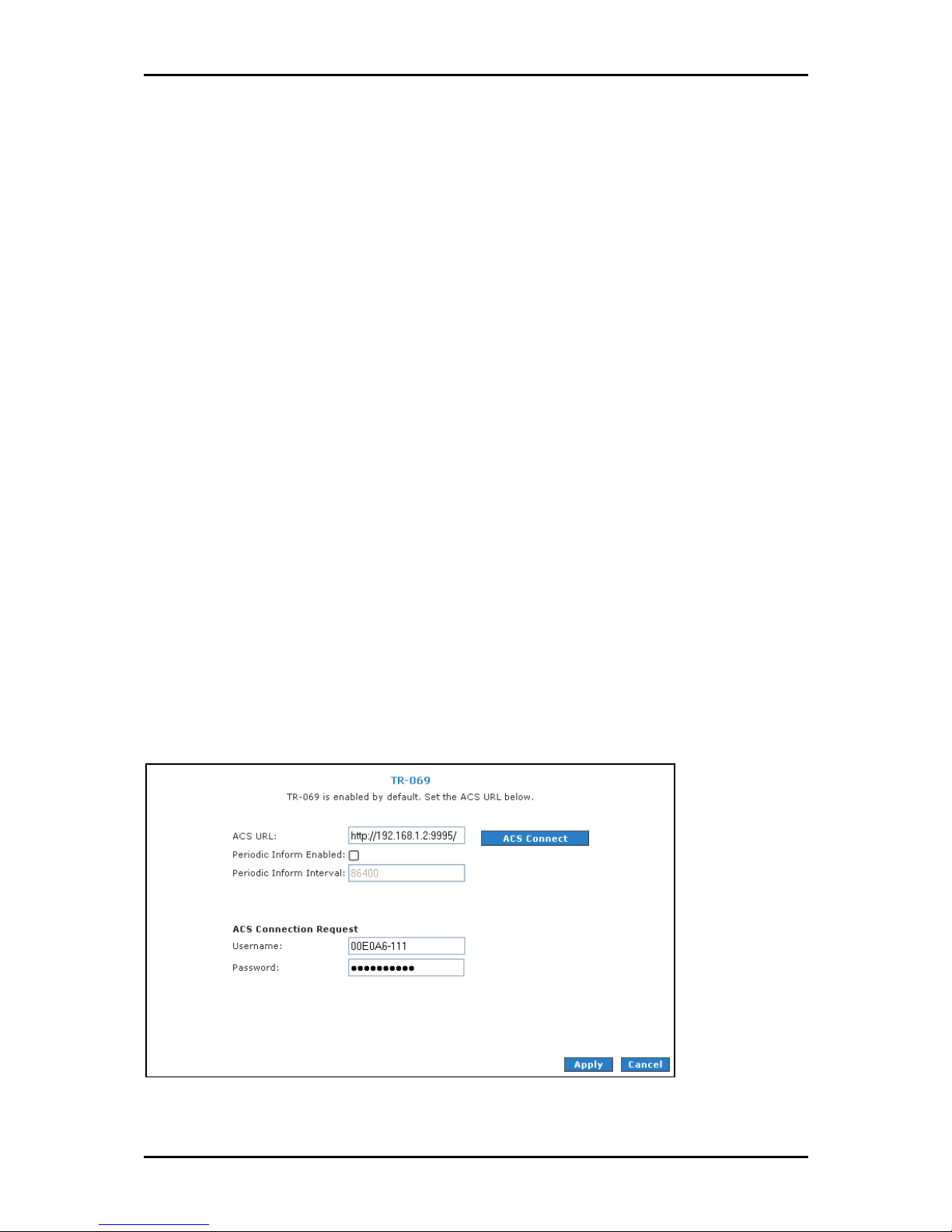

TR-069 ...........................................................................................................................................64

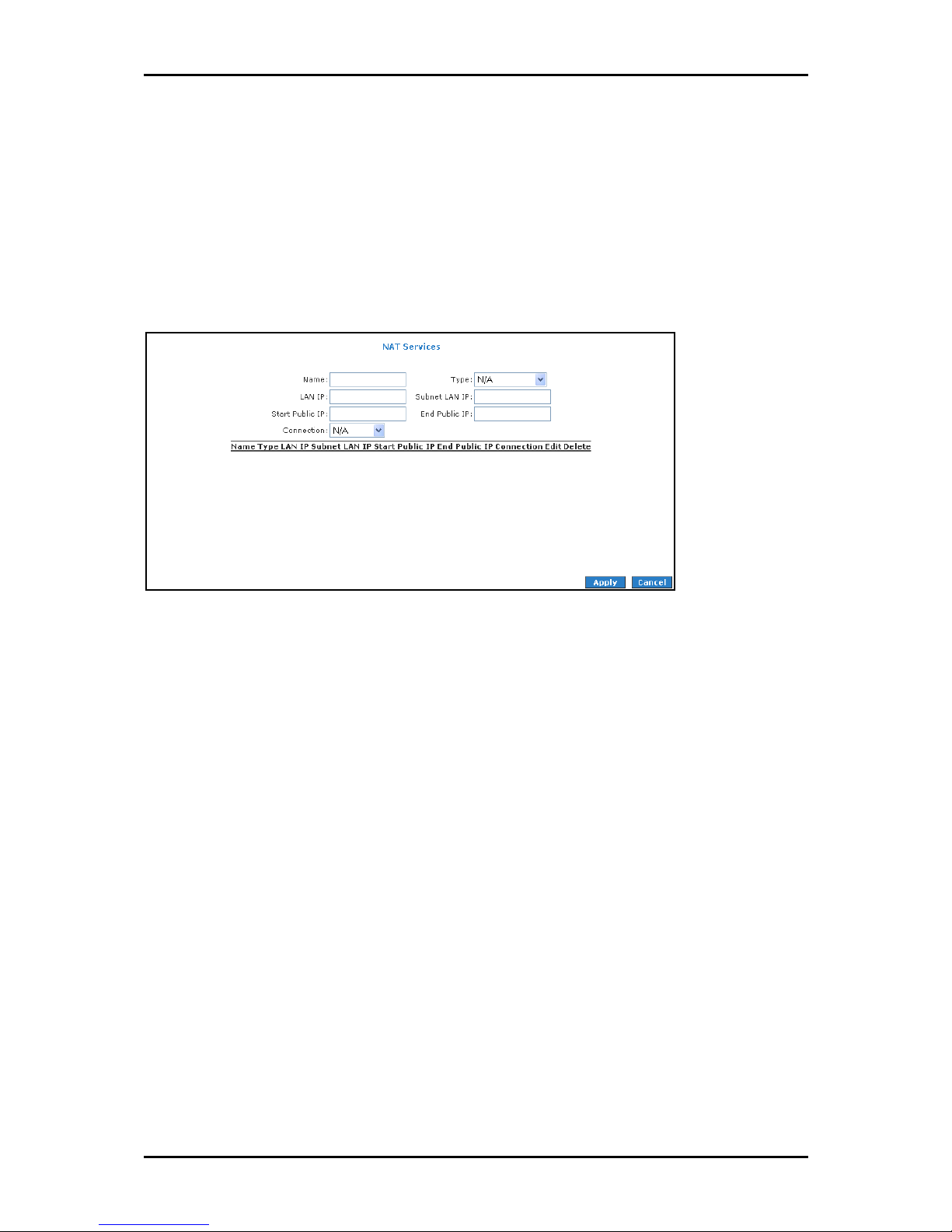

NAT Services .................................................................................................................................66

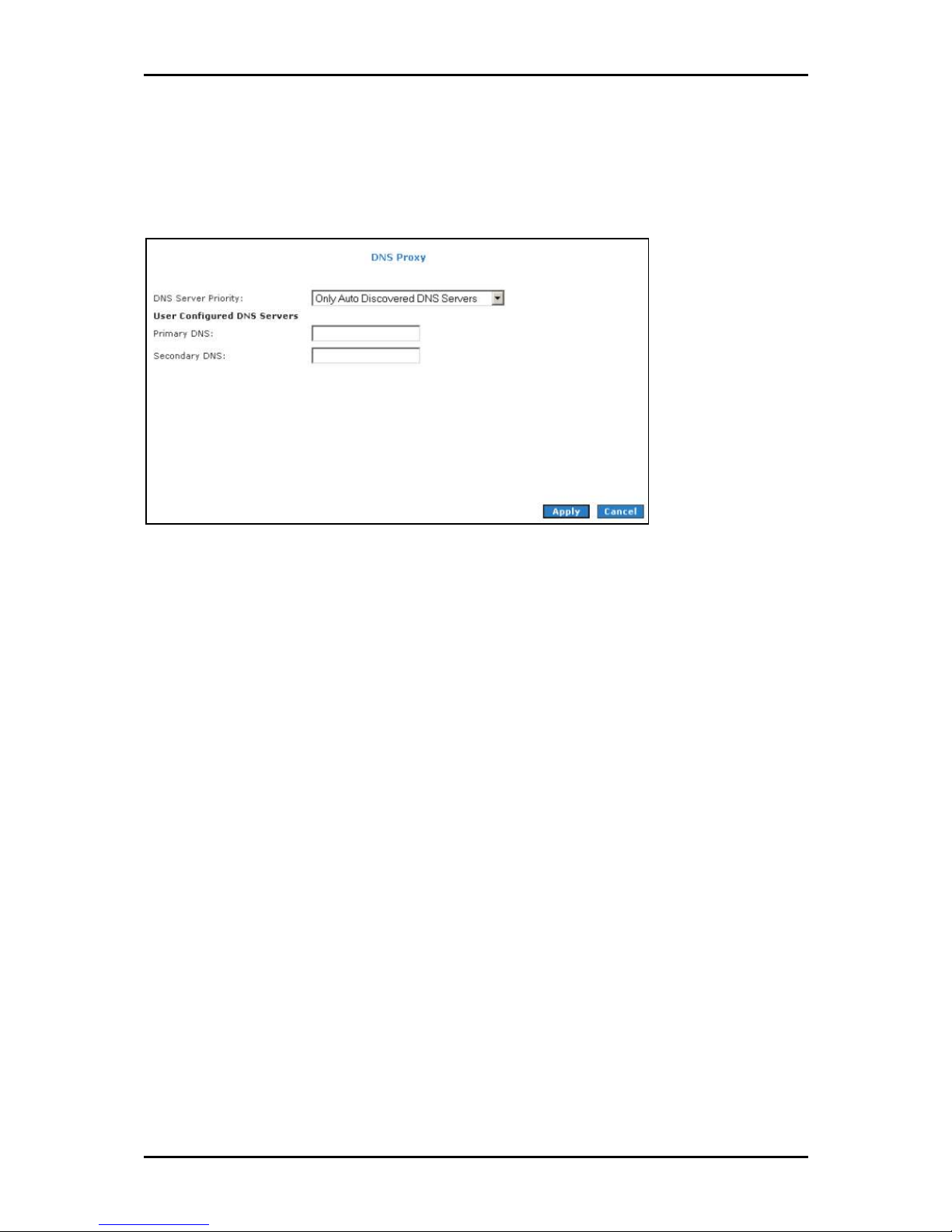

DNS Proxy......................................................................................................................................67
Dynamic DNS Client .....................................................................................................................68
Easy Connect Configuration.........................................................................................................69
Port Triggering..............................................................................................................................71
Port Forwarding............................................................................................................................72
Bridge Filters.................................................................................................................................74
Page 3 of 129
User Manual
Web Access Control......................................................................................................................75
SSH Access Control .......................................................................................................................76
Quality of Service..................................................................................77

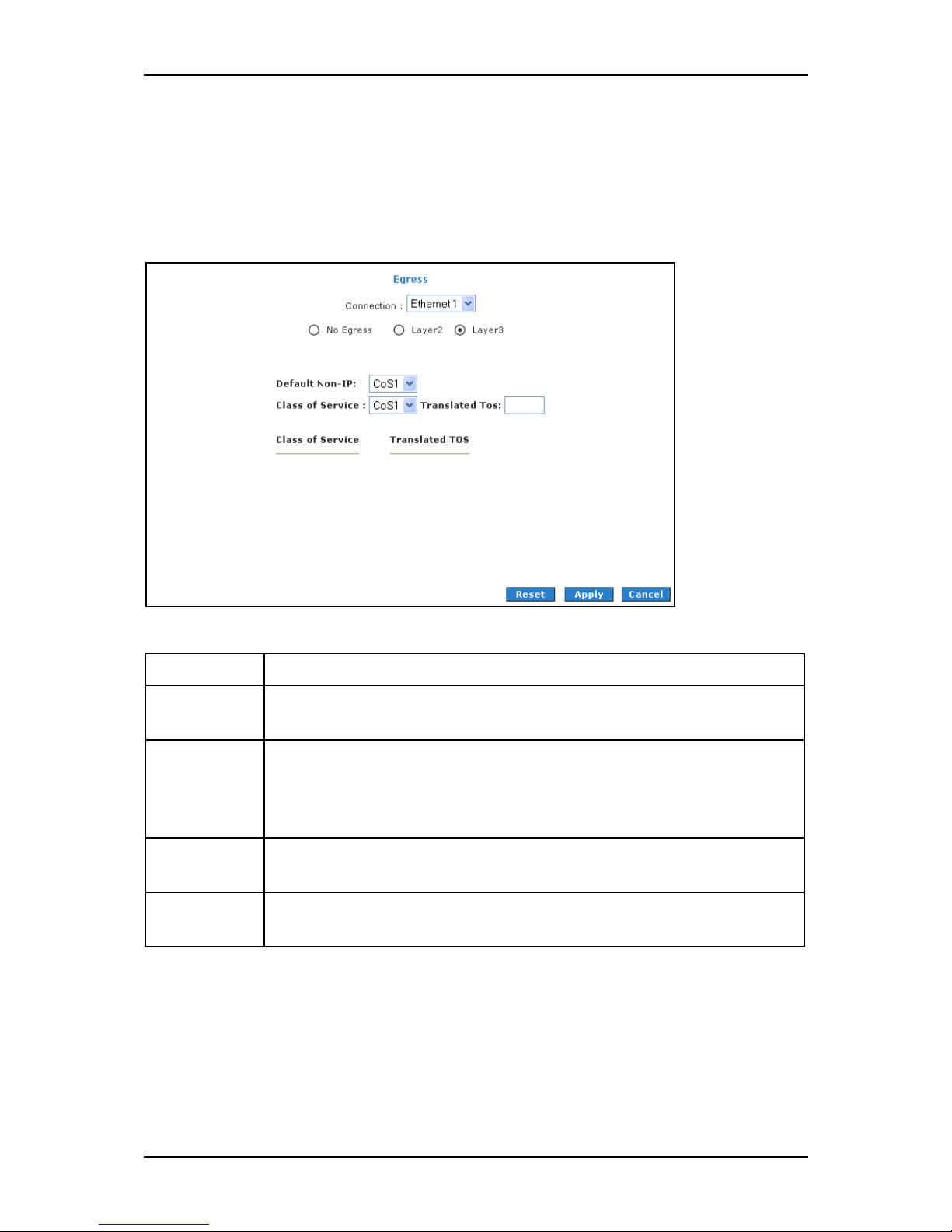

Egress.............................................................................................................................................79
Ingress ...........................................................................................................................................82

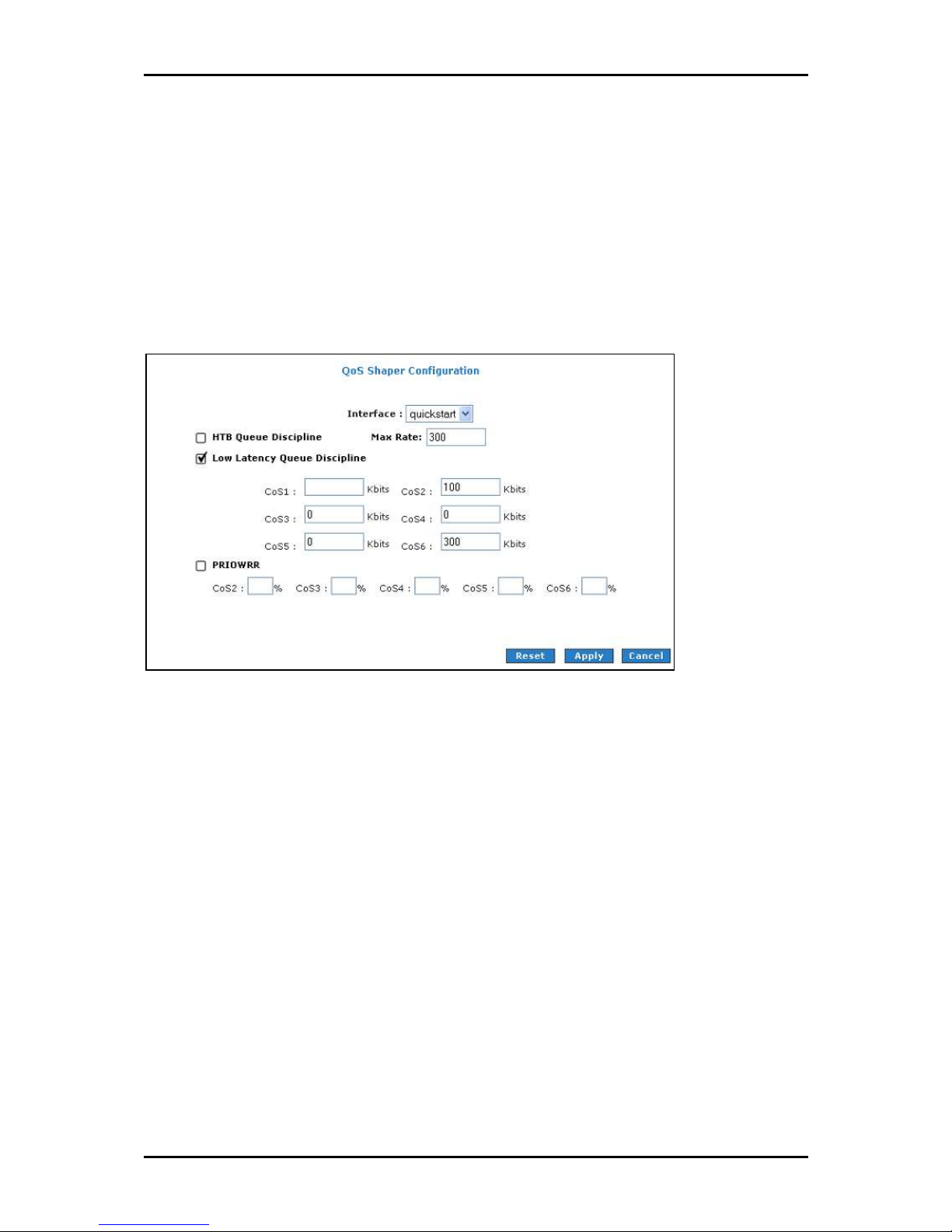

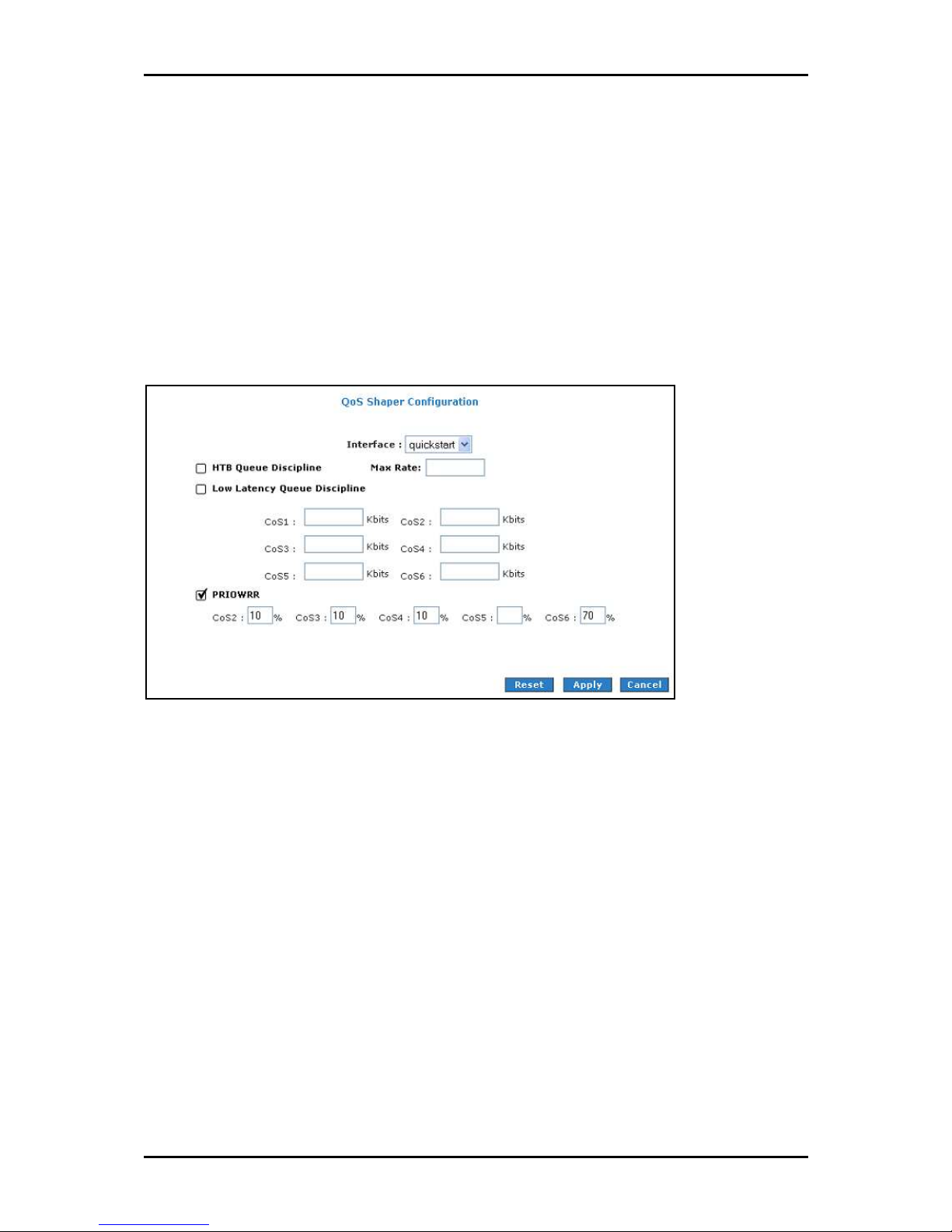

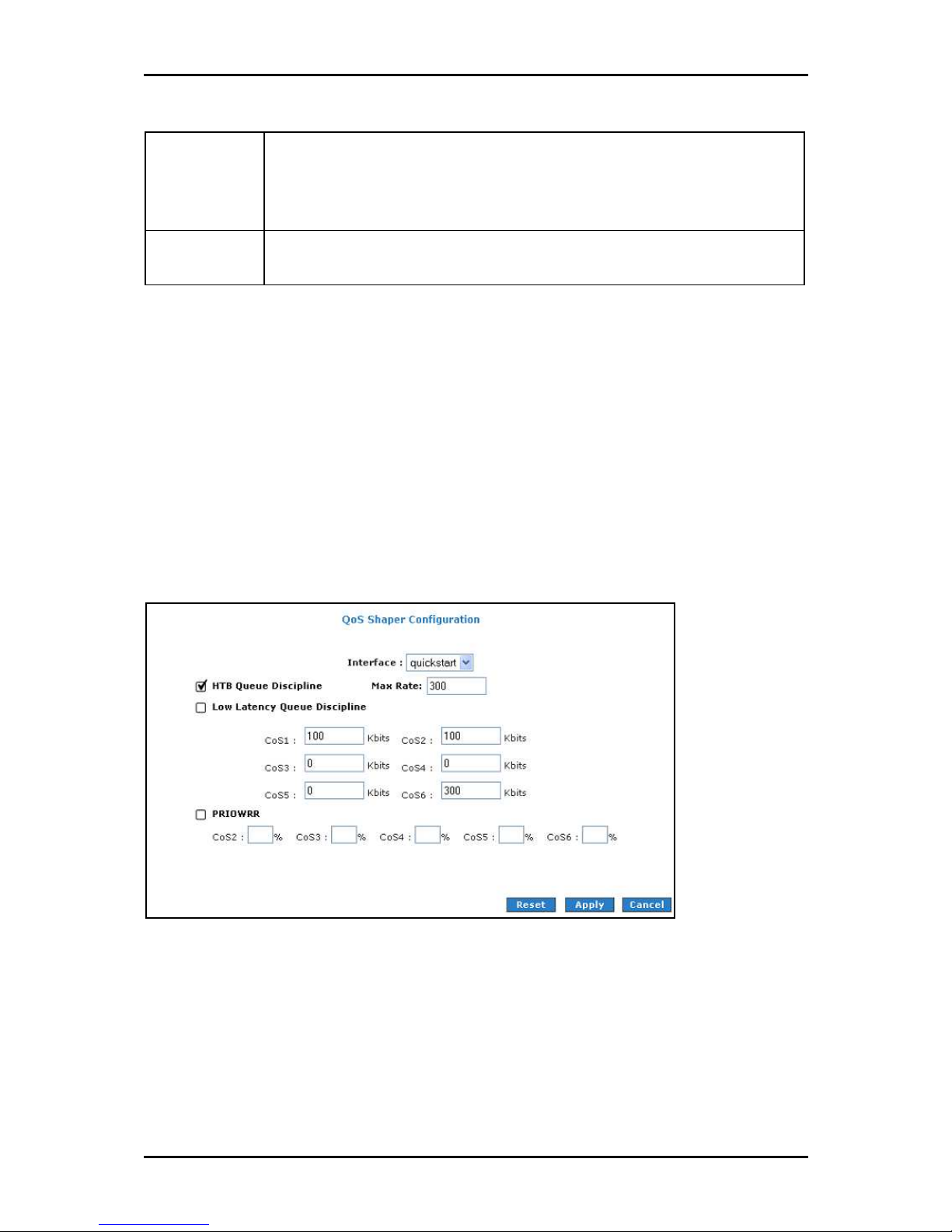

QoS Shaper Configuration ...........................................................................................................88
Policy Routing Configuration.......................................................................................................92
Routing.................................................................................................95
Static Routing................................................................................................................................95
Dynamic Routing..........................................................................................................................96
Routing Table................................................................................................................................97
System Password..................................................................................98
Firmware Update ..................................................................................99
Restore to Default.................................................................................99
Wireless Menu ........................................................... 100
Setup ..................................................................................................101
Configuration......................................................................................102
Multiple SSID.......................................................................................103
Wireless Security.................................................................................104
WEP ............................................................................................................................................. 104
802.1x......................................................................................................................................... 106
WPA ............................................................................................................................................ 107
Wireless Management ........................................................................108
Access List .................................................................................................................................. 108
Associated Stations ................................................................................................................... 109
Wireless Distribution System ..............................................................110
Security Menu............................................................ 112
IP Filters..............................................................................................113
LAN Isolation.......................................................................................115
URL Filters ...........................................................................................116
Status Menu............................................................... 117
Connection Status ...............................................................................118
Page 4 of 129
User Manual
System Log .........................................................................................119
Remote Log.........................................................................................120
Network Statistics...............................................................................122
DDNS Update Status ............................................................................123
DHCP Clients........................................................................................124
QoS Status...........................................................................................125
Modem Status.....................................................................................126
Product Information.................................................................................................................. 126
WDS Report.........................................................................................127

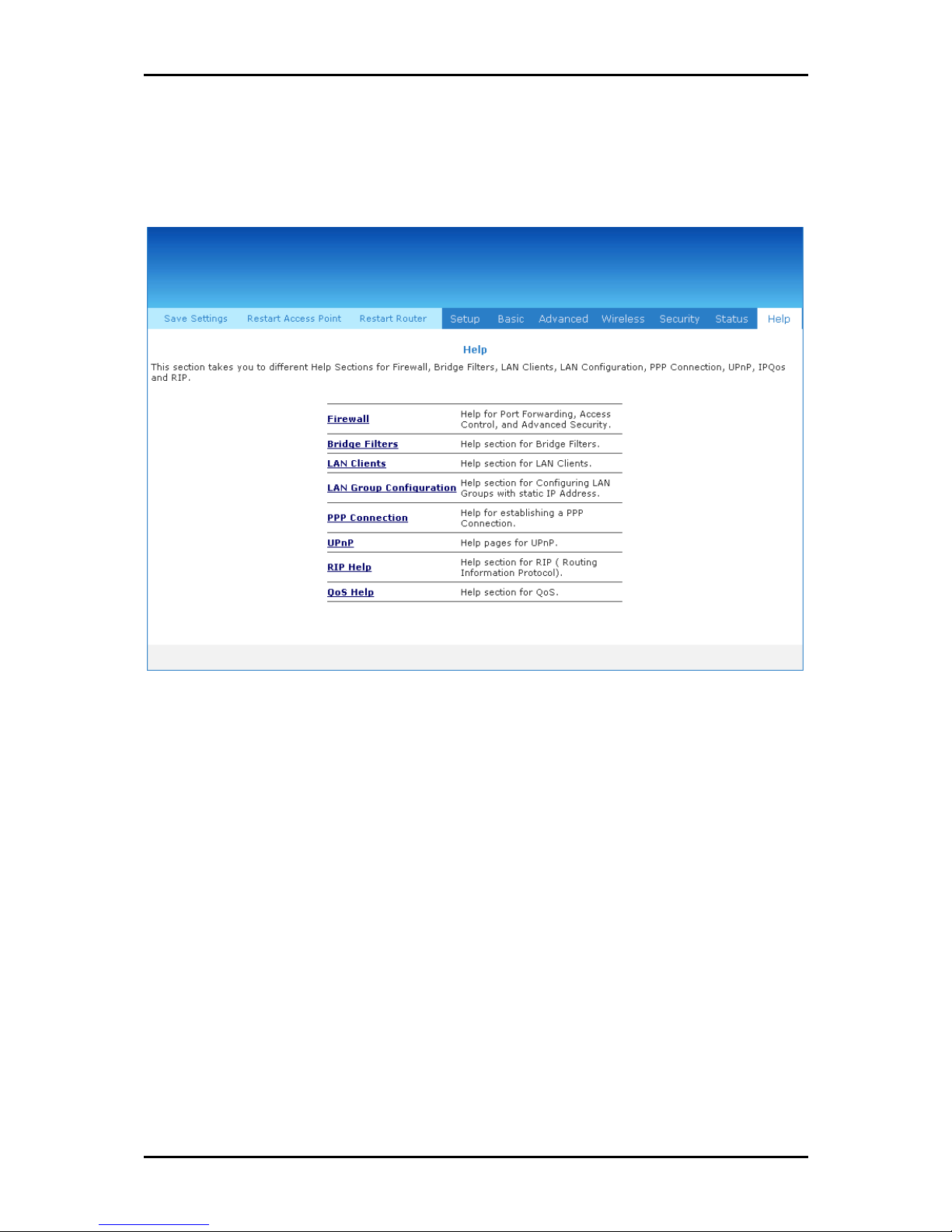

Help Menu ................................................................. 128
Page 5 of 129
User Manual
About this Manual
This manual provides a description of the components, basic operation, and advanced
configuration options of the router.
Scope and Purpose
This manual provides installation instructions and description of the router components
and the web interface.
Target Audience
This manual is designed and developed for users who are required to install and maintain
the router. It assumes the user of this manual has basic knowledge and experience in
configuring routers, computer networks, and computer systems.
Document Structure
The manual is divided into the following sections:
Chapter
Chapter About
ChapterChapter
2222 About the Router
3333 Getting Started
4444 About the Web Interface
5555 Setup Menu
6666 Basic Menu
7777 Advanced Menu
9999 Wireless Menu
10
10 Security Menu
1010
11
11 Status Menu
1111
About
AboutAbout
12
12 Help Menu
1212
Page 6 of 129
User Manual
About the Router
Congratulations on the purchase of your router. This router provides advanced features
that allow you to converge your phone, Internet, and other network appliances into a
single network either through wired or wireless connection.
Requirements
Your computer must meet the following minimum requirements.
Software
Operating System:
Any operating system can be used
Browser:
Internet Explorer 4.0
Netscape Navigator 3.02
Hardware
233MHz processor
CD-ROM Drive
Ethernet network adapter
Page 7 of 129
User Manual
Package Contents
Package contents are listed below. For any missing items, please contact your dealer
immediately. Product contents vary for different models.
Router
Ethernet cable
Telephone cable
9V Power Adapter
Easy Start Guide
Resource CD
Page 8 of 129
User Manual
Device Design
Front Panel
The LEDs on the front panel gives you an idea about the power and connection status.
Label Action Description
A POWER Off No power is supplied to the device
Steady light Connected to an AC power supply
B ETHERNET Off No Ethernet connection
Steady light Connected to an Ethernet port
Blinking light Transmitting/Receiving data
C WIRELESS Off Access point is disabled
Steady light Access point is enabled
Page 9 of 129
User Manual
Blinking light Transmitting/Receiving data
D DSL Off No DSL signal
Blinking light Establishing DSL signal
Steady light DSL signal is established
E INTERNET Off No Internet connection
Steady green light Connected to the Internet
Blinking green light Transmitting/Receiving data
Red Connection attempt failed
Back Panel
The back panel provides ports to power up and connect the router into the network.
ck Panel
Back Panel
Ba
Back PanelBack Panel
Label
Label Used for…
LabelLabel
DSL
DSL Connecting the telephone cable
DSLDSL
ETHERNET 1
ETHERNET 1----4444 Connecting with computers/devices through Ethernet cable
ETHERNET 1ETHERNET 1
RESET
RESET Resetting the device. Press for 10 seconds to reset.
RESETRESET
9V DC
9V DC Connecting with the 9V power adapter
9V DC9V DC
ON/OFF
ON/OFF Switching the device on/off
ON/OFFON/OFF
Used for…
Used for…Used for…
Antenna
Antenna Sending/receiving wireless signals
AntennaAntenna
Page 10 of 129
User Manual
Getting Started
Setting up the device is easy. The flowchart below provides an outline of the steps you
need to complete the installation. There are brief descriptions beside each step to help
you along. Detailed instructions are provided in the subsequent pages.
Page 11 of 129
User Manual
Planning Your Network
Before moving ahead to setup your network, it is a good idea to draw out a network
diagram to help identify the devices and plan out how to connect these devices. The
illustration below is an example of a network diagram.
Sample network diagram
Sample network diagram
Sample network diagramSample network diagram
To create a network diagram:
For wireless devices, identify the wireless devices you want to include in the
network
For wired devices, identify which router port you want to use for each device.
Page 12 of 129
User Manual
Remove or Disable Conflicts
To make sure the router installation moves on smoothly, you need to remove or disable
conflicts that may interfere the installation. Probable conflicts may include:
Internet sharing applications
Proxy software
Security software
TCP/IP settings
Internet properties
Temporary Internet files
Internet Sharing, Proxy, and Security Applications
Internet sharing, proxy software, and firewall applications may interfere with the router
installation. These should be removed or disabled before you install and configure the
router.
If you have any of the following or similar applications installed on your computer,
remove or disable them according to the manufacturer’s instructions.
Internet S
Internet Sharing Applications
Internet SInternet S
Microsoft Internet Sharing WinGate Symantec
WinProxy Zone Alarm
haring Applications Proxy Software
haring Applicationsharing Applications
Proxy Software Security Software
Proxy SoftwareProxy Software
Security Software
Security SoftwareSecurity Software
Page 13 of 129
User Manual
Configuring TCP/IP Settings
Use the default TCP/IP settings to allow the router to provide a network address to the
computer,
To set the TCP/IP properties:
1. Select Start
2. Enter control
your computer.
3. Right-click LAN
Pro
Properties
ProPro
4. Select Internet Protocol (TCP/IP)
Protocol (TCP/IP)
Protocol (TCP/IP) dialog box.
Protocol (TCP/IP)Protocol (TCP/IP)
5. Select Obtain an IP address automatically
6. Click OK
7. Click OK
Start > Run
Start Start
control ncpa.cpl
control control
perties dialog box.
perties perties
Internet Protocol (TCP/IP) and then click Properties
Internet Protocol (TCP/IP)Internet Protocol (TCP/IP)
Obtain an IP address automatically.
Obtain an IP address automaticallyObtain an IP address automatically
OK to close the Internet Protocol (TCP/IP)
OKOK
OK to close the Local Area Connection Properties
OK OK
Run. This opens the Run
RunRun
ncpa.cpl and then click OK
ncpa.cpl ncpa.cpl
LAN and then select Properties
LAN LAN
Internet Protocol (TCP/IP) dialog box.
Internet Protocol (TCP/IP) Internet Protocol (TCP/IP)
Local Area Connection Properties dialog box.
Local Area Connection Properties Local Area Connection Properties
Run dialog box.
Run Run
OK. This opens the Network Connections
OKOK
Properties. This opens the Local Area Connection
PropertiesProperties
Configuring Internet Properties
Network Connections in
Network Connections Network Connections
Local Area Connection
Local Area Connection Local Area Connection
Properties. This opens the Internet
PropertiesProperties
Internet
Internet Internet
To set the Internet Properties:
1. Select Start
2. Enter control
dialog box.
3. Click Connections
4. In the Dial
connection
connection.
connectionconnection
5. Click OK
Page 14 of 129
Start > Run
Start Start
control inetcpl.cpl
control control
Connections tab.
Connections Connections
OK to close the Internet Properties
OKOK
Run. This opens the Run
RunRun
inetcpl.cpl and then click OK
inetcpl.cpl inetcpl.cpl
Dial----up and Virtual Private Network settings
up and Virtual Private Network settings pane, select Never dial a
DialDial
up and Virtual Private Network settingsup and Virtual Private Network settings
Run dialog box.
Run Run
OK. This opens the Internet Properties
OKOK
Internet Properties dialog box.
Internet PropertiesInternet Properties
Internet Properties
Internet Properties Internet Properties
Never dial a
Never dial a Never dial a
User Manual
Removing Temporary Internet Files
Temporary Internet files are files from Web sites that are stored in your computer. Delete
these filed to purge the Internet cache and remove footprints left by the Web pages you
visited.
To remove temporary Internet files:
1. Select Start
2. Enter control
3. Double-click Internet Options
4. In the Temporary Internet Files
5. Click Delete Files
6. Click OK
Start > Run
Start Start
control and then click OK
controlcontrol
Temporary Internet Files pane, click Delete Cookies
Temporary Internet Files Temporary Internet Files
Delete Files.
Delete FilesDelete Files
OK to close the Internet Properties
OKOK
Run. This opens the Run
RunRun
Internet Options. This opens the Internet Options dialog box.
Internet OptionsInternet Options
Internet Properties dialog box.
Internet PropertiesInternet Properties
Run dialog box.
Run Run
OK. This opens the Control Panel
OKOK
Control Panel.
Control PanelControl Panel
Delete Cookies.
Delete CookiesDelete Cookies
Page 15 of 129
User Manual
Hardware Setup
When installing the router, the common practice is to have the router, the main
computer, and phone jack in the same room. The room should also have enough
electrical outlets to match your needs.
To setup the hardware:
1. Plug one end of the Ethernet cable from the router’s ETHERNET
ETHERNET port and then plug
ETHERNET ETHERNET
the other end into the Ethernet port in your computer.
2. If you have another device you need to connect through wire into the router, use
another piece of Ethernet cable. Plug one end of the Ethernet cable from the
computer’s Ethernet port and then plug the other end into an available Ethernet
port.
3. Plug one end of the telephone cable from the POTS Splitter’s ADSL
plug the other end into the router’s DSL
Page 16 of 129
DSL port
DSL DSL
ADSL port and then
ADSL ADSL
POTS Splitter
POTS Splitter
POTS SplitterPOTS Splitter
A phone line can carry phone call and Internet signals. When you enable the phone
line for high speed Internet, the connection produces high-pitched tones when using
the phone. Installing a Plain Old Telephone Service (POTS) splitter separates the two
signals and eliminates the noise.
To setup the telephone POTS Splitter:
To setup the telephone POTS Splitter:
To setup the telephone POTS Splitter:To setup the telephone POTS Splitter:
a. Locate the phone jack in your house.
b. Insert the POTS Splitter into the phone jack.
c. Plug one end of the telephone cable from the POTS Splitter’s TEL
the other end into the telephone.
4. Connect the power adapter from the router’s 9V DC
User Manual
TEL port and then plug
TELTEL
9V DC port into the electrical outlet.
9V DC 9V DC
Page 17 of 129
User Manual
Connecting to the Internet
There are two ways to connect to the Internet. You can either use the Web Interface or
the Utility Wizard.
Connecting Via the Web Interface
To connect to the Inter via the Web Interface:
1. Open your browser.
2. Enter 10.100.1.1
10.100.1.1 in the address field and then press Enter
10.100.1.1 10.100.1.1
page of the web interface.

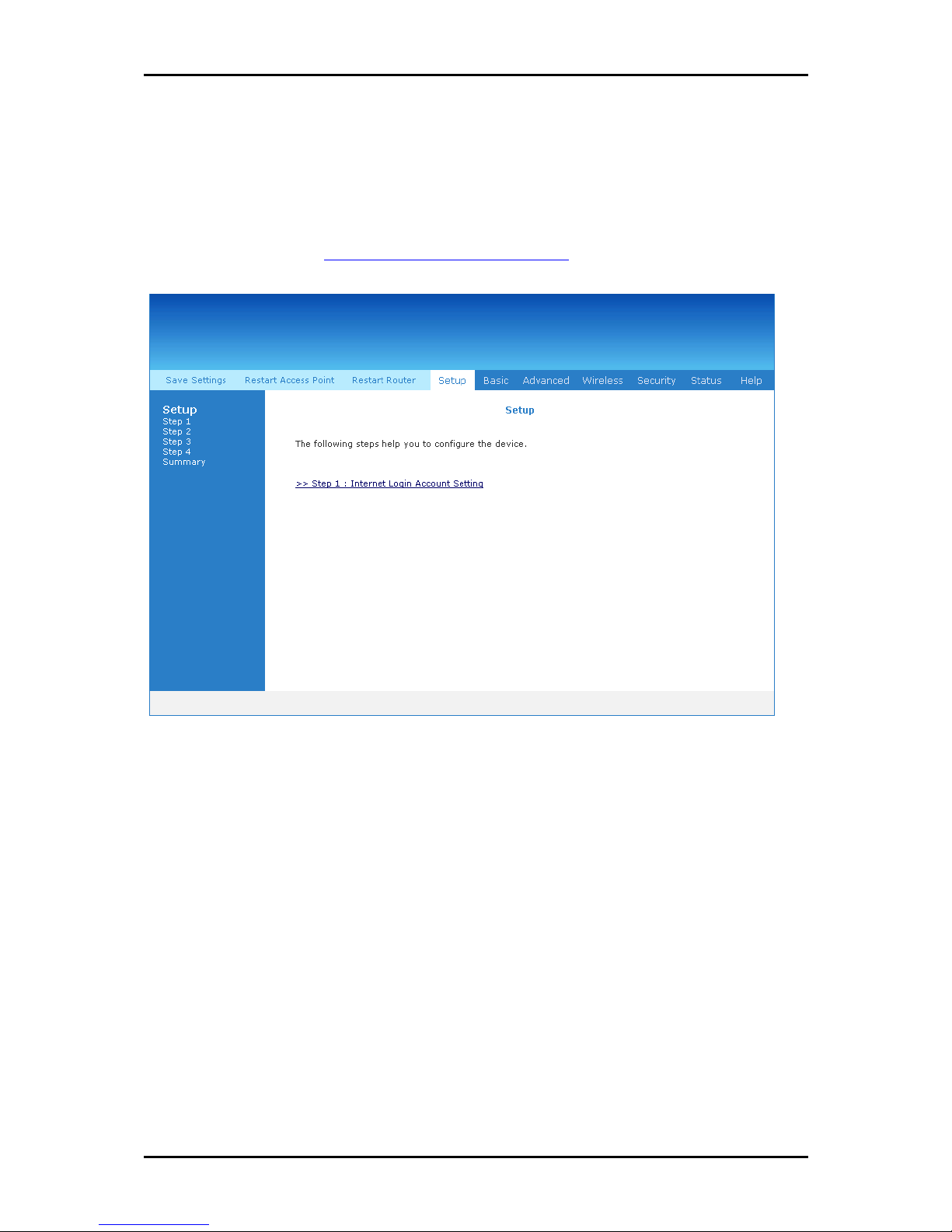

Setup Page
Setup Page
Setup PageSetup Page
Enter. This opens the Setup
EnterEnter
Setup
Setup Setup
Page 18 of 129
User Manual
3. Click Step 1: Internet Login Account Setting
4. Enter the User ID
Step 1: Internet Login Account Setting. This opens the Internet Logi
Step 1: Internet Login Account SettingStep 1: Internet Login Account Setting
Setting
Setting page.
Setting Setting
Internet Login Account Setting page
Internet Login Account Setting page
Internet Login Account Setting pageInternet Login Account Setting page
User ID, Password
User IDUser ID
Password, Protocol
PasswordPassword
Protocol, VP1
ProtocolProtocol
VP1, and VCI
VP1VP1
Internet Login Account
Internet LogiInternet Logi
VCI for your account. These are the
VCIVCI
n Account
n Account n Account
account information from your service provider.
5. Click Next
Next. This opens the Wireless LAN Configuration
NextNext
Wireless LAN Configuration page.
Wireless LAN Configuration Wireless LAN Configuration
Wireless LAN Configuration page
Wireless LAN Configuration page
Wireless LAN Configuration pageWireless LAN Configuration page
Page 19 of 129
User Manual
6. Enter an SSID, Country Standard,
7. Select Yes
8. Click Next
Wireless LAN Security
Wireless LAN Security
Wireless LAN SecurityWireless LAN Security
SSID, Country Standard, and Wireless Channel
SSID, Country Standard, SSID, Country Standard,
Yes or No
Yes Yes
Next. This opens the Wireless LAN Security
NextNext
No to specify if you want to hide your wireless network name or not.
No No
Wireless LAN Security page.
Wireless LAN Security Wireless LAN Security
Wireless Channel.
Wireless ChannelWireless Channel
9. Select Enable Wireless Security
10. Enter an Encryption Key
Enable Wireless Security.
Enable Wireless SecurityEnable Wireless Security
Encryption Key or click Generate
Encryption Key Encryption Key
Generate to allow the router to create an
Generate Generate
alphanumeric encryption key for you. The Encryption key will be used to establish
the wireless network connection of wireless devices.
Page 20 of 129
User Manual
11. Click Next
12. Select Enable Authentication
13. Enter User Name, Password,
Next. This opens the System Password
NextNext
System Password page
System Password page
System Password pageSystem Password page
Enable Authentication.
Enable AuthenticationEnable Authentication
User Name, Password, and Confirm Password
User Name, Password, User Name, Password,
System Password page.
System Password System Password
Confirm Password.
Confirm PasswordConfirm Password
14. Enter the number of minutes for Idle Timeout
15. Click Next
16. Click Finish
Next. This opens the Summary
NextNext
Finish.
FinishFinish
Summary page.
Summary Summary
Idle Timeout.
Idle TimeoutIdle Timeout
Page 21 of 129
User Manual
17. This opens a dialog box asking if you want to save and restart the router. Click OK
OK.
OKOK
The router will take about two minutes to save the settings and establish a
connection with your Internet service provider. Afterwards, the Basic Home page
opens to give you a summary of the account settings.
Basic Home page
Basic Home page
Basic Home pageBasic Home page
Connecting Via the Utility Wizard
The Setup Wizard can also be used to configure your router. However, this only runs on
Windows operating systems.
Notes:
Notes: Microsoft Windows 2000 users may be asked to confirm the installation. To confirm,
Notes:Notes:
click Yes
Yes.
YesYes
Microsoft Windows XP users may be asked to confirm the installation. To confirm, click
Continue Anyway
Continue Anyway.
Continue AnywayContinue Anyway
To use the Setup Wizard:
1. Insert the Resource CD
2. If the utility does not launch automatically, select Sta
(where D:
3. Select your router model and then follow the installation procedure.
4. After a successful connection, on the router’s front panel, INTERNET
Resource CD into your CD-ROM.
Resource CDResource CD
D: is your CD-ROM drive), and then click OK
D:D:
OK. This opens the Setup Utility
OKOK
Start
rt > Run
StaSta
rtrt
Run, enter D:
RunRun
INTERNET lights up.
INTERNET INTERNET
D:\\\\Setup.exe
Setup.exe
D:D:
Setup.exe Setup.exe
Setup Utility.
Setup UtilitySetup Utility
Page 22 of 129
User Manual
Connecting Wireless Devices
After you setup the device settings through the main computer, you can connect other
devices with wireless capabilities. Wireless devices relieve you from the task of laying
out cables and allow you to use the Internet connection from your router.
Your router allows you to connect with several wireless devices
Your router allows you to connect with several wireless devices
Your router allows you to connect with several wireless devicesYour router allows you to connect with several wireless devices
To the connect with wireless devices:
1. Turn on your wireless device.
2. Open the software you use to detect a wireless connection. This opens a window
to ask for the connection settings.
3. Enter the connection settings. These settings are defined in your router during
setup. For more details about wireless connections, please refer to Wireless Menu.
Page 23 of 129
User Manual
About the Web Interface
The Web Interface is used to configure the router settings.
Accessing the Web Manager
To access the Web Manager:
1. Open a browser.
2. Enter the router’s IP Address. The default IP Address is 10.100.1.1
3. When authentication is enabled, the log in page will appear. In the login page,
enter the User Name
default password is also admin.
User Name and Passwo
User Name User Name
Password
PasswoPasswo
rd. The default user name is admin and the
rdrd
10.100.1.1.
10.100.1.110.100.1.1
Components
Buttons, commands, and menus make up the browser-based user interface.
Buttons
Apply
Click to implement the configuration changes. Clicking Apply will not implement
the changes when the router is restarted.
Cancel
Click to revert to the last saved configuration.
Page 24 of 129
Commands
Save Setting
Click to permanently apply configuration changes.
Restart Router
Restarts the router
Restart Access Point
Restarts the wireless connection
Menus
User Manual
The web interface includes the following menus:
Setup Menu
Basic Menu
Advanced Menu
Wireless Menu
Security Menu
Status Menu
Help Menu
Page 25 of 129
User Manual
Setup Menu
The Setup menu is used to complete the initial device configuration.
Setup Menu
Setup Menu
Setup MenuSetup Menu
Page 26 of 129
User Manual
Basic Menu
The Basic Menu provides the Home, Quick Start, LAN Configuration, and Diagnostics links.
Basic Menu
Basic Menu
Basic MenuBasic Menu
Page 27 of 129
User Manual
Advanced Menu
The Advanced mode provides advanced configuration settings for existing connections. At
least one WAN connection must be configured before implementing advanced WAN
configuration features. At least one LAN group must be defined before implementing
advanced LAN configuration features.
Advanced Menu
Advanced Menu
Advanced MenuAdvanced Menu
Page 28 of 129

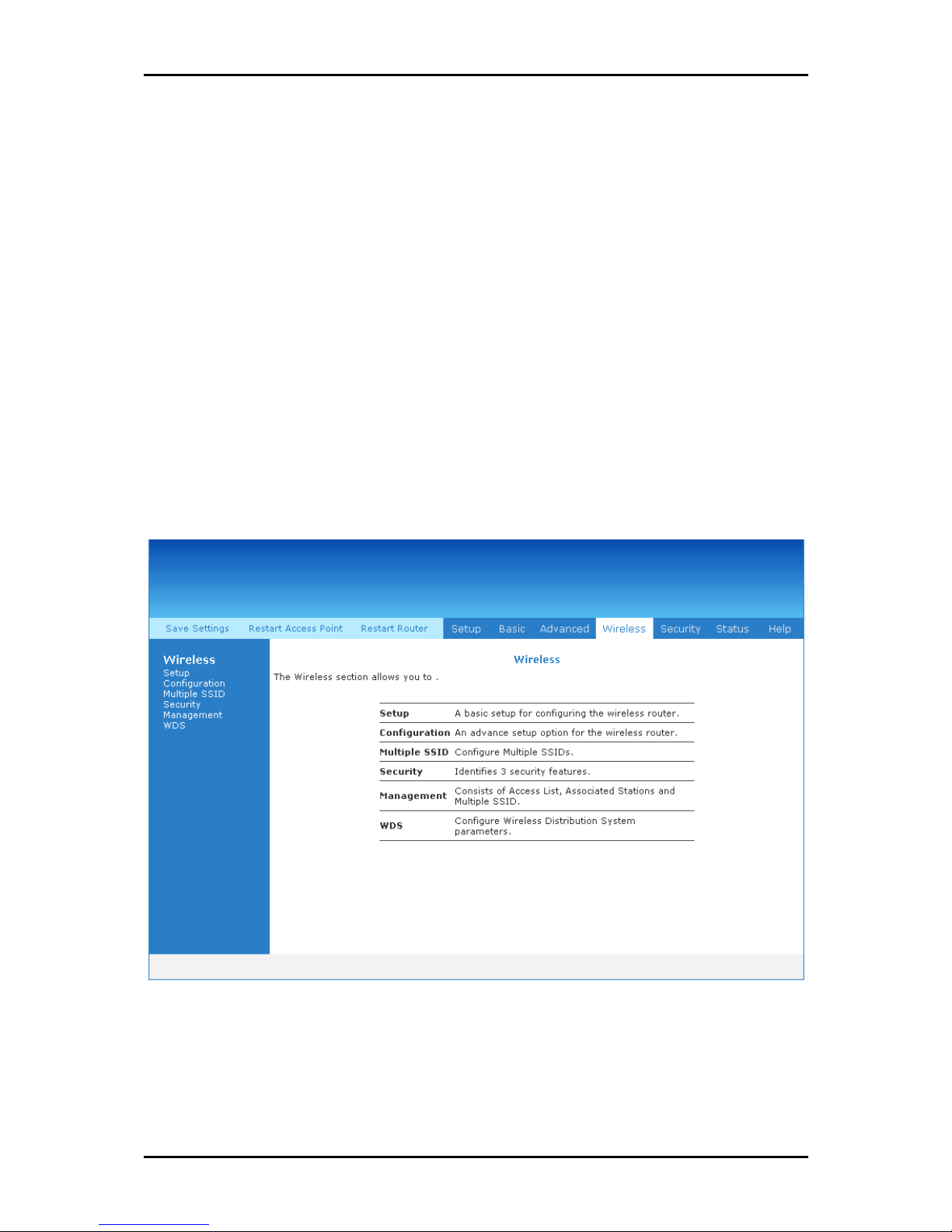

Wireless Menu
Wireless Menu allows you to configure the wireless settings.
User Manual
Wireless Menu
Wireless Menu
Wireless MenuWireless Menu
Page 29 of 129
User Manual
Security Menu
Security Menu allows you to configure security tools like IP Filters and LAN Isolation.
Security Menu
Security Menu
Security MenuSecurity Menu
Page 30 of 129
Loading...
