AZDIS ACM1604C-RLYW-T, ACM1604C-RLYS-T, ACM1604C-RLYH-T, ACM1604C-RLTH-T, ACM1604C-RLTD-T Datasheet

...
Download
AZ DISPLAYS, INC.
COMPLETE LCD SOLUTIONS
SPECIFICATIONS FOR
LIQUID CRYSTAL DISPLAY
PART NUMBER: ACM 1604C SERIES DATE: August 9, 1999
ACM1604C SERIES LCD MODULE
1
1.0 MECHANICAL SPECS
1. Overall Module Size 87.0mm(W) x 60.0mm(H) x max 13.5mm(D) for LED backlight version
87.0mm(W) x 60.0mm(H) x max 9.5mm(D) for reflective version
2. Dot Size 0.55mm(W) x 0.55mm(H)
3. Dot Pitch 0.60mm(W) x 0.60mm(H)
4. Duty 1/16
5. Controller IC KS0066
7. Polarizer Options Reflective, Transflective, Transmissive
8. Backlight Options LED
9. Temperature Range Options Standard(0ºC ~ 50ºC), Wide(-20ºC ~ 70ºC)
2.0 ABSOLUTE MAXIMUM RATINGS
Item Symbol Min Typ Max Unit
Operating temperature (Standard) Top 0 - 50 ºC Storage temperature (Standard) Tst -10 - 60 ºC Operating temperature (Wide temperature) Top -20 - 70 ºC Storage temperature (Wide temperature) Tst -30 - 80 ºC Input voltage Vin Vss Vdd V Supply voltage for logic Vdd- Vss 2.7 - 5.5 V Supply voltage for LCD drive Vdd- Vo 3.0 4.6 6.5 V
ACM1604C SERIES LCD MODULE
2
3.0 ELECTRICAL CHARACTERISTICS
Item Symbol Condition Min Typ Max Unit
Input voltage (high) Vih H level 2.2 - Vdd V Input voltage (low) Vil L level 0 - 0.6 V
0ºC - 4.8 5.4
25ºC 4.2 4.6 -
Recommended LC Driving Voltage (Standard Temp)
Vdd - Vo
50ºC 3.9 4.3 -
V
-20ºC - 6.4 7.2 0ºC - 4.8 -
50ºC - 4.3 -
Recommended LC Driving Voltage (Wide Temp)
Vdd -Vo
70ºC 3.6 4.1 -
V
Power Supply Current Idd
Vdd=5.0V,
fosc=270kHz
- 0.5 1.0 mA
LED Power Supply Voltage Vfled R=6.8Ω - 4.6 5.0 V LED Power Supply Current Ifled R=6.8Ω - 200 400 mA
4.0 OPTICAL CHARACTERISTICS (Ta=25ºC, Vdd= 5.0V±0.25V, TN LC fluid)
Item Symbol Condition Min Typ Max Unit
Viewing angle (horizontal) θ Cr ≥ 4.0 -25 - - deg Viewing angle (vertical) φ Cr ≥ 4.0 -30 - 30 deg Contrast Ratio Cr φ=0°, θ=0° - 2 ­Response time (rise) Tr φ=0°, θ=0° - 120 150 ms Response time (fall) Tf φ=0°, θ=0° - 120 150 ms
ACM1604C SERIES LCD MODULE
3
4.1 OPTICAL CHARACTERISTICS (Ta=25ºC, Vdd= 5.0V±0.25V, STN LC fluid)
Item Symbol Condition Min Typ Max Unit
Viewing angle (horizontal) θ Cr ≥ 2.0 -60 - 35 deg Viewing angle (vertical) φ Cr ≥ 2.0 -40 - 40 deg Contrast Ratio Cr φ=0°, θ=0° - 6 ­Response time (rise) Tr φ=0°, θ=0° - 150 250 ms Response time (fall) Tf φ=0°, θ=0° - 150 250 ms

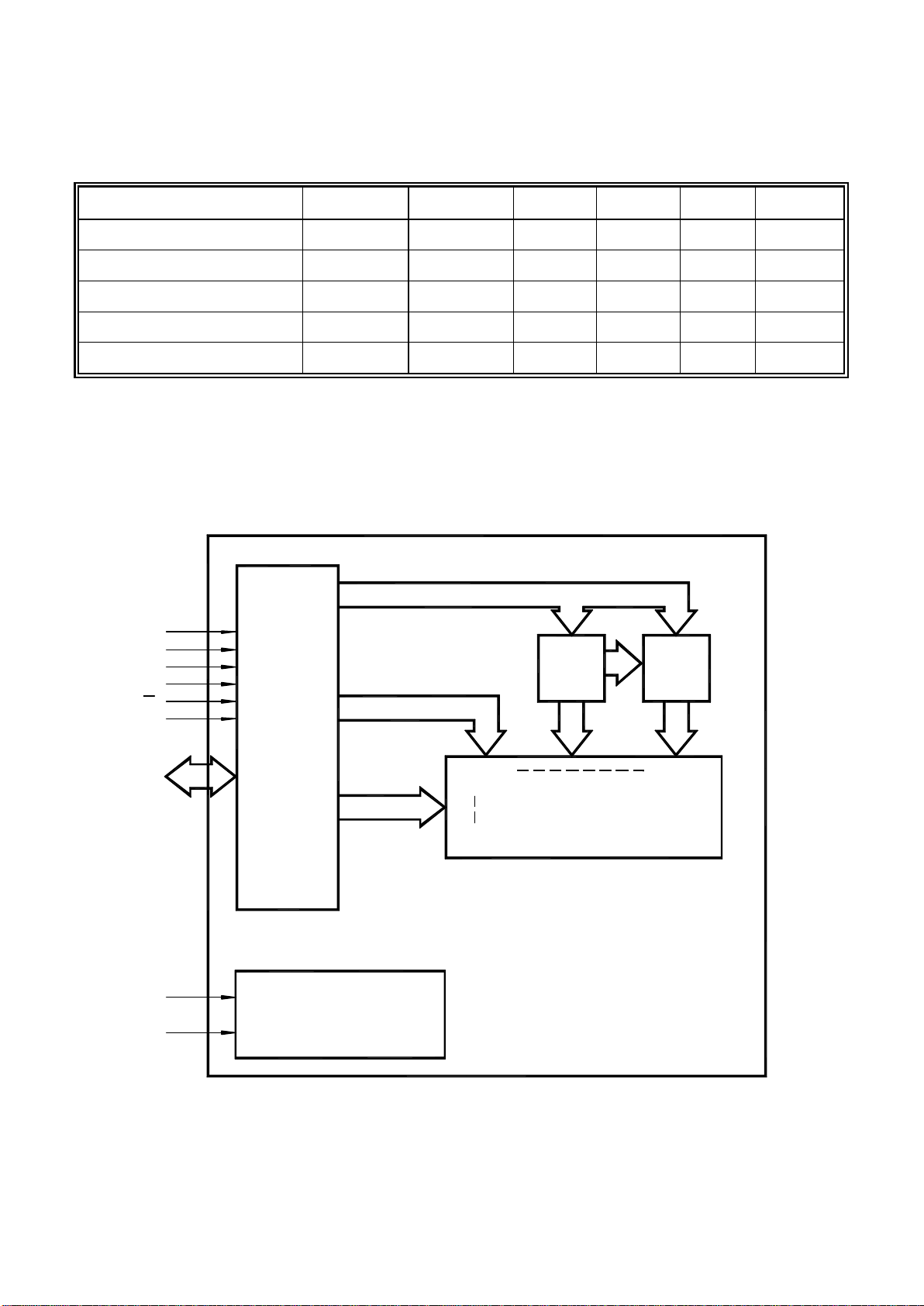

5.0 BLOCK DIAGRAM
LCD 16X4
U2
U1
SEG1- 40
SEG41- 100
SEG 1 SEG160
COM 16
8
LED BACKLIGHT
1. Vss
2. Vdd
3. Vo
4. RS
5. R/W
6. E
7. DB0
14. DB7
~
+ BL+
- BL-
U3
SEG100 -160
40
60
60
16
COM 1
COM16
ACM1604C SERIES LCD MODULE
4
6.0 PIN ASSIGNMENT 7.0 POWER SUPPLY
Pin No. Symbol Function
1 Vss Ground 2 Vdd +5V 3 Vo LCD contrast adjust 4 RS Register select 5 R/W Read / write 6 E Enable 7 DB0 Data bit 0 8 DB1 Data bit 1
9 DB2 Data bit 2 10 DB3 Data bit 3 11 DB4 Data bit 4 12 DB5 Data bit 5 13 DB6 Data bit 6
14 DB7 Data bit 7
+ BL+ Power Supply for BL+
-
BL- Power Supply for BL-
8.0 TIMING CHARACTERISTICS
Item Symbol Test Condition Min. Typ. Max. Unit
Enable cycle time t
C Fig. a, Fig. b
500 - - ns
Enable pulse width t
W
Fig. a, Fig. b
220 - - ns
Enable rise/fall time tR , t
F
Fig. a, Fig. b
- - 25 ns
RS, R/W set up time t
SU
Fig. a, Fig. b
40 - - ns
RS, R/W hold time t
H
Fig. a, Fig. b
10 - - ns
Data delay time
t
D Fig. b
- - 120 ns
Data set up time t
DSU
Fig. a
60 - - ns
Data hold time t
DH
Fig. a, Fig. b
20 - - ns
Vss
Vo
Vdd
Vr
+5V
STANDARD TEMP RANGE
Vss
Vo
Vdd
Vr
+5V
WIDE TEMP RANGE
-5V
Vr = 10KΩ ~ 20KΩ
ACM1604C SERIES LCD MODULE
5
V
IH1
VIL1
VIL1
IH1
IL1V
V
VIH1
VIL1
VIL1
V
IH1
IL1V
V
IH1
IL1V
Valid Data
tSU
t
H
t
W tH
t
F
tR
tDSU tDH
tC
RS
R/W
E
DB0~DB7
VIL1
V
IH1
VIL1
Fig. a Interface timing (data write)
VIH1
VIL1
VIH1
IH1
IL1V
V
VIH1
VIL1
VIH1
V
IH1
IL1V
V
IH1
IL1V
Valid Data
tSU
t
H
tW
tH
t
F
tR
tDSU
tDH
tC
RS
R/W
E
DB0~DB7
VIL1
tD
VIH1
IL1V
Fig. b Interface timing (data read)
ACM1604C SERIES LCD MODULE
6
9.0 MECHANICAL DIAGRAM
ACM1604C SERIES LCD MODULE
7
10.0 RELIABILITY TEST
Evaluations and Assessment*
Storage Condition Content
Current
Consumption
Oozing Contrast Other Appearances
Operation at high temperature and humidity
40ºC,90% RH,240hrs
Twice initial
value or less
none More than 80% of
initial value
No abnormality
High temperature storage
60ºC,
240hrs
Twice initial
value or less
none More than 80% of
initial value
No abnormality
Low temperature storage
-20ºC, 240hrs
Twice initial
value or less
More than 80% of
initial value
No abnormality
*Evaluations and assessment to be made two hours after returning to room temperature (25ºC±5ºC). *The LCDs subjected to the test must not have dew condensation.
ACM1604C SERIES LCD MODULE
8
11.0 DISPLAY INSTRUCTION TABLE
COMMAND RSR/WDB7DB6DB5DB4DB3DB2DB1DB
0
DESCRIPTION
Executing
time
fosc=250khz
Clear Display
0 0 0 0 0 0 0 0 0 1 Clears Display & Returns to Address 0. 1.64ms
Cursor at
Home
0
0 0 0 0 0 0 0 1 x Returns Cursor to Address 0. Also
returns the display being shifted to the original position. DDRAM contents remain unchanged.
1.64ms
Entry Mode
Set
0 0 0 0 0 0 0 1 I/D S I/D: Set Cursor Moving Direction
I/D=1: Increment I/D=0: Decrement
S: Specify Shift of Display S=1: The display is shifted S=0: The display is not shifted
40µs
Display ON/OFF Control
0 0
0
0 0 0 1 D C B Display D=1: Display on
D=0: Display off Cursor C=1: Cursor on C=0: Cursor off Brink B=1: Brink on B=0: Brink off
40µs
Cursor / Display Shift
0 0 0 0 0 1 S/C R/L x x Moves cursor or shifts the display w/o
changing DD RAM contents
S/C=0: Cursor Shift (RAM unchanged) S/C=1: Display Shift (RAM unchanged) R/L=1: Shift to the Right R/L=0: Shift to the Left
40µs
Function Set
0 0 0 0 1 DL N F x x Sets data bus length (DL), # of display
lines (N), and character fonts (F). DL=1: 8 bits F=0: 5x7 dots DL=0: 4 bits F=1: 5x10 dots N=0: 1 line display N=1: 2 lines display
40µs
Set CG RAM Address
0 0 0 1 Character Generator (CG) RAM
Address
Sets CG RAM address. CG RAM data is sent and received after this instruction.
40µs
Set DD RAM Address
0 0 1 Display Data (DD) RAM Address /
Cursor Address
Sets DD RAM address. DD Ram data is sent and received after this instruction.
40µs
Busy Flag /
Address Read
0
1 BFAddress counter used for both DD &
CG RAM address
Reads Busy Flag (BF) and address counter contents.
40µs
Write Data 1 0 Write Data Writes data into DDRAM or CGRAM. 46µs
Read Data 1 1 Read Data Reads data from DDRAM or CGRAM. 46µs
x: Don't Care.
ACM1604C SERIES LCD MODULE
9
12.0 STANDARD CHARACTER PATTERNS
Note: The character generator RAM is the RAM with which the user can rewrite character patterns by program.
