MagneW FLEX+/PLUS+

Electromagnetic Flowmeter

Converter

Model MGG10C/MGG14C

User’s Manual

CM2-MGG310-2001

While the information in this manual is presented in good faith and believed to be accurate, Azbil Corporation disclaims any implied war-

ranty of merchantability or tness for a particular purpose and makes no

express warranty except as may be stated in its written agreement with and for its customer.

In no event shall Azbil Corporation be liable to anyone for any indirect,

special or consequential damages. This information and specications

in this document are subject to change without notice.

MagneW is a trademark of Azbil Corporation in Japan and/or other

countries.

HART

is a registered trademark of FieldComm Group.

Safety

About this manual

This manual contains information and warnings that must be observed to keep the model MGG10C/MGG14C MagneW

installation, correct operation and regular maintenance are essential to ensure safety while using this device.

For the correct and safe use of this owmeter, it is essential that both operating and

service personnel follow generally accepted safety procedures in addition to the safety

precautions specied in this manual.

The following symbols are used in this manual to alert you to possible hazards:

Denotes a potentially hazardous situation which, if not avoided could result in death or serious injury.

FLEX+/PLUS+ Flowmeter operating safely. Correct

WARNING

Denotes a potentially hazardous situation which, if not avoided could result in minor injury or damage to device.

Safety messages

Carefully read this section before installing or operating this device.

ELECTRIC SHOCK HAZARD! Turn the power supply OFF before opening the

converter cover.

Switch the control equipment to manual control before terminating owmeter operation and shutting o the output to the control equipment. This action prevents the power shut-o from directly aecting the control equipment.

CAUTION

WARNING

CAUTION

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter i

Safety Azbil Corporation

CAUTION

Install the owmeter in a location with an ambient temperature of -25 °C to 60 °C (-13 °F to 140 °F) and an ambient humidity of 5 to 100% RH to prevent

equipment malfunction or output errors.

CAUTION

Do not install the owmeter near high-current power lines, motors or transformers

to prevent damage from electromagnetic induction, which can cause equipment malfunction or output errors.

CAUTION

Do not install the owmeter in a location subject to direct sunlight, wind, rain,

severe vibration, or in a highly corrosive atmosphere. The converter and detector can be damaged.

CAUTION

Be sure to ground the welding power transformer when welding near the

owmeter to avoid output errors.

CAUTION

DO NOT use the owmeter to ground a welder. It can damage the owmeter.

ii Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Safety

MagneW FLEX+/PLUS+ Electromagnetic Flowmeter CE

Conformity Supplement

CE CONFORMITY: This product is in conformity with the protection requirements of the

following European Council Directive: 2014/30/EU, the EMC Directive and 2014/35/EU, Low Voltage Directive. Conformity of this product with any

other “CE Mark” Directive(s) shall not be assumed.

EMC Directive/Standard PC Conformity Notes

ELECTROMAGNETIC COMPATIBILITY: 2014/30/EU,

EMC Directive

EMISSIONS: EN61326-1:2013, Gr.1 Class A, Electrical equipment for measurement, control and laboratory use

EN 55011:2009/A1: 2010, Gr.1, Class A, Industrial Control

Equipment, Radiated electromagnetic disturbances 30MHz -

1000MHz,

IMMUNITY: EN61326-1:2013, Electrical equipment for measurement, control and laboratory use, EN 61326-2-3:2013, Particular requirements

EN 61000-4-2: 2009, ESD, Electrostatic Discharge BB4 kV Contact

EN 61000-4-3:2006 + A2:2010, Radio-frequency

electromagnetic eld, amplitude modulated 80 -2700 MHz

EN 61000-4-4:2012, Electrical Fast Transients/Burst B 1kV 1

EN 61000-4-5: 2006, Surge B 1kV 1

EN 61000-4-6:2009, Conducted Radio-frequency, 150 KHz -

80 MHz

EN 61000-4-8: 2010, Power frequency magnetic eld A 30A/m

EN 61000-4-11:2004, Voltage Dip/short interruptions B

30MHz-230MHz quasi-peak limit 40dB(uV/m) at

10m

230MHz-1000MHz quasi-peak limit 47dB(uV/m)

at 10m

PERFORMANCE: Unless otherwise noted, the

performance of this product, at the specied levels

of electromagnetic interference, is within the

specications for for “Performance Under Rated

Conditions.”

8kV Air

A 1kHz, AM80%

10 V/m (80 -1000 MHz) 3V/m (1.0 -2.0 GHz) 1V/m (2.0 -2.7 GHz)

A 3V 1

50Hz

0.5, 1cycle 0% (100%) 10/12 cycle 40% (60%)

25/30 cycle 70% (30%)

250/300 cycle 0% (100%)

NOTES:

PC = Performance Criteria

1. Twist pair cables required for all I/O interface circuits.

In case of remote model,two core double shield cable in metal conduit pipe is required for the input line in

connection with detector.

Performance Criteria: Immunity includes the tests and severity levels specied in EN 61326-1-2013 and EN 61326-2-

3-2013.

LV Directive Conformity

LOW VOLTAGE DIRECTIVE: 2014/35/EU EN 61010-1: 2010, Safety requirements for electrical equipment for

measurement, control and laboratory use Part 1: General requirements

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter iii

Safety Azbil Corporation

Internal

External

Internal

External

MagneW FLEX+/PLUS+ Electromagnetic Flowmeter

Documentation Supplement

1. Mains supply

The symbol for a.c. or d.c. on the name plate is as follows:

for a.c. power supply

for d.c. power supply

2. Fuse marking

The fuse cannot be replaced by the operator.

Fuse rating and electric characteristics are as follows:

Fuse rating: Voltage 250V

Current 3A

Manufacturer type: 239003 (LITTEL FUSE)

3. Grounding (Earthing)

Protective grounding (earthing) should be connected as shown in Operator's Manual.

The MagneW

FLEX+/PLUS+ has protective grounding (earthing) terminals in the terminal

box and on the external surface of its casing (see gure).

Remote models Integral models

An external switch or circuit-breaker must be installed near the MagneW

on the power line.

4. Equipment operation

Power line is connected to commercial power. The terminal cover

must not be opened when power is on.

FLEX+/PLUS+

iv Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Chapter 1: Introduction

MagneW FLEX+/PLUS+ Flowmeter ................................................................................... 1-1

Main components ............................................................................................................1-1

Analog output and digital output .................................................................................. 1-3

System conguration for analog output (4 to 20 mA DC output) ................................. 1-4

System conguration WITHOUT the communication function ........................................1-5

System conguration WITH the HART communication function with the internal power

supply ..............................................................................................................................1-6

System conguration WITH the SFC or HART communication function with the external

power supply ...................................................................................................................1-7

System Conguration for Digital Output (DE Output) .................................................. 1-8

System conguration.......................................................................................................1-8

Approval of this Device................................................................................................ 1-10

Chapter 2: Installation

Site selection ............................................................................................................... 2-1

Unpacking and storage ............................................................................................... 2-2

Installation options....................................................................................................... 2-3

Changing the orientation of the converter .......................................................................2-4

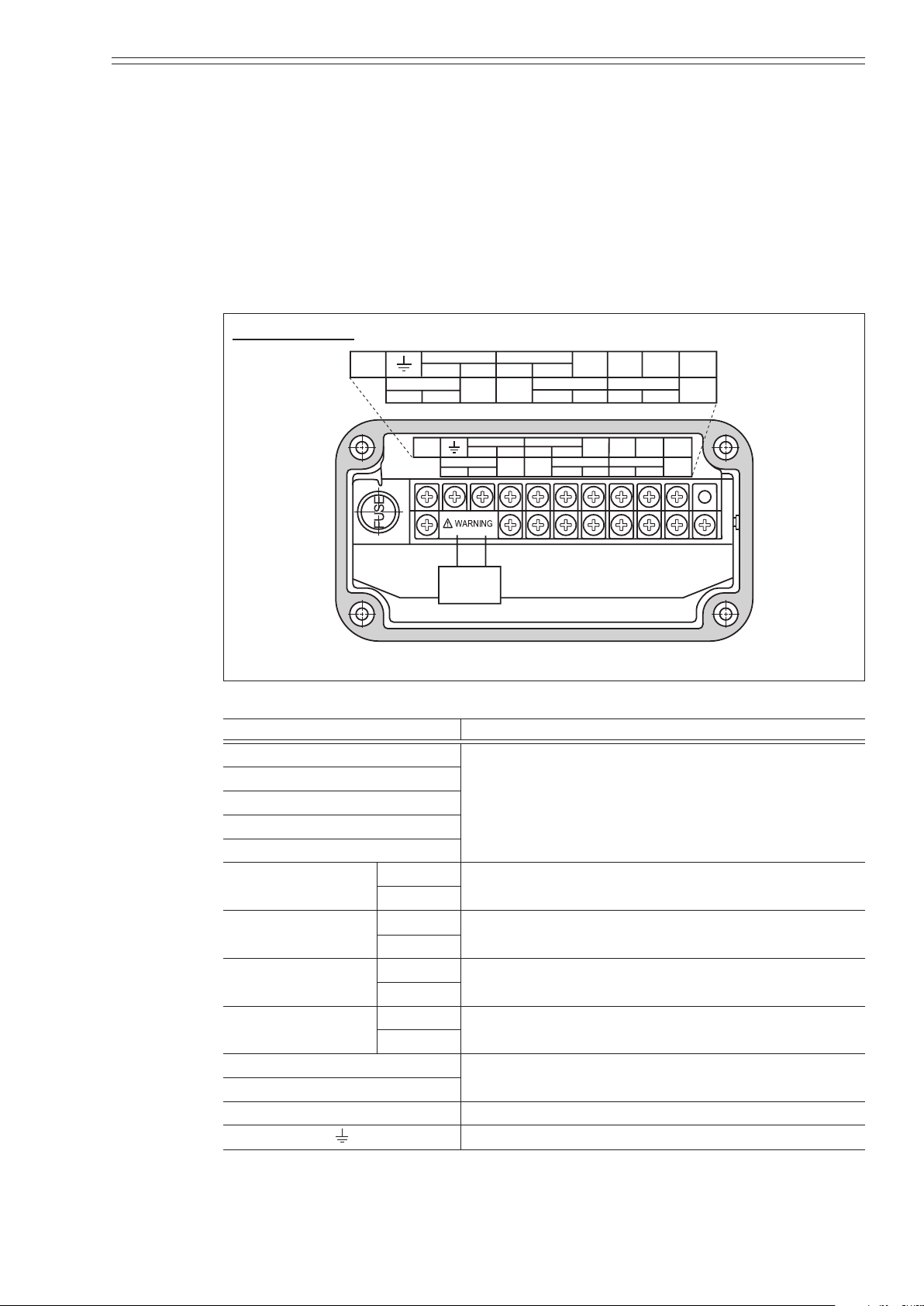

Wiring .......................................................................................................................... 2-5

Integral wiring - 1 (1-contact input and 1- contact output) ........................................... 2-6

Integral wiring - 2 (2-contact input) .............................................................................. 2-7

Integral wiring - 3 (2-contact output)............................................................................ 2-8

Remote wiring - 1 (1-contact input and 1- contact output) .......................................... 2-9

Remote wiring - 2 (2-contact input) ............................................................................. 2-10

Remote wiring - 3 (2-contact output) ........................................................................... 2-11

Grounding .......................................................................................................................2-12

Signal and excitation cable specications .......................................................................2-12

Signal and excitation cable wiring ............................................................................... 2-14

Wiring cable................................................................................................................. 2-15

Wiring .......................................................................................................................... 2-16

Setting write protection ................................................................................................ 2-19

Setting the communication via the HART.................................................................... 2-21

Setting the empty detection function ........................................................................... 2-22

Setting the communication via the SFC ...................................................................... 2-23

Connecting power ....................................................................................................... 2-24

Chapter 3: Operation

Start-up........................................................................................................................ 3-1

Shut down ................................................................................................................... 3-1

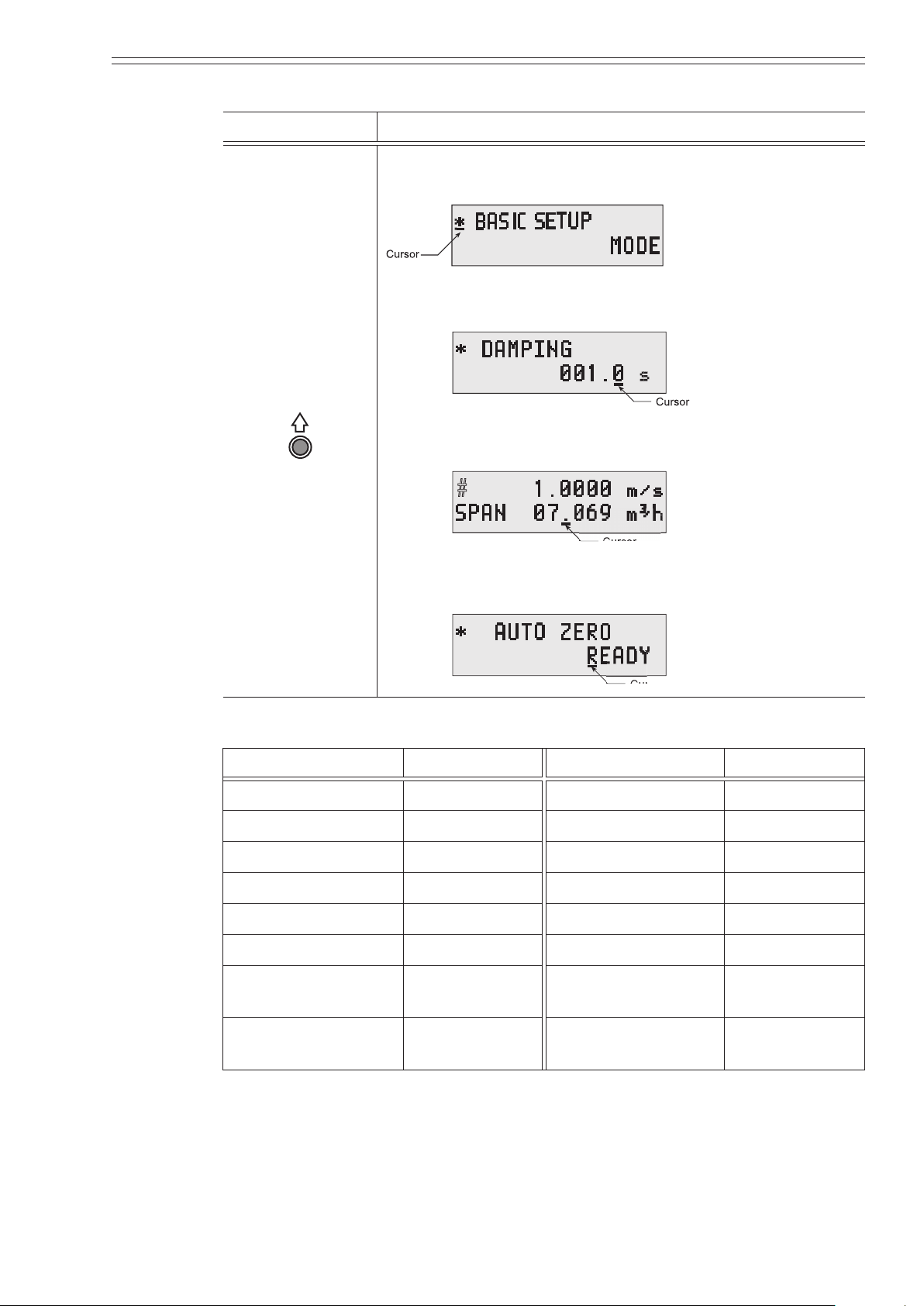

Using the display panel ............................................................................................... 3-2

Using the infrared touch sensor keys ..............................................................................3-3

Chapter 4: Using the display panel

About modes ............................................................................................................... 4-1

MEASURING MODE ................................................................................................... 4-4

LCD display ow.......................................................................................................... 4-5

Entering BASIC SETUP MODE .................................................................................. 4-11

Table of Contents

Setting the TAG NO. ................................................................................................... 4-12

Default setting .......................................................................................................4-12

Setting range ........................................................................................................4-12

Damping time constant ...................................................................................................4-13

Default setting .......................................................................................................4-13

Setting range ........................................................................................................4-13

Auto zero .........................................................................................................................4-14

Flow counter - Reset value .............................................................................................4-16

Flow counter - Resetting .................................................................................................4-17

Detector data...................................................................................................................4-18

Default setting .......................................................................................................4-18

Setting the Number of Dummy Detectors .......................................................................4-20

Default setting .......................................................................................................4-20

Setting range ........................................................................................................4-20

Flow rate range ...............................................................................................................4-21

Setting range ........................................................................................................4-21

Flow rate indication .........................................................................................................4-22

Default setting .......................................................................................................4-22

Setting range ........................................................................................................4-22

Entering ENGINEERING / ADVANCED / MAINTENANCE MODE.................................4-23

Entering ENGINEERING MODE...........................................................................4-23

Entering ADVANCED MODE ................................................................................4-23

Entering MAINTENANCE MODE..........................................................................4-24

Selecting functions ..........................................................................................................4-25

Relations for setting function FXXXX ..............................................................................4-27

Range functions ..............................................................................................................4-30

Single range ..........................................................................................................4-30

Normal direction automatic dual range .................................................................4-31

Normal direction, external switching dual range ...................................................4-32

Normal/reverse automatic switching range ...........................................................4-33

[Built-in counter function] ......................................................................................4-35

[Contact input function] .........................................................................................4-36

[Contact output function] .......................................................................................4-37

Flow rate range .....................................................................................................4-40

Setting range ........................................................................................................4-40

Setting hysteresis .................................................................................................4-42

Selecting the current output method for dual range ..............................................4-43

Setting / Changing the preset value of the built-in ow counter ......................................4-44

Specic gravity ......................................................................................................4-45

Pulse weight .........................................................................................................4-46

Setting the pulse width ..........................................................................................4-47

Setting high and low limit alarms ..........................................................................4-49

Setting a 2-stage ow rate alarm ..........................................................................4-50

Selecting fail-safe mode for the analog output ................................................................4-52

Default setting .......................................................................................................4-52

Setting range ........................................................................................................4-52

Selecting fail-safe mode for the pulse output ..................................................................4-53

Default setting .......................................................................................................4-53

Setting range ........................................................................................................4-53

Setting the contact output status ..........................................................................4-54

Damping time constant ...................................................................................................4-56

Default setting .......................................................................................................4-56

Setting range ........................................................................................................4-56

Table of Contents

Manual zeroing................................................................................................................4-57

Important ...............................................................................................................4-57

How to set .............................................................................................................4-57

Setting moving average ..................................................................................................4-58

Default setting .......................................................................................................4-58

Setting range ........................................................................................................4-58

Auto spike cut function ....................................................................................................4-60

Default setting .......................................................................................................4-60

Manual spike cut function ...............................................................................................4-61

Default setting .......................................................................................................4-61

Setting range ........................................................................................................4-61

Coe󰀩cient of compensation ..................................................................................4-62

Setting the drop-out ..............................................................................................4-63

Setting the low ow cut .........................................................................................4-64

Setting decimal place ............................................................................................4-65

Change the excitation frequency ..........................................................................4-66

Setting the analog output limit ..............................................................................4-67

Change the ow direction .....................................................................................4-68

Error history check/clear .......................................................................................4-69

Chapter 5: Maintenance and Troubleshooting

Function check ............................................................................................................ 5-2

Input and output signal loop check .................................................................................5-2

Analog output check .................................................................................................... 5-3

Default setting .......................................................................................................5-3

Setting range ........................................................................................................5-3

Pulse output check ...................................................................................................... 5-4

Default setting .......................................................................................................5-4

Setting range ........................................................................................................5-4

Contact input/output loop check ......................................................................................5-5

Default setting .......................................................................................................5-5

Setting range ........................................................................................................5-5

Excitation current check ..................................................................................................5-8

Simulated signal by the calibrator ...................................................................................5-9

Preparation ...........................................................................................................5-9

Troubleshooting........................................................................................................... 5-10

Errors at startup........................................................................................................... 5-11

Operation errors .......................................................................................................... 5-12

Error messages ........................................................................................................... 5-13

Error codes for critical problems .....................................................................................5-13

Error codes for non-critical problems ..............................................................................5-14

Safety precautions....................................................................................................... 5-15

Operating precautions .....................................................................................................5-15

Examples of symbol ........................................................................................................5-15

Structure and functions of SFC .............................................................................5-16

List of Figures

Figure 1-1 Integral System ................................................................................................. 1-1

Figure 1-2 Remote System ................................................................................................. 1-2

Figure 1-3 System conguration of analog output WITHOUT communication function ...1-5 Figure 1-4 System conguration of with the HART communication with internal power

supply ................................................................................................................ 1-6

Figure 1-5 System conguration for analog output WITH the communication function

(example setup) .................................................................................................1-7

Figure 1-6 System conguration for digital output ............................................................ 1-8

Figure 1-7 Parts of the converter ........................................................................................ 1-9

Figure 1-8 System conguration .......................................................................................1-11

Figure 2-1 Integral installation ........................................................................................... 2-3

Figure 2-2 Wall mounted remote installation .....................................................................2-3

Figure 2-3 Pipe mounted remote installation .....................................................................2-4

Figure 2-4 Integral converter terminal block ......................................................................2-6

Figure 2-5 Integral converter terminal block ......................................................................2-7

Figure 2-6 Integral converter terminal block ......................................................................2-8

Figure 2-7 Remote converter terminal block ......................................................................2-9

Figure 2-8 Remote converter terminal block ......................................................................2-10

Figure 2-9 Remote converter terminal block ......................................................................2-11

Figure 2-10 Cable usage ranges............................................................................................ 2-12

Figure 2-11 Signal Cable Dimensions .................................................................................. 2-13

Figure 2-12 Excitation Cable Dimensions............................................................................ 2-13

Figure 2-13 Signal and excitation cable construction .......................................................... 2-13

Figure 2-14 Detector to converter wiring diagram ............................................................... 2-14

Figure 2-15 Wiring diagram for current output .................................................................... 2-16

Figure 2-16 Wiring diagram for pulse output ....................................................................... 2-17

Figure 2-17 Switch locations on main card .......................................................................... 2-17

Figure 2-18 Wiring diagram for contact input...................................................................... 2-18

Figure 2-19 Wiring diagram for contact output.................................................................... 2-18

Figure 2-20 Switch locations on main card .......................................................................... 2-20

Figure 2-21 Write protection switch positions ..................................................................... 2-20

Figure 2-22 Switch locations on main card .......................................................................... 2-21

Figure 2-23 HART communication switch positions ........................................................... 2-21

Figure 2-24 Switch locations on main card .......................................................................... 2-22

Figure 2-25 Empty detection function switch positions ....................................................... 2-22

Figure 2-26 Switch locations on main card .......................................................................... 2-23

Figure 2-27 SFC communication switch positions .............................................................. 2-23

Figure 2-28 Name plate ........................................................................................................ 2-24

Figure 3-1 Start-up display ................................................................................................. 3-1

Figure 3-2 Display panel ....................................................................................................3-2

Figure 3-3 Touch sensor keys ............................................................................................. 3-3

Figure 3-4 Using the touch sensor keys..............................................................................3-3

Figure 4-1 Single range ......................................................................................................4-30

Figure 4-2 Normal direction automatic dual range ............................................................4-31

Figure 4-3 Normal/reverse automatic switching range ......................................................4-33

Figure 4-4 2-stage ow rate alarm output ..........................................................................4-39

Figure 4-5 Selecting the current output method for dual range ..........................................4-43

List of Tables

Table 2-1 Remote converter terminal descriptions (1-contact input & 1-contact output) ............ 2-6

Table 2-2 Remote converter terminal descriptions (2-contact input) ...............................2-7

Table 2-3 Remote converter terminal descriptions (2-contact output) .............................2-8

Table 2-4 Remote converter terminal descriptions

Table 2-5 Remote converter terminal descriptions (2-contact input) ...............................2-10

Table 2-6 Remote converter terminal descriptions (2-contact output) .............................2-11

Table 2-7 Write Protection Levels .................................................................................... 2-19

Table 3-1 Touch Sensor key Functions ............................................................................. 3-4

Table 3-2 Default settings ................................................................................................. 3-5

Table 4-1 Mode functions ................................................................................................. 4-2

Table 4-2 Output selection ................................................................................................ 4-37

Table 5-1 Startup Errors .................................................................................................... 5-11

Table 5-2 Operation Errors ............................................................................................... 5-12

Table 5-3 Critical Errors ...................................................................................................5-13

Table 5-4 Non-critical ....................................................................................................... 5-14

(1-contact input & 1-contact output) ............ 2-9

List of Tables

Chapter 1: Introduction

Pulse output Contact input/output

Converter

This chapter contains an overview of the model MGG10C/MGG14C MagneW FLEX+/

PLUS+ Flowmeter. It provides denitions for all the major parts of the converter.

MagneW FLEX+/PLUS+ Flowmeter

Thank you for purchasing the Azbil Corporation model MGG10C/MGG14C Flowmeter. This system features:

• Digital panel display

• Intuitive, versatile operator interface with large characters and backlit liquid crystal

display (LCD)

• I/O Capacity

Main components

The model MGG10C/MGG14C MagneW FLEX+/PLUS+ Flowmeter consists of a detector and a converter which operate on the principles of Faraday’s law.

Integral - The converter is mounted directly on the detector and they are installed as

an integrated unit on the uid pipe.

Remote - The converter and detector are installed separately and connected together

via cables

AC power supply

Analog output Digital output

Detecto

Fluid

Figure 1-1 Integral System

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 1-1

Introduction Azbil Corporation

P Co

Analog output/ Digital output

Converter

C power supply

ulse output

ntact input/output

Excitation output

Flow signal input

Dedicated cable

Detector

Fluid

Figure 1-2 Remote System

1-2 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Introduction

Analog output and digital output

Introduction

The choice of either an analog output or digital output system conguration depends on whether or not you want to use the digitally enhanced (DE) communication mode.

Analog output (4 to 20 mA DC output)

In analog mode, the owmeter sends the instantaneous ow rate as a proportional 4 to 20 mA output signal to a controller or a recorder in the control system.

Digital output (DE output)

A owmeter in the DE mode can communicate in a direct digital fashion with Azbil Corpotation or Honeywell DCS system. The digital signal can include ow rate, owmeter database, and self-diagnostics.

Switching output mode

The analog/digital output mode is selectable.

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 1-3

Introduction Azbil Corporation

System conguration for analog output (4 to 20 mA DC output)

Introduction

In the analog mode, the owmeter can be congured with or without SFC

communciations.

WITHOUT the communication function

The DC power supply that transmits the analog output, when the owmeter is used without SFC communications, is built into the product.

The analog output signal is transmitted directly to the host control system.

• Analog output range: 0.8 to 22.4 mA (-20 to +115%)

• Resistive load: 0 to 600 W

WITH HART communication function

The DC power supply that transmits the analog output and HART communication,

when the owmeter is used with the HART communications, is built into the product.

• Analog output range: 3.2 to 22.4 mA (-5 to +115%)

• Resistive load: 0 to 600 W

WITH the communication function (SFC or HART)

When the owmeter is used in the analog mode with SFC communications, an external power supply (DC power) and external resistive load (minimum 250 W) is

required. HART communication is also available with the external power supply and resistive load.

• Analog output range: 3.2 to 22.4 mA (-5 to +115%)

• DC power: 16 to 45V DC

• Maximum value of external resistive load is calculated:

CAUTION

For systems WITH the SFC communication function, failure to install the external

power supply and the external resistive load, will prevent the analog output from being accepted on the receiving instrument side. Be sure to install the external

power supply and the external resistive load as specied.

1-4 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Introduction

A power supply

Device

System conguration WITHOUT the communication function

Figure 1-3 shows a sample system conguration without the communication. In this system, the device measures the ow rate and outputs analog 4 to 20mA DC signal to the Host Control System.

C or DC

Host control system

Figure 1-3 System conguration of analog output WITHOUT communication

function

Smart Electromagnetic Flowmeter (device)

• Measures ow rate and outputs an analog signal.

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 1-5

Introduction Azbil Corporation

A power supply

Device

System conguration WITH the HART communication function with

the internal power supply

Figure 1-4 shows a sample system conguration in with the HART communication.

C or DC

HART375 communicator

250Ω

Host control

4 - 20 mA analog output

system

Figure 1-4 System conguration of with the HART communication with internal

power supply

Smart Electromagnetic Flowmeter (device)

• Measures ow rate and outputs an analog signal.

HART Communicator:

• Communicate with the MagneW

FLEX+/PLUS+. For the HART communication by the HART 375 communicator, the

FLEX+/PLUS+ and congure the data of the MagneW

necessary DD le needs to be downloaded.

1-6 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Introduction

A power supply

Device

System conguration WITH the SFC or HART communication function

with the external power supply

Figure 1-5 shows a sample system conguration in which the instantaneous ow rate measured by the unit is output with a 4 to 20 mA DC analog signal.

In order to enable communications, a DC power supply and a resistance of 250W or

more must be installed on the receiving side.

C or DC

Smart communicator

SFC or HART

4 - 20 mA analog output

Figure 1-5 System conguration for analog output WITH the communication

function (example setup)

Smart Electromagnetic Flowmeter (device)

• Measures ow rate and outputs an analog signal instantaneous ow rate.

Smart Communicator (SFC):

• Communicates with the device to read data and change the device settings.

• The SFC version must be V7.0 or later.

HART Communicator:

• For the HART communications by the HART 375 communicator, the neccesary DD le needs to be downloaded.

DC24V power supply

250Ω resistance

Host control system (1 - 5 V input)

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 1-7

Introduction Azbil Corporation

A power supply

Device

System Conguration for Digital Output (DE Output)

System conguration

Figure 1-5 shows a system conguration in which the ow rate measured by the unit, the database in the unit, and self-diagnostics are output using the DE (Digital Enhancement) protocol (rules for digital signal communication).

In this system, the DE protocol-based digital signal transmitted from the unit is

output to the control system after conversion to an analog signal at the smart protocol

converter (SPC). Or, the digital signal is directly transmitted to the control system, if it is capable of receiving the DE protocol-based signal directly.

AC or DC power supply

SFC

Device

C or DC

SFC

SHL

SPC

Control system

PM100, PM300, or A-MC

Figure 1-6 System conguration for digital output

Smart Electromagnetic Flowmeter (device)

Measures ow rate and outputs the instantaneous ow rate and unit self-diagnostics

using a digital signal.

Smart protocol converter (SPC)

Converts the DE protocol-based digital signal into a 4 to 20 mA or 1 to 5 V DC

analog signal for output.

Smart handy loader (SHL)

Used to change the SPC settings.

Smart communicator (SFC)

• Used to communicate with the device to read data and change the device settings.

PM100

• Simultaneously executes such functions as process control on the UCN, regulatory control, sequencing, calculation, and process input/output.

1-8 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Introduction

The converter consists of the components shown in the gure below.

Figure 1-7 Parts of the converter

Converter

• Converts electromotive force by the detector to the ow rate signal.

• Transmits the analog output or the digital output as the ow rate signal.

Data setting device (A)

• Displays the ow rate and the totalized value.

• The Data can be congured through the four infrared sensor keys.

Terminal box (B)

• Encloses the inputs/outputs terminals.

• Equipped with lightning arrestor.

Name plate (C)

• Indicates model numbers, product numbers and the detector factor (EX).

Tag number plate (D)

• Indicates the tag number as specied in the product order.

CAUTION

Do not apply over-voltage that exceed following lightning arrestor specication.

The converter may be damaged.

• Power supply terminal: series mode 1kV, common mode 2kV

• Input/Output terminal: series mode 1kv, common mode 1kV

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 1-9

Introduction Azbil Corporation

Approval of this Device

Overview

If the basic model number is MGG14C and 1/2 NPT wiring connection is selected and style code is selected as “N”, this device functions as an FM, non-incentive-

approved model. In this case, the installation standards described in this section must be followed.

Installation of this device

FM Nonincendive model

THIS EQUIPMENT IS SUITABLE FOR USE IN CLASS I, DIVISION 2, GROUPS(A, B, C, D), CLASS II/III, DIVISION 2, GROUPS (F, G), OR NONHAZARDOUS LOCATIONS ONLY.

CAUTION

• Power supply and internal voltage of ordinary equipment to the earth shall not exceed AC250V 50/60HZ, DC250V in case of normal /formal conditions.

• Ambient temperature is from - 25 to 60C

• Process temperature is from -40 to 160C (Remote model).

• Process temperature is from -40 to 120C (Integral model)

1-10 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Introduction

Figure 1-8 System conguration

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 1-11

MEMO

Chapter 2: Installation

This chapter describes the installation and wiring procedures for the owmeter.

WARNING

ELECTRIC SHOCK HAZARD! DO NOT perform wiring work while the power is ON!

Site selection

When selecting an installation site for the owmeter, observe the following safety

measures:

CAUTION

Install the owmeter in a location with an ambient temperature of -25 °C to 60 °C (-13 °F to 140 °F) and an ambient humidity of 5 to 100% RH to prevent

equipment malfunction or output errors.

CAUTION

Do not install the owmeter near high-current power lines, motors or transformers

to prevent damage from electromagnetic induction, which can cause equipment malfunction or output errors.

CAUTION

Be sure to ground the welding power transformer when welding near the

owmeter to avoid output errors.

CAUTION

DO NOT use the owmeter to ground a welder. It can damage the owmeter.

CAUTION

Do not install the owmeter on the bridge or deck of the ship.

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 2-1

Installation Azbil Corporation

Unpacking and storage

The model MGG10C/MGG14C MagneW FLEX+/PLUS+ Flowmeter is a precision instrument and should be handled with care to prevent damage or breakage.

After unpacking the owmeter, verify that the following items are included:

• Model MGG10C/MGG14C converter

• Standard accessories

• MagneW setting data sheet

• Test report

If you have questions regarding the technical specications of the owmeter, contact your nearest Azbil Corporation oce or Azbil Corporation representative. When making an inquiry, make sure to provide the model number and product number of your owmeter.

Storage

When storing the owmeter before use:

• Store indoors at room temperature (77 °F or 25 °C) within a humidity level of approximately 65%.

• Store away from vibration or shock.

• Store the converter and detector in the original packaging.

In addition, when storing the converter after use:

• Attach the display cover, Terminal box cover and Waterproof gland(s) to prevent moisture ingression into the device.

2-2 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Installation

Installation options

There are three ways to install the owmeter. Integral systems are pre-assembled

with the converter attached to the detector; remote systems allow you to install the

converter in a remote location - wall mounted or mounted directly to a two inch (50.8 mm) pipe. The following illustrations provide dimensions for the three dierent

installation options.

Figure 2-1 Integral installation

Figure 2-2 Wall mounted remote installation

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 2-3

Installation Azbil Corporation

Figure 2-3 Pipe mounted remote installation

Changing the orientation of the converter

The model selected when the owmeter is purchased determines the orientation of the

display. It is possible, however, to change the horizontal or vertical orientation of the converter.

To change the orientation of the converter:

1. Remove the four screws holding the display cover to the main body and remove

the cover.

2. Remove the four screws holding the display panel to the main body.

3. Remove and rotate the display panel to the required orientation.

4. Replace the four screws and tighten.

5. Rotate the display cover so that the openings for the LEDs are correctly aligned

with the Display Panel.

6. Replace the four screws and tighten.

2-4 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Installation

Wiring

CAUTION

Use electrical tube and duct to prevent water entry and protect the cable from

external damage.

CAUTION

Be sure to use a waterproof gland at the conduit connection to prevent water entry inside of the terminal box and prevent output errors.

CAUTION

Turn o the power supply before connecting the cables to the converter.

The converter can be damaged. This type of damage is not covered by Azbil

Corporation’s warranty.

CAUTION

Be sure to plug all unused conduit connections with a water tight plug.

CAUTION

In case that a remote model is installed in a ship, the cables between the converter

and detector must be covered with a exible metal conduit.

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 2-5

Installation Azbil Corporation

STATUS IN STATUS OUT

Integral wiring - 1 (1-contact input and 1- contact output)

To wire a remote system, the following cables are required:

• Analog output cable - see page 2-16

• Pulse output cable - see page 2-17

• Contact input/output cable - see page 2-17

The following pages provide information on selecting the correct cables and wiring

the system. A diagram of the terminal block for a remote system is shown below.

1-contact input and 1-contact output

+-+-

POWER AC

STATUS IN STATUS OUT

+-+-

POWER AC

SB SA CA

+-+-

SB SA CA

+-+-

POWER

Figure 2-4 Integral converter terminal block

Table 2-1 Remote converter terminal descriptions

Symbol Description

I. OUT

Analog output

–

I. OUTP. OUT

(1-contact input & 1-contact output)

BXY

P. OUT

Pulse output

–

STATUS IN

Contact input

–

STATUS OUT

Contact output

–

E Not used

~ Note

In case of DC24V and DC110V power supply, the symbol of the “L” and “N” of the

Grounding (grounding resistance must be <100W)

power supply become “+” and “–”.

2-6 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Installation

STATUS IN 1STATUS IN 2

Integral wiring - 2 (2-contact input)

To wire a remote system, the following cables are required:

• Analog output cable - see page 2-16

• Pulse output cable - see page 2-17

• Contact input/output cable - see page 2-17

The following pages provide information on selecting the correct cables and wiring

the system. A diagram of the terminal block for a remote system is shown below.

2-contact input

POWER AC

+-+-

STATUS IN 1STATUS IN 2

+-+-

POWER AC

SB SA CA

+-+-

I. OUTP. OUT

SB SA CA

I. OUTP. OUT

BXY

POWER

Figure 2-5 Integral converter terminal block

Table 2-2 Remote converter terminal descriptions (2-contact input)

Symbol Description

I. OUT

Analog output

–

P. OUT

Pulse output

–

STATUS IN 1

Contact input 1

–

STATUS IN 2

Contact input 2

–

E Not used

~ Note

In case of DC24V and DC110V power supply, the symbol of the “L” and “N” of the

Grounding (grounding resistance must be <100 W)

power supply become “+” and “–”.

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 2-7

Installation Azbil Corporation

STATUS OUT 2STATUS OUT 1

Integral wiring - 3 (2-contact output)

To wire a remote system, the following cables are required:

• Analog output cable - see page 2-16

• Pulse output cable - see page 2-17

• Contact input/output cable - see page 2-17

The following pages provide information on selecting the correct cables and wiring

the system. A diagram of the terminal block for a remote system is shown below.

2-contact output

+-+-

POWER AC

STATUS OUT 2STATUS OUT 1

+-+-

POWER AC

SB SA CA

+-+-

I. OUTP. OUT

SB SA CA

I. OUTP. OUT

BXY

POWER

Figure 2-6 Integral converter terminal block

Table 2-3 Remote converter terminal descriptions (2-contact output)

Symbol Description

I. OUT

Analog output

–

P. OUT

Pulse output

–

STATUS OUT 1

Contact output 1

–

STATUS OUT 2

Contact output 2

–

E Not used

~ Note

In case of DC24V and DC110V power supply, the symbol of the “L” and “N” of the

Grounding (grounding resistance must be <100 W)

power supply become “+” and “–”.

2-8 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Installation

STATUS IN STATUS OUT

Remote wiring - 1 (1-contact input and 1- contact output)

To wire a remote system, the following cables are required:

• Signal cable - see page 2-12

• Excitation cable - see page 2-12

• Analog output cable - see page 2-16

• Pulse output cable - see page 2-17

• Contact input/output cable - see page 2-17

The following pages provide information on selecting the correct cables and wiring

the system. A diagram of the terminal block for a remote system is shown below.

1-contact input and 1-contact output

POWER AC

+-+-

STATUS IN STATUS OUT

+-+-

POWER AC

POWER

SB SA CA

+-+-

SB SA CA

+-+-

Figure 2-7 Remote converter terminal block

Table 2-4 Remote converter terminal descriptions

Symbol Description

A B C

Flow rate signal input SA SB

I. OUT

P. OUT

STATUS IN

STATUS OUT

–

Analog output

–

Contact input

Contact output

X Y

E Not used

Grounding (grounding resistance must be <100W)

I. OUTP. OUT

(1-contact input & 1-contact output)

Pulse output

Excitation

~ Note

In case of DC24V and DC110V power supply, the symbol of the “L” and “N” of the power supply become “+” and “–”.

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 2-9

Installation Azbil Corporation

STATUS IN 1STATUS IN 2

Remote wiring - 2 (2-contact input)

To wire a remote system, the following cables are required:

• Signal cable - see page 2-12

• Excitation cable - see page 2-12

• Analog output cable - see page 2-16

• Pulse output cable - see page 2-17

• Contact input/output cable - see page 2-17

The following pages provide information on selecting the correct cables and wiring

the system. A diagram of the terminal block for a remote system is shown below.

2-contact input

Table 2-5 Remote converter terminal descriptions (2-contact input)

I. OUT

P. OUT

STATUS IN 1

STATUS IN 2

+-+-

POWER AC

STATUS IN 1STATUS IN 2

+-+-

POWER AC

POWER

SB SA CA

+-+-

I. OUTP. OUT

SB SA CA

I. OUTP. OUT

Figure 2-8 Remote converter terminal block

Symbol Description

A B C

Flow rate signal input SA SB

–

X Y

Analog output

Pulse output

Contact input 1

Contact input 2

Excitation

E Not used

Grounding (grounding resistance must be <100 W)

~ Note

In case of DC24V and DC110V power supply, the symbol of the “L” and “N” of the power supply become “+” and “–”.

2-10 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Installation

STATUS OUT 2STATUS OUT 1

Remote wiring - 3 (2-contact output)

To wire a remote system, the following cables are required:

• Signal cable - see page 2-12

• Excitation cable - see page 2-12

• Analog output cable - see page 2-16

• Pulse output cable - see page 2-17

• Contact input/output cable - see page 2-17

The following pages provide information on selecting the correct cables and wiring

the system. A diagram of the terminal block for a remote system is shown below.

2-contact output

POWER AC

+-+-

STATUS OUT 2STATUS OUT 1

+-+-

POWER AC

POWER

SB SA CA

+-+-

I. OUTP. OUT

SB SA CA

I. OUTP. OUT

Figure 2-9 Remote converter terminal block

Table 2-6 Remote converter terminal descriptions (2-contact output)

Symbol Description

A B C

Flow rate signal input SA SB

I. OUT

P. OUT

STATUS OUT 1

STATUS OUT 2

X Y

–

Analog output

Pulse output

Contact output 1

Contact output 2

Excitation

E Not used

Grounding (grounding resistance must be <100 W)

~ Note

In case of DC24V and DC110V power supply, the symbol of the “L” and “N” of the power supply become “+” and “–”.

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 2-11

Installation Azbil Corporation

Grounding

CAUTION

ELECTRIC SHOCK HAZARD! Grounding is essential for accurate measurement. The grounding resistance must be less than 100W.

Signal and excitation cable specications

For remote installations, the converter and detector are connected using a set of dedicated cables (Model MGA12W). The signal cable connects the output signal

of the detector to the converter and the excitation cable feeds the excitation current

to the detector. You can obtain these cables from Azbil Corporation or purchase commercially available cables. Integral owmeters already contain the converter to

detector connections.

The cables between the detector and converter should be no longer than 300 m (984 ft.), but the actual length depends on conductivity of the uid being measured.

The following cable diameters apply:

Signal cable - 11.4 mm (0.45 in.), 0.75 mm

(.0011625 sq. in.) or equivalent

commercially available cable (CVVS or CEEV, for example)

Excitation cable - 10.5 mm (0.41 in.), 2 mm

(.0031 sq. in.) or equivalent

commercially available cable (CVV, for example)

Cable dimensions and construction are shown on the following pages.

The following graphs show the ratio of uid conductivity to cable length and show cable usage ranges for dierent diameter cables. The acceptable usage range for Azbil Corporation’s cable Model MGA12W cables encompass both areas A and B in the

graphs below while commercially available cables are limited to area A only.

Figure 2-10 Cable usage ranges

2-12 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Installation

Detector side Converter side

Out

ath

)

Conduct

ator

Out

er shiel

Sheath

ator

Conduct

citation cable

mm (inches)

To M4 Screw

Model A

To M4 Screw

Model B

60 (2.36)

L 90 (3.54)

60 (2.36)

65 (2.56)

70 (2.76)

40 (1.57)

60 (2.36)

Figure 2-11 Signal Cable Dimensions

90 (3.54)

65 (2.56)

60 (2.36)

To M4 Screw

60 (2.36)

mm (inches)

60 (2.36)

To M4 Screw

60 (2.36)

Figure 2-12 Excitation Cable Dimensions

nal cable

er she

Inner she

Inner shiel

Conductive tube (Black

ive wir

Insul

Figure 2-13 Signal and excitation cable construction

~ Note

Strip the conductive tubing (black) down to the ends of the inner shields on the conductive wires for terminals A and B of the signal cable.

70 (2.76)

To M4

70 (2.76)

Cloth ta

Insul

Screw

ive wir

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 2-13

Installation Azbil Corporation

ctor

tation cable

ctor

tation cab

Dedi

cated cabl

e model MGA12

Commerciall

Signal and excitation cable wiring

The following gure shows the proper terminal connections for the signal and excitation cables for both model MGA12W cables and commercial cable.

Signal cabl model MGA12

nverte

Dete

Exci model MGA12

Dete

available cabl

nal cable 2-cor

Si Single shielded cabl

Exci

Figure 2-14 Detector to converter wiring diagram

nverte

2-14 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Installation

Wiring cable

Selecting the cable

The recommended wiring cable is a 600V vinyl sheath electrical wire CVV (JIS C

3401) with a conductor section of 2 mm

equivalent or higher capacity.

Shielded wire is recommended for wiring at locations subject to electromagnetic

noise interference.

Select a sheath material suitable for the cable installation environment (consider ambient temperature, corrosive gas, corrosive uid, etc.)

Run the cable into the terminal block through the conduit connection (G1/2 internal thread, CM20 external thread, Pg13.5 or 1/2NPT internal thread).

An outer diameter of outer diameters is

A crimp terminal (M4 screw) with an insulation sleeve is recommended for the

terminal connections.

11(0.433 inch) is optimum. (The applicable range of cable

10(0.394 inch) - f12(0.4724 inch).)

(0.0031 inch2), or a twisted cable with an

~ Note

The maximum length of the wiring cable is 1500 m(4921 ft). However, the maximum length between converter and detector is 300 m(984 ft).

Wiring the cable

When wiring the cable between this product and the control equipment, the following precautions must be observed.

• Run the wiring away from equipment that may generate noise, such as highcapacity transformers, motors, or power supplies. DO NOT install the cable in the same tray or duct as other power cables. Output errors may result.

• For water proong and damage prevention of the wire, we recommend cabling work using conduits and ducts. Use a water proof cable gland.

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 2-15

Installation Azbil Corporation

With SFC communications

* An external power supply is needed.

With HART communications(internal power supply)

Wiring

Analog output wiring

The current output wiring method depends on HART or SFC communication.

An external power supply is required to communicate with the SFC.

(Change dip switch settings only after turing power supply OFF.)

Position of dip switch pins

I OUT

SFC

~ Note

Converter

Brack

Red

HART375 Communicator

DC power

supply

24V/42V

Red

SFC

Receiving instrument

(Move the switches to the blackened positions.)

Position of dip switch pins

I OUT

(Move the switches to the blackened positions.)

SFC

Figure 2-15 Wiring diagram for current output

• Check and conrm that the polarity of the wiring is correct. Incorrect polarity may

cause damage to the equipment.

• In case of not using communication function, the position of dip switch pins should be set as the HART communication. HART Communication works with the wiring for the SFC communication.

• The communication type (HART or SFC) must be specied when ordering. In case of communication change, the following two congurations are necessary.

1) According to the communication type, switch position should be changed. (Refer to the Figure 2-15).

2) Change communication type in the “COM SELECT” screen in the “Shipping Info” screen.

2-16 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Installation

Protective diode

S6 switch

Empty detection function switch

Wr protec switch

Main car

C switch

Pulse output wiring

The pulse output is an open collector output.

Pay close attention to voltage and polarity when wiring.

200mA max.

Load

~ Note

External

power supply

30V max.

Avoid this polarity

Figure 2-16 Wiring diagram for pulse output

Check and conrm that the polarity of the wiring is correct. Incorrect polarity may cause damage to the equipment.Use an external power supply that meets the voltage and capacity specications. Pulse may be output when the power is turned ON or OFF. Pulse output protection circuit causes voltage drop. Some counters may not pick up the pulses due to this voltage drop. In such case, turn On S6 switch. Refer to the Figure 2-17.

ite

tion

ommnication

Pulse output protection circuit

S6 ON

Figure 2-17 Switch locations on main card

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 2-17

Installation Azbil Corporation

Withstand voltage 30V min.

Contact input wiring

Either a semi conductive contact or a no-voltage contact can be used as the contact

input.

The contact input terminals are not available when a 2-contact output model has been

selected.

STATUS IN

24V

STATUS IN

Required specications for the semi - conductive contact.

OFF: Leak current 0.1mA max. ON : Saturation voltage 3V max. ON current 15mA max.

Required specications for No-voltage contact.

OPEN: Resistance 100k min. CLOSE : Resistance 400 max.

Figure 2-18 Wiring diagram for contact input

Contact output wiring

Pay close attention to voltage and polarity when wiring for an open collector output.

Protective diode

Load

External

power supply

30V max.

Avoid this polarity

Figure 2-19 Wiring diagram for contact output

~ Note

Check and conrm that the polarity of the wiring is correct. Incorrect polarity may cause damage to the equipment.

Use an external power supply that meets the voltage and capacity specications.

2-18 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Installation

Setting write protection

Write protection settings allow you to control the level at which data conrmation

and manipulation are possible. The system has four modes:

Basic setup mode - used to run the owmeter on a day-to-day basis.

Engineering mode - used by those who are responsible for owmeter conguration.

Maintenance mode - used when system maintenance is required.

Advanced mode - used to apply some specic noise immunity functions, and other

advanced functions.

Write protection settings are changed by setting the switch positions of the write

protection switch on the main card in the converter. When the owmeter is shipped, settings can be made in any mode (Level 0). The following table shows the write

protect levels available by resetting the switch:

Table 2-7 Write Protection Levels

Level

Basic setup/

Engineering

mode

Advanced

mode

Maintenance

mode

Remarks

3 – –

a - Both data conrmation and manipulation are possible.

– - Only data conrmation is possible.

r - Neither data conrmation nor manipulation are possible.

a a a a a r a

–

r r

Default setting

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 2-19

Installation Azbil Corporation

Empty detection function switch

C switch

Level 0

Level 1

Level 2

Level 3

To set the write protection level:

1. Remove the four screws holding the display cover to the main body of the converter and remove the cover.

2. Locate the write protection switch.

Write protection switch

Main card

ommnication

Figure 2-20 Switch locations on main card

3. Set the write protection switch positions to the required level of protection.

Write protect

OFF

(Move the switches to the white positions)

Figure 2-21 Write protection switch positions

2-20 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Installation

Empty detection function switch

Wr protec switch

Main car

C switch

OFF ON

I SFC

Setting the communication via the HART

To check the communication switch position on the main card:

1. Remove the four screws holding the display cover to the main body of the converter and remove the cover.

2. Locate the communication switch

ite

tion

ommunication

3. Make sure that position of the I switch (1-4) are ON and positions of the SFC switch (5-8) are OFF.

Figure 2-22 Switch locations on main card

5678

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 2-21

~ Note

FSKOFF

(Move the switches to the white positions)

Figure 2-23 HART communication switch positions

Refer to the Figure 2-15 Wiring diagram for current output for the wiring

Installation Azbil Corporation

Empty detection function switch

Wr protec switch

Main car

C switch

Empty detec function ON

function OFF

EPEP

Setting the empty detection function

This function xes the analog output and latches the display to zero when the detector

is empty.

To set the empty detection function:

1. Remove the four screws holding the display cover to the main body of the converter and remove the cover.

2. Locate the empty detection function switch.

ite

tion

ommunication

Figure 2-24 Switch locations on main card

3. Set the empty detection function switch positions to the required setting.

2-22 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

tion

Empty detection

(Move the switches to the white positions)

Figure 2-25 Empty detection function switch positions

OFF ON

Azbil Corporation Installation

Empty detection function switch

Wr protec switch

Main car

OFF ON

I SFC

Setting the communication via the SFC

To check the communication switch position on the main card:

1. Remove the four screws holding the display cover to the main body of the converter and remove the cover.

2. Locate the communication switch

ite

tion

Communication switch

3. Make sure that position of the I switch (1-4) are OFF and positions of the SFC switch (5-8) are ON.

Figure 2-26 Switch locations on main card

5678

OFF ON

Figure 2-27 SFC communication switch positions

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 2-23

Installation Azbil Corporation

Connecting power

WARNING

ELECTRIC SHOCK HAZARD! DO NOT perform wiring work while the power is ON!

Commercial power (AC100~120, 200~240V, 50-60Hz) or a 24 VDC ± 10% power supply is required for this system. The power supply specication is shown on the

name plate of your converter.

Figure 2-28 Name plate

The 24 VDC converter has a terminal marked “POWER DC24V” instead of “POWER,” as on the remote converter.

2-24 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Chapter 3: Operation

This chapter describes the procedure for starting and shutting down the owmeter and using the display panel and the infrared touch sensor keys.

Start-up

To start operation of the owmeter:

1. Conrm that the detector is correctly installed on the pipe.

2. Conrm that the wiring between the converter and the detector has been properly completed according to the installation instructions specied in this manual. In case of using a HART/SFC communication function, verify an appropriate wiring

according to the wiring in this users manual.

3. Begin and then stop uid ow through the detector so that uid is present in the

detector in a static condition.

4. Conrm that there is no leakage at the anges of the detector.

5. Apply power to the converter.

6. The following display appears seven seconds after the power is ON.:

7. Zero the owmeter using the procedure on page 4-14.

Shut down

causing the valve positioner to malfunction.

WPO 0000000020

Figure 3-1 Start-up display

The owmeter is now on and operational.

CAUTION

To stop operation of the owmeter:

1. Switch the control equipment connected to the owmeter to manual control.

2. Turn o power to the converter.

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 3-1

Operation Azbil Corporation

Main displa

Auxillar

Using the display panel

The display panel is shown below, followed by a description of each feature. The

infrared touch sensor keys are described in the next section.

Totalized value displa

Percent flow rate displa

displa

LCD displa

MOD

123456TOTA

Actual flow rate displa

Figure 3-2 Display panel

Main display

- Indicates the ow rate selected in basic setup mode.

Auxiliary display

- Several values are displayed in this area:

• During measurement mode, indicates a ow rate to supplement the ow rate selected in the basic setup mode.

• Indicates the totalized value

• When not in measurement mode, indicates the procedures for parameter setting, adjustment, etc.

Percent ow display

- When lit, indicates that the percent ow rate is currently being displayed on Main

display.

Actual ow rate display

- When lit, indicates that the actual ow rate is currently being displayed on Main

display.

Totalized value display

- When lit, indicates that the totalized value is currently being displayed on Main

display.

3-2 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Operation

button

RIGHT SHIFT

button

Infrared touch

Using the infrared touch sensor keys

The infrared touch sensor keys allow you to make selections by simply touching the

display panel.

MagneW3000

1234

MOD

Figure 3-3 Touch sensor keys

For best results, approach the key from below

and completely cover the circle. Then move

your nger straight down to its original

position. These motions ensure correct

operation. Moving sideways across the keys

can accidently activate the wrong control.

FLEX

TOTA

sensor button

UP button

DOWN button

Figure 3-4 Using the touch sensor keys

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 3-3

Operation Azbil Corporation

The following table is a summary of the functions of each of the keys.

Table 3-1 Touch Sensor key Functions

key Function

Touching and holding this key for more than three seconds

MODE key

RIGHT SHIFT key

opens Basic setup MODE.

Writes data into memory after changing the parameters or internal data in engineering mode, maintenance mode or advanced mode.

Shifts the cursor in the display to the right.

When the cursor is on the Mode Indicator as shown below,

touching the DOWN key displays the next screen.

DOWN key

When the cursor is located at a number, touching the DOWN key decrements the number.

When the cursor is located at the decimal point, touching the

DOWN key moves the decimal point to the right.

3-4 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Operation

Table 3-1 Touch Sensor key Functions

key Function

When the cursor is on the Mode Indicator as shown below,

touching the UP key displays the next screen.

When the cursor is located at a number, touching the UP key

increments the number.

UP key

When the cursor is located at the decimal point, touching the

UP key moves the decimal point to the left.

When the cursor is located at READY, touching the UP key

starts operation.

Table 3-2 Default settings

Parameter Default Parameter Default

TAG XXXXXXXX HI-ALM +115%

DAMPING 3.0s LO-ALM -115%

SPAN as specied FALL SAFE MODE LOW

DISPLAY SELECT as specied ST. OUT MODE CLOSE

HYSTERESIS 0 AVERAGING OFF

GRAVITY 1.0000 COEFFICIENT 1.0000

PLS SCL

(PULSE SCALE)

as specied or

1.0000 l/p

DROP OUT 2%

PLS WID

(PULSE WIDTH)

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 3-5

DUTY 50 LOW FLOW CUT OFF

MEMO

Chapter 4: Using the display panel

This chapter describes the four modes of operation and how to use each one. A ow

chart of the functions for each mode is also included.

About modes

The MagneW FLEX+/PLUS+ Flowmeter has ve modes of operation:

• MEASURING MODE

• BASIC SETUP MODE

• ENGINEERING MODE

• MAINTENANCE MODE

• ADVANCED MODE

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-1

Using the display panel Azbil Corporation

The following table describes the functions available in each mode.

Table 4-1 Mode functions

Mode Description

This is the normal operational mode and indicates the measuring status.

Each time the MEASURING MODE is selected, data is written into memory. Settings entered in

MEASURING MODE

other modes are held in temporary memory for two minutes, but will return to the previously saved value

unless the MEASURING MODE is selected to save

the data. The only exception is the counter, which is always saved into memory immediately.

This mode is used to change data settings that must be recorded or changed frequently. These settings include:

BASIC SETUP MODE

Mode indicator:

TAG NO.

Damping time constant Display select Auto zero

Flow rate range

Detector data

Built -in counter reset/preset

ENGINEERING MODE

Mode indicator:

MAINTENANCE MODE

Mode indicator:

This mode is used to change data settings that are used less frequently. These settings include:

Function setting Flow rate range Pulse data Fail safe mode setting

This mode is used when adjustment or verication

is required for regular maintenance of the system or when troubleshooting the system. This mode includes:

Shipping information Output adjustment Gain adjustment

This mode is further divided into the following two modes:

OUTPUT CHECK MODE CALIBRATION MODE

4-2 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Using the display panel

Table 4-1 Mode functions

Mode Description

This mode is used to apply some specic noise

immunity functions. This mode includes:

ADVANCED MODE

Damping Manual zero

Mode indicator:

Averaging

Auto spike Cut Coecient

Drop out

Low-ow cut o Flow direction change

CAUTION

The CALIBRATION MODE and ADVANCED MODE contain adjustments and operations that are very important for proper ow rate measurement. Improper

settings in these modes will prevent measurement.

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-3

Using the display panel Azbil Corporation

MEASURING MODE

This is the normal operational mode. In this mode, the screen indicates the measuring status. What is displayed on screen depends upon the setting selections made in the other modes.

This mode performs one other important function. Entering this mode causes the system to save settings entered in other modes. Each time the MEASURING MODE is selected, data is written into memory. Settings entered in other modes are held in

temporary memory for two minutes, but will return to the previously saved value

unless the MEASURING MODE is selected. The only exception is the counter,

which is always saved into memory immediately.

CAUTION

After entering settings in other modes, ALWAYS immediately select the MEASURING MODE to save settings.

4-4 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Using the display panel

LCD display ow

The following screens appear in this order.

than 3 seconds.

Move the cursor under YE

(to be continued)

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-5

Using the display panel Azbil Corporation

seconds later

ced mode

000 m3/h

)

COU

0000000000

0000

)

ENGINEERIN

MOD

FUNC SET FOAXX

1.4147 m PAN 10.

1.4147 m PN1 10.

PN2 20.

HYSTERSI

I. OUT RAN

AUT

GRAVIT

.8294 m/

NTER PRESE

1.4147 m PN+ 10.

Advan

2.8294 m

PN- 20.

(*2): Indicated when single range is selected. (*3): Indicated when normal direction automatic dual range or normal direction external switching range is selected. (*4): Indicated when normal/reverse automatic range or normal/reverse external swiching range is selected. (*5): Indicated when automatic range is selected in (*3) and (*4). (*6): Indicated when normal direction dual range is selected. (*7): Indicated when a mass unit is selected.

(to be continued)

4-6 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Using the display panel

(*13): Indicated when single range H1-L1/H2-L2 is selected in function setting.

(*13)

# FUNC SET FOAXX

Single range

# PLS 27.778 Hz SCL 100.00 cm3/P

# PLS 27.778 % WID NUM 010.00ms

# FAIL SAFE MODE I.OUT HOLD

(*10)

# PLS 27.778 Hz SCL 100.00 cm3/P

(*10)

# PLS1 27.778 % WID NUM 010.00ms

Dual range

# HI-ALM +100 % LO-ALM -100 %

(*8)(*10)

(*9)

# HI-ALM1 +100 % LO-ALM2 +100 %

# HI-ALM1 -100 % LO-ALM2 -100 %

# FAIL SAFE MODE P.OUT HOLD

# ST. OUT MODE NORMAL CLOSE

# MODE RETURN BASIC SETUP

(*8) : Indicated when normal direction dual range or normal/reverse direction range is selected. (*9) : Indicated when high/low limit alarms are set for the contact output in function setting. (*10): May indicate "DUTY50%" instead of "NUM". (*11): Indicated when 1-contact output/1-contact input is reqistered in function setting. (*12): Indicated when 2-contact output is used.

(*11)

# ST. OUT1 MODE NORMAL CLOSE

# ST. OUT2 MODE NORMAL CLOSE

(*12)

(to be continued)

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-7

Using the display panel Azbil Corporation

)

OSE

seconds later

> MAINTENANCE

MOD

> OUTPUT CHE

> CALIBRATI

> SHIPPING INF

> MODE RETUR BASIC SET

> OUTPUT CHE

> OUTPUT CHE I.OUT 100.0

P.OUT 100.0

> ST. IN CL ST. OUT CL

EXX 160.

P.OUT1 100.0

(*15

ST. IN2 CL

*14): Indicated when normal direction dual range or

normal/reverse direction ran

*15): Display depends on the settings for contact inpu

and contact output

*14

*15

ST. OUT2 CL

e is selected

(to be continued)

4-8 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Using the display panel

000mA

0001

> CALIBRATI

seconds later

> CAL EXS CURREN

160.

> CAL I.OUT OF LOW 4.

HIGH 20.

> CAL GAIN 50H ZERO READ

> CAL GAIN1 50H

02.50m/s READ

> CAL GAIN2 50H

10.00m/s READ

> SHIPPING INF ON

> ROM VER 4. DATE 04-04-

> CAL GAIN 50H

> SHIPPING INF OF

seconds late

> HART DEVICE I

> LANGUAGE

ENGLISH

> SHIPPING DAT RECOVERY READ

> DTC AUG ' R-HP111-44-

> CNV AUG ' R-HP111-44-

(to be continued)

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-9

Using the display panel Azbil Corporation

003.0S

seconds later

0000

003.0S

)

*17): Indicated when normal direction dual range or normal/reverse direction range is selected

ADVANCED

MOD

DAMPIN

MANUAL ZER

AVERAGIN

AUTO SPIKE CU

AUT

SPIKE CUT

TIME 00.0 SE

*16

DECIMAL PLACE

DECIMAL PLACE2

& EX FREQUENC

12.5H

I. OUT LIMITE

FLOW DIRECTIO

FORWAR

*17

SPIKE CU

LEVEL 00.0

COEFFICIEN

DROP OU

LOW-FLOW CU

*16): Damping can be set in both BASIC SETUP MODE and ADVANCED MODE

ERROR HISTOR

I EX CHK ER

CLEAR ERR HS

MODE RETUR

BASIC SET

*16

DAMPIN

4-10 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Using the display panel

WPO 0000000020

YES OR NO

Entering BASIC SETUP MODE

The following screens appear in this order in BASIC SETUP MODE.

Screen

Step

(English) (Japanese)

ENTER BASIC SETUP YES OR NO

10.0 m3/h

ENTER BASIC SETUP

BASIC SETUP MODE

Left display is an example of MEASURING MODE. Touch MODE key and hold for three seconds. The BASIC SETUP MODE ENTER screen

appears.

Make sure to operate the

following within 8 seconds. If no operation is done in 8 seconds, the screen automatically returns to the

MEASURING MODE.

1) In case of entering BASIC

SETUP MODE

Touch the

the cursor to YES. Touch the key once.

2) In case of back to MEASURING MODE

Touch the

move the cursor to NO. Touch

the

With the operation of 1), the BASIC SETUP MODE screen

appears for two seconds.

Procedure

key twice to move

key three times to

key once.

TAG setting screen appears two

seconds after.

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-11

TAG XXXXXXXX

Using the display panel Azbil Corporation

Setting the TAG NO.

This function sets the TAG NO. of the owmeter.

Default setting

XXXXXXXX

Setting range

8 characters max. Alphanumeric characters, -, @, and space can be set.

Screen

Step

(English) (Japanese)

Procedure

ENTER BASIC SETUP

YES OR NO

TAG XXXXXXXX

TAG FXXXXXXX

TAG FIC-0001

Enter the BASIC SETUP MODE. (See page 4-11)

In the BASIC SETUP MODE, the TAG NO. screen is the rst

screen that appears.

Touch the key until the cursor is at the character to be changed.

Touch or key to change the character.

Touch the key until the

cursor is back at the mode

indicator.

4-12 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Using the display panel

ENTER BASIC SETUP YES OR NO

003.0s

010.0s

Damping time constant

The damping time constant removes minute uctuations when transmitting the measured ow rate to the control equipment. Check the amplitude of uctuation in ow output and set the damping time constant to an appropriate value. The new value becomes eective as soon as it is entered

Default setting

3.0 second.

Setting range

0.1 to 199.9 seconds. (0.0 to 199.9 seconds for “Fast Response Option for Short Run Batch Precess”.)

Screen

Step

(English) (Japanese)

Procedure

DAMPING

003.0s

& &

DAMPING

Enter the BASIC SETUP MODE. (See page 4-11)

Use the Touch or key to

cycle through the screens until the damping screen appears.

Touch the key until the cursor is at the value to be

changed. (in the example, the key is touched three times.)

Use or key to change

the numeric value. Touch and

holding either key quickly

increments or decrements the values.

Touch the key until the

cursor is back at the mode indicator. Touch the MODE key and hold for three seconds to return to MEASUREMENT MODE to save the Damping Time Value.

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-13

Using the display panel Azbil Corporation

ENTER BASIC SETUP YES OR NO

READY

Auto zero

This function adjusts the owmeter so that the measured ow rate is zero when the uid is in static condition inside the detector.

CAUTION

Before operating the owmeter for the rst time, be sure to carry out auto zero. Zero adjustment is very important for accurate ow measurement.

CAUTION

Before performing auto zero calibration of the owmeter, make sure the detector is properly grounded (grounding resistance must be less than 100 W), that the detector is lled with the uid to be measured and that the uid is in static condition. Zero adjustment is possible with a ow speed of 0.2 m/s (0.656 ft./s) or less, but the ow speed should be 0.0 m/s (0.0 ft./s) for accurate adjustment. Output errors can result from improper zeroing.

If the conditions above can not be guaranteed the auto zero function should be ignored.

Step

Screen

(English) (Japanese)

AUTO ZERO

Procedure

Enter the BASIC SETUP MODE. (See page 4-11)

Use the or key to cycle

through the screens until the

AUTO ZERO screen appears.

Touch the key once to move the cursor to READY to indicate

that the system is ready for zeroing.

Touch the key once to

select READY and start the

auto zero adjustment. The

large numerical display ashes and READY changes to ON

during adjustment. When the zero adjustment is complete,

the ashing stops and ON changes back to READY. Zero adjustment takes approximately 60 to 100 seconds.

4-14 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Using the display panel

READY

Screen

Step

(English) (Japanese)

Procedure

Touch the key until the cursor is back at the mode

indicator.

AUTO ZERO

Touch the MODE key and hold

for three seconds to return to

MEASUREMENT MODE to

save the zero setting.

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-15

Using the display panel Azbil Corporation

0000010000

0000050000

Flow counter - Reset value

This function sets the totalization starting value of the built-in ow counter

Screen

Step

(English) (Japanese)

CNT-RESET VALUE

0000010000

To change this function, the

DISPLAY SELECT must be set to TOTAL (see page 4-22). Enter BASIC SETUP MODE (see page 4-11). Use the

screens until the CNT-RESET VALUE screen appears.

Touch the key as many times as is necessary to move the cursor to the value to be

changed. (In the example, the key is touched six times.)

Procedure

key to cycle through the

CNT-RESET VALUE

Touch the or key to change the numerical value. Touching and holding either

key quickly increments or

decrements the values.

Touch the key until the

cursor is back at the mode indicator.Touch the MODE key and hold for three seconds to return to MEASUREMENT MODE to save the new value.

4-16 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Using the display panel

0000000000

0000123456

Flow counter - Resetting

This function resets the current totalized value and saves it to memory. (The default value for the counter is 000000000 at power-up.)

Screen

Step

(English) (Japanese)

CNT-RESET READY

Enter BASIC SETUP MODE (see page 4-11). (The rst

screen in this mode is always the

TAG screen.) Use the

through the screens until the

CNT-RESET screen appears.

Procedure

or key to cycle

CNT-RESET READY

CNT-RESET ON

Touch the key once to move the cursor to READY.

Touch the key to select READY and reset the counter. READY changes to ON as the

counter resets and then changes

back to READY when it’s done.

Touch the key until the cursor is back at the mode indicator.Touch the MODE key and hold for three seconds to return to MEASUREMENT MODE to save the new value.

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-17

Using the display panel Azbil Corporation

MGG DIA 050.0

KID DIA 100.0

Detector data

This function is used to select the constant, model and diameter of the detector being used with this converter. In this screen, three values can be changed: the detector

constant (EX), detector type (MGG, KID, NNK, NNM) and the detector diameter (DIA)

Default setting

If only converter is purchased, the default values are EX 300.0, MGG, DIA050.0.

CAUTION

If the converter and detector are purchased together, the converter contains the

detector data that was set during actual ow calibration. DO NOT change this data or the owmeter output will be incorrect.

Screen

Step

(English) (Japanese)

EX 300.0 MGG DIA 050.0

Enter BASIC SETUP MODE (see page 4-11). Use the

through the screens until the

detector DATA (EX/DIA)

screen appears.

Procedure

or key to cycle

EX 320.0

EX 320.0 KID DIA 050.0

EX 320.0

Touch the key until the cursor is at the detector Constant

(EX) to be changed.

Touch the

or key to

change the value.

Touch the key until the cursor is at the detector type.

Use the

or key to change

the value.

Use the key to move the

cursor to the detector Diameter value.

The converter works with the following detector Diameters (in millimeters):

s 2.5 s 5 s 10 s 15 s 25 s 40 s 50 s 65 s 80 s 100 s 125 s 150 s 200 s 250 s 300 s 350 s 400 s 450 s 500 s 600 s 700 s 800 s 900 s 1000 s 1100

4-18 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Using the display panel

Screen

Step

(English) (Japanese)

Procedure

Touch the key until the

EX 320.0 KID DIA 100.0

cursor is back at the mode

indicator

a: Can be used

Size/Detector Model No. MGG KID NNM NNK

2.5

5.0

10.0

15.0

25.0

40.0

50.0

65.0

80.0

100.0

125.0

150.0

200.0

250.0

300.0

350.0

400.0

450.0

500.0

600.0

700.0

800.0

900.0

1000.0

1100.0

a a

a a a

a a a a

a a a

a a a a

a a a

a a a a

a a a

a a a a

a a

a a a a

a a

~ Note

For MGG and KID type detectors, set the detector factor (EX) as the value stamped on the name plate. For NNM and NNK if you need to replace a converter with a new one, contact an Azbil Corp. representative.

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-19

Using the display panel Azbil Corporation

DUMMIY 0

DUMMIY 3

Setting the Number of Dummy Detectors

This is used to set number of dummy detectors installed with the NNK detector (selected in the detector data setting).

This screen appears only for open channel type electromagnetic owmeter NNK.

Default setting

Setting range

0 to 9

Screen

Step

(English) (Japanese)

Enter BASIC SETUP MODE (see page 4-11). Use the

through the screens until the detector DATA screen appears. Touch the cursor to the detector type. Change the detector type as

NNK using the

Procedure

or key to cycle

key move the

key.

Touch the key once.

Use the or key to input

the number of dummy detectors.

In this example, the number of the dummy detectors has been

changed from 0 to 3.

Touch the key once to move the cursor to the mode indicator.

4-20 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Using the display panel

SPAN 10.000 m3/h

SPAN 333.33 l/min

Flow rate range

This function is used to set the ow rate range (the value when the analog output reaches 100%). In this screen, three values can be changed: ow rate value, ow rate

unit, and time unit.

Setting range

Flow rate: 0.00001 to 99999

Unit: m

Time unit: s, min., h, d

Step

(English) (Japanese)

1.4147 m/s

, l, cm3, t, kg, g, BPH, KGPH, GPH, mGPH, lb,

KGPM,GPM, mGPM

Screen

Procedure

Enter BASIC SETUP MODE

1.4147 m/s

(see page 4-11).Use the key to cycle through the screens until the SPAN screen appears.

1.4147 m/s SPAN 10.000 m3/h

2.8294 m/s

SPAN 20.000 m3/h

2.8294 m/s

SPAN 20.000 l/h

2.8294 m/s

SPAN 333.33 l/min

1.4147 m/s SPAN 10.000 m

2.8294 m/s SPAN 20.000 m

2.8294 m/s SPAN 20.000 l/h

2.8294 m/s SPAN 333.33 l/min

Touch the key until the cursor is at the ow rate value to be

changed.

Touch the or key to change the value.

Use the key to move the cursor to the ow rate unit.Touch the

key to change the unit.

CAUTION

If a weight unit is set, the

Specic Gravity must also be

set to avoid output errors.

Use the key to move the

cursor to the time unit.Touch the

or key to change the unit.

Available units: h, min., s, d

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-21

2.8294 m/s

Touch the key until the cursor is back at the mode indicator.

Using the display panel Azbil Corporation

RATE

TOTAL

RATE

TOTAL

RATE

Flow rate indication

This function selects the ow rate indication displayed on screen. The data can be displayed as a percent (%), the actual ow rate (RATE) or the totalized value (TOTAL)

Default setting

As specied when ordered.

Setting range

%(ow rate in percent), RATE (actual ow rate), TOTAL (totalized value)

Screen

Step

(English) (Japanese)

DISPLAY SELECT

Enter BASIC SETUP MODE (see page 4-11).Use the key to cycle through the screens until the DISPLAY SELECT

screen appears.

Procedure

Touch the key once to move

DISPLAY SELECT

the cursor to the ow rate

indication value.

DISPLAY SELECT

Touch the or key to scroll through the selections (%, RATE or TOTAL). Note that

the Main Display changes as

the dierent display selections appear. The current ow rate

DISPLAY SELECT

indication value appears at the upper right in the Main Display.

Touch the key until the

DISPLAY SELECT

cursor is back at the mode

indicator.

4-22 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Using the display panel

ENGINEERING

MODE

ADVANCED

Entering ENGINEERING / ADVANCED / MAINTENANCE MODE

This is to describe how to enter ENGINEERING, ADVANCED and MAINTENANCE MODE.

~ CAUTION

Check the write protection level to enter each mode (See page 2-19).

Entering ENGINEERING MODE

Screen

Step

(English) (Japanese)

MODE ENTER ENGINEERING

MODE ENTER

ENGINEERING

Procedure

Enter BASIC SETUP MODE (see page 4-11). Use the

key to cycle through the

screens until the MODE ENTER ENGINEERING screen appears.

Touch the key once to move the cursor to ENGINEERING.

Touch the key to select. The ENGINEERING MODE screen

appears.

FUNC SET FQAXX

Entering ADVANCED MODE

Screen

Step

(English) (Japanese)

MODE ENTER ADVANCED

MODE ENTER

Two seconds later, Function set

screen appears.

Procedure

Enter BASIC SETUP MODE (see page 4-11). Use the

key to cycle through the

screens until the MODE ENTER ADVANCED screen appears.

Touch the key once to move the cursor to ADVANCED.

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-23

Using the display panel Azbil Corporation

MODE

003.0S

MAINTENACE

MODE

Screen

Step

(English) (Japanese)

Procedure

Touch the key to select. The

ADVANCED

ADVANCED MODE screen

appears.

DAMPING

Entering MAINTENANCE MODE

Screen

Step

(English) (Japanese)

MODE ENTER

Two seconds later, DAMPING

screen appears.

Procedure

Enter BASIC SETUP MODE (see page 4-11). Use the

key to cycle through the

screens until the MODE ENTER MAINTENANCE screen

appears.

Touch the key once to move

the cursor to MAINTENANCE.

Touch the key to select.

MAINTENACE

The MAINTENANCE MODE

screen appears.

OUTPUT CHECK MODE OFF

OFF

Two seconds later, OUTPUT CHECK MODE screen appears.

4-24 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Using the display panel

DIR AUTO DUAL RG

PRESET COUNTER

EXT AUTO ZERO

ERROR DIAG ALM

Selecting functions

Introduction

Sets the electromagnetic owmeter functions: range, counter, contact input, and

contact output.

There will be restrictions on the functions that can be set depending on your model’s specications. Note that the setting range will be limited depending on the selection of contact input/output.

The possible combinations are shown on the following pages.

Screen

Step

(English) (Japanese)

Procedure

FUNC SET FOA11 FOA11

FUNC SET FOA11 SINGLE RANGE

FUNC SET F1A12

FUNC SET FOB13

FOA11

F1A12

FOB13

Enter ENGINEERING MODE (see page 4-23).

Touch the key to select the kind of function settings.

character is for range setting,

is for built-in counter setting,

is for contact input function

3 setting and 4th is for contact

output function setting.

Touch the or key to select the desired function.

Two touches of the key in

step 1 enables the selection of

the built-in counter function. Touch the

or key to select

the desired function.

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-25

FUNC SET F0A21

FUNC SET FOA14

FOA21

FOA14

Three touches of the key in step 1 enables the selection of

the contact input function. Touch the

or key to select

the desired function.

Four touches of the key in step 1 enables the selection of

the contact output function. Touche the

or key to

select the desired function.

Using the display panel Azbil Corporation

Screen

Step

(English) (Japanese)

Procedure

When completing the setting of

the respective functions, touch the

key to move the cursor to

the “#”.

4-26 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Using the display panel

Relations for setting function FXXXX

Introduction

The range, built-in counter, contact input, and contact output functions can be set

using the combinations shown in the table below. For example, when “Single range” and “Addition with preset” are selected, there are three contact input choices (X, 1, and 2) and three contact output choices.

1-contact input and 1-contact output (DI/DO)

Range function

0: Single range A: Addition X: Not activated X: Not activated

1: Automatic switching

dual range function

2: External switching

dual range

3: Normal/reverse

automatic switching range

Built-in counter

function

B: Addition with preset

A: Addition X: Not activated 2: Range switching output

A: Addition 3: External range

B: Addition with preset A: Addition X: Not activated 2: Range switching output

C: Normal/reverse

totalization

Contact input function Contact output function

1: Alarm output 4: Self-check result output 5: Empty detection function 6: High/low limit alarm

1: External 0% lock X: Not activated

1: Alarm output 4: Self-check result output 5: Empty detection function 6: High/low limit alarm

2: External auto zeroing X: Not activated

1: Alarm output 4: Self-check result output 5: Empty detection function 6: High/low limit alarm

4: Counter reset X: Not activated

1: Alarm output 4: Self-check result output 5: Empty detection function

6: High/low limit alarm X: Not activated 3: Preset output 1: External 0% lock 3: Preset output 2: External auto zeroing 3: Preset output

1: External 0% lock 2: Range switching output 2: External auto zeroing 2: Range switching output 4: Counter reset 2: Range switching output

X: Not activated

switching

3: External range

switching

1: External 0% lock 2: Range switching output 2: External auto zeroing 2: Range switching output 4: Counter reset 2: Range switching output X: Not activated 2: Range switching output 1: External 0% lock 2: Range switching output 2: External auto zeroing 2: Range switching output 4: Counter reset 2: Range switching output

1: Alarm output

2: Range switching output

4: Self-check result output

5: Empty detection function

6: High/low limit alarm

3: Preset output

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-27

Using the display panel Azbil Corporation

Range function

4: Normal/reverse

external switching range

Built-in counter

function

A: Addition 3: External range

B: Addition with preset

C: Normal/reverse

totalization

Contact input function Contact output function

switching

3: External range

switching

3: External range

switching

X: Not activated 1: Alarm output 2: Range switching output 4: Self-check result output 5: Empty detection function 6: High/low limit alarm 3: Preset output

X: Not activated 1: Alarm output 2: Range switching output 4: Self-check result output 5: Empty detection function 6: High/low limit alarm

2- contact inputs

Range function

0: Single range A: Addition X: Not activated X: Not activated

2: External

switching dual range

4: Normal/reverse

external switching range

Built-in counter

function

A: Addition 3 External range switching X: Not activated

C: Normal/reverse

totalization

Contact input function

1: External 0% lock X: Not activated 2: External auto zeroing X: Not activated 4: Counter reset X: Not activated 5: External 0% lock + Auto zeroing X: Not activated 7: External 0% lock + Counter reset X: Not activated 9: External auto zeroing + Counter

reset

6: External 0% lock + Range

switching

8: External auto zeroing + Range

switching

A: External range switching +

Counter reset

6: External 0% lock + Range

switching

8: External auto zeroing + Range

switching

A: External range switching +

Counter reset

3 External range switching X: Not activated 6: External 0% lock + Range

switching

8: External auto zeroing + Range

switching

A: External range switching +

Counter reset

Contact output

function

X: Not activated

4-28 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Using the display panel

2- contact outputs

Range function

0: Single range A: Addition X: Not activated X: Not activated

1: Automatic

switching dual range

3: Normal/reverse

automatic switching range

Built-in counter

function

B: Addition with preset

A: Addition X: Not activated 2: Range switching output

B: Addition with preset A: Addition X: Not activated 2: Range switching output

B: Addition with preset

C: Normal/

reverse totalization

Contact input

function

E: High 1 and High 2 alarm or Low 1 and Low 2 alarm 1: Alarm output 4: Self-check result output 5: Empty detection function 6: High/low limit alarm

X: Not activated 3: Preset output

D: Alarm + Preset output F: Preset + Self-check G: Preset + Empty detection H: Preset + High/low limit alarm I: Self-check result + Empty detection J: Self-check result + High/low limit

alarm

K: Empty detection + High/low limit

alarm

7: Alarm + Range switching output 8:Self-check result + Range switching

output

9: Empty detection + Range switching

output

A: High/low limit alarm + Range

switching output

C: Range switching output + Self-check, Empty detection

X: Not activated B: Range switching output + Preset

output

7: Alarm + Range switching output 8:Self-check result + Range switching

output

9: Empty detection + Range switching

output

A: High/low limit alarm + Range

switching output

C: Range switching output + Self-check, Empty detection

X: Not activated B: Range switching output + Preset

output

X: Not activated 2: Range switching output

7: Alarm + Range switching output 8:Self-check result + Range switching

output

9: Empty detection + Range switching

output

A: High/low limit alarm + Range

switching output

C: Range switching output + Self-check, Empty detection

Contact output function

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-29

Using the display panel Azbil Corporation

Pulse output

Analog output

Input

Range functions

Single range

Measures a single range in the normal direction.

The output for a reverse ow will be as follows

Analog output: Possible to approx. -20% (0.8 mA). With communication, to

approx. -5% (3.2 mA).

Pulse output: No output

Display: A minus (-) symbol appears.

(mA)

22.4 20

-20.0 0100 115

Display (%)

115

-115 0

0.8

-115

Input (%)

Input

115

(%)

Figure 4-1 Single range

(Hz)

115

(%)

4-30 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Using the display panel

Input

Output

20 mA

100%0%

Normal direction automatic dual range

This function has two ranges: wide and narrow. When the narrow range measurement

exceeds 100%, the unit automatically changes to the wide range.

This function should be used in combination with the wide/narrow range distinction

output contact. Hysteresis setting is available when dual range is selected.

j When AUTO is selected for an analog output Range No.1 4 to 20 mA DC

Range No.2 4 to 20 mA DC

k When WIDE is selected for an analog output 4 to 20 mA DC is output according to either range No.1 or range No.2, whichever

has the wider range.

When there is a pulse output

The pulse weight is the same for both ranges No.1 and No.2.

Contact output At shipment, the contact output status of the distinction status signal for ranges

No.1 and No.2 is as follows.

Range No.1: Closed

Range No.2: Open

Reverse setting is also possible.

b. d.

4 mA a.

Figure 4-2 Normal direction automatic dual range

(Example)

j AUTO range Range No.1 (narrow range): Outputs 4 to 20 mA for 0 to 10 m

Range No.2 (wide range): Outputs 4 to 20 mA for 0 to 40 m

k WIDE range Range No.1 (narrow range): Outputs 4 to 8 mA for 0 to 10 m

Range No.2 (wide range): Outputs 8 to 20 mA for 10 to 40 m

/h (a-b).

/h (a-d)

/h (a-c).

/h (c-d).

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-31

Using the display panel Azbil Corporation

Normal direction, external switching dual range

The range is switched via an external switching command to the contact input.

Also, the wide/narrow range distinction contact output (status signal) can be sent out

using the same timing.

Analog output

j When AUTO is selected for an analog output Range No.1 4 to 20 mA DC

Range No.2 4 to 20 mA DC

k When WIDE is selected for an analog output 4 to 20 mA DC is output according to either range No.1 or range No.2 whichever

has the wider range.

When there is a pulse output

The pulse weight is the same for both ranges No.1 and No.2.

Contact input Range switching command contact input

Range No.1: Close

Range No.2: Open

Contact output (select functions as required.)

Range switching distinction status signal

The contact output status at shipment is as follows.

Range No.1: Closed

Range No.2: Open

Reverse setting is also possible.

4-32 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Using the display panel

Output

Input

-100% 100%0%

20 mA

Normal/reverse automatic switching range

Automatically switches the range when the uid ow direction reverses.

Hysteresis setting is available when normal/reverse switching is selected.

Analog output

Normal direction: 4 to 20 mA DC

Reverse direction: 4 to 20 mA DC

When there is a pulse output

There is no distinction in output between the normal and reverse directions. The pulse weight is also the same.

The built-in counter simply integrates the ow rate without distinguishing normal and reverse directions. However, when normal/reverse dierential ow integration is selected, integration of the “-” direction (subtraction) is available.

Example: In the normal direction

-100 g -99 g -98 g... 0 g 1, 2, 3

In the reverse direction

100 g 99 g 98... 0 g -1, -2, -3

With indication

With a reverse ow rate, the “-” symbol will appear on the ow rate display. With built-in counter, it is possible to select the normal/reverse dierential ow

integration function.

Contact output

Normal/reverse distinction status signal

The contact output status at shipment is as follows.

Range No.1: Closed

Range No.2: Open

Reverse setting is also possible

4 mA

Figure 4-3 Normal/reverse automatic switching range

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-33

(Example of setting) j AUTO range

• Range No.1 (normal range): Outputs 4 to 20 mA for 0 to 30 m

• Range No.2 (reverse range): Outputs 4 to 20 mA for 0 to -10 m

k WIDE range

• Outputs 4 to 8 mA for -10 to 0m

/h (c-e), 8 to 20 mA for 0 to 30m3/h (e-b).

When WIDE is selected, Low-ow-cut is not performed.

/h (a-b).

/h (a-d).

Using the display panel Azbil Corporation

Normal / Reverse external switching range

Switches between the normal and reverse ranges by inputting a switching command

contact from the host system or controller.

It is also possible to output the normal/reverse range distinctive contact output (status signal) using the same timing.

Analog output

j When AUTO is selected for an analog output

Normal direction: 4 to 20 mA DC

Reverse direction: 4 to 20 mA DC

k When WIDE is selected for an analog output

4 to 20 mA DC is output according to either range No.1 or range No.2, whichever

has the wider range.

With pulse output

There is no distinction in output between the normal and reverse directions. The pulse weight is also the same.

The built-in counter simply integrates the ow rate without distinguishing between the normal and reverse directions. However, when normal/reverse dierential ow integration is selected, the integration of the “-” direction (subtraction) is available.

Example: In the normal direction

-100 g -99 g -98... 0 g 1, 2, 3

In the reverse direction

100 g 99 g 98... 0 g -1, -2, -3

With indication

With a reverse ow rate, the “-” symbol will appear on the ow rate display.

For the built-in counter, it is possible to select the normal/reverse dierential ow

integration function.

Contact input

Range switching command contact input

Normal direction: when opened

Reverse direction: when closed

Contact output (select the function required.)

Normal/reverse distinction status signal

The contact output status at shipment is as follows.

Range No.1: Closed

Range No.2: Open

Reverse setting is also possible.

4-34 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Using the display panel

[Built-in counter function]

A: Addition counter

In the normal/reverse range, addition is performed in the normal and reverse

directions, respectively.

B: Addition counter with preset

The preset value ranges from 0000000000 - 9999999999.

In the normal/reverse range, addition is made in the normal and reverse directions,

respectively.

C: Normal/reverse dierential ow rate integration display Displays the dierence in integration between the normal and reverse directions.

It is necessary to determine the direction: normal or reverse.

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-35

Using the display panel Azbil Corporation

[Contact input function]

This function can be set when either 1- or 2-contact input has been selected in the additional specications.

X: Not activated

1: External 0% lock input

Use to completely halt the ow rate signal (display, analog output, or pulse

output) at 0%.

2: External auto zero adjustment input

Enables zero adjustment from a remote location.

Zero adjustment is possible when the contact is ON for 0.2 seconds or more.

Be sure to stop the uid.

3: External range switching input

Range No.1 or normal direction: when opened

Range No.2 or reverse direction: when closed

4: Built-in counter reset input

Reset will take eect when the contact is ON for 0.2 seconds or more, and

counting will start from the counter reset value at the moment when the contact

turns OFF.

5: External 0% lock input and external auto zero adjustment input

Terminal ST IN1 can be set to external 0% lock input and terminal ST IN2 to

external auto zero adjustment input.

6: External 0% lock input and external range switching input

Terminal ST IN1 can be set to external 0% lock input and terminal ST IN2 to

external range switching input.

7: External 0% lock input and built-in counter reset input

Terminal ST IN1 can be set to external 0% lock input and terminal ST IN2 to the

built-in counter reset input.

8: External auto zero adjustment input and external range switching input

Terminal ST IN1 can be set to external auto zero adjustment input and the

terminal ST IN2 to external switching input.

9: External auto zero adjustment input and built-in counter reset input

Terminal ST IN1 can be set to auto zero adjustment input and terminal ST IN2 to

built-in counter reset input.

A: External range switching input and built-in counter reset input

Terminal ST IN1 can be set to external range switching input and terminal ST IN2

to built-in counter reset input.

4-36 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Using the display panel

[Contact output function]

This function can be set when 1- or 2-contact output has been selected in the additional specications.

X: Not activated

1: Alarm contact output

An alarm is output when any of the following items becomes abnormal.

The abnormal item can be checked on the display of the instrument.

Also, external conrmation is available using the SFC.

j Self-diagnostic

• Coil disconnection

• ROM error

• RAM error

• NVM error

• ADC error

Table 4-2 Output selection

Mode

selection

Analog output

4 to 20 mA

Pulse

output

Contact output

If the power supply is turned OFF with the “Fail-safe direction high” setting, the 4-20 mA output will emit a Fail-safe direction high output once. Pay close attention when turning the power supply OFF.

Fail-safe direction high

(HIGH)

Fail-sage high (HIGH)

without SFC

communication:

24 mA DC

with SFC communication:

23.8 mA DC

Abnormal status (Open/closed can be freely selected.)

CAUTION

Hold

(HOLD)

Hold

(HOLD)

Hold

(HOLD)

Fail-safe direction low

(LOW)

Fail-safe direction low

(LOW)

Without SFC communication:

0.8 mA DC

With SFC communication:

2.96 mA DC

Fail-safe direction low

(LOW)

No output

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-37

Using the display panel Azbil Corporation

k Empty detection function

When the detector becomes empty, the respective output signals will be as

follows.

~ Note

Status

When the detector is empty

Output signal

Analog output 4-20 mA DC 4 mA DC

Pulse output 0%

Contact output Abnormal status (Open/closed can be freely selected.)

This function can be used when the conductivity is 30 mS/cm or greater. The empty detection function selector switch determines whether this function is activated or not. (The empty detection function is set to “NOT activated” as default setting.)

Using the empty detection function with a conductivity of 30 mS/cm or less will cause a measurement error.

l High/low limit alarm function

According to preset High/low limit value, alarm signal is output through ST.OUT terminal.

2: Range switching output

The contact output status at shipment is as follows.

Range No.1 or normal direction: Closed

Range No.2 or reverse direction: Open

Reverse setting is also possible.

3: Counter preset status output

Activated when the counter reaches the preset value.

4: Self-check result output

Activated only when a self-diagnostic abnormality occurs in the alarm contact

output of code 1.

5: Empty detection function

Activated only when an empty status is detected in the alarm contact output of

code 1.

6: High/low limit alarm

Activated only when a high/low limit alarm occurs in the alarm contact output of

code 1.

7: Alarm contact output and range switching output (2-contact output)

The alarm contact output can be set to ST.OUT1 and the range switching output

to ST.OUT2.

8: Self-check result output and range switching output (2-contact output)

The self-diagnostic result output can be set to ST.OUT1 and the range switching

output to ST.OUT2.

9: Empty detection function and range switching output (2-contact output)

The empty status detection output can be set to ST.OUT1 and the range switching

output to ST.OUT2.

A: High/low limit alarm and range switching output (2-contact output)

4-38 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Using the display panel

LL LHHH

ST.OUT1 ST

The high/low limit alarm can be set to ST.OUT1 and the range switching output

to ST.OUT2.

B: Range switching output and counter preset status output (2-contact output)

The range switching output can be set to ST.OUT1 and the preset status output to

ST.OUT2.

C: Range switching output and (self-check result output or empty detection)

(2-contact output)

The range switching output can be set to ST.OUT1 and the output when either a

self-check result or empty detection abnormality occurs to ST.OUT2.

D: Alarm contact output and counter preset status output (2-contact output)

The alarm contact output can be set to ST.OUT1 and the counter preset status

output to ST.OUT2.

E: 2-stage ow rate alarm output

The high/low limit alarm can be set to ST.OUT1 and the 2-stage high limit alarm

or 2-stage low limit alarm to ST.OUT2.

.OUT2

Figure 4-4 2-stage ow rate alarm output

F: Counter preset status output and self-check result output (2-contact output)

The counter preset status output can be set to ST.OUT1 and the self-check result

output can be set to ST.OUT2.

G: Counter preset status output and empty detection function

The counter preset status output can be set to ST.OUT1 and empty detection

function can be set to ST.OUT2.

H: Range switching output and High/low limit alarm output

The range switching output can be set to ST.OUT1 and High/low limit alarm can

be set to ST.OUT2.

I: Self-check result output and empty detection function

The self-check result can be set to ST.OUT1 and empty detection function can be

set to ST.OUT2.

J: Self-check result output and High/low limit alarm

The self-check result can be set to ST.OUT1 and the high/low alarm can be set to

ST.OUT2.

K: Empty detection function and High/low limit alarm

The empty detection function can be set to ST.OUT1 and the high/low limit alarm

can be set to ST.OUT2.

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-39

Using the display panel Azbil Corporation

SPAN 10.000 m3/h

Flow rate range

This function is used to set the ow rate range (the value when the analog output reaches 100%). In this screen, three values can be changed: ow rate value, ow rate

unit, and time unit.

Setting range

Flow rate: 0.00001 to 99999

Unit: m

Time unit: s, min., h, d

Step

(English) (Japanese)

1.4147 m/s

, l, cm3, t, kg, g, BPH, GPH, mGPH, lb, KGPM, GPM, mGPM

Screen

Procedure

Enter ENGINEERING MODE

1.4147 m/s

(see page 4-11).Use the key to cycle through the screens until the SPAN (range) screen

appears.

1.4147 m/s

2.8294 m/s

SPAN 20.000 m3/h

2.8294 m/s

SPAN 20.000 l/h

2.8294 m/s

SPAN 333.33 l/min

1.4147 m/s

2.8294 m/s SPAN 20.000 m

2.8294 m/s SPAN 20.000 l/h

2.8294 m/s SPAN 333.33 l/min

Touch the key until the cursor is at the ow rate value to be

changed.

Touch the or key to change the value.

Use the key to move the cursor to the ow rate unit.Touch the

key to change the unit.

CAUTION

If a weight unit is set, the

Specic Gravity must also be

set to avoid output errors.

Use the key to move the

cursor to the time unit.Touch the

or key to change the unit.

Available units: h, min., s, d

4-40 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Using the display panel

Screen

Step

(English) (Japanese)

Procedure

2.8294 m/s SPAN 333.33 l/min

Touch the key until the cursor is back at the mode indicator.

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-41

Using the display panel Azbil Corporation

05 %

10 %

Setting hysteresis

This is used to set the hysteresis as a range function to be used at range switching.

Use for normal direction automatic dual range or the normal/reverse direction

automatic range.

Default setting

Setting range

0-20%

Screen

Step

(English) (Japanese)

HYSTERESIS

Open the hysteresis setup screen

by following the steps to enter

the engineering mode. (See page 4-11)

Procedure

HYSTERESIS 05 %

Touch the key once.

Use the and keys to input

the desired hysteresis value.

HYSTERESIS

In this example, here the

hysteresis is changed from 5% to 10%.

HYSTERESIS

Touch the key to move the cursor to the “#”.

4-42 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Using the display panel

Output (mA DC)

Input

AUTO

WIDE

Selecting the current output method for dual range

This is used as a range function with the normal direction dual range or normal/ reverse direction dual range, to select how to output the 4-20 mA analog output: with

either the range switching method or the wider range method.

0 100

Normal direction dual range Normal/reverse direction dual range

Figure 4-5 Selecting the current output method for dual range

Default setting

AUTO

Setting the range

Either AUTO or WIDE

Step

(English) (Japanese)

I. OUT RANGE

WIDE WIDE

Input (%)

0 100

Screen

Open the current output method

selection screen by following the steps to enter the engineering mode.

(%)

Procedure

I. OUT RANGE

Touch the key once.

Use the and keys to select the AUTO or WIDE.

I. OUT RANGE

Touch the key to move the cursor to the “#”.

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-43

Using the display panel Azbil Corporation

0000200000

0000500000

Setting / Changing the preset value of the built-in ow counter

This changes the contact output status from H to L or from L to H when the ow

counter reaches a preset value.

This function is used when contact output has been selected.

Also, be sure to select the preset counter for the contact output in function setting.

(See page 4-25)

Default setting

The preset value is set to “0000000000” at shipment.

Setting range

0000000000 - 9999999999

Screen

Step

(English) (Japanese)

COUNTER PRESET

Open the built-in ow counter

preset value setup screen by following the steps to enter the

Engineering mode.

Procedure

Touch the key to move the cursor to the desired digits.

COUNTER PRESET

In this example, the cursor is

moved to the “2” position by touching the RIGHT SHIFT key ve times.

Touch the or key to set the desired numbers.

COUNTER PRESET

In this case, the numeral “2” is changed to “5” by three touches of the increment key.

When the counter reset value

COUNTER PRESET

has been changed, touch the

key to return the cursor to the “#”.

4-44 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil Corporation Using the display panel

1.0000

1.0050

Specic gravity

This function is used to set the specic gravity when selecting a weight unit (t, kg, g, lb) in the ow rate measurement range setting.

Screen

Step

(English) (Japanese)

Enter ENGINEERING MODE (see page 4-23).

Procedure

GRAVITY

Use the

or key to cycle

through the screens until the

GRAVITY screen appears.

Touch the key until the cursor is at the value to be

GRAVITY

changed.

Default setting: 1.0000 Setting range: 0.1000 to 9.9999

GRAVITY

1.0050

Touch the or key to change the value.

Touch the key until the

GRAVITY

1.0050

cursor is back at the mode

indicator.

Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-45

Using the display panel Azbil Corporation

100.00 l/p

SCL 100.00 l/p

SCL 200.00 l/p

200.00 l/p

SCL 200.00 l/p

200.00 l/p

SCL 200.00 cm /p

200.00 cm /p

Pulse weight

This function is used to set the pulse weight value and pulse weight unit.

Pulse weight should be set so that pulse frequency indicated on the display is between

0.00006 and 3000Hz.

When changing the pulse weight with the dual range, use the wider range.

Screen

Step

(English) (Japanese)

PLS 27.780 Hz SCL 100.00 l/p

PLS 27.780 Hz

27.780 Hz

100.00 l/p

Enter ENGINEERING MODE (see page 4-23). Use the key to cycle through the screens until the PLS (pulse weight)

screen appears.

Touch the key until the cursor is at the pulse weight value to be changed.

Default setting: 100.00 cm

Procedure

/P.

PLS 13.890 Hz

PLS 13.890 Hz SCL 200.00 cm /p

13.890 Hz

200.00 cm /p

Touch the or key to change the value.

Use the key to move the

cursor to the pulse weight unit.

Touch the or key to change the pulse weight unit.

CAUTION

Pulse weight units must match

span units.

Touch the key until the cursor

is back at the mode indicator.

4-46 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter

Azbil MagneW FLEX+, MGG14C, MagneW PLUS+, MGG10C User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Chapter 1: Introduction

MagneW FLEX+/PLUS+ Flowmeter

Main components

Analog output and digital output

Approval of this Device

Chapter 2: Installation

Site selection

Unpacking and storage

Installation options

Changing the orientation of the converter

Wiring

Integral wiring - 1 (1-contact input and 1- contact output)

Integral wiring - 2 (2-contact input)

Integral wiring - 3 (2-contact output)

Remote wiring - 1 (1-contact input and 1- contact output)

Remote wiring - 2 (2-contact input)

Remote wiring - 3 (2-contact output)

Grounding

Signal and excitation cable wiring

Wiring cable

Wiring

Setting write protection

Setting the communication via the HART

Setting the empty detection function

Setting the communication via the SFC

Connecting power

Chapter 3: Operation

Start-up

Shut down

Using the display panel

Using the infrared touch sensor keys

Chapter 4: Using the display panel

About modes

MEASURING MODE

Entering BASIC SETUP MODE

Setting the TAG NO.

Default setting

Setting range

Damping time constant

Default setting

Setting range

Auto zero

Flow counter - Reset value

Flow counter - Resetting

Detector data

Default setting

Setting the Number of Dummy Detectors

Default setting

Setting range

Flow rate range

Setting range

Flow rate indication

Default setting

Setting range

Entering ENGINEERING / ADVANCED / MAINTENANCE MODE

Entering ENGINEERING MODE

Entering ADVANCED MODE

Entering MAINTENANCE MODE

Selecting functions

Relations for setting function FXXXX

Range functions

Single range

Normal direction automatic dual range

Normal direction, external switching dual range

Normal/reverse automatic switching range

[Built-in counter function]

[Contact input function]

[Contact output function]

Flow rate range

Setting range

Setting hysteresis

Selecting the current output method for dual range

Pulse weight
