Page 1
QUICK START
GUIDE
WAVELET
GROUNDWATER
LEVEL KIT
May 2016 V0.3
AYYEKA
Page 2
1
IMPORTANT
Contact AYYEKA SUPPORT for technical support
at +1 (310) 876-8040.
ALWAYS COORDINATE Wavelet Groundwater Level Kit
installation with the local authority before starting installation
works, which should be completed by trained and authorized
personnel.
The WARRANTY oered by Ayyeka covers only Ayyeka supplied
hardware and software for the duration of the warranty period as
per the warranty terms and conditions.
AYYEKA IS NOT LIABLE for damage or injury as a result of
handling, installation or maintenance of its supplied systems.
FOR YOUR SAFETY, the Wavelet Groundwater Level Kit is
designed to be installed from above without requiring entrance
into the manhole chamber. Ensure all the eld personnel are
properly secured per local safety requirements and regulations.
DO NOT THROW AWAY the Wavelet Groundwater Level Kit, as
it contains a lithium battery. Please dispose of properly.
OPERATING TEMPERATURE range of 23°F to 140°F (-5°C to
+60°C).
2G/3G/CDMA cellular network signal.
SERVICE THE SENSOR according to manufacturer's instructions.
Page 3
2

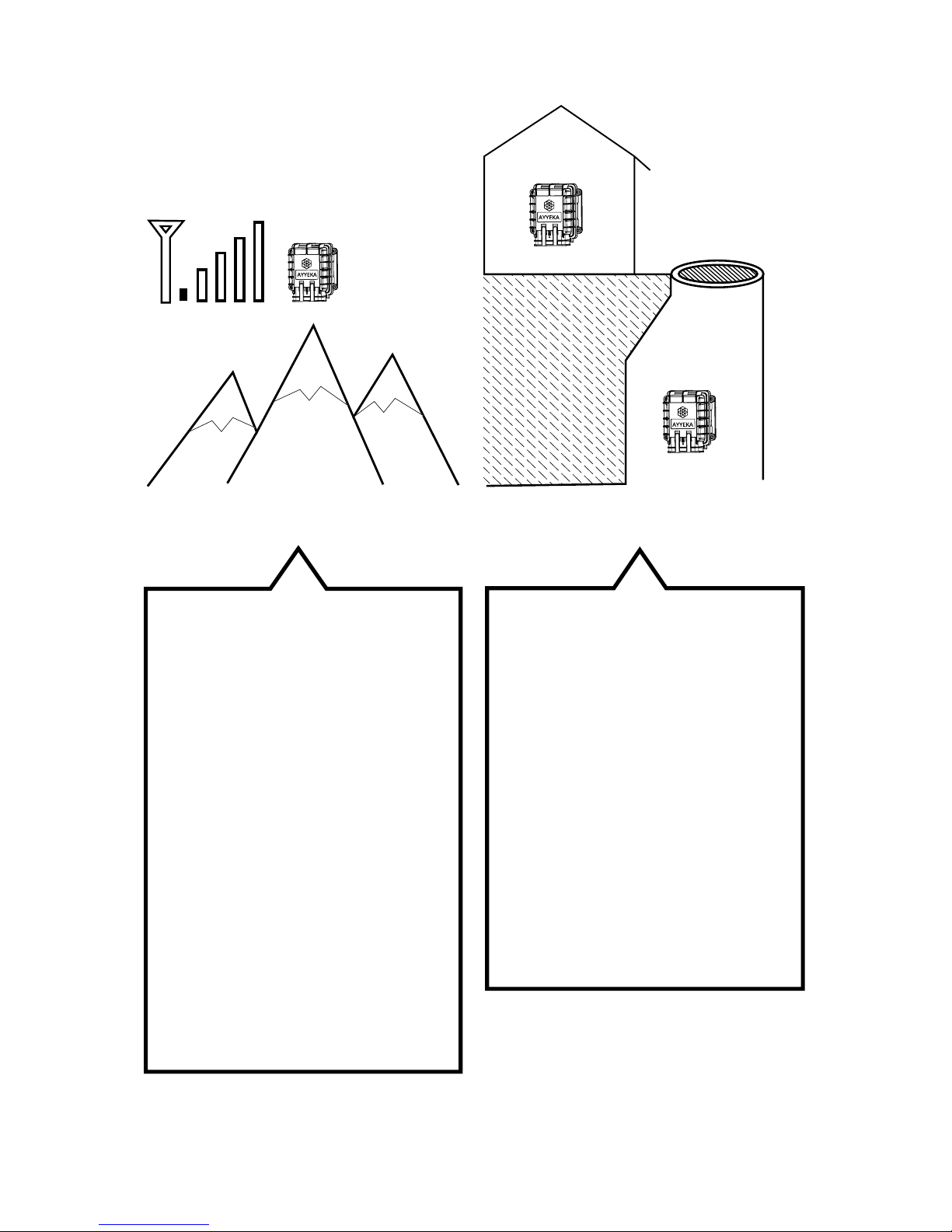

NOTE: Special Installation Locations
WEAK CELLULAR SERVICE
LOCATIONS:
If the Wavelet is installed
in an area with weak
cellular reception, activate
the Wavelet and place in
the intended installation
location with closed doors/
access hatch.
Log in to
home.ayyeka.com to
ensure that cellular signal
has been recently updated
in the last few minutes.
UNDERGROUND/INDOOR
WAV ELE T INSTALL ATIONS:
Before installation, activate
the GPS outside by turning
on the Wavelet (see step 5).
Wait for at least 8 minutes,
then log in to the user
interface at
home.ayyeka.com to
conrm updated location
on the map.
Page 4
3

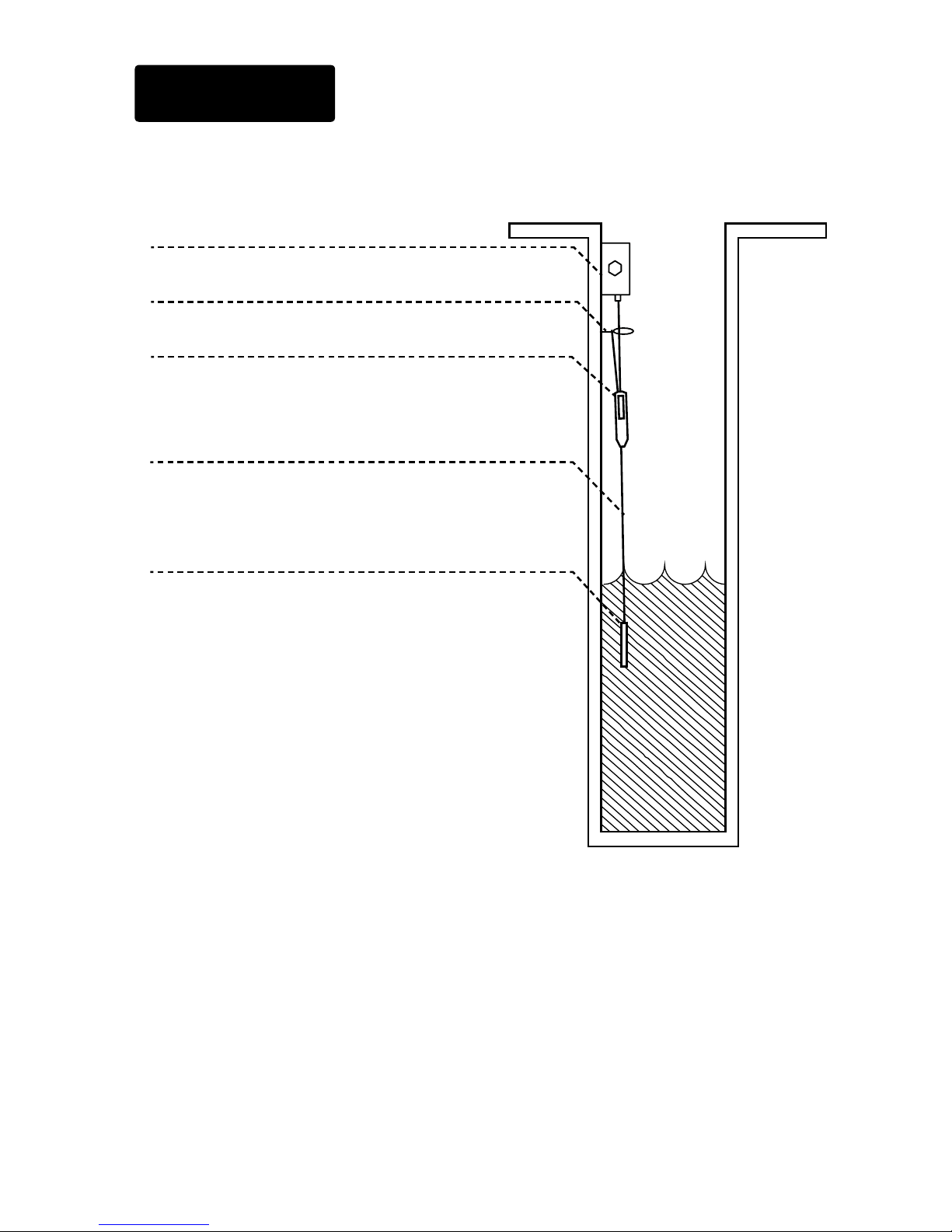

SCHEMATIC
Wavelet
Hook
Mounting Clamp
Sensor Cable
Sensor
Page 5
4

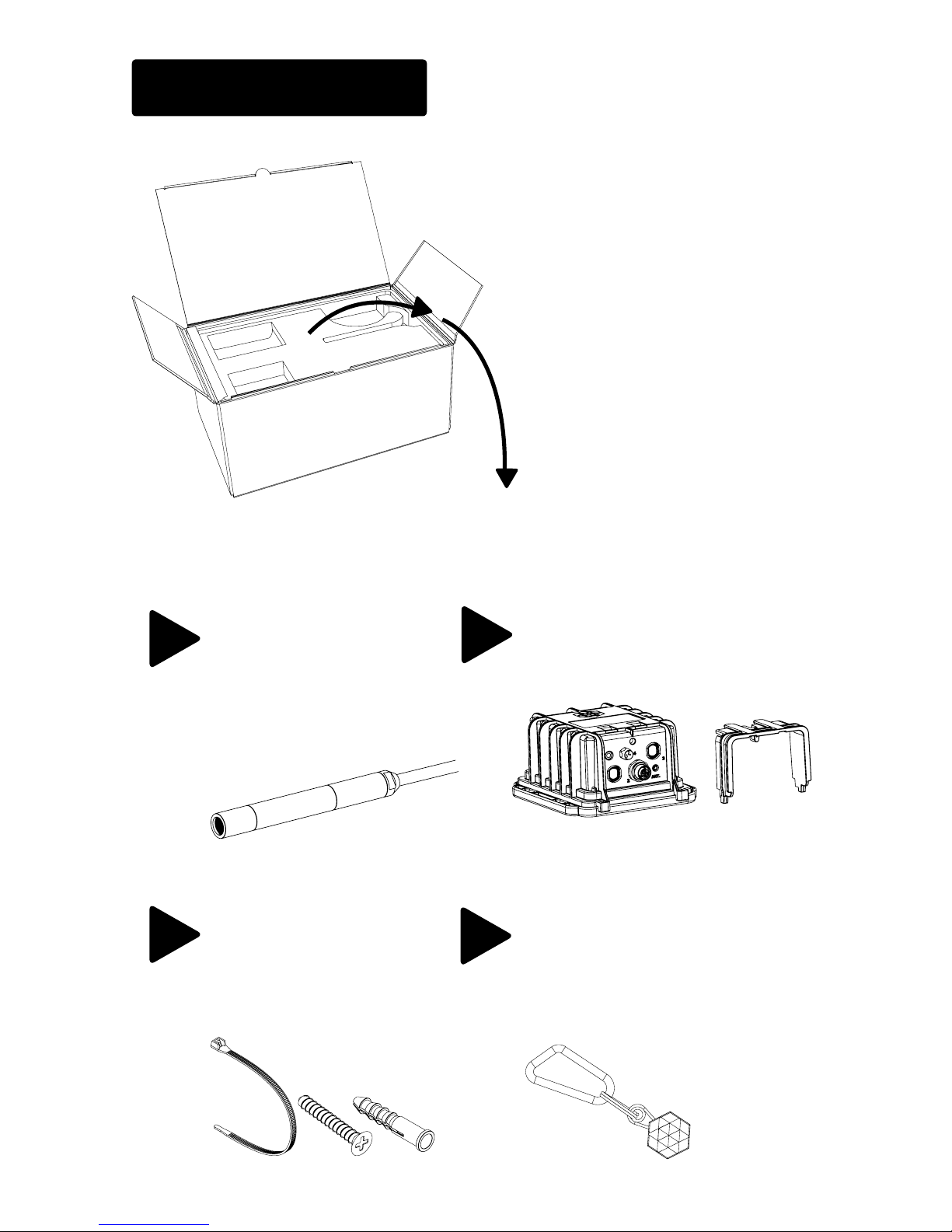

GETTING STARTED
WAVELET
GROUNDWATER
LEVEL KIT
1
2
3
4
Submersible Hydrostatic
Sensor & Cable
Zip Ties, Screws &
Anchors
Wavelet Device & Protector
Wavelet Activator
1x
1x4x2x 4x
1x1x
AYYEKA
Page 6
5

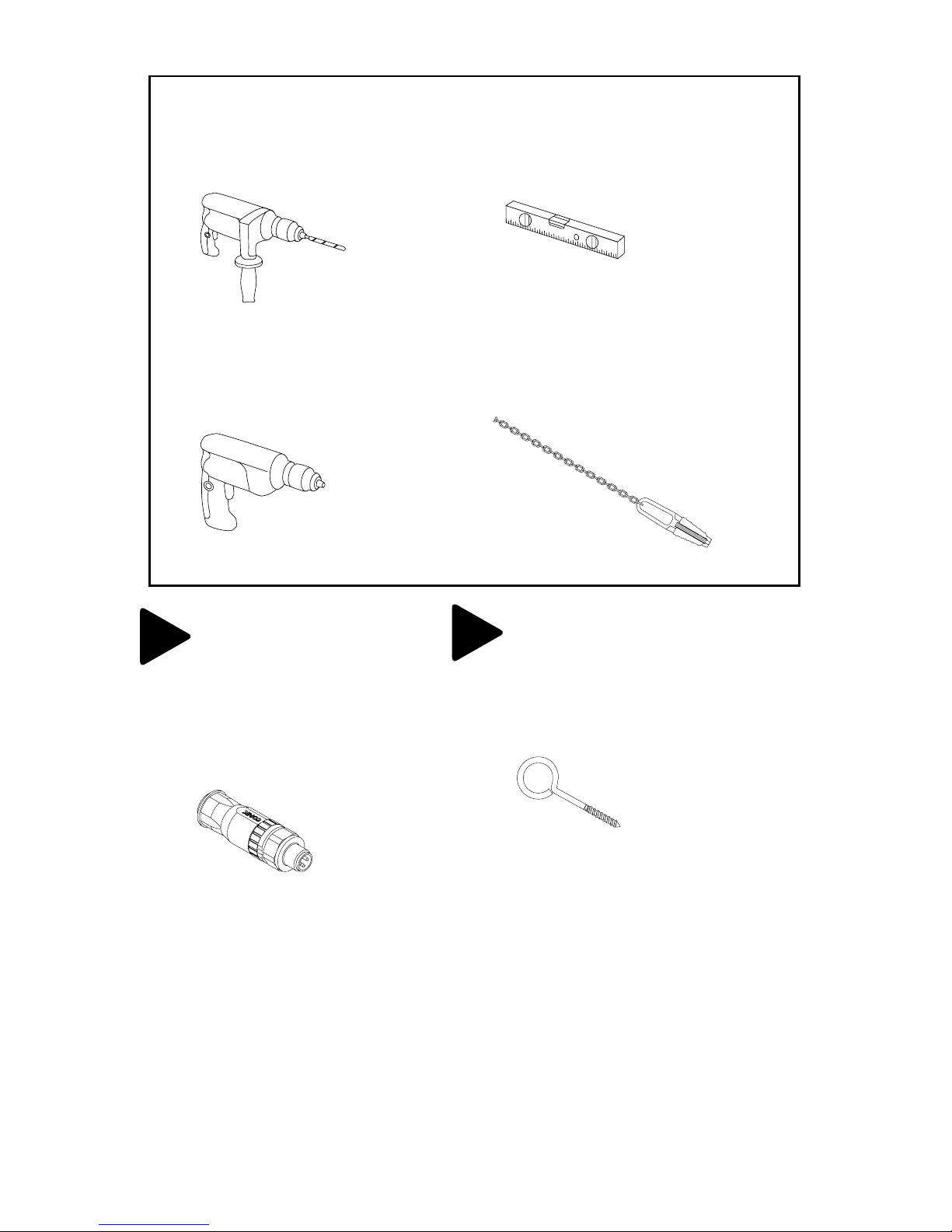

Tools and/or materials required (not included):
1x
1x
1x
Electric Screw Driver
Rotary Hammer Level
5
6
Mounting Clamp
1x
1x
Stainless Steel Hook
1x
M8 Male Power
Connector (optional,
see page 15)
Page 7
6
INSTALLATION

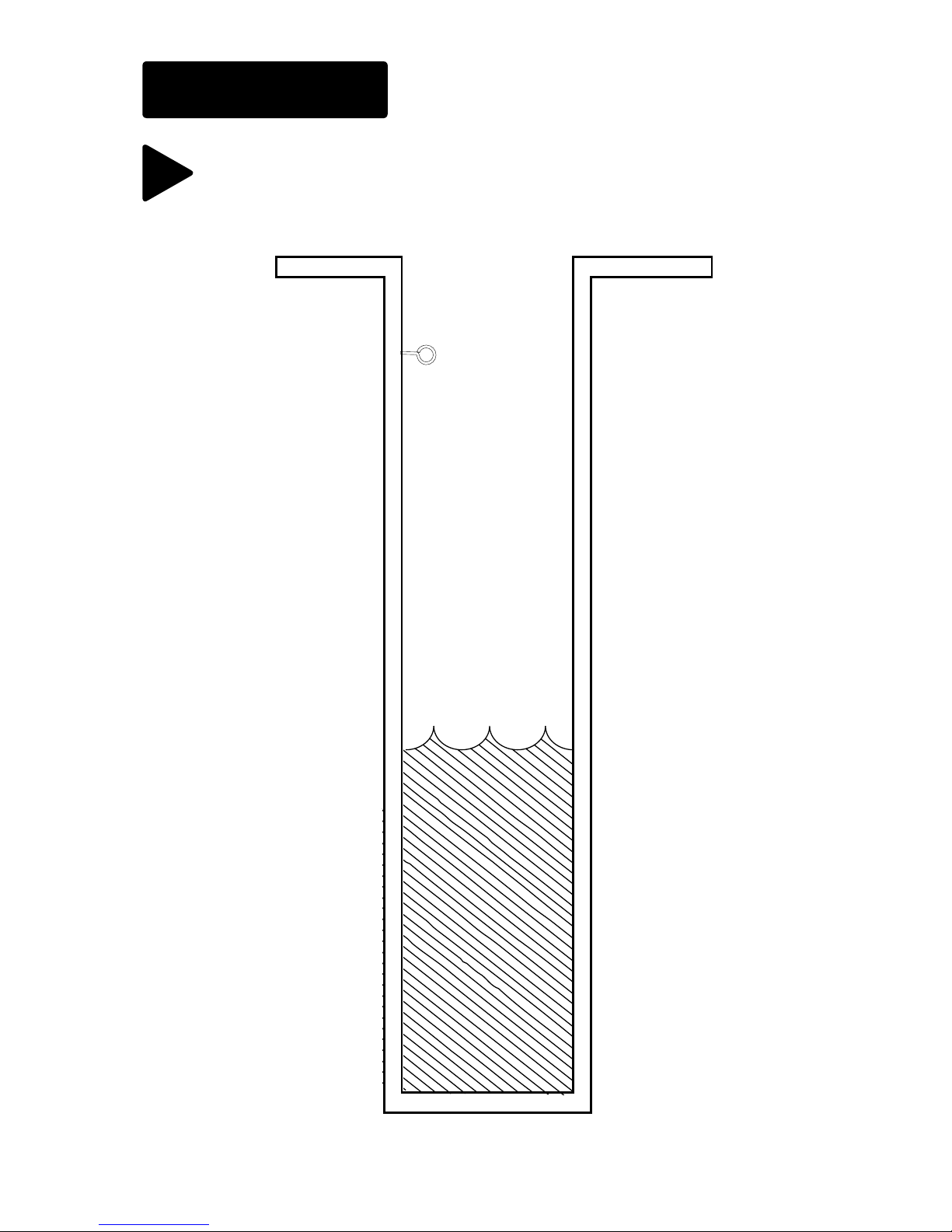

Secure the hook in the wall of the well.1
Page 8
7

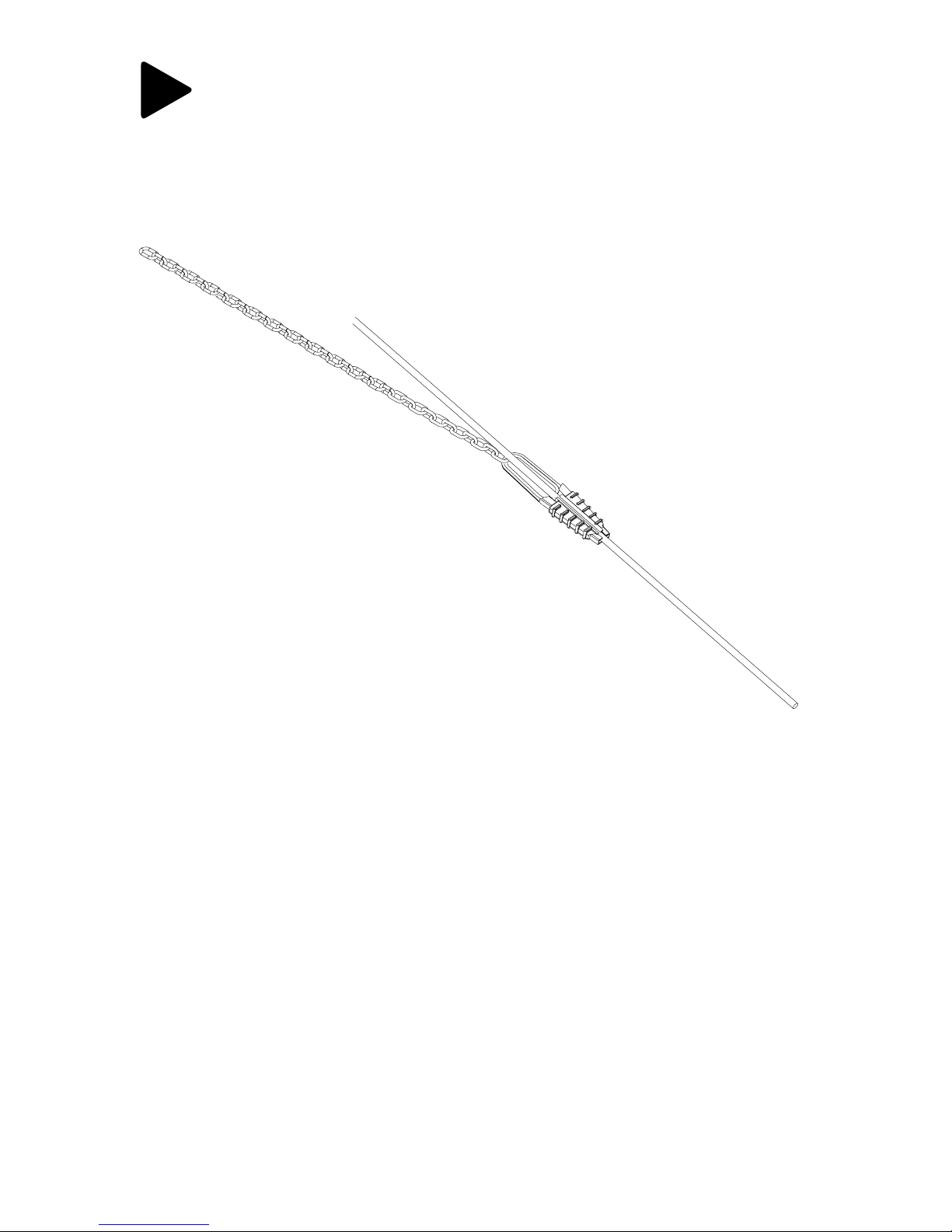

Slide the sensor cable through the optional mounting clamp
and attach the chain to the hook, or use another desired
method to secure the cable to the hook.
2
Page 9
8

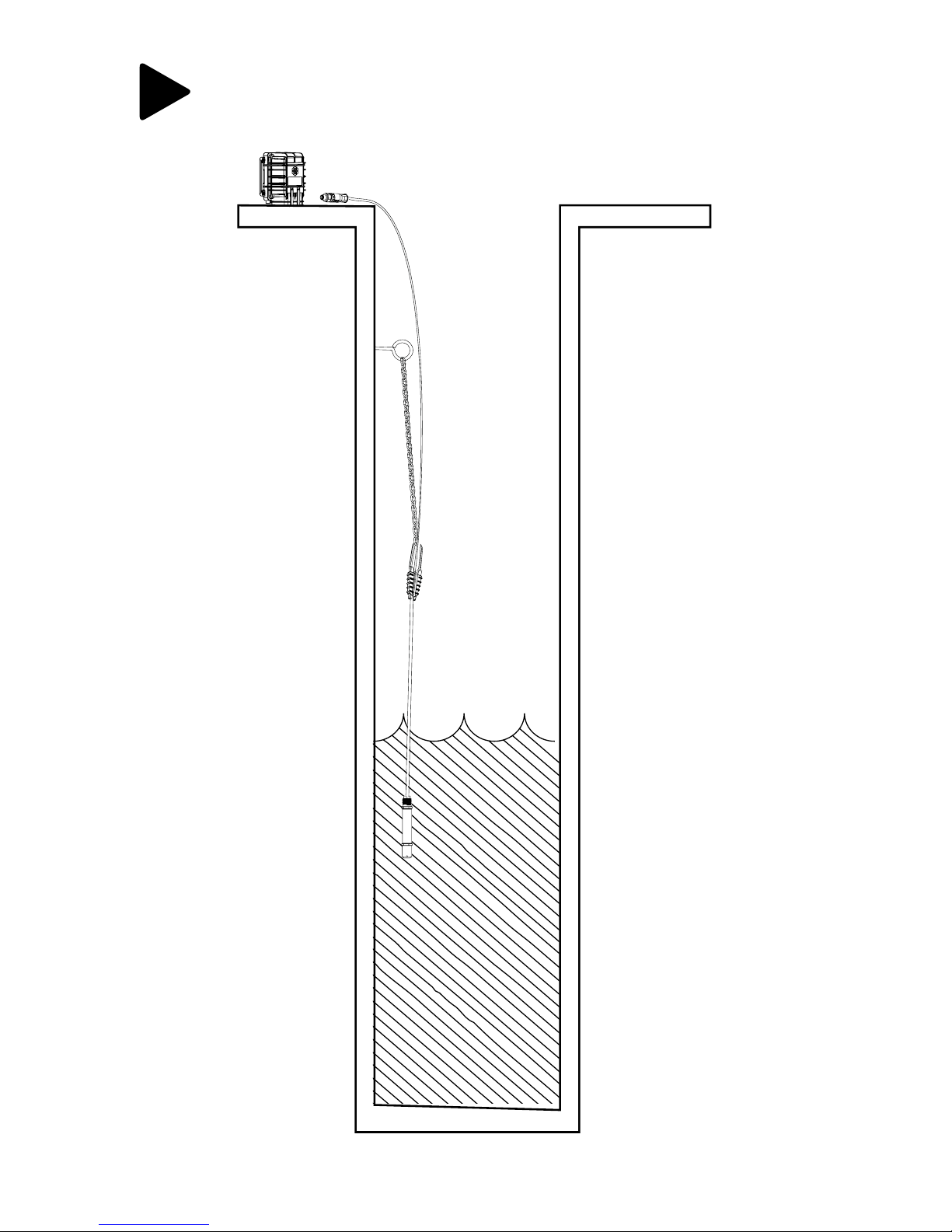

Secure the cable on the hook. Then lower the sensor until it
is fully submersed in the water.
3
Page 10
9

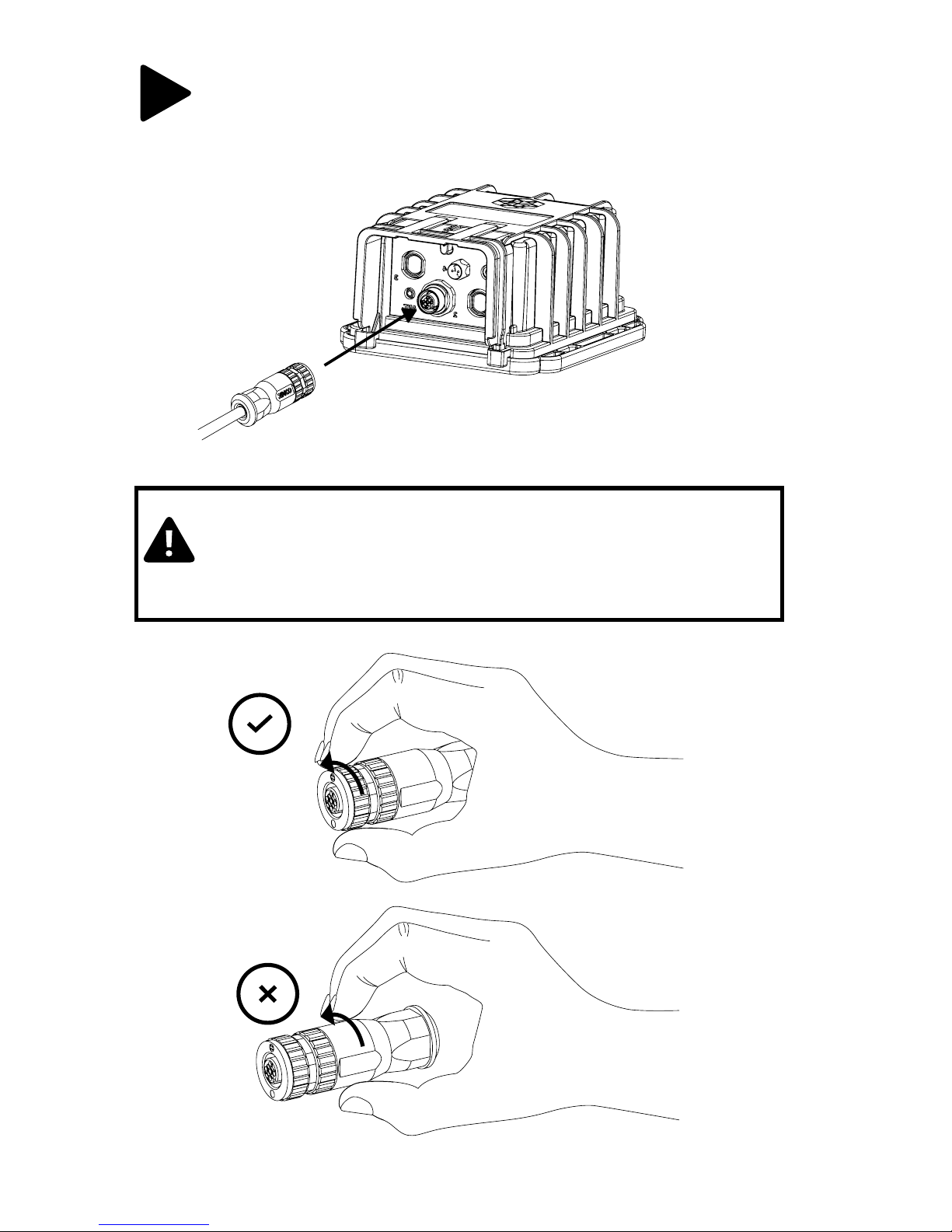

Connect the cable with the connector to the the Wavelet.
Turn the adjustable black plastic or silver end piece to
secure the sensor connector to the Wavelet.
4
CAUTION: Do not turn the black plastic hood of the
connector. Turning the black hood will cause the wires to
disconnect, break, and/or damage the connector pins.
TURN HERE
DO NOT
TURN HERE
Page 11
10
WAVELET ACTIVATION

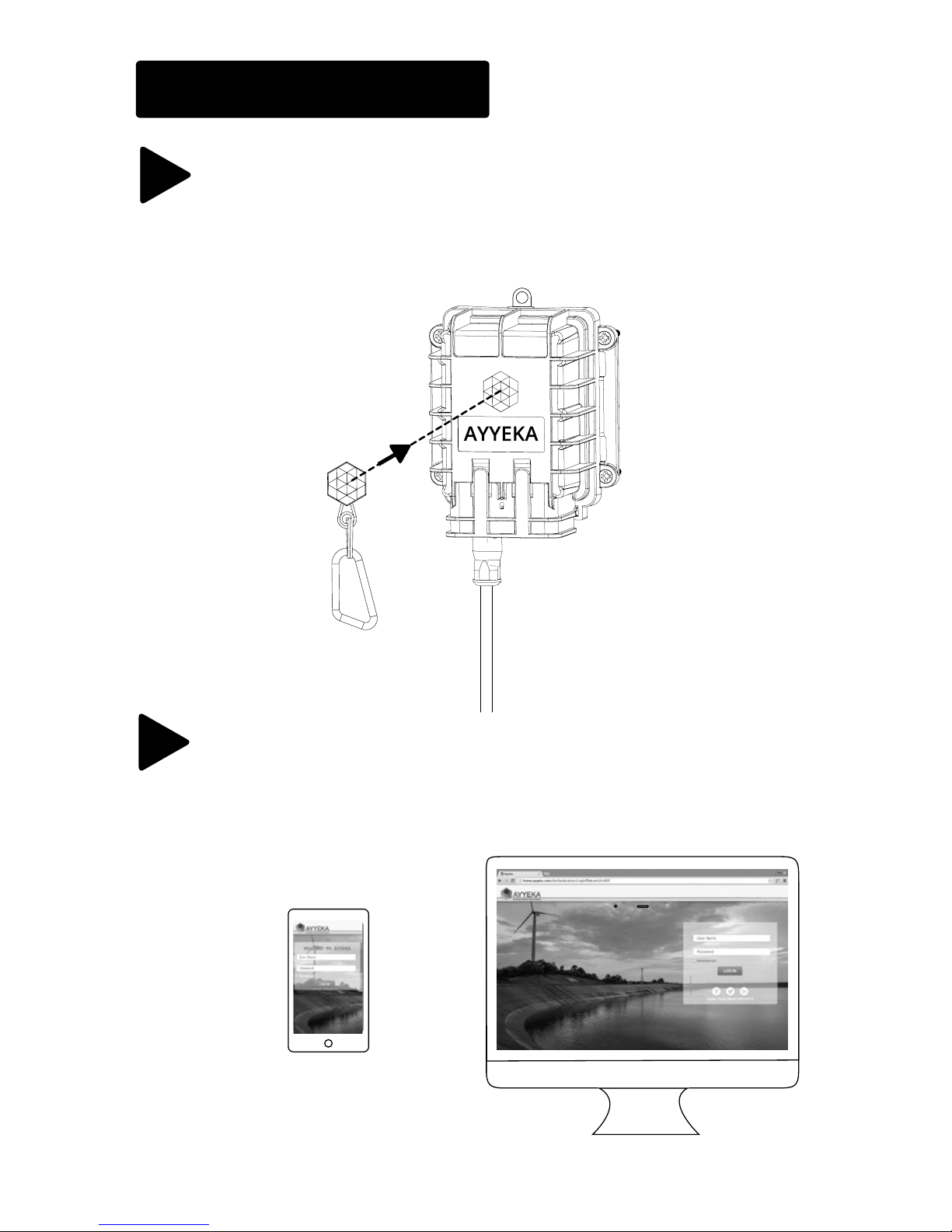

Place the Wavelet Activator on the Ayyeka logo on the
Wavelet front panel for a few seconds. Wavelet will initiate a
10 minute online test mode.
Access the Ayyeka user interface at home.ayyeka.com using
your log-in credentials. Expect data to appear between
10 – 20 minutes after the online test mode is complete.
5
6
Page 12
11
7

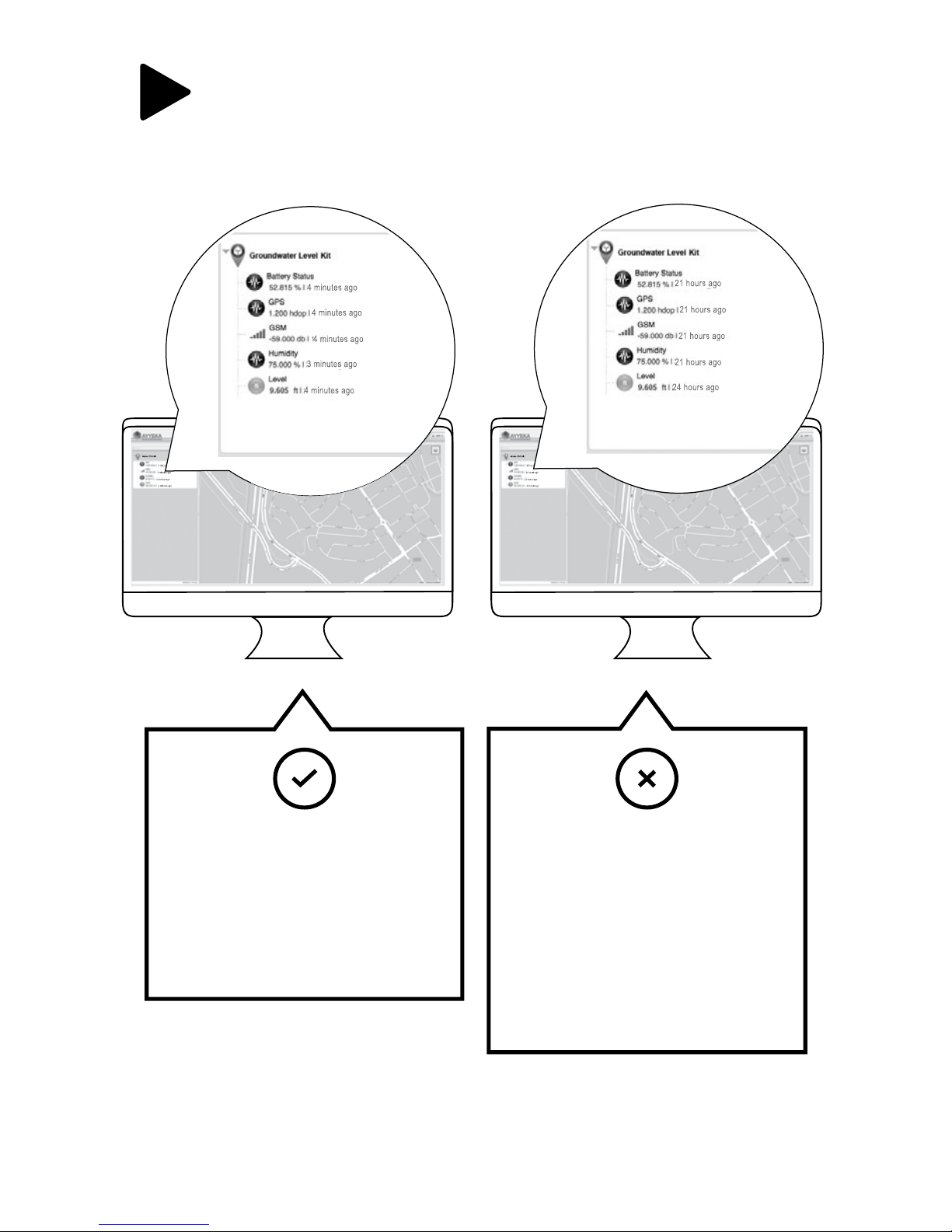

The screen display should resemble the following:
If Wavelet is transmitting
properly, you have
completed the installation
successfully and can begin
collecting and viewing your
data!
If data does not transmit
properly, change the
Wavelet installation location
and activate again. If the
problem persists, contact
[email protected]
or +1 (310) 876-8040 for
assistance.
Page 13
12
8

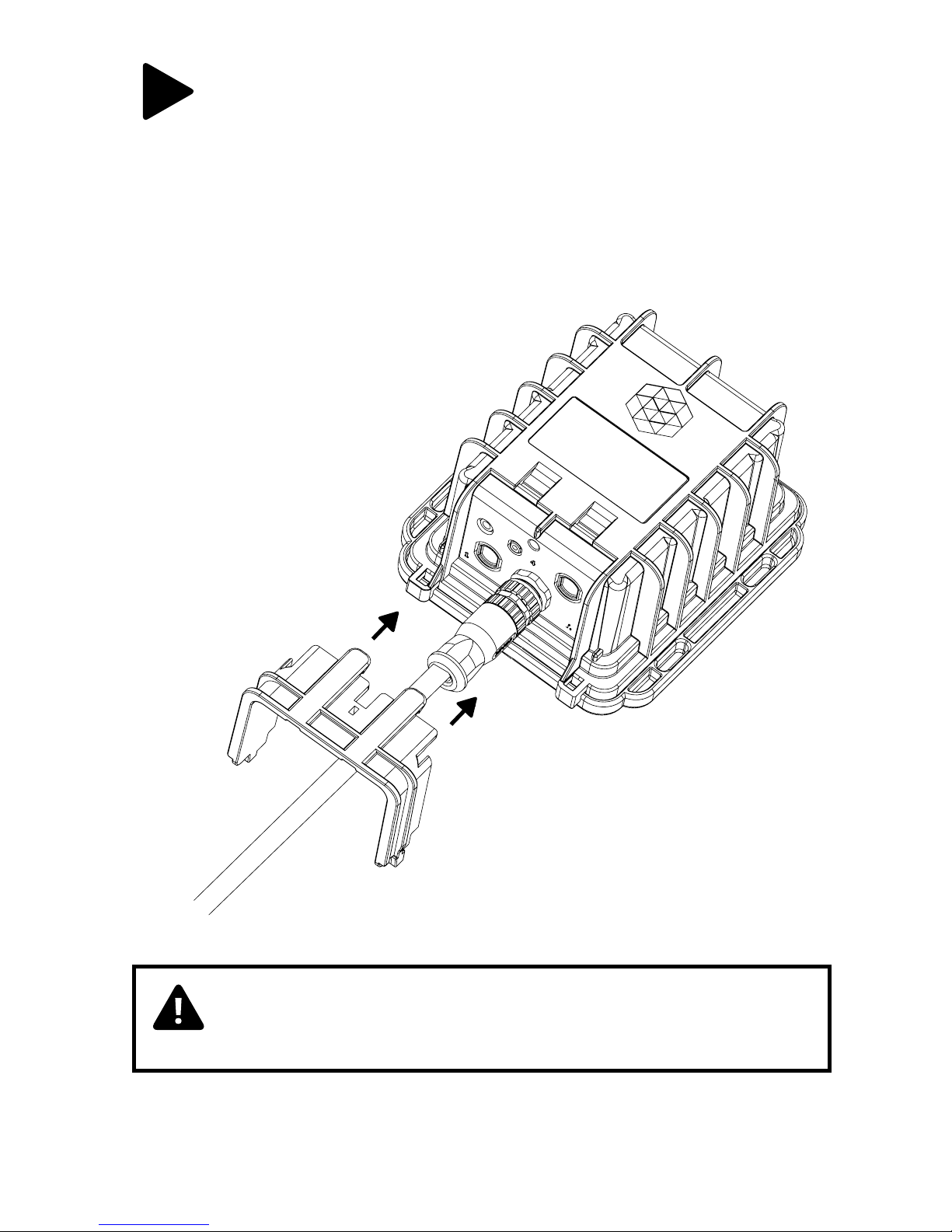

After the Wavelet completes the transmission process, place
the Wavelet protector above the connector ports and secure
the Wavelet protector into the Wavelet enclosure.
AY YEK A
CAUTION: The protector is provided to shield the
connector from tampering or overexposure that could
result in disconnected wiring.
Page 14
13

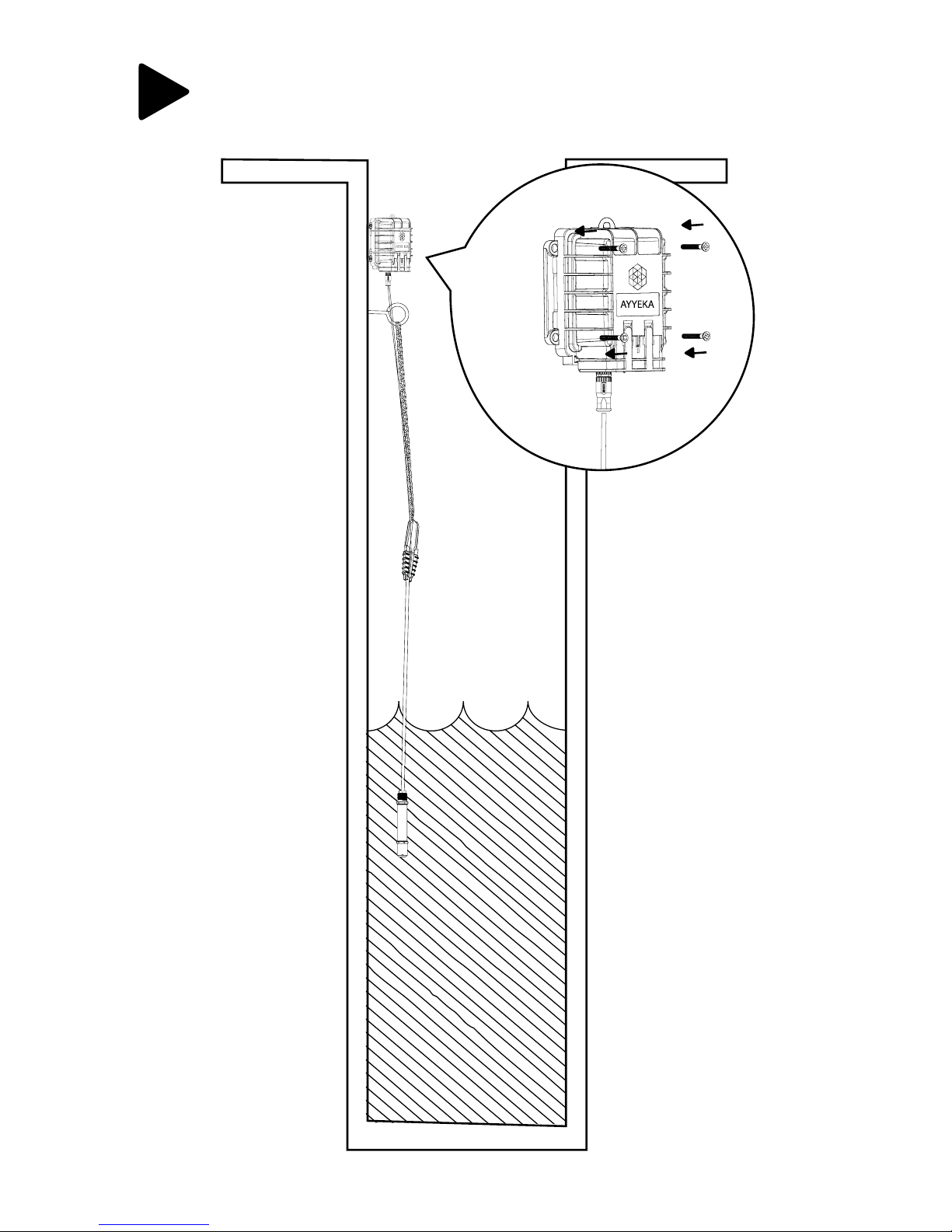

Secure the Wavelet on the side of the well using zip ties,
screws or another method.
9
4x
Page 15
14
YOUR WAVELET
GROUNDWATER LEVEL KIT
IS NOW SUCCESSFULLY
INSTALLED!
Page 16
15

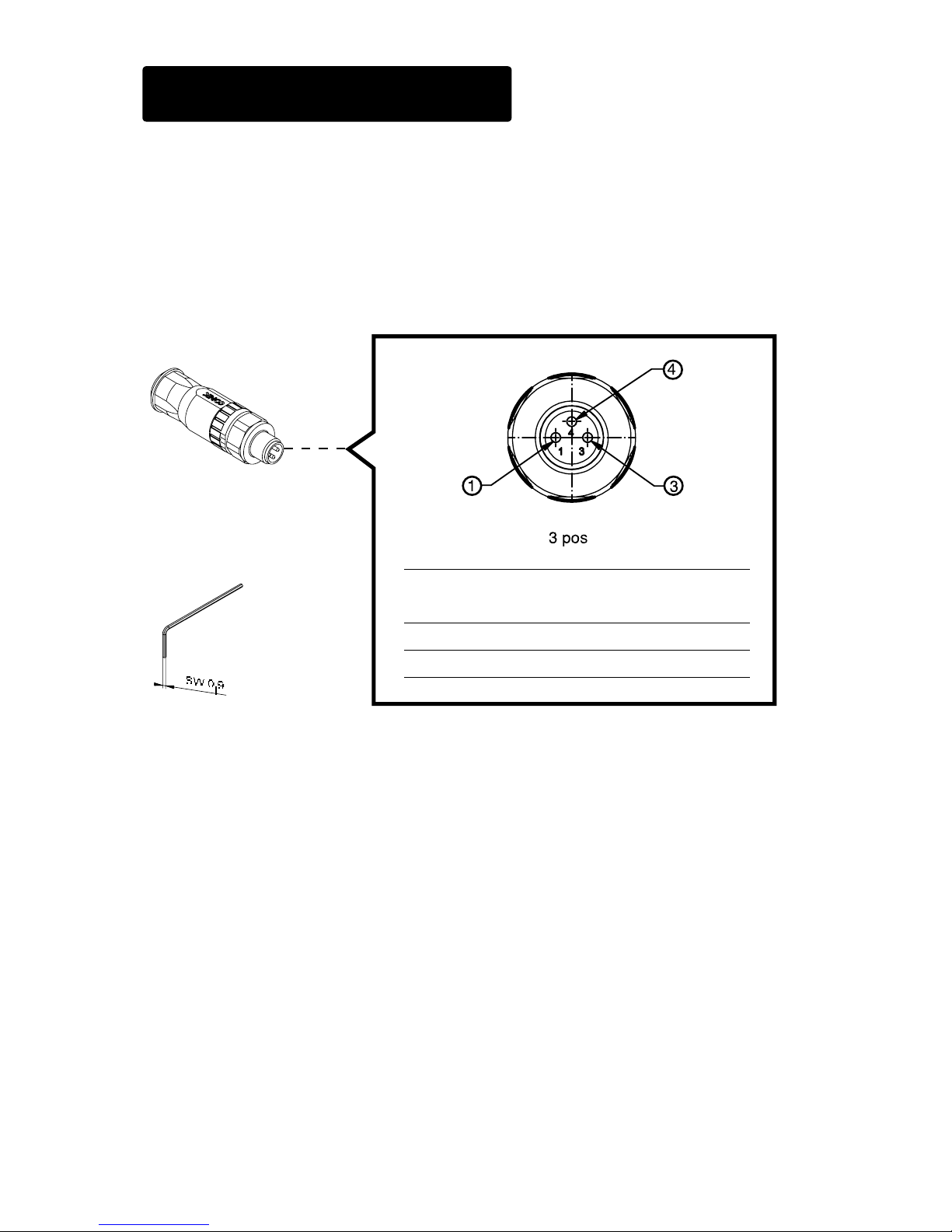

Power connector
Wire To Connect:
cable Wire Cross
Section Surface Area
0.14 – 0.5 mm
2
Wire Gauge AWG 26-20
cable Ø Diameter 4 – 5.5 mm
+ Installation Tool
for Wire Termination
(Included)
N.C.
+12V
GND
WIRING INSTRUCTIONS
If external power connection is desired, external power connector
instructions are as follows:
EXTERNAL POWER:
Page 17
www.ayyeka.com
[email protected]
+1 (310) 876-8040
QUESTIONS?
