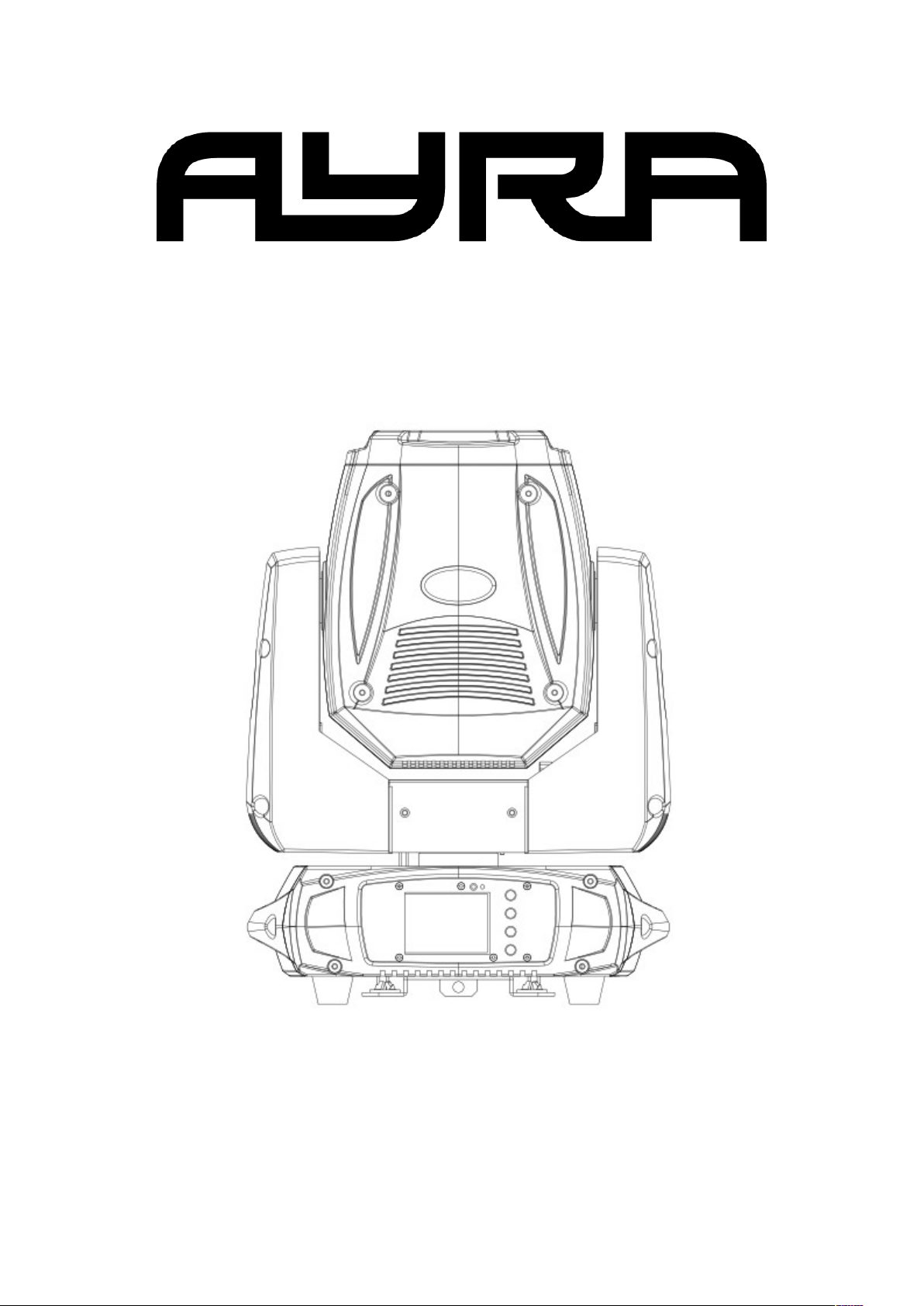

Ayra Vision 180 Spot User guide

Vision 180 Spot

180 W LED Spot Moving Head

User Manual

The information included in this user manual is subject to change at any time and without notification:

Version: 1.1 Date & Author Initials: 09-02-2022 RV Revision Date & Author Initials: -

Introduction

Thanks for purchasing the Ayra Vision 180 Spot. This compact moving head offers a versatile array of
features so you can get the best results at any event. This user manual contains all the information you need
to know before using the unit.

Before unpacking the box, we recommend reading this user manual thoroughly to ensure that you are
familiar with all of the features and functions the Vision 180 Spot has to offer. When unpacking the box,
please make sure that all of the components and accessories listed below have been included. If the device
does not function as it should, unplug any connected cables before contacting your local retailer for further
advice.

Box contents:

- Vision 180 Spot LED moving head

- quick-lock mounting bracket

- Locking blue power plug to CEE 7/7 hybrid plug power cable

- Basic DMX connecting cable for testing

- Safety-cable with carabiner hook

Inspection of the Device & Included Accessories

If the device or any of the included accessories have been damaged or rendered defective in transit, please
contact your local retailer for further advice.

Please note: The products seen in the images included in this manual may differ slightly from the actual
products.

The information included in this user manual is subject to change at any time and without notification:

Version: 1.1 Date & Author Initials: 09-02-2022 RV Revision Date & Author Initials: -

Safety Instructions

Every person involved with the installation, operation and maintenance of this device must:

- Be qualified.

- Be skilled.

- Have read the instructions included in this user manual.

- Be sure that neither the device nor the included accessories are damaged. Should the device or the
included accessories be damaged, please contact your retailer for further advice.

- Ensure that the device is in good working condition and is safe to operate. Please follow the advice and
instructions as they are described in this user manual.

Damage caused by misuse and/or modifications made to the device are not covered by the warranty.

This device does not contain any parts that can be repaired or replaced by the user. Should maintenance or
repairs be necessary, they must be carried out by a qualified technician.
The light source of the device cannot be replaced. In the event that the light source fails, the entire device
will need to be replaced.

Important Health & Safety Information:

- Do not remove any labels or stickers from this device.

- Do not leave any cables lying around where they are in danger of causing a tripping hazard.

- The housing of this device must not be opened and any hardware or software that may be present must not
be modified.

- For optimal performance, any inputs should not be fed with a signal higher than necessary.

- The device must only be used indoors; contact with water, rain and moisture must always be avoided. Do
not place any objects containing liquid on top of the device.

- Never expose the device to flames or heat sources; do not place it near flammable fluids, gases or objects.

- Disconnect this device from a power source if it is not being used for a long period of time, if maintenance is
required, or if it needs to be cleaned.
– Do not pull or tug on any cables to remove plugs as this may cause damage.

- Do not use any cables other than those specified in this manual. Do not use defective cables. Please
contact your retailer if the included or specified cables do not function properly with this device.

The information included in this user manual is subject to change at any time and without notification:

Version: 1.1 Date & Author Initials: 09-02-2022 RV Revision Date & Author Initials: -

WARNING!

Keep this device away from moisture, water and rain

to prevent any danger of electric shocks!

WARNING!

This device must only be connected to a power socket that matches the specified mains voltage.

If this device is connected to a power socket with a different voltage, it may cause permanent

damage or lead to harmful effects including fire hazards or electric shocks.

WARNING!

Always take care when operating this device. Avoid touching any external or internal wiring

when live as they may cause harmful electric shocks!

- Only ever power this device via a stable AC mains power socket.

- Only power this device using a grounded power socket.

- In the event that the device is exposed to extreme temperature changes (e.g. transported from a cold
outdoor environment into a warm indoor environment), it must not be turned on until it has reached room
temperature. This is necessary to prevent moisture (condensation) from forming inside the device, which
may cause electric shocks.

Use & Operation Guidelines:

- This device is intended for professional use on stages, in venues, theatres or clubs and similar
entertainment locations.

- This device is not suitable for use by children and must always be operated by an adult.

- - This device is a light effect designed for entertainment spaces. It is not designed to serve as normal home
lighting.

- This device can only be used in appropriate environments where no damage to the device can occur. Do
not use the device in moist or dusty environments such as:

- indoor swimming pools where chlorine is used

- beaches or any location where sand and/or salt is present

- outdoors

- in indoor spaces where intense heat sources are present, or where it can reach temperature levels that
would be considered uncomfortable for a human being.

- Avoid impact and collisions during use and transport. Do not move or transport the device while it is in use.
Avoid using excessive force when installing and operating the device.

- Any user must become familiar with the functions of this device before using it.

- If the device is not operated in the manner described in this user manual, damages or even injuries could
occur. Ayra will not be held responsible for any injuries or damages that occur as a result of improper use of
this product.

Storage & Transport:

- This device is designed for mobile use and can be transported in its original packaging or in a flight case
with a foam-lined interior as long as it is well protected against shocks and impact.

- This device has not been designed for continuous (24/7) use. Regularly switching the device off will not
affect the expected lifespan of the device. Always switch off and unplug the device when it is not in use.
– When the device is not in use for long periods of time, always disconnect the device from the mains power
and store it in a dust free environment.
– Do not expose the device to extreme temperature shifts.

Housing:

- Frequently inspect the housing of the device and always just before use. Avoid operating the device if any
large dents or cracks are found in the housing, or if screws are missing. Do not use the device if the housing
is not in good condition. Contact your local retailer or a qualified technician if you are unsure about the state
of the device.

- Check the device and screws for any corrosion. If any corrosion is found, do not use the device. Contact
your retailer or a qualified technician if the screws or housing show any signs of corrosion.

- Ensure that every power and signal socket is securely fitted. Do not use the device if any of the sockets are
not secure.

- Avoid the build up of any dust and dirt. Clean the device once a month by disconnecting it from the power
supply and wiping it down with a dry or slightly moist cloth. If the device is used frequently, the device should
also be cleaned more frequently.

The information included in this user manual is subject to change at any time and without notification:

Version: 1.1 Date & Author Initials: 09-02-2022 RV Revision Date & Author Initials: -

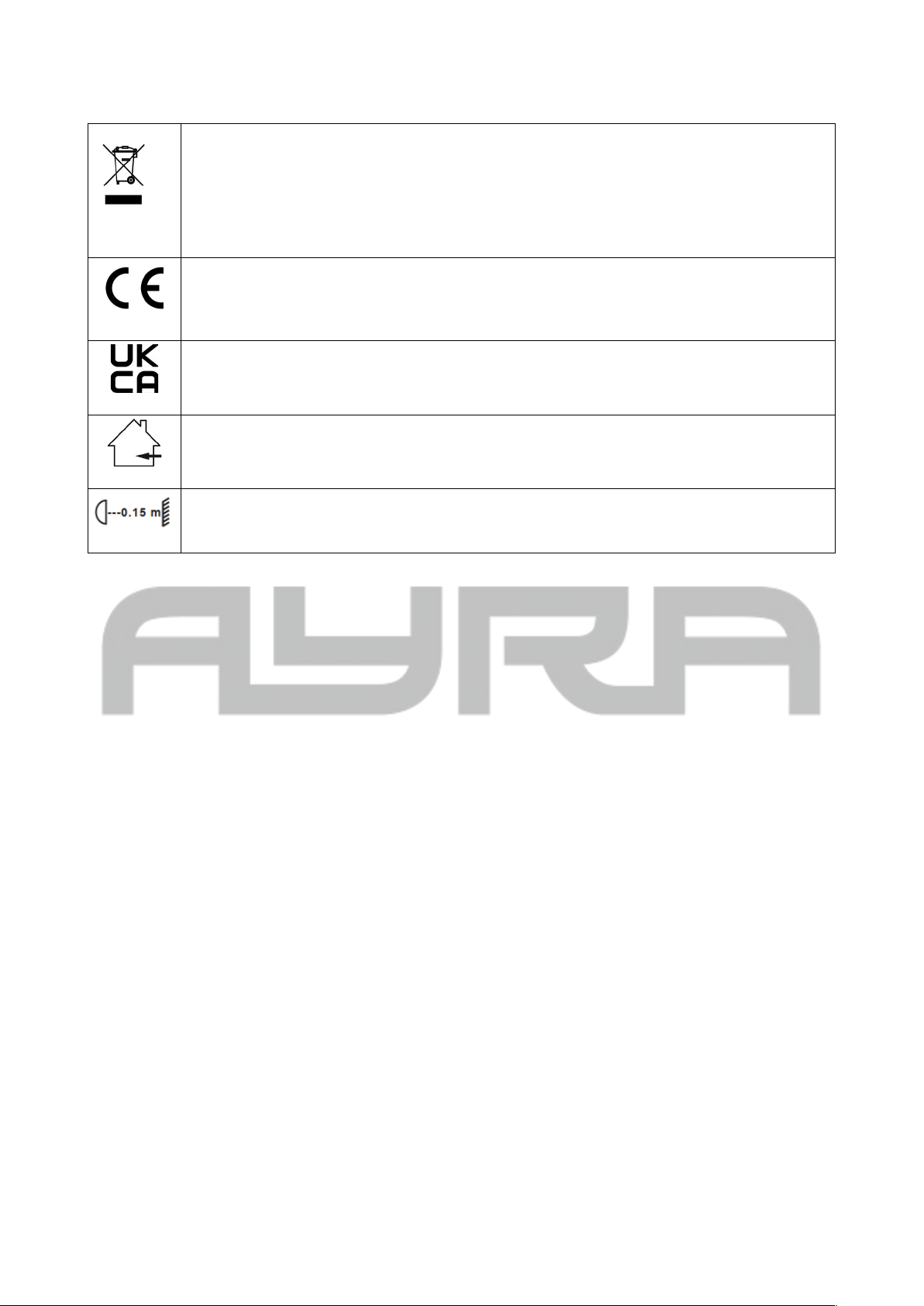

Symbol Explanation:

WEEE: Ensure that this device is disposed of properly. This product falls under the WEEE

(Waste Electrical and Electronic Equipment) directive. The requirements of this directive apply
to all manufacturers and producers of electronic devices in the EU. Do not throw this product
away with normal refuse. Please contact your local authority for more information about how
to recycle and dispose of these products in your region. By recycling this product in the proper
manner, we can work together to ensure that we can continue to enjoy these kinds of products
and still protect the environment as much as possible.

CE: The CE logo indicates that this product meets the European norms and requirements to
which it must legally conform.

UKCA: The UKCA mark indicates that this product conforms to the directives and standards
that this product is legally required to comply with in the United Kingdom.

For indoor use only: This product was designed for indoor use only. The maximum
environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit).

Minimum Distance: Maintain a minimum distance of 0.15m between the lens and any
objects to prevent overheating and the danger of fire hazard.

Contact:

Ayra Professional Lighting Products

Verrijn Stuartweg 18

4462 GE Goes

The Netherlands

This is a correspondence address only. Please do not send any physical products to this address.

If you need to send a product for repairs or for a refund, please contact your retailer for an RMA request

(Return Merchandise Authorisation)

The information included in this user manual is subject to change at any time and without notification:

Version: 1.1 Date & Author Initials: 09-02-2022 RV Revision Date & Author Initials: -

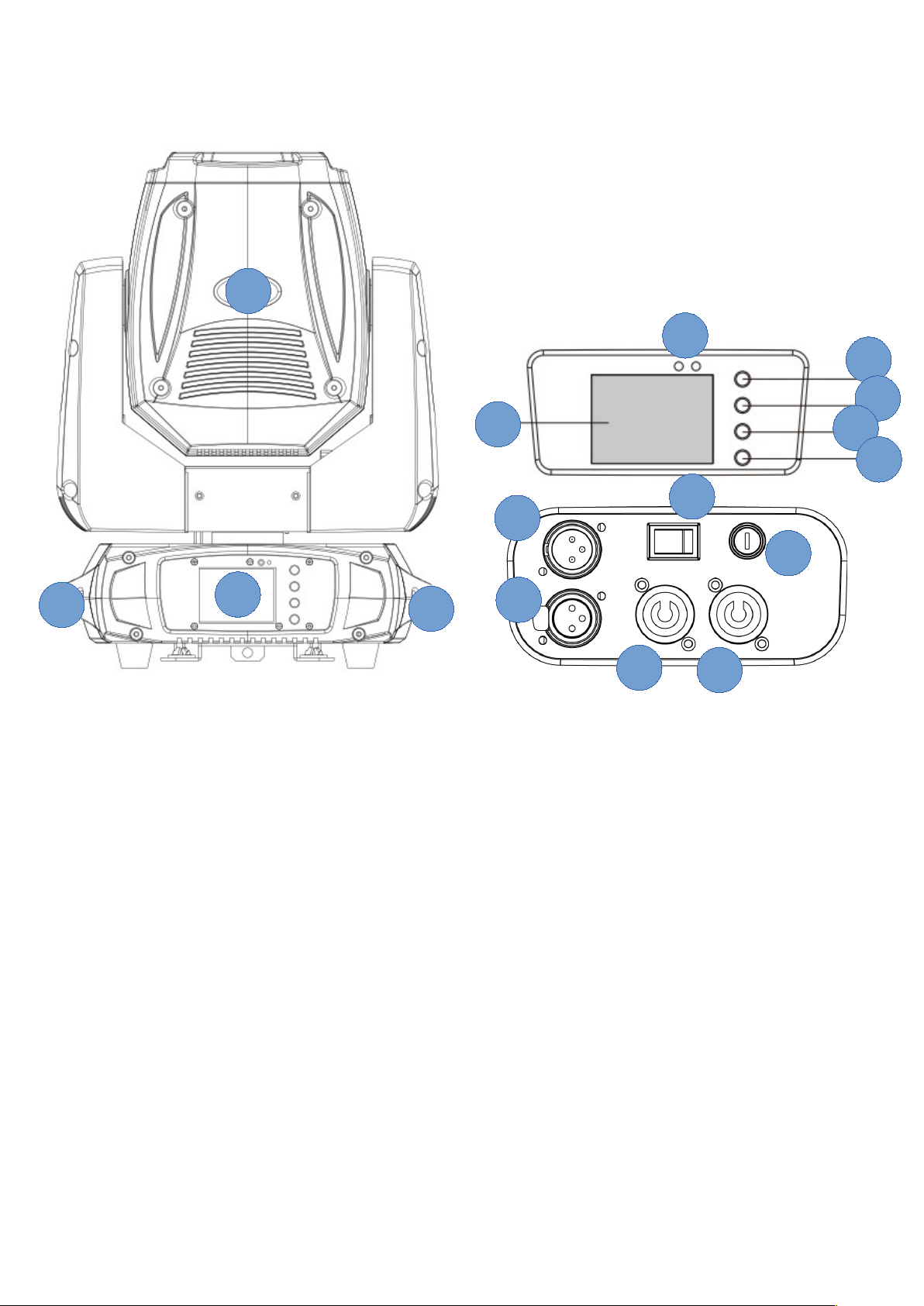

Overview



1. Moving head with light output via lens

2. Display with menu buttons

3. Handle

4. Power output (link output) via white locking power socket

5. Power input via blue locking power socket

6. Fuse compartment for internal fuse

7. On/Off switch

8. 3-pin F-XLR for DMX output/link to chained fixture

9. 3-pin M-XLR for DMX input from DMX controller

10. Menu button: MENU

11. Menu button: UP

12. Menu button: DOWN

13. Menu button: ENTER

14. LED indicators

Base:

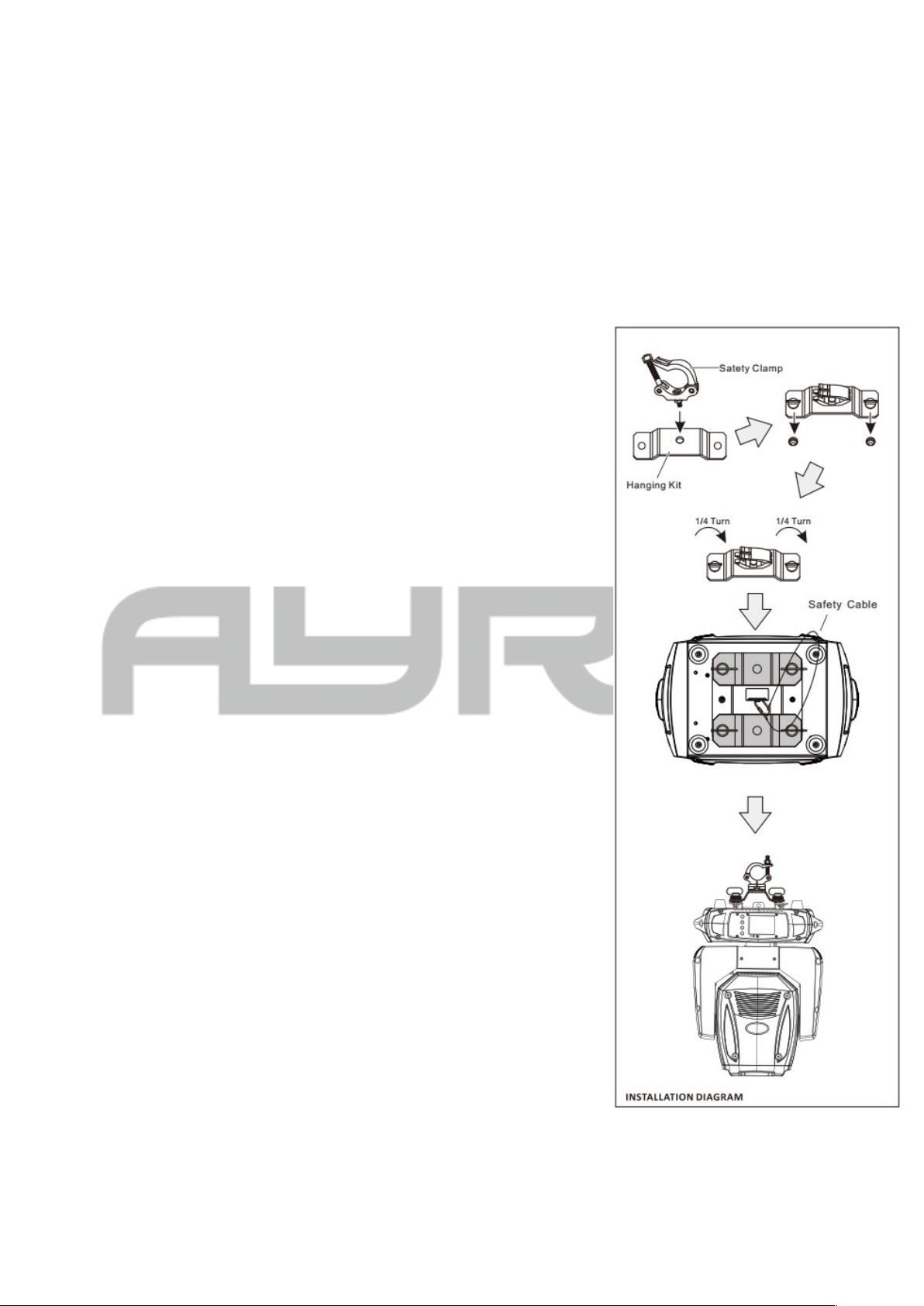

- Quick-lock suspension bracket mounting point (for suspended installation)

- Mounting eyelet for securing safety cable (for suspended installation)

A full explanation of these functions is included later in this manual, including illustrations.

The information included in this user manual is subject to change at any time and without notification:

Version: 1.1 Date & Author Initials: 09-02-2022 RV Revision Date & Author Initials: -

1

2

3

3

4

5

6

7

8

9

2

10

11

12

13

14

Set Up & Operation

To test the device after unpacking it, make sure it is placed on a flat and stable surface far away from any
other objects that may hinder the moving head of the device.

Activate the device by plugging it into a nearby power socket and flipping the power switch into the On
position. The device will now power up.

During the start-up process, the device cannot be controlled. Once the start-up process is complete, the
device will jump to the last-used mode. Now the operating mode and other settings can be changed via the
menu display and buttons.

During the start-up process, all of the motors (for movement and for applying effects to the light beam) are
calibrated. This brings all motors back to zero - so to a starting position. During this process, the device may
appear to stutter, but this is common with a unit of this type. The start-up process should not last longer than
approximately 30 seconds, depending on the position of the head and how far it needs to move to return to
the zero-point position.

When a DMX signal is detected, the device shall automatically jump to DMX mode and the last-used DMX
address will be displayed. If the device is being used for the first time, the DMX address 001 will be
displayed. The DMX address can be changed via the menu display and buttons.

Via the menu display and buttons, the functions and settings of the device can be changed. Using the ‘Enter’
button, you can select a function or confirm any changes. Using the ‘Up’ and ‘Down’ buttons, the values of
various functions can be changed, and using the ‘Menu’ button, you can return to the main menu.

The menu includes the following options and functions:

Main Menu Sub Menu Function Settings & Values

Function mode

DMX Address

Setting the DMX address. The DMX channel
value dictates the DMX command channel

A001 - AXXX

Channel mode DMX-channel mode

CH14 (14-channels)
CH16 (16-channels)

Auto Run / Sound
Control

Auto Run

Plays back one of the built-in shows at a speed
set by the user. Select master or slave mode.
Ensure smooth performance by setting the speed
and movement separately.

Sound Control

Plays back one of the built-in shows in time to
any music or sound detected by the built-in
microphone. Here the tempo of the detected
sound determines the playback speed.

Show 1 – 9
State: Master / Alone
Auto Run (on/off)
Music Run (on/off)
Step Time: 1 – 10*
Scan Speed: 1 – 10*
Auto Focus (on/off)
Focus Set (A/B/C/D/E)

*Auto mode only

Option Reset Default Restore factory settings. Yes / No

Signal set

DMX signal input method.

Please note: At the time of writing, this unit only
supports a standard wired DMX connection via a
cable. It is possible that future updates and
extensions will expand functionality.

Wire (wired, default)
Wireless DMX input
(DMX via wireless receiver)
ACT WDMX & OUT
(DMX via wireless receiver
and wired output)

Pan / Tilt Pan/tilt inversion and pan and tilt range limit

settings. Pan controls left and right movements.
Tilt controls up and down movements.

Reverse Pan (On / Off)
Reverse Tilt (On / Off)
Select Pan (630 / 540 / 360)

The information included in this user manual is subject to change at any time and without notification:

Version: 1.1 Date & Author Initials: 09-02-2022 RV Revision Date & Author Initials: -

Select Tilt (270 / 180 / 90)
Limit mode: Off / Centre /
Right / Left)

UI SET

User Interface settings, including:
Microphone sensitivity

DMX signal mode. When enabled, the device will
switch to Blackout mode in the event of DMX
signal-loss.

When enabled, Split Colours can be used

Mic Sensitivity (0 – 99%)

OFF signal mode (ON / OFF)

Half Colour Wheel (ON /
OFF)

System
Information

Temperature Current operating temperature of unit

Temperature displayed in
degrees Celsius (not
adjustable)

Software Version Current software version of device

Current software version (not
adjustable)

Manual Control

Reset

Total Reset – completely reset unit
Pan / Tilt reset – Reset pan / tilt
Colour reset – Reset colour wheel
Gobo reset – Reset gobo-wheel(s)
Others reset – Reset other motors/effect wheels

Total Reset
Pan / Tilt reset
Colour reset
Gobo reset
Others Reset

Channel

Manual control over all set channels. Here, all
functions can be set manually, without the need
for any external control equipment.

When manual mode is active, the current settings
remain active as long as the user does not return
to the main menu.

When this mode is activated, the current setting
values are applied. The values can be adjusted
and saved, but as soon as the user returns to the
main menu, the values will expire.

Pan
Pan Fine
Tilt
Tilt Fine
Move Speed
Colour Wheel
Gobo 1 wheel
Gobo rotation
Gobo 2 wheel
Strobe
Dimmer
Focus
Prism
Color time
Gobo time

Advanced

Channel
Calibration

Built-in effect wheel calibration options

Please note: The motors are factory calibrated.
Adjusting the calibration can lead to slight visual
differences when multiple units are chained and
synchronised.

During normal operation, it is not possible to
calibrate the motors of this unit. Recalibration will
not solve any issues, but will only return the
motor to the starting position.

To make calibration adjustments, the following
access code is required: 088.

Pan
Tilt
Colour Wheel
Gobo 1 Wheel
Gobo rotation
Gobo 2 Wheel
Focus
Prism

Bonus: Display Flip function

This hidden function is commonly used when the unit is suspended. By holding down the UP and DOWN

The information included in this user manual is subject to change at any time and without notification:

Version: 1.1 Date & Author Initials: 09-02-2022 RV Revision Date & Author Initials: -

buttons for three seconds, the display will be vertically mirrored (flipped upside down), making it easier to
read when the unit is in a suspended position.

Explanation of Auto Focus Function

When this moving head is used in a space where the distance between the ceiling/floor and the left/right
walls is not the same, then certain colours and gobos will not be sharply projected. This is because of the
focus setting of the light beam, which is normally set via DMX. However, most DMX controllers and desks
are not designed to continuously adjust the focus of a moving head to ensure a consistently sharp projection,
simply because adjustments would have to be made constantly, as the fixture moves from one position to the
next,

To compensate for this, and to ensure as sharp a projection as possible at all times, Auto Focus mode can
be used. This mode allows the user to set the focus values to a number of fixed points.

An average focus value is then continuously calculated for all intermediate positions. In practice, the moving
head automatically corrects the focus value according to the position of the head.

5 positions are used to set the Auto Focus. These 5 positions are based on the projection direction of the
moving head and are as follows:

- Straight Up

- Left

- Right

- Forwards

- Backwards

These 5 points serve as base points that draw a virtual ‘hemisphere’ around the moving head. This is
because the moving head is able to move freely across a maximum 630 degree horizontal and a maximum
270 degree vertical, so it could be in any position between each point.

The Auto Focus system also has its limitations. For example, a standard ‘box-shaped’ installation space is
assumed. So the system has been designed for projecting light into a space with a cube or cuboid shape.

The focus range of this moving head is also mechanically limited. As such, it is not possible to achieve an
extremely sharp projection at a distance of approximately one metre, simply because the optics have not
been designed for this.

Of course, it is possible to override the Auto Focus function and, for example, set the desired focus value via
DMX to achieve the sharpest possible light projection in the space where you’re working.

The information included in this user manual is subject to change at any time and without notification:

Version: 1.1 Date & Author Initials: 09-02-2022 RV Revision Date & Author Initials: -

Operating Modes

The various operation modes, accessed via the menu functions listed above, are explained in full below:

Auto:

In automatic mode, you can select an operating mode that is not dependent on any external equipment or
factors (e.g. a DMX controller, chained master unit, or detected sound). Select one of the basic programmes,
then you will be able to set parameters like the speed.

Sound:

Sound-controlled, or sound mode, sets the unit to respond to any sound or music detected by the integrated
microphone. In this mode, the unit will perform an automatic light show and move in near-perfect
synchronisation to any detected music.

When no music or sound is detected (for example: if only higher frequencies are detected during the break of
song), then the unit will continue to move very slowly so that the light show does not come to a complete
standstill. As soon as music is registered by the microphone, then the unit will continue the programme in
time to the detected beat.

Slave

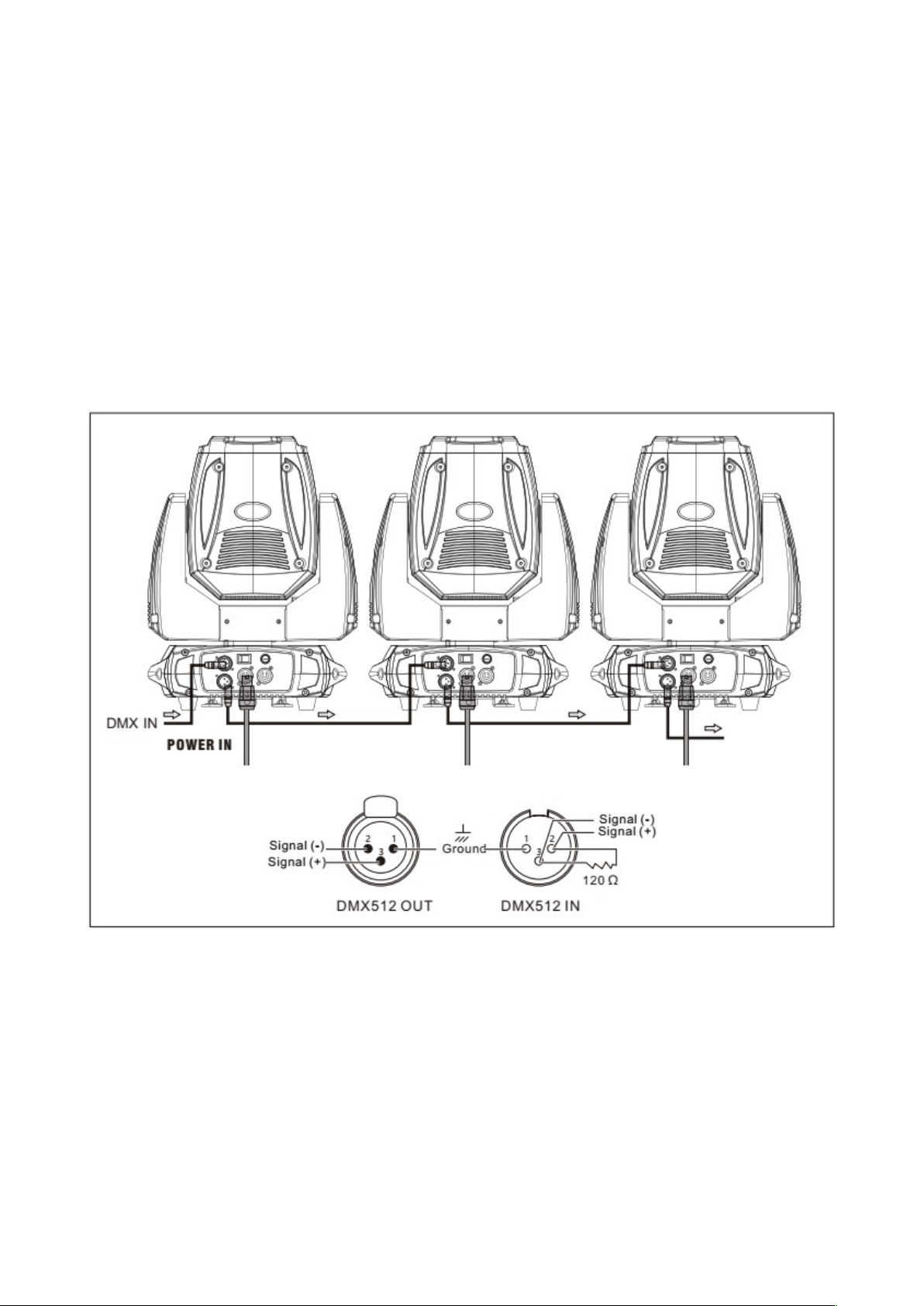

In Slave mode, it’s possible to chain multiple units of the same type so that their functions can be
synchronised. This means that multiple units can perform a tight and coordinated light show in time with one
another. In principle, an unlimited number of slave units can be connected to a master unit, but a DMX
booster will be required. In general, no issues should occur when four units are chained in a master-plus­three-slave chain to complete a four unit setup.

Please note: When units designed by a different manufacturer are chained together, even if the functionality
seems identical, strange behaviour can occur. This is usually because specific functions are linked to the
incorrect channel. This applies to all DMX lighting fixtures of all brands and types.

DMX

DMX mode is the most extensive control method, since it grants direct control over every function this unit
has to offer. In DMX mode, a limited number to a large number of functions can be controlled via a DMX
controller or DMX software.

This unit can be set to various different channel modes so that the channel layout, as listed below, matches
the layout of your DMX circuit and with the functions that you actually need.

This unit can be used in 14-channel or 16-channel DMX mode. Because the channel layout is 100% identical
for the first 14 channels, the overview included below covers the 16-channel version of the layout. For ease
channels 15 and 16 have been highlighted in grey.

CH Function Value

1 Pan – Pan movement 000 – 255

2 Pan fine – Pan Fine movement 000 - 255

3 Tilt – Tilt movement 000 - 255

4 Tilt fine – Tilt Fine movement 000 - 255

5 Colour wheel

Please note: This list covers the options when the
Split Colour function is enabled.

If this function is disabled, split colours cannot be

000 – 007: Open white
008 – 015: Open white
016 – 023: Colour 1
024 – 031: Colour 1 + Colour 2
032 – 039: Colour 2
040 – 047: Colour 2 + Colour 3

The information included in this user manual is subject to change at any time and without notification:

Version: 1.1 Date & Author Initials: 09-02-2022 RV Revision Date & Author Initials: -

used and the previous main colour will still be
displayed approximately to those values before the
values of a new main colour is reached.

048 – 055: Colour 3
056 – 063: Colour 3 + Colour 4
064 – 071: Colour 4
072 – 079: Colour 4 + Colour 5
080 – 087: Colour 5
088 – 095: Colour 5 + Colour 6
096 – 103: Colour 6
104 – 111: Colour 6 + Colour 7
112 – 119: Colour 7
120 – 127: Colour 7 + Open white
128 – 189: Forwards Rainbow effect, fast ­slow
190 – 193: Rainbow effect stop
194 – 255: Backwards Rainbow effect, slow

- fast

6 Gobo wheel 1 (with rotating gobos) 000 – 009: Open (no gobo)

010 – 019: Gobo 1
020 – 029: Gobo 2
030 – 039: Gobo 3
040 – 049: Gobo 4
050 – 059: Gobo 5
060 – 069: Gobo 6
070 – 089: Gobo 1 shake slow - fast
090 – 109: Gobo 2 shake slow - fast
110 – 129: Gobo 3 shake slow - fast
130 – 149: Gobo 4 shake slow - fast
150 – 169: Gobo 5 shake slow - fast
170 – 189: Gobo 6 shake slow - fast
190 – 255: Gobo scroll effect slow - fast

7 Gobo wheel 1 gobo rotation 000 – 003: No function

004 – 127: Forward gobo-rotation, fast –
slow
128 -131: Gobo rotation stop
132 – 255: Backwad gobo-rotation, slow ­fast

8 Gobo wheel 2 (with fixed gobos) 000 – 014: Open (no gobo)

015 – 029: Gobo 1
030 – 044: Gobo 2
045 – 059: Gobo 3
060 – 074: Gobo 4
075 – 089: Gobo 5
090 – 104: Gobo 6
105 – 119: Gobo 7
120 – 134: Gobo 8
135 – 144: Gobo 1 shake slow - fast

9 Shutter 000 – 031: Shutter shut

032 – 063: Shutter open
064 – 095: Strobe effect, slow – fast
096 – 127: Shutter open
128 – 159: Pulse effect, slow – fast
160 – 191: Shutter open
192 – 223: Random strobe effect, slow – fast
224 – 255: Shutter open

10 Dimmer 000 – 255: Dimmer 0 – 100%

11 Focus 000 – 255: Focus close – far

12 Rotating prism 000 – 005: No prism

006 – 127: Prism on

The information included in this user manual is subject to change at any time and without notification:

Version: 1.1 Date & Author Initials: 09-02-2022 RV Revision Date & Author Initials: -

128 – 189: Prism rotation forward, fast - slow
190 – 193: Prism rotation stop
194 – 255: Prism rotation backward, fast ­slow

13 Pan / Tilt speed (movement speed) 000 – 225: max. to min. speed

226 – 235: Blackout when unit moving
236 – 245: Blackout when effect wheel
moving (colours/gobos/prism)
246 – 255: No function

14 Special functions 000 – 079: No function

080 – 084: Motor reset all motors
085 – 087: Motor reset pan and tilt
088 – 090: Colour wheel reset
091 – 093: Gobo wheel(s) reset
094 – 096: No function
097 – 099: Other motor reset (gobo rotation,
prism, focus)
100 – 119: Automatic show 1
120 – 139: Automatic show 2
140 – 159: Automatic show 3
160 – 179: Automatic show 4
180 – 199: Automatic show 5
200 – 219: Automatic show 6
220 – 239: Automatic show 7
240 – 255: Music controlled show 1

15 Colour wheel changeover time (16-channel mode

only)

000 – 255: Max. to min. speed

16 Gobo wheel changeover time (16-channel mode

only)

000 – 255: Max. to min. speed

The information included in this user manual is subject to change at any time and without notification:

Version: 1.1 Date & Author Initials: 09-02-2022 RV Revision Date & Author Initials: -

Installation & Connection Instructions

Now you know what the Vision 180 Spot is capable of and how it works, we can take a look at how it can be
safely and properly installed and connected.

Always ensure that children are unable to access the unit or any connected cables and ensure that any
children are supervised by an adult when the unit is in use. Because this unit can be set up in a standing or
suspended position, it is possible for children to pull on any connected cables. The unit must be positioned or
installed in such a way that this is prevented.

Standing Positioning

When the Vision 180 Spot is set up in a standing position, ensure that the
unit is set on a stable surface like a table, DJ booth or bar. The base of the
Vision 180 Spot is fitted with feet to improve grip and ensure stability.

Suspended Installation (Suspension Brackets)

When the Vision 180 Spot is suspended, the suspension brackets need to
be fitted to the baseplate of the unit. These brackets are fitted via quick­couplers, which are inserted into the mounting points and turned by one
quarter to screw them in place. A half-coupler or G-hook can then be
secured via the mounting holes of the brackets. Standard hooks and/or
brackets for 35mm or 50mm poles (truss or lighting stand) are available via
your local retailer.

The hardware required for mounting the Vision 180 Spot to a wall, ceiling or
beam does not come included. If you’re not sure what hardware you’ll need
to install the unit, then contact a specialist for advice. Securing the unit to a
wooden beam will require different hardware than when securing the unit to
a stone wall, for example.

When the Vision 180 Spot is suspended, a safety cable must be used to
secure the unit. A safety cable does not come included but will be available
via your local retailer.
The Vision 180 Spot comes with a safety eyelet which can be screwed into
the base of the unit to secure a safety cable. The safety cable must then be
looped over the truss or stand the unit is suspended from before being
reattached to the hook.
This way, if one or both of the brackets should fail and come loose, the
safety cable will prevent the unit from falling.

A safety cable that’s able to bear at least 10x the weight of the unit must be
used. The safety cable must be installed so that the unit is unable to fall any
further than 30cm. To ensure this, the safety cable can be wrapped around
the truss or stand to shorten the length as needed. The shorter the fall­distance allowed by the safety cable, the more the chance of damage or
injury is reduced.

Light Source

The Vision 180 Spot comes fitted with powerful LED light modules coupled
with a special lens that intensifies the effect. Never look into the lens of the
unit from a short distance as the human eye is forced to react too quickly to
the sudden intensity of light. Normally, this will not cause permanent injury,
but will cause blind spots, impairing vision for a short period of time and
causing disorientation and discomfort.

Cooling

The Vision 180 Spot is cooled by fans located in the head and main housing. These will activate

The information included in this user manual is subject to change at any time and without notification:

Version: 1.1 Date & Author Initials: 09-02-2022 RV Revision Date & Author Initials: -

automatically as soon as the unit is switched on. Always ensure that the fans and ventilation slots are never
blocked and regularly check that they are functioning properly. Dust and other elements such as synthetic
smoke (precipitated smoke fluid) can affect the functioning and lifespan of the unit.

Temperature-Controlled Fan Systems

This Ayra Vision Series unit is fitted with a built-in temperature-controlled fan system. This system is active
as soon as the unit is switched on and will run at a low speed. As the internal temperature of the unit rises,
the fan speed will increase to enhance the cooling effect.

The fans will rotate at base speed until the internal temperature reaches approximately 30 degrees Celsius,
and will then gradually increase in speed as the temperature rises.

If (for whatever reason) the internal temperature rises to such a level that the fans are unable to sufficiently
cool the unit at their maximum speed, the light output of the LED modules will automatically decrease to
reduce heat production and regain thermal balance, preventing certain components from overheating.

Parts & Repairs

No spare parts are commercially available for this unit, and therefore it cannot be repaired by the user. In
case of any defect, always have the unit inspected and repaired by a qualified technician.

Cleaning & Maintenance

The exterior housing of the unit must be cleaned with a dry or lightly moist microfibre cloth on a monthly
basis. Ensure that the unit is unplugged from the power source before cleaning or performing any
maintenance.

Check that no screws are missing and that all screws are well secured. Tighten any screws where needed.
Check that no corrosion is present on any metal parts of the unit. If any corrosion is present, the unit must be
properly inspected.

Use in Daylight/Direct Sunlight

The Vision 180 Spot is fitted with various optics, including a large central lens. If direct sunlight is able to
shine through the optics of the unit, there is a danger of sunlight beaming inside the unit itself. This light can
be concentrated in such a way that the effect is amplified, causing damage to the interior of the unit. In the
worst case, this may cause a fire. Always prevent direct and prolonged sunlight from entering the central
lens.

Special DMX Control Features

DMX Terminator & 110 Ohm Impedance Cables

Adding a DMX terminator to the end of your DMX circuit is strongly recommended. This is a termination
resistor that is able to counter reflections in the DMX signal and prevent interference. Always use 110 Ohm
DMX cables to ensure optimal data signal transfer.

While it may work in practice, unexpected reliability and signal stability issues may arise when this unit is
connected using standard XLR microphone cables

High-quality cabling, a stable power supply and the use of DMX terminators all contribute to a more
consistent, reliable and safe setup.

The information included in this user manual is subject to change at any time and without notification:

Version: 1.1 Date & Author Initials: 09-02-2022 RV Revision Date & Author Initials: -

DMX Terminator

A DMX terminator is commonly placed at the end of the DMX circuit when using this unit in DMX mode. A
DMX terminator places a 120 Ohm resistor between pin 2 and 3 to eliminate any data reflections. Data
reflections can cause any DMX fixtures to behave strangely.

Ready-made DMX terminators can be purchased, but a 120 Ohm resistor can be soldered between pin 2
and 3 of a standard M-XLR (male, 3-pin) plug to complete a terminator.

DMX Splitter/Booster

When more than 32 fixtures are chained in one DMX circuit, it is recommended to add a DMX splitter to
divide the circuit into several groups. This prevents the signal from becoming too weak, especially when long
distances need to be bridged between each fixture.

By using a signal distributor and/or booster, the setup is at a far lower risk of signal distribution problems.
This is especially recommended when several fixtures are chained in the same DMX circuit or the DMX
signal needs to travel longer distances between fixture groups.

How to Chain Multiple Units

Special Power Output Features

Device Capacity

This device comes with a 3x 1.5mm² thick connecting cable. The internal wiring between the input and output
of this unit is 1.5mm².

This unit comes fitted with a power output that can be linked to the following unit to form a chain. A loop­through cable that also has 1.5mm² wiring must be used to link the power output to another unit.

The maximum capacity of the power link output is 16 Amperes, minus the power consumption of the unit

The information included in this user manual is subject to change at any time and without notification:

Version: 1.1 Date & Author Initials: 09-02-2022 RV Revision Date & Author Initials: -

itself.

This unit has a maximum power consumption rating of 225 Watts which amounts to almost 1 Ampere at
240V, and 2.65A at 100V. To ensure safe operation, and to allow for a margin, it is recommended that a
maximum of 12A at 100V or 13A at 240V from the first unit be passed onto the subsequent units.

This means that the total load capacity on the line that supplies the first appliance with power can never
exceed 15A.

Always take the capacity of the mains power connection used for the first unit in the line (and any other units
in the same line) into account. Because, besides your units, other devices may be connected to the same
power group. If this is the case, then the maximum load capacity of the group will be affected, meaning that
fewer devices (units, equipment etc) can be connected.

In practice, this means that, a maximum of 4 Ayra Vision 180 Spot units at 100V, or a maximum of 11 Ayra
Vision 180 Spot units at 240V, can be chained via the power link output. This is normally more than sufficient
for a chain like this, as long as the mains power group is not being used by other electronic devices.

Ideally, other devices (such as heavy strobe lights, smoke machines and so on) that consume more energy
than this unit are connected to their own power supply.

The built-in fuse of this unit only protects and fuses the unit itself. If the fuse blows as the result of an
electrical fault, the rest of the chain will continue to function normally.

If there is a problem with the unit that affects the entire chain, such as a short-circuit, then normally the mains
fuse (usually found in the circuit breaker of the distribution box) of the power group will cut power to all
devices connected to that group.

Bear in mind that, if your setup is connected to a third-party system, such as those in an events space, then
the power group can only be restored via the electrical meter box.

The installations at these kinds of venues are not usually accessible by third parties.
Always check with the venue, or contact the relevant organiser, regarding accessibility in the event of power­outages such as short circuits.

The information included in this user manual is subject to change at any time and without notification:

Version: 1.1 Date & Author Initials: 09-02-2022 RV Revision Date & Author Initials: -

DMX-Lighting Problem Shooting

If you happen to encounter any problems while using this unit, we recommend checking this troubleshooting
section to see if a solution can be found. If none of the suggested solutions included below solve your
particular problem, please contact your local retailer for further advice.

This troubleshooting section includes all of the most common possible issues and is not a complete list of
every possible fault, defect, and their subsequent solution. This section is generally focussed on solving
problems regarding DMX lighting. Some of the included problems, causes, and solutions may not apply to
your situation since product specifications can differ.

Problem Possible Cause Solution

The unit is not switching on Blown fuse Check that the fuse is not blown. If

it is, replace it with a new fuse of
the same rating and type.

Power cable not plugged in Make sure that the power cable is

securely plugged into the rear of
the device and into a mains power
socket.

The unit is not responding to DMX
signals

Incorrect DMX start address Make sure that the correct DMX

start address is set

DMX controller set to ‘blackout’ Make sure that the ‘blackout’

function of the DMX controller is
switched off.

The polarity switch of the DMX
controller is not correctly set

Try flipping the DMX controller
polarity switch.

Unit not responding. No DMX
signal indication

Test the connected cables and
replace them if needed.

The unit is not responding to
sound/music

Incorrect operating mode Check that the correct (sound

controlled) operating mode is
activated.

Microphone sensitivity level set too
low

Check the microphone sensitivity
level and increase the value if
necessary.

Speaker is too far away, or not
enough lower frequencies (bass)

Place the unit closer to the
speaker (or vice versa) and/or
enhance lower frequency
reproduction of the sound system.
The built-in microphone is not
triggered by higher frequencies.

The light projection is
minimal/weak

Dirty or dusty optics Clean the lens and/or other optics

of the unit

Dimmer is not fully open Check that the dimmers of the

spots and/or the master dimmers
are fully open.

The DMX signal is intermittent and
some units are blinking or acting
strangely

Broken/defective cables Test all connected DMX cables

and replace any broken or
defective cables if necessary.

Power interference on DMX signal Avoid installing power cables

parallel to DMX signal cables.

The information included in this user manual is subject to change at any time and without notification:

Version: 1.1 Date & Author Initials: 09-02-2022 RV Revision Date & Author Initials: -

No DMX terminator End the DMX circuit with a DMX

terminator.

Signal loss or DMX circuit
malfunction

End the DMX circuit with a DMX
terminator or connect a booster
after every 32 fixtures in the circuit.

The unit is performing jerking
movements

Movement is programmed at too
slow a speed

When the moving head is set at a
very slow speed, movements are
performed step by step. In DMX
mode this can be corrected slightly
by lightly adjusting the pan/tilt
speed per unit

Pan or Tilt range is minimal The pan and tilt range needs to be

reset

Check that the pan and tilt range is
correctly set on your lighting desk
or DMX controller and correct it as
needed.

Pan and/or Tilt range are
responding the wrong way around

Pan or tilt invert is set Check that the pan or tilt invert is

not set and switch it on or off as
needed.

Projected light bundle is not sharp Optical elements need adjusting This unit features various elements

for optimising or adjusting the
optics. Depending on the settings
and the space, a shape or beam
may not be projected sharply. Via
the motorised focus and other
optic parameters, the bundle can
be sharpened.

Display is mirrored vertically at 180
degrees

Display is inverted so it can be
read when unit is suspended

The display can be inverted
(flipped upside down) so that it can
still be read when the unit is
suspended.

This function is described earlier in
this manual.

The information included in this user manual is subject to change at any time and without notification:

Version: 1.1 Date & Author Initials: 09-02-2022 RV Revision Date & Author Initials: -

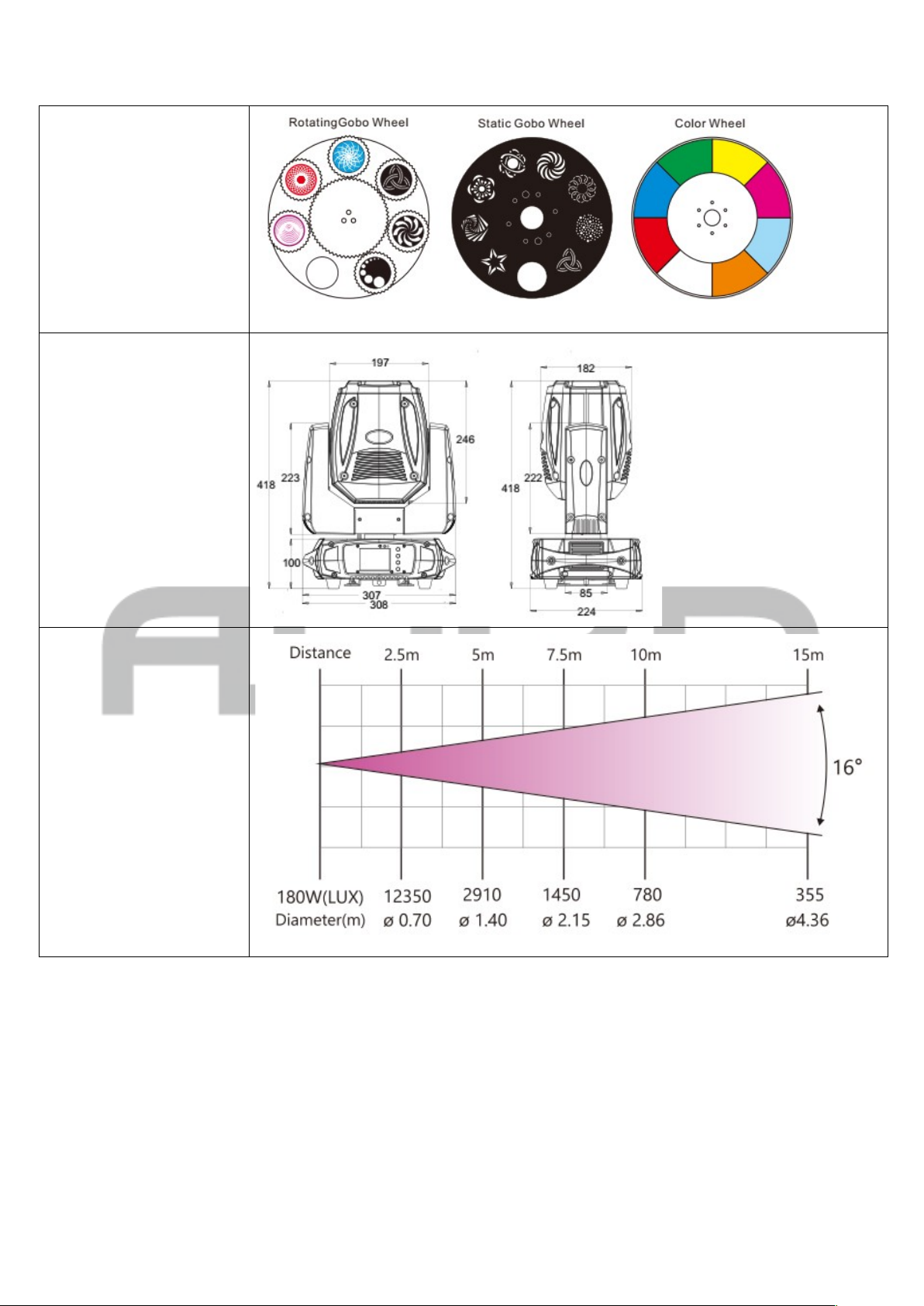

Technical Specifications

Specifications:

- Versatile professional LED moving head

- Spot edition: Fitted with optics to deliver sharp, broad projections

- Light source: 180W LED – 7500K colour temperature

- LED light source lifespan: 50,000 hours

- Various operating modes (automatic, music controlled, DMX, master/slave)

- 14 to 16 DMX-channels

- Offset step-motor calibration

Optic features & Effects

- 3-facet rotating prism, variable rotation speed in both directions

- electronic focus (2.5m to 30m)

- 0-100% linear dimmer

- Built-in LED shutter effect, with strobe function with max. 25 flashes per second

- Built-in shutter-effects, also pulse and random strobe

Pan/Tilt

- Pan-range: 360° / 540° / 630° (540° default)

- Tilt-range: 90° / 180° / 270° (270° default)

- Automatic pan/tilt correction

- Pan and tilt fine option via DMX

- Adjustable pan and tilt movement speed via DMX

- Magnetic zero-point positioning

- Pan and tilt inversion option

Dimmer/Strobe

- 0-100% dimmer

- Various shutter and strobe effects (inc. random strobe)

Colours & Gobos:

- Fixed colour wheel with 7 different colours + open

- Static gobo wheel with 8 gobos + open

- Gobo wheel with 6 rotating gobos

- Built-in wheel-effects (continuous scroll)

Physical Features

- 3- pin XLR DMX inputs and outputs

- Locking power port with Power Link function for chaining and powering units

- Colour display (2.4” TFT) with 4 menu buttons for functions

- Durable housing with plastic caps

- Handles fitted on sides of base

- Base fitted with quick-coupler bracket mounts

- Base fitted with metal eyelet for securing a safety cable during suspended installation

- Can be set up in a standing or suspended position

- Connection voltage: 100 – 240V AC, 50/60Hz

- Max. power consumption: 225W

- Fuse: 20mm glass fuse T4A 250V

- IP20 protection class

- Environmental temperature restrictions: min. -35°C, max 45°C

- Unit dimensions: 307 x 224 x 418mm

- Packaging dimensions: 380 x 250 x 505mm

- Unit net weight: 10.38 kg

- Weight plus packaging: 12.56 kg

The information included in this user manual is subject to change at any time and without notification:

Version: 1.1 Date & Author Initials: 09-02-2022 RV Revision Date & Author Initials: -

Unit Feature Illustrations:

Gobo and Colour Wheels

Unit Dimensions (mm)

Photometric Features

The information included in this user manual is subject to change at any time and without notification:

Version: 1.1 Date & Author Initials: 09-02-2022 RV Revision Date & Author Initials: -
