AYP YTH140AR Parts List
Specifications and Main Features

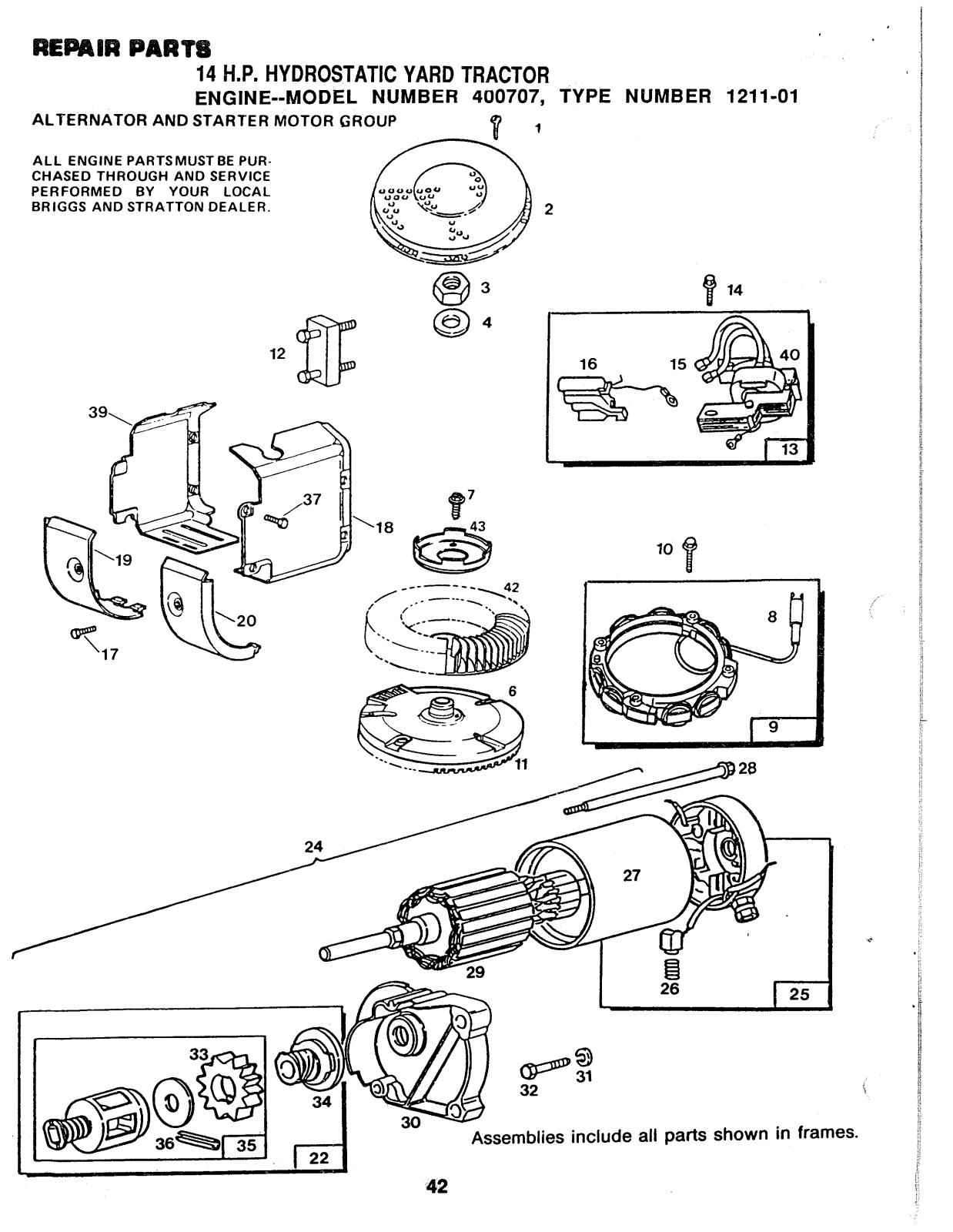

- The engine is a diesel model engine number 400707 and has a 14 horsepower.
- The tractor comes equipped with a unique alternator system that has a minimum diode engine coil and provides 5 amps ac and 5 amps dc power.
- A 30 amp battery is attached.
- An electric key switch serves as an ignition block of the tractor with an OFF, ON, and RUN position.
- This tractor has the capacity of electric clutch for automated functional operations.
- A hydrostatic drive type is installed.
- As for the lights, it is mentioned that they would dim during idle speeds and become more brighter as engine speed starts increasing.
- Dimenisons of the tractor were not explicitly provided in the manual.
- The manual also did not clearly define the weight of the tractor.
- The tractor is compatible with the tiller attachment and also has a power take off connector.
- In order to detect the presence of an operator, the tractor has seat switch (interlock) as the safety feature.
Frequently Asked Questions
- Q: What engine is installed in the tractor yard?
A: A 14 H.P engine, model number 400707 and type model number 1211-01 is installed.
- Q: What is the working mechanism of the electrical system of the tractor?
A: The electrical system can run even when the battery is off, due to the alternator system which does not rely on the battery to power the lights, as a result increasing the engine speed brightens the lights while dimming them at idle.
- Q: What is the function of the seat switch?
A: The seat switch acts as a safety device for detecting the presence of an operator since the tractor can work in seated mode only.
- Q: Is this tractor able to fit additional attachments?
A: The tractor is capable of attaching multiple additional attachments such as a tiller attachment.
- Q: Does the tractor have any electrics?
A: It has a key start switch and an electric clutch and also has a custom light system that does not wire directly to the battery.
