YSC8K472D (1999 & Before) Page 1 of 7
ROTARY LAWN MOWER
YSC8K472D (1999 & Before) Page 2 of 7
ROTARY LAWN MOWER
Ref # Part Number Qty Description
1 146323 CONTROL.DRV.56.25
2 63601 SUB= 73800400
3 144929 SCREW.HXHD.WASH.
4 700875 BOLT.1/4-20X2.0
5 77400 HUB CAP
6 145212 NUT.HXFLG.LOCK.
8 700953 WHEEL.8X2.LP.PR
9 12000058 E-RING.7/16.RE.
10 137054 PINION.GEAR
11 88080 DUST SHROUD PM
12 87877 KNOB PM
13 151521 WHEEL.ADJ.ASM.LH.
14 151520 WHEEL.ADJ.ASM.RH.
16 63601 SUB= 73800400
18 137090 SPRING.TENSION
19 63601 SUB= 73800400
20 75192 SPRING
21 67725 WASHER FLUT
22 702511 SUB= 48367
23 137052 PULLEY.DRIVEN
24 132010 LOCKNUT
27 137081 "COVER.DRIVE 22""RD"
28 146072 SCREWL.SLOT.TORXT
29 149746 SCREW.SLOT.TORTX.
30 149555 FRAME.CATCHER.2.5
31 149602 GRASSBAG.
32 137078 SUB= 157769
38 86012 DRV SHAFT TUBE PM
39 88446 BUSHING.HEX
143398 DECAL DRIVE COVER
YSC8K472D (1999 & Before) Page 3 of 7
ROTARY LAWN MOWER
YSC8K472D (1999 & Before) Page 4 of 7
ROTARY LAWN MOWER
Ref # Part Number Qty Description
2 145794 BAIL.CNTRL.DLX.
3 145640X479 HANDLE.UP.DLX.CON SUBS/1
4 63601 SUB= 73800400
5 130861 "CABLE,ENG ZONE CO"
7 700417 "CONTROL, THROTTLE"
8 144929 SCREW.HXHD.WASH.
9 136376 KNOB HANDLE
10 83816 SCREW PM
11 CHECK WITH SUPPLIER
11 213146 CABLE CLAMP
12 151023 KIT.DOOR.REAR
13 750097 TAPPING SCREW
14 87930 GUIDE CLIP PM
17 107339X DECAL HYT
18 150050 SCREW.HXTAP.10-24
19 73510400 NUT
20 84596 ENGINE.PULLEY.FWG
21 87677 HI PRO KEY PM
22 59708 SCREW
23 133040X479 REAR BAFFLE
24 140540 SKIRT.REAR.FGD.22
25 700365X479 BAFFLE.SIDE
26 700360X479 PLATE.BACK
28 54583 SCREW
29 133190X479 DISCHARGE BAFFLE
30 132001 ROPE GUIDE
31 151517 SUB= 7192J
32 151721X479 LOWER HANDLE
33 131959 BOLT.HANDLE.LM
34 51793 HAIRPIN COTTER
35 77400 HUB CAP
36 83923 HEX FLANGE LOCKNT
37 57143 WAVE WASHER
38 88017 WHEEL TIRE PM
39 142748 BOLT SHLD 3/8-16
40 61650 WASHER
41 750913X004 "AXLE ARM,REAR PM"
42 700331X004 SPRING SELECTOR
43 87877 KNOB PM
45 146630 SPACER.HEIGHT.ADJ
46 700325X007 BRACKET.ADJ.9POS.
47 150078 SCREW.HXWS.5/16
48 149588 SCREW.HX.WSHD.
50 151511X479 BRACKET.HDLE.RH.
51 151512X479 BRACKET.HDLE.LH.
52 751592 LOCKNUT PM
54 851201X004 WASHER
55 150406 BOLT.ENG.3/8-16
57 132255X479 SUB= 144964
59 851084 SCREW
60 850263 LOCKWASHER
61 851074 "WASHER,HARDEN"
62 141114 "BLADE.MULCH.22"""
63 851514 ADAPTOR.BLADE.LM
64 155128 KIT HOUSING MOWER
65 CHECK WITH SUPPLIER
68 88652 HINGE SCREW
69 133170X479 MULCHER PLATE
YSC8K472D (1999 & Before) Page 5 of 7
ROTARY LAWN MOWER
Ref # Part Number Qty Description
70 134612 SUB= 48283
71 700325X007 BRACKET.ADJ.9POS.
72 128415 BLIND RIVET
73 700170X479 BRKT.SUPT.RH
74 700172X479 BRACKET.SUPT.WHL.
75 74760612 SUB= 74780612
76 751592 LOCKNUT PM
77 86969 SPACER.PM
78 88348 WASHER PM
145658 MANUAL.GEN.SP.E.
155129 MANUAL.P.YSC8K472
YSC8K472D (1999 & Before) Page 6 of 7
ROTARY LAWN MOWER
YSC8K472D (1999 & Before) Page 7 of 7
ROTARY LAWN MOWER
Ref # Part Number Qty Description

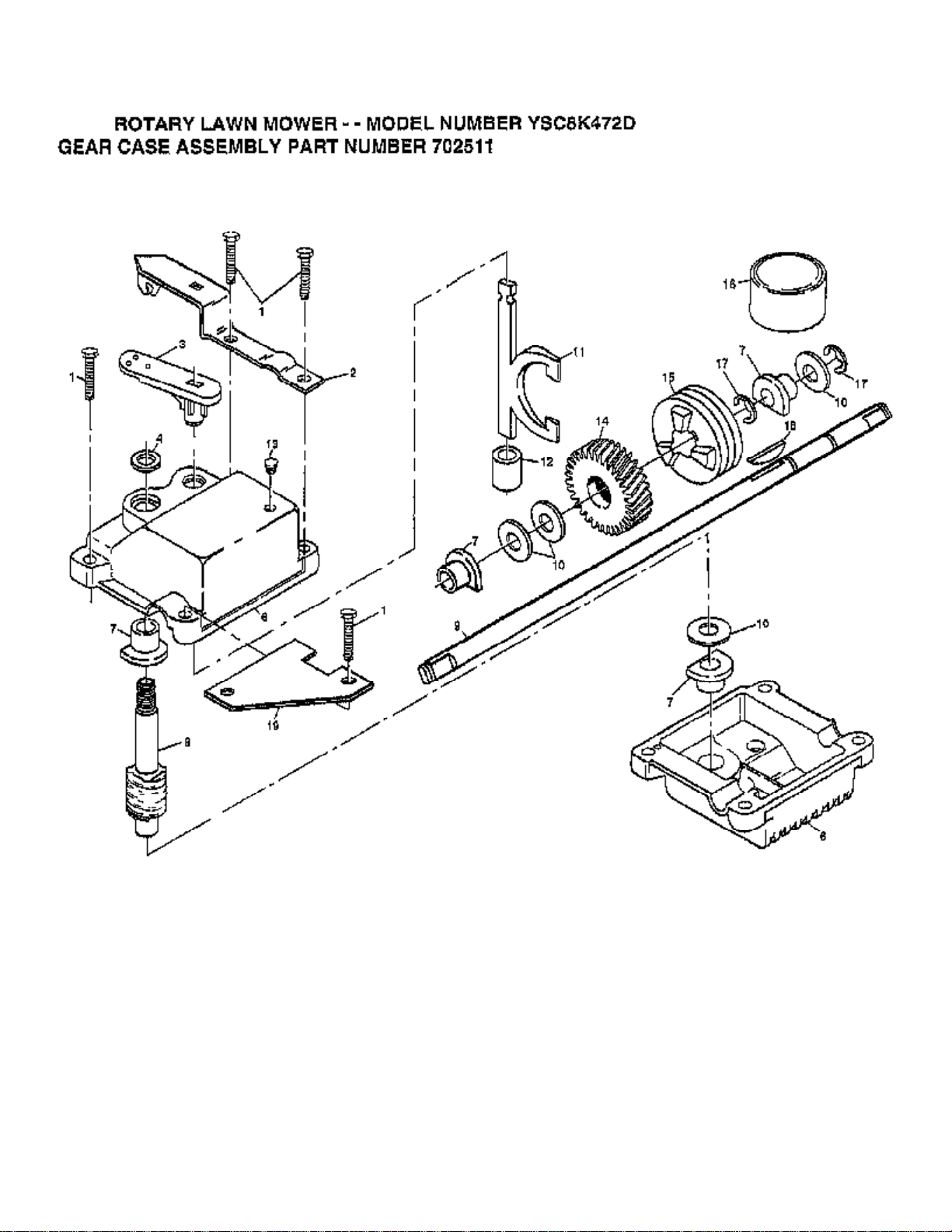

702511 SUB= 48367
1 17490416 SCREW.1/4-20
2 137055X004 BRACKET.GEARCASE
3 137053 SHIFTER
4 57072 SEAL
6 48373 KIT GEARCASE HALV
7 77881 BEARING
8 137051 SHAFT.WORM
9 137074 SHAFT.DRIVE
10 57079 THRUST WASHER
11 131484 CLUTCH YOKE
12 700343 BUSHING.GEAR BOX
13 86447 PLUG PM
14 137050 GEAR.HELICAL
15 750436X CLUTCH JAW
16 750369 SUB= 6066J
17 12000003 RING T
18 850848 HI PRO KEY
19 81585X004 SPRING BRKT
