YPQRT9A (1999) Page 1 of 14
DECALS
YPQRT9A (1999) Page 2 of 14
DECALS
Ref # Part Number Qty Description
1 156687 DECAL PANEL CNTRL
2 156685 DECAL GUARD BELT
3 139385 DECAL INST PNL 21
4 110614X DECAL TI
5 138546 DECAL.SHIFT.IND.
6 162384 DECAL.CAUTION
7 120076X SUB= 120075X
8 156686 DECAL SHIELD TINE
169758 MANUAL, OWNER'S (ENGLISH)
169759 MANUAL, OWNER'S (FRENCH)
YPQRT9A (1999) Page 3 of 14
HANDLE ASSEMBLY
YPQRT9A (1999) Page 4 of 14
HANDLE ASSEMBLY
Ref # Part Number Qty Description
1 138305 CONTROL.THROTTLE
2 9266R SUB= 624A78
4 159228 BAR ASM CONTROL
6 126951X "PANEL,CONT TI"
8 71191008 SCREW.PNHD.10-24
10 8206H GRIP T
11 4497H RETAINER M
12 81328 SHOULDER BOLT ST
13 109335X SHIFT HANDLE CRT
14 109313X GROMMET CRT
15 138400 ROD.SHIFT
16 72110608 BOLT D
17 109229X LOCK CRT
18 73930600 LOCKNUT
19 19131611 WASHER CRT
20 109228X LEVER LOCK CRT
21 150256X428 SUB= 150256X431
23 86777 SUB= 750097
24 9484R CONDIUT CLIP T
26 159607 CABLE.CLUTCH
27 73220400 SUB= 50675
28 10040400 LOCKWASHER
29 73731000 NUT
30 104164X TIE CABLE CRT
31 150696 BOLT PIVOT
32 138283 LOCK.HANDLE
33 72140404 BOLT
37 102604X GRIP BAR CRT
40 73510400 NUT
41 102744X SUB= 102744X431
YPQRT9A (1999) Page 5 of 14
MAINFRAME, LEFT SIDE
YPQRT9A (1999) Page 6 of 14
MAINFRAME, LEFT SIDE
Ref # Part Number Qty Description
2 10040600 LOCKWASHER
3 73220600 NUT.HEX.3/8-16UNC
5 154734 "SCREW-LEVER,SHI"
6 110111X LEVER ASM CRT
7 72110404 BOLT
8 8700J PANEL TI
9 86777 SUB= 750097
10 9484R CONDIUT CLIP T
11 10040400 LOCKWASHER
12 73220400 SUB= 50675
13 23230506 SET SCREW
14 8382J SPACER TI
15 19111116 WASHER
16 145102 SHEAVE.TRANS.
17 73220500 NUT.HEX.5/16-18
18 8381J SPACER TI
19 12000028 SUB= 2267J
23 5015J TIRE TI
23 138417 RIM.16X4X8.WHT
23 795R SUB= 65139
24 4929H RIVET.PAN HD.1.75
25 4921H SPRING.RETAINER
26 102818X428 GUARD BELT
27 138399 BELT.DRIVE
28 104679X PULLEY-IDLER TI
29 12000032 KLIP RING
30 159229 BRACKET ASM IDLER
32 139401 SHAFT.IDLER
37 4368J SHEAVE CRT
39 140062 CAP PLUNGER BLACK
42 106160X O-RING TI
43 69180 LOCKNUT
47 4914H KEY TI
49 157486 SPACER SPLIT
50 19171616 WASHER
54 104214X NUT TI
57 74770844 BOLT1/2-20UNF2.75
62 74930572 BOLT TI
YPQRT9A (1999) Page 7 of 14
MAINFRAME, RIGHT SIDE
YPQRT9A (1999) Page 8 of 14
MAINFRAME, RIGHT SIDE
Ref # Part Number Qty Description
1 138402 BUMPER.ASM
7 8450J COUNTERWEIGHT CRT
8 10040600 LOCKWASHER
9 73220600 NUT.HEX.3/8-16UNC
11 4921H SPRING.RETAINER
12 4929H RIVET.PAN HD.1.75
13 5015J TIRE TI
13 138417 RIM.16X4X8.WHT
13 795R SUB= 65139
14 73510500 NUT
15 SUPPLIER CHECK WITH SUPPLIER
16 7192J WIRE TIE
17 72140608 SUB= 72110608
18 72470636 BOLT CRT
19 74760672 BOLT.3/8-16X4.5
20 138669 "ASM. ENGINE, BASE"
21 74760616 BOLT
22 74760528 BOLT
YPQRT9A (1999) Page 9 of 14

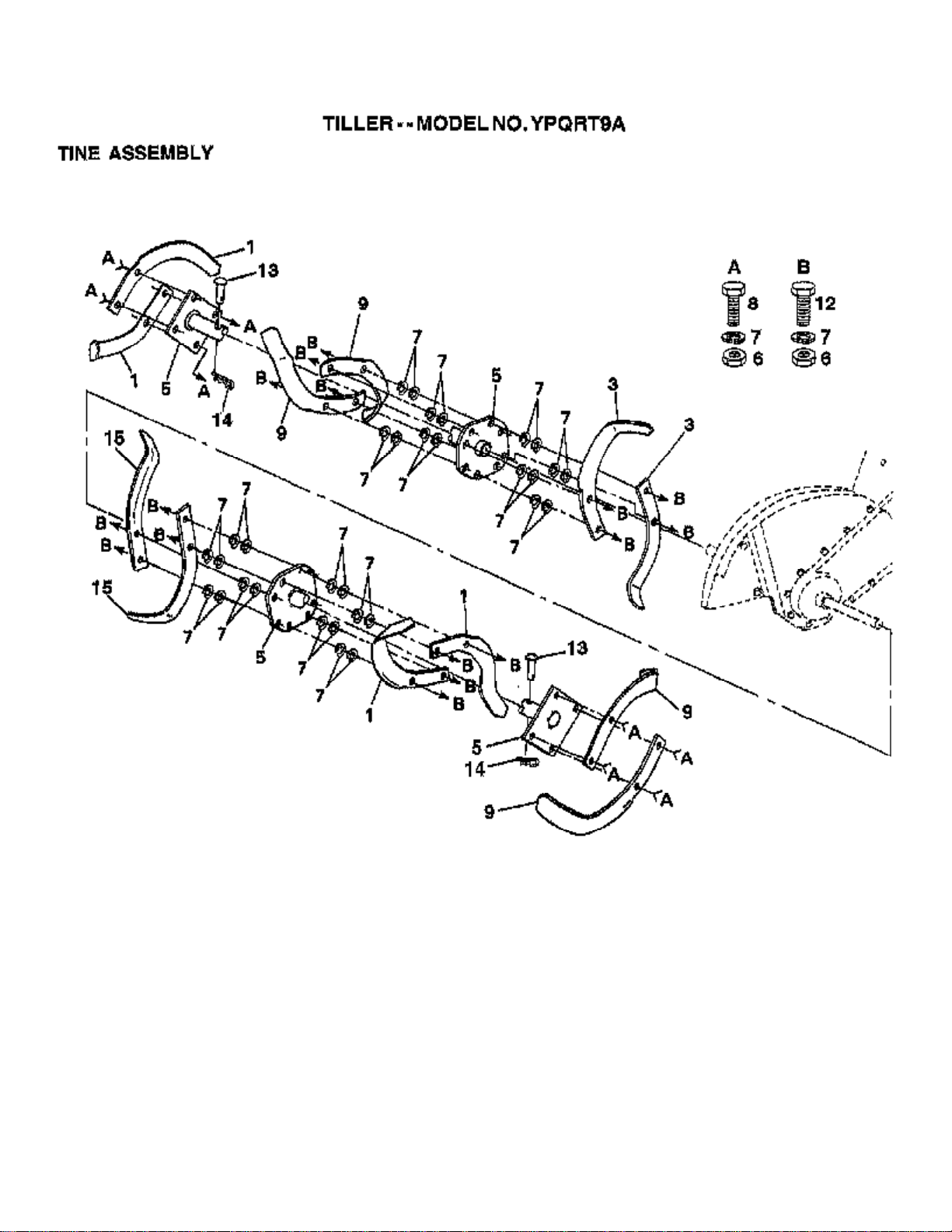

TINE ASSEMBLY
YPQRT9A (1999) Page 10 of 14
TINE ASSEMBLY
Ref # Part Number Qty Description
1 6556J SUB= 101194M
3 101194M TINE.LH.CRT
5 100445L TINE ASSY CRT
6 73610600 SUB= 7810H
7 10040600 LOCKWASHER
8 74610616 BOLT
9 6557J SUB= 101193M
12 74610624 BOLT.3/8-24X1-1/2
13 4929H RIVET.PAN HD.1.75
14 3146R RETAINER.SPRING
15 101193M TINE RH CRT
YPQRT9A (1999) Page 11 of 14
TINE SHIELD
YPQRT9A (1999) Page 12 of 14
TINE SHIELD
Ref # Part Number Qty Description
1 98000129 NUT
2 161416X428 SHIELD.SIDE.OUTER.LH
3 8393J STAKE PIN TI
4 12000036 KLIP RING TI
5 72140506 BOLT
6 8394J SPRING TI
7 8392J LATCH BRACKET TI
8 109230X SPRING CRT
9 104178X428 SHIELD TINE
10 72140508 BOLT
11 73220500 NUT.HEX.5/16-18
12 10040500 LOCKWASHER
14 8386J TINE SHLD BRKT TI
15 161417X428 SHIELD.SIDE.OUTER.RH
16 73220400 SUB= 50675
18 72040410 BOLT
19 102701X GRIP CRT
20 73220600 NUT.HEX.3/8-16UNC
21 138420 STAKE.ASM.DEPTH
22 74930632 BOLT
23 4440J HINGE CRT
24 72140408 BOLT.1/4-20X1/2
25 6712J VINYL CAP TI
26 109227X PAD IDLER TI
27 102713X428 SHIELD LEVELING
28 138609 PIN.HINGE
29 104084X428 SHIELD TINE
YPQRT9A (1999) Page 13 of 14
TRANSMISSION
YPQRT9A (1999) Page 14 of 14
TRANSMISSION
Ref # Part Number Qty Description
1 162163 SUB= 162170
2 8370J BOLT TI
3 8547J REVERSE GEAR TI
4 8546J CLUSTER GEAR TI
5 100413K "CRT, BEARING"
6 674A291 SUB= 674A290
7 674A290 SPROCKET ASSY TI
8 4358J WASHER
9 8358J REDUCTION SHFT TI
10 8371J CHAIN TI
11 100371K SPRING-SHIFT CRT
12 7392M SUB= 100482K
13 8353J SHIFT FORK TI
14 8354J SHIFT SHAFT TI
15 12000039 KLIP RING
16 154467 WASHER SEAL
17 1370H "T, BEARING"
18 4895H "TI, BEARING"
19 150695 SHAFT INPUT
21 105378X SHAFT TINE CRT
22 106181X SPACER CRT
23 8359J INPUT PINION TI
24 5020J NEEDLE BRNG LT
25 164396 GASKET.GEARCASE
26 106389X SPACER CRT
27 100433M GEAR CLUSTER CRT
28 8357J REVERSE GEAR TI
29 674A289 GEAR ASSY TI
30 6803J NEEDLE BEARING TI
31 12000040 KLIP RING
32 8356J REVERSE SHAFT TI
33 100016K SHAFT CRT
34 106392X SPACER CRT
35 106394X SPACER CRT
36 100436L SHAFT ASSY CRT
37 142145 BRACKET ASM SHIFT
38 106393X SPACER CRT
41 155236 SEAL ASM-OIL
42 10040700 LOCKWASHER
43 73610700 NUT.ASF.HEX.7/16
44 162165 "GEARCASE ASSY,LH"
45 17720510 SCREW 5/16-18X5/8
47 73220500 NUT.HEX.5/16-18
48 100107K BOLT TI
49 106391X SPACER CRT
6066J GREASE PREMIUM-1
162169 SUB= 165806
162170 KIT.GEARCASE L&RH
