YGT2046D (1999) Page 1 of 26
CHASSIS AND ENCLOSURES
YGT2046D (1999) Page 2 of 26
CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
1 165480 CHASSIS.STAMPING
2 140356 SUB= 145009
3 17490612 SCREW
6 155923 SADDLE
8 126471X "CLIP,INSULATOR"
9 140398 DASHBOARD BLACK
10 72140608 SUB= 72110608
11 159954 DASHBRD.PANEL.LH
13 159953 DASHBRD.PANEL.RH
15 74180512 SCREW
16 73510500 NUT
17 150301X428 "HOOD, YARD PRO"
24 74780616 BOLT
25 19131312 WASHER
26 73800600 NUT
28 150197 GRILLE ASM PNT
29 146459 LENS.BAR.CLEAR
30 140002X428 "FENDER WS,FTK"
31 137113 BRKT.ASM.FENDER
33 145244X428 FOOTREST PNT LH
34 145243X428 FOOTREST.RH.LT/GT
35 72110606 BOLT
36 108067X PAL NUT LT
37 17490508 SCREW LT
38 139886 BRACKET ASM LH
39 139887 BRACKET ASM RH
43 17490612 SCREW
44 140675 STRAP ASM FENDER
45 147717 BEZEL.ASM.
47 105531X NUT-PUSH YT
50 145205 DASH.SUPT.YP/HUSQ
54 161464 SCREW.HEX.WS.HD
56 150271 EXT DASH LTYT
59 110436X SUB= 9151R
64 150272 DASH.LOWER.LT
66 166681X010 PLATE
67 19111116 WASHER
72 144916X428 STRAP-GRILLE
74 73680600 SUB= 73690600
77 74191008 SCREW
79 2029J WELDNUT
80 109808X HOOD LATCH T
82 74981020 SCREW
83 7206J SPACER LT
85 73731000 NUT
86 150303X428 "PANEL ASM SIDE,RH"
87 150302X428 "PANEL ASM-SIDE,LH"
90 19091216 WASHER PM
91 73220400 SUB= 50675
92 10040400 LOCKWASHER
108 74760612 SUB= 74780612
135 74291006 SCREW.10-24X3/8.
136 60867 ACORN NUT RB
137 110356X SNAP CAP LT
138 110357X WASHER LT
139 150195 BKT.SPT.HOOD/PANL
140 158418 BRKT SUSPENSION
145 156524 "ROD POVOT,CHASSIS"
YGT2046D (1999) Page 3 of 26
CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
152 17720408 SCREW
153 19132203 WASHER GT
121794X COVER ACCESS
8022J PLUG-DASH T
YGT2046D (1999) Page 4 of 26
DECALS
YGT2046D (1999) Page 5 of 26
DECALS
Ref # Part Number Qty Description
1 156412 DECAL FENDER
2 156415 DECAL GRILLE
3 162351 DECAL HOOD LH
4 162350 DECAL HOOD RH
5 165399 DECAL .B&S.20HP
6 140837 DECAL BRAK PARK
7 157140 DECAL.CAUT.ENG/FR
8 101892X DECAL T
9 157582 "DECAL CHASSIS,46"""
10 160397 SUB= 532160397
11 156428 DECAL INS STRG WH
12 157106 DECAL.INSTR.FRENC
13 106202X REFLECTOR-TAIL YT
14 145005 DECAL.BATRY.3-3908
15 137259 "DECAL, WARNING"
133671 FOOTREST PAD
138311 DECAL HANDLE LIFT
166794 OWNER'S MANUAL
166795 OWNER'S MANUAL
YGT2046D (1999) Page 6 of 26
DRIVE
YGT2046D (1999) Page 7 of 26
DRIVE
Ref # Part Number Qty Description
1 SUPPLIER CHECK WITH SUPPLIER
2 110422X SUB= 146682
3 121327X PULLEY TRANSAXLE
4 12000004 RING
5 123787X STRAP TORQUE
6 17490512 SCREW
8 166020 ROD.SHIFT.FEND.ADJ.YT
9 160889 CLUTCH.ELECTRIC
10 76020416 PIN COTTER 1/8
11 105701X WASH-SHFT PLT LT
13 74550412 BOLT.1/4-28.W/PAT
14 10040400 LOCKWASHER
16 73800500 NUT
19 73800600 NUT
20 150280 BOLT.7/16-20X4.25
21 121274X KNOB.DUCKHEAD.1/2
22 145340 ROD.ASM.BK.44.MWR
23 154978 BRACKET.CLUT.MTG.
24 73350600 NUT
25 126909X "SPRING,ROD BRAKE"
26 19131316 WASHER
27 76020412 COTTER PIN
28 145204 ROD.BRAKE.PARK.LT
29 71673 PLUNGER CAP T
30 123780X BRKT TRANS LH
31 123791X KEEPER BELT LH
33 72140506 BOLT
34 155071 SHAFT ASM-PEDAL F
35 120183X NYLON BEARING
36 19211616 WASHER LT
37 1572H SUB= 2882J
38 131494 FLAT IDLER PULLEY
39 74760644 BOLT
40 4470J SPACER T
41 165838 "KEEPER,BELT.IDLER FLAT"
42 19131312 WASHER
47 127783 SUB= 139245
48 154407 BELLCRANK.CLUTCH
49 123205X RETAIN BELT
50 74760624 SUB= 74930624
51 73680600 SUB= 73690600
52 73680500 SUB= 73690500
53 105710X "LINK, CLUTCH T"
54 126471X "CLIP,INSULATOR"
55 105709X "SPRING, RETURN LT"
56 74760620 SUB= 74780620
57 163817 V-BELT.DRIVE
58 123792X "KEEPER,BELT RH"
59 140312 KEEPER BELT CNTSP
61 17490612 SCREW
62 123533X "COVER,PEDAL"
63 145868 PULLEY.CLUTCH.EVX
65 10040700 LOCKWASHER
66 154778 KEEPER-BELT
74 108097X SPACER HYT
75 123800X WASHER
76 12000053 E RING HYT
77 9396E SQ KEY STD
YGT2046D (1999) Page 8 of 26
DRIVE
Ref # Part Number Qty Description
79 2228M SUB= 2228M1
80 123794X "ARM,SHIFT"
81 165601 SHAFT ASM. CROSS TAPERED
82 123782X "SPRING,TORSION"
83 19171216 WASHER
84 166230 LINK TRANSAXLE
85 150360 NUT.CNT.LOCK.1/4
89 139992X428 CONSOLE.SHIFT.6SP.GTV.BLACK
90 124346X NUT
96 4497H RETAINER M
100 19111216 WASHER M
110 74760612 SUB= 74780612
111 123776X BRKT TRANS RH
117 19091216 WASHER PM
145 74490540 BOLT.HEX.FLGHD
150 165850 BUSHING.BELLCRANK.GRD.DR
151 19133210 WASHER
156 166002 WASHER.SRRTD.5/16
158 165589 BRKT.SHIFT.MOUNT
159 165494 HUB.SHIFT
160 19292016 WASHER
161 72140406 BOLT T
162 73680400 SUB= 73690400
163 74780416 NLA
164 19091010 WASHER.5/8X.281X10GA
165 165623 BRKT.PIVOT.LEVER
166 166880 SCREW.5/16-18X5/8
168 165492 BOLT.SHOULDER.5/16-18X.561
169 165581 PLATE.FASTENING
171 17490608 SCREW LT
YGT2046D (1999) Page 9 of 26
DRIVE
YGT2046D (1999) Page 10 of 26
DRIVE
Ref # Part Number Qty Description
1 SUPPLIER CHECK WITH SUPPLIER
2 110422X SUB= 146682
3 121327X PULLEY TRANSAXLE
4 12000004 RING
5 123787X STRAP TORQUE
6 17490512 SCREW
8 166020 ROD.SHIFT.FEND.ADJ.YT
9 160889 CLUTCH.ELECTRIC
10 76020416 PIN COTTER 1/8
11 105701X WASH-SHFT PLT LT
13 74550412 BOLT.1/4-28.W/PAT
14 10040400 LOCKWASHER
16 73800500 NUT
19 73800600 NUT
20 150280 BOLT.7/16-20X4.25
21 121274X KNOB.DUCKHEAD.1/2
22 145340 ROD.ASM.BK.44.MWR
23 154978 BRACKET.CLUT.MTG.
24 73350600 NUT
25 126909X "SPRING,ROD BRAKE"
26 19131316 WASHER
27 76020412 COTTER PIN
28 145204 ROD.BRAKE.PARK.LT
29 71673 PLUNGER CAP T
30 123780X BRKT TRANS LH
31 123791X KEEPER BELT LH
33 72140506 BOLT
34 155071 SHAFT ASM-PEDAL F
35 120183X NYLON BEARING
36 19211616 WASHER LT
37 1572H SUB= 2882J
38 131494 FLAT IDLER PULLEY
39 74760644 BOLT
40 4470J SPACER T
41 165838 "KEEPER,BELT.IDLER FLAT"
42 19131312 WASHER
47 127783 SUB= 139245
48 154407 BELLCRANK.CLUTCH
49 123205X RETAIN BELT
50 74760624 SUB= 74930624
51 73680600 SUB= 73690600
52 73680500 SUB= 73690500
53 105710X "LINK, CLUTCH T"
54 126471X "CLIP,INSULATOR"
55 105709X "SPRING, RETURN LT"
56 74760620 SUB= 74780620
57 163817 V-BELT.DRIVE
58 123792X "KEEPER,BELT RH"
59 140312 KEEPER BELT CNTSP
61 17490612 SCREW
62 123533X "COVER,PEDAL"
63 145868 PULLEY.CLUTCH.EVX
65 10040700 LOCKWASHER
66 154778 KEEPER-BELT
74 108097X SPACER HYT
75 123800X WASHER
76 12000053 E RING HYT
77 9396E SQ KEY STD
YGT2046D (1999) Page 11 of 26
DRIVE
Ref # Part Number Qty Description
79 2228M SUB= 2228M1
80 123794X "ARM,SHIFT"
81 165601 SHAFT ASM. CROSS TAPERED
82 123782X "SPRING,TORSION"
83 19171216 WASHER
84 166230 LINK TRANSAXLE
85 150360 NUT.CNT.LOCK.1/4
89 139992X428 CONSOLE.SHIFT.6SP.GTV.BLACK
90 124346X NUT
96 4497H RETAINER M
100 19111216 WASHER M
110 74760612 SUB= 74780612
111 123776X BRKT TRANS RH
117 19091216 WASHER PM
145 74490504 BOLT
150 165850 BUSHING.BELLCRANK.GRD.DR
151 19133210 WASHER
156 166002 WASHER.SRRTD.5/16
158 165589 BRKT.SHIFT.MOUNT
159 165494 HUB.SHIFT
160 19292016 WASHER
161 72140406 BOLT T
162 73680400 SUB= 73690400
163 74780416 NLA
164 19091010 WASHER.5/8X.281X10GA
165 165623 BRKT.PIVOT.LEVER
166 166880 SCREW.5/16-18X5/8
168 165492 BOLT.SHOULDER.5/16-18X.561
169 165581 PLATE.FASTENING
171 17490608 SCREW LT
YGT2046D (1999) Page 12 of 26
ELECTRICAL
YGT2046D (1999) Page 13 of 26
ELECTRICAL
Ref # Part Number Qty Description
1 163465 SUB= 123899X
2 74760412 BOLT LT
8 7603J "TRAY T, BATTERY"
10 145211 SUB= 150177
11 150109 HOLDDOWN BATTERY
12 145769 SUB= 150177
16 153664 SWITCH INTERLOCK
19 10090400 SUB= 10040400
20 73350400 NUT
21 166182 HARNESS.ASM.LIGHT.W/4152J
22 4152J HEADLAMP BULB
24 4206J CABLE-BATTERY T
25 146148 CABLE.6GA.22W/16W
26 166180 FUSE.15 AMP
27 73510400 NUT
28 145491 CABLE.GRND.6GA.21
29 160784 SWITCH.PLUNGER
30 163968 SWITCH.IGN.
33 140401 KEY MLD GEN DELTA
40 166168 HARNESS
41 71110408 BOLT HXHD FIN
42 131563 SUB= 154336
43 145673 SUB= 146154
44 73640400 NUT HXKEP 1/4X20
45 122822X AMMETER
50 154959 PTO SWITCH.BLK
51 140405 RING RETAIN PTO
52 141940 PROTECTION LOOP
55 17490508 SCREW LT
70 166668 HARNESS.ENGINE
80 146685 HARNESS.CLUT.EVX.
81 109748X RELAY ASSY T
YGT2046D (1999) Page 14 of 26
ENGINE
YGT2046D (1999) Page 15 of 26
ENGINE
Ref # Part Number Qty Description
1 132748 SUB= 532132748
2 17720410 SCREW LT
3 SUPPLIER CHECK WITH SUPPLIER
4 149723 MUFFLER.TW.LOTONE
5 159955 TUBE MANIFOLD LH
6 160589 TUBE MANIFOLD RH
7 126470X "CLIP,INSULATOR"
8 150176 BOLT.5/16-18.UNC
10 162797 SHIELD.BROWNING
13 165391 SUB= 273485
14 13280336 PIPE NIPPLE LT
15 13200300 ELBOW
16 11050600 LOCKWASHER
17 17490624 SCREW LT
23 159880 SHIELD.BRN/DBR.GD
25 138672 "CONTROL.CHOKE.51"""
26 73920600 "NUT,KEPS 3/8-24IM"
29 137180 SUB= 532137180
31 151346 TANK FUEL REAR
32 140527 CAP ASM FUEL
33 123487X HOSE CLAMP
34 106082X PAD-SPACER LT
35 17490512 SCREW
37 8543R FUEL LINE T
38 SUPPLIER CHECK WITH SUPPLIER
39 109227X PAD IDLER TI
40 3645J BUSHING OUTLET T
41 139277 STEM.TANK.FUEL
62 10040500 LOCKWASHER
72 71070512 SCREW
81 128861 NUT
YGT2046D (1999) Page 16 of 26
MOWER DECK
YGT2046D (1999) Page 17 of 26
MOWER DECK
Ref # Part Number Qty Description
1 156948 "MOWER ASM 46"""
3 138457 BRKT.ASM.SW.44/50
5 4939M SUB= 85902
6 130832 SUB= 130833
8 850857 BLADE BOLT
9 10030600 SUB= 10040600
10 140296 WASHER.HARD.BLADE
11 157033 "BLADE.HIGHLIFT46"""
12 129895 BEARING.BALL
13 137553 SHAFT.ASM.W/BRNG
14 137152 HOUSING.MAND.44.V
15 110485X BEARING
16 140329 STRIPPER RND MWR
18 72140505 BOLT
19 132827 BOLT SHD 5/16-18
20 145055 BAFFFLE.VORTEX.46
21 73680500 SUB= 73690500
22 134753 STIFFENER BRKT
23 131267 DEFLECTOR BRKT
24 105304X CAP-SLEEVE LT
25 149287 SUB= 123713X
26 110452X NUT PUSH M
27 157788 SHIELD DEFLECTOR
28 19111016 WASHER
29 131491 HINGE ROD
30 157722 "SCREW-THD ROLL,WA"
31 129963 WASHER
32 153531 PULLEY.MAND.36/46
33 137266 SUB= 139729
34 144945 ANCHOR.SPRING.46
35 17490628 SCREW LT
36 19131316 WASHER
37 131494 FLAT IDLER PULLEY
38 156086 "KEEPER BELT,IDLER"
39 144917 PULLEY.DRV.DCK.46
40 137273 "SPRING.SEC.44""VEN"
41 17490620 SCREW
42 122052X SPACER RETAINER
43 144949 ARM.IDLER.DECK.46
44 133943 HARDENED WASHER
45 145059 COVER.MANDREL.46
46 137729 SCREW.1/4-20X5/8
47 144959 BELT-V.SEC.46.KEL
48 148763 BELT.MWR.PRM.85.4
49 73680600 SUB= 73690600
50 72110612 BOLT.3/8-16X1.50
51 153390 WASHER.FELT.
52 156493 "PULLEY IDLER,FLAT"
72 19131616 WASHER HYT
90 74760616 BOLT
91 132274 SUB= 532132274
92 73800600 NUT
93 19171416 WASHER
94 132264 SUB= 532132264
95 132273 SUB= 532132273
116 137644 BOLT.SHOULDER
117 133957 WHEEL GAGE DONUT
118 73930600 LOCKNUT
YGT2046D (1999) Page 18 of 26
MOWER DECK
Ref # Part Number Qty Description
119 19121414 WASHER
126 144948 ARM.IDLER.PRIM.46
127 146763 PULLEY.IDLER.4.25
143651 MANDREL SERV ASM
166209 "MOWER.SVC.46""HP"
YGT2046D (1999) Page 19 of 26

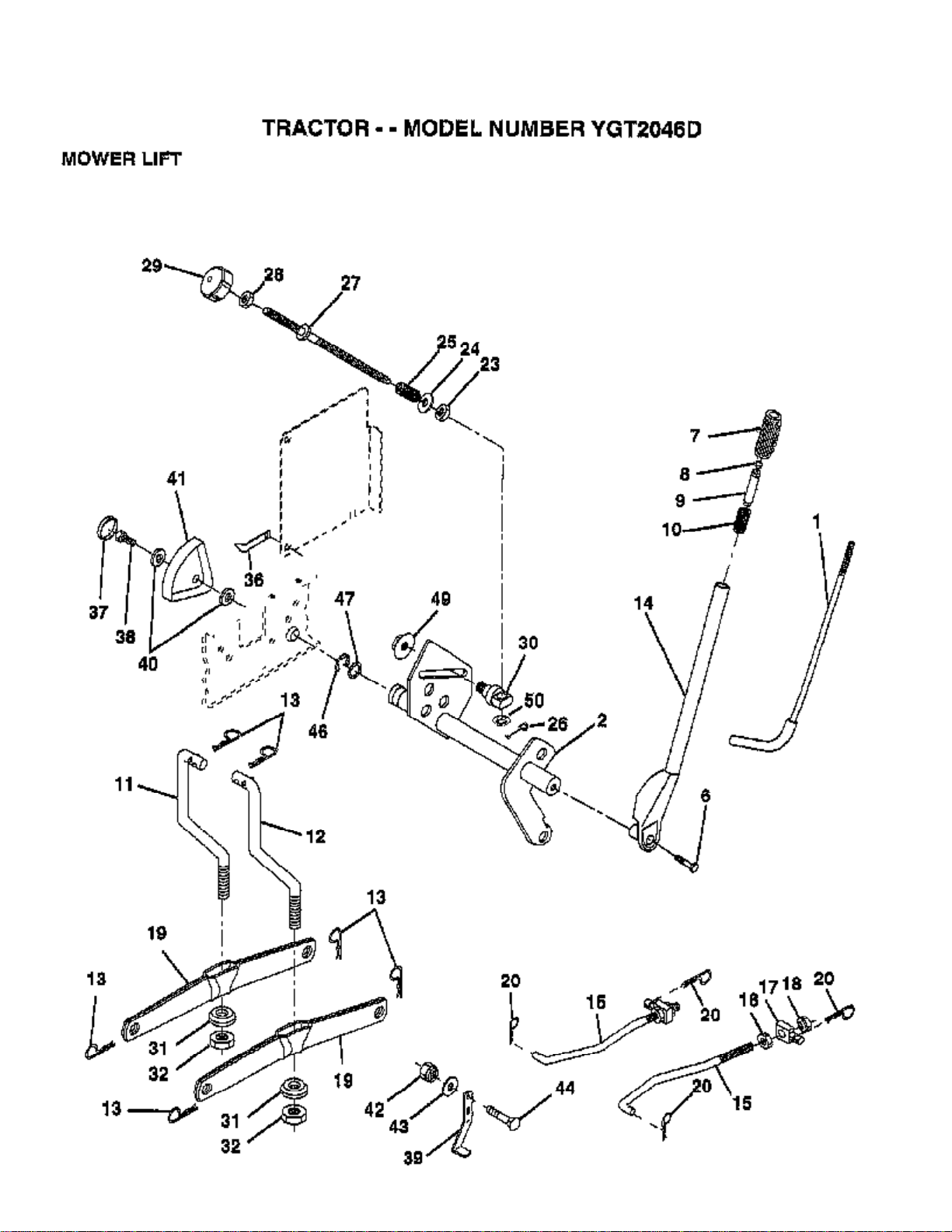

MOWER LIFT
YGT2046D (1999) Page 20 of 26
MOWER LIFT
Ref # Part Number Qty Description
1 121006X LEVER ROD LT
2 159188 LEVER ASSY LIFT.RH.
6 74780624 "BOLT,HEX"
7 125631X GRIP HANDLE
8 124526X SUB= 125925X
9 122364X SUB= 125925X
10 2876H SPRING T
11 145537 LINK.LIFT.LH.GTV
12 145536 LINK.LIFT.RH.GTV.
13 4939M SUB= 85902
14 159189 LEVER.ASM.LIFT.RH
15 127218 LINK.FRONT
16 73350800 NUT
17 130171 TRUNION
18 73680800 NUT LTV
19 139868 ARM SUSP REAR
20 163552 RETAINER SPRING
23 110807X NUT T
24 19131016 WASHER
25 137150 SPRING.COMP.INF.H
26 76020308 SUB= 3145
27 137167 ROD.ADJ.LIFT
28 73350600 NUT
29 138057 KNOB INF 3/8-16
30 150233 TRUNNION
31 140302 BEARING PVT LH
32 73540600 NUT.CROWNLOCK.3/8
36 155097X POINTER HEIGHT INDICATOR
37 123935X "PLUG,HOLE"
38 17490512 SCREW
39 142992 STOP.OVER.CENTER
40 19112410 WASHER
41 123934X HEIGHT INDICATOR
42 73680600 SUB= 73690600
43 19131612 WASHER GT
44 72240608 BOLT
46 12000022 E-RING
47 19292016 WASHER
49 145212 NUT.HXFLG.LOCK.
50 110452X NUT PUSH M
YGT2046D (1999) Page 21 of 26
SCHEMATIC
YGT2046D (1999) Page 22 of 26
SCHEMATIC
Ref # Part Number Qty Description
REFER REFER TO IMAGE
YGT2046D (1999) Page 23 of 26
SEAT ASSEMBLY
YGT2046D (1999) Page 24 of 26
SEAT ASSEMBLY
Ref # Part Number Qty Description
1 127440 SUB= 140121
2 140551 BRACKET PVT SEAT
5 145006 CLIP.PUSH-IN.HING
6 73800600 NUT
7 124181X SPRING COMPRESSIO
10 155925 PAN-SEAT
11 166369 KNOB.SEAT.ADJ.WINGNUT
12 121246X BRKT SWITCH
13 121248X BUSHING
14 72050412 BOLT-RD HD SQ NK
15 121249X SPACER SPLIT
16 123740X SPRING COMPRESSED
17 123976X SUB= 73900400
18 124238X CAP SPRING
21 153236 "BOLT,SHOULDER"
22 73680500 SUB= 73690500
24 19171912 WASHER
25 127018X "BOLT,SHOULDER"
27 17490608 SCREW LT
28 150176 BOLT.5/16-18.UNC
YGT2046D (1999) Page 25 of 26
WHEELS AND TIRES
YGT2046D (1999) Page 26 of 26
WHEELS AND TIRES
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 106230X SUB= 122075X
4 PARTSIMAGE REFER TO PARTS IMAGE
4 59904 TUBE.5.3/4.5/6
5 106228X427 "RIM ASM 8"" FRT"
6 278H FITTING LT
7 9040H "FLANGE, BEARING"
8 124074X427 RIM.REAR.
9 140183 TIRE.R.23X9.5-12
10 PARTSIMAGE REFER TO PARTS IMAGE
10 7154J TUBE.23X8/10-12
11 104757X HUB CAP
144334 SEALANT.TIRE 10 OZ. TUBE
Loading...
