YE12R38A (1999 & Before) Page 1 of 35
BRAKE AND REAR MOWER LIFT
YE12R38A (1999 & Before) Page 2 of 35
BRAKE AND REAR MOWER LIFT
Ref # Part Number Qty Description
1 71673 PLUNGER CAP T
2 123436X "ROD,PARK BRAKE"
3 123437X "BRKT,PARK BRAKE"
4 8883R PEDAL COVER T
5 132205 BRK ASM CLUT LH
6 76020312 SUB= 3145
7 19131016 WASHER
8 17490508 SCREW LT
9 76020412 COTTER PIN
10 19131316 WASHER
11 131656 SUB= 136225
12 132563 ASM CLUT/BRK PED
13 123394X "ROD,CLUTCH"
14 121978X "BRKT,LIFT SHAFT"
15 133332 PVT BRAKE ARM ASM
16 19251816 WASHER T
17 12000034 KLIP RING
18 106888X SPRING ROD LT
19 73350600 NUT
20 73680600 SUB= 73690600
21 131460 SUB= 532131460
22 127378 SUB= 144585
23 73680600 SUB= 73690600
24 19132012 WASHER
25 4921H SPRING.RETAINER
26 73930600 LOCKNUT
27 132218 THREADED LINK
28 132221 ASM REAR MOW LIFT
29 72110506 SUB= 72270506
30 73510500 NUT
31 133095 COUNTER SPRING
32 133721 LINK LIFT LEVER
YE12R38A (1999 & Before) Page 3 of 35
DASHBOARD
YE12R38A (1999 & Before) Page 4 of 35
DASHBOARD
Ref # Part Number Qty Description
1 122015X SUB= 141523
2 130914 SUB= 138392
3 123487X HOSE CLAMP
4 8544R SUB= 295J
5 8548R FUEL LINE T
6 73510400 NUT
7 2751R CLIP T
8 19091216 WASHER PM
17 72110404 BOLT
18 131886 SUPT ASM DASH
19 134744 CROSS BRACE
20 18000408 SUB= 818000408
21 19090816 WASHER
22 134014 PLUG DOME
YE12R38A (1999 & Before) Page 5 of 35
DECALS
YE12R38A (1999 & Before) Page 6 of 35
DECALS
Ref # Part Number Qty Description
1 123637X SUB= 138269
2 126860X "DECAL,LIGHT BOX"
3 122036X NLA
4 122037X NLA
5 132928 IND HGT DECK DECA
6 122038X NLA
7 109820X DECAL YT
8 125880X "DECAL,FENDER"
9 121349X DECAL WARNING
10 123689X NLA
134595 OP MANUAL
134594 OP MANUAL
135084 NLA
YE12R38A (1999 & Before) Page 7 of 35
ELECTRICAL
YE12R38A (1999 & Before) Page 8 of 35
ELECTRICAL
Ref # Part Number Qty Description
1 73510400 NUT
2 108423X CABLE ASM.
3 121265X SUB= 123899X
4 17211008 SCREW
5 108236X BRACKET LT
6 104445X SWITCH-INTER. GT
7 109553X SWITCH INTERLOCKT
8 17021008 SCREW
9 122147X KEY
10 123620X SUB= 141226
11 124211X NUT IGNITION
12 4406R SUB= STD365402
13 124083X COVER IGNITION SW
14 7192J WIRE TIE
15 121305X SWITCH SEAT
16 73510500 NUT
17 108824X FUSE HYT
18 128353 CABLE ASSY
19 132222 SUB= 532132222
20 73350400 NUT
21 10090400 SUB= 10040400
22 74780408 BOLT
23 11050400 LOCKWASHER
24 131563 SUB= 154336
25 109081X SUB= 146154
26 74760412 BOLT LT
27 19091016 WASHER
28 10040400 LOCKWASHER
29 121264X "CAP,BATTERY "
30 73220400 SUB= 50675
31 7662J SUB= 4152J
32 127441X SUB= 136850
33 110712X SWITCH LT
YE12R38A (1999 & Before) Page 9 of 35
ENGINE AND THROTTLE
YE12R38A (1999 & Before) Page 10 of 35
ENGINE AND THROTTLE
Ref # Part Number Qty Description
1 17720408 SCREW
2 133025 SUB= 532133025
3 131951 ENGINE BRIGGS AND STRATTON
4 71070512 SCREW
5 10040500 LOCKWASHER
6 125593X SUB= 272293
7 73220500 NUT.HEX.5/16-18
8 121094X BOLT T
9 19101216 WASHER
10 10040400 LOCKWASHER
11 74780412 SUB= 74780414
12 123676X SUB= 137437
13 101326L DEFLECTOR.222573
14 17030808 SUB= 17030814
15 121851X SUB= 532137180
16 11050600 LOCKWASHER
17 17490624 SCREW LT
18 126636X "KEEPER,DR BELT GR"
19 133097 SUB= 532133097
20 73510600 NUT
21 2751R CLIP T
22 17490632 SCREW LT
YE12R38A (1999 & Before) Page 11 of 35
FENDER AND CHASSIS
YE12R38A (1999 & Before) Page 12 of 35
FENDER AND CHASSIS
Ref # Part Number Qty Description
1 129965 SUB= 156417
2 19132012 WASHER
3 17490612 SCREW
4 124181X SPRING COMPRESSIO
5 127115X505 BTRY FENDER PLATE
6 109596X HOSE CLAMP T
7 124144X PAD FOOTREST
8 17490512 SCREW
9 126995X SUB= 126995X428
10 124307X "SHIFT LOCK, BAR"
11 124346X NUT
12 133384 SUB= 139893
13 105687X SUB= 109238X
14 73510400 NUT
15 73680500 SUB= 73690500
16 74760512 BOLT
17 127880 DRAWBAR
18 126470X "CLIP,INSULATOR"
19 132650X505 SUB= 140956X505
20 19091413 WASHER
21 132562 SUB= 140297
22 17490508 SCREW LT
23 72110506 SUB= 72270506
YE12R38A (1999 & Before) Page 13 of 35
FRONT AXLE
YE12R38A (1999 & Before) Page 14 of 35
FRONT AXLE
Ref # Part Number Qty Description
1 121232X CAP
2 12000029 RING
3 121748X WASHER
4 121922X NYLINER
5 121914X AXLE FRONT
6 6266H WASHER .T
7 121919X SPINDLE RH
8 121749X WASHER
9 76020412 COTTER PIN
10 19131316 WASHER
11 126847X BUSHING.DRAGLINK
12 121924X ROD TIE
13 121916X SPINDLE LH
YE12R38A (1999 & Before) Page 15 of 35
GROUND DRIVE
YE12R38A (1999 & Before) Page 16 of 35
GROUND DRIVE
Ref # Part Number Qty Description
1 73680500 SUB= 73690500
2 74760512 BOLT
3 132946 KEEPER MWR DR BLT
4 135036 SUB= 138029
5 10040700 LOCKWASHER
6 71130748 BOLT
7 124525X BELT
8 123405X "KEEPER,DRIVE BELT"
9 72140612 BOLT
10 123396X "KEEP,IDLER DR BEL"
11 123395X SUB= 140911
12 4859J SUB= 123674X
13 19131316 WASHER
14 73930600 LOCKNUT
15 73680600 SUB= 73690600
16 126471X "CLIP,INSULATOR"
17 122052X SPACER RETAINER
18 131459 SUB= 532131459
19 73510500 NUT
20 123891X "KEEPER,DR BELT "
21 19111016 WASHER
22 123404X "KEEPER,FRA DR BEL"
YE12R38A (1999 & Before) Page 17 of 35
HOOD
YE12R38A (1999 & Before) Page 18 of 35
HOOD
Ref # Part Number Qty Description
1 124657X EXT SPRING
2 73510400 NUT
3 19091016 WASHER
4 74780410 BOLT
5 126675X SUB= 139888
6 122549X BRKT HOOD RH
7 122548X BRKT HOOD LH
8 17411310 SUB= 17521312
9 74780412 SUB= 74780414
10 123693X "BRACE,HOOD"
11 132918X505 HOOD
12 122035X LENS
13 127029X GRILL
14 2751R CLIP T
YE12R38A (1999 & Before) Page 19 of 35
MOWER DECK
YE12R38A (1999 & Before) Page 20 of 35
MOWER DECK
Ref # Part Number Qty Description
1 132564 MOWER DECK ASSY
2 73680500 SUB= 73690500
3 72140506 BOLT
4 7631J RUNNER-LH M
5 110485X BEARING
6 128774 HSG ASM MANDREL
7 129895 BEARING.BALL
8 133172 SUB= 137646
9 127842 SUB= 138497
10 129962 WASHER BLADE
11 10030600 SUB= 10040600
12 850857 BLADE BOLT
13 128961 SUB= 140329
14 106736X DEFLECTOR-SHLD T
15 106735X ROD-HINGE T
16 105896X SUB= 137607
17 110452X NUT PUSH M
18 106734X SUB= 123713X
19 19111016 WASHER
20 105304X CAP-SLEEVE LT
21 128772 RUNNER RH
22 19111216 WASHER M
23 78158 SUB= 17580520
24 4939M SUB= 85902
25 74600636 BOLT
26 19131612 WASHER GT
27 132256 SEAL.COVER.BAGGER
28 73350800 NUT
29 130171 TRUNION
30 73800800 NUT.LK.W/WSH.1/2.
31 132553 CLUTCH ROD PRI
32 73350600 NUT
33 132559 SUSP ARM REAR
34 133604 TRUNNION
35 132554 CLUTCH ROD SEC
36 19131316 WASHER
37 76020312 SUB= 3145
38 133840 IDLER ARM ASSY
39 129963 WASHER
40 129206 SUB= 153532
41 73050900 SUB= 139729
42 131494 FLAT IDLER PULLEY
43 122052X SPACER RETAINER
44 19131612 WASHER GT
45 73680600 SUB= 73690600
46 131290 BELT-V.88.12.MW
47 133502 RETAINER SPACER
48 133503 IDLER ARM STIFF
49 133551 PIVOT ROD
50 131289 BRAKE ROD LH
51 130840 BRAKE ASM
52 17490512 SCREW
53 131288 BRAKE ROD RH
54 72110614 BOLT
55 4921H SPRING.RETAINER
134578 SUB= 142862
130794 MANDREL ASM
YE12R38A (1999 & Before) Page 21 of 35
MOWER LIFT LEVER
YE12R38A (1999 & Before) Page 22 of 35
MOWER LIFT LEVER
Ref # Part Number Qty Description
1 126470X "CLIP,INSULATOR"
2 122018X BRKT CLUTCH
3 74780408 BOLT
4 73680600 SUB= 73690600
5 132552 CLUTCH LEVER AS
6 106451X "BOLT, SHOULDER LT"
7 135110 MWR CLUT ARM ASM
8 74930624 BOLT
10 76020412 COTTER PIN
12 132929 LIFT LEVER HANDLE
13 133761 LIFT HANDLE ASM
14 133939 COMP CLUTCH SPRNG
15 19131616 WASHER HYT
18 135107 TRUNNION
19 73680400 SUB= 73690400
20 74760644 BOLT
22 132561 LIFT LEVER BRKT
23 76020312 SUB= 3145
24 7672J WASHER
25 121933X TUBE SPACER
27 121466X KNOB
30 135039 ROD TENSION CLUTC
31 73930600 LOCKNUT
32 133435 SPRING EXT
33 407H ROLL PIN
34 73680500 SUB= 73690500
35 133603 VINYL CAP RED
36 72140506 BOLT
37 120754X SUB= 126847X
YE12R38A (1999 & Before) Page 23 of 35
SEAT
YE12R38A (1999 & Before) Page 24 of 35
SEAT
Ref # Part Number Qty Description
1 72050411 SUB= 872050411
2 127436 SUB= 140119
3 127426X SUB= 140119
4 73680500 SUB= 73690500
5 105529X SUB= 139888
6 4171R CLIP T
7 73951000 "NUT,KEPS"
8 74760612 SUB= 74780612
9 126656X SUB= 140551
10 126471X "CLIP,INSULATOR"
11 19131210 WASHER
12 73680600 SUB= 73690600
13 120068X "KNOB 1/2"" YT"
15 19171912 WASHER
16 127018X "BOLT,SHOULDER"
17 121251X STRIP FORM
18 123976X SUB= 73900400
19 121248X BUSHING
20 121250X SPRING
21 121249X SPACER SPLIT
22 121246X BRKT SWITCH
23 131451 SUB= 155925
YE12R38A (1999 & Before) Page 25 of 35

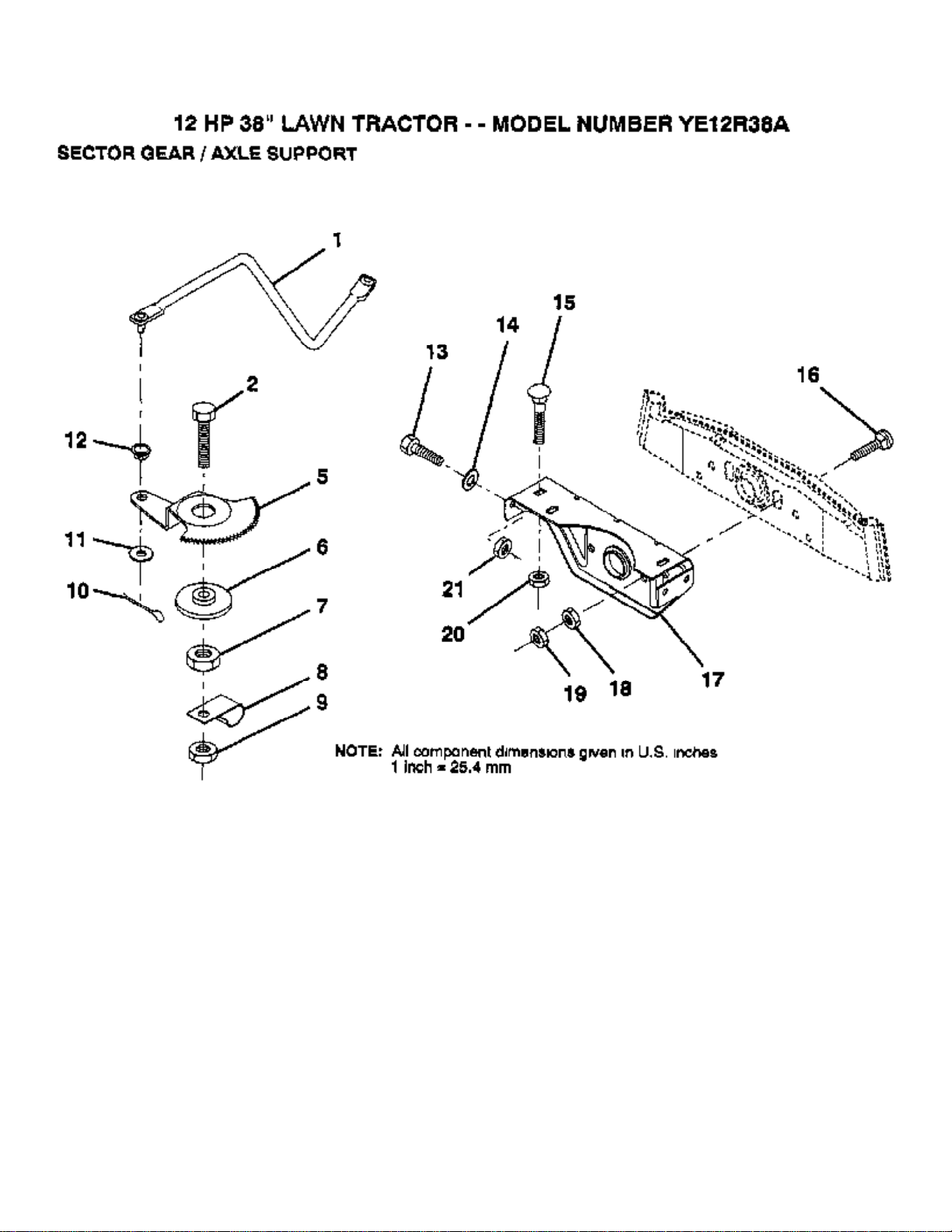

SECTOR GEAR AND AXLE SUPPORT
YE12R38A (1999 & Before) Page 26 of 35
SECTOR GEAR AND AXLE SUPPORT
Ref # Part Number Qty Description
1 132566 DRAG LINK
2 74780828 "BOLT,HEX"
5 121926X GEAR SECTOR
6 121927X BUSHING
7 73030800 NUT
8 126472X CLIP INSULATOR
9 73680800 NUT LTV
10 76020412 COTTER PIN
11 19131316 WASHER
12 126847X BUSHING.DRAGLINK
13 74760512 BOLT
14 19111416 WASHER
15 72110606 BOLT
16 72140622 BOLT
17 121912X "SUPT,FRT AXLE"
18 73220600 NUT.HEX.3/8-16UNC
19 73930600 LOCKNUT
20 73680600 SUB= 73690600
21 73680500 SUB= 73690500
YE12R38A (1999 & Before) Page 27 of 35
STEERING
YE12R38A (1999 & Before) Page 28 of 35
STEERING
Ref # Part Number Qty Description
1 121584X INSERT STEERING
2 7810H GRIPCO NUT
3 19133808 WASHER T
4 100713N SUB= 150547
5 121472X SUB= 150546
6 17431008 SUB= 98000165
7 102803X SUB= 918102803X
8 123651X SUB= 148966
9 124210X STEERING CLIP
10 123438X BUSHING STEER LWR
11 12000045 RING
12 19211616 WASHER LT
13 104820X ADAPTER-WHEEL LT
YE12R38A (1999 & Before) Page 29 of 35
TRANSAXLE
YE12R38A (1999 & Before) Page 30 of 35
TRANSAXLE
Ref # Part Number Qty Description
1 120458X SUB= 150228
2 2274J SUB= 74760412
3 68003 "DETENT, BALL(68003)"
4 105904X "SPRING, DETENT LT"
5 105905X "SCREW, SET LT"
6 120460X NLA
7 120461X ORING T
8 120462X WASHER T
120463X WASHER T
120464 WASHER PLAIN
120465X WASHER T
120466X WASHER T
83818 PLAIN WASHER
120467X WASHER T
9 2286J RETAINING RING LT
10 2267J RETAINING RING LT
11 3413J WASHER
2233J WASHER 020
2232J WASHER 025
2231J WASHER 031
2230J WASHER 035
2229J WASHER 040
2228J WASHER 045
2227J WASHER 050
2226J WASHER 060
2226J WASHER 060
105906X "WASHER, PLAIN LT"
12 6725J O-RING T
13 120415X WASHER T
14 2257J WOODRUFF KEY
15 110077X IMPUT KIT T
16 110078X PINION 14T T
17 105909X "RING,RETAINING LT"
18 105910X "CHAIN,24 PTCH LT"
19 105911X BEARING.FLNG.5510
20 108976X GEAR 14T LT
21 105913X SUB= 138246
22 120468X KEY T
23 2242J KEY
24 120469X SUB= 153655
25 2244J WOODRUFF KEY
26 105916X "RING,RETAINING LT"
27 120470X SPROCKET 18T T
28 110070X SPACER YT
29 108977X KIT.GEAR.12/37TH
30 109254X SUB= 144893
31 120405X SUB= 124644X
32 108980X GEAR 25T LT
33 120406X GEAR SPUR 22 TT
34 108455X SUB= 134796
35 105925X "WASHER, PLAIN LT"
36 2232J WASHER 025
37 108978X SPACER
38 110079X ASSM GEAR COMB
39 120471X SHAFT IDLER T
40 120472X SPACER T
41 105928X SPROCKET 9T LT
42 110084X SUB= 167148
YE12R38A (1999 & Before) Page 31 of 35
TRANSAXLE
Ref # Part Number Qty Description
43 108983X WASHER LT
105930X "WASHER, PLAIN LT"
105931X "WASHER, PLAIN LT"
105932X "WASHER, PLAIN LT"
3417J WASHER
106097X "WASHER, PLAIN LT"
2265J WASHER 040
106586X WASHER PLAIN
106587X "WASHER, PLAIN LT"
106588X "WASHER, PLAIN LT"
2263J WASHER 062
44 120473X SHAFT T
45 105933X SUB= 108977X
46 106151X SUB= 144893
47 120407X SUB= 124641X
48 106589X "GEAR, SPUR 25T LT"
49 120408X GEAR 28T T
50 105937X "GEAR, SPUR 31T LT"
51 2226J WASHER 060
52 2272J SUB= 134401
53 2263J WASHER 062
54 123907X SUB= 125595X
55 110081X GEAR 15T T
56 105941X "RING,RETAINING LT"
57 110071X SUB= 120478X
58 120952X SHAFT T
59 110082X GEAR 1ST T
60 123908X SUB= 125596X
61 120476X SUB= 134798
62 120961X PUCK T
63 7294J BRAKE DISC. T
64 108989X SPACER LT
65 120953X SUB= 918120953X
66 120954X PIN T
67 120955X SCREW T
68 108992X LEVER ACTUATOR
69 108996X WASHER LT
70 120956X NLA
71 73810500 NUT.LOCK.5/16-24
72 106596X "SCREW, TAPPING LT"
73 120993X WASHER T
74 120951X PUCK T
75 120416X SUB= 126976X
YE12R38A (1999 & Before) Page 32 of 35
TRANSAXLE
YE12R38A (1999 & Before) Page 33 of 35
TRANSAXLE
Ref # Part Number Qty Description
1 123385X PULLEY
2 12000028 SUB= 2267J
3 123655X SUB= 137366
4 2228M SUB= 2228M1
5 73680500 SUB= 73690500
6 72140506 BOLT
7 123378X "STRAP,TORQUE"
8 17490512 SCREW
9 110422X SUB= 146682
10 121749X WASHER
11 123583X SQUARE KEY
12 74760644 BOLT
17 123632X "LINK,SHIFT"
18 71040412 SUB= 74550412
19 10040400 LOCKWASHER
20 19091210 WASHER LT
21 123539X "ARM,SHIFT"
22 105701X WASH-SHFT PLT LT
23 122011X "KNOB,SHT CONTROL"
24 128202 SUB= 532128202
25 76020416 PIN COTTER 1/8
26 73810500 NUT.LOCK.5/16-24
27 73510500 NUT
28 128085 "SPRING,EXT"
30 123692X KNOB RETAINER
31 123409X SPACER
33 73680600 SUB= 73690600
34 11050500 LOCKWASHER.5/16.E
35 12000001 E-RING LT
YE12R38A (1999 & Before) Page 34 of 35
WHEELS AND TIRES
YE12R38A (1999 & Before) Page 35 of 35
WHEELS AND TIRES
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 278H FITTING LT
4 132696 SUB= 532132696
132703 SUB= 532132703
5 59904 TUBE.5.3/4.5/6
8134H TUBE.16X6.5/7.5-8
6 122394X361 SUB= 137237X417
123412X361 RIM
7 104757X HUB CAP
8 9040H "FLANGE, BEARING"
9 121748X WASHER
Loading...
