YE12542B (1999 & Before) Page 1 of 24
CHASSIS AND ENCLOSURES
YE12542B (1999 & Before) Page 2 of 24
CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
1 135034 SUB= 145501
2 130805 SUB= 145009
3 17490612 SCREW
6 131343X017 SADDLE
7 17490608 SCREW LT
9 124252X SUB= 140398
11 132072 SUB= 532132072
12 121794X COVER ACCESS
13 132071 SUB= 532132071
14 17490612 SCREW
15 121286X014 PLATE DASH
16 104783X DASH ASSY LT
17 132635X505 SUB= 150301X505
18 74180512 SCREW
19 19111116 WASHER
20 73510500 NUT
21 74760620 SUB= 74780620
22 1913132 WASHER
23 73680600 SUB= 73690600
24 124130X SUPPORT ASS'Y
25 10040400 LOCKWASHER
26 73220400 SUB= 50675
27 74180512 SCREW
28 131716 SUB= 532131716
30 109872X505 FENDER
31 109873X SUB= 136619
32 17490612 SCREW
33 105465X505 SUB= 145244X505
34 105464X505 SUB= 145243X505
35 72110606 BOLT
36 73680600 SUB= 73690600
37 133671 FOOTREST PAD
38 105419X505 GRILL STRAP
39 73510500 NUT
41 106784X SUB= 155013
42 104618X SUB= 155013
43 73510400 NUT
44 109808X HOOD LATCH T
45 74191008 SCREW
46 10071000 LOCKWASHER
47 2029J WELDNUT
48 123481X SUB= 7605J
49 73680400 SUB= 73690400
53 132636X505 "PANEL,SIDE RH"
54 132637X505 "PANEL,SIDE LH"
55 19091216 WASHER PM
56 73220400 SUB= 50675
57 7206J SPACER LT
58 19070818 WASHER
59 73731000 NUT
60 74981020 SCREW
66 123198X SUB= 146525
71 124392X417 SUB= 147717
72 106395X LENS LT
73 17211010 SCREW LT
74 106965X SUB= 140181
75 104755X """J"" FASTENER LT"
76 17490512 SCREW
YE12542B (1999 & Before) Page 3 of 24
CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
77 19131210 WASHER
78 132644 SUB= 532132644
79 17490412 SCREW HEX CRT
80 19091016 WASHER
81 121279X SUB= 532121279
82 17490612 SCREW
84 19091216 WASHER PM
85 74760512 BOLT
87 73510500 NUT
88 74760620 SUB= 74780620
89 73510600 NUT
90 133685 BAFFLE HOOD VERT
91 74760612 SUB= 74780612
92 73680600 SUB= 73690600
93 11050600 LOCKWASHER
94 74760612 SUB= 74780612
95 19131312 WASHER
96 73680600 SUB= 73690600
97 17490608 SCREW LT
98 17490612 SCREW
99 105037X FOAM-STRIP LT
100 2751R CLIP T
102 104915X SUB= 105037X
103 134774 PIVOT BRKT LH
104 134775 PIVOT BRKT RH
105 72140606 BOLT
YE12542B (1999 & Before) Page 4 of 24
DRIVE
YE12542B (1999 & Before) Page 5 of 24
DRIVE
Ref # Part Number Qty Description
1 120898X SUB= 137367
2 110422X SUB= 146682
3 123666X PULLEY TRANS
4 12000028 SUB= 2267J
5 121520X STRAP TORQUE
6 17490512 SCREW
7 130802 SUB= 162240
8 131679 SHIFT ROD
9 19151216 WASHER
10 76020416 PIN COTTER 1/8
11 105701X WASH-SHFT PLT LT
12 19091210 WASHER LT
13 71040412 SUB= 74550412
14 10040400 LOCKWASHER
15 74760540 BOLT
16 73680500 SUB= 73690500
17 121520X STRAP TORQUE
18 74760612 SUB= 74780612
19 73680600 SUB= 73690600
20 17490512 SCREW
21 121274X KNOB.DUCKHEAD.1/2
22 130804 BRAKE ROD
23 73800600 NUT
24 73350600 NUT
25 106888X SPRING ROD LT
26 19131316 WASHER
27 76020412 COTTER PIN
28 133261 BRAKE PARK ROD
29 71673 PLUNGER CAP T
30 130807 TRANSAXLE MTG BKT
31 127275X "KEEPER,BELT LH T"
32 74760512 BOLT
33 73680500 SUB= 73690500
34 122424X SUB= 149001
35 120183X NYLON BEARING
36 19211616 WASHER LT
37 1572H SUB= 2882J
38 123674X PULLEY.IDLER.FLAT
39 74760644 BOLT
40 4470J SPACER T
41 109070X BELT KEEPER LT
42 19131312 WASHER
43 73680600 SUB= 73690600
44 105706X "LY, BEARING"
45 110812X WASHER LT
46 12000039 KLIP RING
47 127783 SUB= 139245
48 123789X ARM IDLER
49 123205X RETAIN BELT
50 74760624 SUB= 74930624
51 73680600 SUB= 73690600
52 19131316 WASHER
53 105710X "LINK, CLUTCH T"
54 76020412 COTTER PIN
55 105709X "SPRING, RETURN LT"
56 76020412 COTTER PIN
57 130801 SUB= 138255
58 127274X "KEEPER,BELT RH T"
YE12542B (1999 & Before) Page 6 of 24
DRIVE
Ref # Part Number Qty Description
59 104777X SUB= 140312
60 19131312 WASHER
61 17490612 SCREW
62 8883R PEDAL COVER T
63 134825 SUB= 136004
64 71170764 BOLT
65 10040700 LOCKWASHER
66 129921 KEEPER.BELT.ENG.L
67 74760616 BOLT
68 19131312 WASHER
69 73680600 SUB= 73690600
70 134683 KEEPER BELT ENG
71 74760616 BOLT
72 19132012 WASHER
73 73680600 SUB= 73690600
74 109502X SPACER LT
75 121749X WASHER
76 12000001 E-RING LT
77 123583X SQUARE KEY
78 121748X WASHER
83 2228M SUB= 2228M1
84 17490612 SCREW
85 2751R CLIP T
YE12542B (1999 & Before) Page 7 of 24
ELECTRICAL
YE12542B (1999 & Before) Page 8 of 24
ELECTRICAL
Ref # Part Number Qty Description
1 121265X SUB= 123899X
2 4406R SUB= STD365402
3 124211X NUT IGNITION
4 132642 IGNITION HARNESS
5 4207J CABLE T
6 5114J STARTER CABLE GT
7 4799J "CABLE T, BATTERY"
8 133753 BTRY CASE W/O LID
9 109596X HOSE CLAMP T
10 109081X SUB= 146154
11 10090400 SUB= 10040400
12 73350400 NUT
13 74780408 BOLT
14 11050400 LOCKWASHER
15 73510400 NUT
16 131563 SUB= 154336
17 109553X SWITCH INTERLOCKT
19 104445X SWITCH-INTER. GT
20 17021008 SCREW
21 121305X SWITCH SEAT
22 121264X "CAP,BATTERY "
23 74760412 BOLT LT
24 19091016 WASHER
25 10040400 LOCKWASHER
26 73220400 SUB= 50675
27 122147X KEY
28 108824X FUSE HYT
29 7604J SUB= 7697J
30 123620X SUB= 141226
31 110712X SWITCH LT
32 127441X SUB= 136850
33 7662J SUB= 4152J
34 108236X BRACKET LT
35 17021008 SCREW
36 130890 SWITCH BRACKET
37 17021008 SCREW
48 9433R AMMETER T
49 131708 SUB= 532131708
50 10101000 SUB= 10071000
51 73911000 NUT
52 19070818 WASHER
53 7192J WIRE TIE
YE12542B (1999 & Before) Page 9 of 24

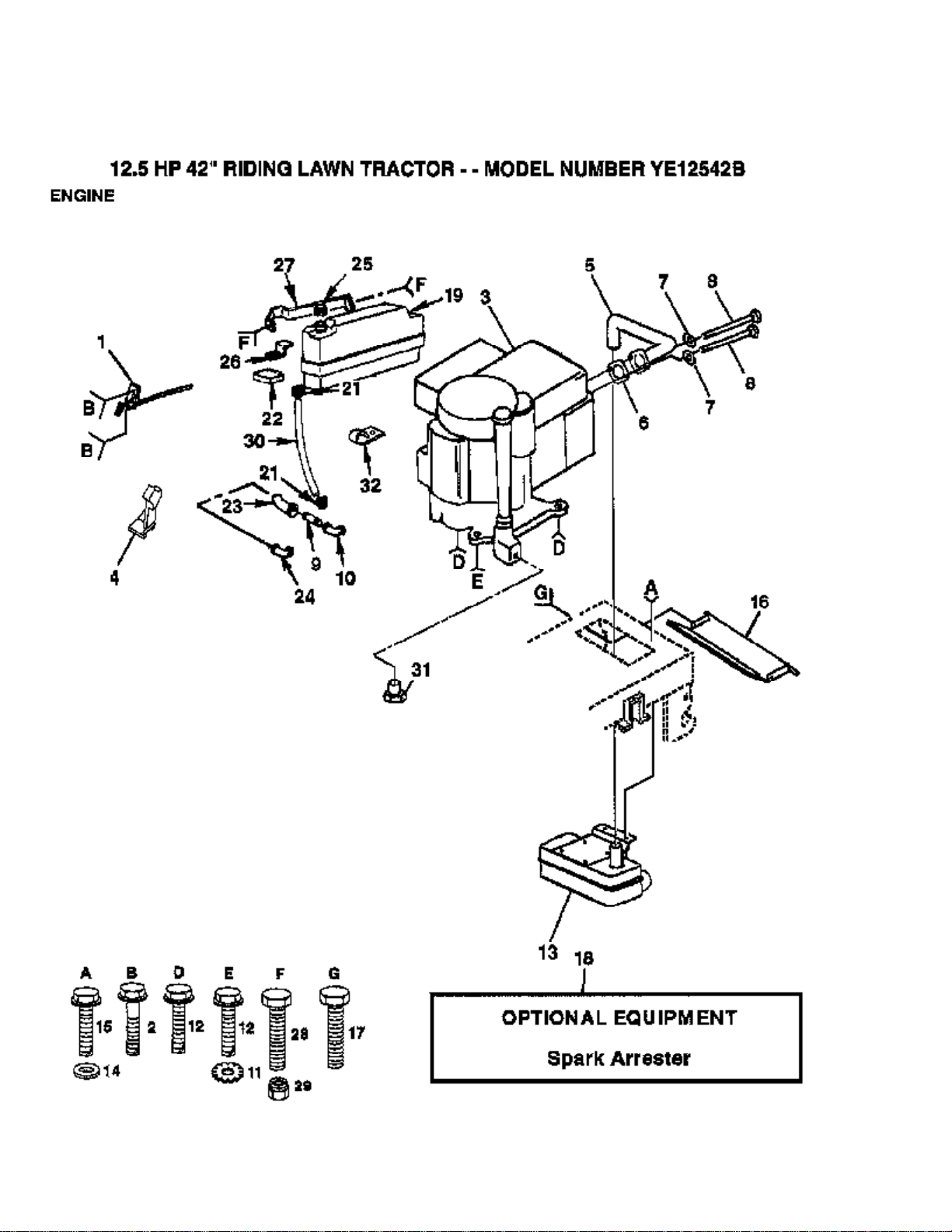

ENGINE
YE12542B (1999 & Before) Page 10 of 24
ENGINE
Ref # Part Number Qty Description
1 134372 THROTTLE CONTROL
2 17720410 SCREW LT
3 131953 ENGINE
4 133097 SUB= 532133097
5 123073X PIPE EXHAUST
6 125593X SUB= 272293
7 10040500 LOCKWASHER
8 71070510 SCREW LT
9 13280328 PIPE NIPPLE
10 13310300 STREET ELBOW LT
11 11050600 LOCKWASHER
12 17490620 SCREW
13 123075X MUFFLER EUROPE
14 19132012 WASHER
15 17490512 SCREW
16 128953 HEAT SHIELD
17 17021008 SCREW
18 121851X SUB= 532137180
19 121280X FUEL TANK
21 123487X HOSE CLAMP
22 6431J PAD-SPACER T
23 13240300 STREET ELBOW LT
24 13200300 ELBOW
25 8504J SUB= 9188504J
26 104799X BRACE-TANK LT
27 121281X SUPT TANK FUEL
28 74780512 BOLT
29 73680500 SUB= 73690500
30 7833R HOSE T
31 REFER TO IMAGE
32 2751R CLIP T
YE12542B (1999 & Before) Page 11 of 24
MOWER
YE12542B (1999 & Before) Page 12 of 24
MOWER
Ref # Part Number Qty Description
1 130970 SUB= 145338
2 130969 BELT-V.92.4.MWR
3 110485X BEARING
4 128774 HSG ASM MANDREL
5 133172 SUB= 137646
6 129895 BEARING.BALL
7 127843 SUB= 138498
8 129962 WASHER BLADE
9 10030600 SUB= 10040600
10 850857 BLADE BOLT
11 128961 SUB= 140329
12 130968 DEFLECTOR.SHIELD
13 131491 HINGE ROD
14 131267 DEFLECTOR BRKT
15 110452X NUT PUSH M
16 123713X SPRING TORSION
17 19111016 WASHER
18 105304X CAP-SLEEVE LT
19 73680500 SUB= 73690500
20 72140506 BOLT
21 4939M SUB= 85902
22 127218 LINK.FRONT
23 73350800 NUT
24 130171 TRUNION
25 73800800 NUT.LK.W/WSH.1/2.
26 135388 LIFT LINK RH
27 135563 "PIN,SPRING"
28 130832 SUB= 130833
29 134619 LINK LIFT LH
33 133844 IDLER ARM
34 78158 SUB= 17580520
35 129963 WASHER
36 129861 SUB= 153535
37 73050900 SUB= 139729
38 72110614 BOLT
39 133943 HARDENED WASHER
40 131494 FLAT IDLER PULLEY
41 122052X SPACER RETAINER
42 19131612 WASHER GT
43 133502 RETAINER SPACER
44 133503 IDLER ARM STIFF
45 73680600 SUB= 73690600
46 72110618 BOLT CARRIAGE
47 133835 XMAS TREE FASTNER
48 131340 SHOULDER BOLT
49 133940 SUB= 151785
50 69180 LOCKNUT
51 105529X SUB= 139888
52 131845 BRAKE PAD ARM ASM
53 133944 HARD SMALL WASHER
54 131335 SPRING EXTENSION
55 133551 PIVOT ROD
56 76020312 SUB= 3145
57 133504 CLUTCH ROD SECOND
58 131857 SUB= 140088
59 133550 SUB= 142427
60 73350600 NUT
61 133205 TRUNION
YE12542B (1999 & Before) Page 13 of 24
MOWER
Ref # Part Number Qty Description
62 4497H RETAINER M
63 17720410 SCREW LT
64 127498 BUSHING
65 131870 RETURN SPRING
66 127847 CLUTCH ARM SECOND
67 128903 SHOULDER BOLT
68 12000029 RING
69 121748X WASHER
70 127845 SPRING KEEPER
71 132044 SUB= 532132044
72 131813 SUB= 532131813
73 128759 SUB= 918128759
74 12000022 E-RING
75 19292016 WASHER
76 131874X SUB= 532131874
77 121718X LEVER LIFT
78 23180606 SCREW
79 121719X ROD ASS'Y LEVER
80 2876H SPRING T
81 122364X SUB= 125925X
82 124526X SUB= 125925X
83 109413X GRIP
84 110810X TRUNION LT
85 19151216 WASHER
86 12000037 KLIP RING
87 110807X NUT T
88 19131016 WASHER
89 76020308 SUB= 3145
90 110729X ROD LIFT LT
91 100734K SUB= 138057
92 134753 STIFFENER BRKT
93 8330H KEY STD
132711 SUB= 145411
YE12542B (1999 & Before) Page 14 of 24
SCHEMATIC
YE12542B (1999 & Before) Page 15 of 24
SCHEMATIC
Ref # Part Number Qty Description
REFER TO IMAGE
YE12542B (1999 & Before) Page 16 of 24

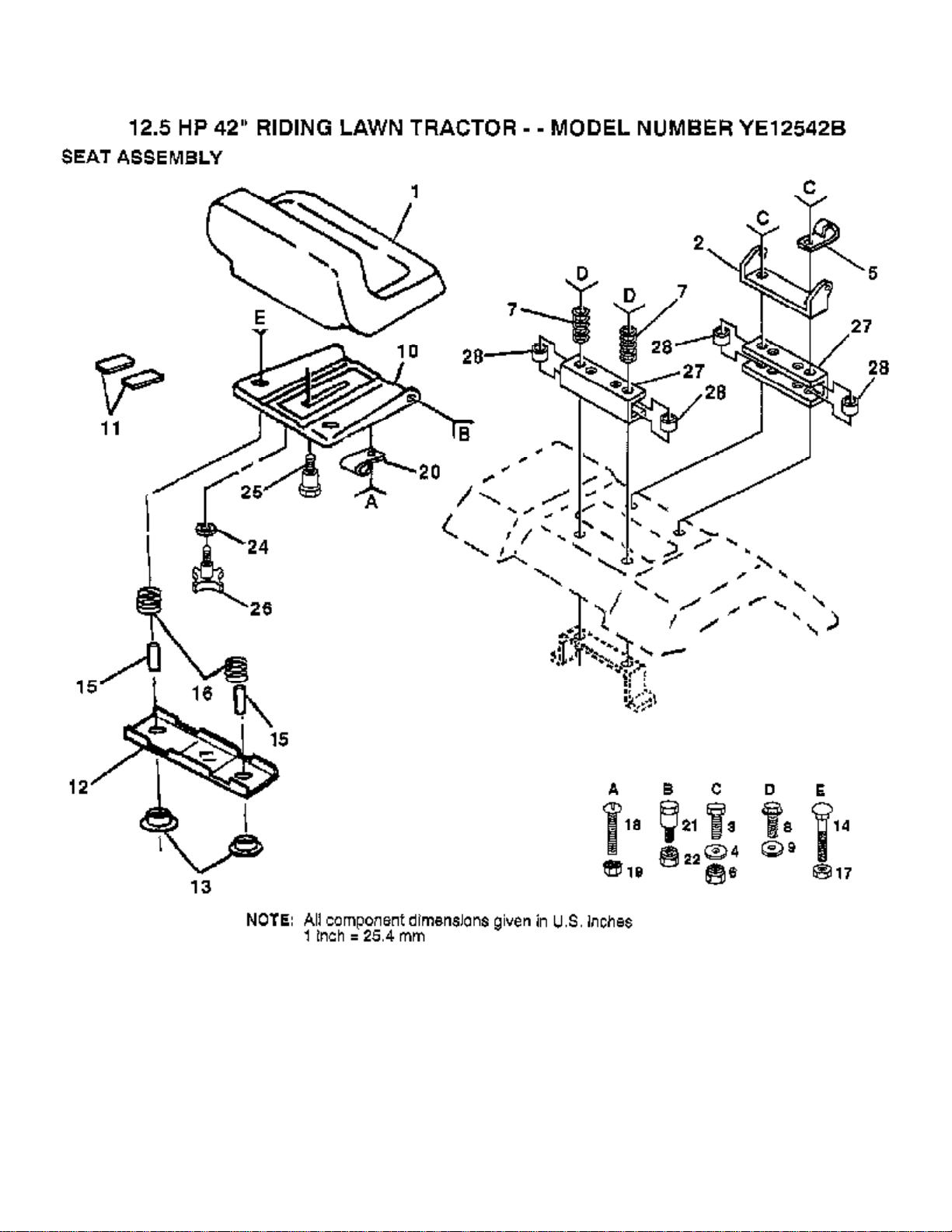

SEAT
YE12542B (1999 & Before) Page 17 of 24
SEAT
Ref # Part Number Qty Description
1 127427 SUB= 140119
2 126656X SUB= 140551
3 74760640 BOLT
4 19131210 WASHER
5 2751R CLIP T
6 73680600 SUB= 73690600
7 124181X SPRING COMPRESSIO
8 17490640 SCREW
9 19131614 WASHER
10 131541 SUB= 155925
11 121251X STRIP FORM
12 121246X BRKT SWITCH
13 121248X BUSHING
14 72050411 SUB= 872050411
15 121249X SPACER SPLIT
16 121250X SPRING
17 123976X SUB= 73900400
18 74641008 SUB= 71031008
19 73951000 "NUT,KEPS"
20 4171R CLIP T
21 105529X SUB= 139888
22 73680500 SUB= 73690500
24 19171912 WASHER
25 127018X "BOLT,SHOULDER"
26 120068X "KNOB 1/2"" YT"
27 131772 SEAT SPACER
28 131771 SPLIT SPACER
YE12542B (1999 & Before) Page 18 of 24
STEERING
YE12542B (1999 & Before) Page 19 of 24
STEERING
Ref # Part Number Qty Description
1 121472X SUB= 150546
2 133988 SUB= 142033
3 135227 SPINDLE LH
4 135228 SPINDLE RH
5 6266H WASHER .T
6 121748X WASHER
7 19272016 WASHER
8 12000029 RING
9 3366R COL. SRTG. BEAR.
10 130468 SUB= 532130468
11 10040600 LOCKWASHER
12 73610600 SUB= 7810H
13 110438X BEARING
14 74011056 BOLT HEX 5/8-11
15 73601000 SUB= 73901000
16 132624 AXLE PIN
17 128758 STEERING SHAFT
18 57079 THRUST WASHER
19 124035X SUPPORT.SHAFT
20 126684X SUB= 532126684
21 10040400 LOCKWASHER
22 71070410 "SCREW,SPECIAL"
23 127501 SUB= 918127501
24 109816X NYLINER T
25 124036X "BRKT,STEERING"
26 12000029 RING
27 124034X SUB= 136874
28 6266H WASHER .T
29 17490612 SCREW
30 10040600 LOCKWASHER
31 73610600 SUB= 7810H
32 130465 TIE ROD
33 126847X BUSHING.DRAGLINK
34 19131416 WASHER
35 76020412 COTTER PIN
36 1554J SUB= 155108
37 17431008 SUB= 98000165
38 121584X INSERT STEERING
39 100712K WASHER
40 73940800 SUB= 73360800
41 100711L ADAPTER LT
43 121749X WASHER
44 121748X WASHER
45 12000029 RING
46 121232X CAP
47 6855M ZERK M
YE12542B (1999 & Before) Page 20 of 24

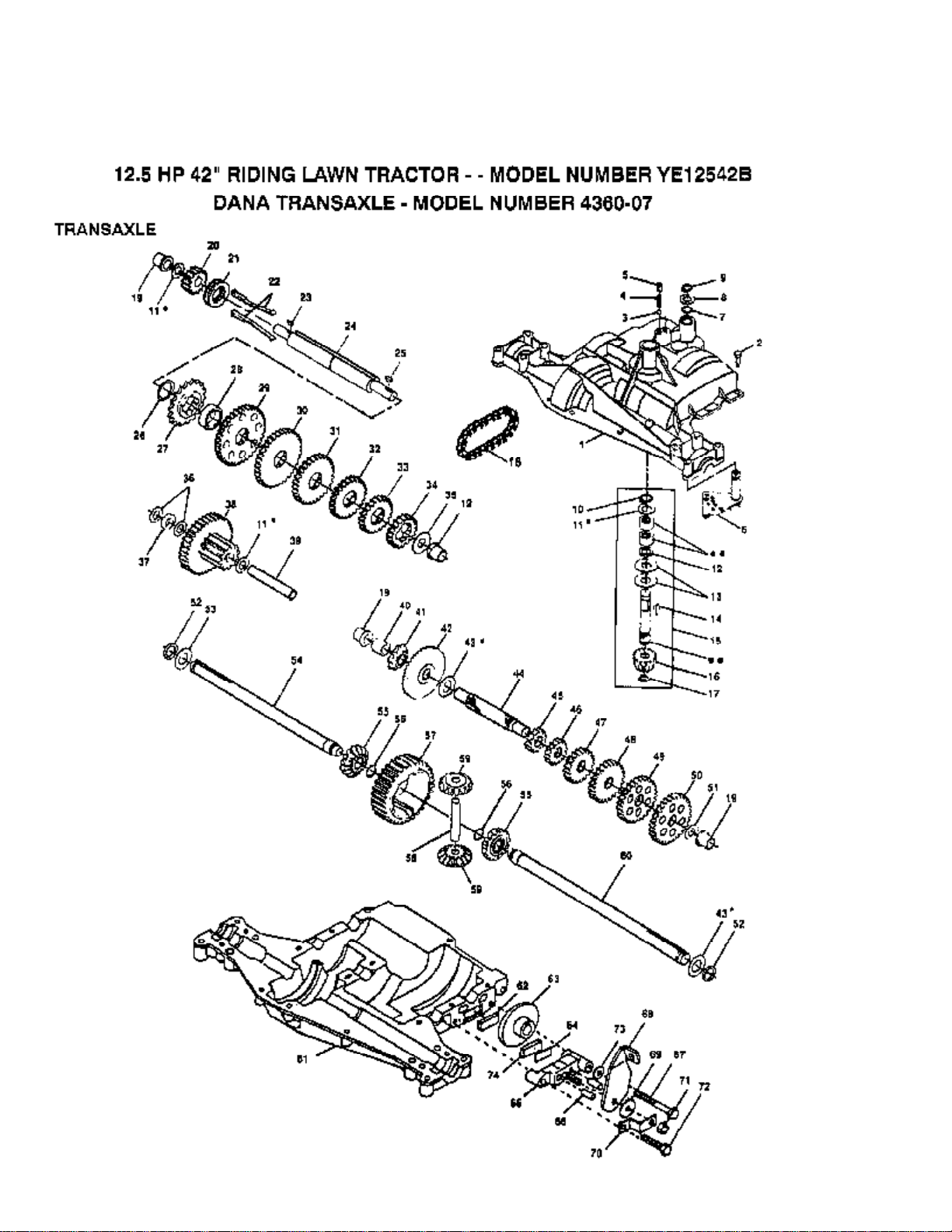

TRANSAXLE
YE12542B (1999 & Before) Page 21 of 24
TRANSAXLE
Ref # Part Number Qty Description
1 3865 HOUSING UPPER
2 1919 SCREW
3 1151 BALL DETENT
4 3626 SPRING, DETENT
5 3623 SCREW, SET
6 4336 ASSY SHIFTER
7 3884 O-RING
8 3885 WASHER PLAIN
3886 WASHER PLAIN
3887 WASHER PLAIN
3888 WASHER PLAIN
3889 WASHER PLAIN
3121 WASHER PLAIN
3890 WASHER PLAIN
9 1100 RING RETAINING
10 1099 RING RETAINING
11 1959 WASHER PLAIN
1441 WASHER PLAIN
1423 WASHER, PLAIN .632 X 1.00 X .026
1082 WASHER PLAIN
1424 WASHER PLAIN
1068 WASHER PLAIN
1425 WASHER PLAIN
1358 WASHER PLAIN
1145 WASHER, PLAIN .632 X 1.00 X .060
1319 WASHER PLAIN
12 3312 O-RING
13 3876 WASHER, PLAIN .632 X 1.38 X .046
14 1374 KEY WOODRUFF #9
15 4134 ASSY KIT INPUT SHAFT
16 3590 PINION, BEVEL, 14 TEETH
17 3624 RING, RETAINING
18 3625 CHAIN, 24 PITCHES
19 1542 BEARING, FLANGE
20 3773 GEAR SPUR, 14 TEETH
21 3631 COLLAR CLUTCH
22 3828 KEY CLUTCH
23 1369 KEY WOODRUFF #3
24 3883 SHAFT INTERMEDIATE
25 1375 KEY, WOODRUFF, #61
26 3627 RING, RETAINING
27 3830 SPROCKET, 18 TEETH
28 3841 SPACER
29 3786 GEAR, SPUR, 37 TEETH
30 3785 GEAR, SPUR, 35 TEETH
31 3867 GEAR, SPUR, 30 TEETH
32 3783 GEAR, SPUR, 25 TEETH
33 3869 GEAR, SPUR, 22 TEETH
34 3741 GEAR SPUR
35 3628 WASHER, PLAIN .640 X 1.37 X .061
36 1423 WASHER, PLAIN .632 X 1.00 X .026
37 3422 SPACER .630 X 1.00 X .169
38 4286 ASSY GEAR COMB 12&35 TEETH
39 3877 SHAFT IDLER
40 3901 SPACER .635 X .875 X .755
41 3645 SPROCKET, 9 TEETH
42 3853 GEAR, BEVEL, 42 TEETH
43 3749 WASHER PLAIN
YE12542B (1999 & Before) Page 22 of 24
TRANSAXLE
Ref # Part Number Qty Description
3652 WASHER PLAIN
3693 WASHER PLAIN
3653 WASHER PLAIN
3408 WASHER PLAIN
3732 WASHER PLAIN
3184 WASHER, PLAIN .758 X 1.25 X .031
3733 WASHER PLAIN
3198 WASHER PLAIN
3734 WASHER PLAIN
3735 WASHER PLAIN
3736 WASHER PLAIN
3180 WASHER PLAIN
44 3882 SHAFT, DRIVE
45 3646 GEAR, SPUR, 12 TEETH
46 3707 GEAR SPUR, 15 TEETH
47 3866 GEAR, SPUR, 20 TEETH
48 3719 GEAR, SPUR, 25 TEETH
49 3868 GEAR, SPUR, 28 TEETH
50 3683 GEAR, SPUR, 31 TEETH
51 1145 WASHER, PLAIN .632 X 1.00 X .060
52 3191 SEAL FELT
53 3180 WASHER PLAIN
54 3980 AXLE LEFT HAND
55 3780 GEAR, MITER, 15 TEETH
56 3656 RING, RETAINING
57 3839 GEAR, SPUR, 32 TEETH
58 3919 SHAFT, CROSS
59 3781 GEAR, MITER, 15 TEETH
60 3981 AXLE RIGHT HAND
61 3864 HOUSING LOWER
62 3920 PUCK, FRICTION
63 3276 DISC, BRAKE
64 3758 SPACER
65 3916 JAW, BRAKE
66 3843 PIN, DOWEL
67 3915 SCREW TAPPING
68 3768 LEVER, ACTUATING
69 3760 WASHER, PLAIN .321 X 1.00 X .055
70 3917 BRACKET, ANTI-ROTATION
71 3847 LOCKNUT 5/16-24
72 3724 SCREW TAPPING
73 3906 WASHER PLAIN
74 3907 PUCK, FRICTION
75 4300 GREASE
YE12542B (1999 & Before) Page 23 of 24

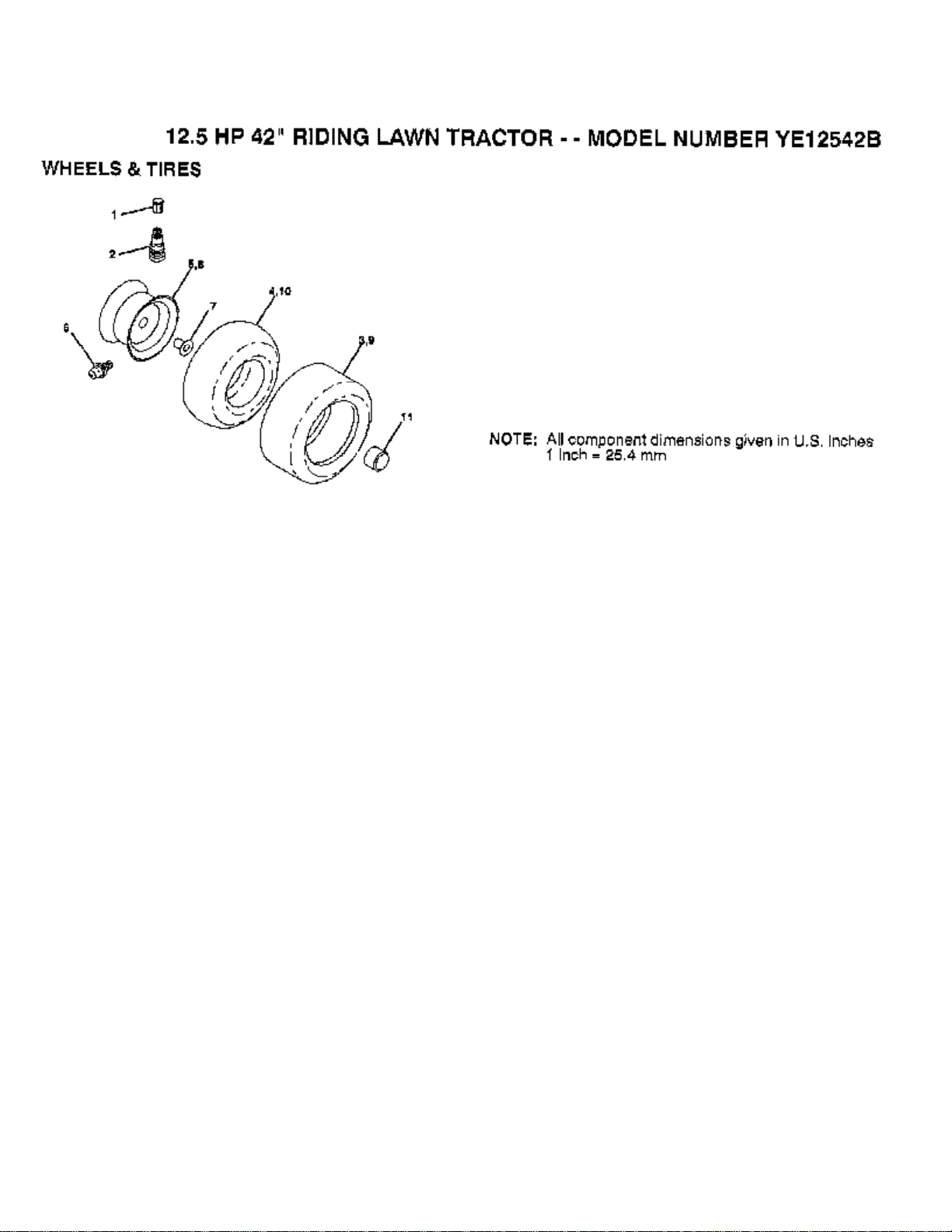

WHEELS AND TIRES
YE12542B (1999 & Before) Page 24 of 24
WHEELS AND TIRES
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 106222X SUB= 122073X
4 59904 TUBE.5.3/4.5/6
5 106732X361 SUB= 106732X417
6 278H FITTING LT
7 9040H "FLANGE, BEARING"
8 106108X361 SUB= 106108X417
9 106268X SUB= 122074X
10 7152J TUBE.18X9.5-8
11 104757X HUB CAP
Loading...
