AYP Y1442A Parts List

Download
Y1442A (1999 & Before) Page 1 of 25 CHASSIS AND ENCLOSURES
Y1442A (1999 & Before) Page 2 of 25 CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
1 135034 SUB= 145501 2 130805 SUB= 145009 3 17490612 SCREW 6 126595X011 SADDLE 7 17490608 SCREW LT 8 2751R CLIP T
Y1442A (1999 & Before) Page 3 of 25 DECALS
Y1442A (1999 & Before) Page 4 of 25 DECALS
Ref # Part Number Qty Description
1 109821X SUB= 138956
2 121549X DECAL
3 124151X NLA
4 124152X NLA
5 105807X NLA
7 126167X DECAL
9 123689X NLA 10 120822X DECAL 11 101892X DECAL T 15 121349X DECAL WARNING 16 109820X DECAL YT
132704 MANUAL, OPERATOR'S 134063 "MANUAL,PARTS"
Y1442A (1999 & Before) Page 5 of 25 DRIVE
Y1442A (1999 & Before) Page 6 of 25 DRIVE
Ref # Part Number Qty Description
1 120898X SUB= 137367
2 110422X SUB= 146682
3 123666X PULLEY TRANS
4 12000028 SUB= 2267J
5 121520X STRAP TORQUE
6 17490512 SCREW
8 127270 SUB= 141003 10 76020416 PIN COTTER 1/8 11 105701X WASH-SHFT PLT LT 12 19151216 WASHER 13 71040412 SUB= 74550412 14 10040400 LOCKWASHER 17 121520X STRAP TORQUE 18 74760612 SUB= 74780612 19 73680600 SUB= 73690600 20 17490512 SCREW 21 106933X KNOB T (1/2-HOLE) 22 130804 BRAKE ROD 23 73800600 NUT 24 73350600 NUT 25 106888X SPRING ROD LT 26 19131316 WASHER 27 76020412 COTTER PIN 28 128904 PARKING BRAKE ROD 29 71673 PLUNGER CAP T 30 130807 TRANSAXLE MTG BKT 31 127275X "KEEPER,BELT LH T" 32 74760512 BOLT 33 73680500 SUB= 73690500 34 122424X SUB= 149001 35 120183X NYLON BEARING 36 19211616 WASHER LT 37 1572H SUB= 2882J 38 123674X PULLEY.IDLER.FLAT 39 74760644 BOLT 40 4470J SPACER T 41 109070X BELT KEEPER LT 42 19131312 WASHER 43 73680600 SUB= 73690600 44 105706X "LY, BEARING" 45 110812X WASHER LT 46 12000039 KLIP RING 47 127783 SUB= 139245 48 123789X ARM IDLER 49 123205X RETAIN BELT 50 74760624 SUB= 74930624 51 73680600 SUB= 73690600 52 19131316 WASHER 53 105710X "LINK, CLUTCH T" 54 76020412 COTTER PIN 55 105709X "SPRING, RETURN LT" 56 76020412 COTTER PIN 57 130801 SUB= 138255 58 127274X "KEEPER,BELT RH T" 59 104777X SUB= 140312 60 19131312 WASHER 61 17490612 SCREW 62 8883R PEDAL COVER T
Y1442A (1999 & Before) Page 7 of 25 DRIVE
Ref # Part Number Qty Description
63 134825 SUB= 136004 64 71170764 BOLT 65 10040700 LOCKWASHER 66 129921 KEEPER.BELT.ENG.L 67 74760616 BOLT 68 19131312 WASHER 69 73680600 SUB= 73690600 70 134683 KEEPER BELT ENG 71 74760616 BOLT 72 19132012 WASHER 73 73680600 SUB= 73690600 74 109502X SPACER LT 75 121749X WASHER 76 12000001 E-RING LT 77 123583X SQUARE KEY 78 121748X WASHER 80 131488 SHIFT LEVER 81 131489 SHAFT ASM CROSS 82 123782X "SPRING,TORSION" 83 19171216 WASHER 84 132182 TIE ROD 85 73530400 NUT 1/4-28 86 127272X "BUSH,PIVOT T" 87 126591X "WSHER,SHIM" 88 12000003 RING T 89 131636 SUB= 127271 90 124346X NUT 91 74760540 BOLT 93 73680500 SUB= 73690500
100 17490612 SCREW
Y1442A (1999 & Before) Page 8 of 25 ELECTRICAL
Y1442A (1999 & Before) Page 9 of 25 ELECTRICAL
Ref # Part Number Qty Description
1 121265X SUB= 123899X
2 102972X SUB= 918102972X
3 124211X NUT IGNITION
4 135304 HARNESS
5 4207J CABLE T
6 132202 SUB= 146147
7 4799J "CABLE T, BATTERY"
8 129965 SUB= 156417
9 109596X HOSE CLAMP T 10 109081X SUB= 146154 11 10090400 SUB= 10040400 12 73350400 NUT 13 74780408 BOLT 14 11050400 LOCKWASHER 15 73510400 NUT 16 131563 SUB= 154336 17 109553X SWITCH INTERLOCKT 18 17021008 SCREW 19 104445X SWITCH-INTER. GT 20 17021008 SCREW 21 121305X SWITCH SEAT 22 121264X "CAP,BATTERY " 23 74760412 BOLT LT 24 19091016 WASHER 25 10040400 LOCKWASHER 26 73220400 SUB= 50675 27 122147X KEY 28 108824X FUSE HYT 29 105687X SUB= 109238X 30 123620X SUB= 141226 31 110712X SWITCH LT 32 110859X HARNESS T 33 7662J SUB= 4152J 34 108236X BRACKET LT 35 17021008 SCREW 36 130890 SWITCH BRACKET 37 17021008 SCREW

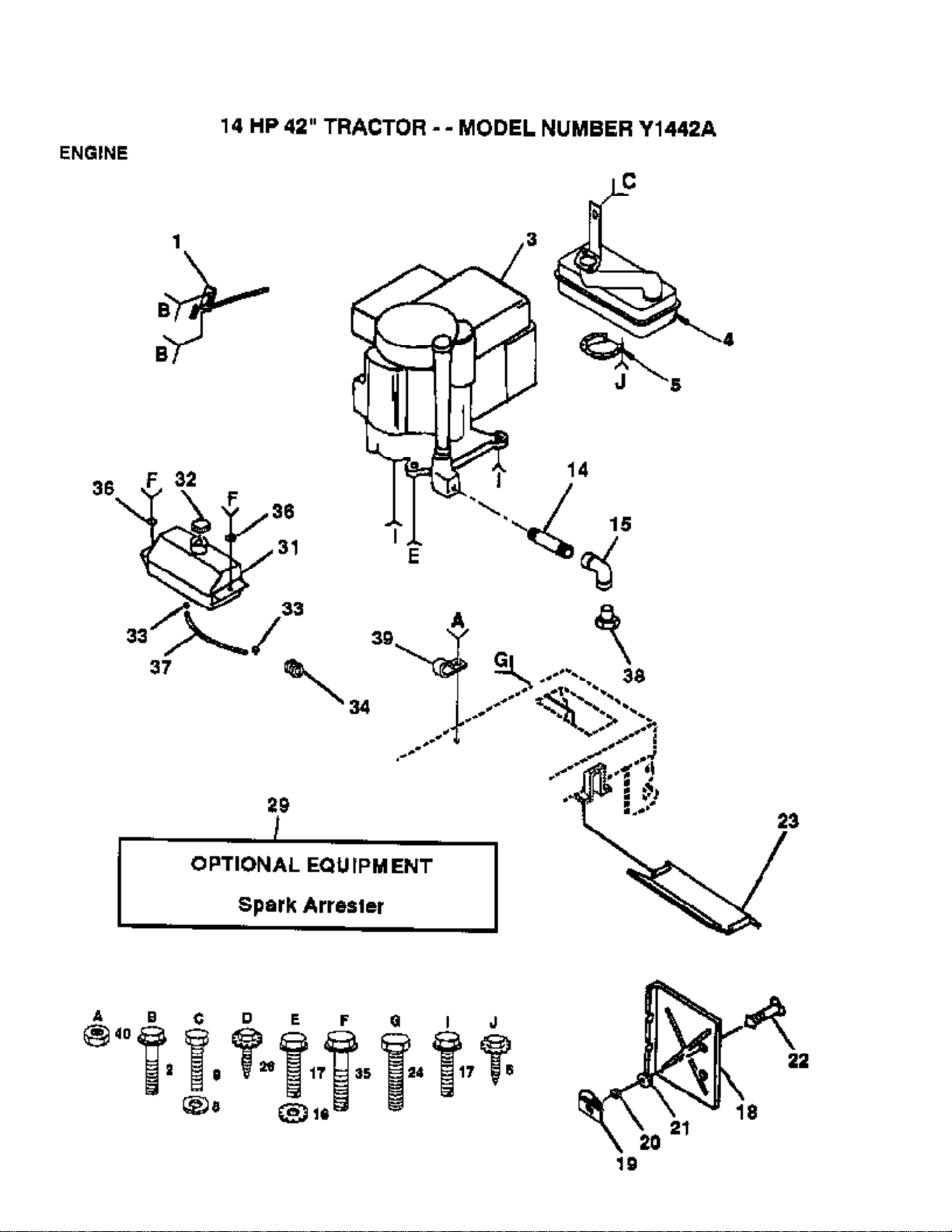

Y1442A (1999 & Before) Page 10 of 25 ENGINE
Y1442A (1999 & Before) Page 11 of 25 ENGINE
Ref # Part Number Qty Description
1 132769 "CONTROL,THROTTL"
2 17720410 SCREW LT
3 133738 ENGINE KOHLER
4 124196X MUFFLER
5 101326L DEFLECTOR.222573
6 17030808 SUB= 17030814
8 10040500 LOCKWASHER
9 74760508 BOLT 14 13280336 PIPE NIPPLE LT 15 13200300 ELBOW 16 11050600 LOCKWASHER 17 17490620 SCREW 18 105736X SUB= 136718 19 105839X RECEPTACLE LT 20 105838X RETAINER LT 21 19091016 WASHER 22 123650X STUD.1/4.TURN 23 128953X SUB= 128953 24 17021008 SCREW 29 123110X SPARK ARREST KIT 31 109202X TANK.FUEL.LT. 32 123549X SUB= 158990 33 123487X HOSE CLAMP 34 124028X SUB= 532124028 35 17490412 SCREW HEX CRT 36 19091416 WASHER 37 101335K SUB= 8548R 38 REFER TO IMAGE 39 2751R CLIP T 40 73680600 SUB= 73690600
Y1442A (1999 & Before) Page 12 of 25 MOWER DECK
Y1442A (1999 & Before) Page 13 of 25 MOWER DECK
Ref # Part Number Qty Description
1 130970 SUB= 145338
2 130969 BELT-V.92.4.MWR
3 110485x BEARING
4 128774 HSG ASM MANDREL
5 133172 SUB= 137646
6 129895 BEARING.BALL
7 127843 SUB= 138498
8 129962 WASHER BLADE
9 10030600 SUB= 10040600 10 850857 BLADE BOLT 11 128961 SUB= 140329 12 130968 DEFLECTOR.SHIELD 13 131491 HINGE ROD 14 131267 DEFLECTOR BRKT 15 110452x NUT PUSH M 16 123713x SPRING TORSION 17 19111016 WASHER 18 105304x CAP-SLEEV(107627) 19 73680500 SUB= 73690500 20 72140506 BOLT 21 4939m No Desc 22 127218 LINK.FRONT 23 73350800 NUT 24 130171 TRUNION 25 73800800 NUT.LK.W/WSH.1/2. 26 135388 LIFT LINK RH 27 128763 SPRING PIN 28 130832 SUB= 130833 29 134619 LINK LIFT LH 33 133844 IDLER ARM 34 78158 SUB= 17580520 35 129963 WASHER 36 129861 SUB= 153535 37 73050900 SUB= 139729 38 72110614 BOLT 39 133943 HARDENED WASHER 40 131494 FLAT IDLER PULLEY 41 122052x No Desc 42 19131612 WASHER GT 43 133502 RETAINER SPACER 44 133503 IDLER ARM STIFF 45 73680500 SUB= 73690500 46 72110618 BOLT CARRIAGE 47 133835 XMAS TREE FASTNER 48 131340 SHOULDER BOLT 49 133940 SUB= 151785 50 69180 LOCKNUT 51 105529x No Desc 52 131845 BRAKE PAD ARM ASM 53 133944 HARD SMALL WASHER 54 131335 SPRING EXTENSION 55 133551 PIVOT ROD 56 76020312 SUB= 3145 57 133504 CLUTCH ROD SECOND 58 131857 SUB= 140088 59 133550 SUB= 142427 60 73350600 NUT 61 133205 TRUNION
Y1442A (1999 & Before) Page 14 of 25 MOWER DECK
Ref # Part Number Qty Description
62 4497h RETAINER M 63 17720410 SCREW LT 64 127498 BUSHING 65 131870 RETURN SPRING 66 127847 CLUTCH ARM SECOND 67 128903 SHOULDER BOLT 68 12000029 RING 69 121748x WASHER 70 127845 SPRING KEEPER 71 106933x KNOB T (1/2-HOLE) 72 133573 CLUTCH ARM PRI AS 73 128759 SUB= 918128759 74 12000002 SUB= 2225J 75 19211416 WASHER 76 122507x No Desc 77 105767x PIN-GROOVE LT 78 120183x NYLON BEARING 79 122514x No Desc 80 122512x No Desc 81 122364x No Desc 82 124526x No Desc 83 109413x GRIP 84 110810x TRUNION LT 85 19151216 WASHER 86 12000037 KLIP RING 87 110807x NUT T 88 19131016 WASHER 89 76020308 SUB= 3145 90 126971x No Desc 91 100734k No Desc 92 134753 STIFFENER BRKT 94 2876h SPRING T 95 132274 SUB= 532132274 96 132264 SUB= 532132264 97 74760616 BOLT 98 73680600 SUB= 73690600 99 19171416 WASHER
100 132273 SUB= 532132273
132707 SUB= 145411 130794 MANDREL ASM
Y1442A (1999 & Before) Page 15 of 25 SCHEMATIC
Y1442A (1999 & Before) Page 16 of 25 SCHEMATIC
Ref # Part Number Qty Description
REFER TO IMAGE
Y1442A (1999 & Before) Page 17 of 25 SEAT
Y1442A (1999 & Before) Page 18 of 25 SEAT
Ref # Part Number Qty Description
1 127427 SUB= 140119
2 126656X SUB= 140551
3 74760612 SUB= 74780612
4 19131210 WASHER
5 2751R CLIP T
6 73680600 SUB= 73690600
7 124181X SPRING COMPRESSIO
8 17490616 SCREW GTV
9 19131614 WASHER 10 131451 SUB= 155925 11 121251X STRIP FORM 12 121246X BRKT SWITCH 13 121248X BUSHING 14 72050411 SUB= 872050411 15 121249X SPACER SPLIT 16 121250X SPRING 17 123976X SUB= 73900400 18 747641008 SCREW 19 73951000 "NUT,KEPS" 20 4171R CLIP T 21 105529X SUB= 139888 22 73680500 SUB= 73690500 23 74780814 BOLT 24 19171912 WASHER 25 127018X "BOLT,SHOULDER" 26 10040800 LOCKWASHER
Y1442A (1999 & Before) Page 19 of 25 STEERING
Y1442A (1999 & Before) Page 20 of 25 STEERING
Ref # Part Number Qty Description
1 121472X SUB= 150546
2 133988 SUB= 142033
3 135227 SPINDLE LH
4 135228 SPINDLE RH
5 6266H WASHER .T
6 121748X WASHER
7 19272016 WASHER
8 12000029 RING
9 3366R COL. SRTG. BEAR. 10 130468 SUB= 532130468 11 10040600 LOCKWASHER 12 73610600 SUB= 7810H 13 110438X BEARING 14 74011056 BOLT HEX 5/8-11 15 73601000 SUB= 73901000 16 132624 AXLE PIN 17 132614 SHAFT ASM 18 57079 THRUST WASHER 19 124035X SUPPORT.SHAFT 20 126684X SUB= 532126684 21 10040400 LOCKWASHER 22 71070410 "SCREW,SPECIAL" 23 127501 SUB= 918127501 24 109816X NYLINER T 25 124036X "BRKT,STEERING" 26 12000029 RING 27 124034X SUB= 136874 28 6266H WASHER .T 29 17490612 SCREW 30 10040600 LOCKWASHER 31 73610600 SUB= 7810H 32 130465 TIE ROD 33 126847X BUSHING.DRAGLINK 34 19131416 WASHER 35 76020412 COTTER PIN 36 132196 SUB= 155106 37 17431008 SUB= 98000165 38 121584X INSERT STEERING 39 19133808 WASHER T 40 7810H GRIPCO NUT 41 104820X ADAPTER-WHEEL LT 42 124418X "TUBE, STR SHAFT" 43 121749X WASHER 44 121748X WASHER 45 12000029 RING 46 121232X CAP 47 6855M ZERK M

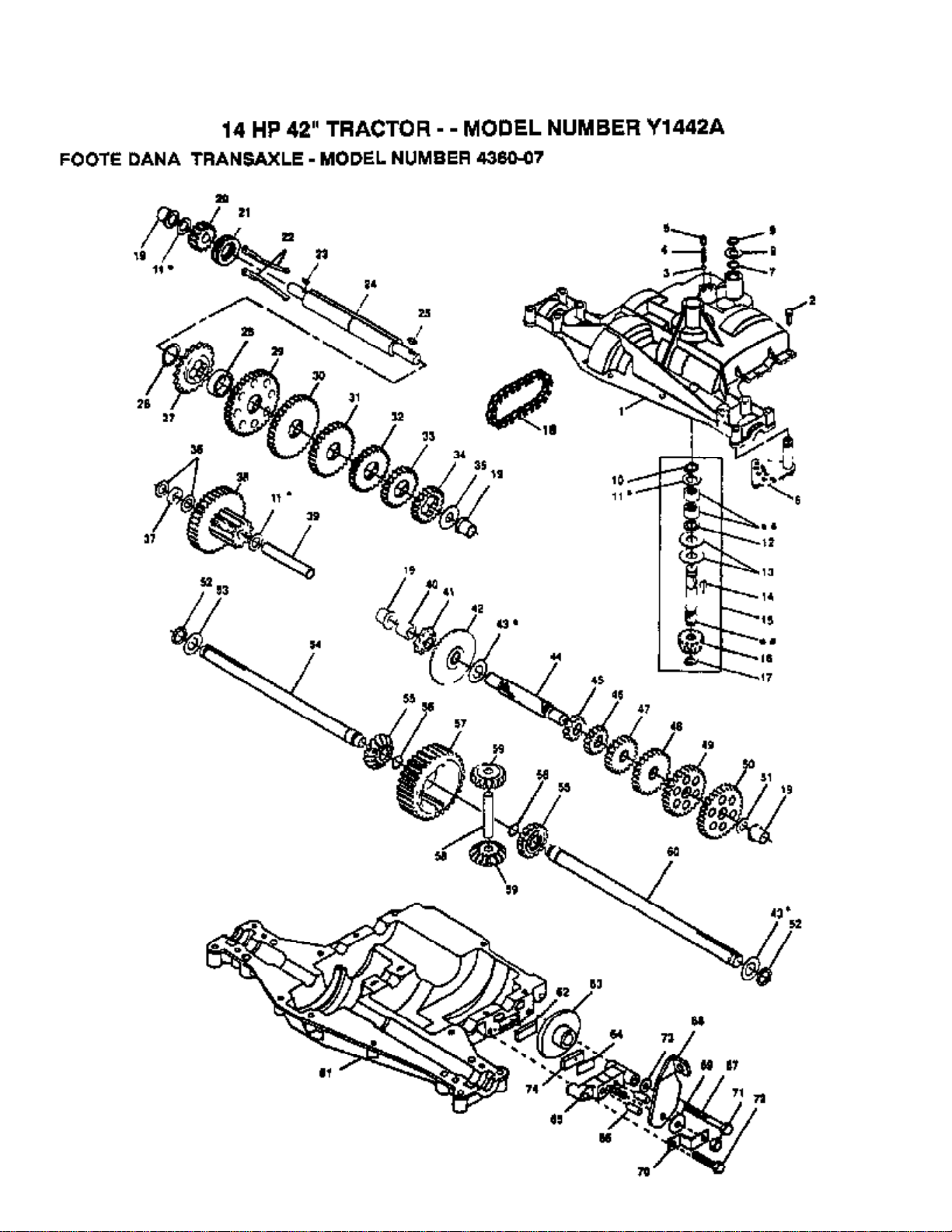

Y1442A (1999 & Before) Page 21 of 25 TRANSAXLE
Y1442A (1999 & Before) Page 22 of 25 TRANSAXLE
Ref # Part Number Qty Description
1 3865 HOUSING UPPER
2 1919 SCREW
3 1151 BALL DETENT
4 3626 SPRING, DETENT
5 3623 SCREW, SET
6 4336 ASSY SHIFTER
7 3884 O-RING
8 3885 WASHER PLAIN
3886 WASHER PLAIN 3887 WASHER PLAIN 3888 WASHER PLAIN 3889 WASHER PLAIN 3121 WASHER PLAIN 3890 WASHER PLAIN
9 1100 RING RETAINING 10 1099 RING RETAINING 11 1959 WASHER PLAIN
1441 WASHER PLAIN 1423 WASHER, PLAIN .632 X 1.00 X .026 1082 WASHER PLAIN 1424 WASHER PLAIN 1068 WASHER PLAIN 1425 WASHER PLAIN 1358 WASHER PLAIN 1145 WASHER, PLAIN .632 X 1.00 X .060
1319 WASHER PLAIN 12 3312 O-RING 13 3876 WASHER, PLAIN .632 X 1.38 X .046 14 1374 KEY WOODRUFF #9 15 4134 ASSY KIT INPUT SHAFT 16 3590 PINION, BEVEL, 14 TEETH 17 3624 RING, RETAINING 18 3625 CHAIN, 24 PITCHES 19 1542 BEARING, FLANGE 20 3773 GEAR SPUR, 14 TEETH 21 3631 COLLAR CLUTCH 22 3828 KEY CLUTCH 23 1369 KEY WOODRUFF #3 24 3883 SHAFT INTERMEDIATE 25 1375 KEY, WOODRUFF, #61 26 3627 RING, RETAINING 27 3830 SPROCKET, 18 TEETH 28 3841 SPACER 29 3786 GEAR, SPUR, 37 TEETH 30 3785 GEAR, SPUR, 35 TEETH 31 3867 GEAR, SPUR, 30 TEETH 32 3783 GEAR, SPUR, 25 TEETH 33 3869 GEAR, SPUR, 22 TEETH 34 3741 GEAR SPUR 35 3628 WASHER, PLAIN .640 X 1.37 X .061 36 1423 WASHER, PLAIN .632 X 1.00 X .026 37 3422 SPACER .630 X 1.00 X .169 38 4286 ASSY GEAR COMB 12&35 TEETH 39 3877 SHAFT IDLER 40 3901 SPACER .635 X .875 X .755 41 3645 SPROCKET, 9 TEETH 42 3853 GEAR, BEVEL, 42 TEETH 43 3749 WASHER PLAIN
Y1442A (1999 & Before) Page 23 of 25 TRANSAXLE
Ref # Part Number Qty Description
3652 WASHER PLAIN
3693 WASHER PLAIN
3653 WASHER PLAIN
3408 WASHER PLAIN
3732 WASHER PLAIN
3184 WASHER, PLAIN .758 X 1.25 X .031
3733 WASHER PLAIN
3198 WASHER PLAIN
3734 WASHER PLAIN
3735 WASHER PLAIN
3736 WASHER PLAIN
3180 WASHER PLAIN 44 3882 SHAFT, DRIVE 45 3646 GEAR, SPUR, 12 TEETH 46 3707 GEAR SPUR, 15 TEETH 47 3866 GEAR, SPUR, 20 TEETH 48 3719 GEAR, SPUR, 25 TEETH 49 3868 GEAR, SPUR, 28 TEETH 50 3683 GEAR, SPUR, 31 TEETH 51 1145 WASHER, PLAIN .632 X 1.00 X .060 52 3191 SEAL FELT 53 3180 WASHER PLAIN 54 3880 AXLE LEFT HAND 55 3780 GEAR, MITER, 15 TEETH 56 3656 RING, RETAINING 57 3839 GEAR, SPUR, 32 TEETH 58 3919 SHAFT, CROSS 59 3781 GEAR, MITER, 15 TEETH 60 3881 AXLE, R.H. 61 3864 HOUSING LOWER 62 3920 PUCK, FRICTION 63 3276 DISC, BRAKE 64 3758 SPACER 65 3916 JAW, BRAKE 66 3843 PIN, DOWEL 67 3915 SCREW TAPPING 68 3768 LEVER, ACTUATING 69 3760 WASHER, PLAIN .321 X 1.00 X .055 70 3917 BRACKET, ANTI-ROTATION 71 3847 LOCKNUT 5/16-24 72 3724 SCREW TAPPING 73 3906 WASHER PLAIN 74 3907 PUCK, FRICTION 75 4300 GREASE
Y1442A (1999 & Before) Page 24 of 25 WHEELS AND TIRES
Y1442A (1999 & Before) Page 25 of 25 WHEELS AND TIRES
Ref # Part Number Qty Description
1 59192 VALVE CAP 2 65139 VALVE STEM LT 3 106222X SUB= 122073X 4 59904 TUBE.5.3/4.5/6 5 106732X361 SUB= 106732X417 6 278H FITTING LT 7 9040H "FLANGE, BEARING" 8 106108X361 SUB= 106108X417
9 106268X SUB= 122074X 10 7152J TUBE.18X9.5-8 11 104757X HUB CAP
