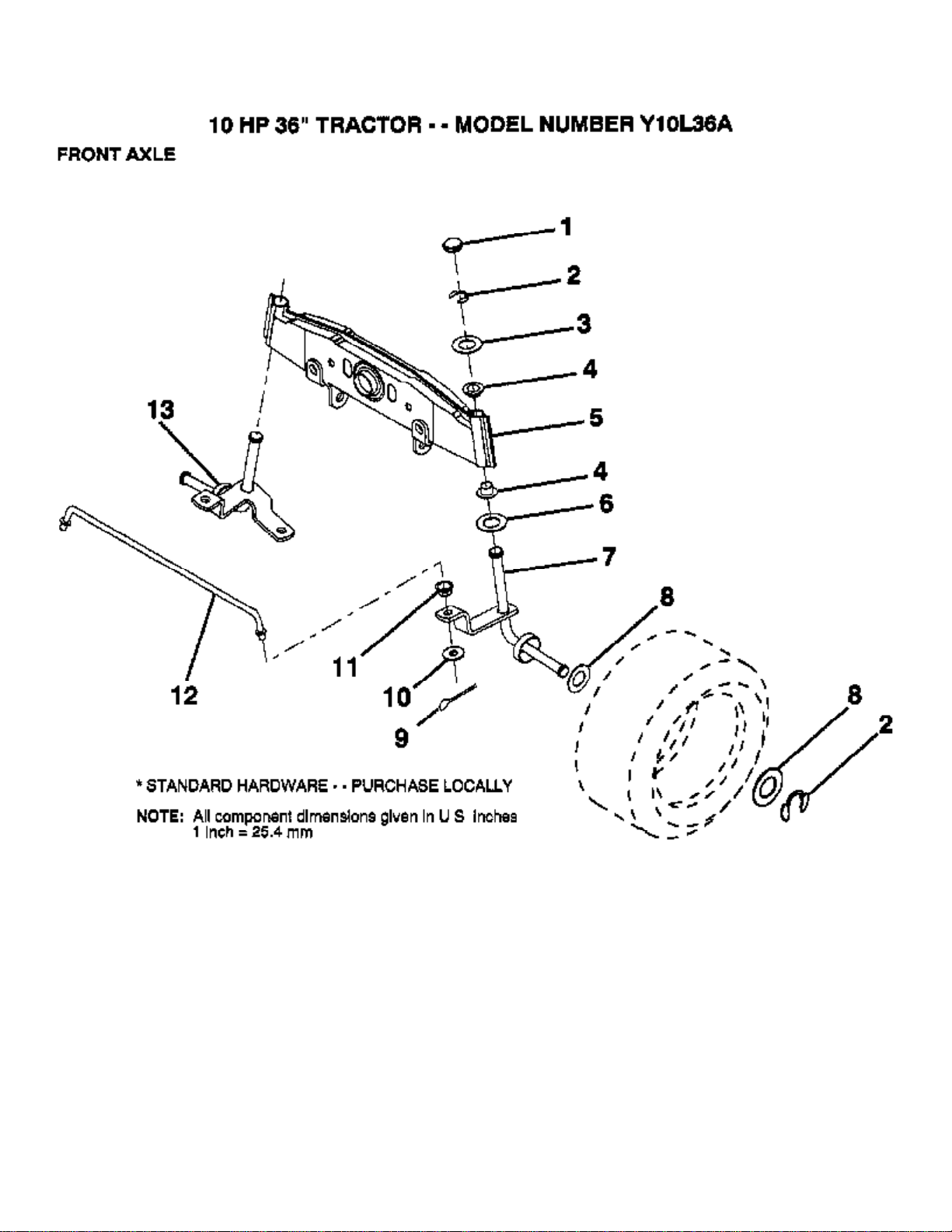

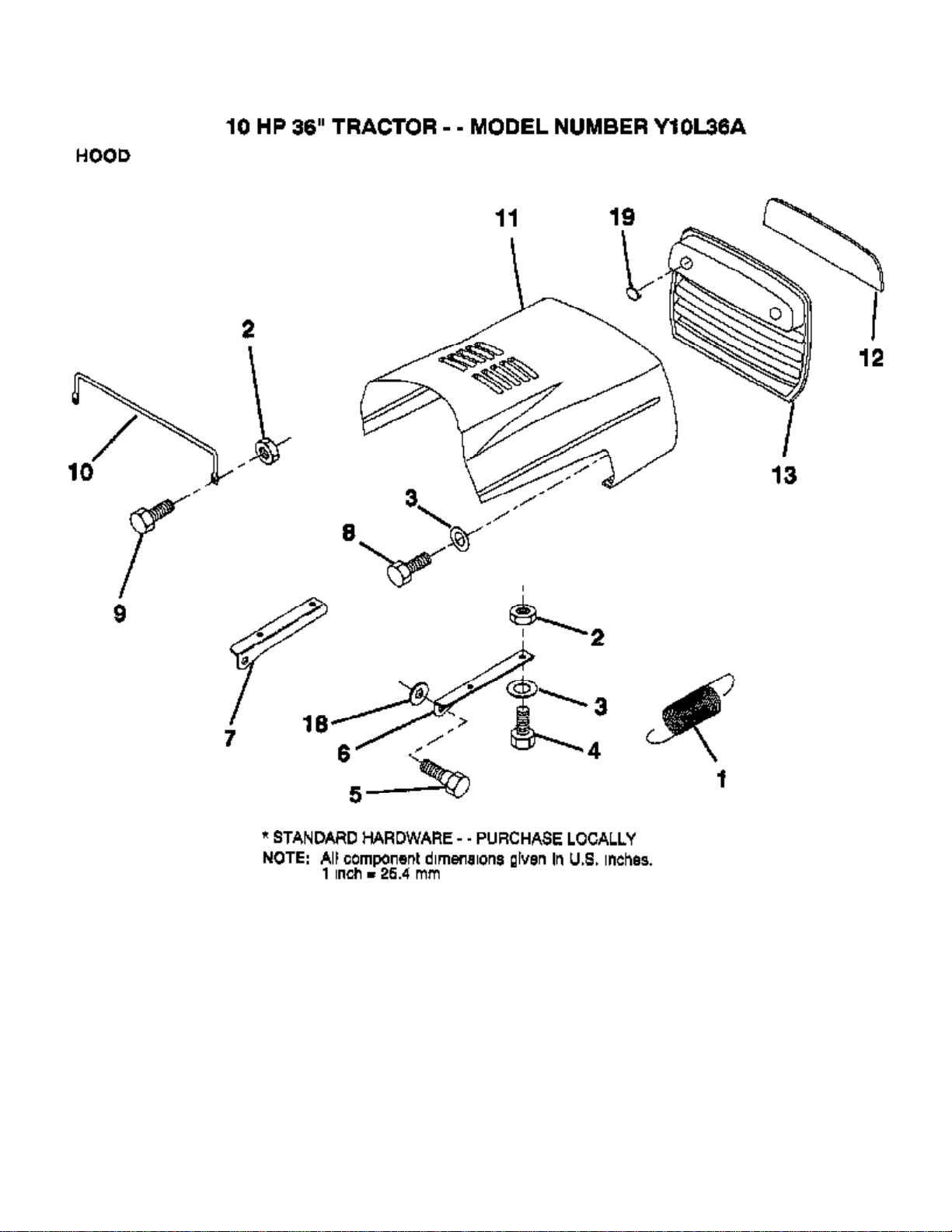

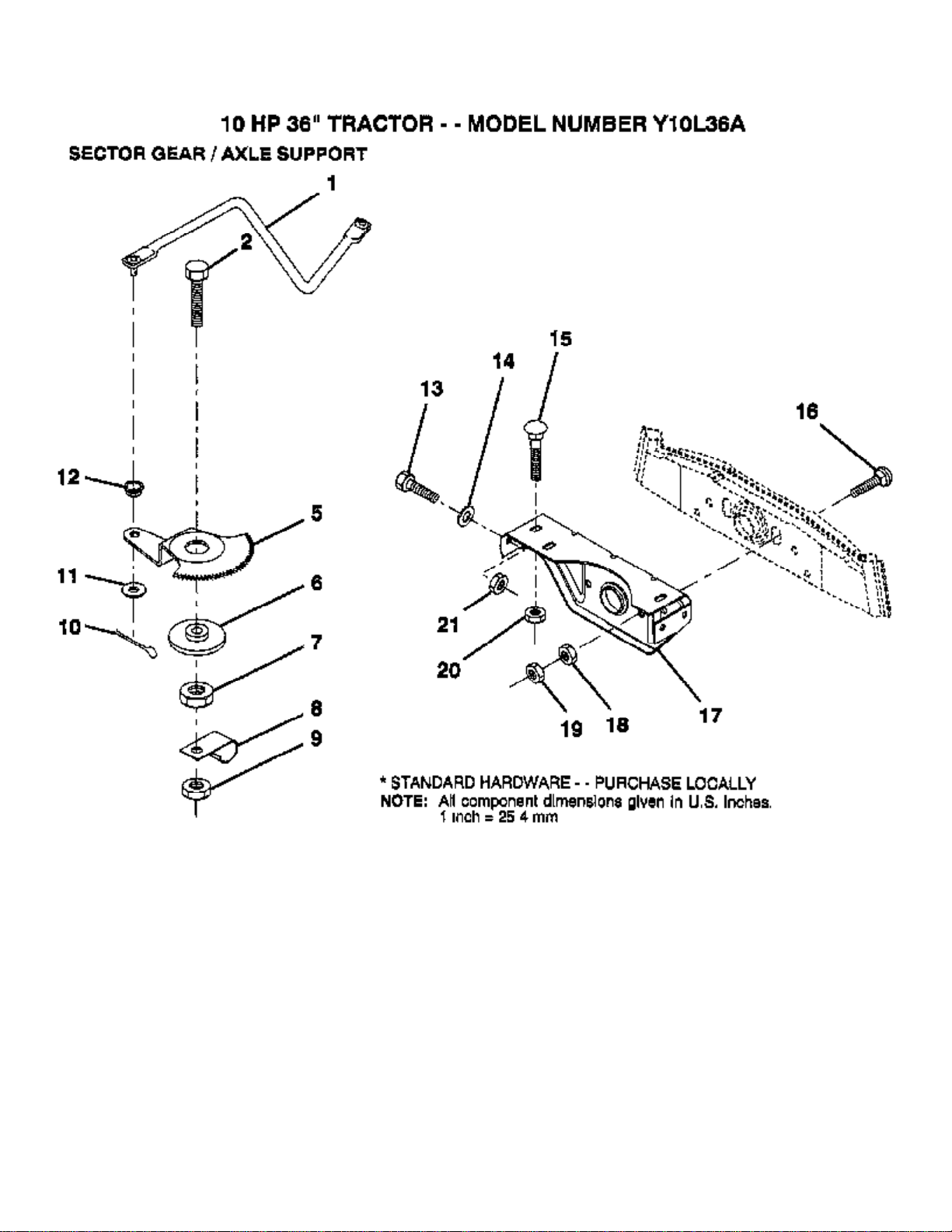

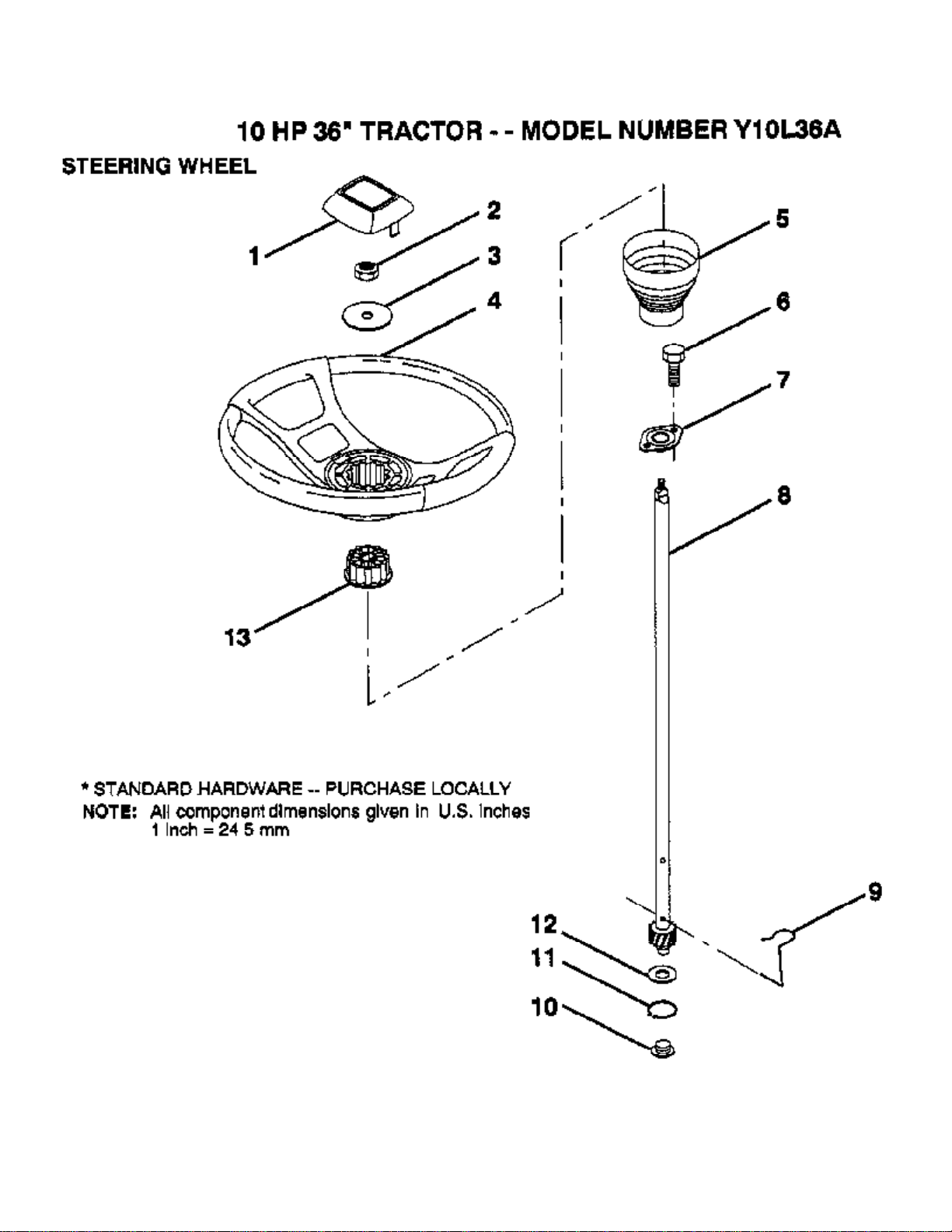

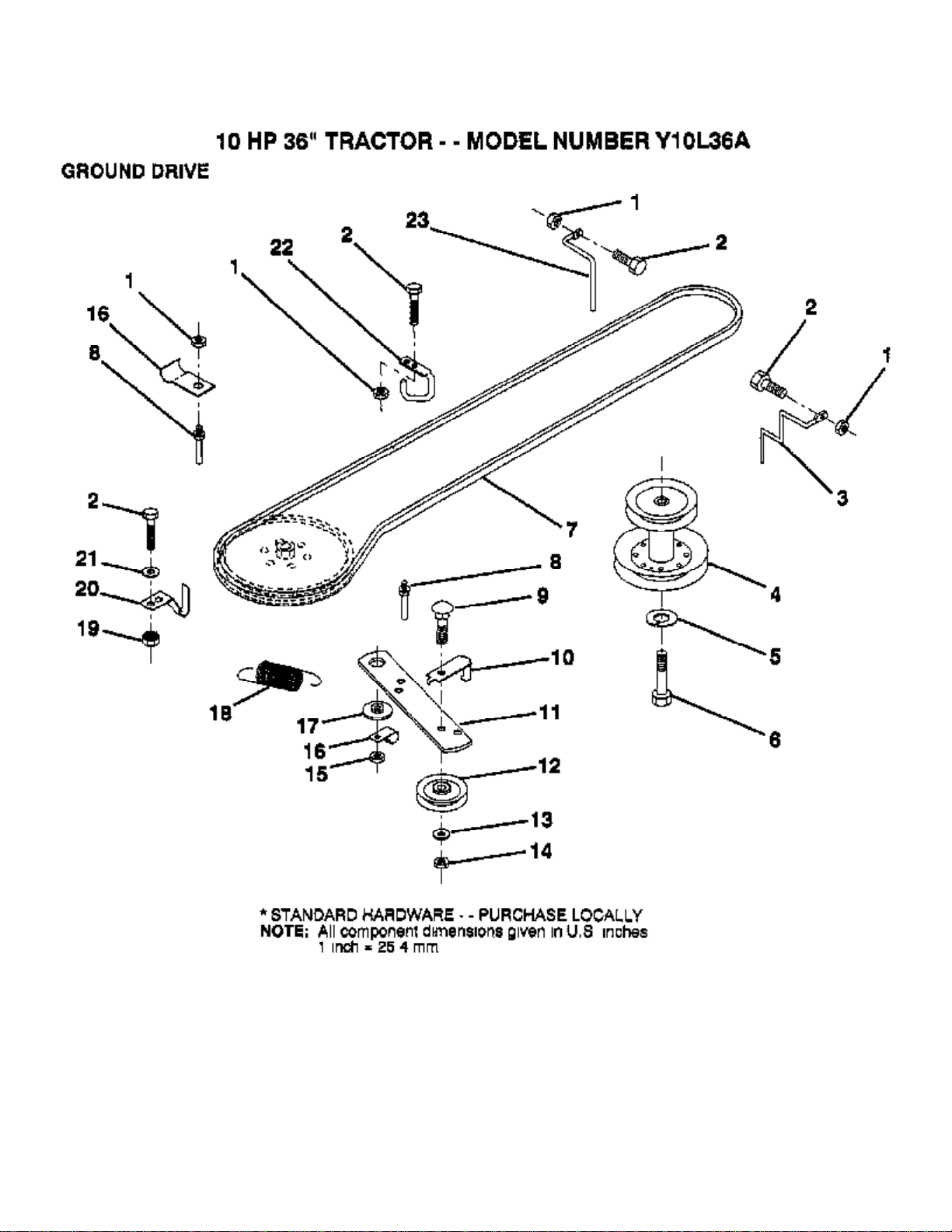

AYP Y10L36A Parts List

Y10L36A (1992) Page 1 of 37
BRAKE AND REAR MOWER LIFT

Y10L36A (1992) Page 2 of 37
BRAKE AND REAR MOWER LIFT

Ref # Part Number Qty Description

1 71673 PLUNGER CAP T
2 123436X "ROD,PARK BRAKE"
3 123437X "BRKT,PARK BRAKE"
4 8156H FOOT PEDAL COVER
5 122504X "BRKT,CLU PEDAL LH"
6 76020312 SUB= 3145
7 19131016 WASHER
8 17490508 SCREW LT

9 76020412 COTTER PIN
10 19131316 WASHER
11 123543X "ROD,FRT BRAKE"
12 129567 SUB= 139933
13 123394X "ROD,CLUTCH"
14 121978X "BRKT,LIFT SHAFT"
15 123641X BRAKE PIVOT ARM
16 19251816 WASHER T
17 12000034 KLIP RING
18 106888X SPRING ROD LT
19 73680600 SUB= 73690600
20 73350600 NUT
21 131460 SUB= 532131460
22 127378 SUB= 144585
23 73680600 SUB= 73690600
24 19132012 WASHER
25 4921H SPRING.RETAINER
26 73930600 LOCKNUT
27 127369 "LINK, MOWER REAR"
28 127358 SUB= 140776
29 72110506 SUB= 72270506
30 73510500 NUT

Y10L36A (1992) Page 3 of 37
DASH

Y10L36A (1992) Page 4 of 37
DASH

Ref # Part Number Qty Description

1 122015X SUB= 141523

2 130913 SUB= 138393

3 123487X HOSE CLAMP

4 8544R SUB= 295J

5 8548R FUEL LINE T

6 73510400 NUT

7 2751R CLIP T

8 19091216 WASHER PM

9 74760428 BOLT
10 19091413 WASHER
11 121249X SPACER SPLIT
12 3720R SPRING M
13 126450X "KNOB,HGT RETAINER"
14 126115X KNOB
15 122023X ADJUSTER QUAD
16 124346X NUT
17 72110404 BOLT
18 130745 SUPT ASSY DASH
19 134744 CROSS BRACE
20 18000408 SUB= 818000408
21 19090816 WASHER
22 134014 PLUG DOME

Y10L36A (1992) Page 5 of 37
DECALS

Y10L36A (1992) Page 6 of 37
DECALS

Ref # Part Number Qty Description

2 122036X NLA

3 122037X NLA

5 127192 DECAL

6 123689X NLA

7 133795 DECAL CAUTION

8 123658X DECAL WARNING

9 109820X DECAL YT
11 123637X SUB= 138269
12 121549X DECAL
13 123649X DECAL WARNING

133626 OPERATORS MANUAL
131745 OP MANUAL
136047 MANUAL

Y10L36A (1992) Page 7 of 37
ELECTRICAL

Y10L36A (1992) Page 8 of 37
ELECTRICAL

Ref # Part Number Qty Description

1 73510400 NUT

2 108423X CABLE ASM.

3 133909 SUB= 123899X

5 108236X BRACKET LT

6 104445X SWITCH-INTER. GT

7 109553X SWITCH INTERLOCKT

8 17021008 SCREW

9 7552H SUB= STD365410
10 123620X SUB= 141226
11 124211X NUT IGNITION
12 4406R SUB= STD365402
14 7192J WIRE TIE
15 121305X SWITCH SEAT
16 73510500 NUT
17 108824X FUSE HYT
18 128353 CABLE ASSY
19 132223 SUB= 532132223
20 73350400 NUT
21 10090400 SUB= 10040400
22 74780408 BOLT
23 11050400 LOCKWASHER
24 131563 SUB= 154336
25 109081X SUB= 146154
26 74760412 BOLT LT
27 19091016 WASHER
28 10040400 LOCKWASHER
29 121264X "CAP,BATTERY "
30 73220400 SUB= 50675
35 11050600 LOCKWASHER

Y10L36A (1992) Page 9 of 37
ENGINE AND THROTTLE

Y10L36A (1992) Page 10 of 37
ENGINE AND THROTTLE

Ref # Part Number Qty Description

1 17720408 SCREW

2 132521 THROTTLE CONTROL

3 286707 ENGINE

4 71070512 SCREW

5 10040500 LOCKWASHER

6 125593X SUB= 272293

8 121094X BOLT T

9 19101216 WASHER
10 10040400 LOCKWASHER
11 74780412 SUB= 74780414
12 124097X MUFFLER
13 101326L DEFLECTOR.222573
14 17030808 SUB= 17030814
15 121851X SUB= 532137180
17 17490624 SCREW LT
18 126636X "KEEPER,DR BELT GR"

Y10L36A (1992) Page 11 of 37
FENDER AND CHASSIS

Y10L36A (1992) Page 12 of 37
FENDER AND CHASSIS

Ref # Part Number Qty Description

1 129965 SUB= 156417

2 19132012 WASHER

3 17490612 SCREW

4 124181X SPRING COMPRESSIO

5 127115X505 BTRY FENDER PLATE

6 109596X HOSE CLAMP T

7 124144X PAD FOOTREST

8 17490512 SCREW

9 126993X CONSOLE SHFT 4SP
10 124602X SUB= 139783
11 124346X NUT
12 133384 SUB= 139893
13 105687X SUB= 109238X
14 73510400 NUT
15 73680500 SUB= 73690500
16 74760512 BOLT
17 127880 DRAWBAR
18 126470X "CLIP,INSULATOR"
19 128083X505 SUB= 140955X505
20 19091413 WASHER
