XR500C (1999 & Before) Page 1 of 12
DECALS
XR500C (1999 & Before) Page 2 of 12
DECALS
Ref # Part Number Qty Description
1 127707X "DECAL,BRKT HDLE T"
2 133511 NLA
3 110678X NLA
4 110614X DECAL TI
5 104323X NLA
6 110612X DECAL TI
7 121543X SUB= 271948
8 120076X SUB= 120075X
9 108591X DECAL, THROTTLE CONTROL
138702 NLA
XR500C (1999 & Before) Page 3 of 12
HANDLE
XR500C (1999 & Before) Page 4 of 12
HANDLE
Ref # Part Number Qty Description
1 8389J GRIP TI
2 121248X BUSHING
3 71091008 SCREW
4 126949X475 "BRKT,HDLE TI"
5 72110514 BOLT CARRIAGE CRT
6 108281X ROD SHIFT CRT
7 72110608 BOLT D
8 4497H RETAINER M
9 109229X LOCK CRT
10 73930600 LOCKNUT
11 19131611 WASHER CRT
12 109228X LEVER LOCK CRT
13 121566X HANDLE
14 102162X CABLE.CLUTCH.CRT
15 9484R CONDIUT CLIP T
16 86777 SUB= 750097
17 102604X GRIP BAR CRT
18 81328 SHOULDER BOLT ST
19 10040400 LOCKWASHER
20 73220400 SUB= 50675
21 108276X HANDLE BAR CRT
22 108279X NLA
23 108544X CAP CRT
24 73731000 NUT
25 127012X "CONT,THROTTLE"
26 5420J SUB= 146480
27 10040500 LOCKWASHER
28 1685H SUB= 68478
XR500C (1999 & Before) Page 5 of 12
MAINFRAME, LEFT
XR500C (1999 & Before) Page 6 of 12
MAINFRAME, LEFT
Ref # Part Number Qty Description
1 73510500 NUT
2 10040600 LOCKWASHER
3 73220600 NUT.HEX.3/8-16UNC
4 74930568 BOLT TI
5 1572H SUB= 2882J
6 110111X LEVER ASM CRT
7 72110404 BOLT
8 8700J PANEL TI
9 86777 SUB= 750097
10 9484R CONDIUT CLIP T
11 10040400 LOCKWASHER
12 73220400 SUB= 50675
13 23230506 SET SCREW
14 120938X SPACER
15 19111116 WASHER
16 100473M "SHEAVE 10"" CRT"
17 73220500 NUT.HEX.5/16-18
18 110651X SPACER CRT
19 2649M KEY T
20 110653X GUARD CRT
21 131691 SPLIT SPACER
22 104214X NUT TI
23 102190X TIRE.CHV.13X5.0-6
23A 124258X RIM
23B 795R SUB= 65139
24 126875X RIVET.DRILL.1.75
25 4497H RETAINER M
26 131159X475 "GUARD, BELT"
27 132672 BELT-V
28 104679X PULLEY-IDLER TI
29 12000032 KLIP RING
30 105611X SUB= 918105611X
31 102384X BOLT CRT
32 102141X SHIFT ARM CRT
33 74760616 BOLT
34 102383X COUNTERWEIGHT CRT
35 74760524 BOLT.HEX.5/16-1.5
36 102331X BRACKET LH CRT
37 130816 ENGINE SHEAVE
38 131558 BELT GUARD BRKT
XR500C (1999 & Before) Page 7 of 12
MAINFRAME, RIGHT
XR500C (1999 & Before) Page 8 of 12
MAINFRAME, RIGHT
Ref # Part Number Qty Description
1 73510500 NUT
2 102332X BRACKET RH CRT
3 74760524 BOLT.HEX.5/16-1.5
4 102173X COUNTERWEIGHT CRT
5 10040600 LOCKWASHER
6 73220600 NUT.HEX.3/8-16UNC
7 4497H RETAINER M
8 126875X RIVET.DRILL.1.75
9 102190X TIRE.CHV.13X5.0-6
9A 124258X RIM
9A 795R SUB= 65139
10 135202 ENGINE B&S
XR500C (1999 & Before) Page 9 of 12
TINE
XR500C (1999 & Before) Page 10 of 12
TINE
Ref # Part Number Qty Description
1 4459J SUB= 6554J
2 132673 PIN.CLEVIS.SHEAR
3 6554J "TINE.LH.12"""
4 3146R RETAINER.SPRING
5 132727 HUB&PLATE ASM LH
6 73610600 SUB= 7810H
7 10040600 LOCKWASHER
8 74610616 BOLT
9 4460J SUB= 6555J
10 132728 HUB&PLATE ASM RH
11 6555J "TINE.RH.12"""
XR500C (1999 & Before) Page 11 of 12

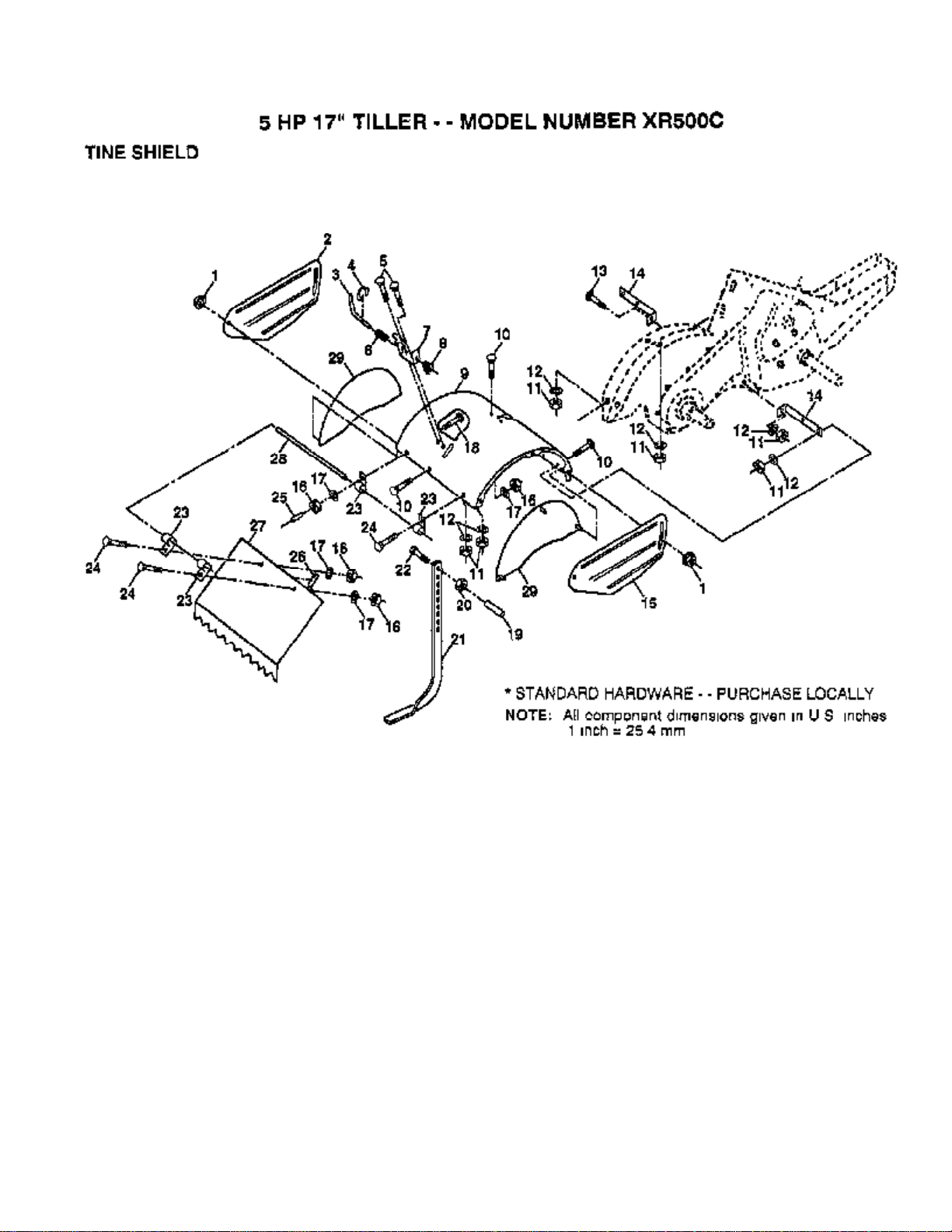

TINE SHIELD
XR500C (1999 & Before) Page 12 of 12
TINE SHIELD
Ref # Part Number Qty Description
1 98000129 NUT
2 104086X475 SHIELD.SIDE.OUTLH
3 8393J STAKE PIN TI
4 12000036 KLIP RING TI
5 72110508 BOLT CRT
6 8394J SPRING TI
7 8392J LATCH BRACKET TI
8 109230X SPRING CRT
9 102326X475 "SHIELD,TINE TI"
10 72140506 BOLT
11 73220500 NUT.HEX.5/16-18
12 10040500 LOCKWASHER
13 72110510 BOLT
14 124343X BRKT SHIELD TINE
15 104101X475 SHIELD.SIDE.OUTRH
16 73220400 SUB= 50675
17 10040400 LOCKWASHER
18 72040410 BOLT
19 102701X GRIP CRT
20 73220600 NUT.HEX.3/8-16UNC
21 102156X SUB= 102156X500
22 74930632 BOLT
23 4440J HINGE CRT
24 72140404 BOLT
25 6712J VINYL CAP TI
26 109227X PAD IDLER TI
27 102695X475 "SHIELD, LEVEL TI"
28 120588X PIN HINGE
29 104085X475 "SHIELD,SIDE TI"
