XR500A (1999 & Before) Page 1 of 12
HANDLE
XR500A (1999 & Before) Page 2 of 12
HANDLE
Ref # Part Number Qty Description
1 10040500 LOCKWASHER
2 108544X CAP CRT
3 108279X NLA
4 5420J SUB= 146480
5 73731000 NUT
6 127012X "CONT,THROTTLE"
7 126949X475 "BRKT,HDLE TI"
8 121248X BUSHING
9 8389J GRIP TI
15 71091008 SCREW
16 72110514 BOLT CARRIAGE CRT
17 108281X ROD SHIFT CRT
18 72110608 BOLT D
19 4497H RETAINER M
20 109229X LOCK CRT
24 121566X HANDLE
26 102162X CABLE.CLUTCH.CRT
27 9484R CONDIUT CLIP T
28 86777 SUB= 750097
29 102604X GRIP BAR CRT
30 81328 SHOULDER BOLT ST
31 10040400 LOCKWASHER
32 73220400 SUB= 50675
33 108276X HANDLE BAR CRT
34 1685H SUB= 68478
127705X NLA
120431X DECAL TI
110655X NLA
127707X "DECAL,BRKT HDLE T"
108591X DECAL, THROTTLE CONTROL
XR500A (1999 & Before) Page 3 of 12
MAINFRAME, LEFT
XR500A (1999 & Before) Page 4 of 12
MAINFRAME, LEFT
Ref # Part Number Qty Description
1 73510500 NUT
2 10040600 LOCKWASHER
3 73220600 NUT.HEX.3/8-16UNC
4 74930576 BOLT-HEX TI
5 1572H SUB= 2882J
6 110111X LEVER ASM CRT
7 72110404 BOLT
8 8700J PANEL TI
10 86777 SUB= 750097
11 9484R CONDIUT CLIP T
12 10040400 LOCKWASHER
13 73220400 SUB= 50675
14 23230506 SET SCREW
15 120938X SPACER
16 19111116 WASHER
17 100473M "SHEAVE 10"" CRT"
18 73220500 NUT.HEX.5/16-18
19 110651X SPACER CRT
20 2649M KEY T
21 110653X GUARD CRT
22 110652X SPACER CRT
23 104214X NUT TI
25 102190X TIRE.CHV.13X5.0-6
124258X RIM
795R SUB= 65139
26 126875X RIVET.DRILL.1.75
27 4497H RETAINER M
28 102148X475 SUB= 131159X475
29 102143X SUB= 132672
30 104679X PULLEY-IDLER TI
31 12000032 KLIP RING
32 102384X BOLT CRT
33 105611X SUB= 918105611X
34 102141X SHIFT ARM CRT
35 74760616 BOLT
36 102383X COUNTERWEIGHT CRT
37 74760524 BOLT.HEX.5/16-1.5
38 102331X BRACKET LH CRT
39 102142X SUB= 130816
40 102376X BRACKET ASSY CRT
102180X DECAL CRT
127706X NLA
XR500A (1999 & Before) Page 5 of 12
MAINFRAME, RIGHT
XR500A (1999 & Before) Page 6 of 12
MAINFRAME, RIGHT
Ref # Part Number Qty Description
1 73510500 NUT
2 102332X BRACKET RH CRT
3 74760524 BOLT.HEX.5/16-1.5
4 102173X COUNTERWEIGHT CRT
5 10040600 LOCKWASHER
6 73220600 NUT.HEX.3/8-16UNC
7 4497H RETAINER M
8 126875X RIVET.DRILL.1.75
9 102190X TIRE.CHV.13X5.0-6
124258X RIM
795R SUB= 65139
121543X SUB= 271948
110593X SUB= 121858X
XR500A (1999 & Before) Page 7 of 12

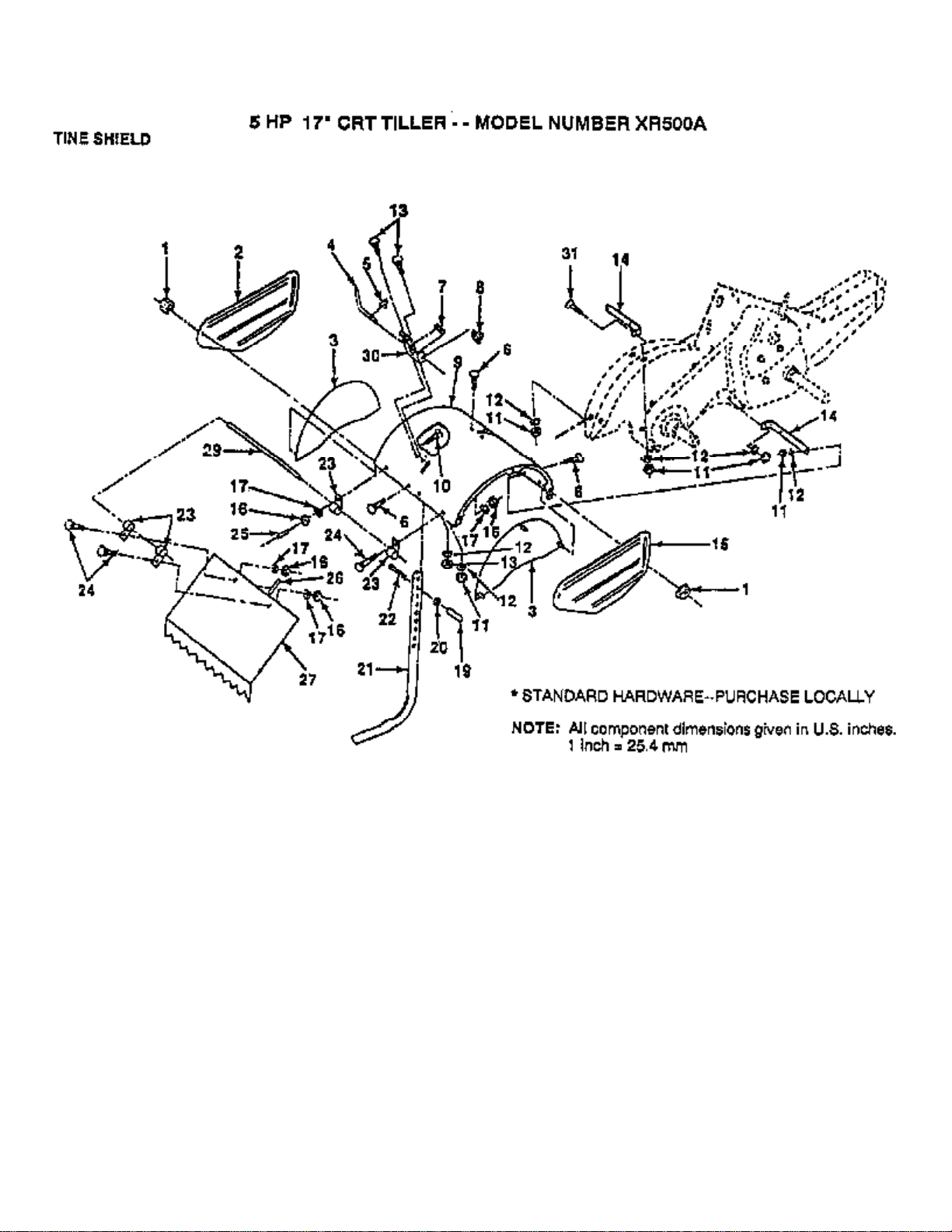

TINE SHIELD
XR500A (1999 & Before) Page 8 of 12
TINE SHIELD
Ref # Part Number Qty Description
1 98000129 NUT
2 104086X SUB= 104086X417
3 104085X475 "SHIELD,SIDE TI"
4 8393J STAKE PIN TI
5 12000036 KLIP RING TI
6 72140506 BOLT
7 8394J SPRING TI
8 109230X SPRING CRT
9 102326X475 "SHIELD,TINE TI"
10 72040410 BOLT
11 73220500 NUT.HEX.5/16-18
12 10040500 LOCKWASHER
13 72110508 BOLT CRT
14 124343X BRKT SHIELD TINE
15 104101X SUB= 104101X417
16 73220400 SUB= 50675
17 10040400 LOCKWASHER
19 102701X GRIP CRT
20 73220600 NUT.HEX.3/8-16UNC
21 102156X SUB= 102156X500
22 74930632 BOLT
23 4440J HINGE CRT
24 72140404 BOLT
25 6712J VINYL CAP TI
26 109227X PAD IDLER TI
27 102695X475 "SHIELD, LEVEL TI"
29 120588X PIN HINGE
30 8392J LATCH BRACKET TI
31 72110510 BOLT
120075X DECAL TI
XR500A (1999 & Before) Page 9 of 12
TINES
XR500A (1999 & Before) Page 10 of 12
TINES
Ref # Part Number Qty Description
1 4459J SUB= 6554J
2 74610616 BOLT
3 10040600 LOCKWASHER
4 73610600 SUB= 7810H
5 4929H RIVET.PAN HD.1.75
6 102380X TINE ASSY LH CRT
7 6554J "TINE.LH.12"""
8 6555J "TINE.RH.12"""
9 4460J SUB= 6555J
10 3146R RETAINER.SPRING
11 102382X TINE ASSY RH CRT
XR500A (1999 & Before) Page 11 of 12
TRANSMISSION
XR500A (1999 & Before) Page 12 of 12
TRANSMISSION
Ref # Part Number Qty Description
1 121146X SUB= 155112
2 121147X SUB= 150698
3 106211X GASKET TI
4 5020J NEEDLE BRNG LT
5 1370H "T, BEARING"
6 102113X PINION-INPUT CRT
7 102110X SHAFT-INPUT CRT
8 4895H "TI, BEARING"
9 102136X WASHER SEAL CRT
10 7392M SUB= 100482K
11 100371K SPRING-SHIFT CRT
12 106160X O-RING TI
13 102107X ARM ASSY CRT
14 8353J SHIFT FORK TI
15 12000039 KLIP RING
16 102109X SHAFT SHIFT CRT
17 104159X SPACER SPLIT CRT
18 4358J WASHER
19 12000040 KLIP RING
20 102114X GEAR ASSY CRT
21 102115X GEAR-REV IDLR CRT
22 6803J NEEDLE BEARING TI
23 102111X SHAFT CRT
24 10040700 LOCKWASHER
25 73610700 NUT.ASF.HEX.7/16
26 102128X O RING CRT
27 102100X "CRT, BEARING"
28 106390X BUSHING TI
29 102134X CHAIN CRT
30 109204X SUB= 150737
31 102106X SUB= 918102106X
32 106388X SPACER TI
33 102121X SPRCKT 8 GEAR CRT
34 102112X SHFT 2ND RED. CRT
35 102101X SCRW WHIZ LOK CRT
36 106141X SUB= 137300
37 4422J BEARING
38 106142X SUB= 137300
39 105345X GEAR TI
40 105346X GEAR TI
41 8358J REDUCTION SHFT TI
42 4220R BRNG RACE
43 106146X SPACER TI
44 9672R CUP.FORMED.
45 102144X RING SPIRAL CRT
46 9676R SUB= 147344
47 9674R SUB= 147344
48 121745X SUB= 150700
49 106144X SHAFT ASSY TI
50 106147X CHAIN.50 LINK TI
51 17580408 SCREW CRT
52 73220500 NUT.HEX.5/16-18
53 6066J GREASE PREMIUM-1
