X410C (1999 & Before) Page 1 of 5
ROTARY LAWN MOWER
X410C (1999 & Before) Page 2 of 5
ROTARY LAWN MOWER
Ref # Part Number Qty Description
1 850040 DR BAIL ASSY
2 131577 ENGINE CNTL BAR
3 129203X479 UPPER HANDLE
4 850724 SUB= 155890
5 86055 SUB= 144929
6 85723 WASHER PM
7 700417 "CONTROL, THROTTLE"
8 850042 DR CONT ACTUATOR
9 851552 "SCREW,PAN HD"
10 850041 ZONE CONT ACTUATO
11 133056 DRIVE CABLE ASM
12 134934 ENG ZONE CNTL CBL
13 50806 SUB= 19101216
14 63601 SUB= 73800400
15 85768 "SCREW, HEX PM"
16 66426 SUB= 7192J
17 136376 KNOB HANDLE
18 132001 ROPE GUIDE
19 132813X479 SUB= 151721X479
20 131959 BOLT.HANDLE.LM
21 51793 HAIRPIN COTTER
22 700365X479 BAFFLE.SIDE
23 54583 SCREW
24 128415 BLIND RIVET
25 86779 HEX SCREW
26 76399 "SCREW,HEX HEAD"
27 701427X479 "PLATE.BACK 22"""
29 130452 SUB= 146358
30 74189 NUT
31 85723 WASHER PM
32 850061 BAFFLE
33 81276 SCREW
34 130444 "SKIRT,REAR"
35 88367X004 BACKING STRIP
36 107339 SUB= 107339X
37 55187 SCREW
39 851768X475 SUB= 851768X479
40 851769X475 SUB= 851769X479
41 850988 ENGINE SPACER
43 85768 "SCREW, HEX PM"
44 88615 BRKT DRV COV
45 72070404 SUB= 872070404
46 701718 KIT.HSG.22RD.RBD
49 77400 HUB CAP
50 85179 RETAINER CLIP PM
51 52160 WASHER
52 850957 WHEEL&TIRE ASSY
54 851717X004 FRONT AXLE ASSY
61 851201X004 WASHER
62 850999 SCREW
63 132255X479 SUB= 144964
65 850859 BOLT
66 850263 LOCKWASHER
67 103524X "BLADE 22"" PM"
68 135317X004 BLADE ADAPTER
69 103113X SPACER PM
70 87677 HI PRO KEY PM
71 83816 SCREW PM
X410C (1999 & Before) Page 3 of 5
ROTARY LAWN MOWER
Ref # Part Number Qty Description
72 213146 CABLE CLAMP
74 REFER TO IMAGE
75 851807X004 RETAINER PLATE
77 129925 "SEAL,REAR DOOR"
78 83731 PUSH ON SPEED NUT
79 851714X475 SUB= 851714X479
80 851713X475 SUB= 851713X479
81 74180410 SUB= 874180410
132108 NLA
701712 MANUAL.P.X410C
128503 NLA
X410C (1999 & Before) Page 4 of 5
ROTARY LAWN MOWER

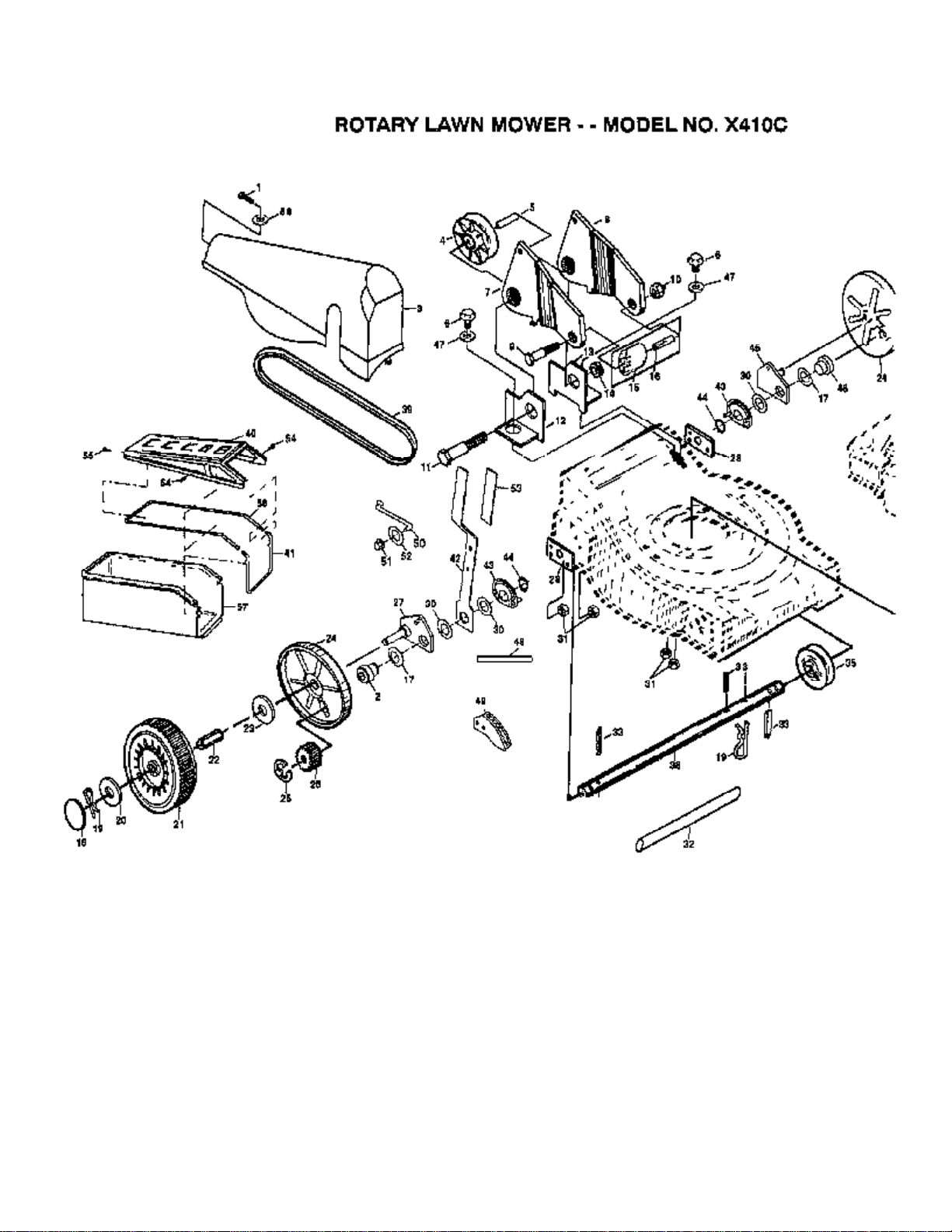

X410C (1999 & Before) Page 5 of 5
ROTARY LAWN MOWER
Ref # Part Number Qty Description
1 750097 TAPPING SCREW
2 851964 BALL BRNG ASM RH
3 850043 DR CVR
4 128829 SUB= 88516
5 850037 PULLEY SPACER
6 86779 HEX SCREW
7 850036X004 "BRKT,IDLER"
8 850034X004 "BRKT,IDLER LH"
9 74350424 BOLT 1/4-20-1 1/2
10 50962 LOCKNUT
11 74760524 BOLT.HEX.5/16-1.5
12 128725X004 PIVOT BRKT RH
13 128724X004 PIVOT BRKT LH
14 63124 SUB= 73690500
15 48160 IDLER ASSY
16 88576 IDLER SPACER
17 86274 SPRING WASHER PM
18 77400 HUB CAP
19 85179 RETAINER CLIP PM
20 52160 WASHER
21 850707 DRIVE WHEEL
22 88446 BUSHING.HEX
23 67725 WASHER FLUT
24 88080 DUST SHROUD PM
25 12000003 RING T
26 850016 DR PINION RH
27 851725X004 AXLE ARM ASSY RH
28 850024X004 SPACER PLATE
29 850017 DR PINION LH
30 851965 WASHER
31 63601 SUB= 73800400
32 850373 DR SHAFT CVR
33 851980 DRIVE PAWL
35 88082 DRIVE PULLEY PM
36 850027 DR PULLEY
37 12000030 RETAINING RING ST
38 851979 DRIVE SHAFT
39 134109 DRIVE BELT
40 851739 "TOP,CATCHER"
41 851735 "FRAME,CATCHER"
42 131102X004 HEIGHT SEL HANDLE
43 851755 SPACER BRKT ASSY
44 88054 RETAINING RING
45 851726X004 AXLE ARM ASSY LH
46 131622 BALL BRNG ASM LH
47 70543 WASHER
48 87114 DECAL, HT SEC
49 851718X475 SUB= 851718X479
50 851699X004 "LINK,DRAG"
51 83731 PUSH ON SPEED NUT
52 2084 WASHER
53 851808 VINYL GRIP
54 750634 SCREW
55 131029 SCREW
56 4802 SUB= 19070818
57 128061 "CATCHER,GRASS"
58 851658 "TUBE,CATCHER"
850209 DECAL
