X18V44C (1992) Page 1 of 25
CHASSIS AND ENCLOSURES
X18V44C (1992) Page 2 of 25
CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
1 127514 SUB= 140121
2 131451 SUB= 155925
3 126656X SUB= 140551
4 105529X SUB= 139888
5 110854X SUPPORT RH YTH
6 73680500 SUB= 73690500
7 73680600 SUB= 73690600
8 123784X475 FENDER
9 110855X SUPPORT LH YTH
10 120068X "KNOB 1/2"" YT"
11 17490612 SCREW
12 19131312 WASHER
13 74760612 SUB= 74780612
14 105511X SUB= 140675
15 19171912 WASHER
16 19111212 WASHER
17 17190412 SCREW
18 121246X BRKT SWITCH
19 124181X SPRING COMPRESSIO
20 105531X NUT-PUSH YT
21 105509X SUB= 137113
22 124238X CAP SPRING
23 127334X SUB= 151346
24 123549X SUB= 158990
25 123487X HOSE CLAMP
26 8543R FUEL LINE T
27 106082X PAD-SPACER LT
28 127166X CHASSIS
29 123785X DRAW BAR
30 124118X PANEL DASH LH
31 121794X COVER ACCESS
32 133748 DASH PANEL RH
33 9151R SNAP BUSHING T
34 110853X SUPPORT RH YTH
35 105465X475 SUB= 145244X475
36 105464X475 SUB= 145243X475
37 72110606 BOLT
38 133671 FOOTREST PAD
39 110852X SUPPORT LH YTH
40 3645J BUSHING OUTLET T
41 123198X SUB= 146525
42 2751R CLIP T
43 110436X SUB= 9151R
44 17490512 SCREW
45 105419X475 "STRAP,GRILL "
46 73510400 NUT
47 74760616 BOLT
48 73731000 NUT
49 19070818 WASHER
50 132635X475 HOOD
51 7206J SPACER LT
52 74981020 SCREW
53 73220400 SUB= 50675
54 19091216 WASHER PM
55 122100X GRILL ASSY
56 73680400 SUB= 73690400
57 123481X SUB= 7605J
58 121248X BUSHING
X18V44C (1992) Page 3 of 25
CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
59 121249X SPACER SPLIT
60 123740X SPRING COMPRESSED
61 132639X475 "PANEL,SIDE RH "
62 132638X475 "PANEL,SIDE LH "
63 104618X SUB= 155013
64 106784X SUB= 155013
65 2029J WELDNUT
66 10071000 LOCKWASHER
67 106395X LENS LT
68 124392X417 SUB= 147717
69 74191008 SCREW
70 104755X """J"" FASTENER LT"
71 17211010 SCREW LT
72 109808X HOOD LATCH T
73 74640806 SCREW
74 74760612 SUB= 74780612
75 8710J FUEL TANK STEM GT
76 10100800 "WASHER,LOCK"
77 123825X CONSOLE SHIFTER
78 4171R CLIP T
79 73951000 "NUT,KEPS"
80 74641008 SUB= 71031008
81 123976X SUB= 73900400
82 127018X "BOLT,SHOULDER"
83 72050411 SUB= 872050411
84 121251X STRIP FORM
85 19131614 WASHER
86 19060718 WASHER
87 19091016 WASHER
88 109227X PAD IDLER TI
X18V44C (1992) Page 4 of 25
DECALS
X18V44C (1992) Page 5 of 25
DECALS
Ref # Part Number Qty Description
1 109821X SUB= 138956
2 128018 NLA
3 128015 "DECAL,HOOD RH "
4 106202X REFLECTOR-TAIL YT
5 121549X DECAL
6 133796 DECAL
7 101892X DECAL T
8 134545 DECAL, CHASSIS
9 121349X DECAL WARNING
10 105185X DECAL-INST YT
11 128009 "DECAL,STR WHL"
12 128007 "DECAL,GRILL "
14 128006 "DECAL,LOGO"
136867 MANUAL
X18V44C (1992) Page 6 of 25
DRIVE
X18V44C (1992) Page 7 of 25
DRIVE
Ref # Part Number Qty Description
1 121327X PULLEY TRANSAXLE
2 12000004 RING
3 2228M SUB= 2228M1

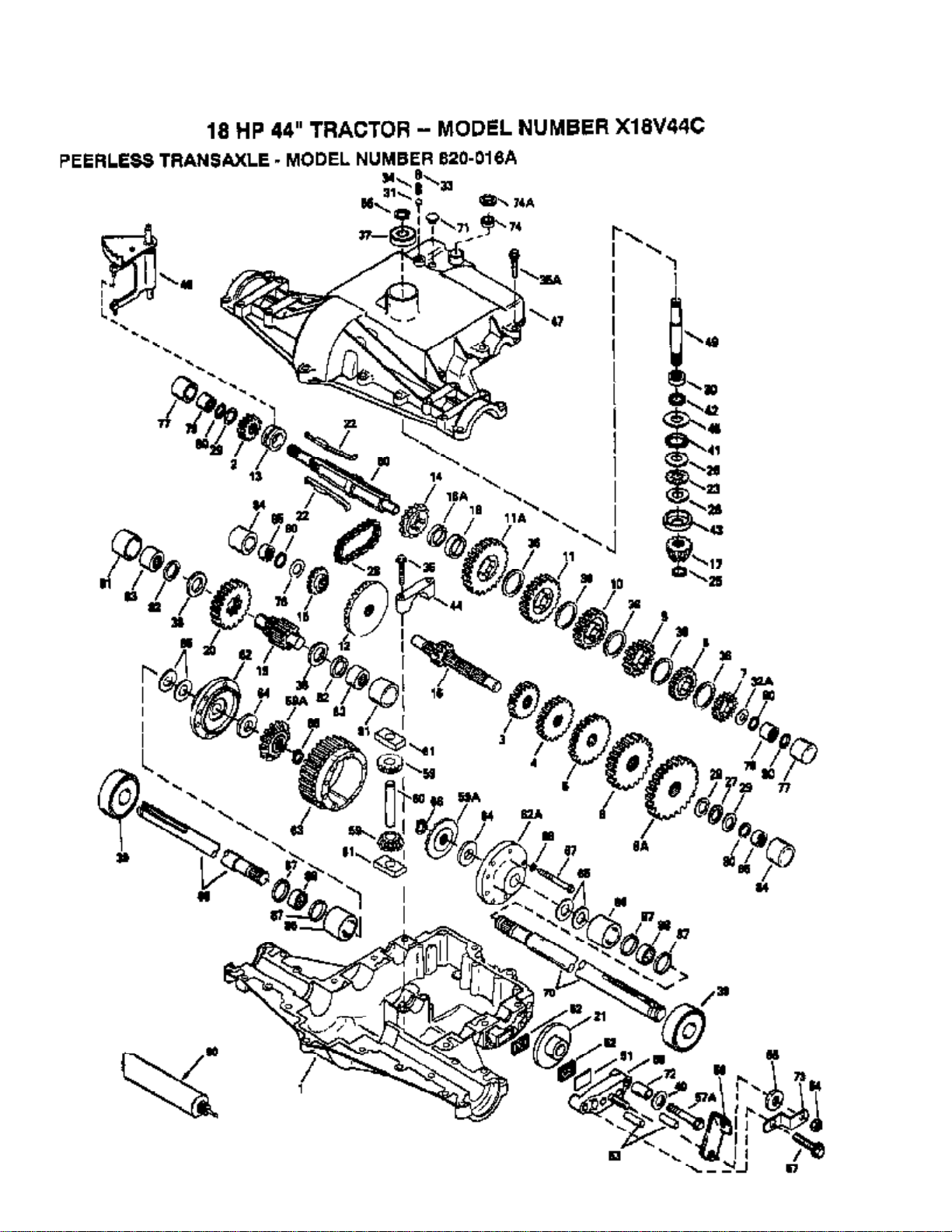

4 123797X TRANSAXLE PEERLESS MODEL NO
5 72140506 BOLT
6 17490512 SCREW
7 71208 BUSHING
8 422777 ENGINE, B&S
9 126197X WASHER
10 133746 HEAT SHIELD
11 128199 SUB= 145552
12 19131614 WASHER
13 CHECK WITH SUPPLIER
14 129464 MUFFLER
15 105839X RECEPTACLE LT
16 105838X RETAINER LT
17 123796X BELT.GRDRV.94.75
18 123650X STUD.1/4.TURN
19 106933X KNOB T (1/2-HOLE)
20 123781X SUB= 141002
21 105701X WASH-SHFT PLT LT
22 19171216 WASHER
23 76020416 PIN COTTER 1/8
24 17490612 SCREW
25 129921 KEEPER.BELT.ENG.L
26 74760612 SUB= 74780612
27 19131312 WASHER
28 73680600 SUB= 73690600
29 8883R PEDAL COVER T
30 122424X SUB= 149001
31 1572H SUB= 2882J
32 19211616 WASHER LT
33 17190408 SCREW ST
34 123792X "KEEPER,BELT RH"
35 126112X SUB= 142600
36 123788X RETAINER BELT
37 109070X BELT KEEPER LT
38 4470J SPACER T
39 123674X PULLEY.IDLER.FLAT
40 74760644 BOLT
41 123795X SUB= 136906
42 10040700 LOCKWASHER
43 71170768 SUB= 150280
44 123791X KEEPER BELT LH
45 17030808 SUB= 17030814
46 123776X BRKT TRANS RH
47 120183X NYLON BEARING
48 71040412 SUB= 74550412
49 19091216 WASHER PM
50 101326L DEFLECTOR.222573
51 73680500 SUB= 73690500
52 74780544 BOLT HEX
53 123787X STRAP TORQUE
54 123780X BRKT TRANS LH
55 123794X "ARM,SHIFT"
56 76020412 COTTER PIN
57 133261 BRAKE PARK ROD
58 123786X ROD BRAKE
X18V44C (1992) Page 8 of 25
DRIVE
Ref # Part Number Qty Description
59 71673 PLUNGER CAP T
60 126909X "SPRING,ROD BRAKE"
61 19131316 WASHER
62 123800X WASHER
63 129466 SUB= 144068
64 122439X BRACKET MUFFLER
65 127783 SUB= 139245
66 123789X ARM IDLER
67 123205X RETAIN BELT
68 74760624 SUB= 74930624
69 110812X WASHER LT
70 12000039 KLIP RING
71 105709X "SPRING, RETURN LT"
72 105710X "LINK, CLUTCH T"
73 73530400 NUT 1/4-28
74 132747 SUB= 532132748
75 17720410 SCREW LT
76 19111214 WASHER
77 129465 SUB= 136989
78 17021008 SCREW
79 73350600 NUT
80 13200300 ELBOW
81 108097X SPACER HYT
82 108236X BRACKET LT
83 12000053 E RING HYT
84 8545J SUB= 272250
85 9396E SQ KEY STD
86 10040400 LOCKWASHER
87 17490624 SCREW LT
88 19212016 WASHER D
89 74760612 SUB= 74780612
90 105706X "LY, BEARING"
91 12000008 KLIP RING
92 123772X "SHAFT,SHIFTER"
93 123782X "SPRING,TORSION"
94 11050600 LOCKWASHER
95 74780412 SUB= 74780414
96 13280336 PIPE NIPPLE LT
97 73800600 NUT
98 109169X SUB= 109172X
99 4497H RETAINER M
100 110422X SUB= 146682
101 17490512 SCREW
102 2751R CLIP T
103 123793X "ROD,TIE "
104 121851X SUB= 532137180
X18V44C (1992) Page 9 of 25
ELECTRICAL
X18V44C (1992) Page 10 of 25
ELECTRICAL
Ref # Part Number Qty Description
1 123198X SUB= 146525
2 19091016 WASHER
3 102476X SUB= 150109
4 72240460 BOLT
5 121537X SUB= 123899X
6 7603J "TRAY T, BATTERY"
7 135319 IGNITION HARNESS
8 136849 SUB= 136850
9 7662J SUB= 4152J
10 100541K SUB= 7697J
11 7192J WIRE TIE
13 4206J CABLE-BATTERY T
14 102972X SUB= 918102972X
15 124211X NUT IGNITION
16 122147X KEY
17 109081X SUB= 146154
18 110712X SWITCH LT
19 73680400 SUB= 73690400
20 109748X RELAY ASSY T
21 4799J "CABLE T, BATTERY"
22 131563 SUB= 154336
23 4207J CABLE T
24 10090400 SUB= 10040400
25 109596X HOSE CLAMP T
26 10040400 LOCKWASHER
27 126016X SUB= 4021J
28 74780408 BOLT
29 73510400 NUT
30 74760412 BOLT LT
31 73220400 SUB= 50675
32 11050400 LOCKWASHER
33 108824X FUSE HYT
34 9433R AMMETER T
35 131708 SUB= 532131708
36 10101000 SUB= 10071000
37 73911000 NUT
38 19070818 WASHER
39 102501X SUB= 141940
40 235R CLIPT
41 4022J HEX NUT T
42 104445X SWITCH-INTER. GT
43 121264X "CAP,BATTERY "
44 73350400 NUT
45 123620X SUB= 141226
46 121305X SWITCH SEAT
47 17021008 SCREW
X18V44C (1992) Page 11 of 25

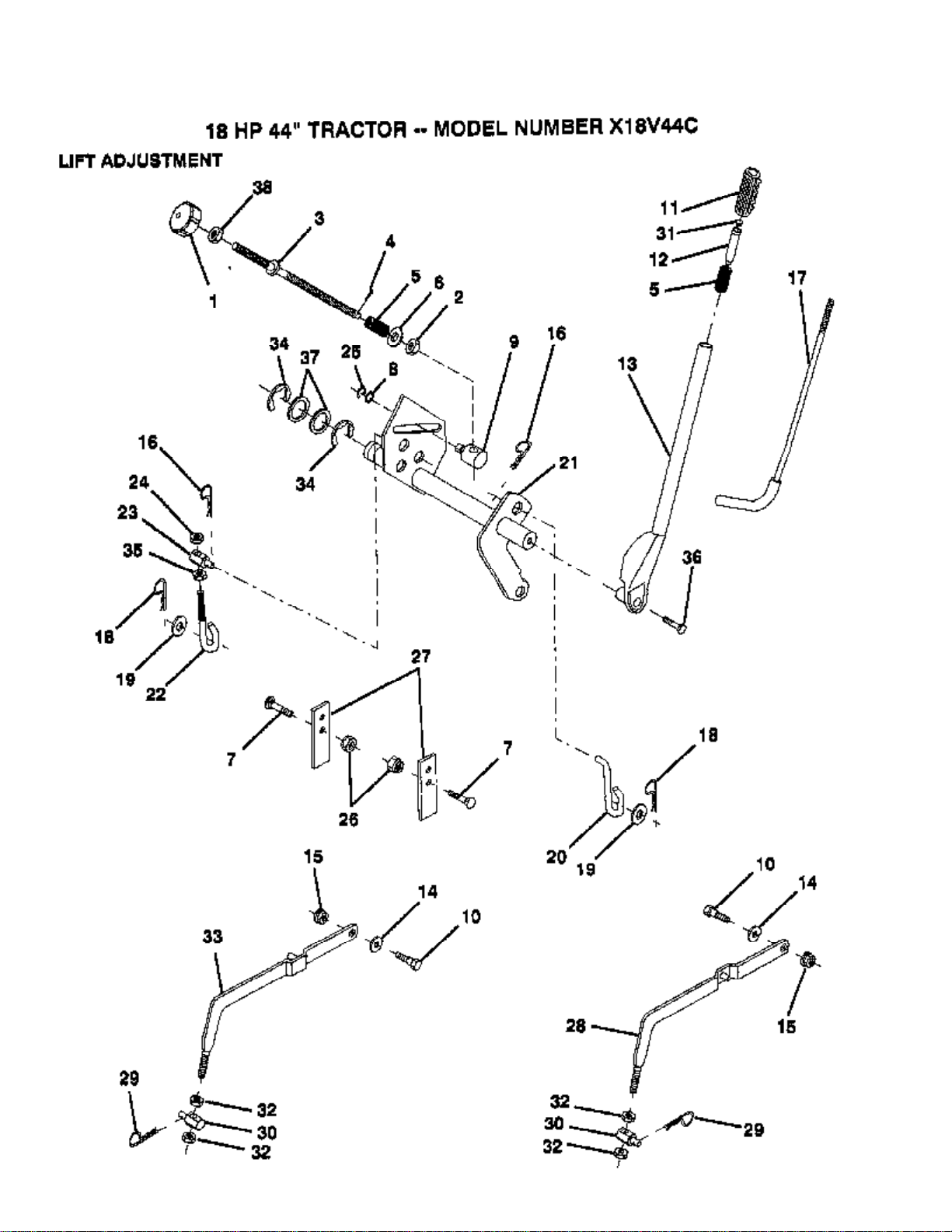

LIFT ADJUSTMENT
X18V44C (1992) Page 12 of 25
LIFT ADJUSTMENT
Ref # Part Number Qty Description
1 100734K SUB= 138057
2 110807X NUT T
3 110729X ROD LIFT LT
4 76020308 SUB= 3145
5 2876H SPRING T
6 19131016 WASHER
7 72140608 SUB= 72110608
8 19151216 WASHER
9 110810X TRUNION LT
10 105848X "BOLT, SHOULDER LT"
11 109413X GRIP
12 122364X SUB= 125925X
13 121002X SUB= 123096X
14 110739X WASHER T
15 73980600 NUT SPECIAL T
16 4939M SUB= 85902
17 121006X LEVER ROD LT
18 4921H SPRING.RETAINER
19 19171516 WASHER T
20 110029X LIFT LINK LT
21 121000X SHAFT LIFT LT
22 110448X PIVOT PIN T
23 110447X SUB= 132793
24 73710700 NUT LOCK YTH
25 12000037 KLIP RING
26 73680600 SUB= 73690600
27 121252X UPSTOP
28 121598X RH SUSP ARM ASM
29 9135R SPRING H
30 106308X SUB= 130171
31 124526X SUB= 125925X
32 73220800 NUT
33 121599X LH SUSP ARM ASM
34 12000022 E-RING
35 73360700 NUT
36 74780624 "BOLT,HEX"
37 19292016 WASHER
38 73350600 NUT
X18V44C (1992) Page 13 of 25
MOWER DECK
X18V44C (1992) Page 14 of 25
MOWER DECK
Ref # Part Number Qty Description
1 73680600 SUB= 73690600
2 19131614 WASHER
3 121316X PULLEY IDLER
4 102403X IDLER-FLAT T
5 106902X SPACER RETAINER
6 677A451 IDLER-INSIDE T
7 106513X "WASHER, WEAR LT"
8 121425X ARM IDLER
9 76020412 COTTER PIN
10 106523X "SUPPORT YT, BAR"
11 106522X BRACE-IDLER YT
12 121236X SPACER
13 19131316 WASHER
14 121658X SUB= 136819
15 106214X GUARD YT
16 106085X BELT-V.79.1.MWR
17 73220600 NUT.HEX.3/8-16UNC
18 10030600 SUB= 10040600
19 102932X IDLER.FLAT.GTV
20 106526X ARM-IDLER YT
21 7644J SPRING T
22 121705X JACKSHAFT
23 74760616 BOLT
24 109599X BRACKET LH YTH
25 105662X LINK.PARALLEL
26 4921H SPRING.RETAINER
27 105744X "ROD, FRT. PARAL T"
28 109835X HINGE PIN T
29 109600X BRACKET RH YTH
30 108119X GUARD BELT HYT
31 10040600 LOCKWASHER
32 8418J SUB= 136321
33 121423X SUB= 144729
34 105304X CAP-SLEEVE LT
35 106734X SUB= 123713X
36 110452X NUT PUSH M
37 109743X SUB= 137607
38 109785X DEFLECTOR SHIELD
39 19151616 SUB= 19171616
40 19111016 WASHER
41 19151610 WASHER T
42 106735X ROD-HINGE T
43 106635X SUB= 25034
44 74610624 BOLT.3/8-24X1-1/2
45 19132012 WASHER
46 7631J RUNNER-LH M
47 123807X BRKT SUSP REAR RH
48 123808X BRKT SUSP REAR LH
49 109729X ROLLER T
50 109776X PIVOT PIN T
51 72140614 BOLT
52 72140608 SUB= 72110608
53 72140612 BOLT
54 74760620 SUB= 74780620
55 72140506 BOLT
56 19111116 WASHER
57 73680500 SUB= 73690500
58 74760648 BOLT - HEX 3/8 - 16 X 3
X18V44C (1992) Page 15 of 25
MOWER DECK
Ref # Part Number Qty Description
59 74110632 SCREW YT
60 72110505 BOLT
61 19111216 WASHER M
62 74760580 BOLT
63 121352X BELT RETIANER
64 19131210 WASHER
65 19131410 WASHER
66 17490612 SCREW
67 72140606 BOLT
68 102727X "SPRING.EXT.8.5"""
69 73930600 LOCKNUT
70 72110506 SUB= 72270506
71 72140620 BOLT
72 1685H SUB= 68478
121826X SUB= 532131508
X18V44C (1992) Page 16 of 25

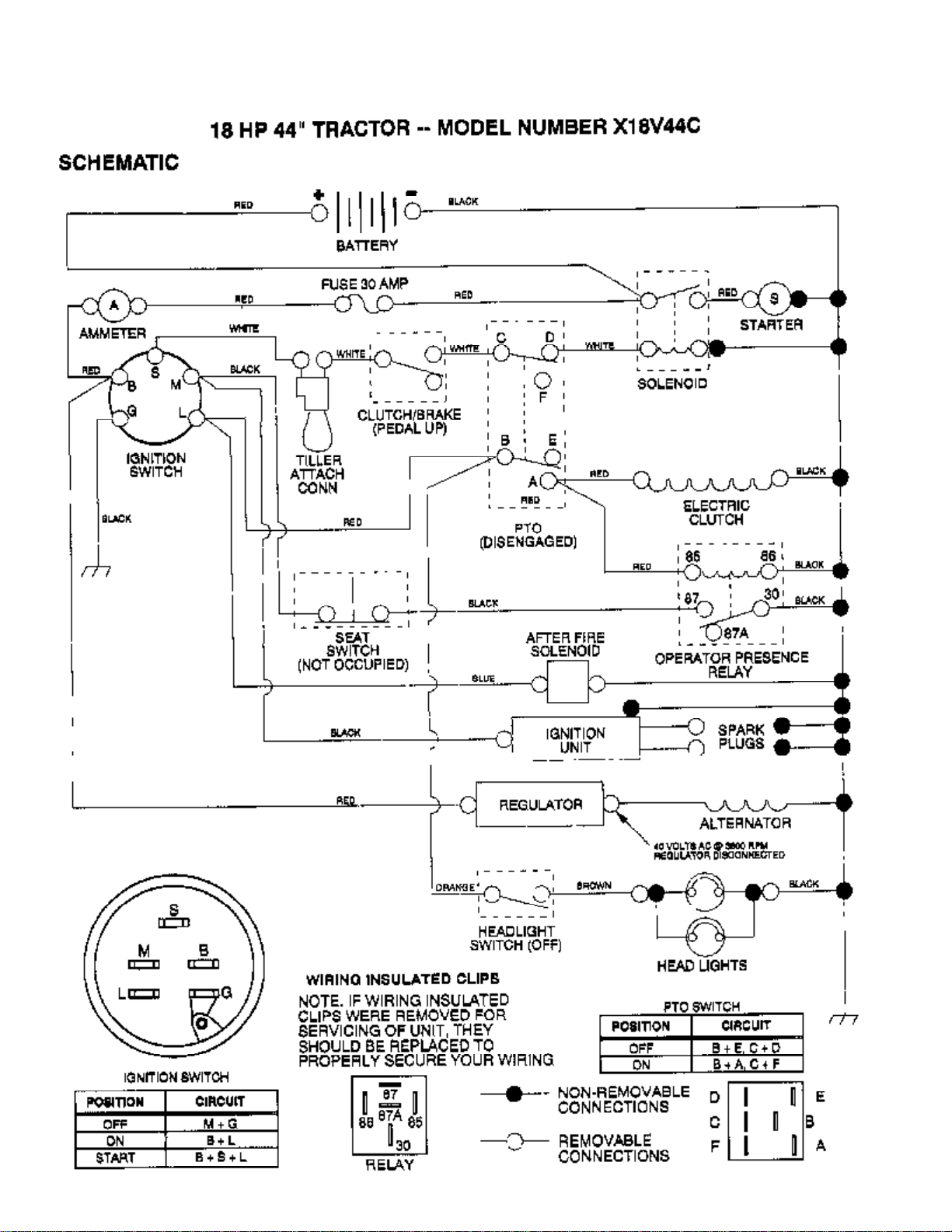

SCHEMATIC
X18V44C (1992) Page 17 of 25
SCHEMATIC
Ref # Part Number Qty Description
REFER TO IMAGE
X18V44C (1992) Page 18 of 25

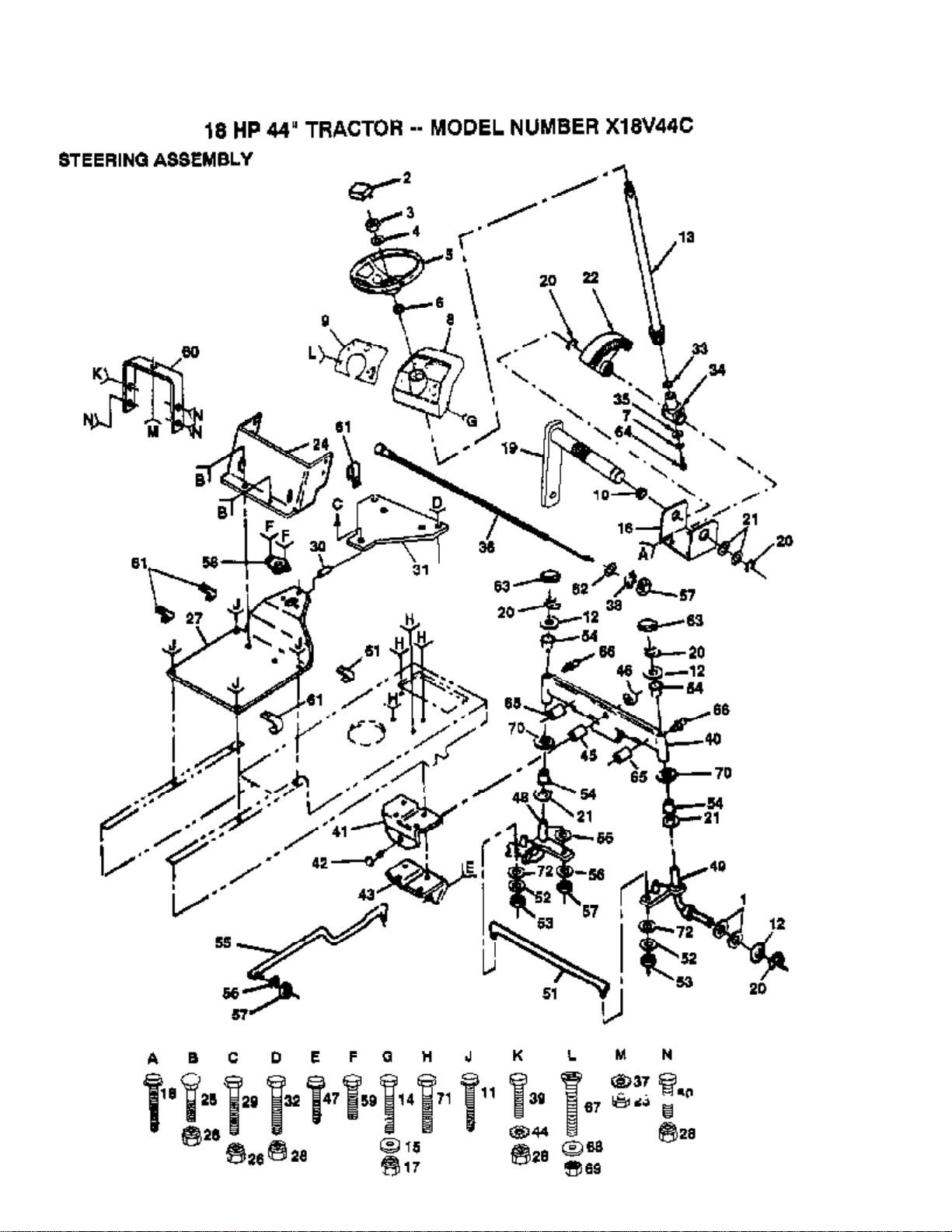

STEERING
X18V44C (1992) Page 19 of 25
STEERING
Ref # Part Number Qty Description
1 121749X WASHER
2 126805X "INSERT,STR WHEEL"
3 73940800 SUB= 73360800
4 100712K WASHER
5 121472X SUB= 150546
6 100711L ADAPTER LT
7 10040400 LOCKWASHER
8 124252X SUB= 140398
9 121444X015 DASHPLATE
10 109816X NYLINER T
11 17490608 SCREW LT
12 121748X WASHER
13 128762 SUB= 156544
14 74760616 BOLT
15 19131312 WASHER
16 124036X "BRKT,STEERING"
17 73680600 SUB= 73690600
18 17490612 SCREW
19 127501 SUB= 918127501
20 12000029 RING
21 6266H WASHER .T
22 124034X SUB= 136874
23 73220400 SUB= 50675
24 104805X LOWER DASH
25 74180512 SCREW
26 73680500 SUB= 73690500
27 123783X013 SADDLE
28 73680600 SUB= 73690600
29 74760532 BOLT
30 121236X SPACER
31 106965X SUB= 140181
32 74760612 SUB= 74780612
33 57079 THRUST WASHER
34 124035X SUPPORT.SHAFT
35 126684X SUB= 532126684
36 132781 CHOKE CONTROL
37 11050400 LOCKWASHER
38 11050600 LOCKWASHER
39 74760616 BOLT
40 108075X FRONT AXLE
41 105663X SUPPORT-SADDL T
42 74761060 BOLT LT
43 105664X SUPPORT.SADDLE.FT
44 11050600 LOCKWASHER
45 110438X BEARING
46 73601000 SUB= 73901000
47 17490508 SCREW LT
48 135227 SPINDLE LH
49 135228 SPINDLE RH
50 74760612 SUB= 74780612
51 130467 TIE ROD
52 10040500 LOCKWASHER
53 73810500 NUT.LOCK.5/16-24
54 3366R COL. SRTG. BEAR.
55 130468 SUB= 532130468
56 10040600 LOCKWASHER
57 73610600 SUB= 7810H
58 1554J SUB= 155108
X18V44C (1992) Page 20 of 25
STEERING
Ref # Part Number Qty Description
59 17431008 SUB= 98000165
60 124130X SUPPORT ASS'Y
61 2751R CLIP T
62 19131316 WASHER
63 121232X CAP
64 71070410 "SCREW,SPECIAL"
65 132624 AXLE PIN
66 6855M ZERK M
67 74180512 SCREW
68 19111116 WASHER
69 73510500 NUT
70 19272016 WASHER
71 122819X SCREW SPECIAL
72 19111216 WASHER M
X18V44C (1992) Page 21 of 25
TRANSAXLE
X18V44C (1992) Page 22 of 25
TRANSAXLE
Ref # Part Number Qty Description
1 770088 CASE TRANSAXLE
2 778253 GEAR, SPUR, 15T
3 778211 GEAR, SPUR, 12 TEETH
4 778240 GEAR, SPUR, 18 TEETH
5 778201 GEAR, SPUR, 25T
6 778202 GEAR, SPUR, 28T
6A 778208 GEAR, SPUR, 31T
7 778273 GEAR, SPUR, 19T
8 778203A GEAR, SPUR, 22T
9 778204A GEAR, SPUR, 25T
10 778239A GEAR, SPUR, 32 TEETH
11 778207A GEAR, SPUR, 37 TEETH
11A 778216A GEAR, SPUR, 41T
12 778246 GEAR BEVEL, 33T
13 784216 COLLAR SHIFT
14 786123 SPROCKET 18T (REV)
15 786082 SPROCKET 9T
16 776291 SHAFT COUNTER
17 778245 BEVEL PINION, 13T
18 786121 SPACER, .350/.340 THICK
18A 786122 SPACER, .276/.268 THICK
19 776275 SHAFT, OUTPUT, 9T
20 778247 GEAR, OUTPUT, 35T
21 790043 DISK BRAKE
22 792138 KEY
23 780084 BEARING THRUST
25 788040 RETAINING RING
26 780051 WASHER THRUST
27 780071 THRUST BEARING
28 786081 CHAIN, ROLLER
29 780072 WASHER THRUST
30 780155 BEARING NEEDLE
31 792077 BALL STEEL, 5/16" DIA.
32A 780139 WASHER
33 792078 SCREW, 3/8-16 X 3/8"
34 792079 SPRING
35 792073 SCREW, 1/4-20 X 1-1/4
35A 792129 SCREW HEX HD 5/16-18 X 1-1/4
36 780108 WASHER THRUST
37 780119 BEARING BALL
38 780128 WASHER THRUST
39 780050 BEARING BALL
40 792128 WASHER FLAT
41 788077 "O" RING
42 788042 OIL SEAL 3/4
43 780166 WASHER CUPPED
44 786131 BEARING CAP
45 780165 WASHER
47 772098A COVER TRANSAXLE
48 784342 ROD AND FORK ASSY SHIFT
49 776274 SHAFT INPUT
50 776313 SHAFT BRAKE
51 790007 PLATE BRAKE PAD
52 790006 PAD BRAKE
53 786026 PIN DOWEL
54 792075 LOCKNUT 5/16-24
55 792076 WASHER, FLAT
56 790047 LEVER BRAKE
X18V44C (1992) Page 23 of 25
TRANSAXLE
Ref # Part Number Qty Description
57 792073 SCREW, 1/4-20 X 1-1/4
57A 792085 SCREW FLNG HEX 1/4-20 X 2-1/4
58 790025 HOLDER BRAKE PAD
59 778197 PINION, 10T
59A 778198 GEAR BEVEL
60 786019 PIN DRIVE
61 786027 BLOCK DRIVE
62 774833 CARRIER DIFF THREADED HOLES
62A 774834 CARRIER DIFF
63 778248 GEAR, RING, 31T
64 780107 WASHER
65 780042 WASHER THRUST
66 792018 RING STRAP
67 792020 SCREW, 1/4-20 X 2-1/4
68 792006 WASHER LOCK 1/4
69 774832 AXLE, 12-5/16" LONG
70 774831 AXLE, 16-3/16" LONG
71 792074 PLUG, THRDED, 9/16-18
72 786067 SPACER
73 786086 BRKT BRAKE LEVER
74 788069 SEAL SQUARE CUT
74A 792145 PUSHNUT
76 780153 WASHER
77 786144 SLEEVE
78 780150 BEARING NEEDLE
79 780152 BEARING NEEDLE
80 792001 "O" RING
81 786142 SLEEVE STEPPED
82 788071 RING SQ CUT
83 780168 BEARING NEEDLE CAPPED
84 786143 SLEEVE STEPPED
85 780151 BEARING NEEDLE CAPPED
86 786145 SLEEVE STEPPED
87 788070 RING SQ CUT
88 780031 BEARING NEEDLE
90 788067B GREASE BENTONITE, 32 OZ.
X18V44C (1992) Page 24 of 25
WHEELS/TIRES
X18V44C (1992) Page 25 of 25
WHEELS/TIRES
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 278H FITTING LT
4 106222X SUB= 122073X
4 124106X SUB= 138756
5 59904 TUBE.5.3/4.5/6
5 7154J TUBE.23X8/10-12
6 106732X475 "RIM,FRT 6"""
6 124074X475 RIM
7 104757X HUB CAP
8 9040H "FLANGE, BEARING"
Loading...
