Ayp X100C PARTS LIST

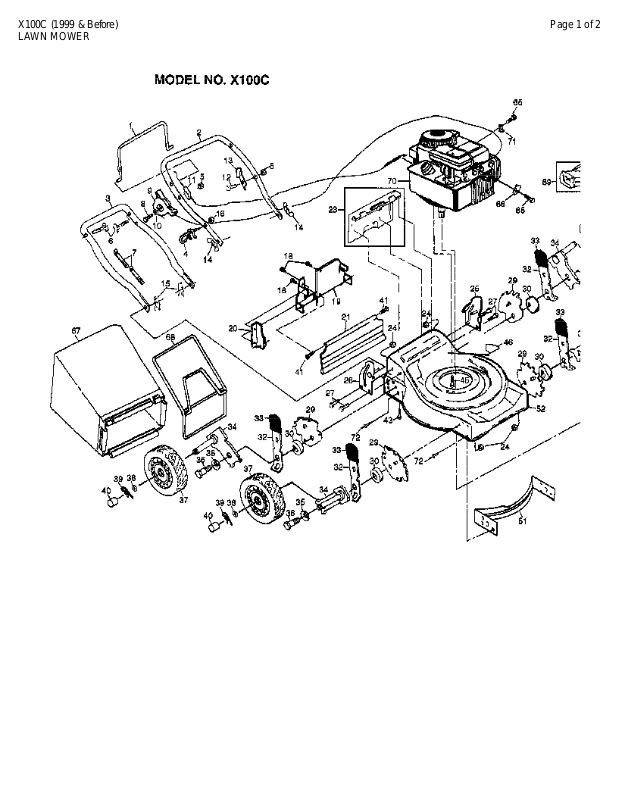

X100C (1999 & Before) Page 1 of 2
LAWN MOWER

X100C (1999 & Before) Page 2 of 2
LAWN MOWER

Ref # Part Number Qty Description

1 86902 CONTROL BAR PM
2 1326497X479 SUB= 145645X479
3 84676X479 SUB= 151516X479
4 132001 ROPE GUIDE
5 63601 SUB= 73800400
6 131959 BOLT.HANDLE.LM
7 66426 SUB= 7192J
8 85692 SUB= 74250434

9 851462 CONTROL THROTTLE
10 85723 WASHER PM
11 130861 "CABLE,ENG ZONE CO"
12 750097 TAPPING SCREW
13 850733X004 "BRKT,UPSTOP"
14 128638 "NUT,WING PM"
15 51793 HAIRPIN COTTER
16 73510400 NUT
18 86344 SCREW PM
19 700356X479 PLATE.BACK.20RD
20 700363X479 BAFFLE.SIDE
21 133259 SUB= 140657
23 48257 "KIT, REAR DOOR PM"
24 751592 LOCKNUT PM
25 700913X475 SUB= 150956
26 700915X475 SUB= 150956
27 55187 SCREW
29 850955 SUB= 750085X007
30 84920 SUB= 146630
32 850855X004 SUB= 700331X004
33 87877 KNOB PM
34 85021X004 AXLE ARM
35 62335 "WASHER, BELLEVIL."
36 84921 SUB= 142748
37 800220 WHEEL.ASM
38 52160 WASHER
39 85179 RETAINER CLIP PM
40 800090 HUB CAP-PLASTIC
41 88652 HINGE SCREW
43 54583 SCREW
45 850998 SCREW
46 107339X DECAL HYT
51 132198X479 SUB= 144961
52 701610 KIT.HSG.20RD.PUSH
53 851084 SCREW
54 850263 LOCKWASHER
55 851074 "WASHER,HARDEN"
56 850972 BLADE.STAND.20INC
57 850977 BLADE ADAPTOR
65 83816 SCREW PM
66 213146 CABLE CLAMP
67 128013 GRASSBAG
68 750532 FRAME.CATCHER.ASM
69 REFER TO IMAGE
70 REFER TO IMAGE
71 850472 "CLIP,CABLE"
72 128415 BLIND RIVET

700063X479 REAR BAFFLE
700490 NLA
701609 REPLACEMENT PARTS MANUAL
