WEEDTRIMMER - - MODEL NUMBER WT4000E
6
29
30
19
35
34
18
28
7
5
20
21
16
27
10
12
26
33
9
8
23
11
39
12
24
22
38
36
1
26
27
9
23
24
39
2
3
37
2
WEEDTRIMMER - - MODEL NUMBER WT4000E
KEY PART
NO. NO. DESCRIPTION
1 - - - Engine, Craftsman,
2 150406 Bolt, Engine Mounting 3/8-16
3 179466 Pulley, Engine
5 181701 Cover, Engine, with Screen
6 174274 Knob, Engine Cover
7 174030 Stud, Engine Cover
8 169821X479 Handle, Lower
9 150078 Screw, Hex Washer Head 5/16-18 x .75
10 169797X479 Handle, Upper
11 131959 Bolt, Handle
12 136376 Knob, Handle
16 179585 Guide, Rope
18 66426 Wire Tire
19 176983 Control Bar
20 174934 Throttle Control
21 158755 Screw, Hex Washer Head
22 169787 Axle Shaft Assembly
23 150078 Screw, Hex Washer Head 5/16-18 x .75
24 174751 Washer, Axle
26 174721 Wheel, 10 x 1.75
27 83923 Hex Flange Locknut 3/8-16
28 161699 Drive Control
29 174034 Decal, Warning
30 174723 Decal, Engine Cover
31 172221X479 Bracket, Axle Support
33 132004 Nut
34 86899X004 Bracket, Upstop
35 750634 Screw, Thd. Roll. #10-24 x 1/2
36 851084 Bolt, Hex Head
37 850263 Washer, Lock
38 851074 Washer, Flat, Hardened
39 57143 Washer, Wave
- - 177817 Operator's Manual
- - 182808 Repair Parts Manual
Model Number LEV115
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
3

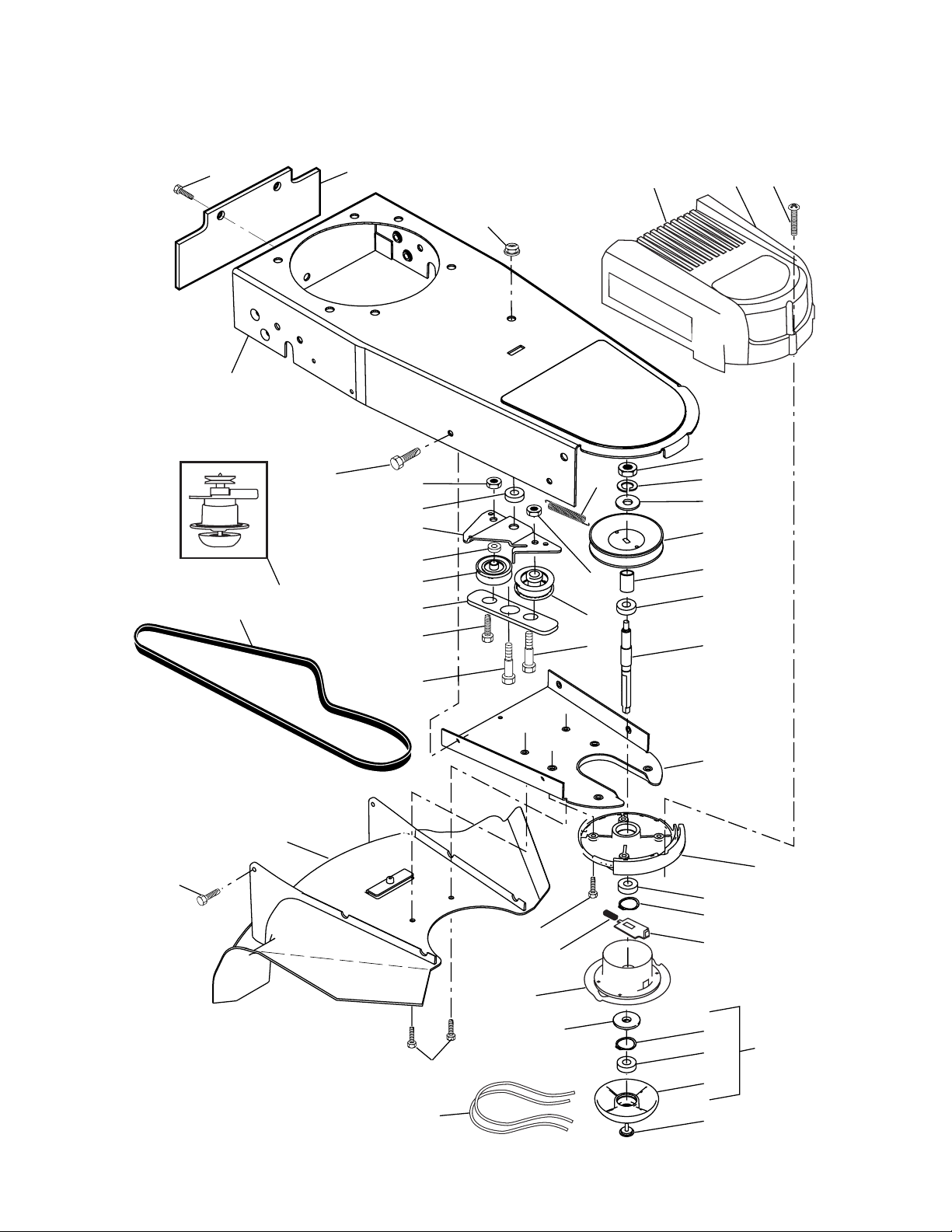

WEEDTRIMMER - - MODEL NUMBER WT4000E
52
1
4
40
17
51
8
12
5
41
6
45
7
14
15
11
9
10
20
47
22
23
24
25
26
27*
28
21
18
16
13
46
2
34
3
32
36
29
27
31
33
37
27
38
39
30*
35
4
WEEDTRIMMER - - MODEL NUMBER WT4000E
KEY PART
NO. NO. DESCRIPTION
1 174024X550 Chassis Assembly
2 174040 Line, Trimmer .155 diameter x 18.75 long
3 150078 Screw, Self-Tapping 5/16-18 x 1
4 169790 V-Belt
5 172145X004 Bracket, Idler
6 166042 Pulley, Idler, V-Groove
7 173716 Bolt, Hex Head 3/8-16 x 1.25
8 751592 Locknut, Hex 3/8-16
9 166043 Pulley, Idler, Flat
10 160829 Bolt, Shoulder
11 155552 Locknut 5/16-18
12 173717 Spacer
13 174719 Bolt, Shoulder
14 145212 Locknut, Flange
15 173811 Spring, Return
16 180268 Deflector, Bottom
17 57808 Screw 1/4-20 x 1/2
18 178848 Screw #10
20 169764 Cover, Chassis, Top
21 149746 Screw #10-24 x 1-3/4
22 STD541137 Nut, Hex 3/8-24 UNF
23 STD551137 Washer, Lock 3/8
24 STD551037 Washer, Flat 3/8
25 180340 Pulley, Driven
26 172551 Spacer, Pulley
27 174549 Bearing
28 172520 Jackshaft
29 169766X479 Cover, Chassis, Bottom
30 174543 Spindle Housing Assembly
31 174581 Ring, Retaining, External, 17mm
32 176973 Spring, Locking Plate
33 172519 Locking Plate
34 180338 Carrier Plate Assembly
35 182217 Mow Ball Assembly
36 172516 Cover, Bearing
37 174580 Ring, Retaining, Internal, 40mm
38 172523 Mow Ball
39 180334 Bolt, Mow Ball
40 173619 Spindle Assembly, Complete
41 174029 Spacer
45 174596X479 Belt Keeper, Bottom
46 17060408 Screw, Self-Tapping
47 174036 Decal, Instruction
51 179875 Deflector, Rear
52 178848 Screw #10
(* Includes Upper Bearing, Key Number 27)
(Includes Key Numbers 27, 37 and 38)
(Includes Key Numbers 22-28 and 30-39)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
5
